13476

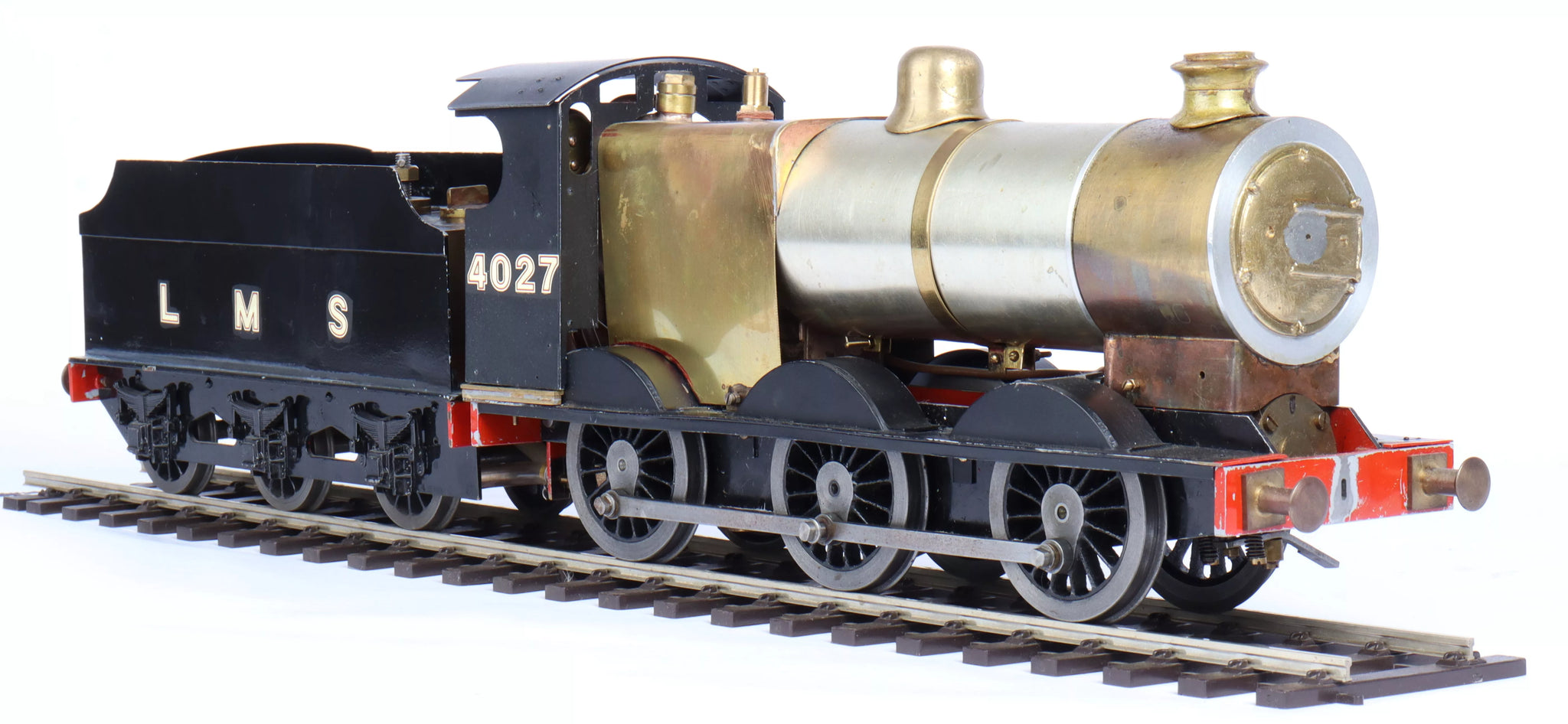

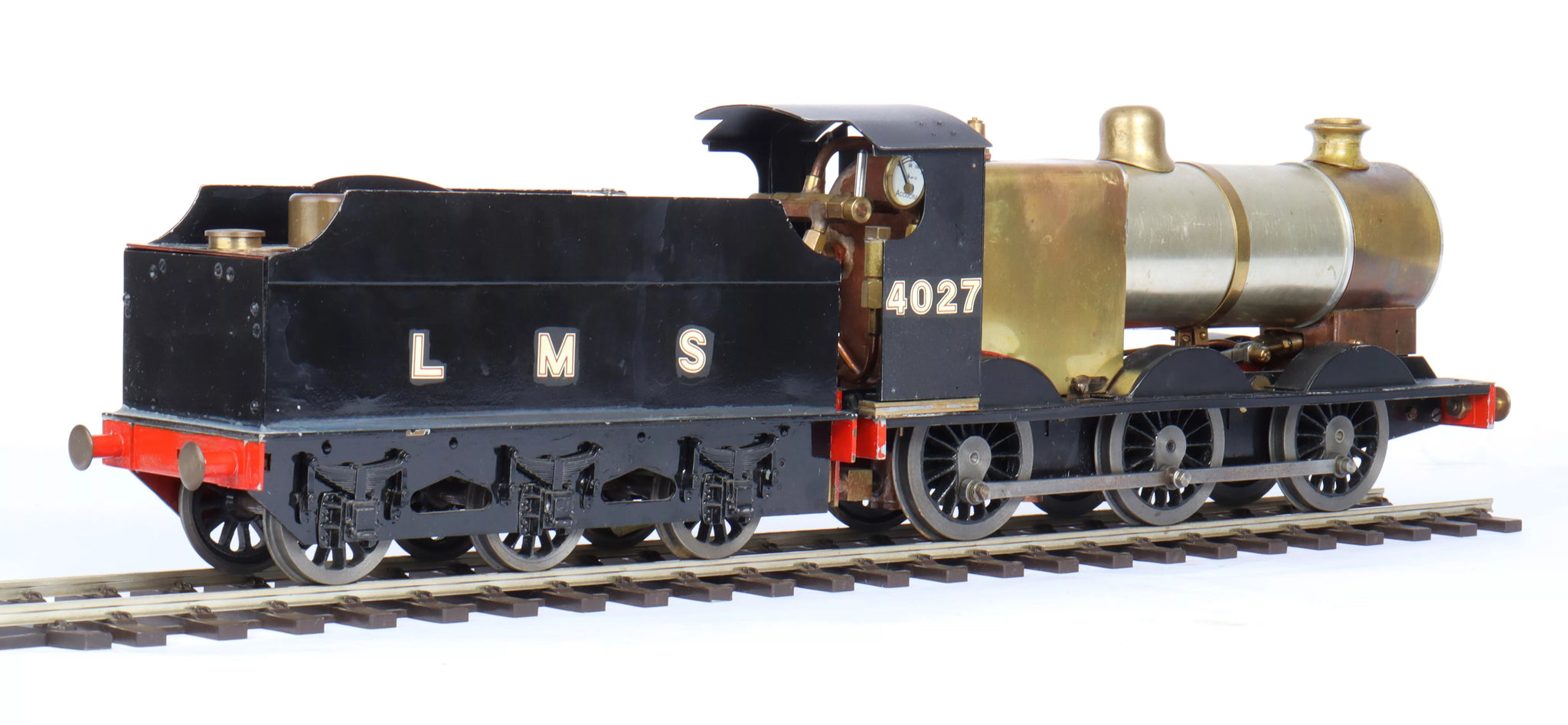

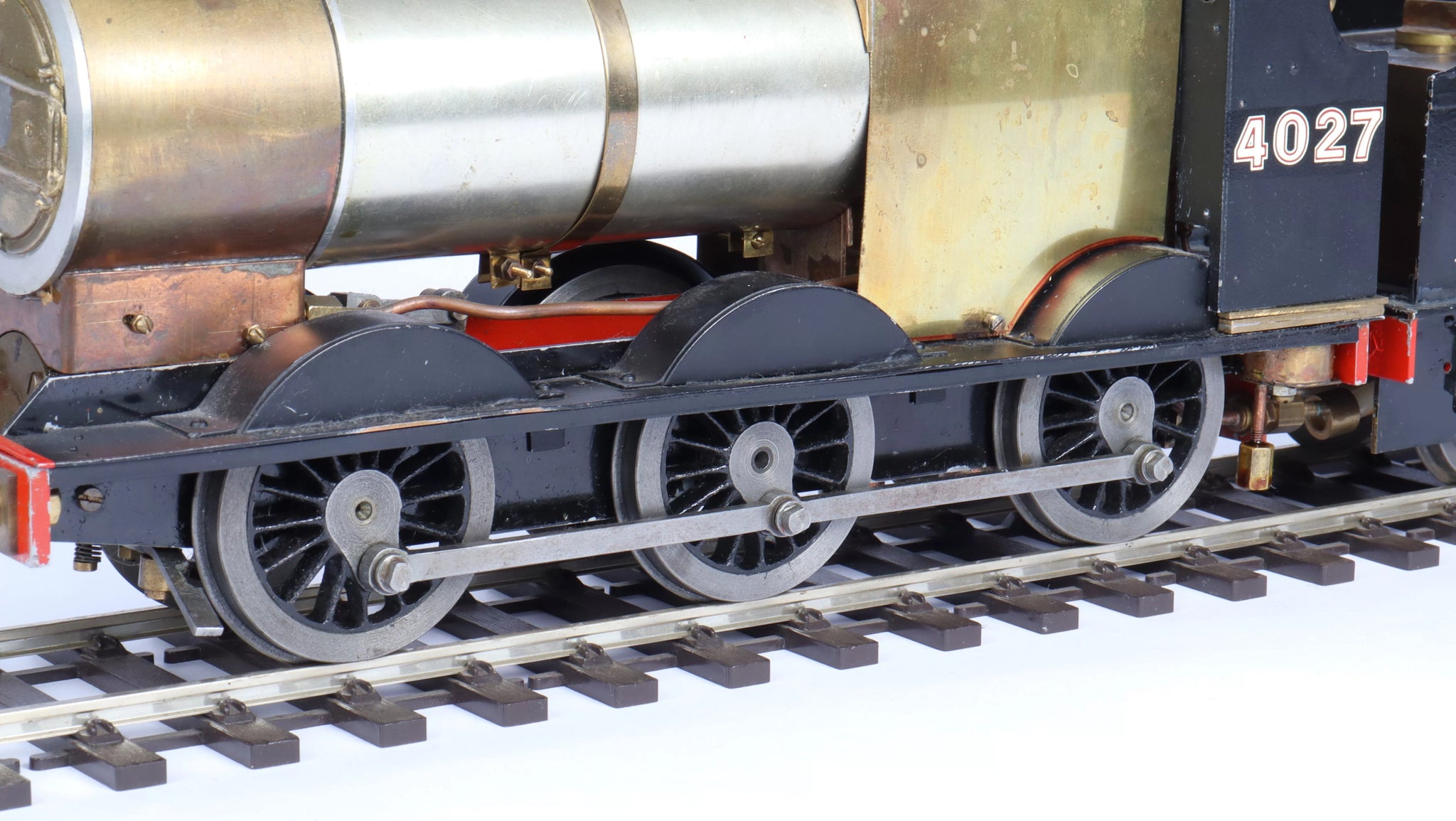

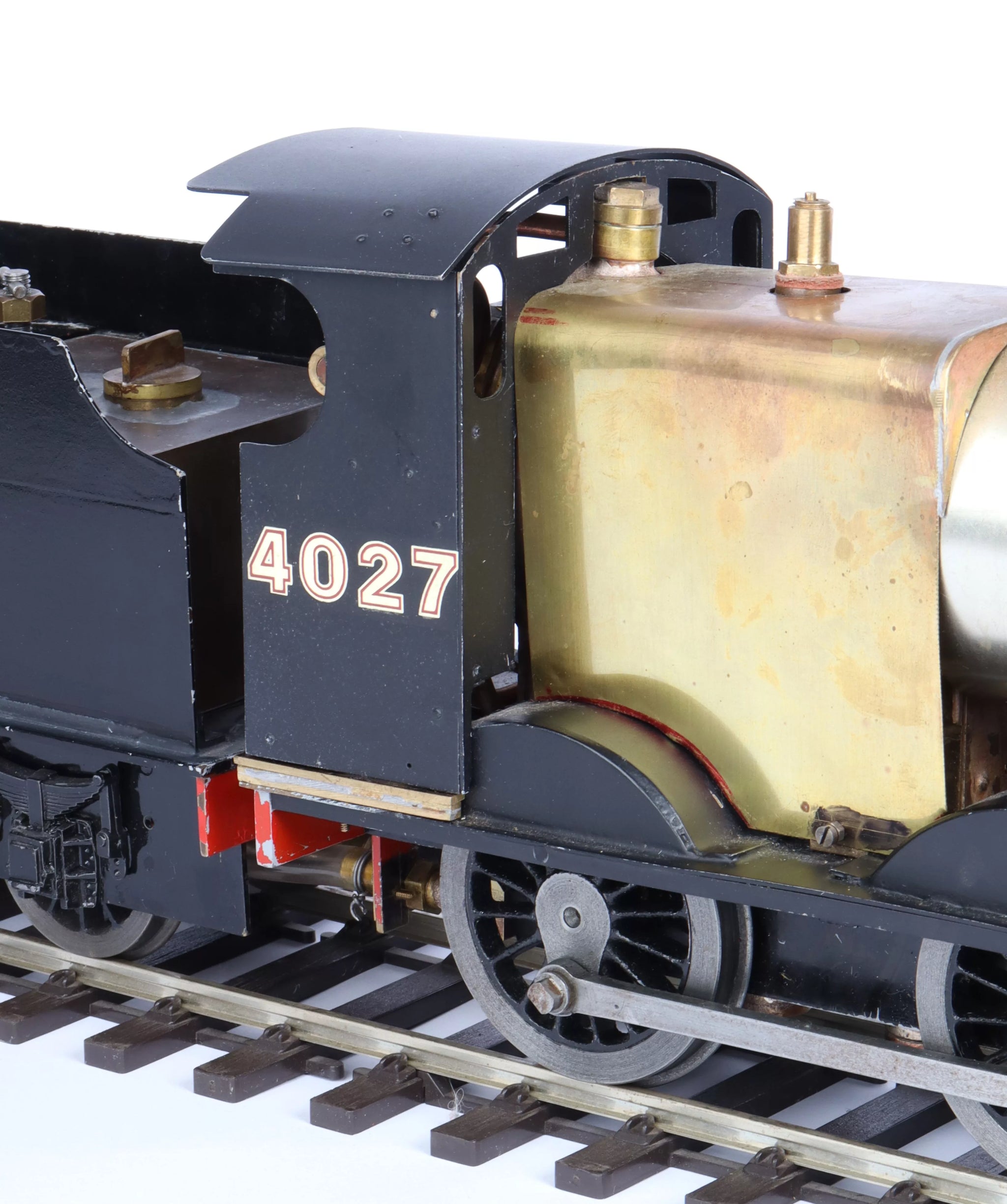

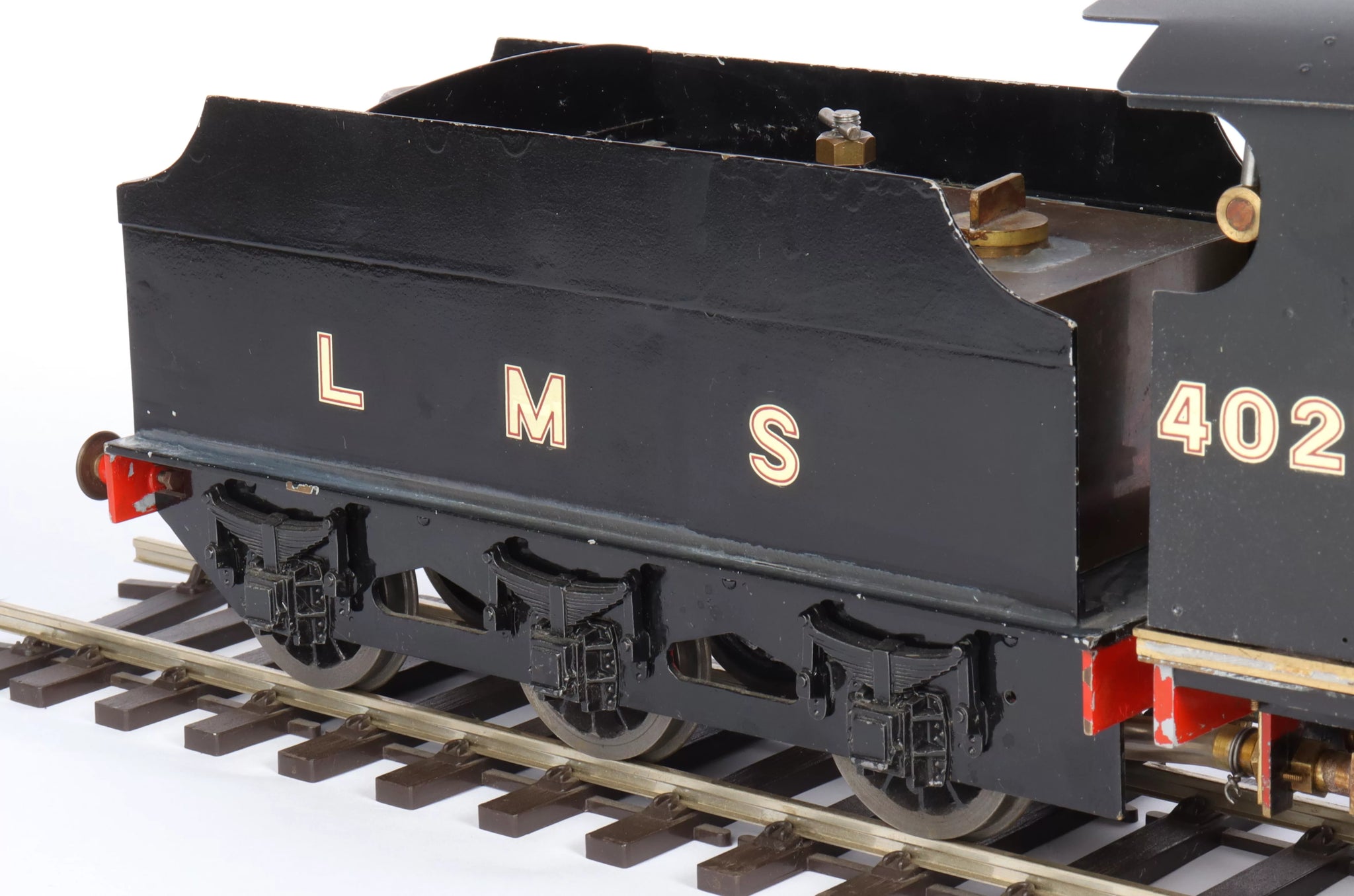

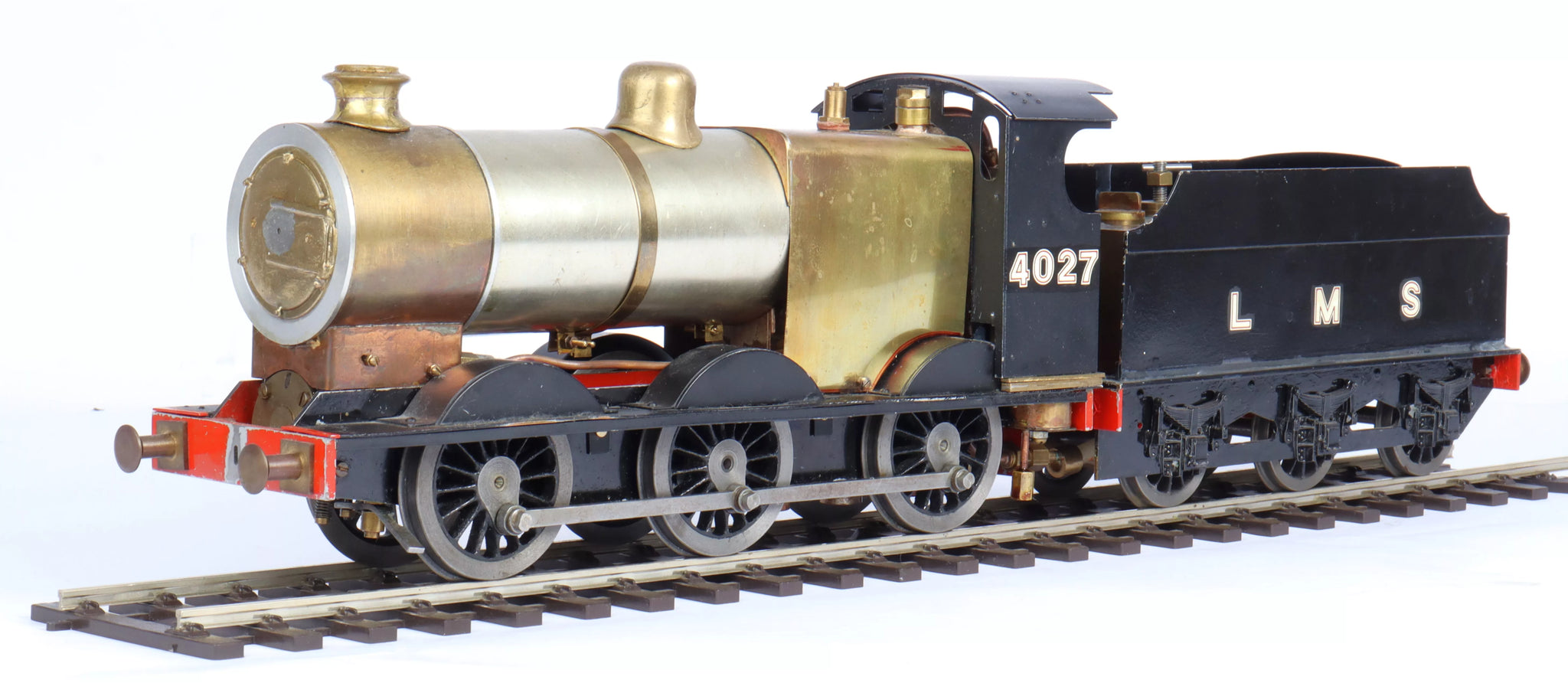

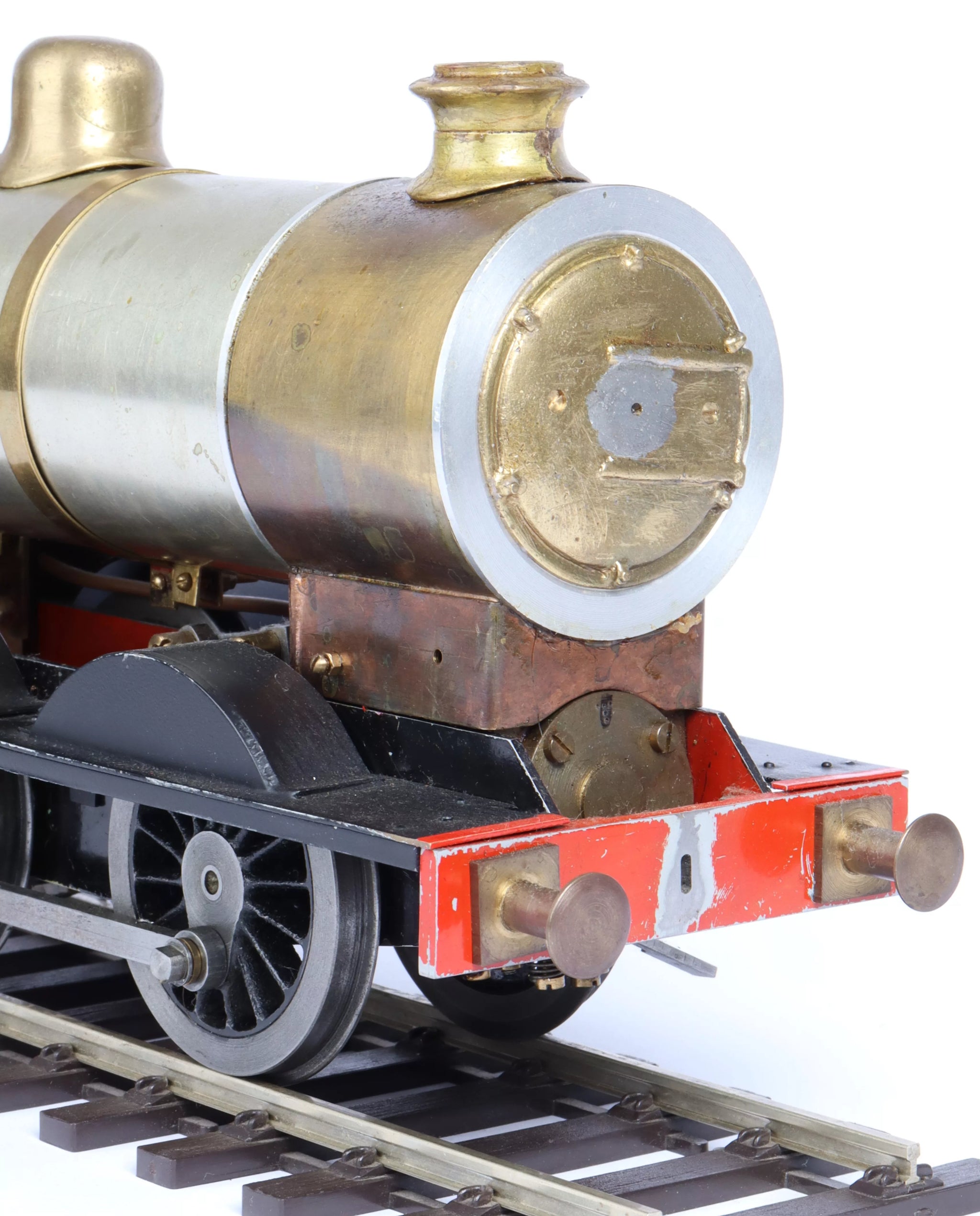

A 45mm gauge LMS 4F to the well-regarded "Project" design.

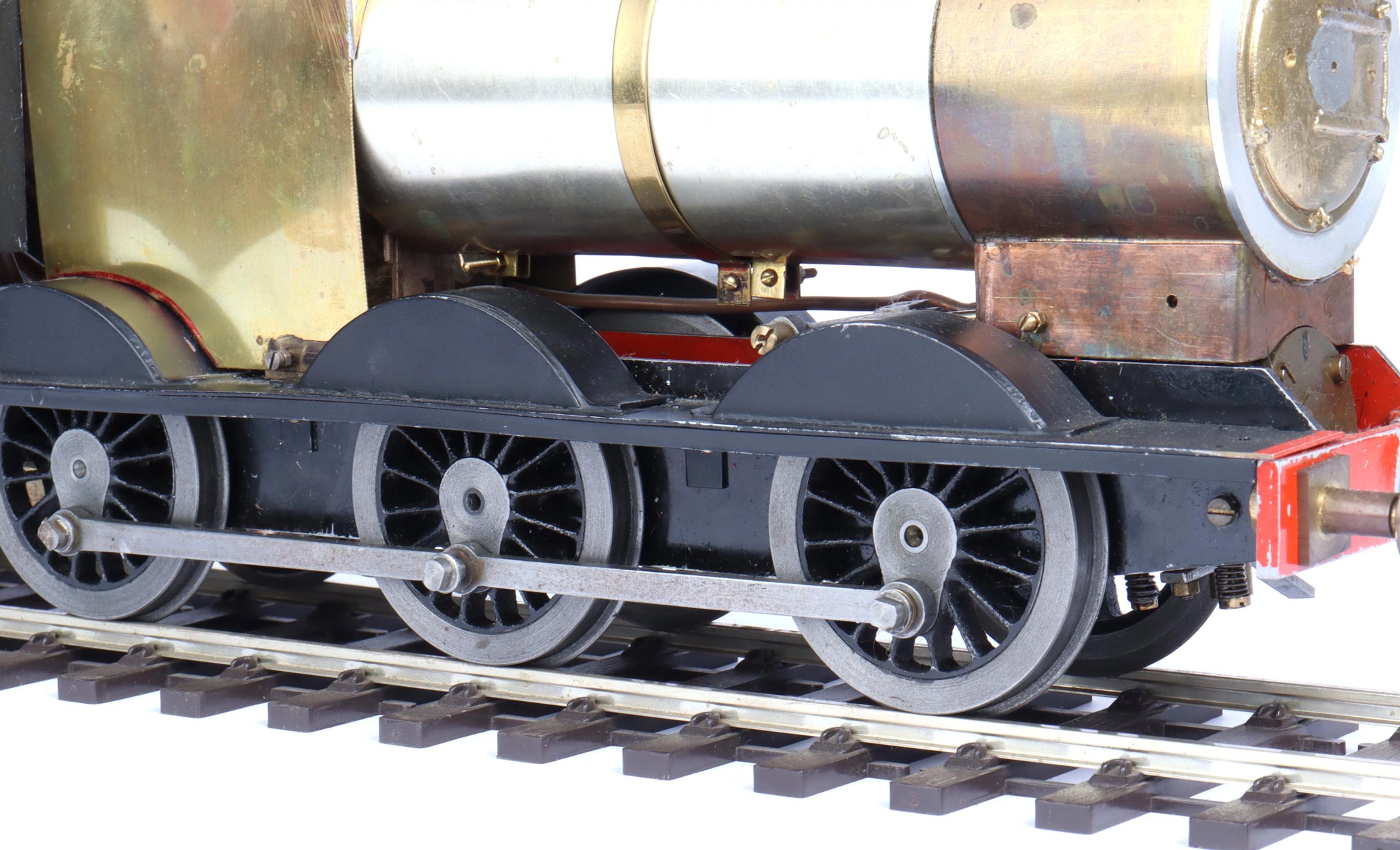

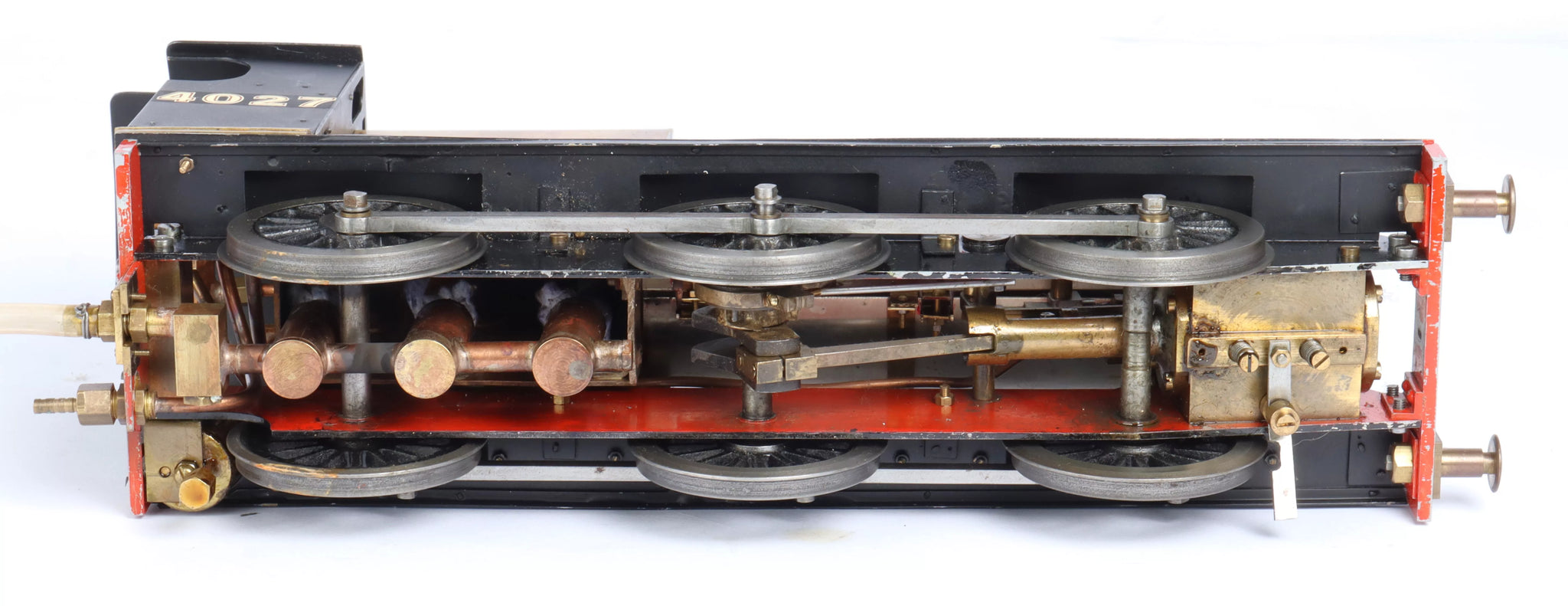

The boiler proved sound on hydraulic test in the morning and steam was raised quickly later in the day; however, the steam goes straight up the chimney without any sign of life from the chassis, and the safety valve refused to blow off, which brought play to an early close.
Work to date looks competent, but something of a fixer-upper.
Stock code |
13476 |
Gauge |
45mm |
Length/inches |
12 + 9 |
Width/inches |
3 1/2 |
Height/inches |
5 1/2 |
Weight/Kg |
10 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Valve type |
slide |
Valve gear |
slip eccentric |
Boiler maker |
non-commercial |
Boiler type |
centre flue |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
60 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
unknown |
Safety valve type |
pop |
Safety valve |
1 |
Hand pump |
1 |
Hydraulic test valid to |
26/Jul/30 |
