13228

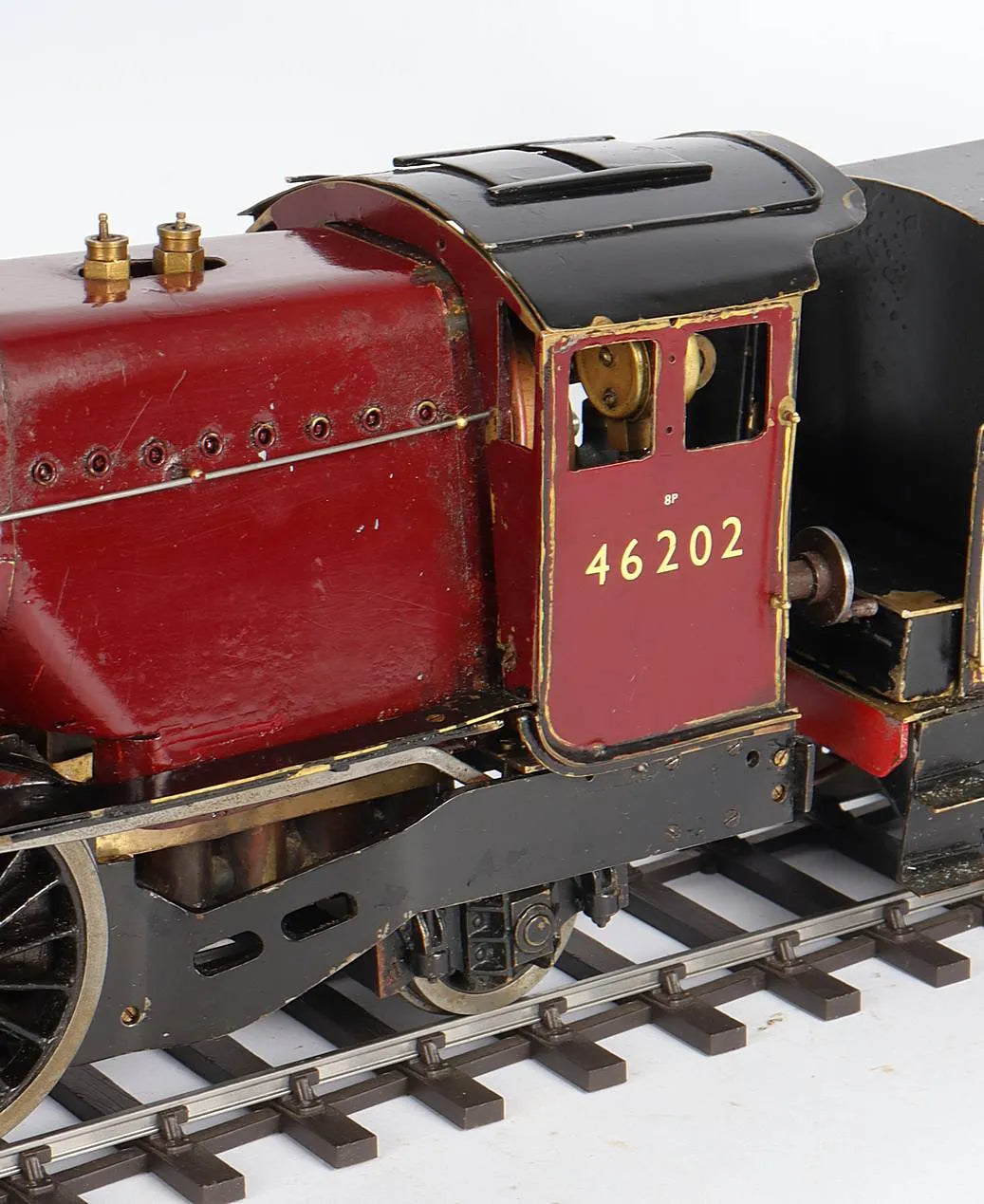

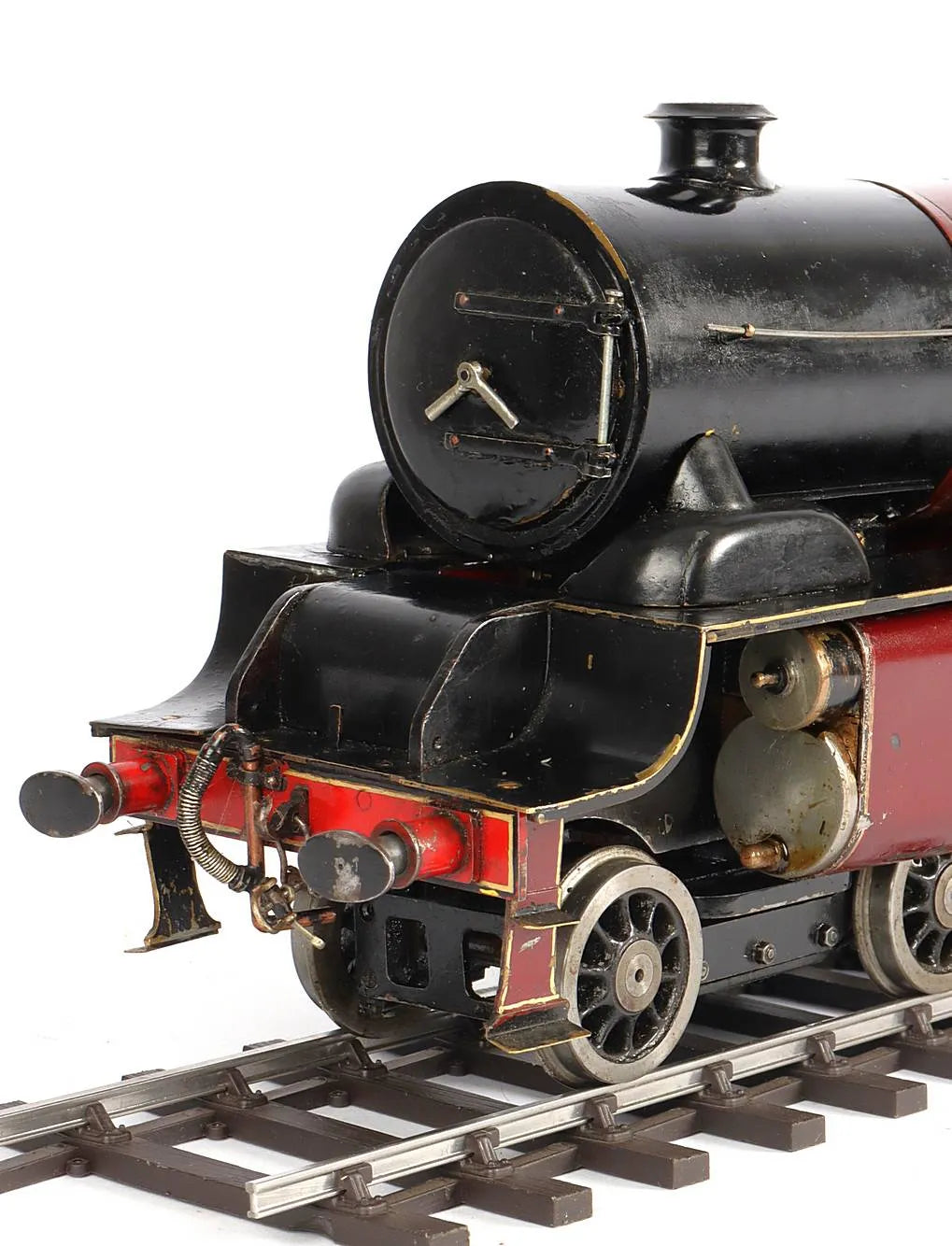

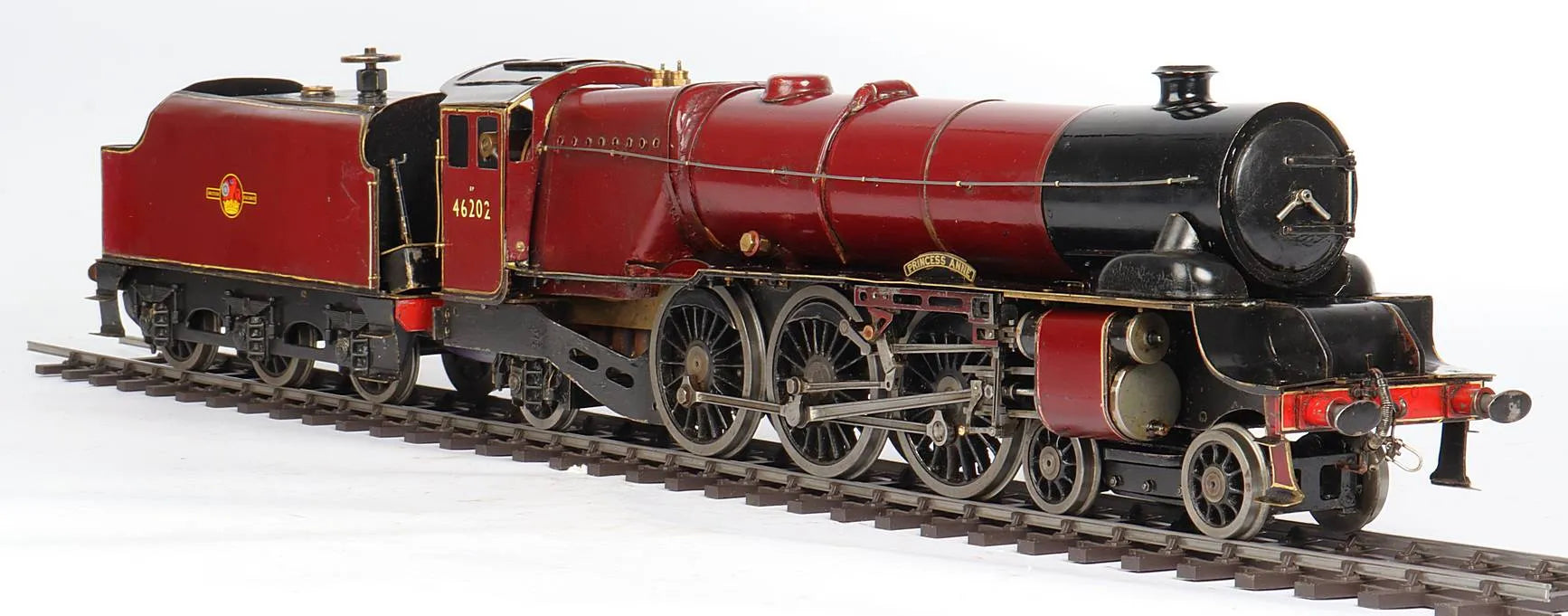

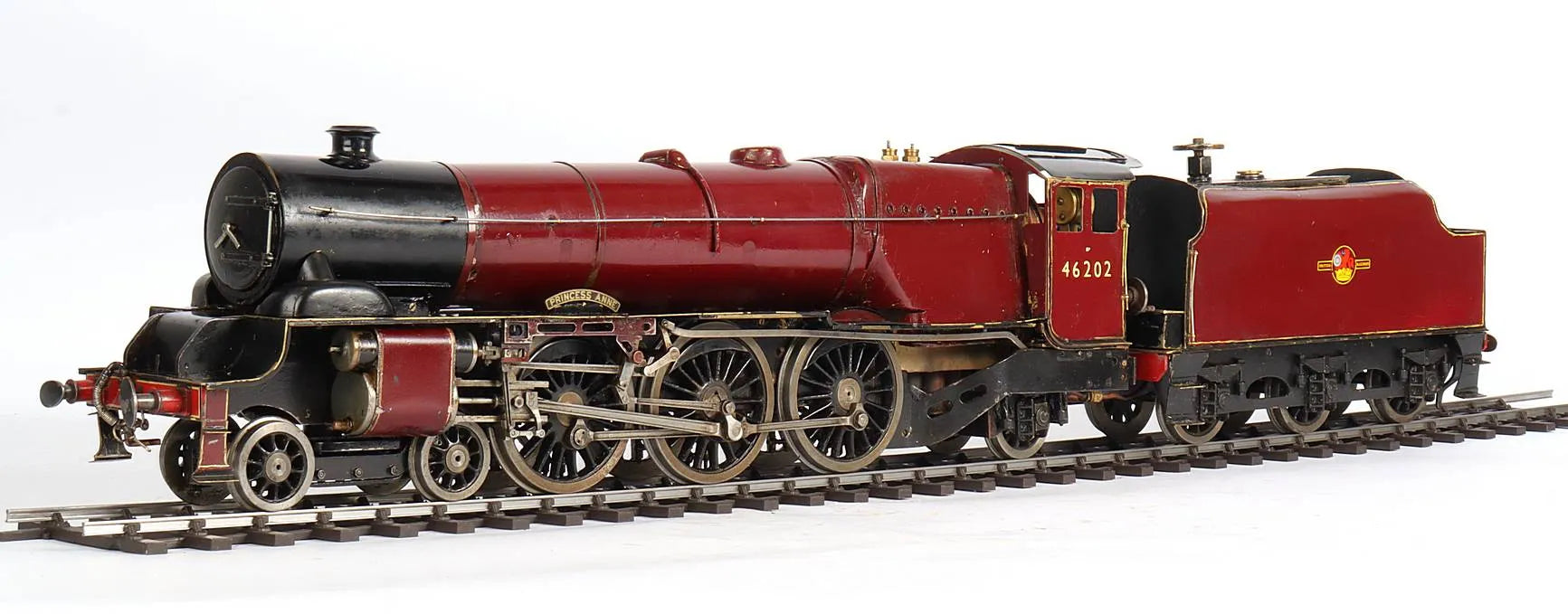

An older engine, with a rather nice vintage patina; the boiler - dating from 2012 - is a replacement centre flue type.

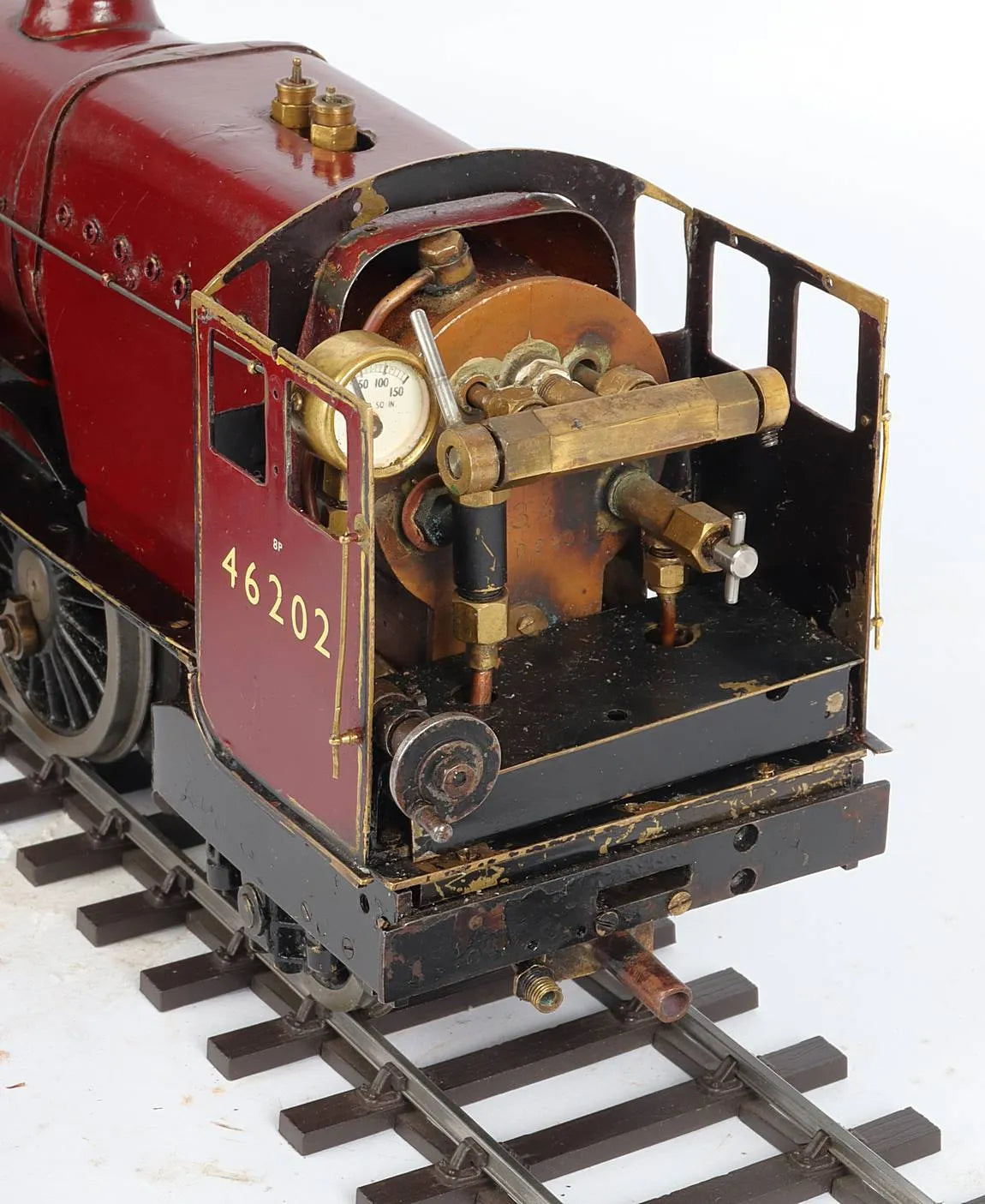

On test the engine ran well. Fitted with a new pressure gauge, the boiler has had hydraulic and steam tests with certification issued.

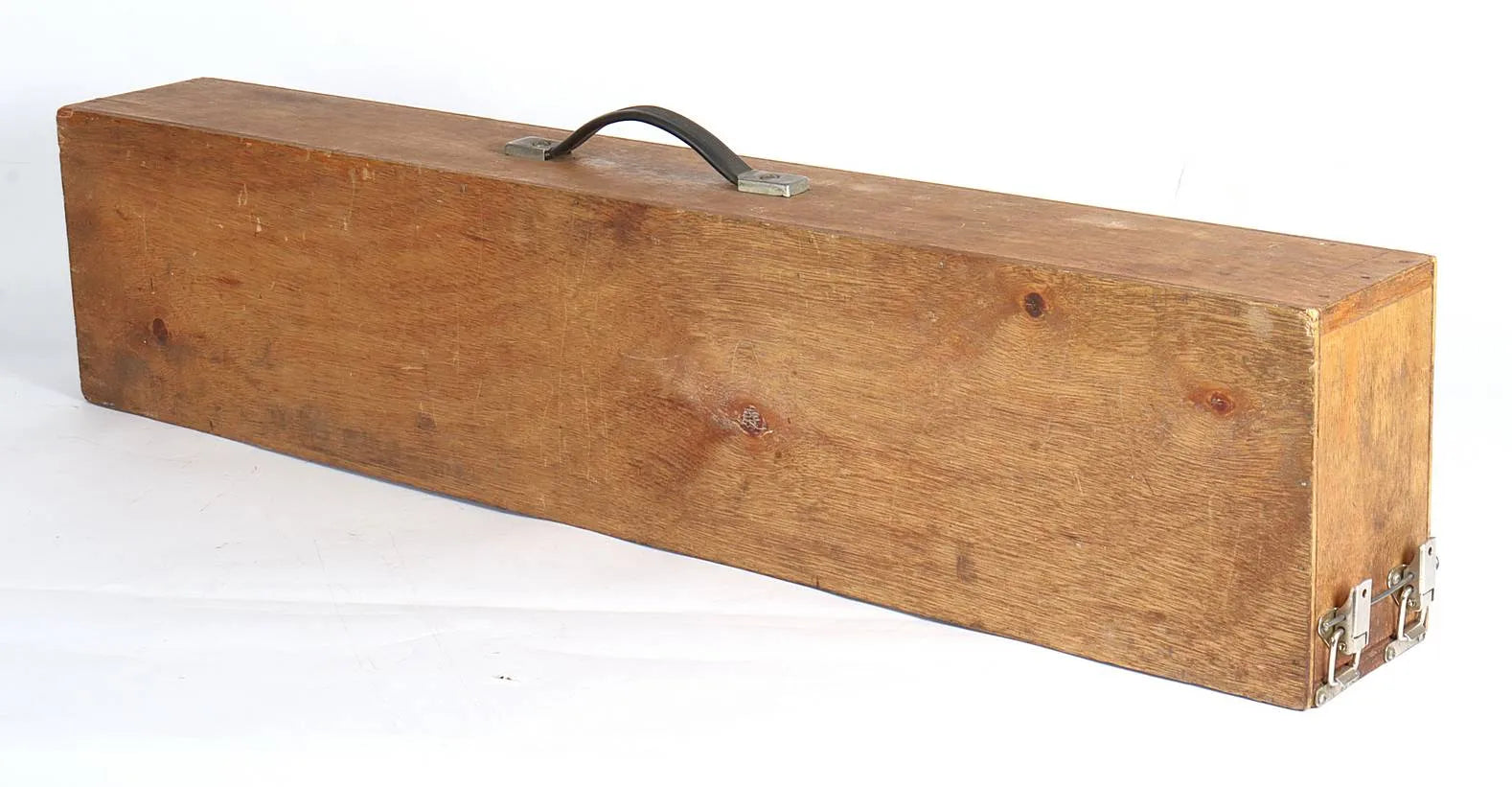

Complete with purpose-built transport box.
Stock code |
13228 |
Gauge |
45mm |
Length/inches |
20 + 11 |
Width/inches |
3.5 |
Height/inches |
5.5 |
Weight/Kg |
5 + 2.5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

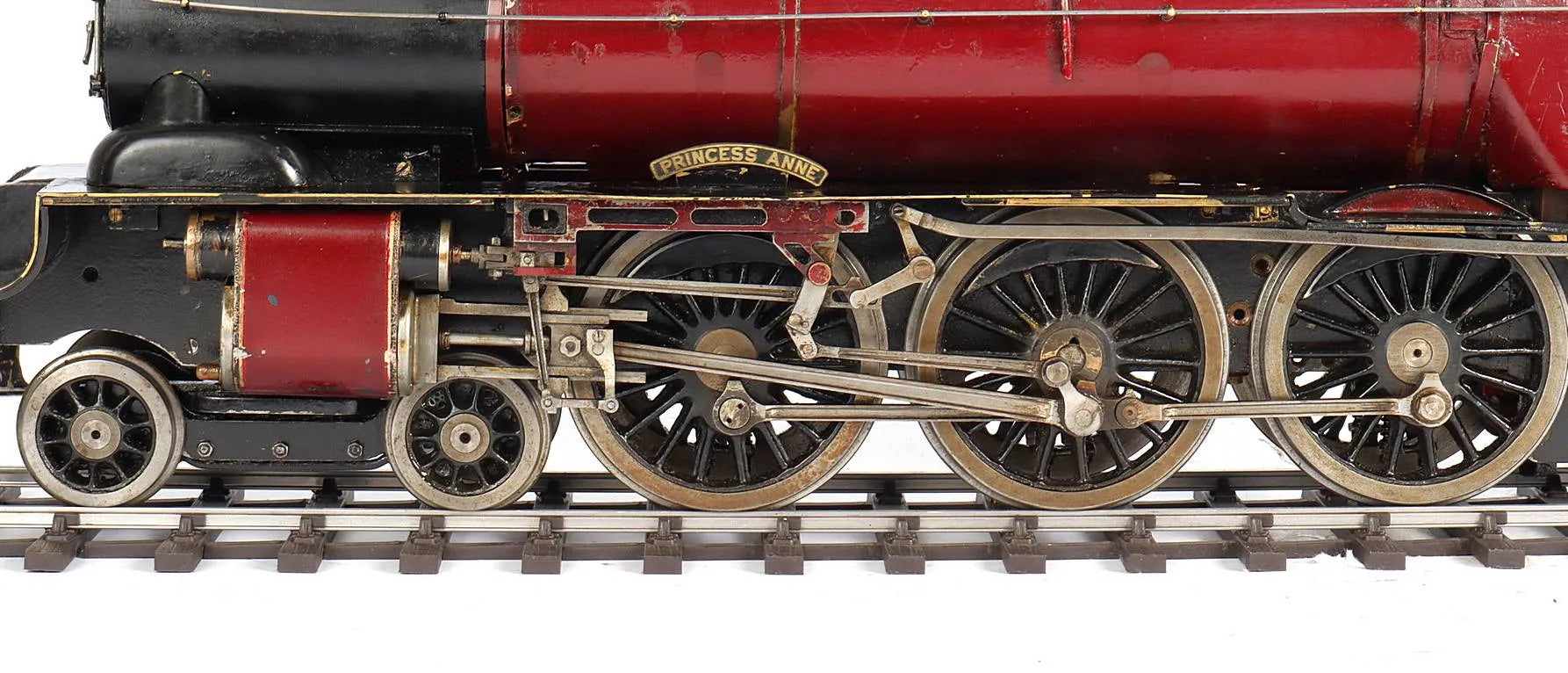

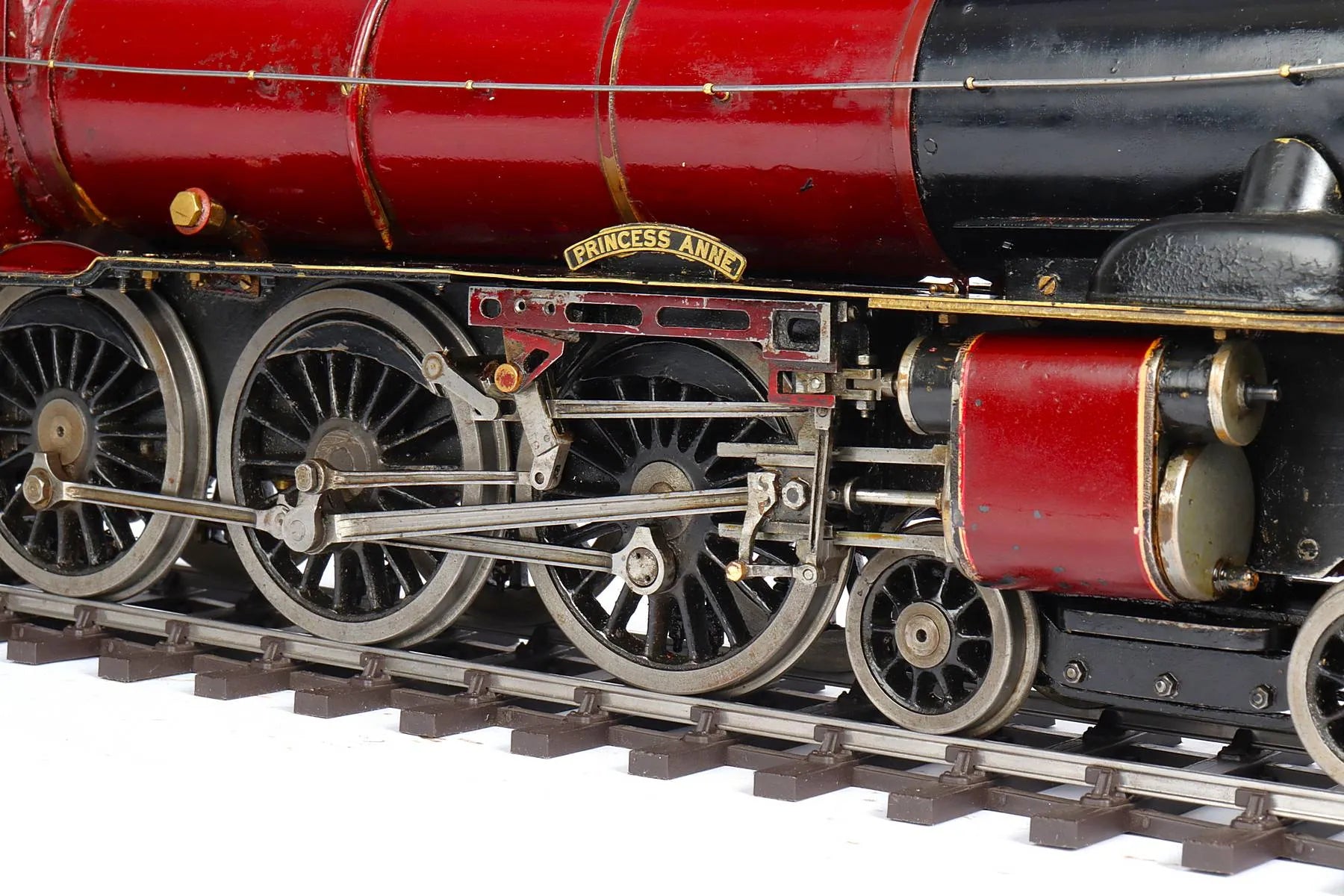

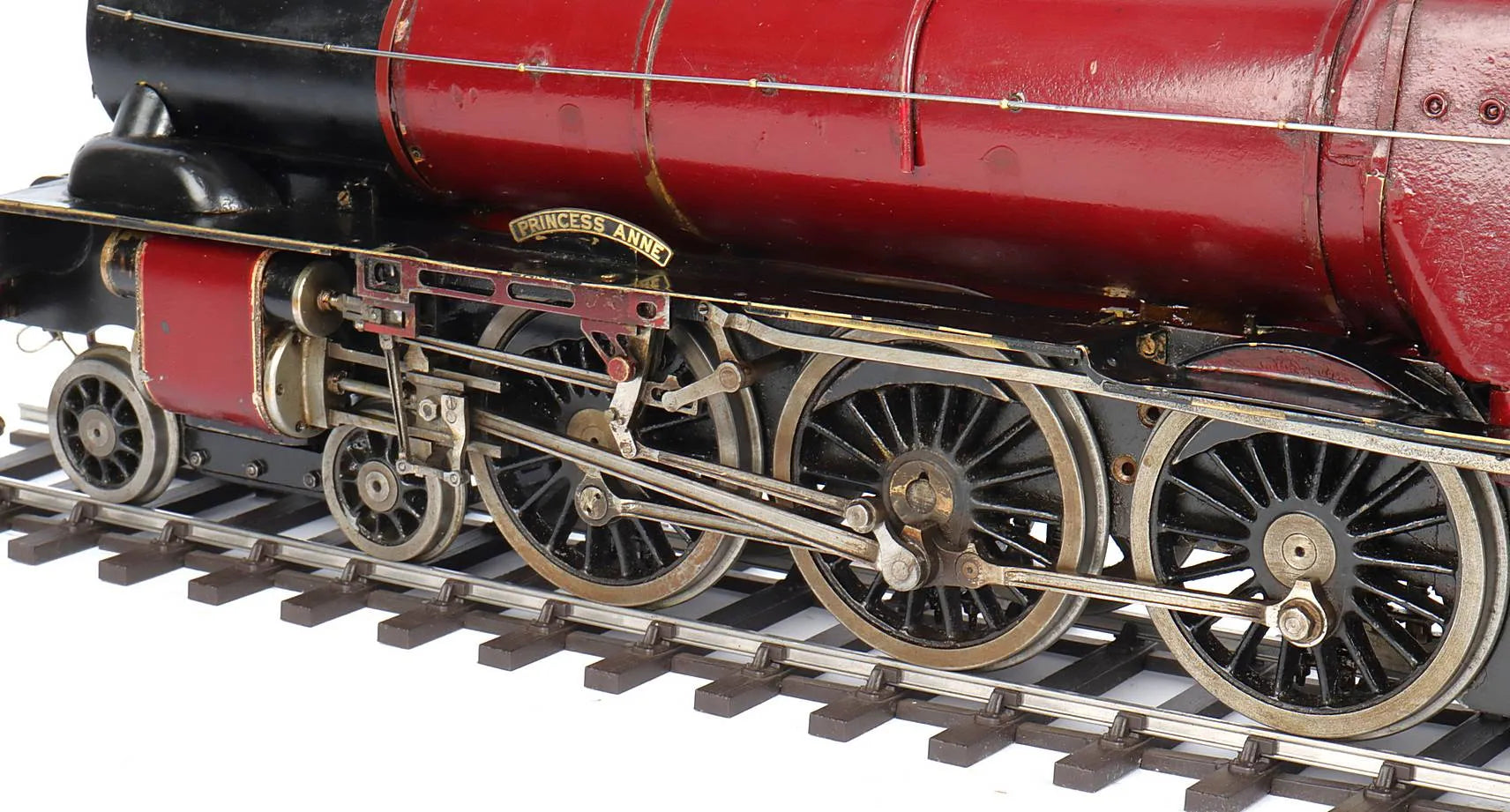

Valve gear |
Walschaerts |
Reverser type |
screw |
Boiler type |
centre flue |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
60 |
CE/UKCA mark |
n/a - <2 litre capacity |
Year built |
2012 |
Boiler number |
134 |
Safety valve type |
spring |
Safety valve |
2 |
Hand pump |
1 |
Hydraulic test valid to |
18-Jan-2030 |
Steam test valid to |
19-Mar-2027 |
