13456
My thanks to the eagle-eyed G1MRA membership secretary, who informed us shortly after the listing that this was produced by Cheddar, not Beck.

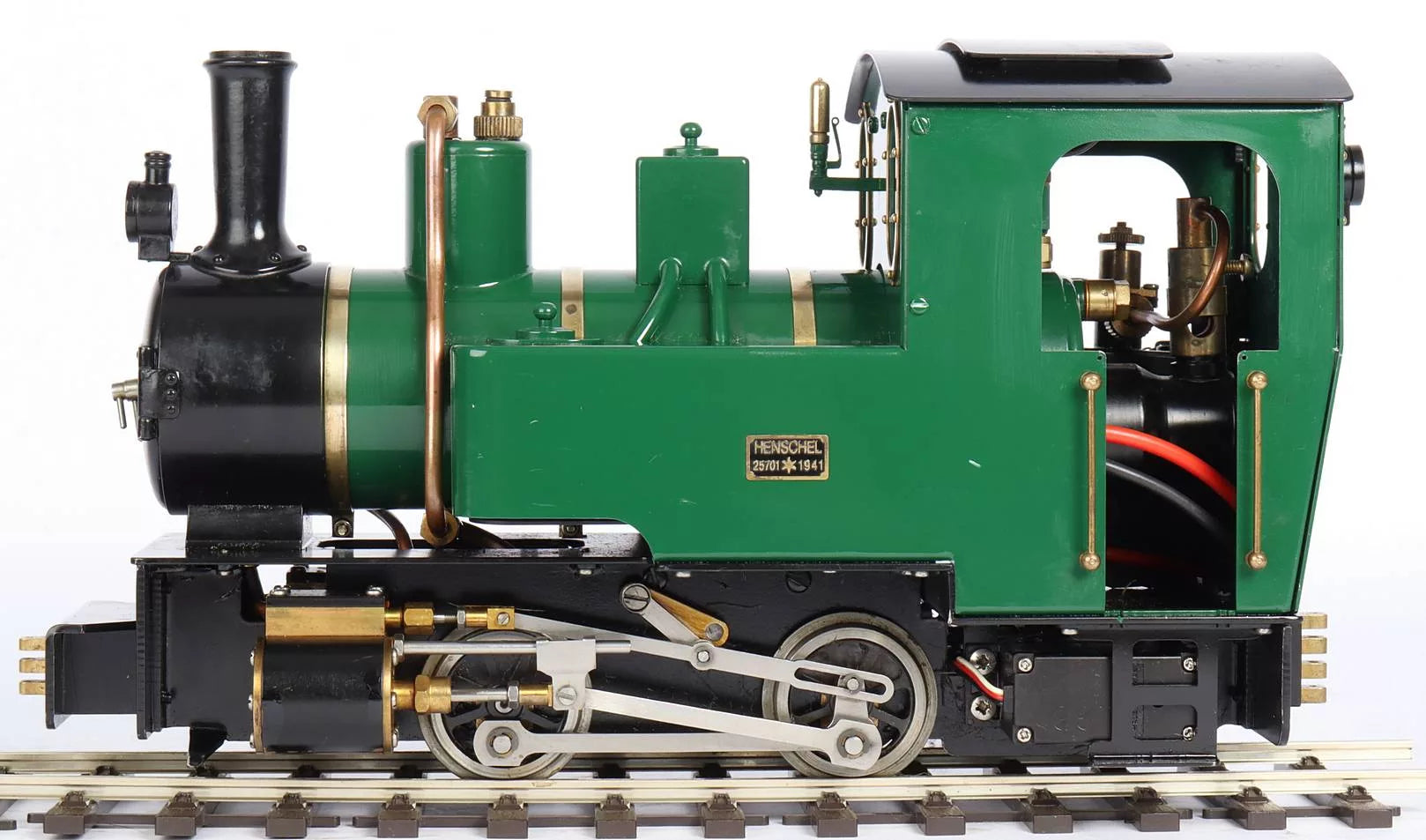

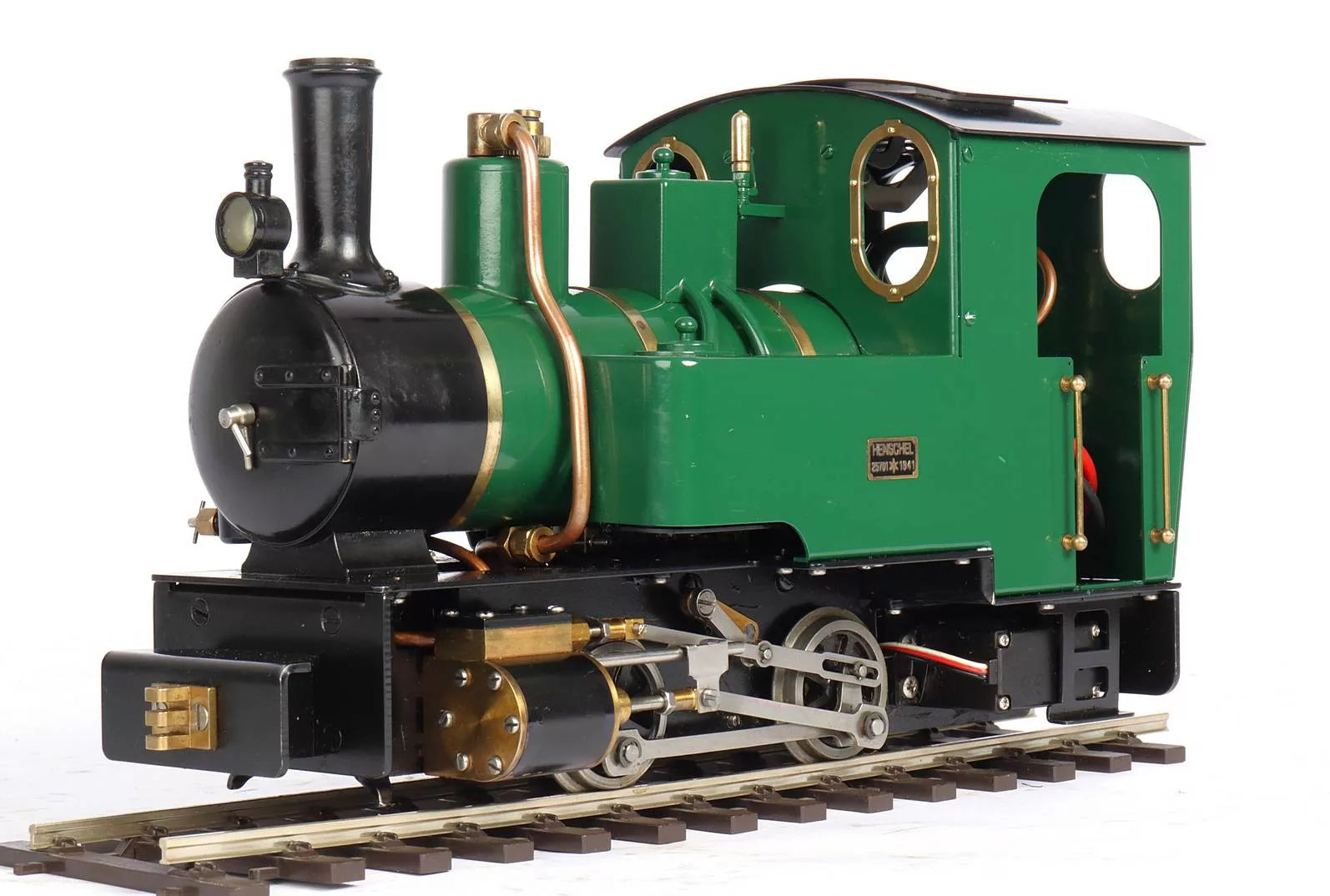

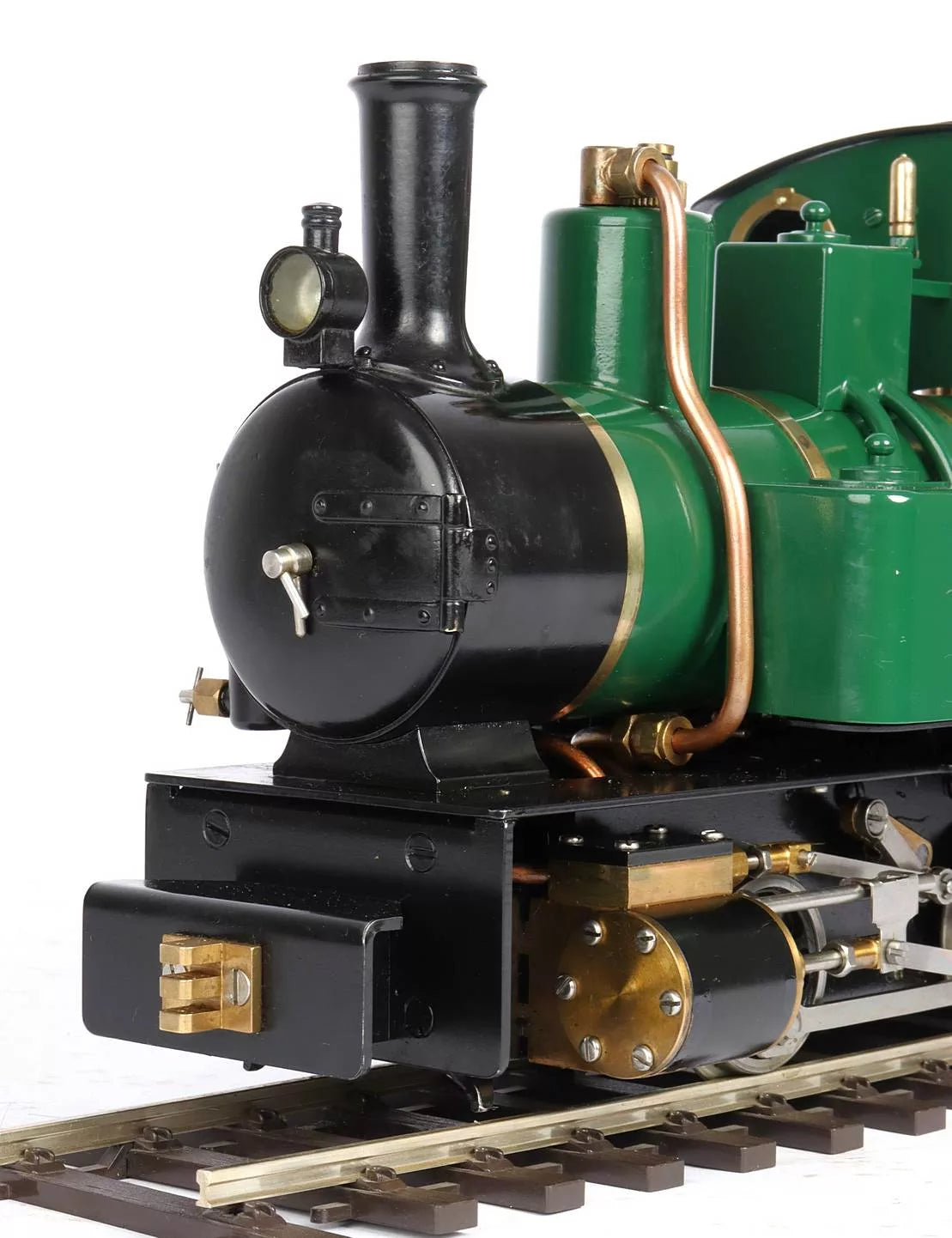

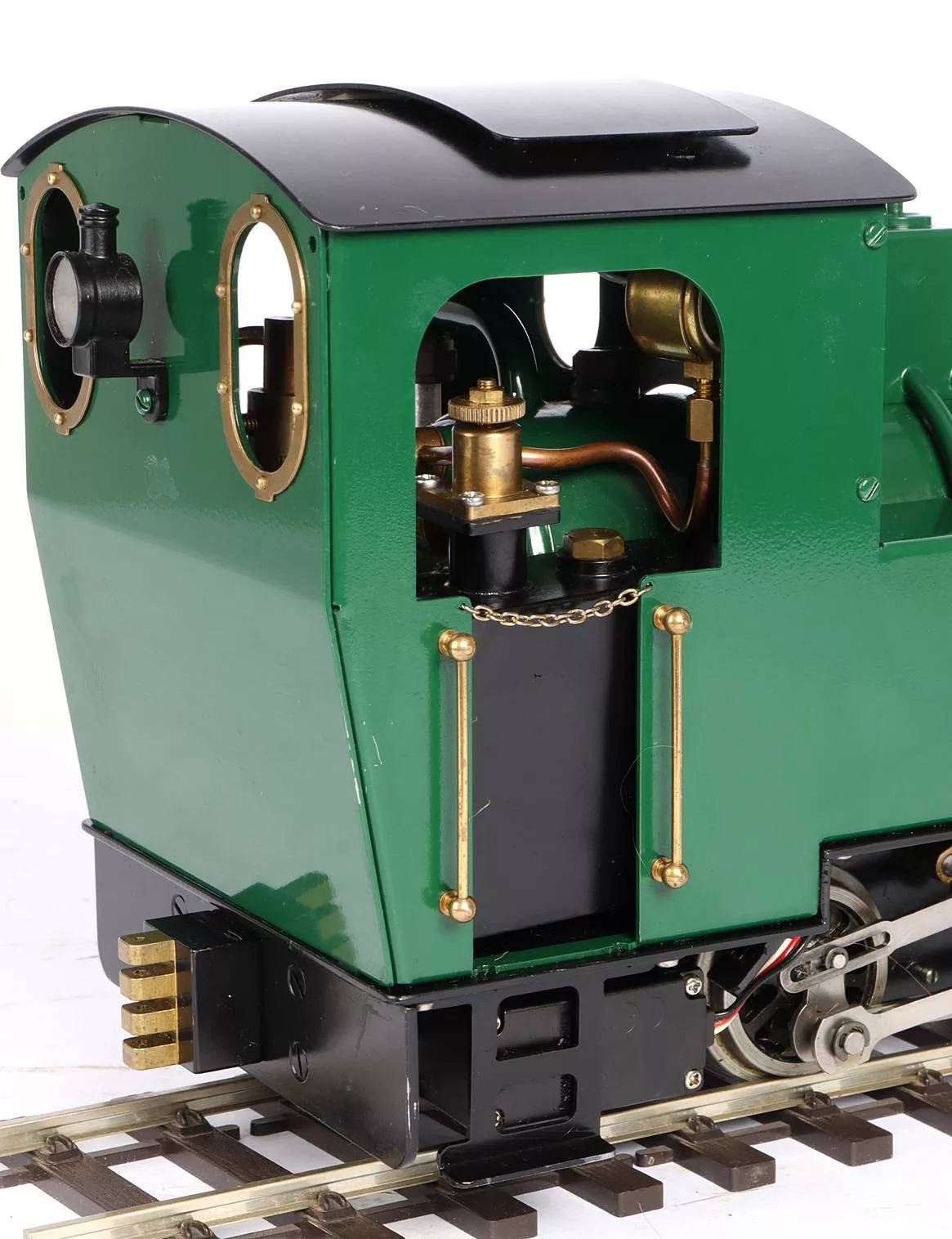

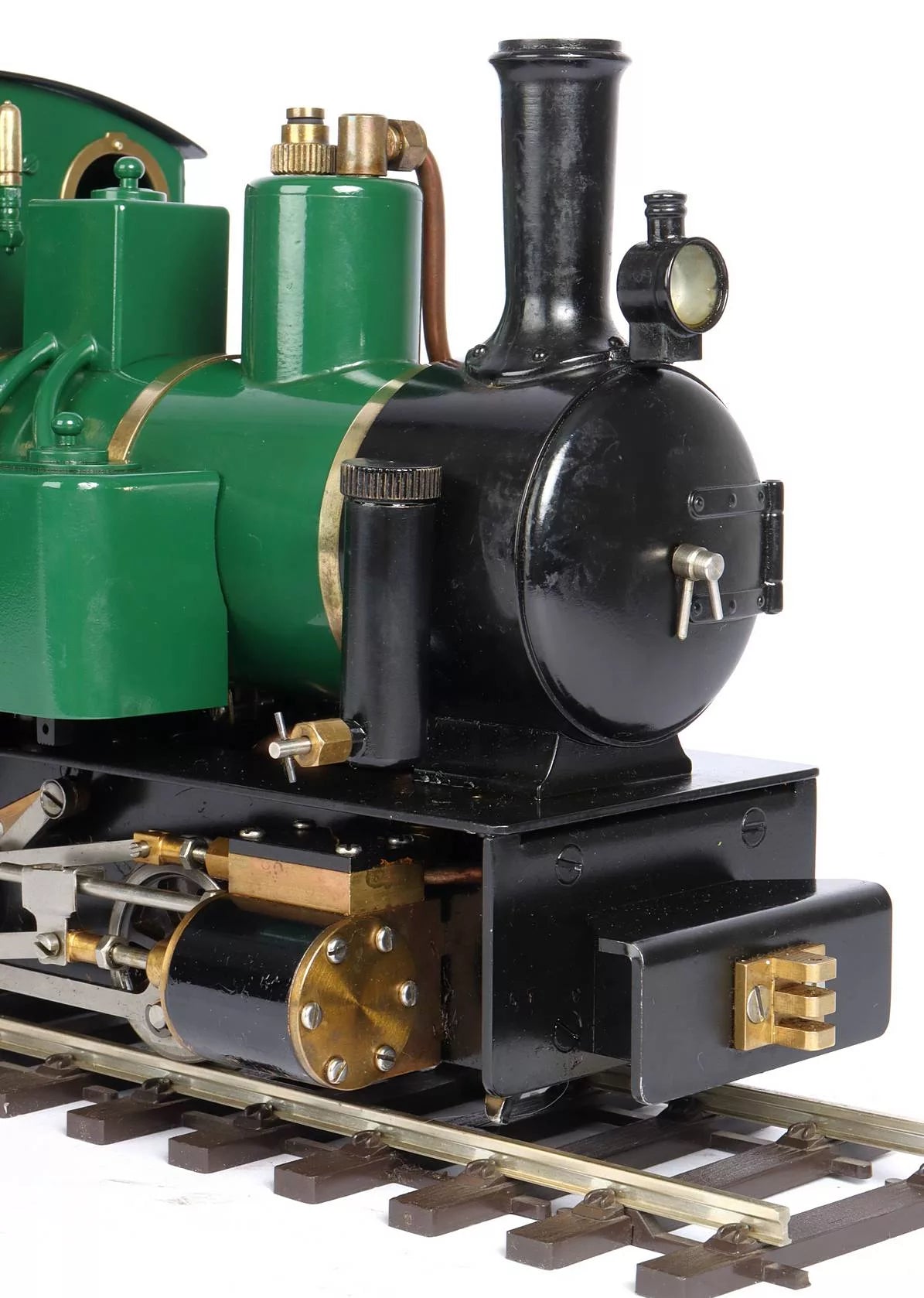

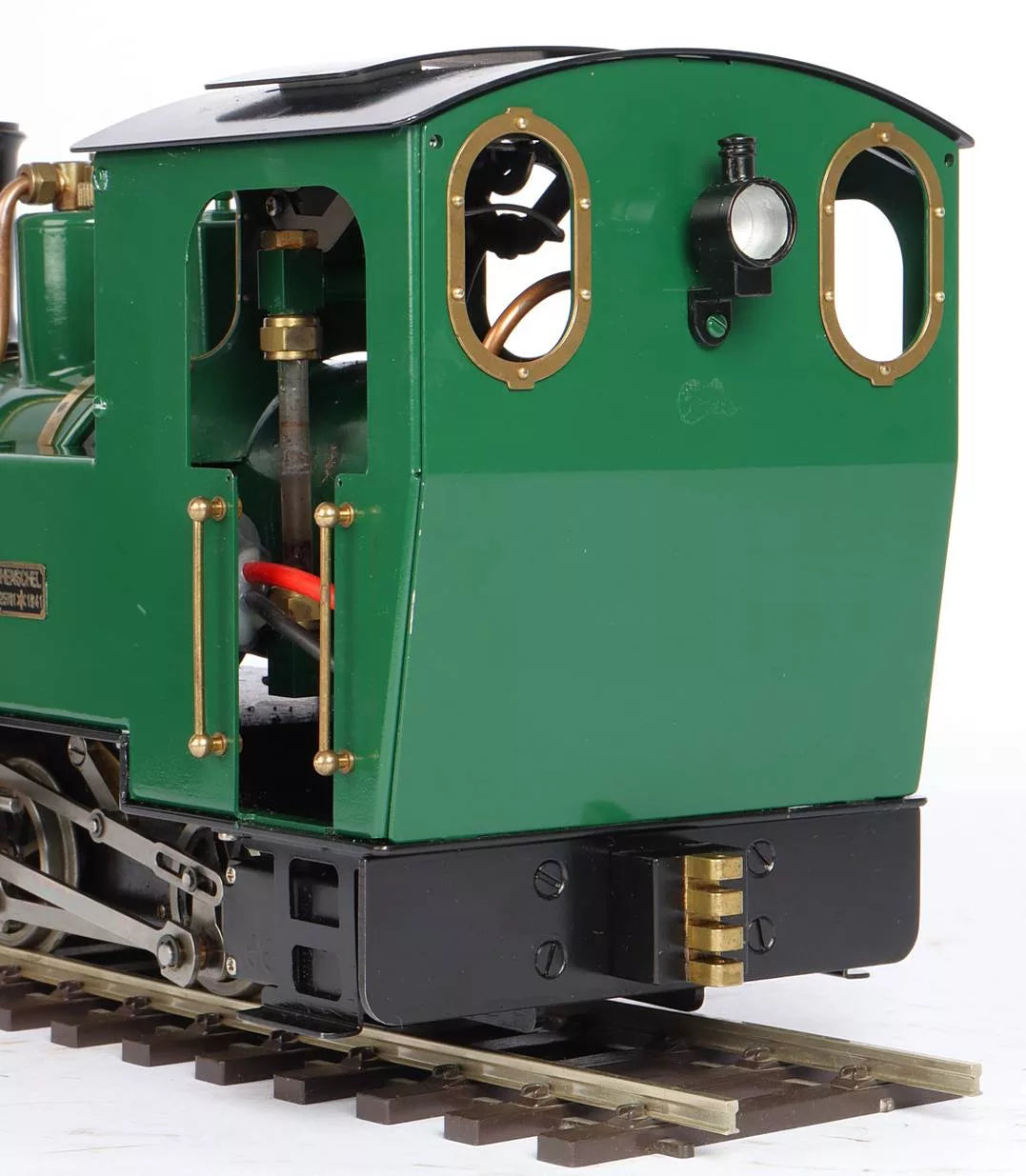

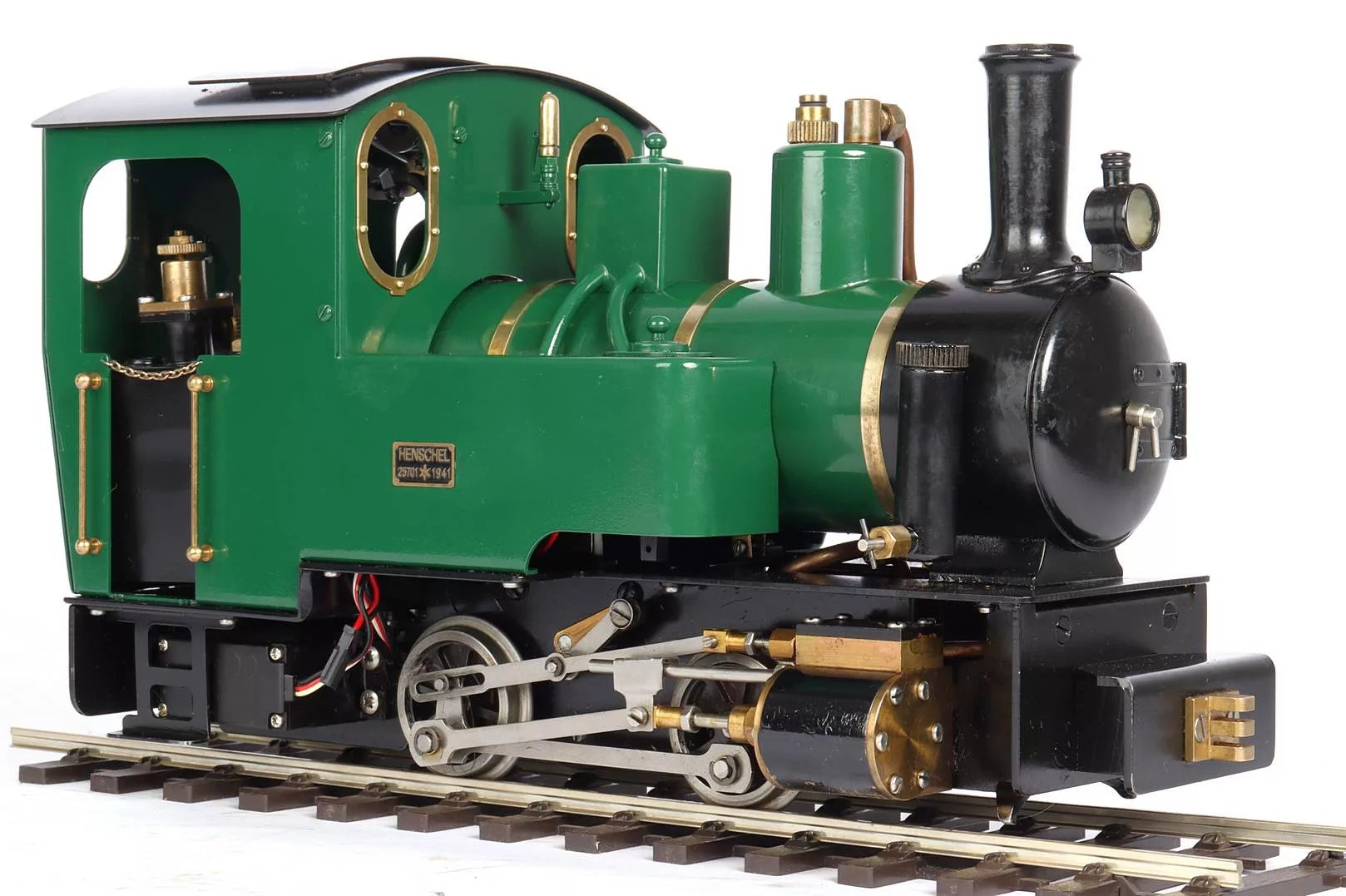

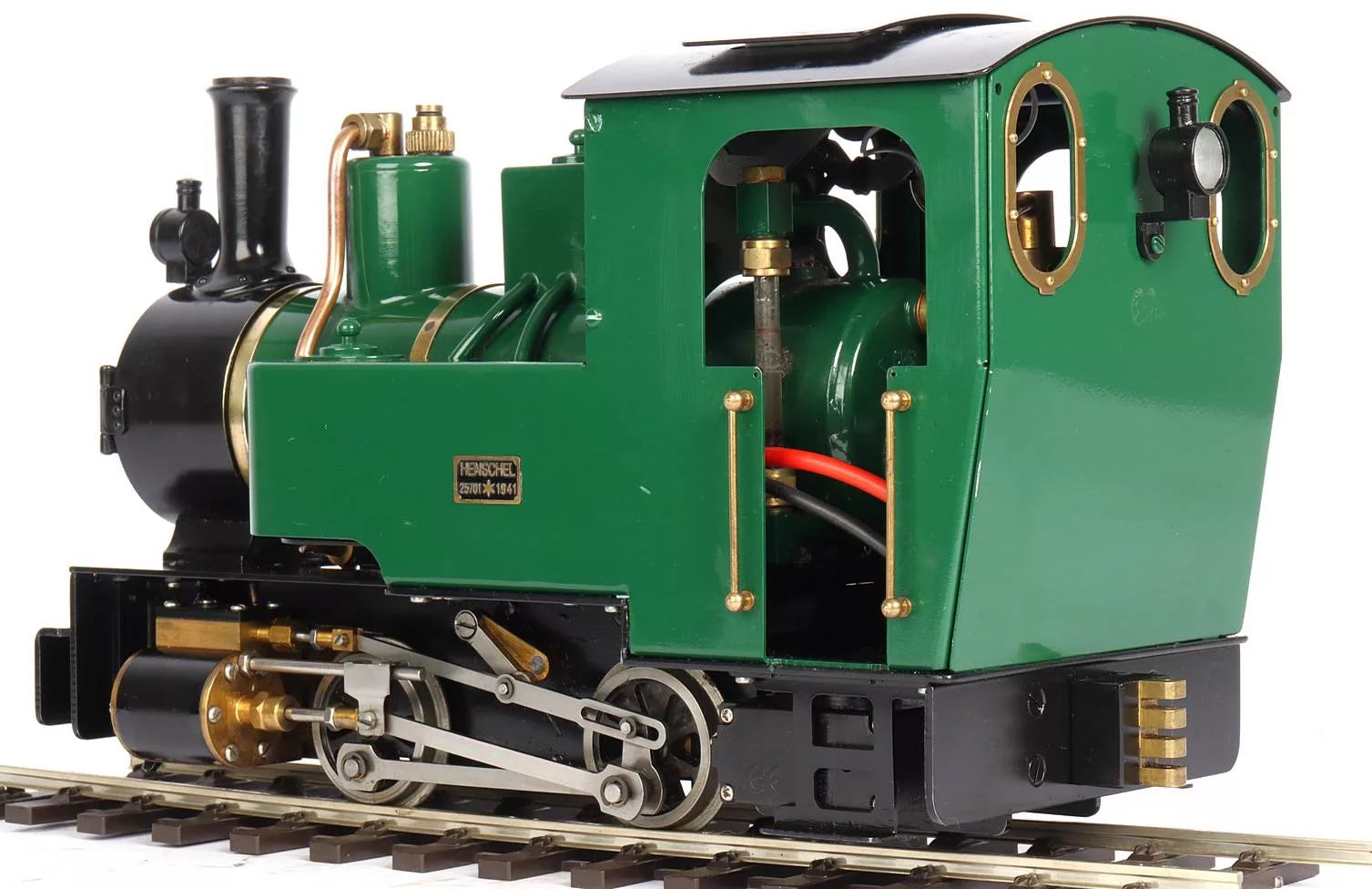

A 45mm narrow gauge gas-fired 0-4-0T, with strong Orenstein & Koppel flavour.

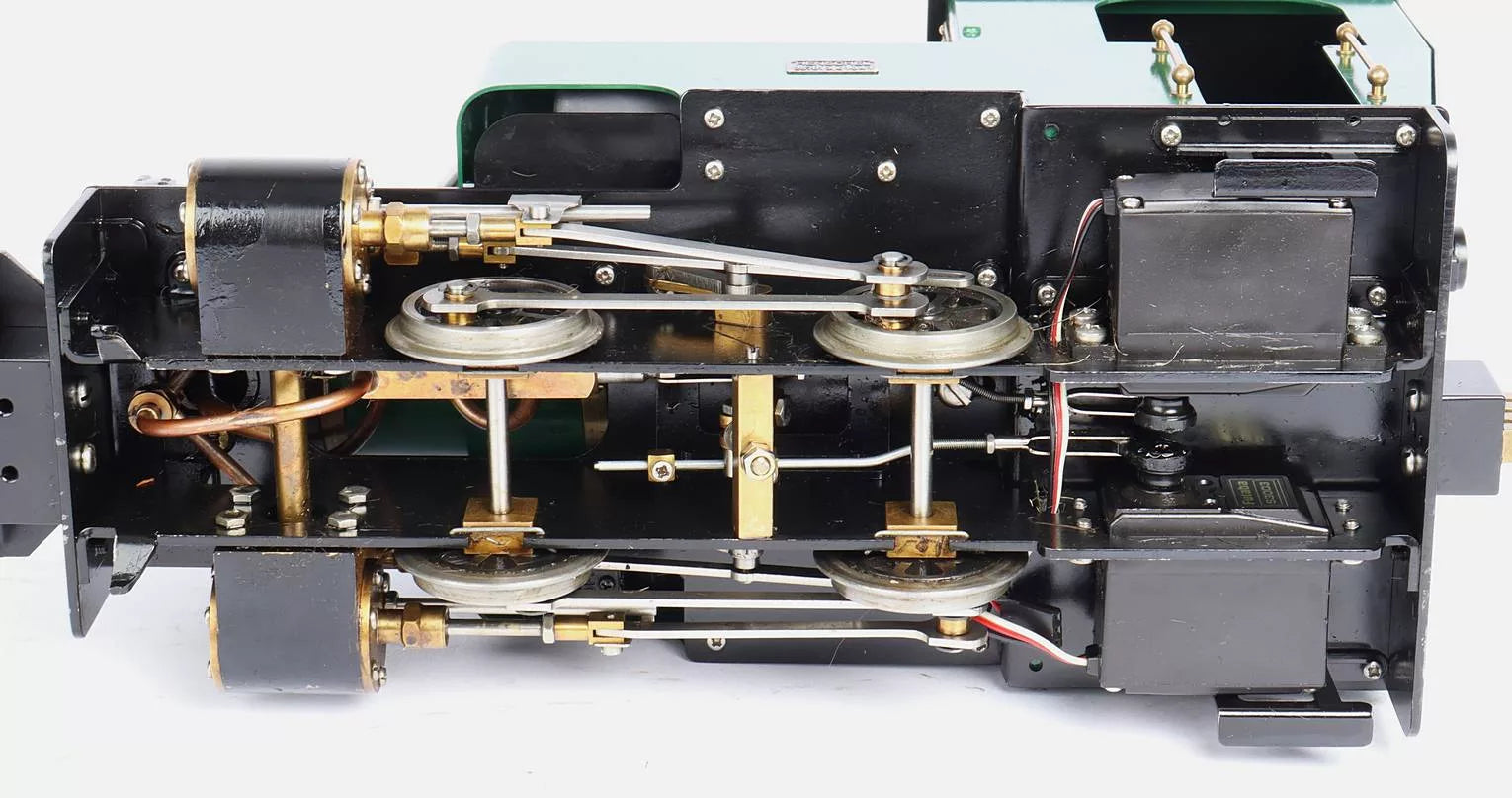

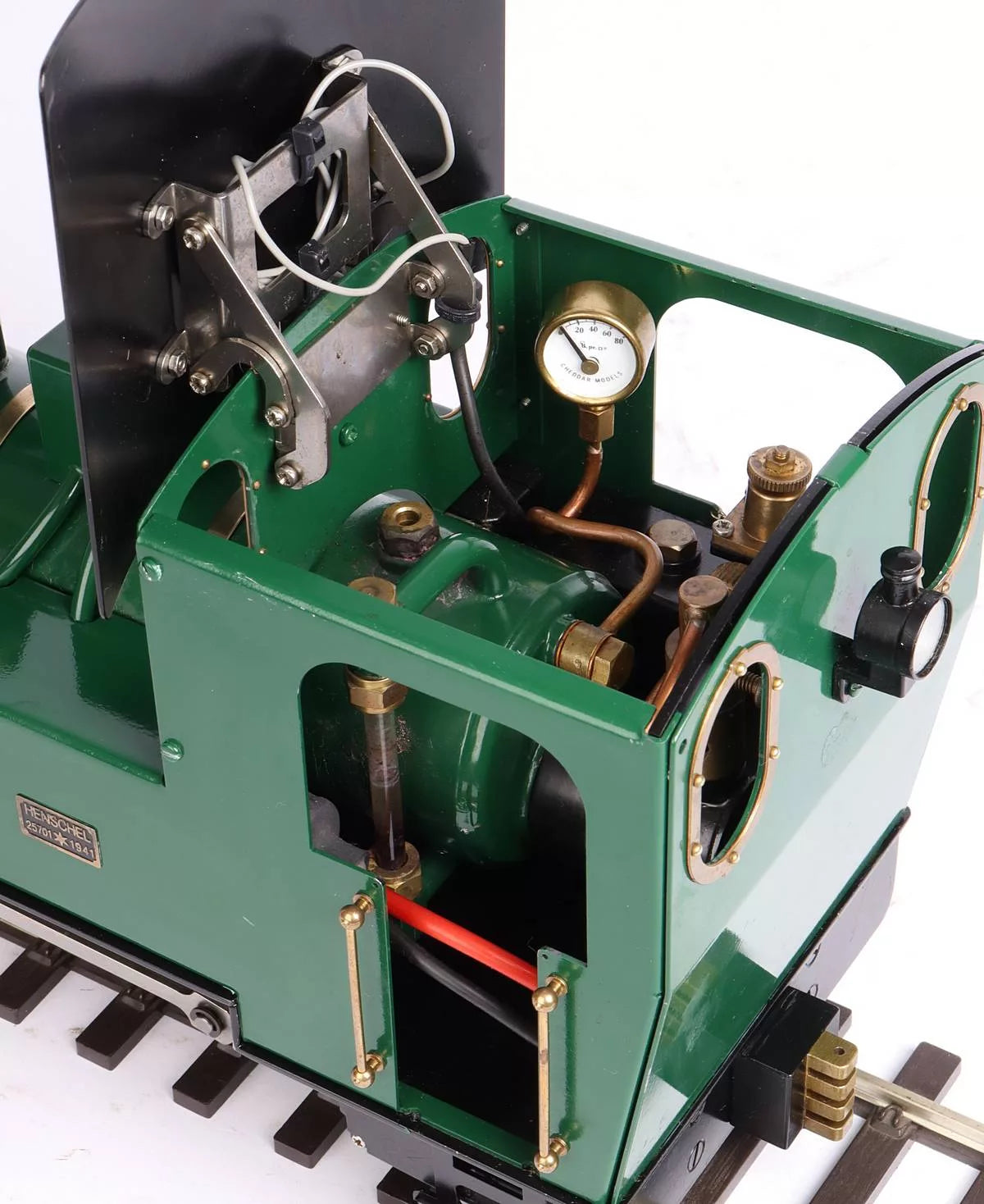

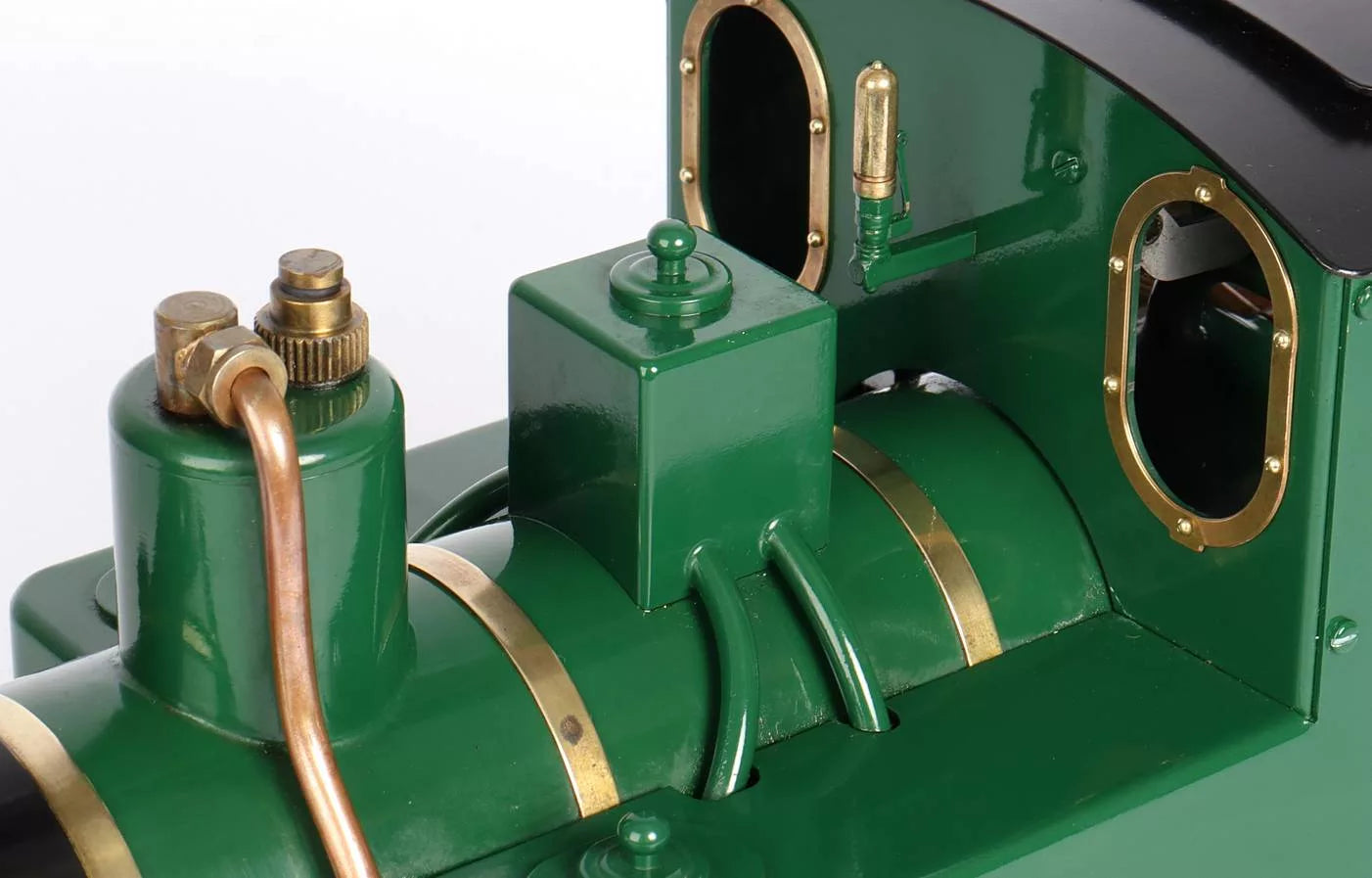

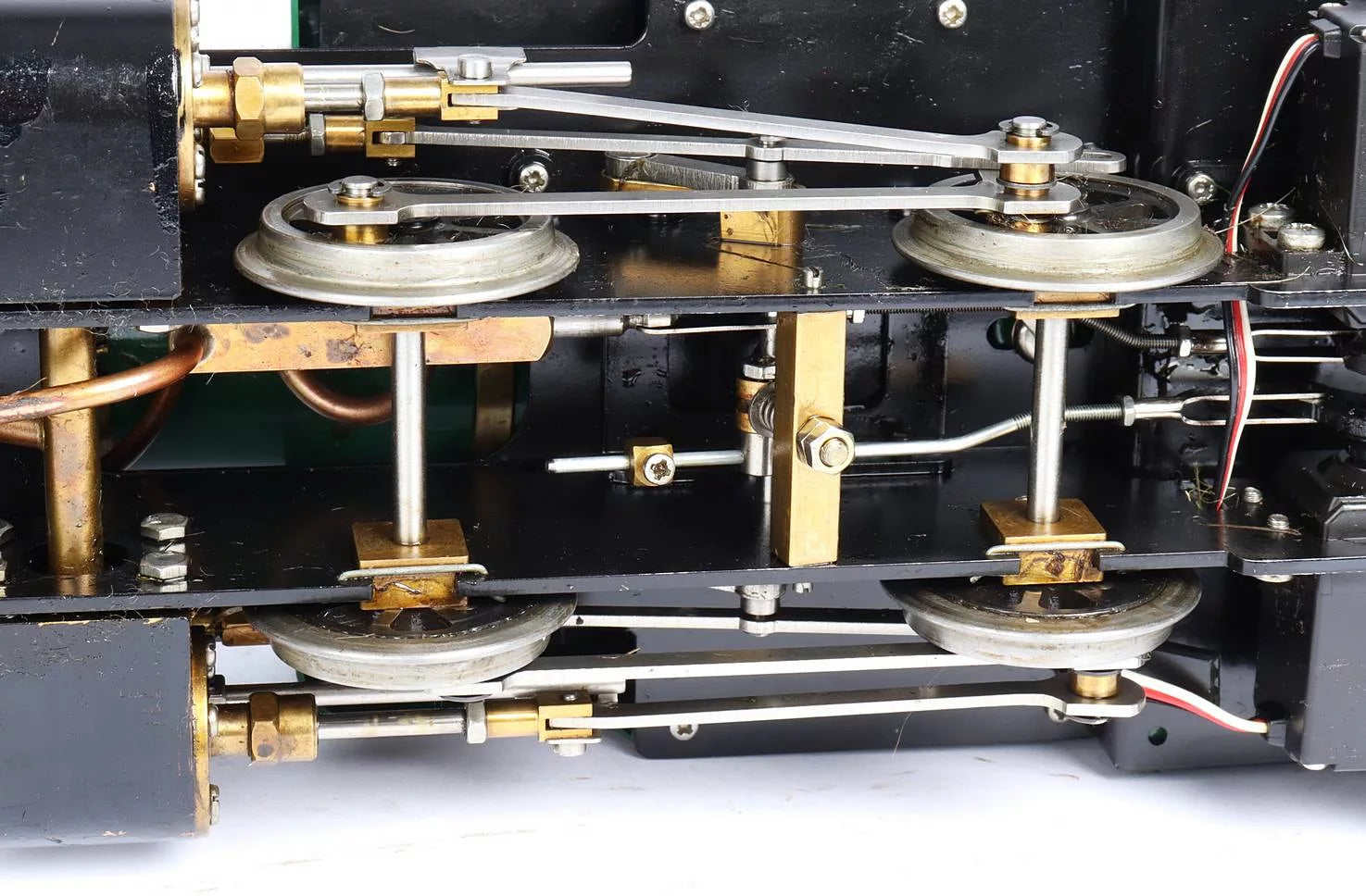

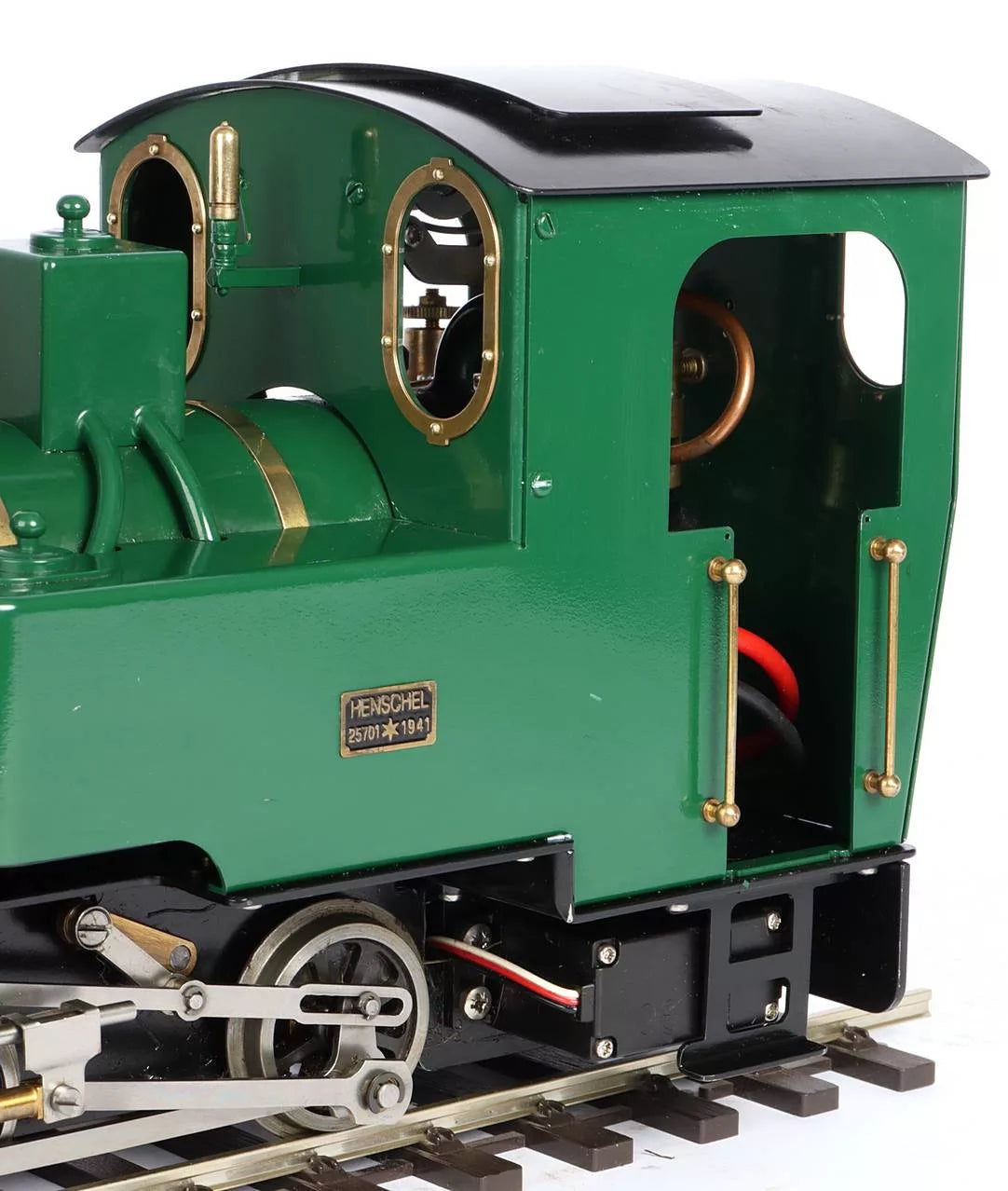

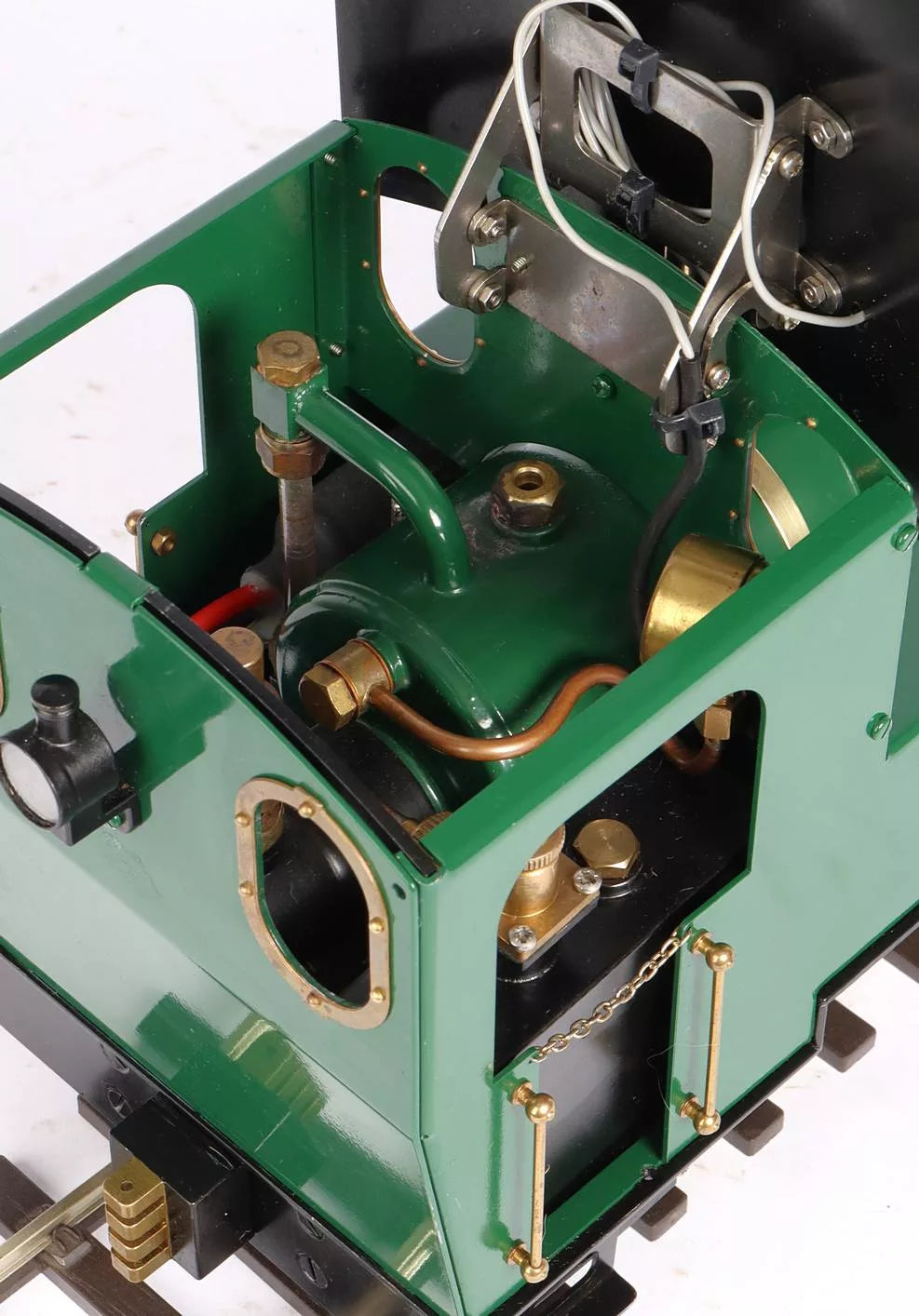

A very well put-together locomotive, unusually it's entirely remote controlled with no allowance for manual control. The two servos are mounted underneath the cab floor, with the regulator valve mounted just above the front axle and piped into the steam dome.
In good order throughout, we've replaced the water gauge seals and stripped out the antique Futaba FP-R115F analogue receiver, replacing it with a modern Planet 2+2 2.4ghz receiver and matching transmitter.
We've undertaken hydraulic and steam tests - it makes steam well, the safety valve blowing off at 40psi, though with a slight leak on the regulator. The boiler showed no signs of leaks at twice working pressure; without stripping the cladding we've declined to issue certification, but would warranty as sound.
It has all the feel of a commercially-built model, but has come to us without documentation or provenance.
After a chat with a knowledgeable visitor to the works we suspect it may be a Beck locomotive, predating the spiritual successor Merlin Loco Works, but would be very interested to hear from anybody with more concrete information.
Complete with new Planet transmitter.
Type: Second hand
Tags: Gauge 1 & smaller
Stock code |
13456 |
Gauge |
45mm |
Length/inches |
12 |
Width/inches |
5 |
Height/inches |
7 |
Weight/Kg |
4 |
Wheel material |
steel |
Valve type |
slide |

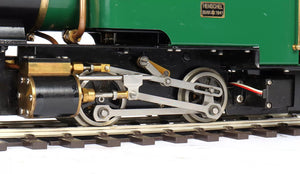

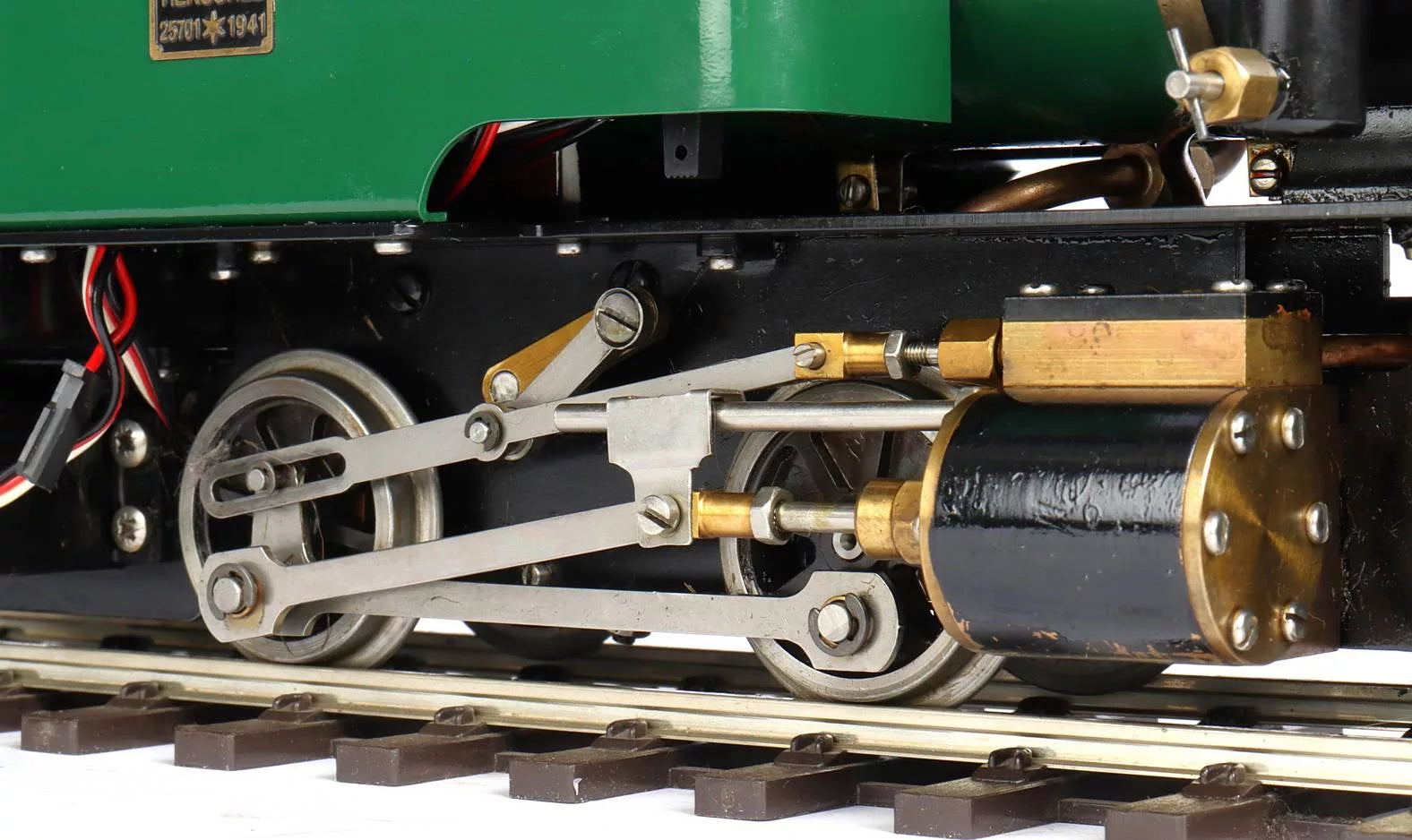

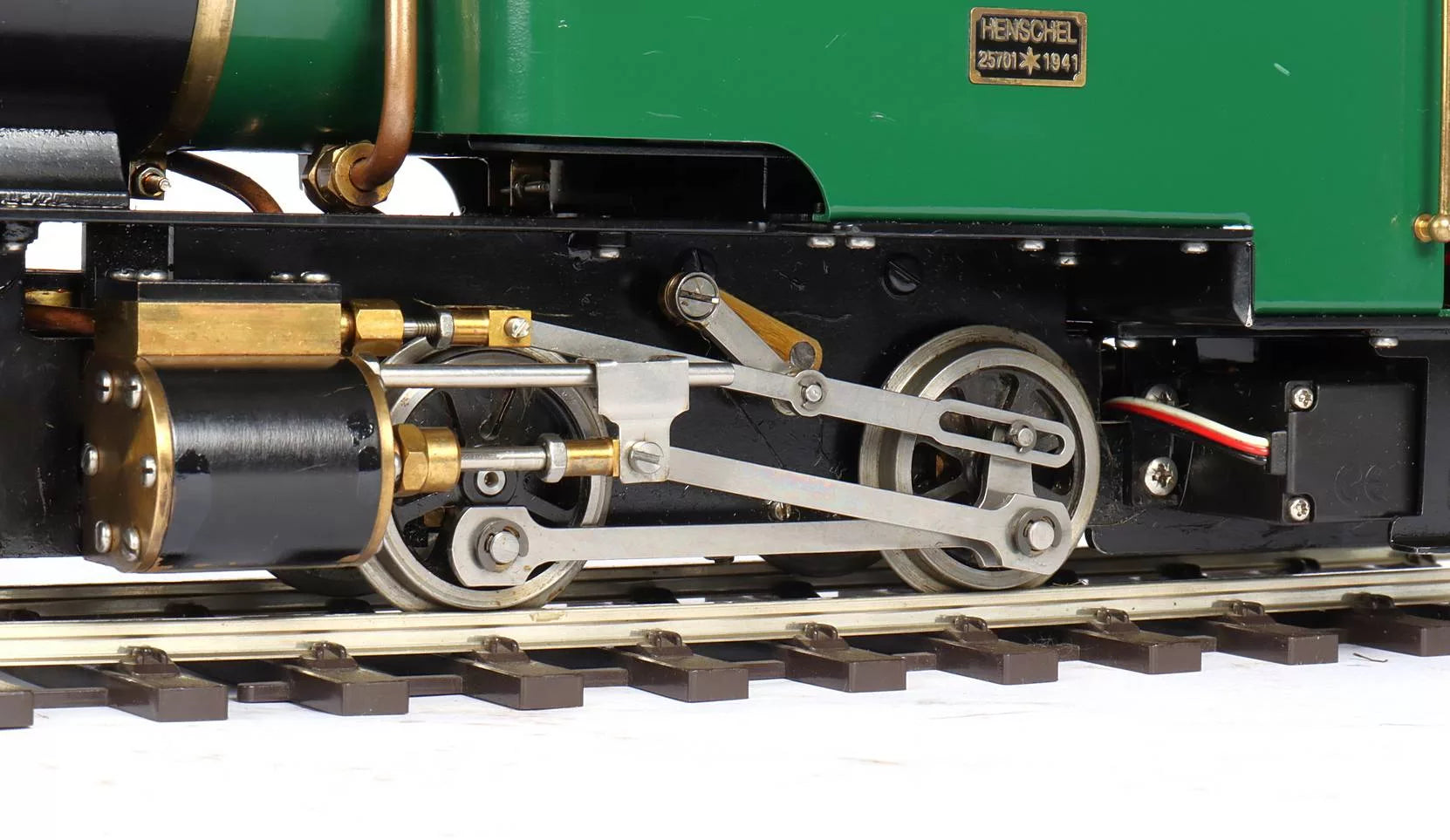

Valve gear |
Marshall |
Reverser type |
radio control |
Boiler maker |
unknown |
Boiler type |
centre flue |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
40 |
CE/UKCA mark |
n/a - <2 litre capacity |
Year built |
unknown |
Boiler number |
CMR 074 |
Safety valve type |
pop |
Safety valve |
1 |
