13554

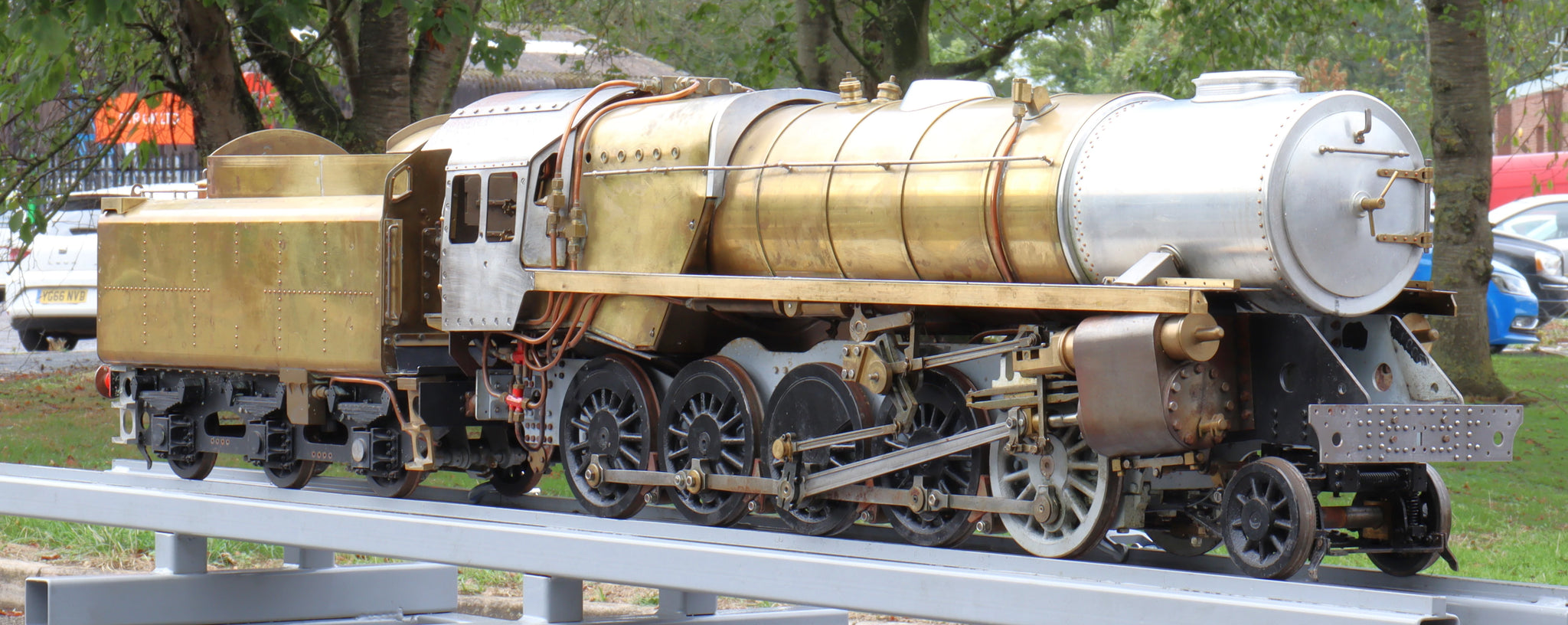

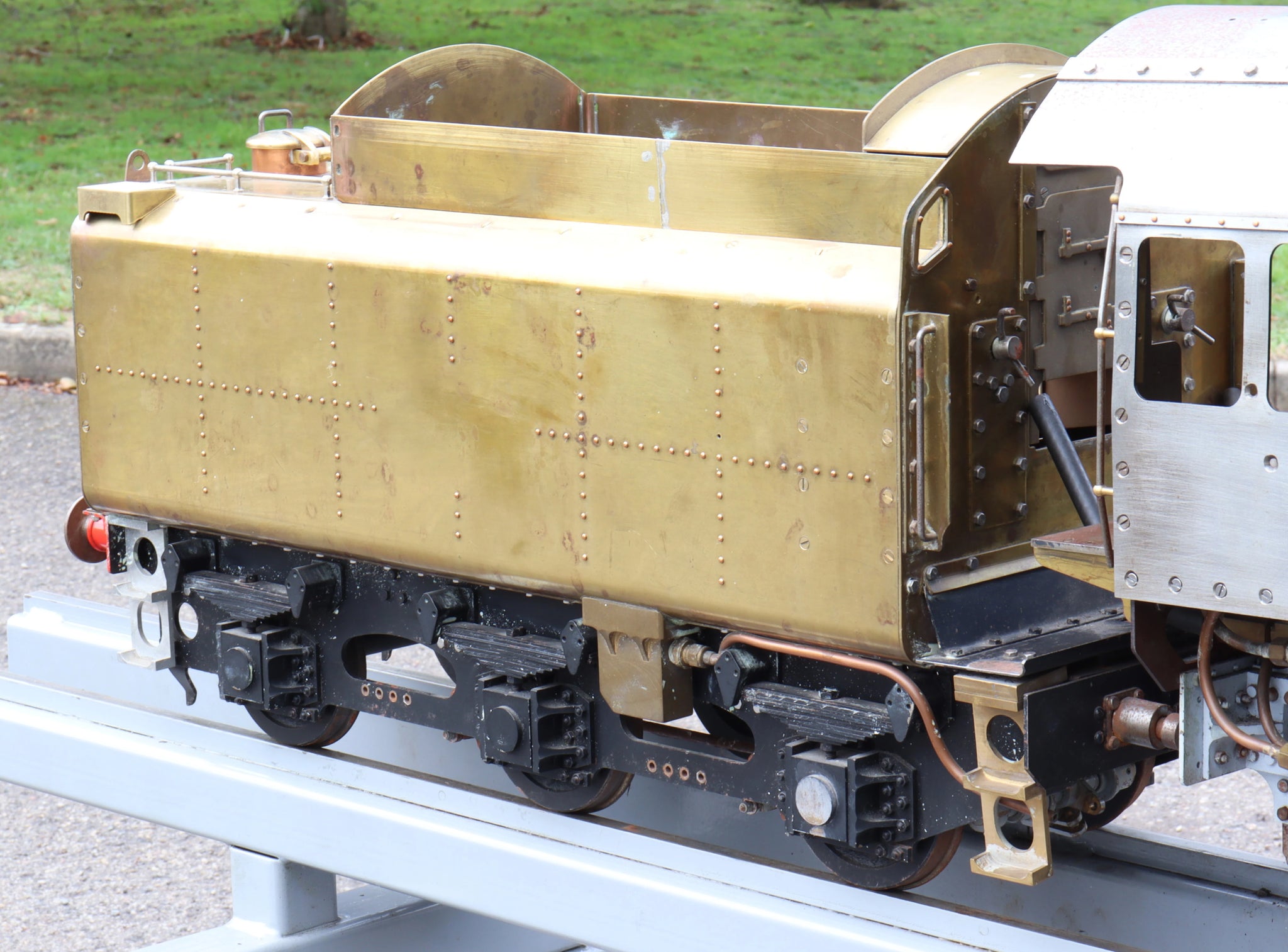

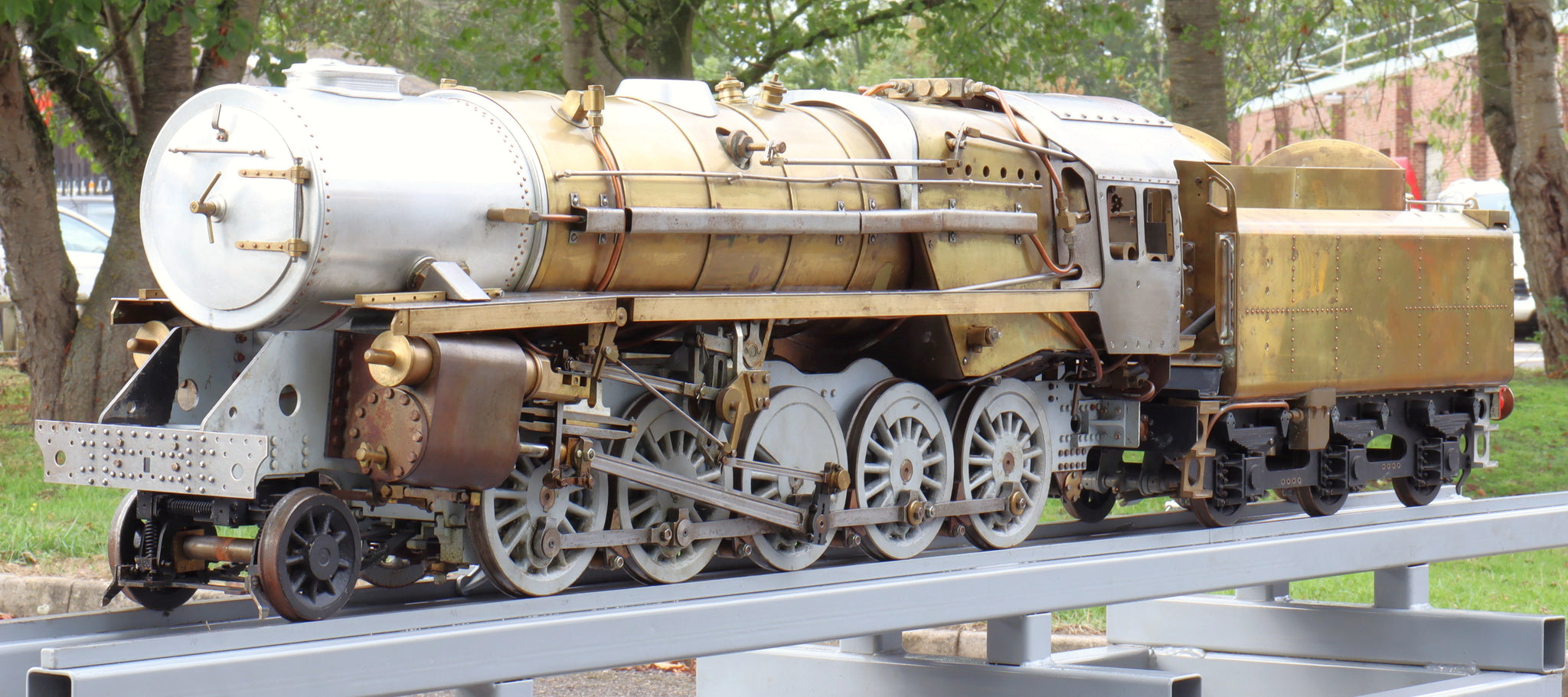

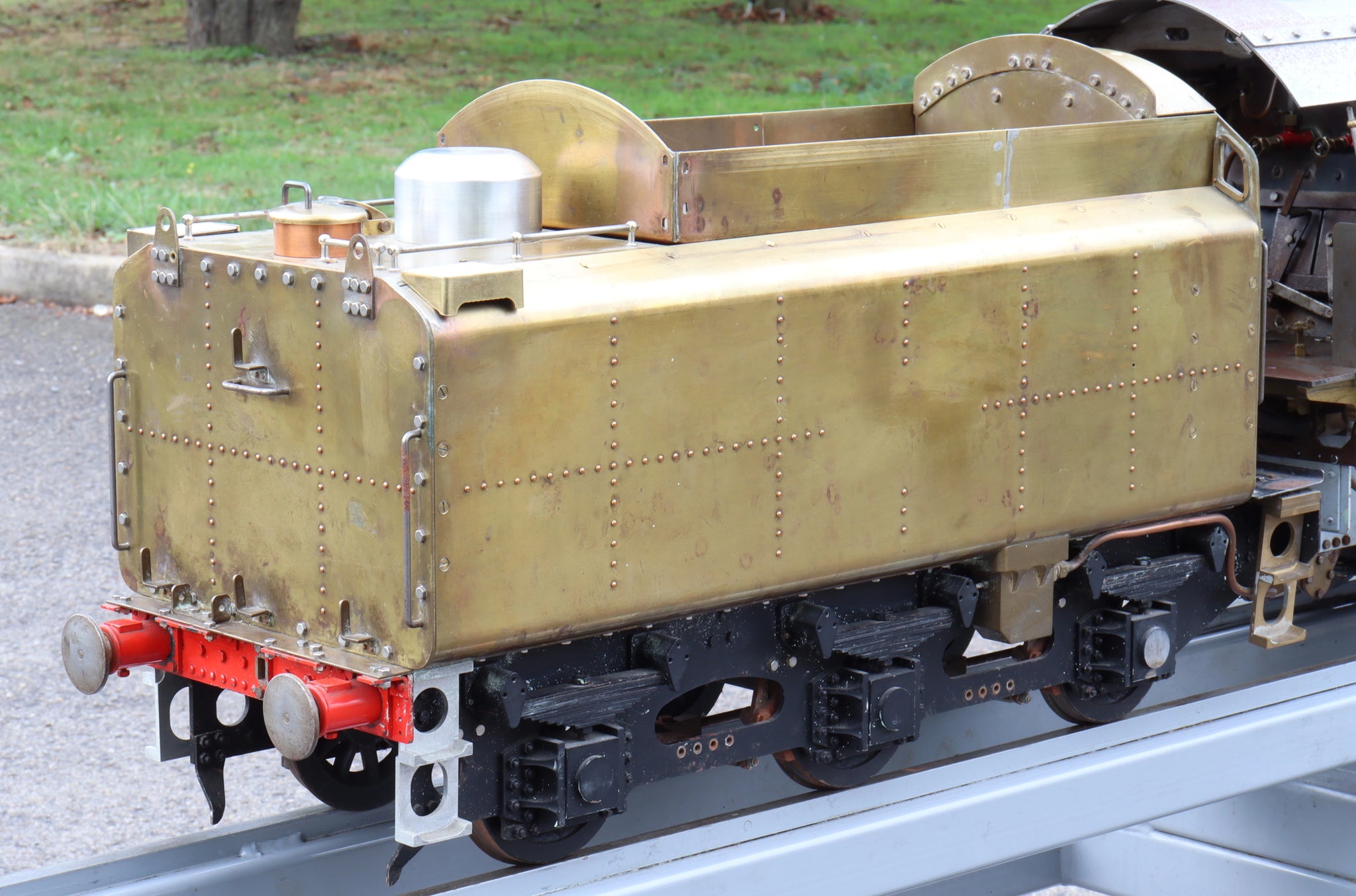

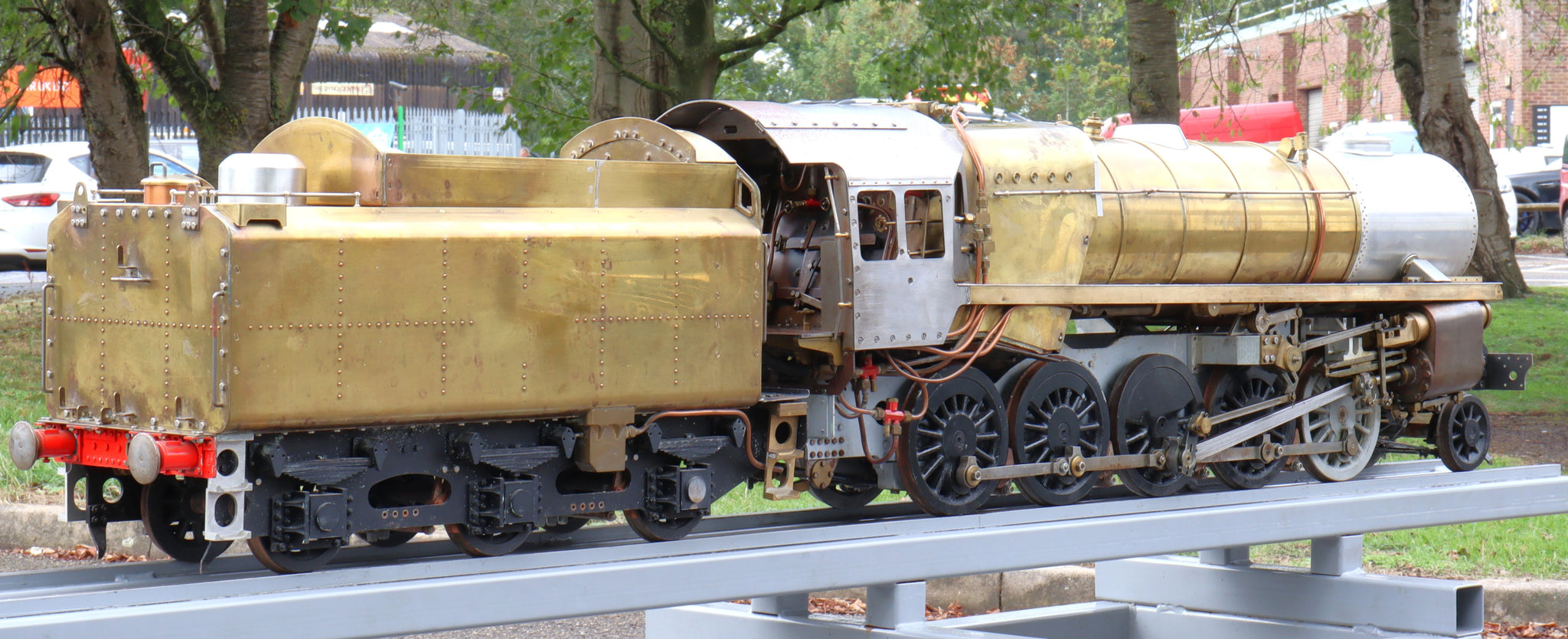

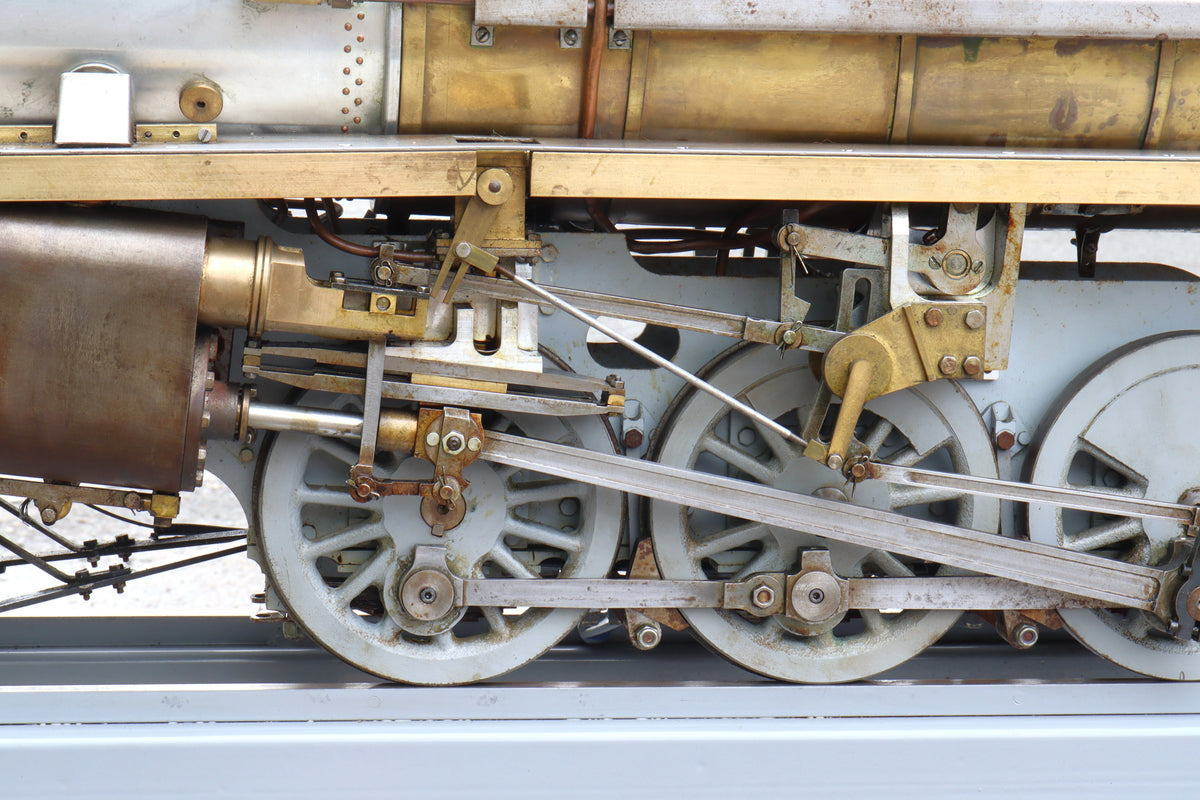

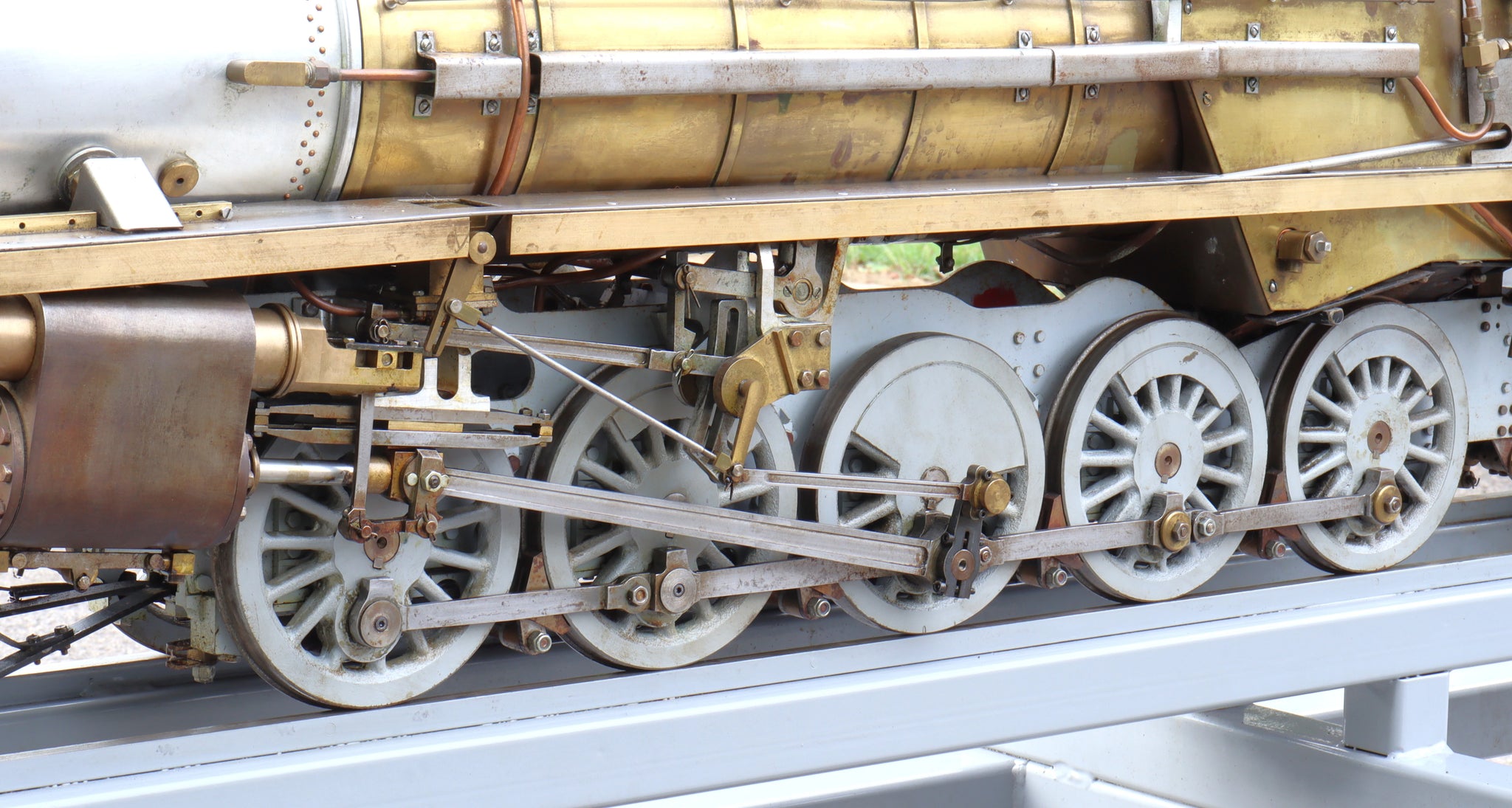

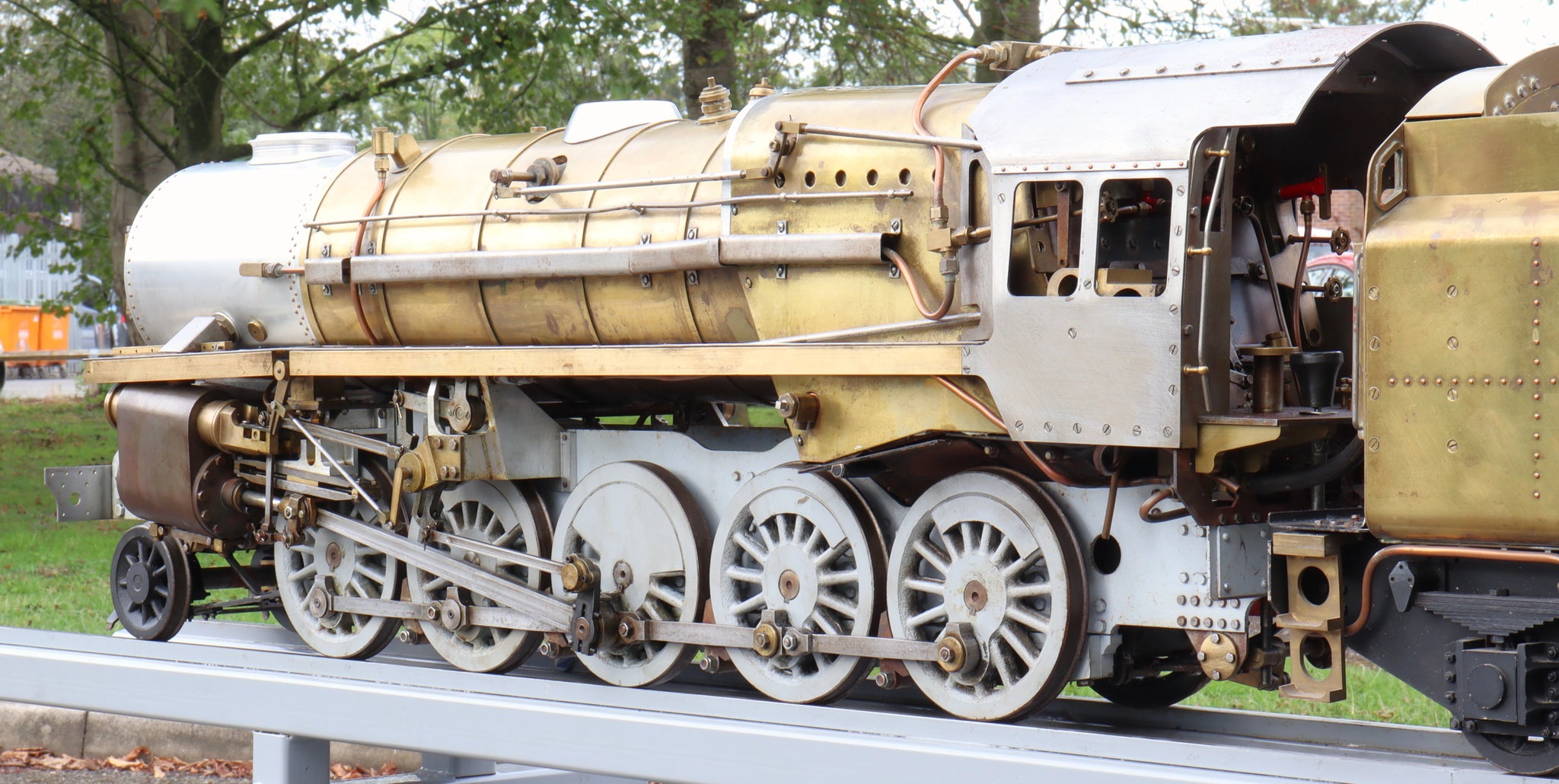

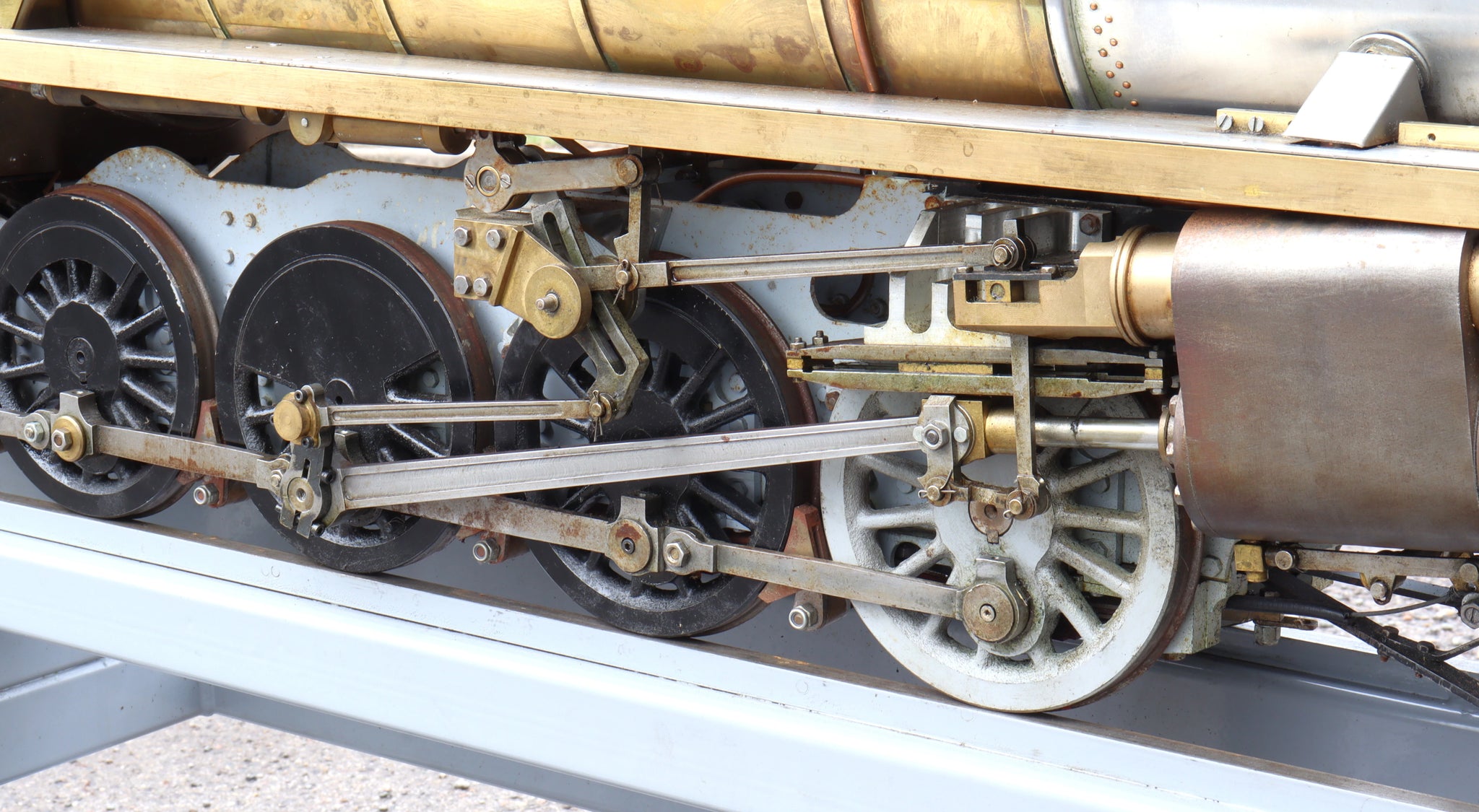

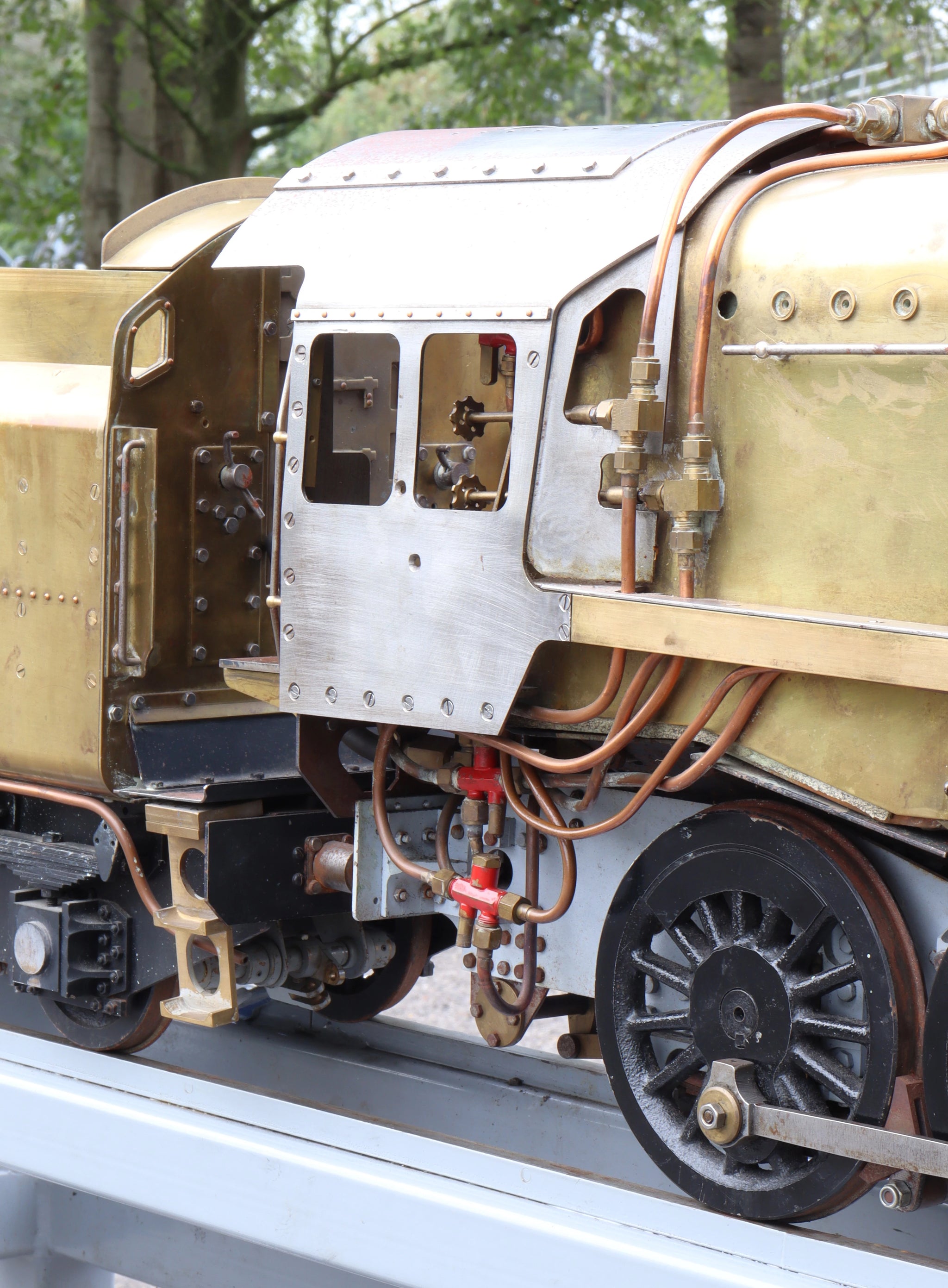

A 5 inch gauge BR 9F 2-10-0 "Black Prince", assembled from a Modelworks kit.

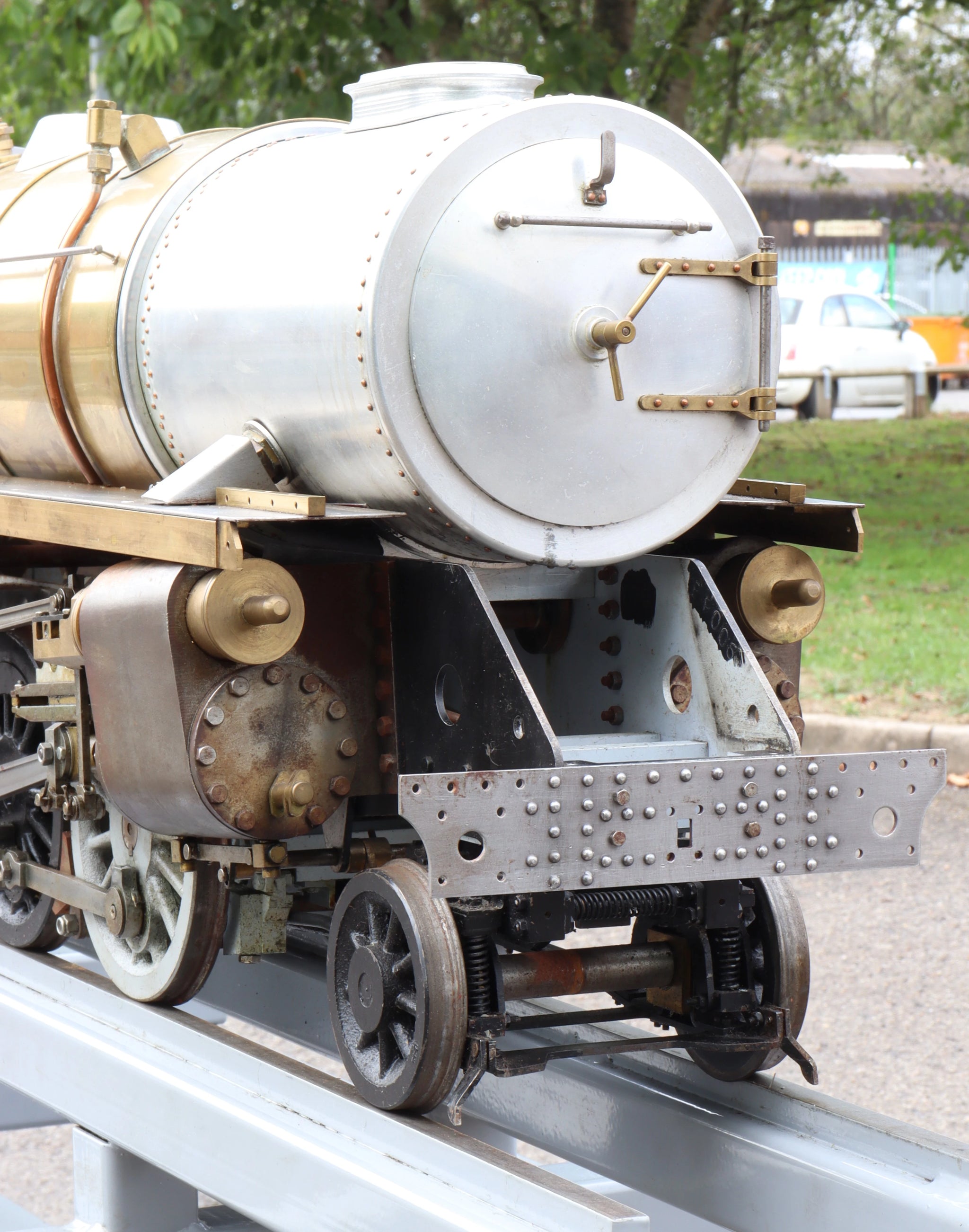

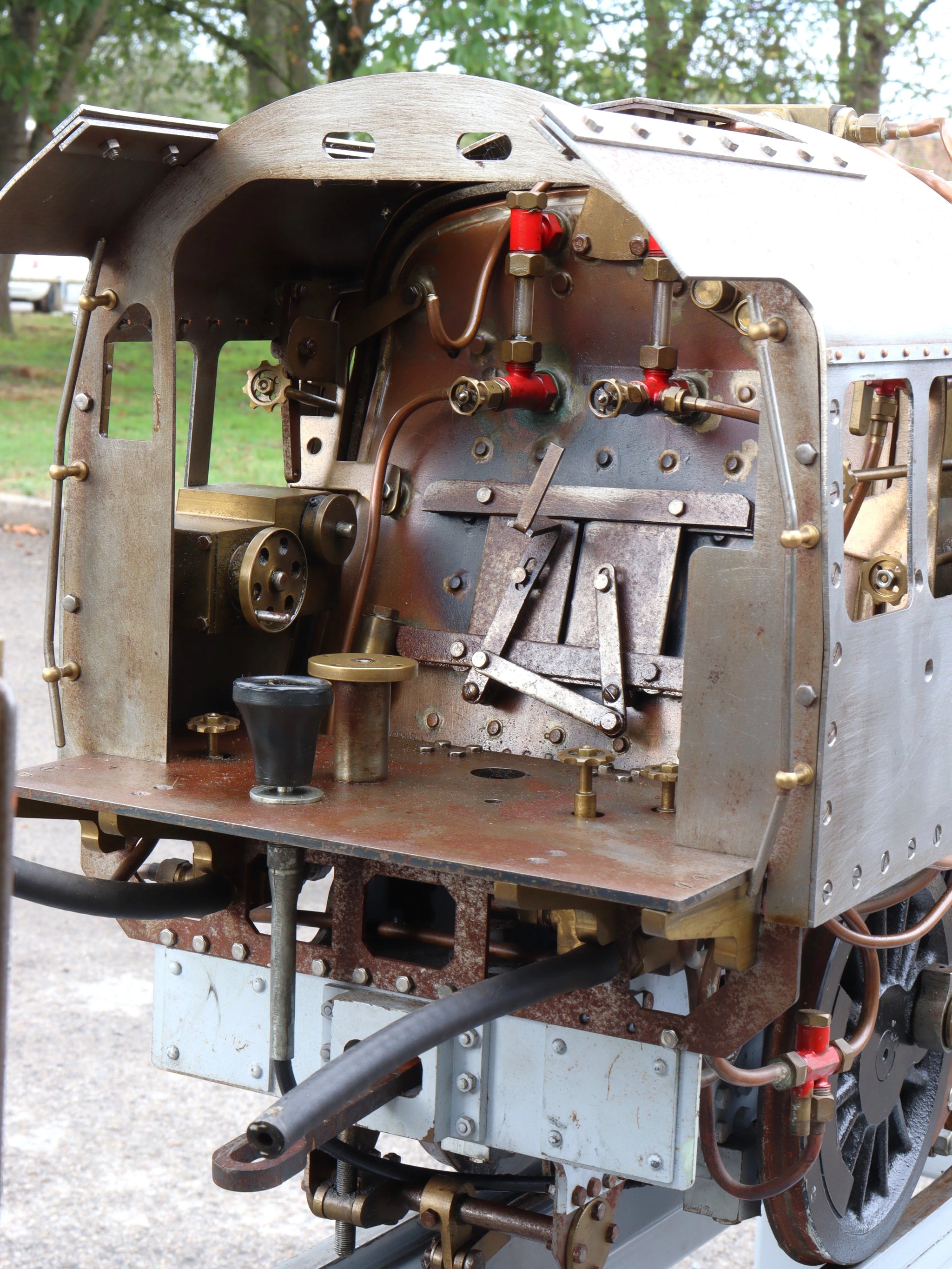

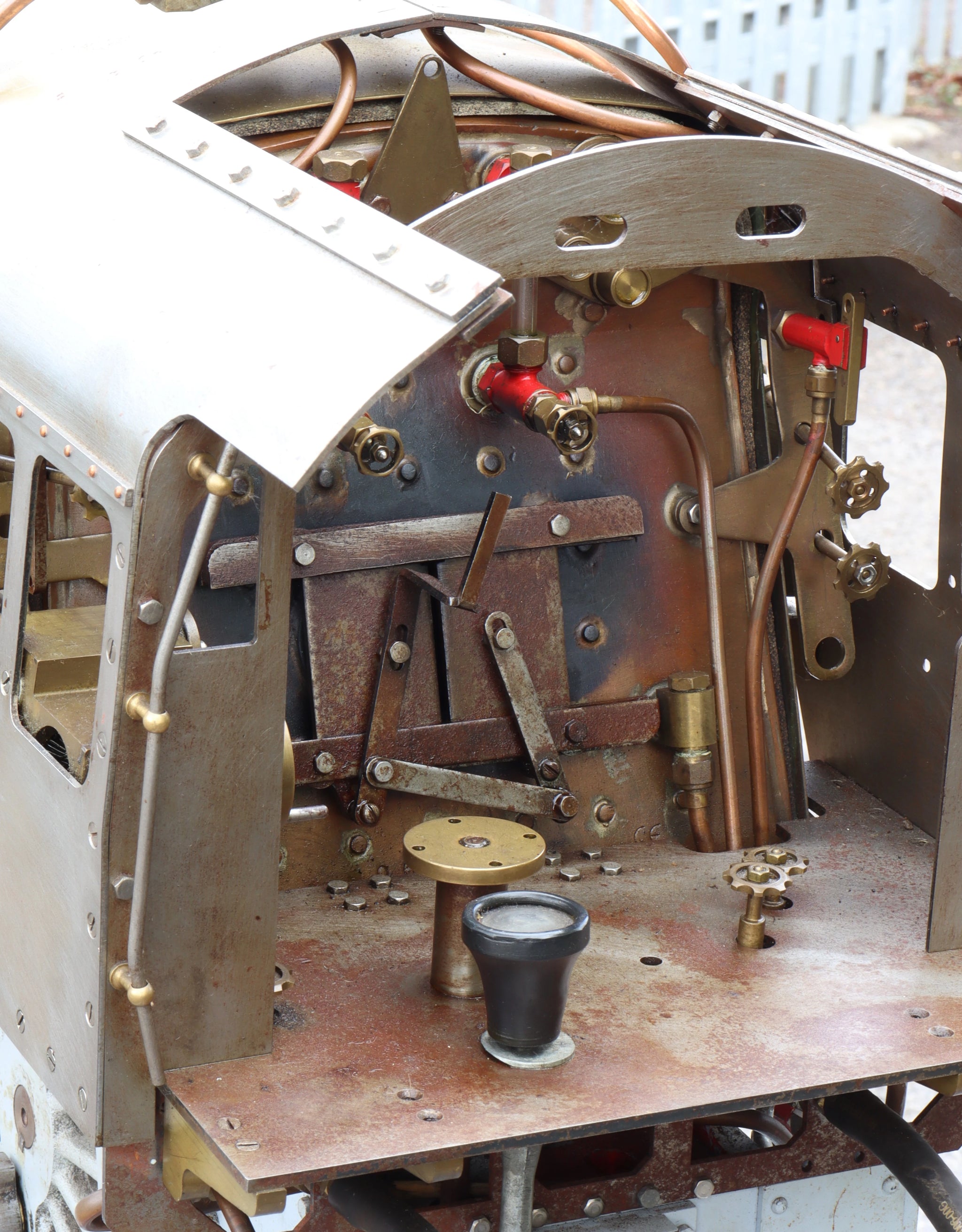

Apparently test-steamed once when completed, the condition of the firebox and smokebox support that - other than some surface rust on platework, it's in close to new condition.

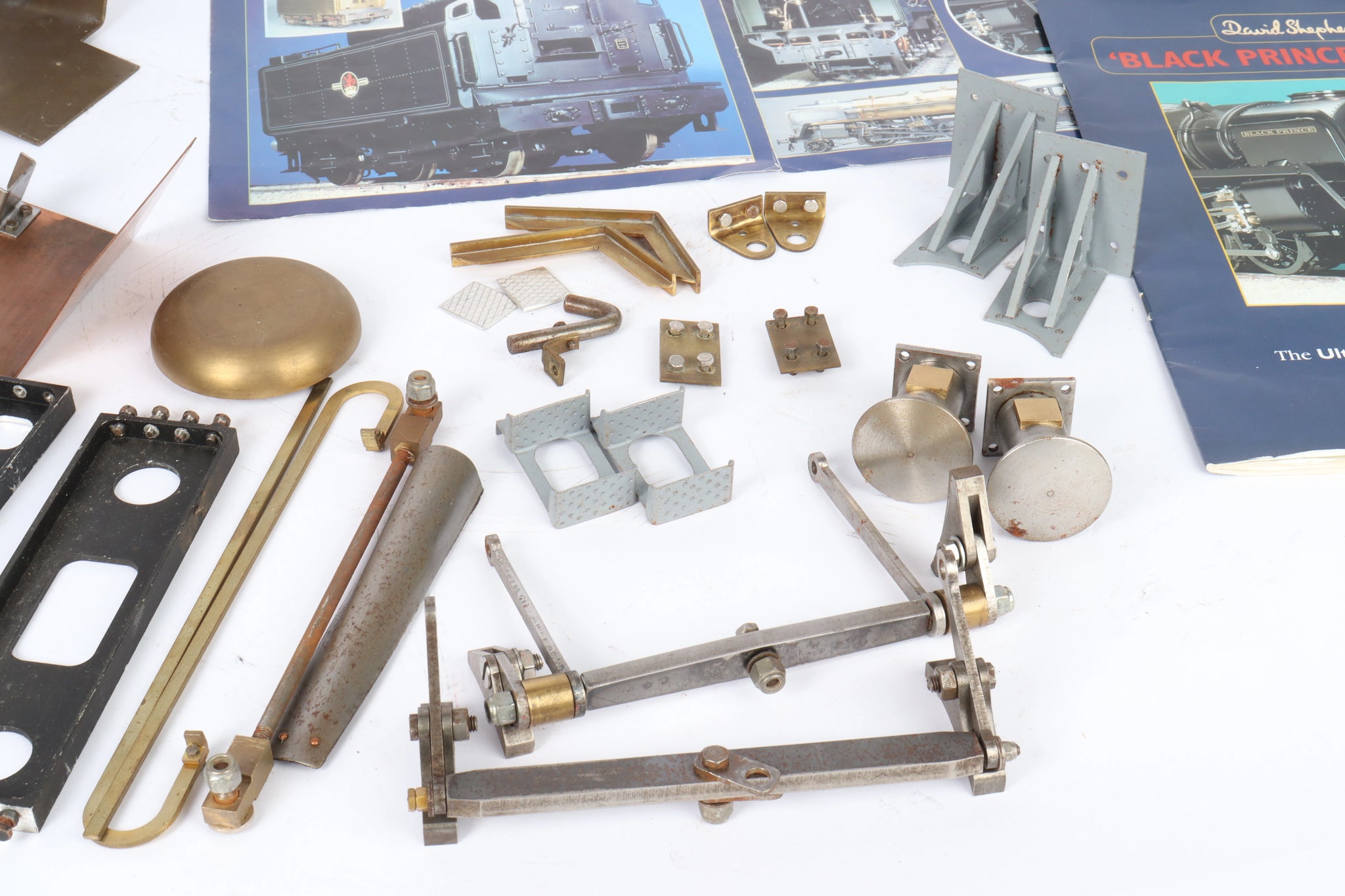

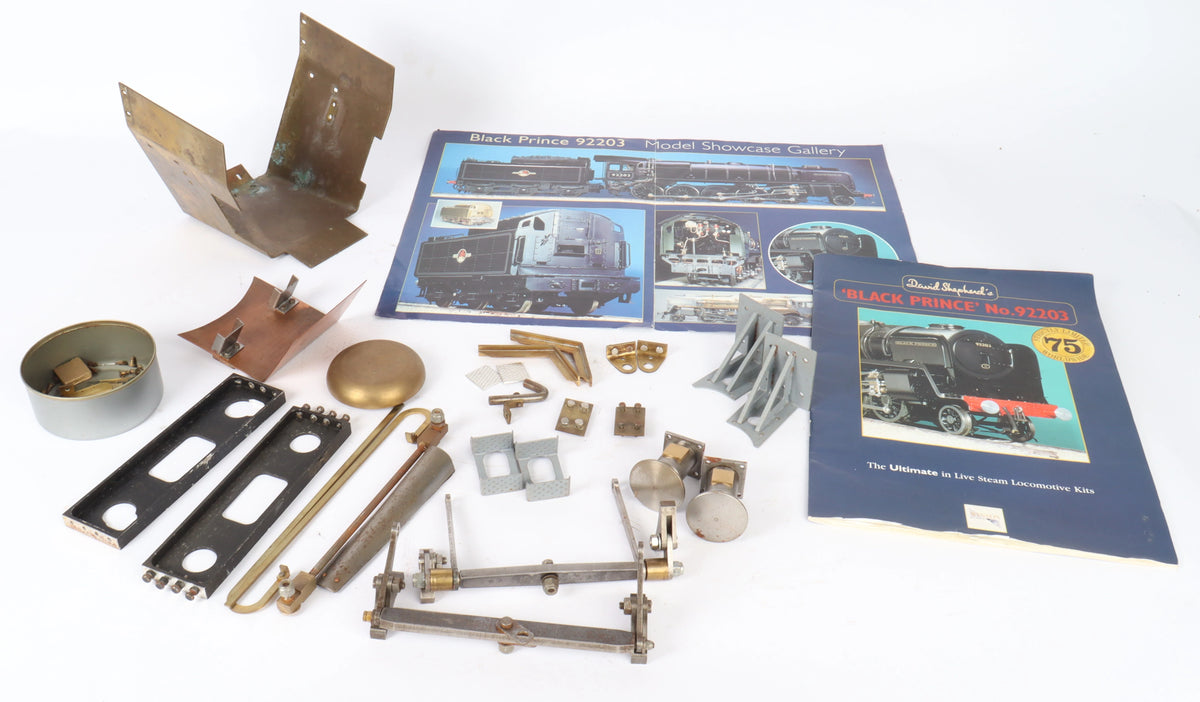

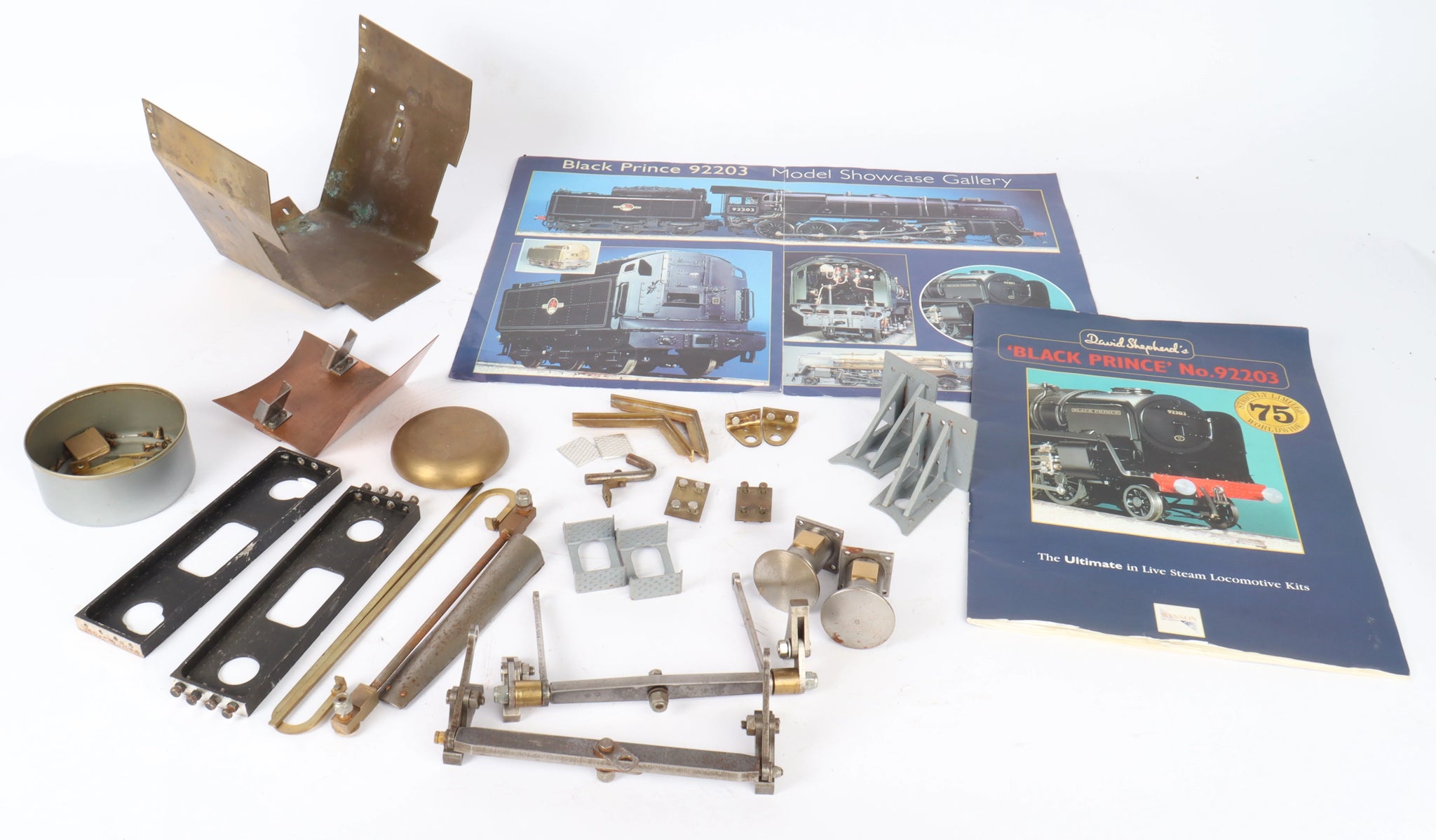

One left-hand crankpin is loose, the front running boards and smoke deflectors lost somewhere during the build. The engine turns over freely by hand, we would warranty it to pass hydraulic test.
Stock code |
13554 |
Length/inches |
47 + 25 |
Width/inches |
10 |
Height/inches |
15 |
Weight/Kg |
116 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
piston |
Valve gear |

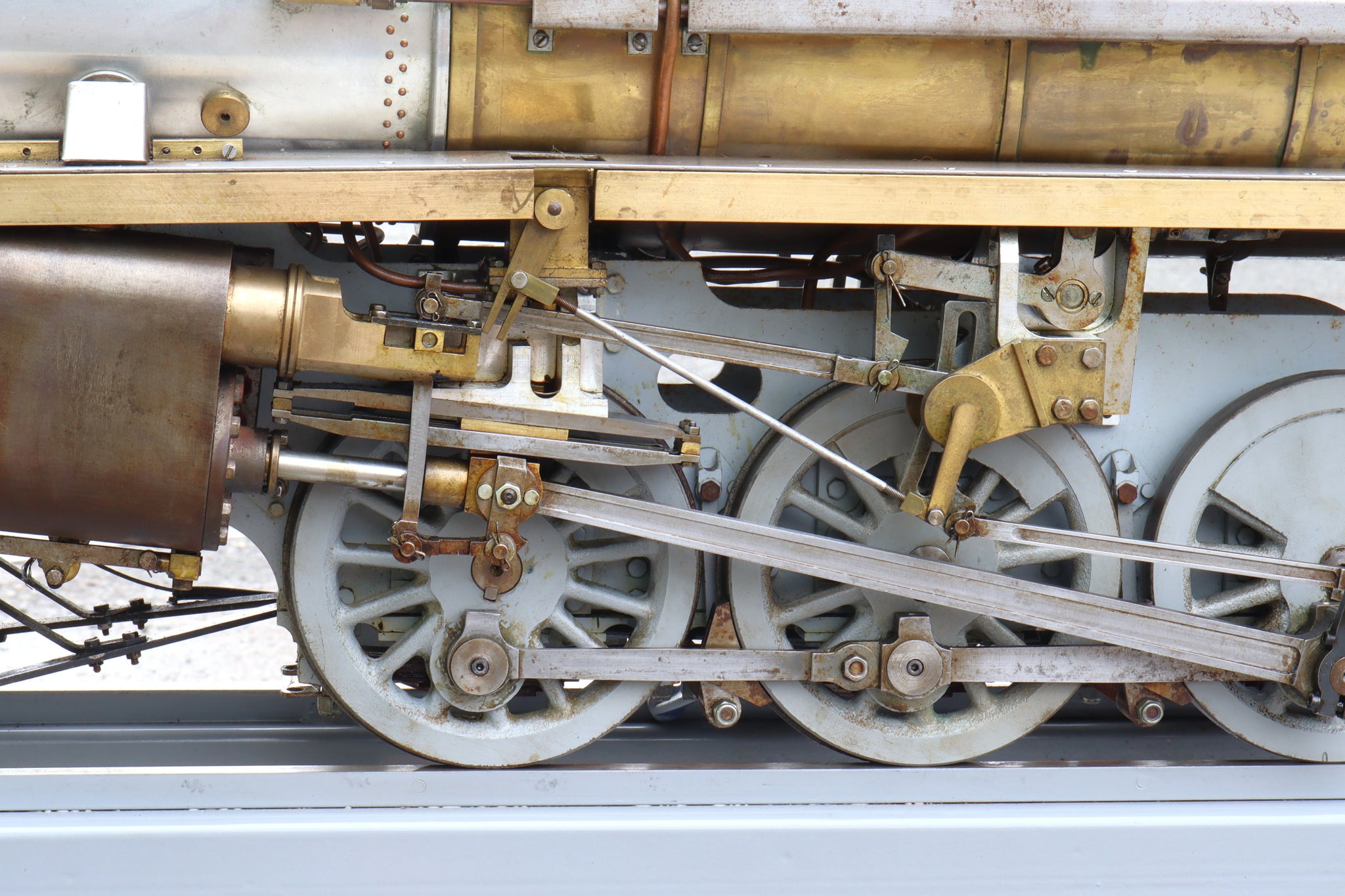

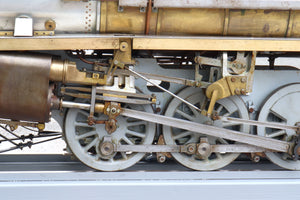

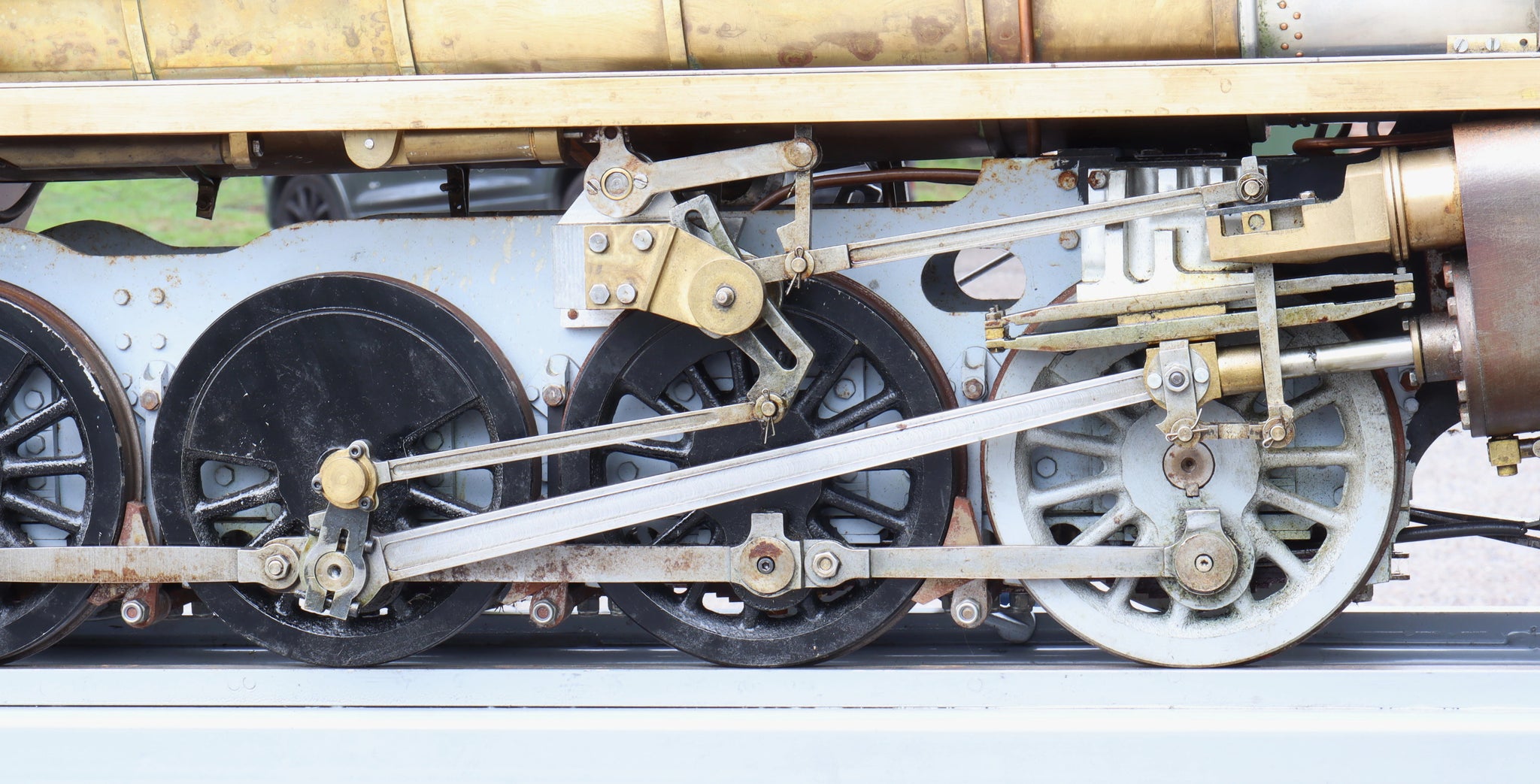

Walschaerts |
Reverser type |
screw |
Boiler maker |
Winson Model Technology |
Boiler construction |
silver soldered |
Boiler material |
copper |
CE/UKCA mark |
yes |

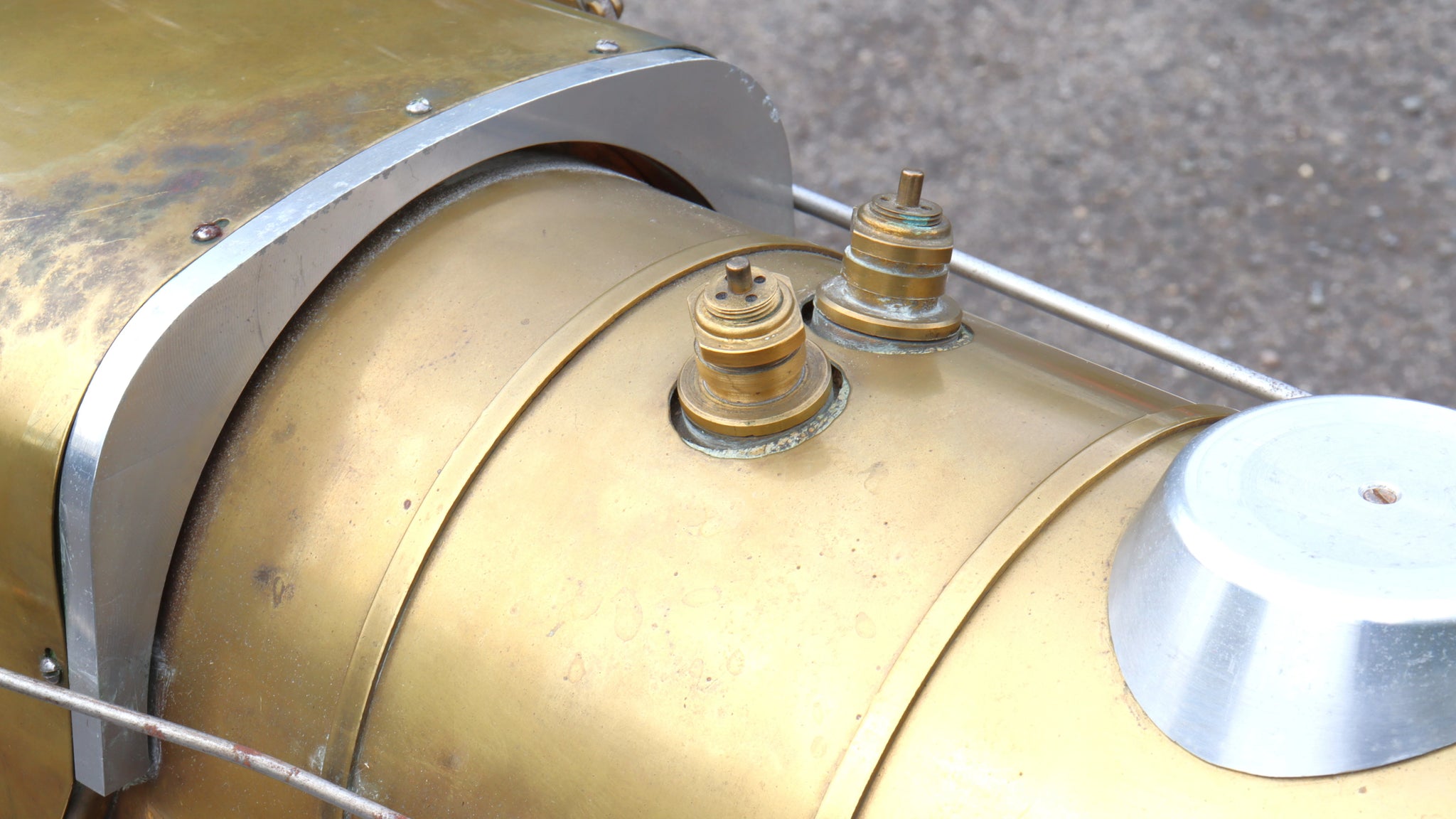

Safety valve type |
spring |
Safety valve |
2 |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
2 |
