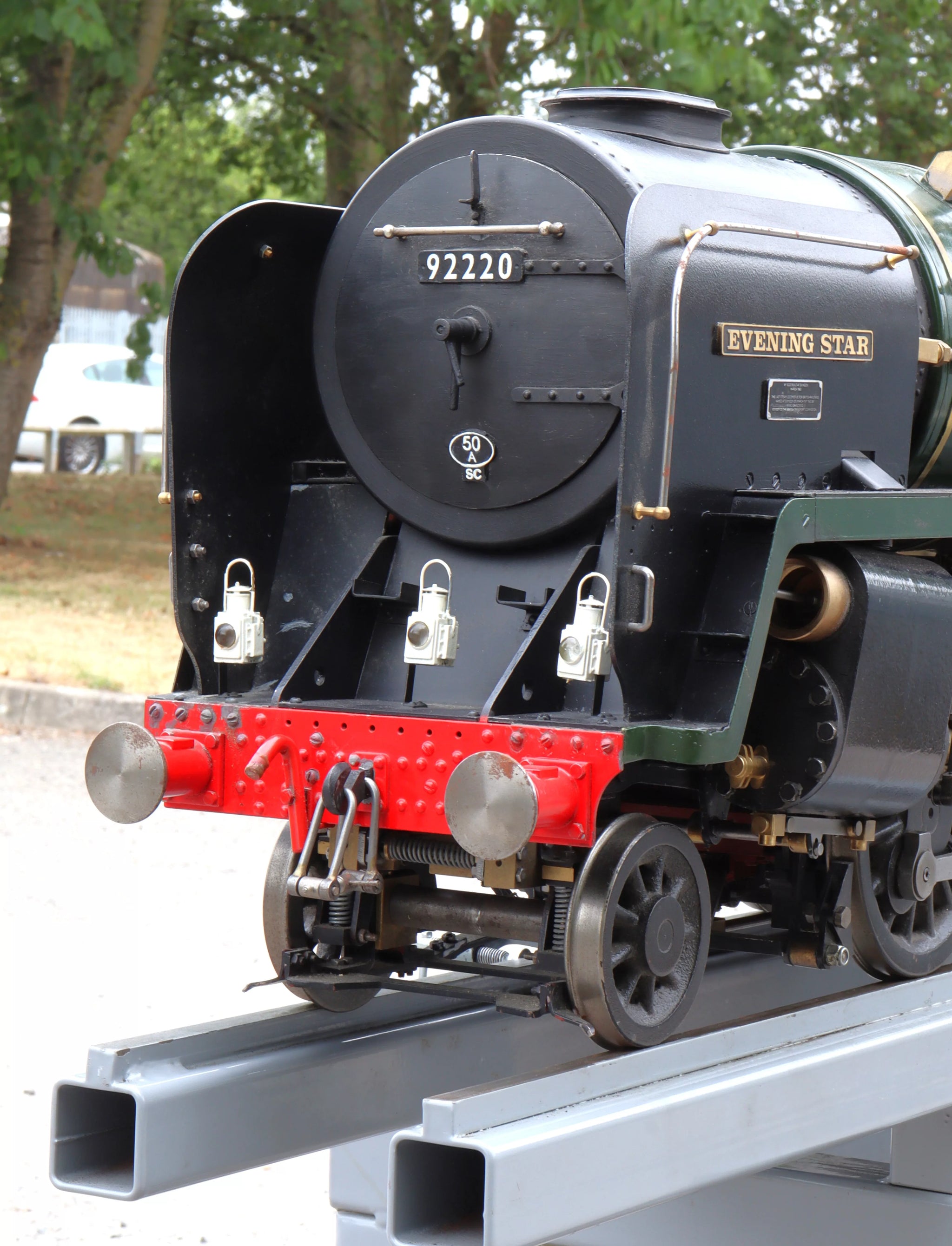

5 gauge BR 9F 2-10-0 "Evening Star"

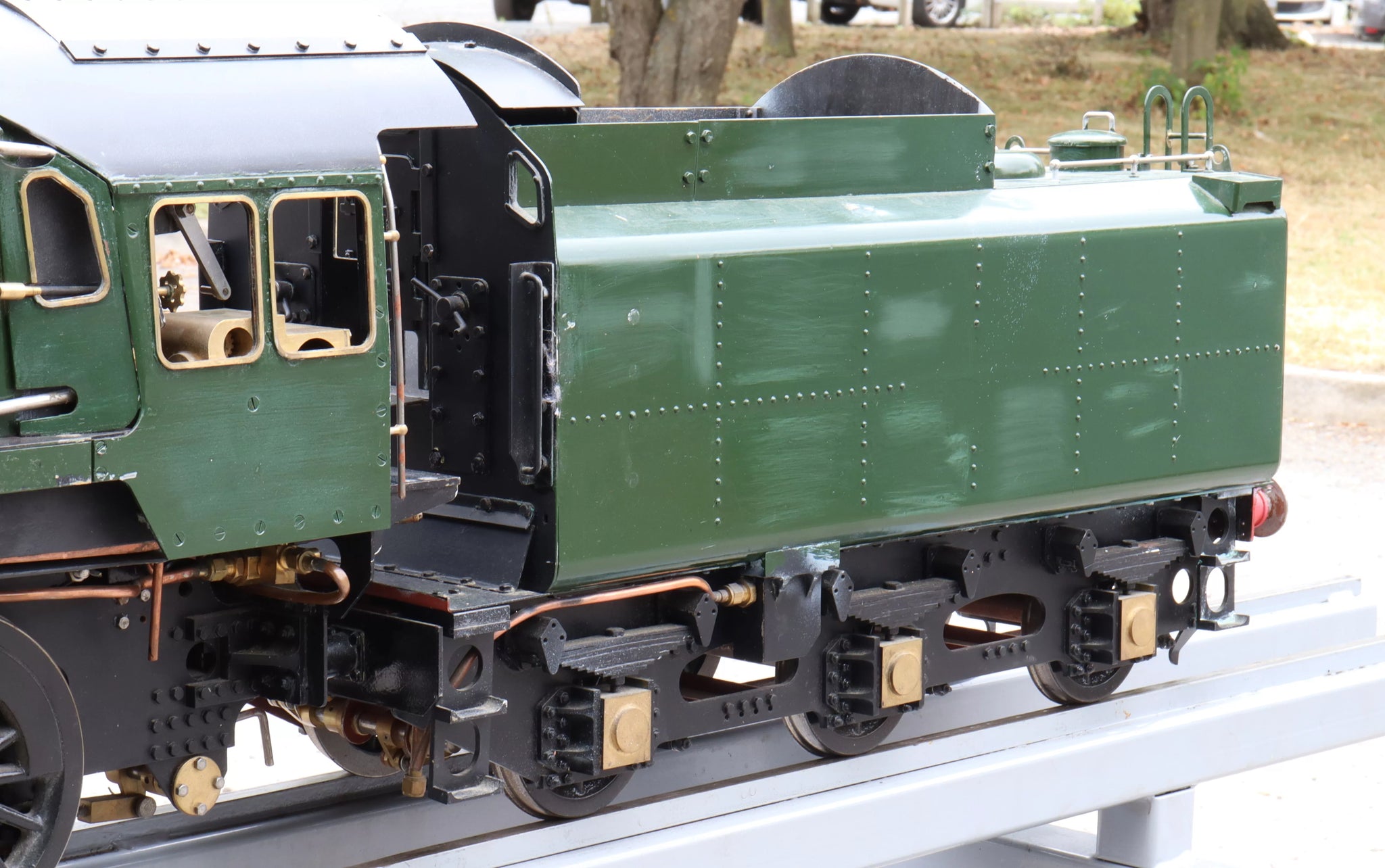

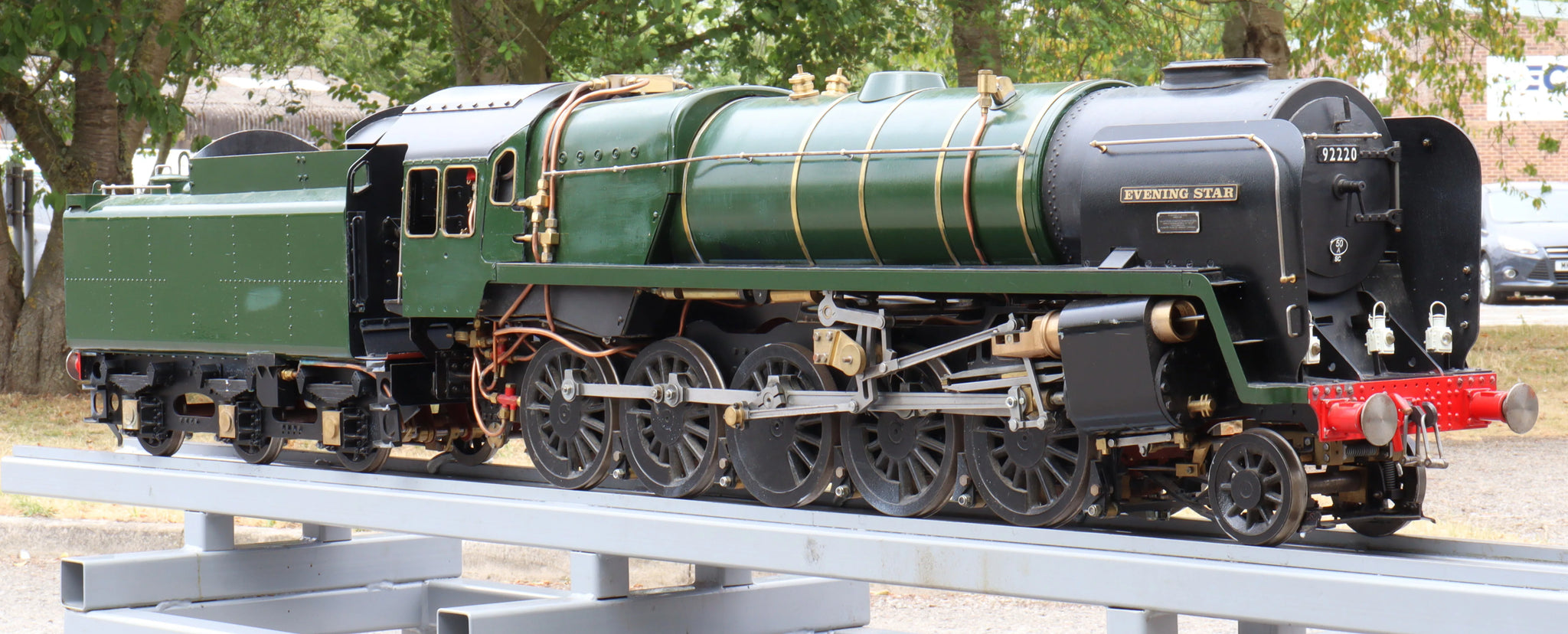

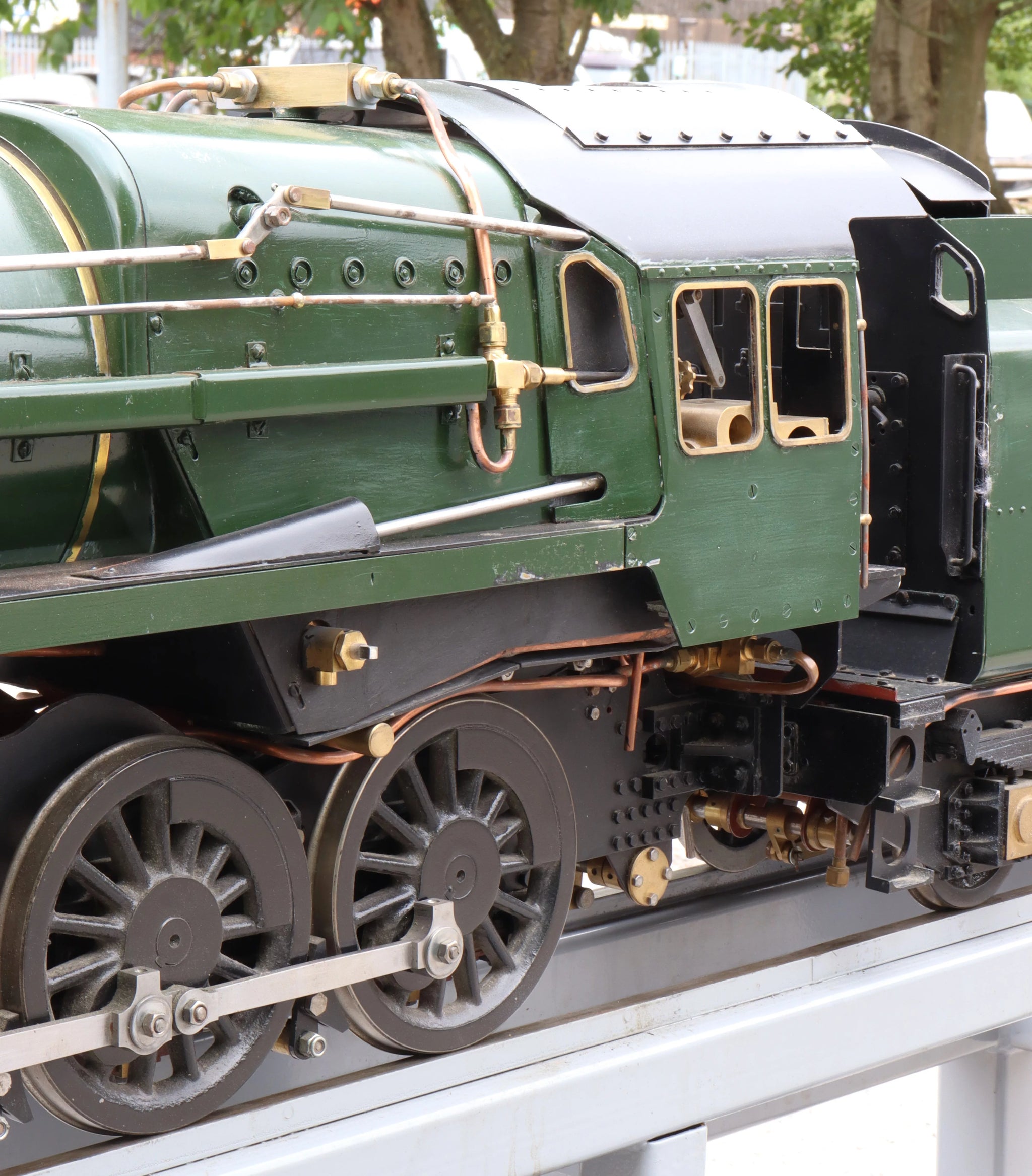

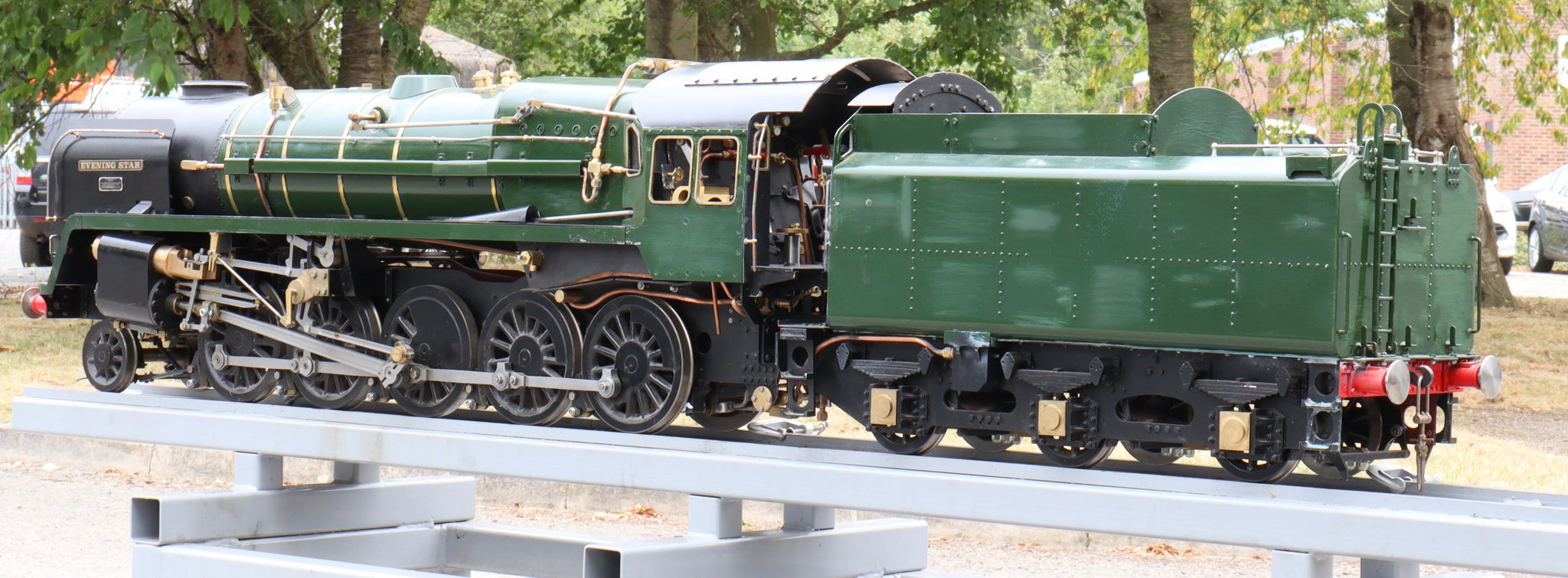

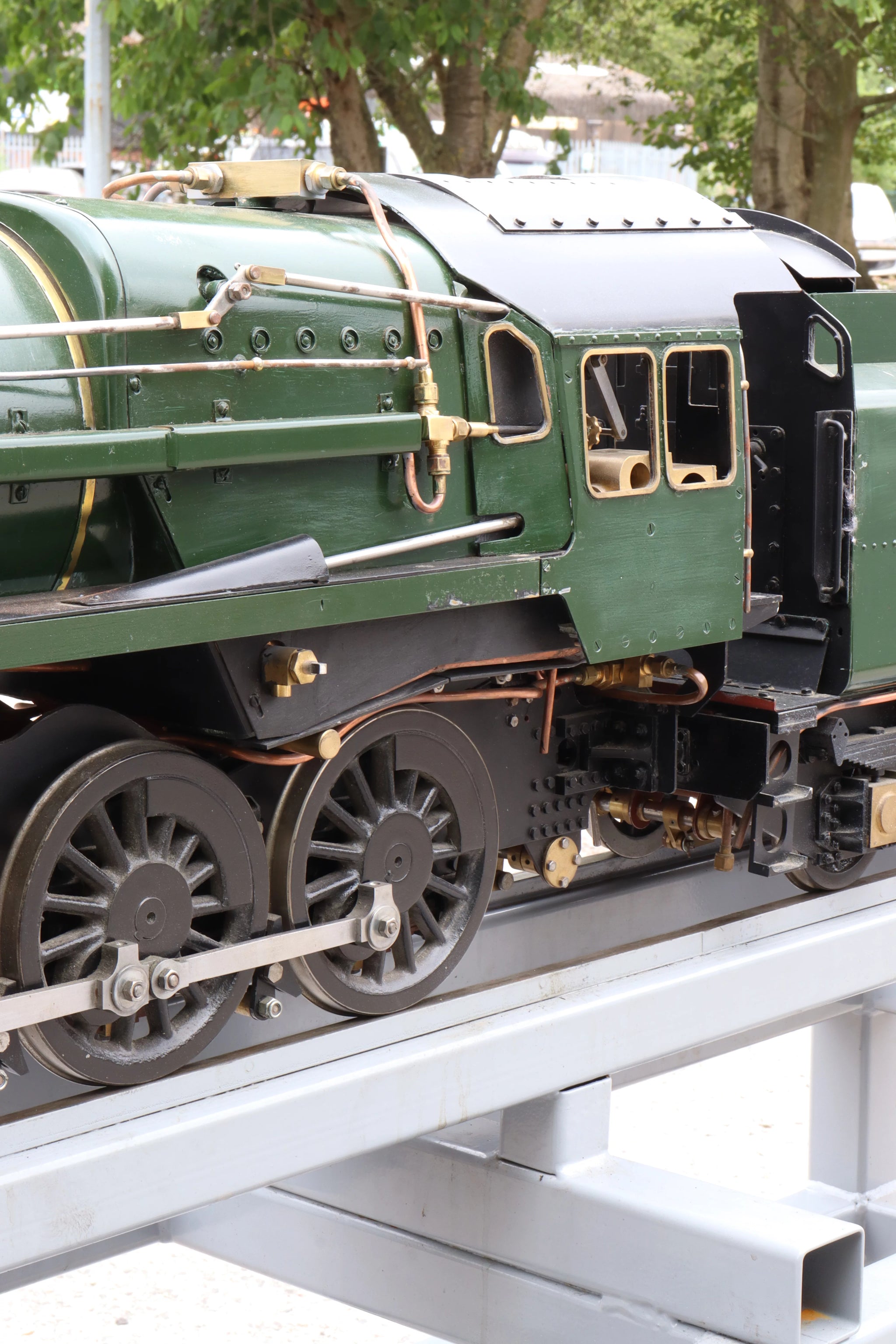

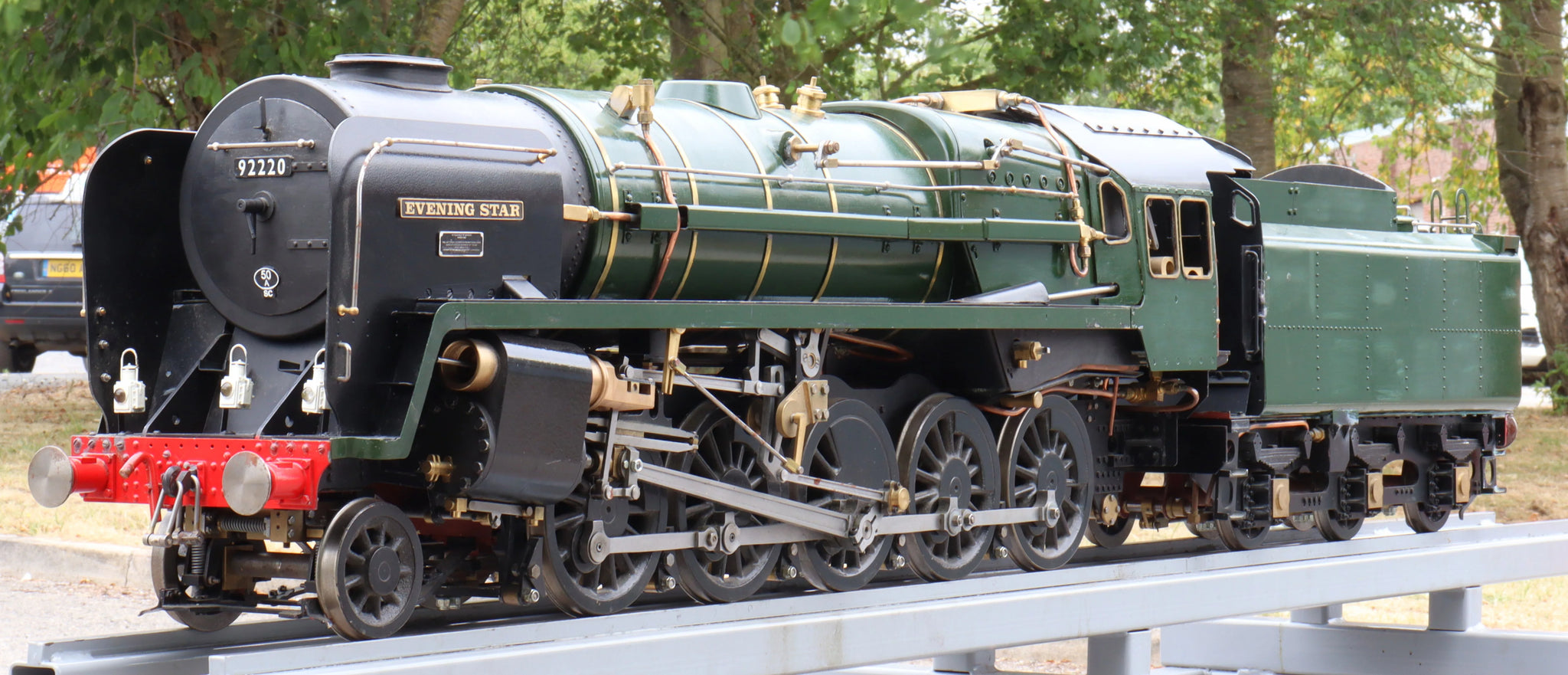

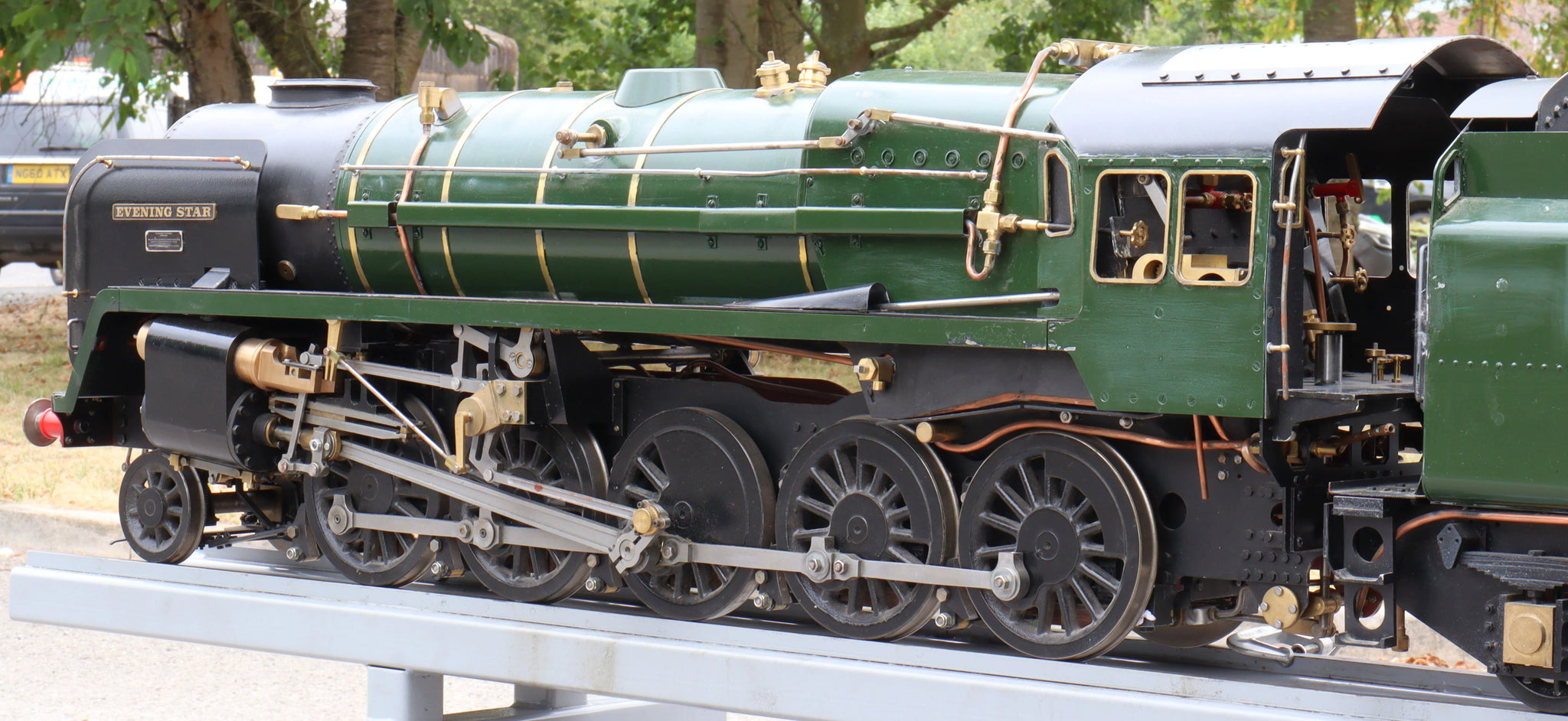

A 5 inch gauge BR 9F 2-10-0, built from a Winson kit.

An "out of the box" build, typically it doesn't turn over by hand - not unknown in these engines, normally requiring fettling and careful reassembly of cylinders and motionwork.

Missing its front piston valve covers, the engine appears otherwise complete. We haven't tested the new, unsteamed boiler but would warranty as sound, capable of passing a twice working pressure hydraulic test.

Scope for improvement, as they say. If you need some inspiration, we've had some excellent locomotives reworked from Winson/Modelworks kits in the past (including a super "Oliver Cromwell", which ran beautifully).

Technical information

Stock code

13435

Gauge

5 inch

Length/inches

47 + 25

Width/inches

10

Height/inches

15

Weight/Kg

116

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

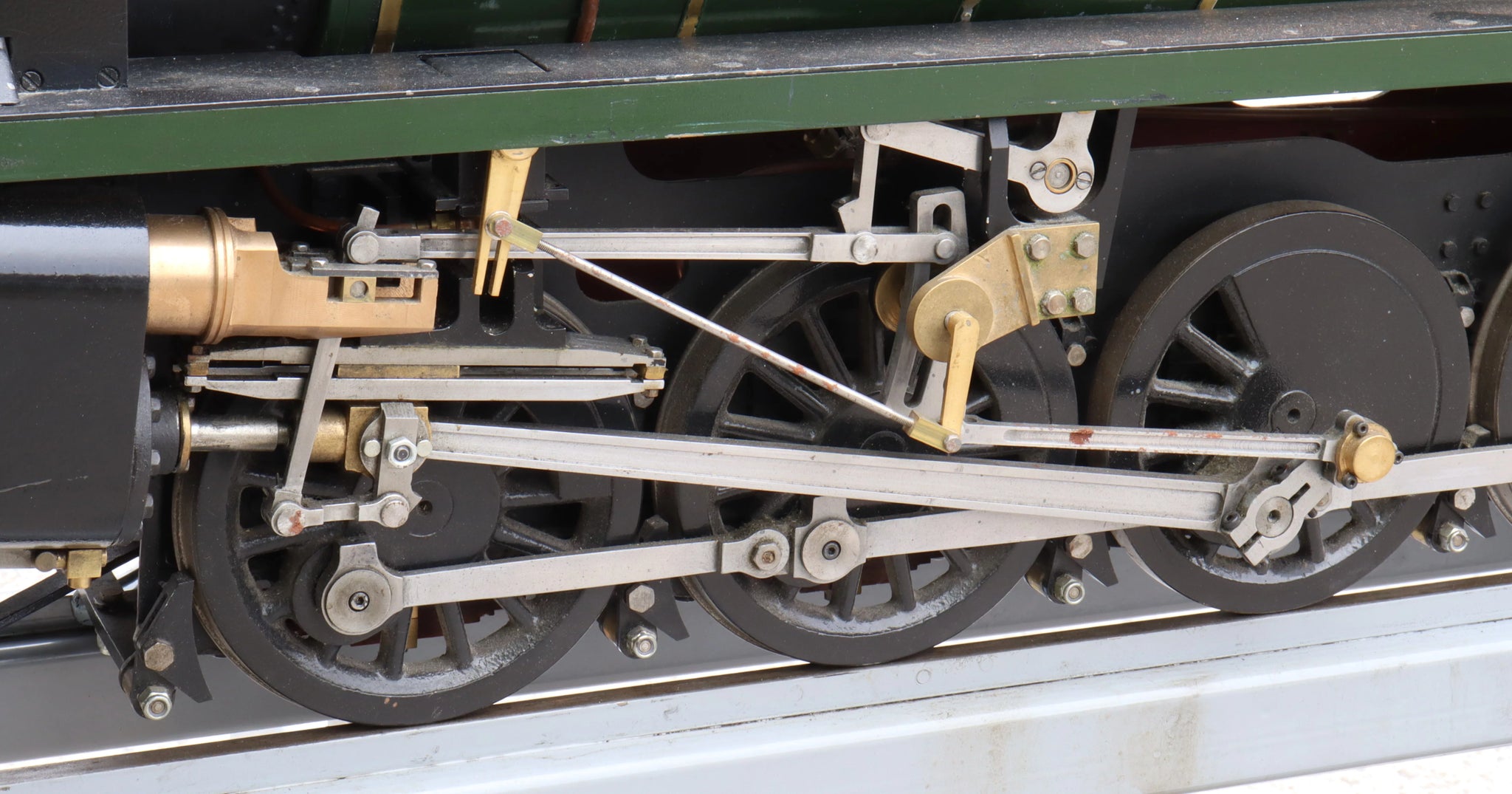

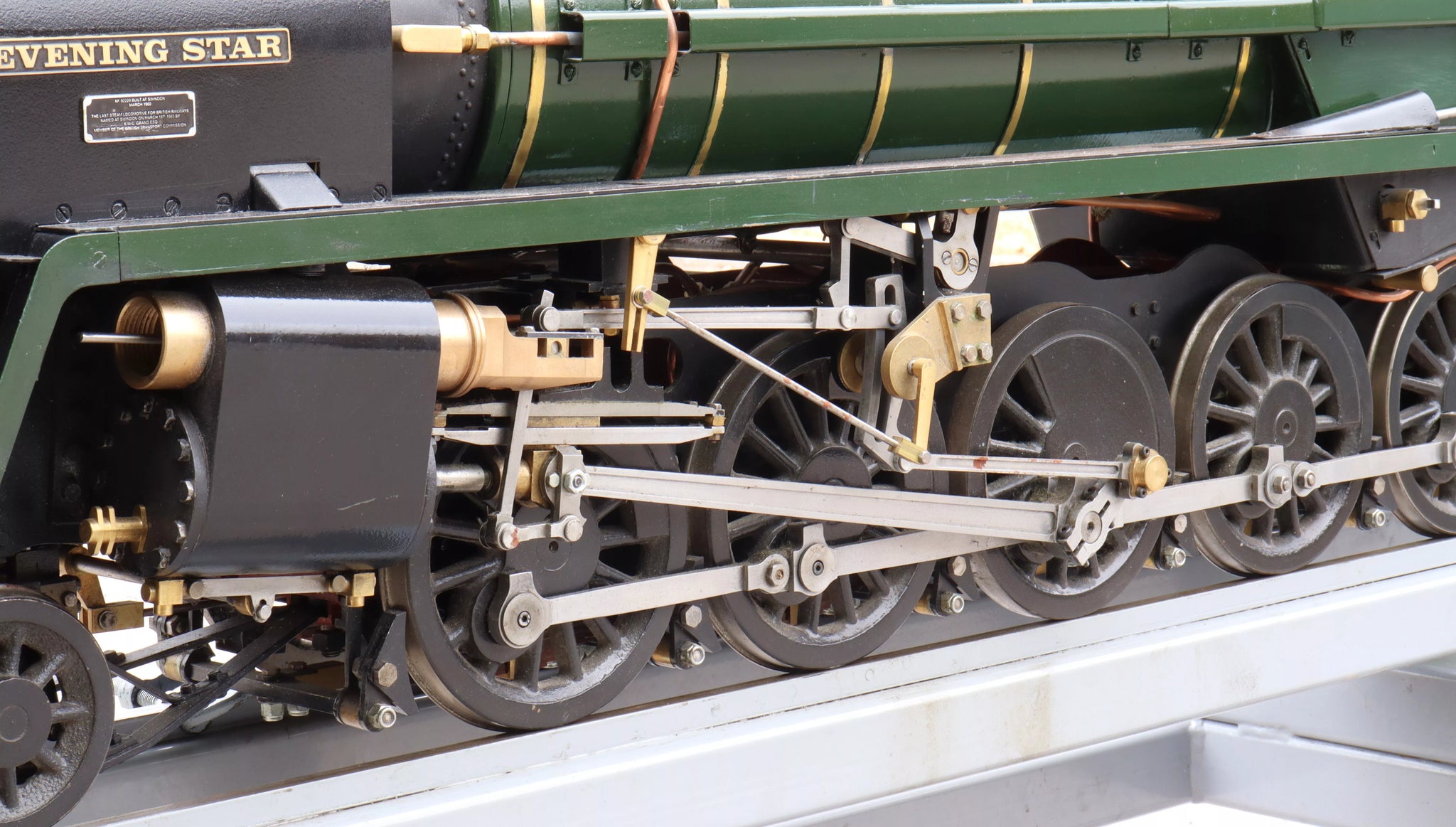

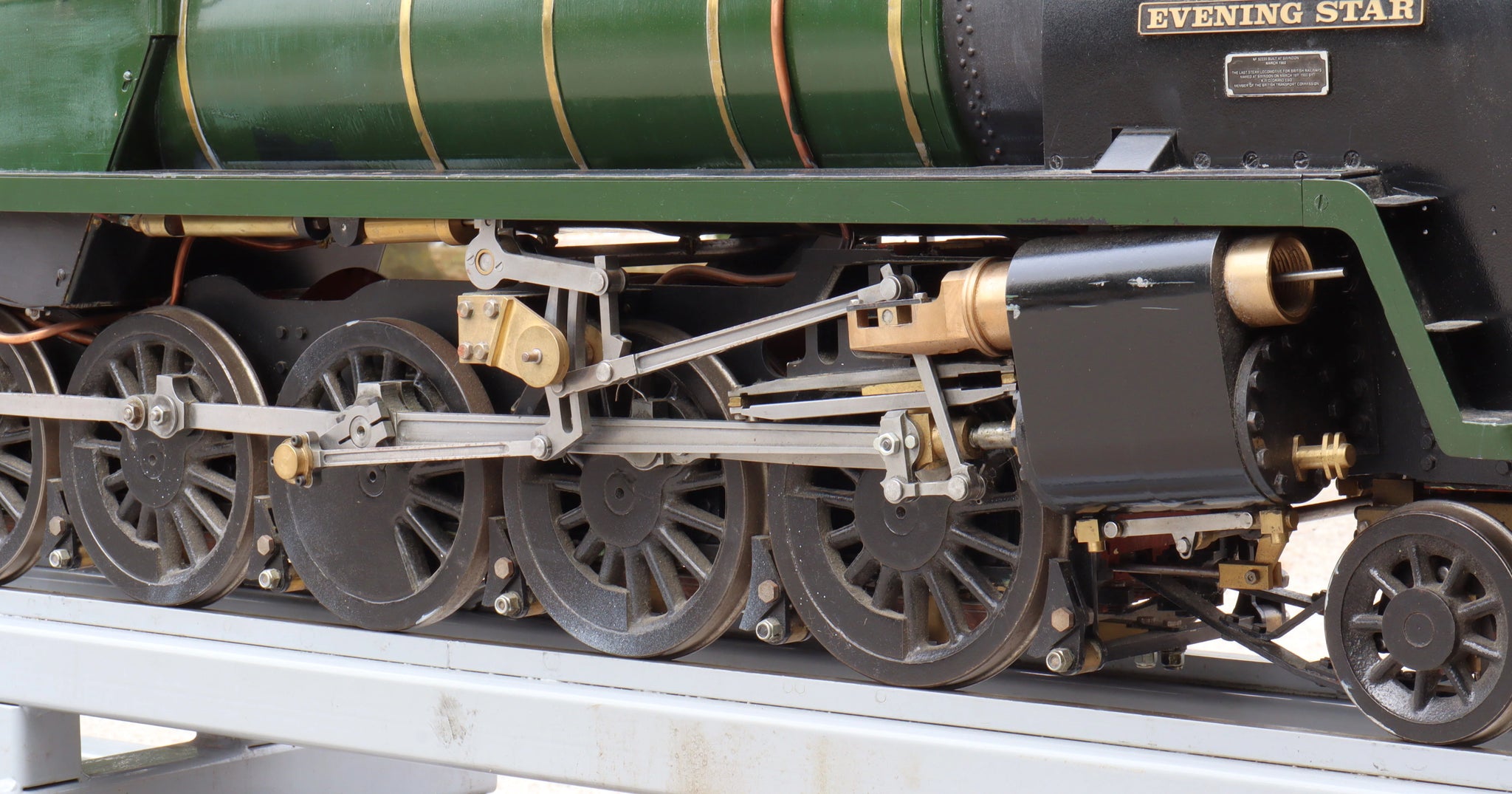

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

Winson Model Technology

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

85

CE/UKCA mark

yes

Year built

unknown

Boiler number

219

Safety valve

2

Hand pump

1

Mechanical pump

1

Injector

2
