9560
The engine rolls freely and runs on air. On a twice working pressure hydraulic test the boiler appeared structurally sound, with a few minor beads from stays which would take up when hot.
Most fittings leak - not unexpected on an engine that hasn't run in some years - there is wear in the motionwork and valve gear.
Stock code |
9560 |
Gauge |
5 inch |
Length/inches |
29 |
Width/inches |
10.5 |
Height/inches |
15 |
Weight/Kg |
45 |

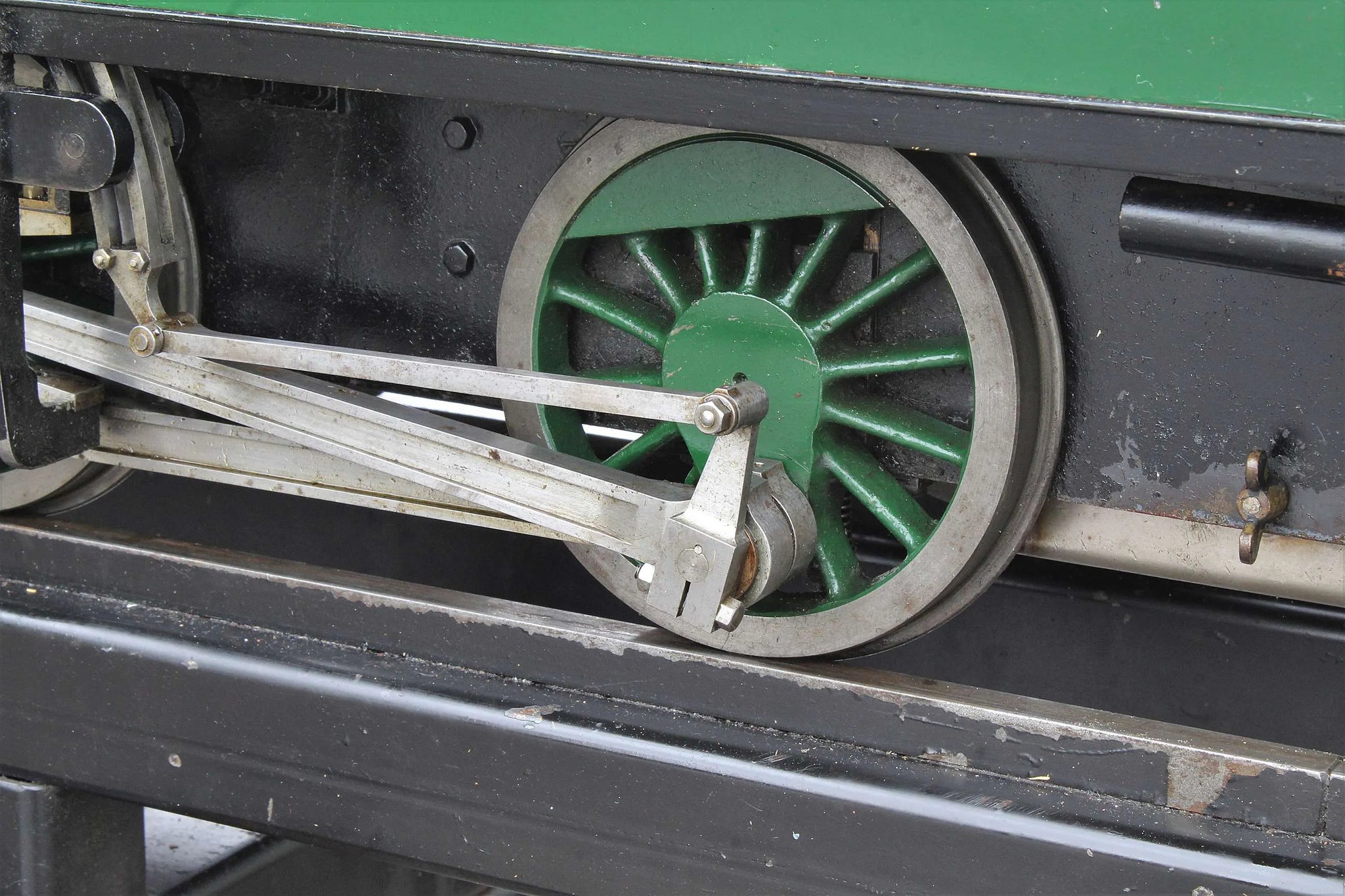

Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

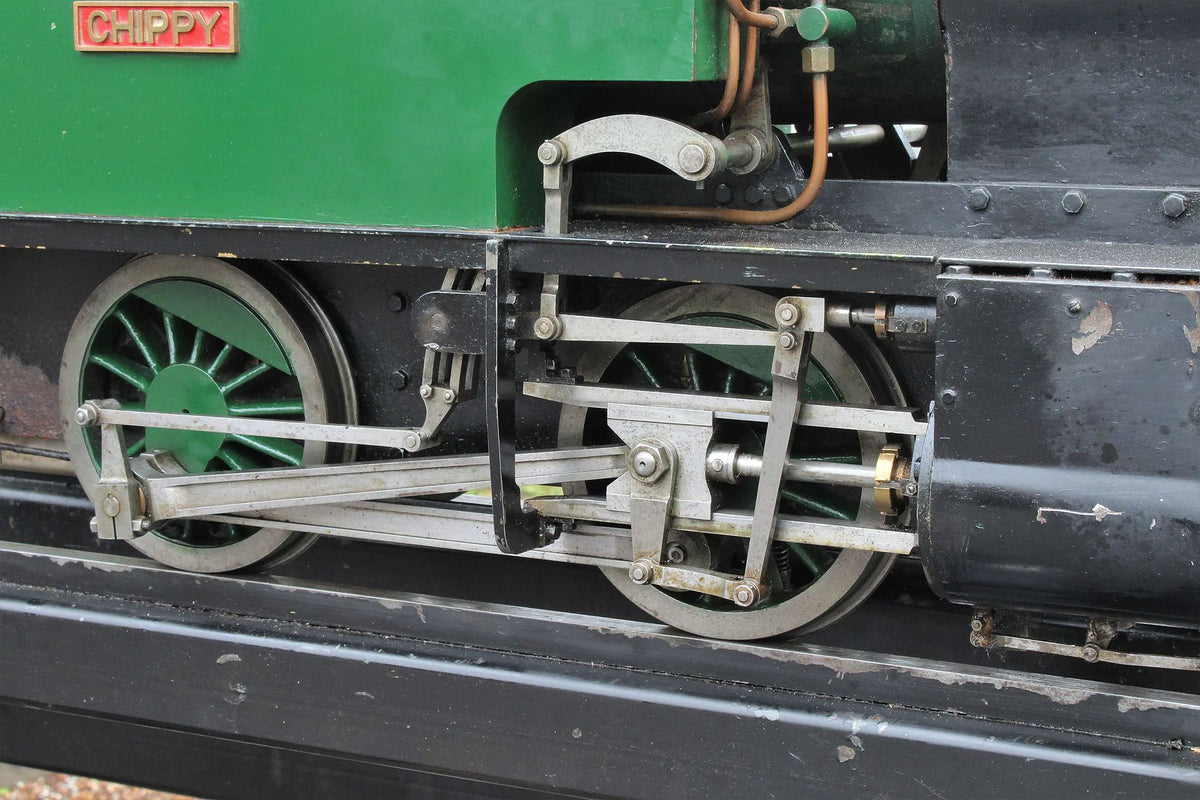

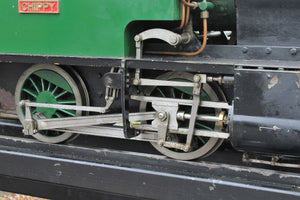

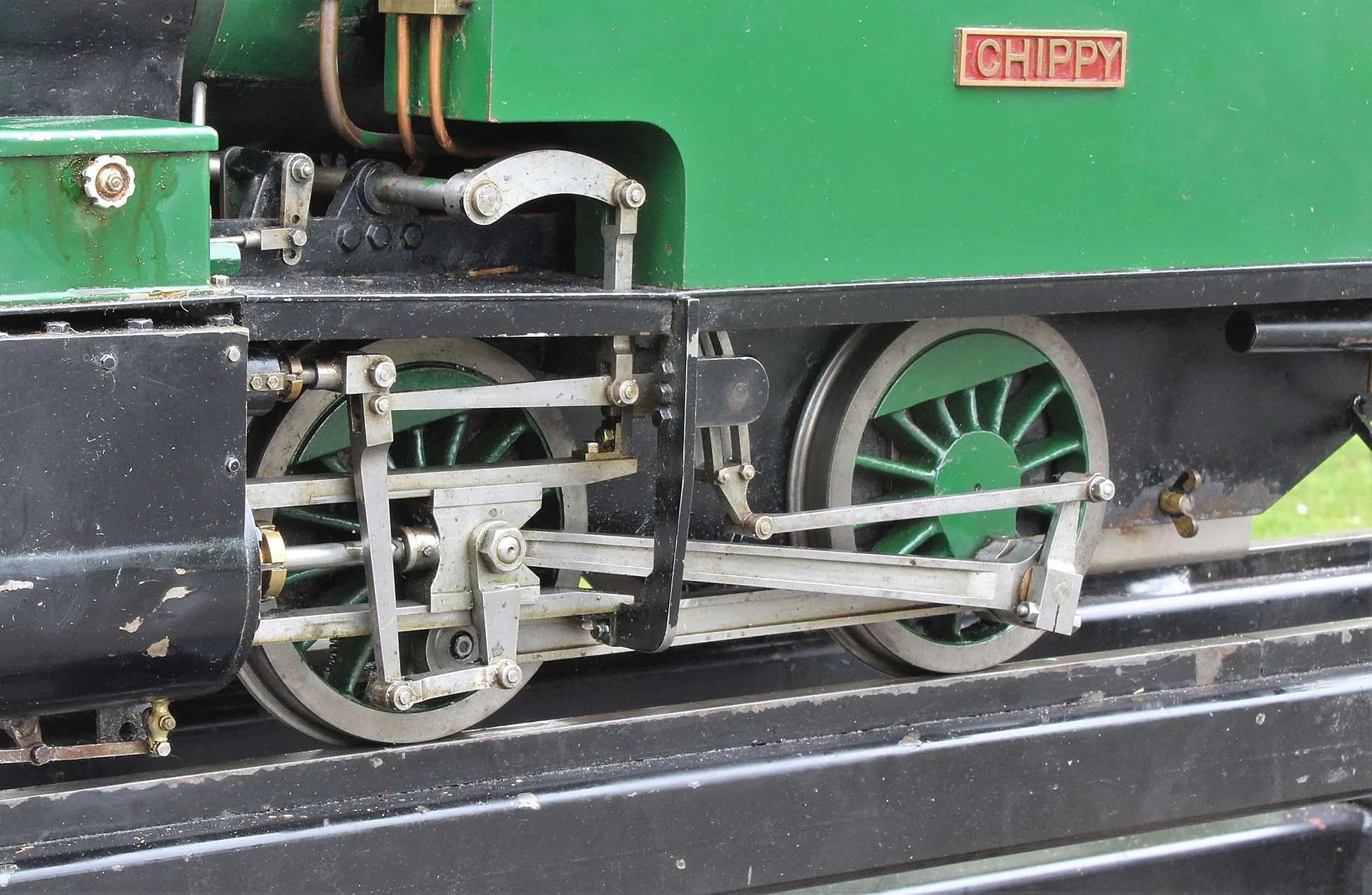

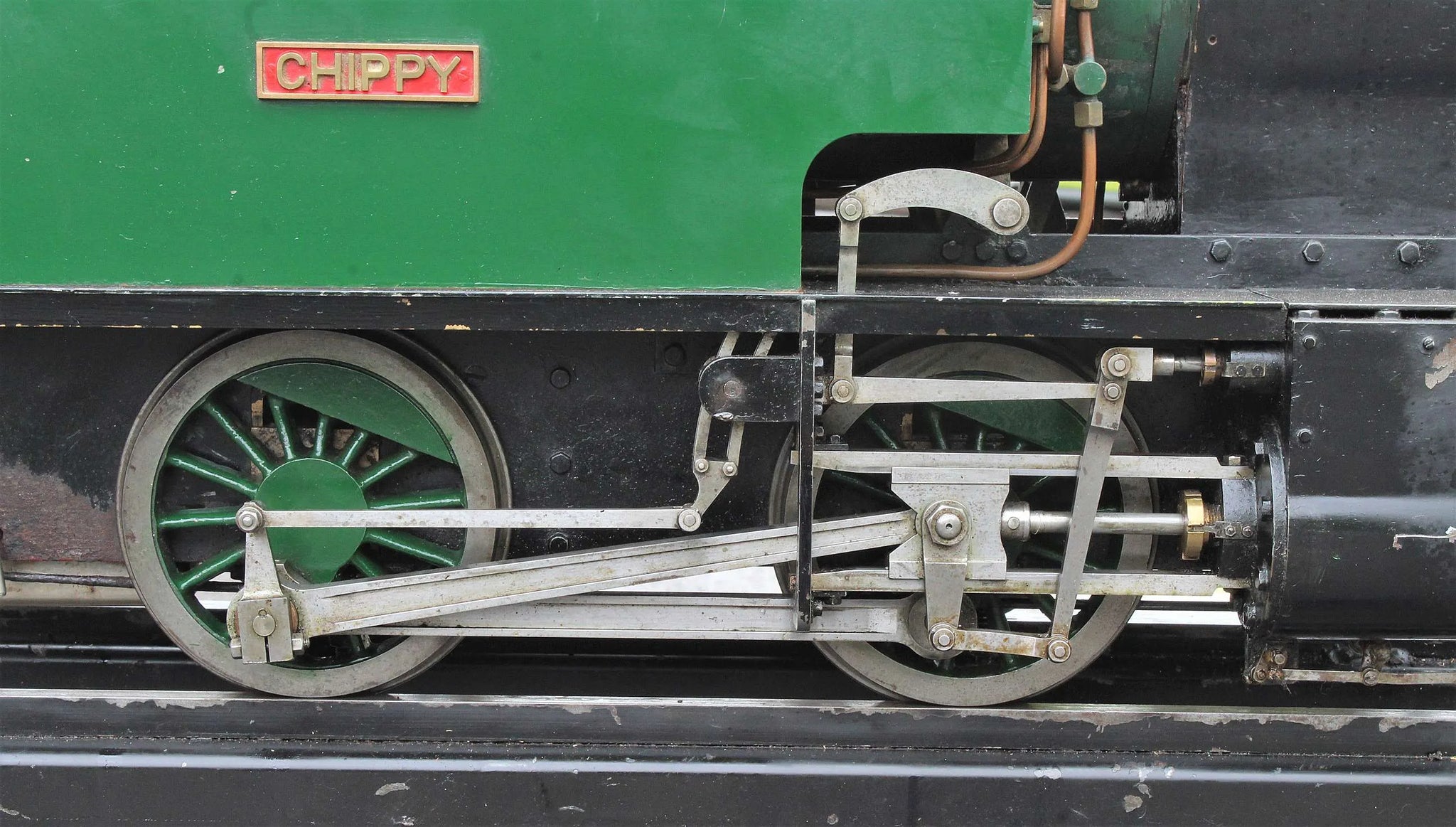

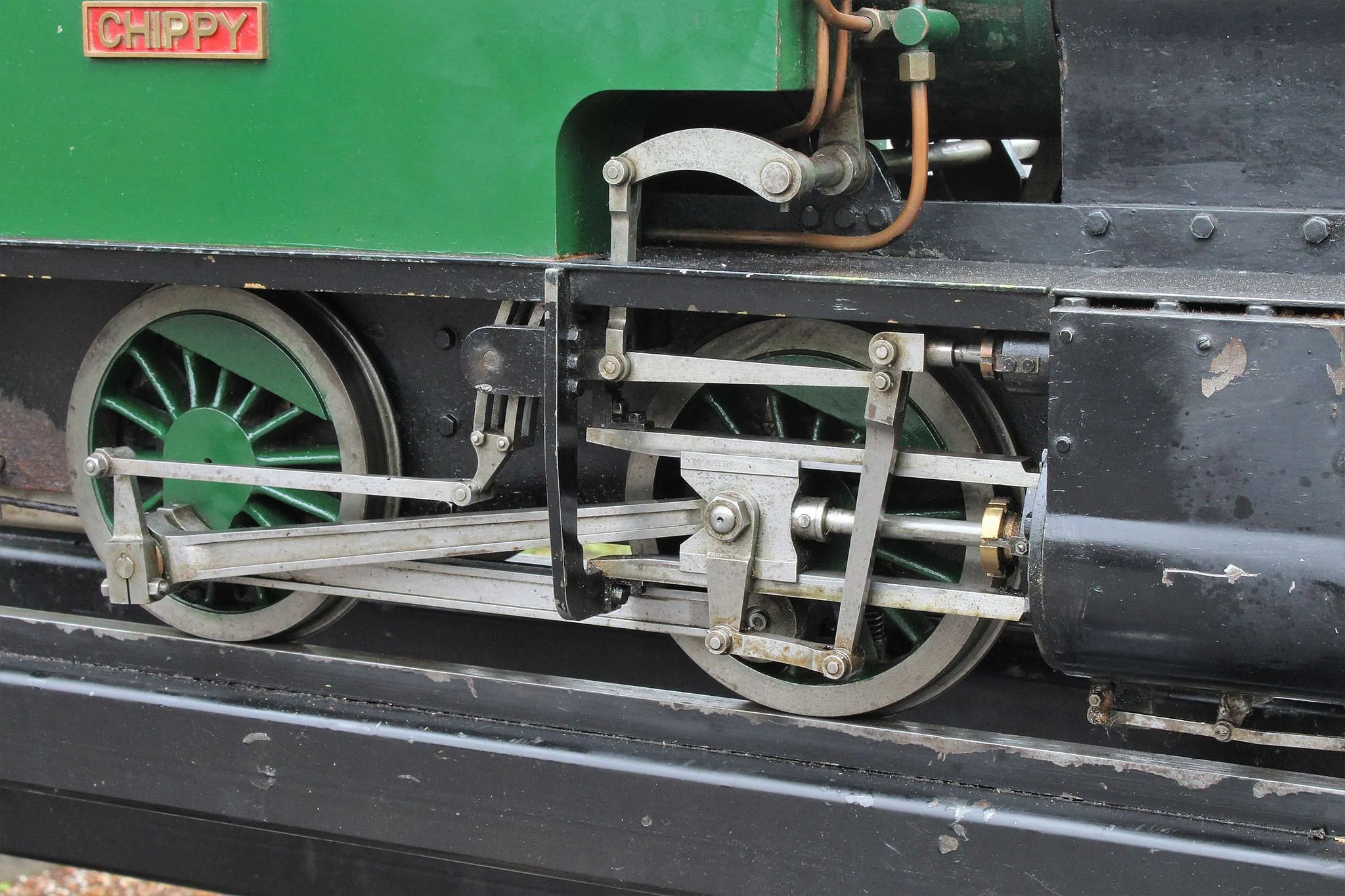

Valve gear |

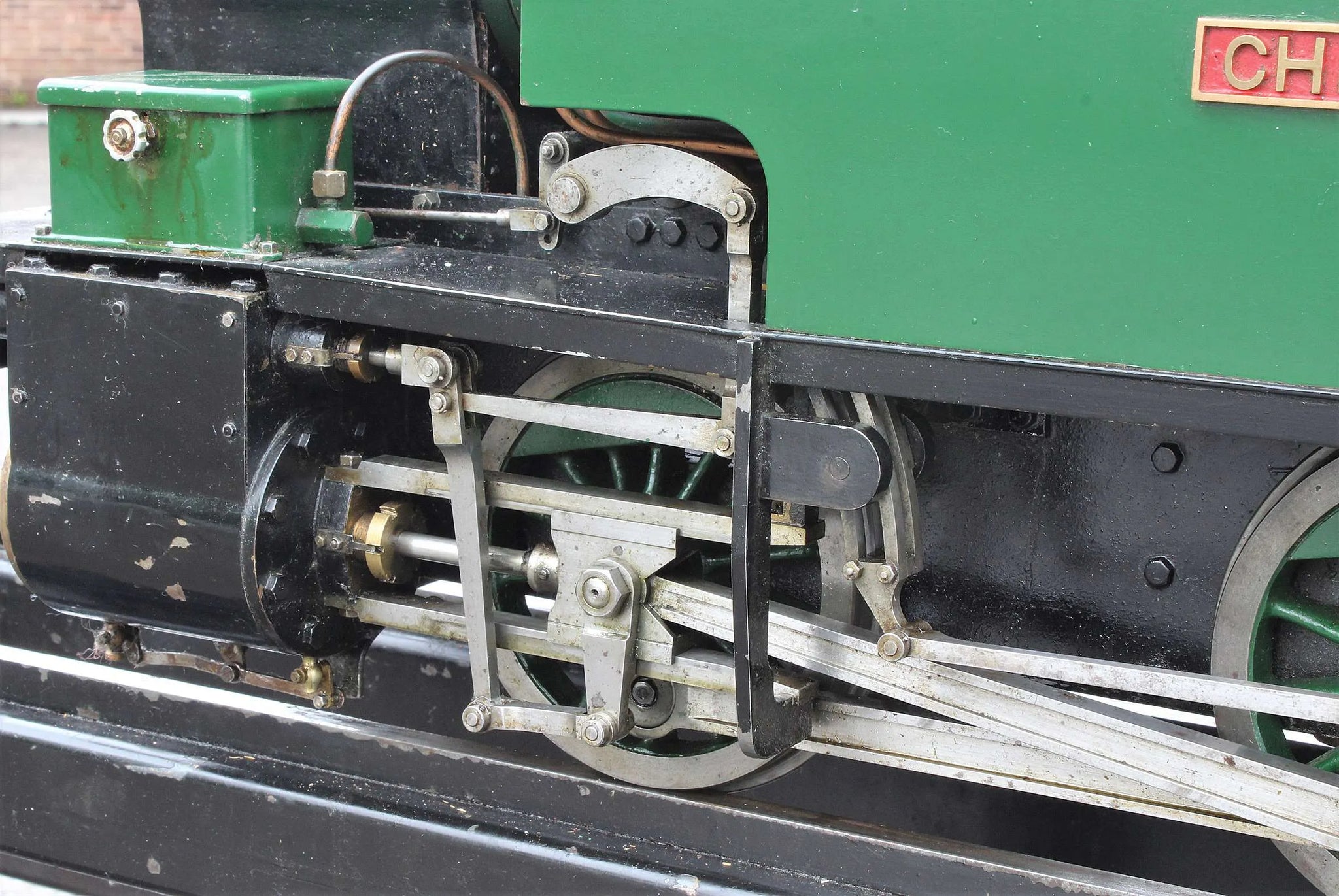

Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
J.Mercer |
Boiler type |
locomotive |
Boiler construction |
silver soldered, nutted & calked firebox stays |
Boiler material |
copper |
Working pressure |
80 |
Year built |
1951 |
Boiler number |
N49.80.10 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
2 x axle |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
3 |
Date out |
Jan-22 |
