10521

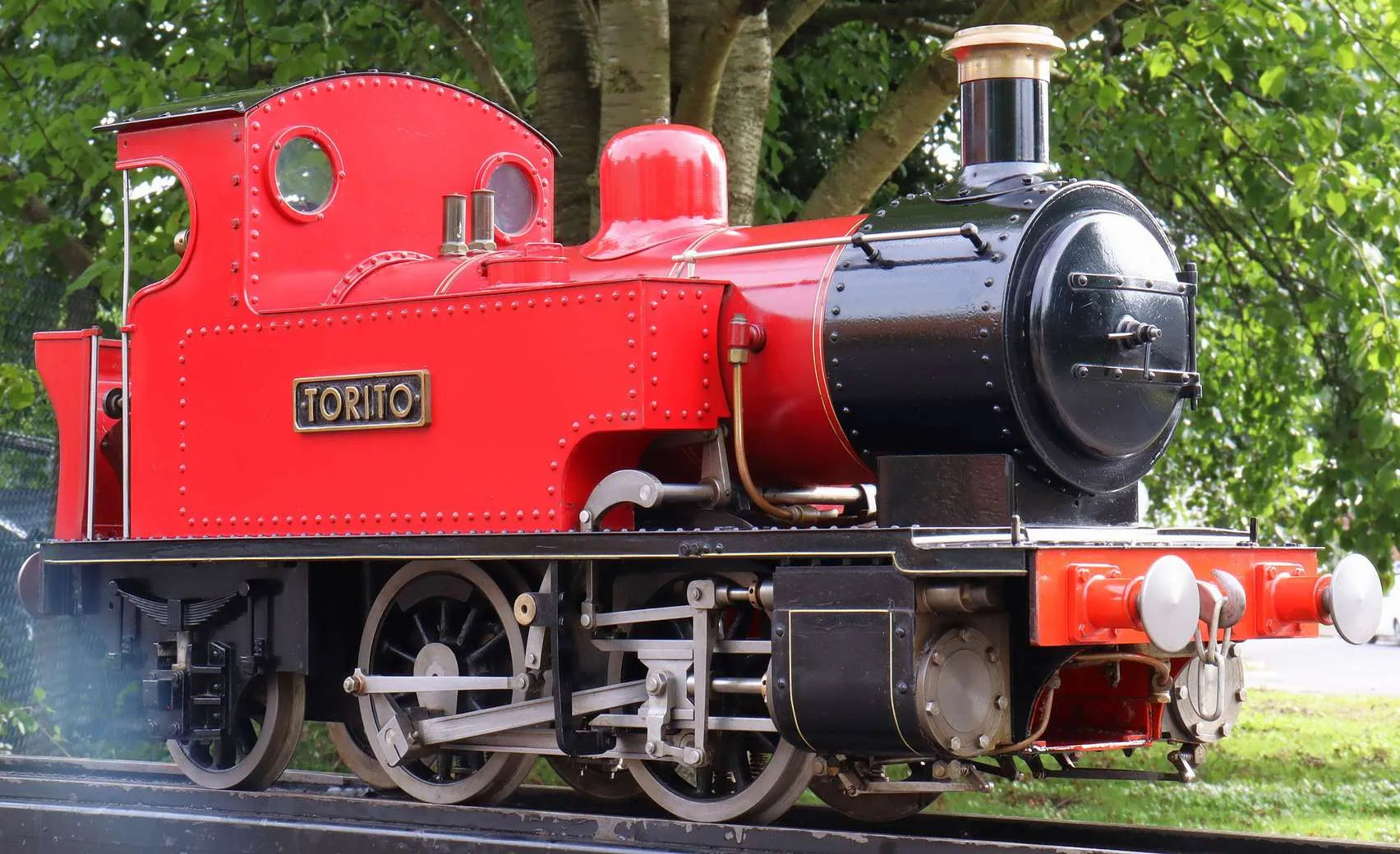

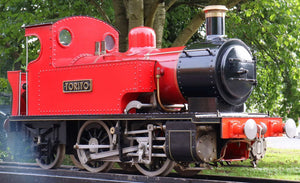

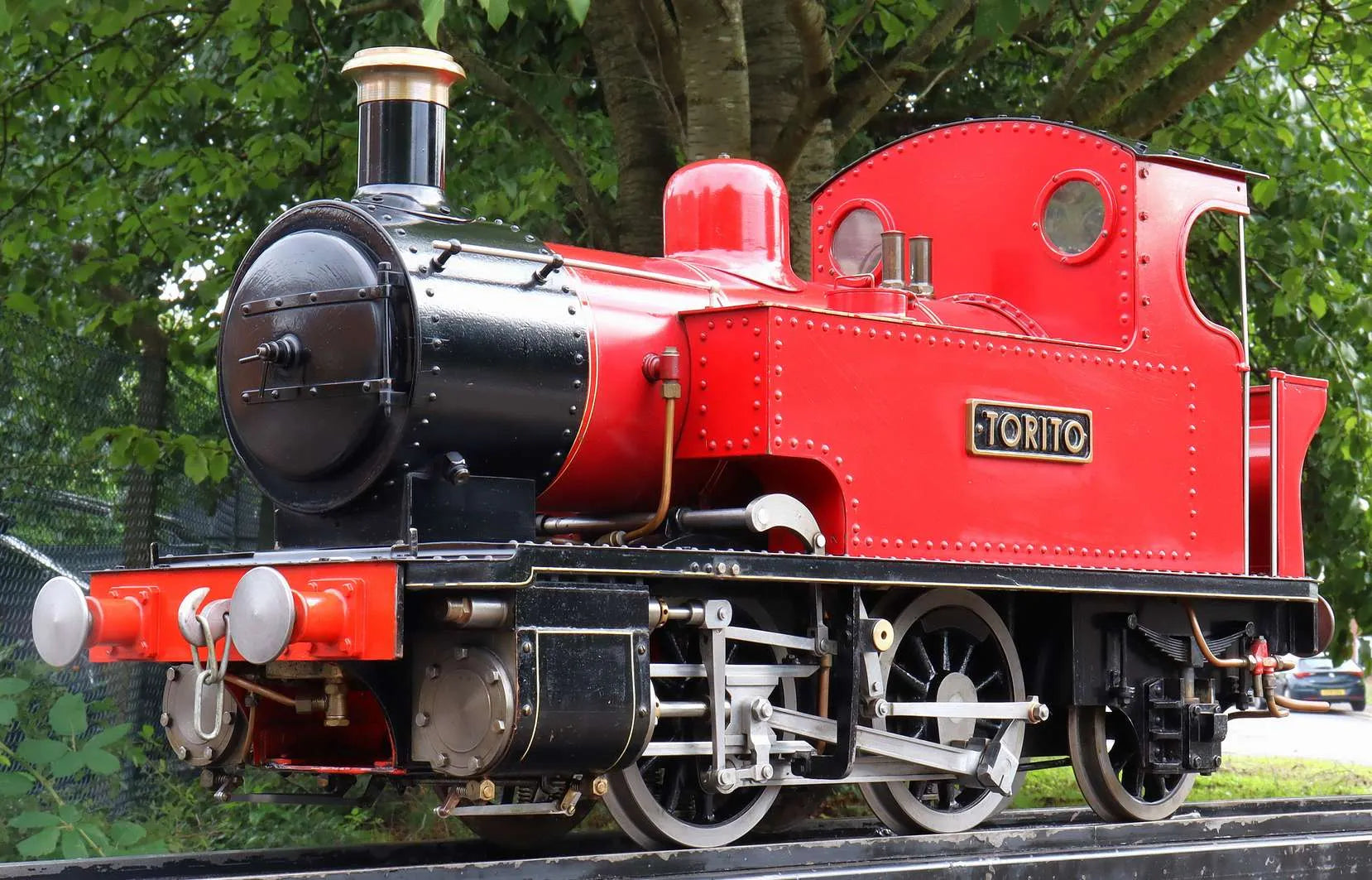

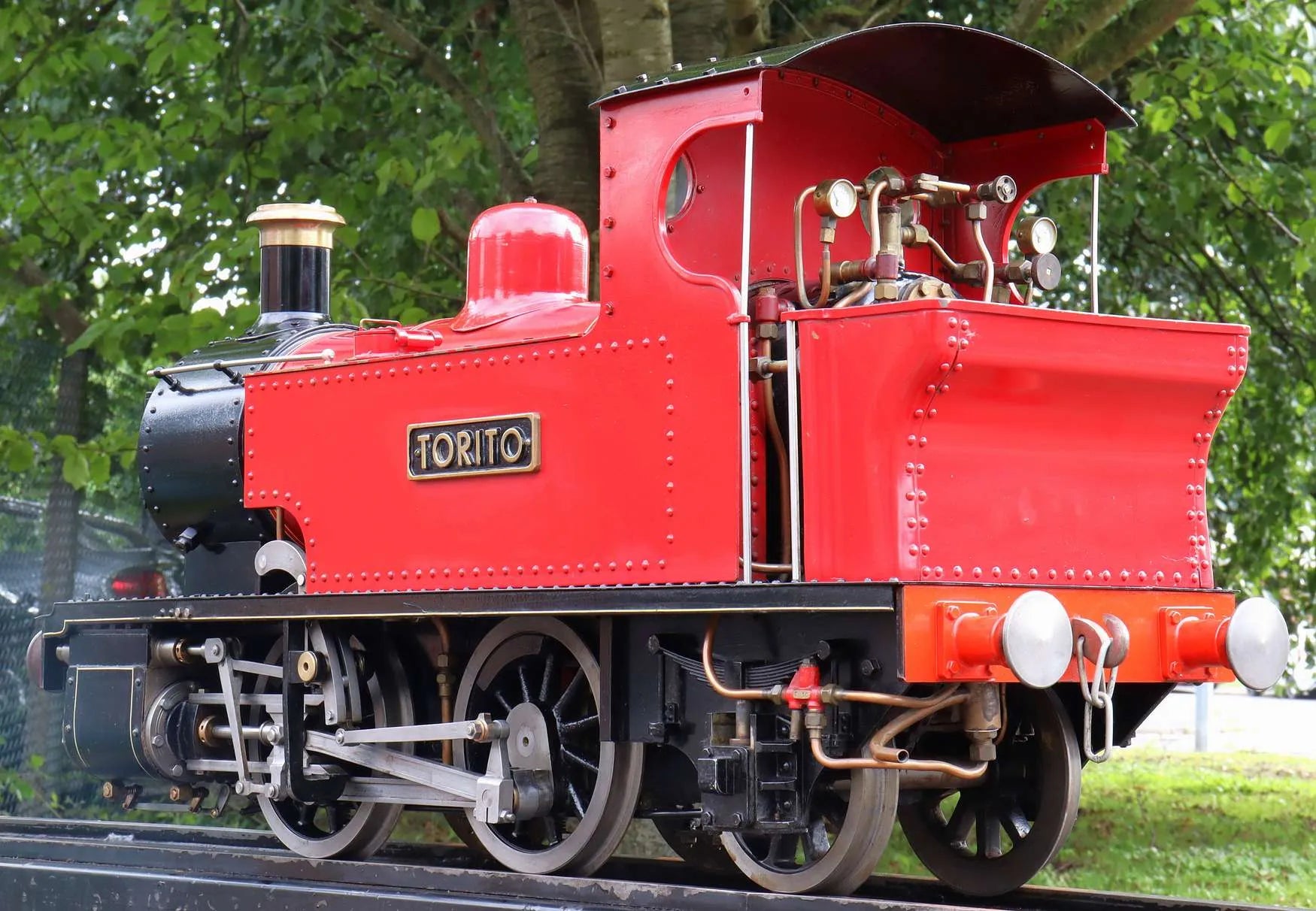

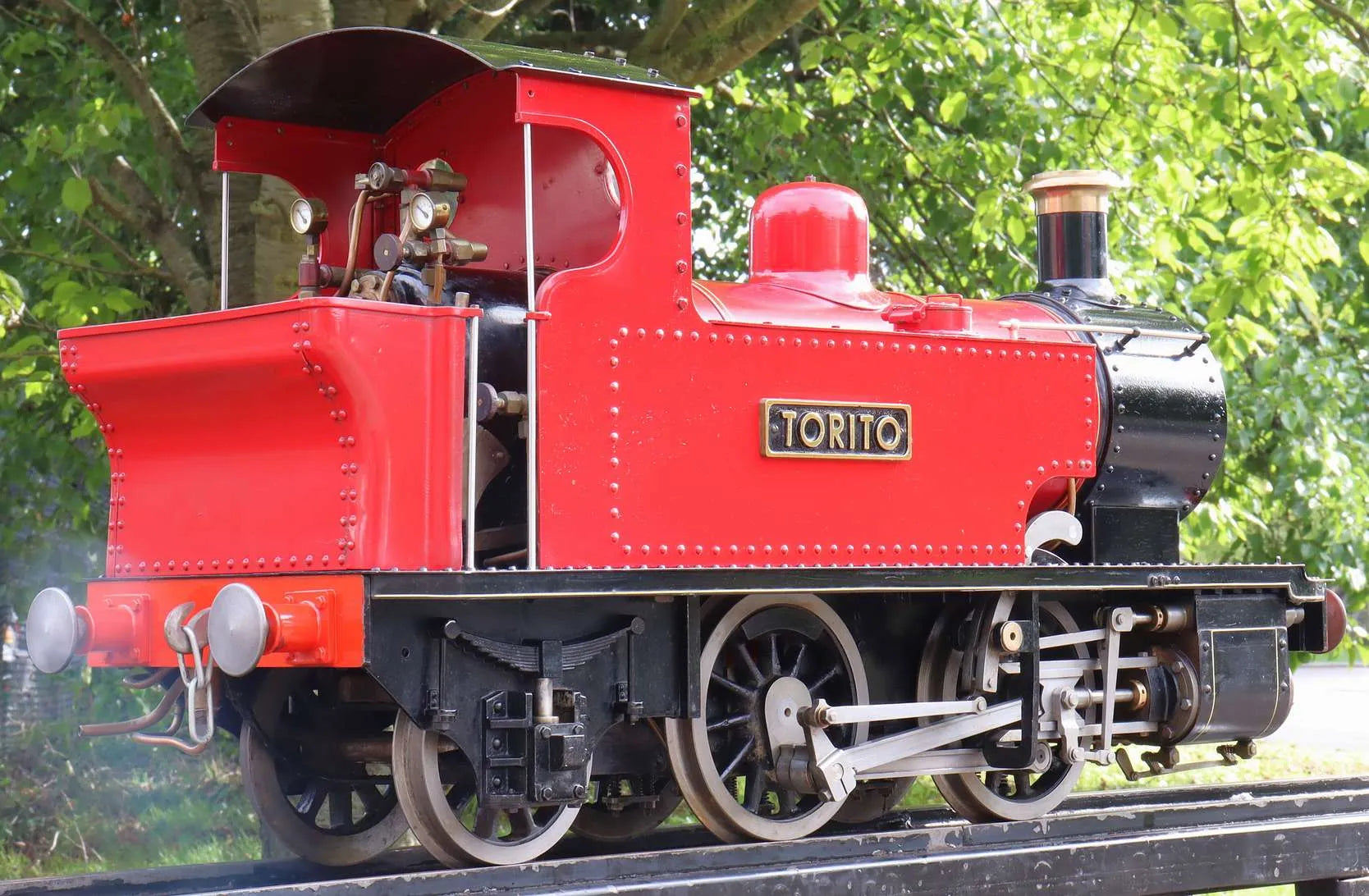

A well made engine, it's come to us as part of a much larger collection of fine locomotives and traction engines, which included a magnificent 7 1/4 inch gauge Standard Class 2, Manning Wardle 2-6-2T "Yeo" and 4 inch scale Burrell DCC road locomotive that we've sold recently.
The engine has had recent boiler test with new certification issued - it steams freely and runs well.
Stock code |
10521 |
Gauge |
5 inch |
Length/inches |
35 |
Width/inches |
11 |
Height/inches |
17 |
Weight/Kg |
59 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

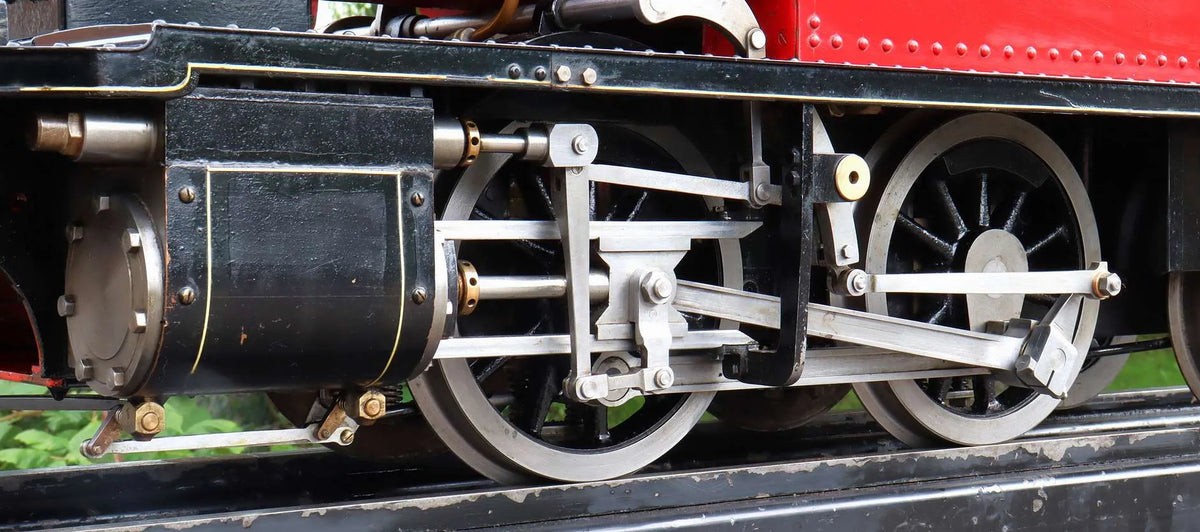

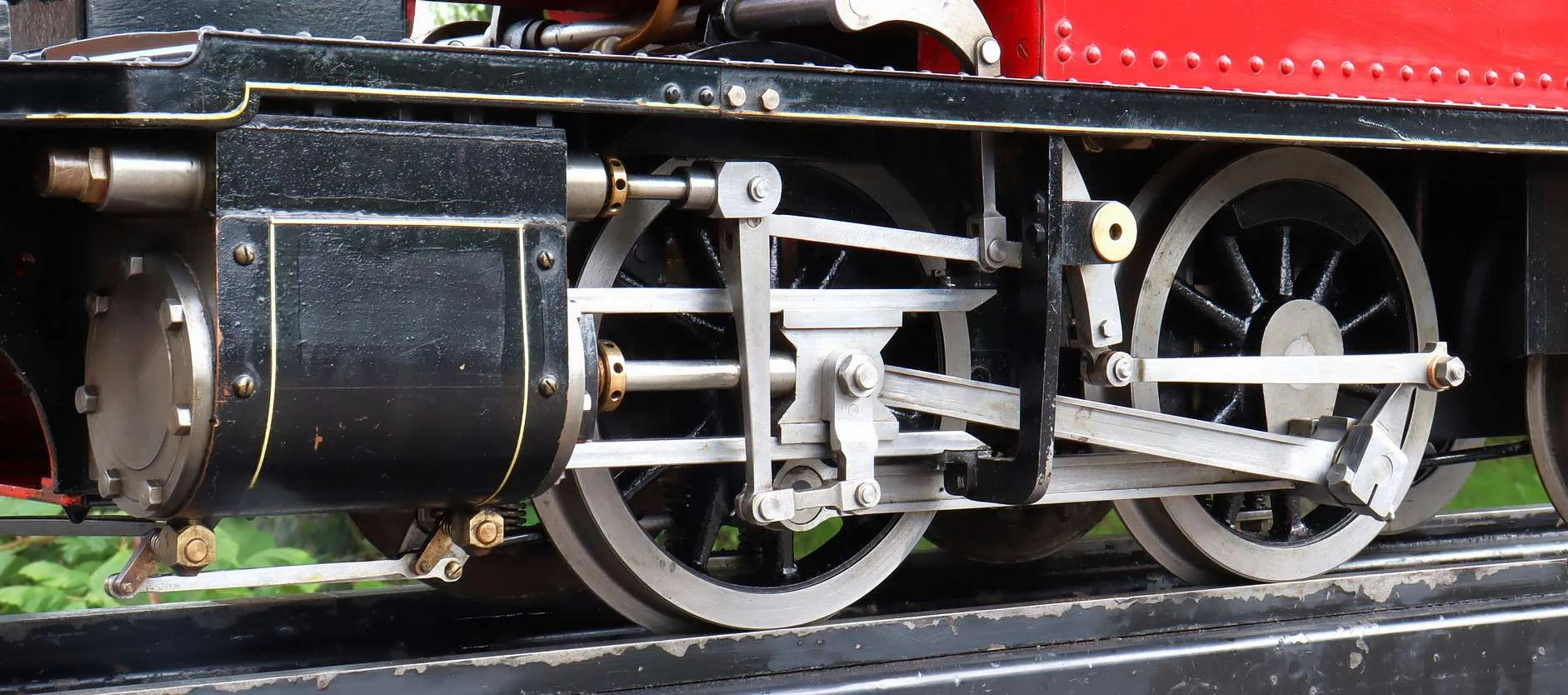

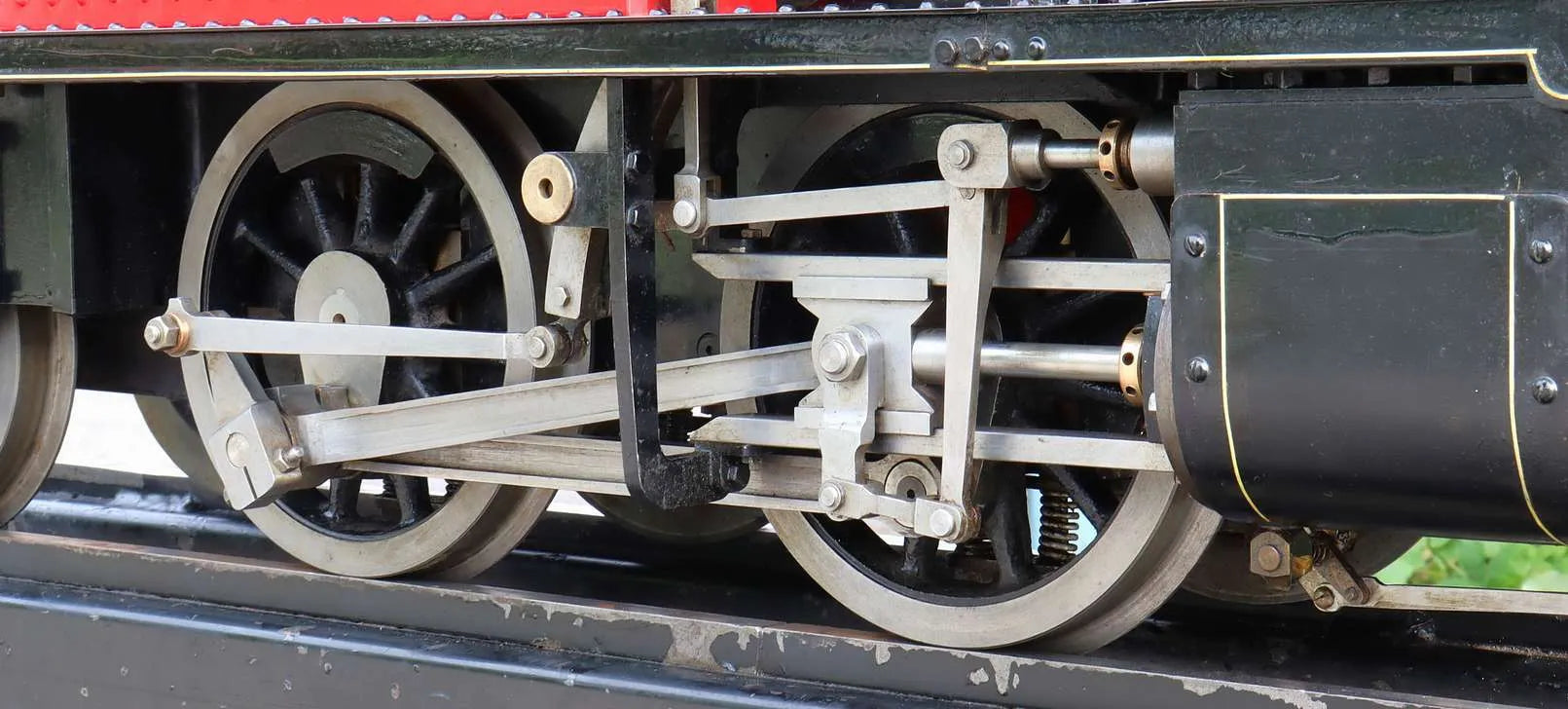

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive with combustion chamber |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
3771 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Mechanical pump |
1 |
Superheater type |
radiant |
Superheater |
3 |
Date out |
Jan-23 |
Hydraulic test valid to |
18-Sep-26 |
Steam test valid to |
12-Nov-23 |
