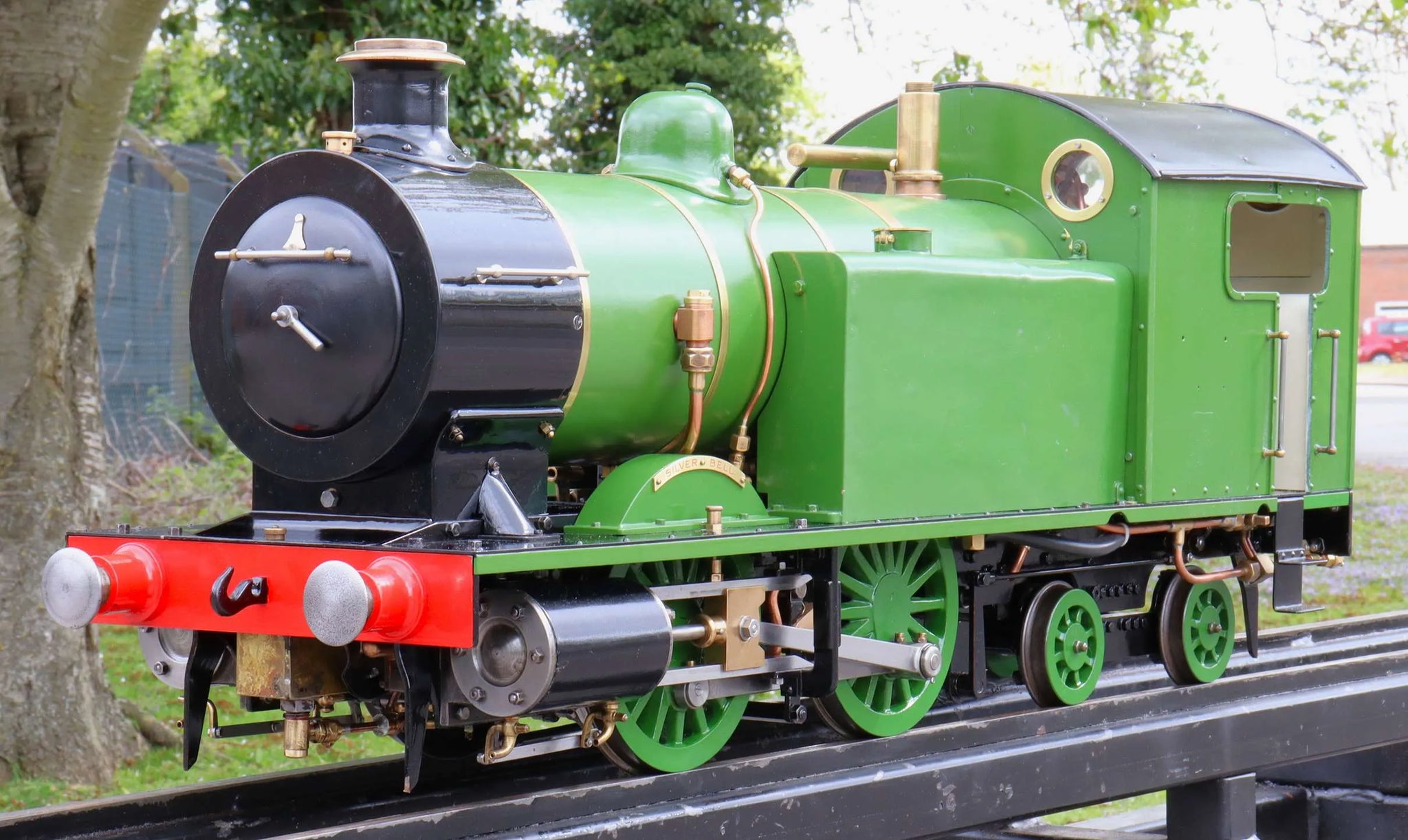

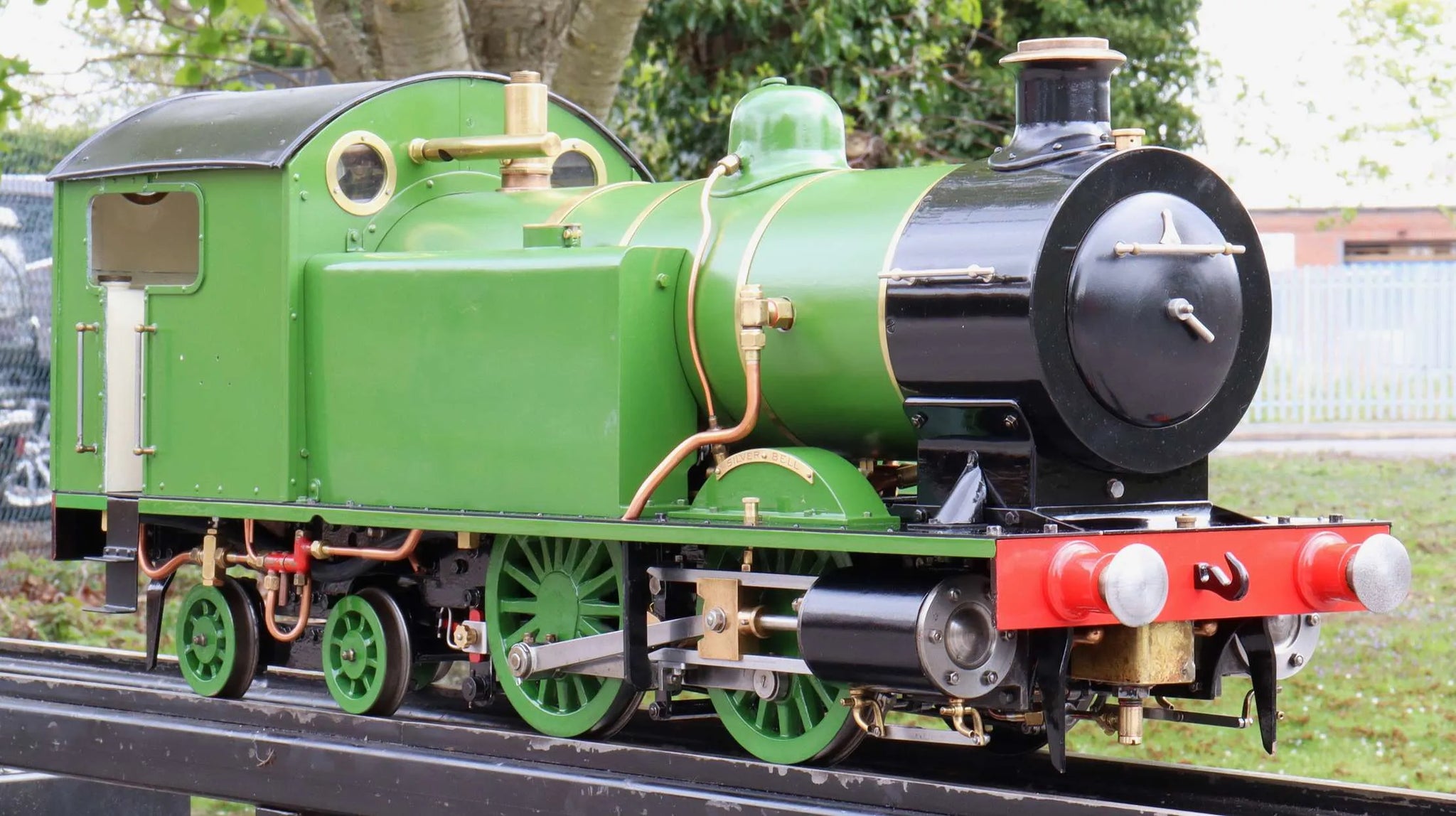

5 inch gauge 0-4-4T "Silver Belle"

We sold this one back in 2009 as a project - basically a chassis, a box of bits and a brand new commercial boiler, there are pictures and a writeup of it in the archive here.

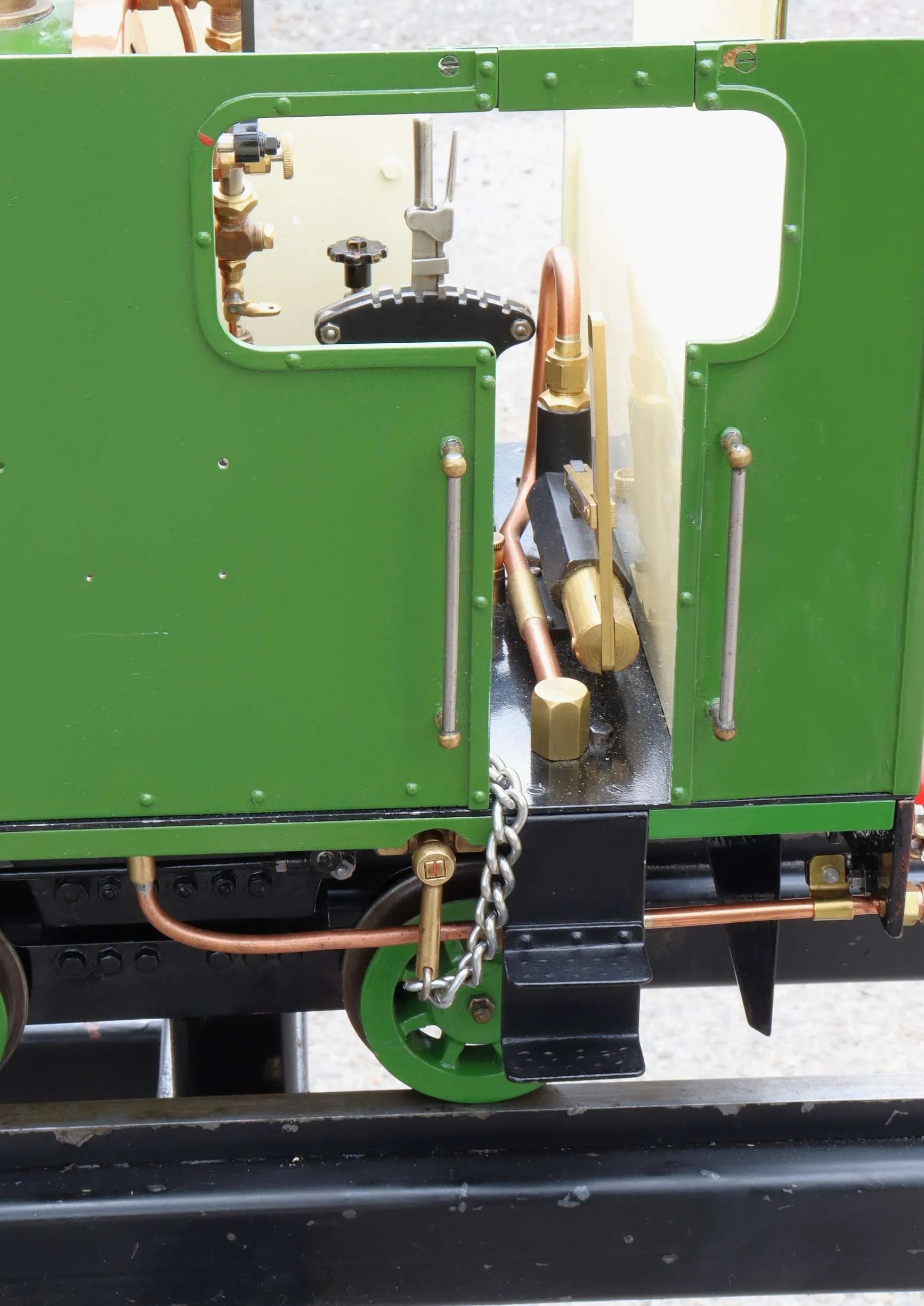

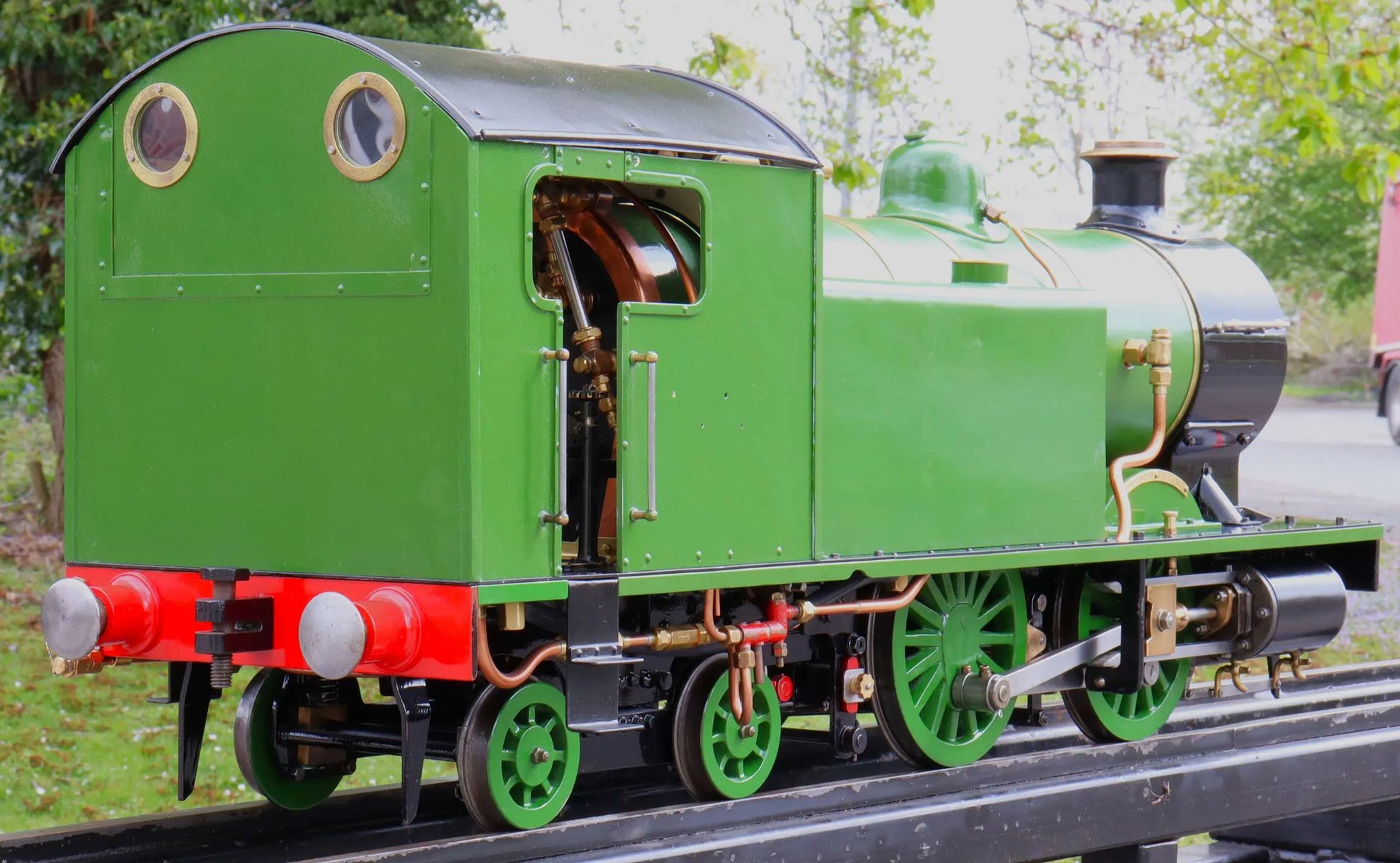

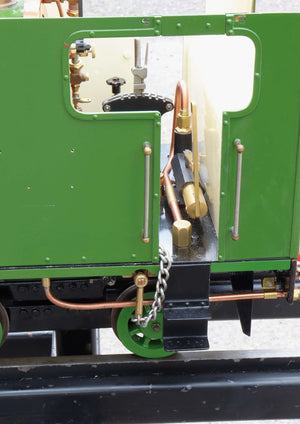

It's recently come back rebuilt and resplendent in new paint, yet to be steamed. The work of an experienced engineer, he's done a super job of it - we love the sympathetic retention of as much original material as possible and the "holster" let into the nearside side tank for the recently-installed hand pump's handle!

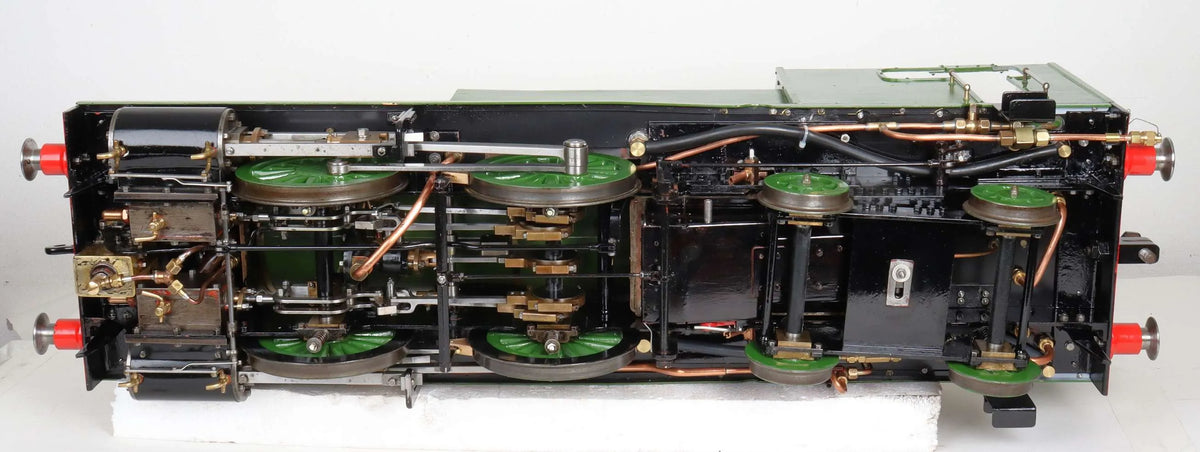

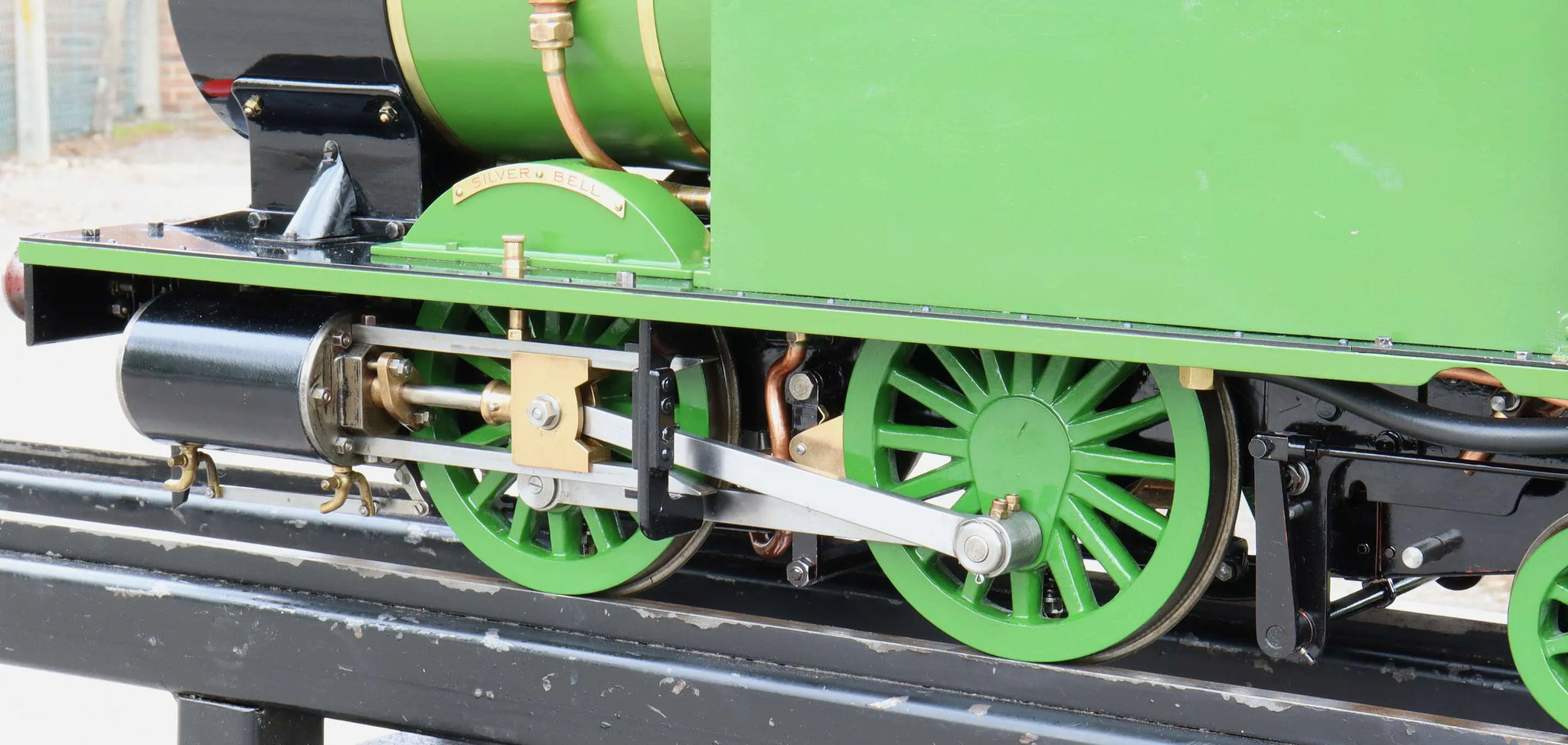

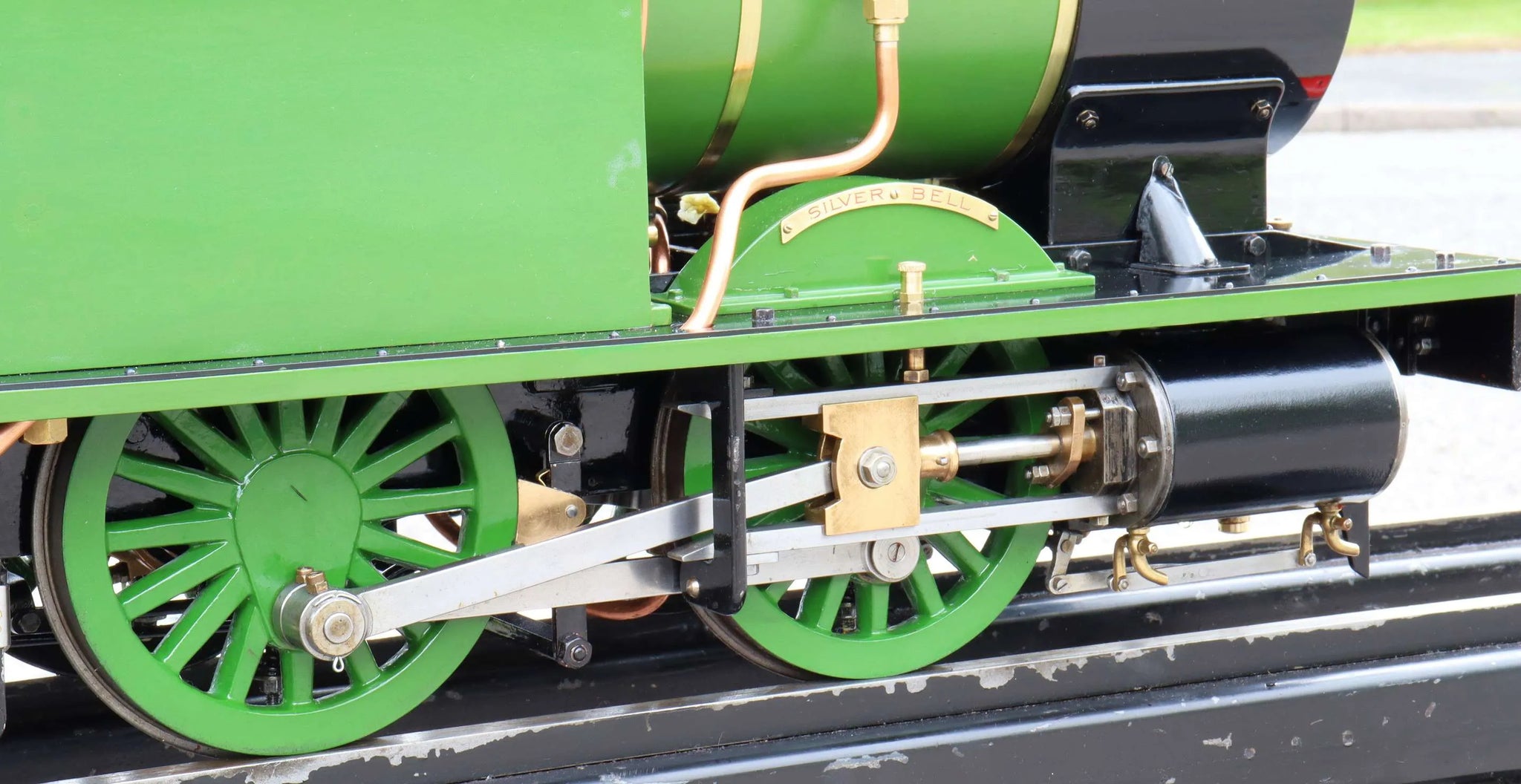

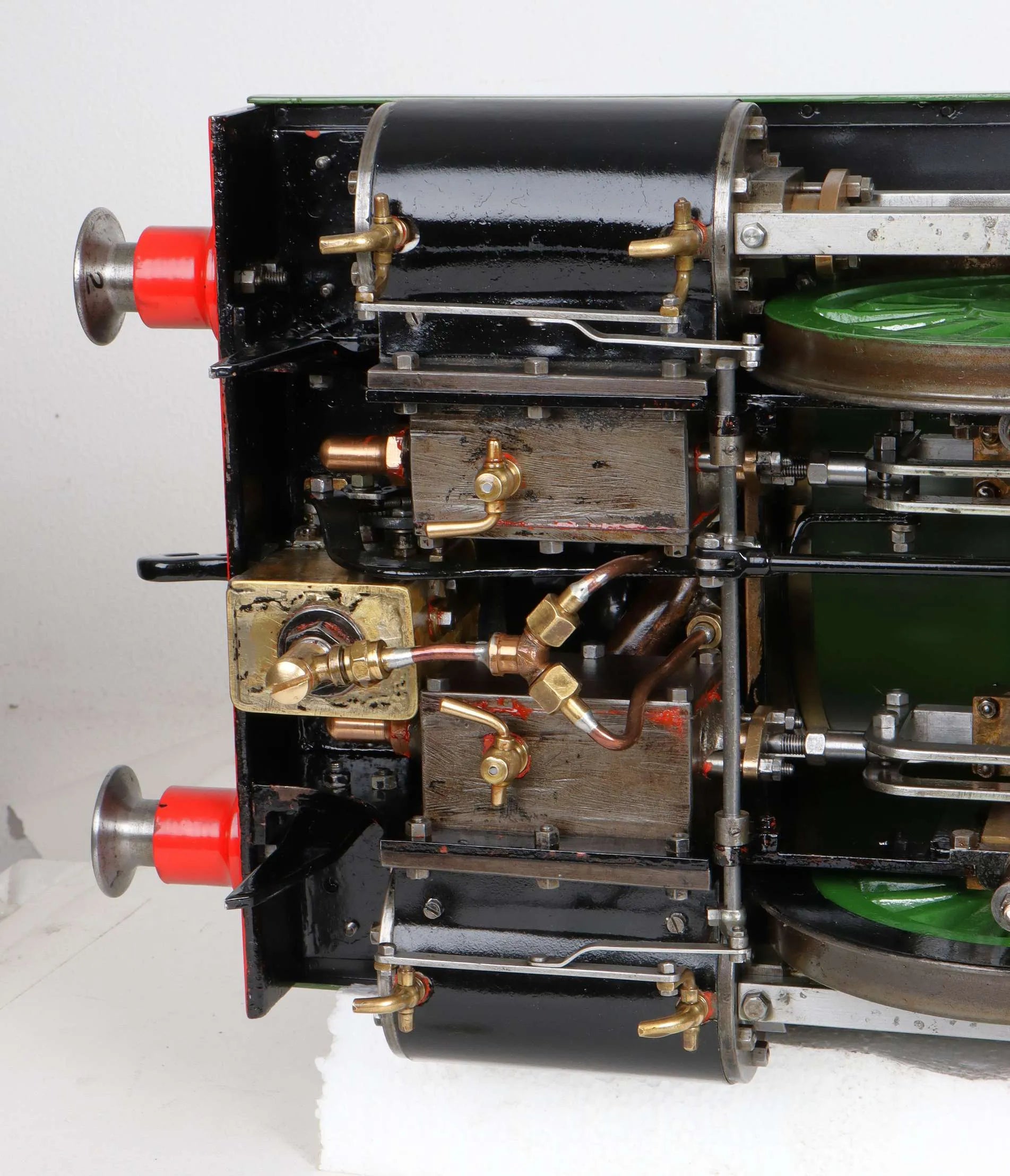

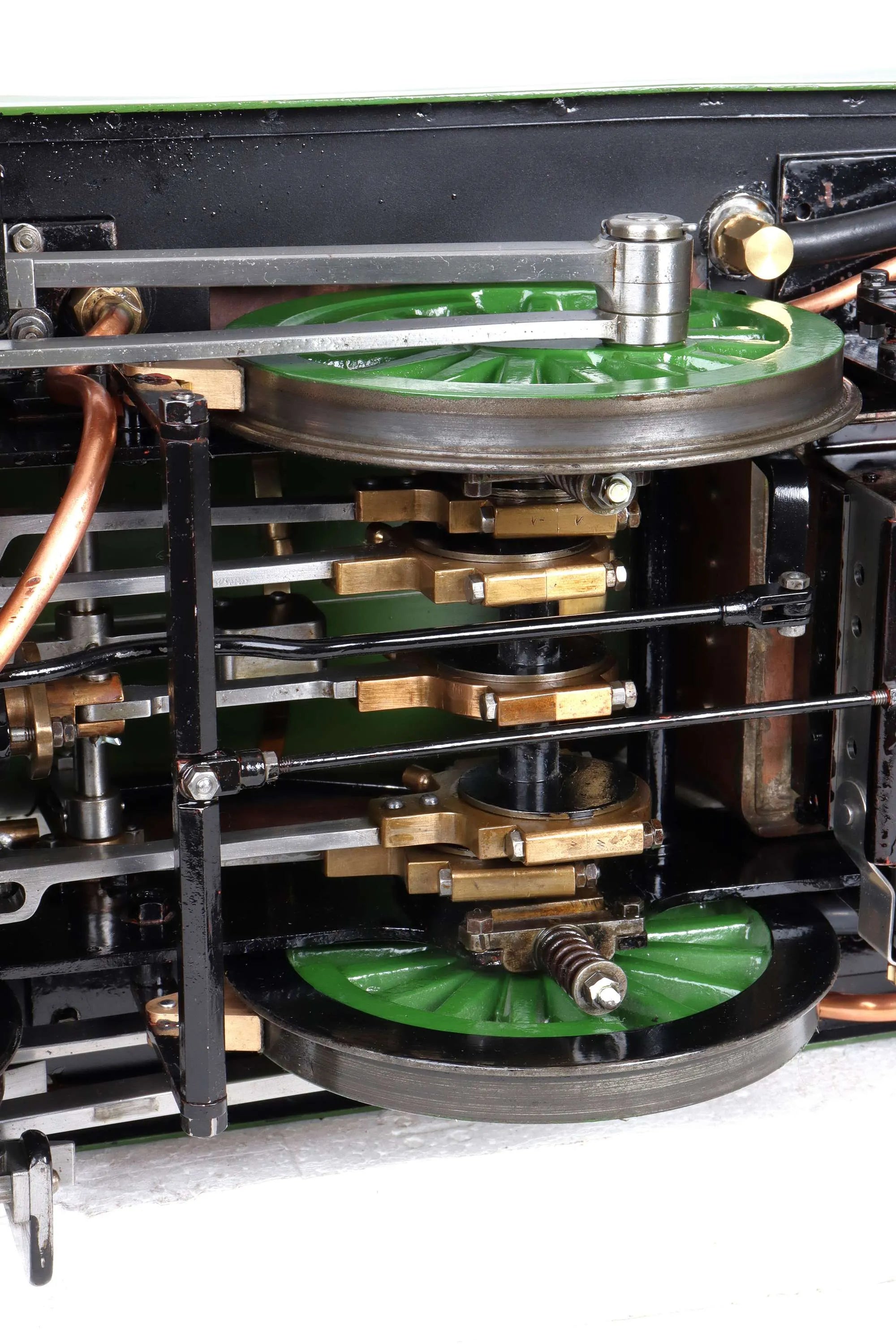

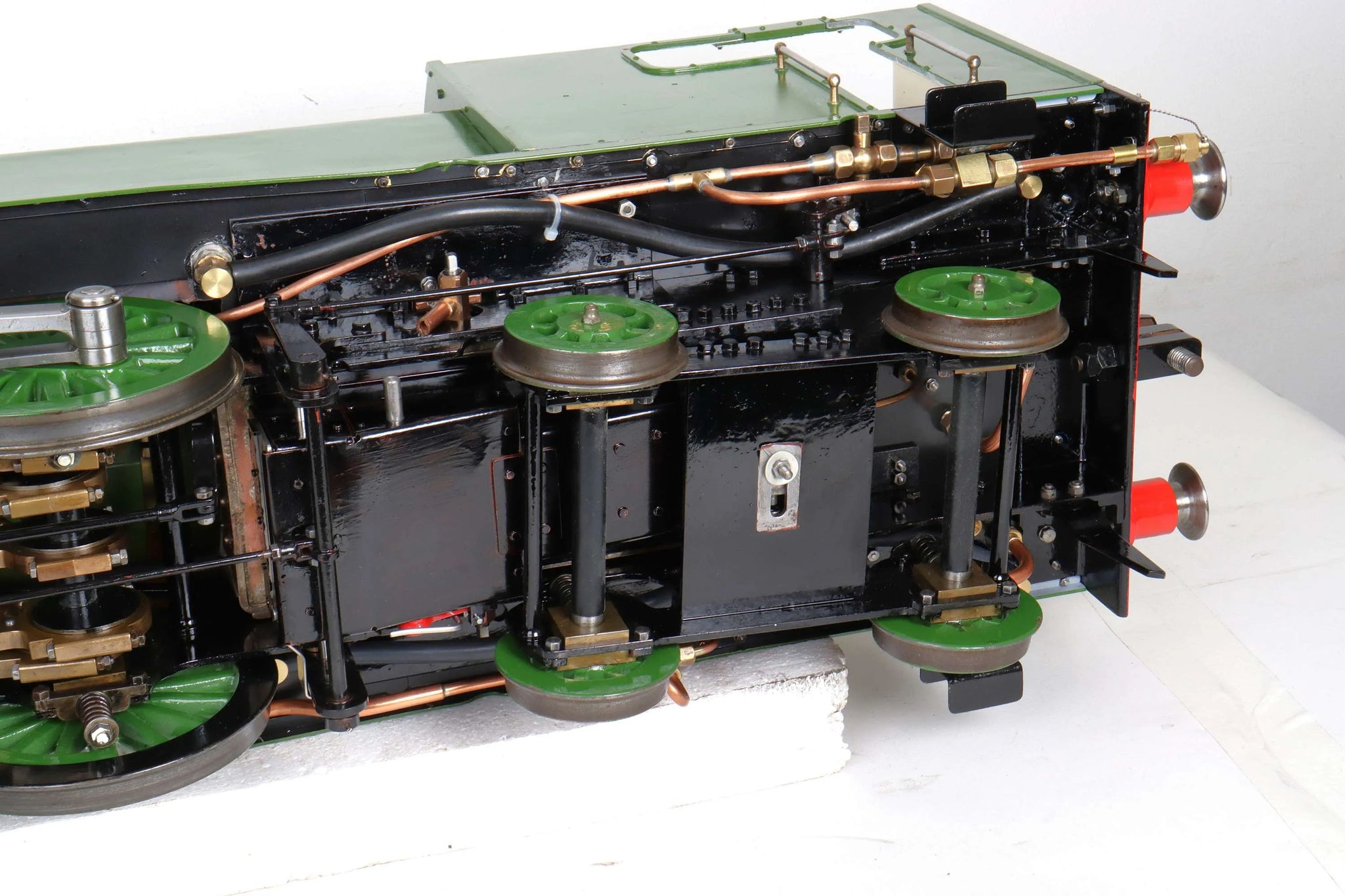

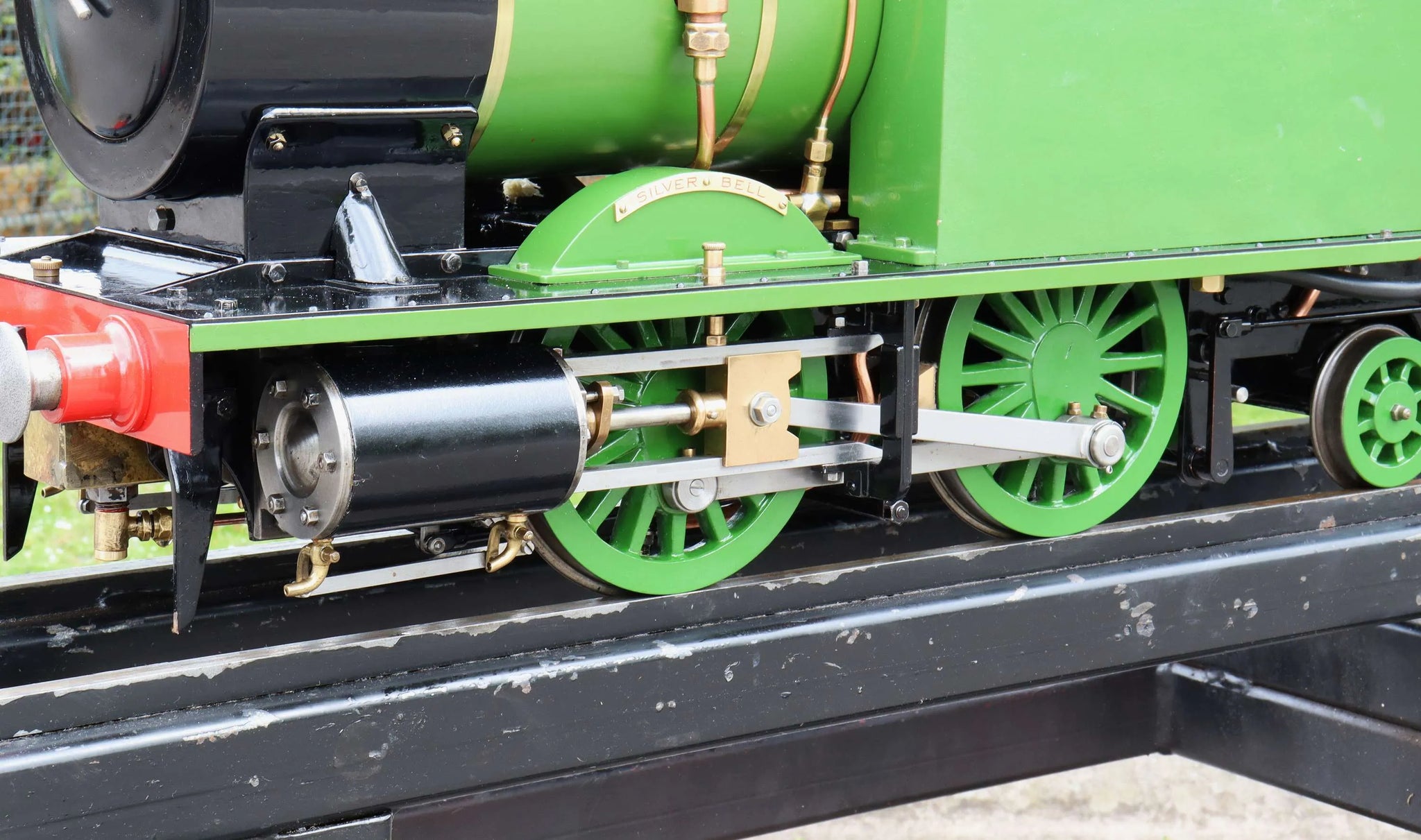

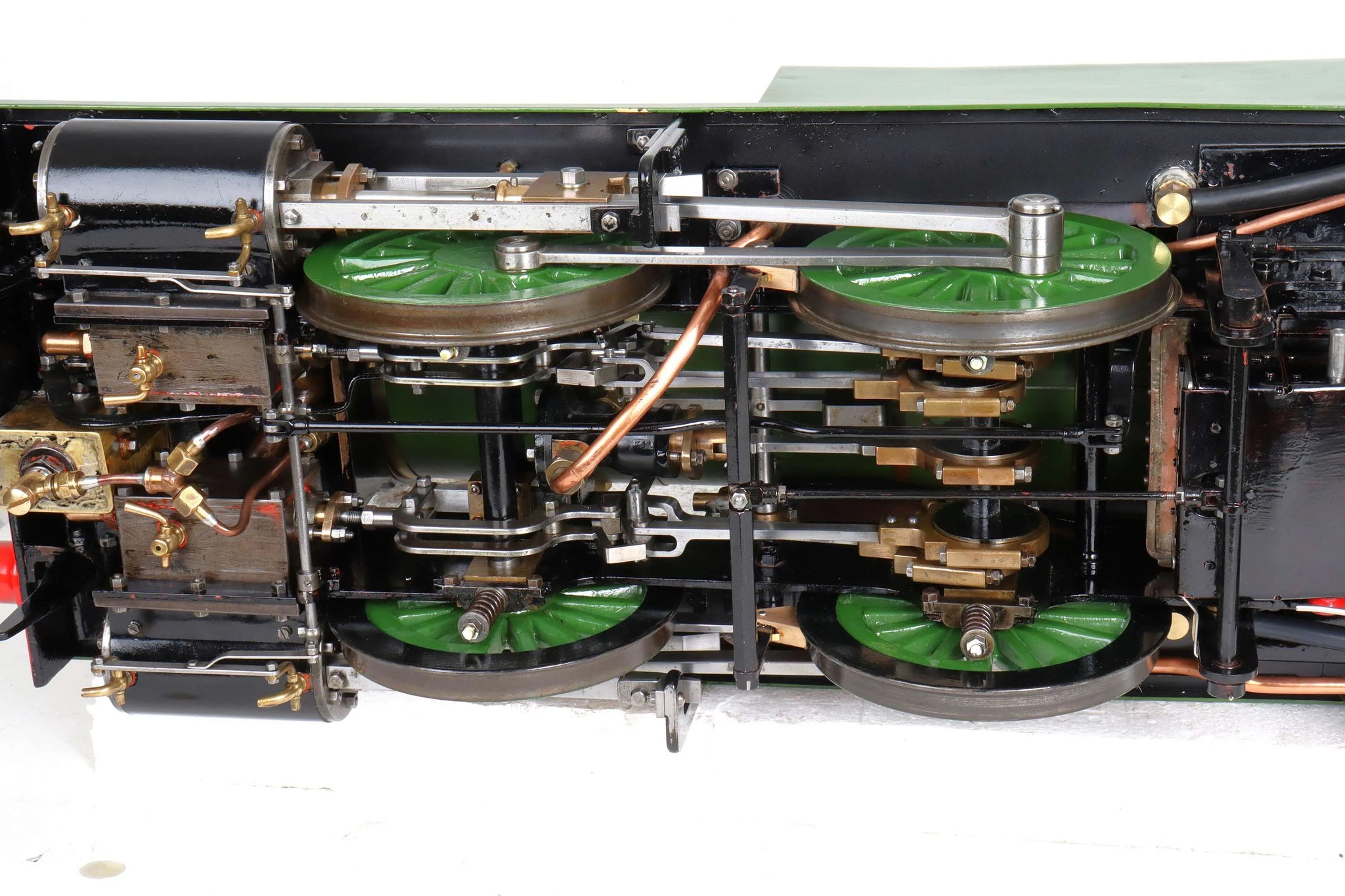

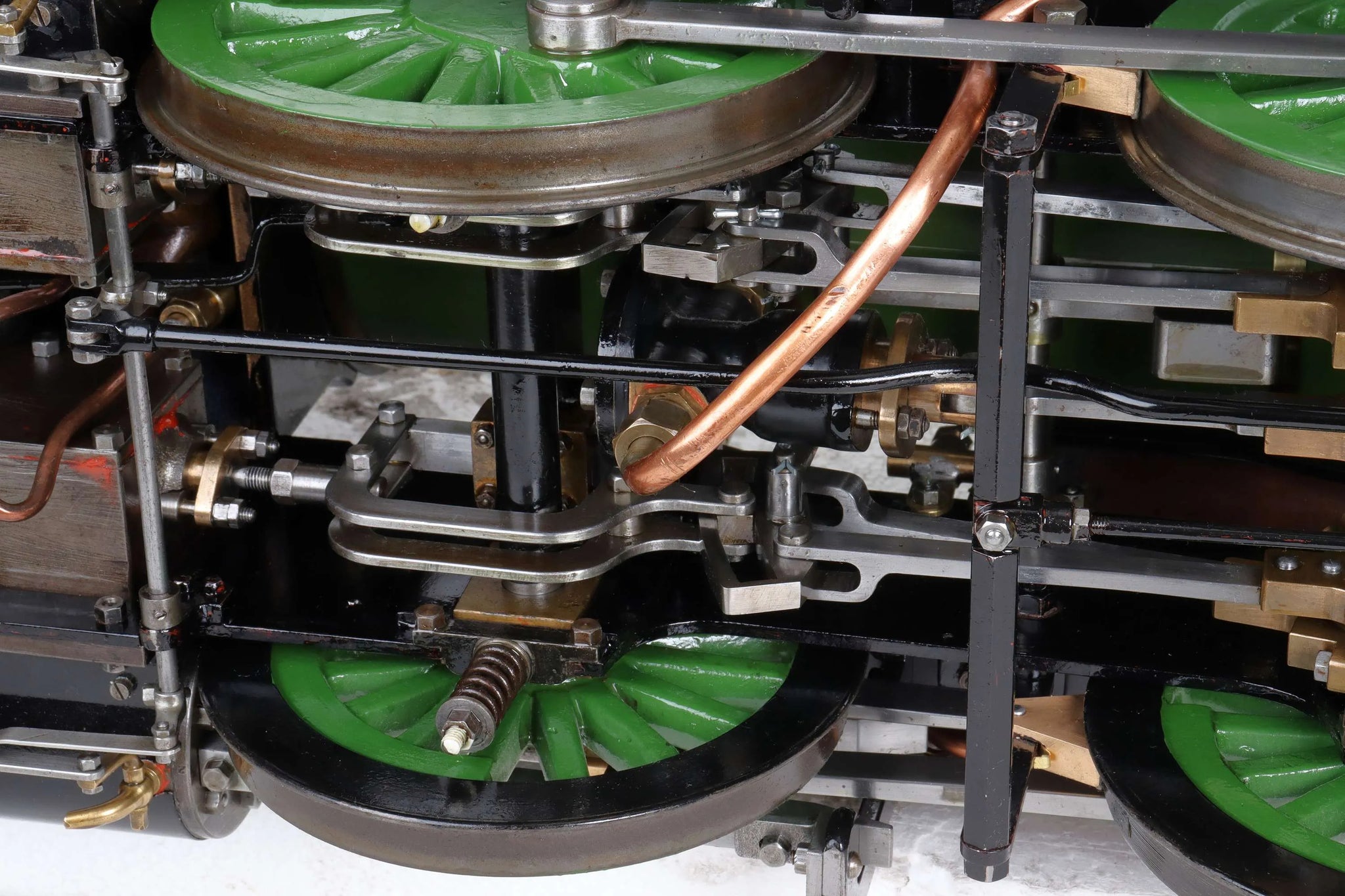

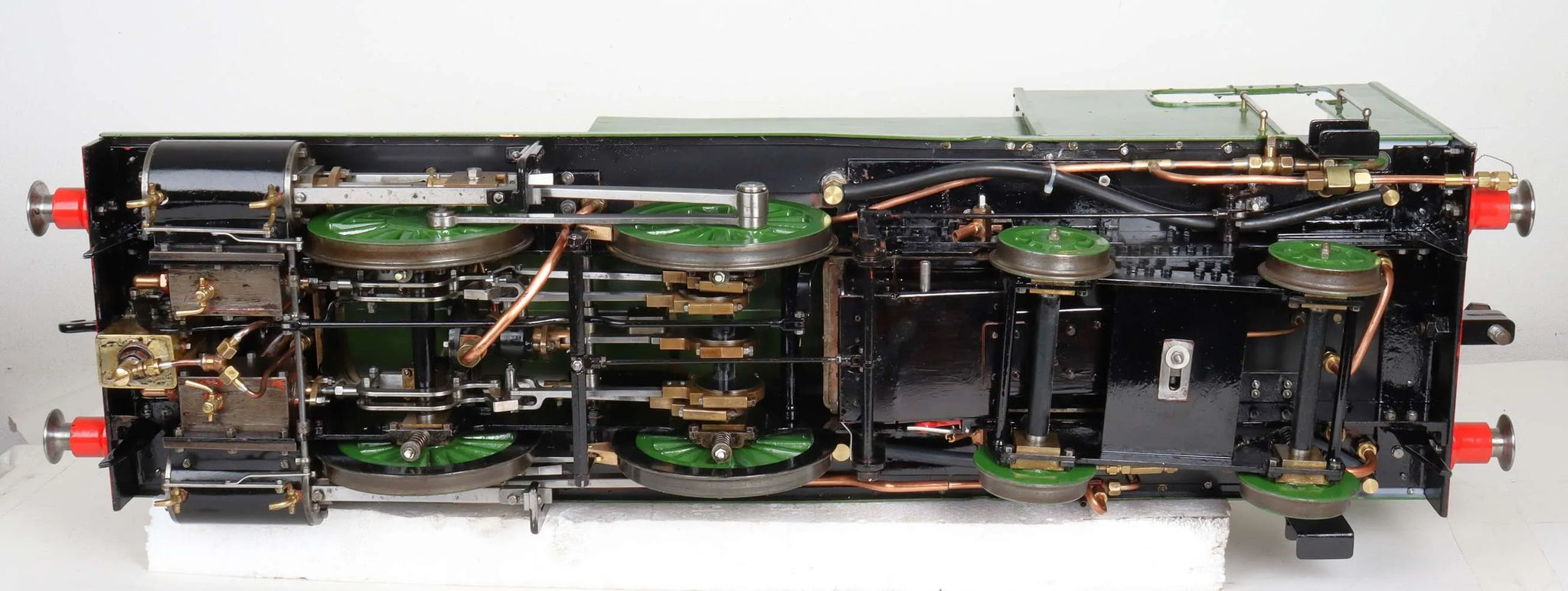

The chassis runs on air - nicely in reverse where it will link up four notches on the reverser, less well in forwards where it runs better slightly notched up, indicating that the reverser position (or reach rod length, whichever you prefer) needs adjustment.

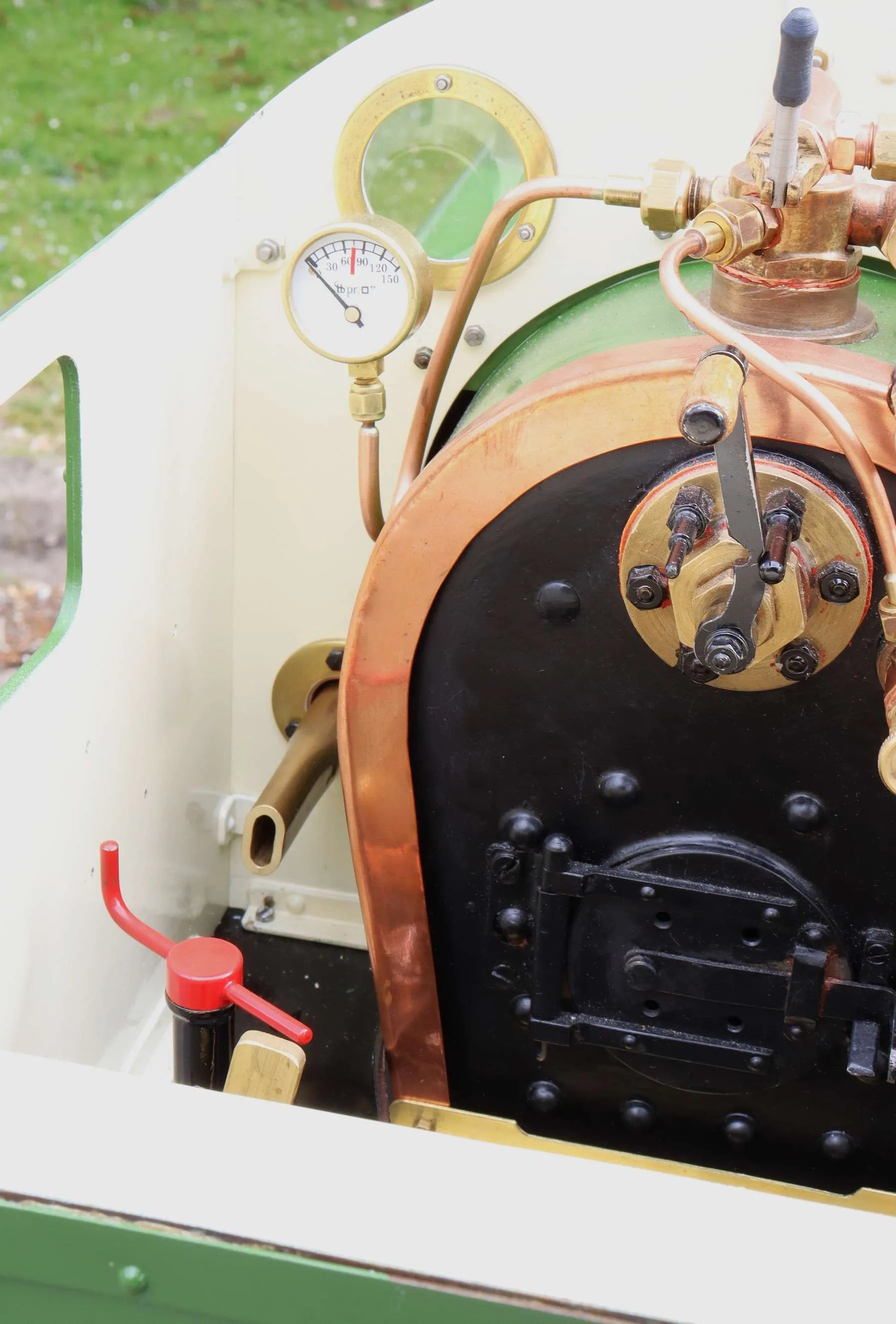

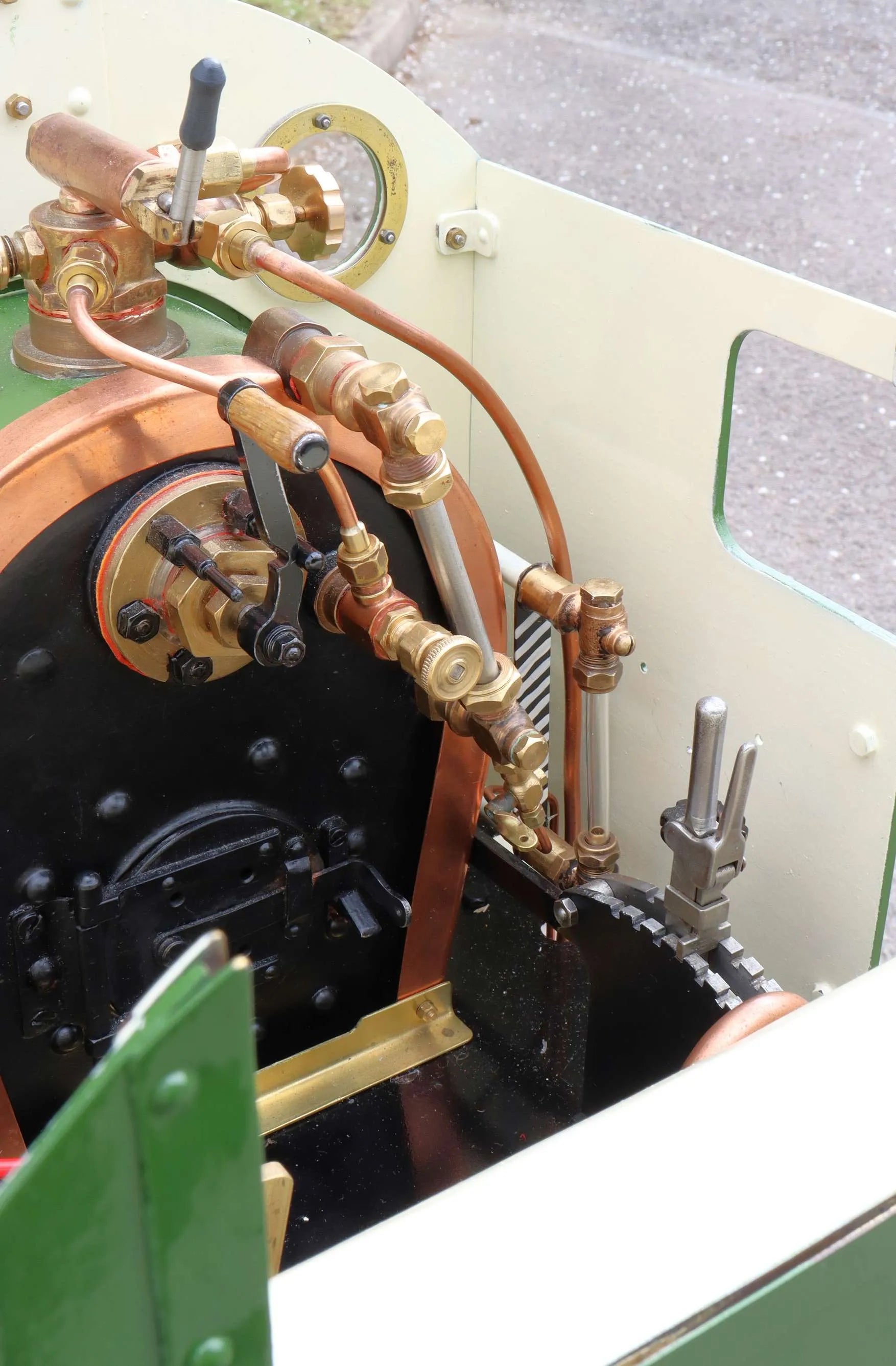

The engine will require some work to commission for steaming, including replacement of the length of steel rod in the water gauge with some glass tube.

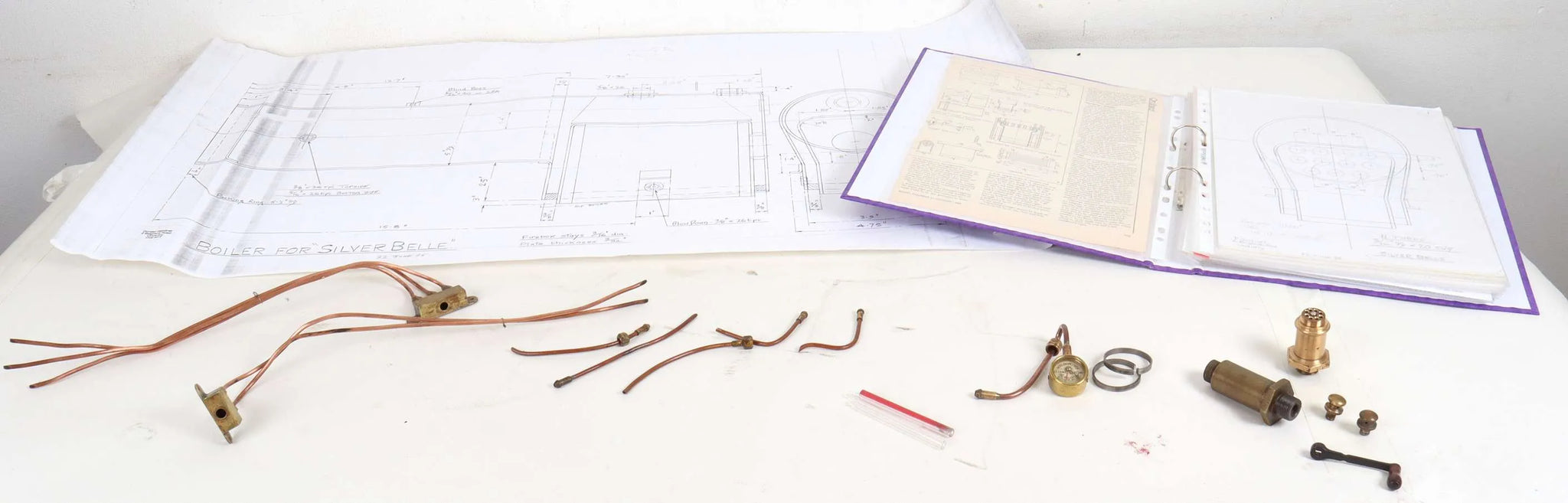

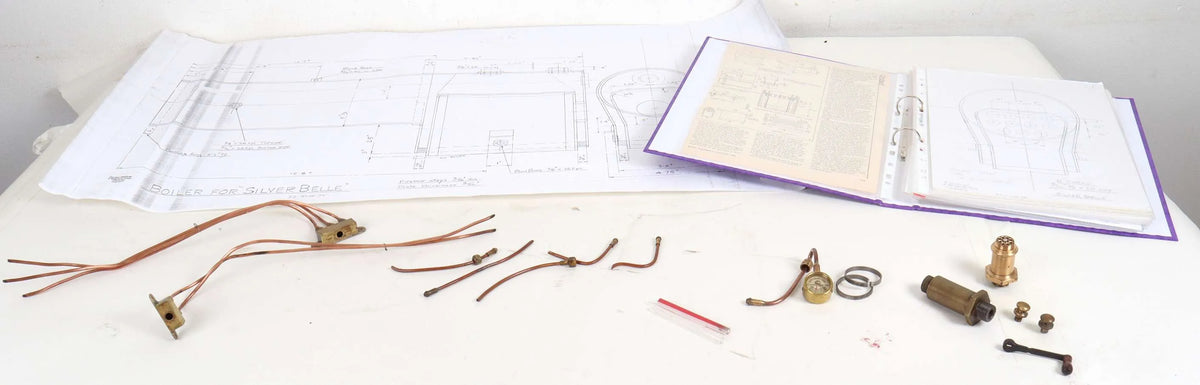

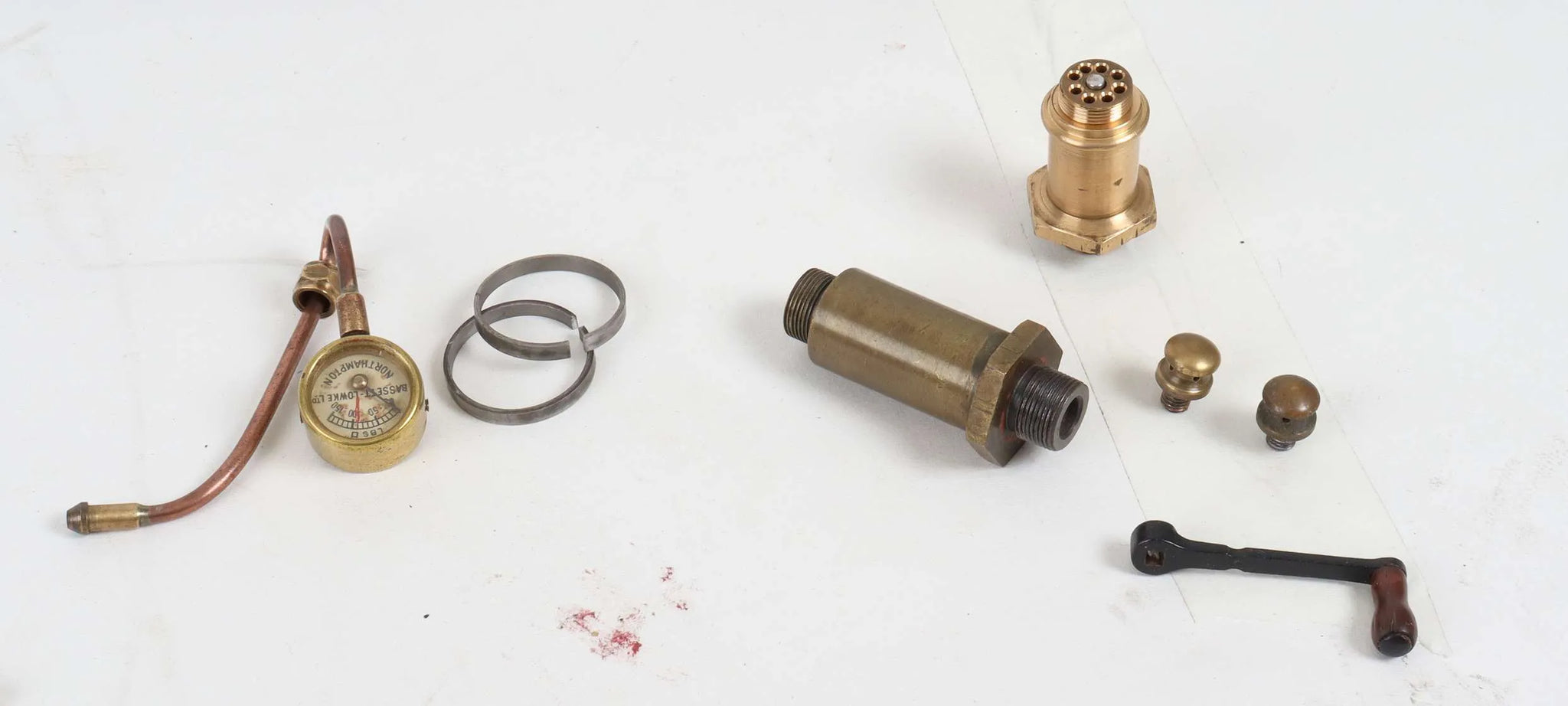

Complete with a small box of parts, including the original safety valve and vintage Bassett Lowke pressure gauge.

Technical information

Stock code

10434

Gauge

5 inch

Length/inches

35

Width/inches

9.5

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Priory Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

85

CE/UKCA mark

n/a - pre-2002

Year built

1995

Boiler number

PB 469/95

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

May-22
