9559

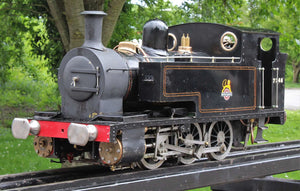

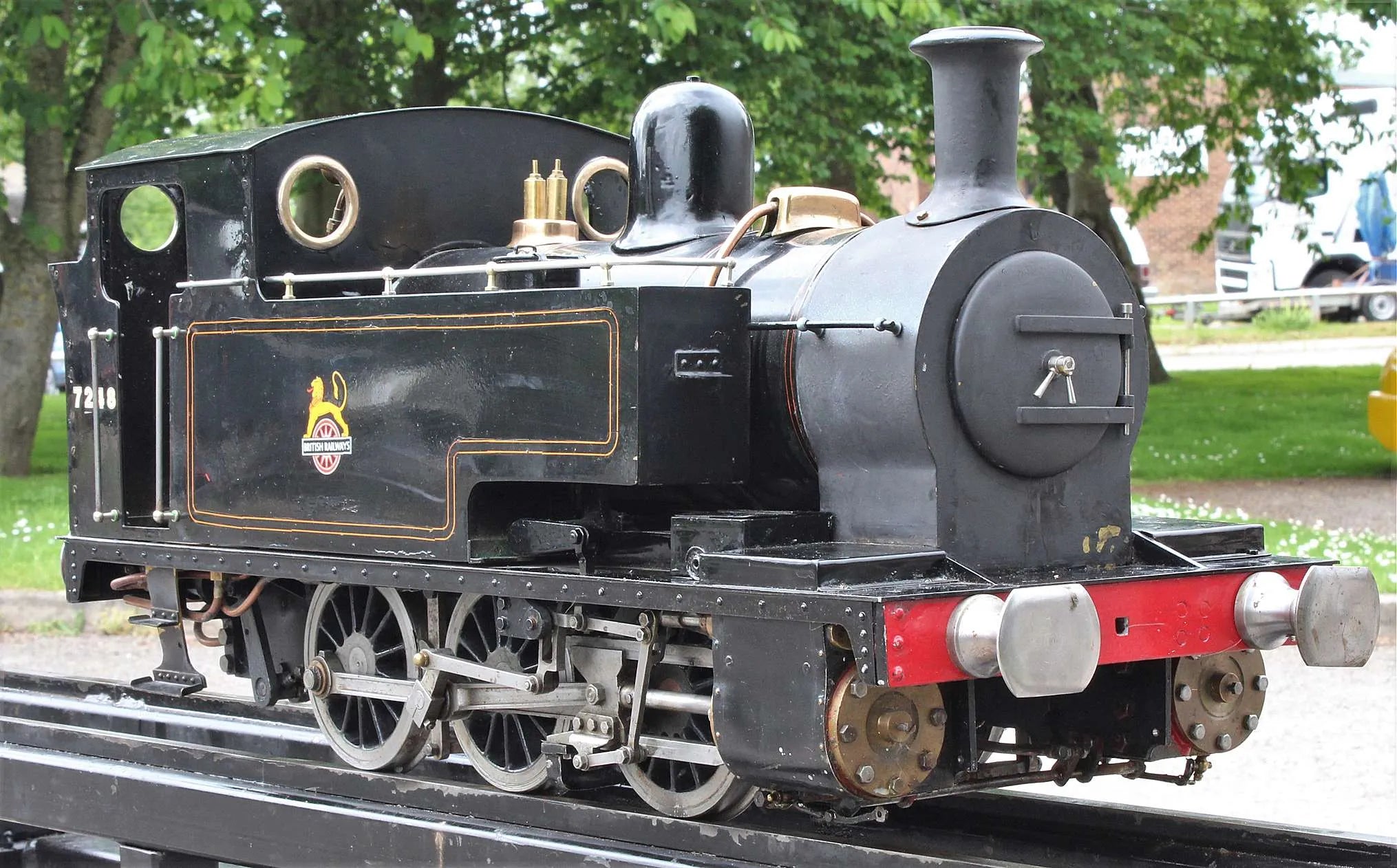

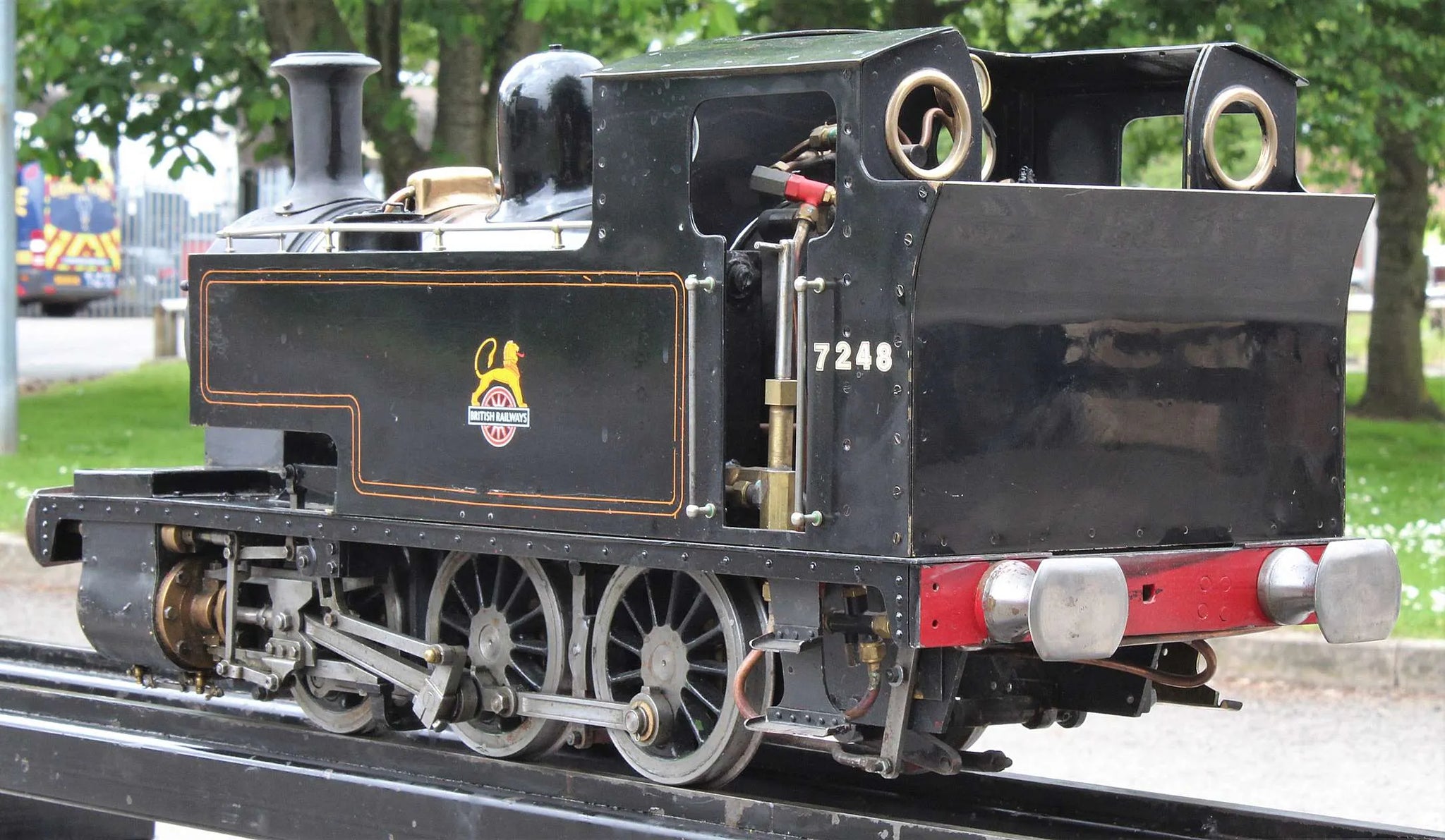

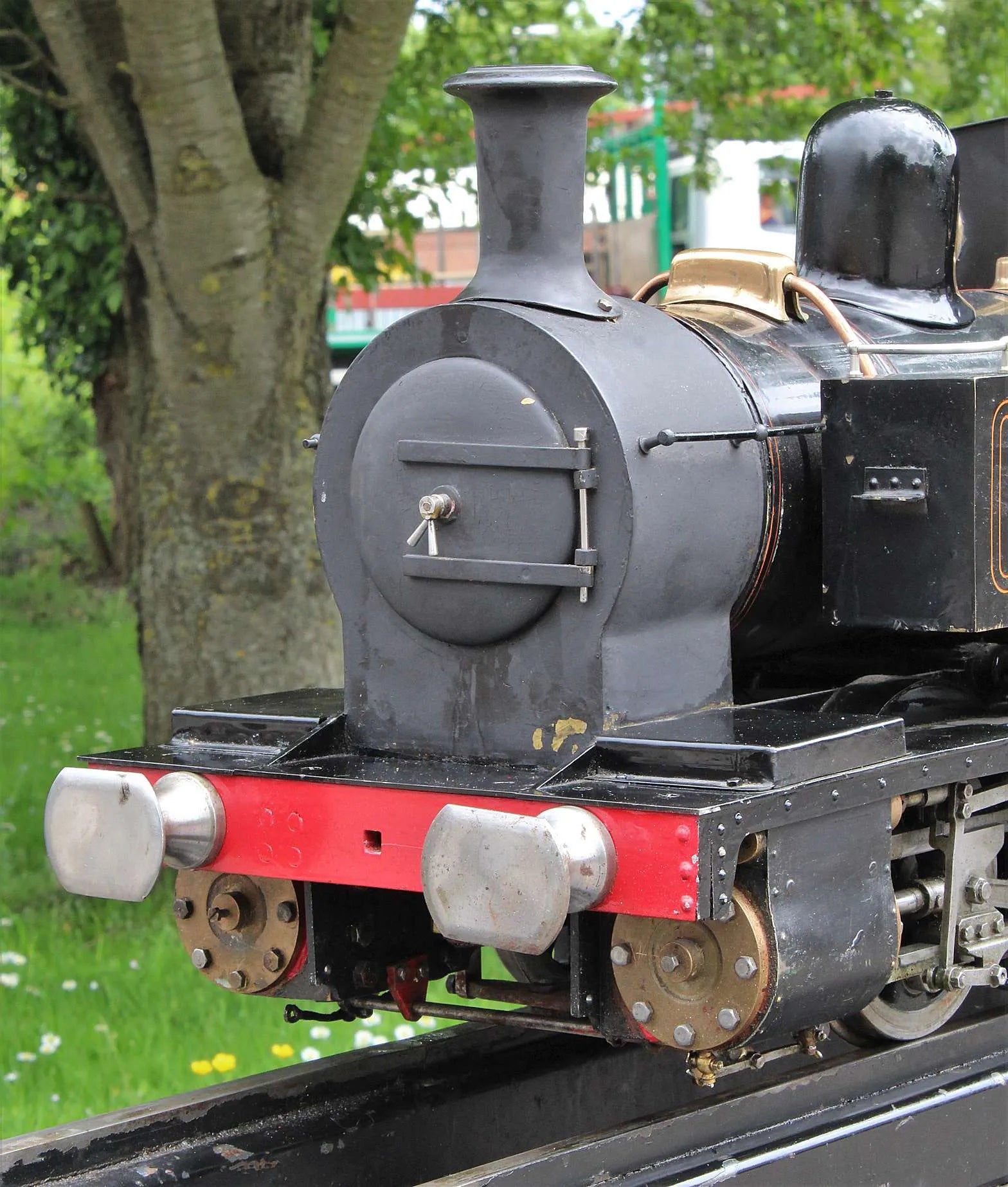

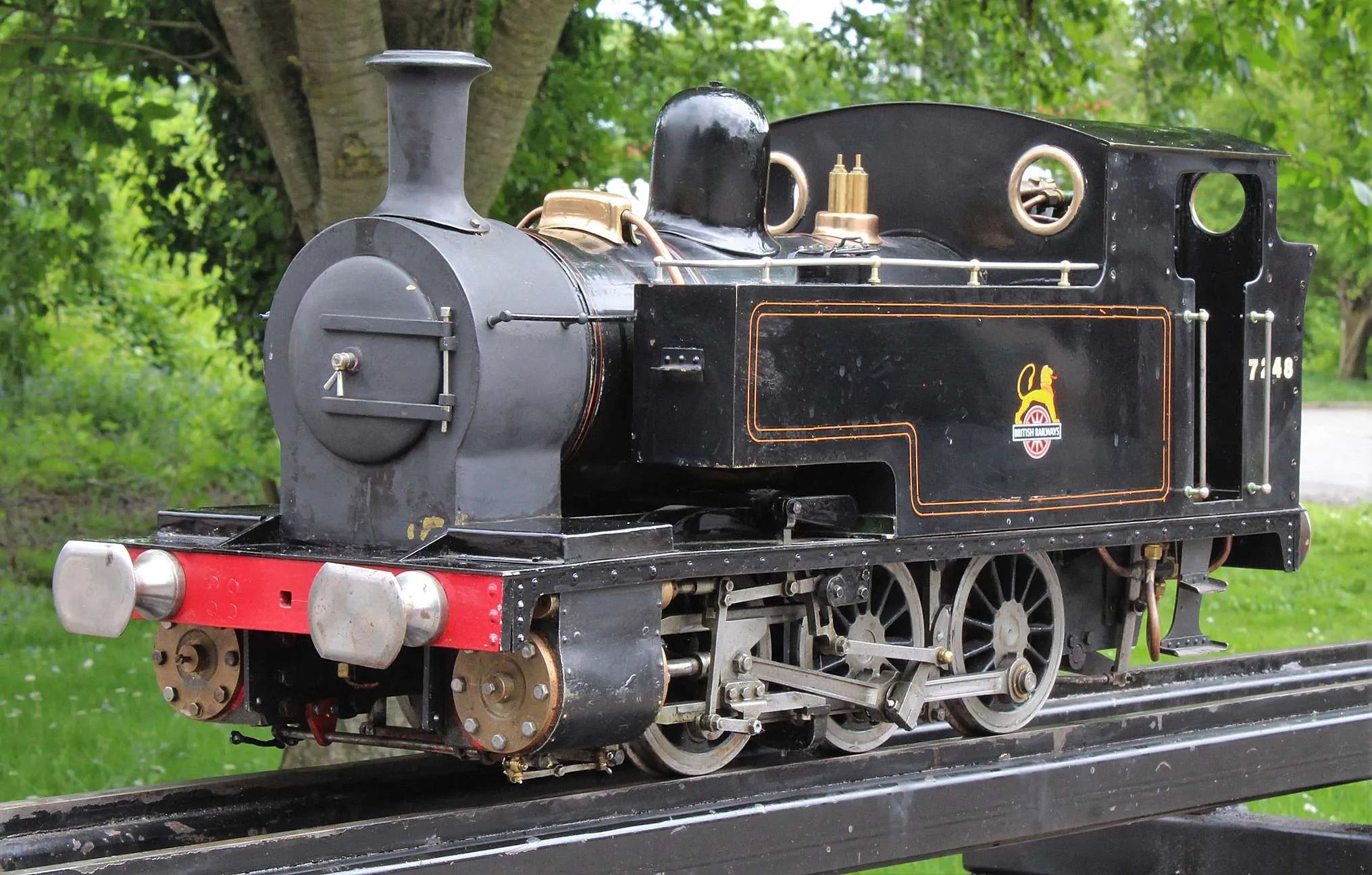

The engine turns over freely and runs well on air, notching up in both directions.

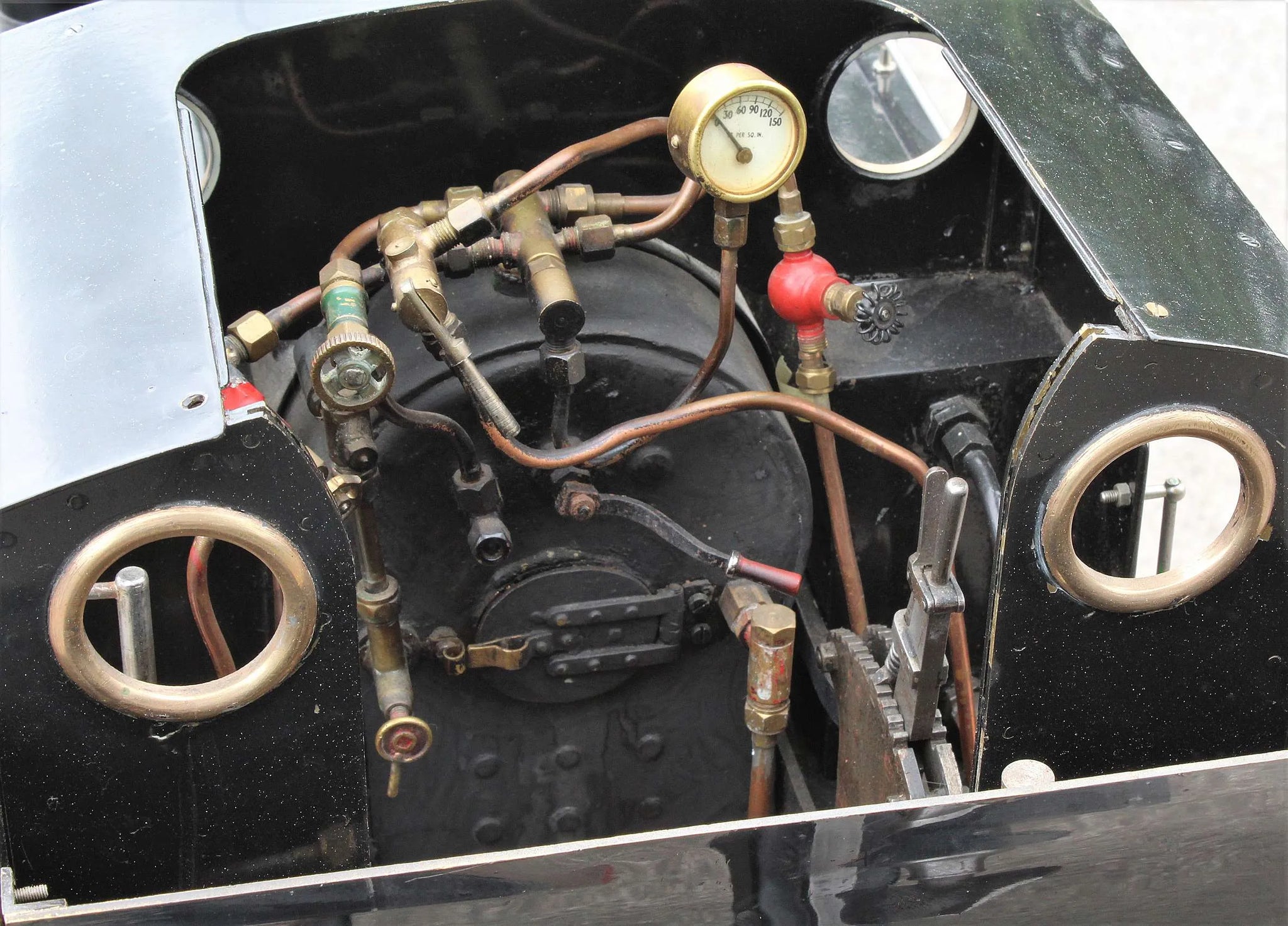

The copper boiler is silver soldered, fitted with four flue tube superheaters. It's had a hydraulic test, revealing several leaking firebox stays which will require calking before use.
Stock code |
9559 |
Gauge |
5 inch |
Length/inches |
28.5 |
Width/inches |
10 |
Height/inches |
13.5 |
Weight/Kg |
59 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |

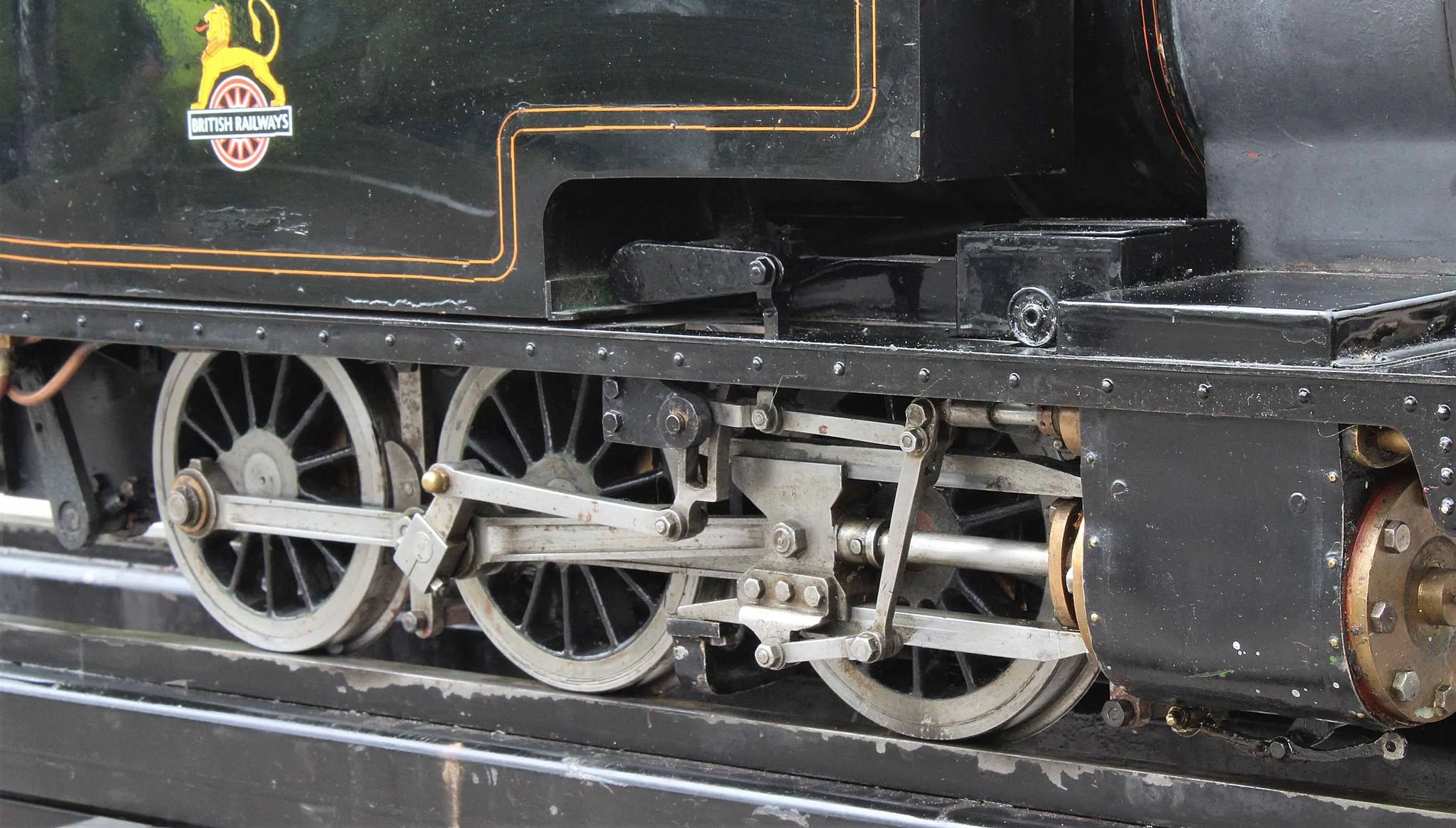

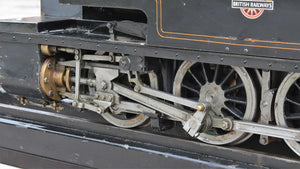

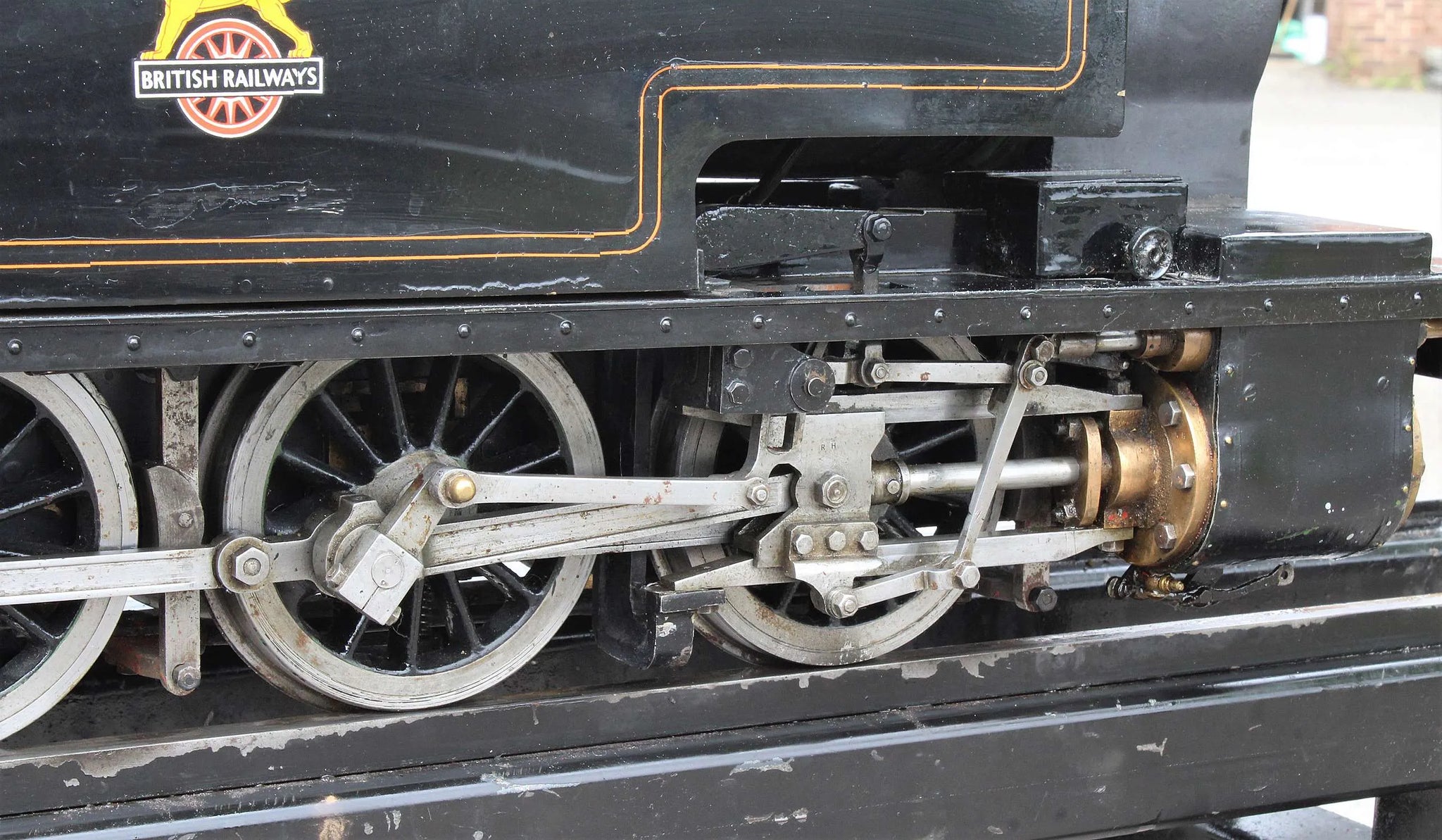

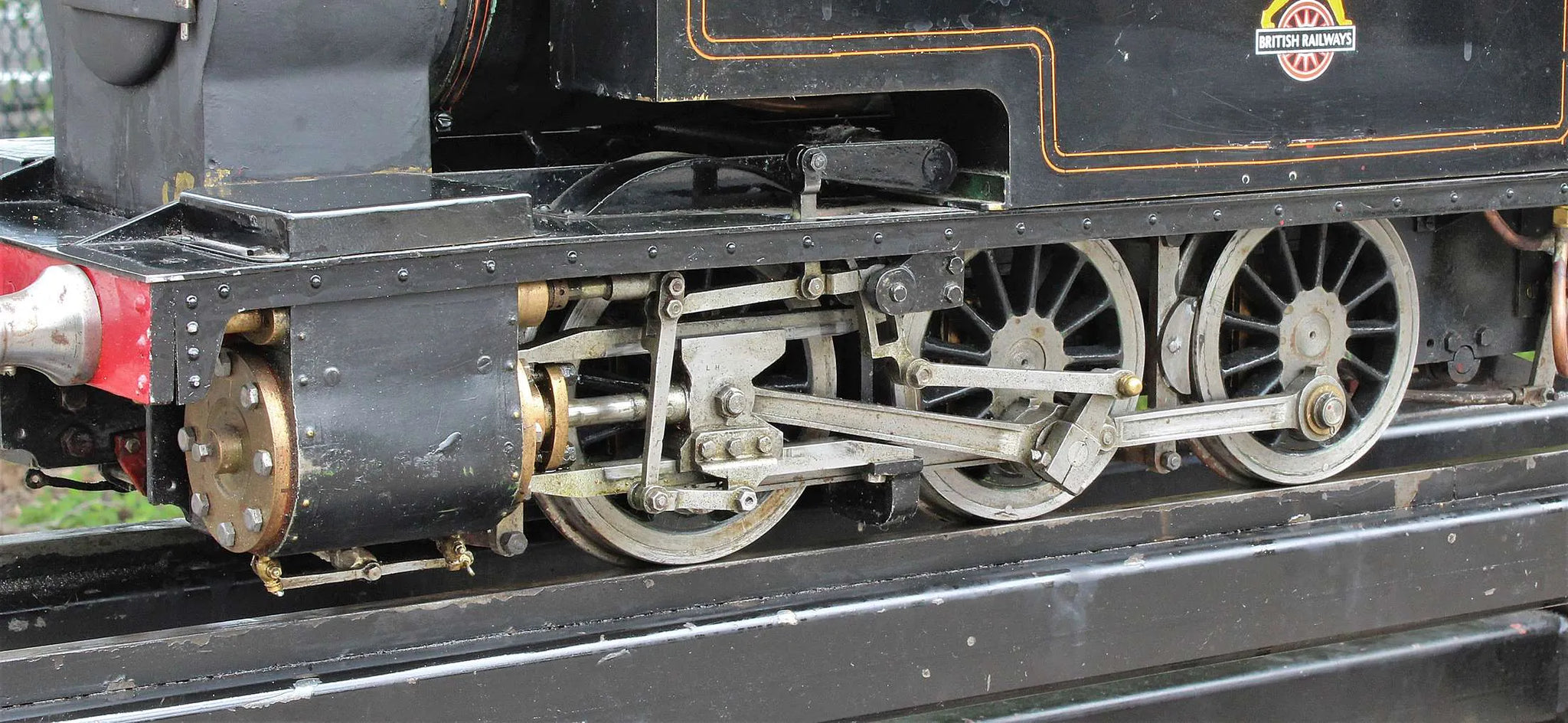

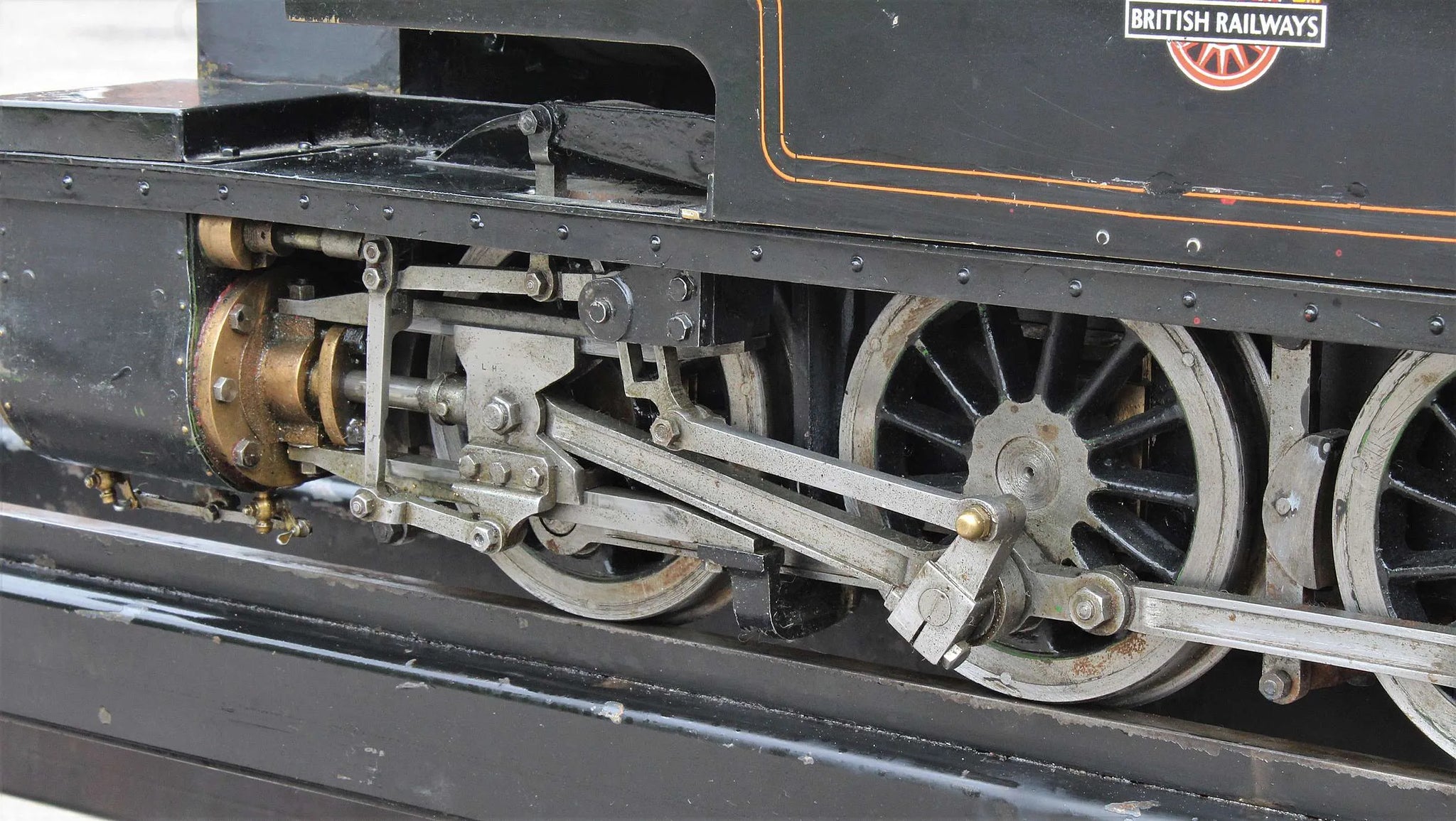

Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
2 x axle |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
4 |
Date out |
Aug-21 |
