5 inch gauge 15XX 0-6-0T

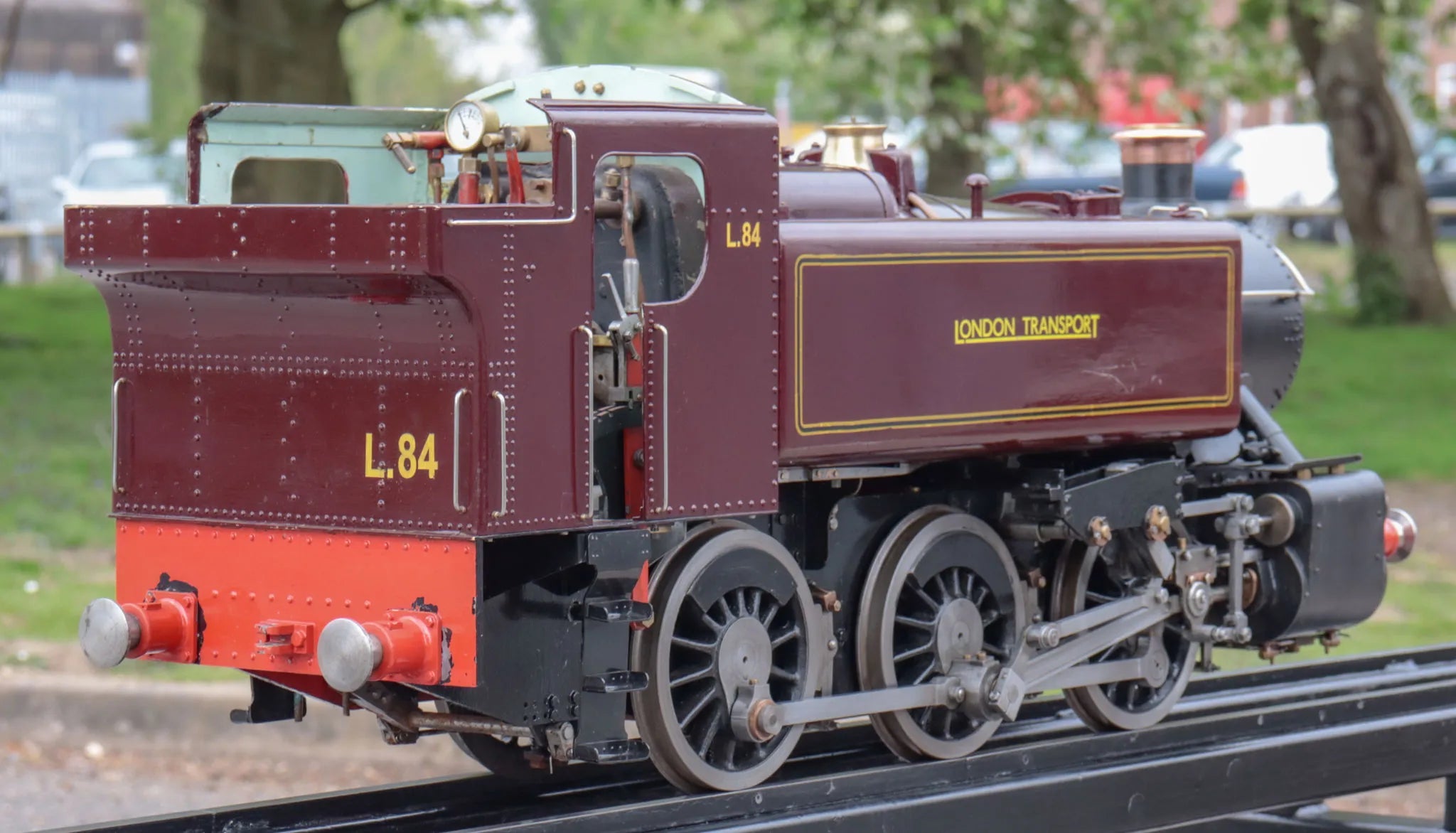

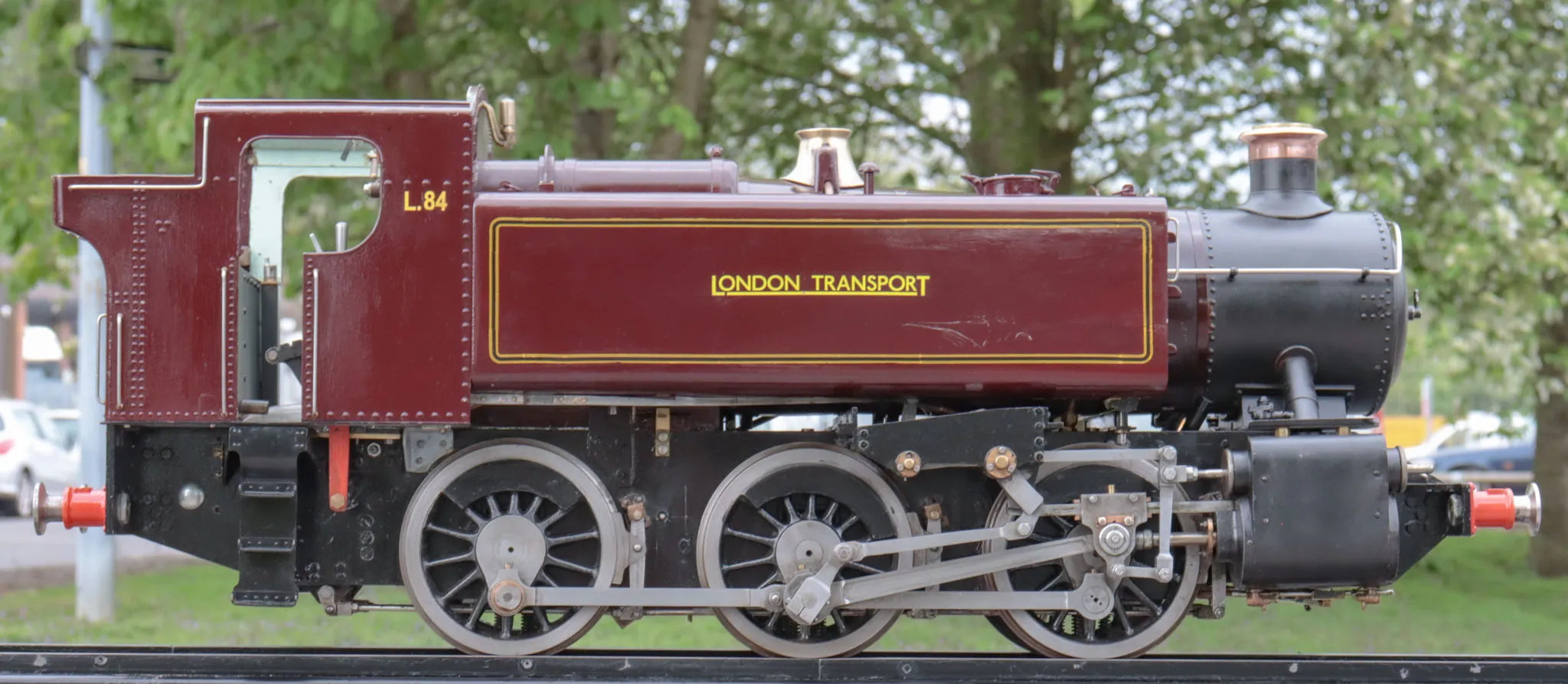

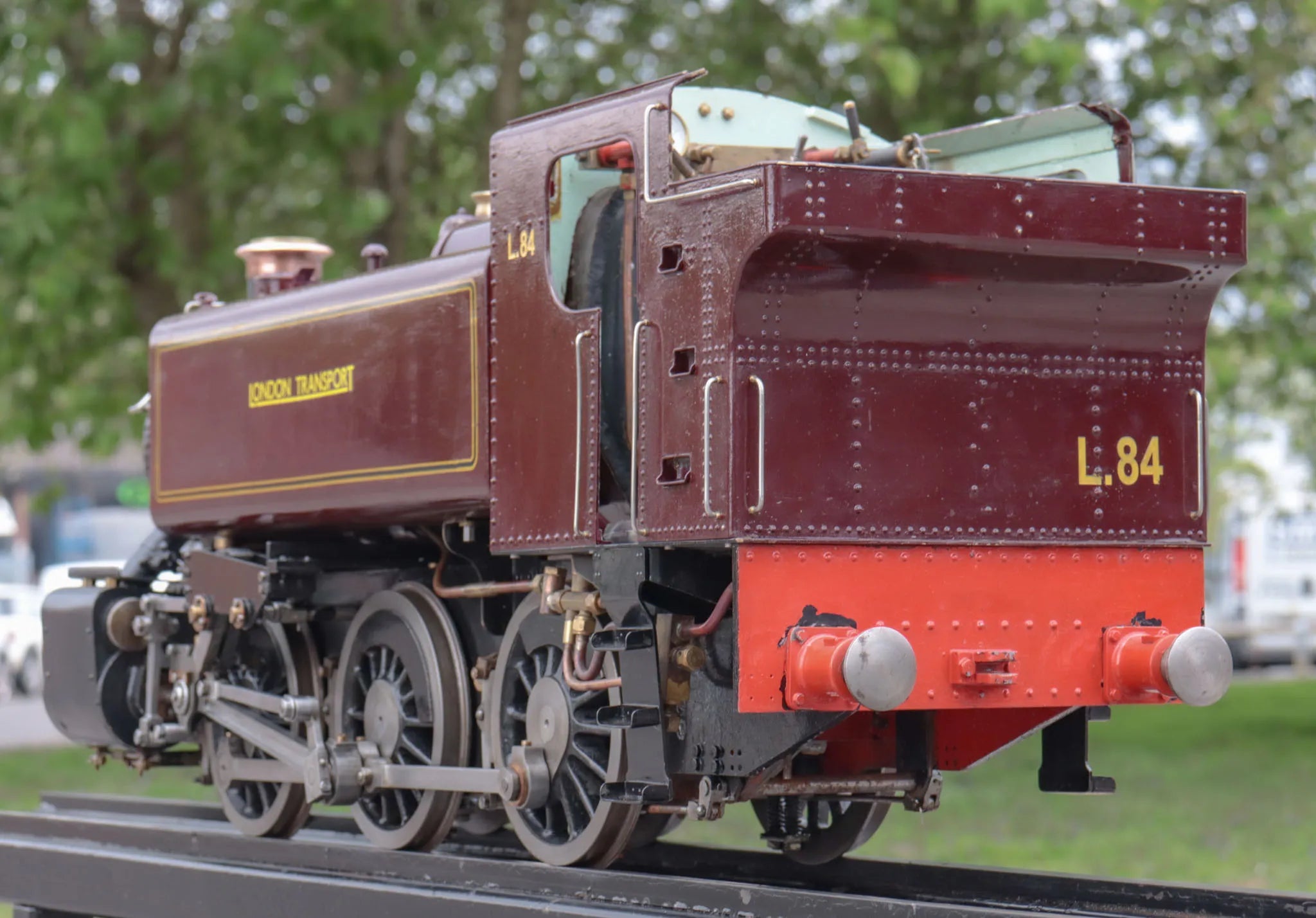

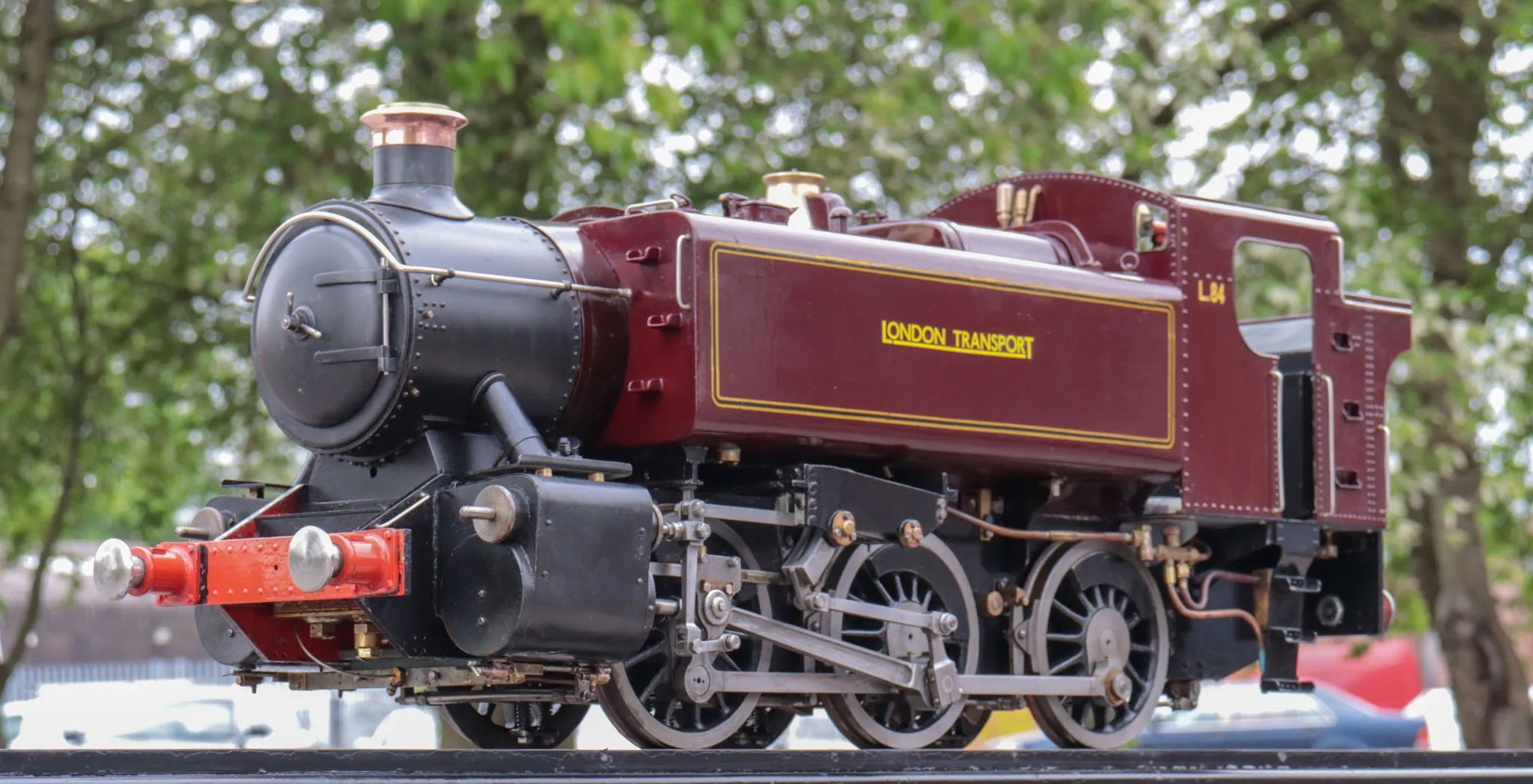

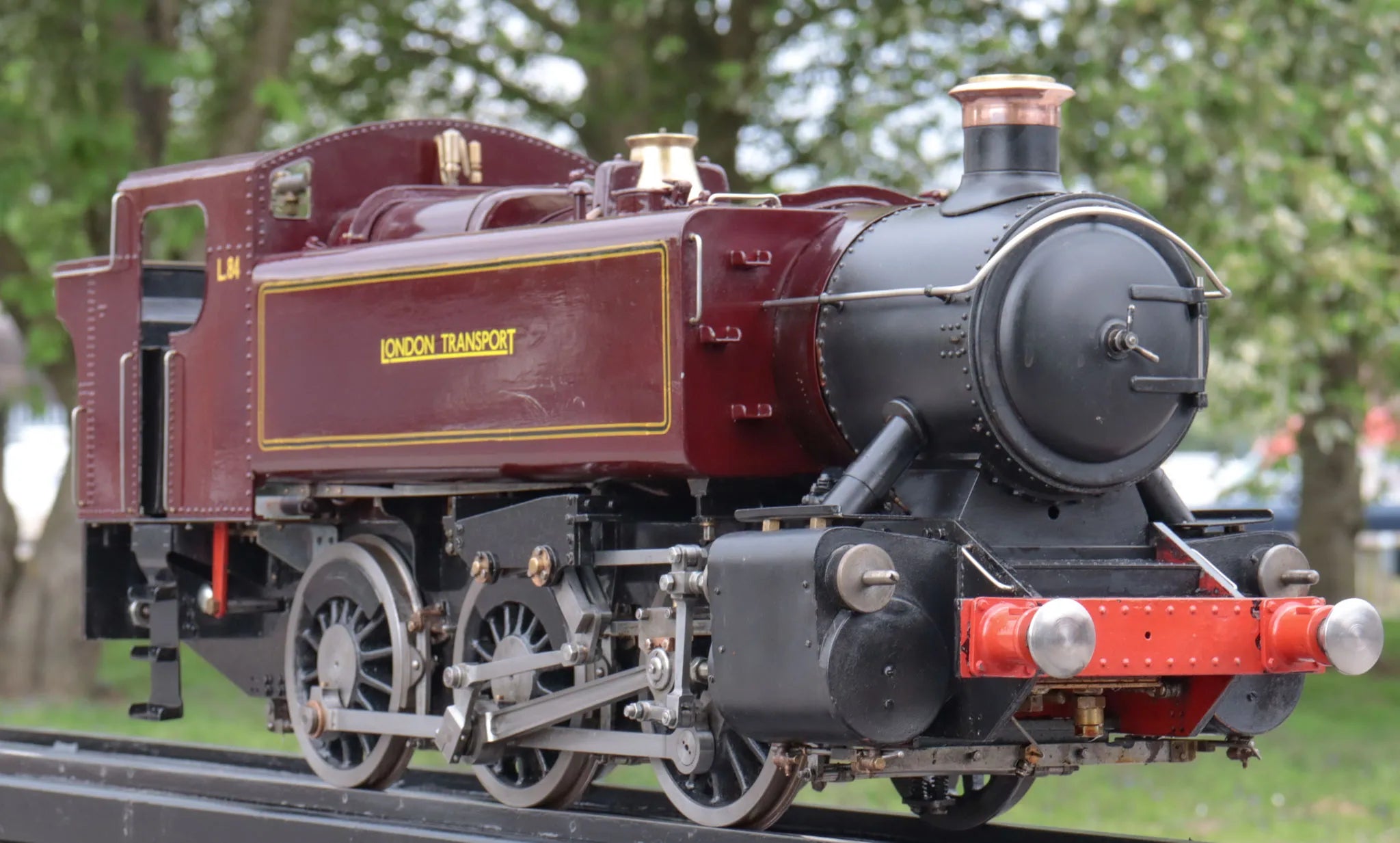

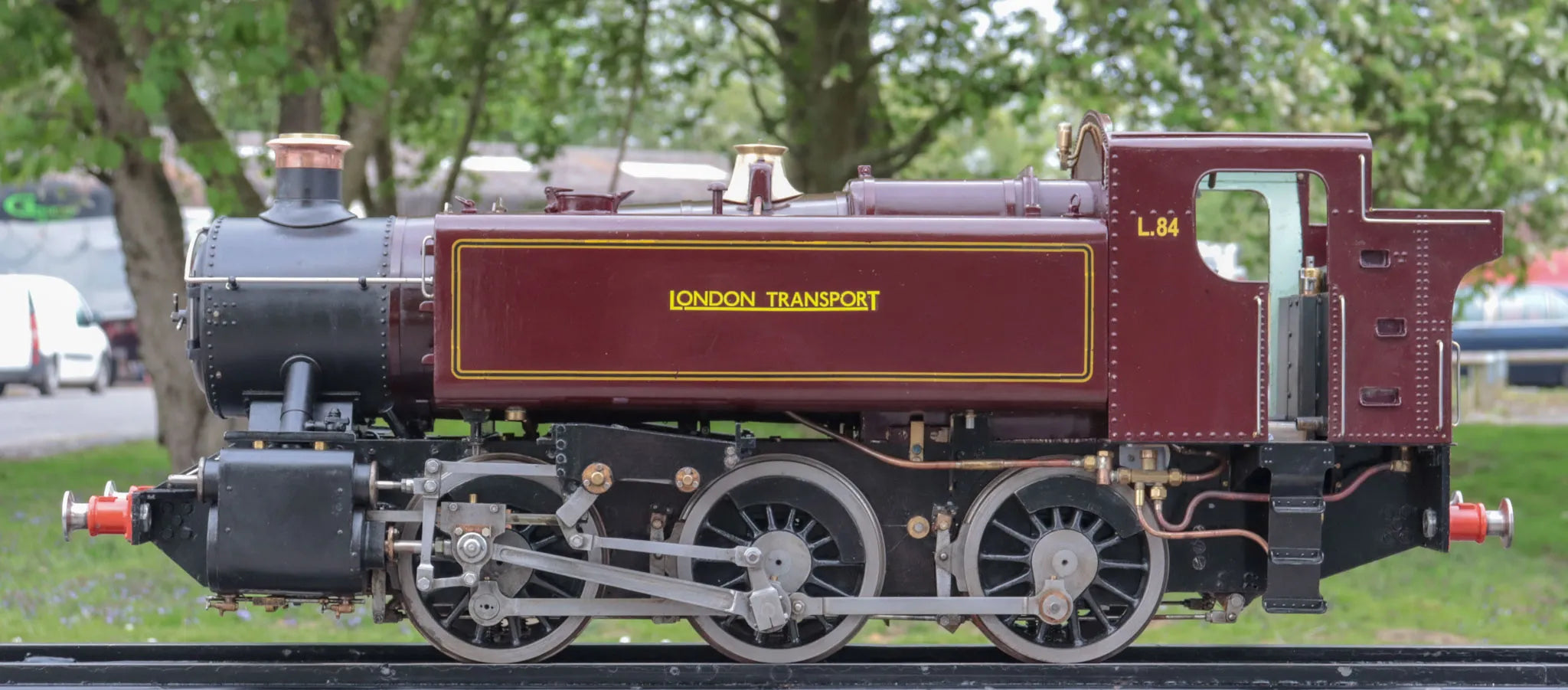

A 5 inch gauge GWR 15XX 0-6-0PT to LBSC's "Speedy" design, an older engine that has come to us from the builder's son.

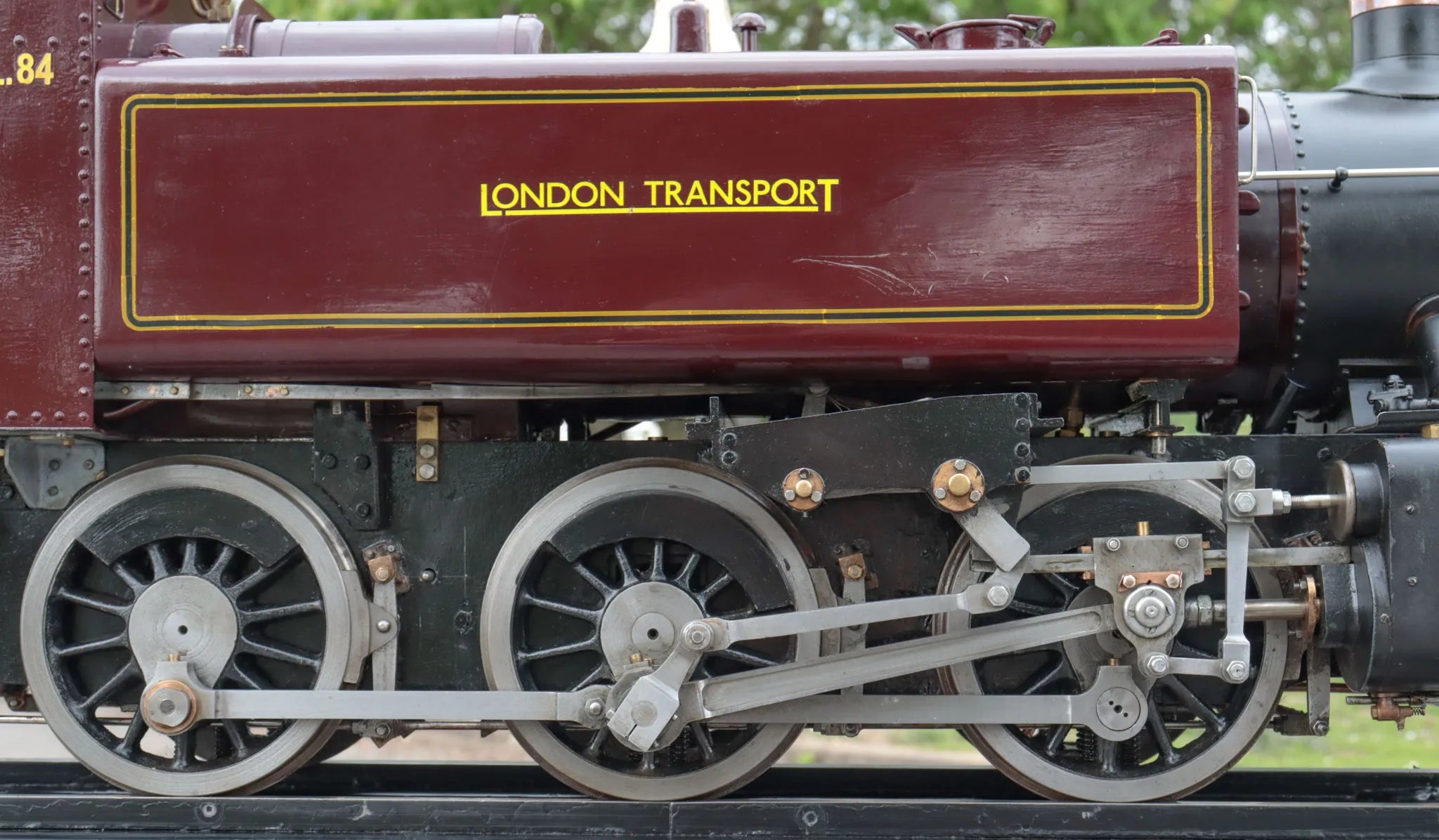

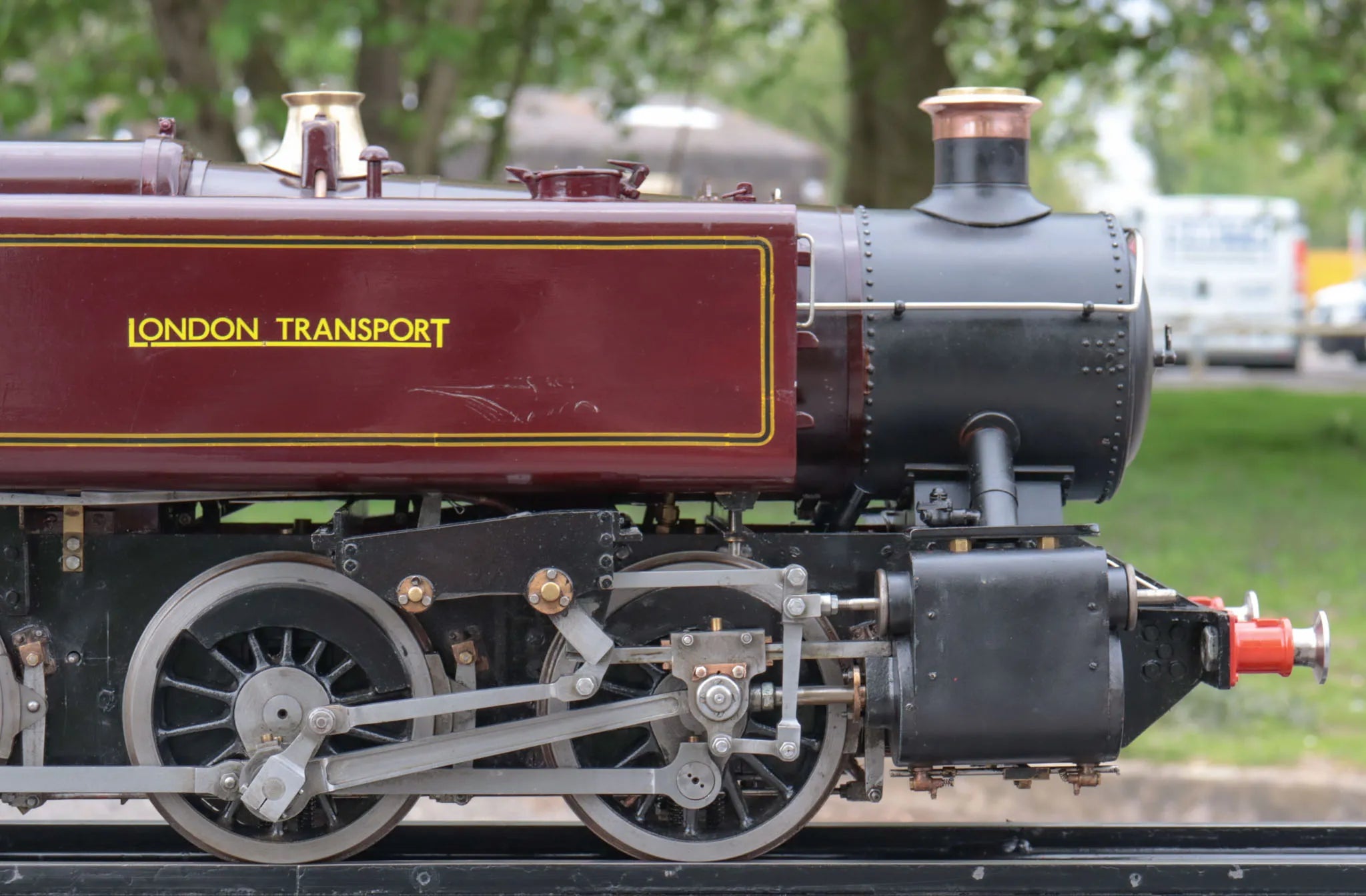

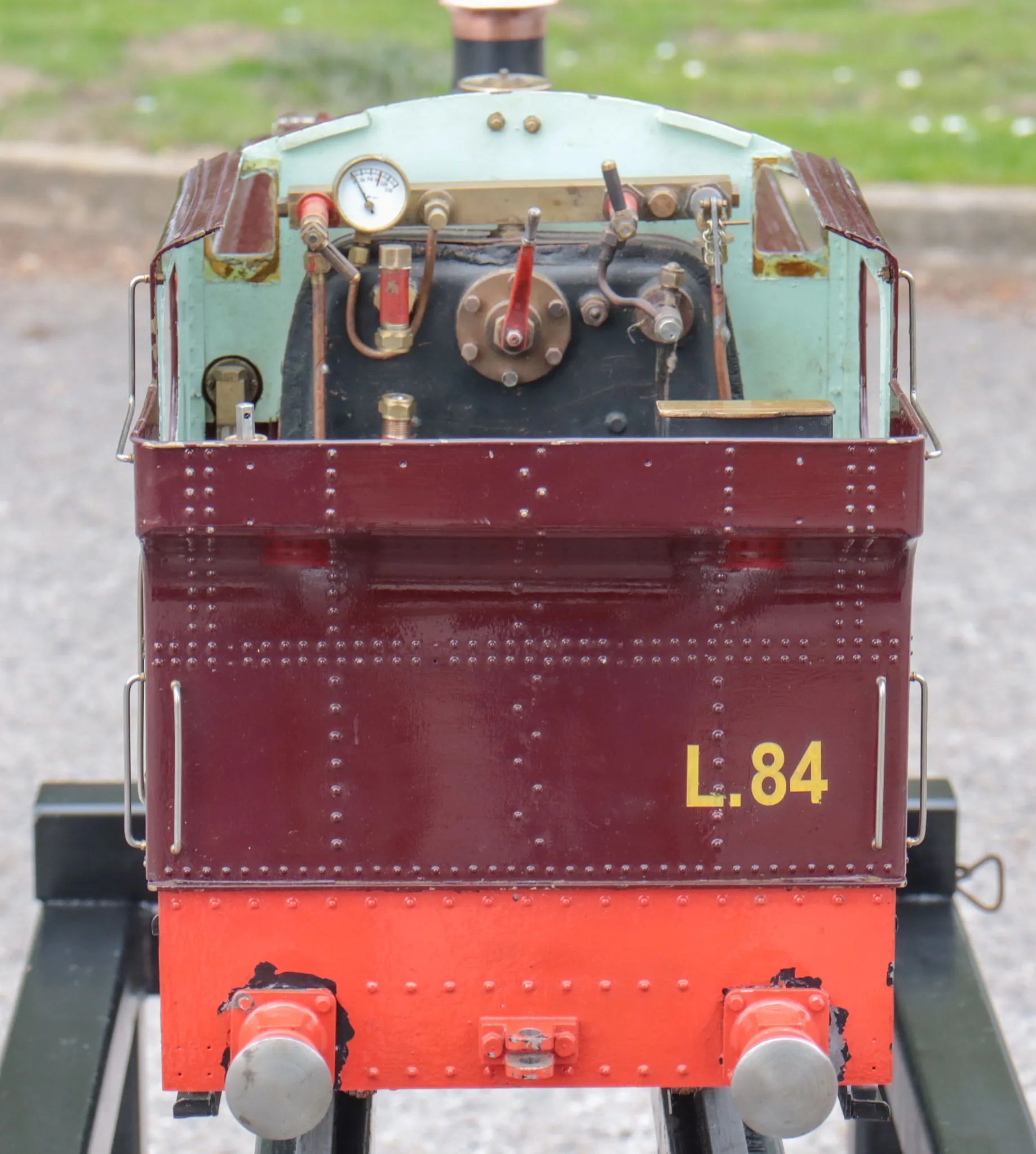

The engine is painted in London Transport livery - the builder's employer at the time - and carries the number of his RAF squadron.

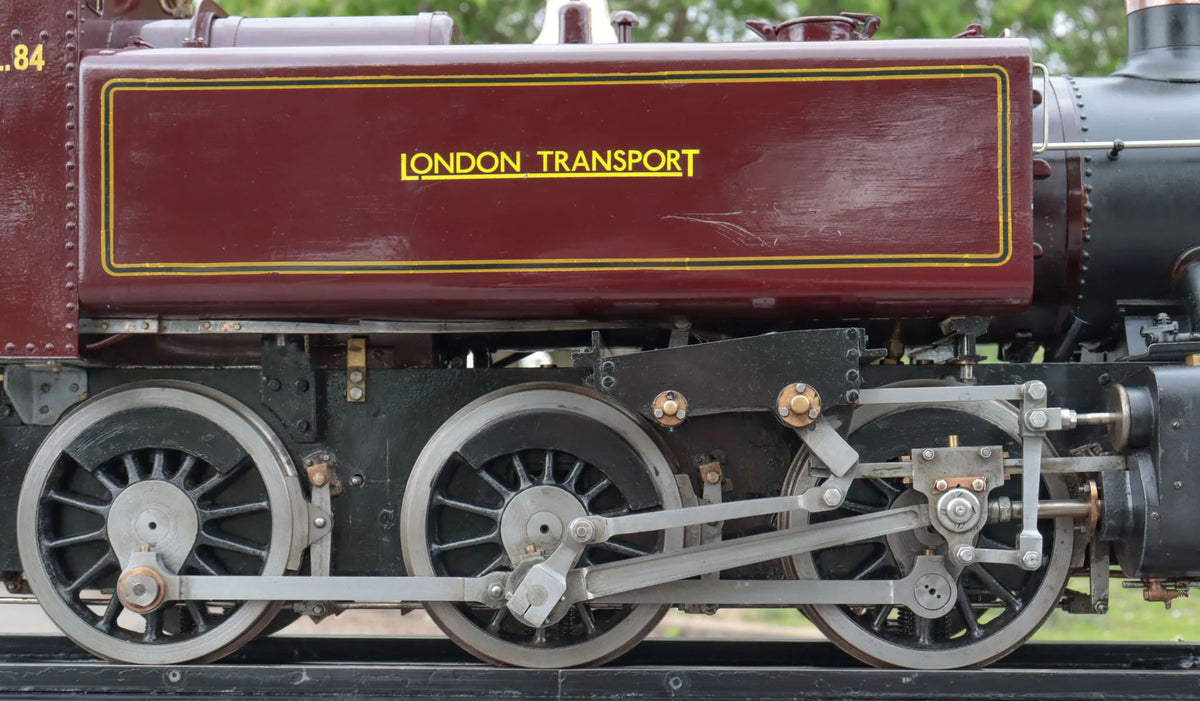

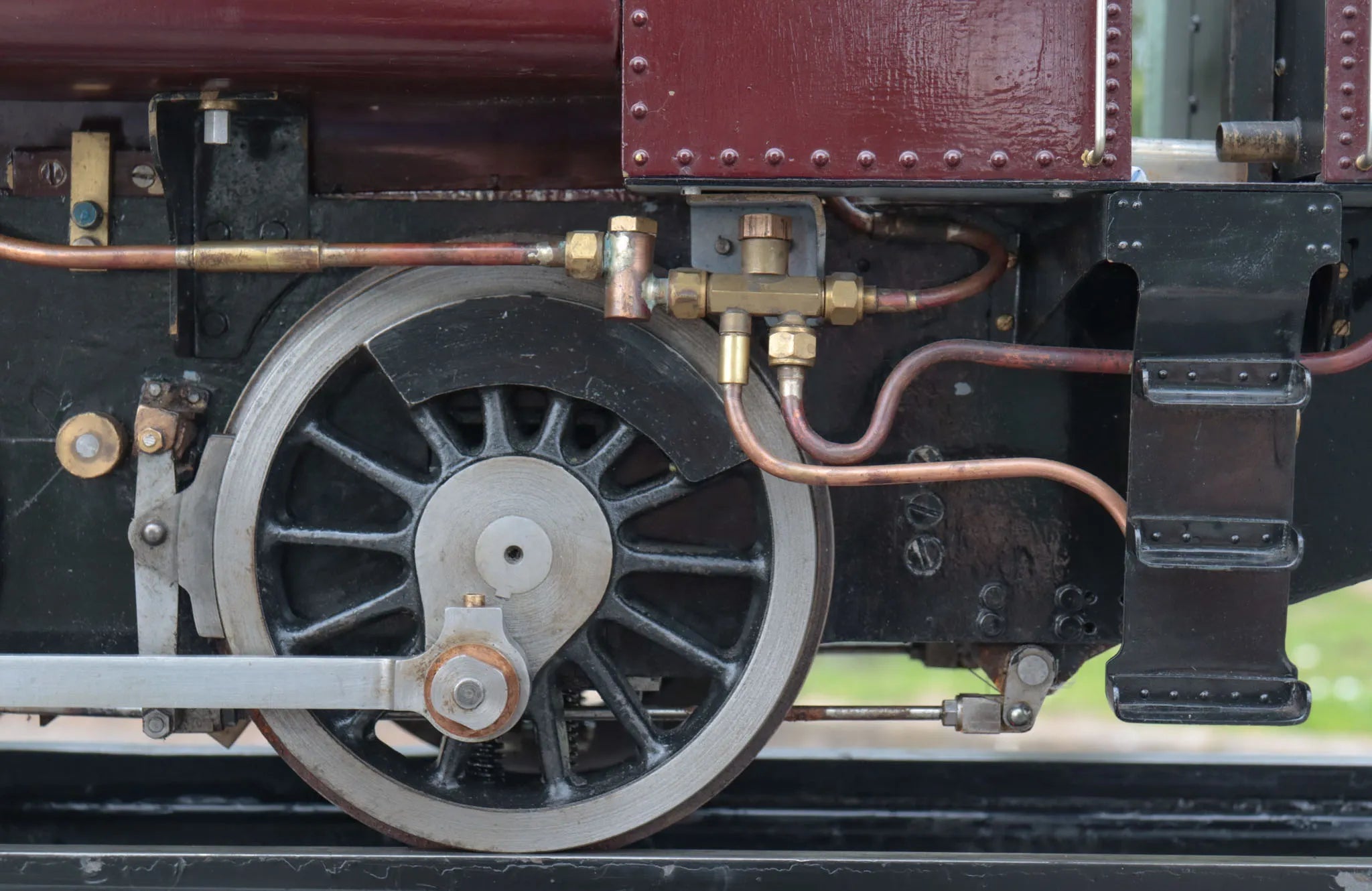

Apparently only test-steamed on a handful of occasions, the chassis turns over freely and runs on air, albeit in slightly choppy fashion - we'd expect it to be better under steam.

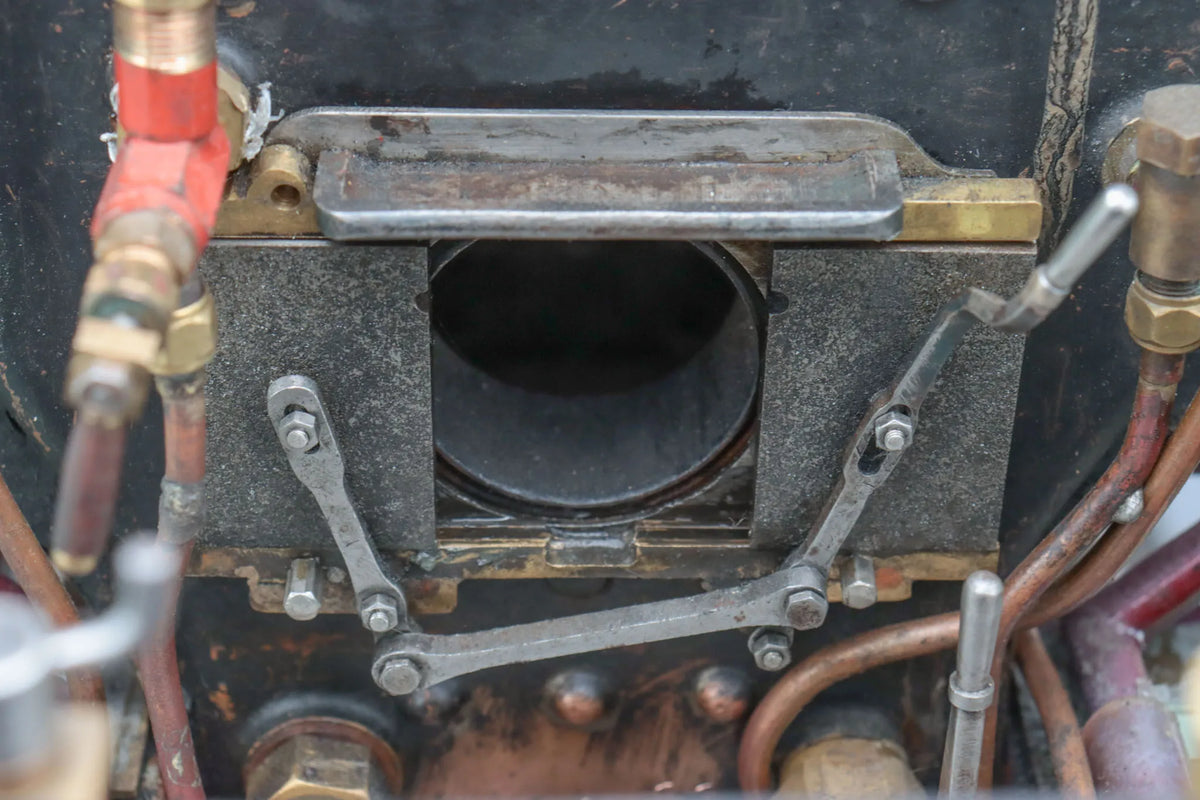

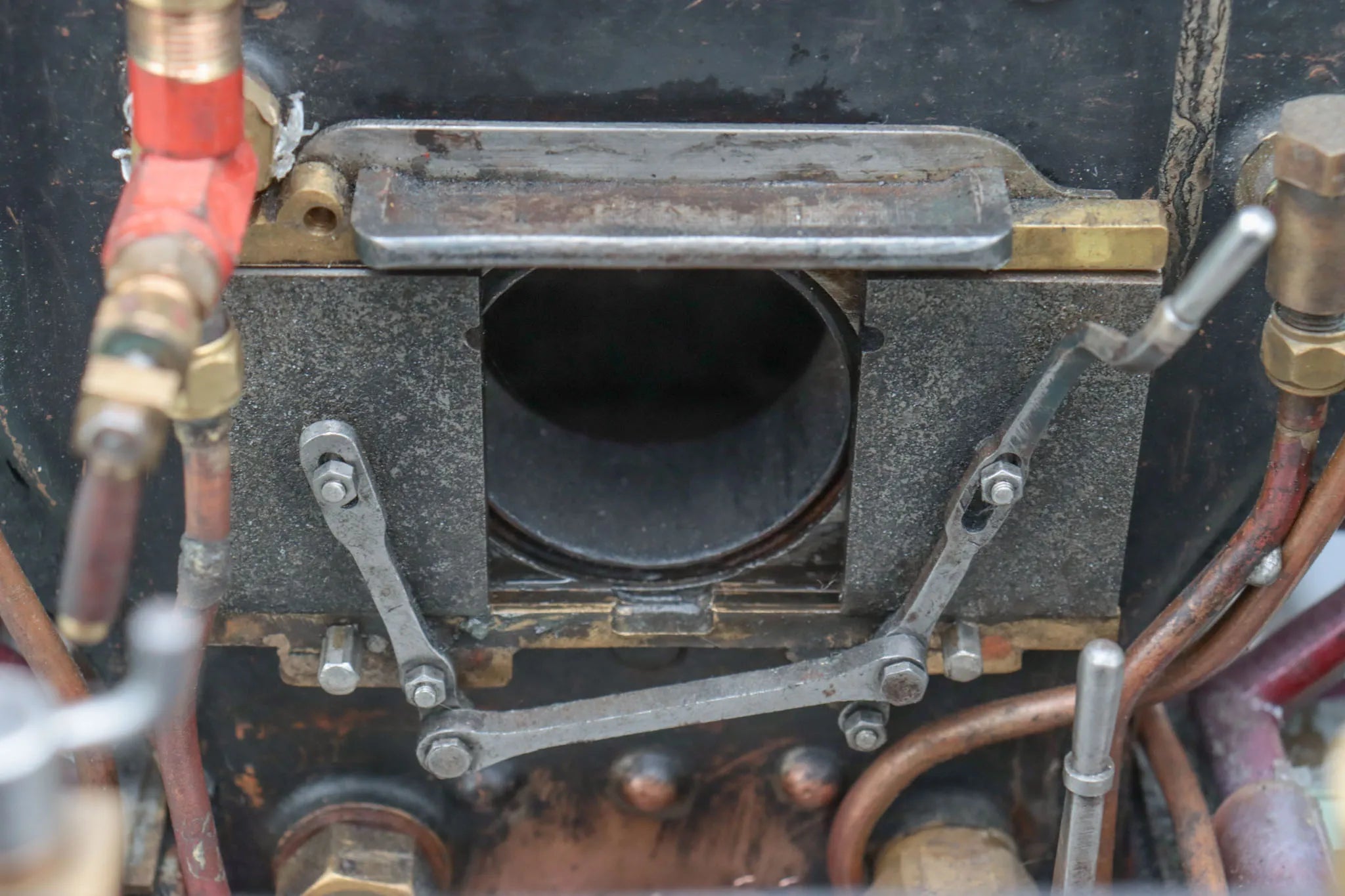

The CE-marked, Western Steam boiler has had a hydraulic test with new certification issued, it remains in good condition throughout though missing an ashpan and grate.

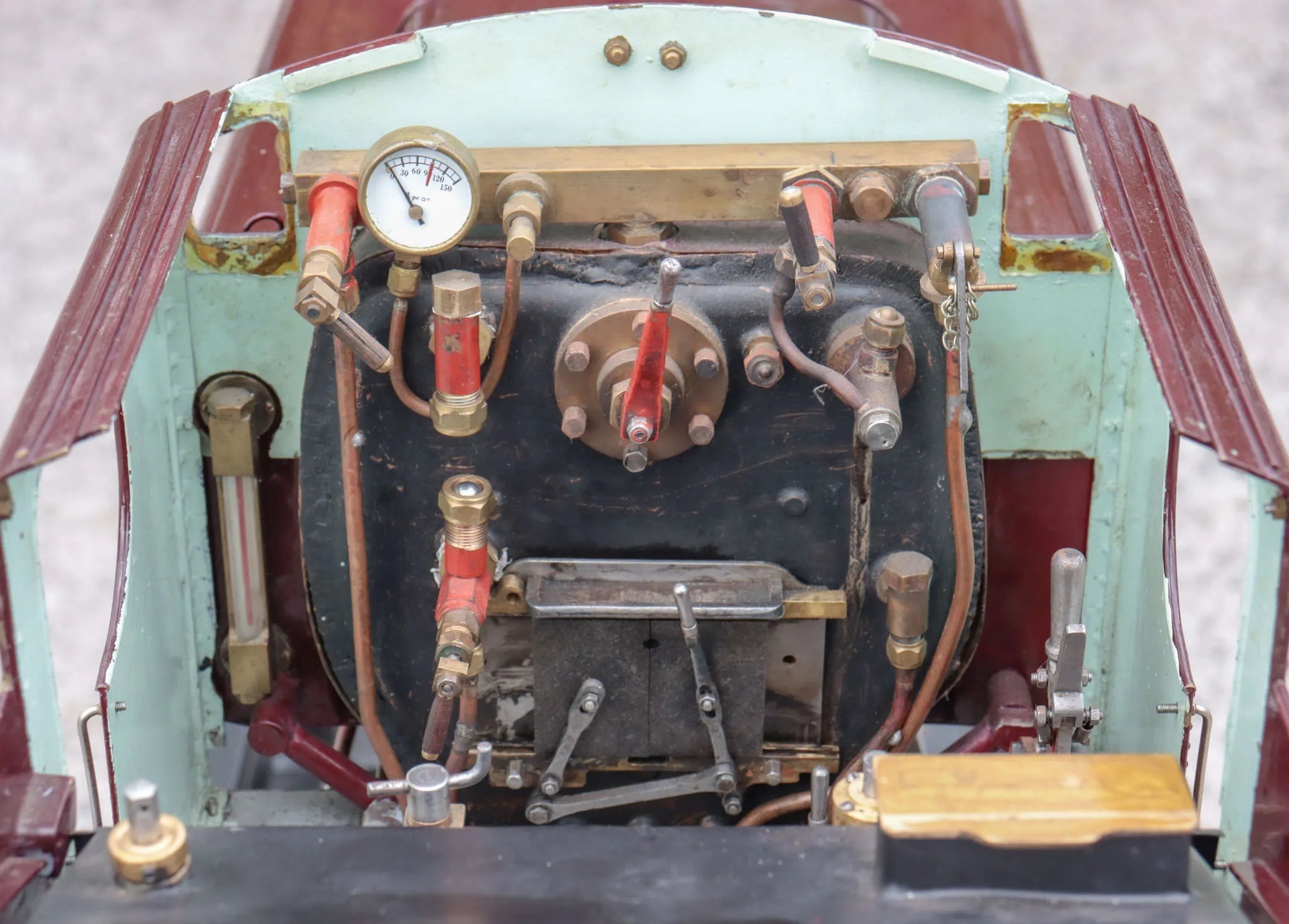

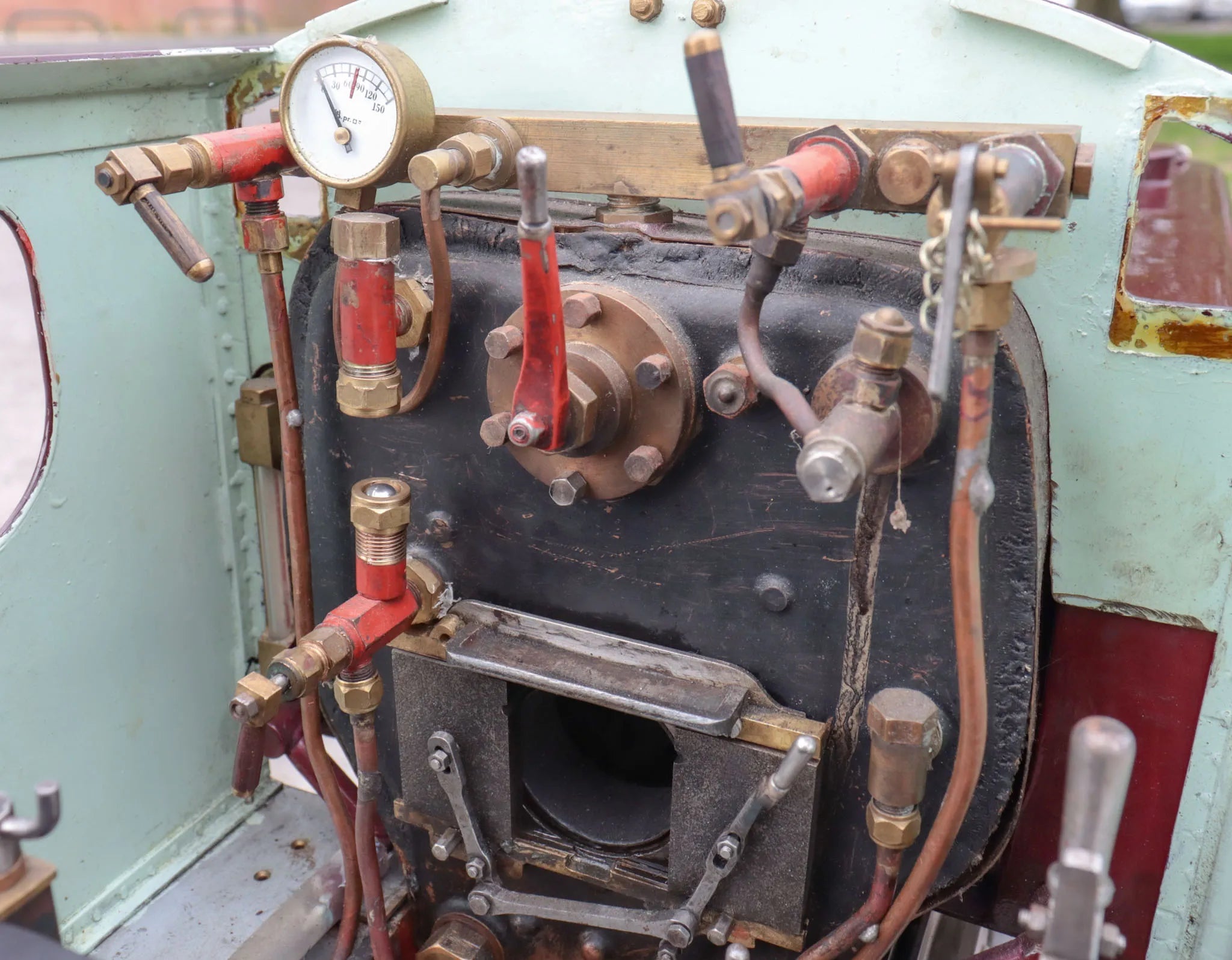

The water gauge fittings are loosed, they require removal and refitting with some sealant, along with a replacement glass.

Technical information

Stock code

11880

Gauge

5 inch

Length/inches

36

Width/inches

11

Height/inches

13

Weight/Kg

59

Wheel material

cast iron

Axlebox type

plain bearing

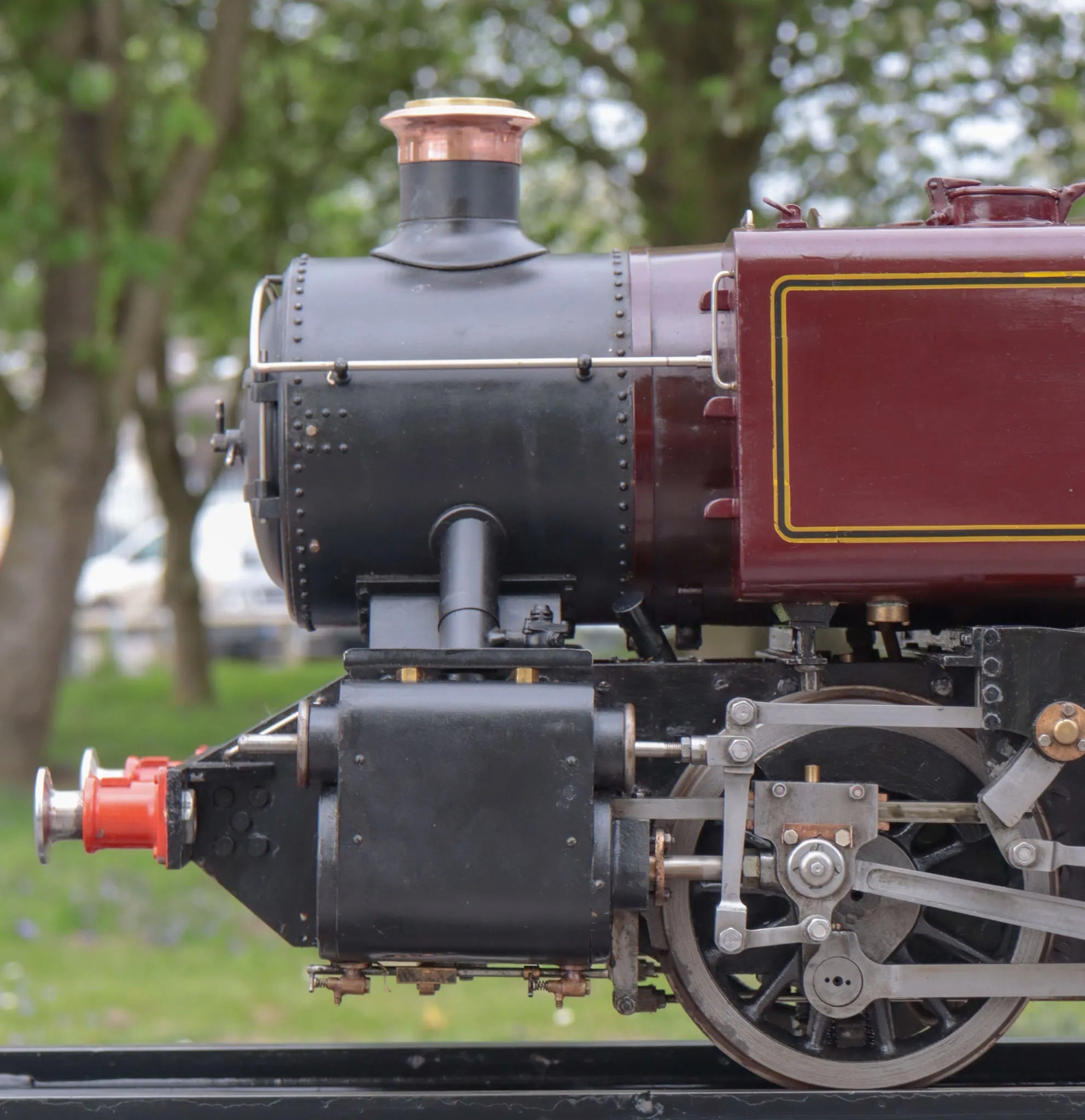

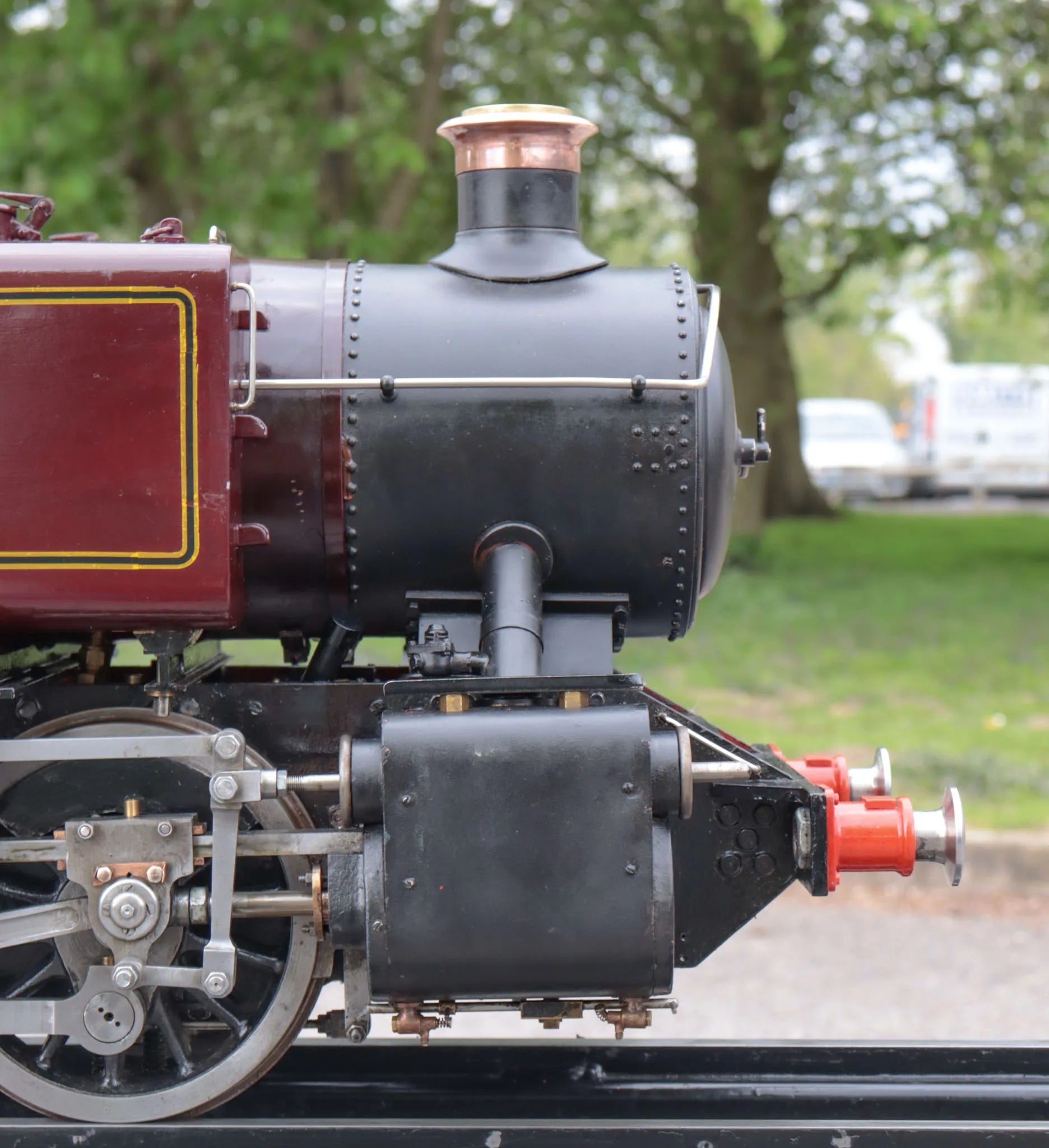

Cylinder material

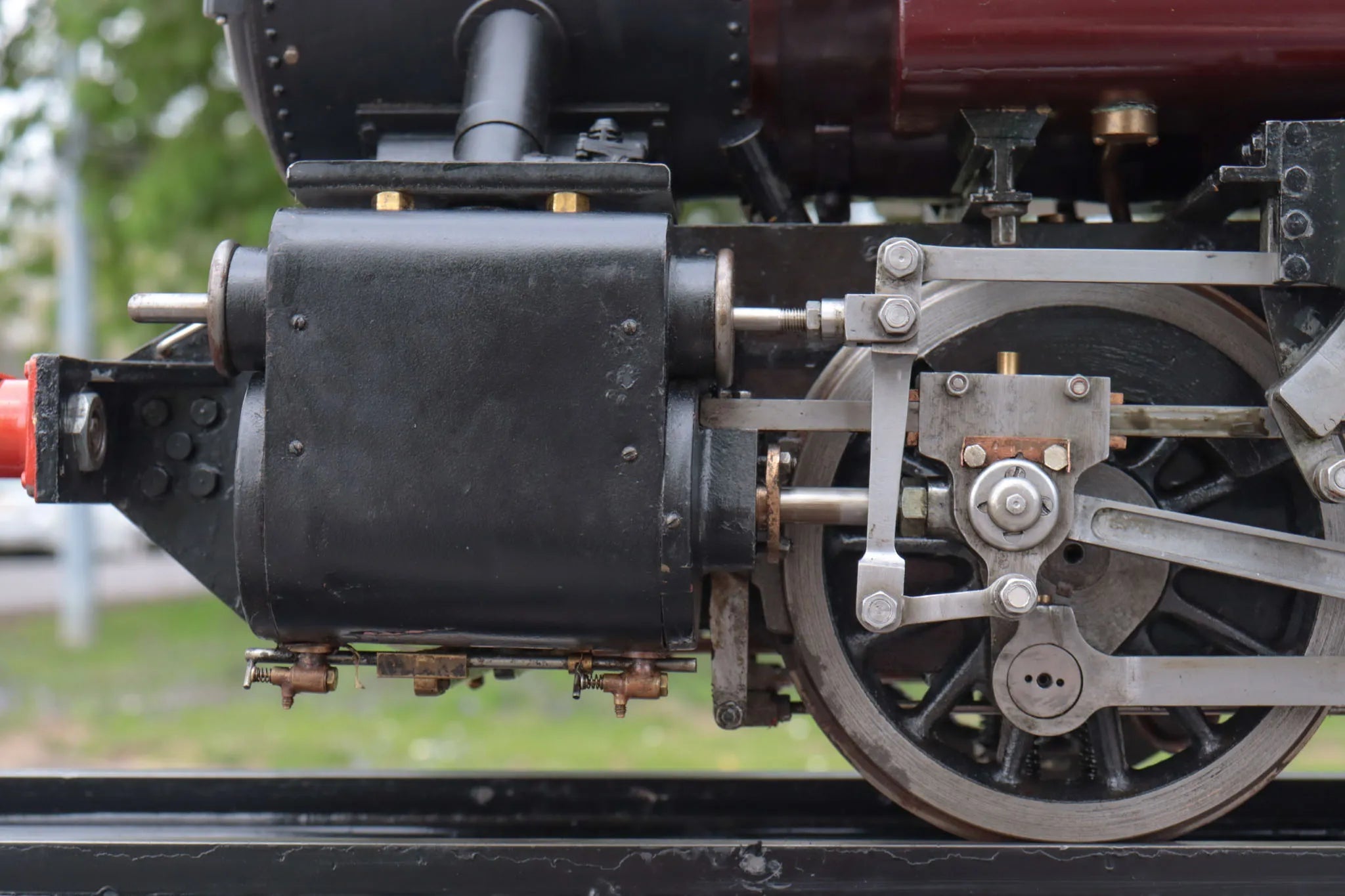

cast iron

Valve type

piston

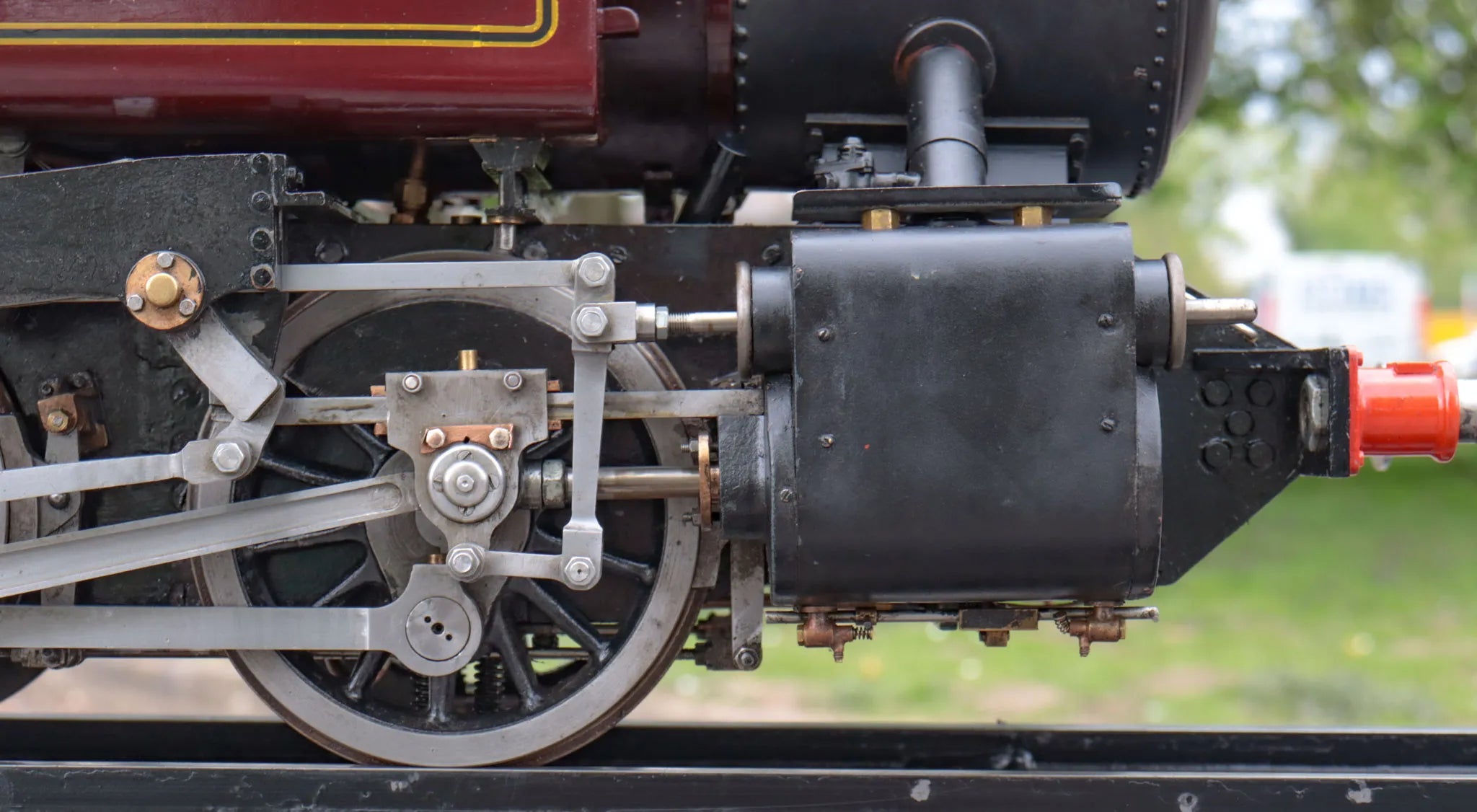

Valve gear

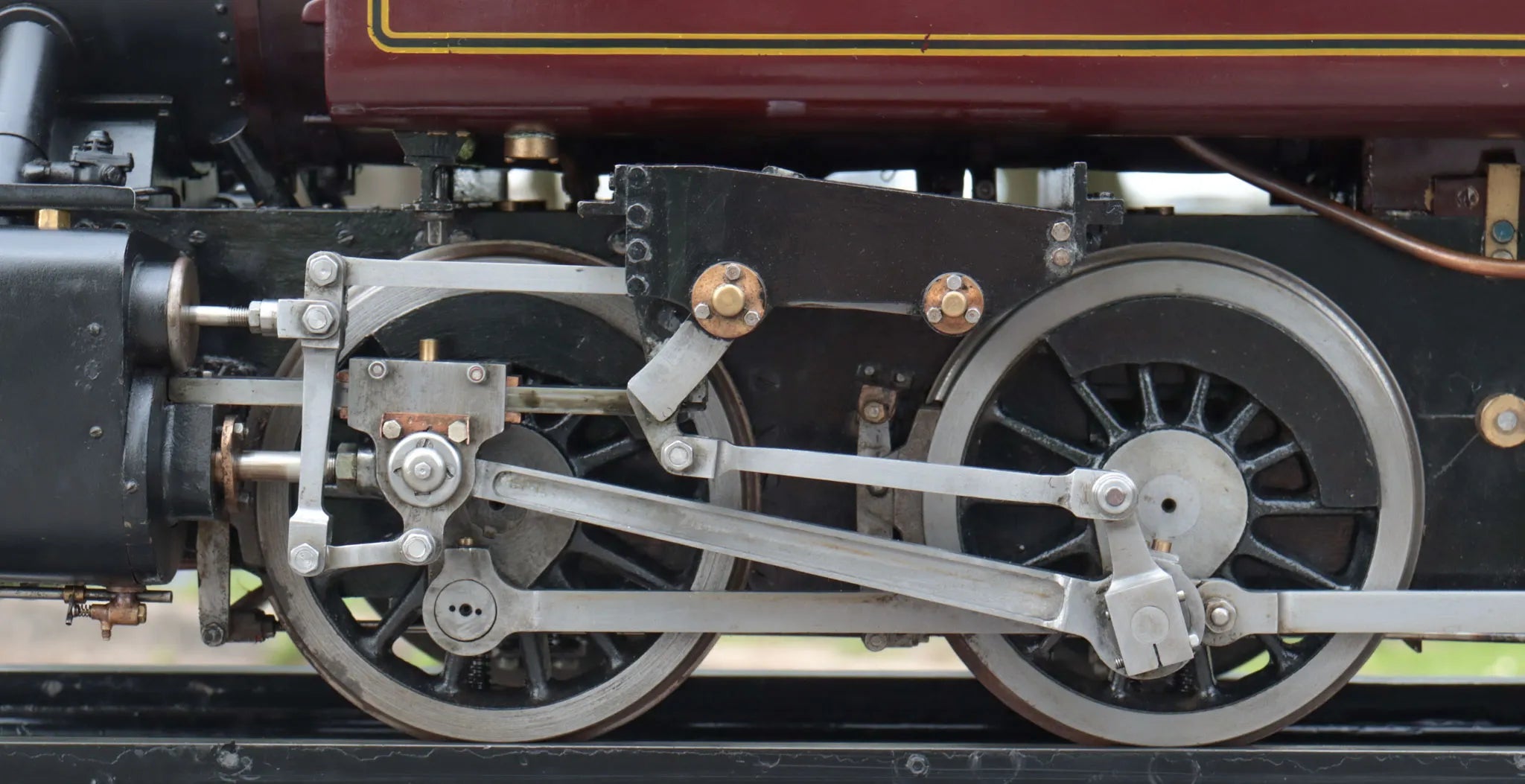

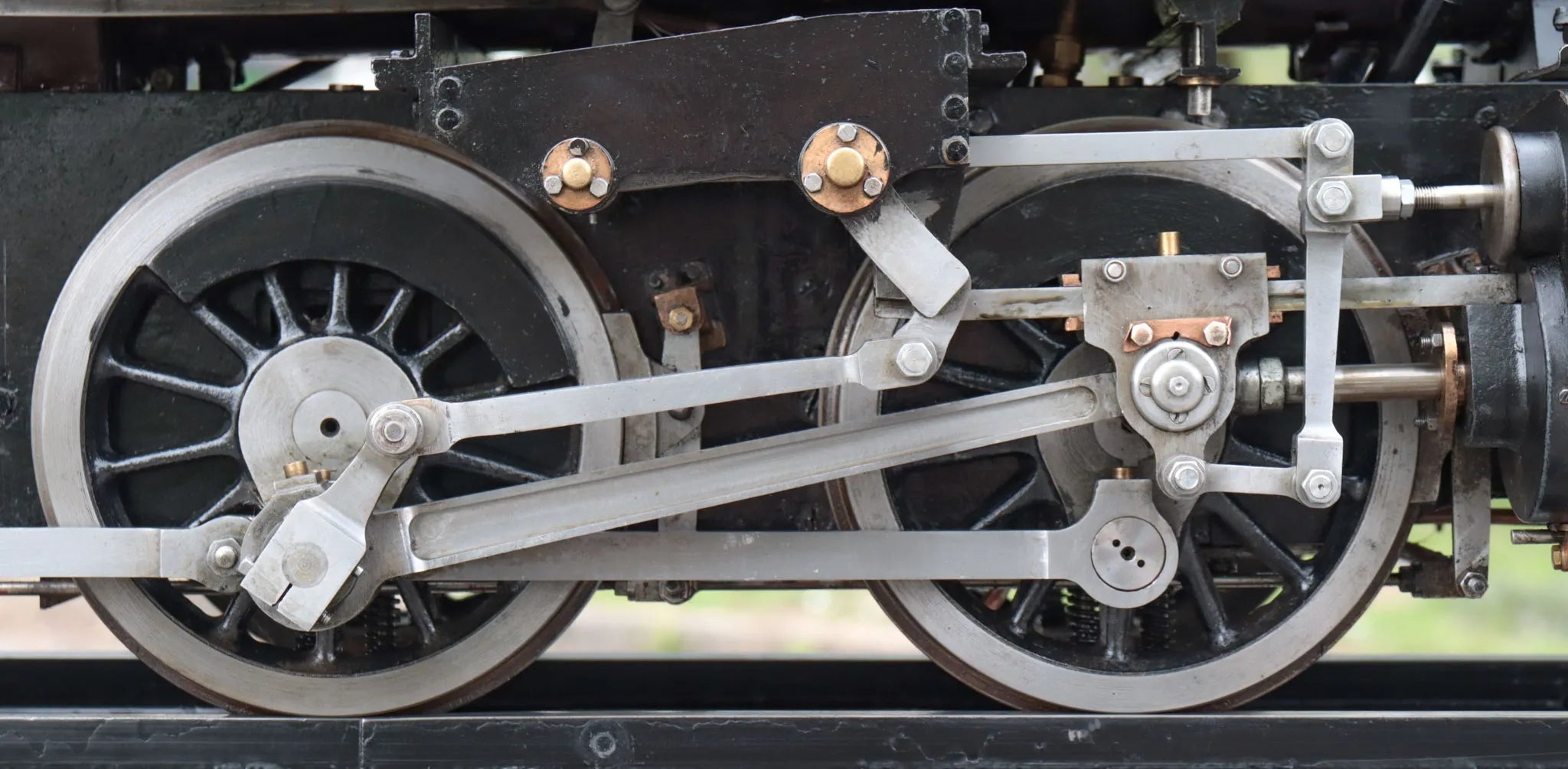

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Western Steam

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2007

Safety valve type

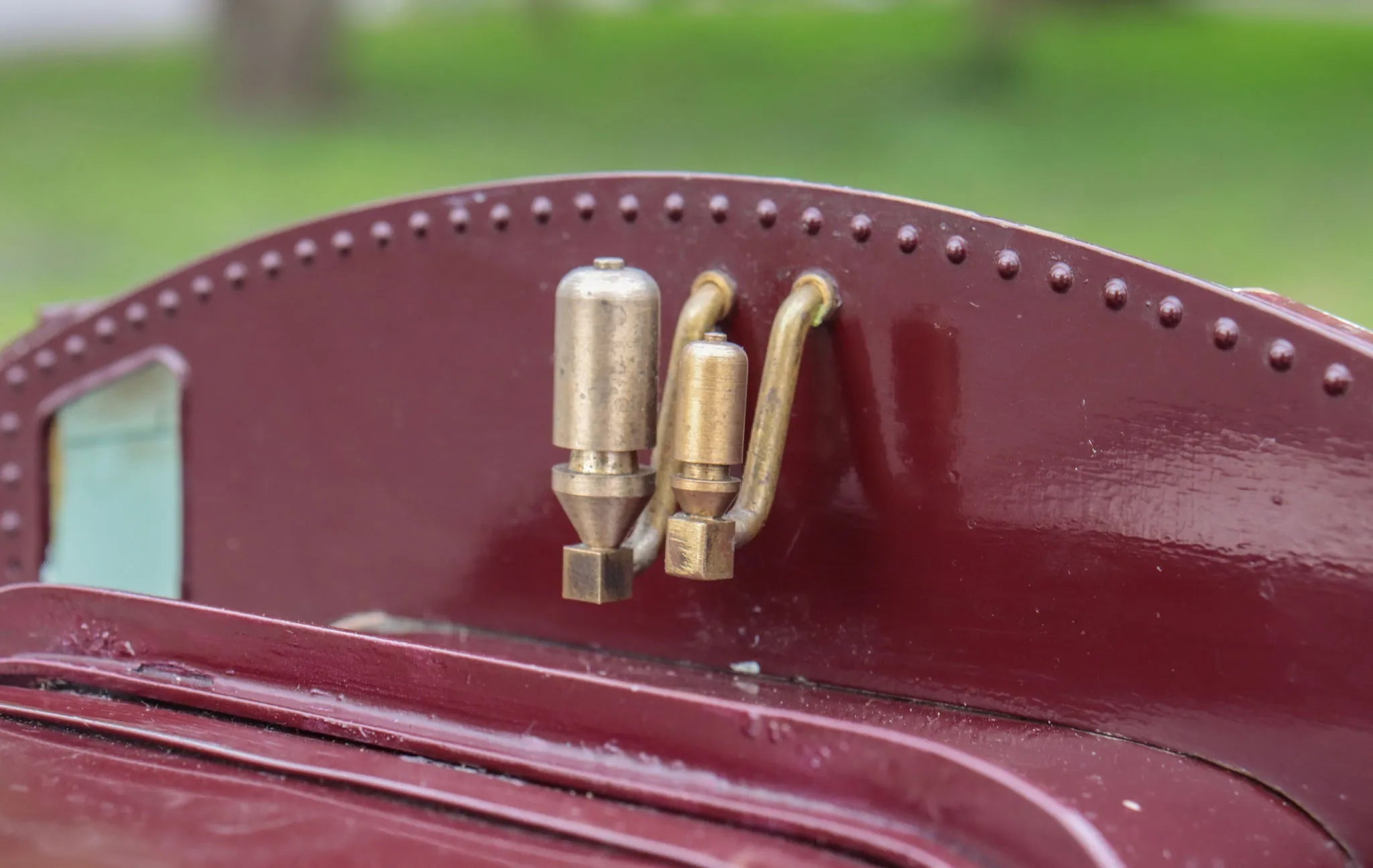

spring

Safety valve

1

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

5

Date out

Sep-24

Hydraulic test valid to

19-Mar-28
