Sold

9880

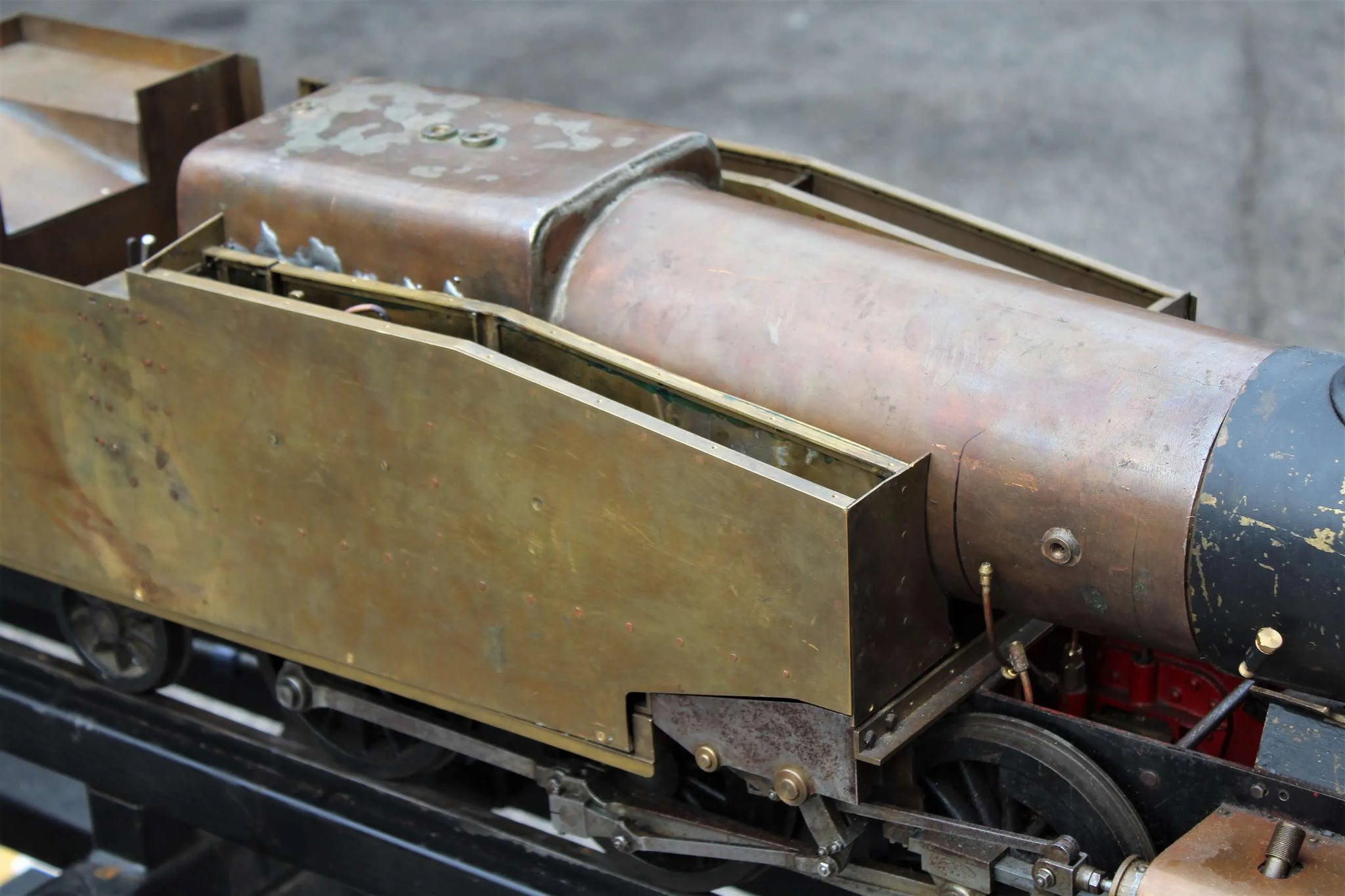

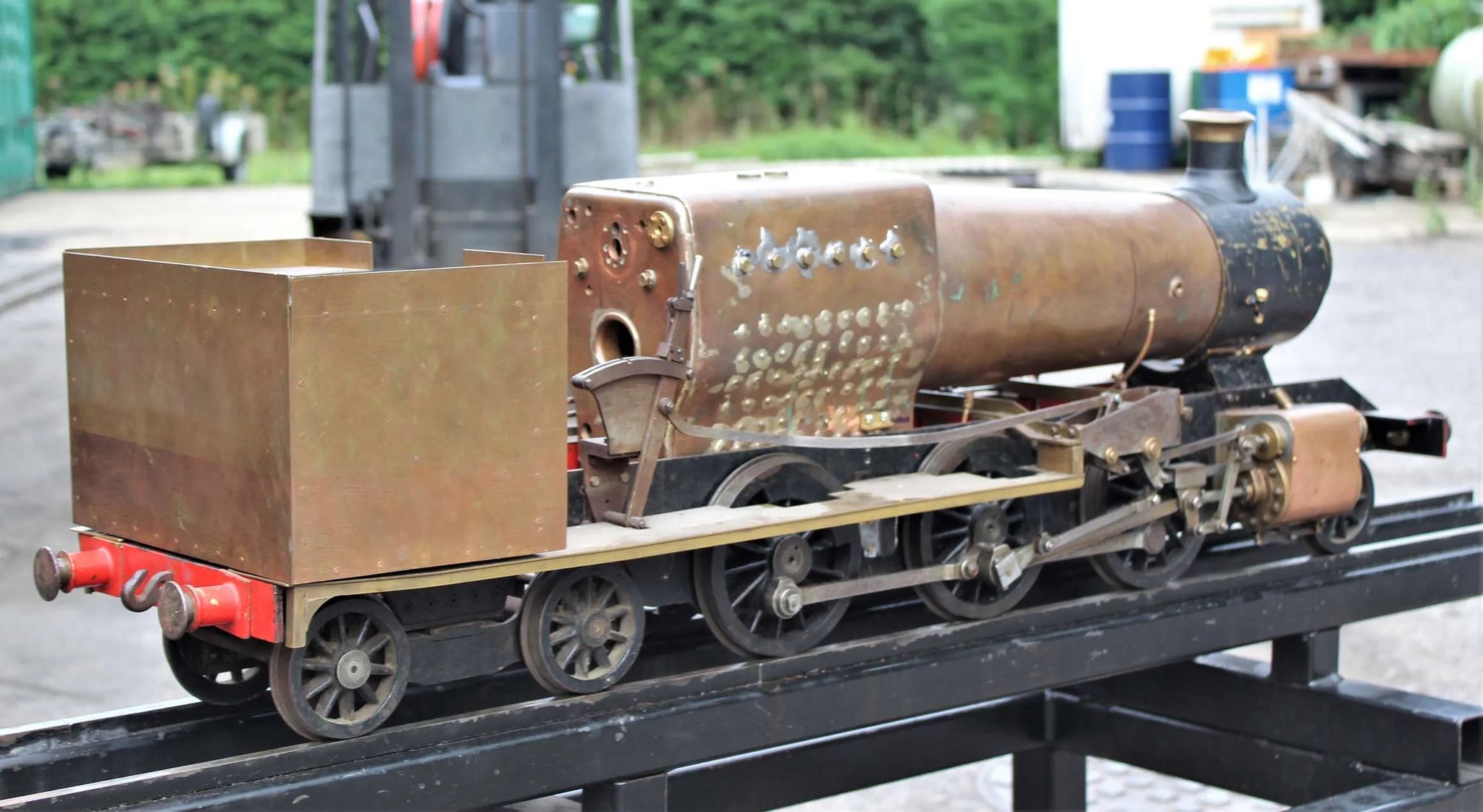

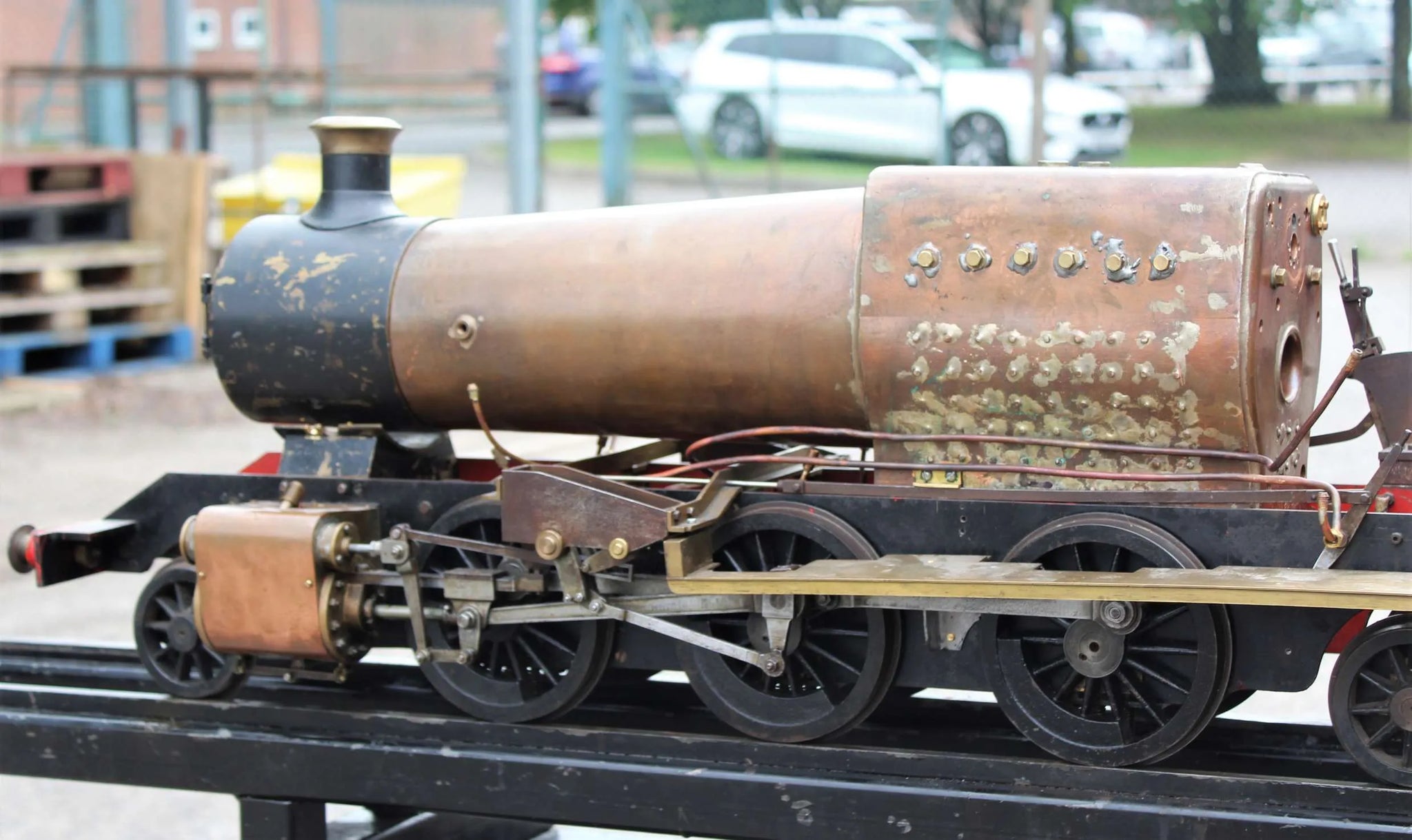

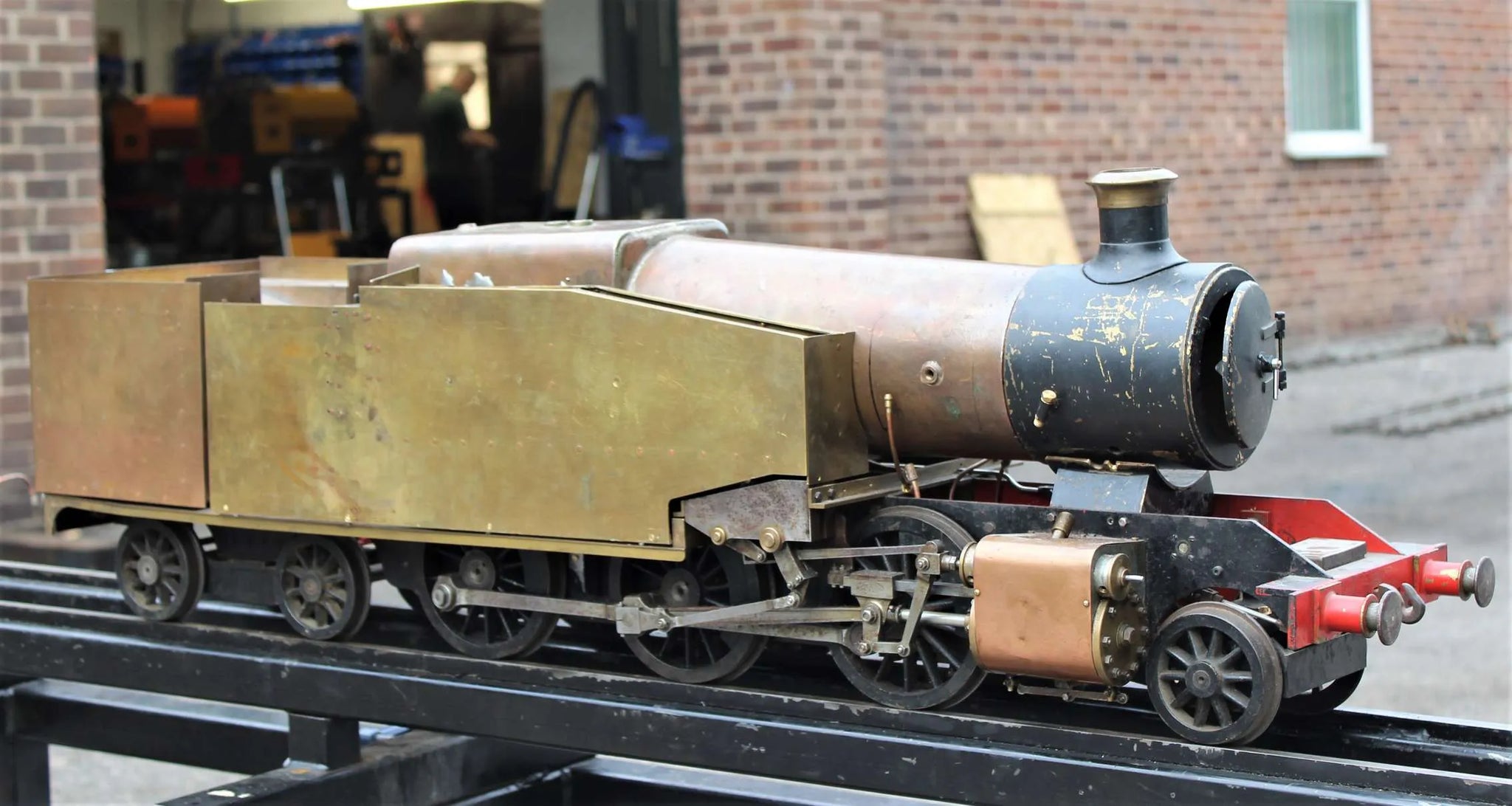

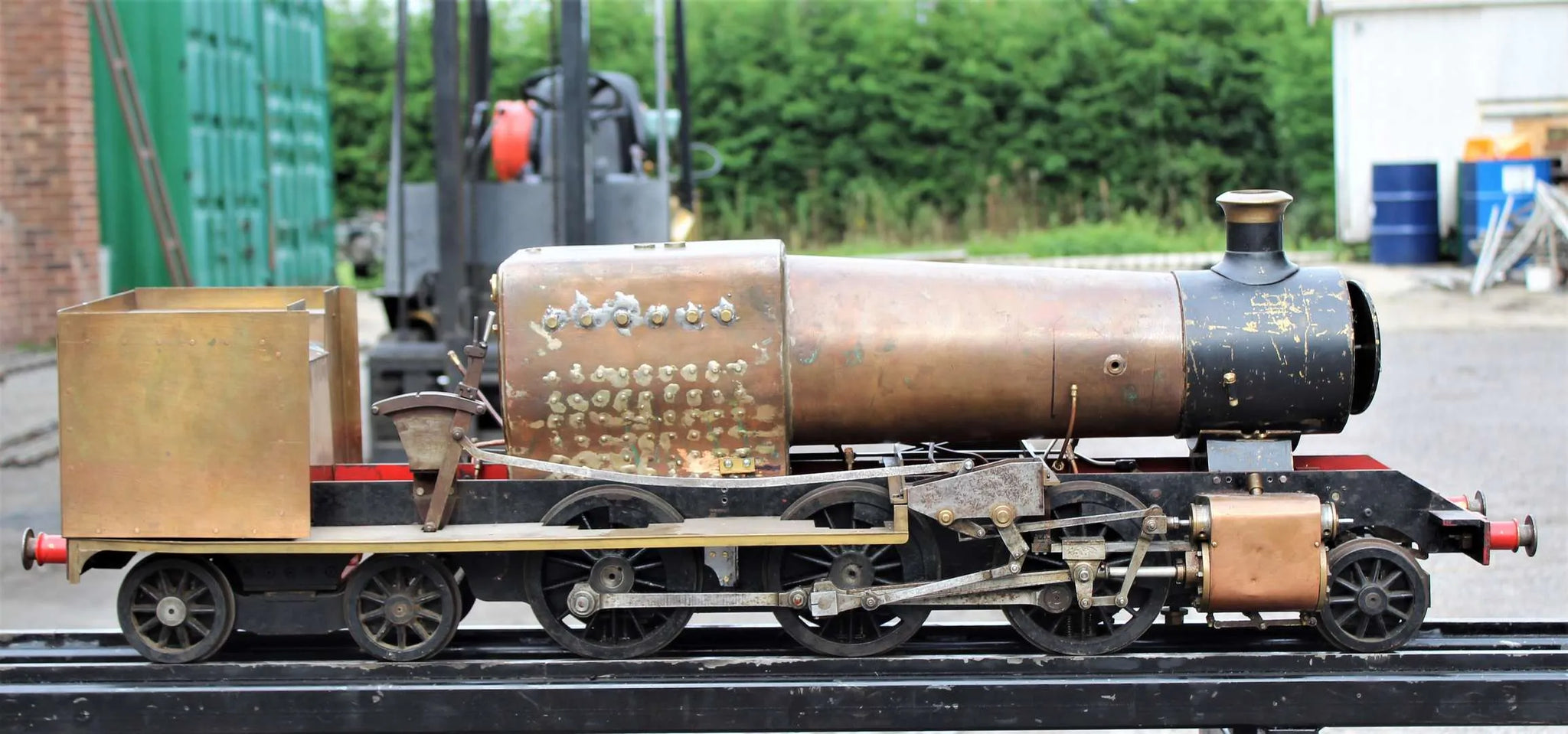

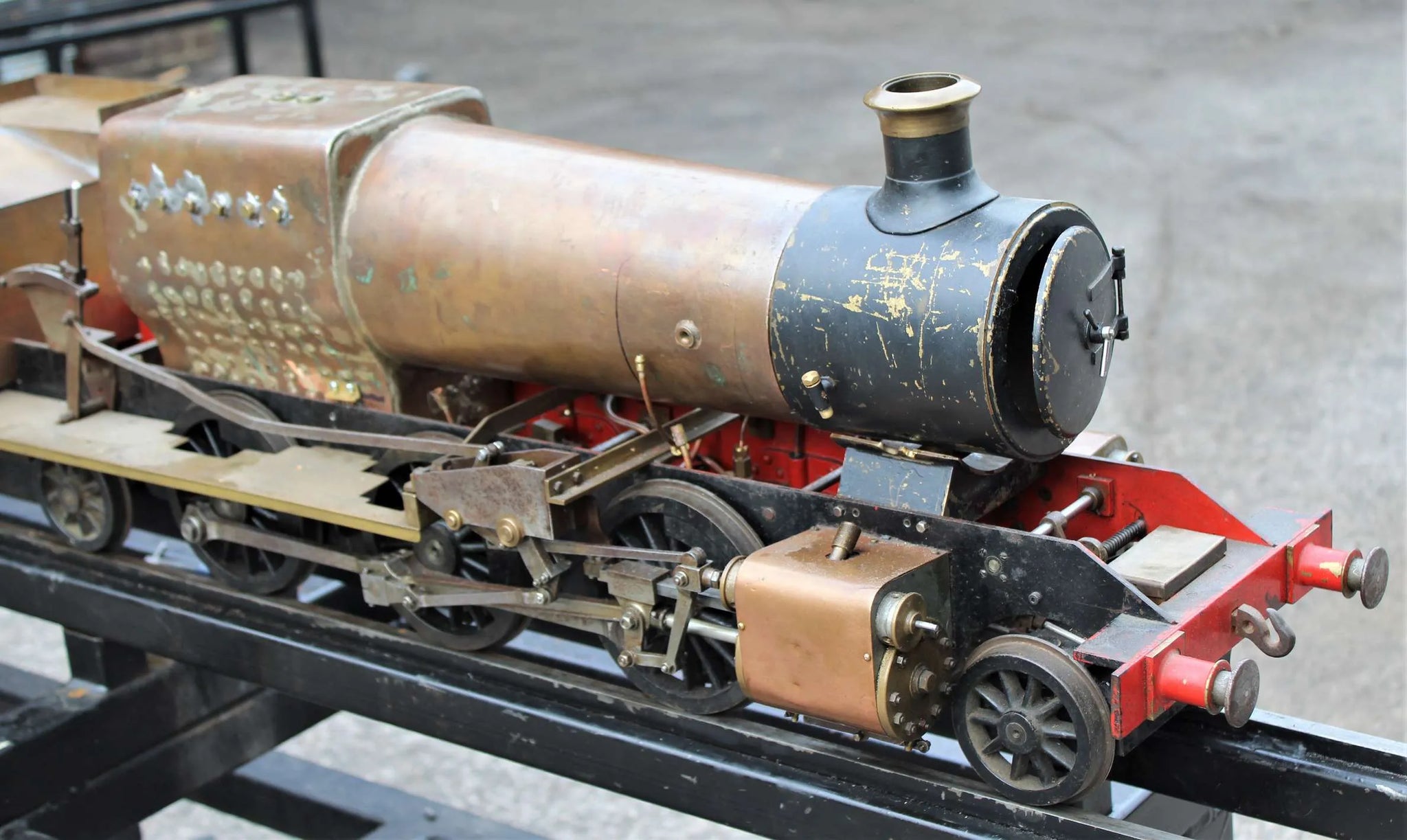

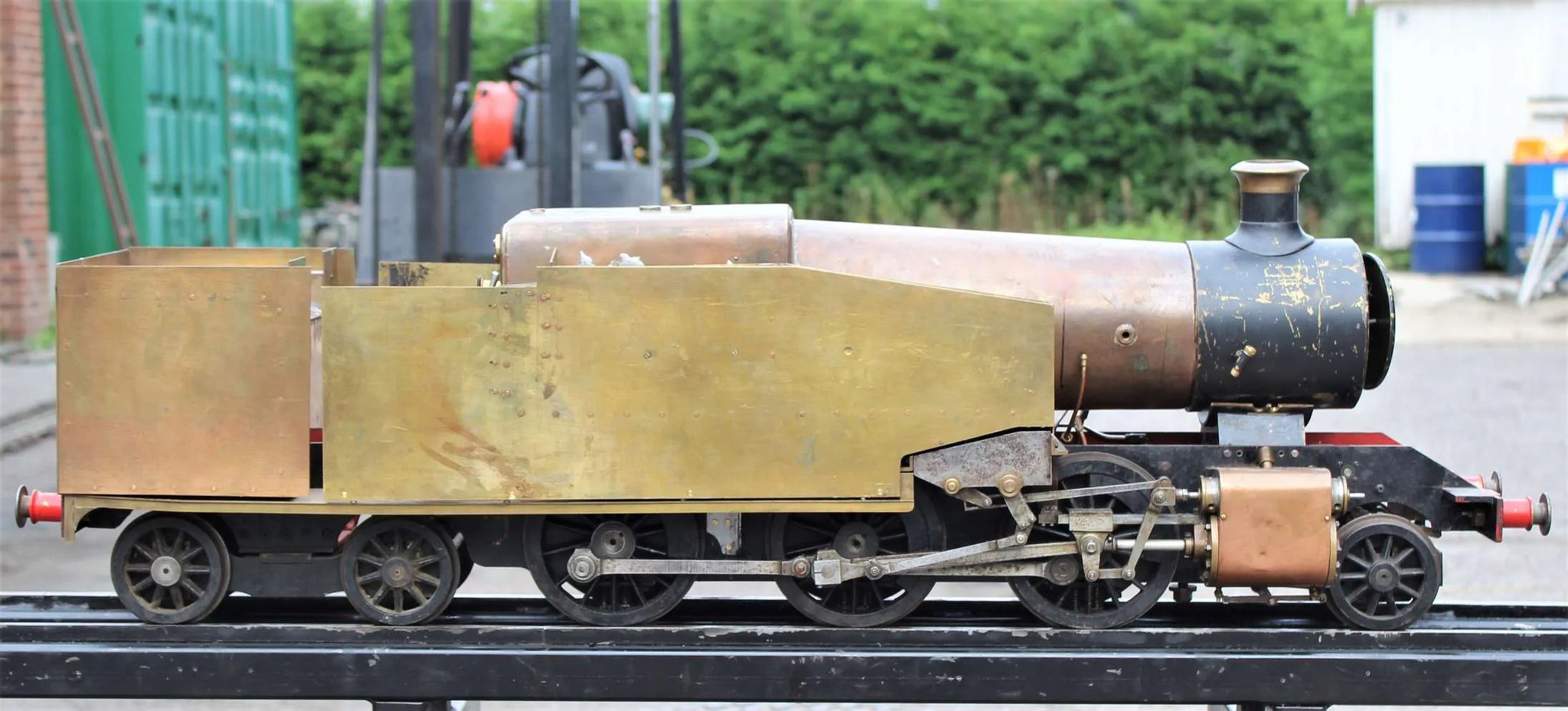

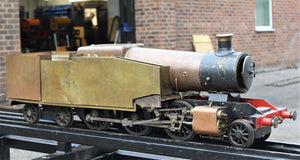

5 inch gauge 2-6-4T

A freelance 2-6-4T, based on LBSC's "Speedy" chassis at the front and with a variety of influences elsewhere.

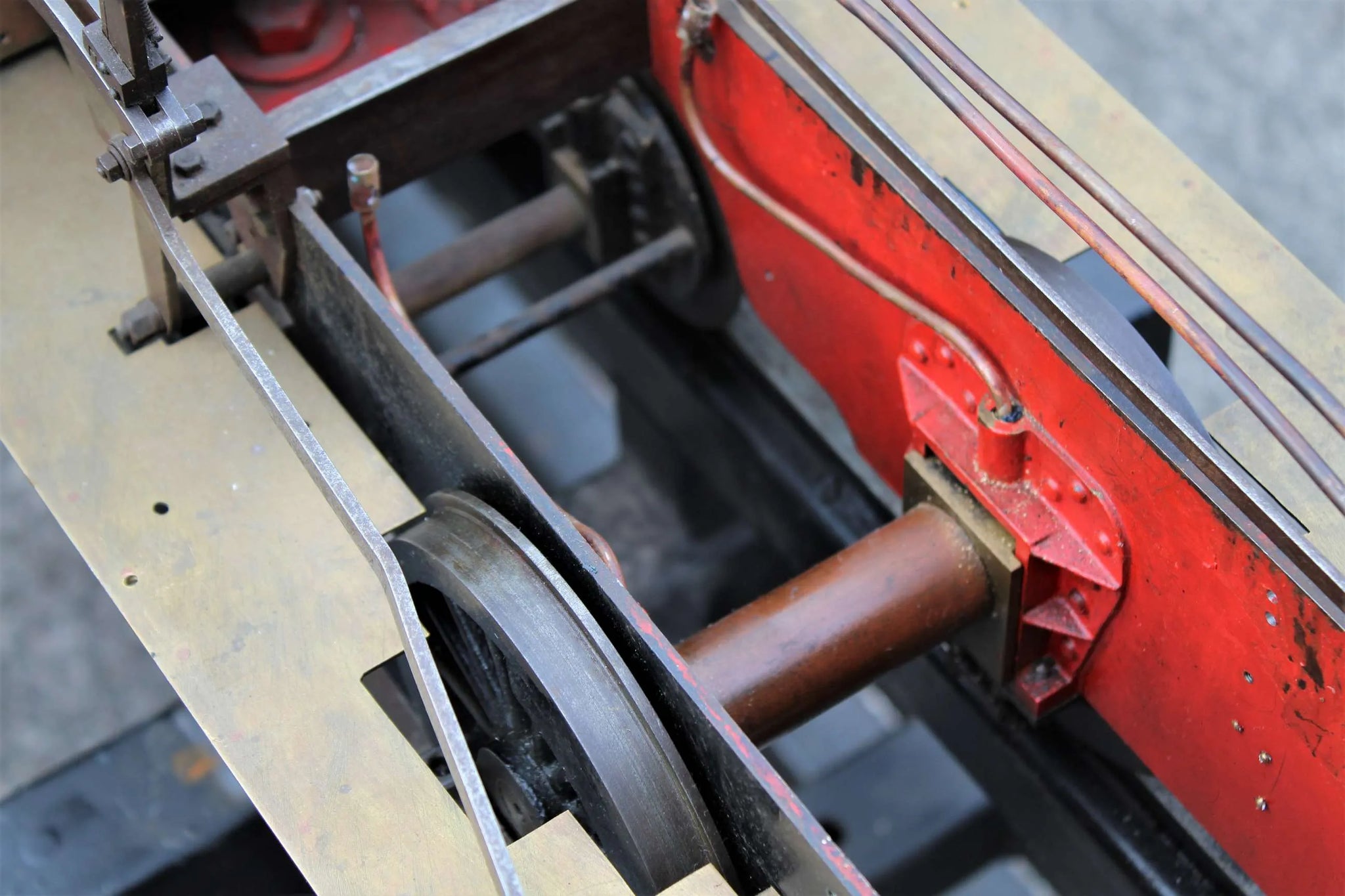

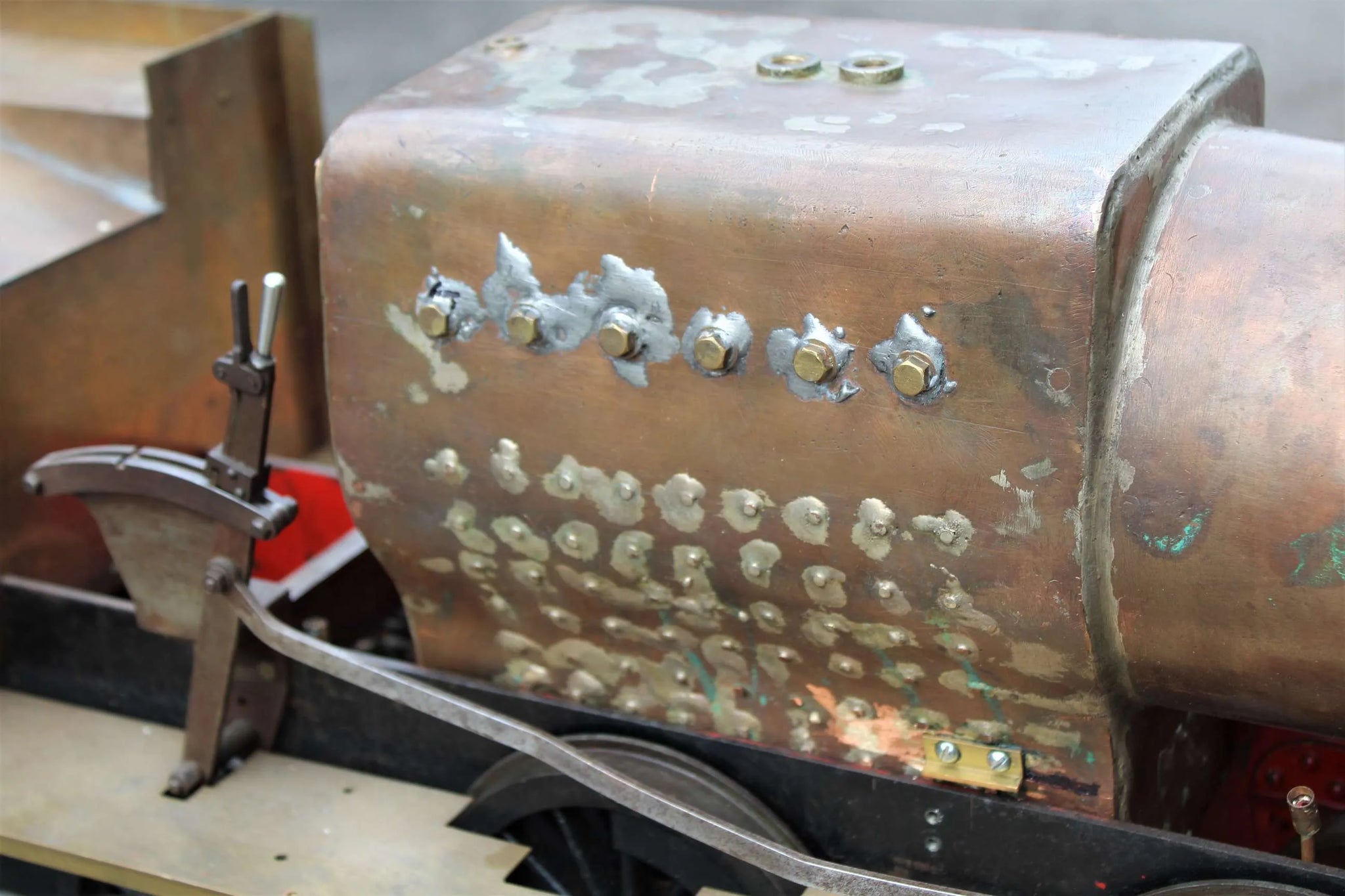

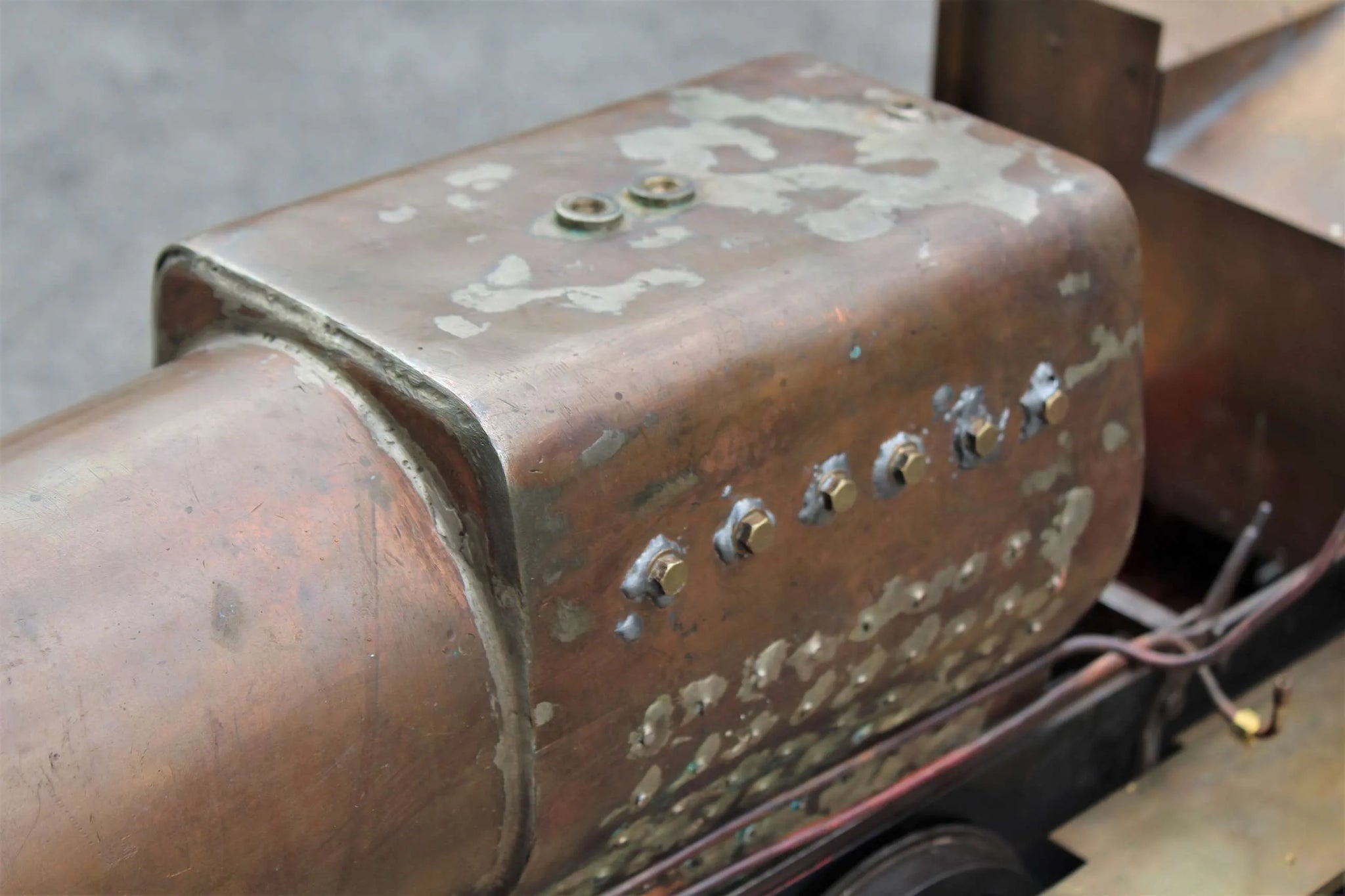

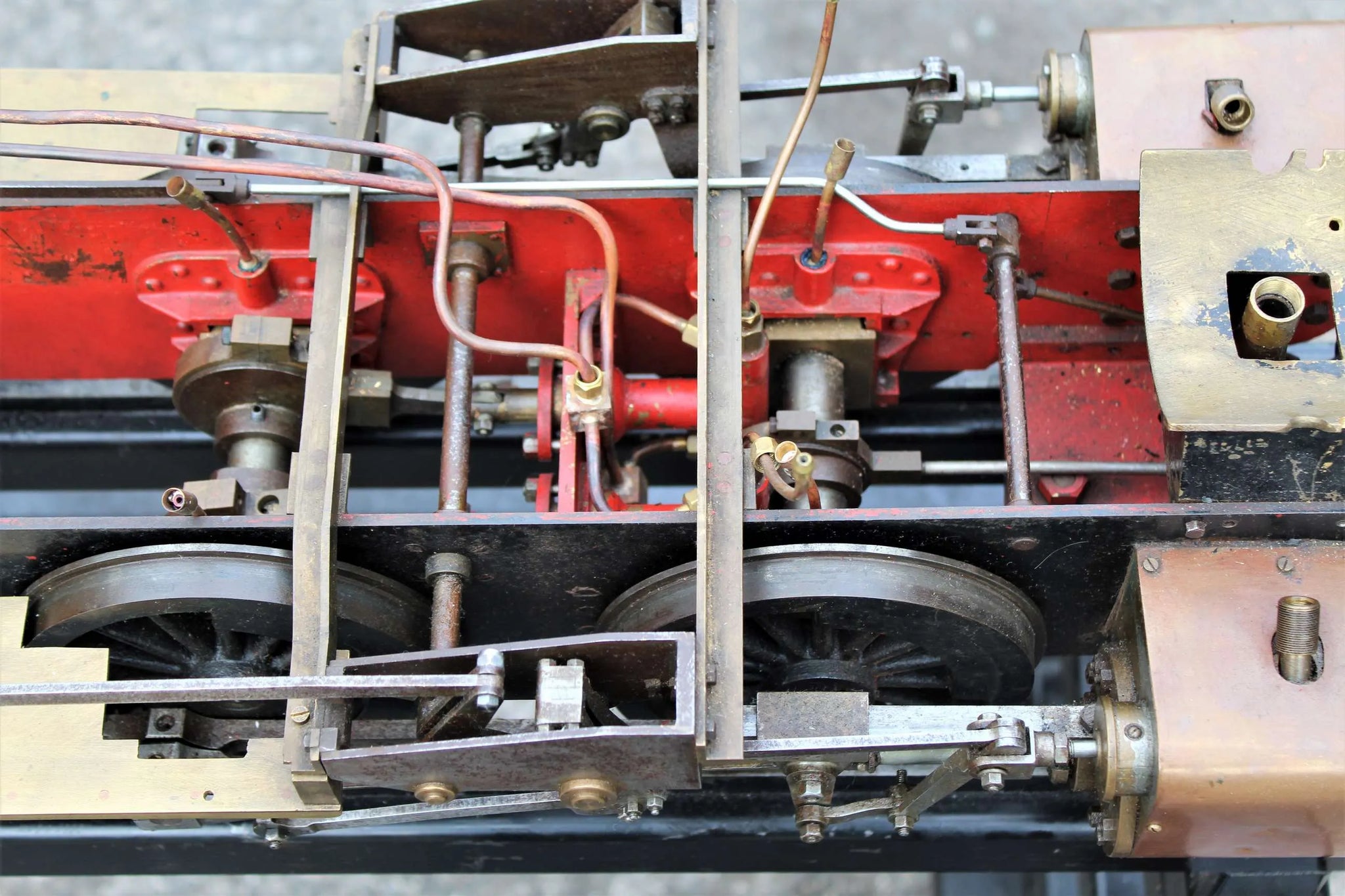

Built to a fairly pedestrian standard throughout, the chassis appears largely complete; the copper boiler is largely silver soldered, with soft solder calking to the transverse firebox stays.

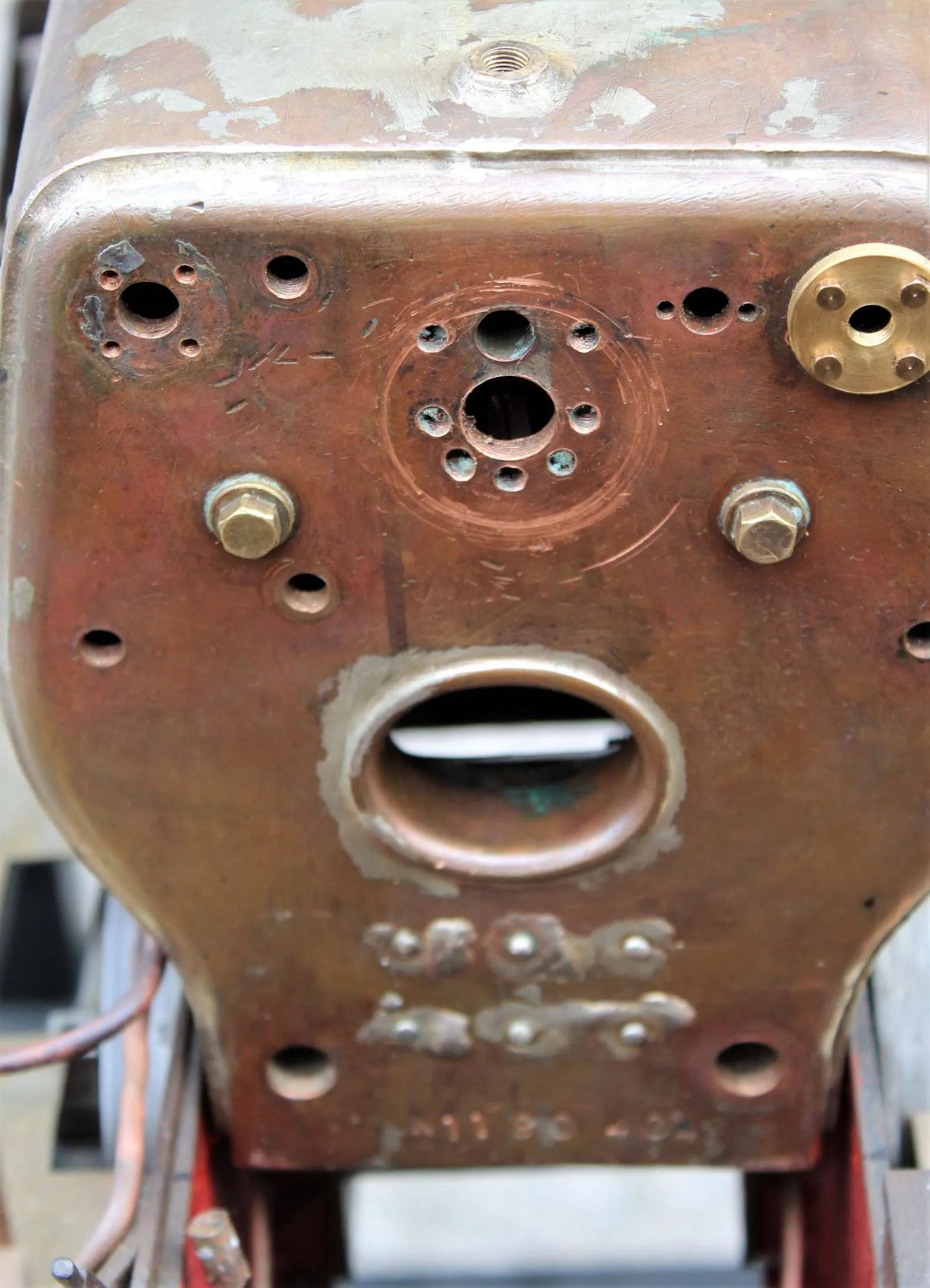

Originally built without provision for a regulator, we suspect it was in that form that it was club tested back in 2019 - it comes with their twice working pressure hydraulic test certificate. Work on the backhead to provide regulator and clack mountings appear to have been done later.

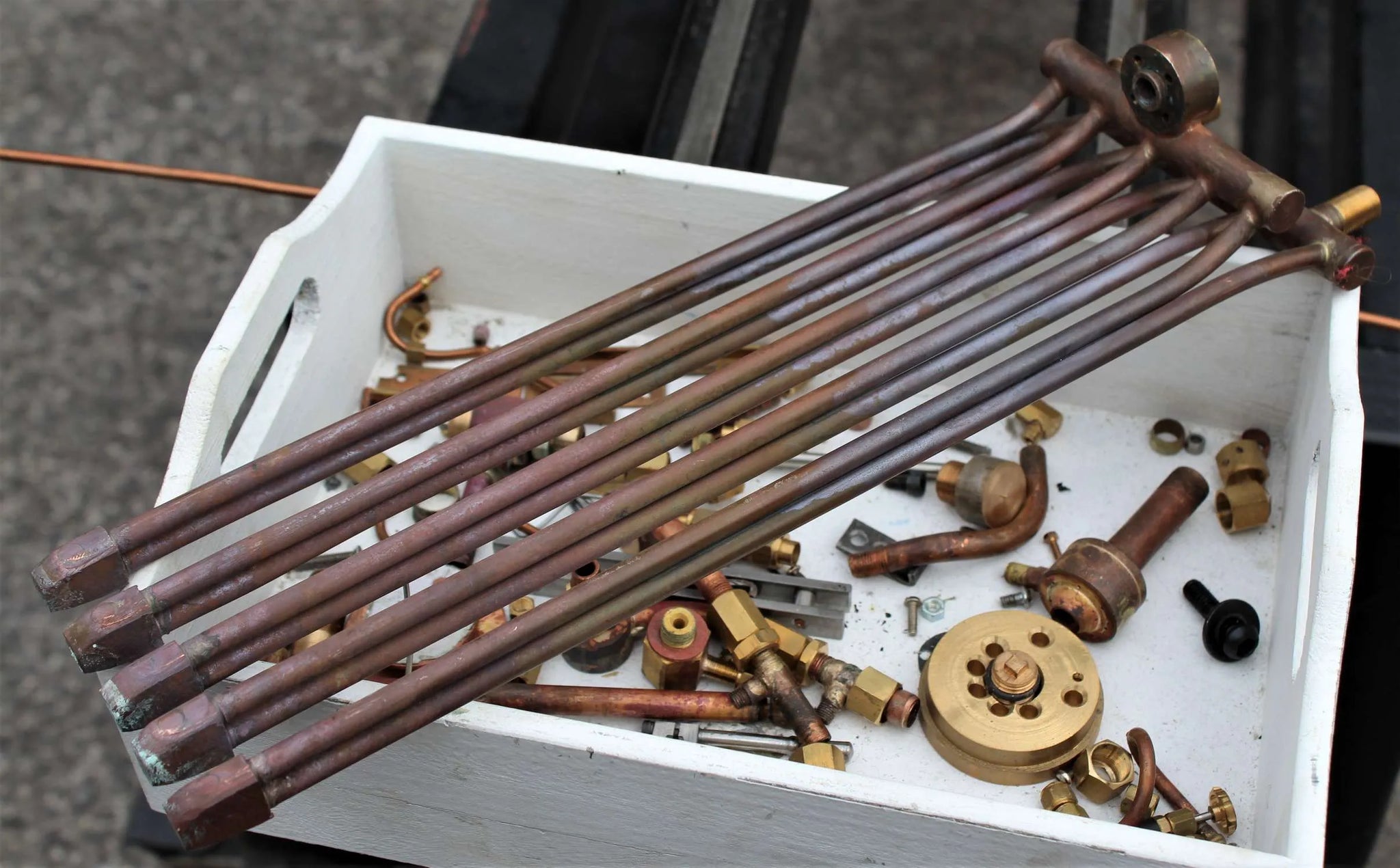

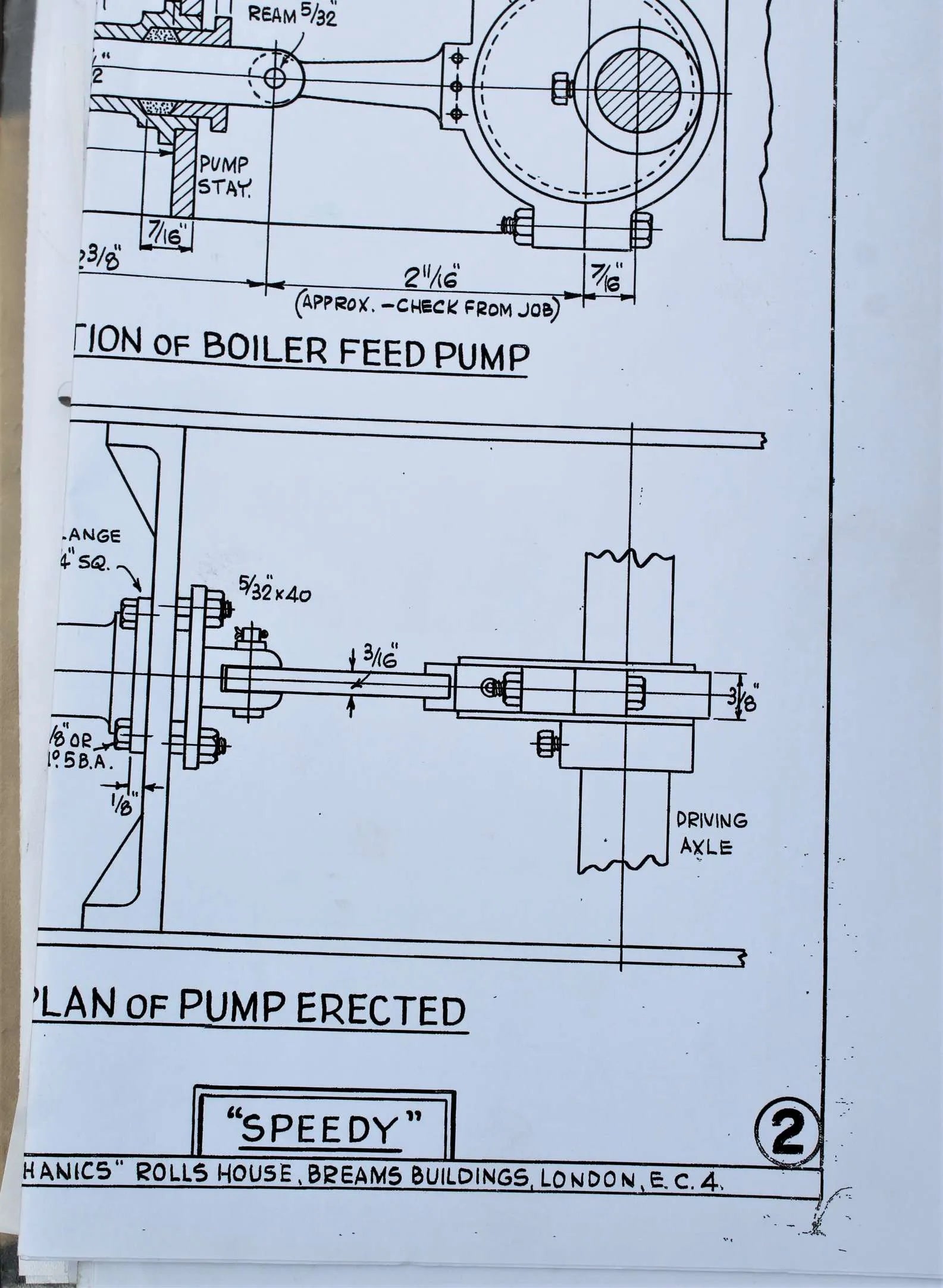

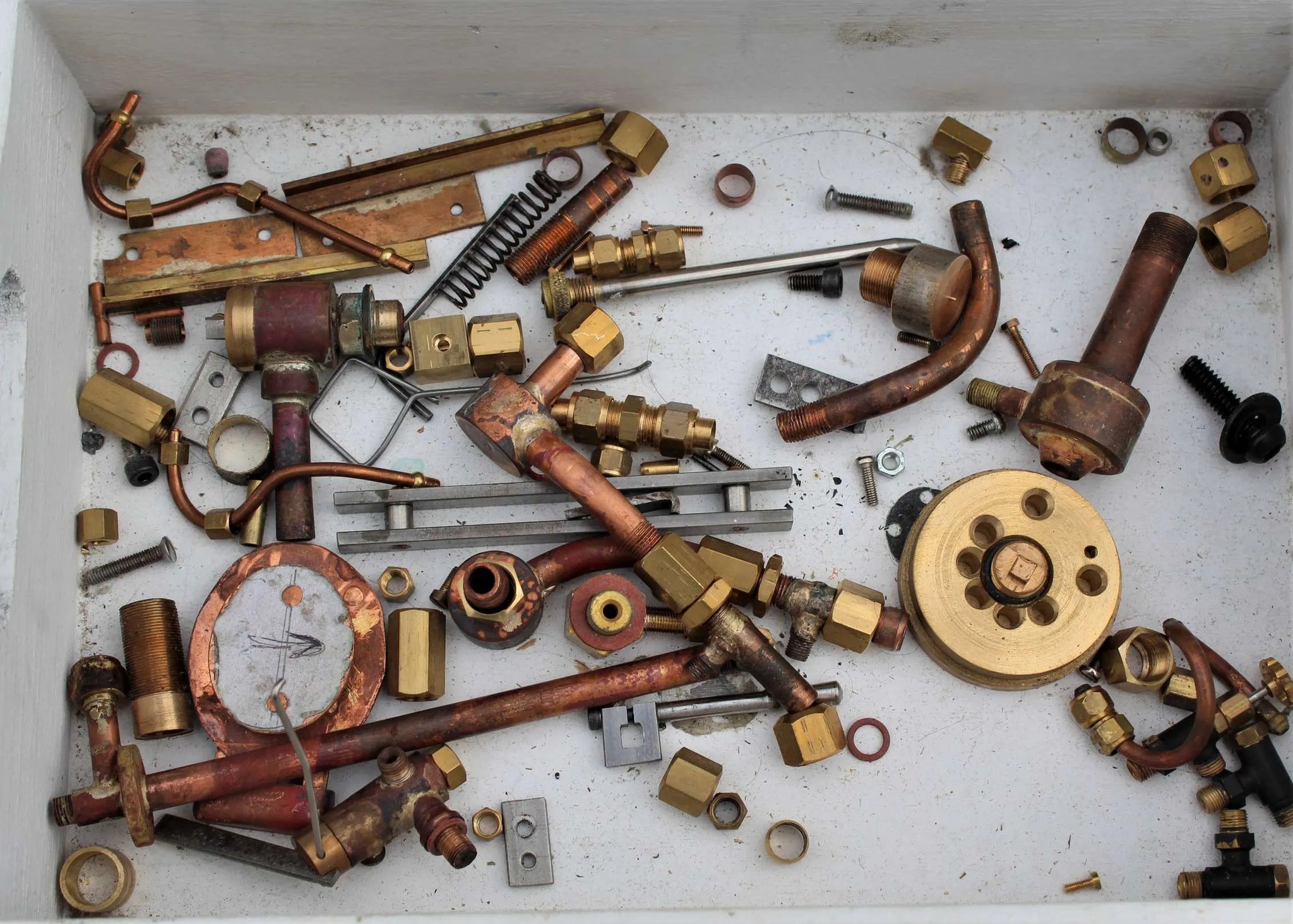

Complete with some drawings for "Speedy" and a box of parts.

Technical information

Stock code

9880

Gauge

5 inch

Wheel material

cast iron

Axlebox type

plain bearing

Valve type

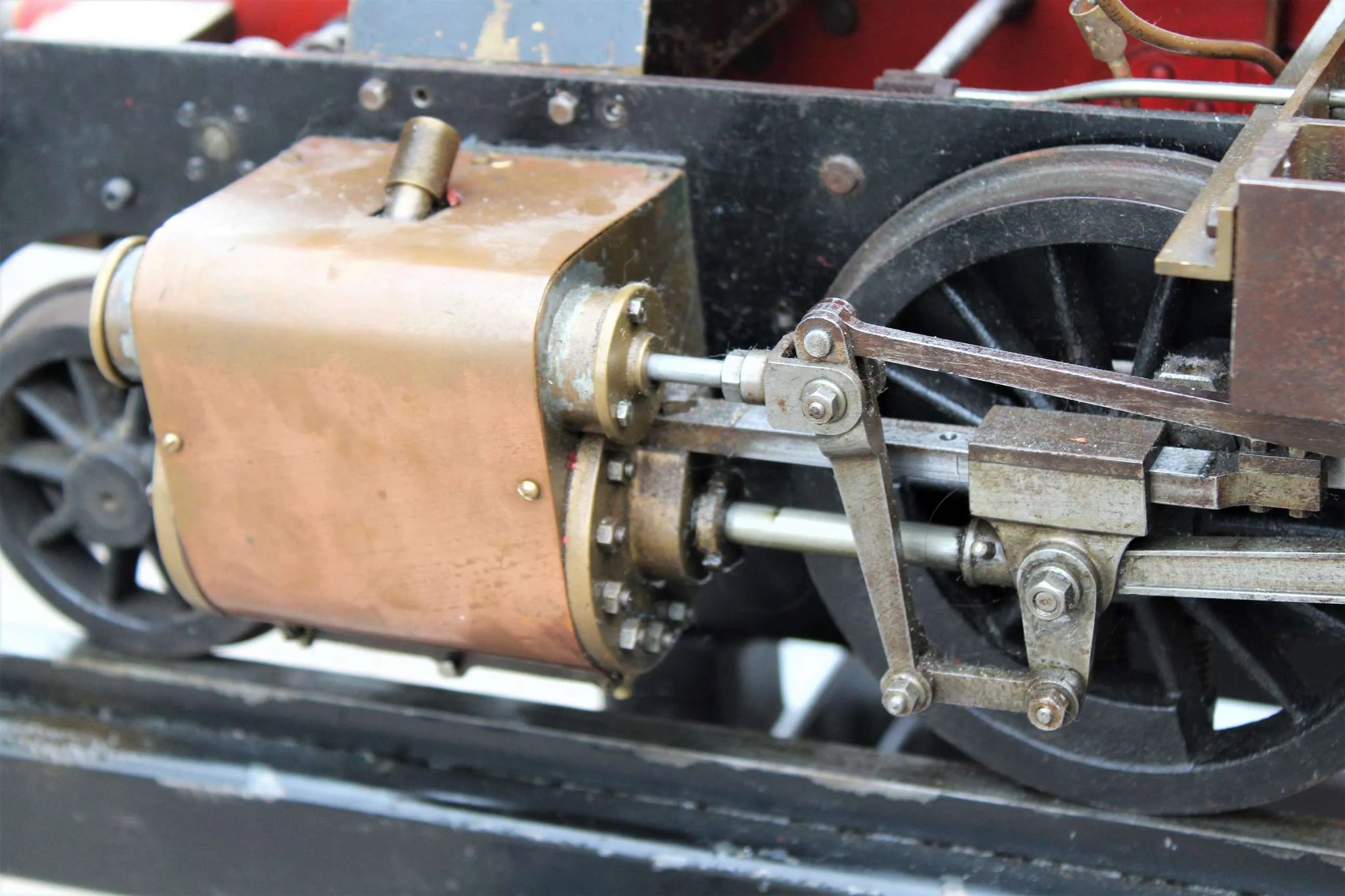

piston

Valve gear

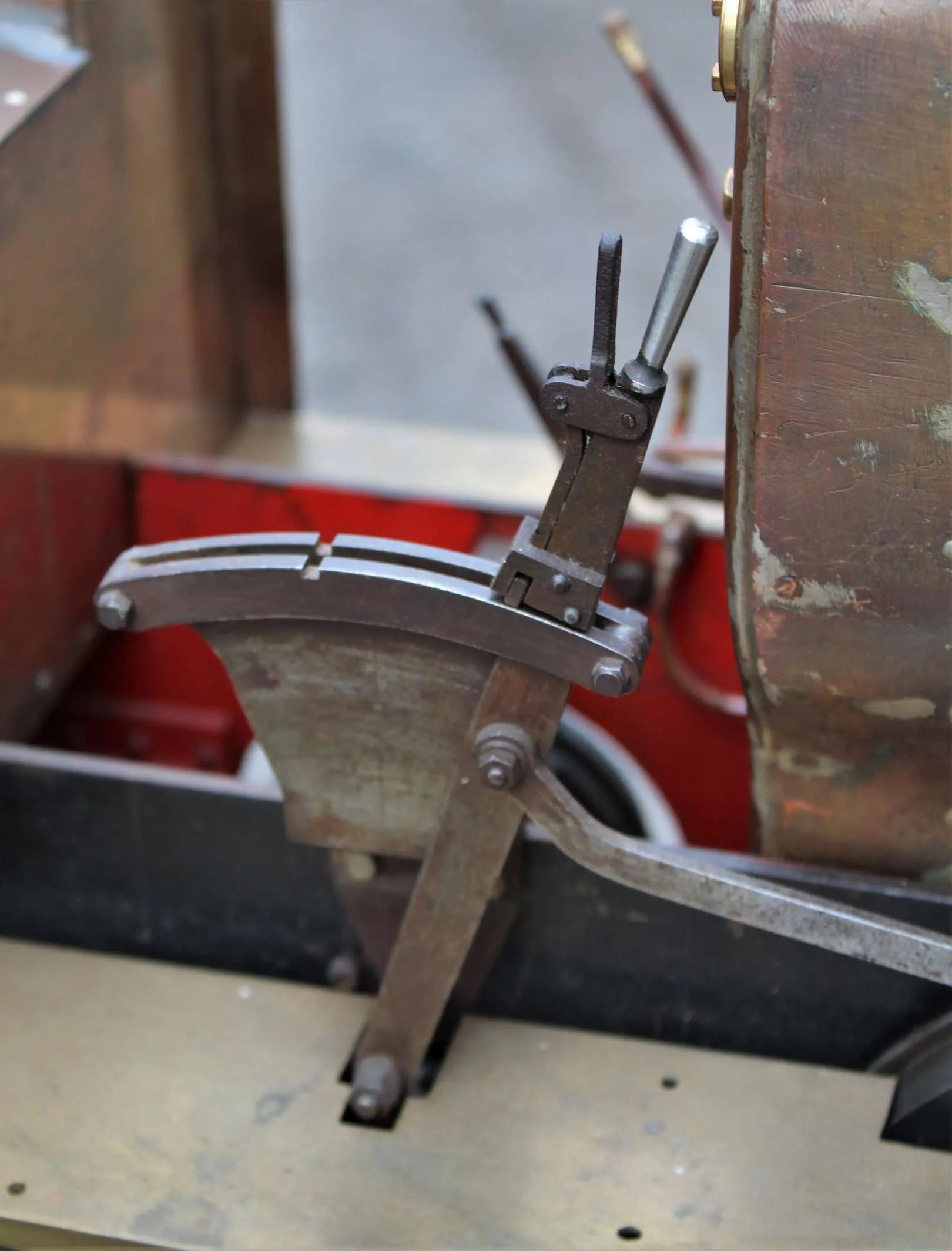

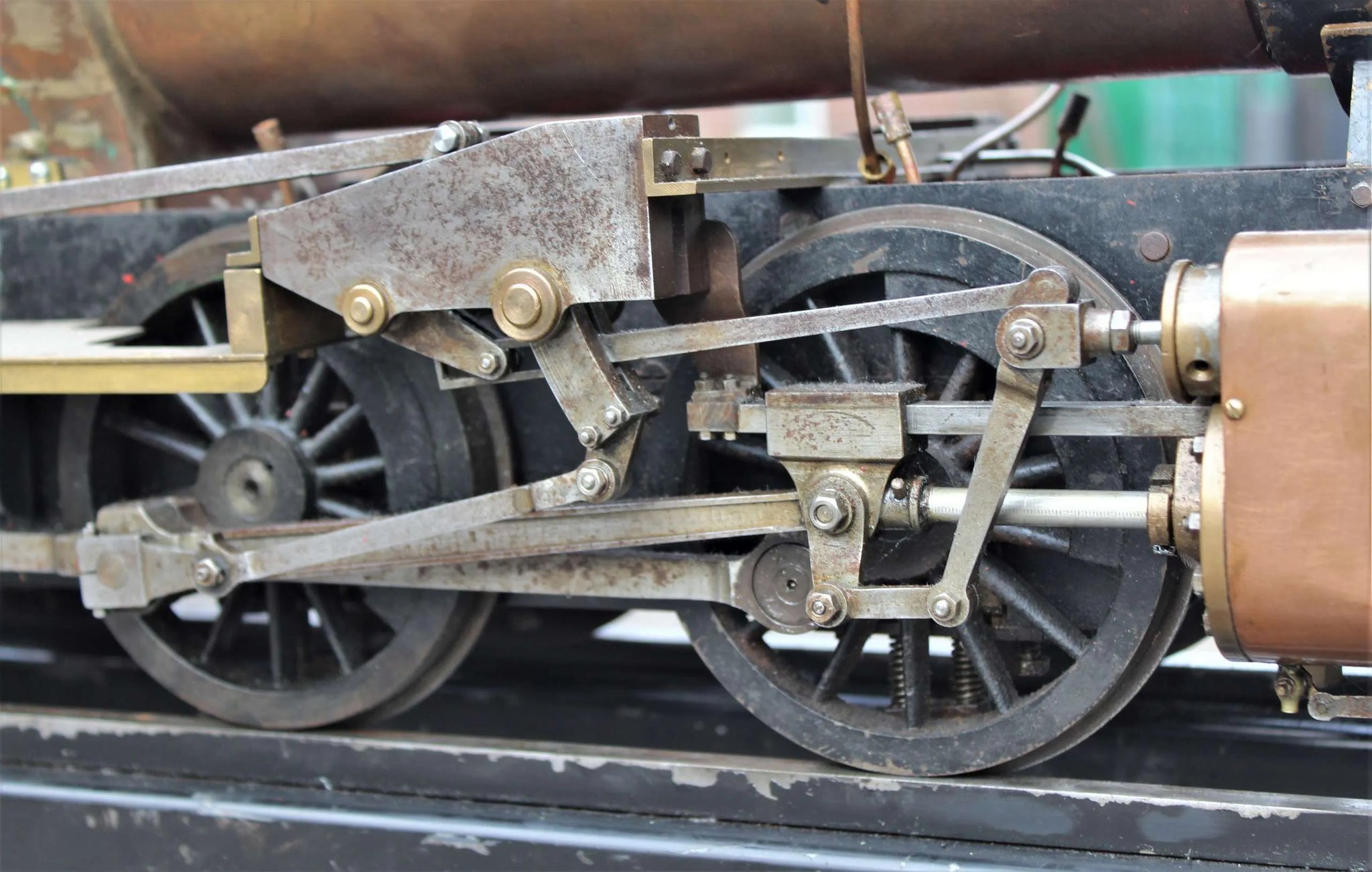

Walschaerts

Boiler type

locomotive

Boiler material

copper

Working pressure

90

Superheater type

flue tube

Superheater

5

Date out

Dec-21
