13221

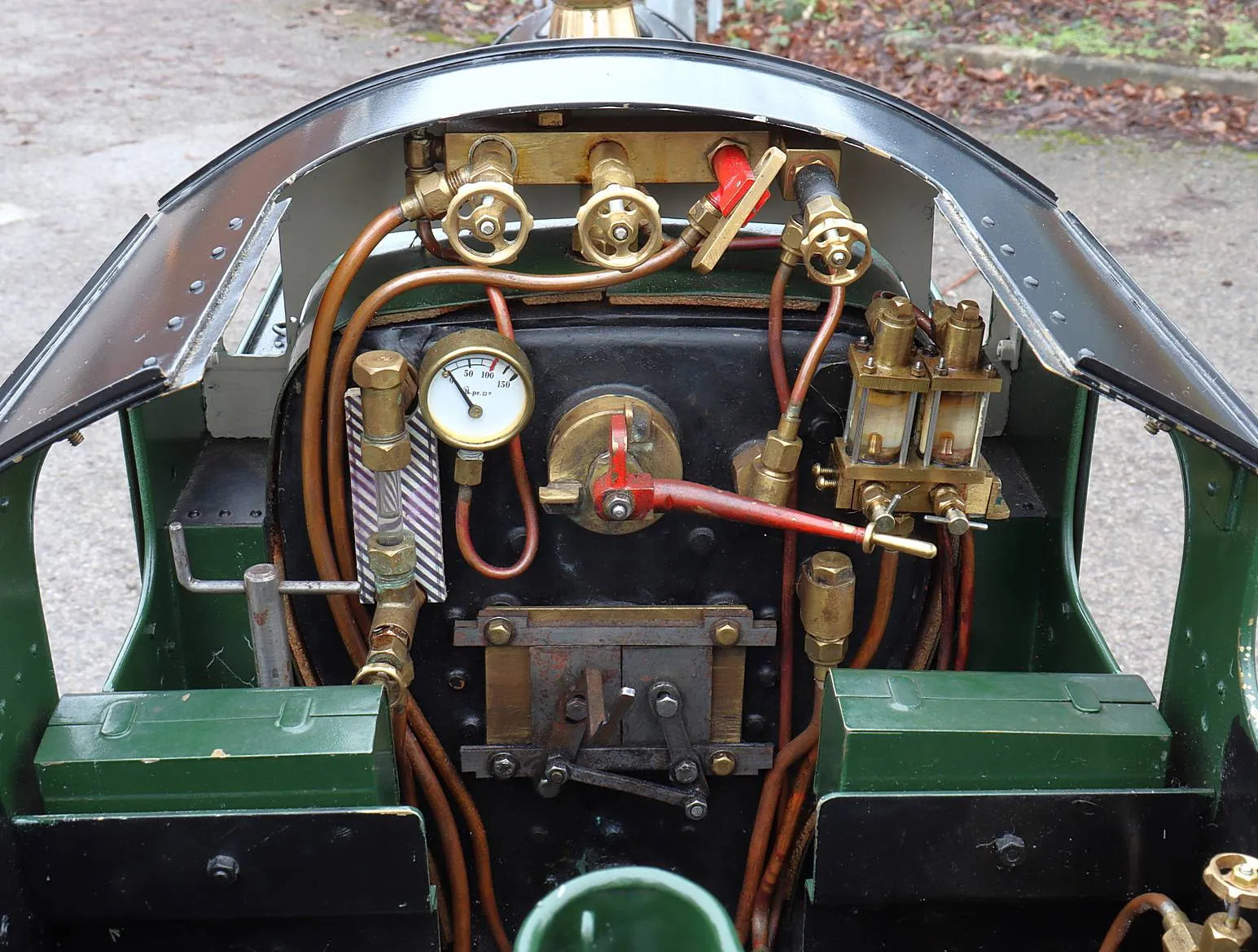

The boiler has had hydraulic and steam tests with new certification issued. The injector and hand pump are both piped up to be fed from a separate tank, the side tanks on the locomotive are dummy.
We were impressed with just how well this one went. Free-steaming, it runs with square, sharply cut off exhaust beats in either direction.
Stock code |
13221 |
Length/inches |
39 |
Width/inches |
10 |
Height/inches |
13 |
Weight/Kg |
91 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

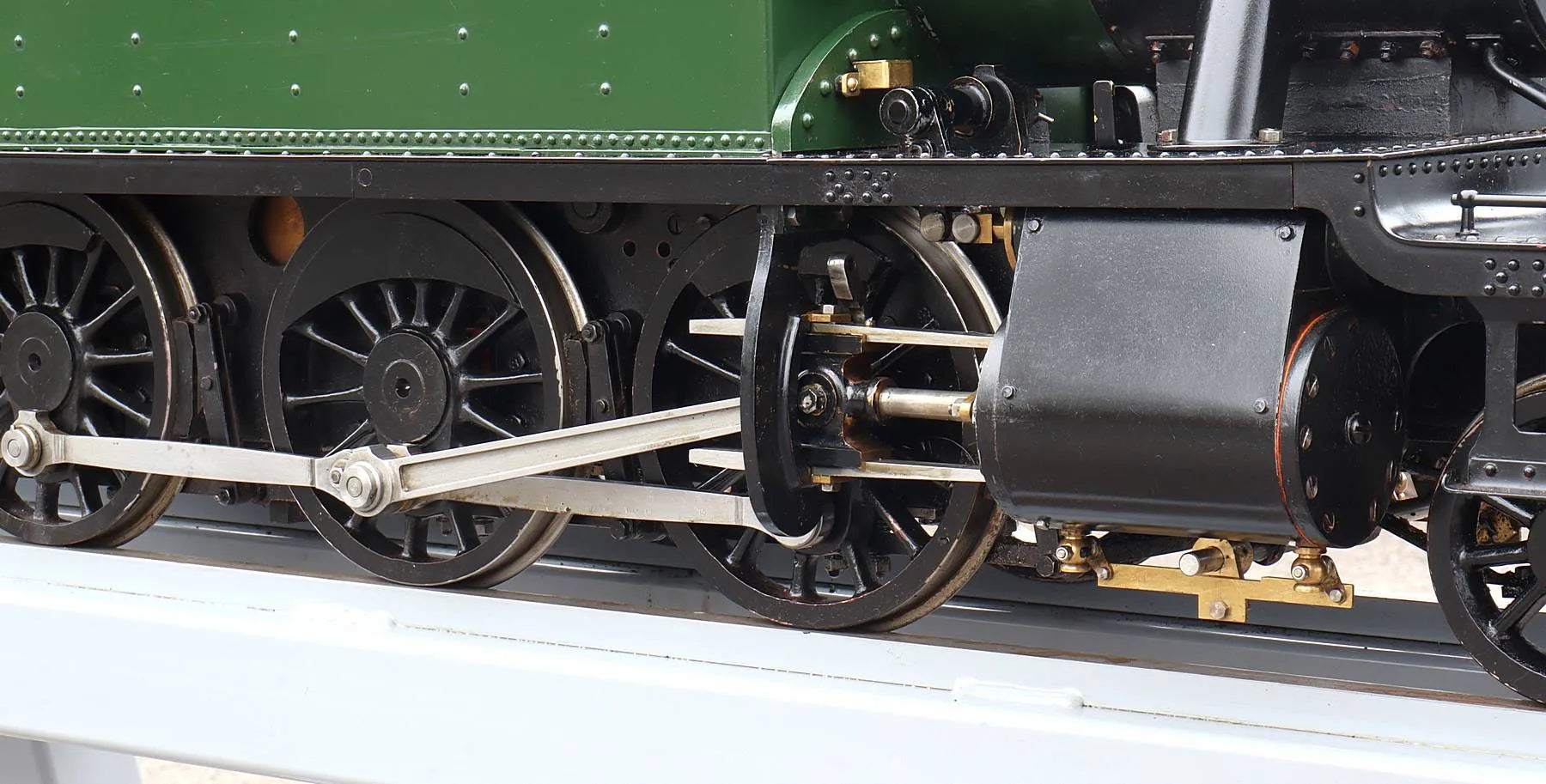

Valve gear |
Stephensons |
Reverser type |
pole |
Boiler maker |
ModelWorks International |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
CE/UKCA mark |
n/a - pre-2002 |
Year built |
2002 |
Boiler number |
8 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
yes |
Whistle |
yes |
Hand pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Hydraulic test valid to |
24-Nov-2029 |
Steam test valid to |
09-Feb-2027 |
