Sold

8345

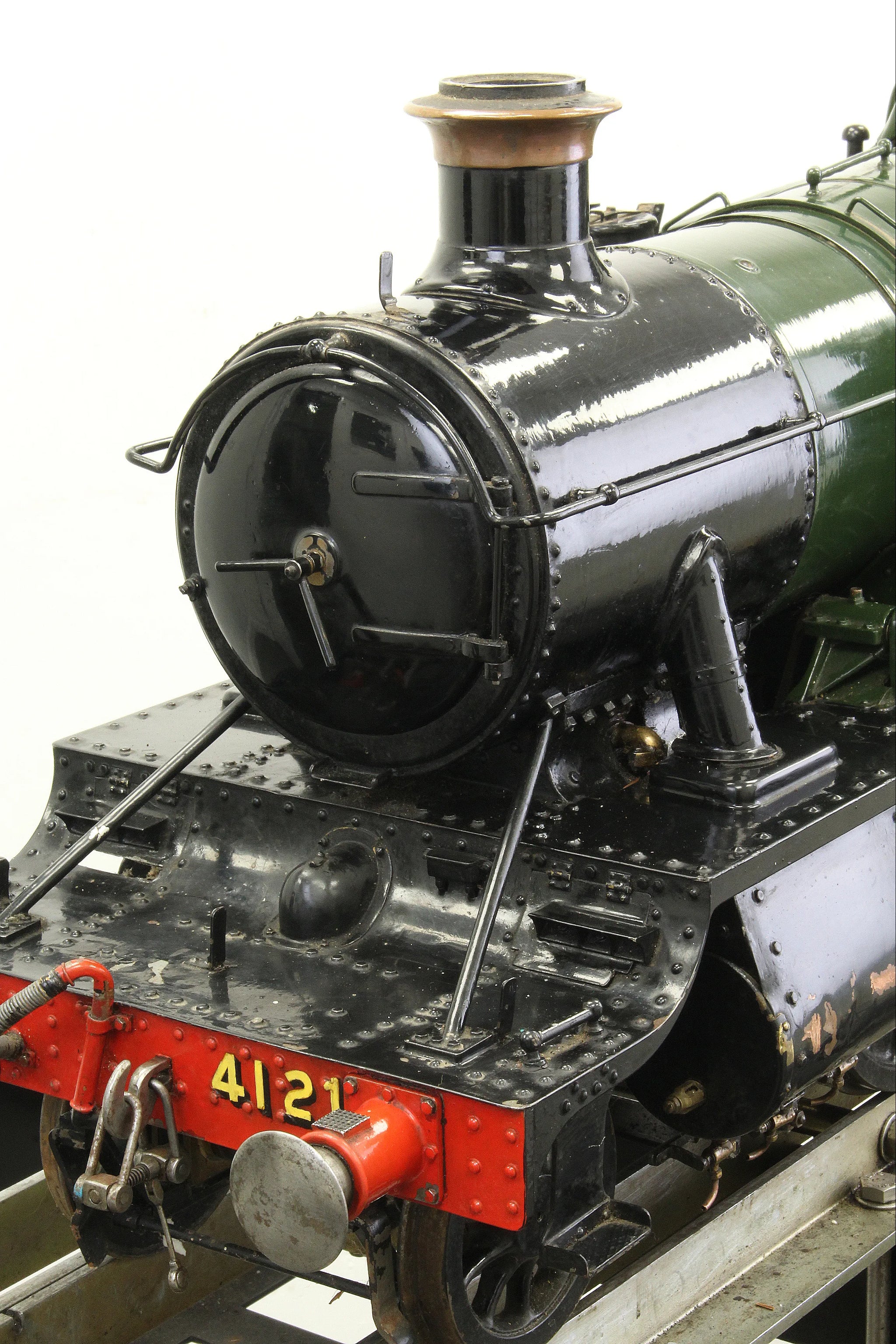

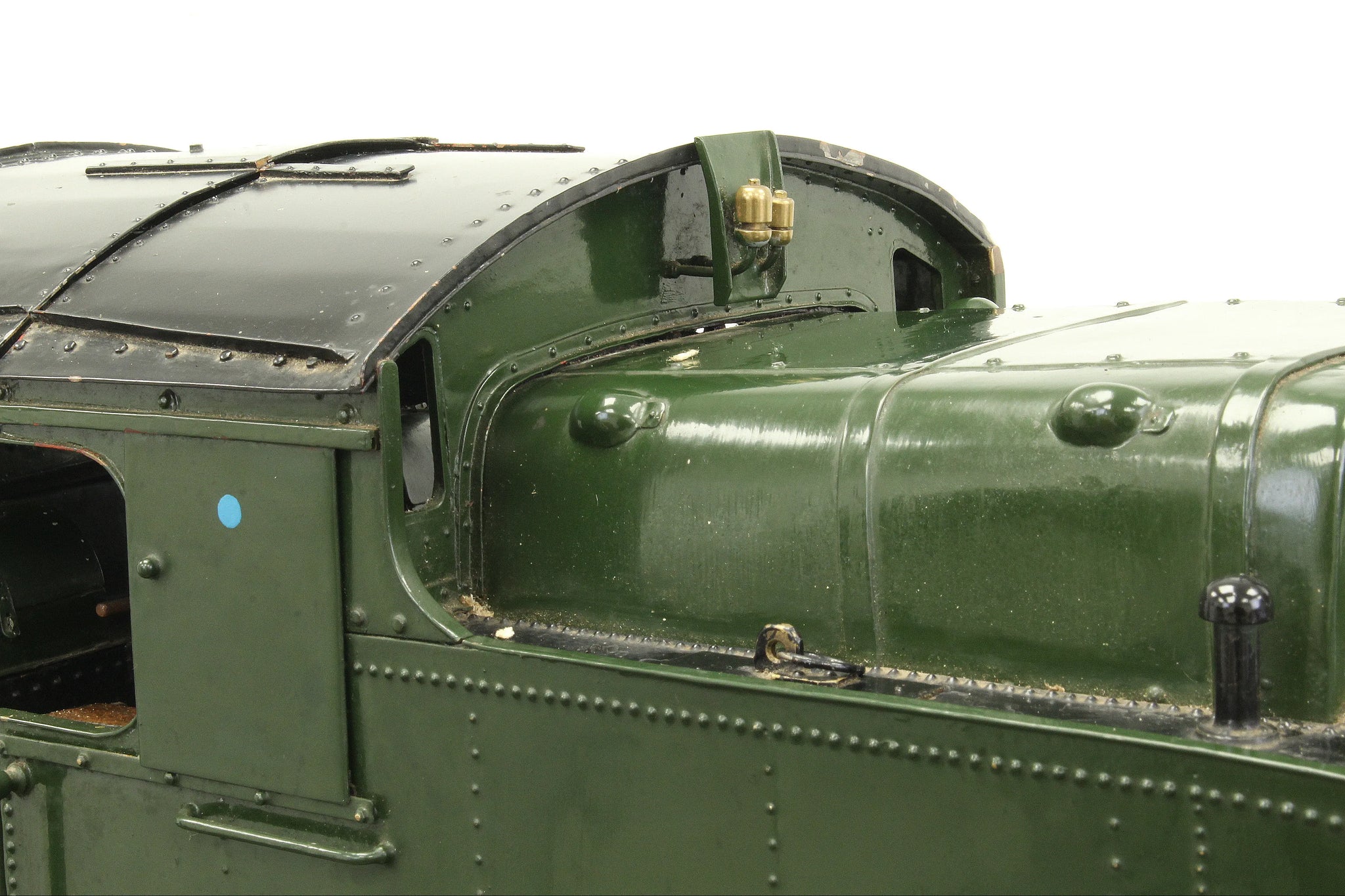

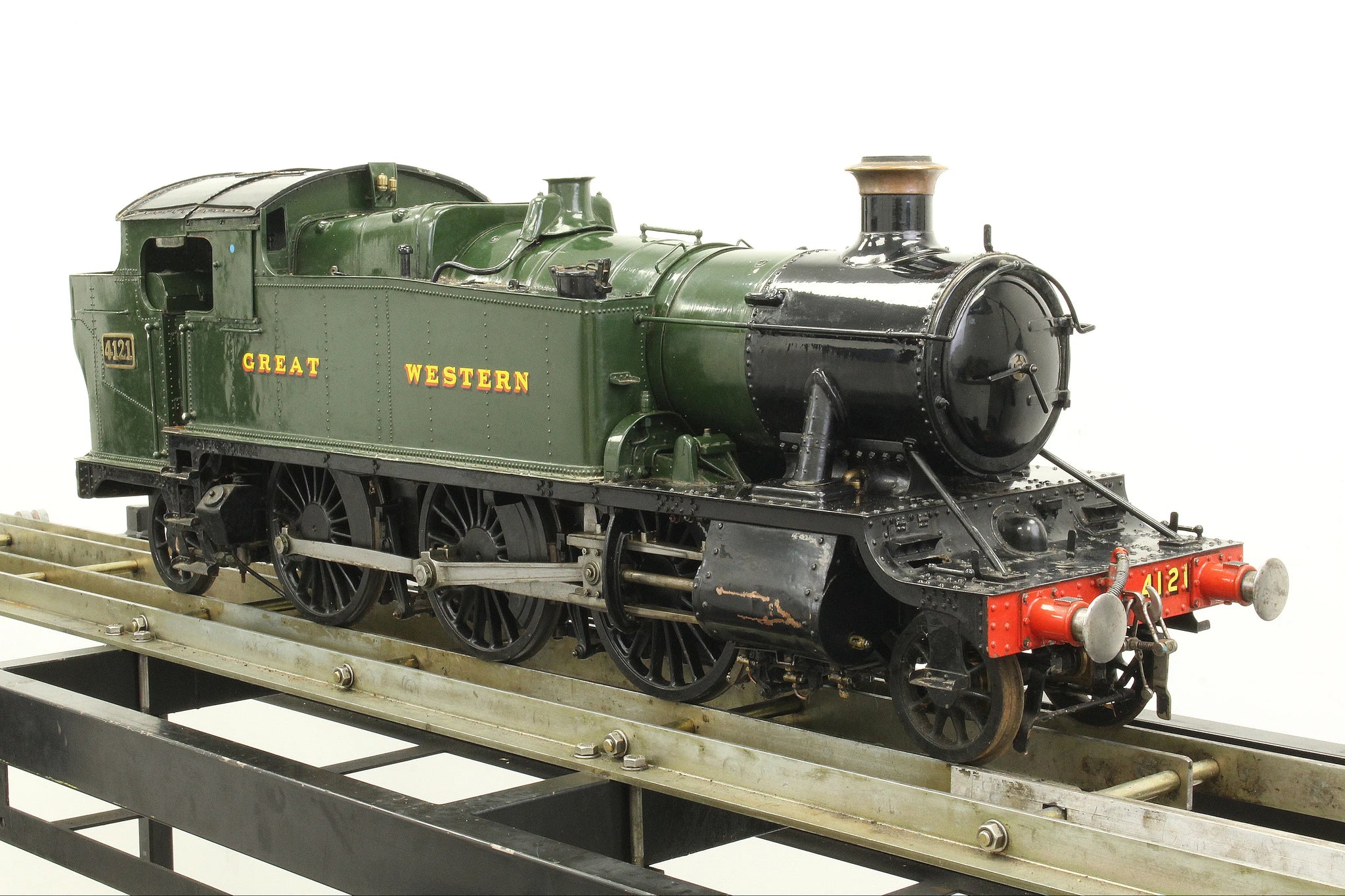

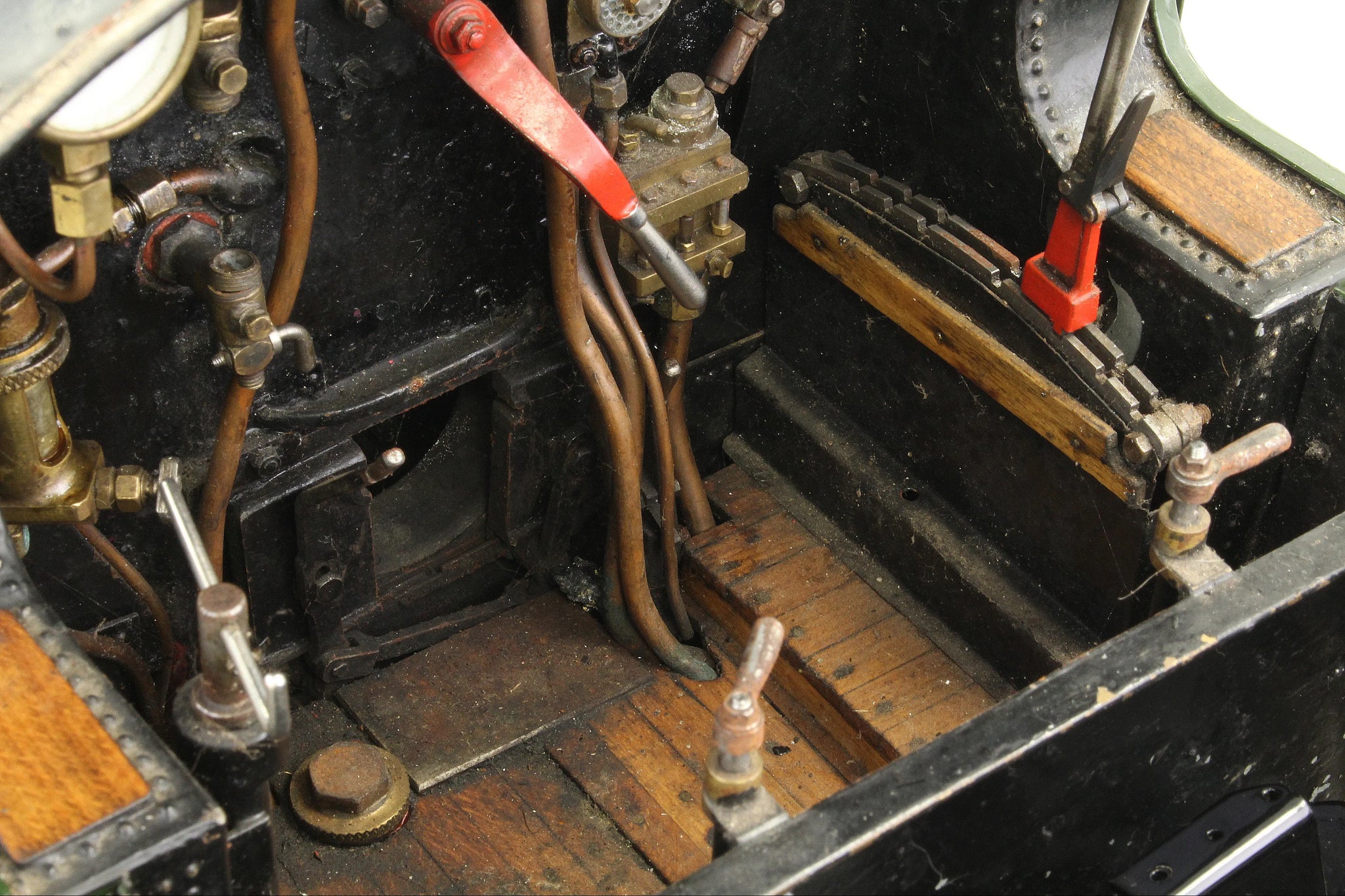

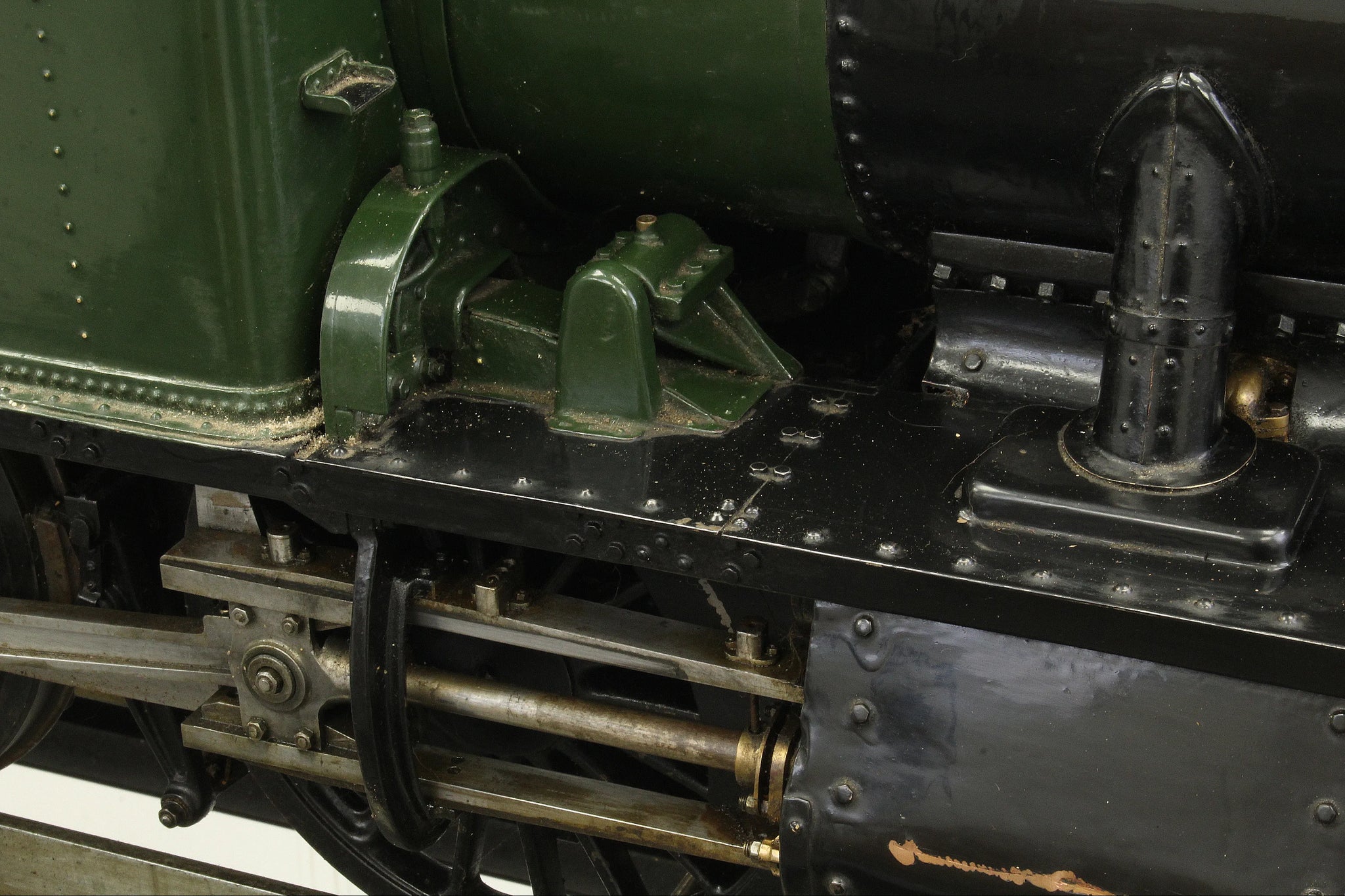

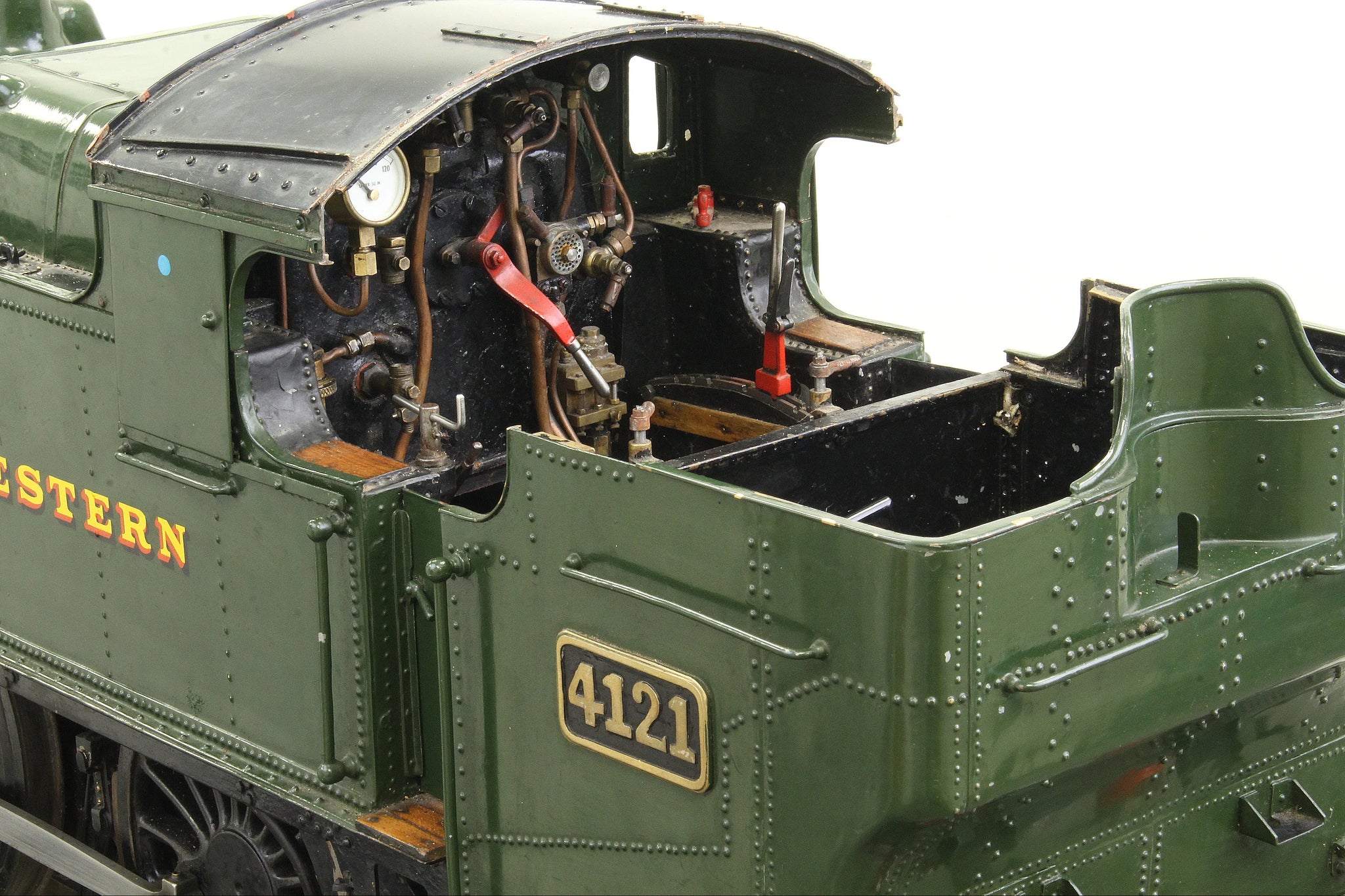

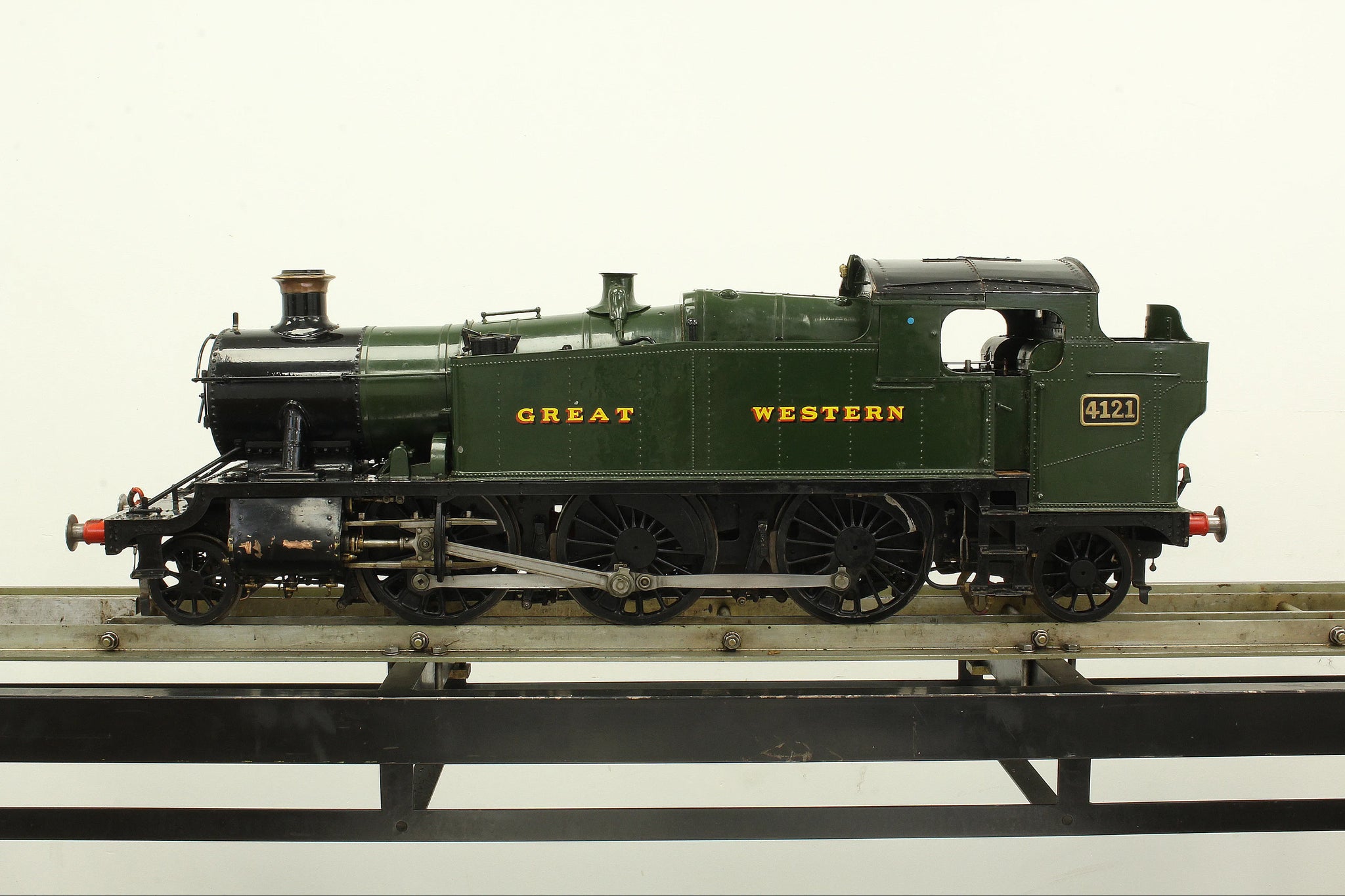

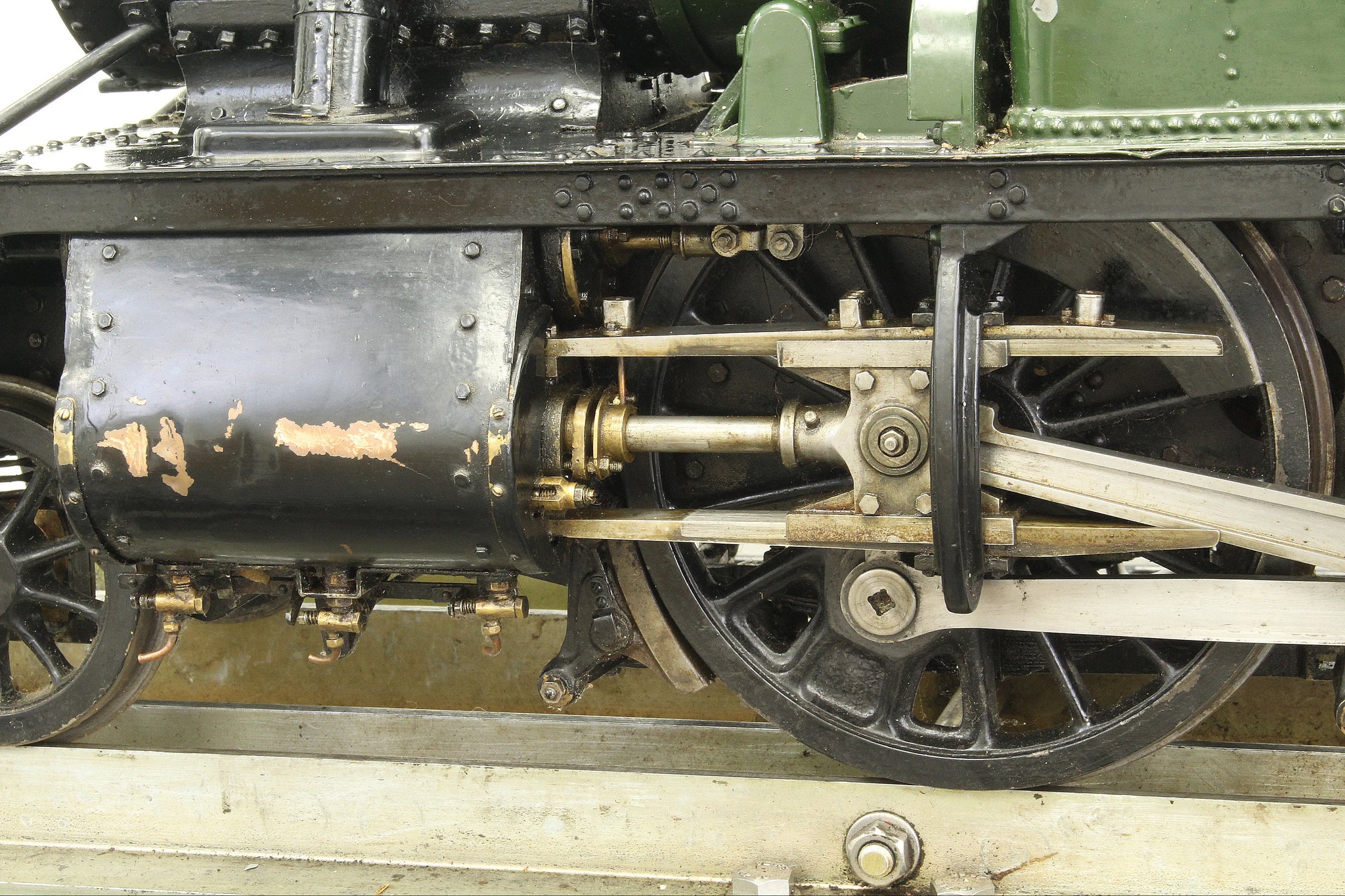

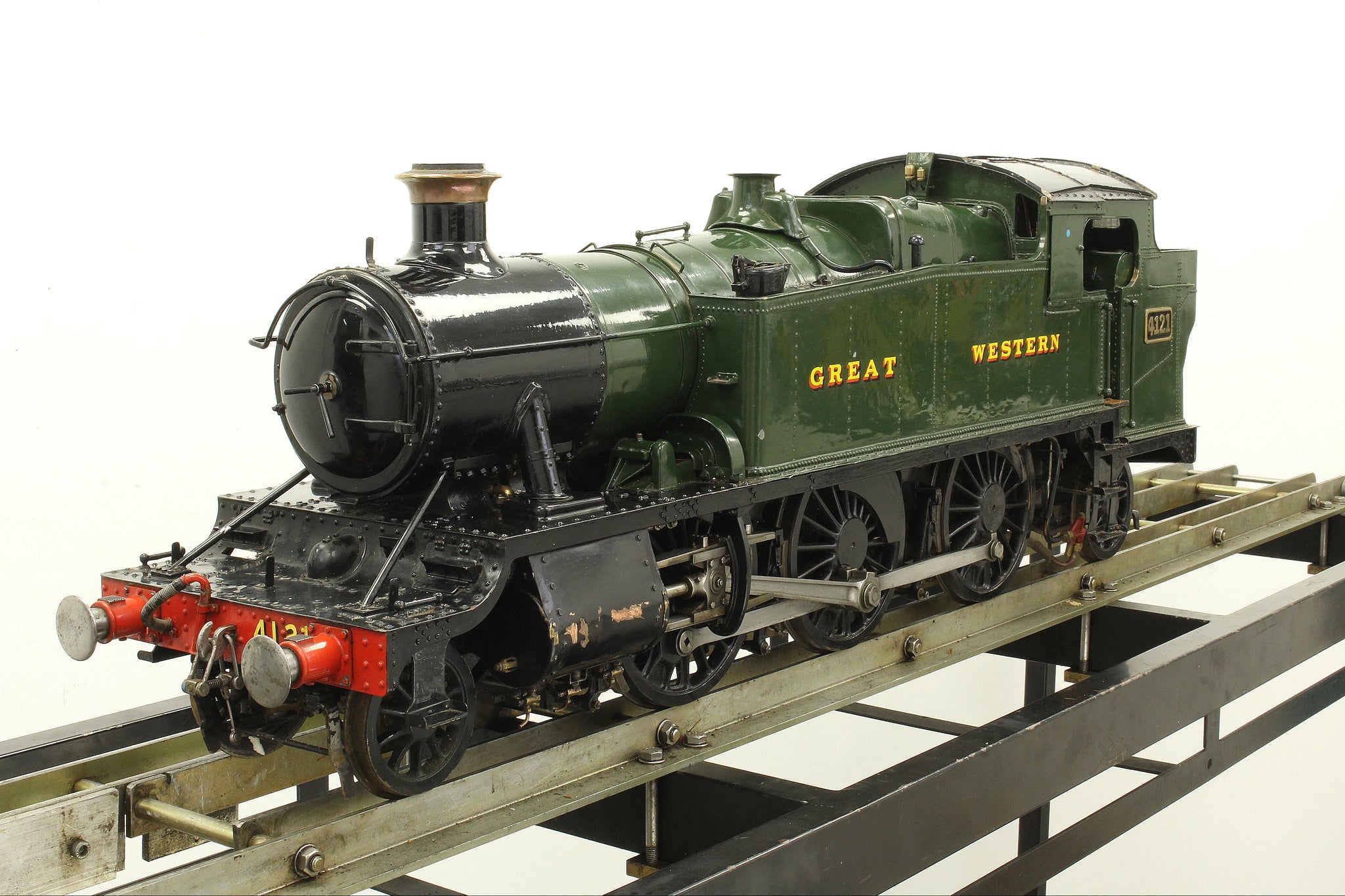

5 inch gauge 51XX GWR Large Prairie

I first bought this engine back in 2004, it came in with several other engines from a man in Kent downsizing his collection - he had a John Adams built Black 5 I coveted which he cannily said "would always be the last one to go...". So it was I ended up having to buy eight locomotives to get the one I wanted!

Built by Trevor Shortland and completed in 1992, the Prairie was built to his own highly detailed design, scaled from works drawings at 1 1/6 inch to the foot - drawings and castings remain available to this day, now stocked by A.J.Reeves.

Last time the engine was here, it ran well although a then-recent paint job in very thick, glossy green paint didn't do much for its appearance.

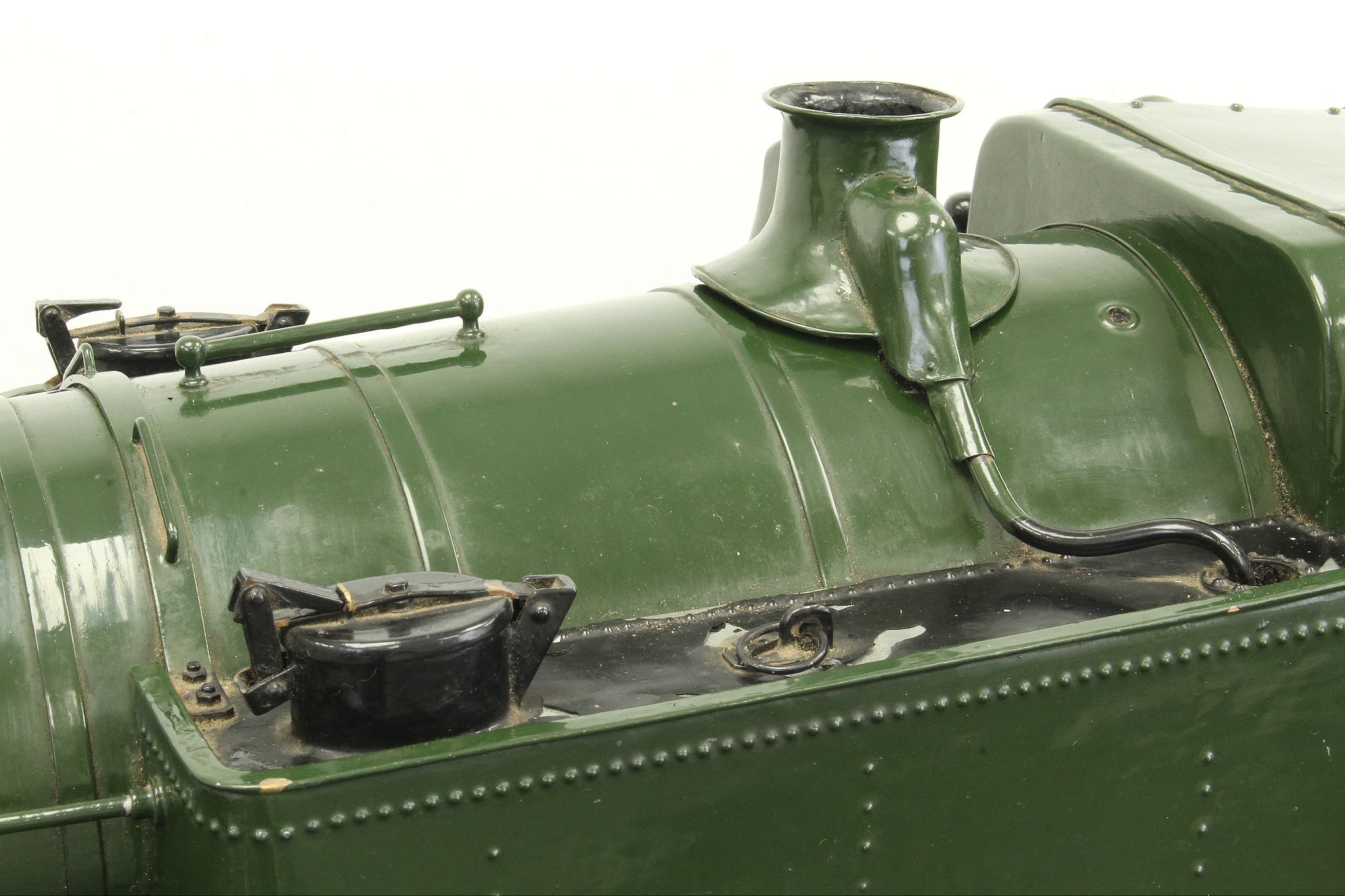

The intervening years have't been kind to the engine, it's in a pretty forlorn state now - the green is still thick and glossy, although falling off in places. The engine runs on air in a fairly lumpy manner; one spectacle is detached and in the bunker, the other missing; one sandbox needs reattaching.

Time for a "heavy overhaul" on this one - given the quality of original build and the rarity of large Prairies in this gauge, it would be a worthwhile project.

Technical information

Stock code

8345

Length/inches

44

Width/inches

10.5

Height/inches

15

Weight/Kg

est 90

Wheel material

cast iron

Cylinder material

cast iron

Valve type

piston

Valve gear

Stephensons

Reverser type

pole

Lubricator type

displacement with sight feed

Boiler maker

T Shortland

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

1992

Boiler number

N13-90-289

Safety valve type

spring

Safety valve

2

Hand pump

yes

Injector

2

Superheater type

radiant

Superheater

3

Date out

Feb-19
