9174

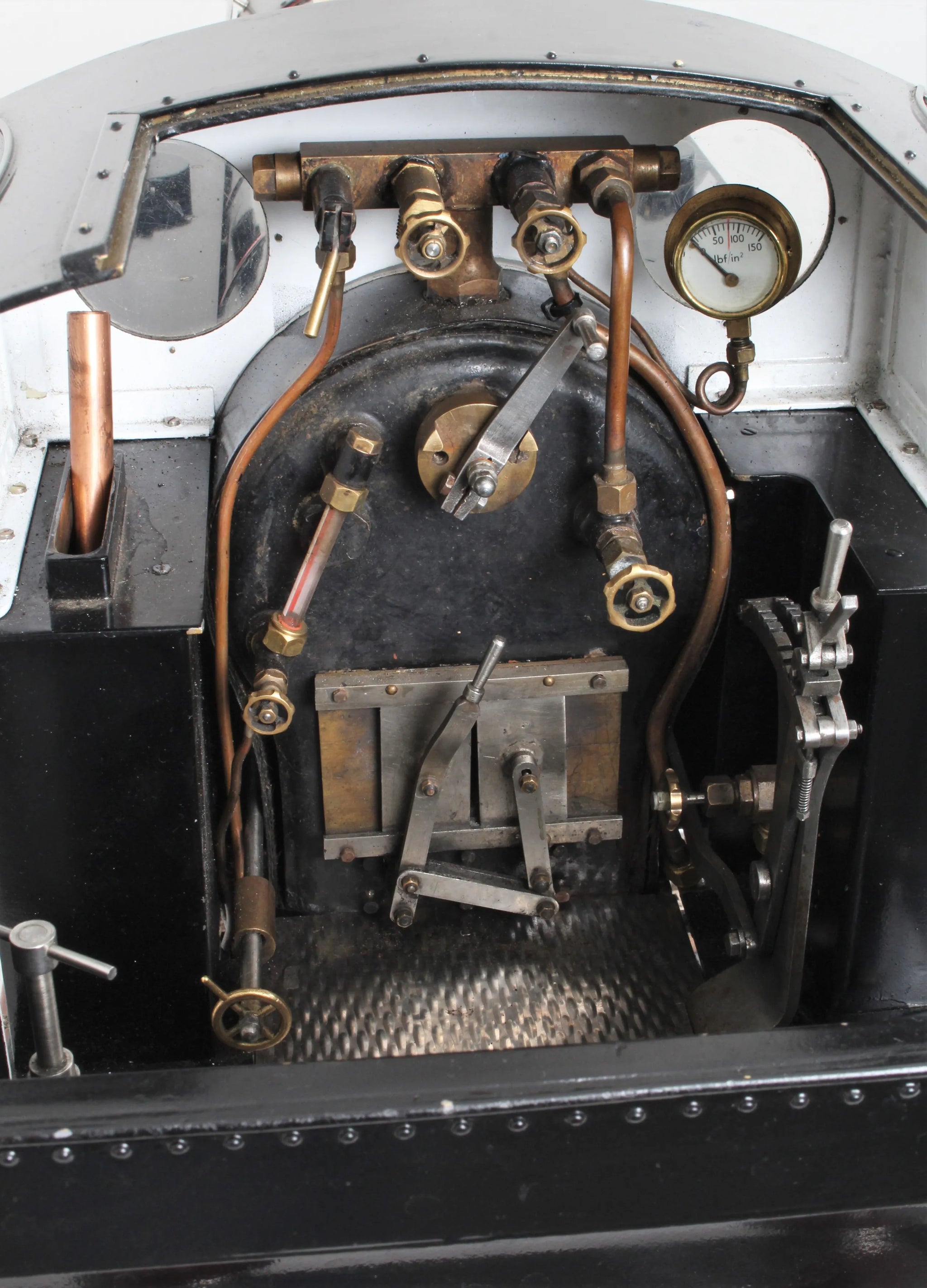

An older engine, it steams freely and runs well, notching up in forwards gear. Axle and hand pumps are effective, the injector picks up and feeds with a constant dribble from the overflow.

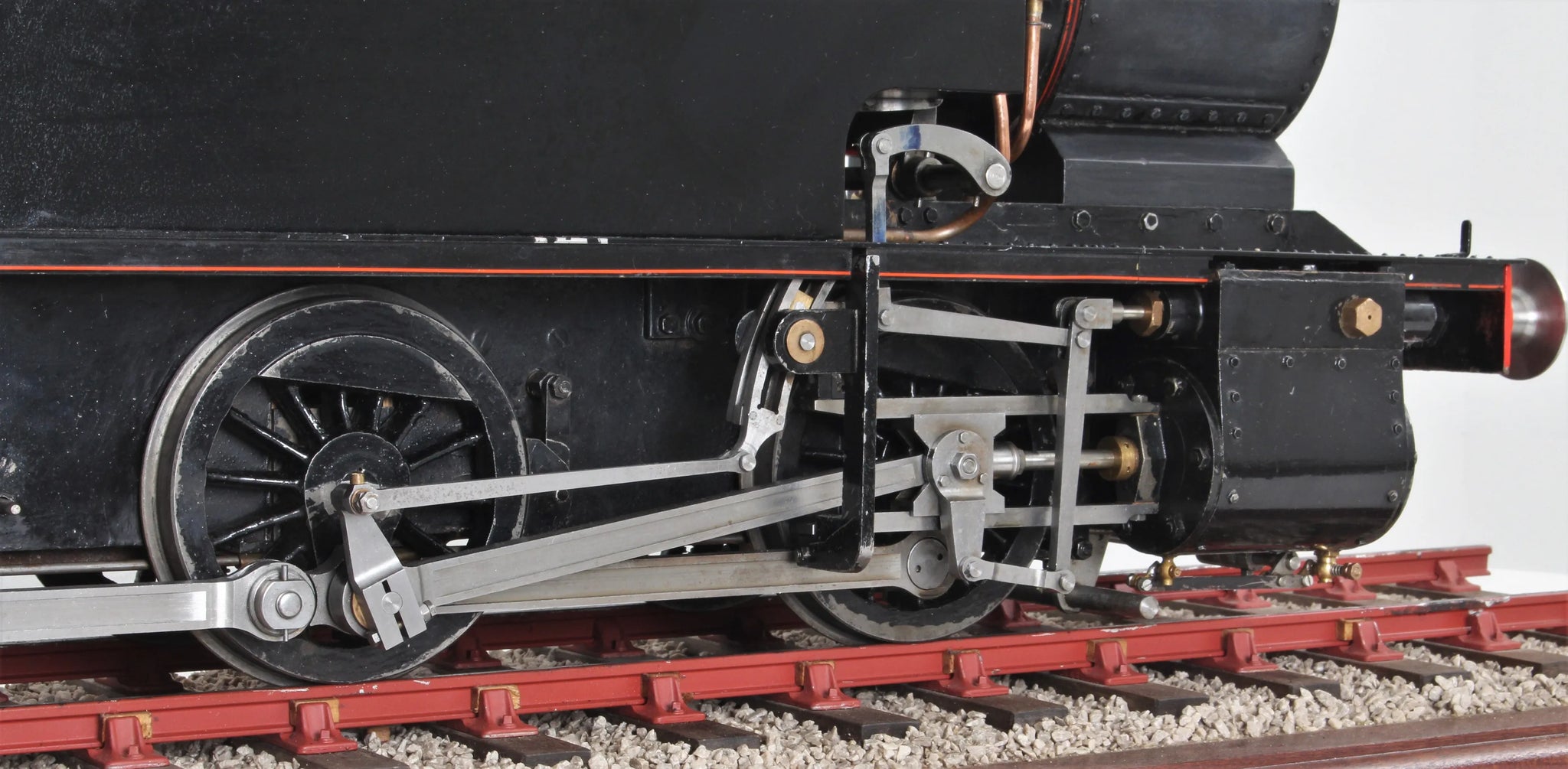

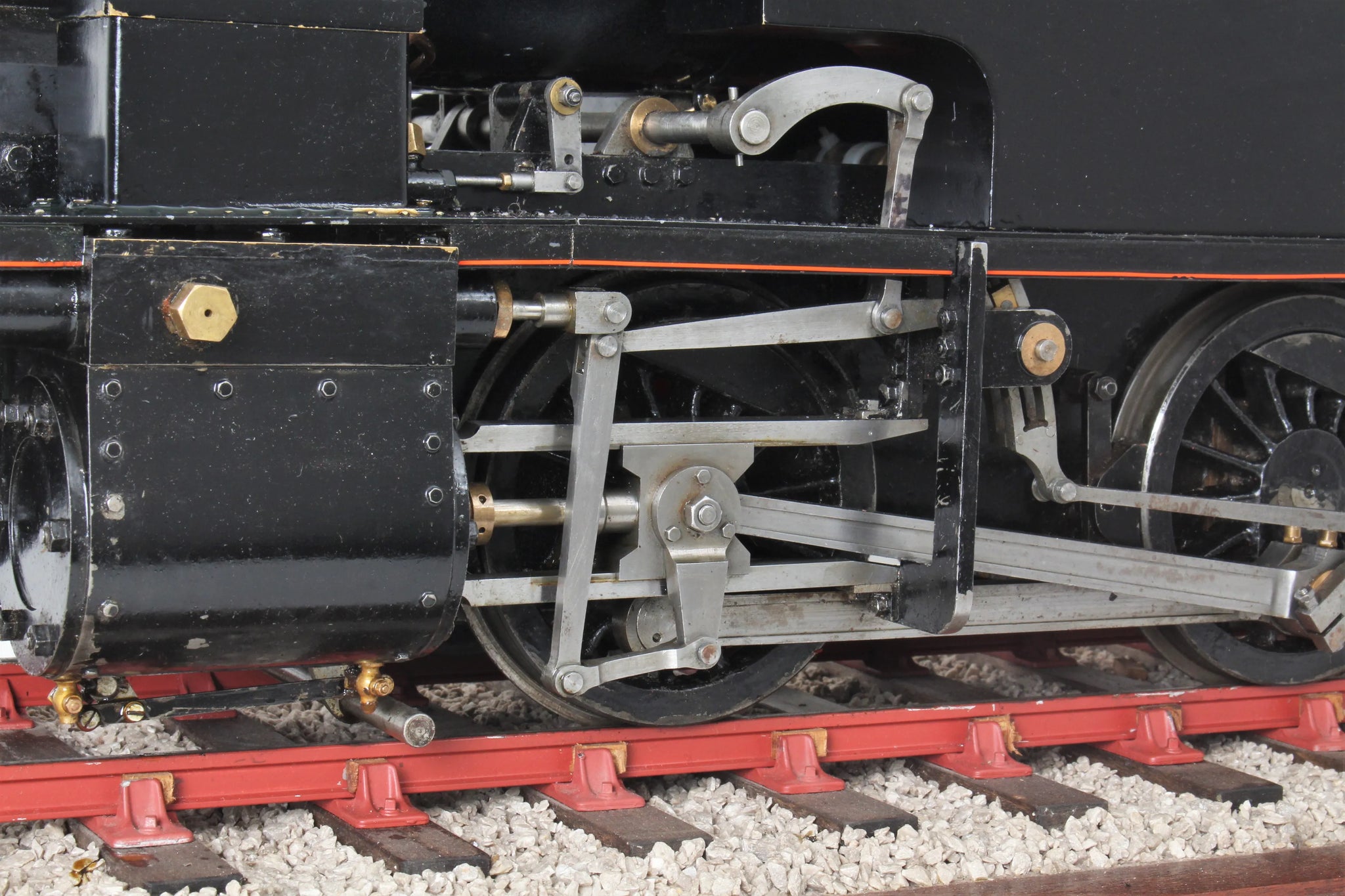

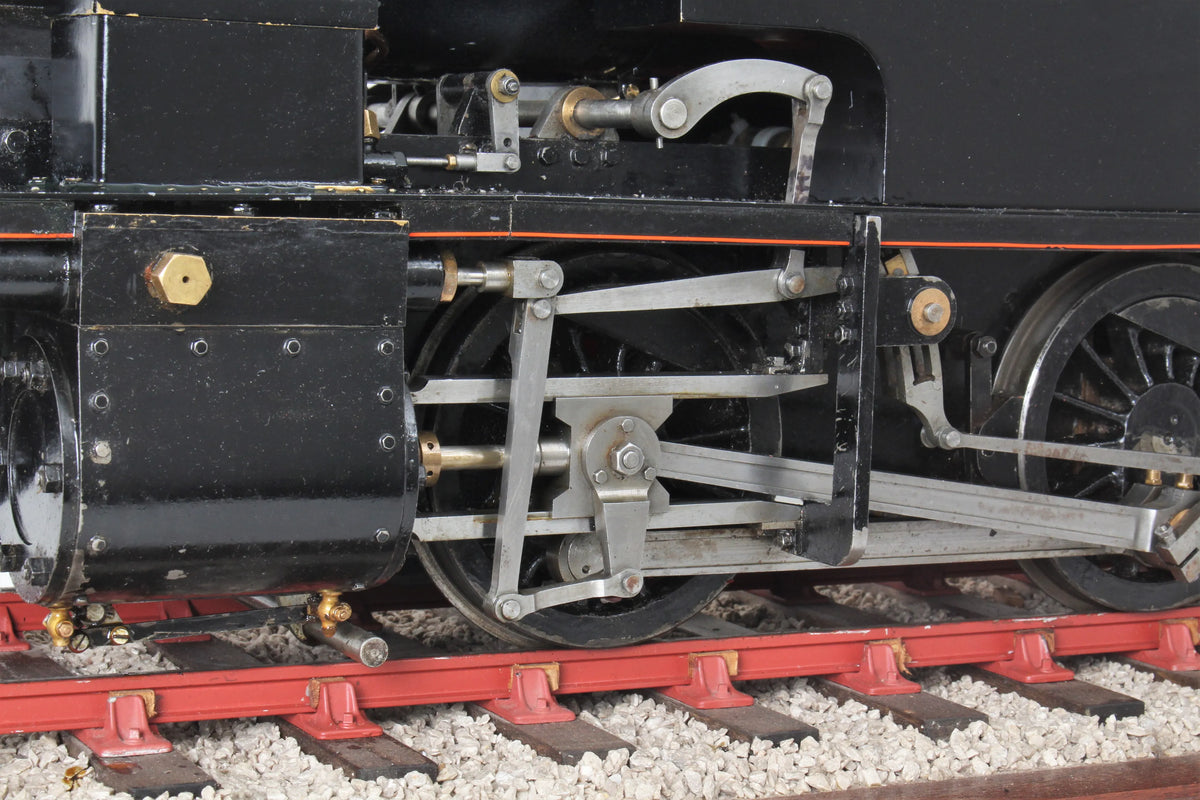

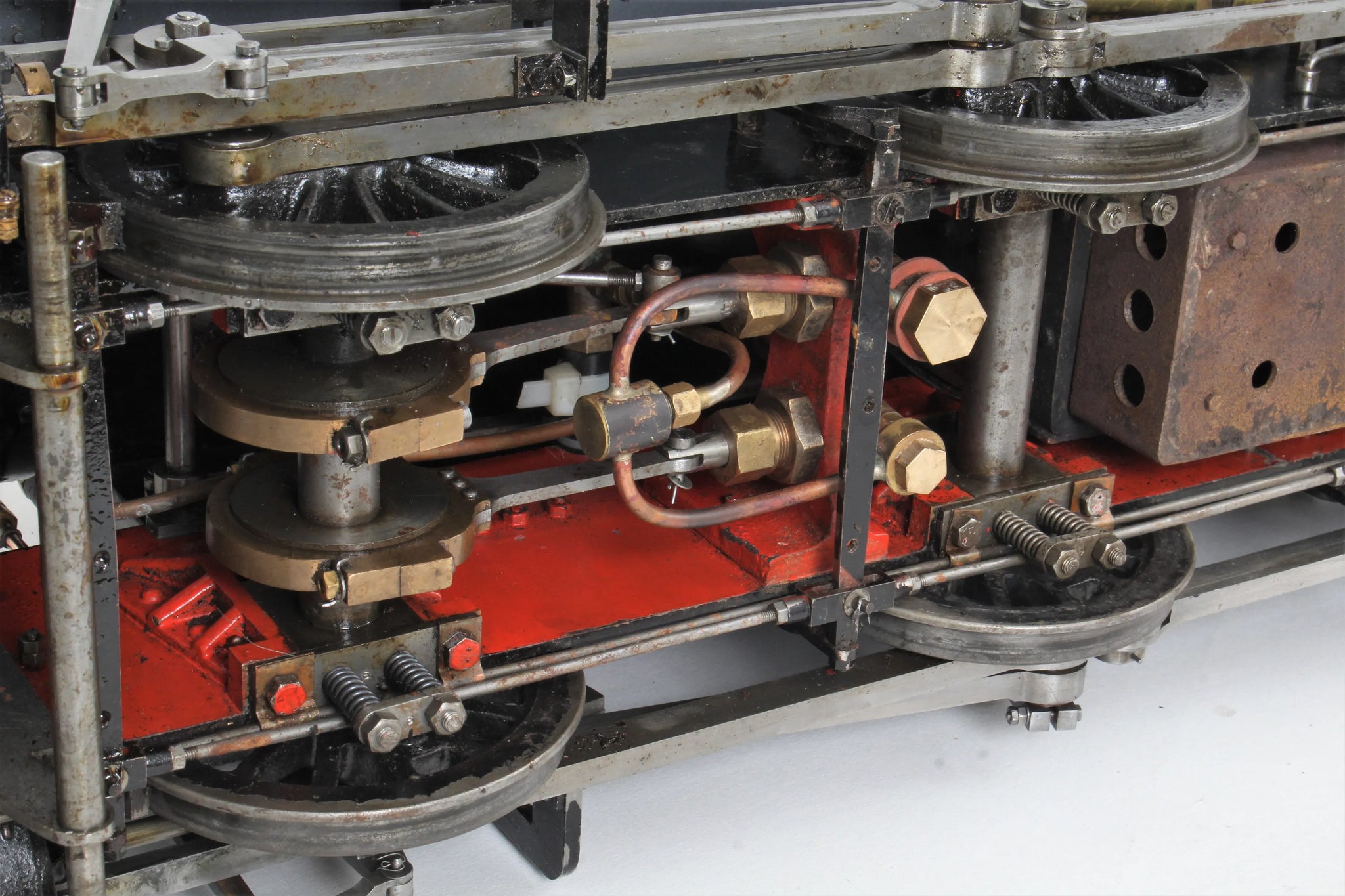

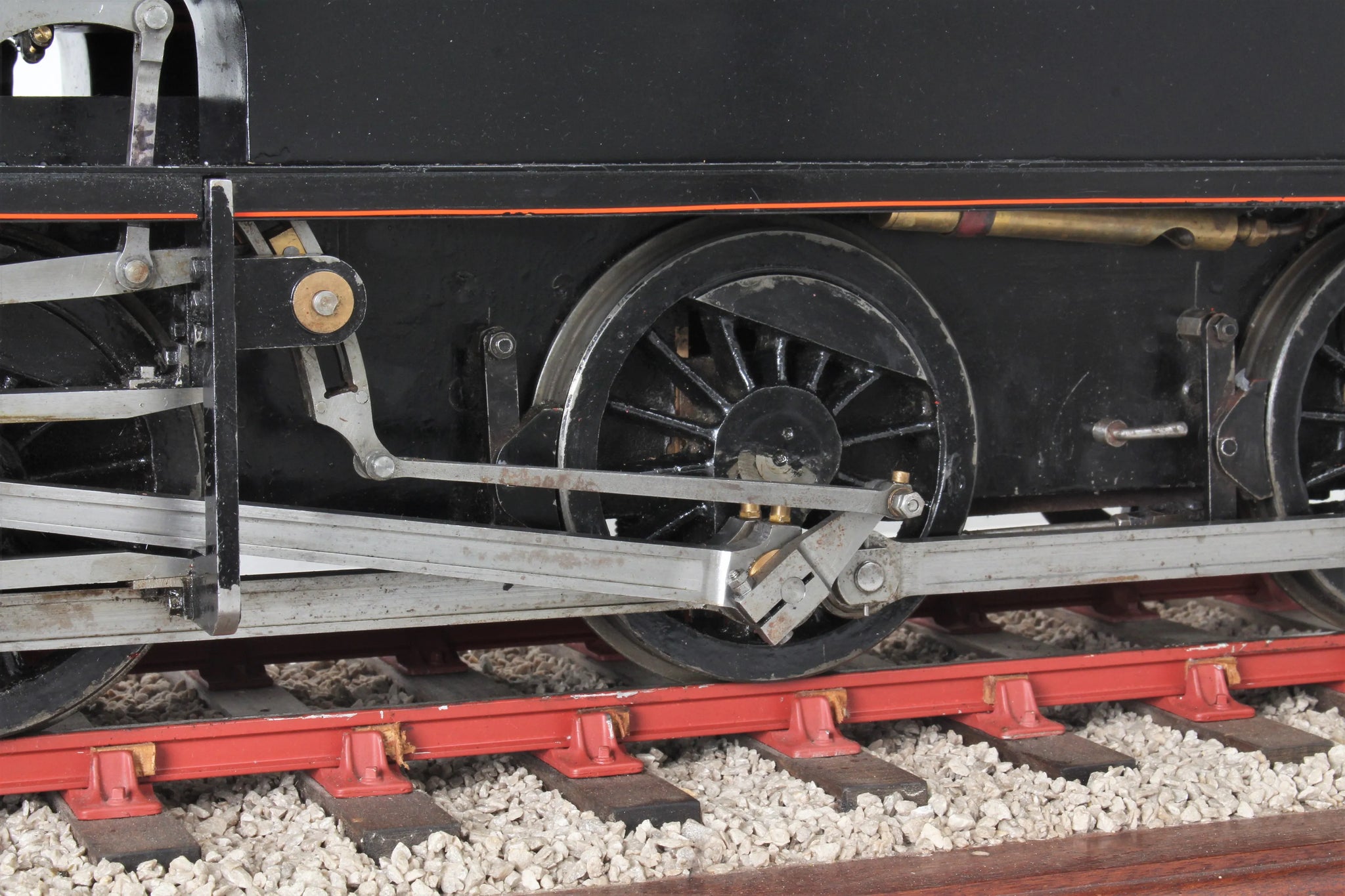

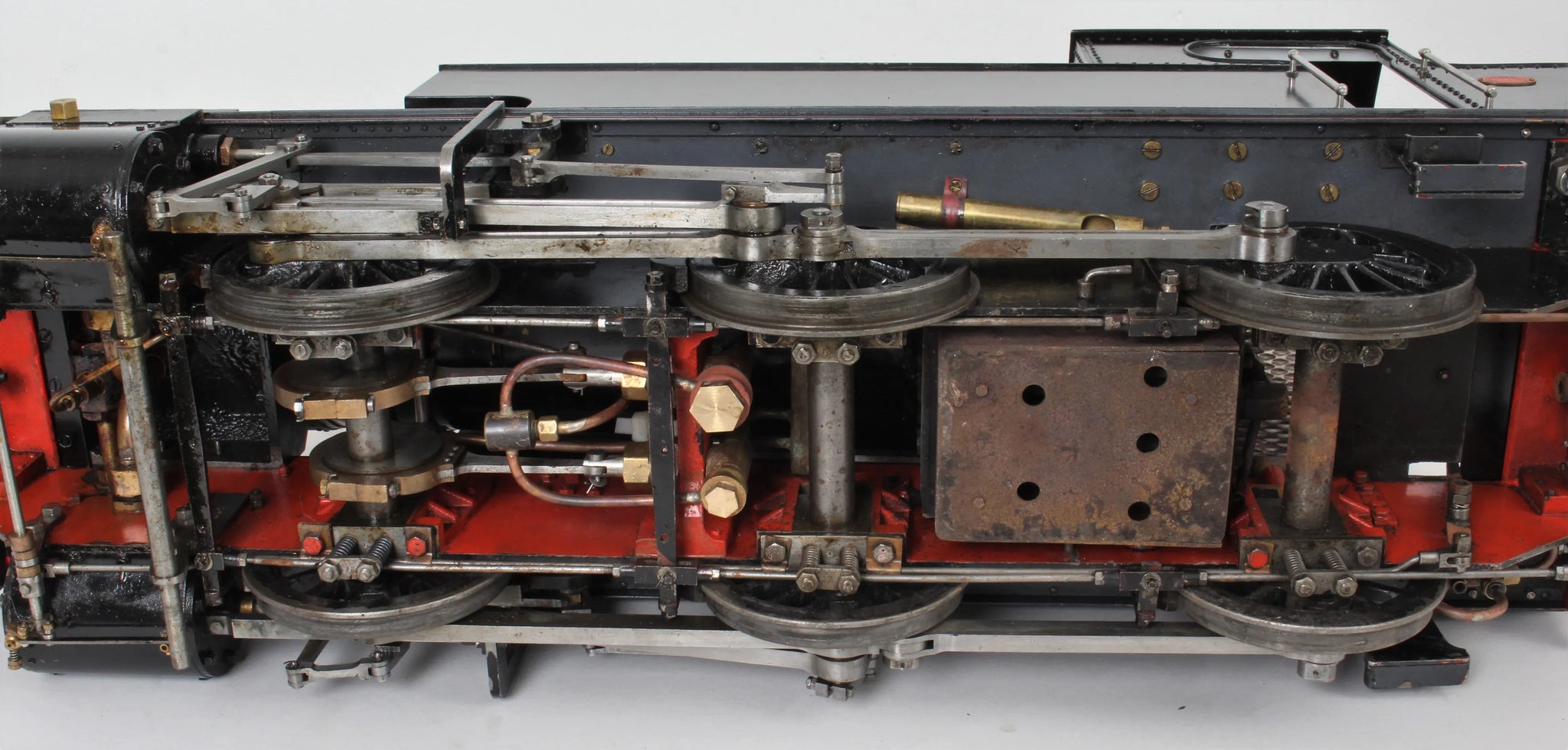

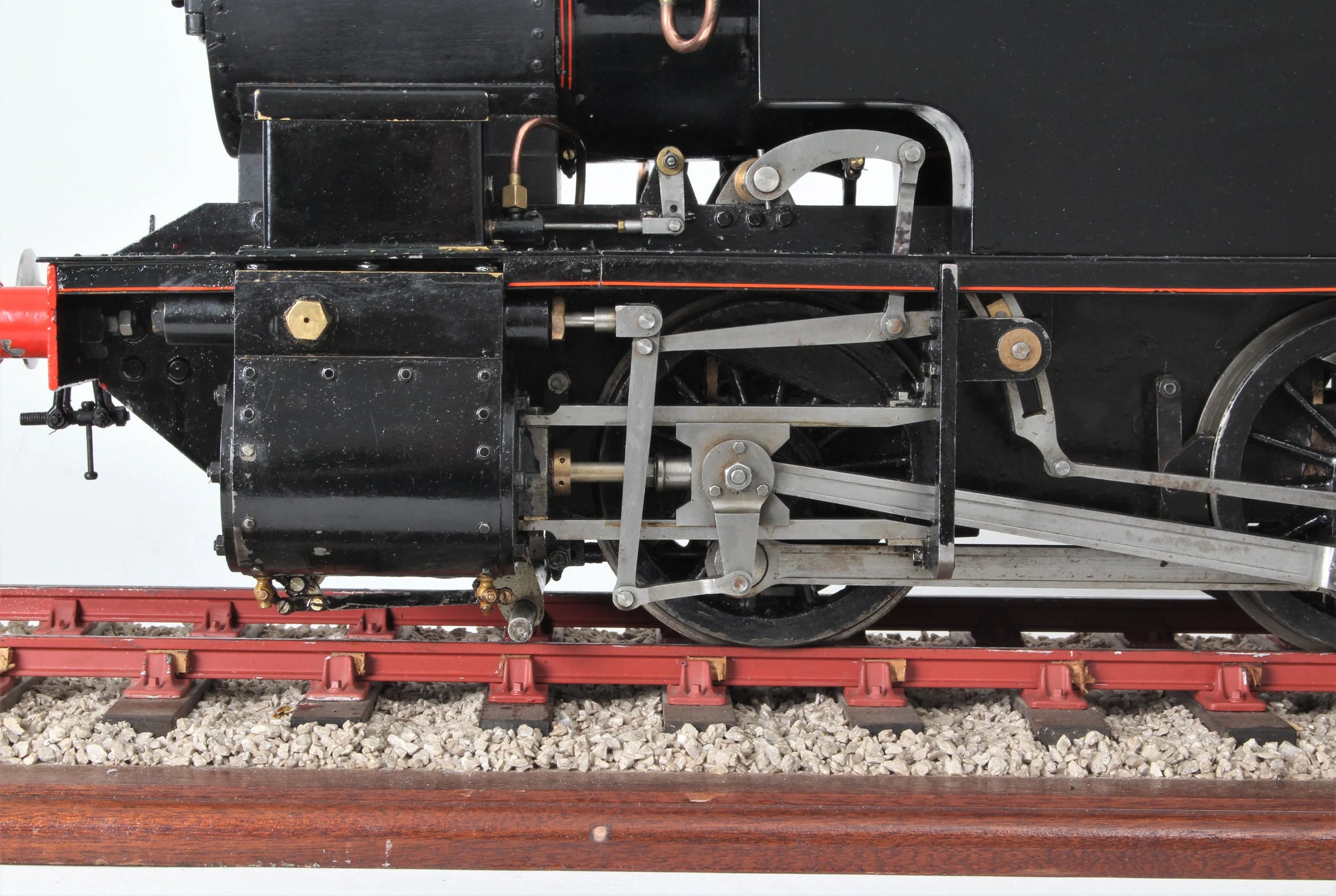

Motionwork and valvegear are robustly proportioned in this design, well made in the first place with some wear evident.
Stock code |
9174 |
Gauge |
5 inch |
Length/inches |
33 |
Width/inches |
10 |
Height/inches |
15 |
Wheel material |
cast iron |
Axlebox type |
plain |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |
Walschaerts |

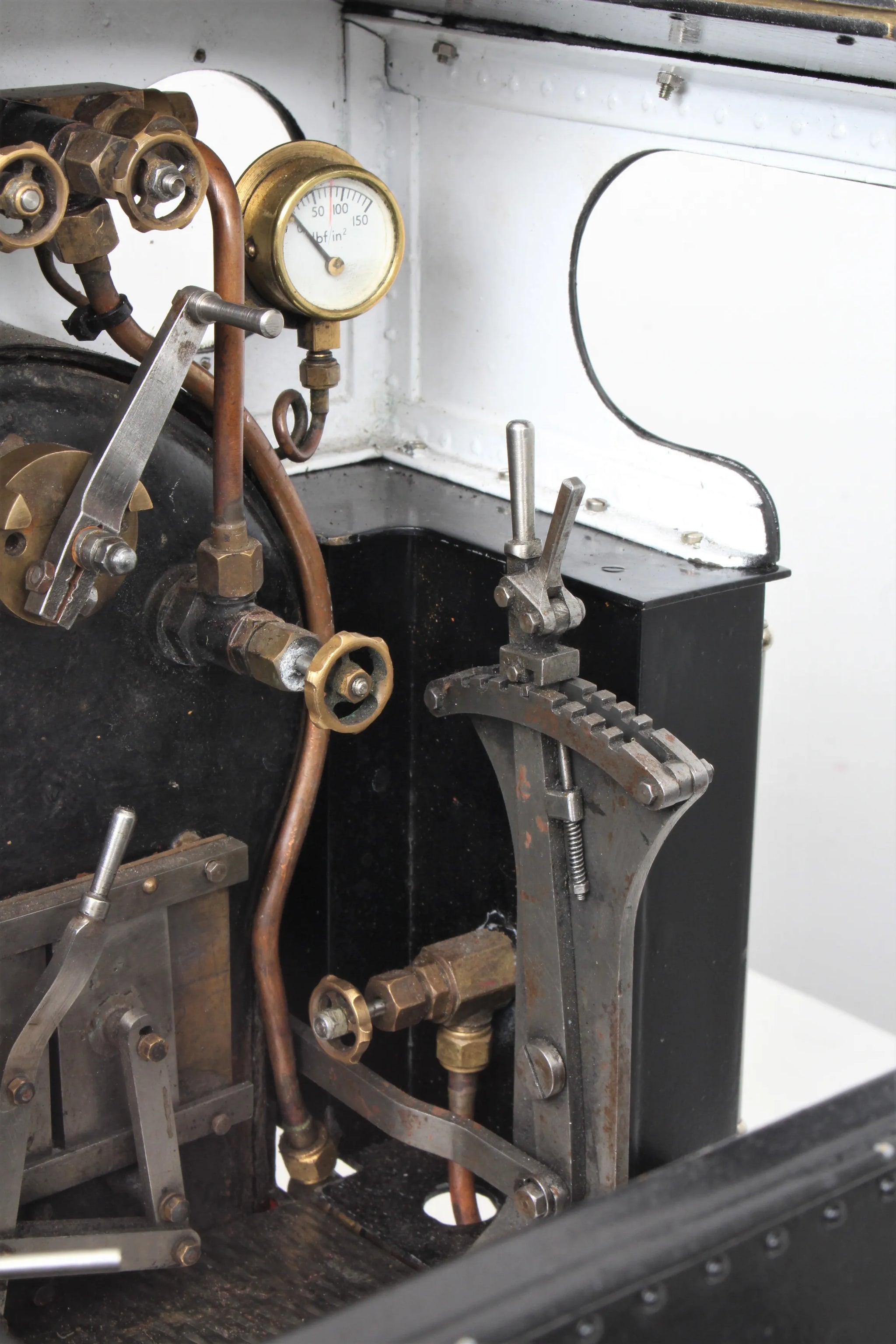

Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a pre-2002 |
Year built |
1992 |
Boiler number |
N47-080-224 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
radiant |
Superheater |
3 |
Date out |
Aug-20 |
Hydraulic test valid to |
25-Jun-24 |
Steam test valid to |
25-Aug-21 |
