Sold

8105

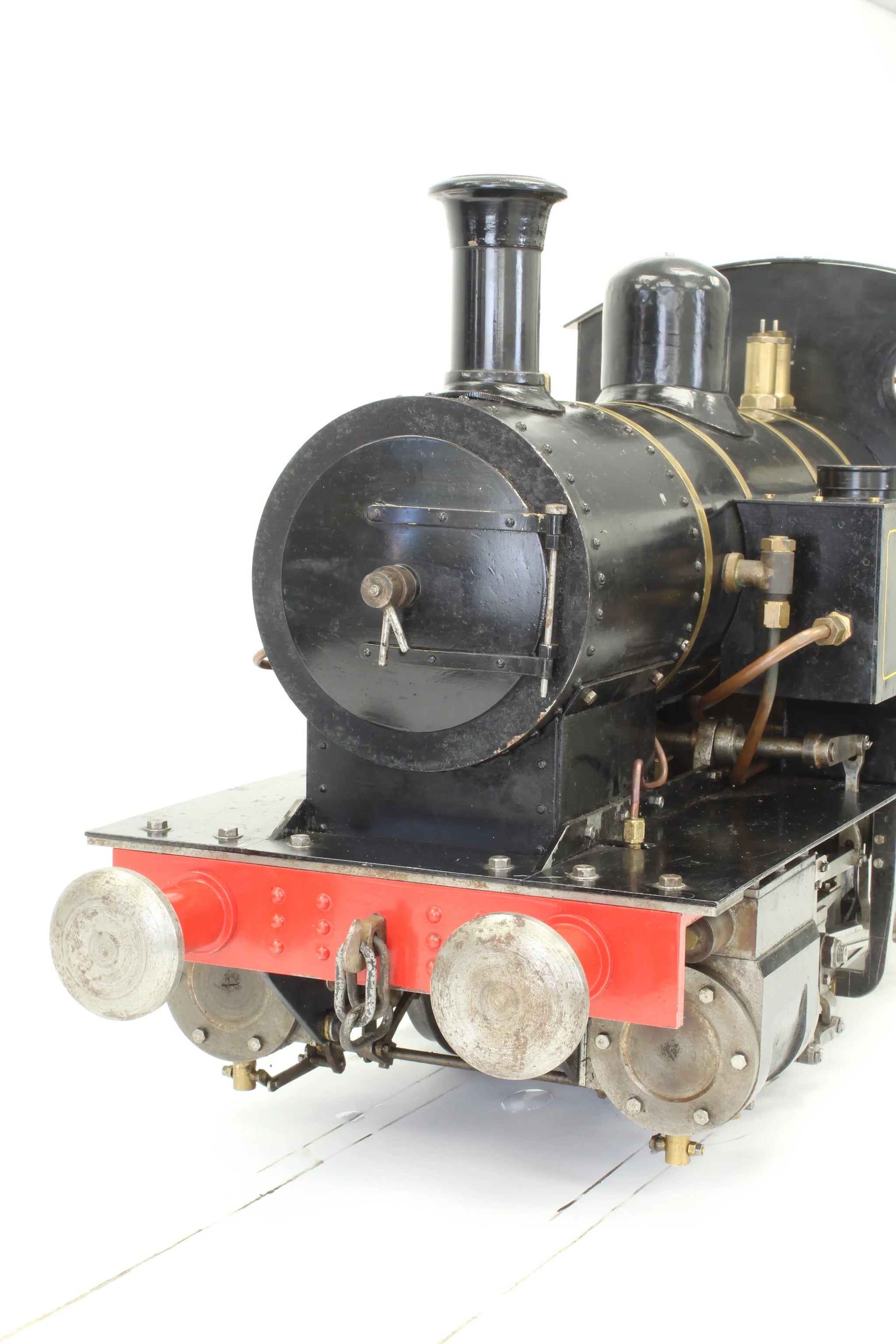

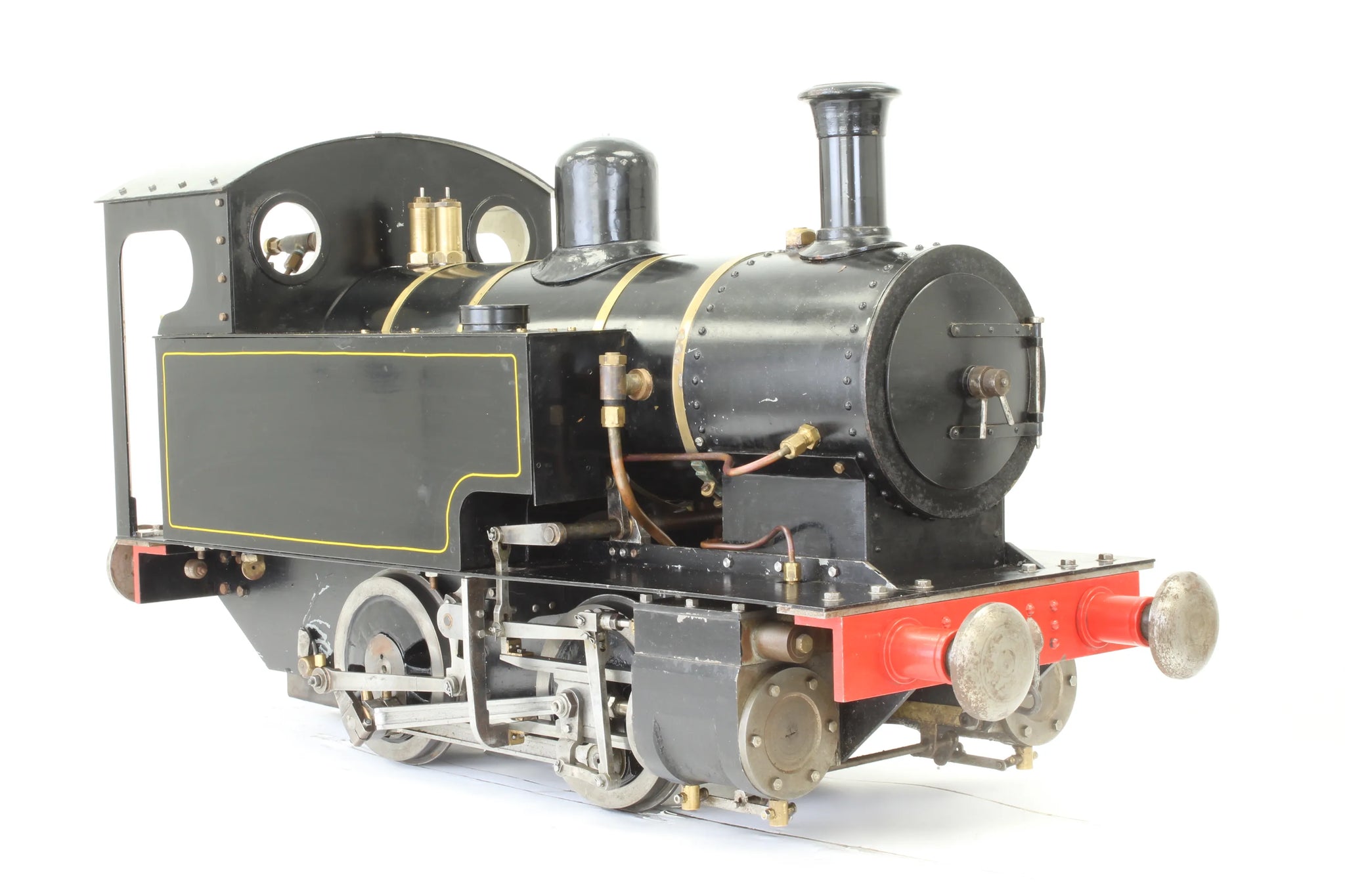

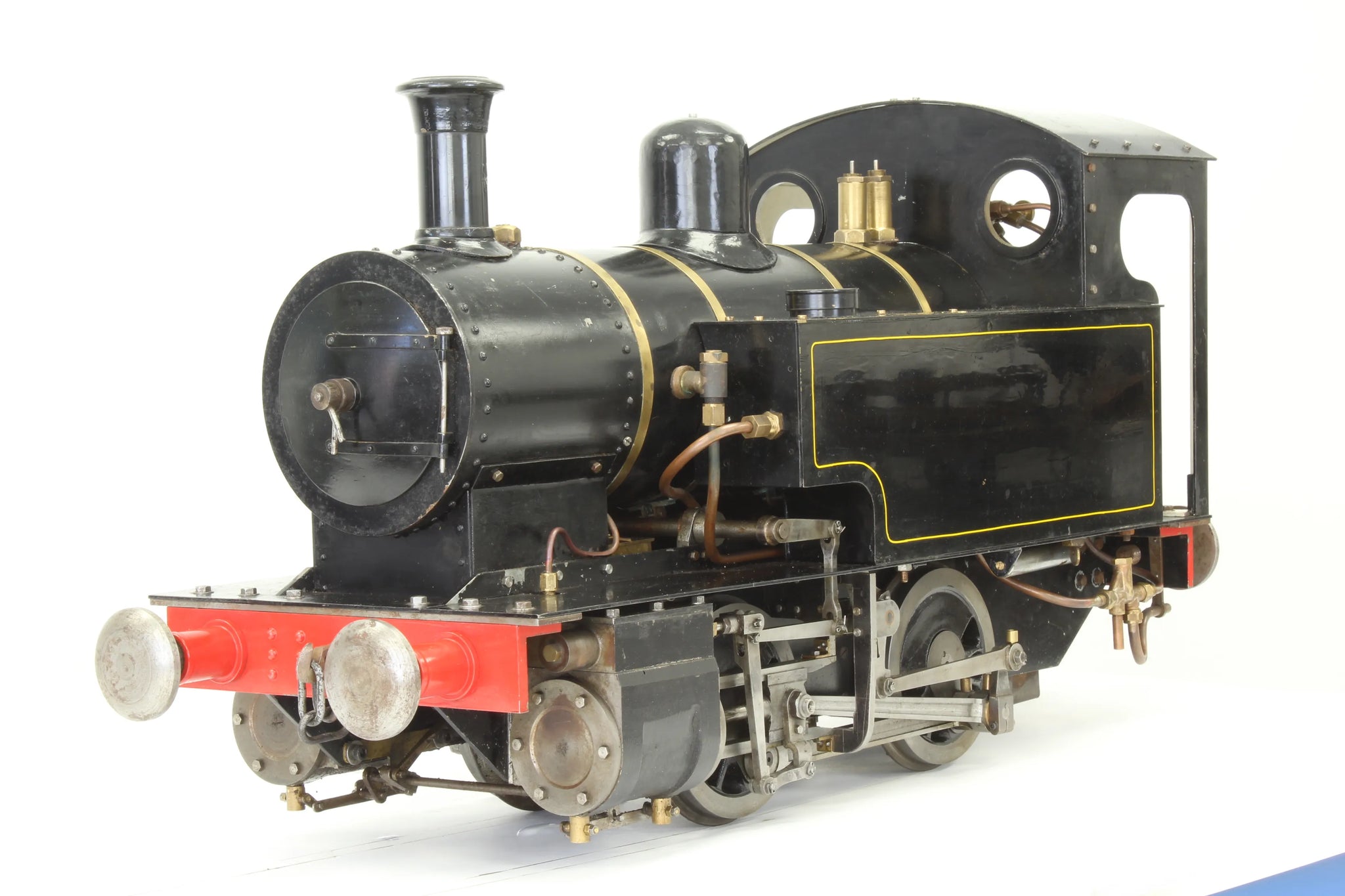

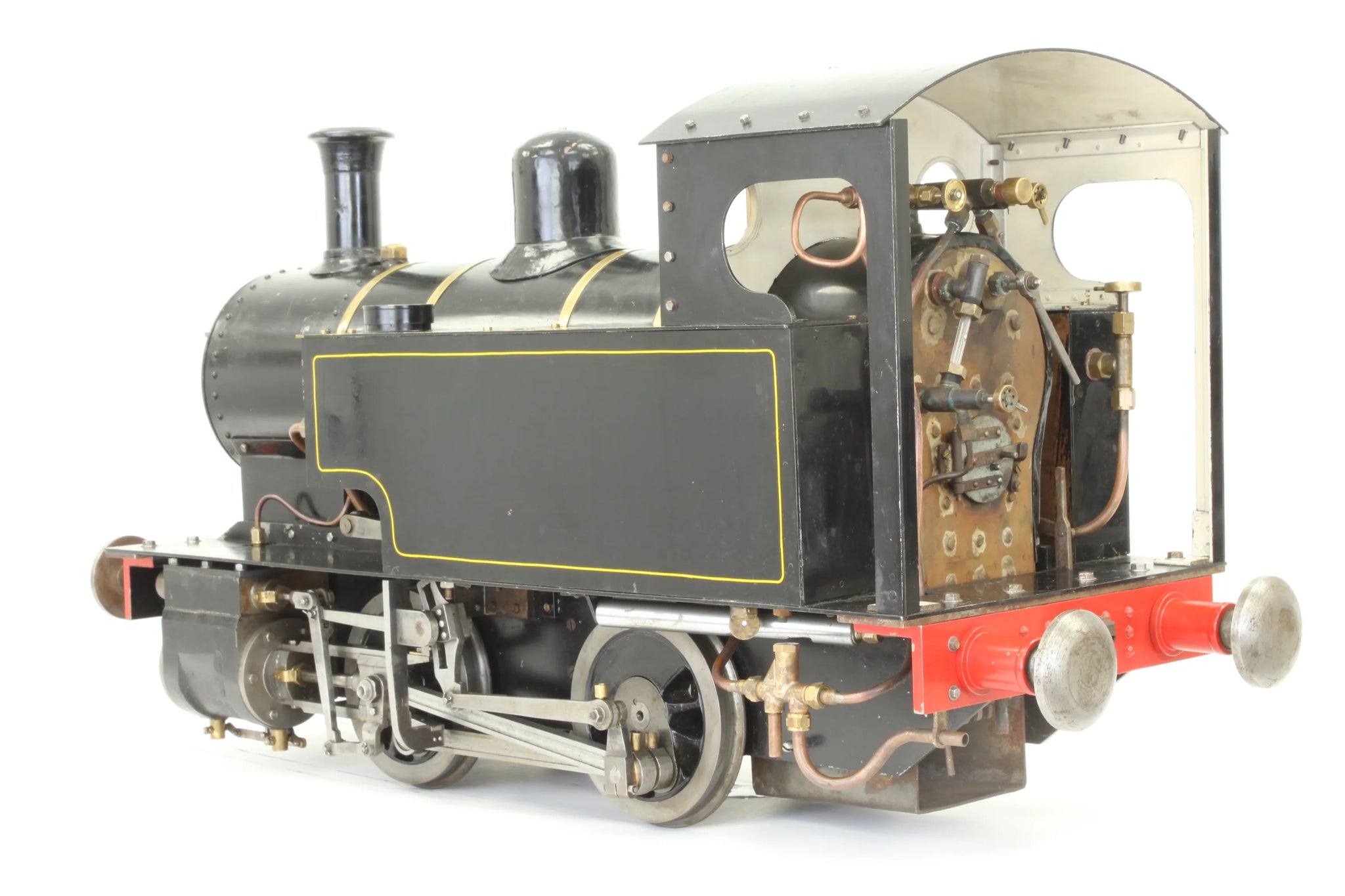

5 inch gauge "Ajax" 0-4-0ST

A 5 inch gauge "Ajax" 0-4-0T - a robustly proportioned tank engine, it's simple layout and outside valve gear make for a good beginners engine, easy to drive and maintain.

A well built engine, this one has been used infrequently on the builder's short garden railway to amuse his grandchildren. A highly prolific engineer, well into his eighth decade he's still turning out engines, currently working on a 4 inch scale traction engine.

Earlier in the year we had a pair of 5 inch gauge Duchesses he built some years ago, unsteamed from new.

Unsteamed in some years, the engine has recently had a twice working pressure shell test, with certificate issed for same.

Technical information

Stock code

8105

Gauge

5 inch

Length/inches

30

Width/inches

10.5

Height/inches

15

Weight/Kg

50

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

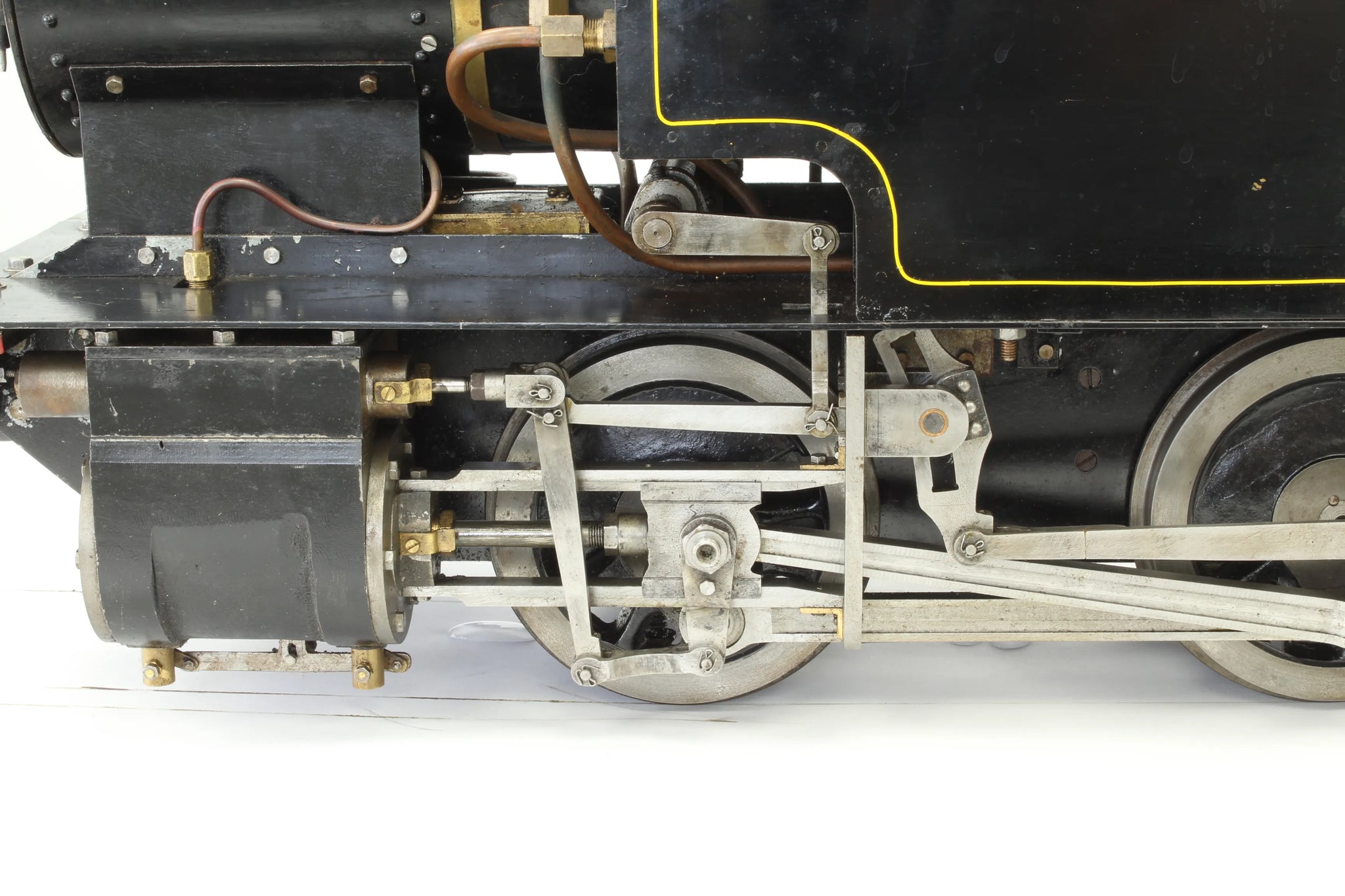

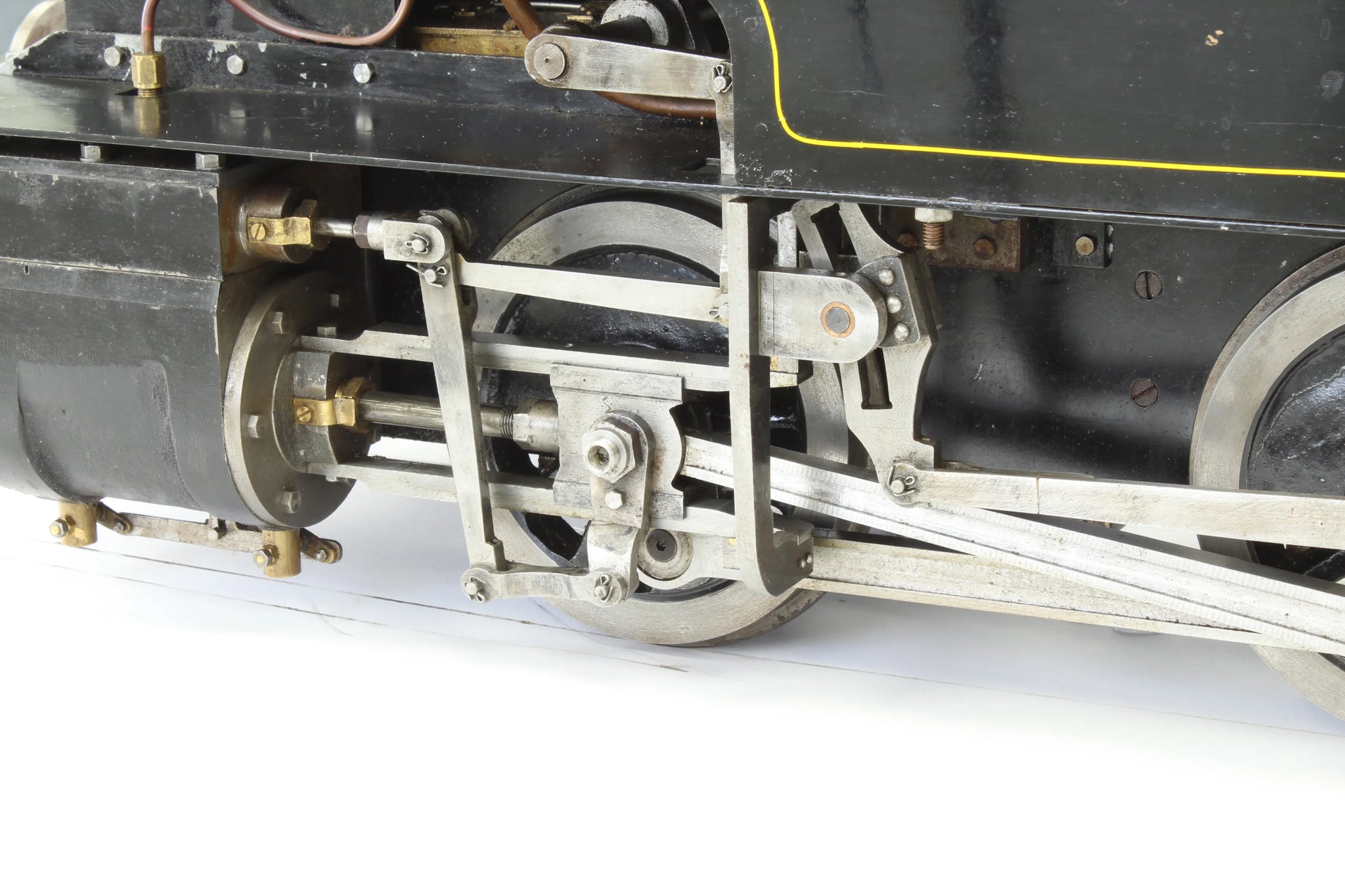

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

Davies

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

3

Date out

Feb-19

Hydraulic test valid to

01-Jul-22
