13400

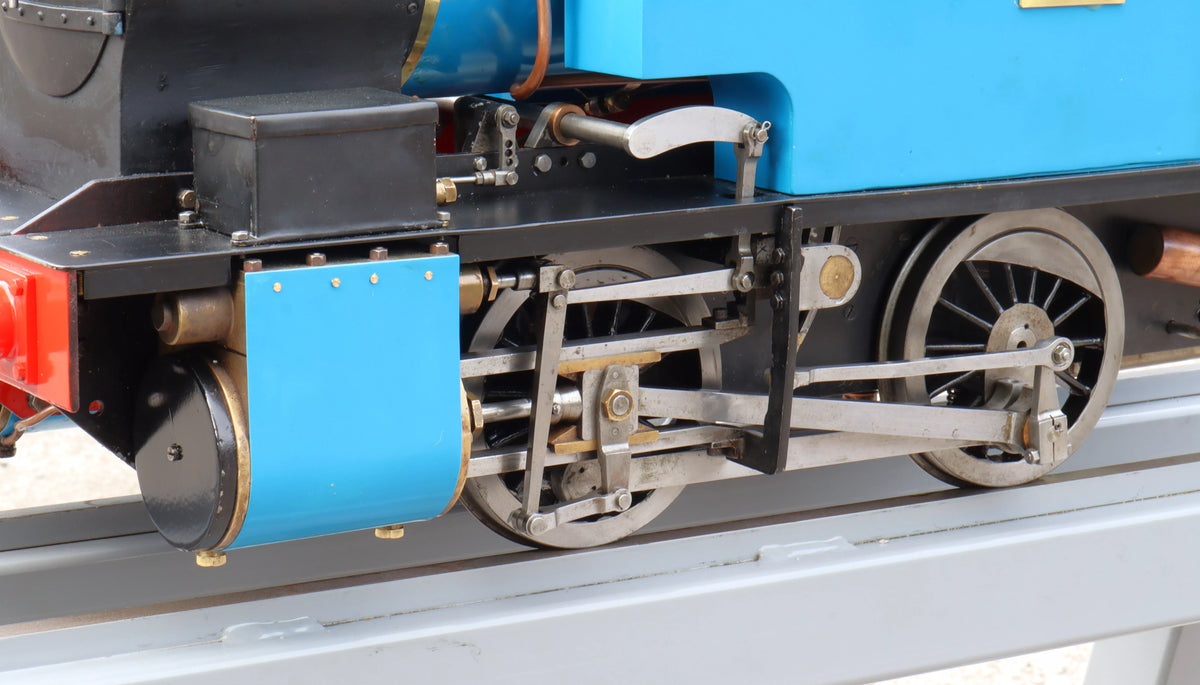

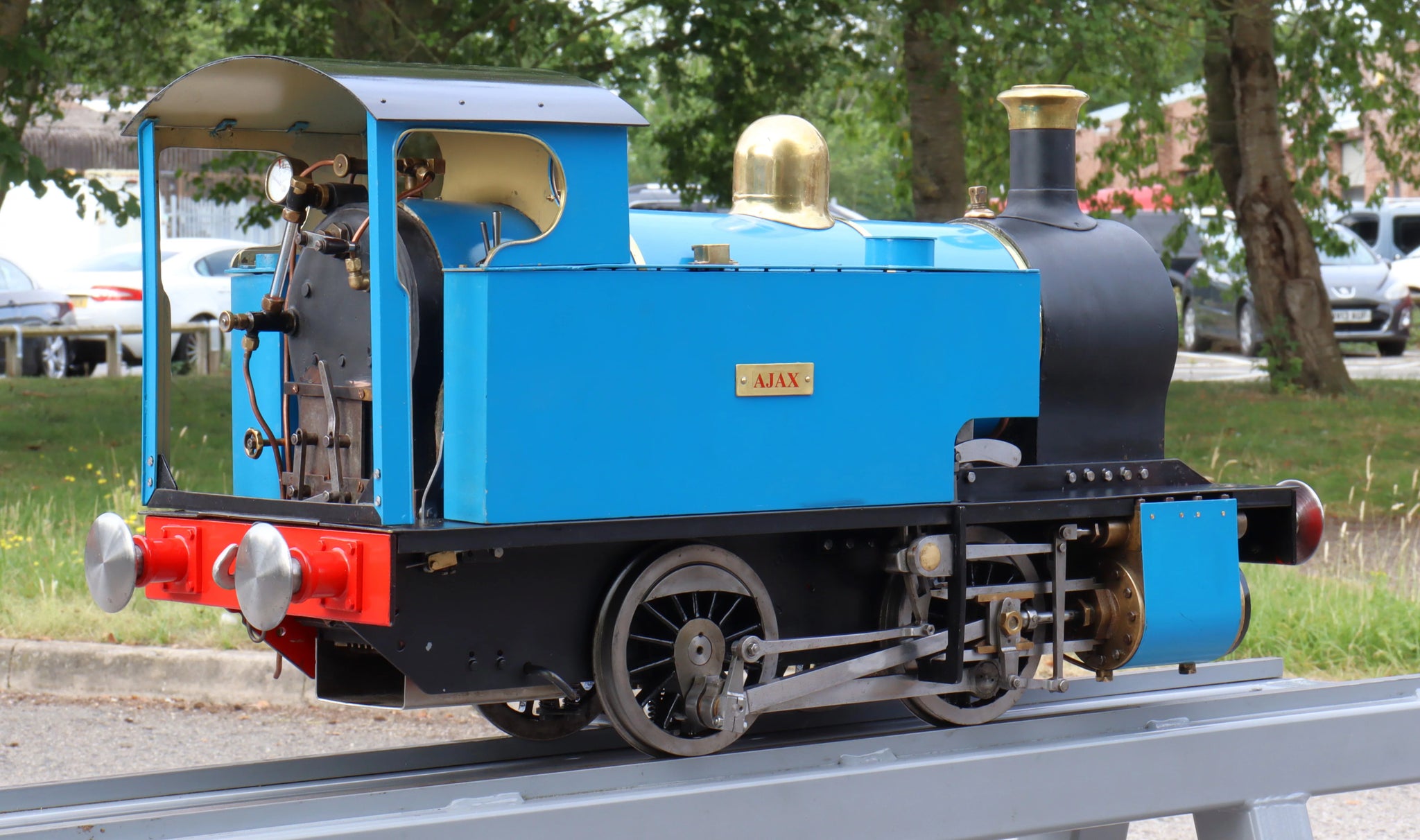

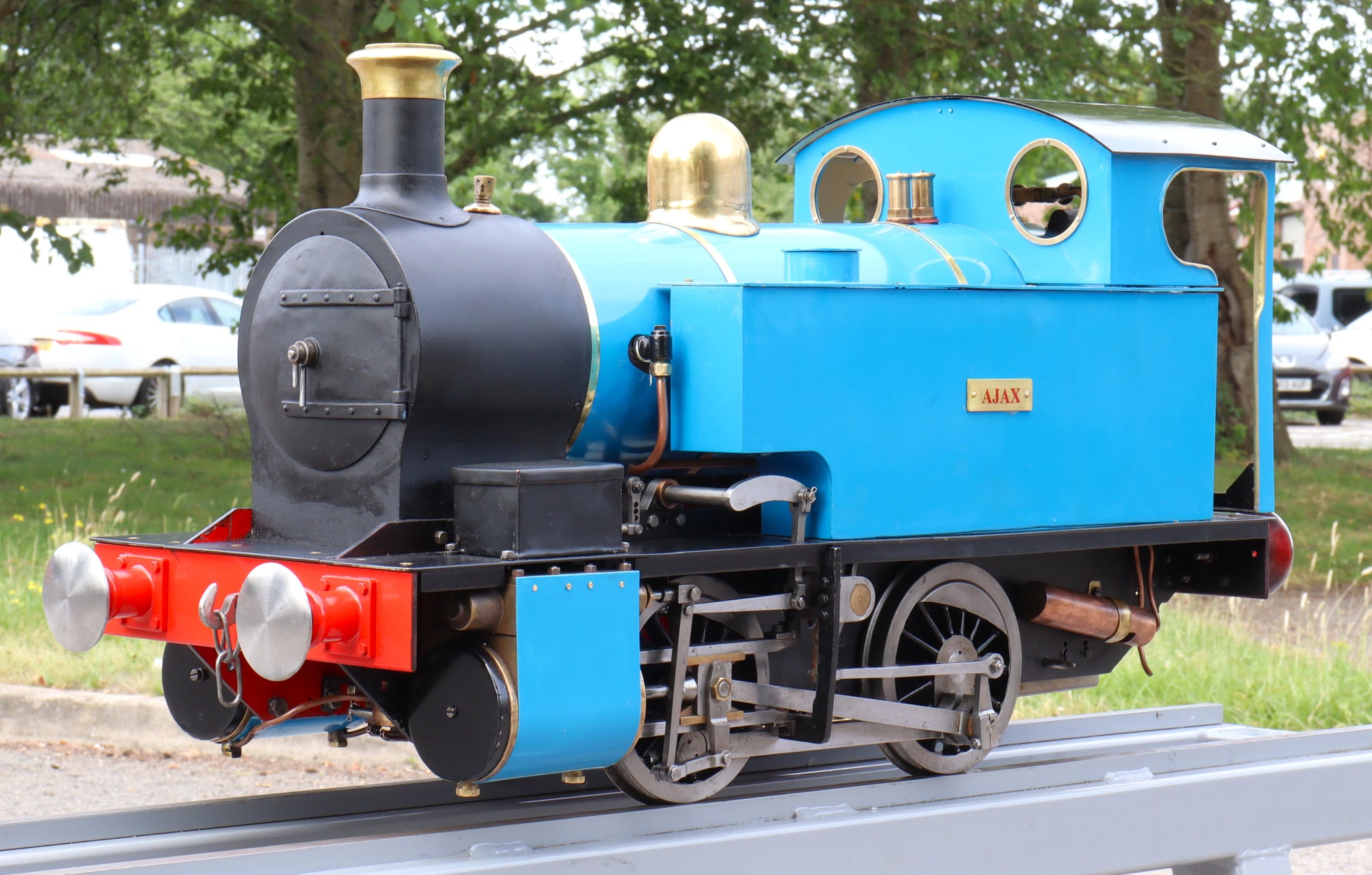

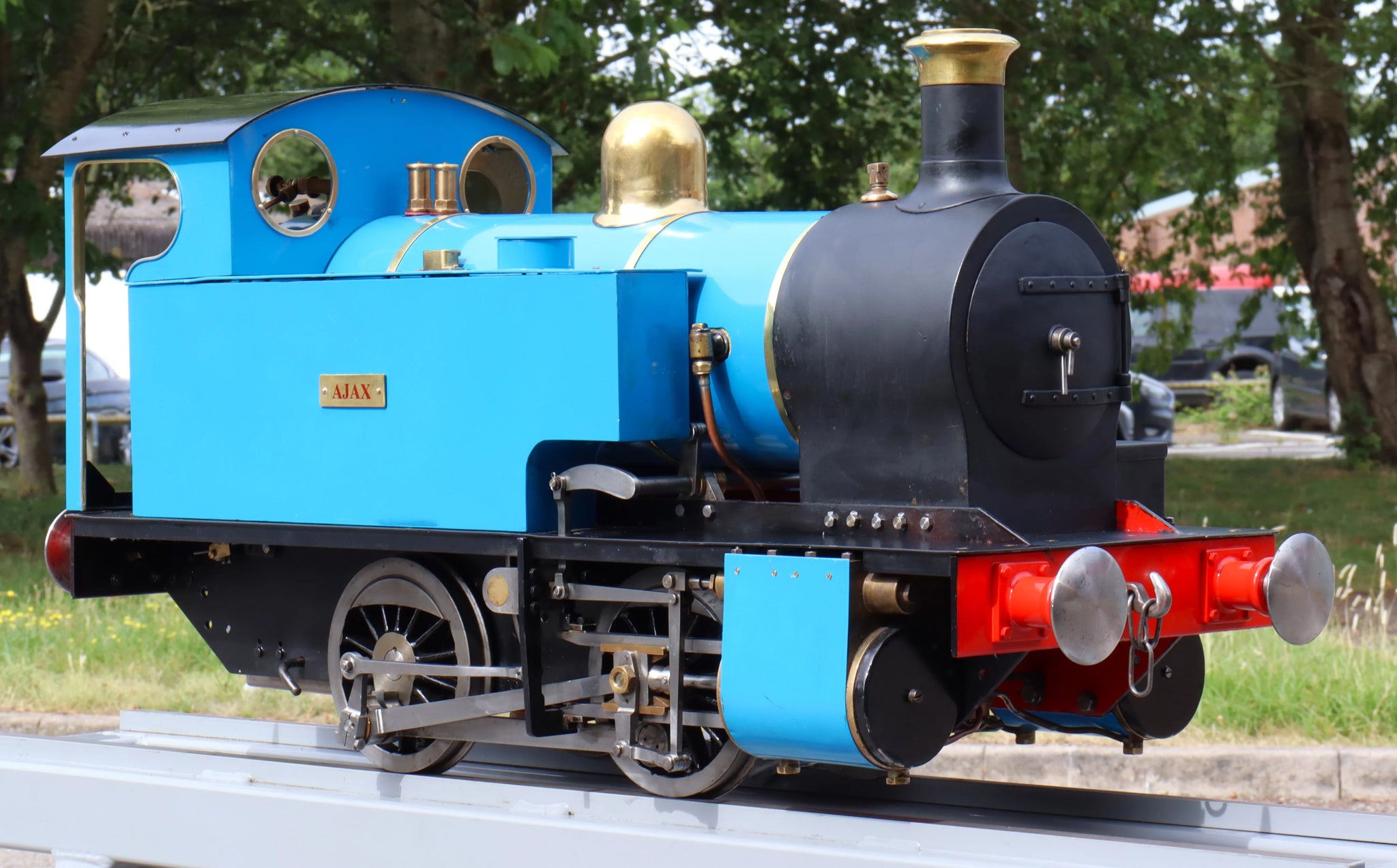

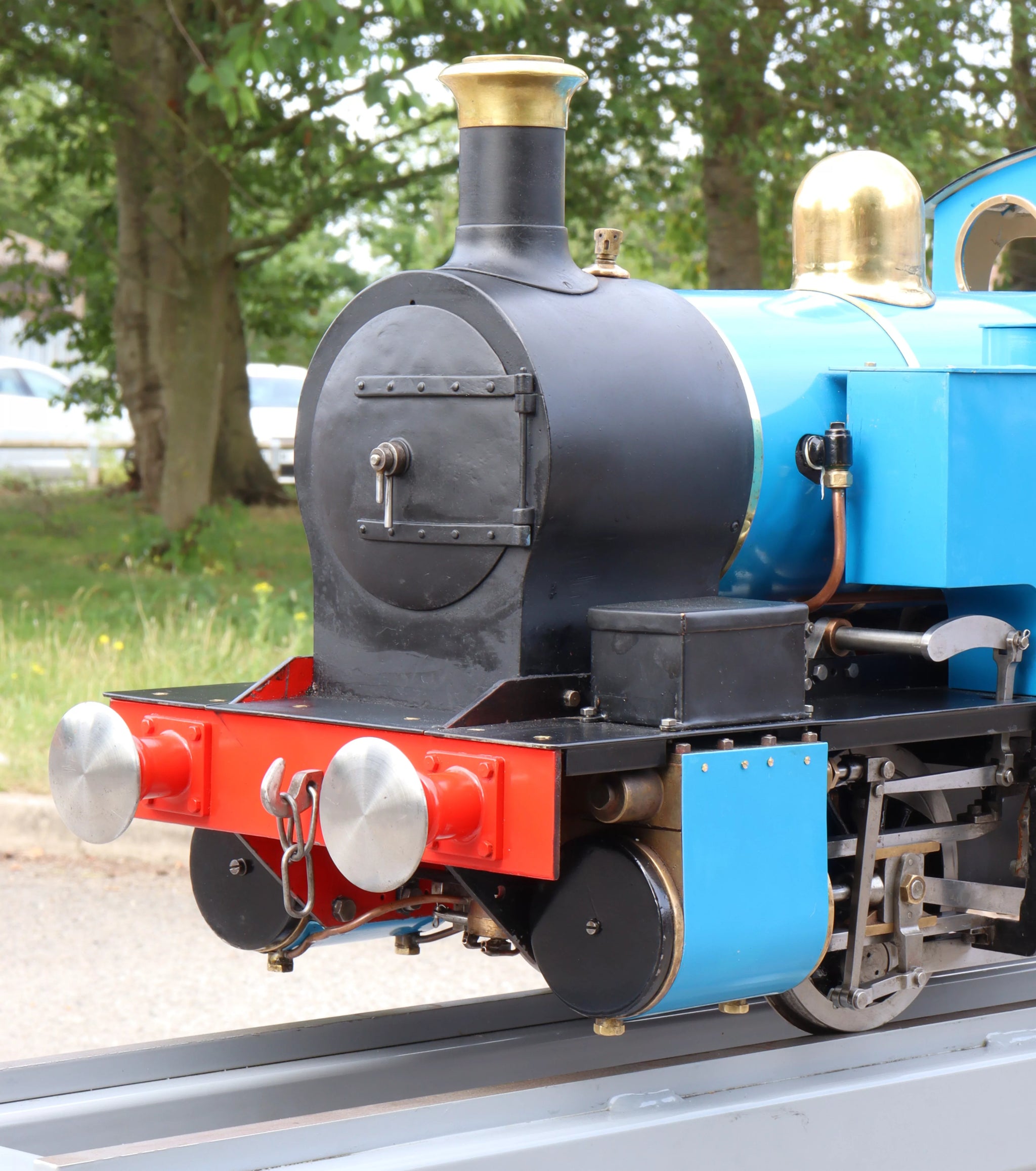

A 5 inch gauge "Ajax" 0-4-0T. We had this one through last year - bought before Christmas by a regular customer responsible for several similar restorations, it's now arrived back with us in spronky blue livery.

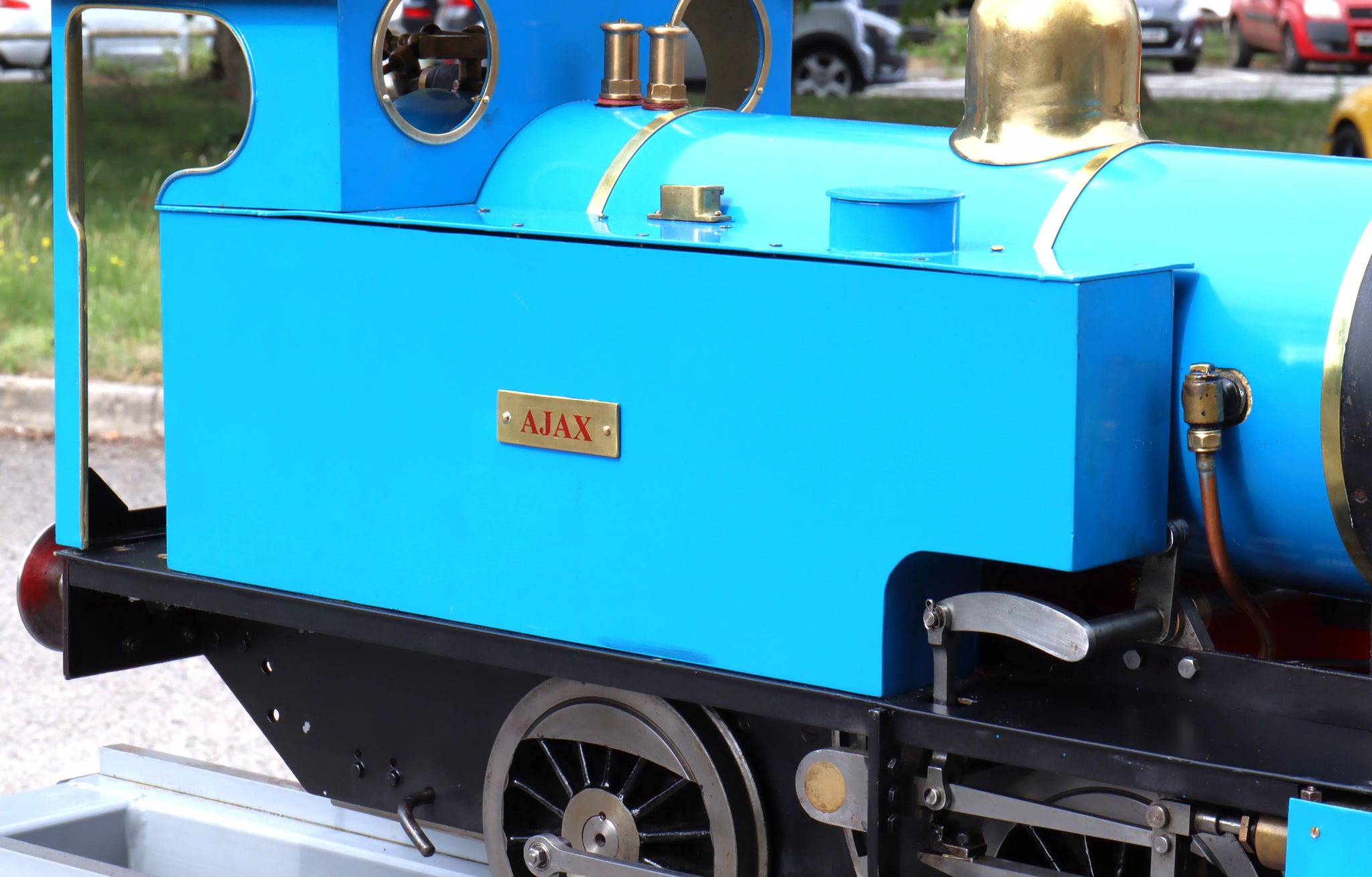

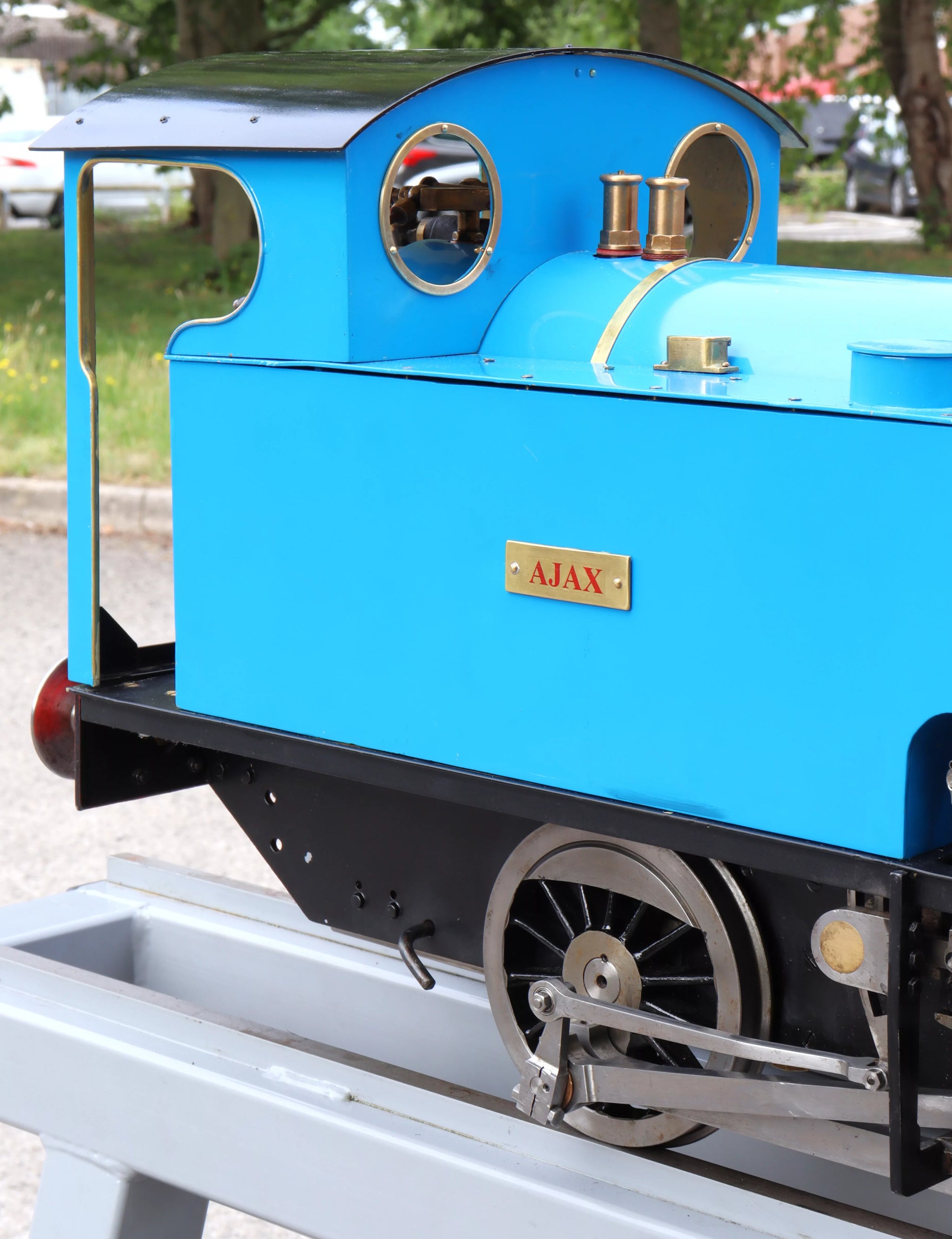

The side tanks now leak from the bottom seam and the name plate mounting holes. We've given it a fresh hydraulic test and run it on air; it's in much the same mechanical condition as last time.
Stock code |
13400 |
Length/inches |
29 |
Width/inches |
10 |
Height/inches |
15 |
Weight/Kg |
35 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

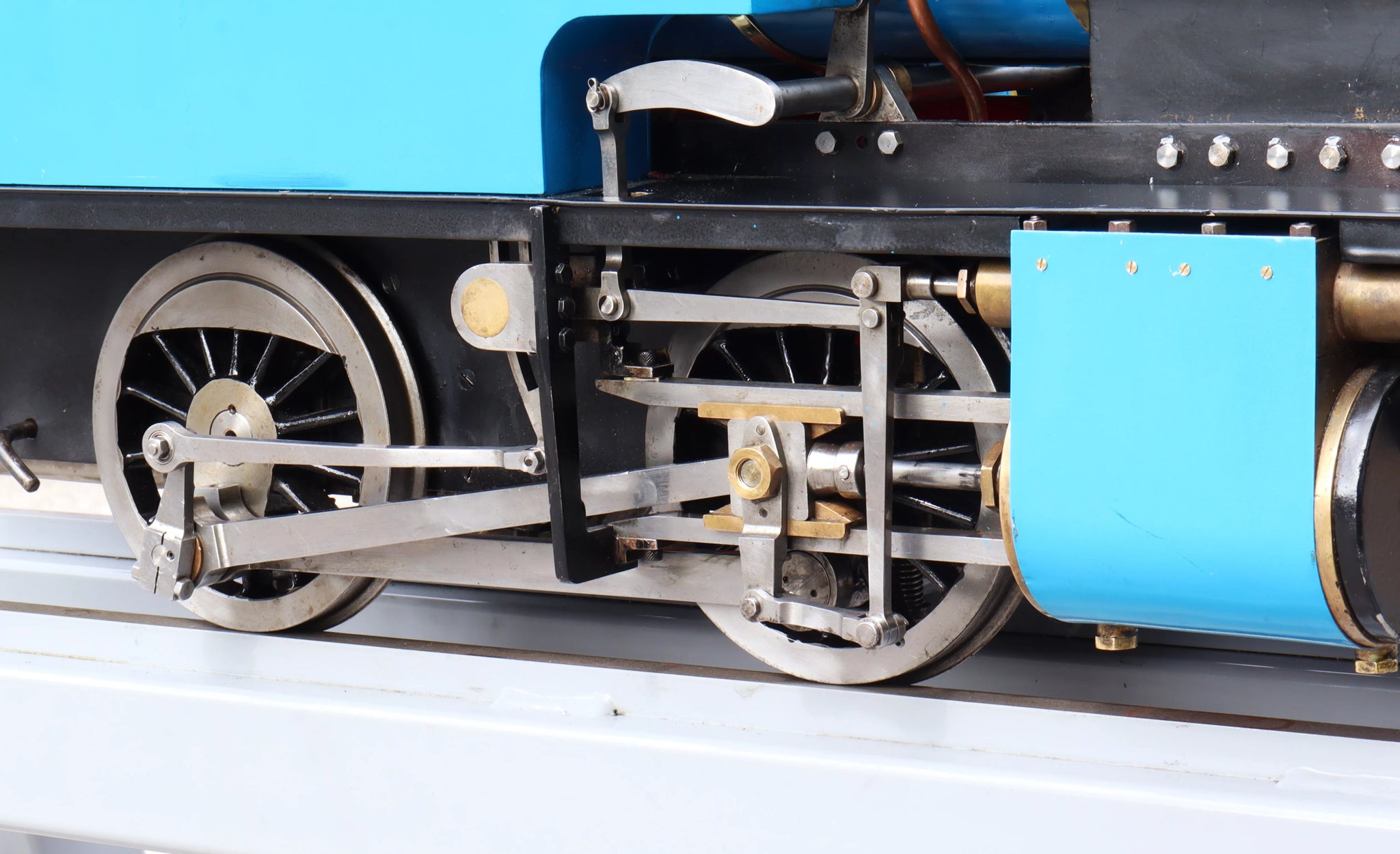

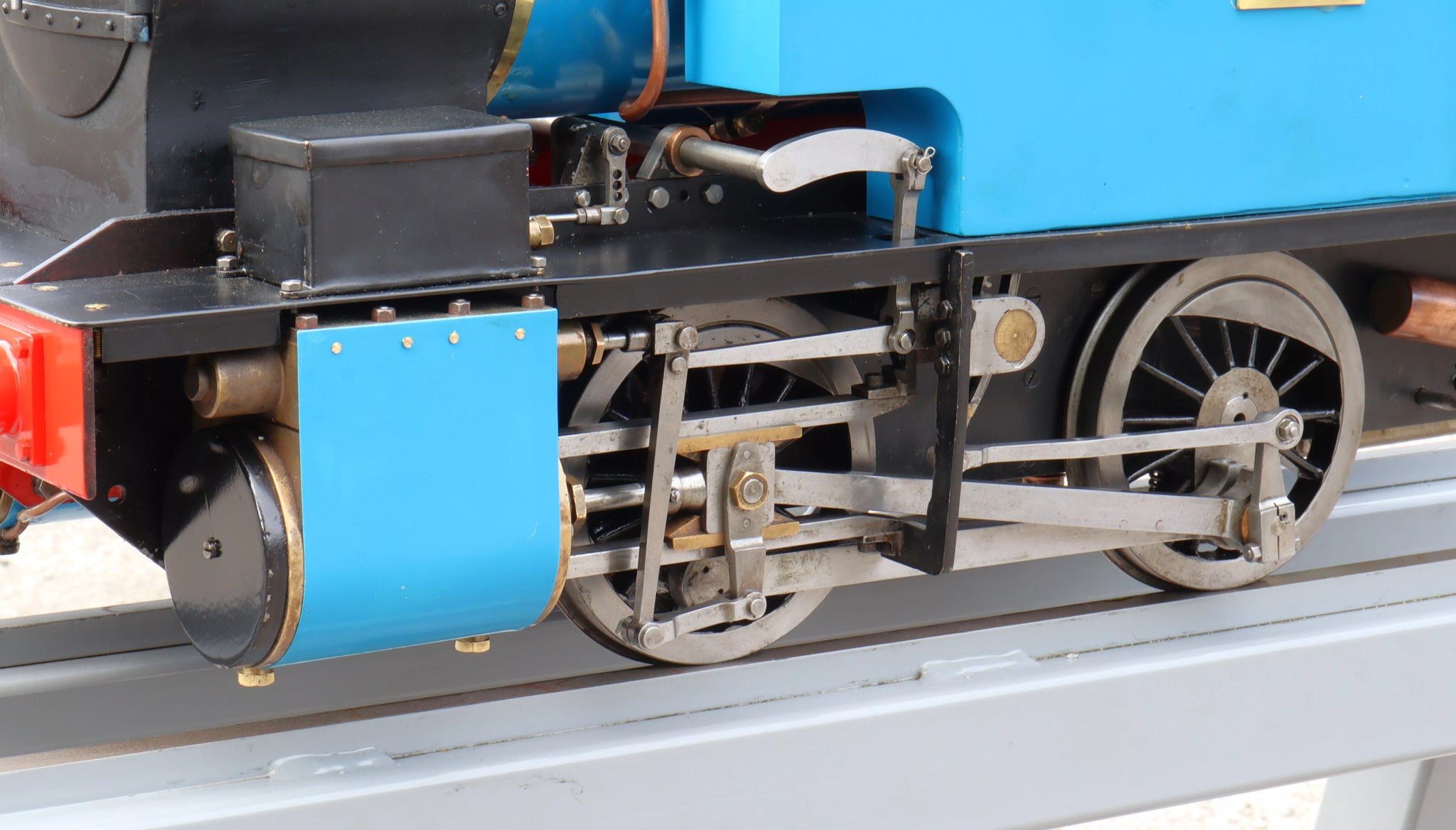

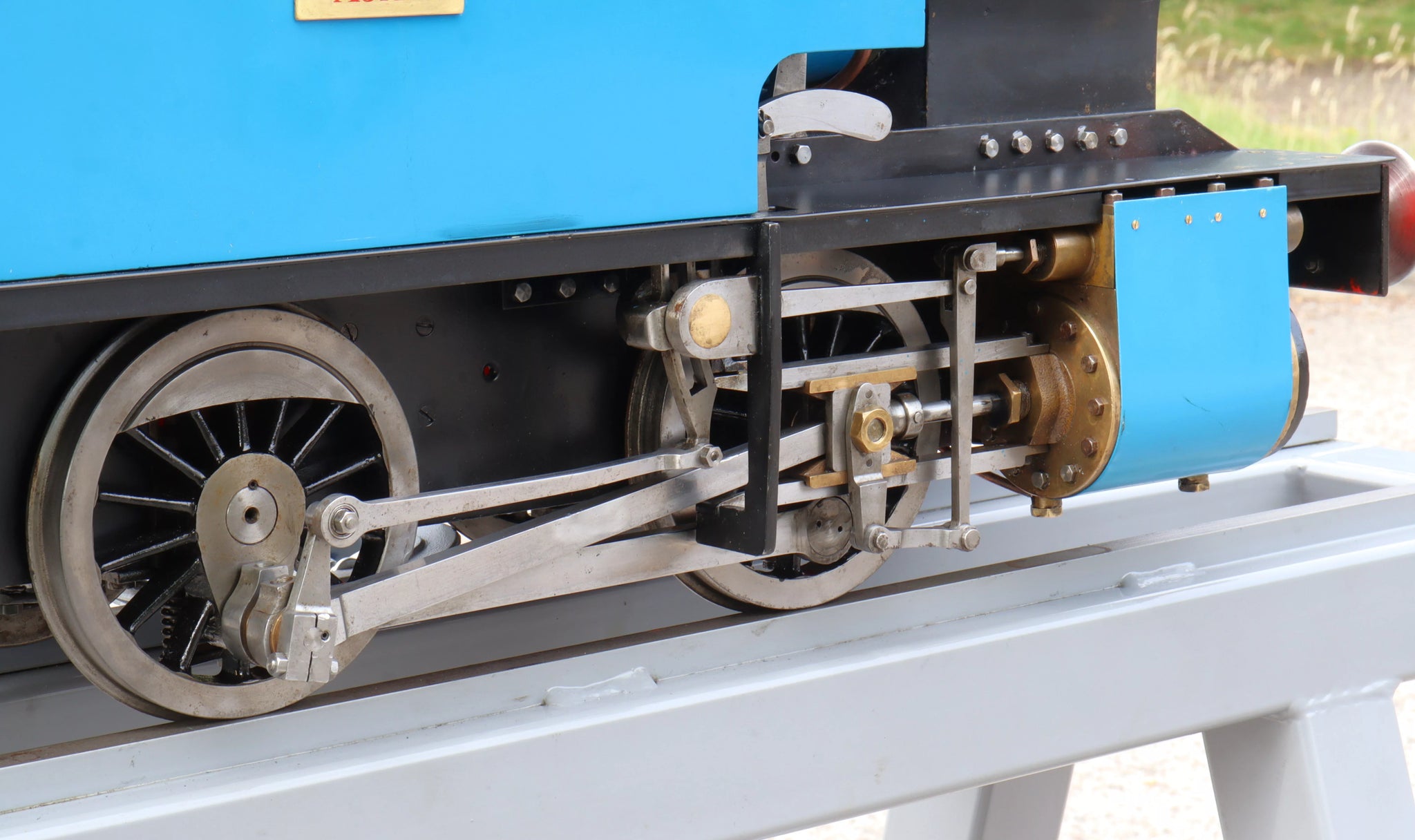

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
displacement |
Boiler maker |
GB Boiler Services |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
yes |
Year built |
2007 |
Boiler number |
GB235 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
1 |
Hand pump |
1 |
Mechanical pump |
2 |
Hydraulic test valid to |
18/Jun/30 |
