5 inch gauge "Ajax" 0-4-0T

Name: 5 inch gauge "Ajax" 0-4-0T
Brand: Station Road Steam
SKU: 7803
Price: 3450.0 GBP
Availability: OutOfStock

Sold

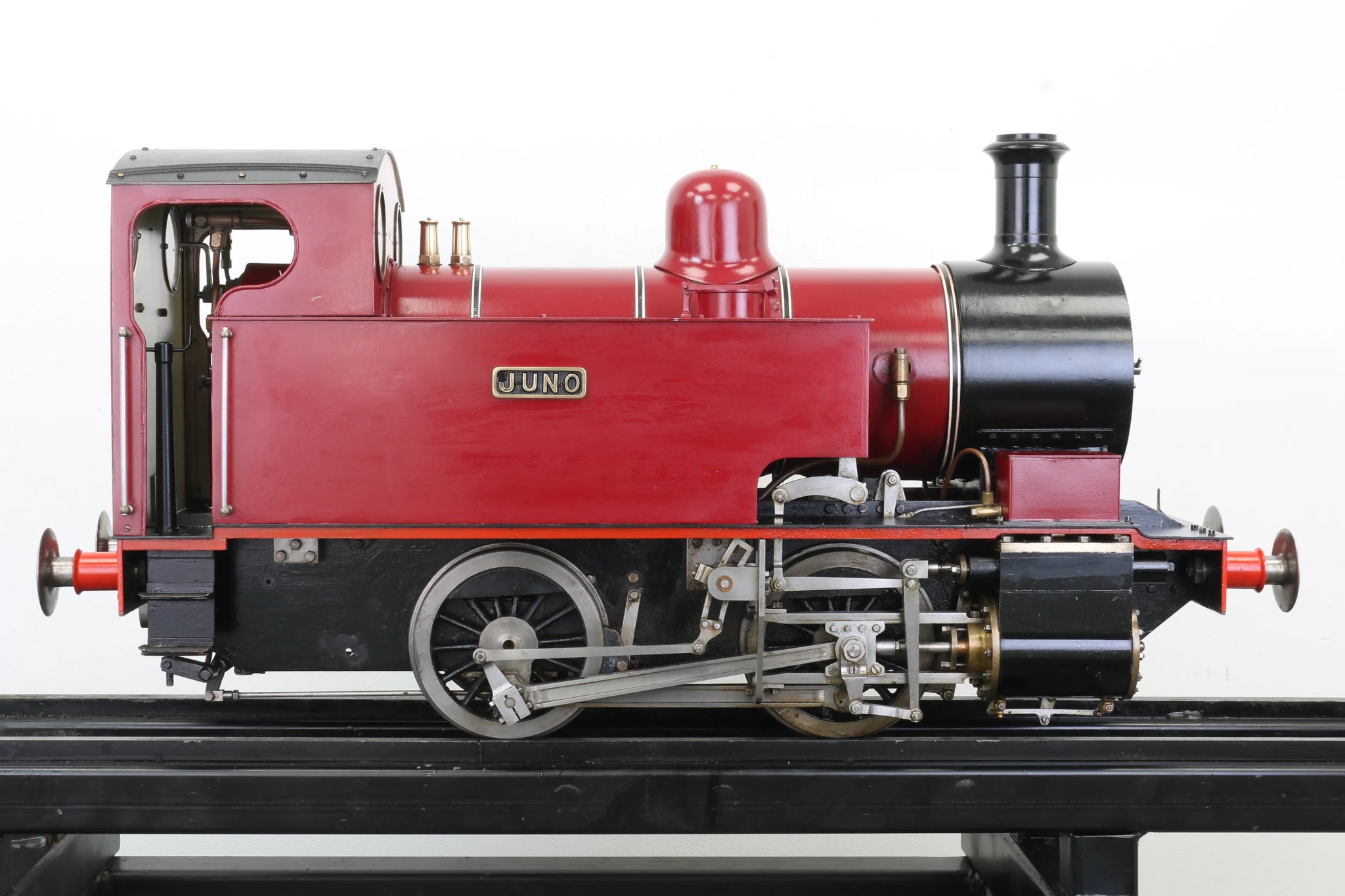

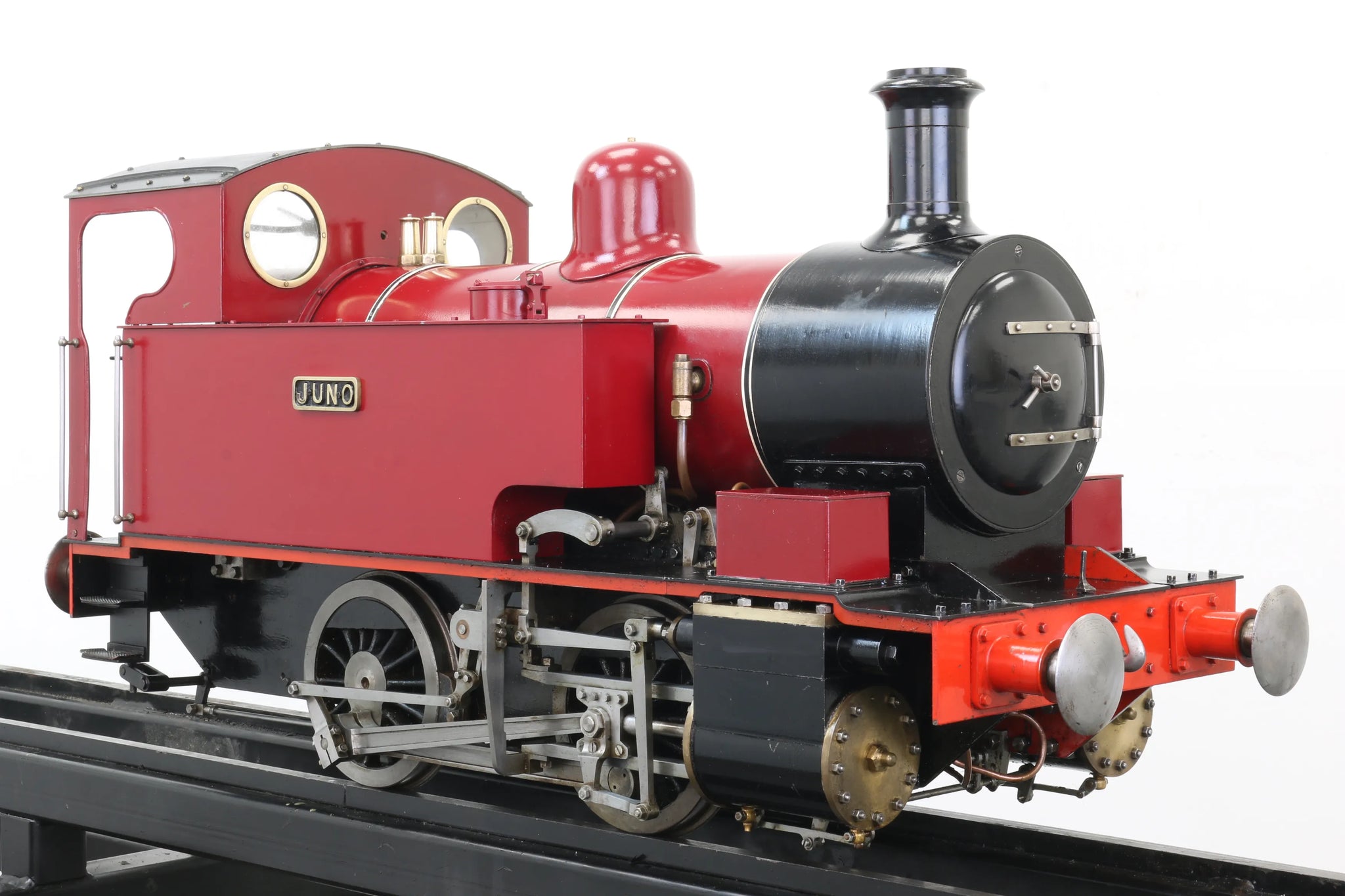

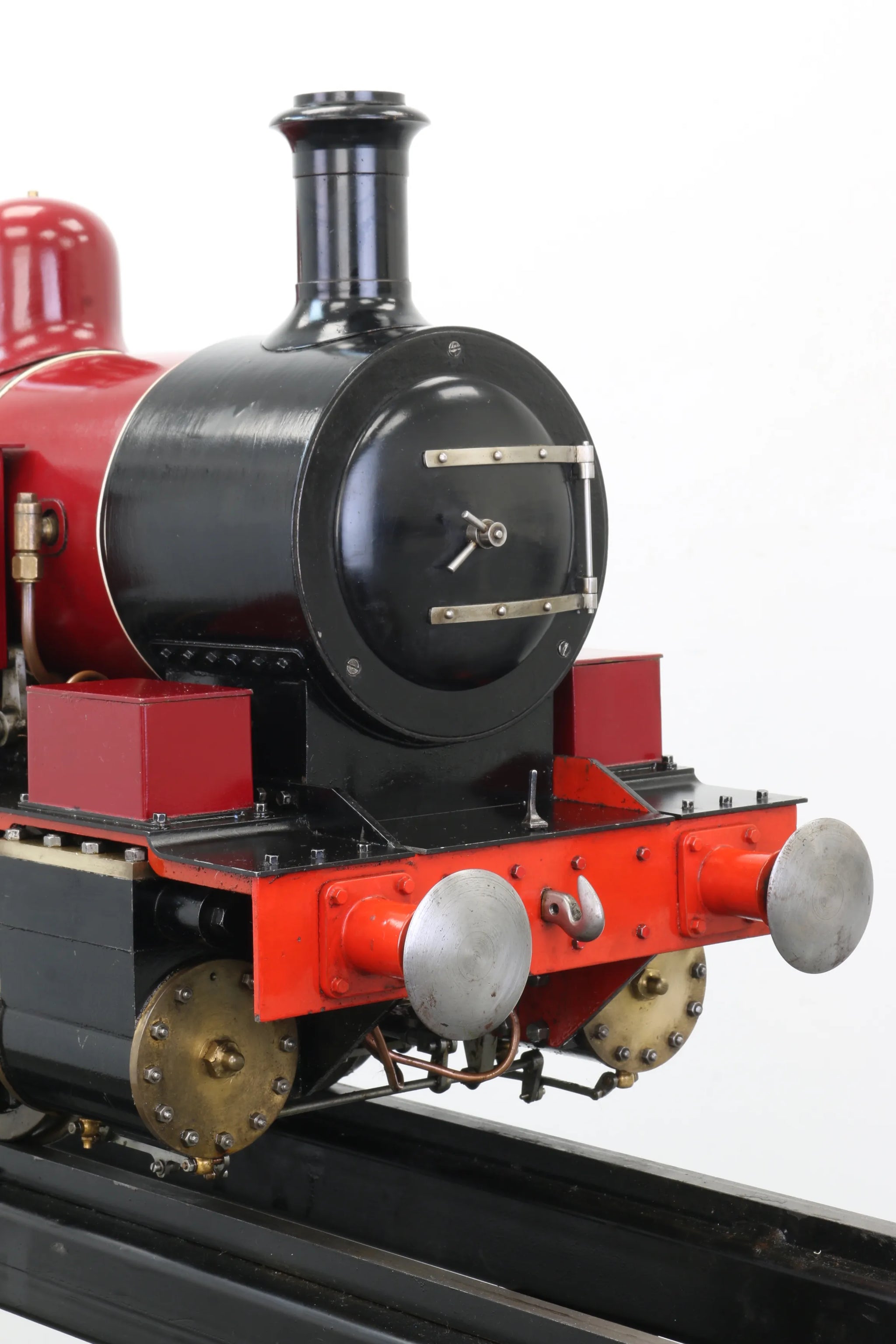

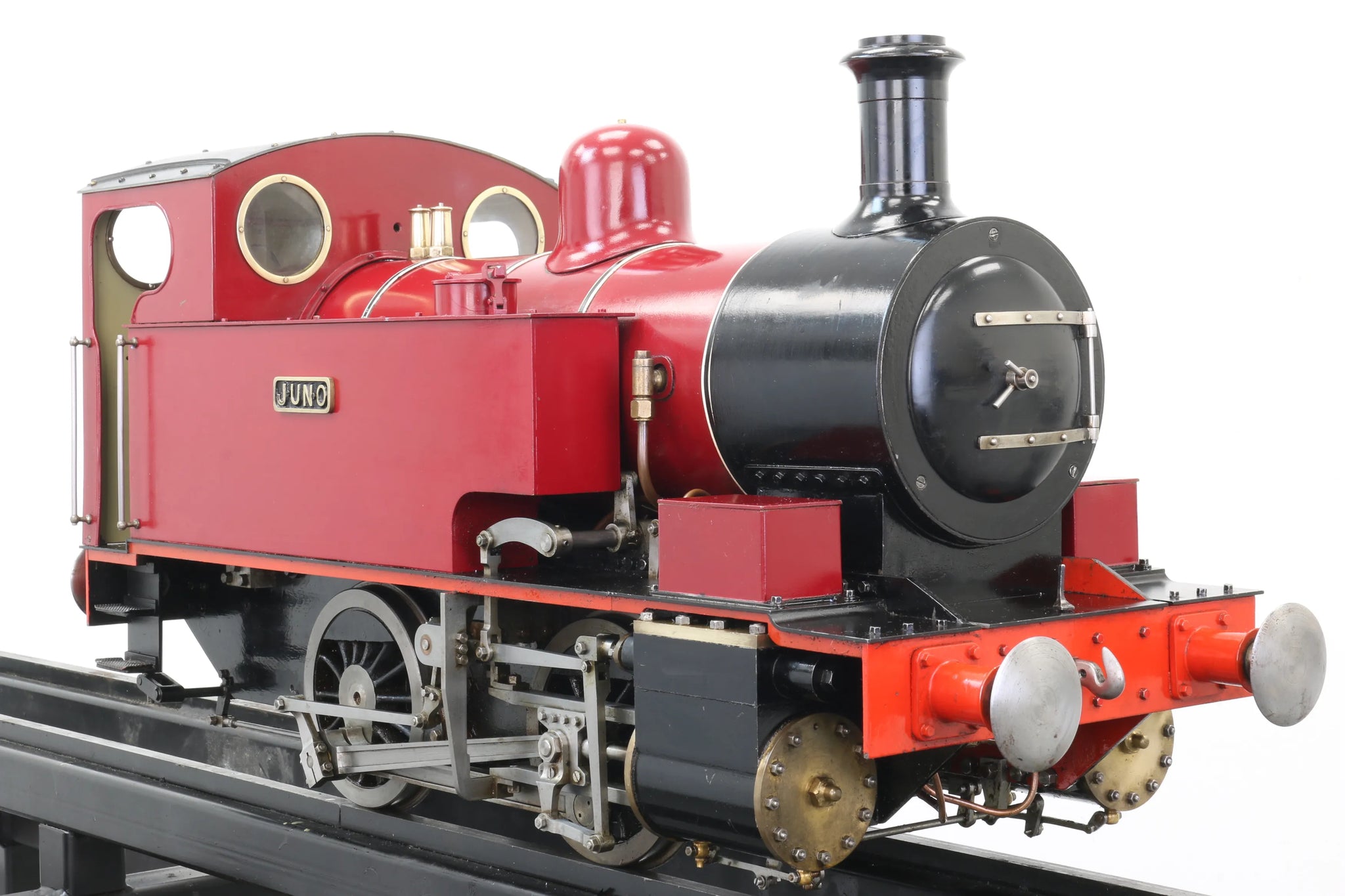

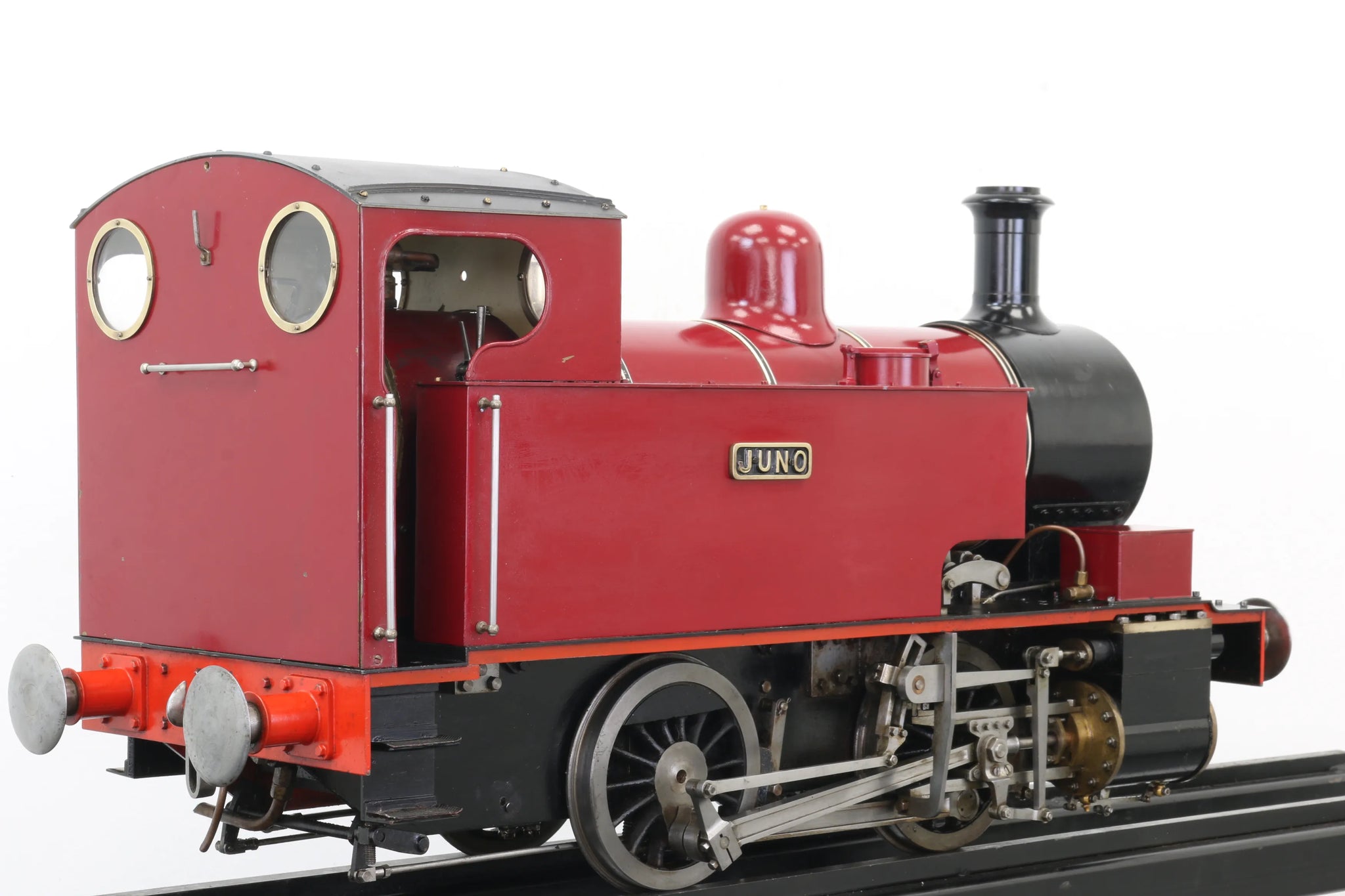

A particularly well built "Ajax" 0-4-0T, an older model built in the 1980s, although showing signs of light use and little wear. Boiler is a commercial one by Morewood, the engine steams freely and runs well.

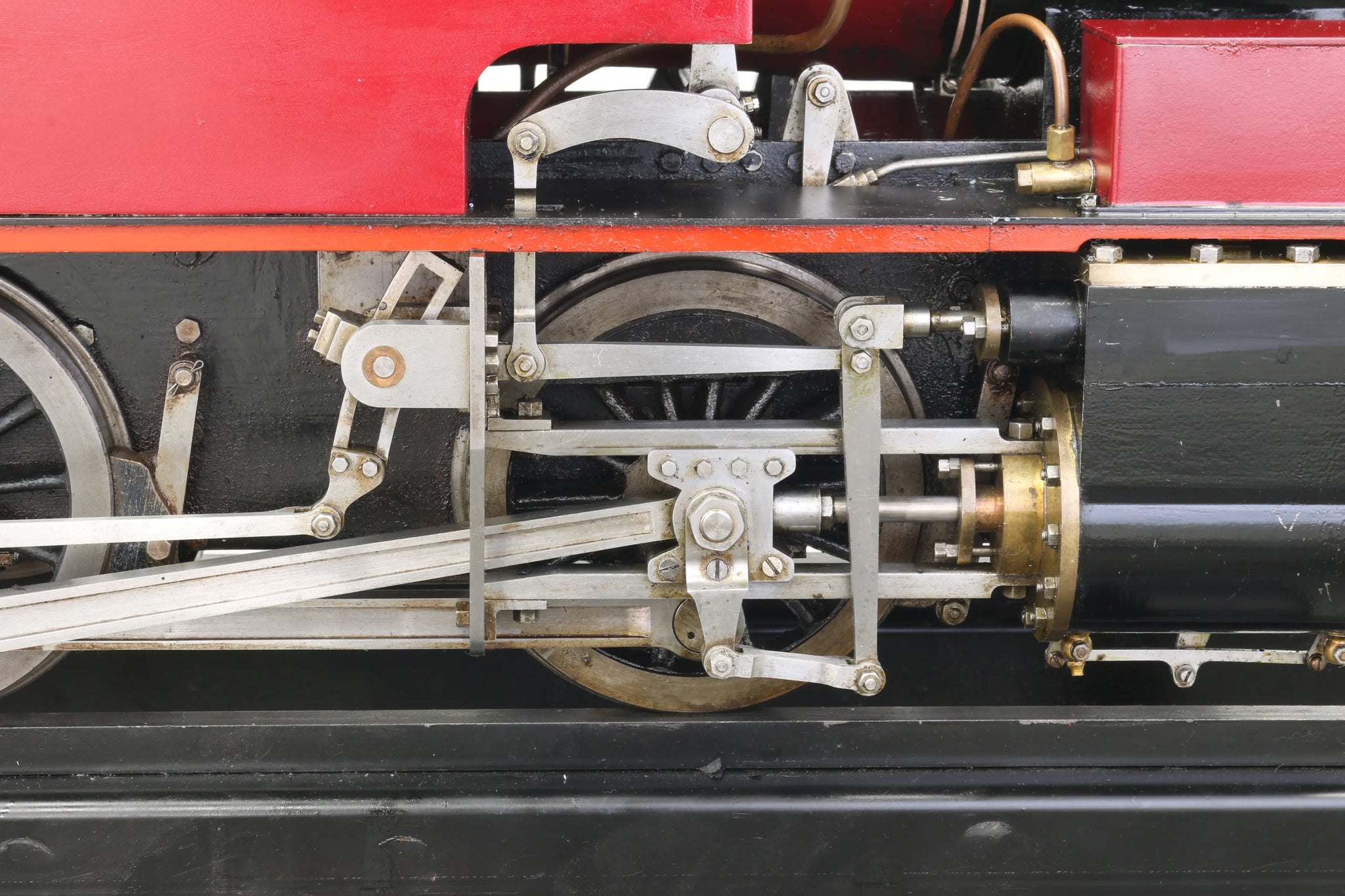

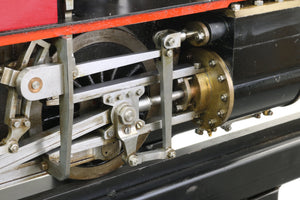

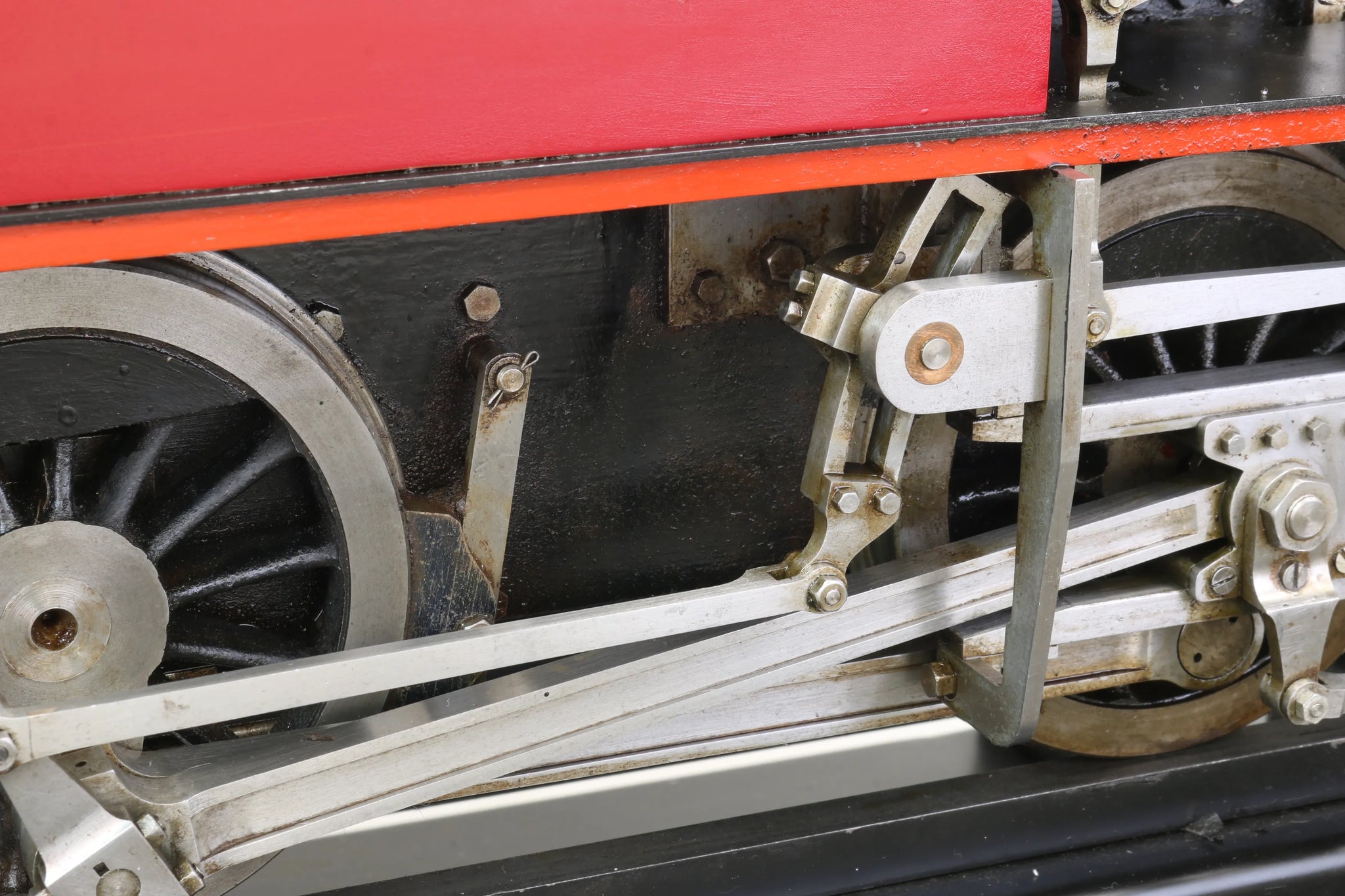

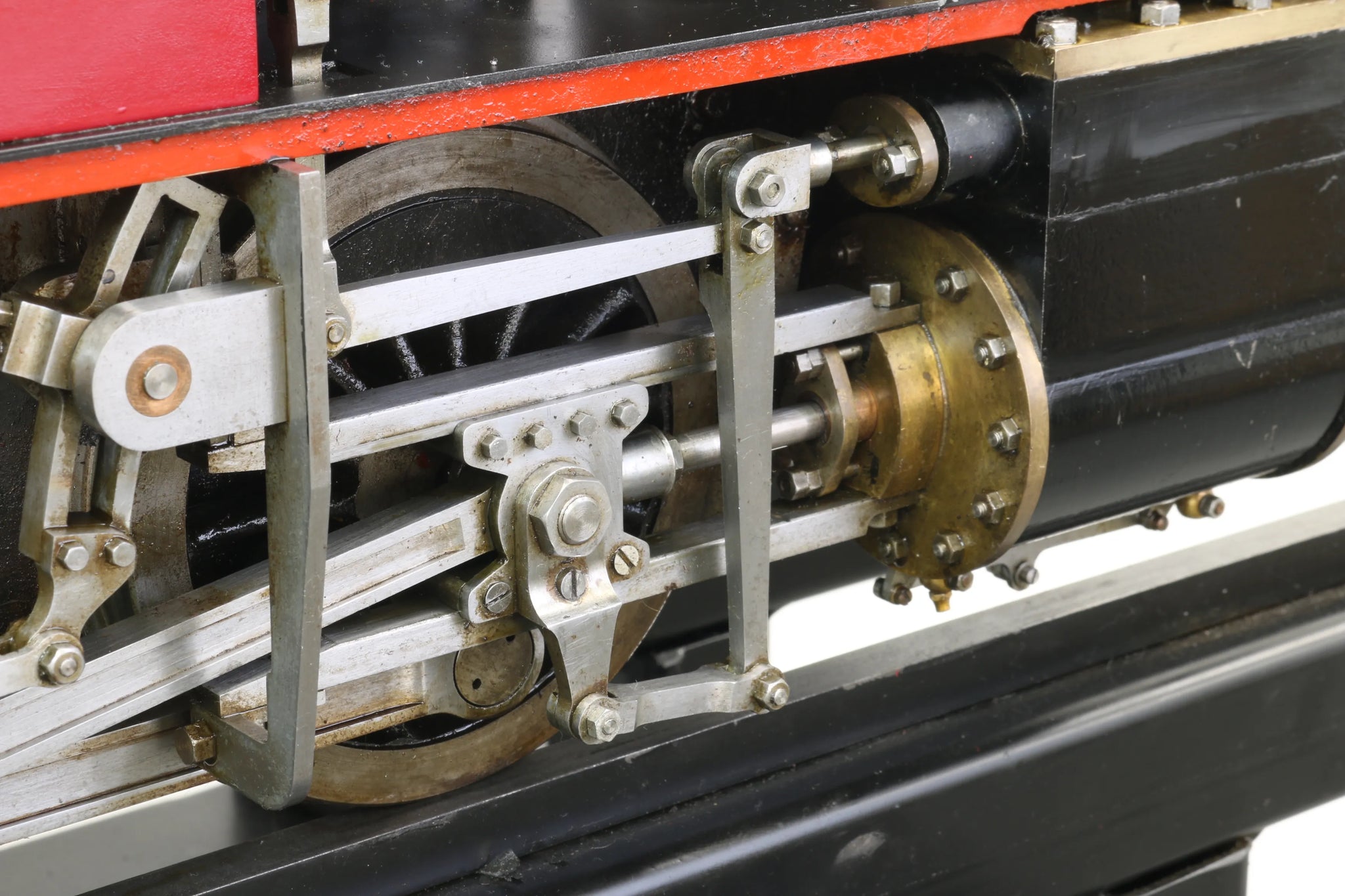

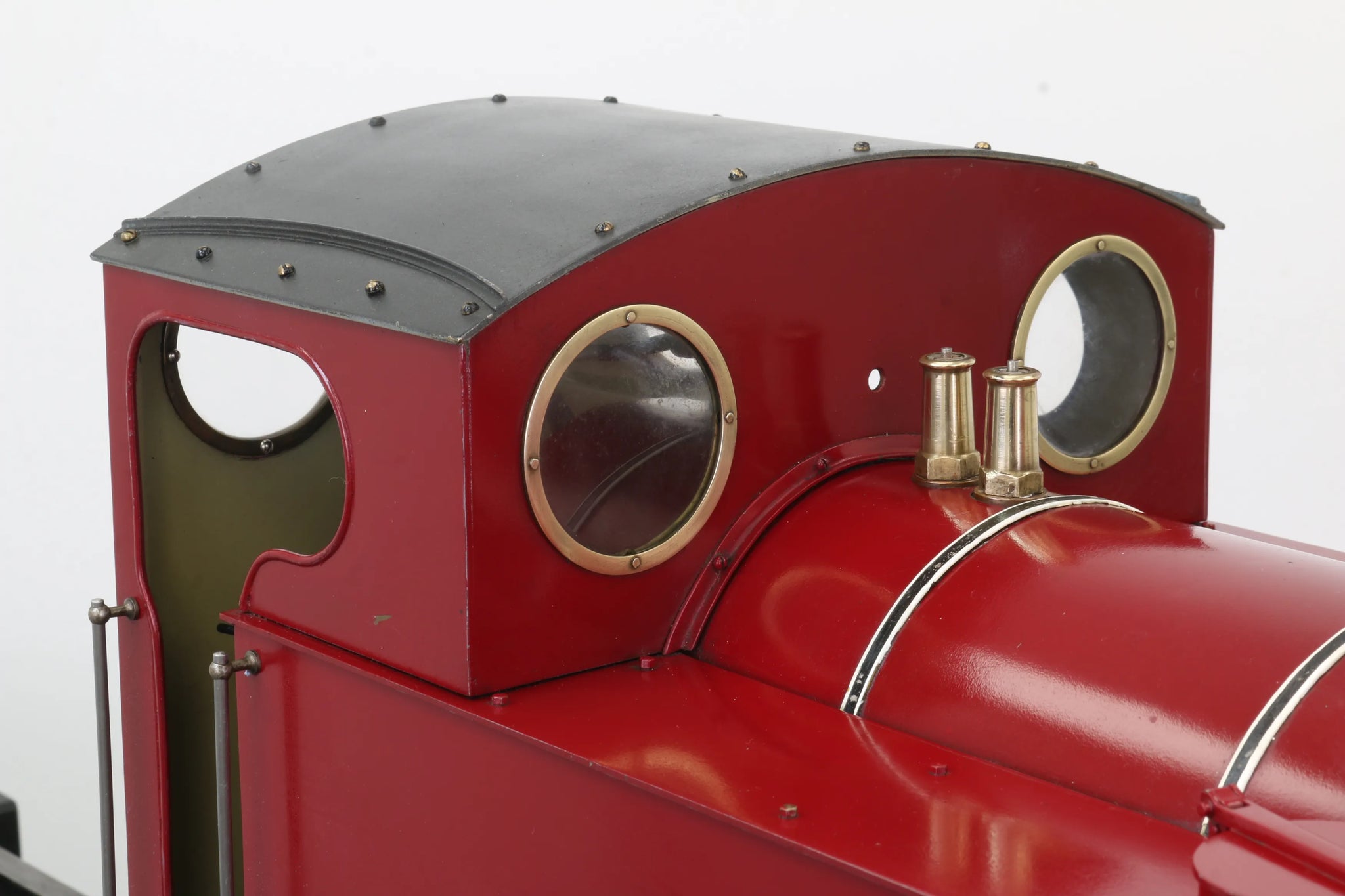

Machining is to a high standard, fit and finish of the motionwork is good, like the use of taper pins - proper engineering! Platework is well formed and fits well, paintwork is in good condition.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	7803
Gauge	5 inch
Length/inches	28
Width/inches	9
Height/inches	14
Weight/Kg	50
Wheel material	cast iron
Axlebox type	plain bearing
Cylinder material	gunmetal
Valve type	slide
Valve gear	Walschaerts
Reverser type	pole
Lubricator type	mechanical

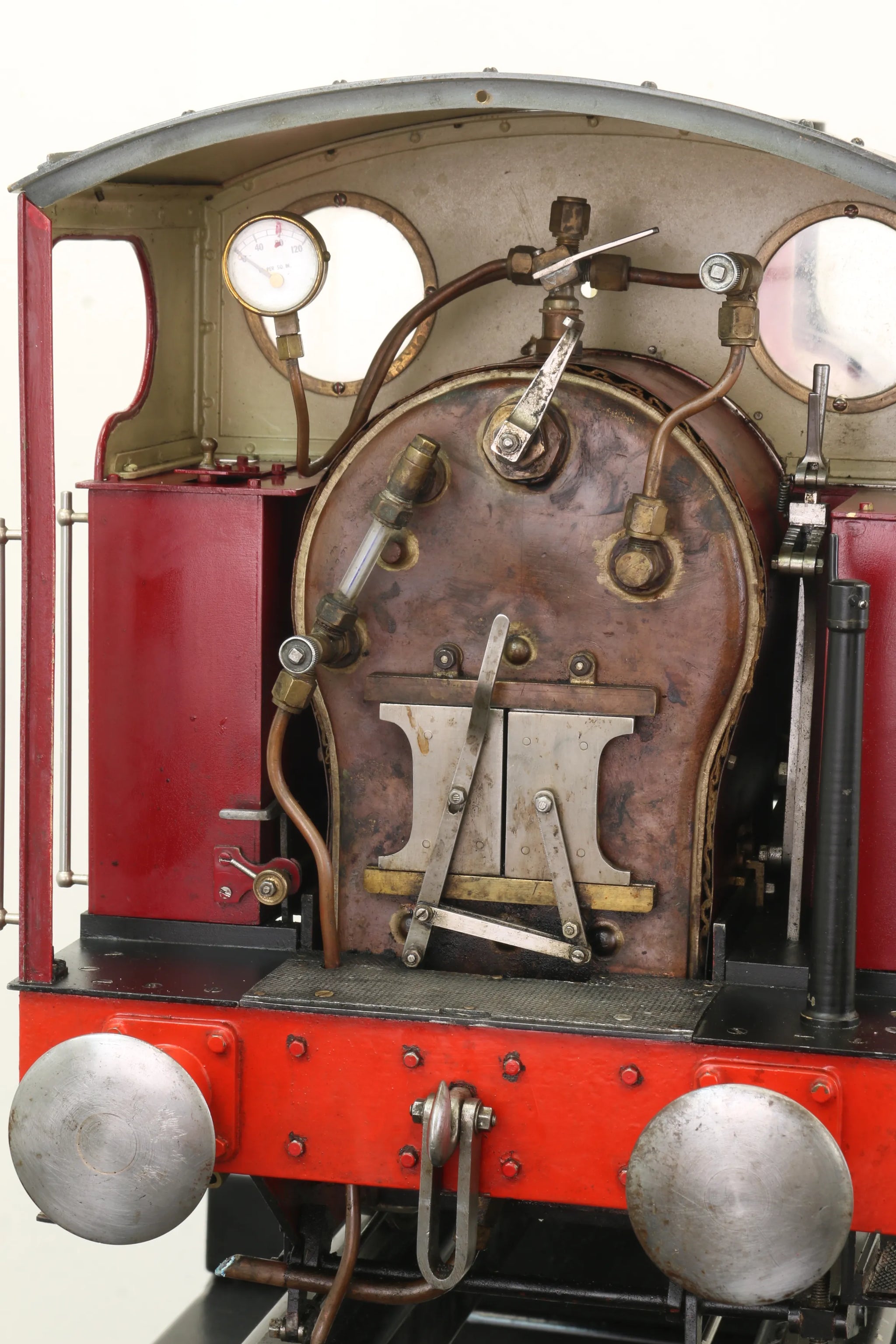

Boiler maker	Morewood Boilers
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	80
CE/UKCA mark	n/a - pre-2002
Year built	1984
Boiler number	643
Safety valve type	spring
Safety valve	2
Fusible plug	no
Whistle	yes
Hand pump	2
Mechanical pump	2
Superheater type	radiant
Superheater	2
Date out	Apr-18
Hydraulic test valid to	26-Nov-21
Steam test valid to	28-Jan-19
