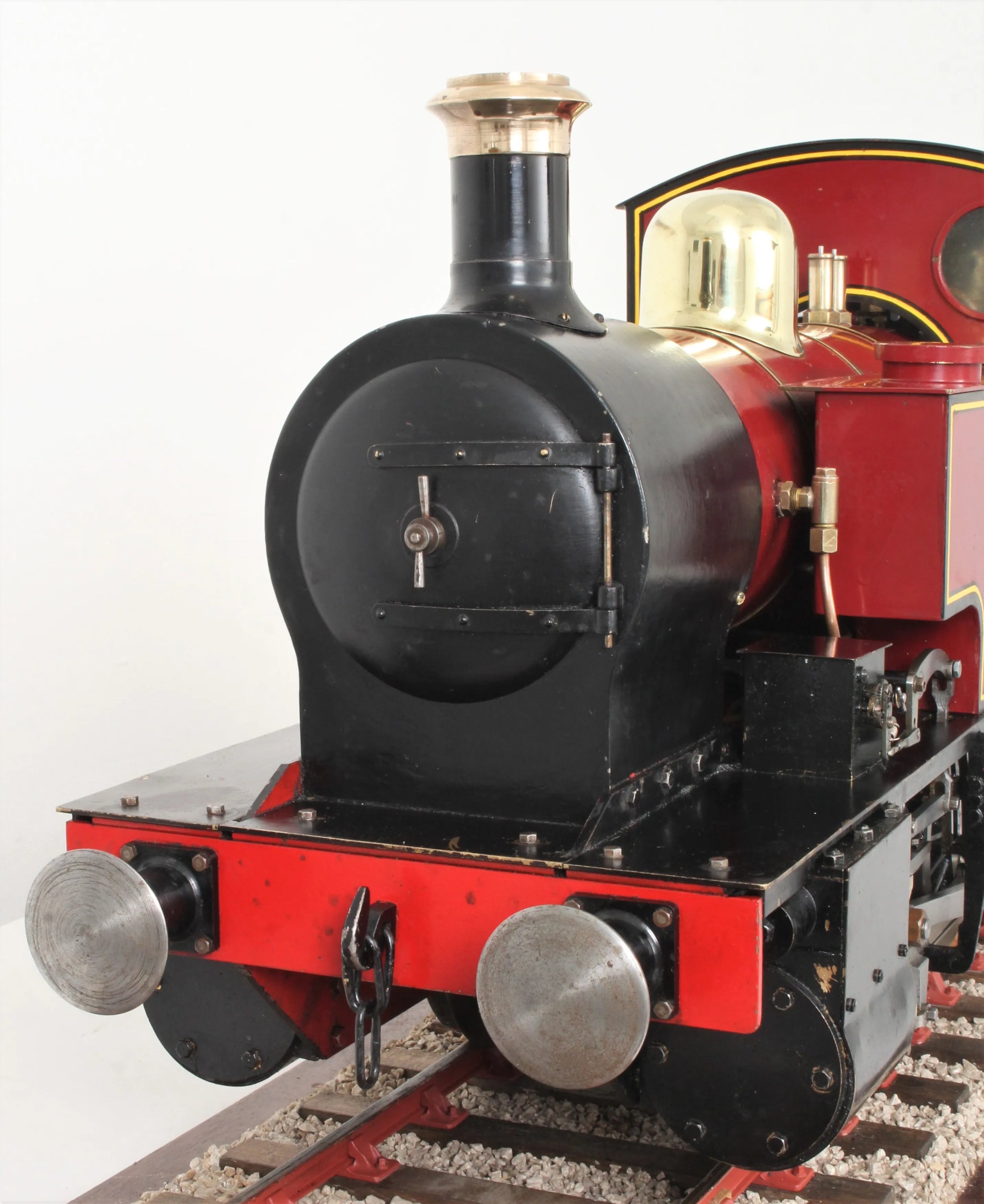

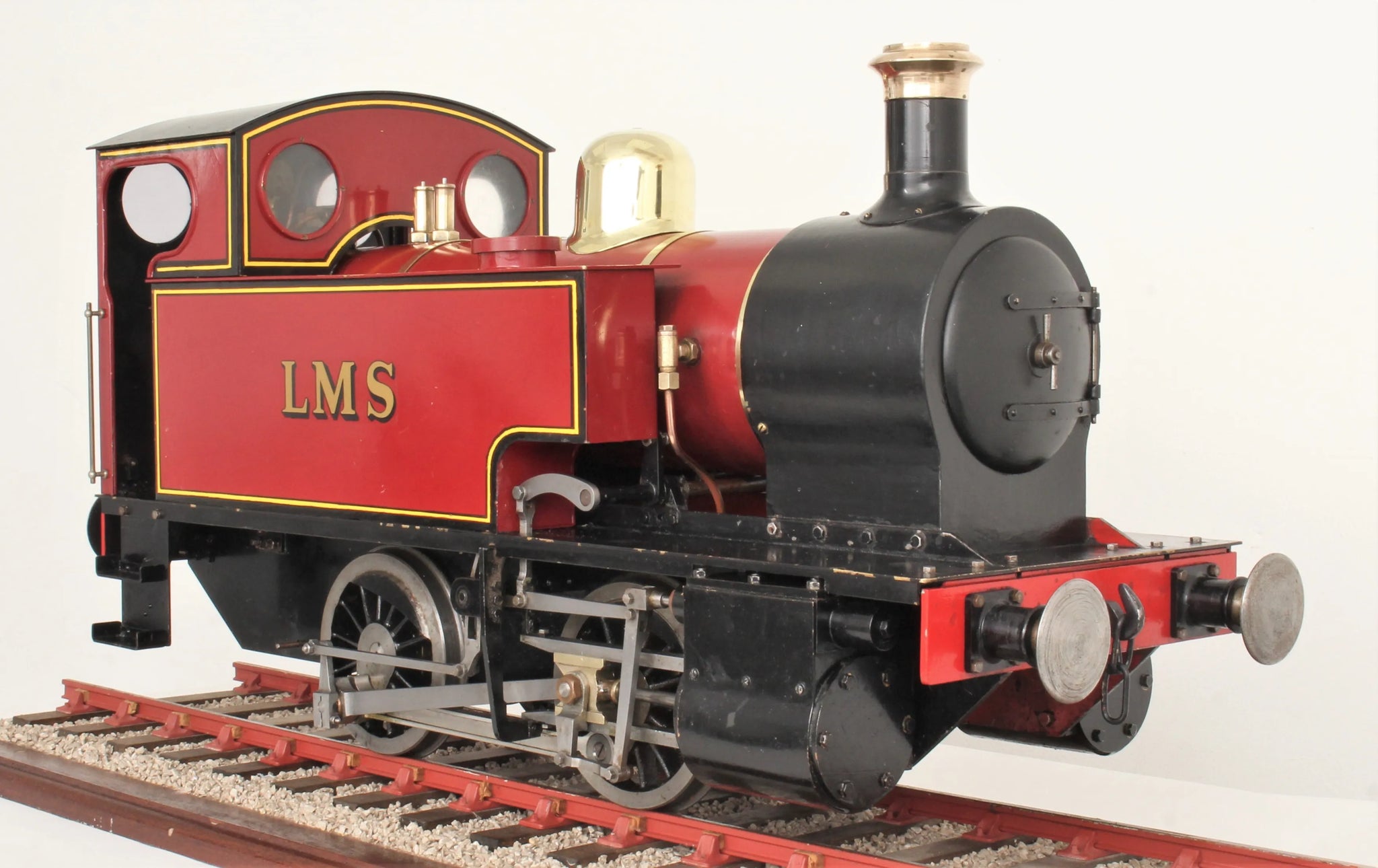

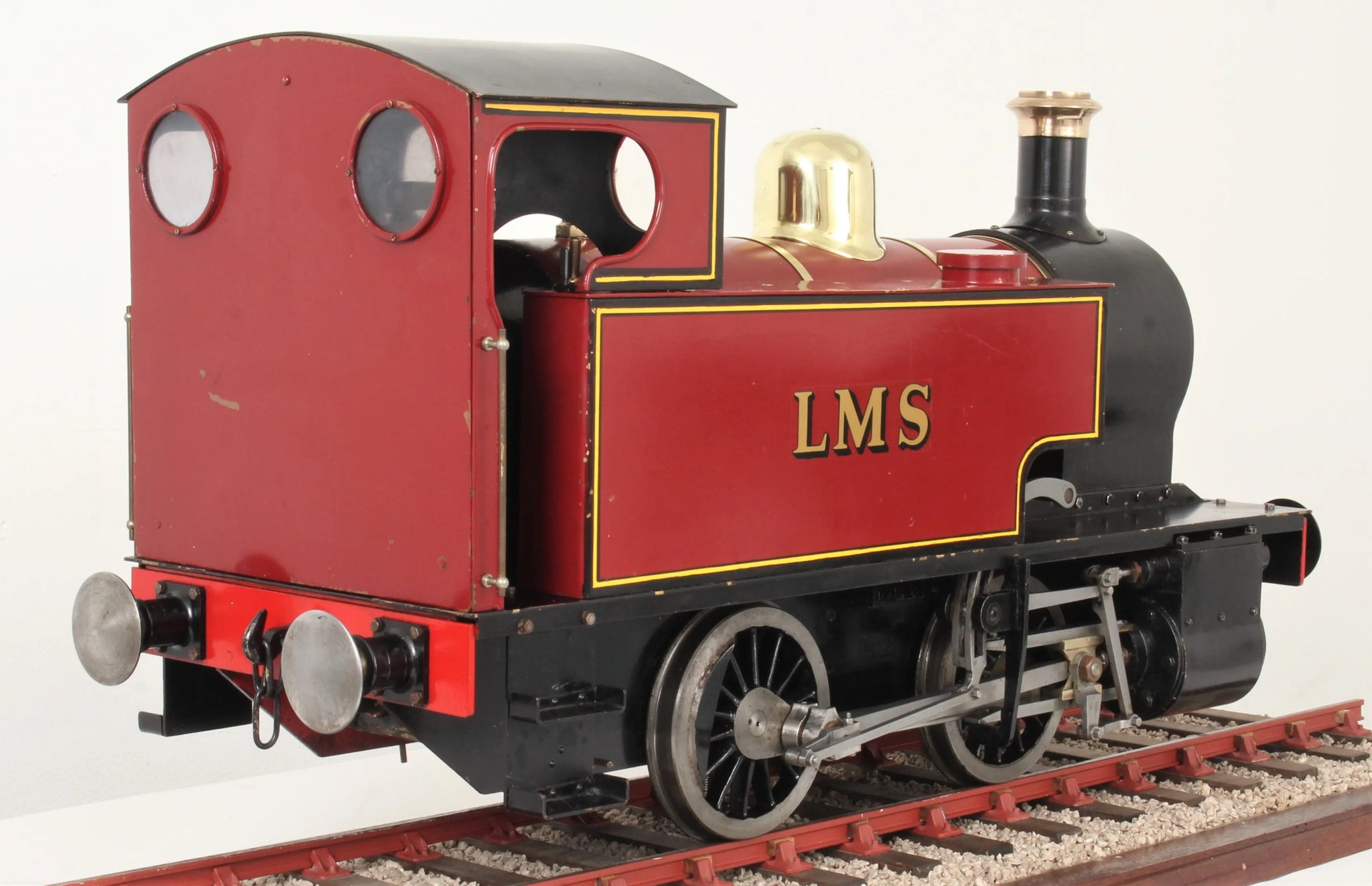

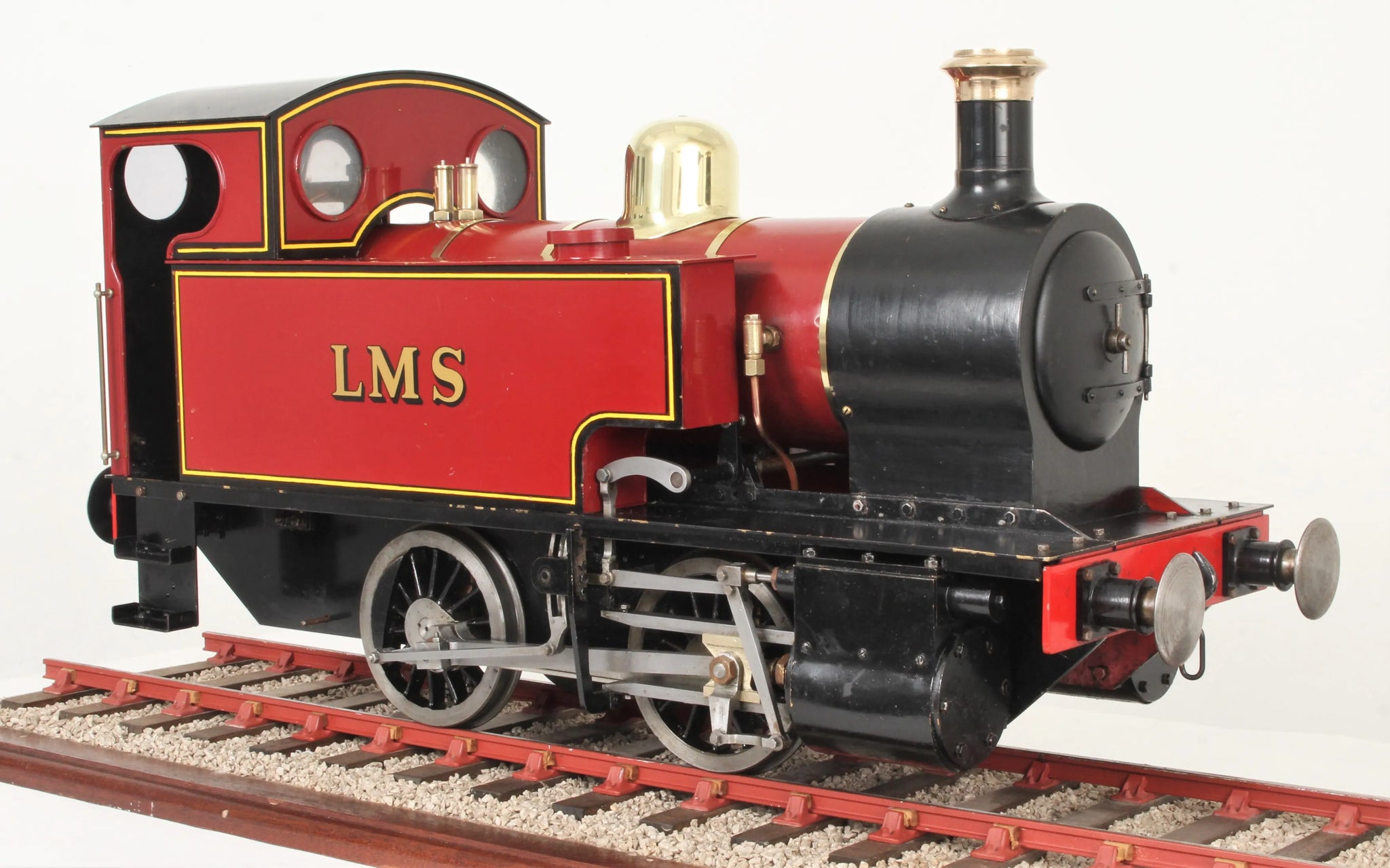

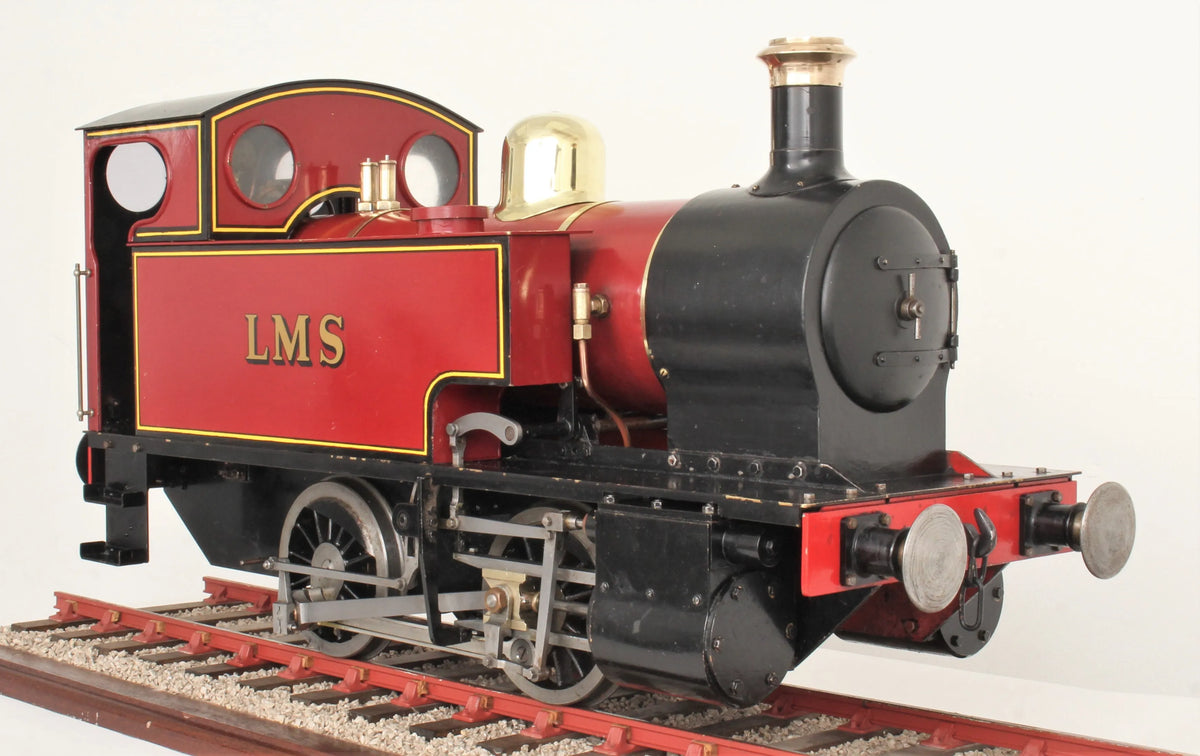

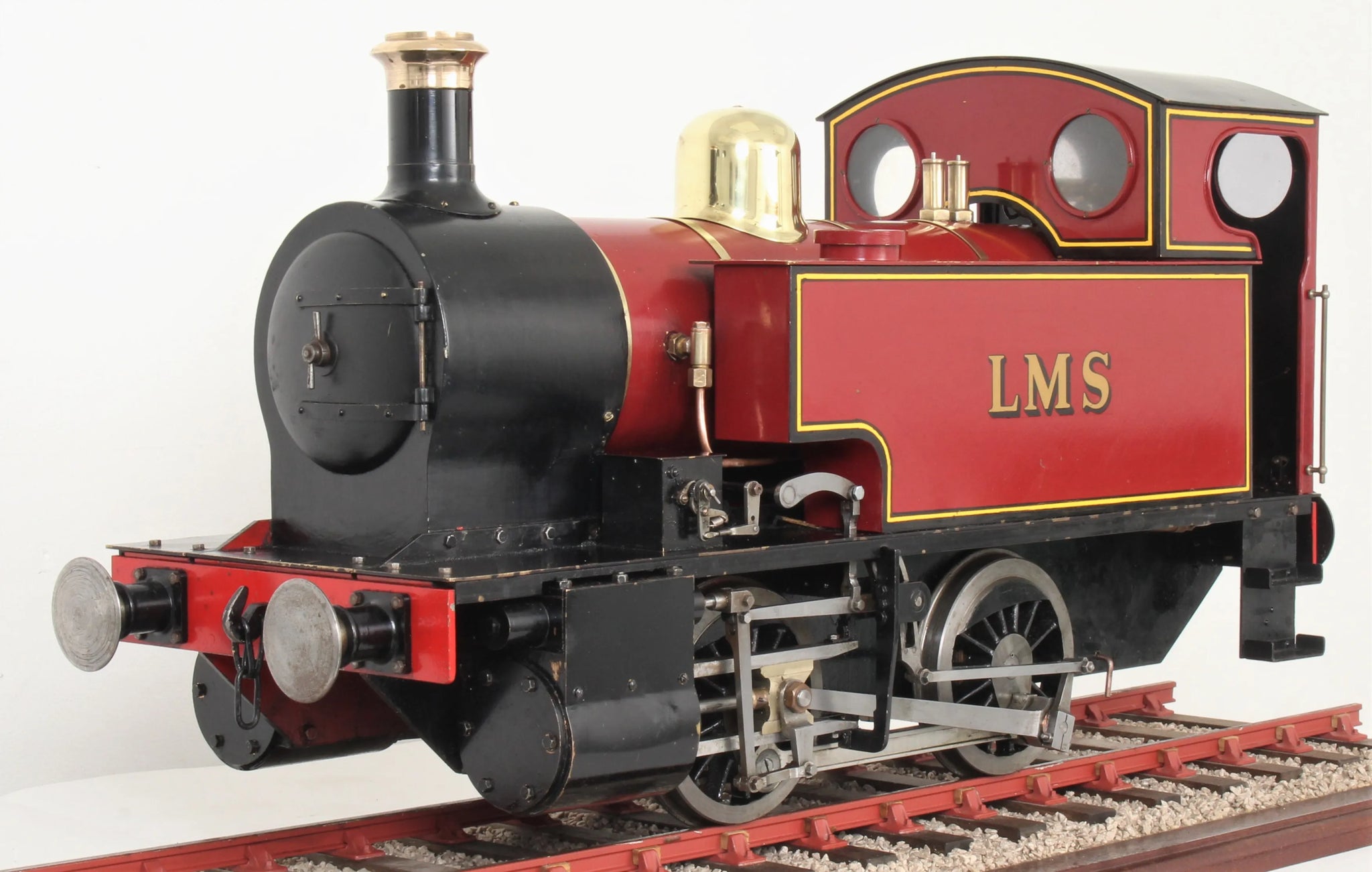

5 inch gauge "Ajax" 0-4-0T

A well built and attractively finished 0-4-0T to Dick Simmonds' "Ajax" design.

An older engine, it appears unsteamed in recent years. The engine runs on air, however it needs a variety of jobs to recommission for steaming, including:

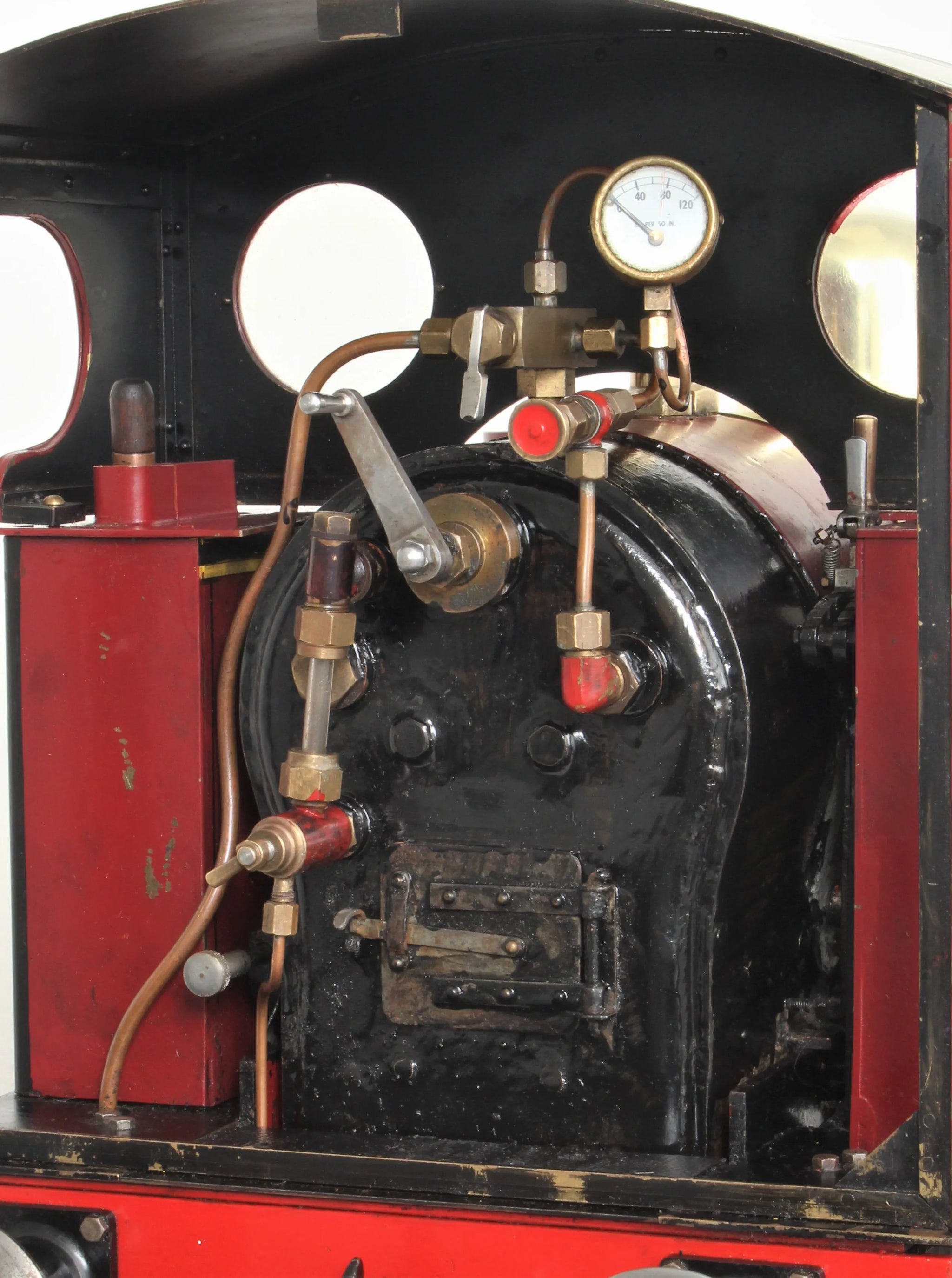

  • Re-seating clack valves
  • Hand pump requires freeing off and broken handle replacing
  • Safety valves need servicing/replacement
A worthwhile project - a pretty engine, the design has proved a capable performer with many examples built.

Technical information

Stock code

8994

Gauge

5 inch

Length/inches

28.5

Width/inches

10

Height/inches

14.5

Cylinder material

cast iron

Valve type

slide

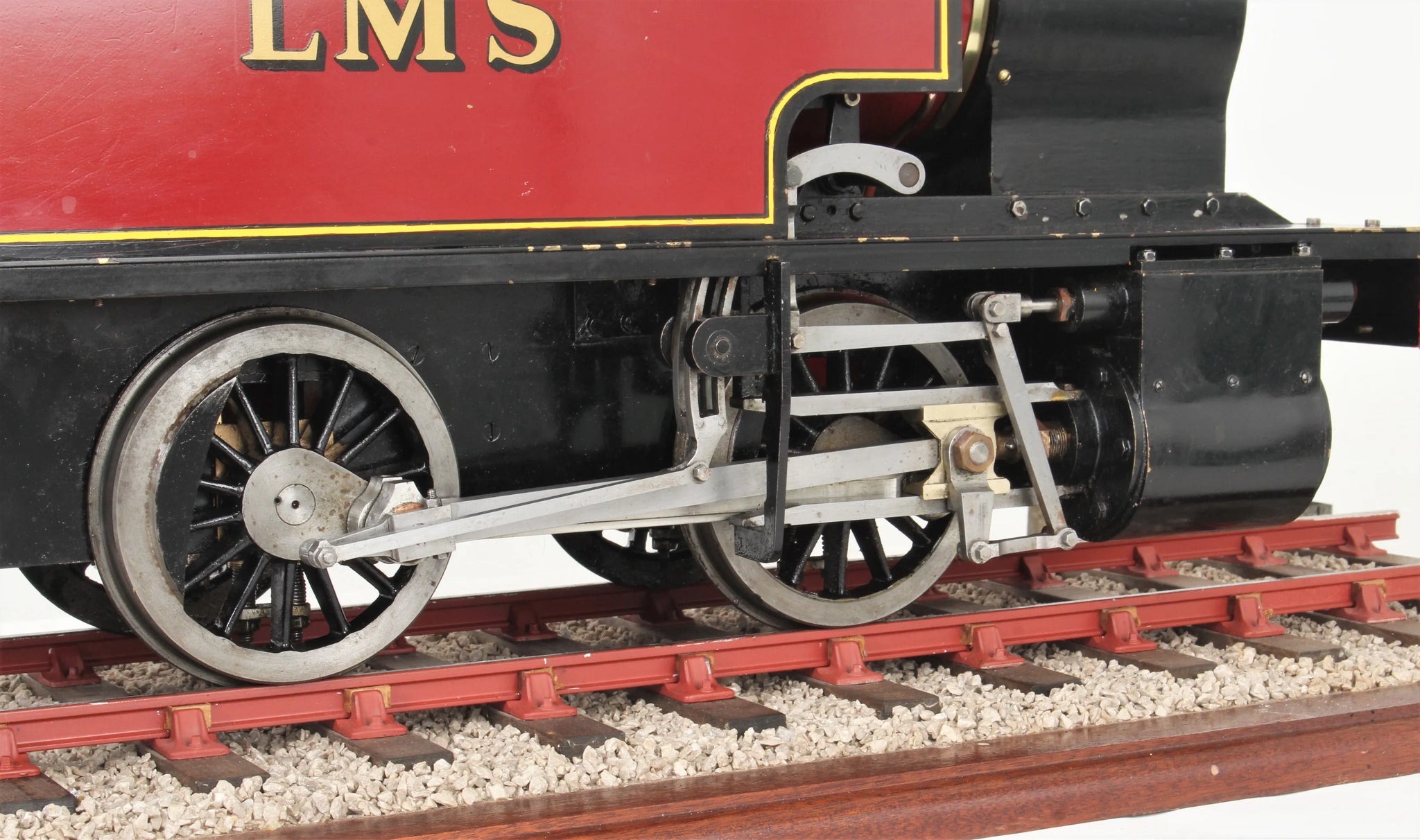

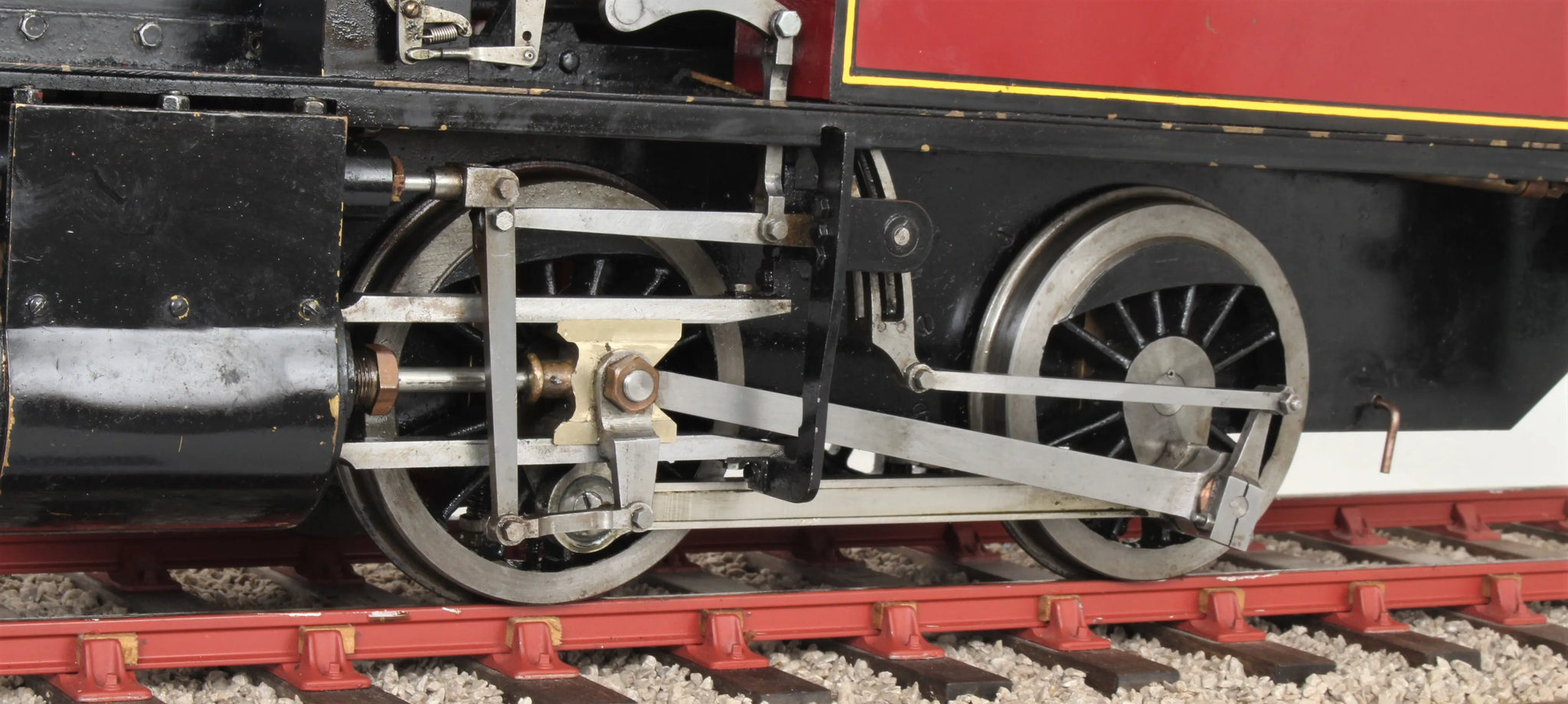

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler material

copper

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

3

Date out

Jul-22

Hydraulic test valid to

10-Feb-24
