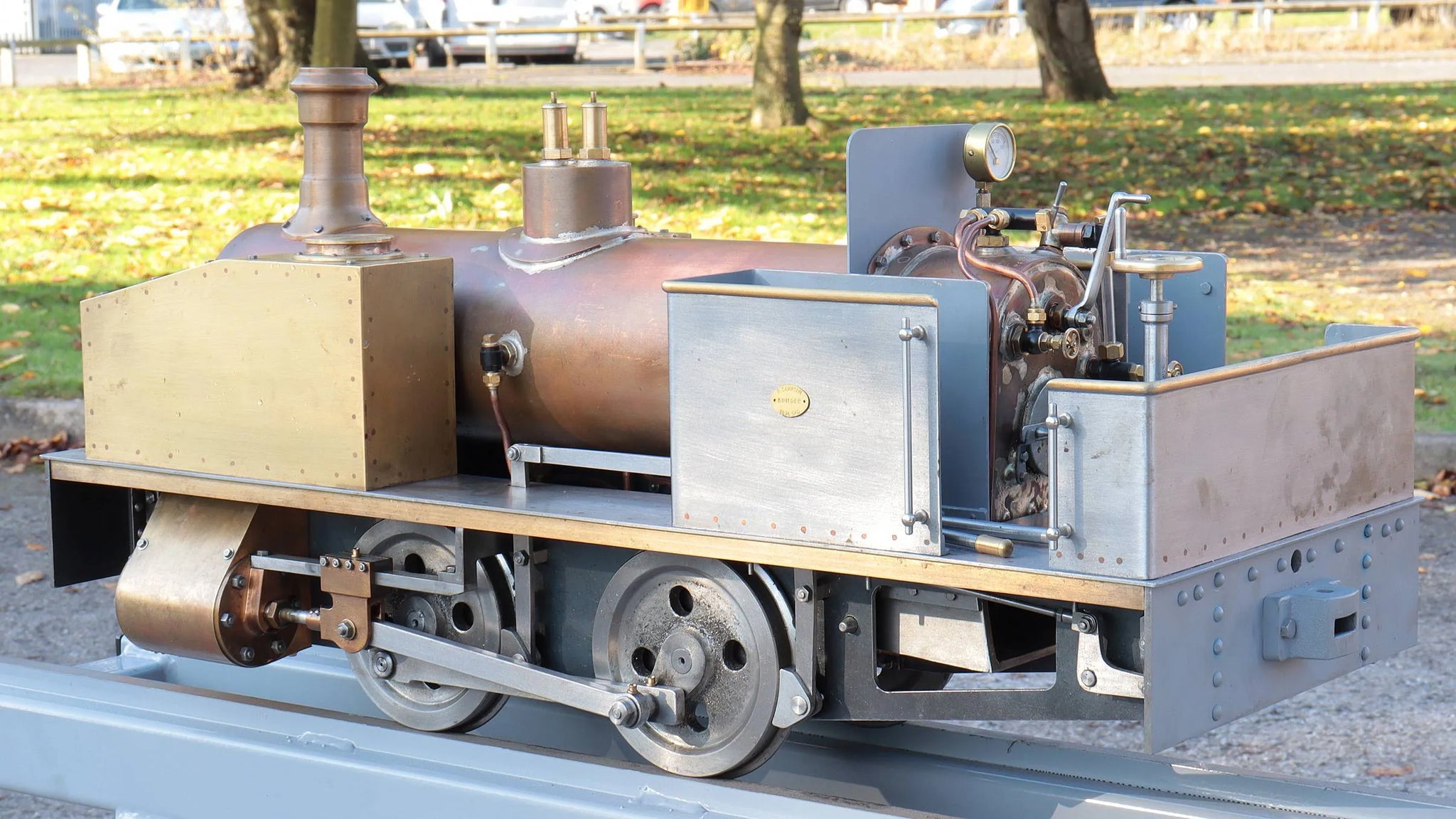

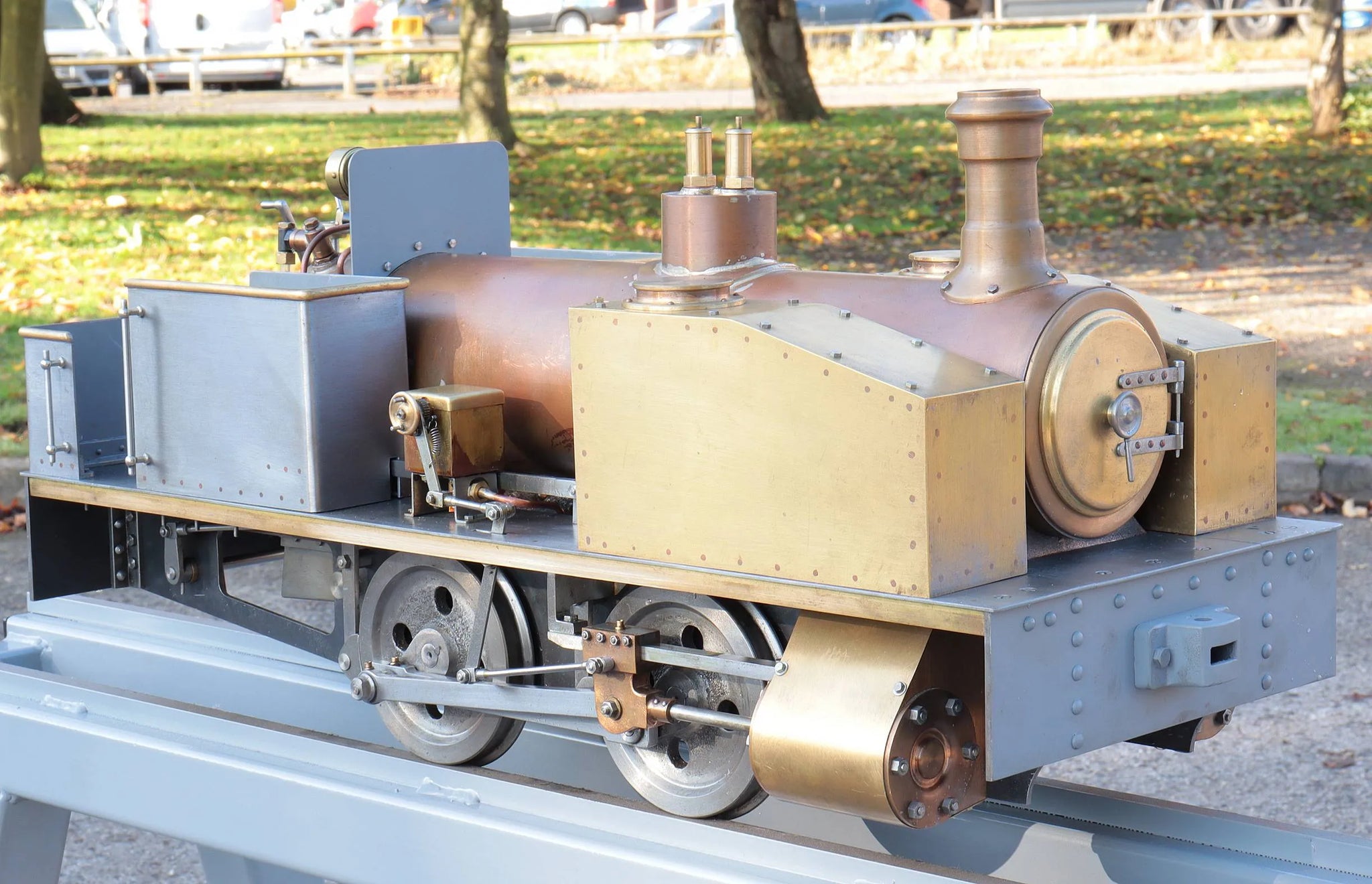

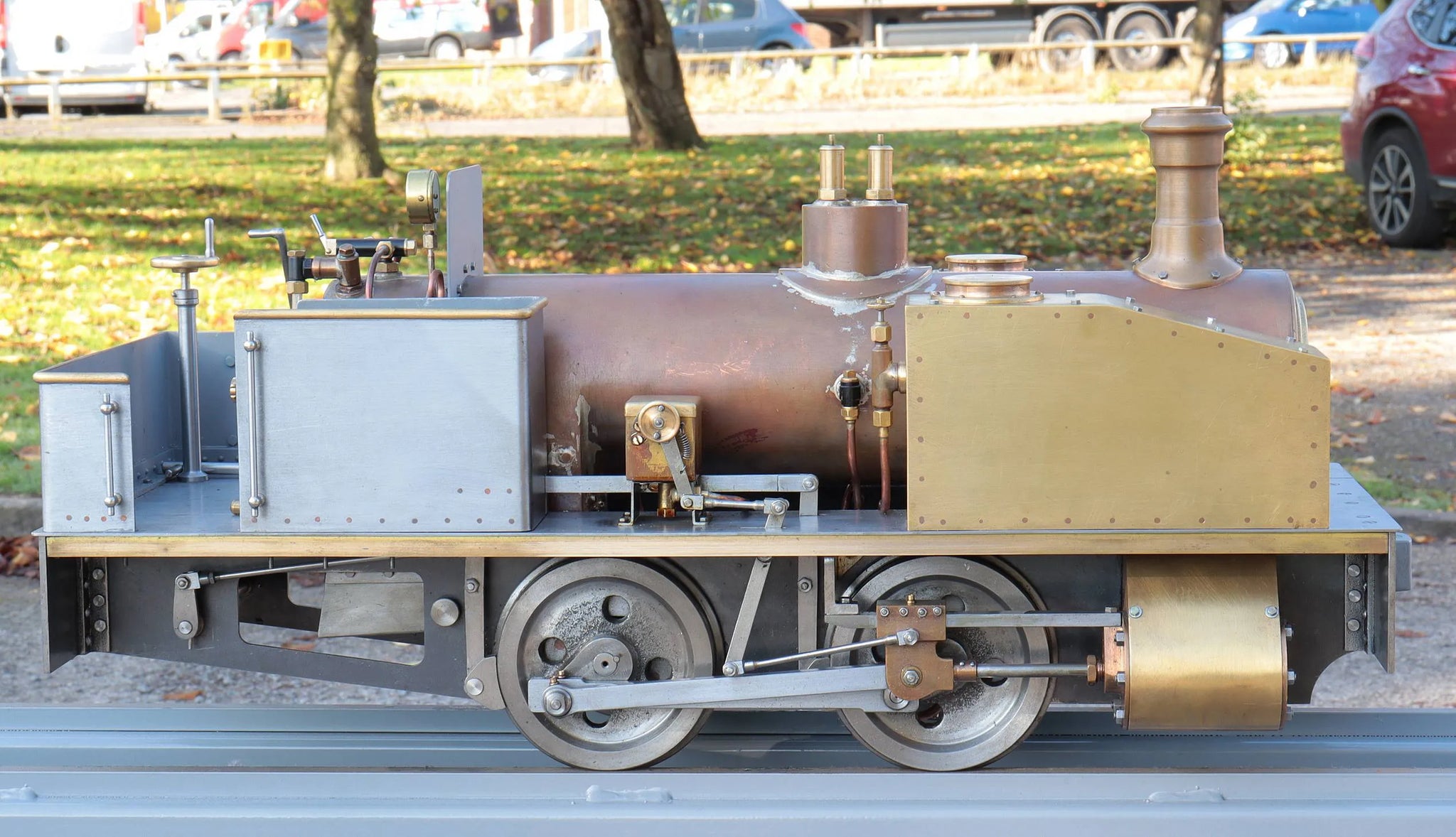

5 inch gauge Andrew Barclay 0-4-0T

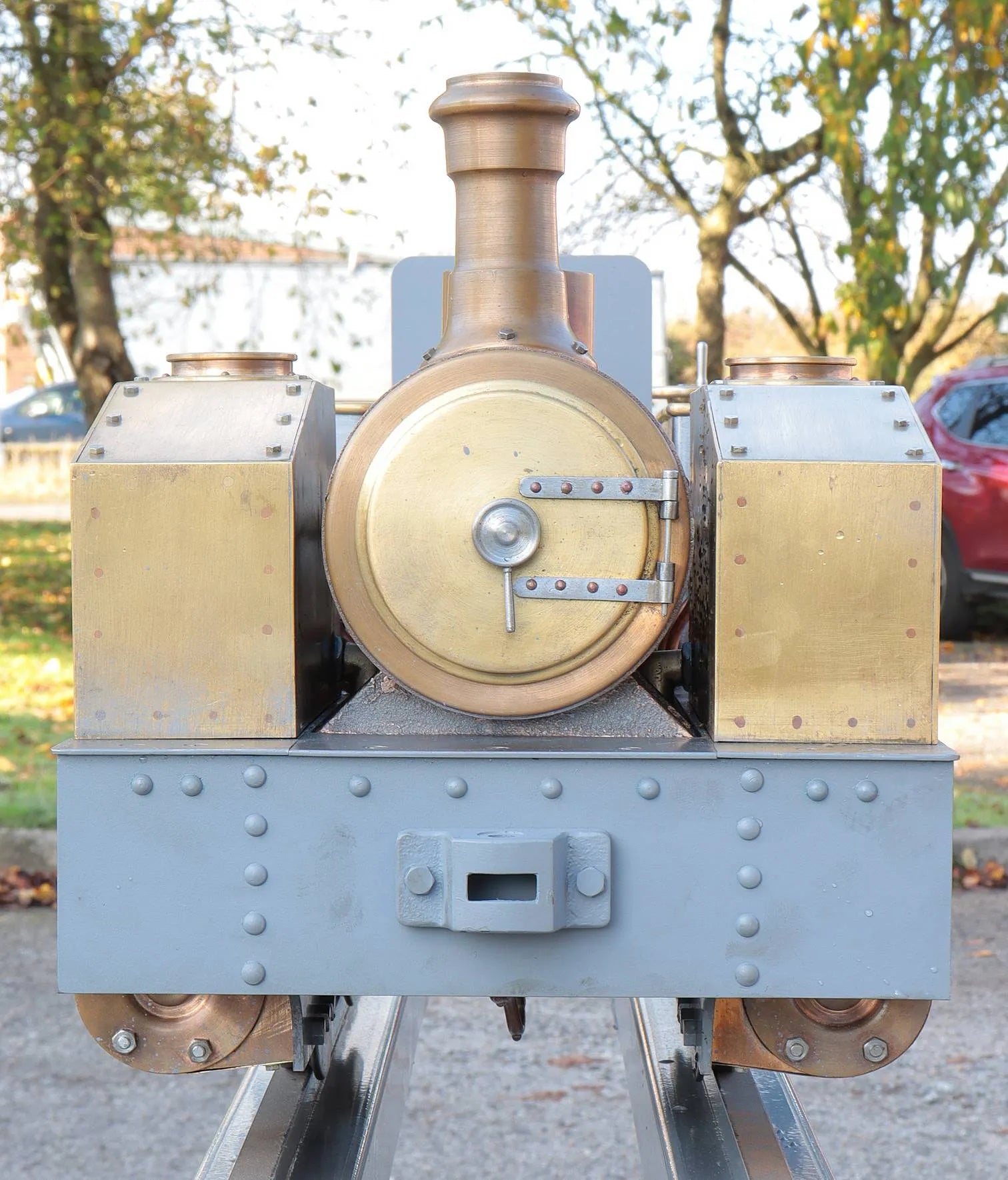

A finely made 5 inch gauge Andrew Barclay 0-4-0, originally built for Provan Gas Works in 1946 - hence the cut down loading gauge - and latterly preserved at the Welshpool & Llanfair Railway.

The work of an experienced builder, with a Stirling Single, 0-6-0T "Achilles" and restoration of a 5 inch Beyer-Peacock Isle of Man locomotive to his credit.

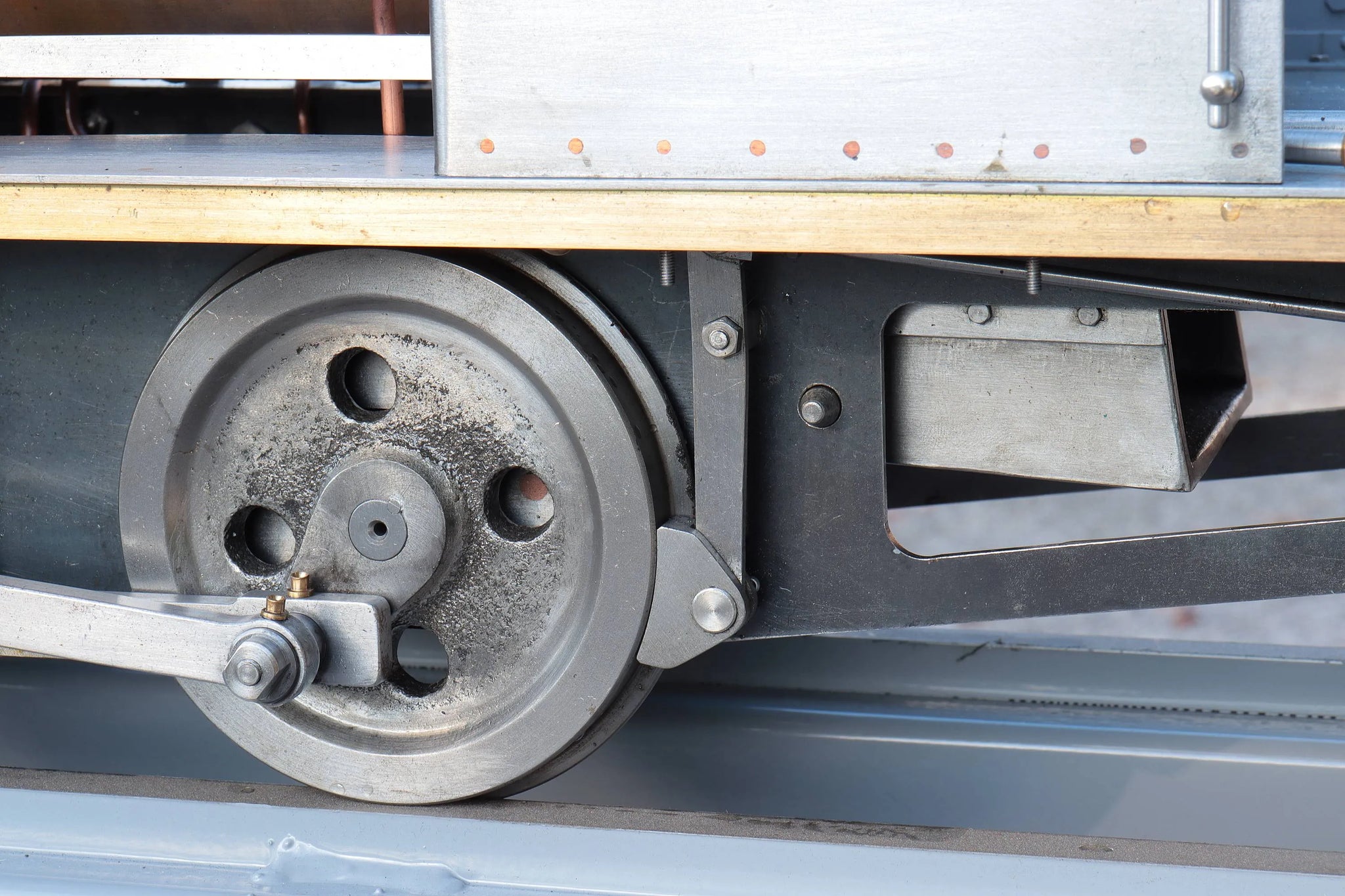

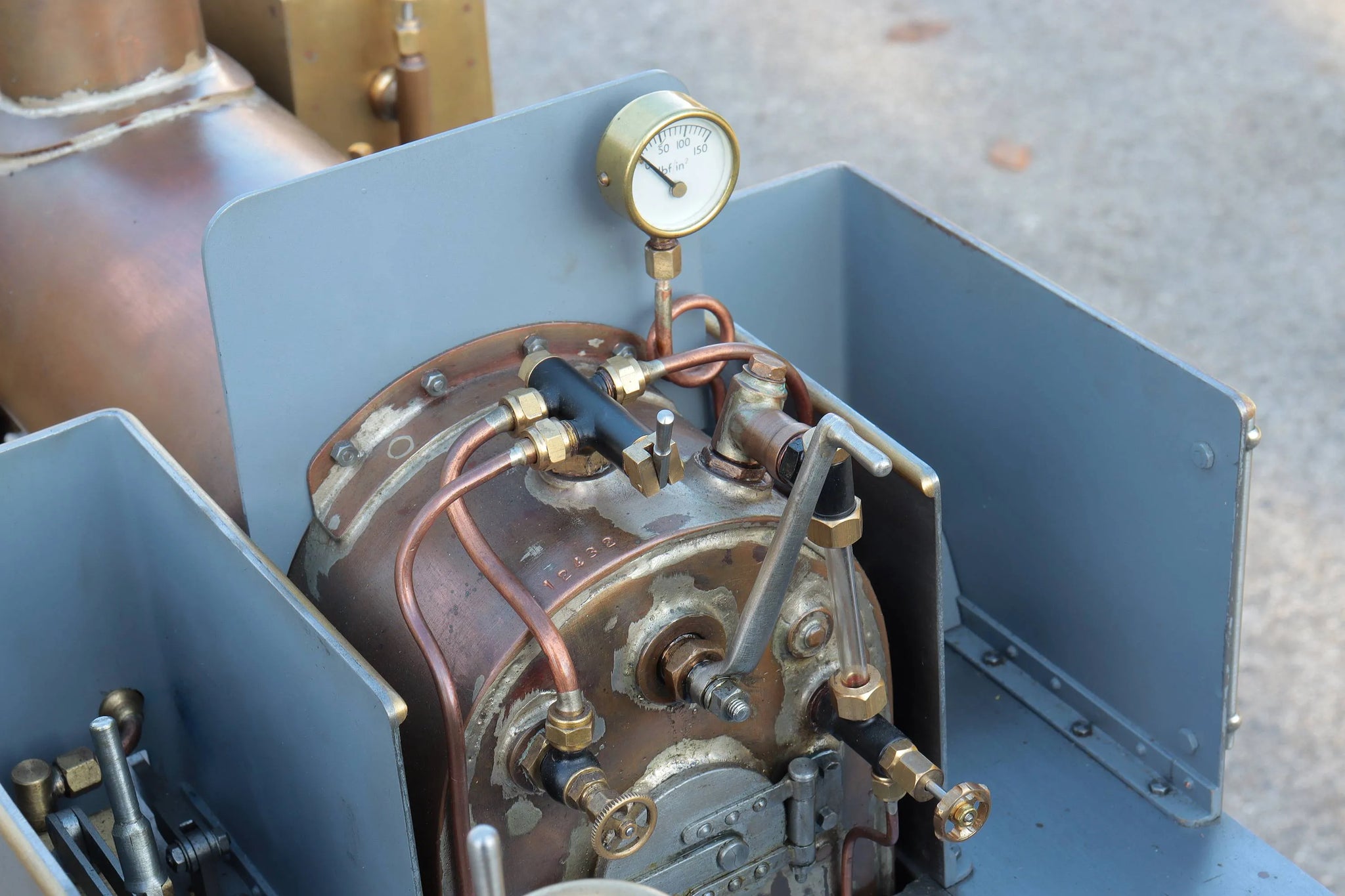

Work to date is to a high standard; fit and finish of machined parts is good, the silver soldered copper boiler has had a twice working pressure hydraulic test for 80psi working, with certification issued for same.

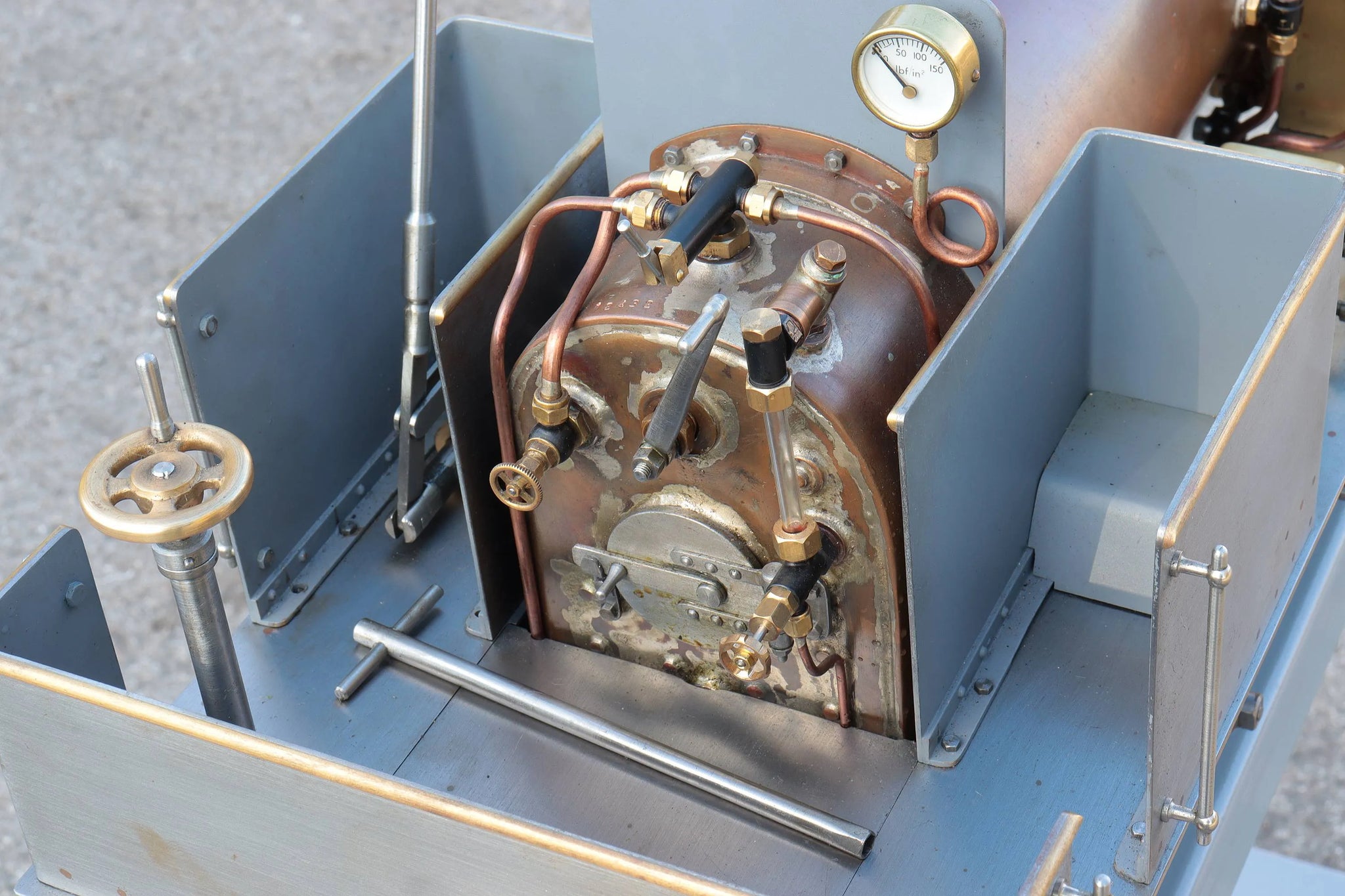

The footplate mounted handpump has a beautifully turned detachable handle. An extended key is provided which fits through a hole in the rear buffer beam to open and close the blowdown valve - very convenient, we only wish more builders were so thoughtful!

The locomotive requires minor finishing work and painting, it has the potential to make a fine model.

Technical information

Stock code

12432

Gauge

5 inch

Length/inches

25

Width/inches

10

Height/inches

12

Weight/Kg

30

Wheel material

cast iron

Axlebox type

plain bearing

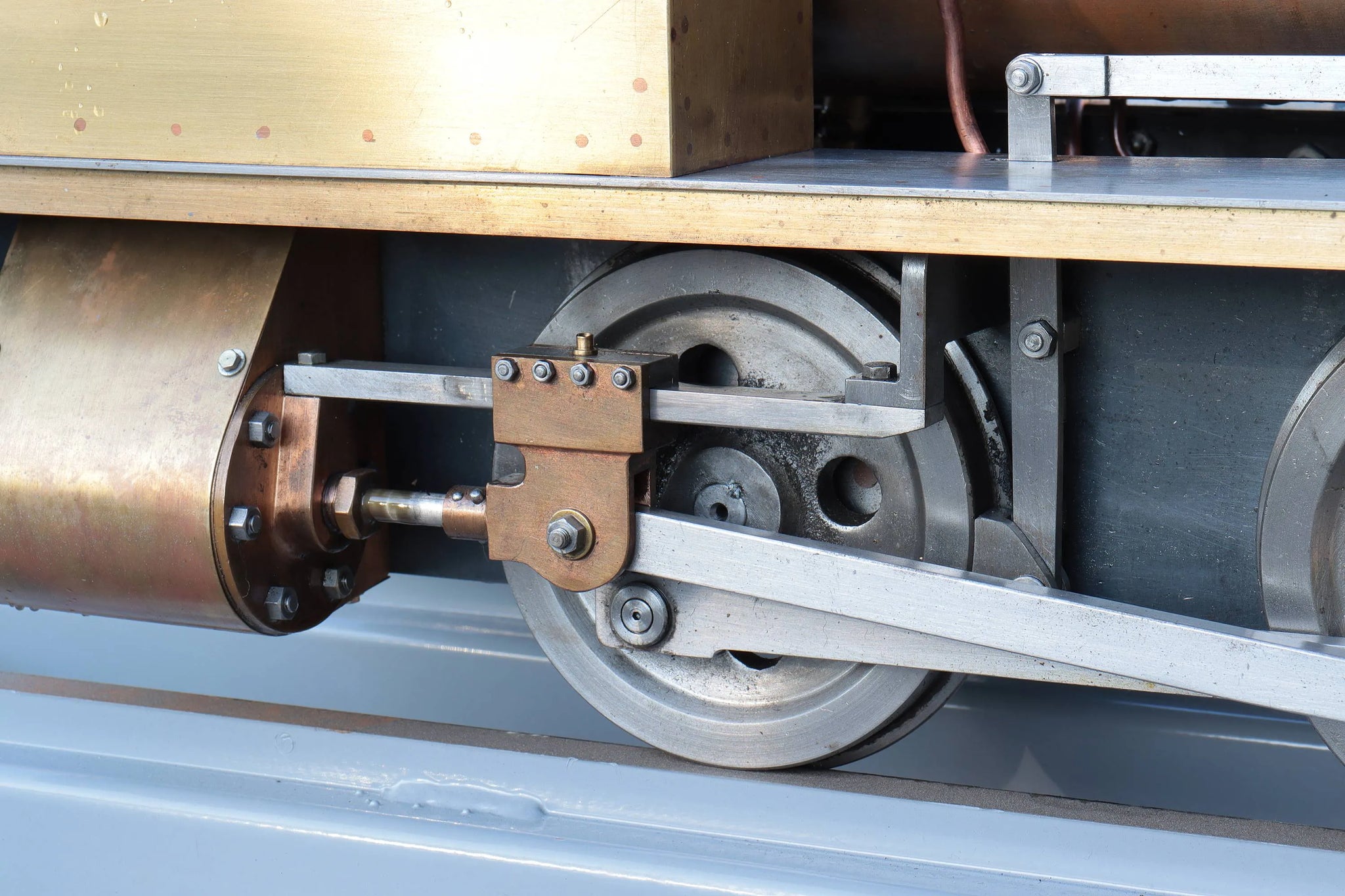

Cylinder material

cast iron

Valve type

slide

Valve gear

slip eccentric

Lubricator type

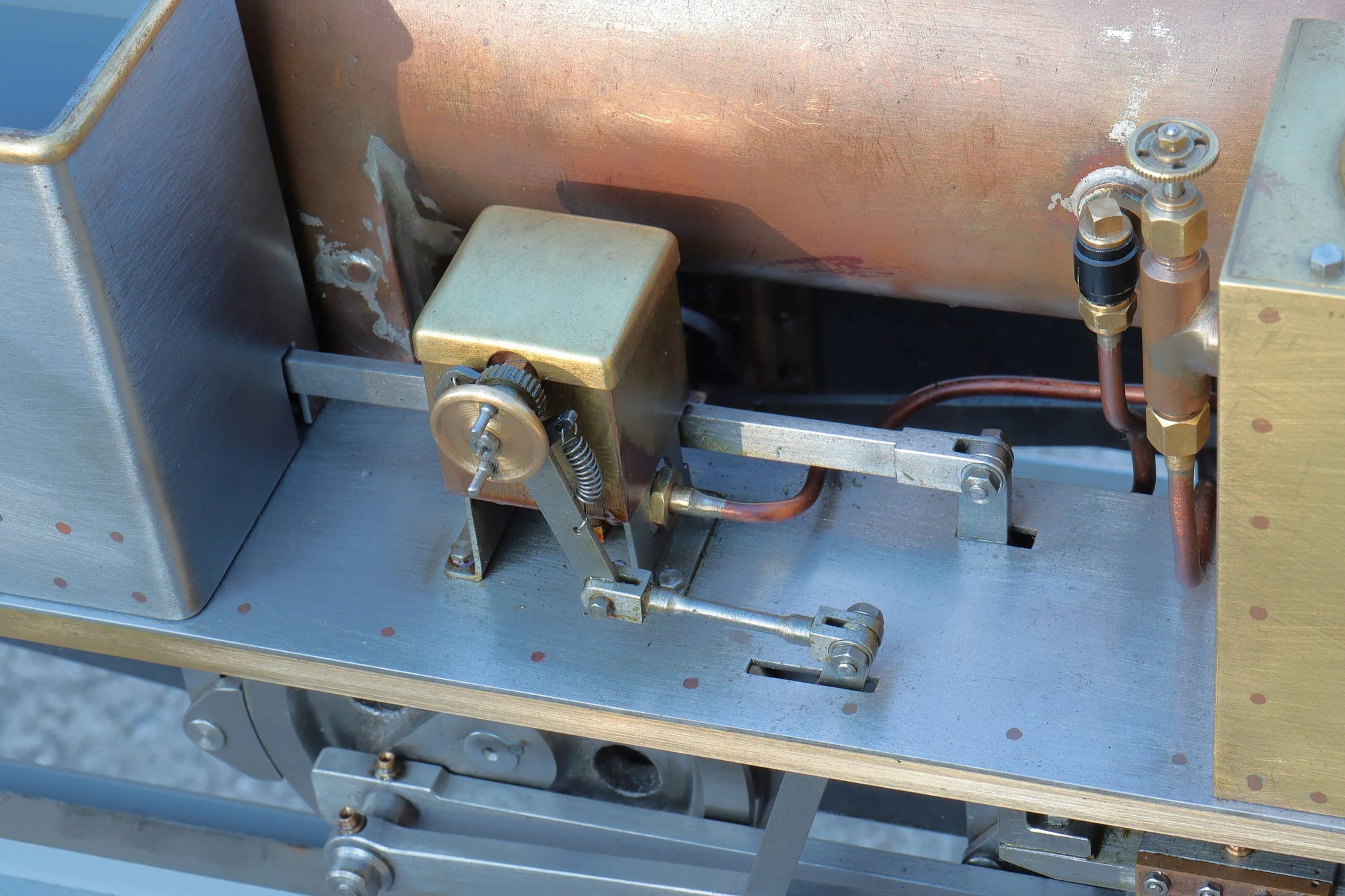

mechanical

Boiler maker

R Sampson

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

12342

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Date out

May-25

Hydraulic test valid to

23-Oct-28
