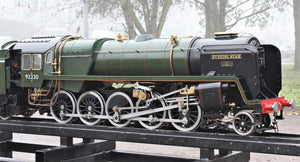

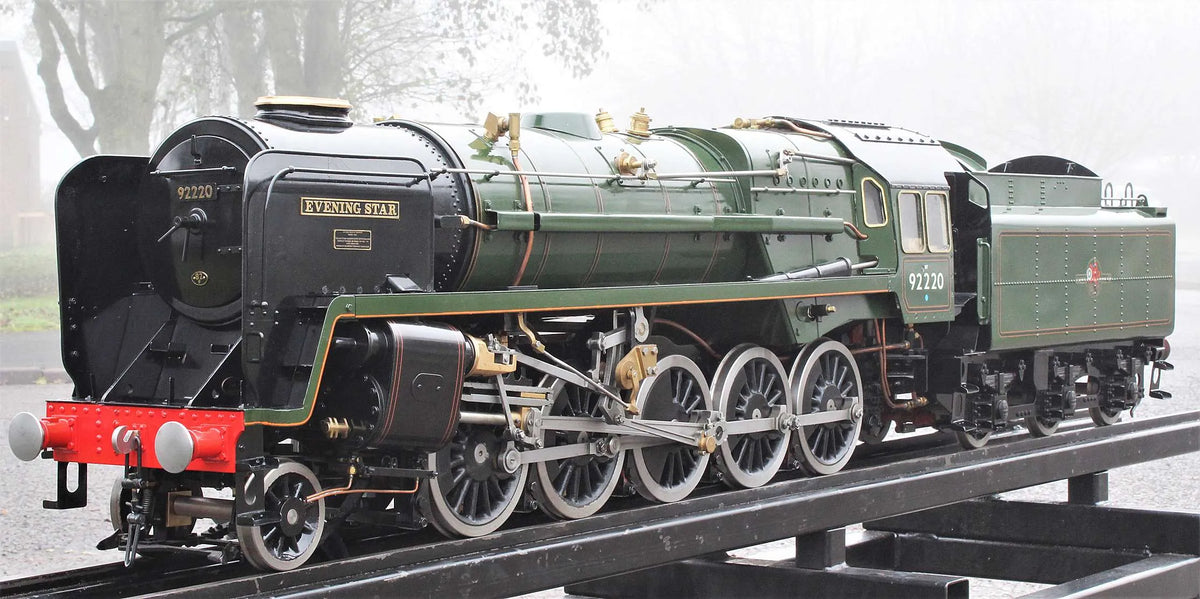

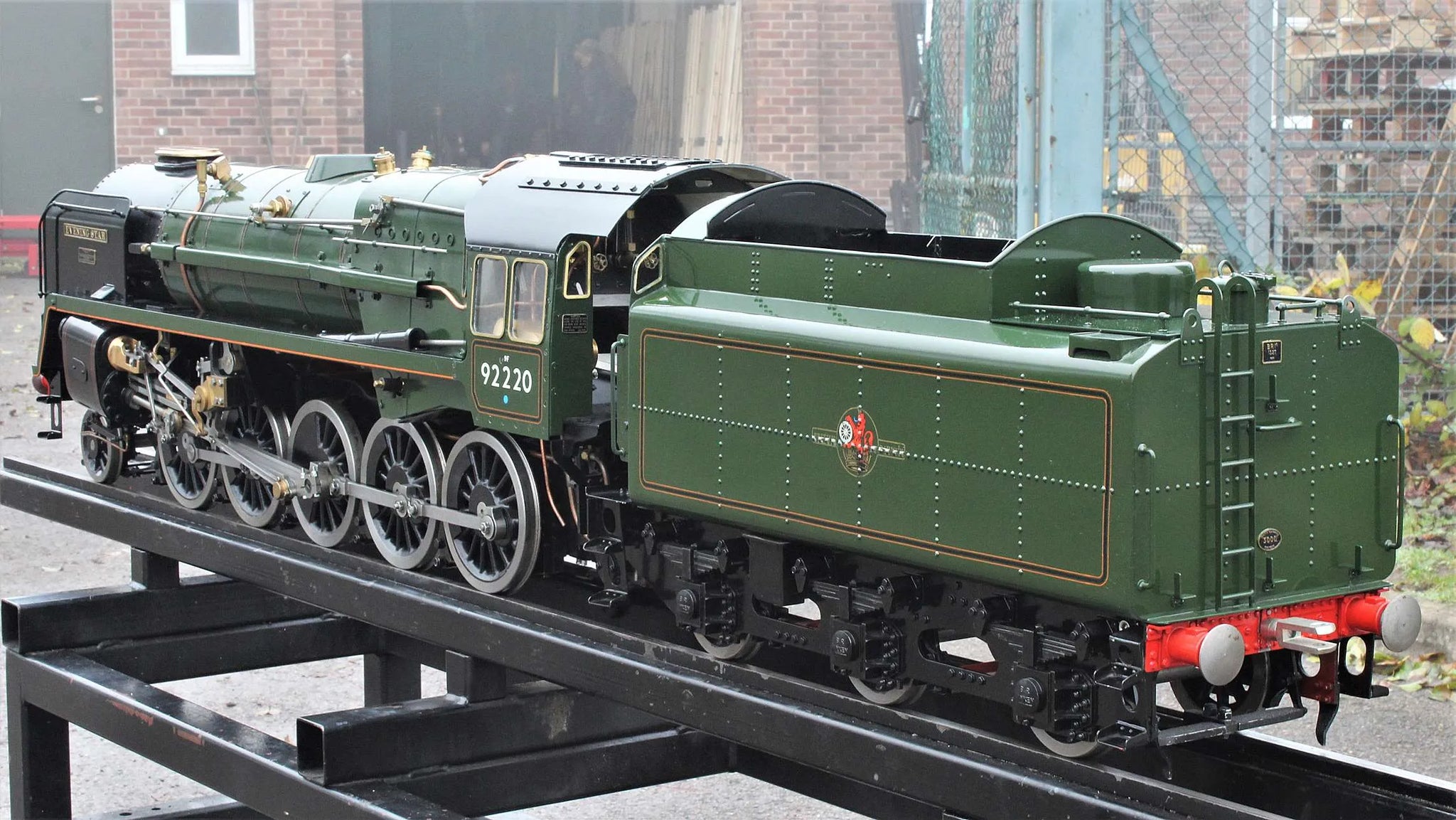

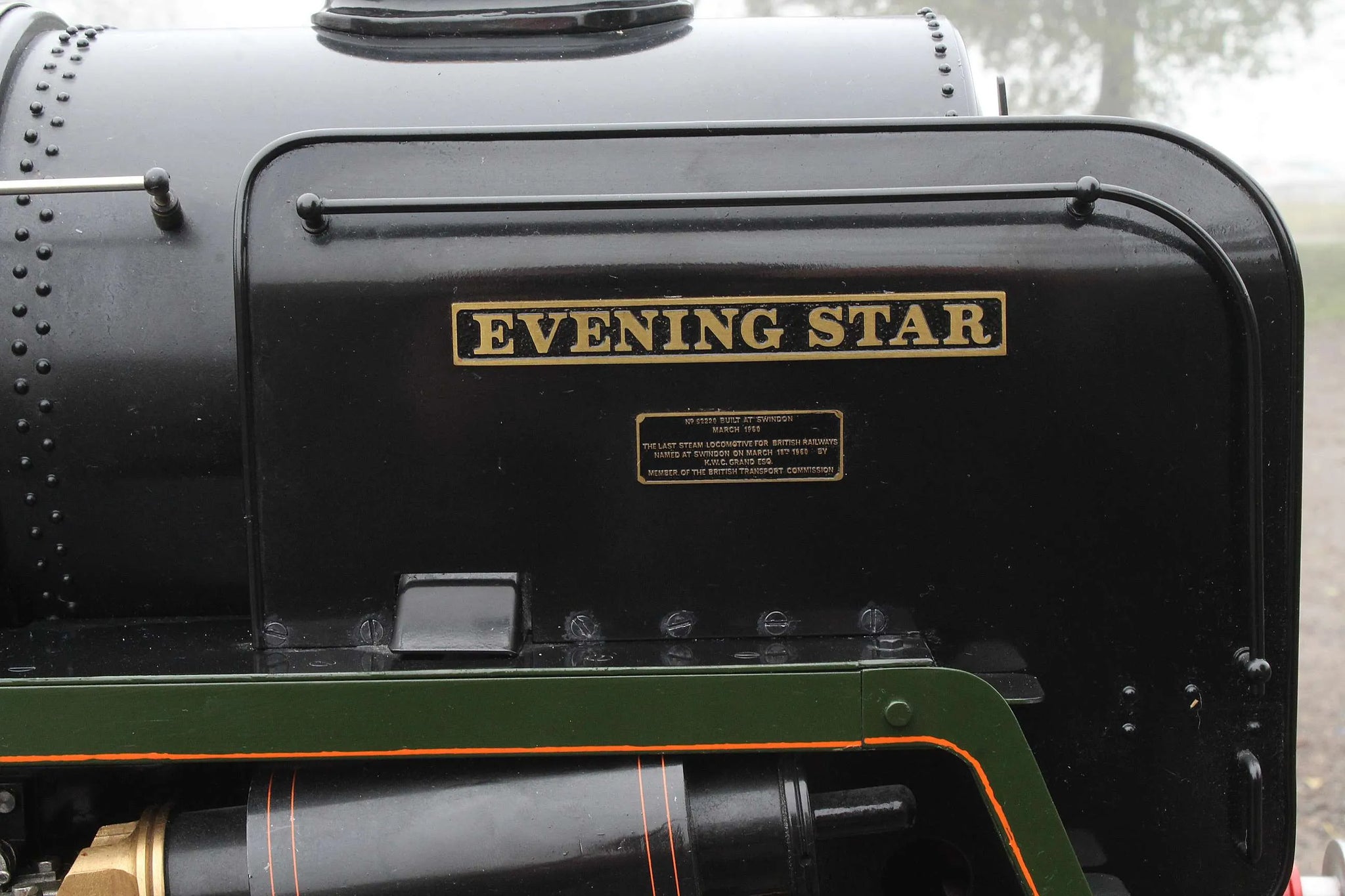

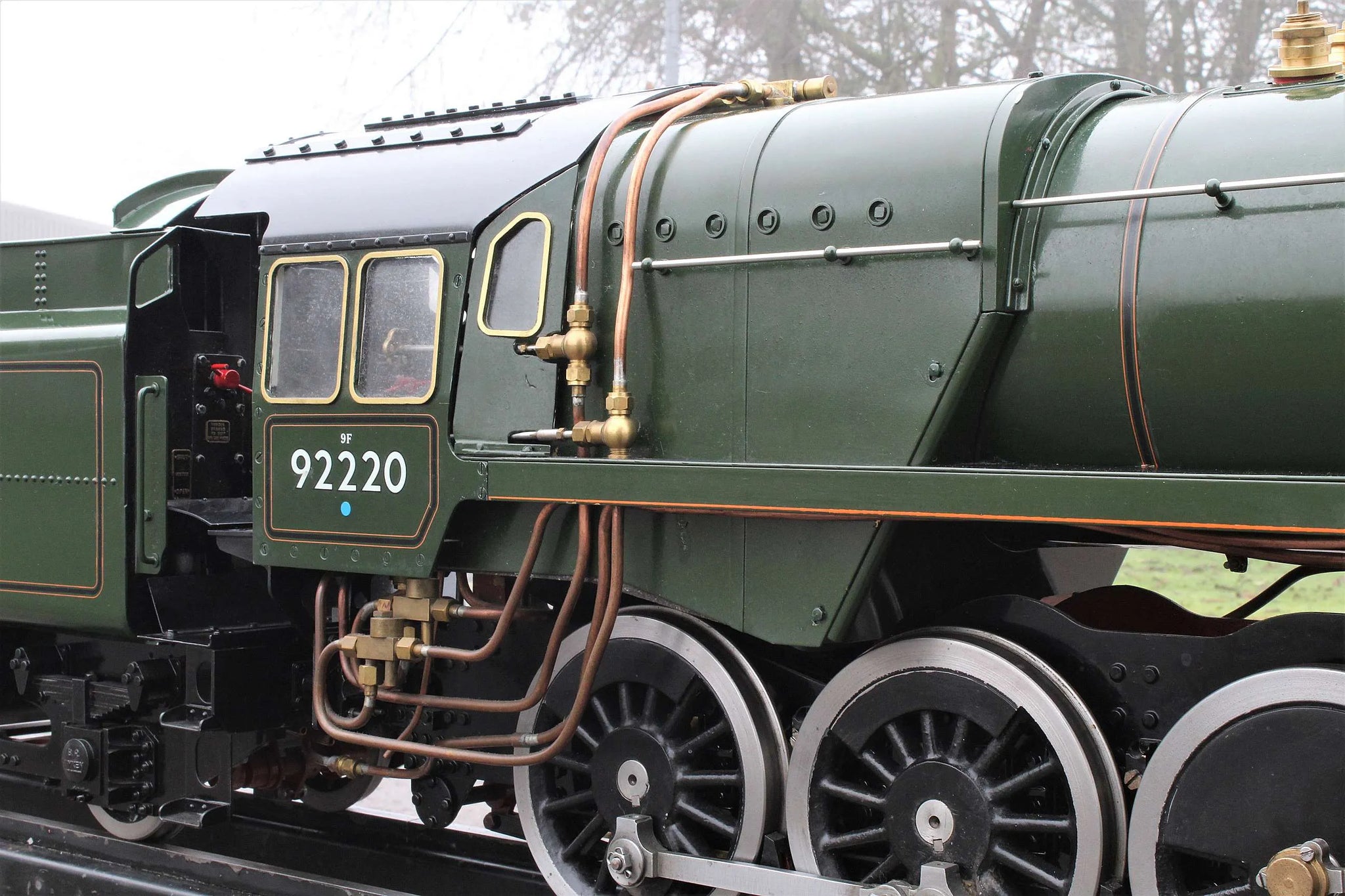

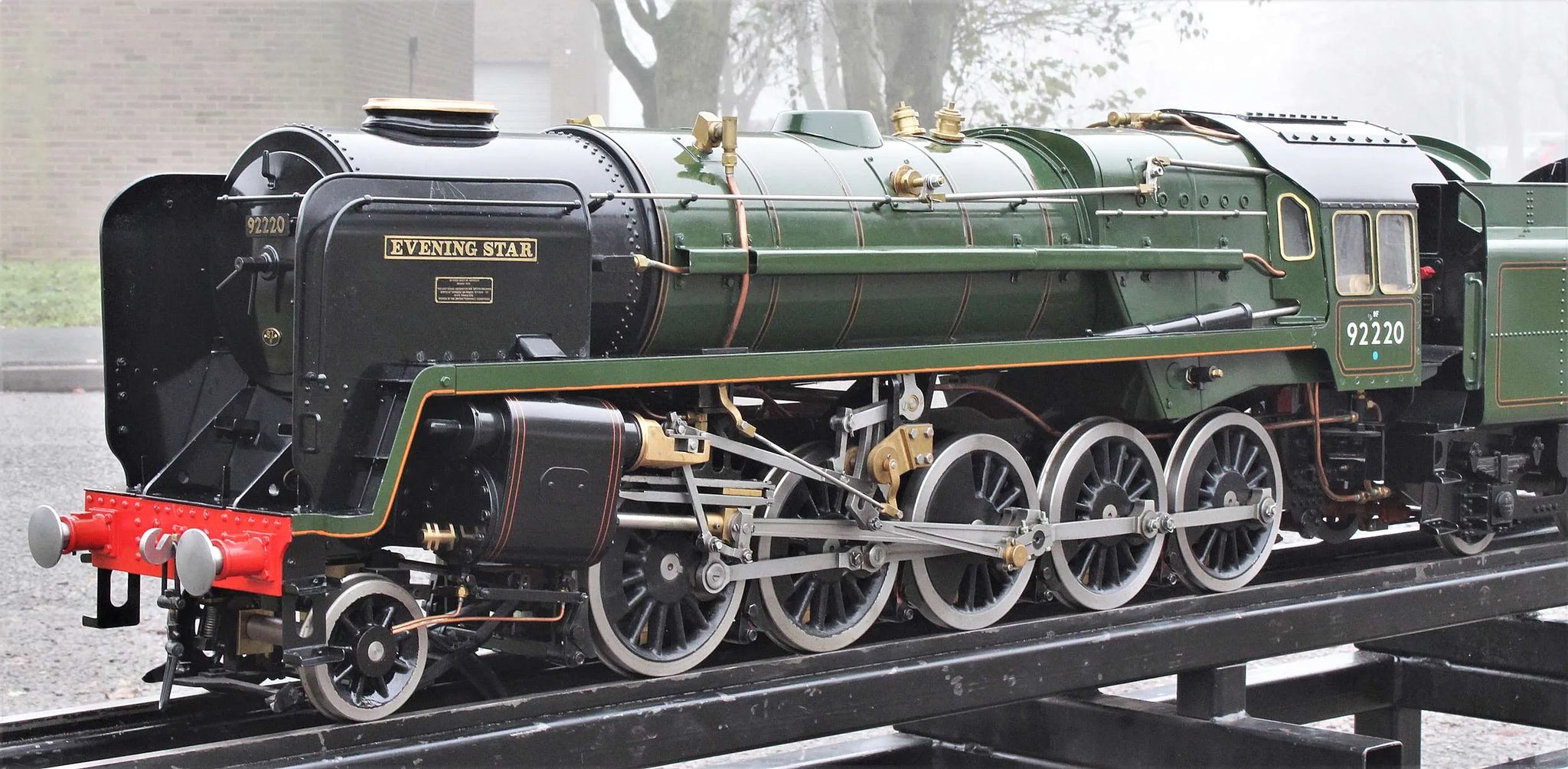

5 inch gauge BR 9F 2-10-0 "Evening Star"

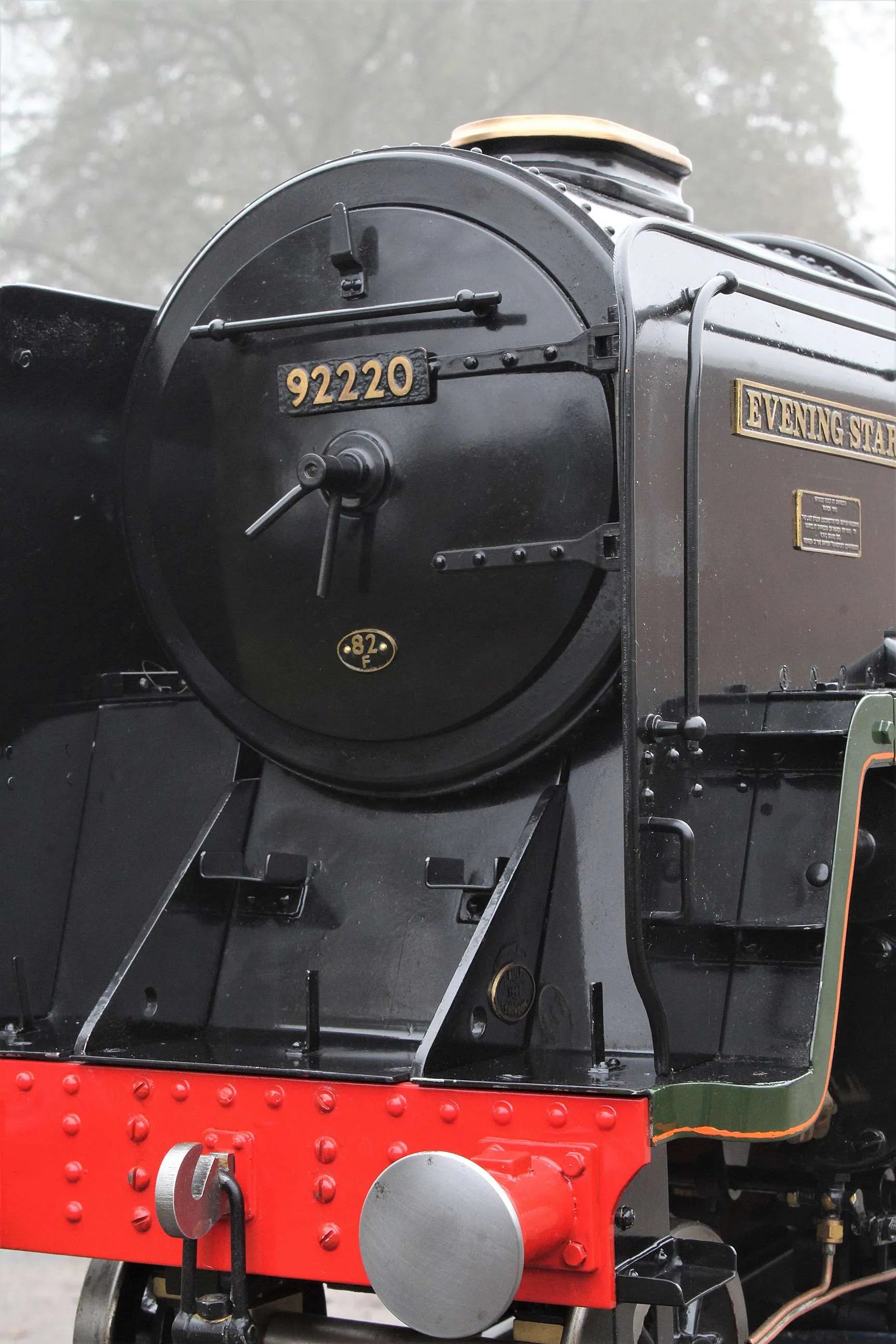

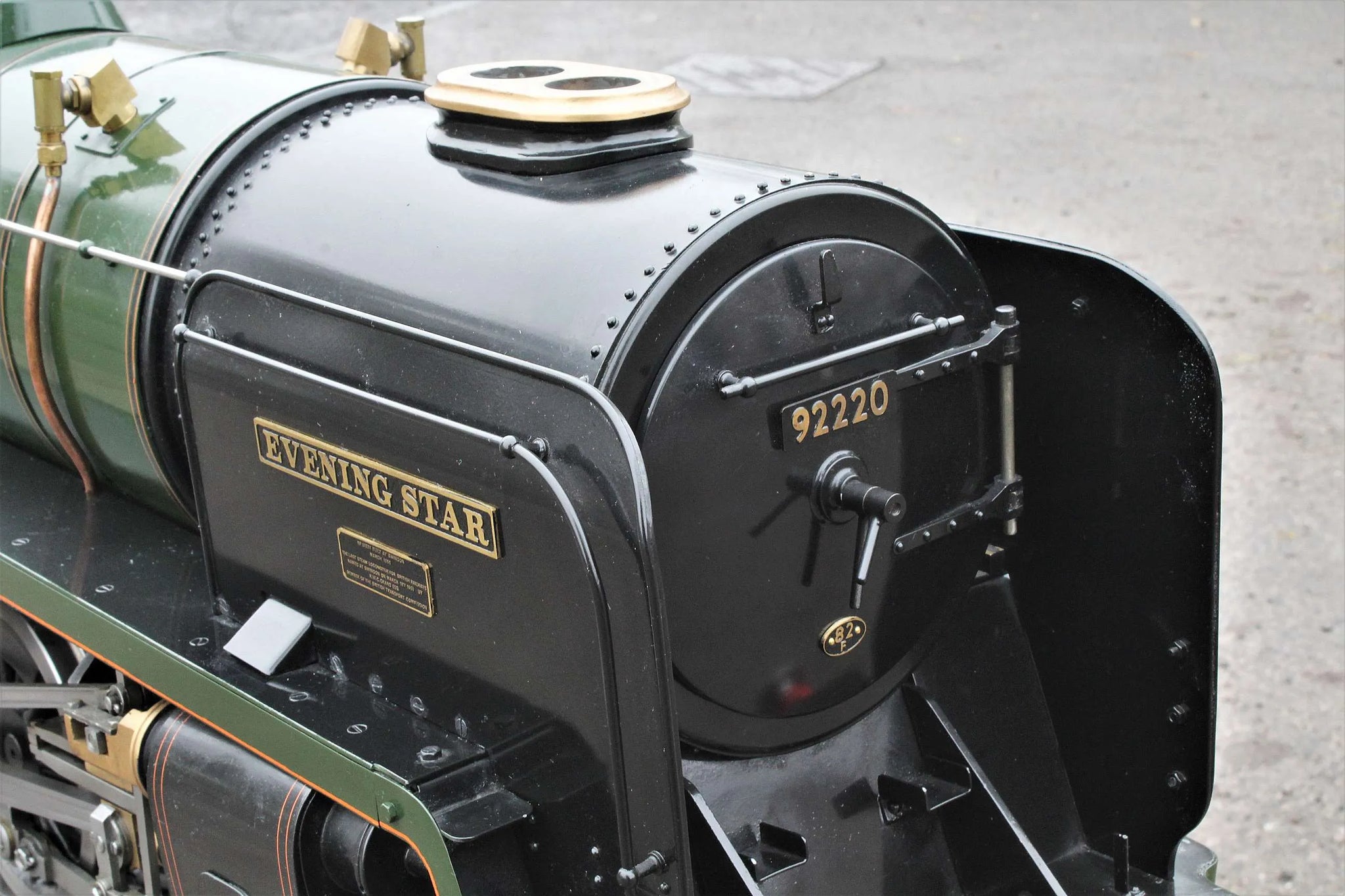

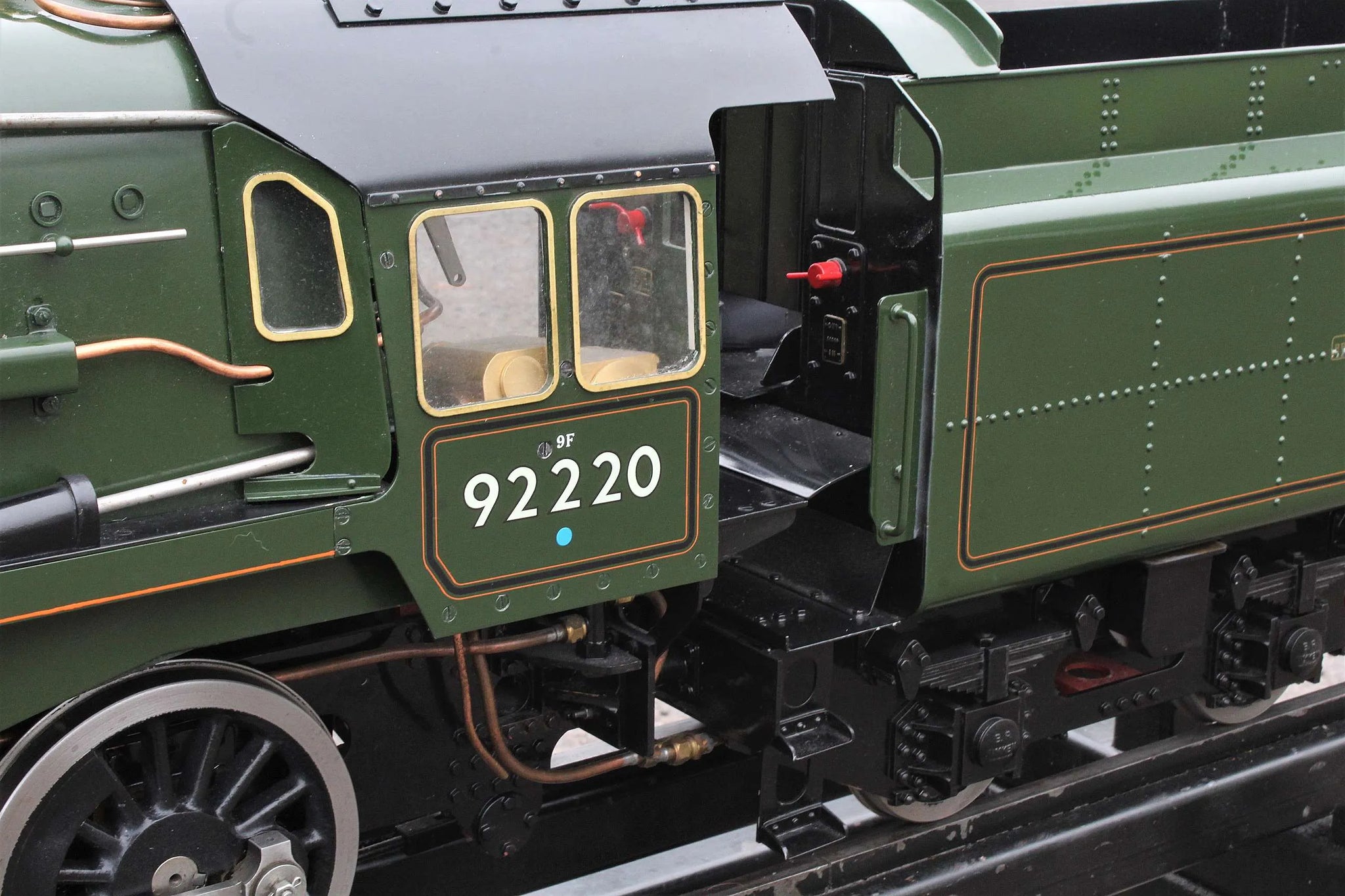

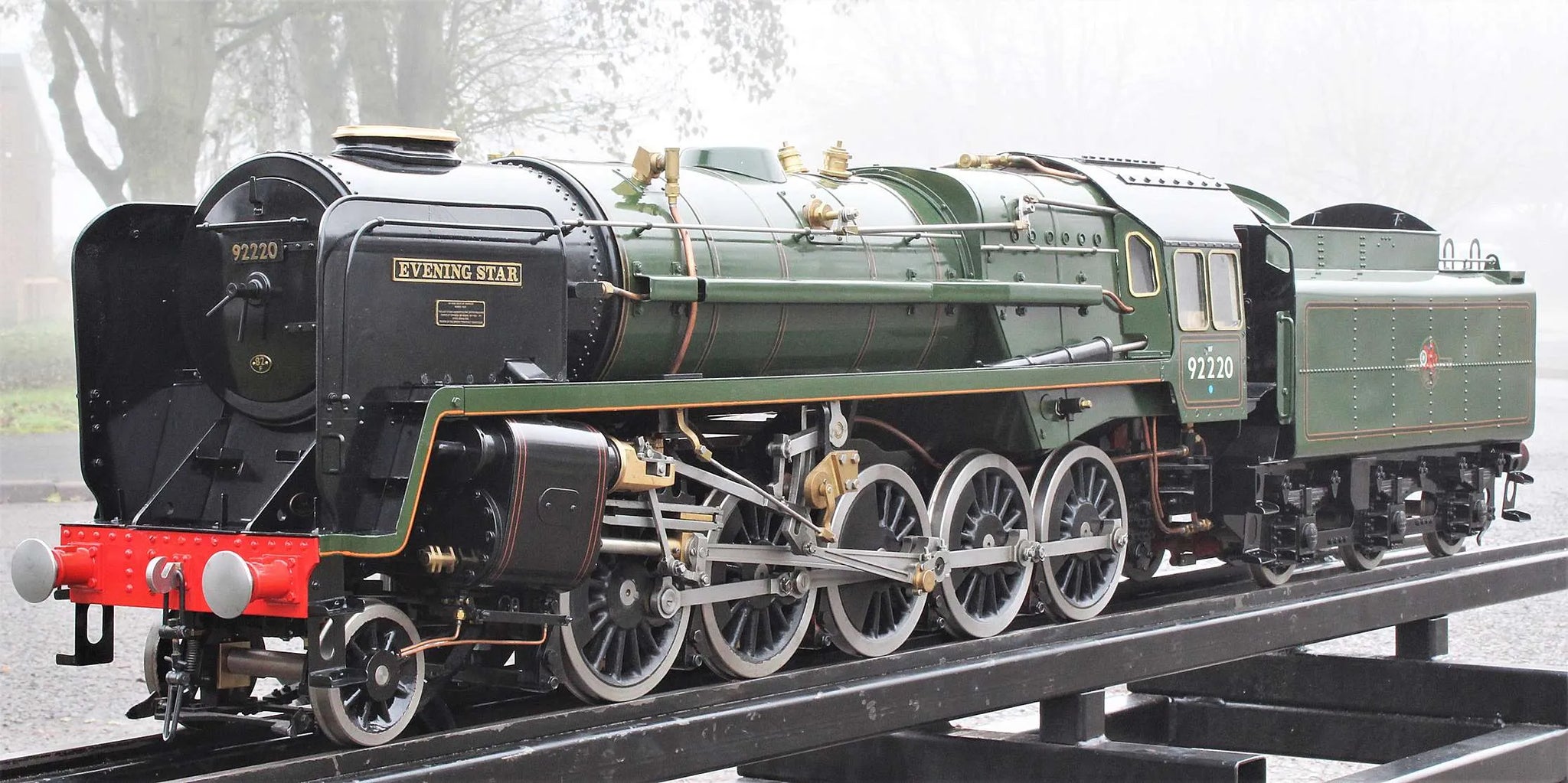

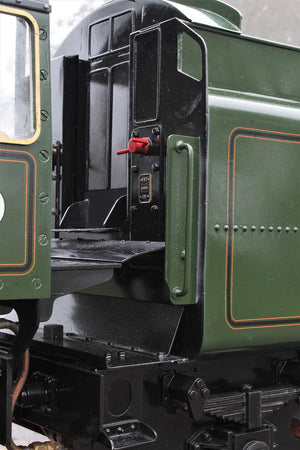

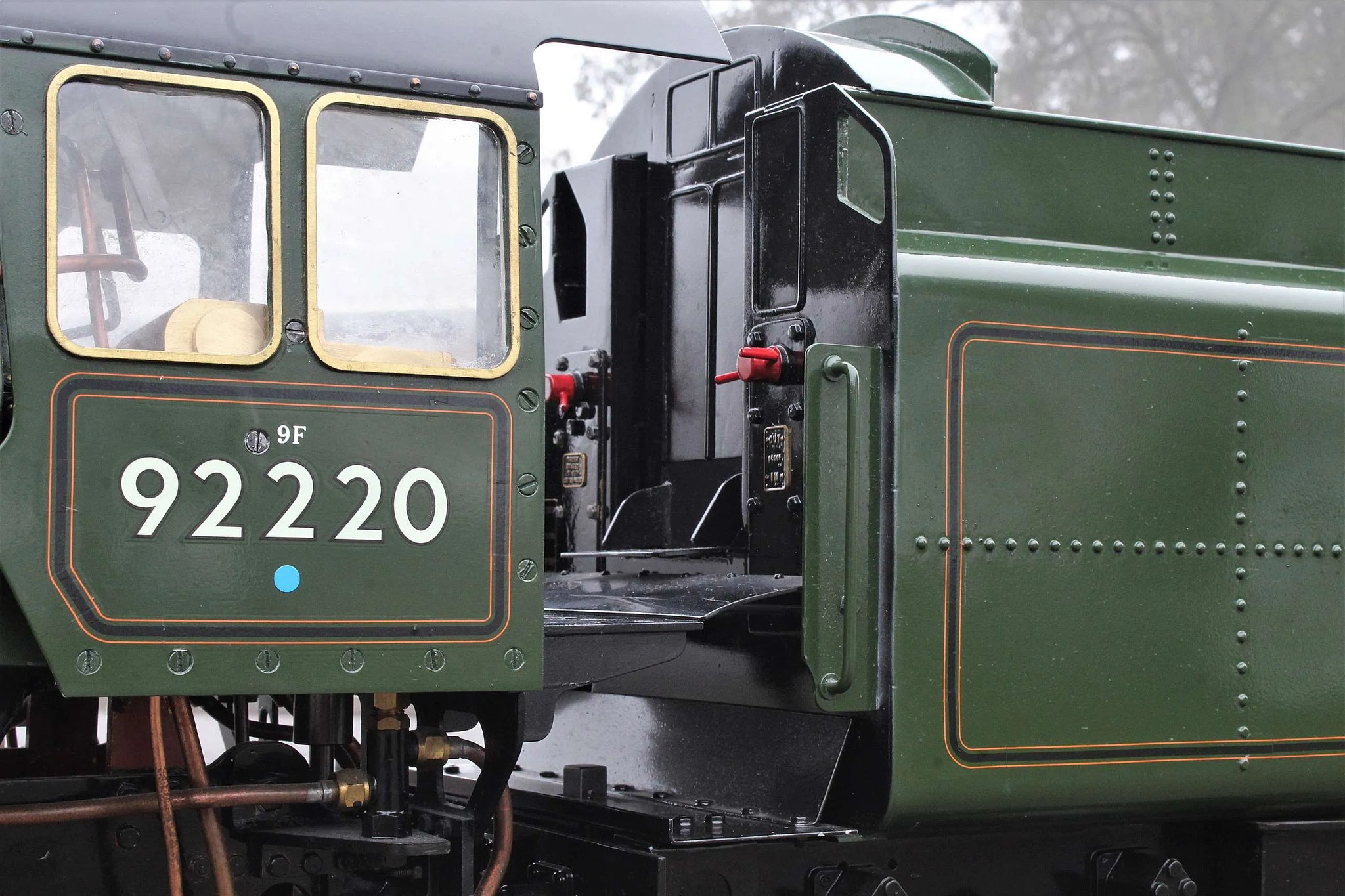

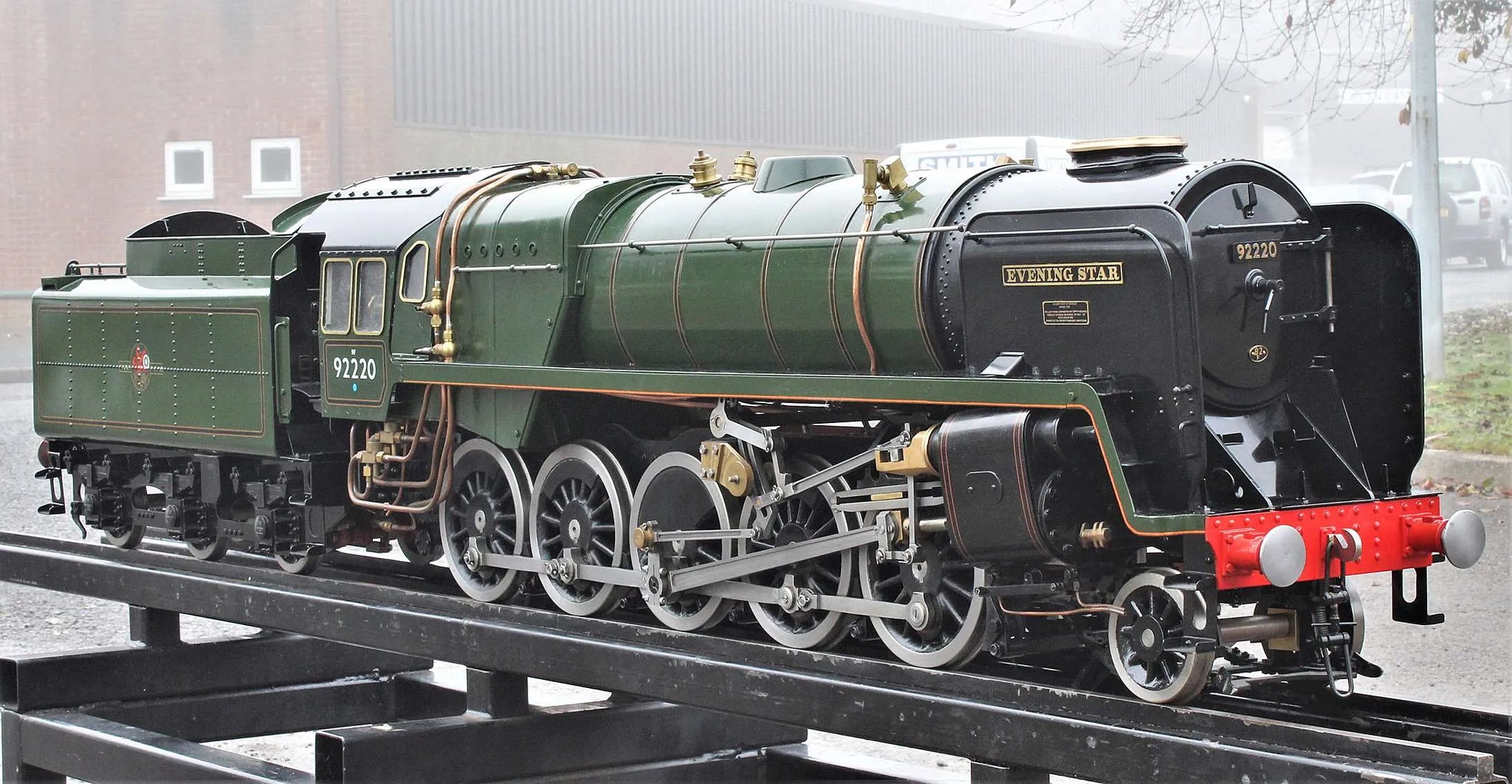

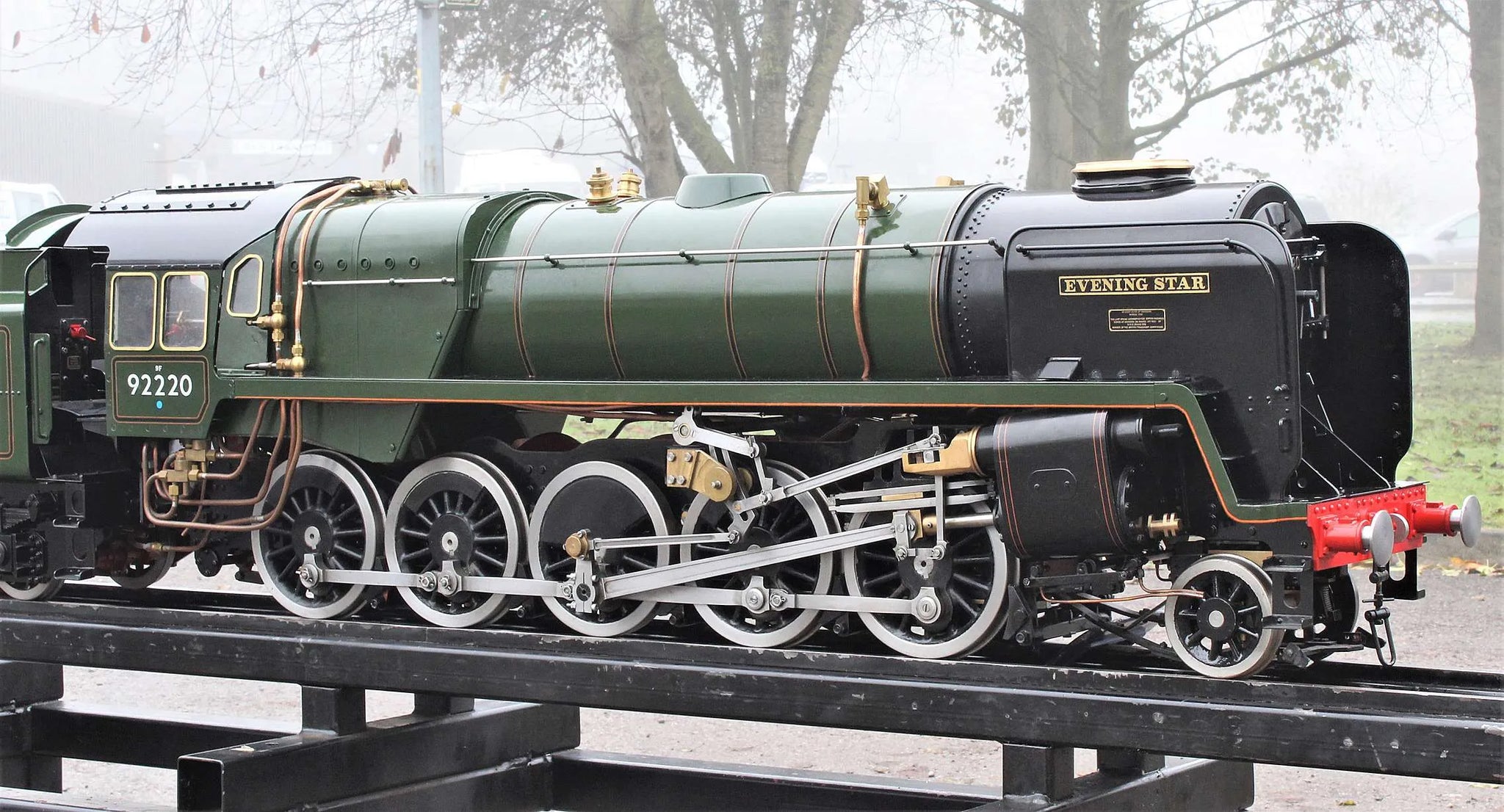

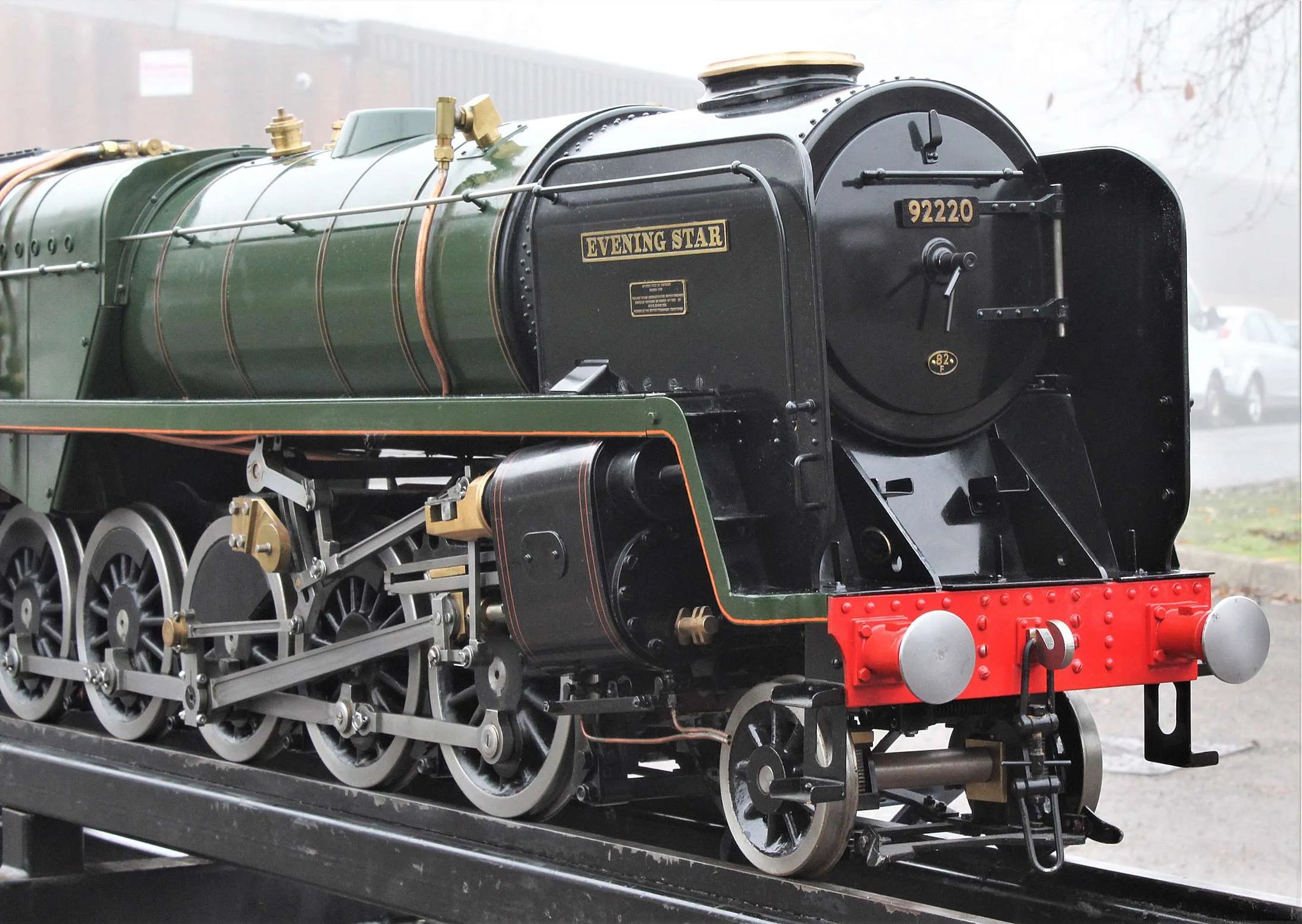

A 5 inch gauge BR 9F 2-10-0 "Evening Star", a kit-build engine put together by an experienced model engineer.

Unsteamed from new, the boiler has had a recent hydraulic test with certification issued.

Paintwork and lining has been applied to a good standard.

The engine runs on air in desultory fashion, with leakage past the piston valves typical of an unmodified kit engine; the reverser gearbox is stiff to operate.

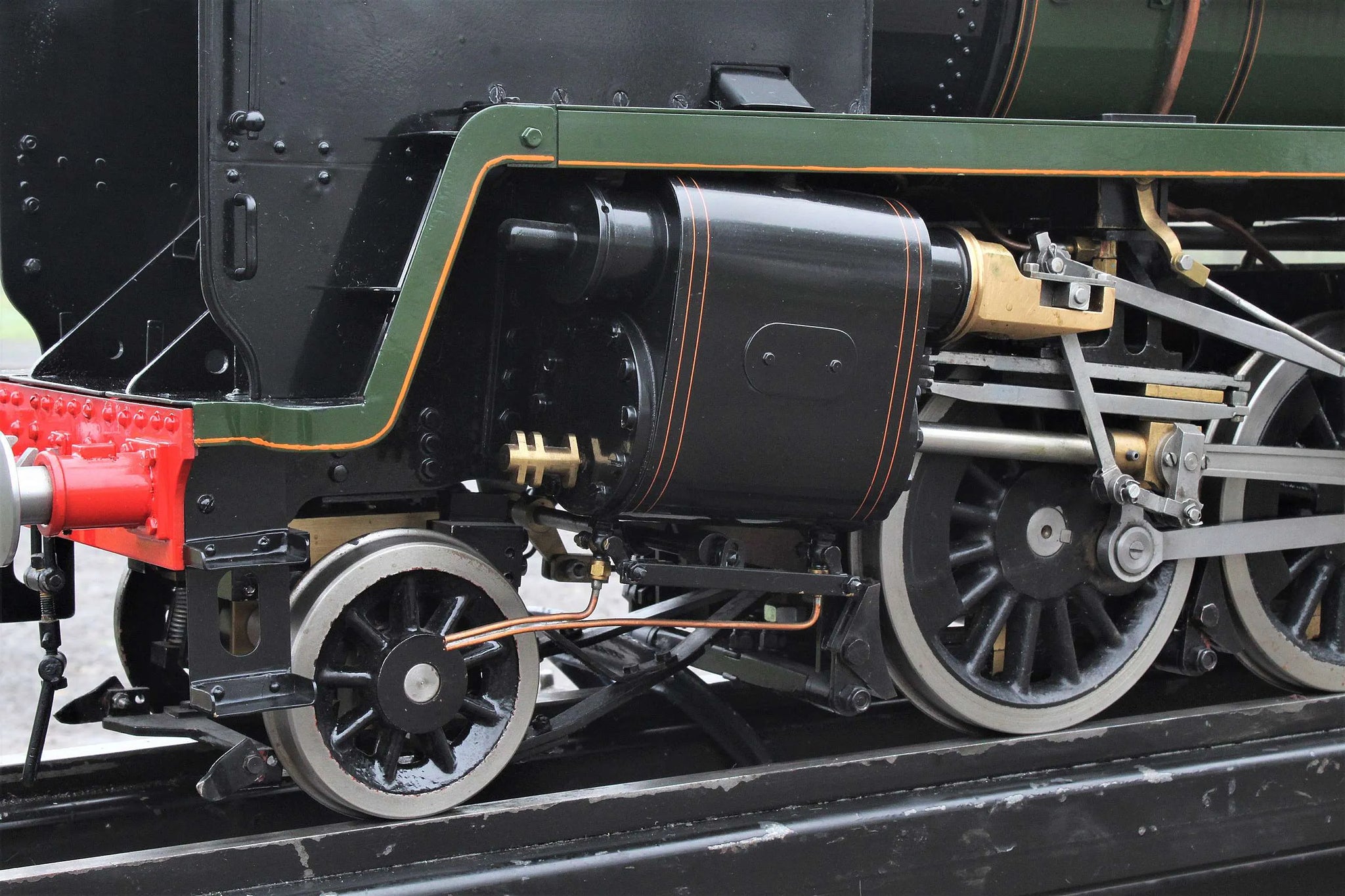

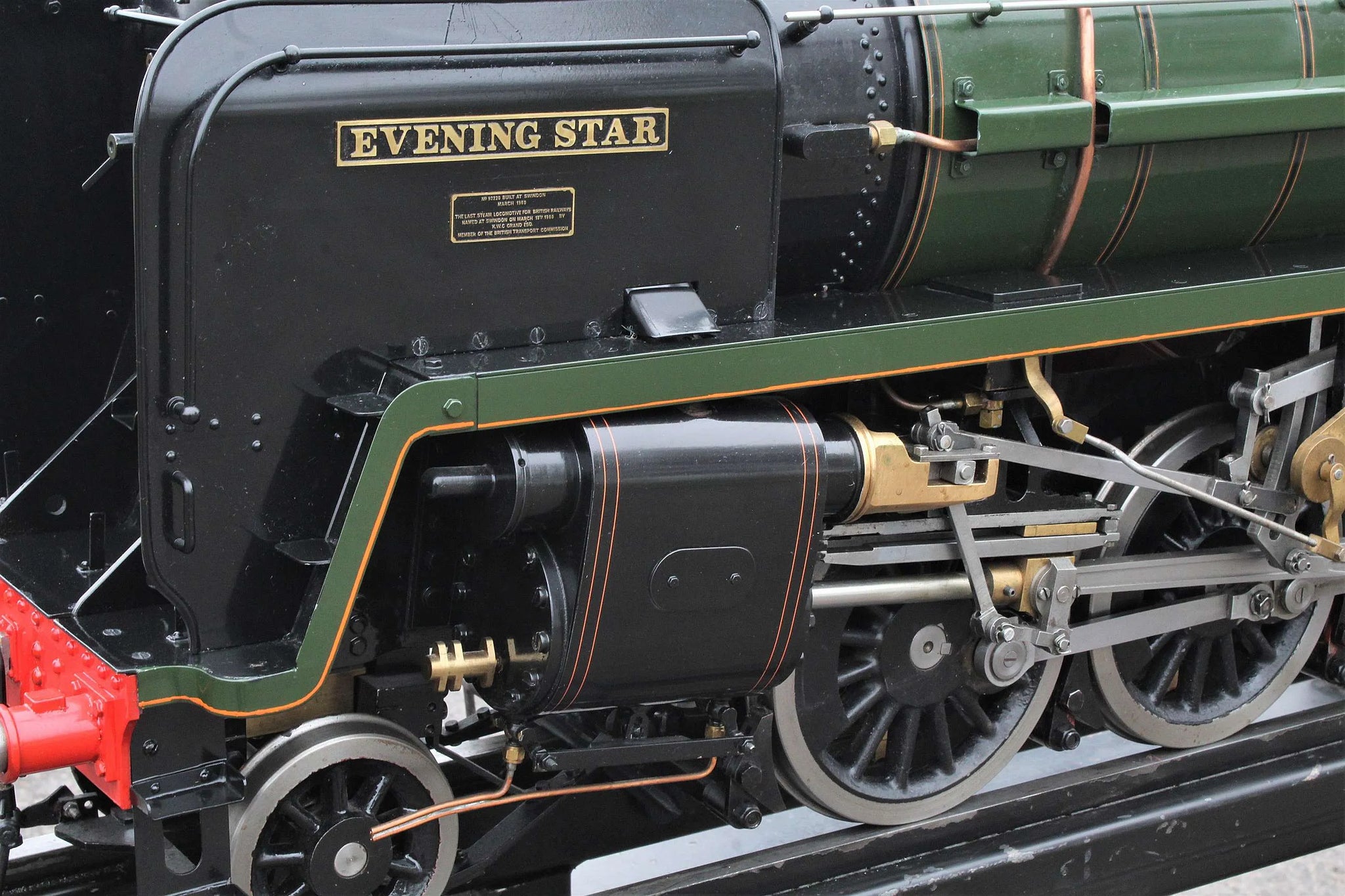

Cylinder and piston valve issues have been well-documented, with much information available on how to modify - we've had several kit-build Britannias and 9Fs over the years which have been made to work well.

Technical information

Stock code

10161

Gauge

5 inch

Length/inches

47+26

Width/inches

10

Height/inches

14

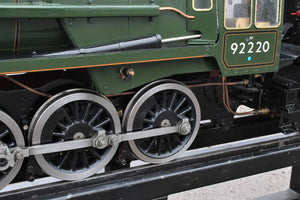

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

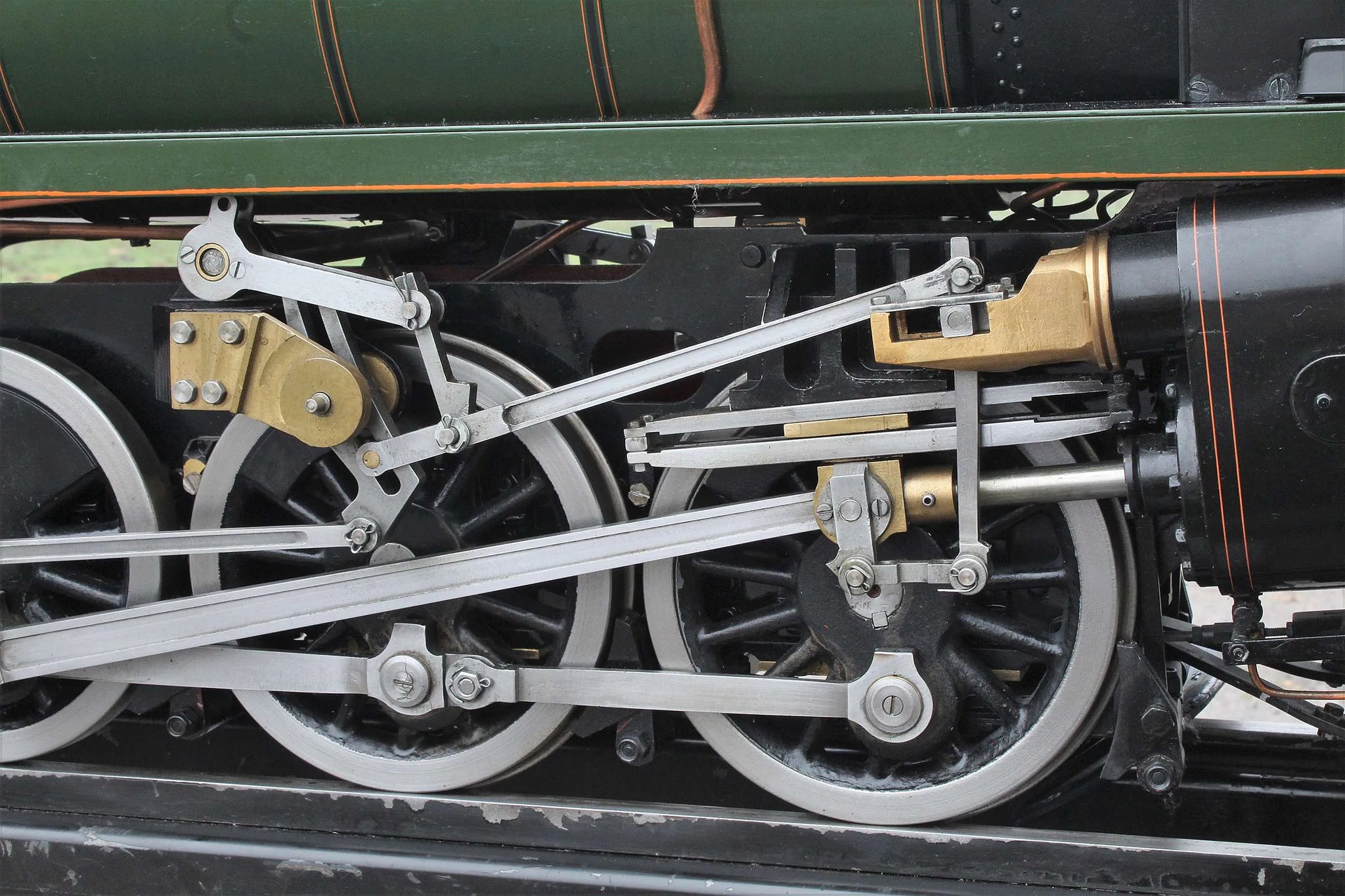

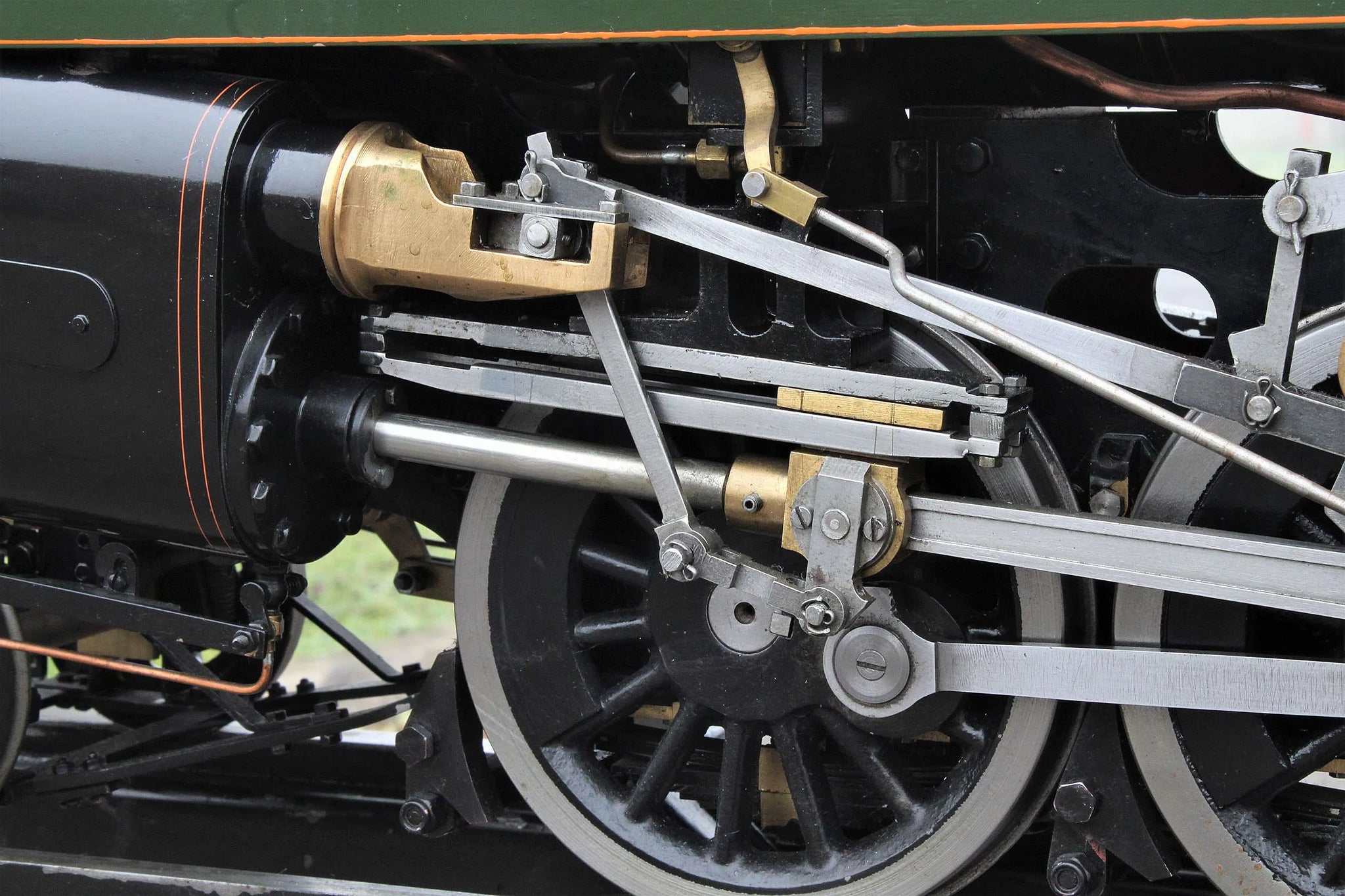

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

Winson Model Technology

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - pre-2002

Year built

2000

Boiler number

459 21

Safety valve type

spring

Safety valve

2

Fusible plug

yes

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

2

Superheater type

flue tube

Superheater

2

Date out

Jun-22

Hydraulic test valid to

14-Dec-25
