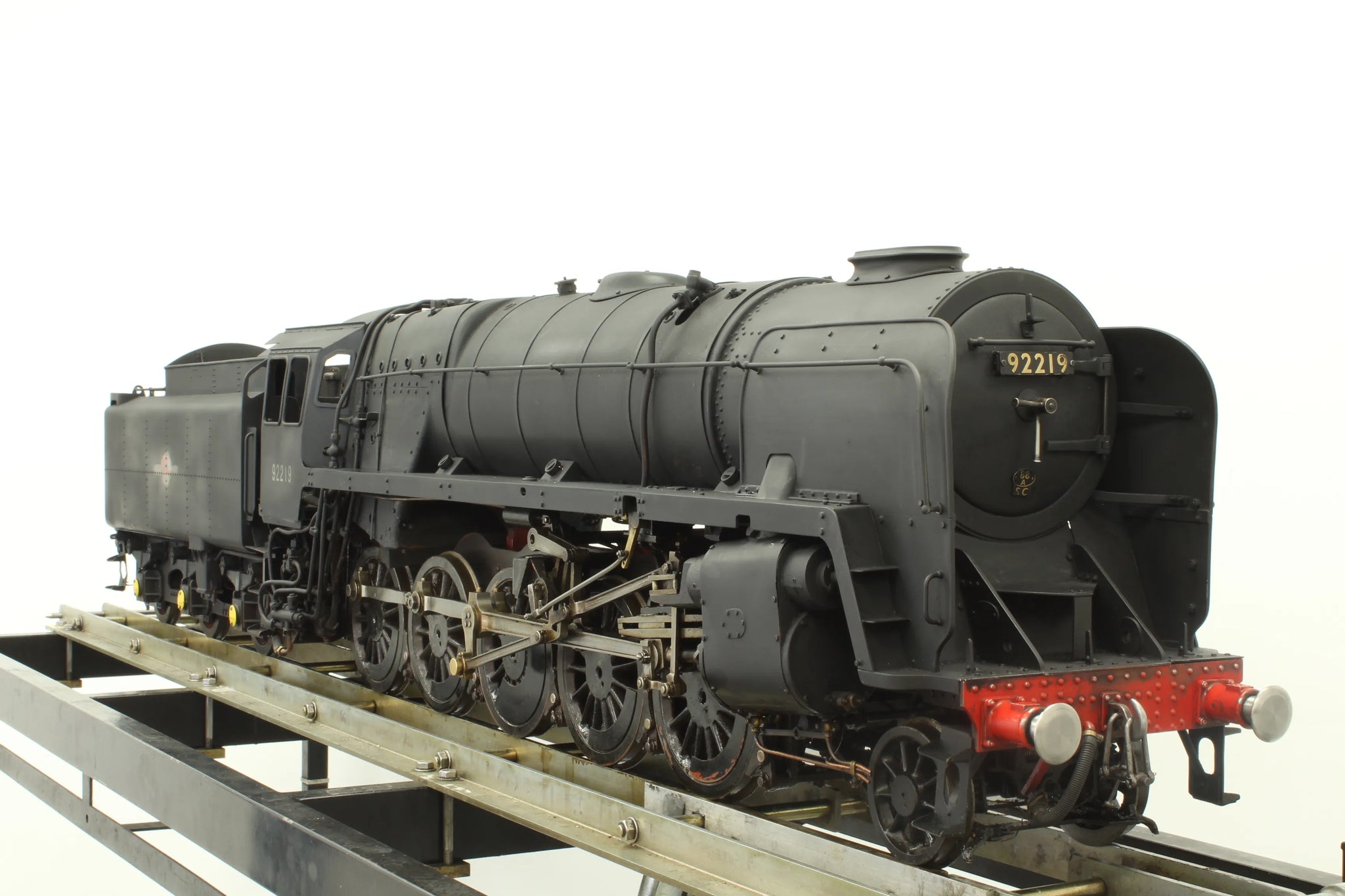

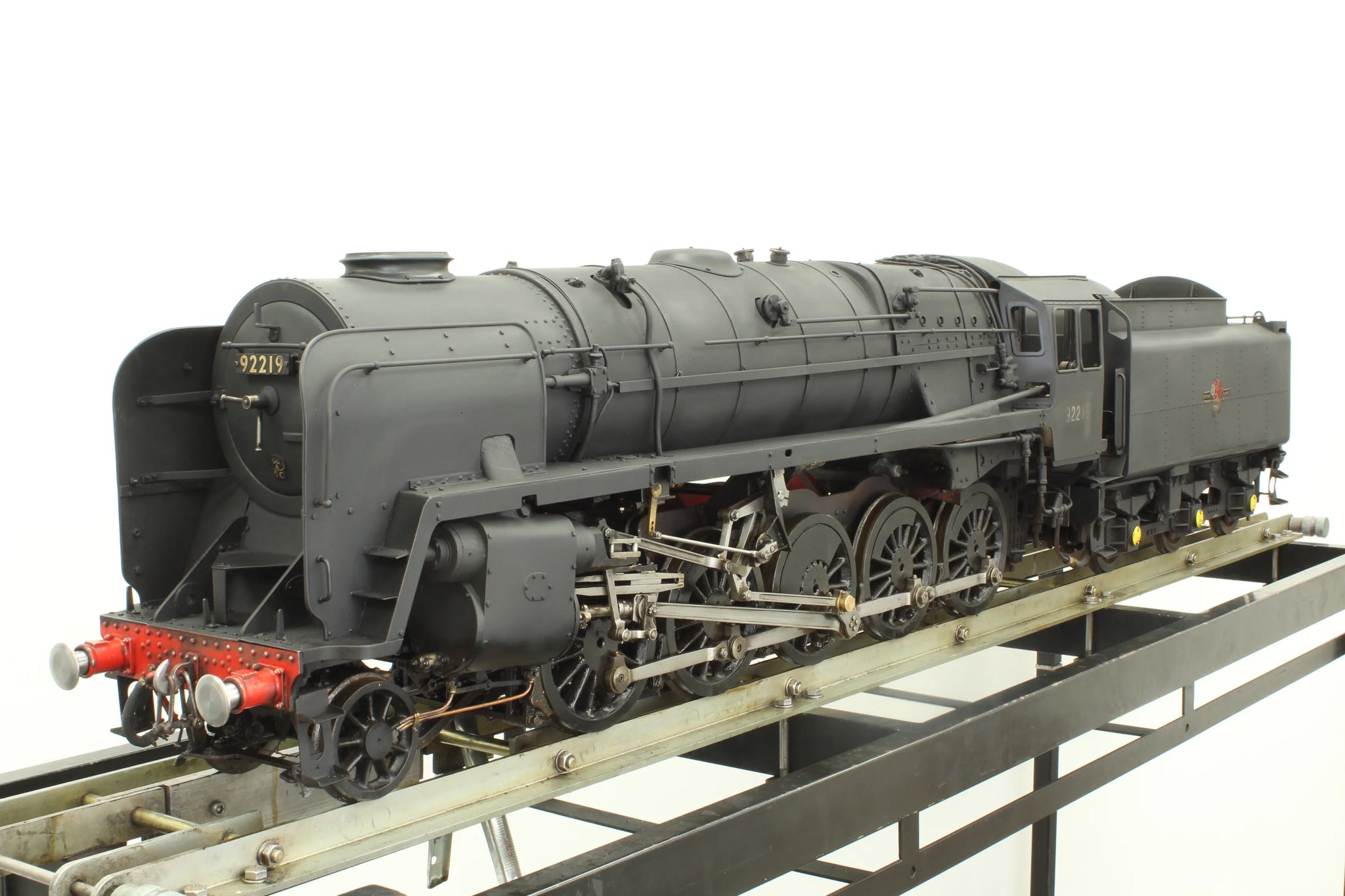

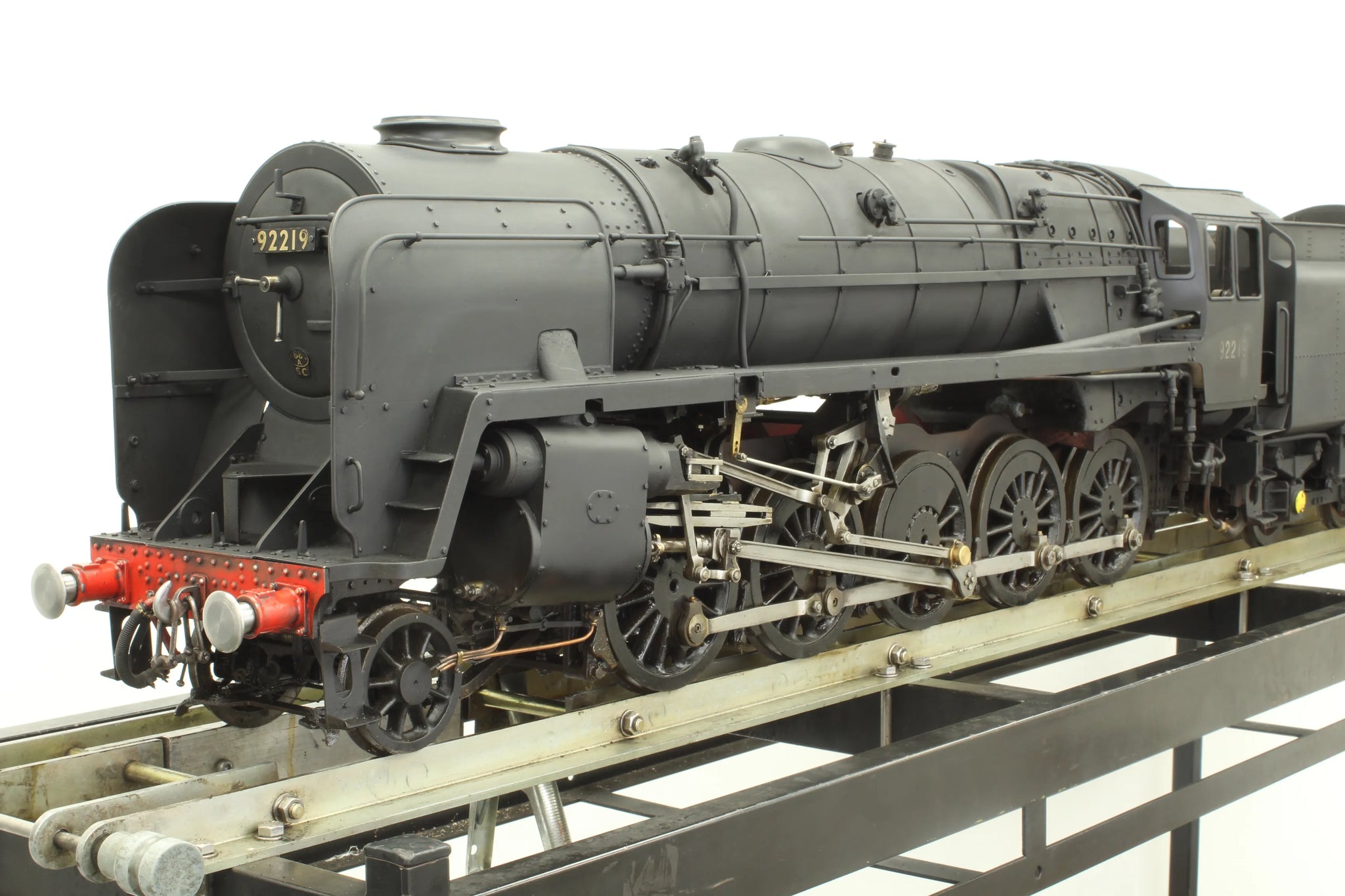

5 inch gauge BR 9F 2-10-0

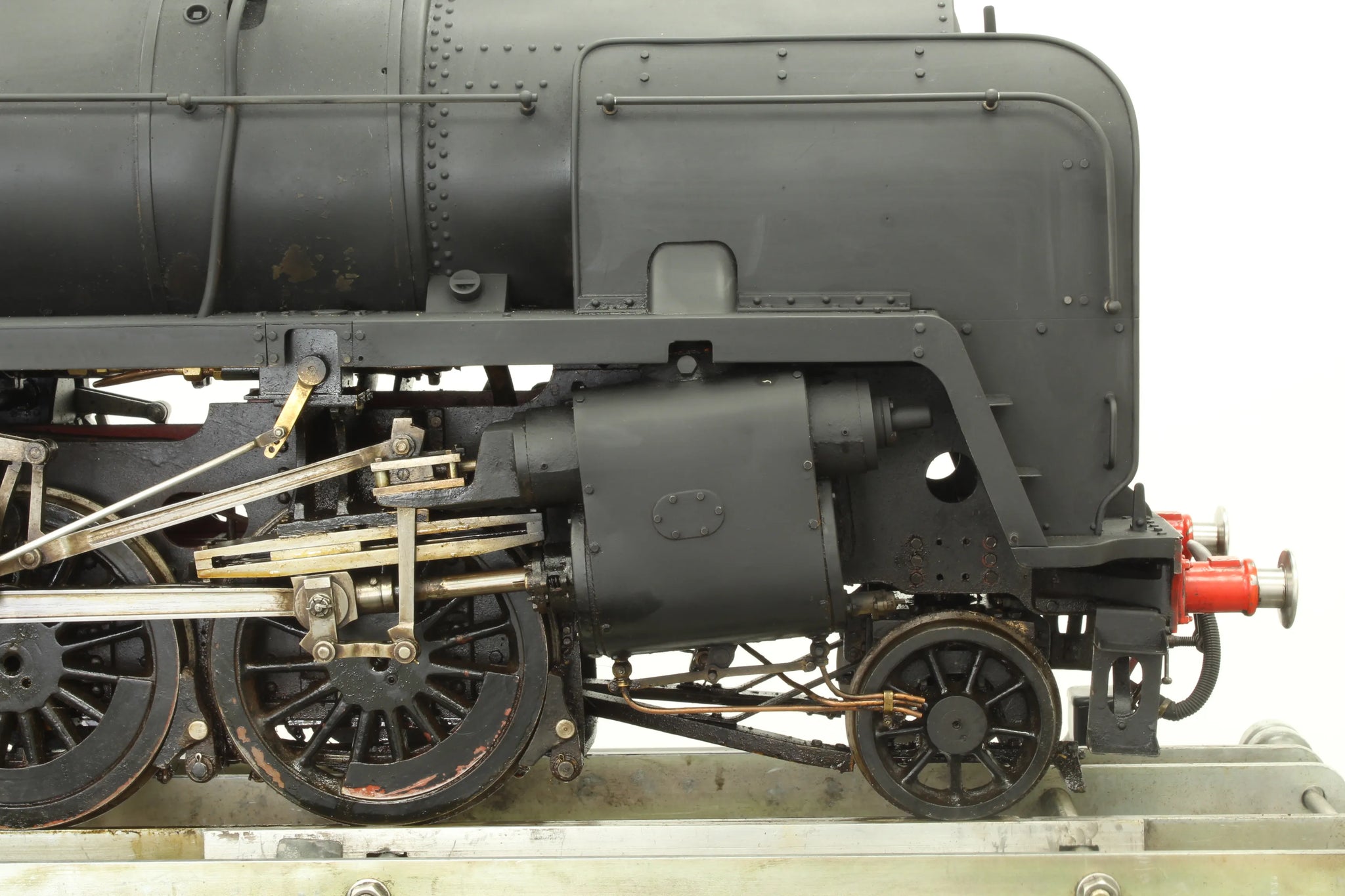

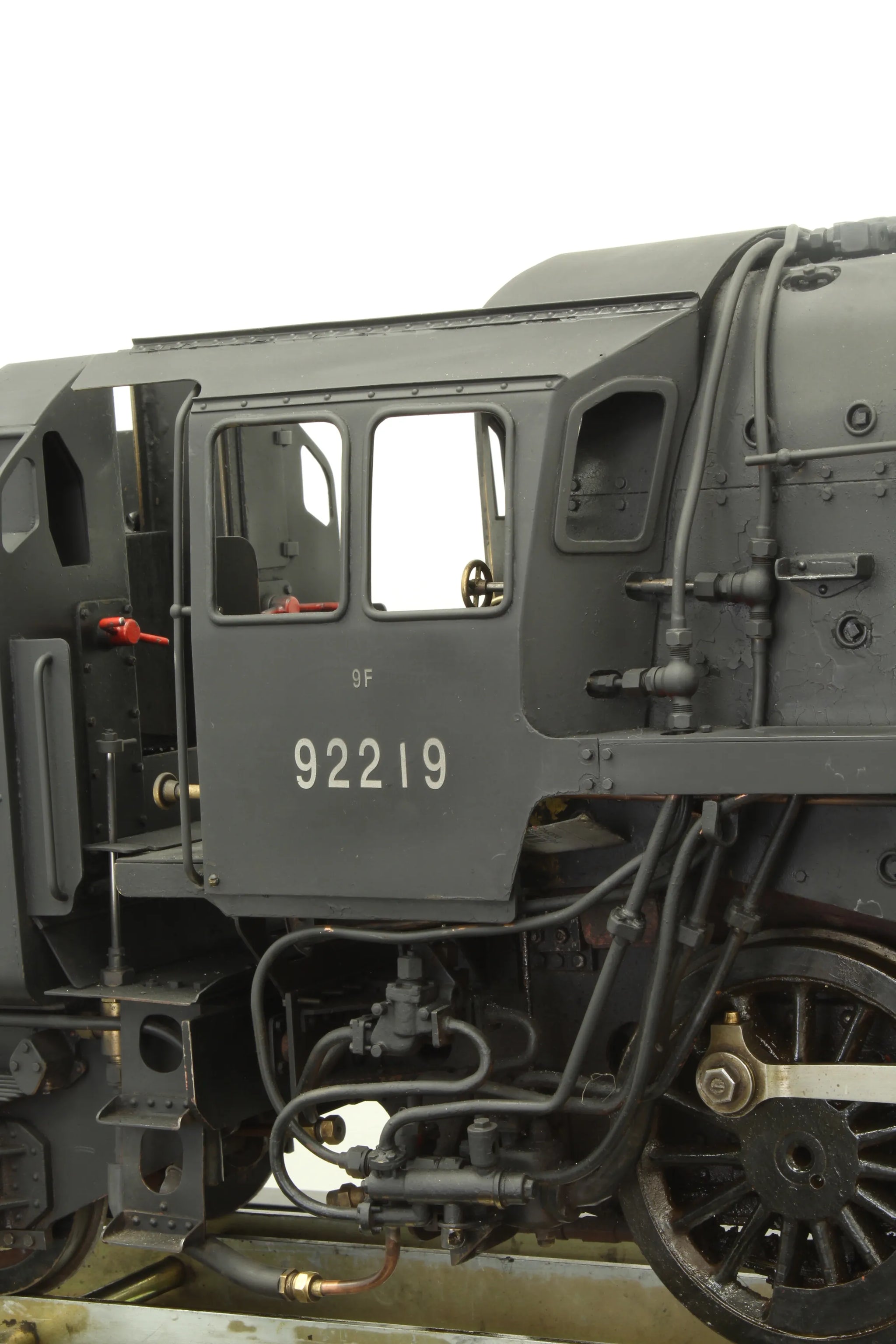

A 5 inch gauge 9F, presented very much in its "working clothes" - immensely grubby and with flat black "end of BR" paintwork.

Well-built originally, it has been used regularly for club running, competing in IMLEC several times. Although the wet header leaks profusely - it needs stripping out and a new gasket making - the boiler is sound, the engine runs well on air.

Complete with club boiler history dating back to 2007, since when it has been tested and run continuously.

Requiring some work, it is offered as a "running restoration", with our standard warranty as per all tested locomotives.

Technical information

Stock code

8114

Gauge

5 inch

Length/inches

71

Width/inches

9.5

Height/inches

14.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

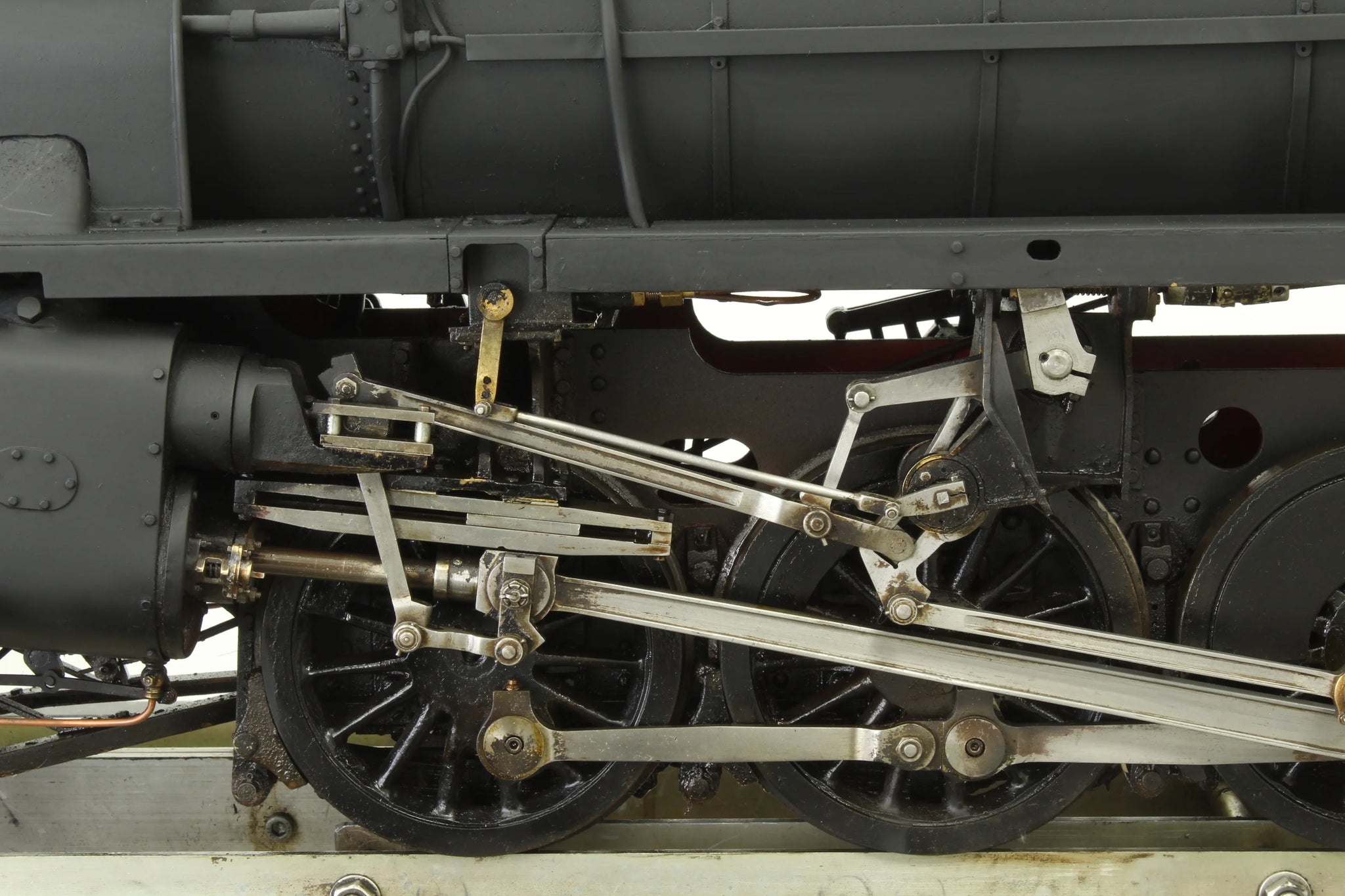

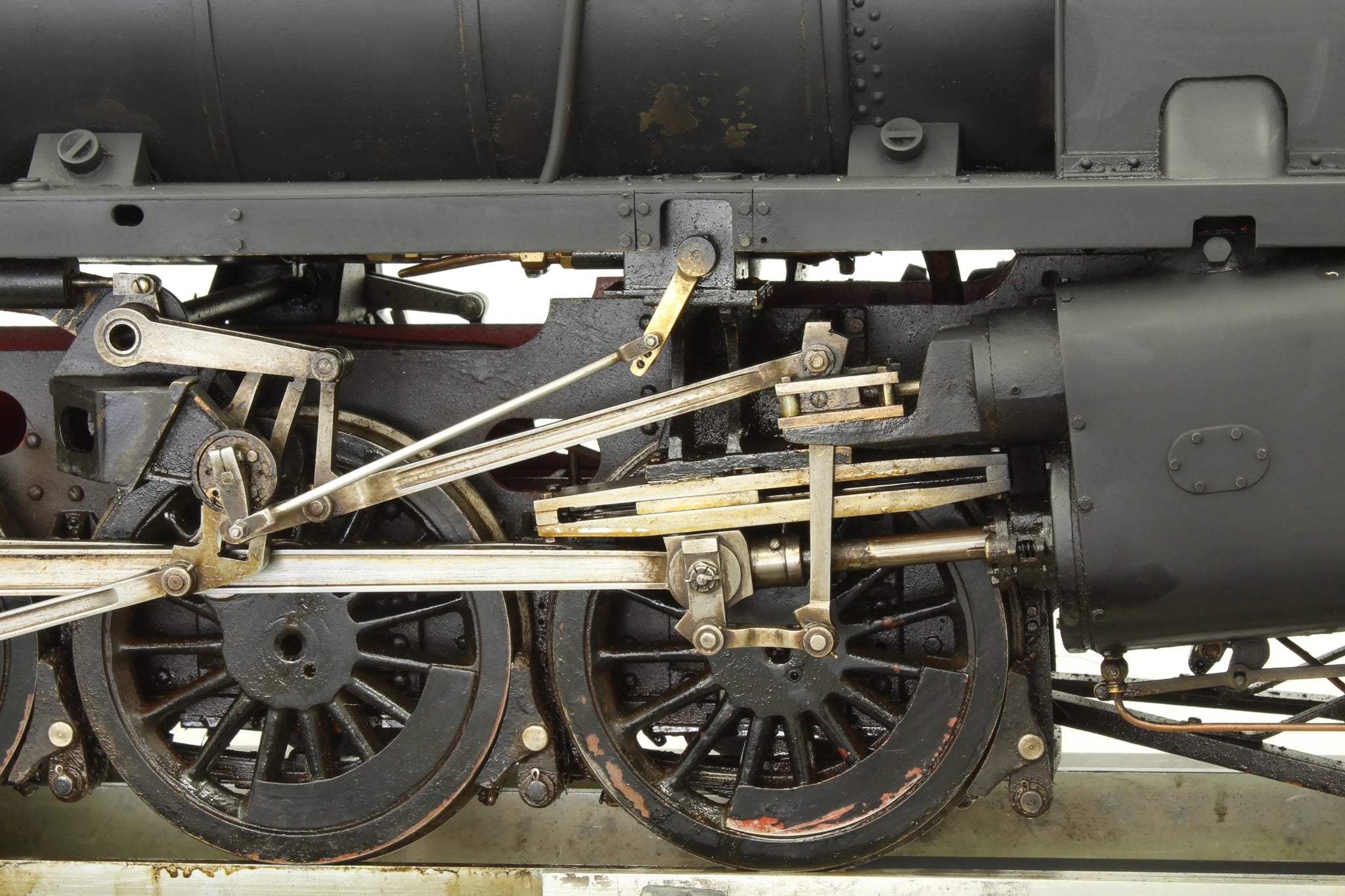

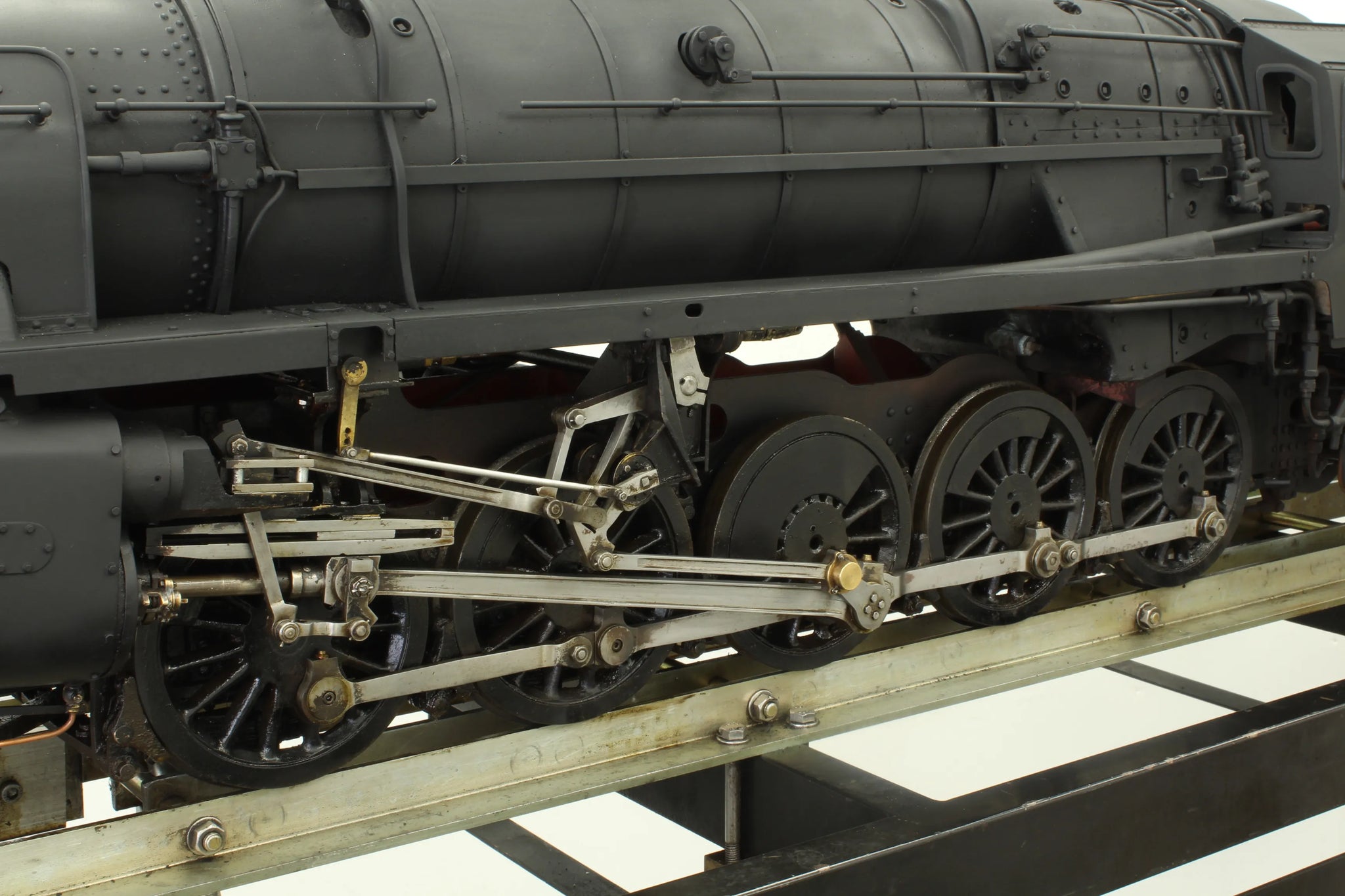

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

Jim Vass

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - pre-2002

Year built

1991

Boiler number

JV1

Safety valve type

spring

Safety valve

2

Fusible plug

yes

Hand pump

1

Injector

2

Superheater type

radiant

Superheater

4

Pack

Single half pallet

Date out

Sep-18

Hydraulic test valid to

21-Mar-19
