13107

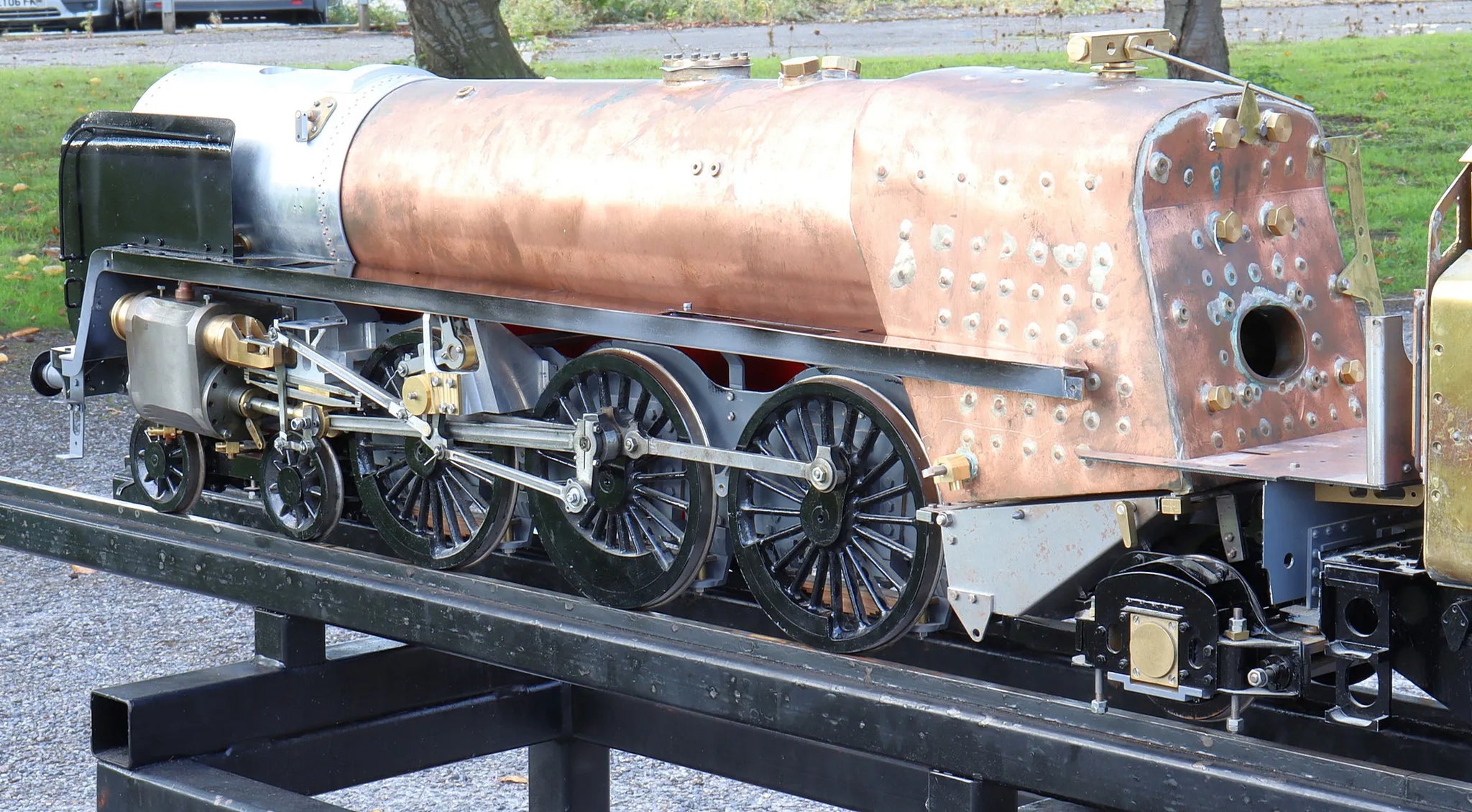

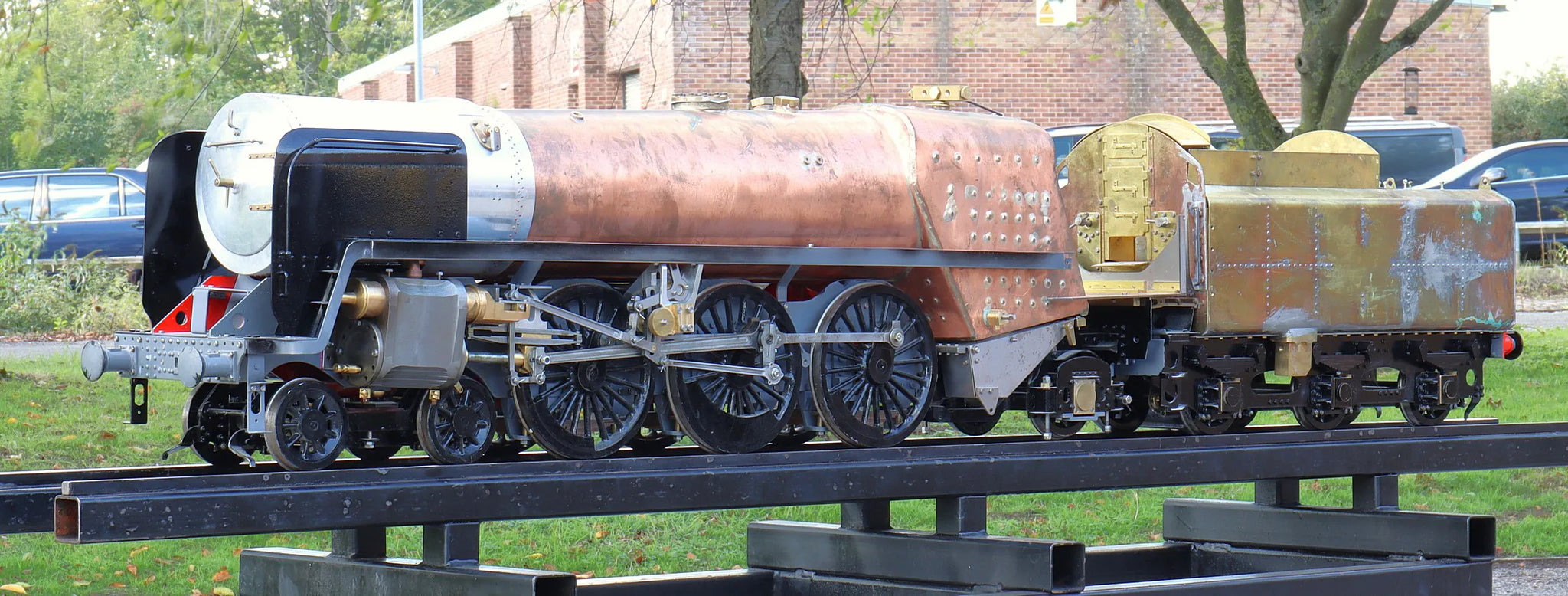

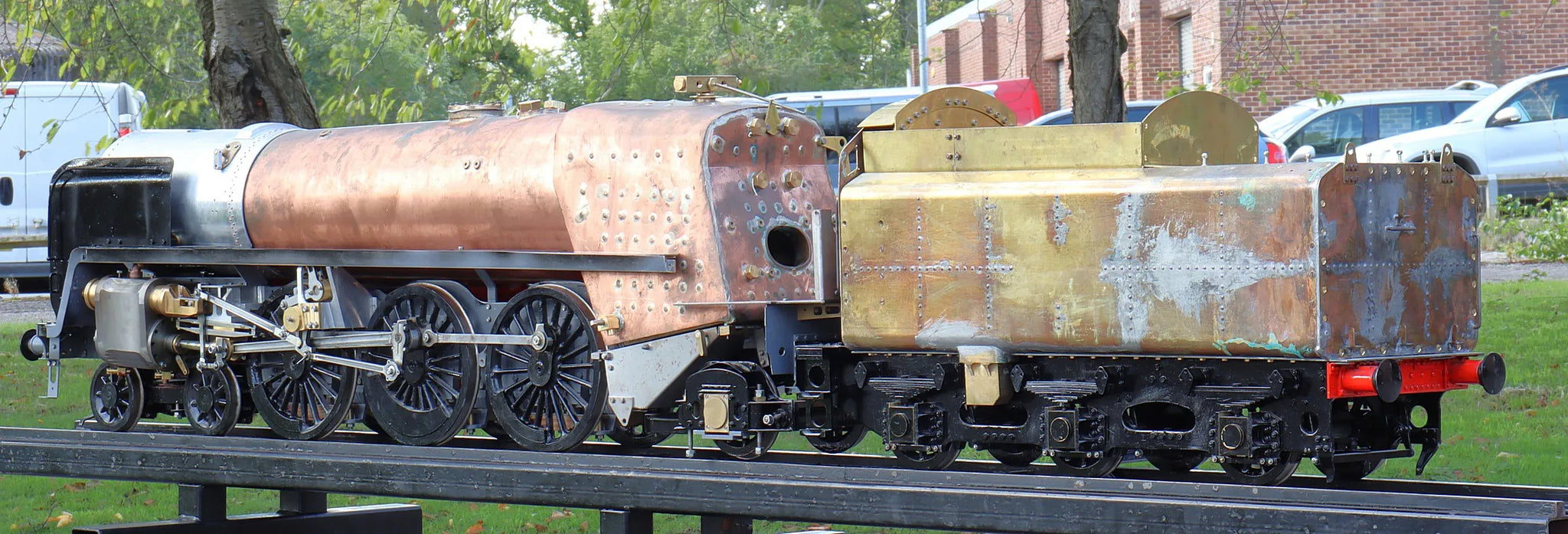

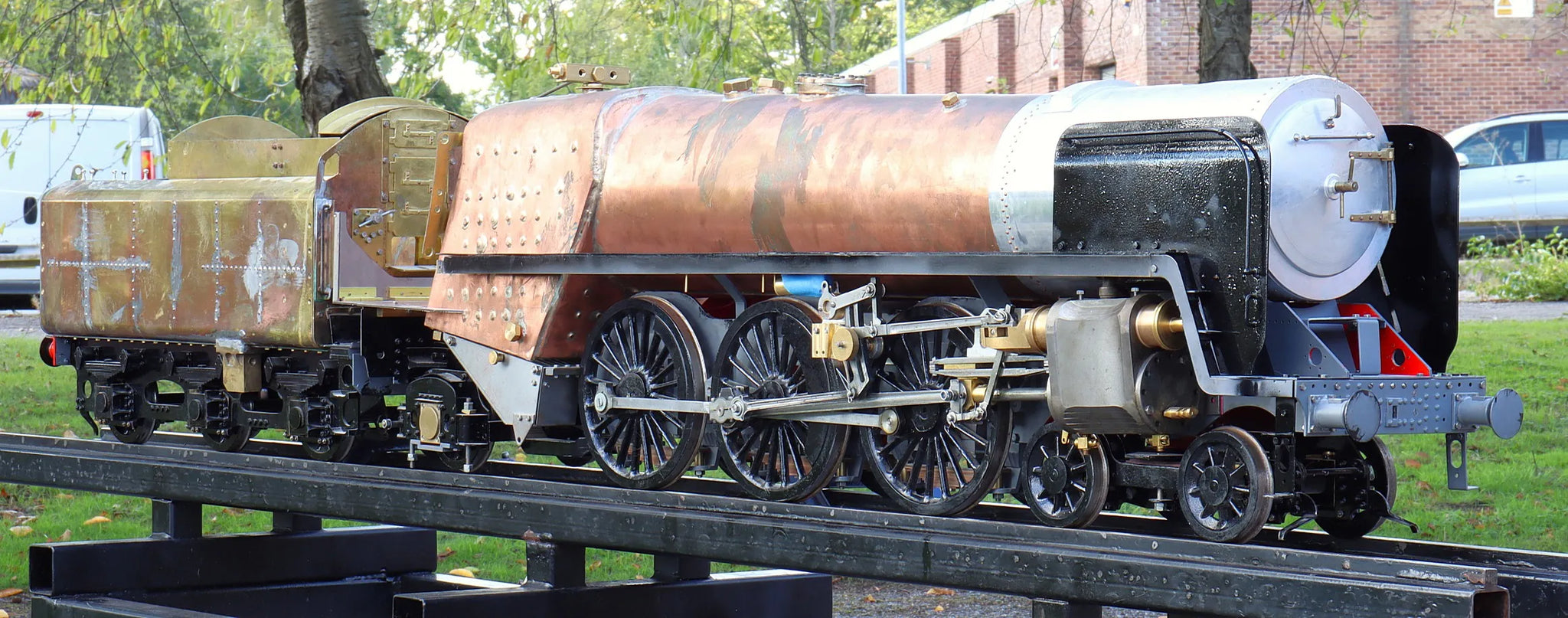

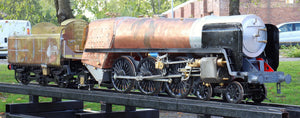

At an advanced stage of assembly, we're told that the engine has been run on air in the past. On test in the workshop the valves and pistons passed air, although the chassis did show some signs of life - we suspect repacking the pistons and oiling round would improve matters.

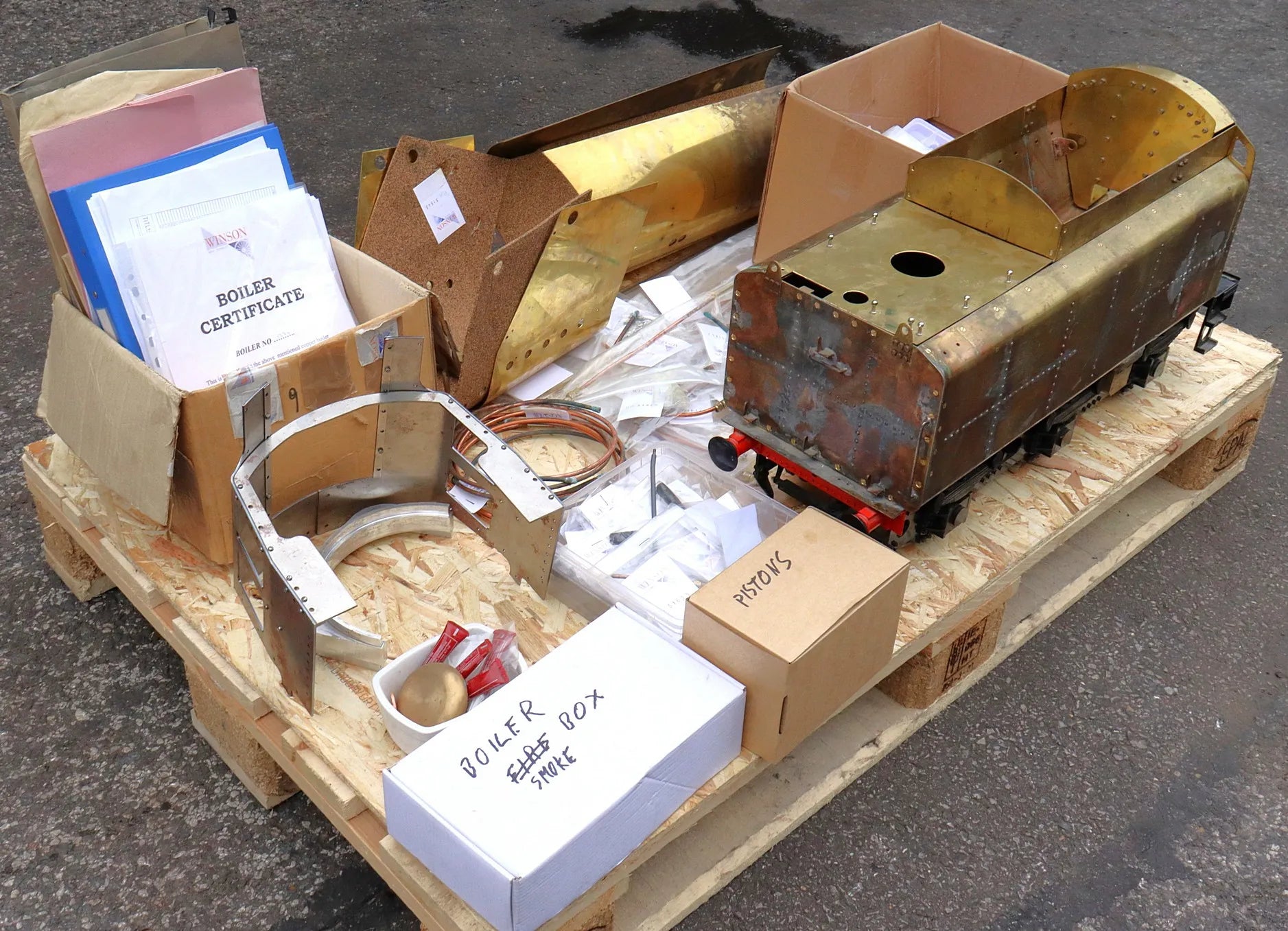

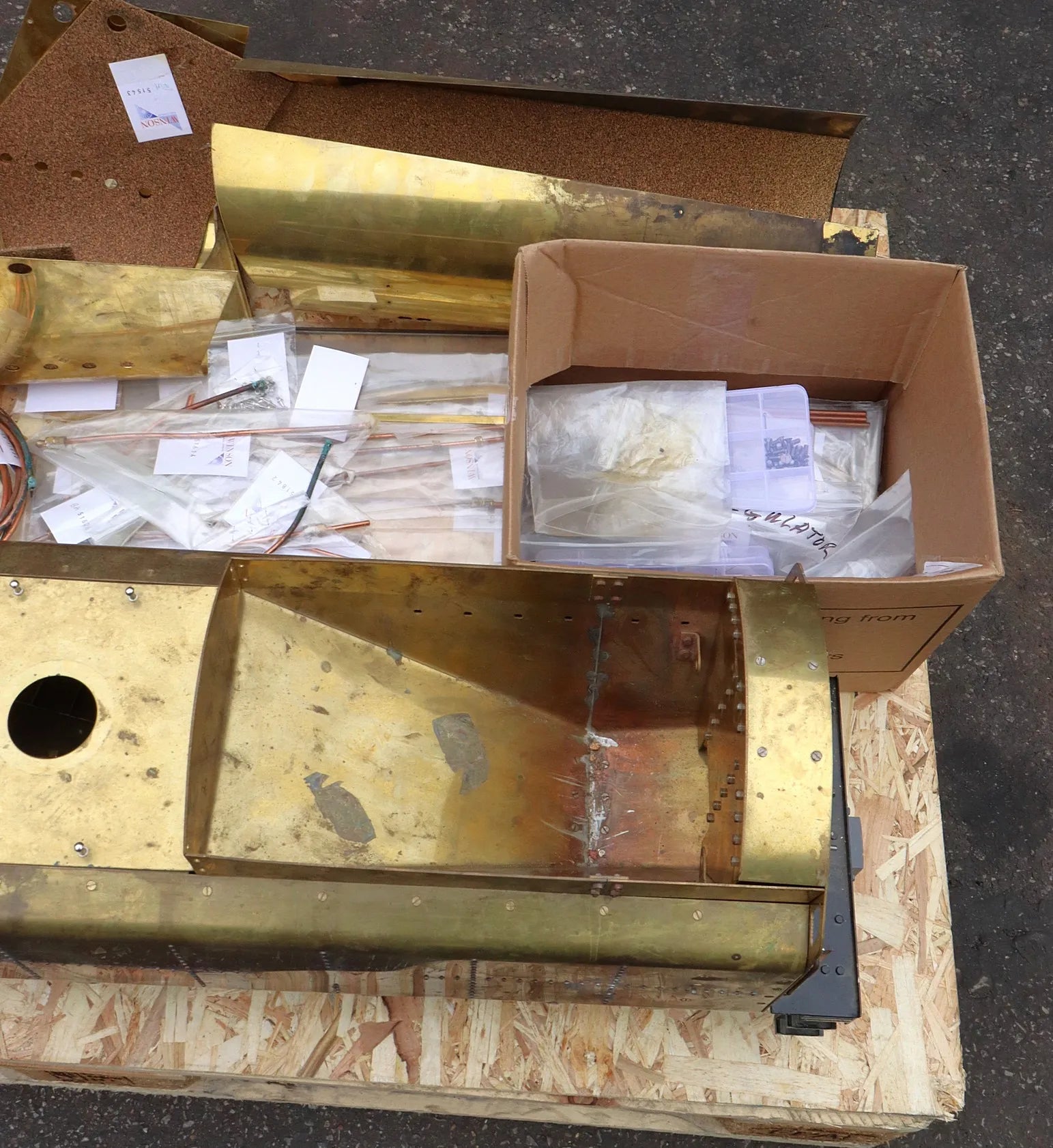

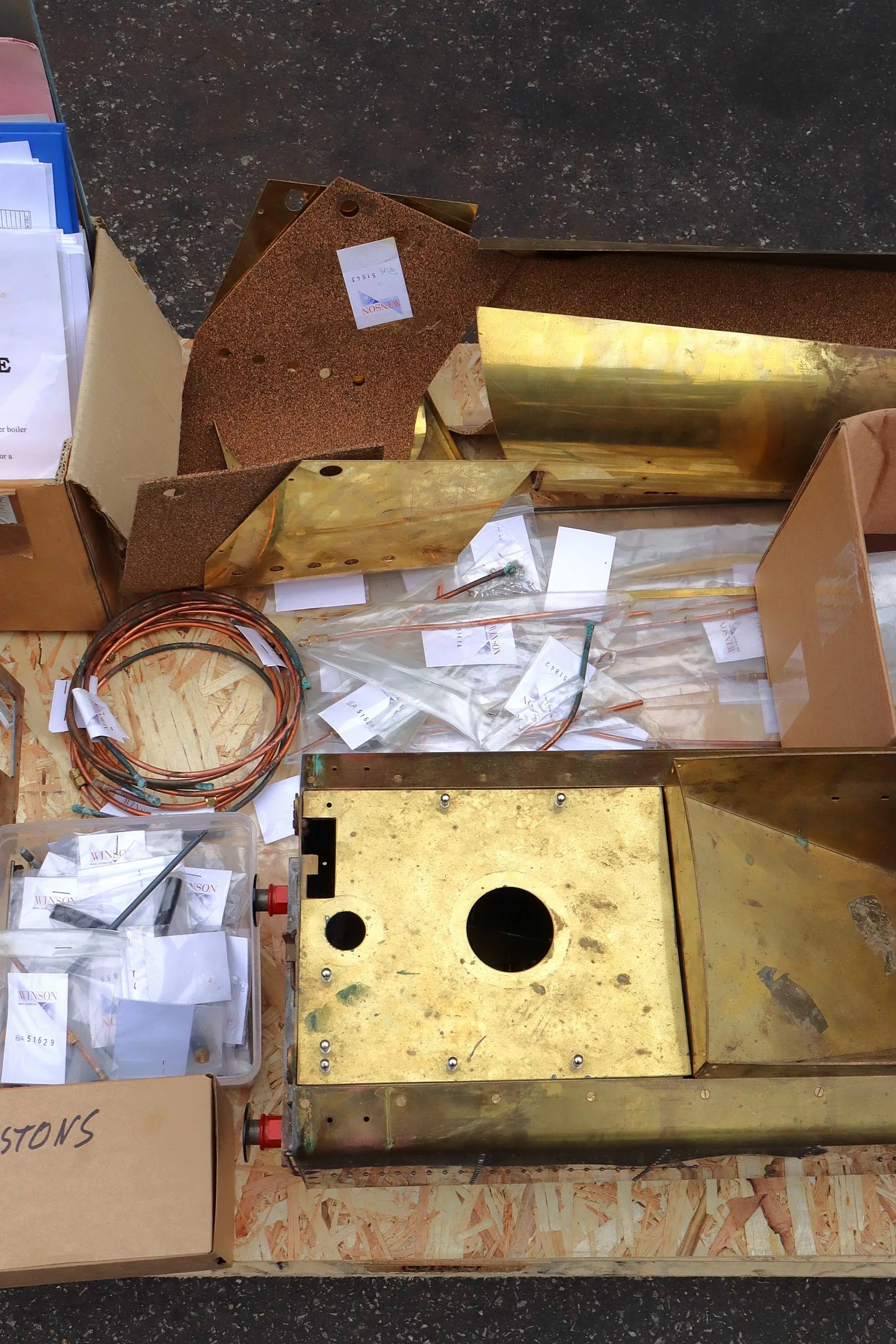

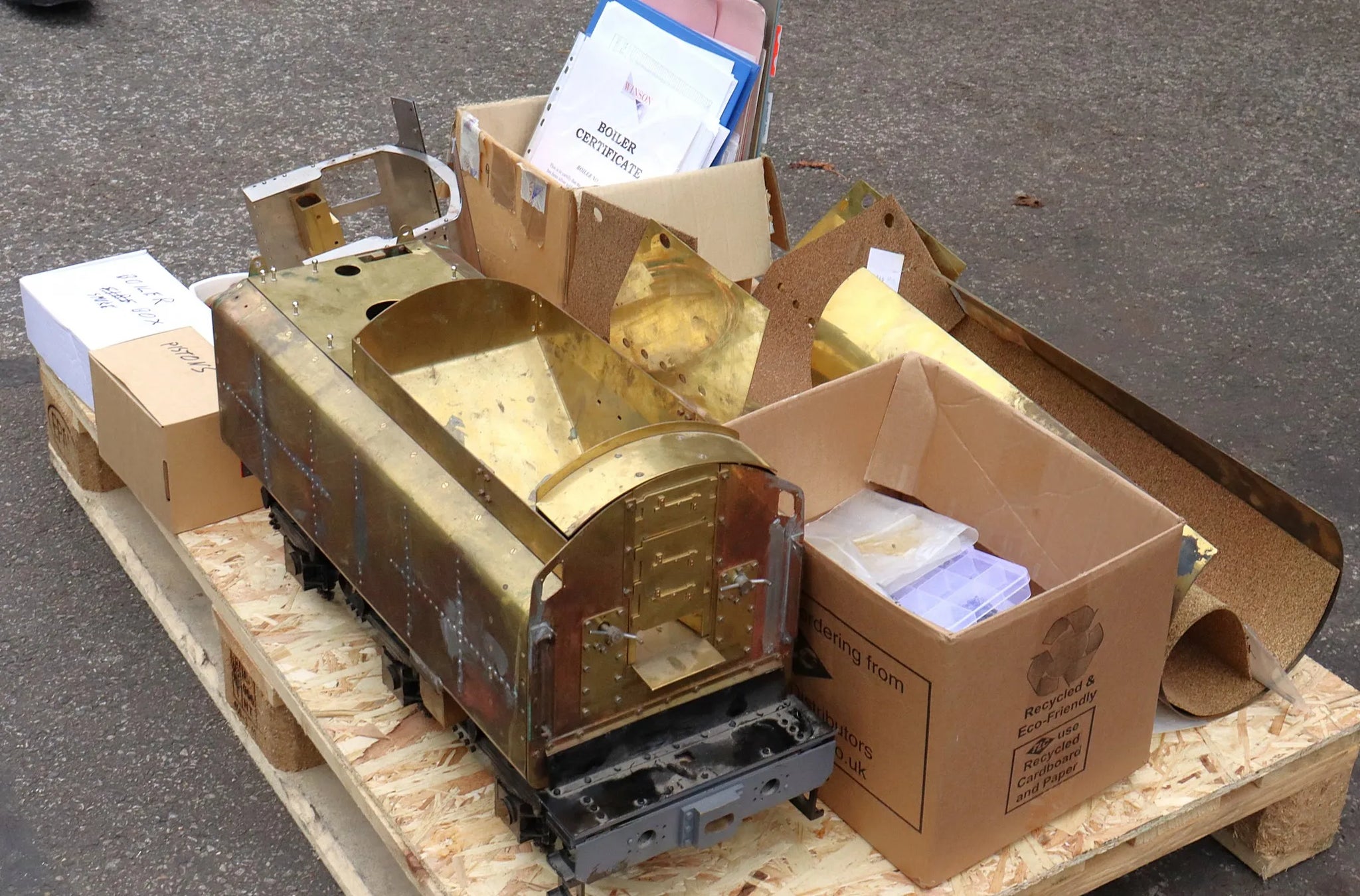

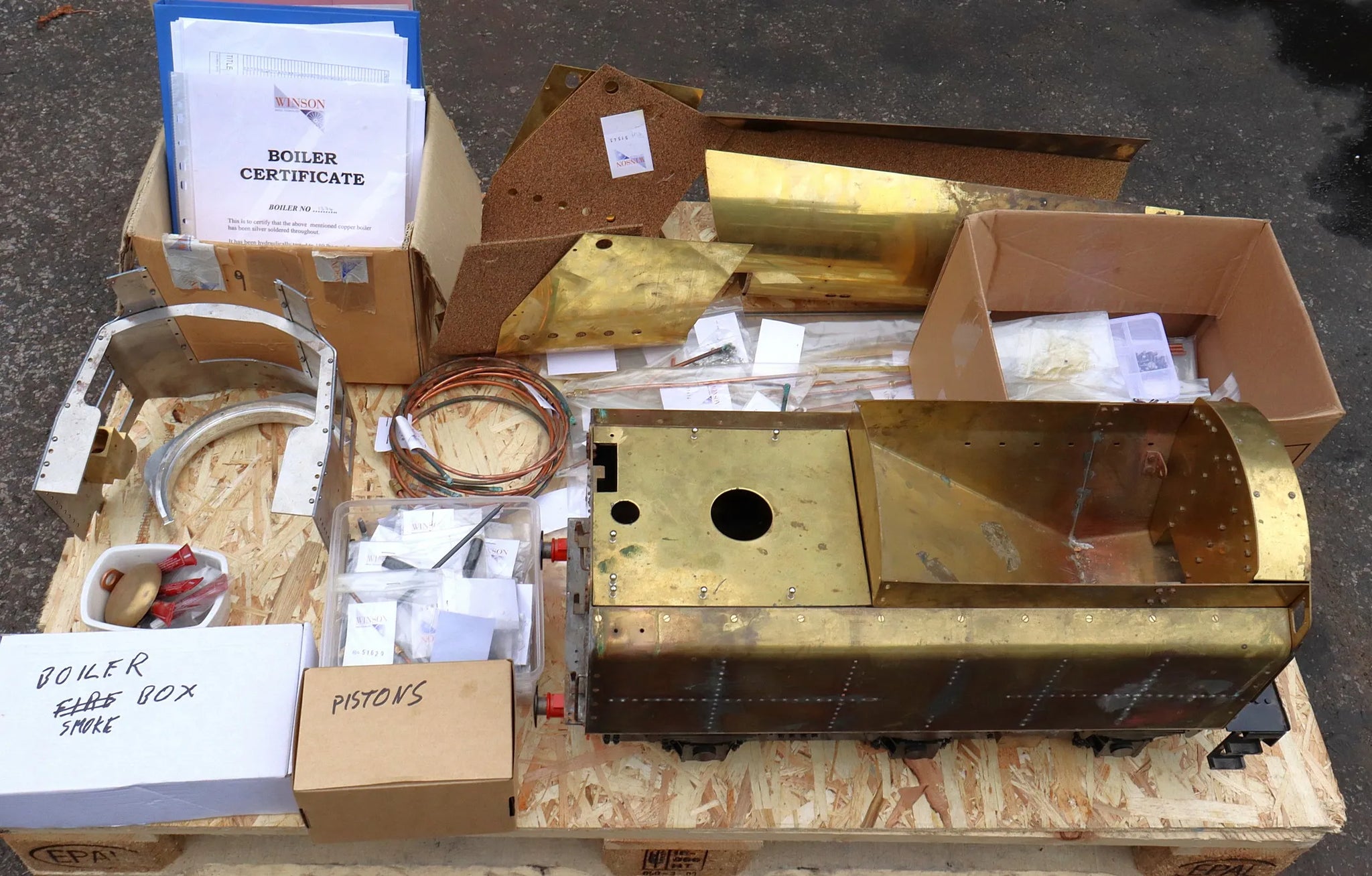

Complete with a quantity of parts and original manufacturer's boiler certification.
Stock code |
13107 |
Gauge |
5 inch |
Length/inches |
50 +24.5 |
Width/inches |
10 |
Height/inches |
15.5 |
Weight/Kg |
122 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |

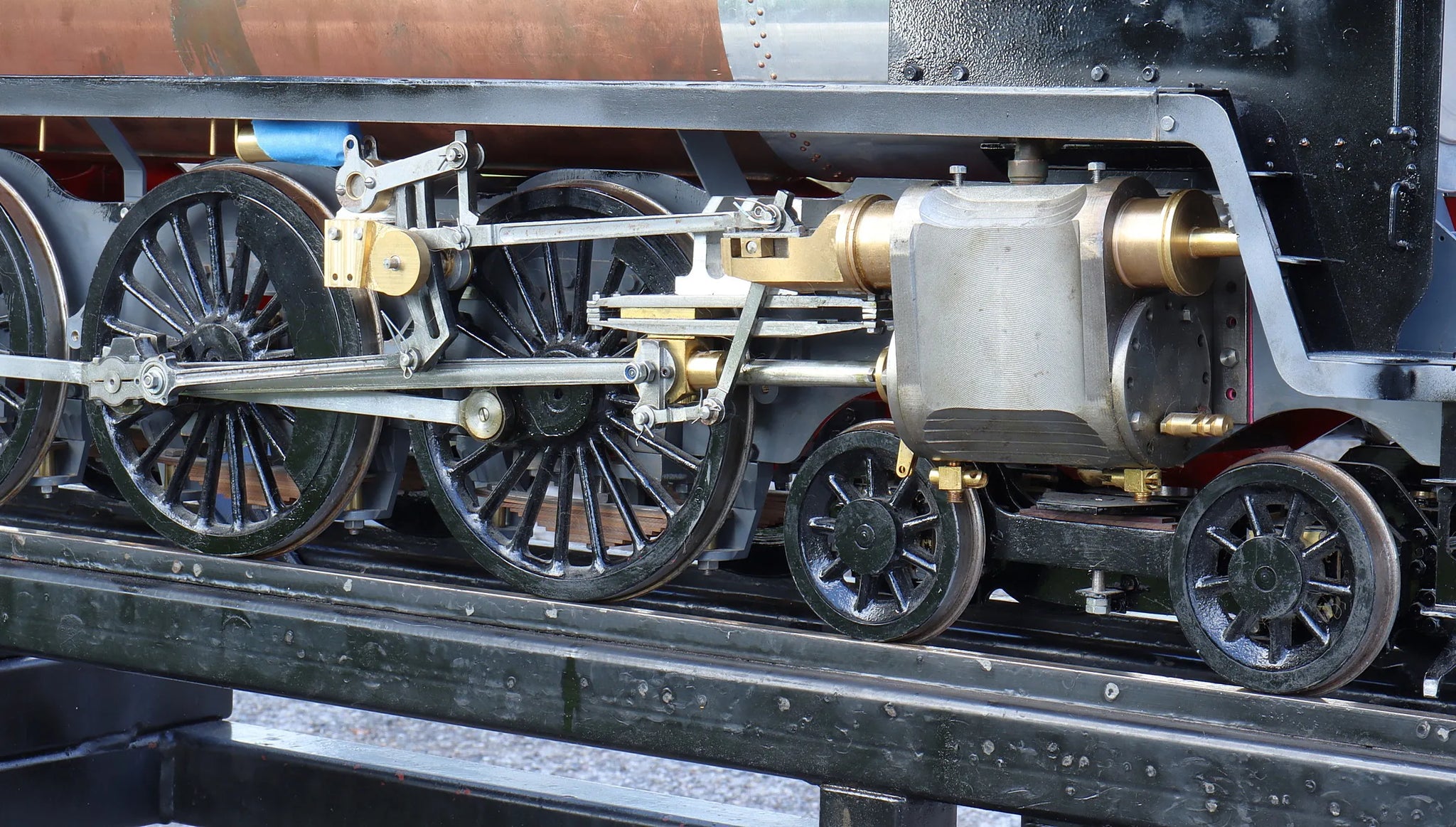

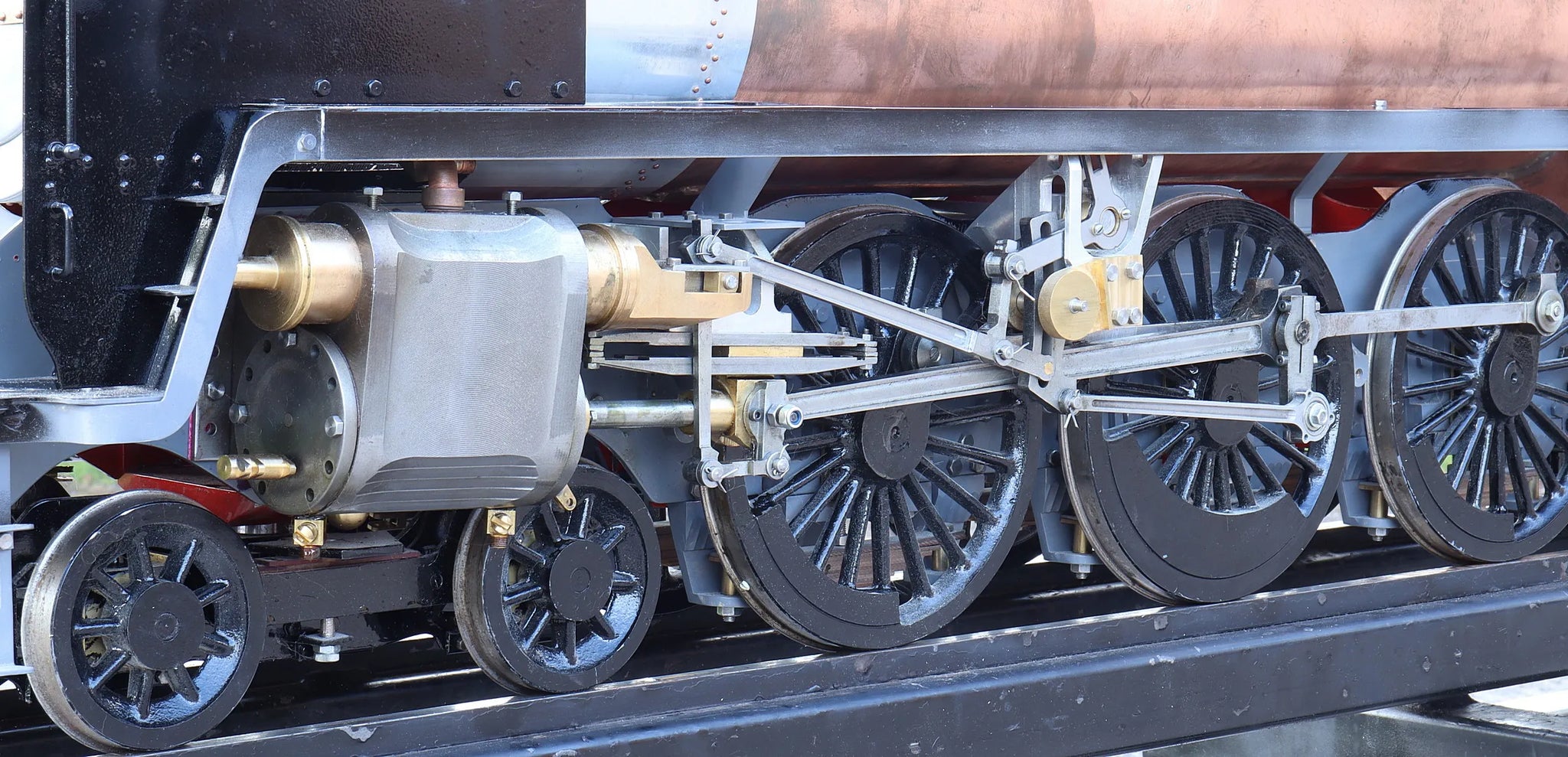

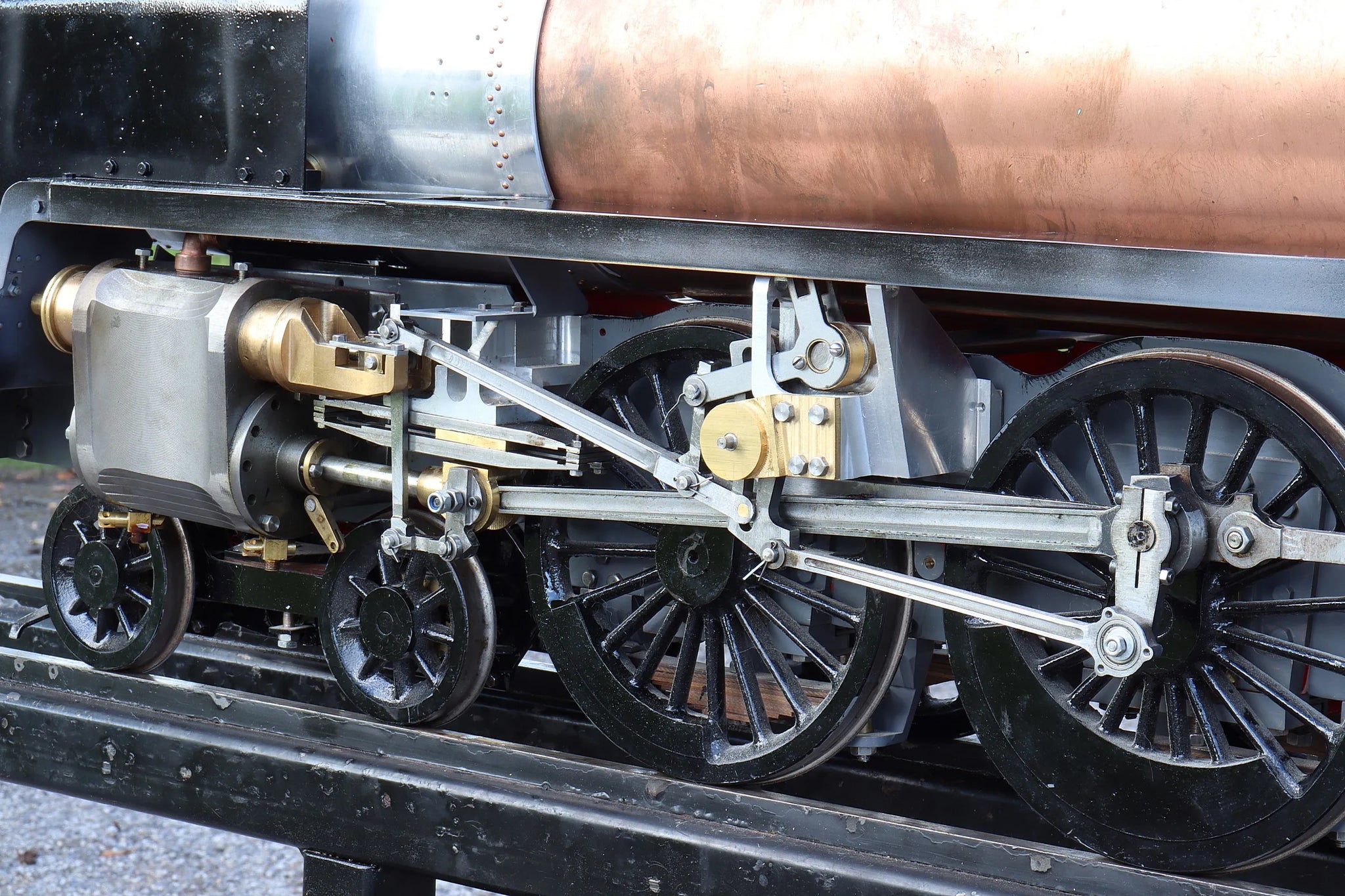

Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler maker |
Winson Model Technology |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - pre-2002 |
Boiler number |
1374 |
Safety valve type |
spring |
Safety valve |
2 |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
