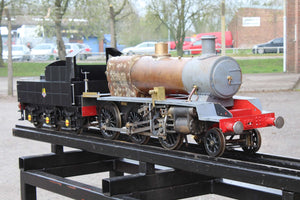

5 inch gauge BR Standard Class 2 2-6-0

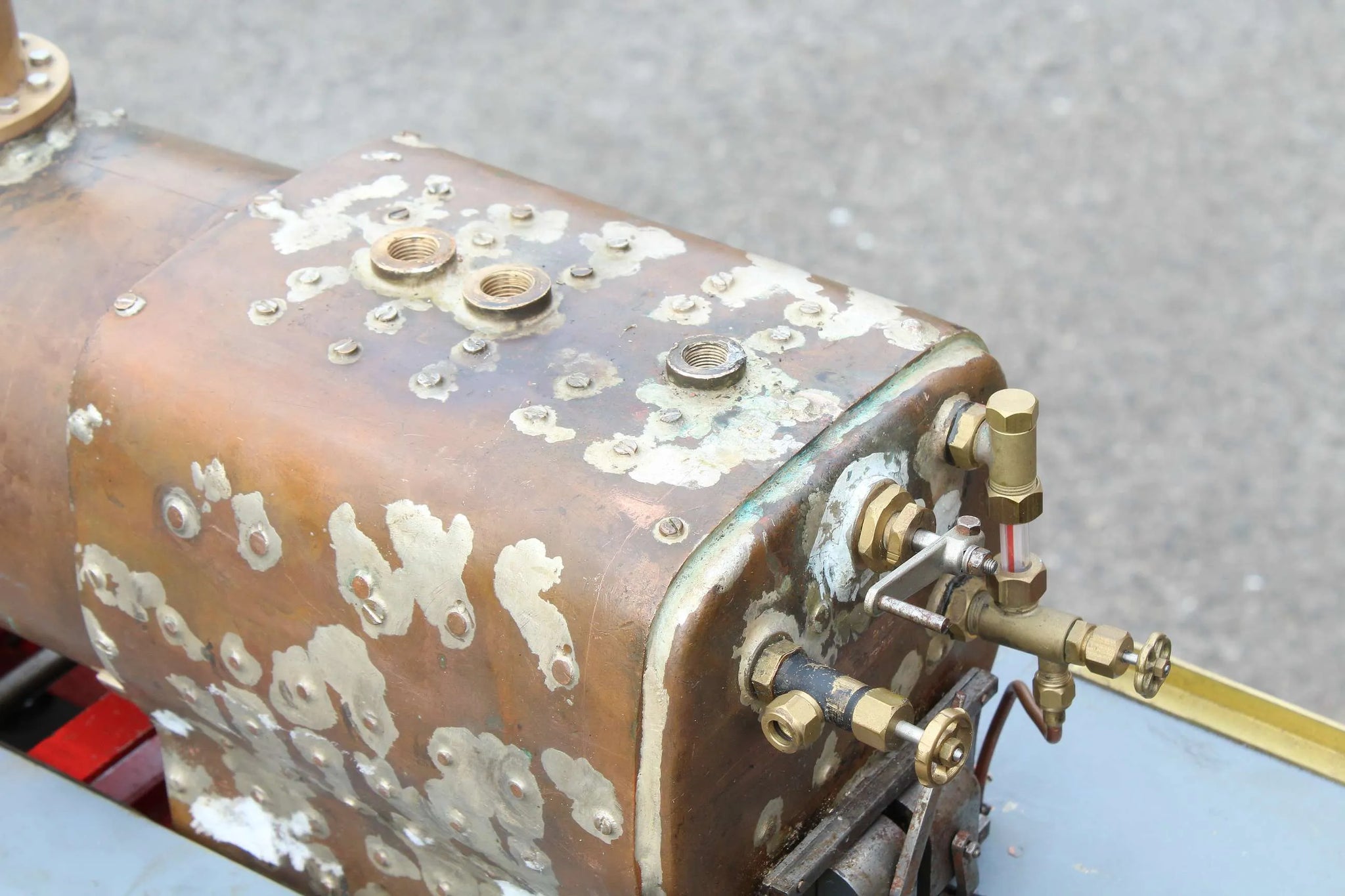

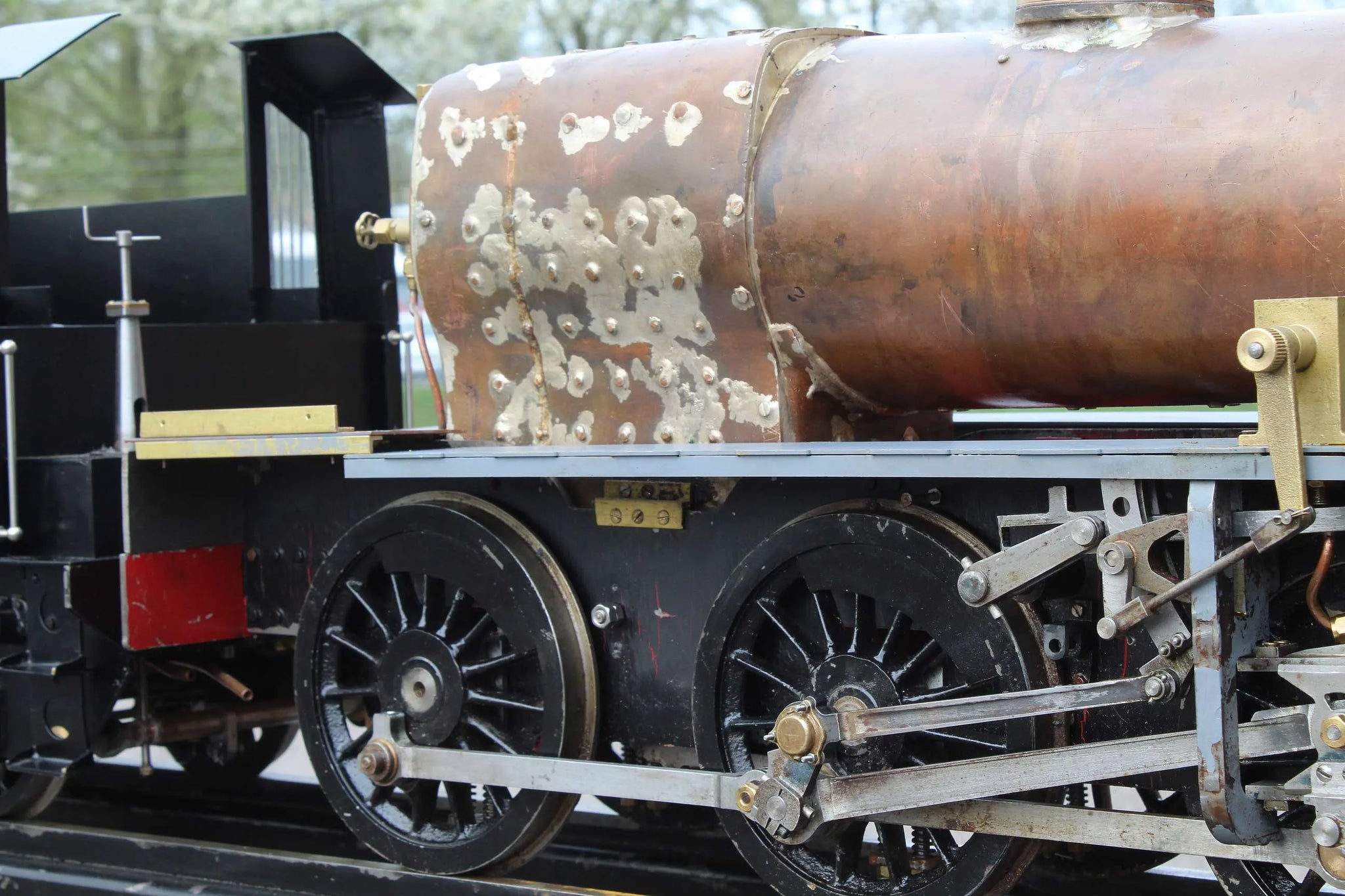

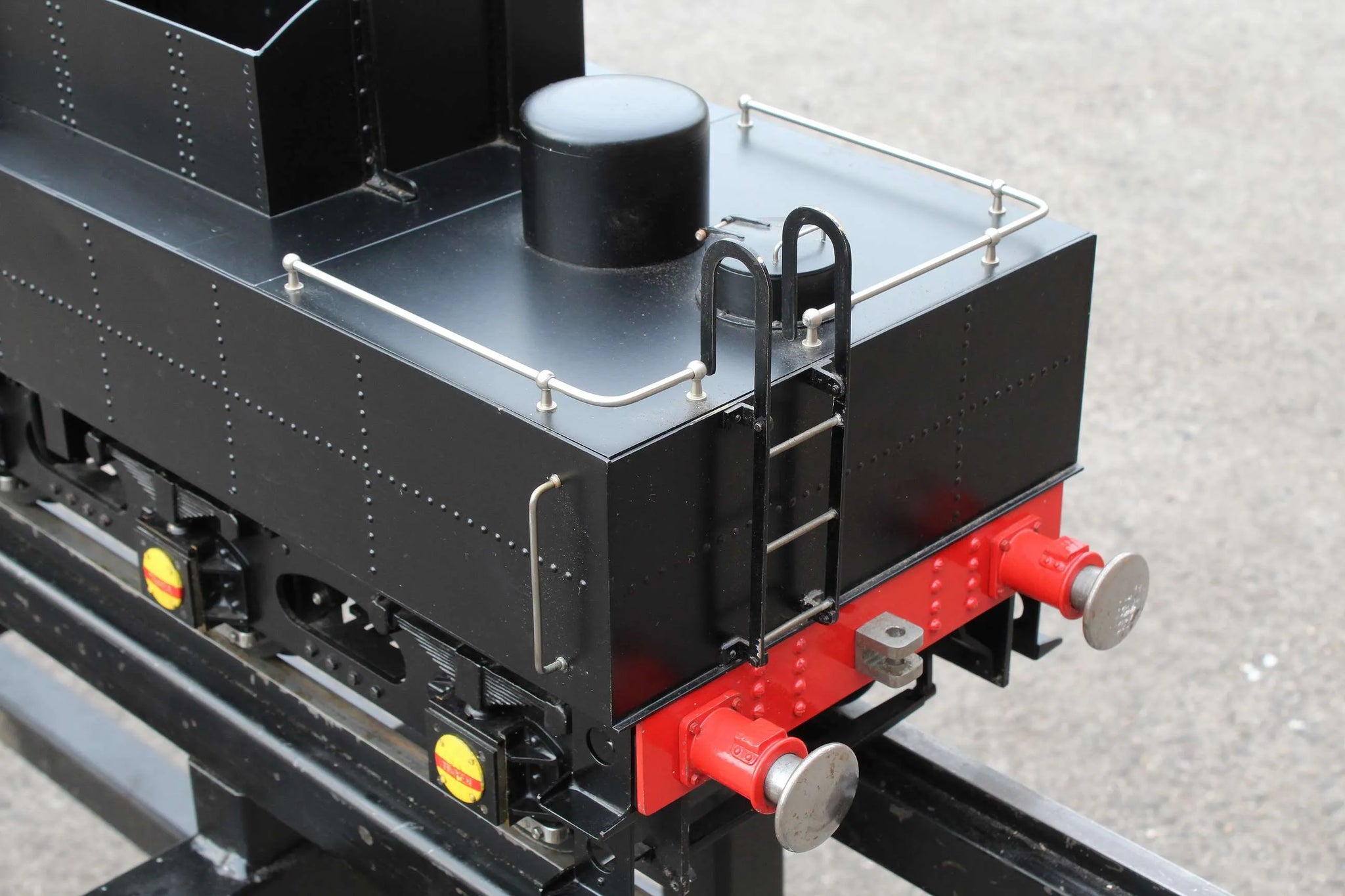

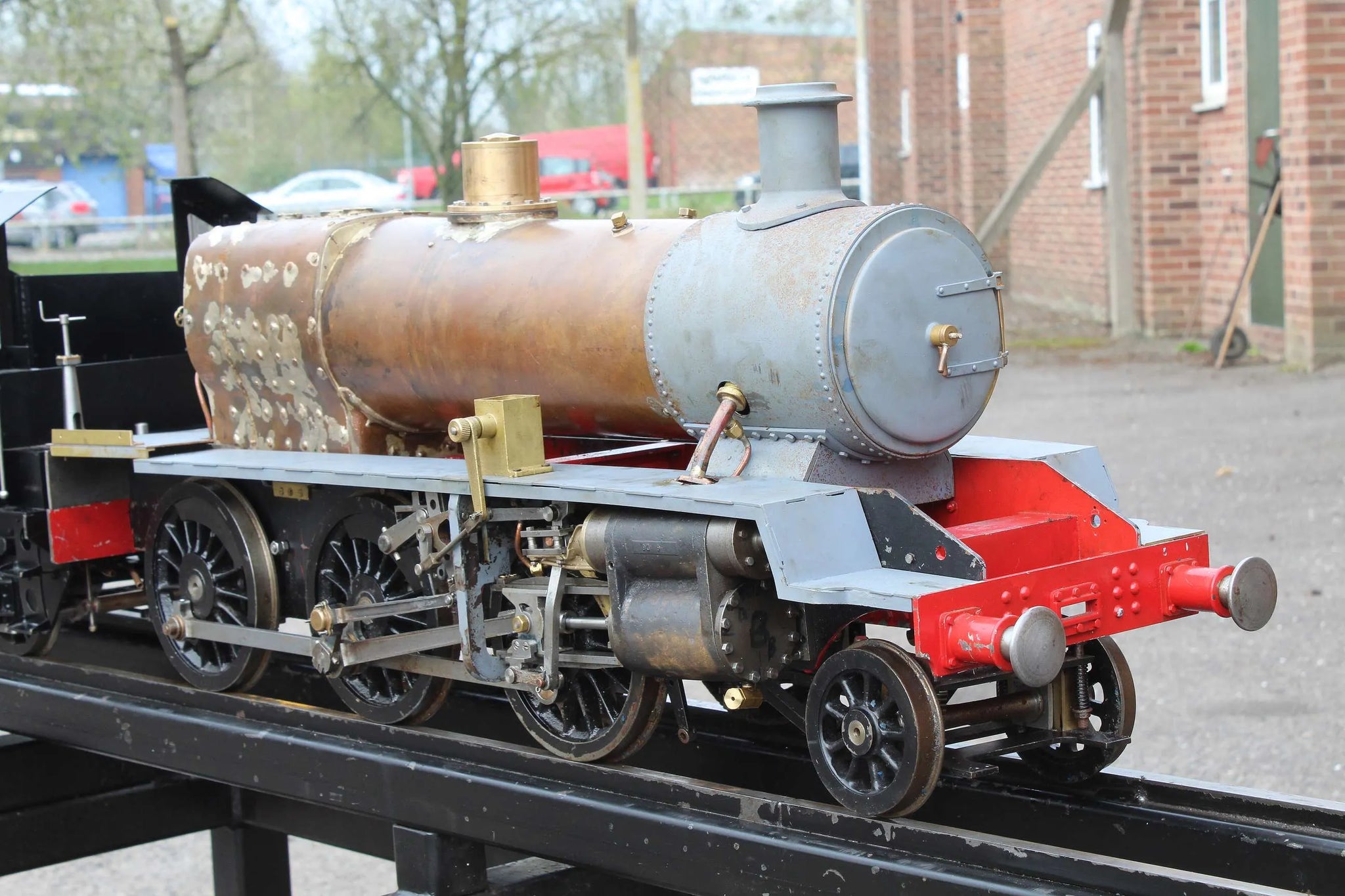

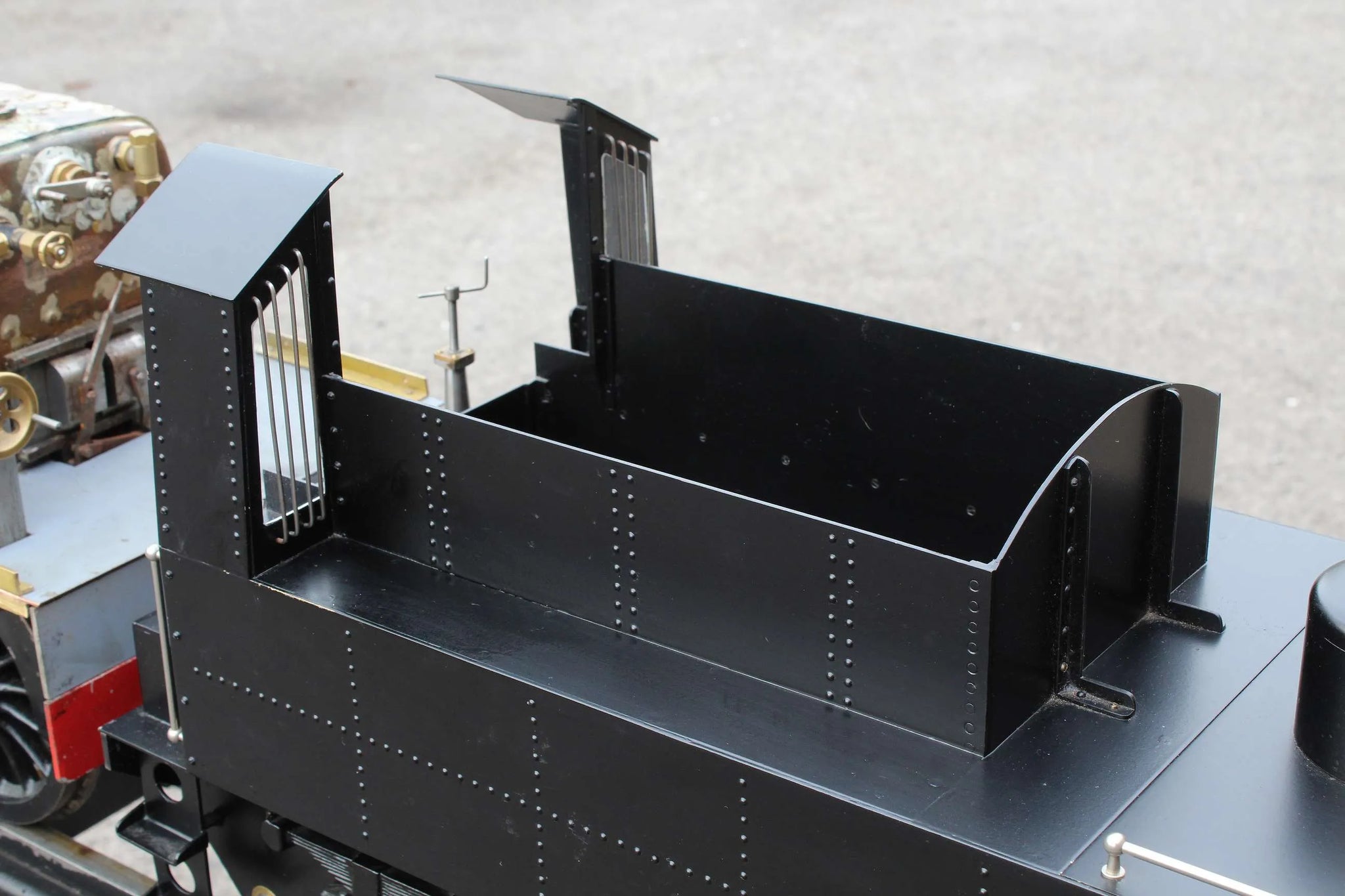

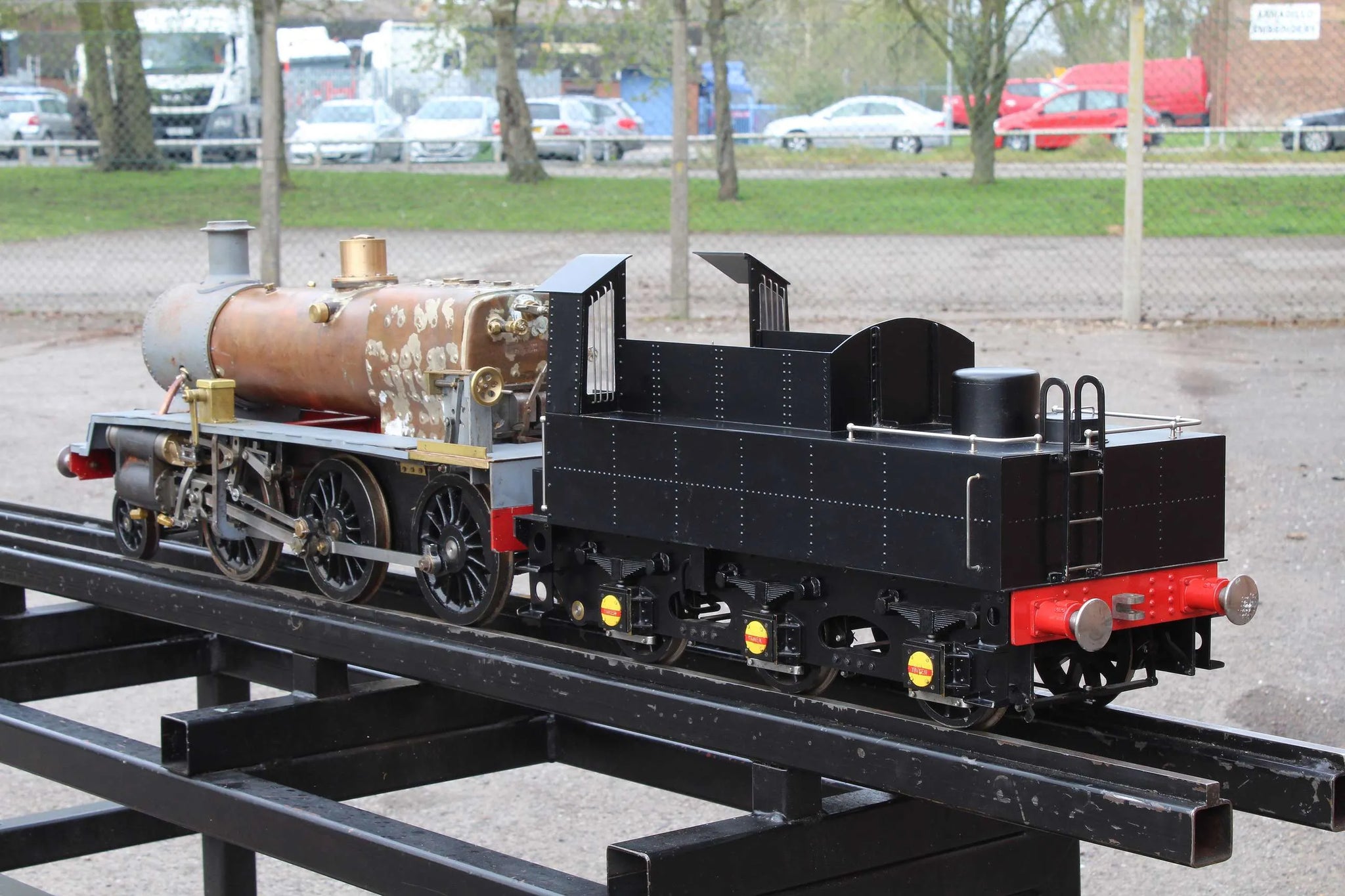

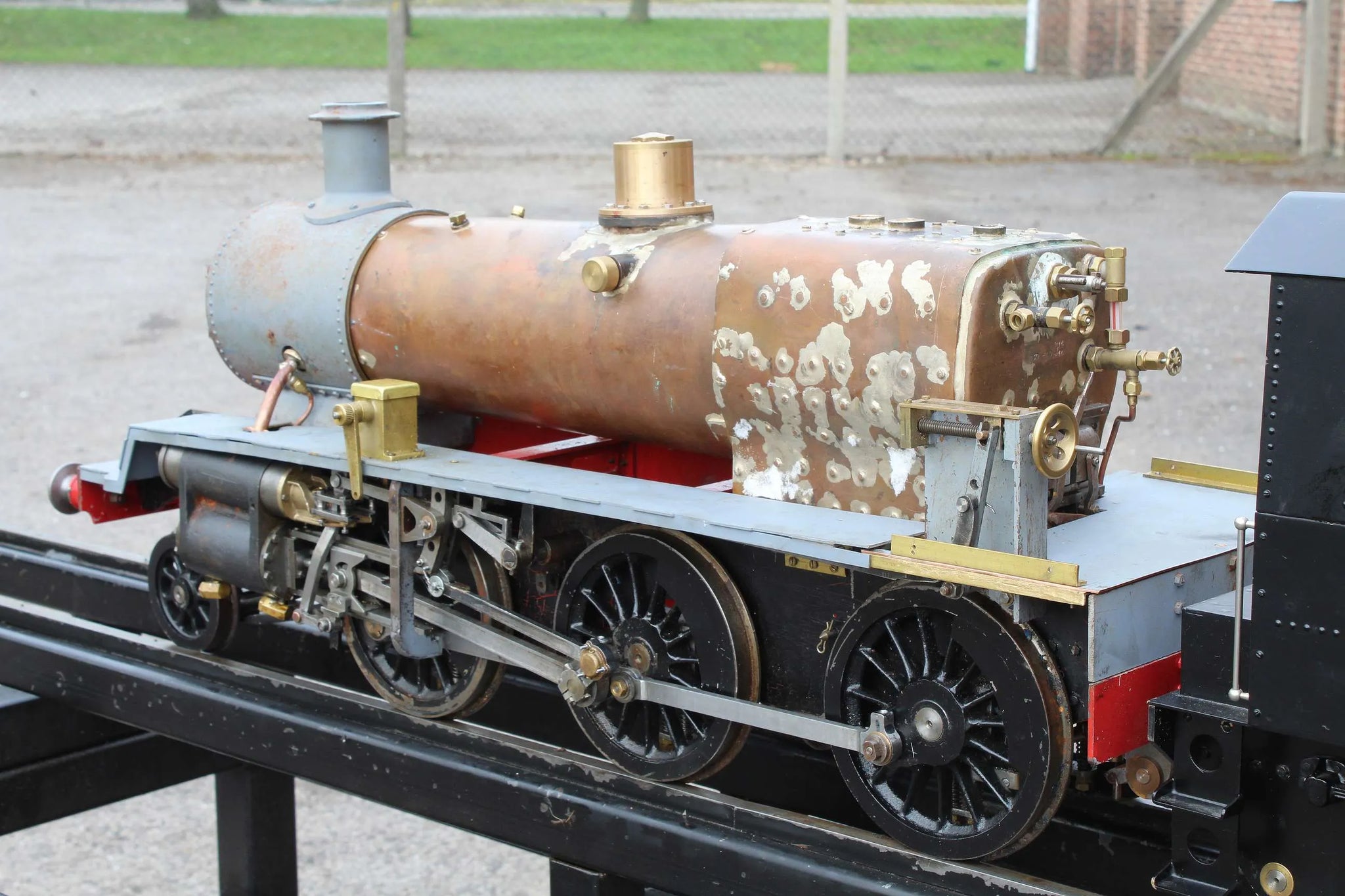

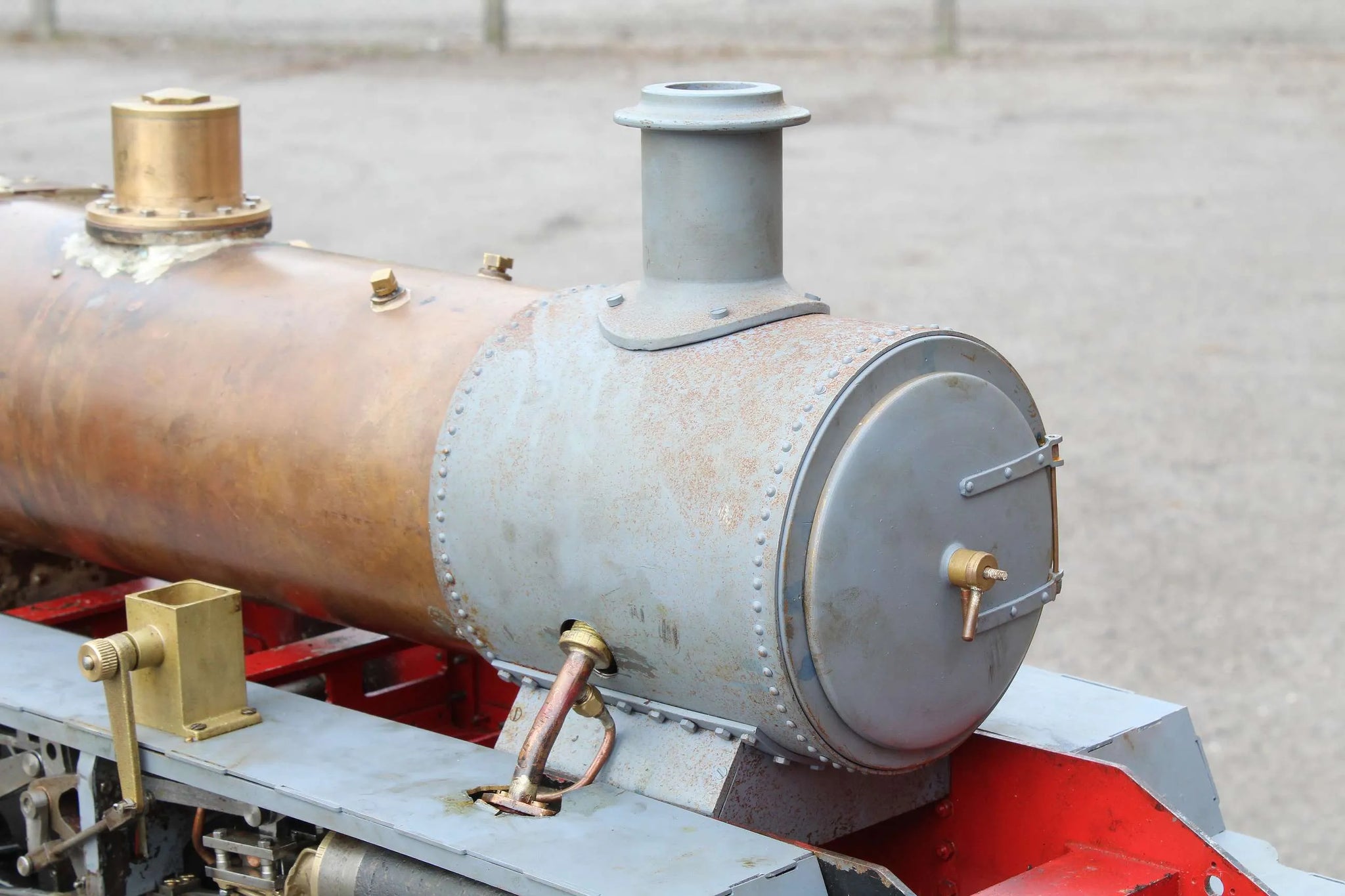

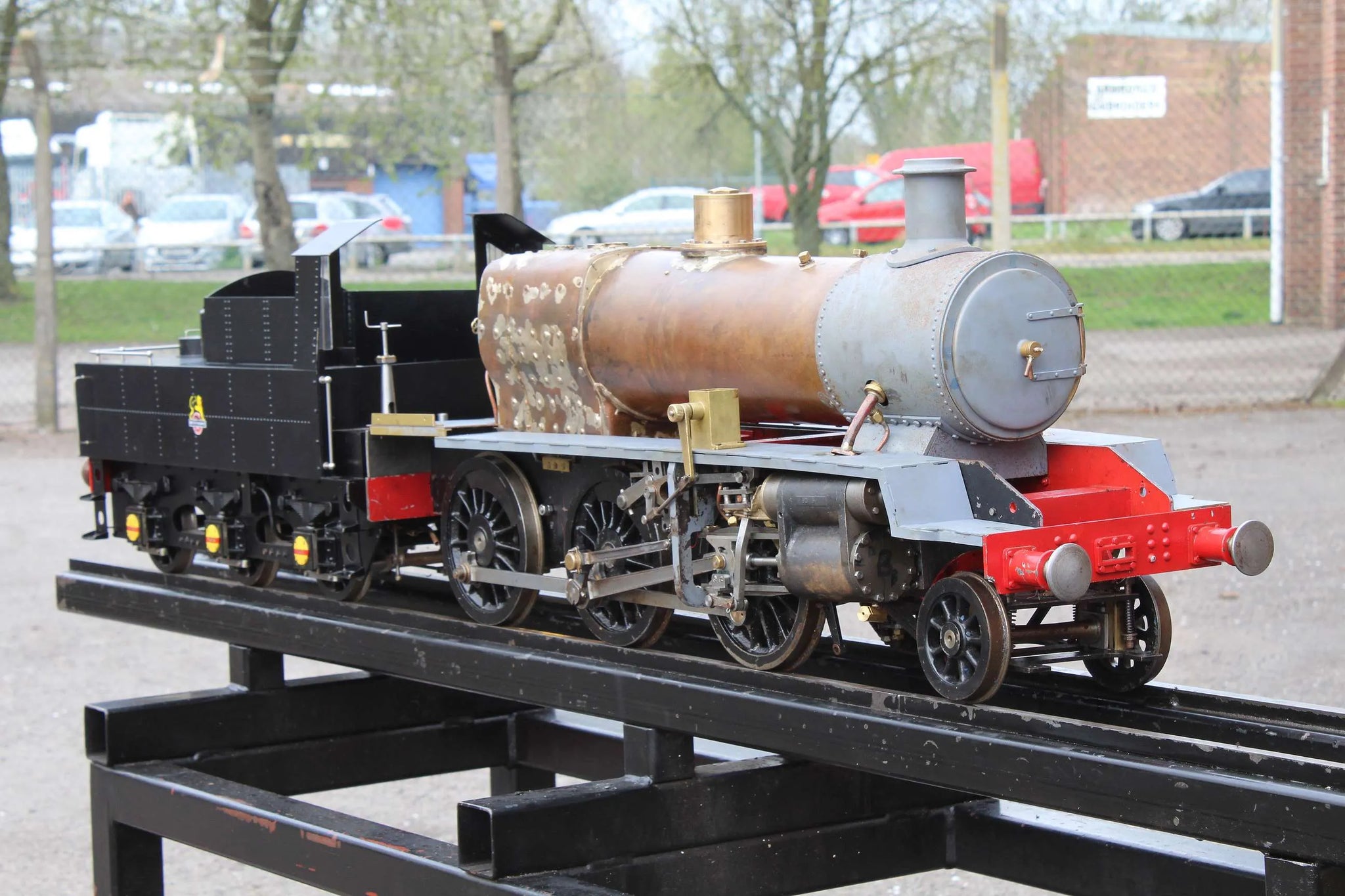

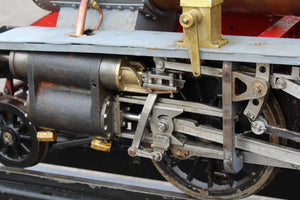

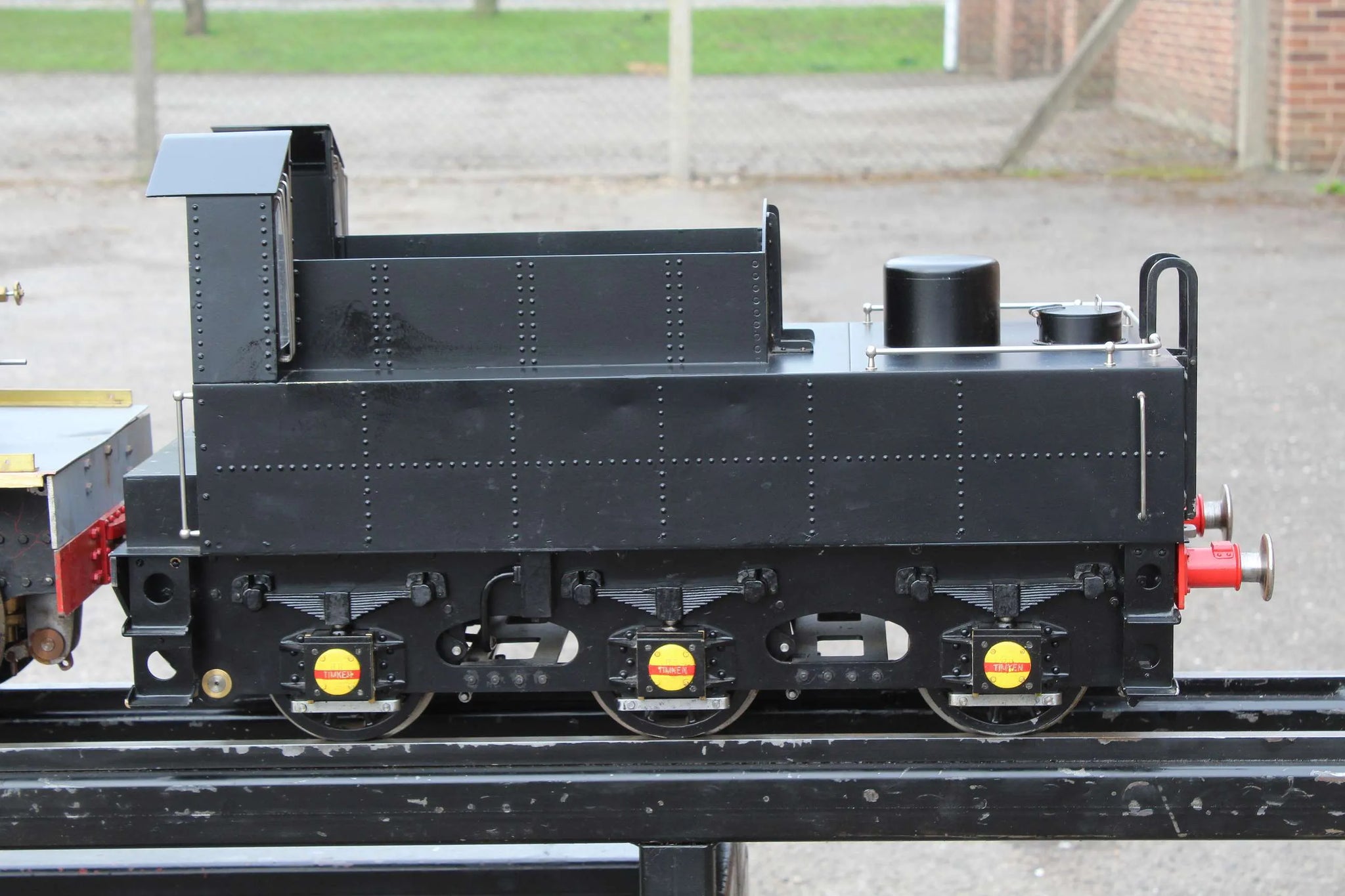

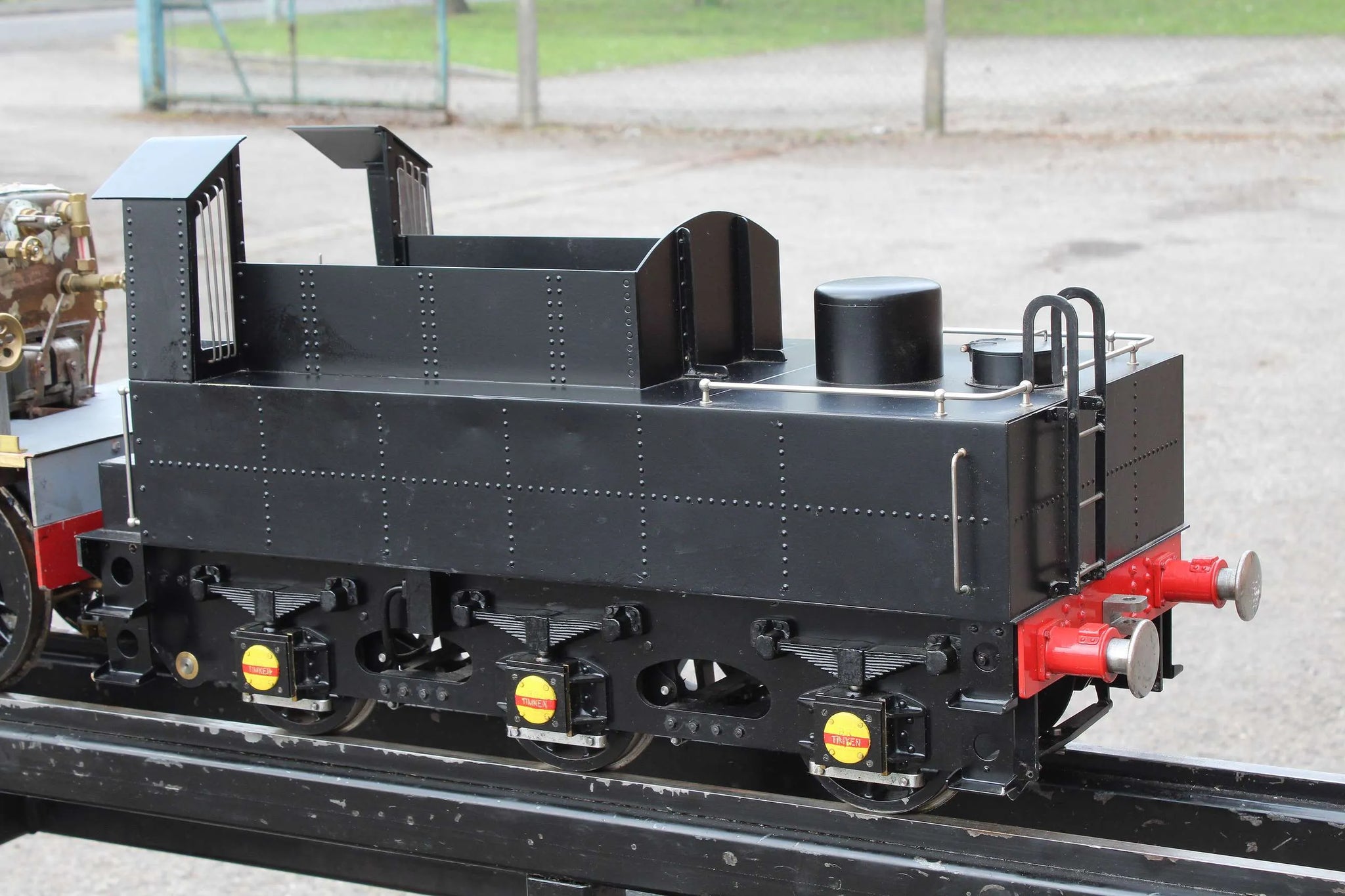

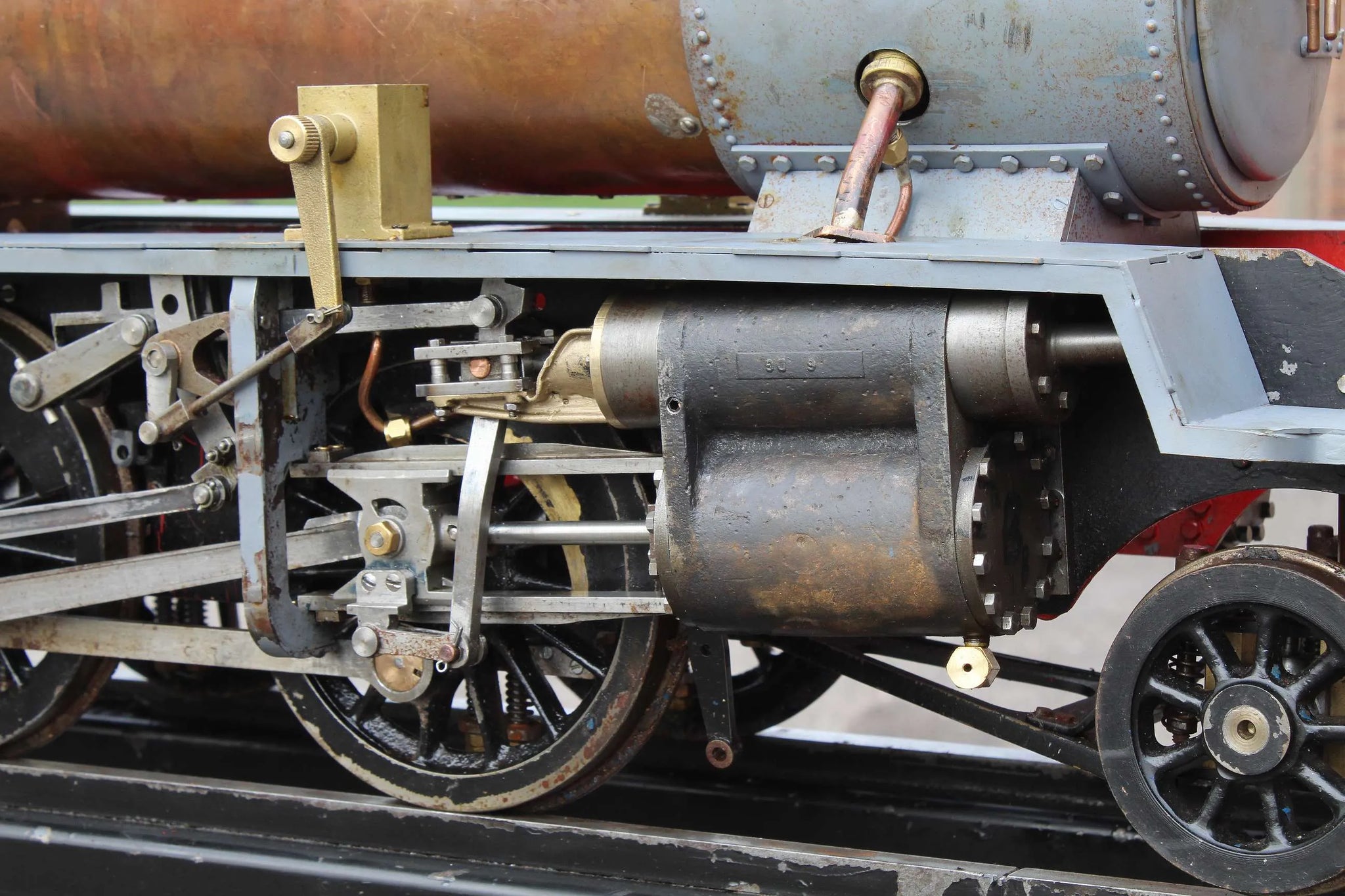

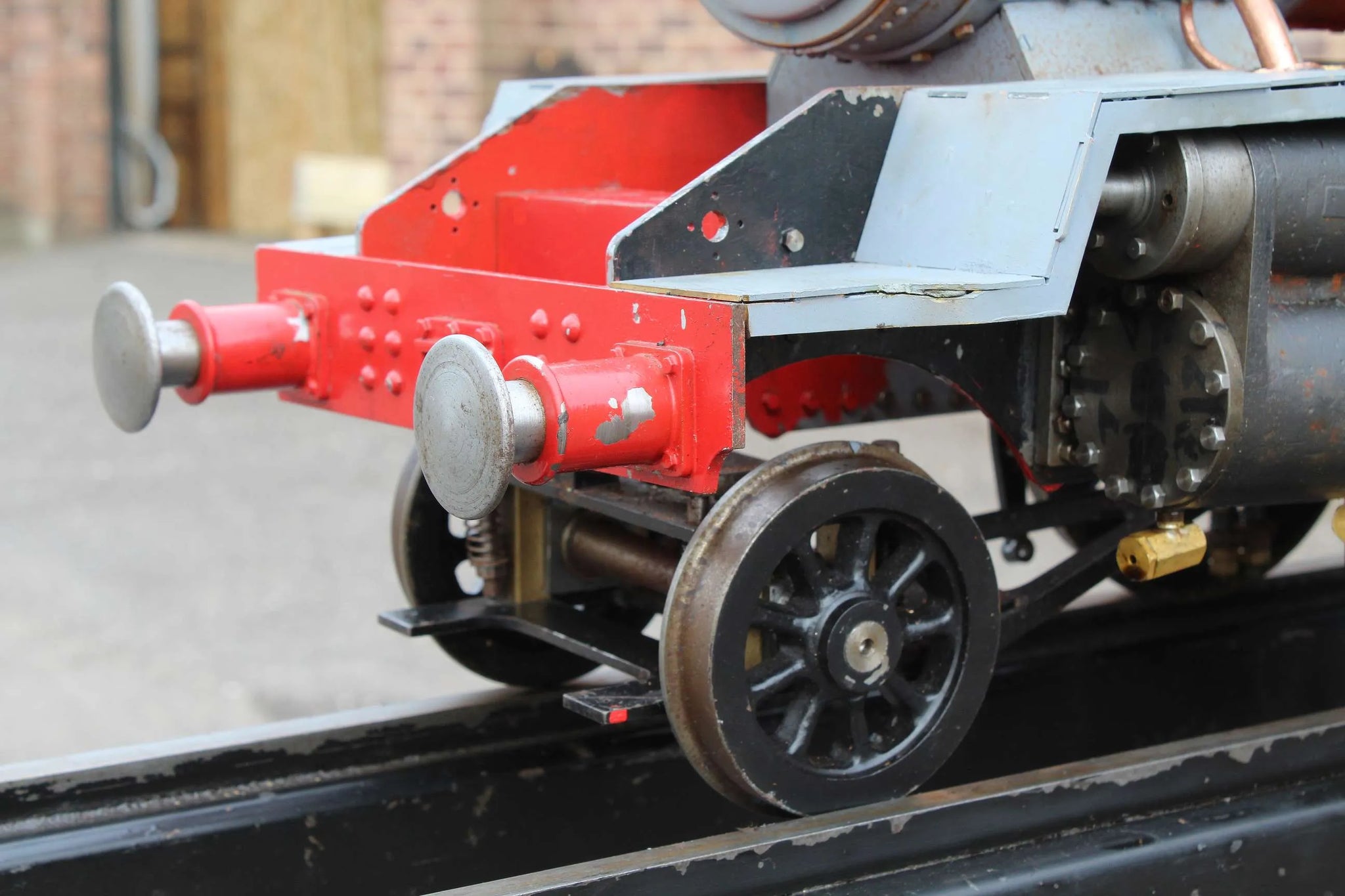

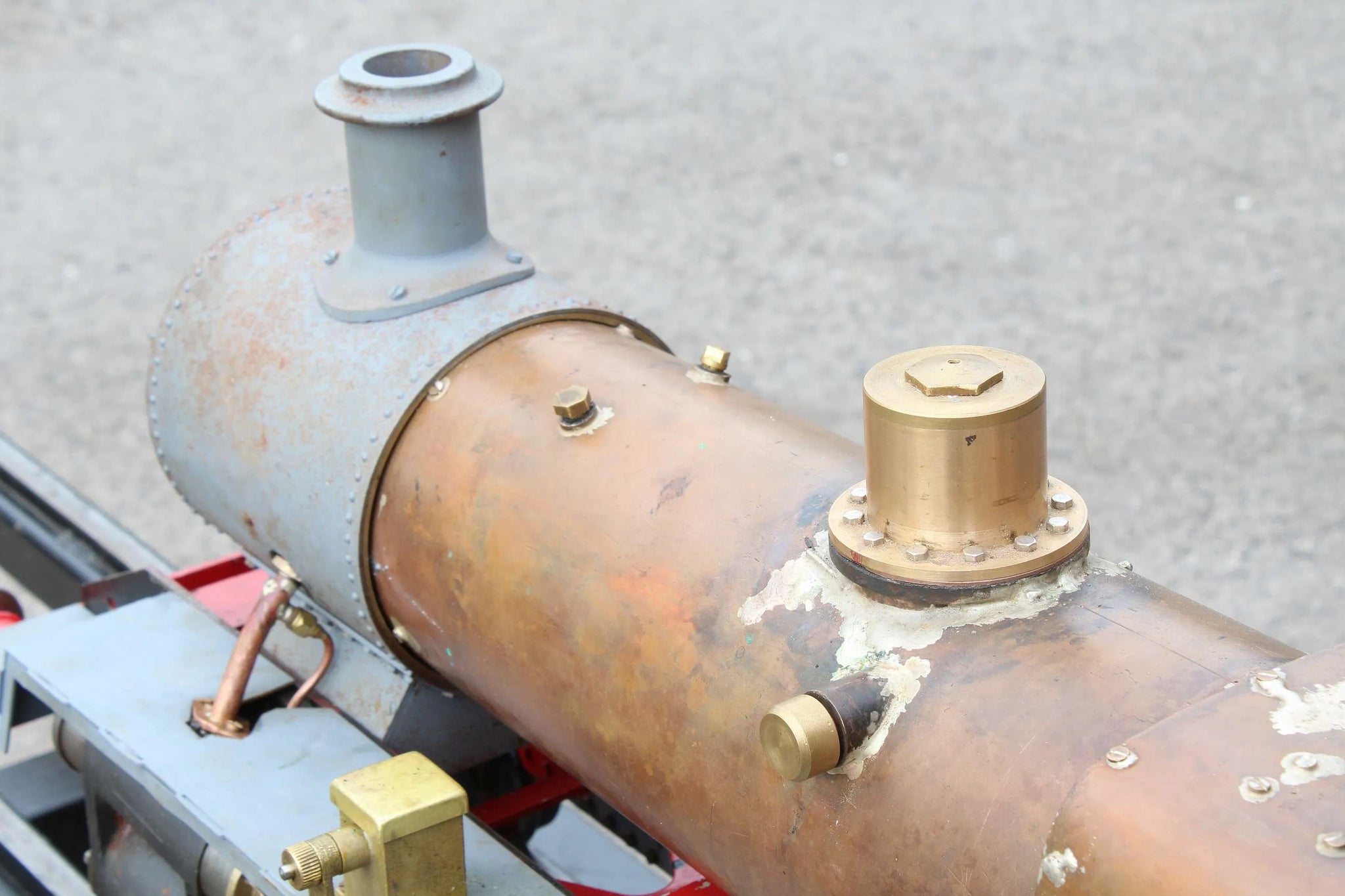

A well-advanced 5 inch gauge BR Standard Class 2 Mogul, comprising substantially complete chassis with valve gear and motionwork fitted, silver soldered copper boiler, smokebox assembly and painted tender.

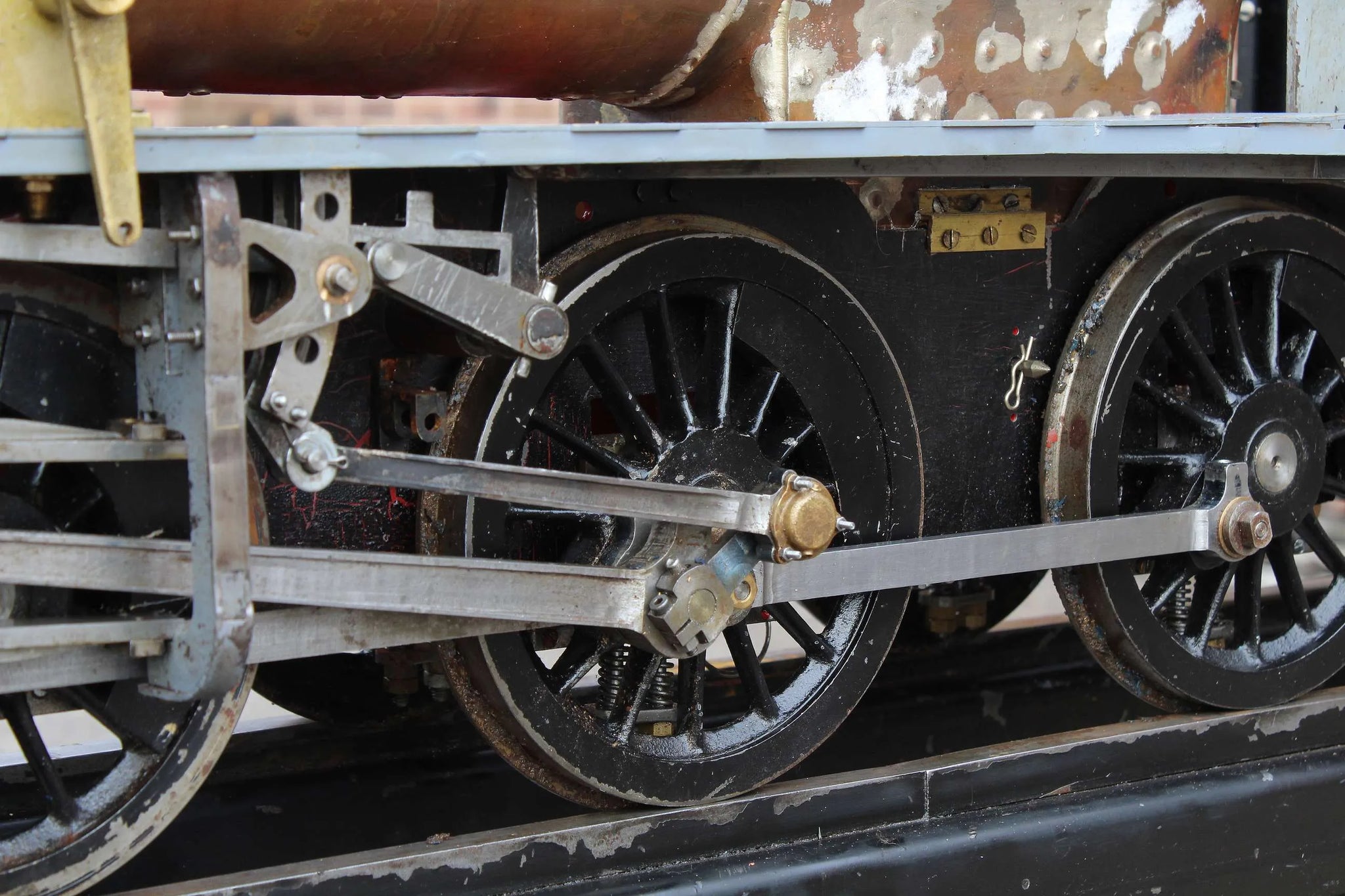

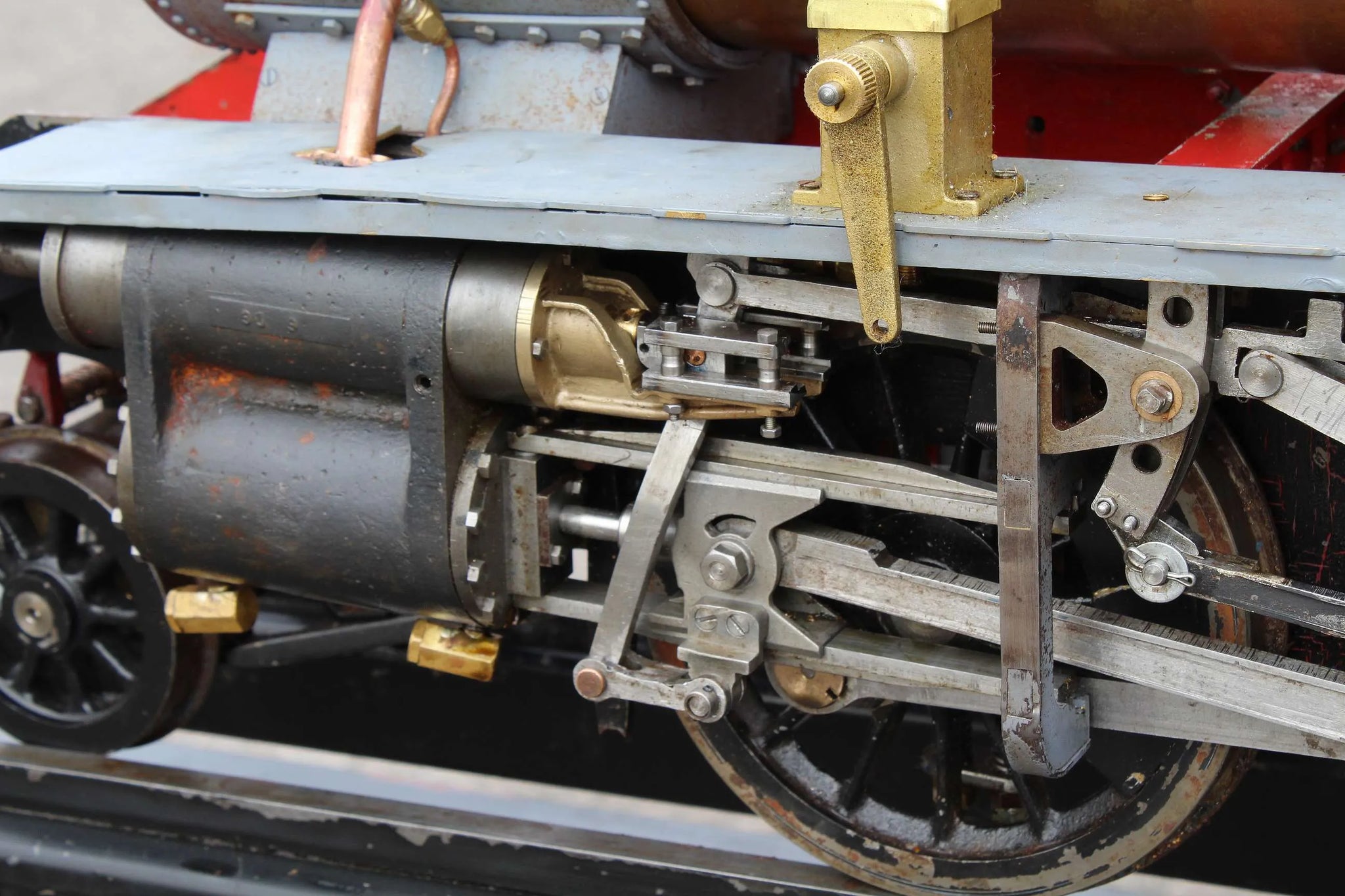

Finish of motionwork and valve gear is utilitarian, although offers plenty of scope for improvement with little more than emery cloth and elbow grease.

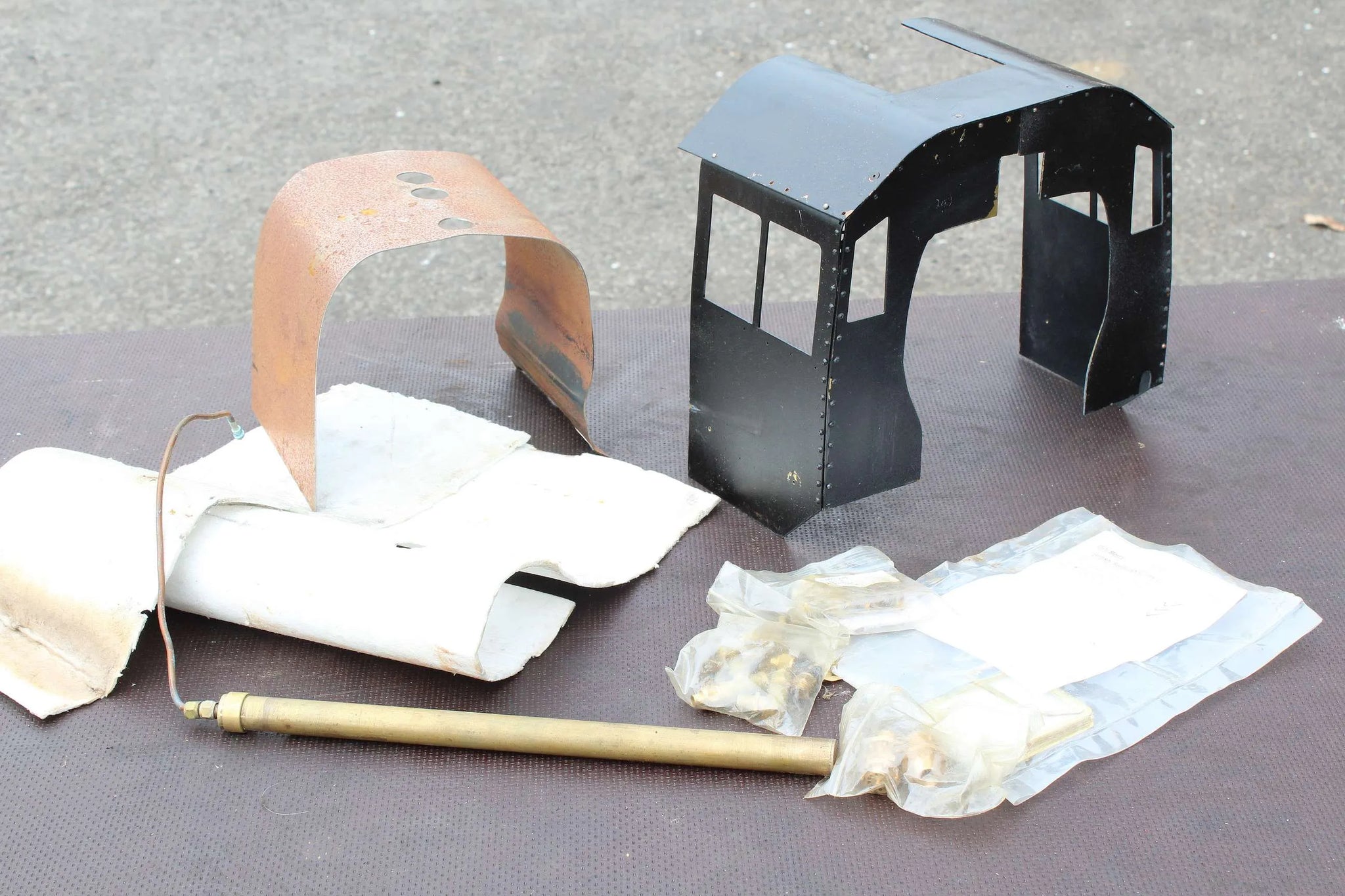

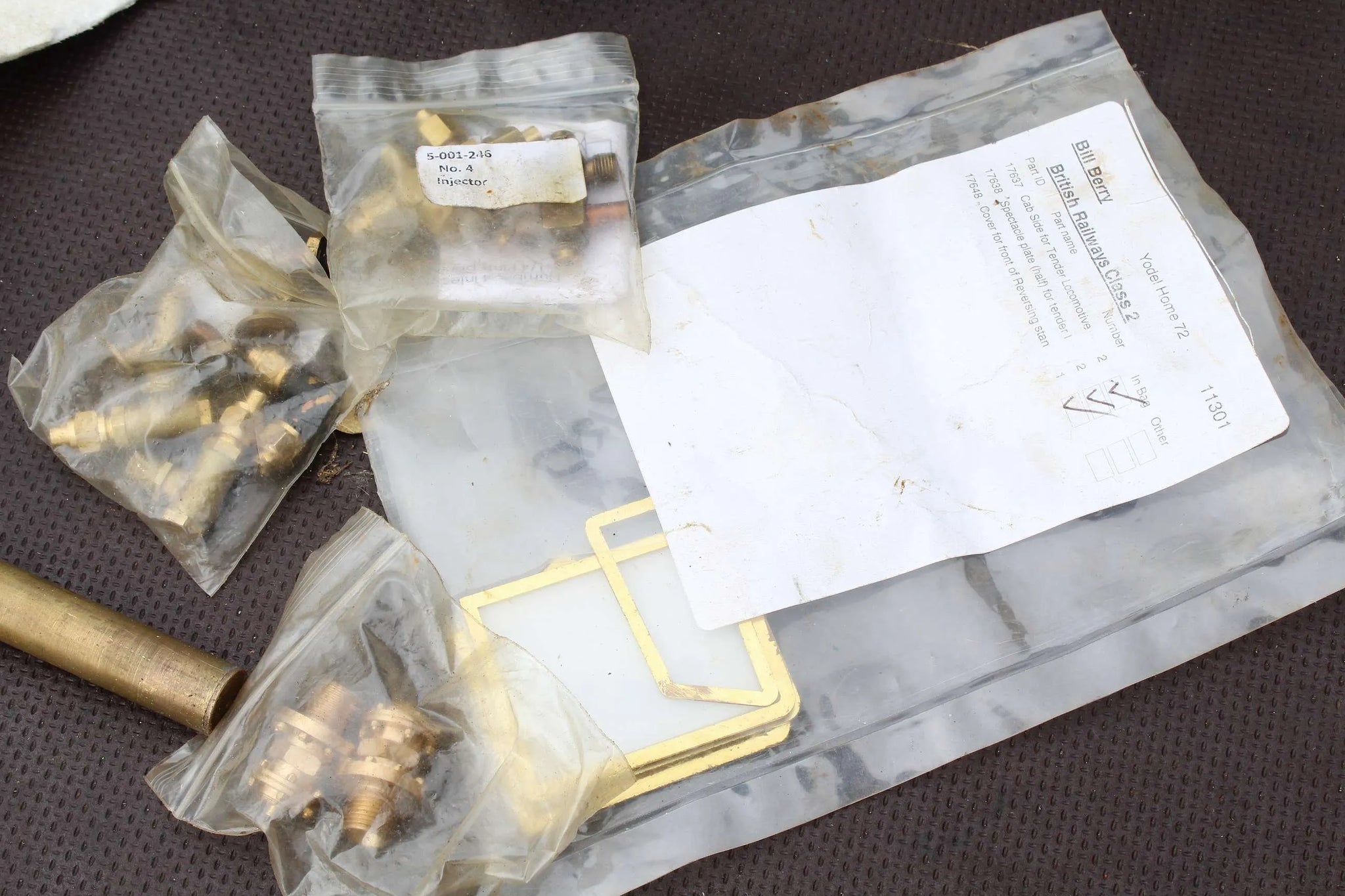

There is a box of loose parts including cab, whistle and fittings including injector and commercial fine scale safety valves.

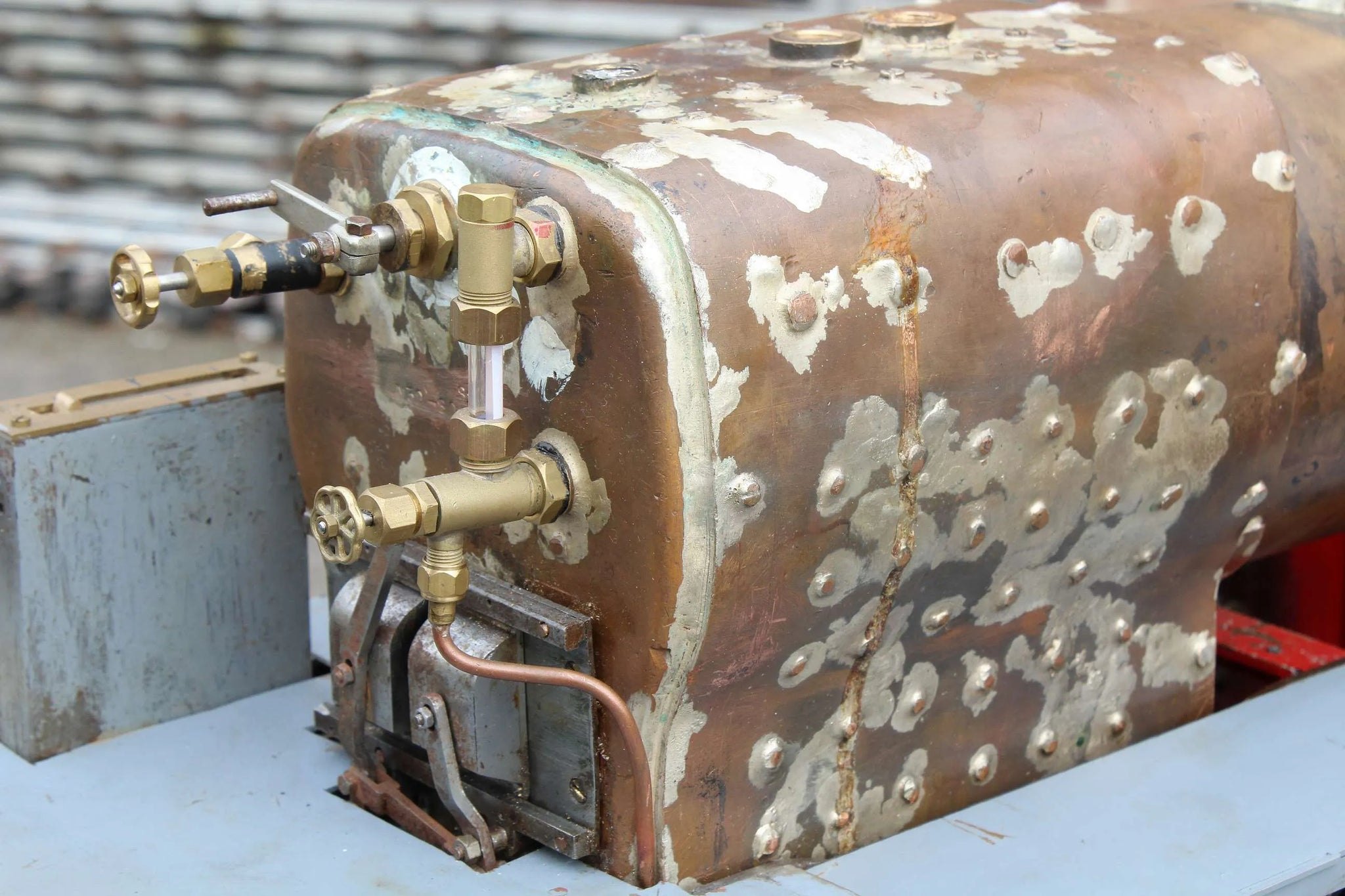

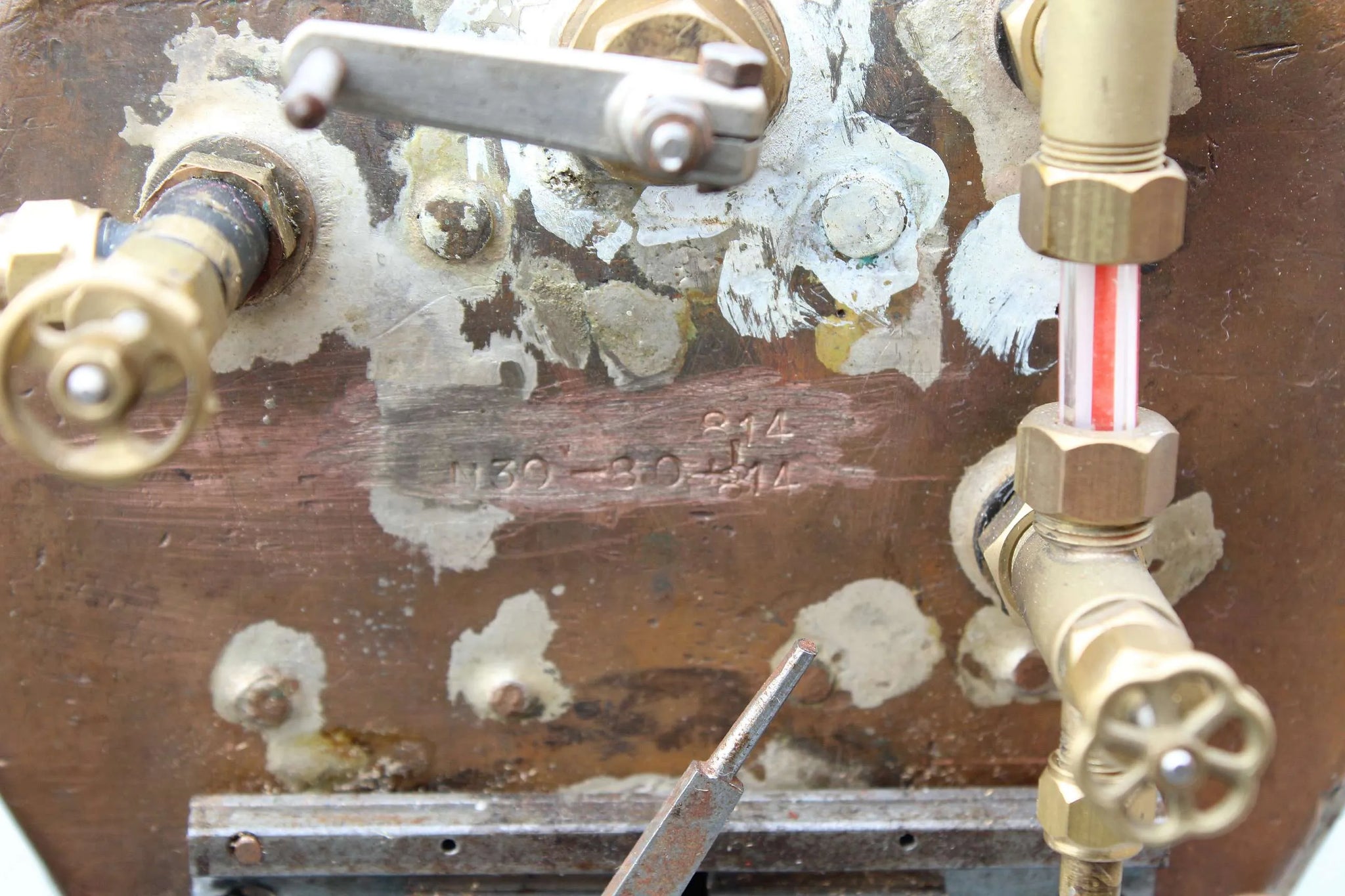

We have no documentation for the boiler, although it carries a Northern Association number on the backhead.

Technical information

Stock code

10355

Gauge

5 inch

Length/inches

33+24

Width/inches

13

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

Valve gear

Walschaerts

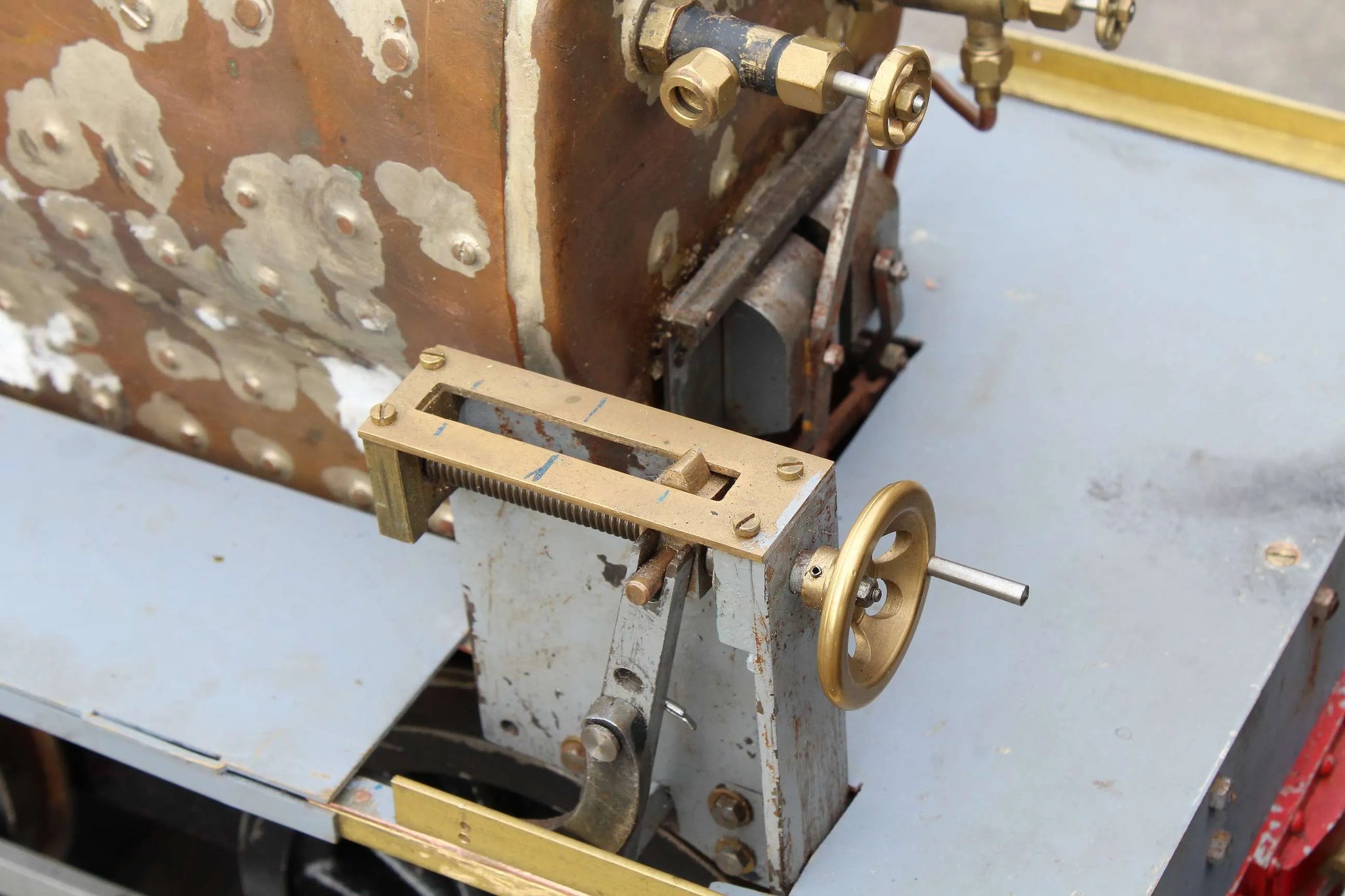

Reverser type

screw

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

N30-80-814

Superheater type

radiant

Superheater

2

Date out

Apr-22
