Sold

8138

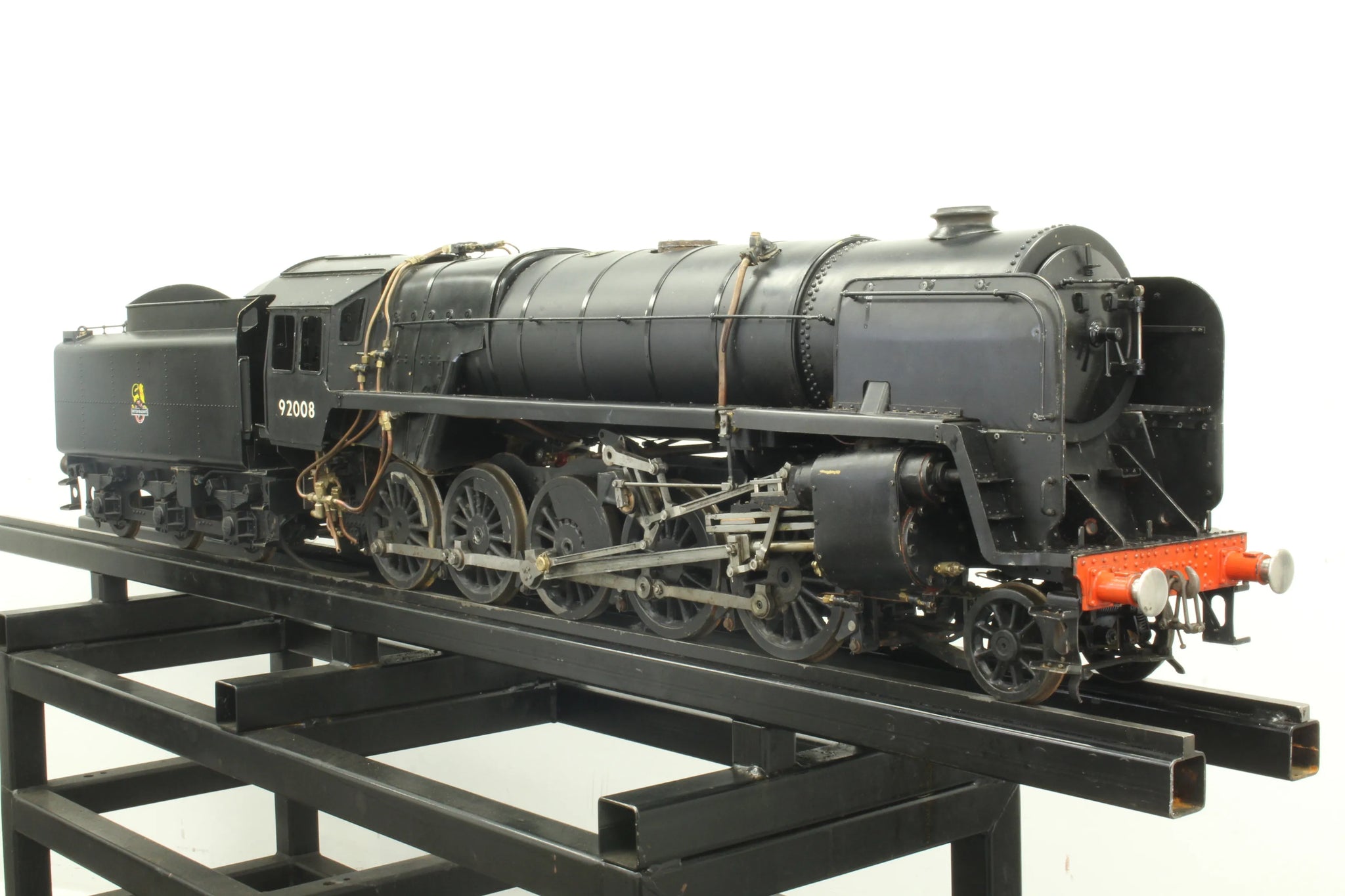

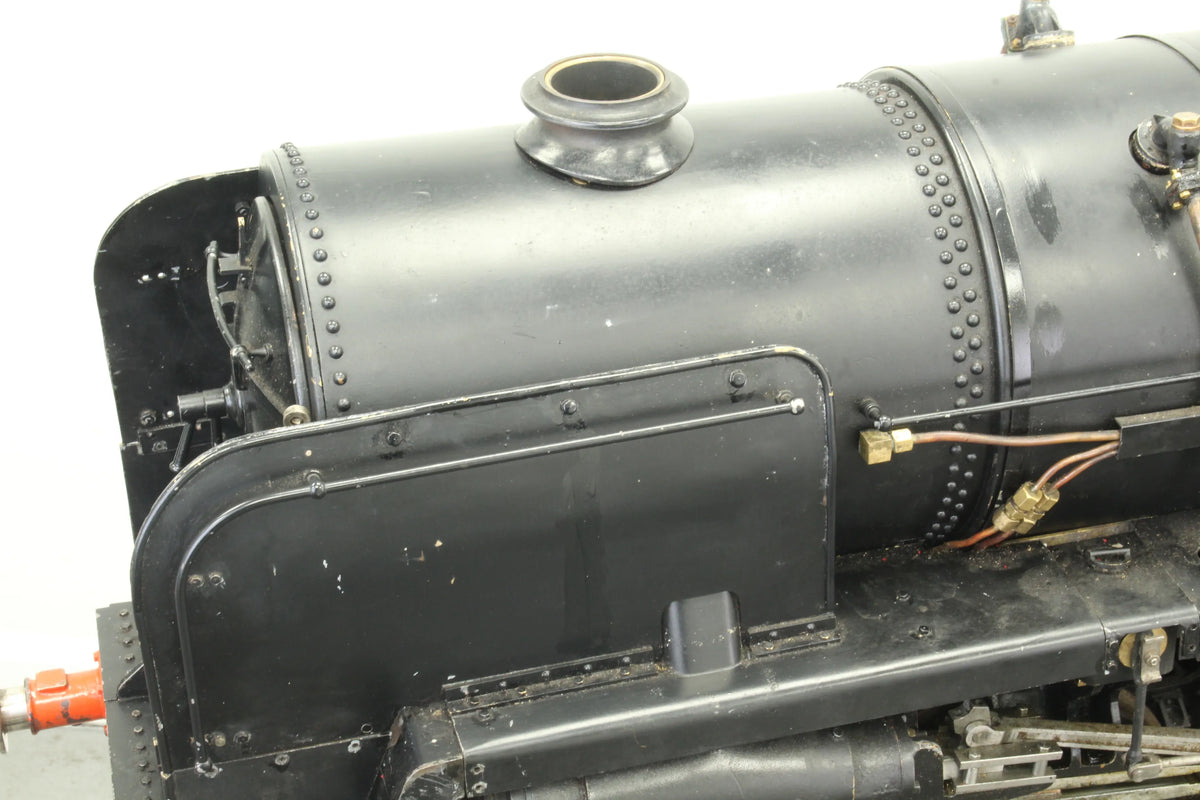

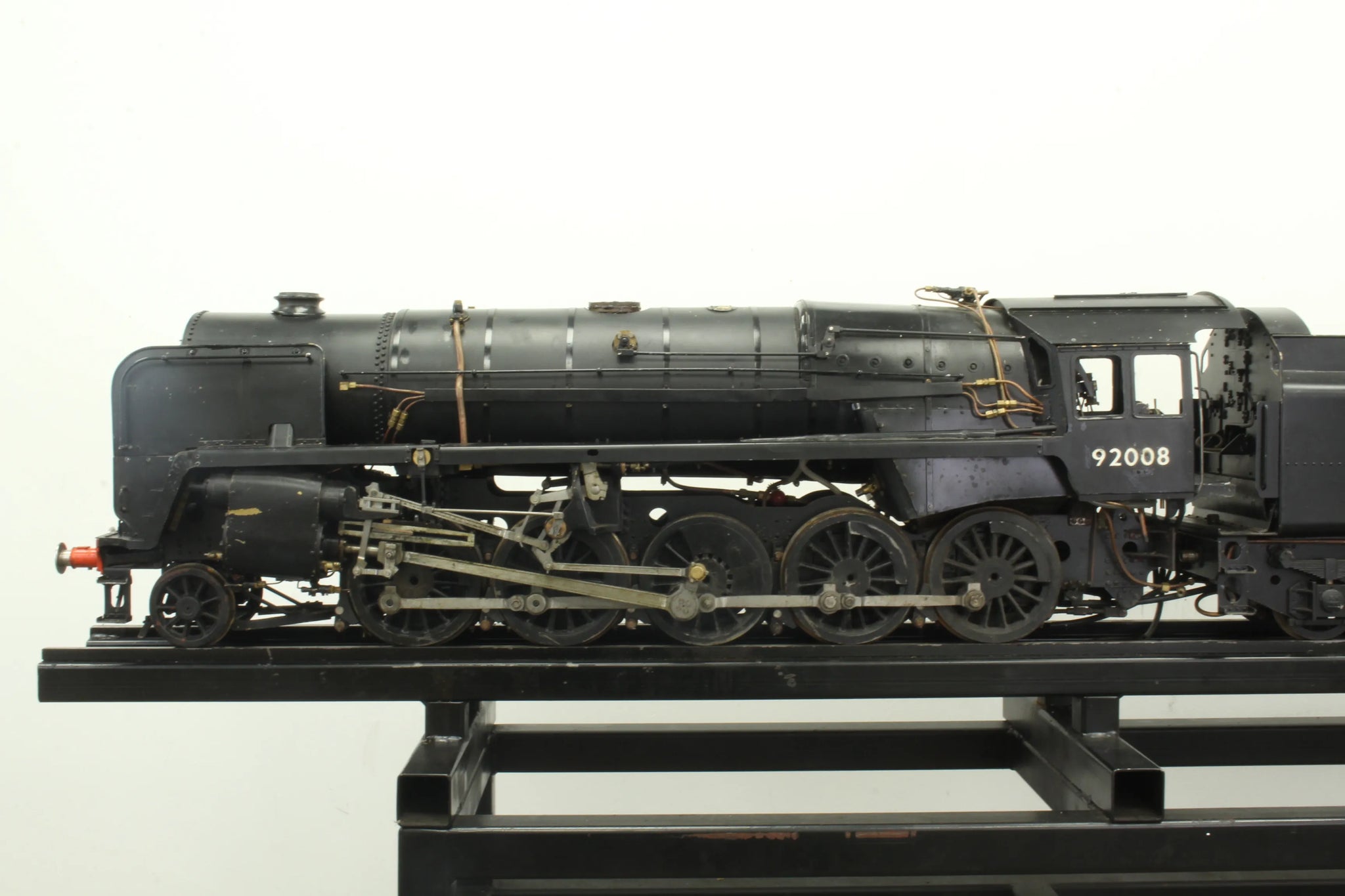

5 inch gauge BR Standard Class 9F 2-10-0

At the rate "barn find" engines seem to be coming in these days, you'd think there can't be that many barns left unexplored.

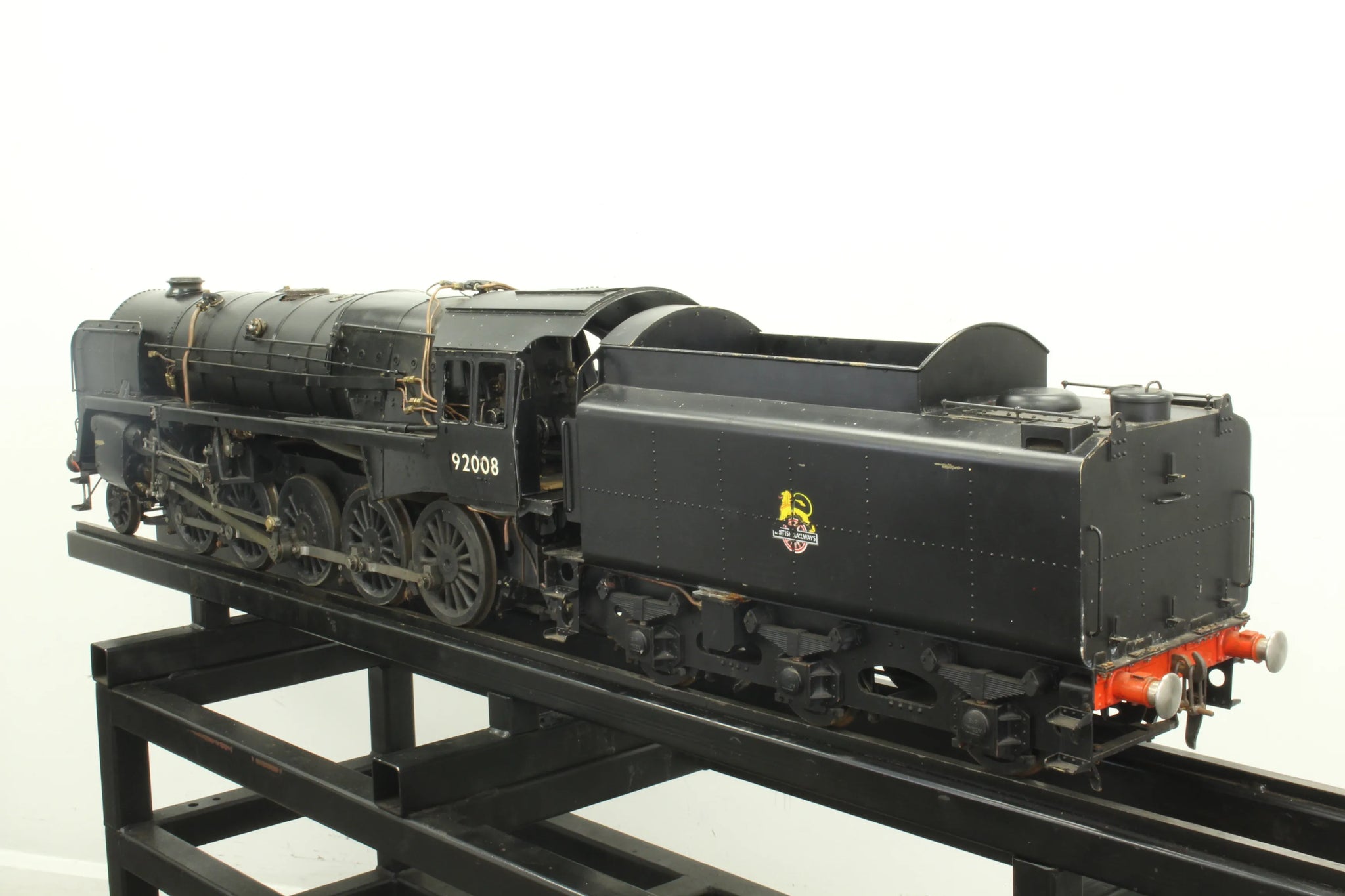

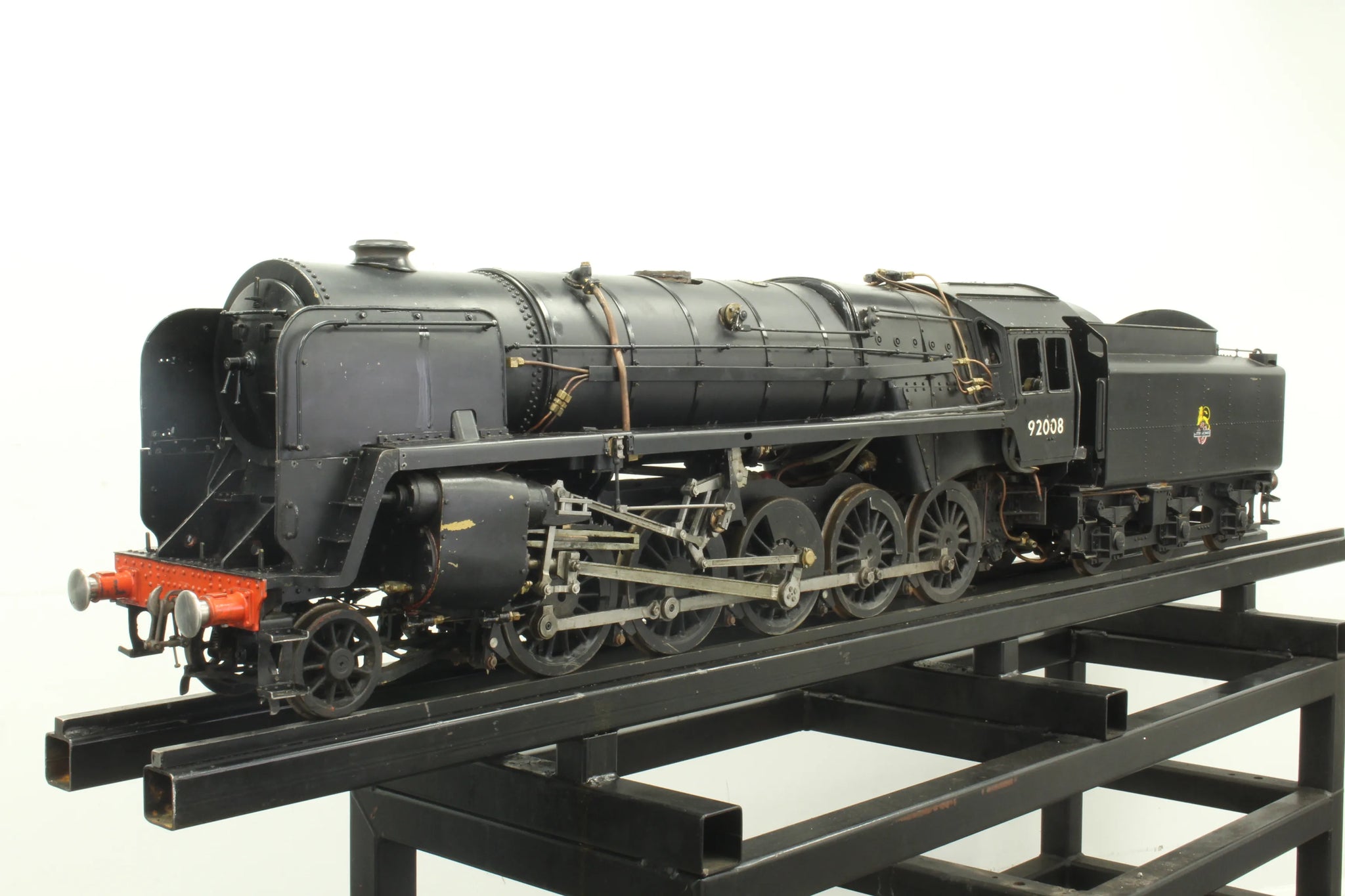

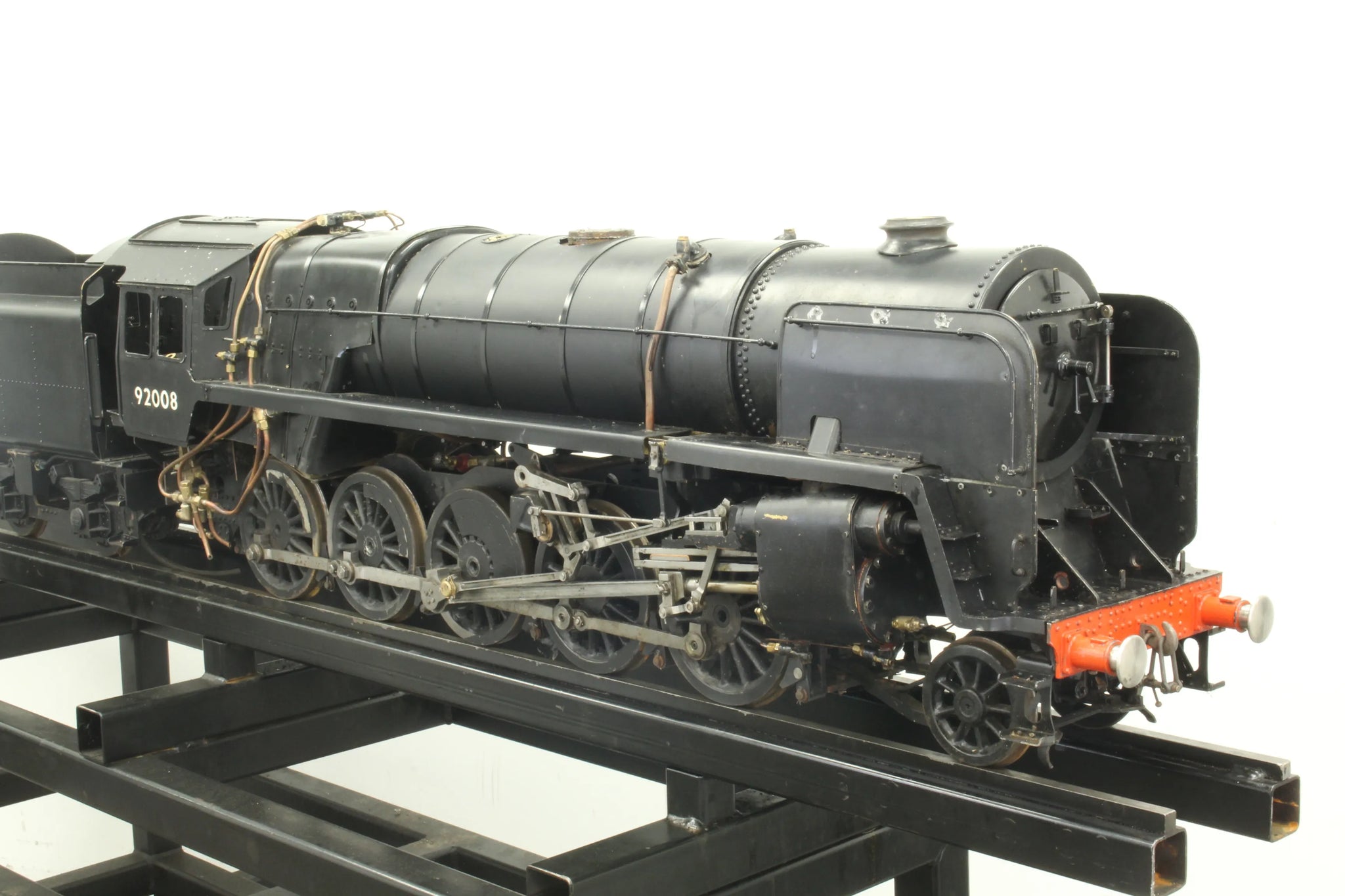

A 5 inch gauge BR 9F 2-10-0 - decently built in the first place and well-detailed. Whilst we regularly get kit-build engines come in which have been somewhat neglected, not sure how a scratch-built engine of this size - which at some time has taken somebody several thousand hours to build - gets into this sort of state.

Largely complete, the engine is missing a variety of small parts including smokebox door locking bar, safety valves, lubricator lid and various fasteners, including those for the cab roof and smoke deflectors.

Technical information

Stock code

8138

Gauge

5 inch

Length/inches

44 1/2 + 26

Width/inches

9

Height/inches

15

Weight/Kg

est 90

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

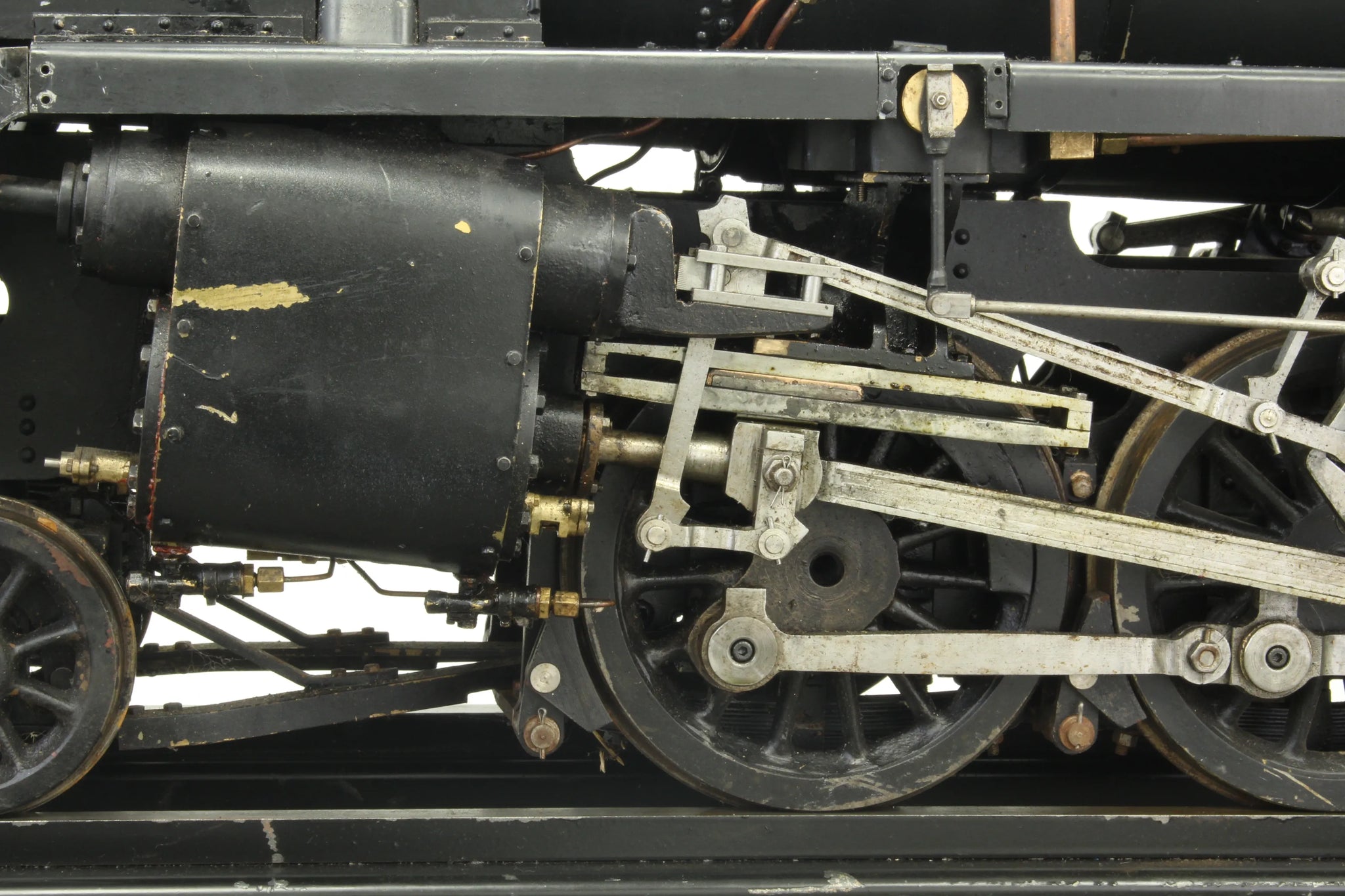

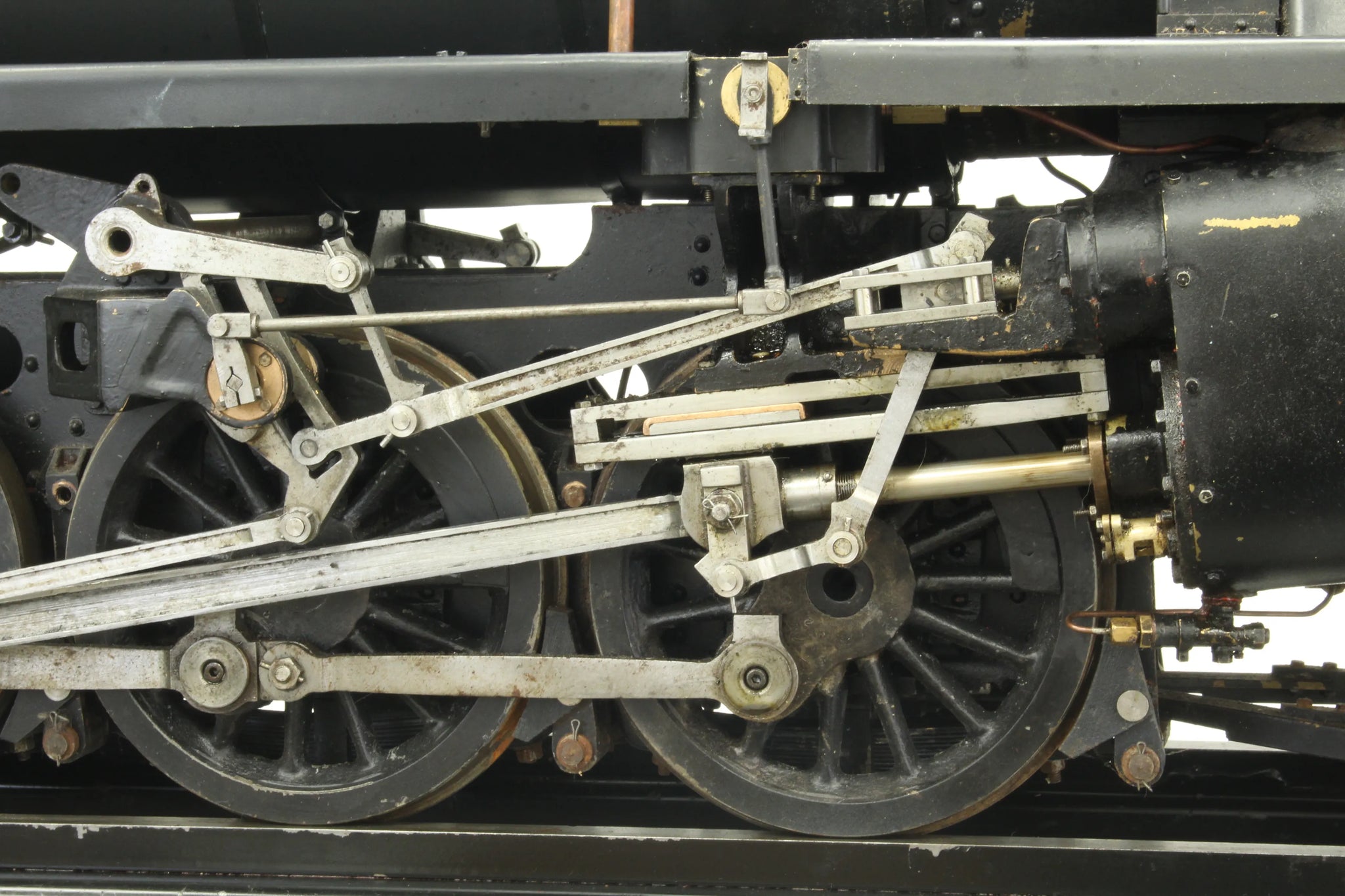

Valve gear

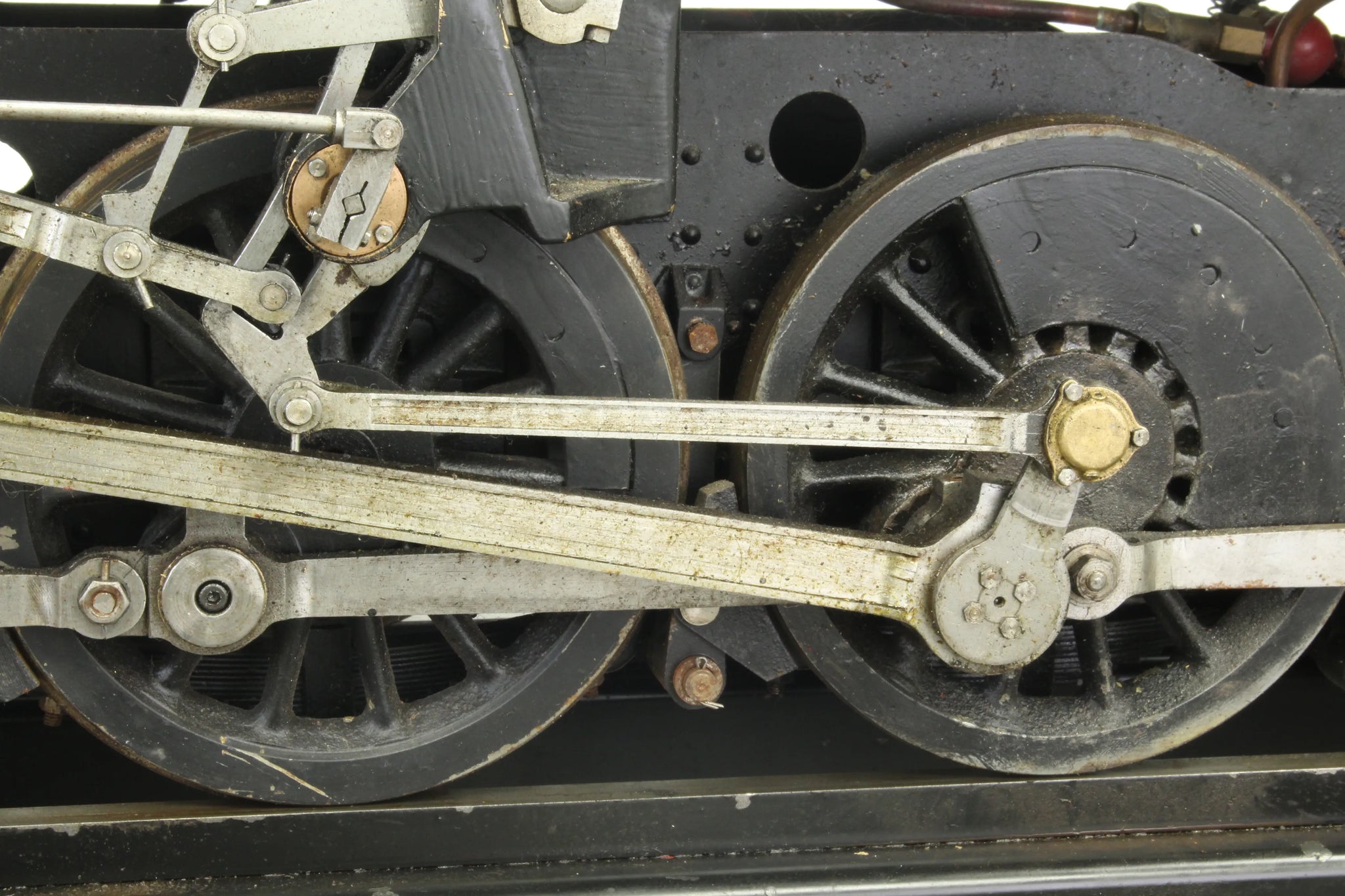

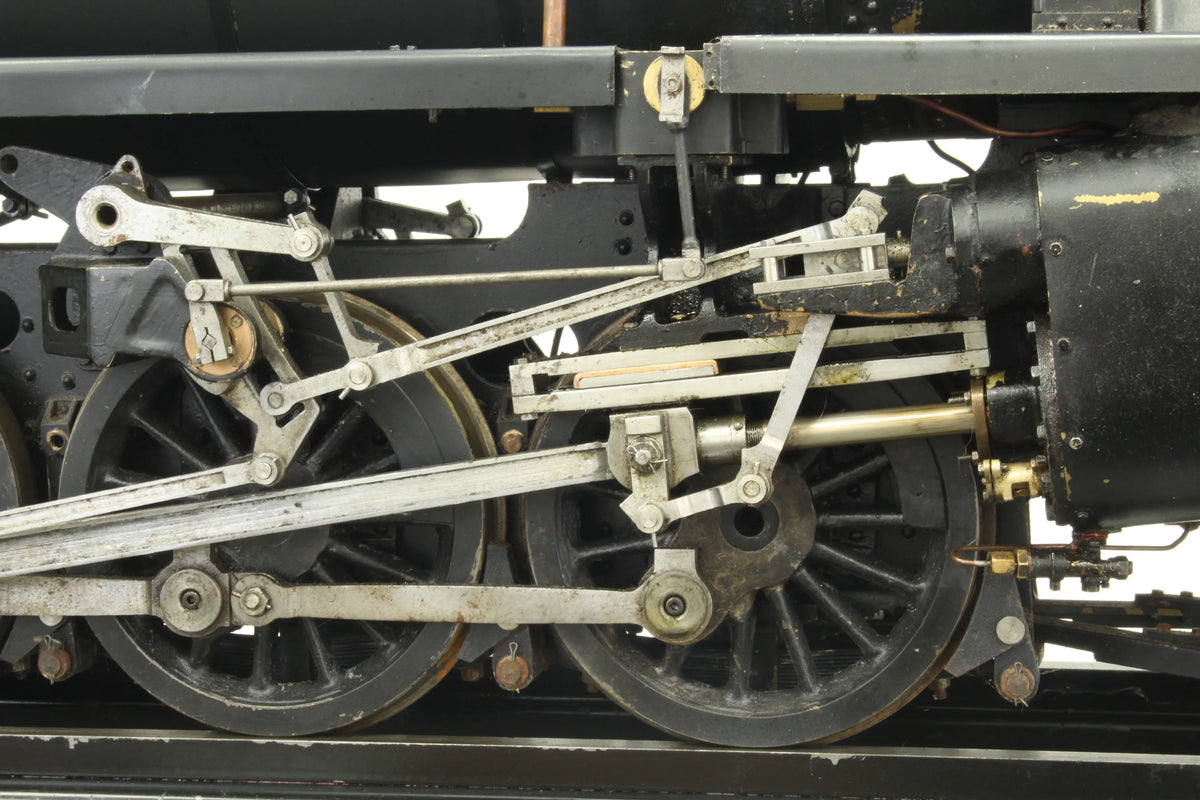

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - non-commercial

Boiler number

8138

Safety valve

2

Fusible plug

yes

Hand pump

1

Injector

2

Date out

Dec-18

Hydraulic test valid to

13-Sep-22
