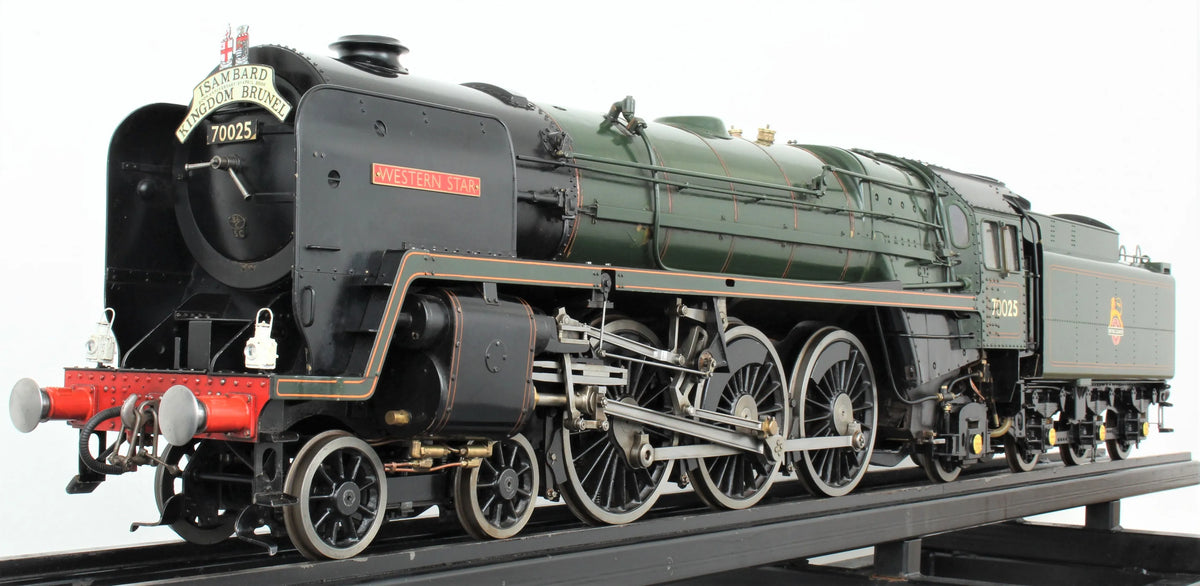

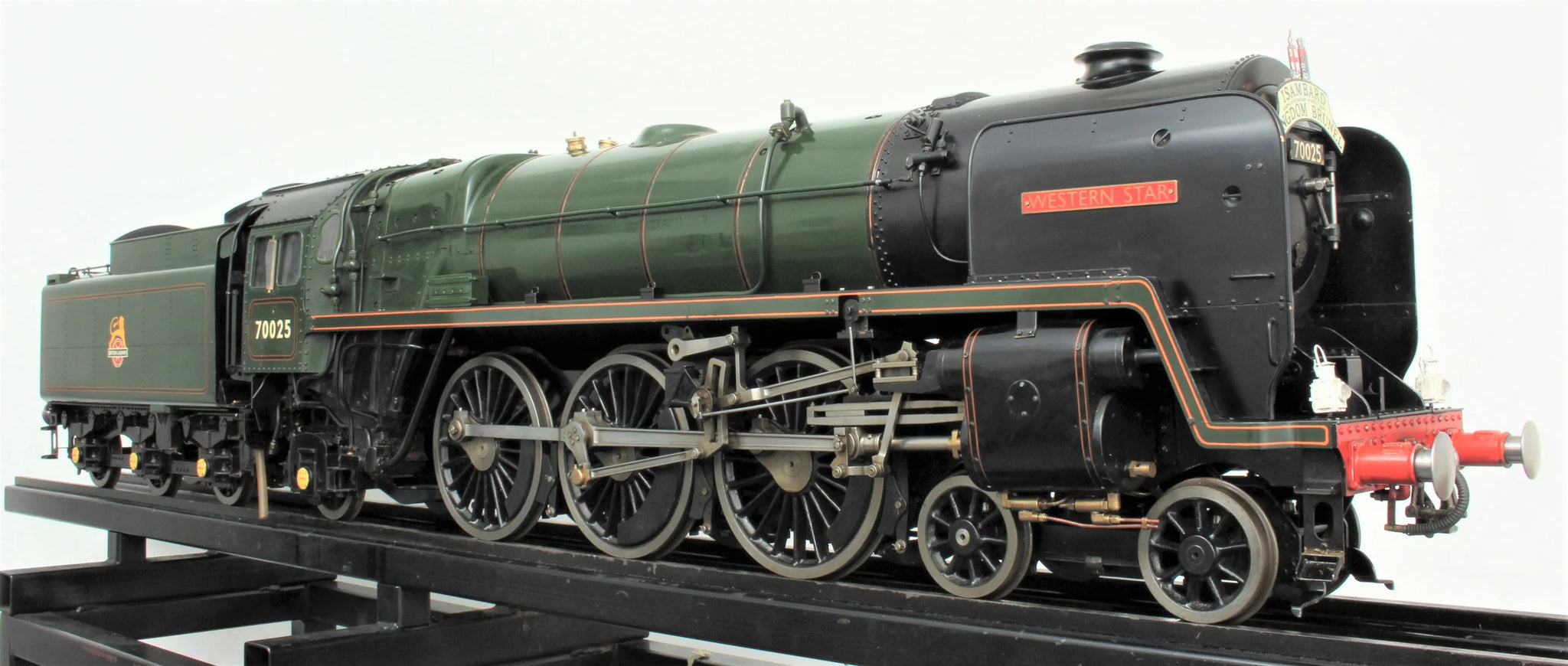

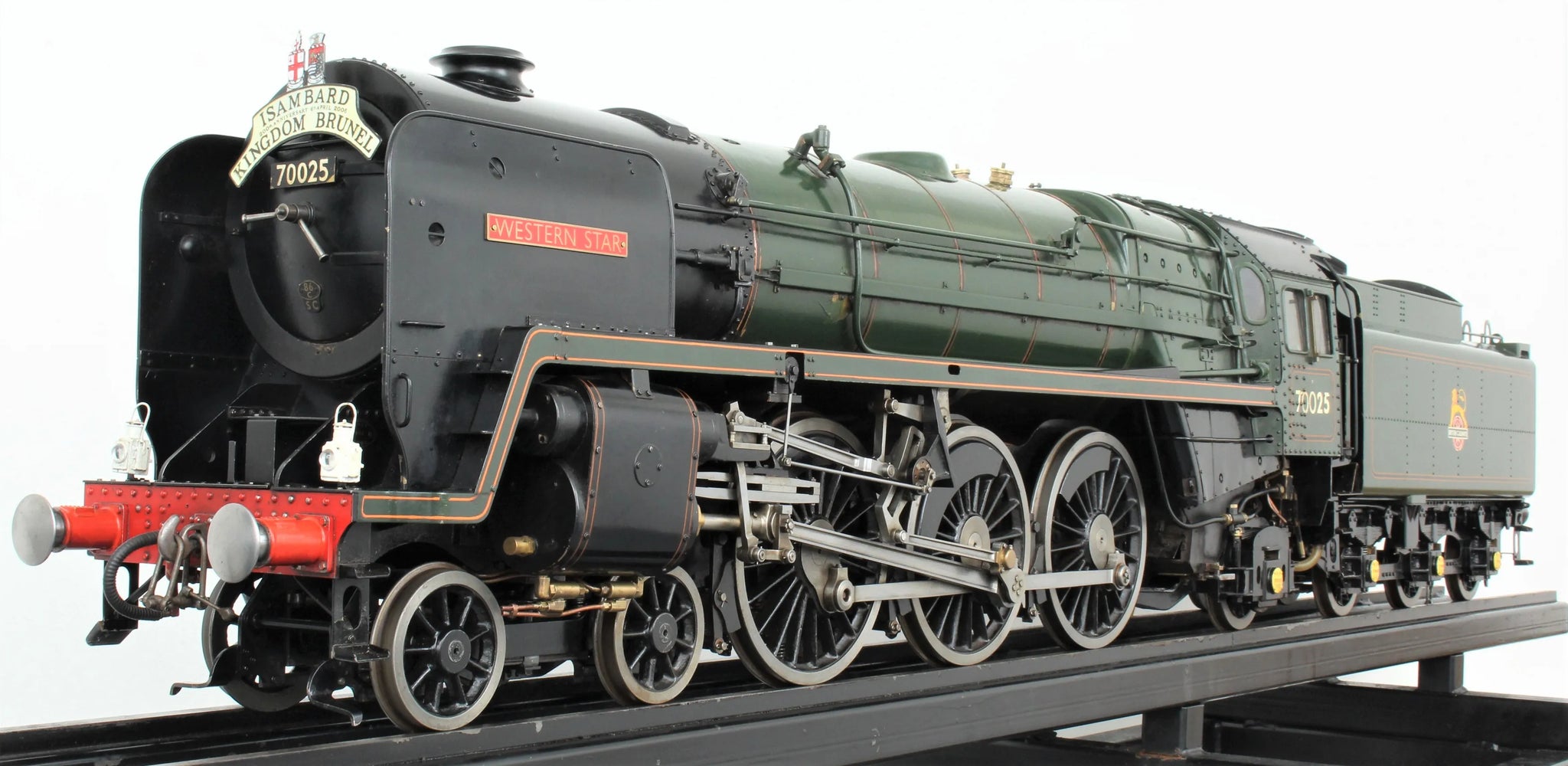

5 inch gauge Britannia "Western Star"

A well-built 5 inch gauge Britannia "Western Star" which has come in recently as part of a collection of locomotives, including the fine LNER V1 currently listed, an LNER A4 and GWR 57XX.

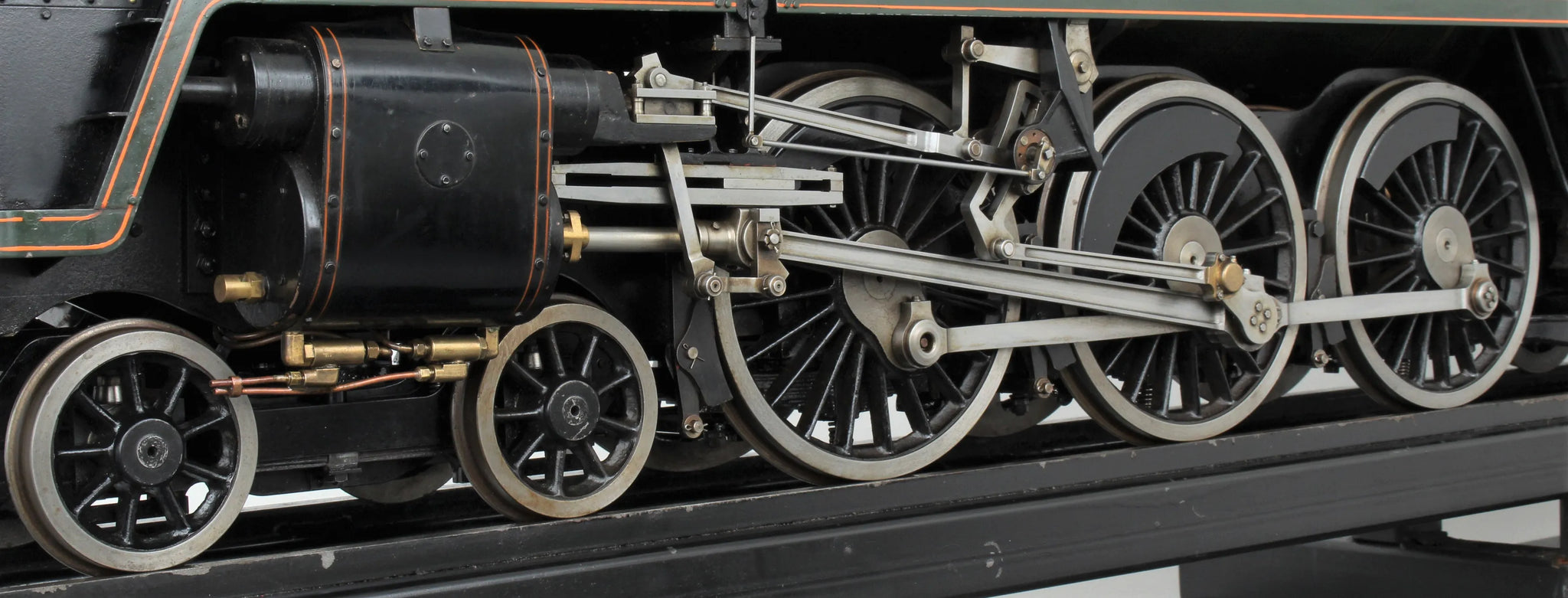

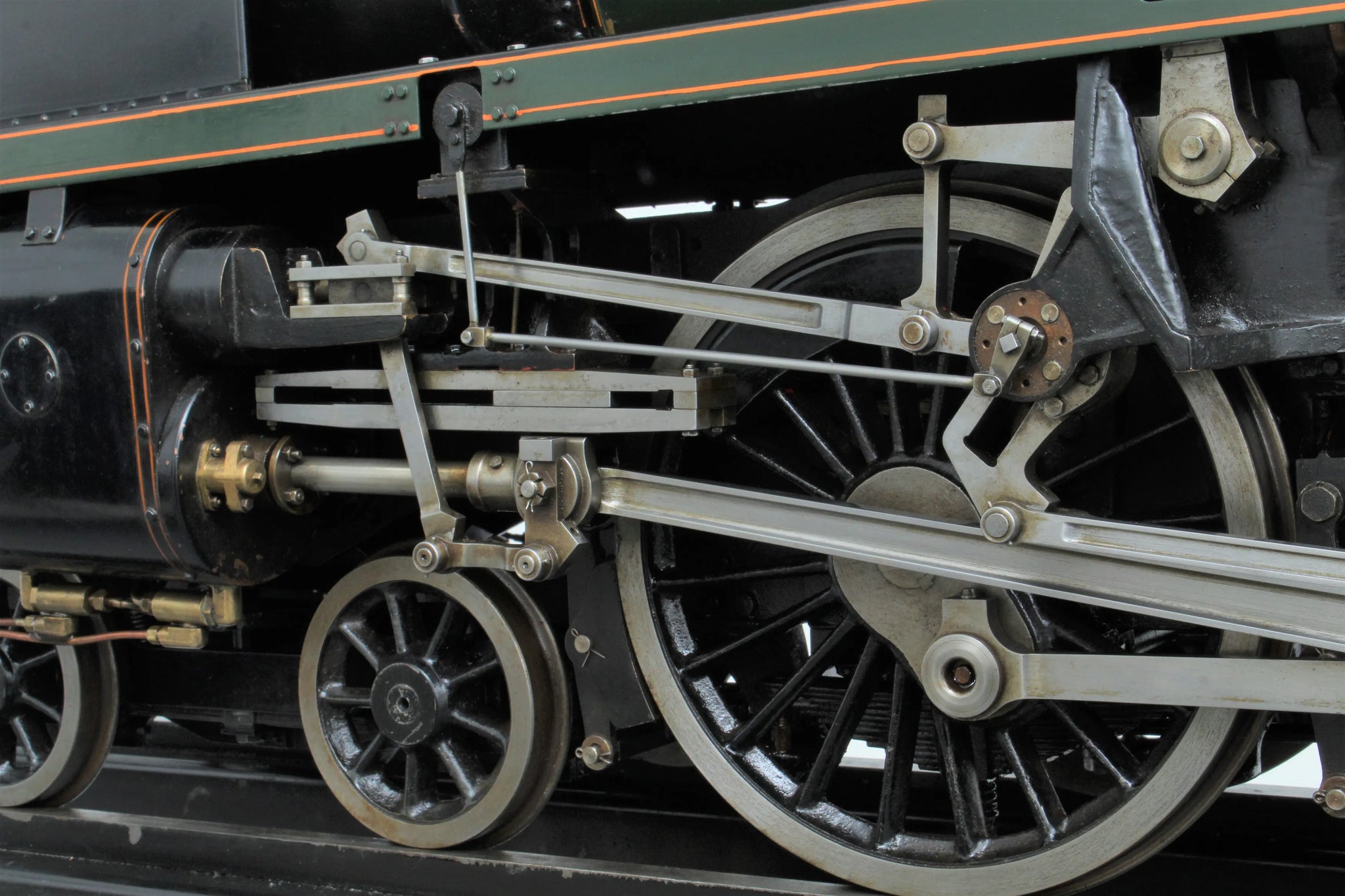

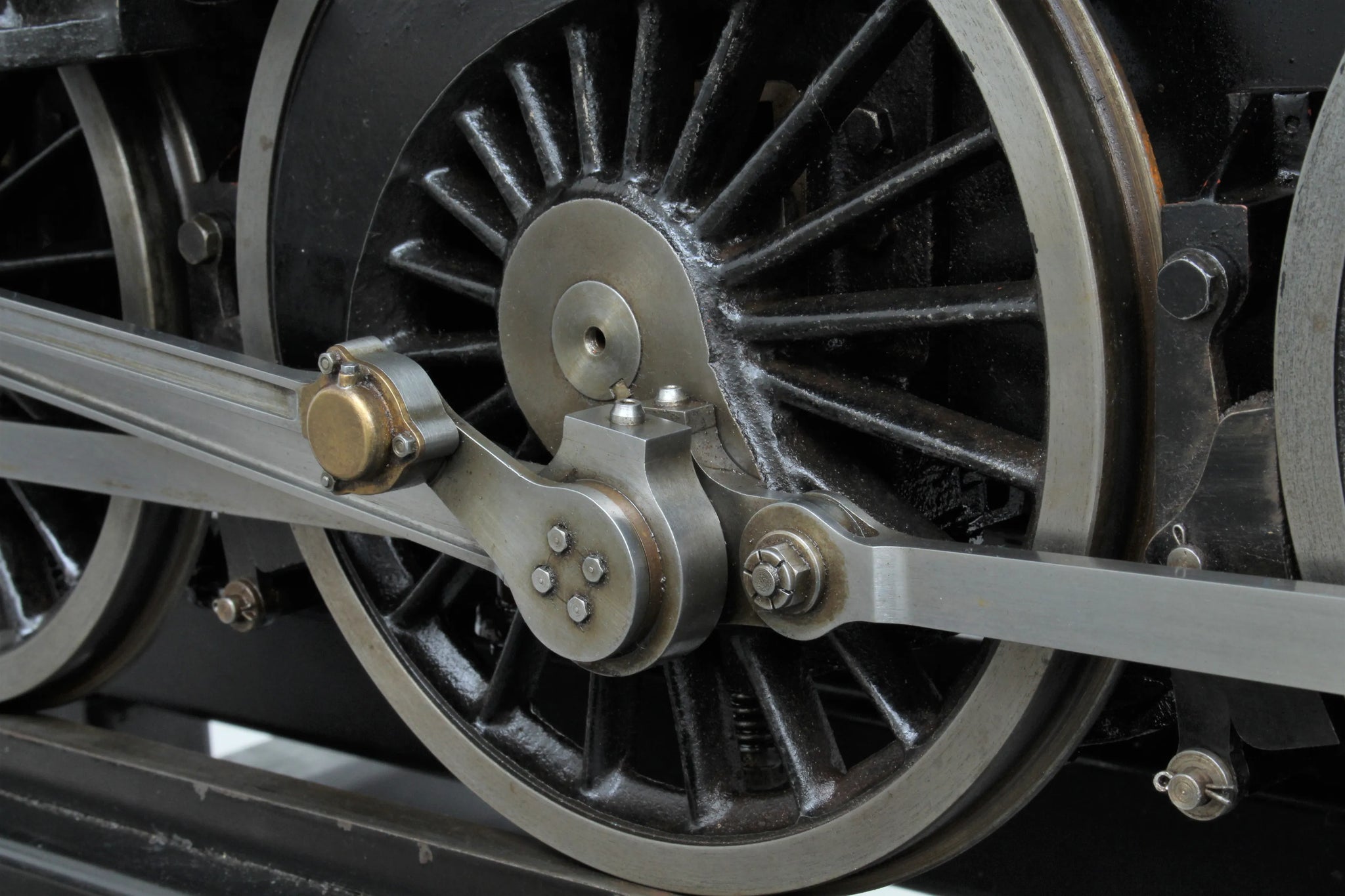

Workmanship is to a high standard throughout. Fit and finish of the motionwork and valve gear is particularly good, nicely detailed with taper pinned collars and pinned, castellated nuts.

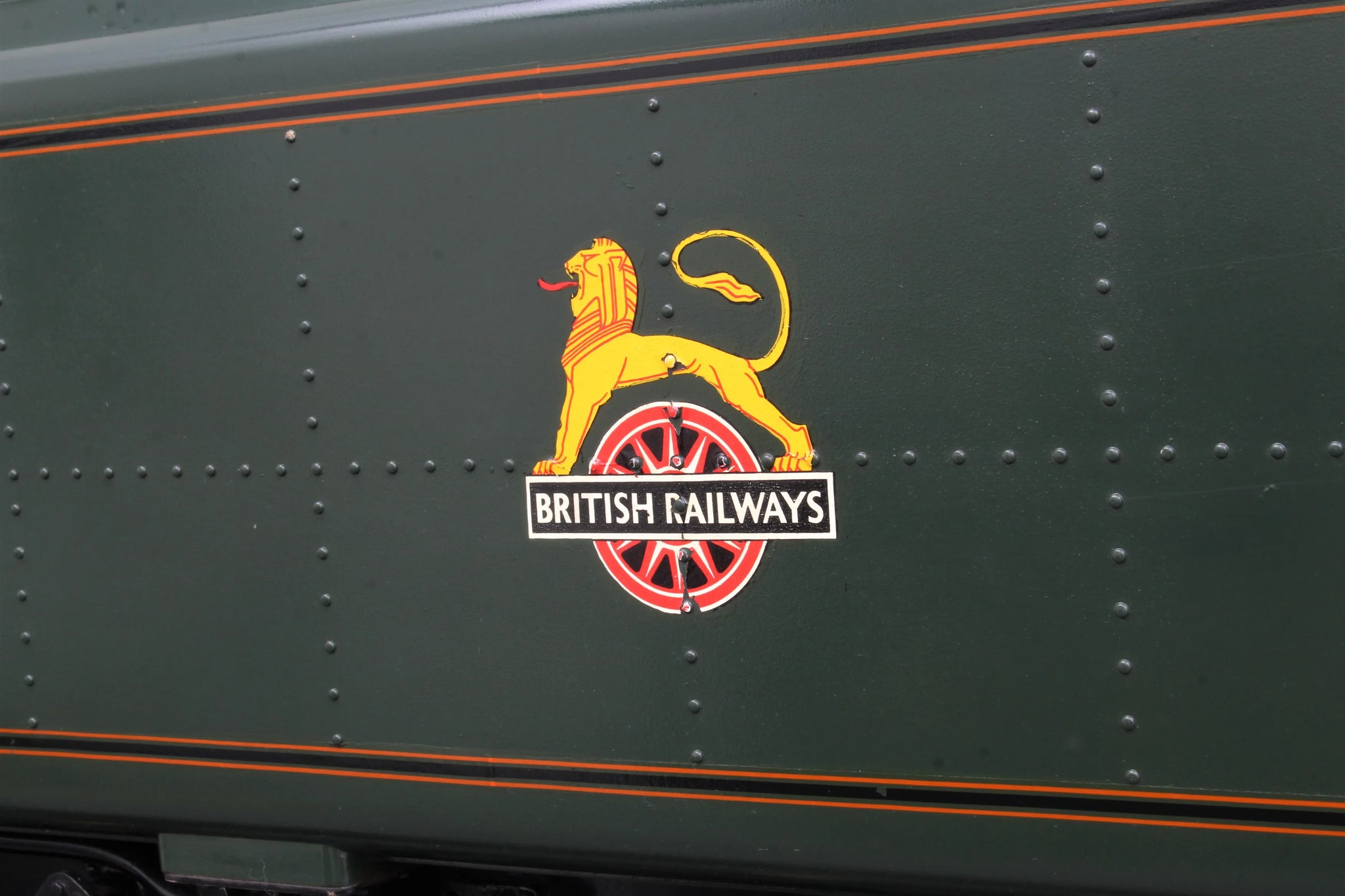

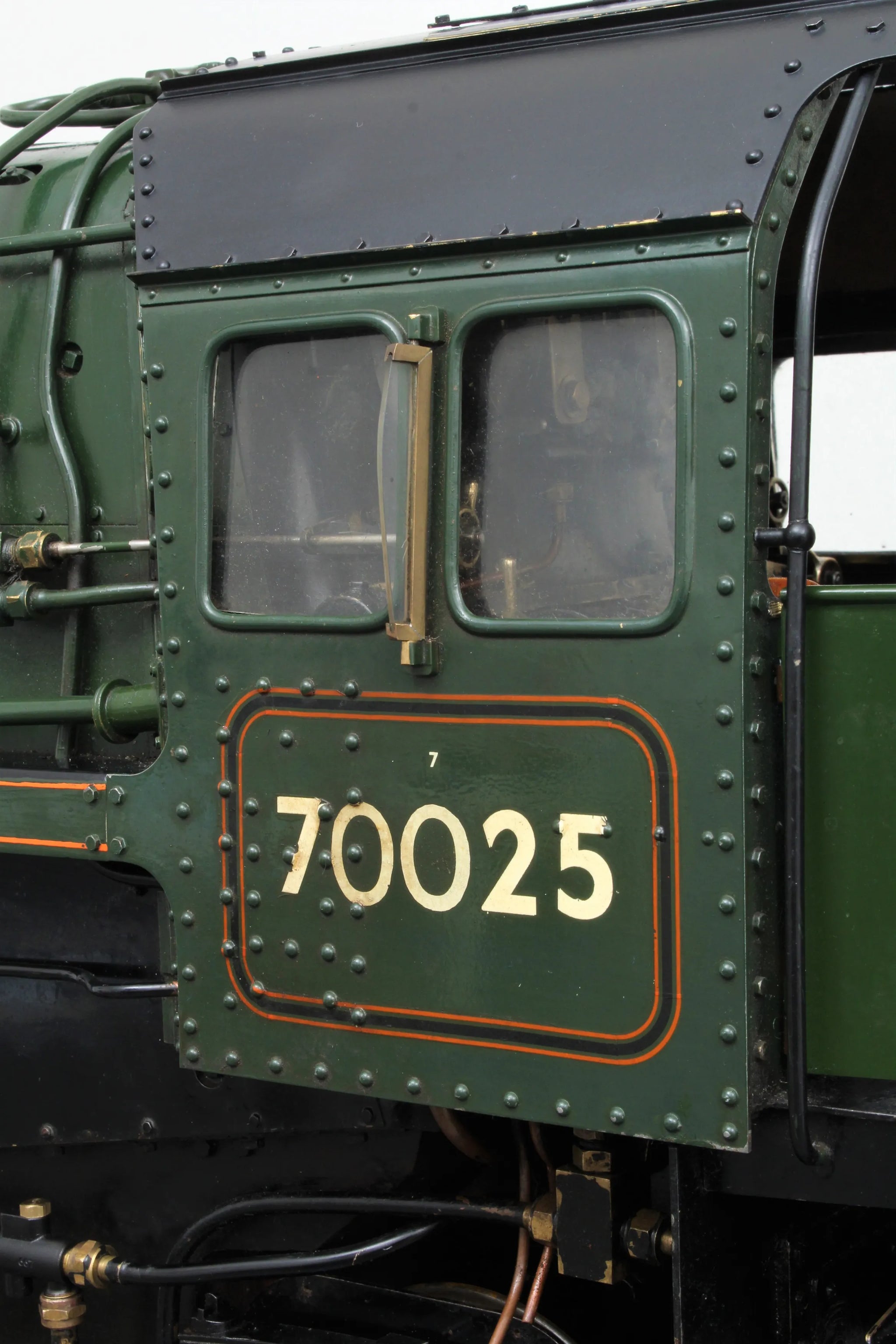

Paintwork is in generally good condition, with some wear and minor paint loss in places.

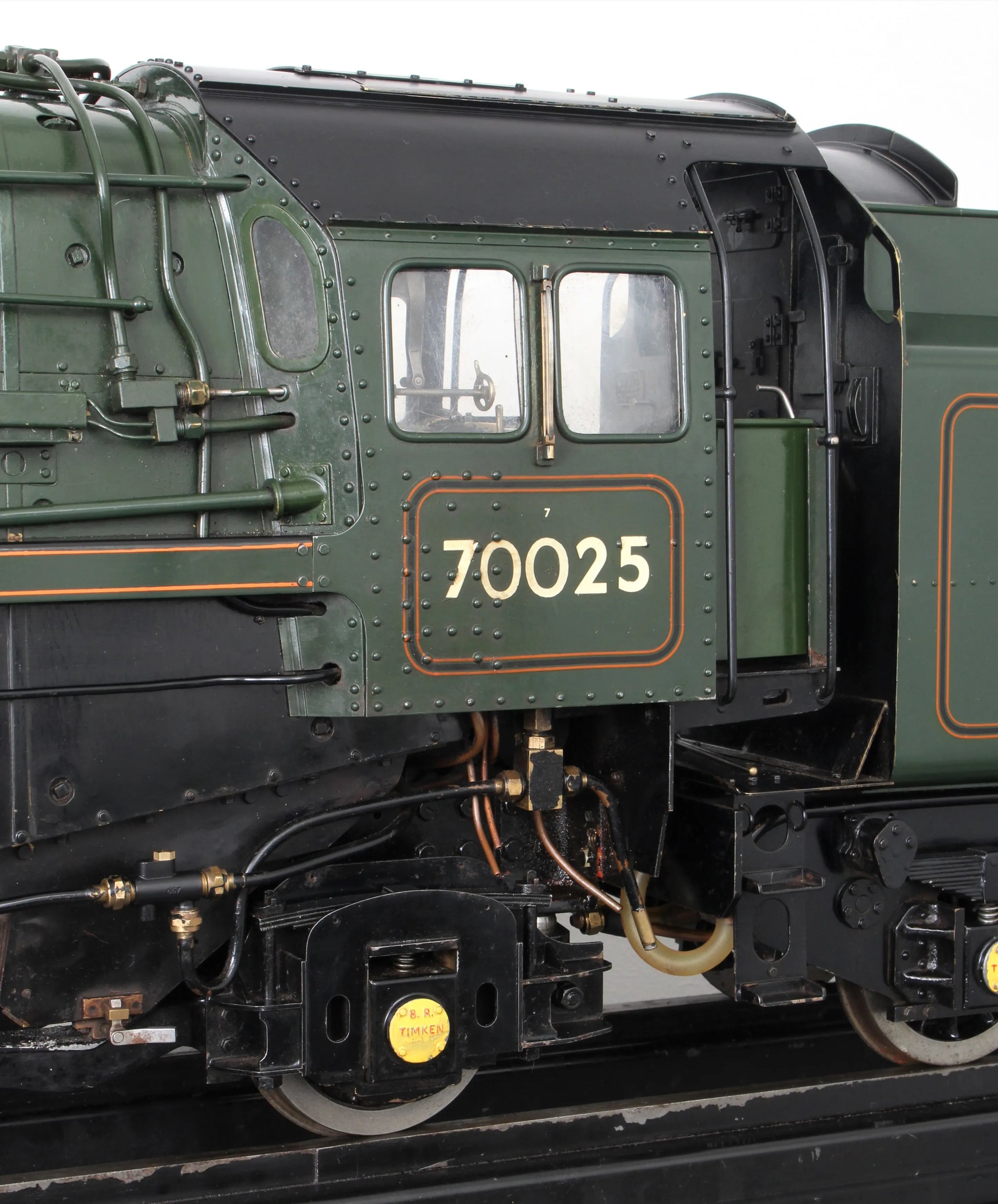

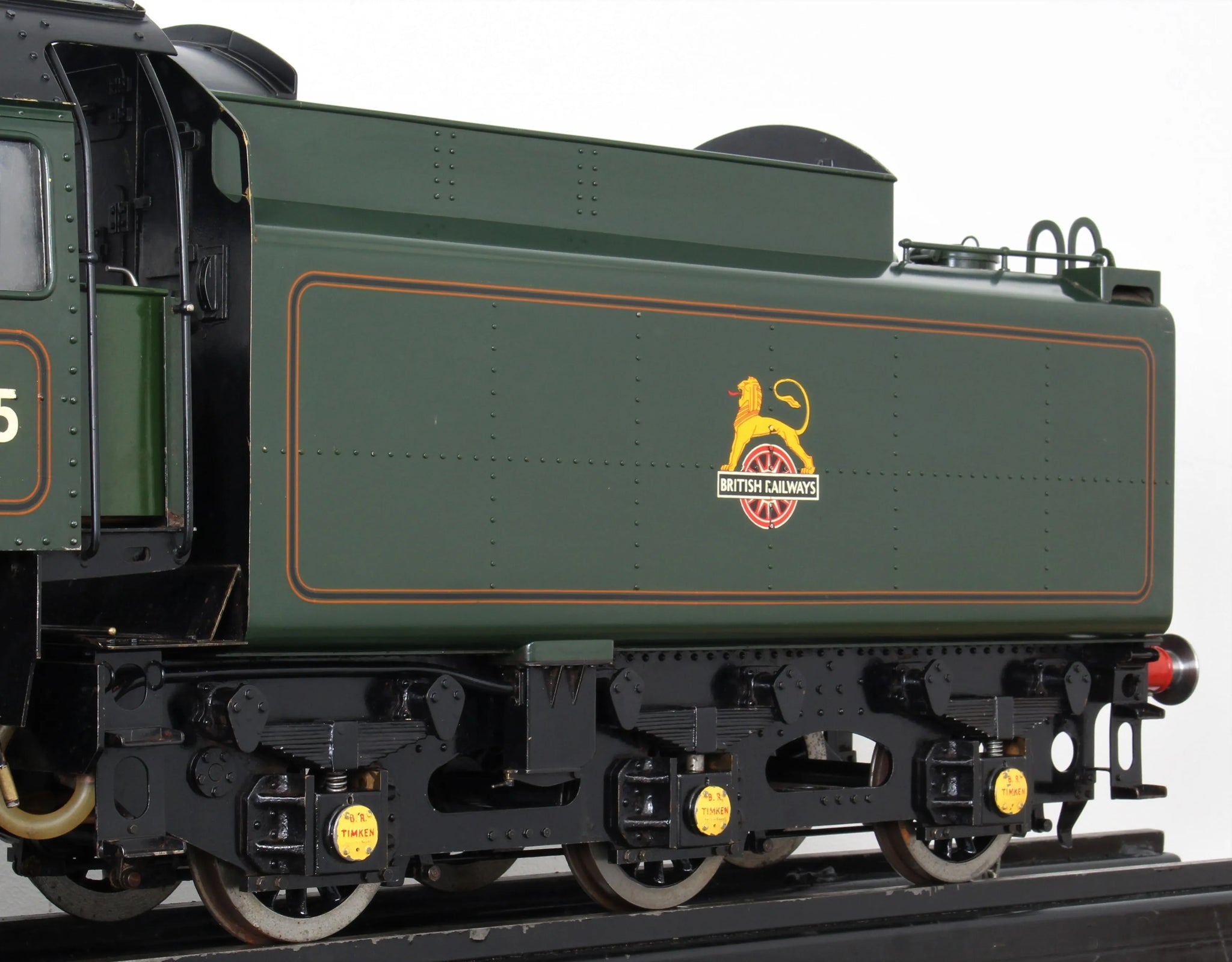

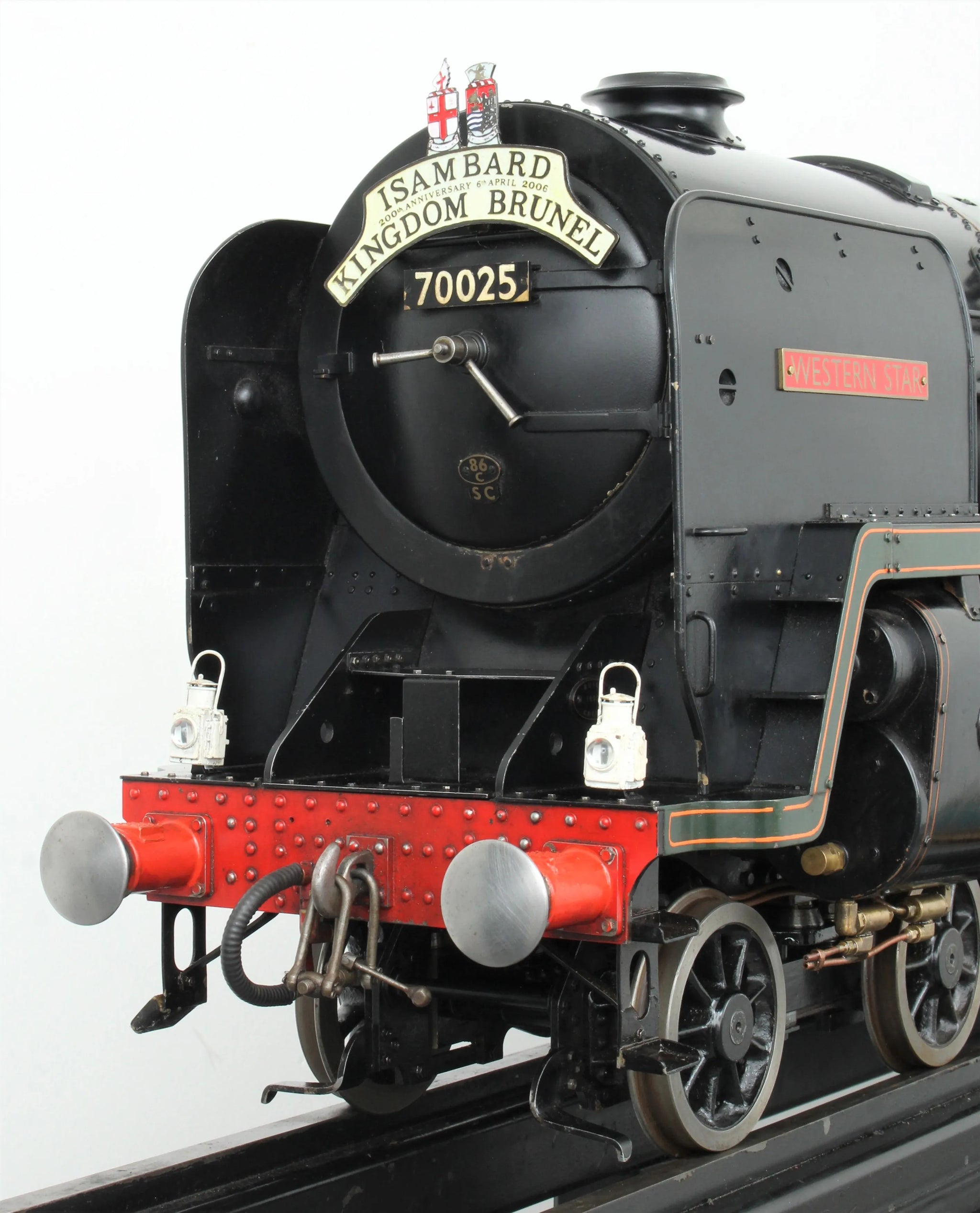

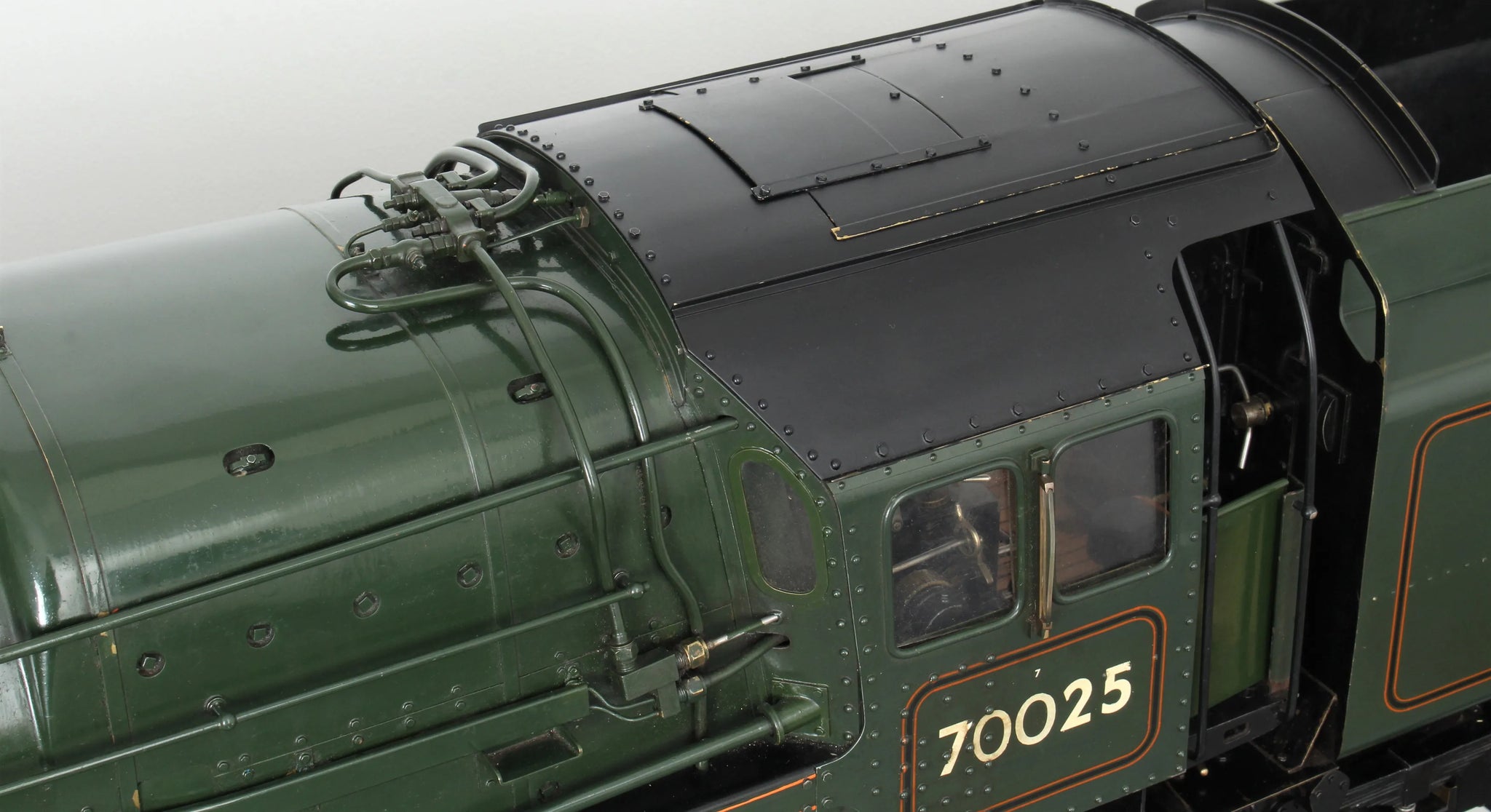

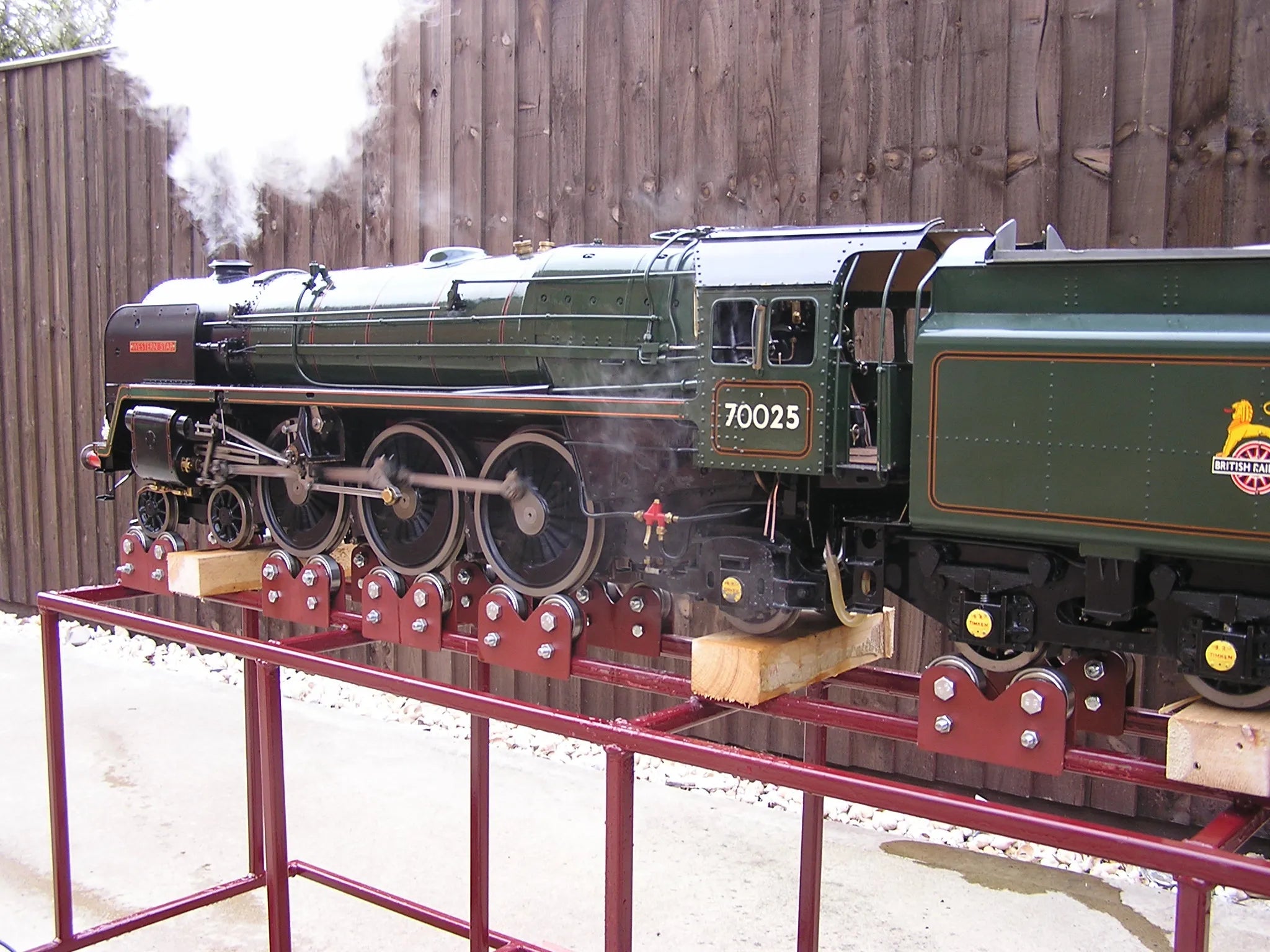

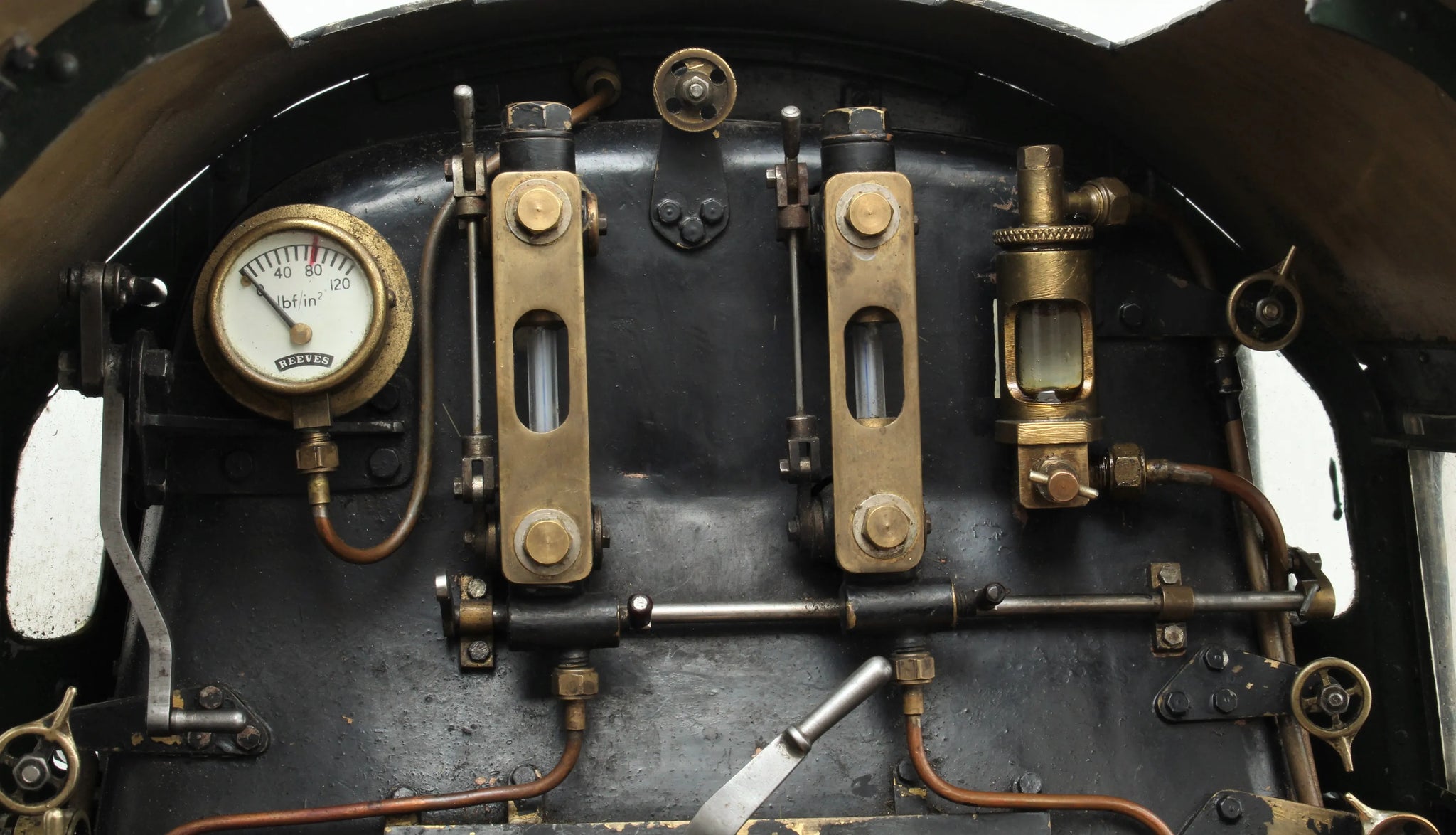

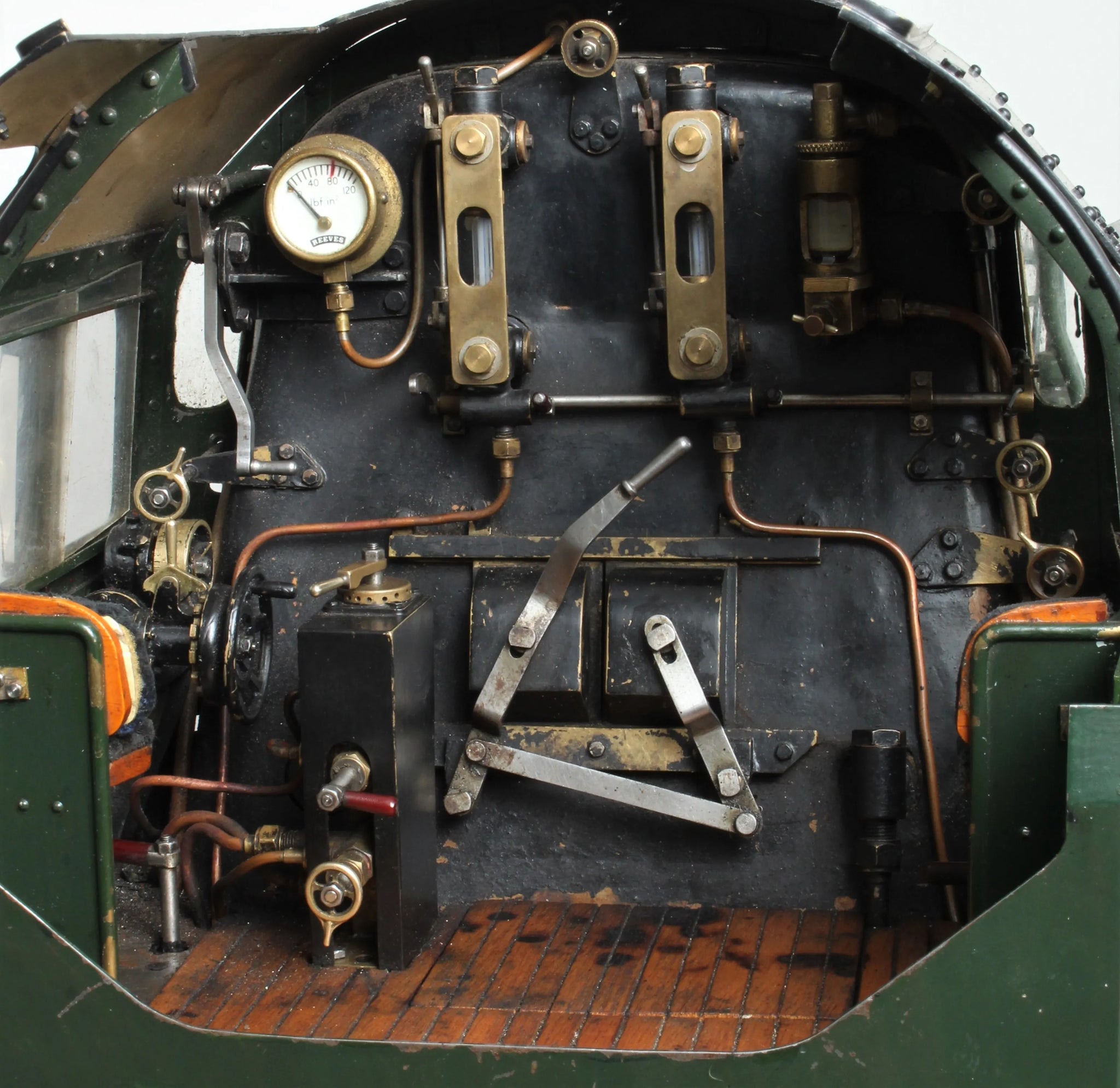

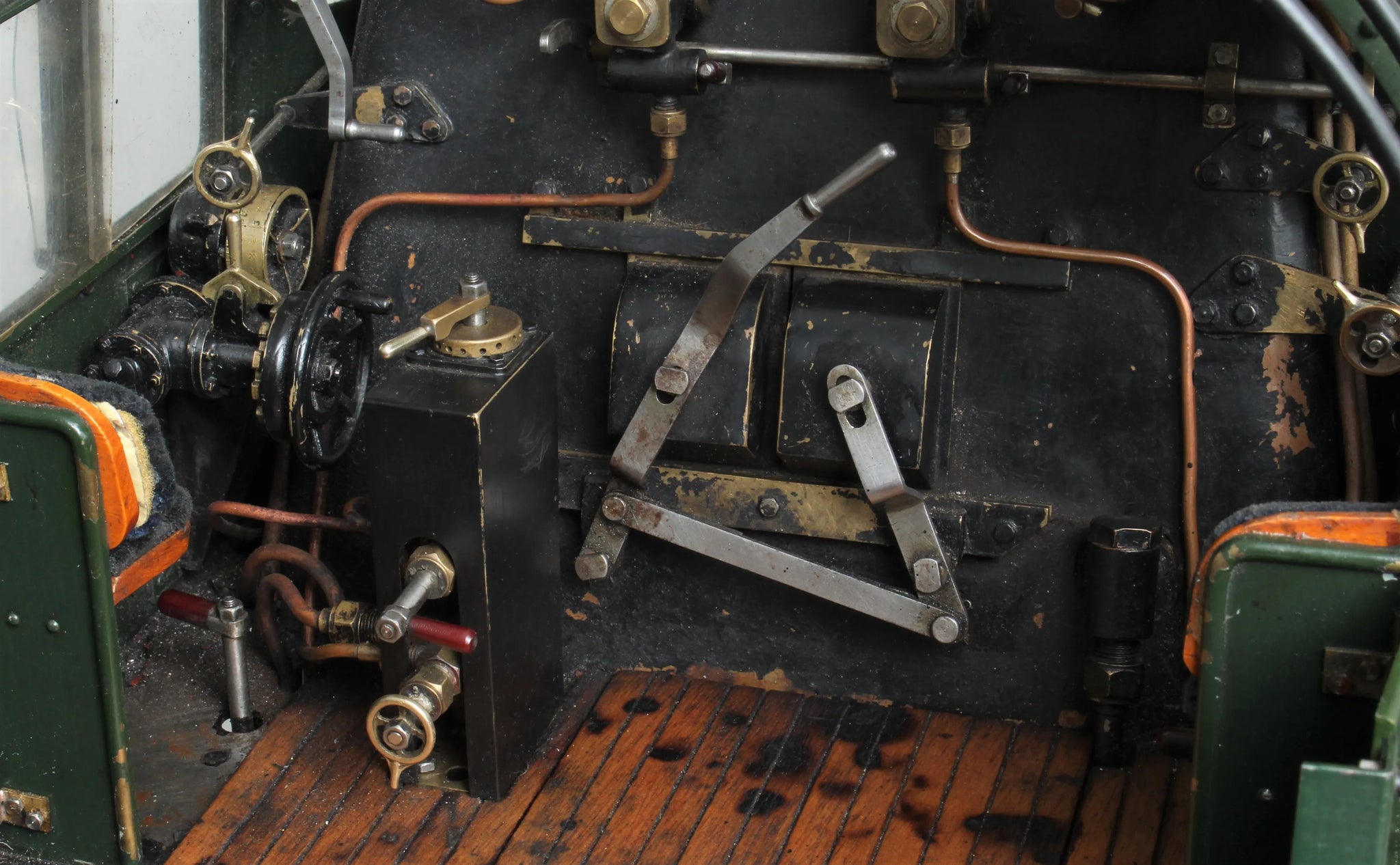

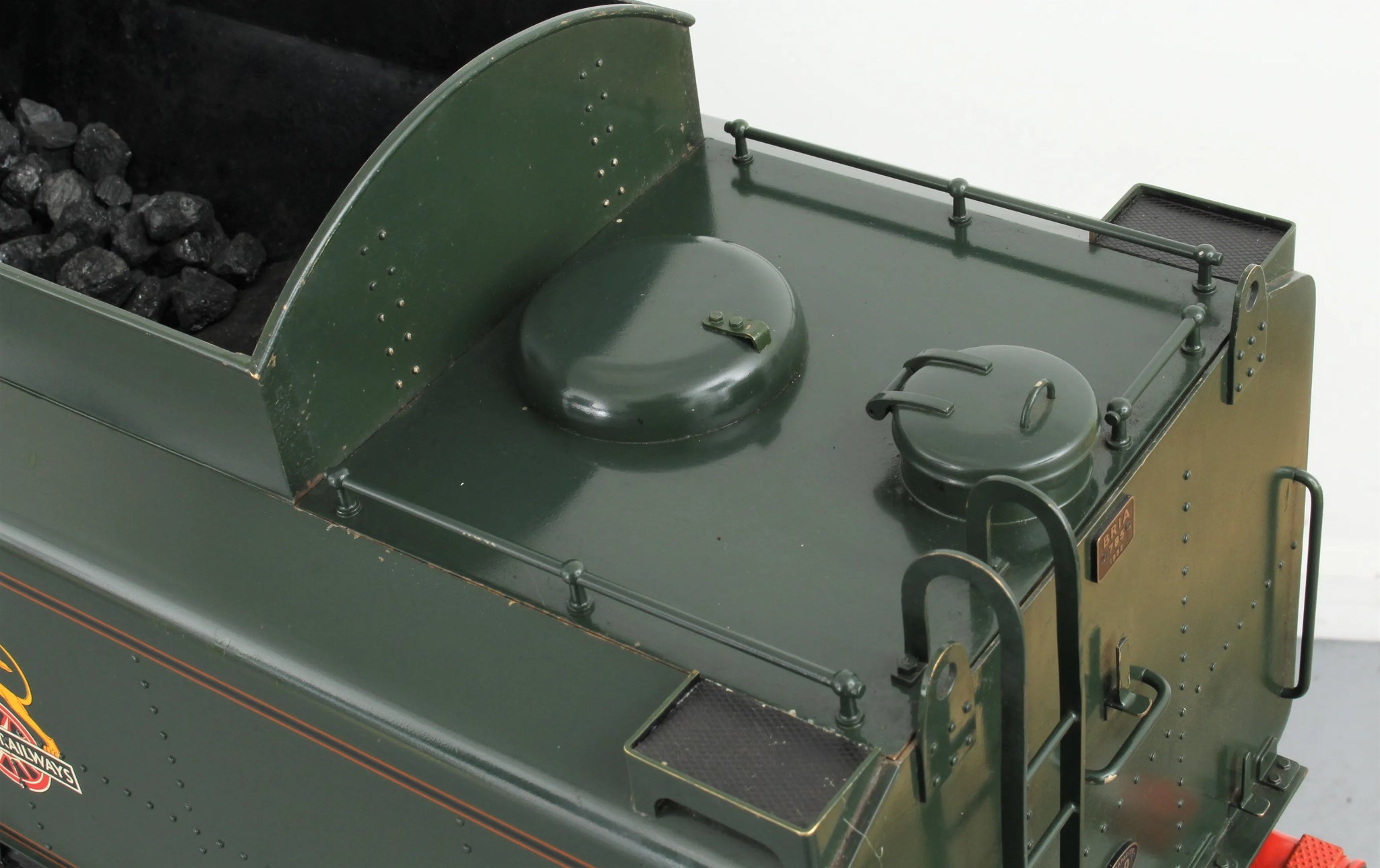

The pictures opposite were taken this week, the last picture - of the locomotive in steam - was taken some years ago and kindly sent to us by the builder.

Complete with a pair of custom built transport crates.

Technical information

Stock code

8873

Gauge

5 inch

Length/inches

51+26

Width/inches

10

Height/inches

14.5

Wheel material

cast iron

Cylinder material

cast iron

Valve type

piston

Valve gear

Walschaerts

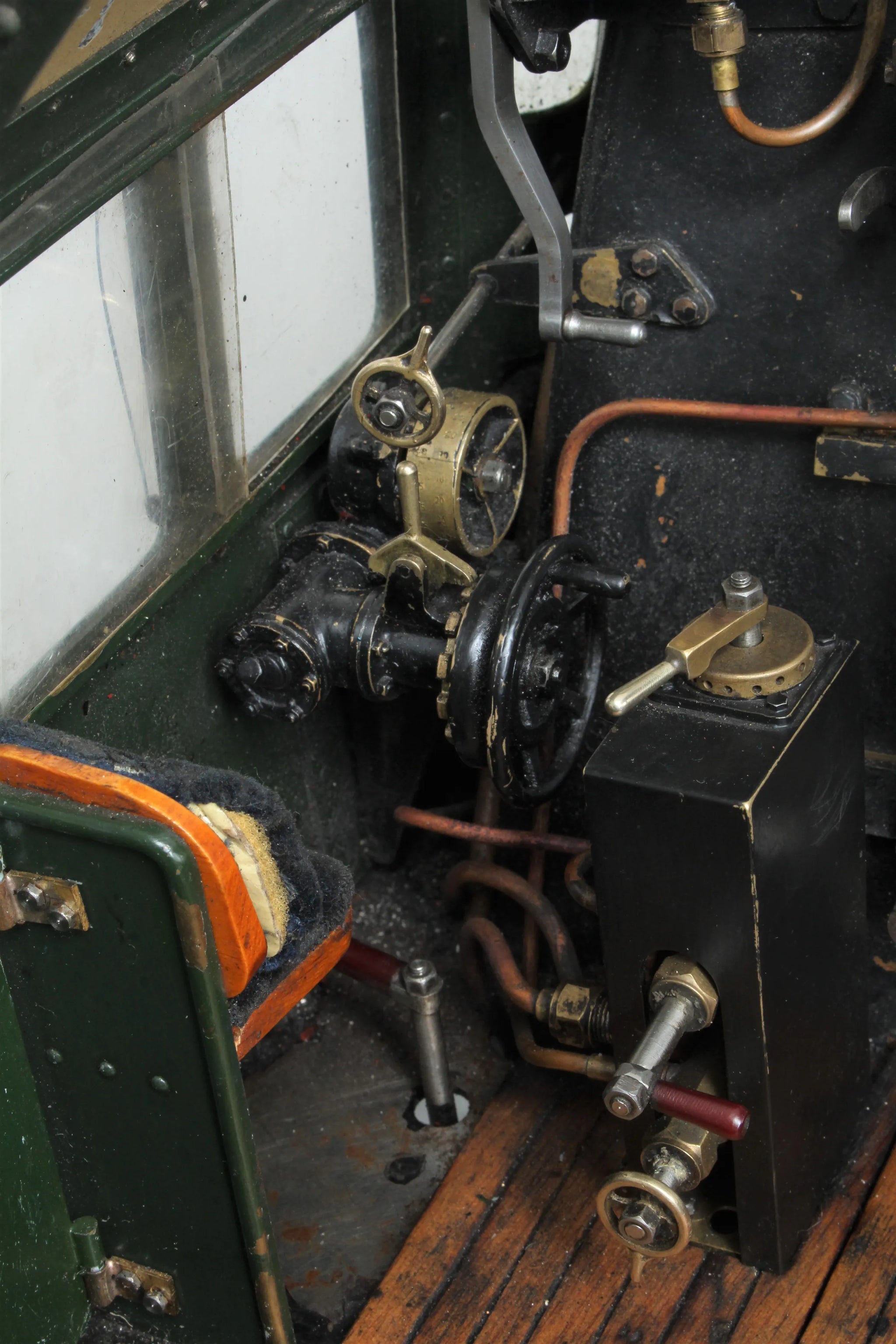

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

1995

Boiler number

N13-80-340

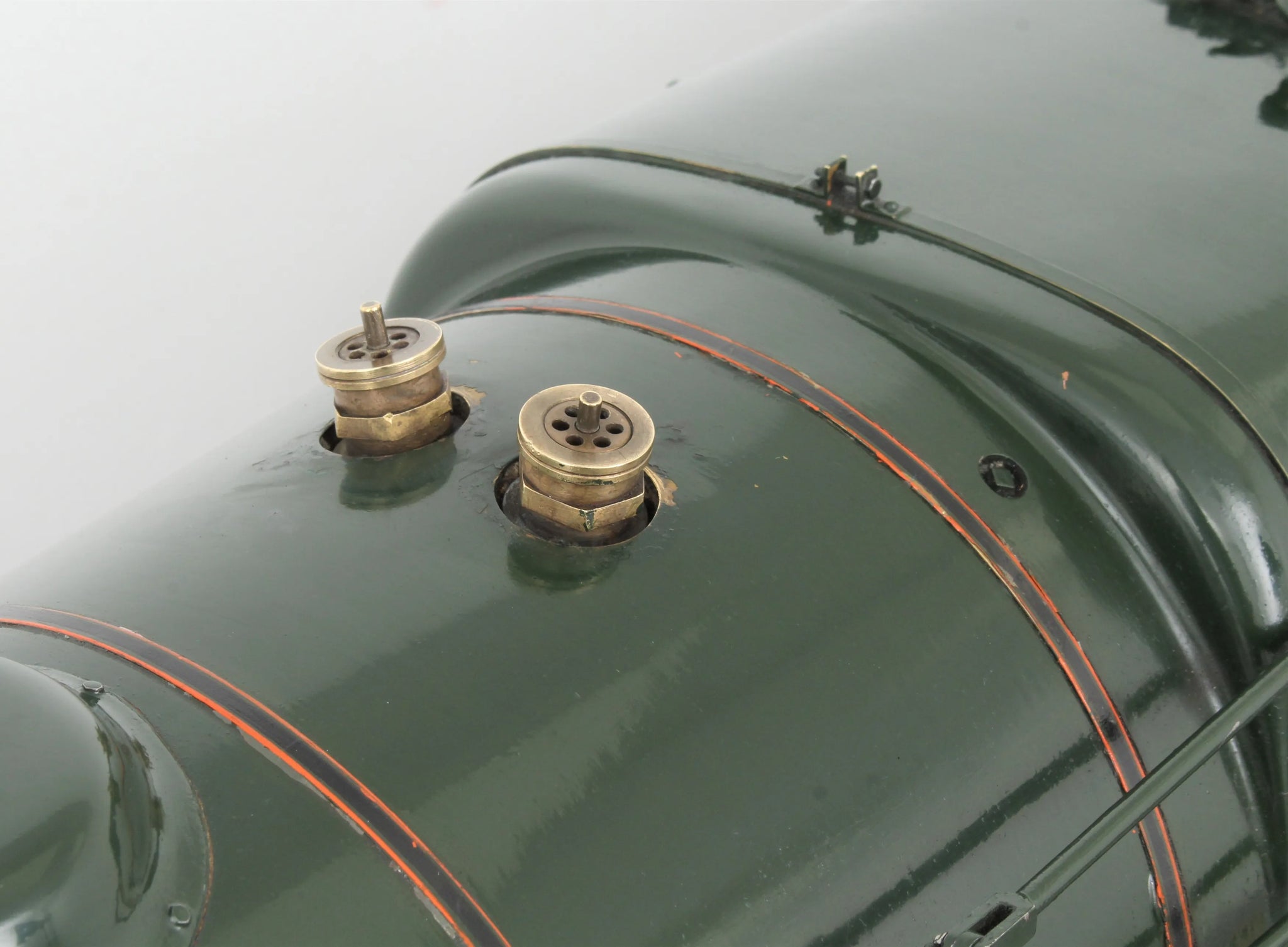

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

2

Date out

Dec-19

Hydraulic test valid to

17-Nov-23
