5 inch gauge "Britannia" with commercial boiler

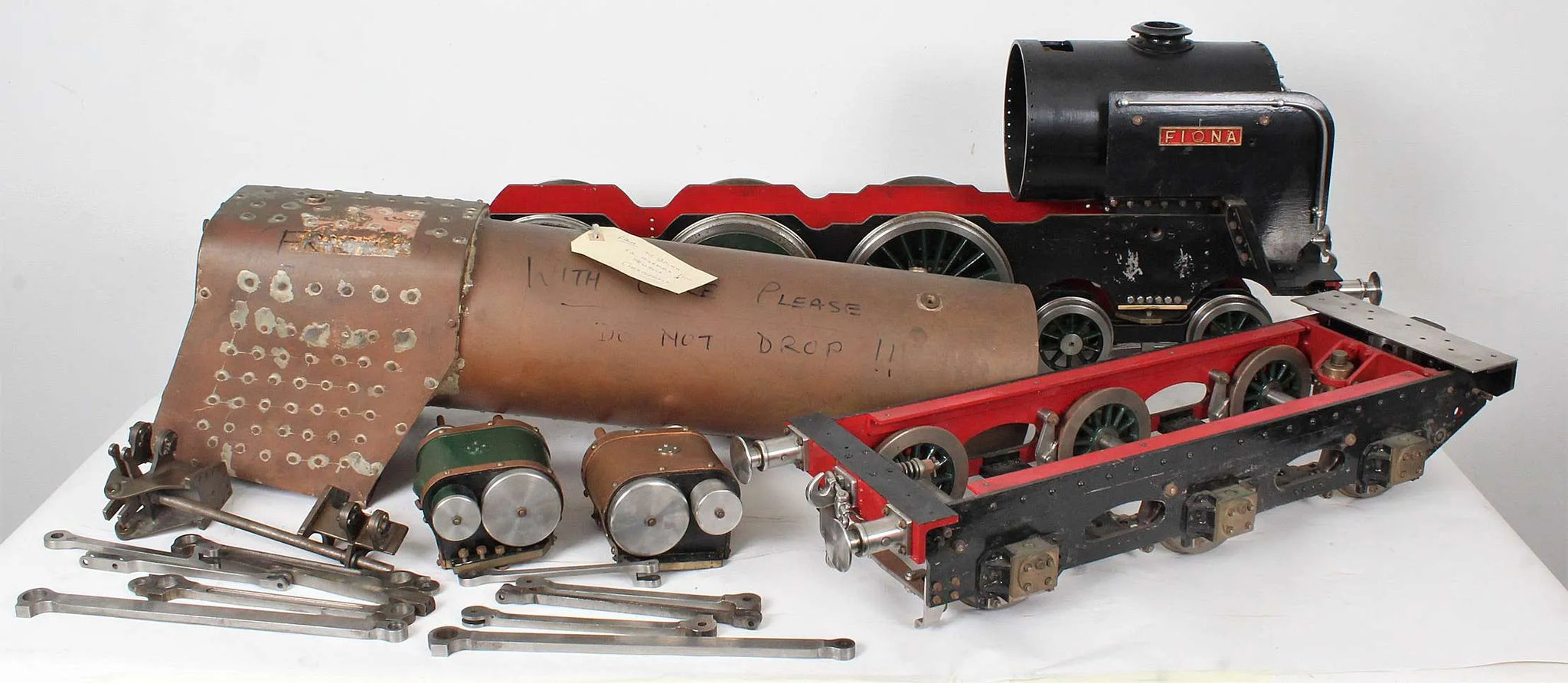

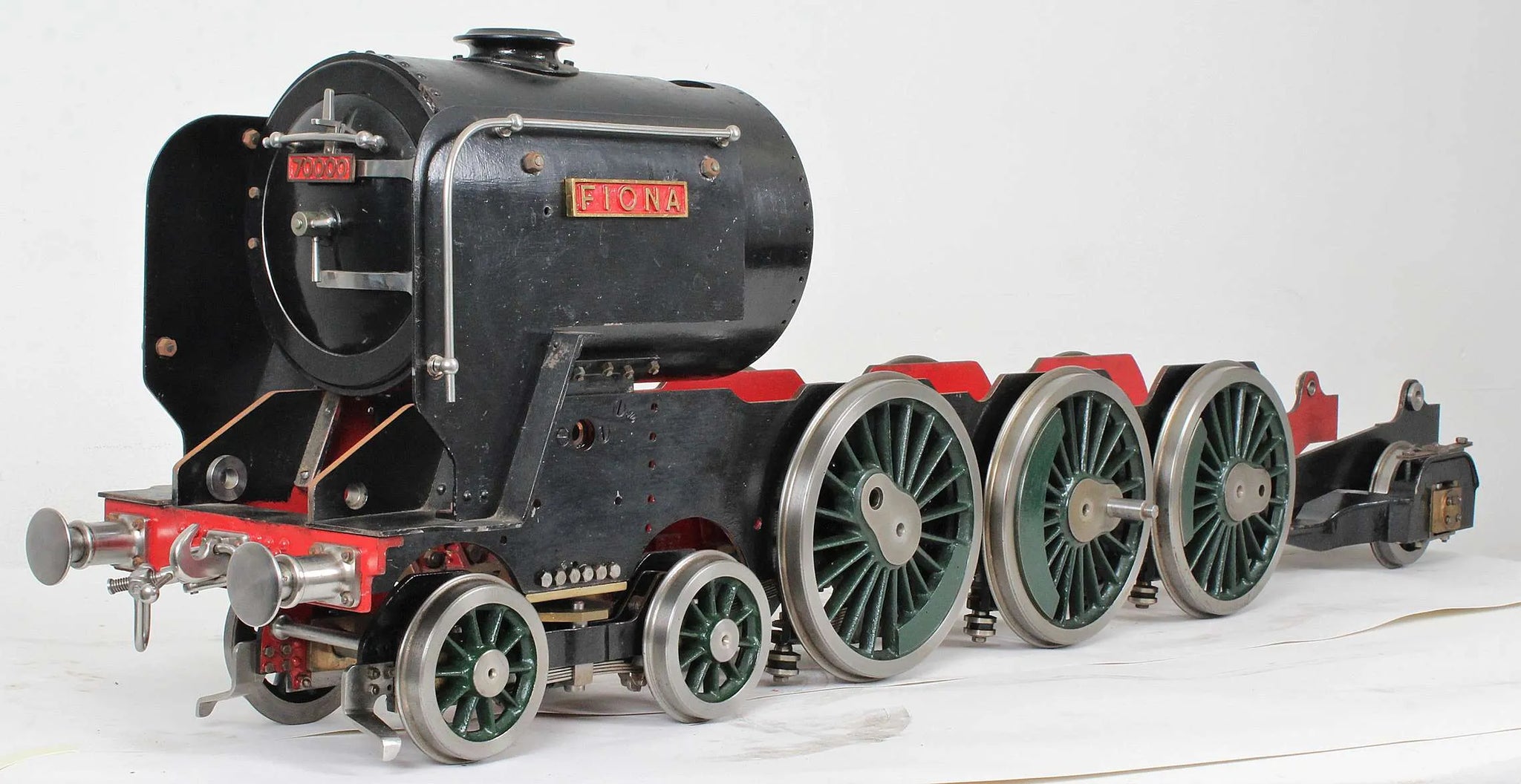

A well-advanced 5 inch gauge "Britannia", a project that has spent many years in storage, only recently seeing the light of day when we collected a whole attic full of engines from Scotland.

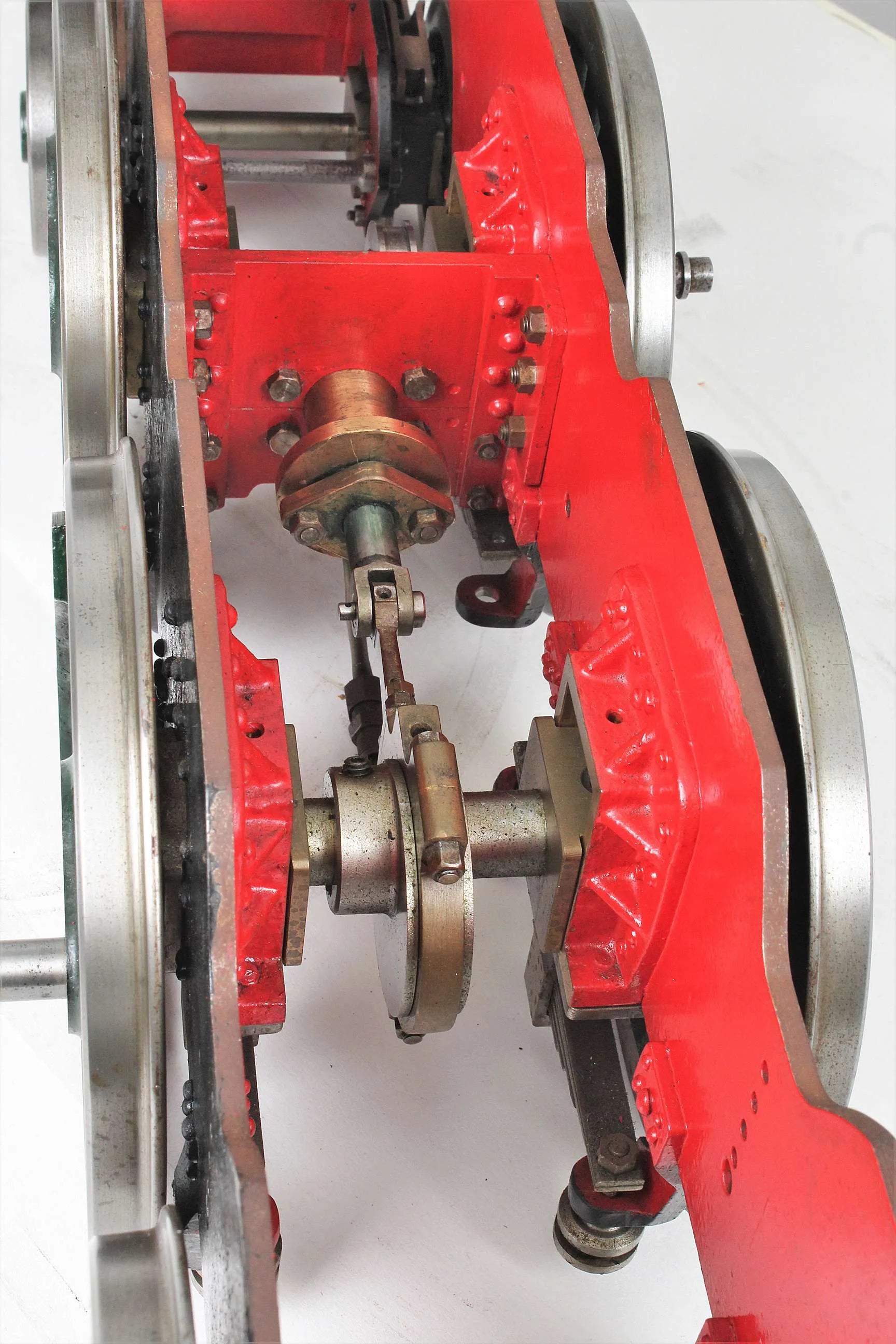

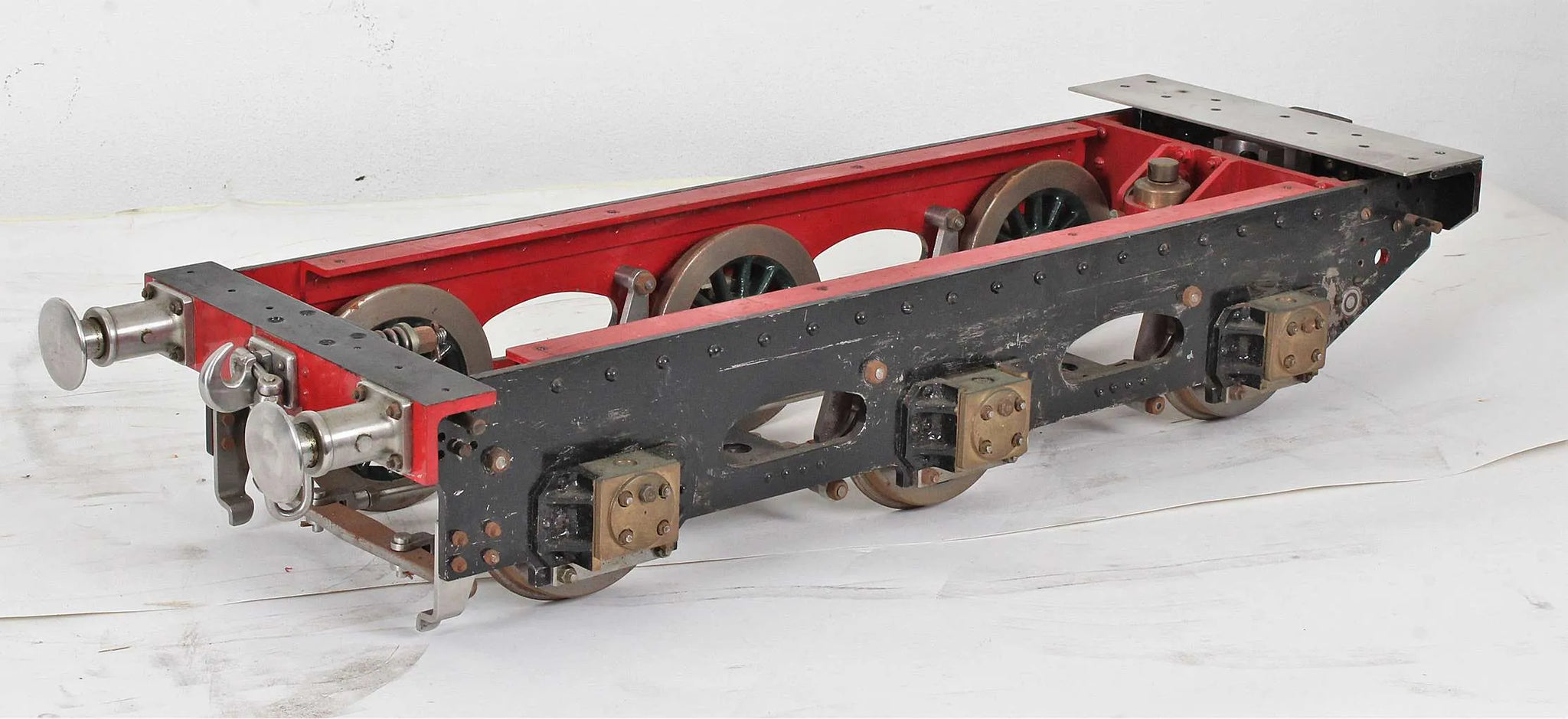

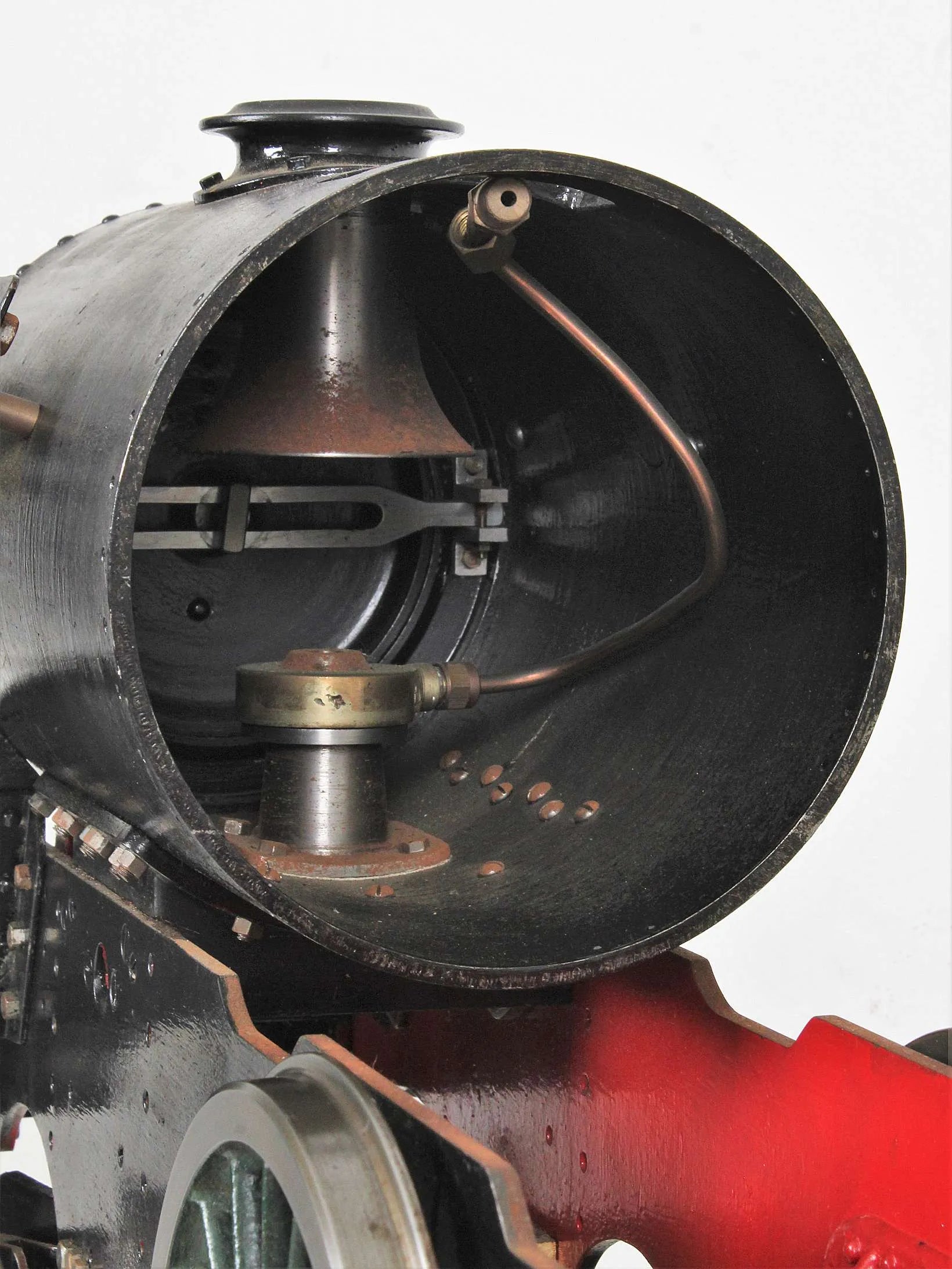

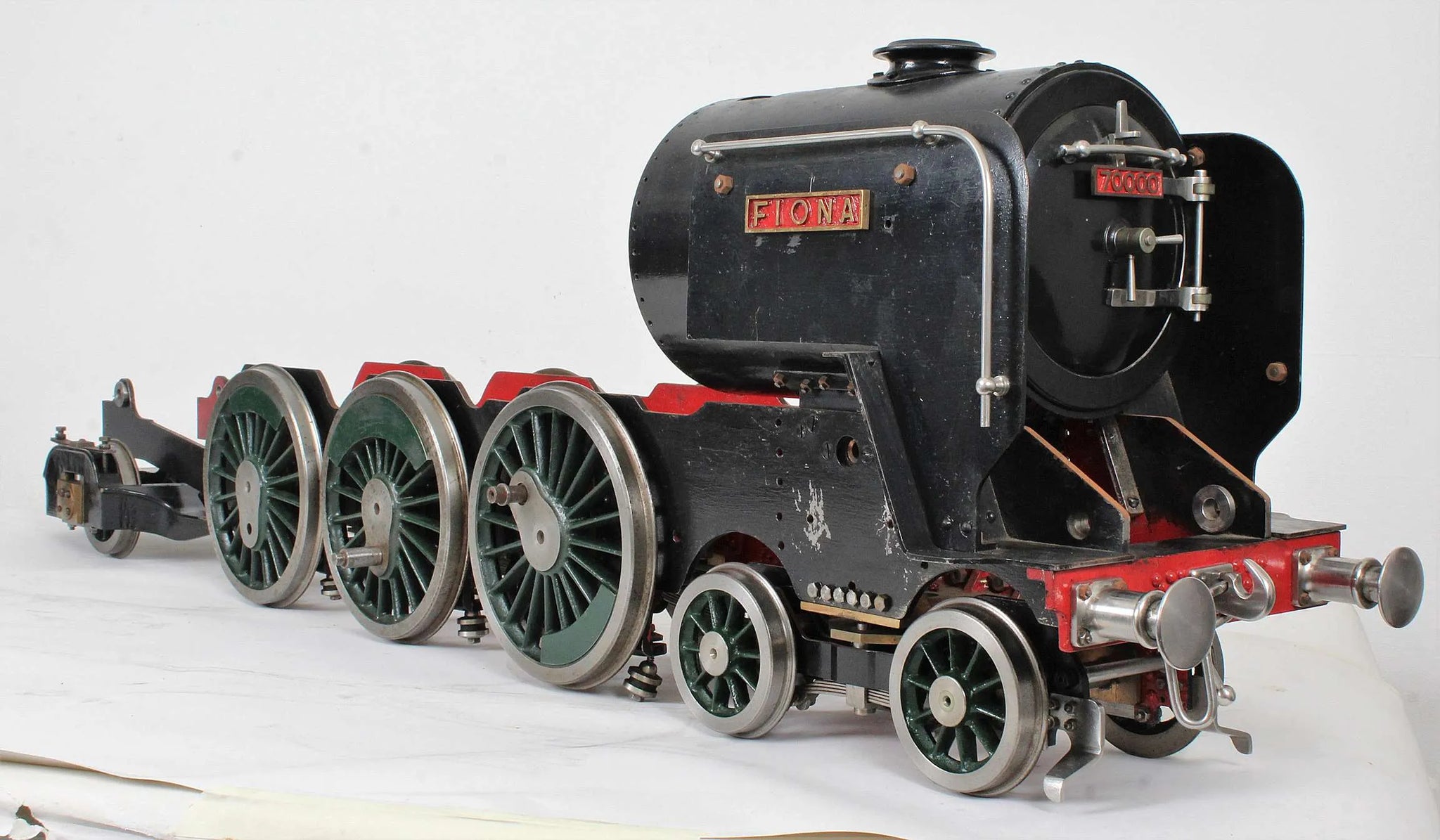

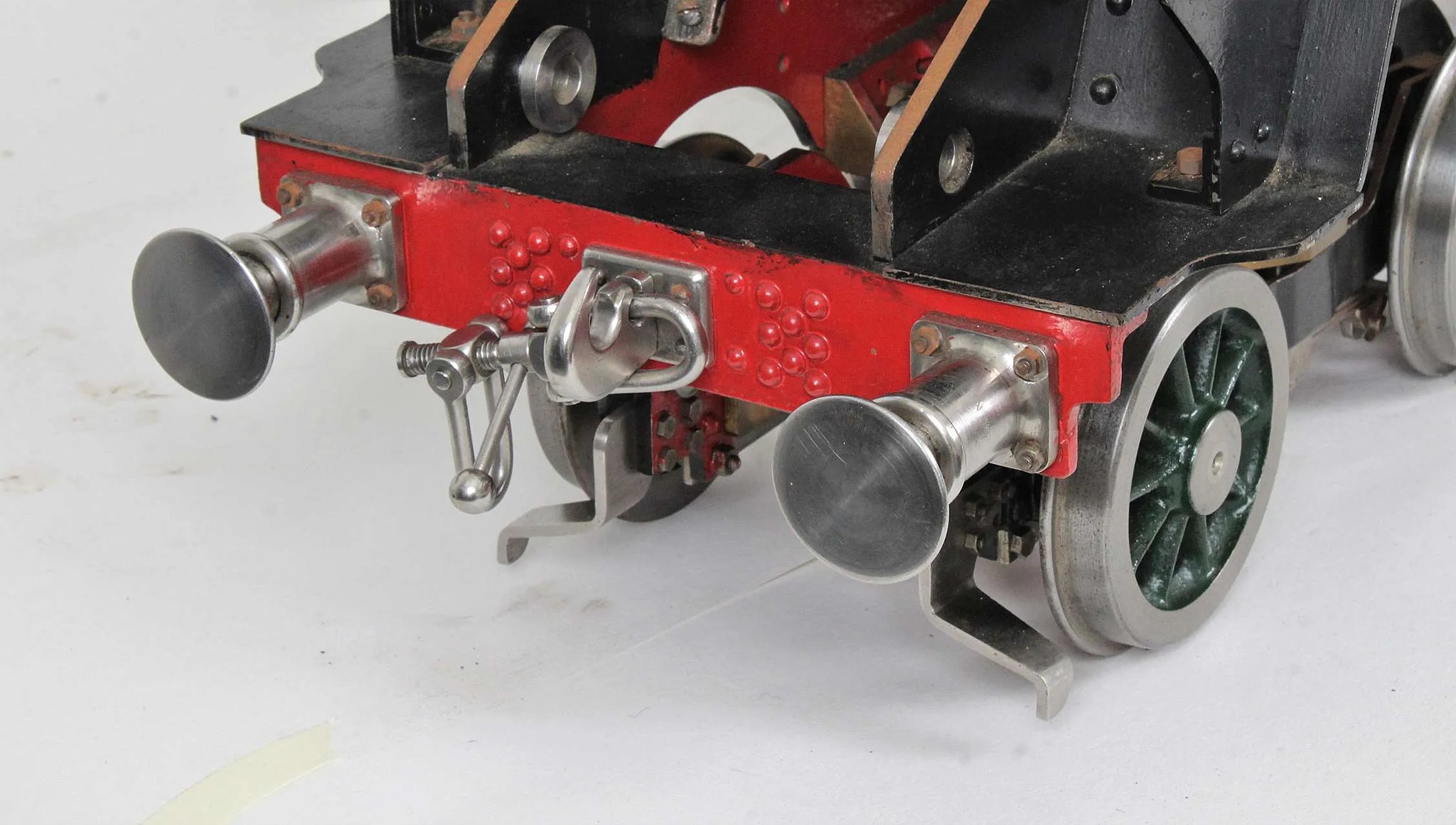

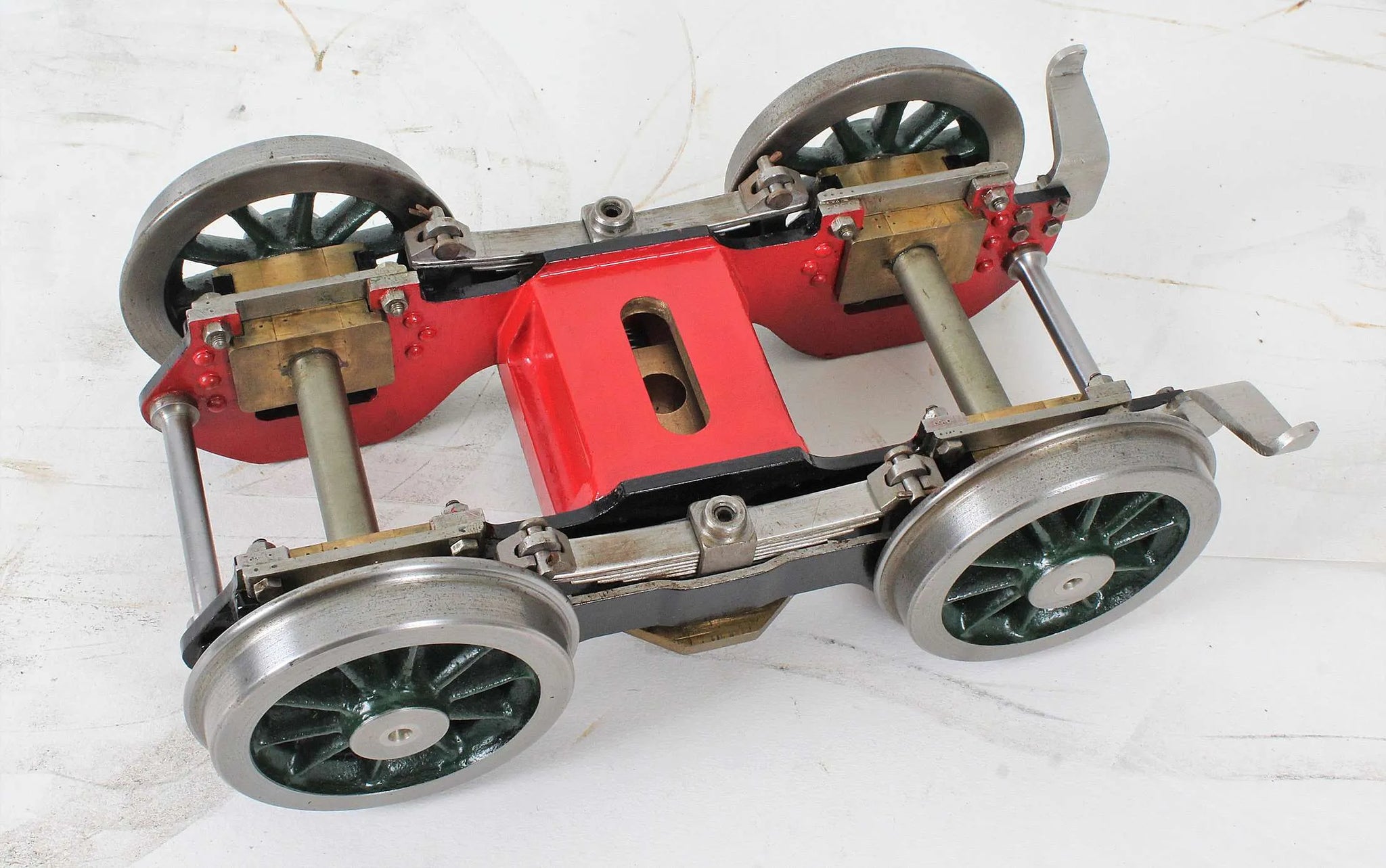

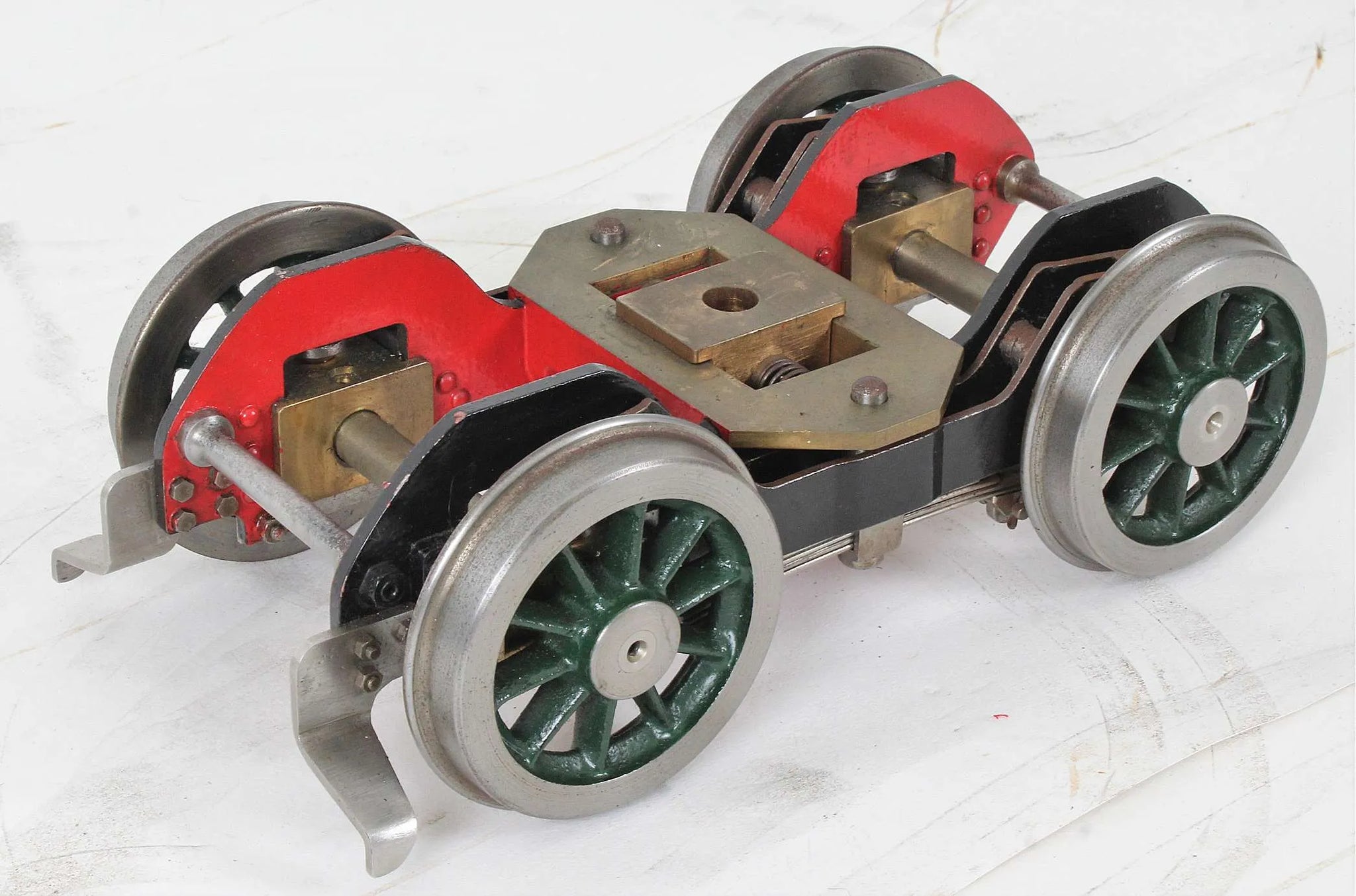

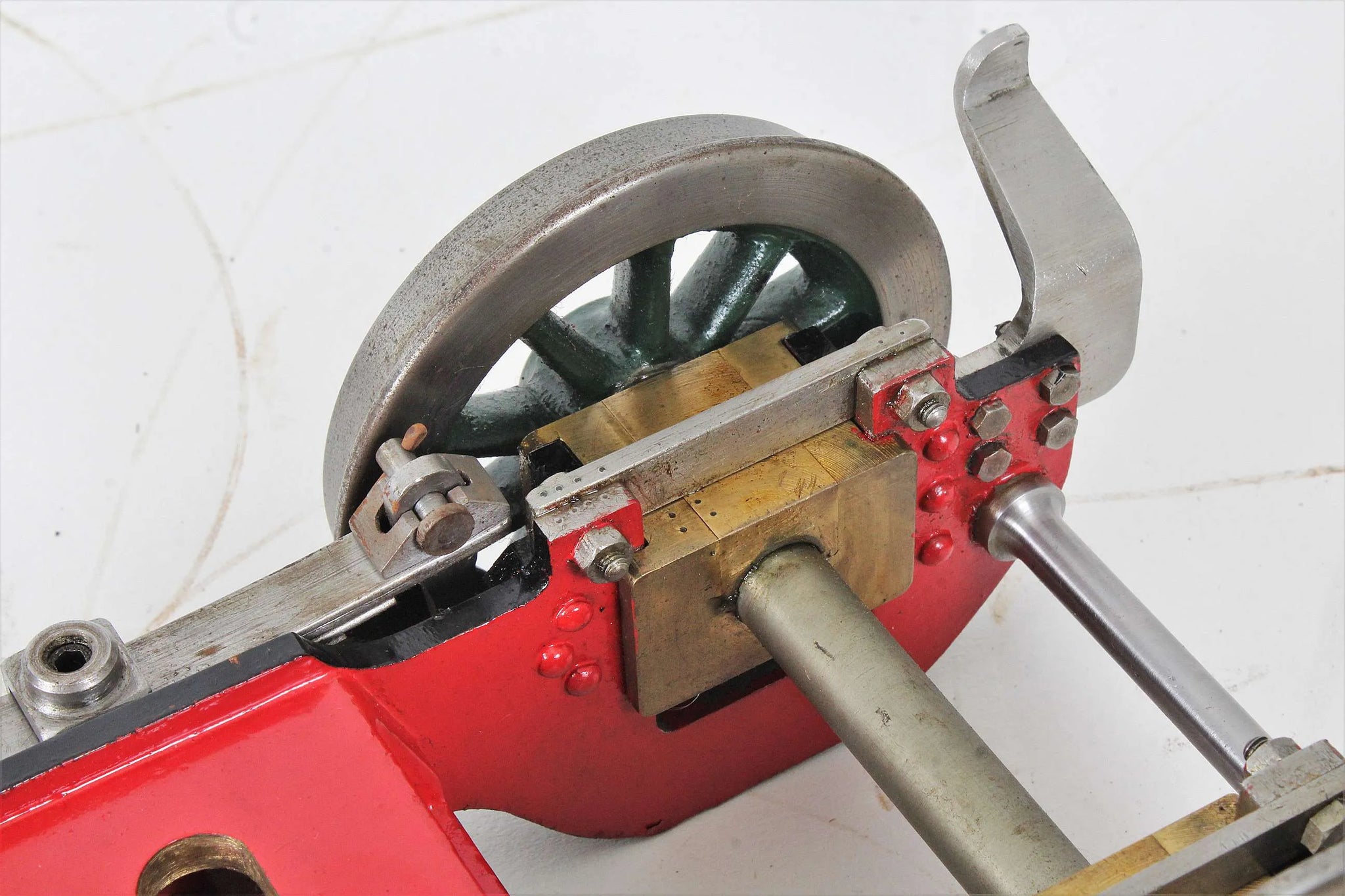

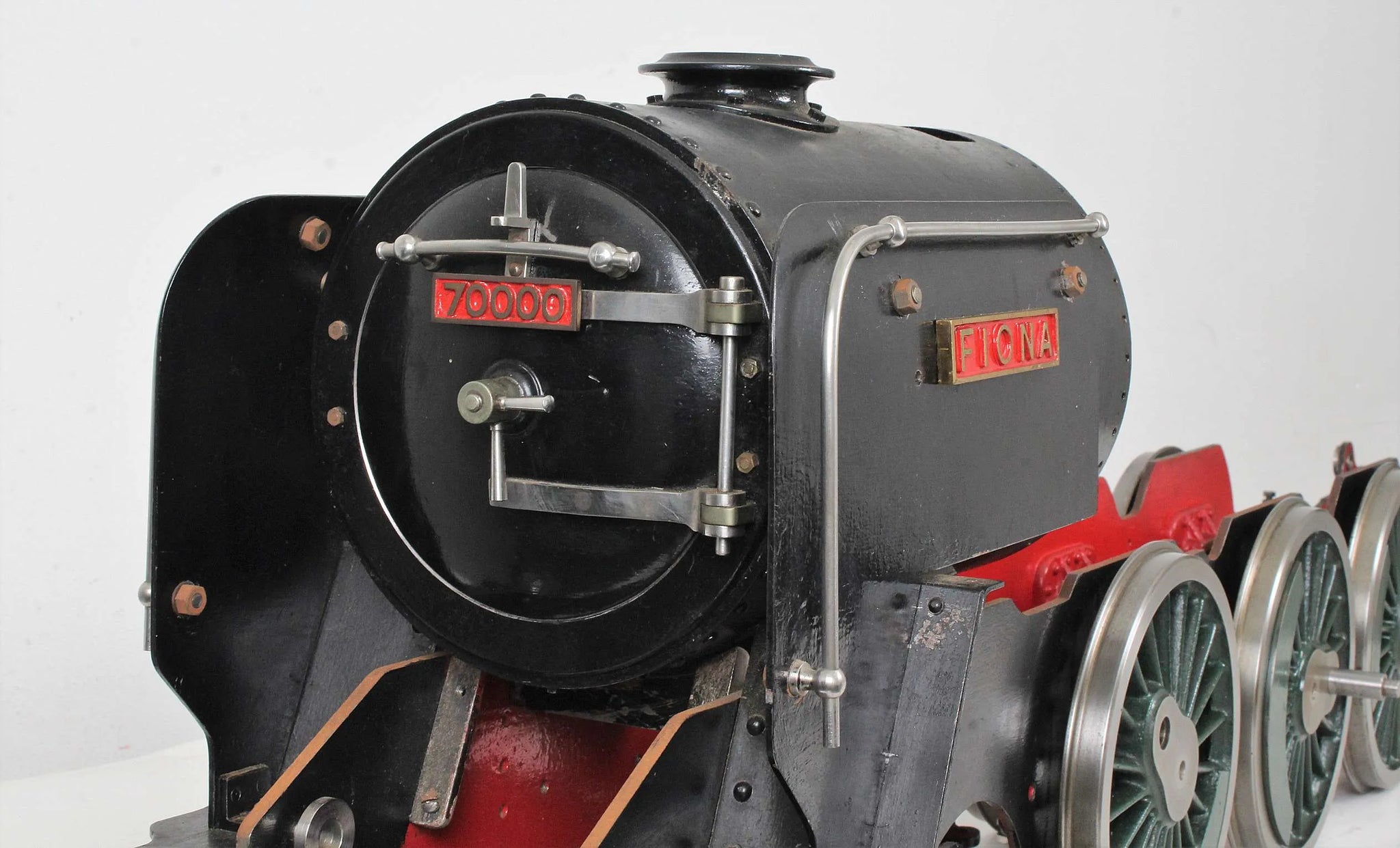

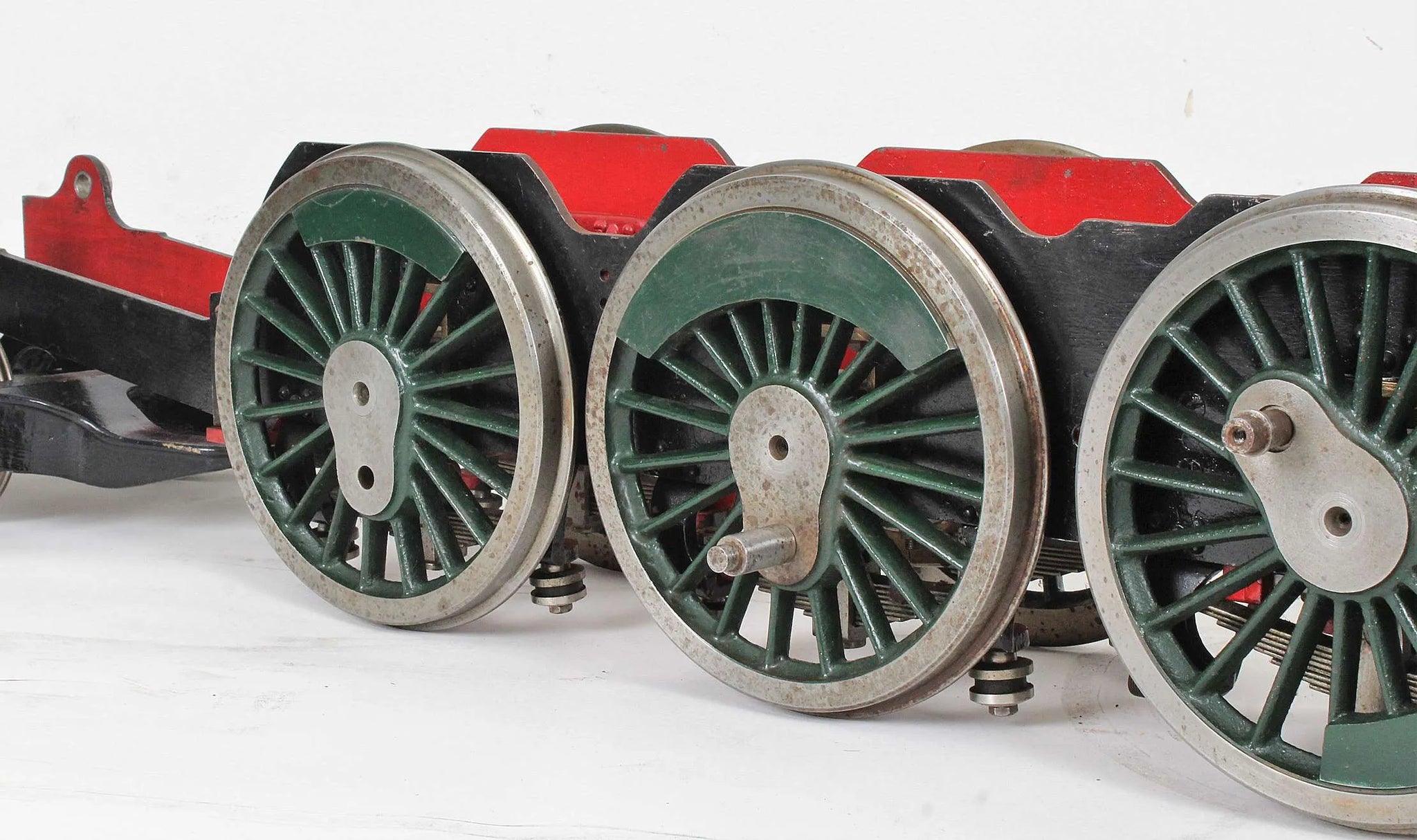

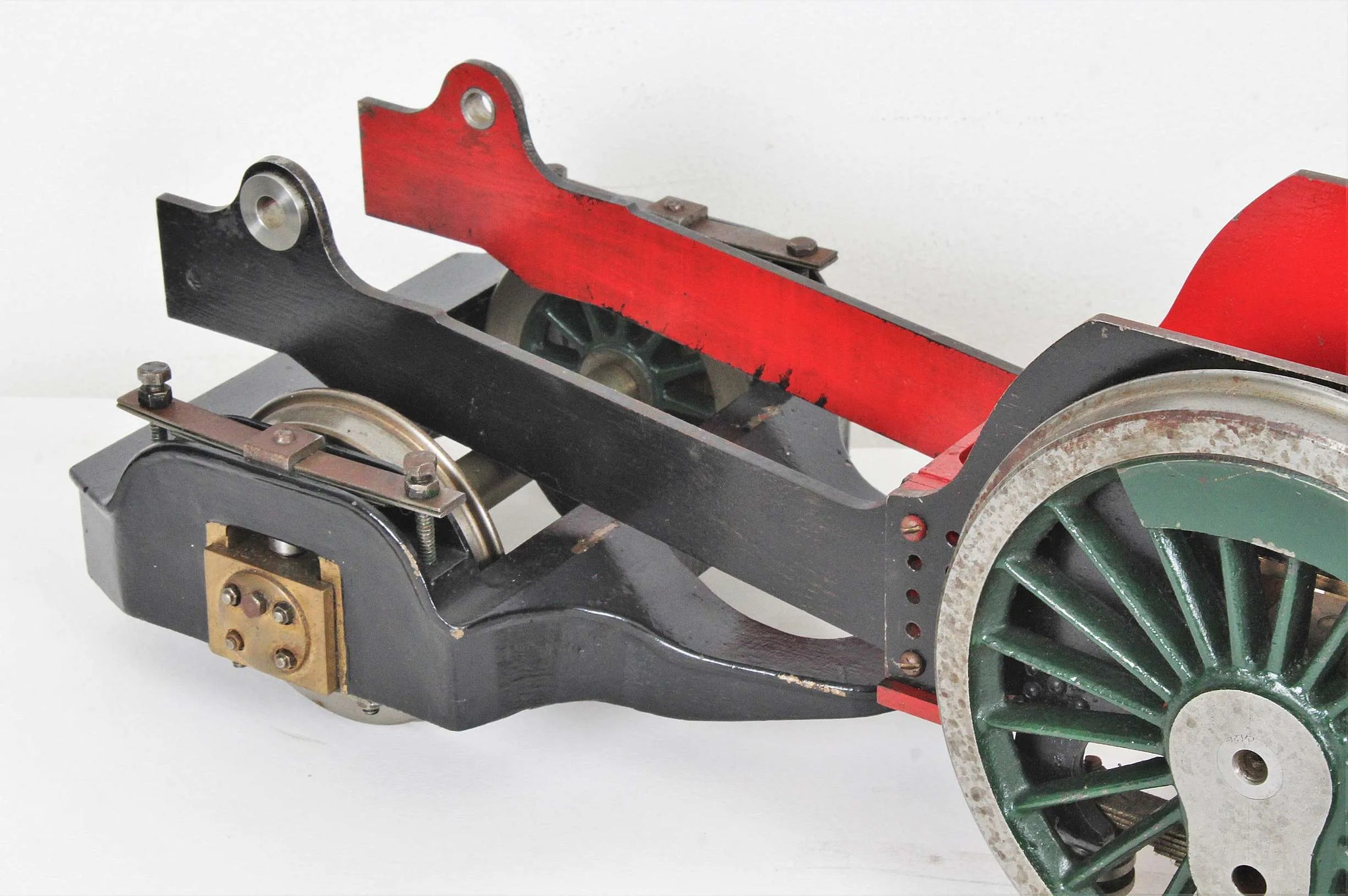

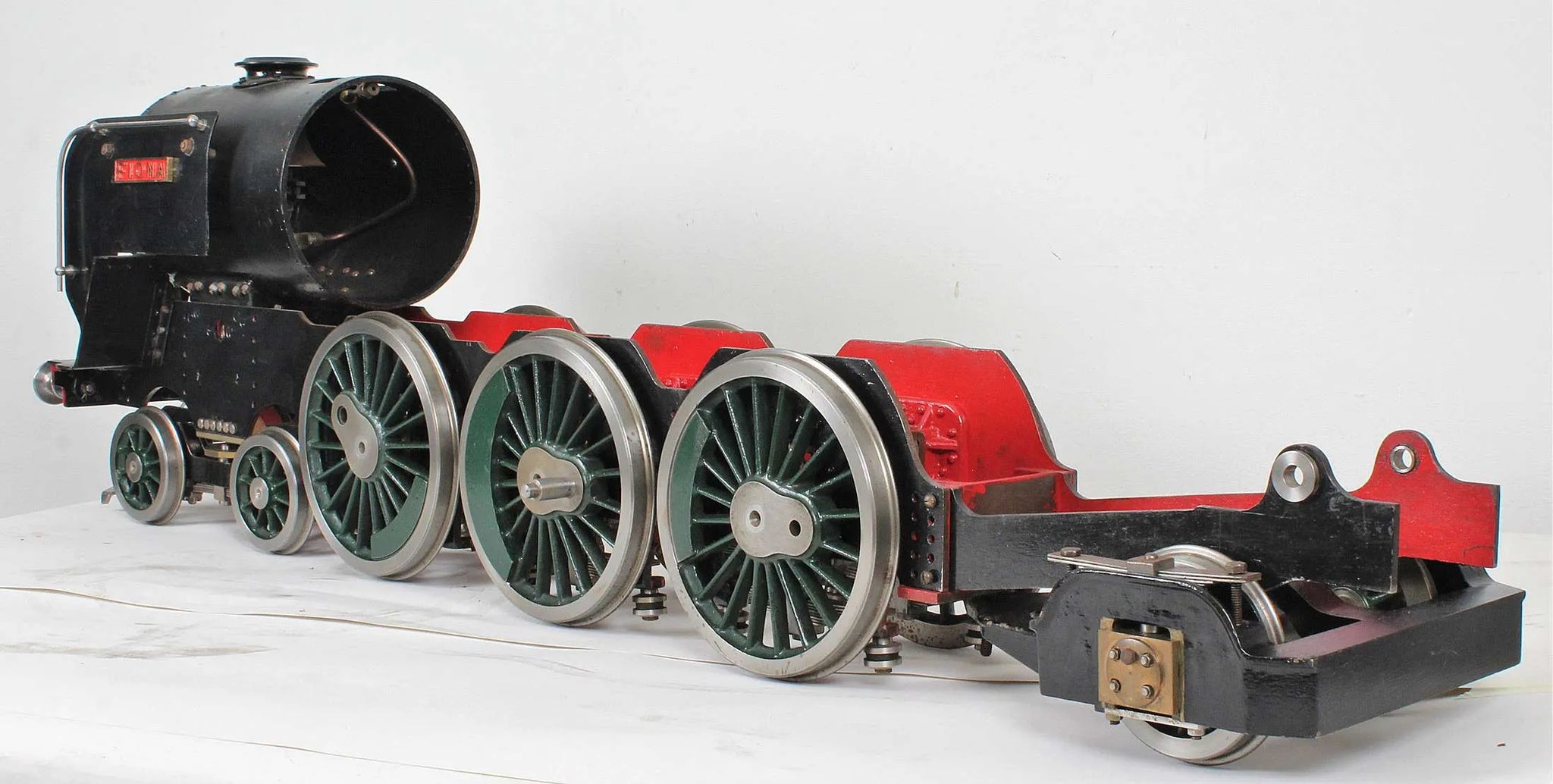

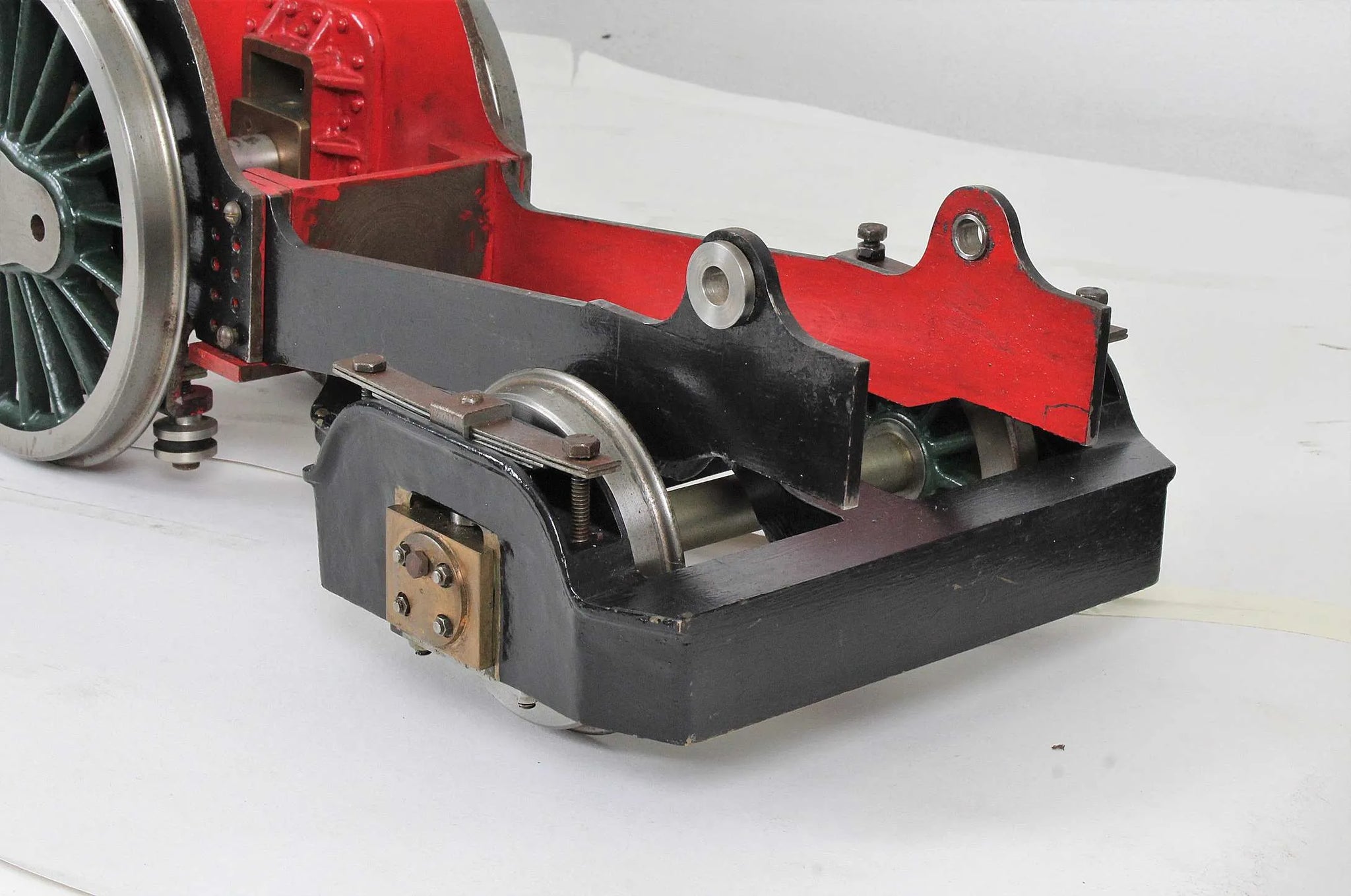

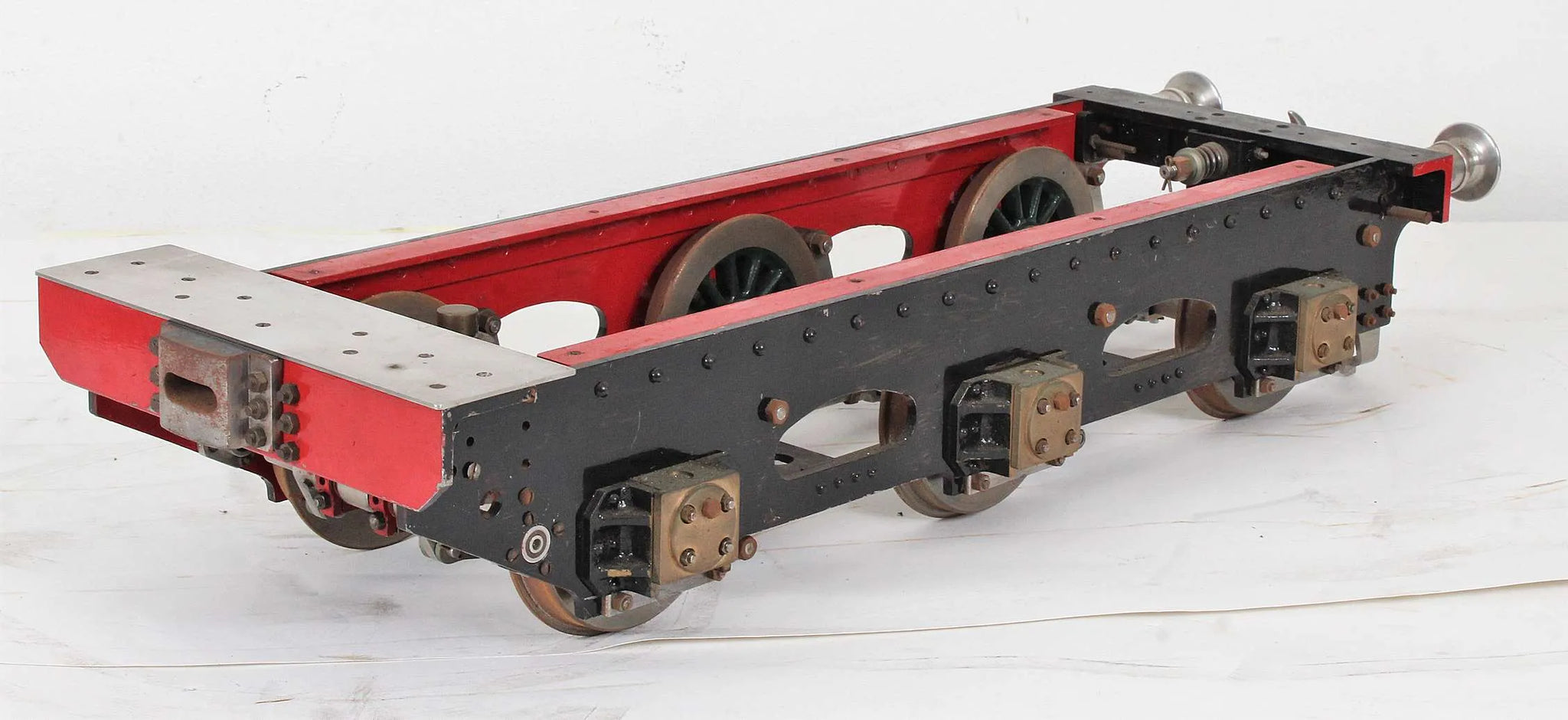

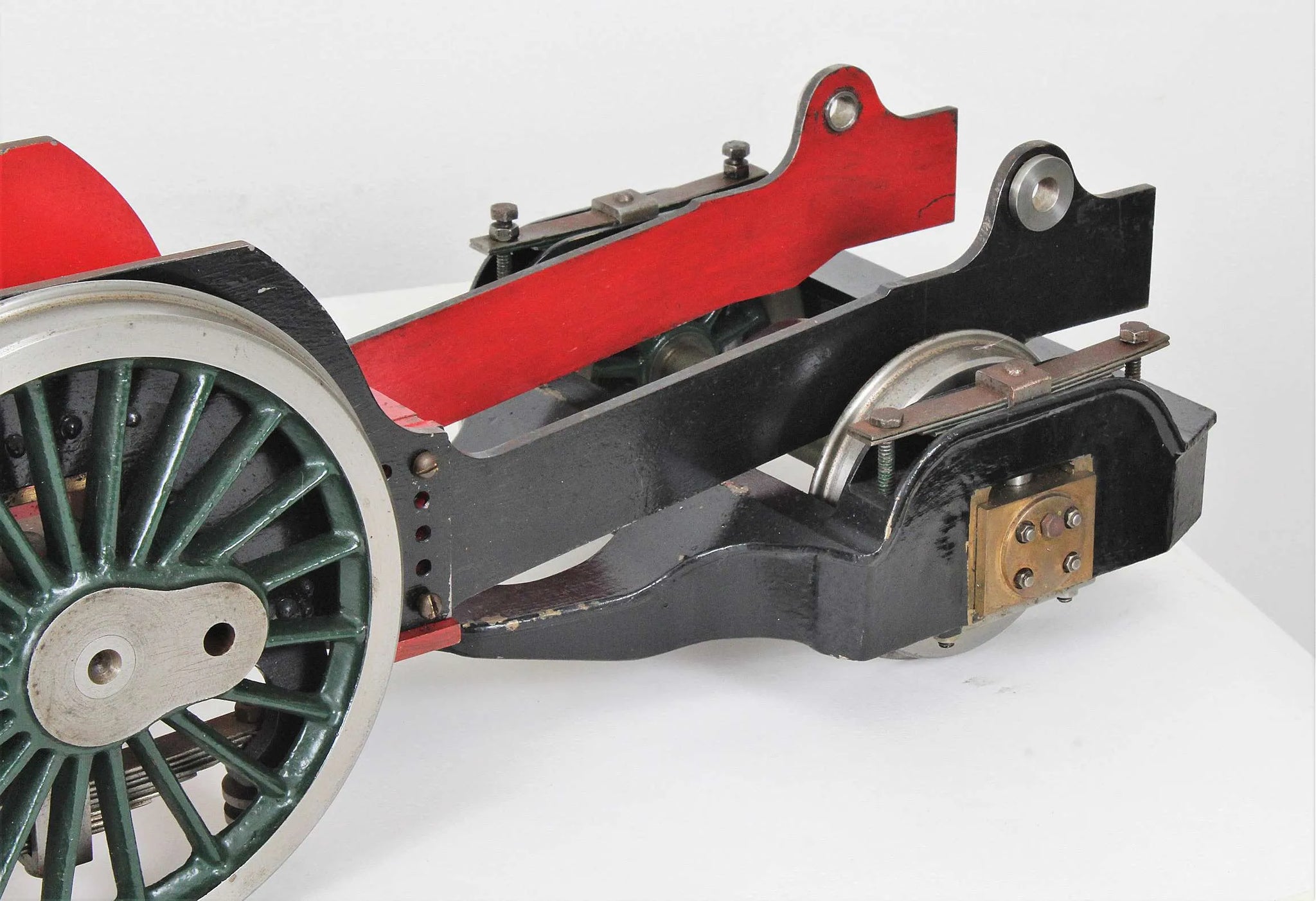

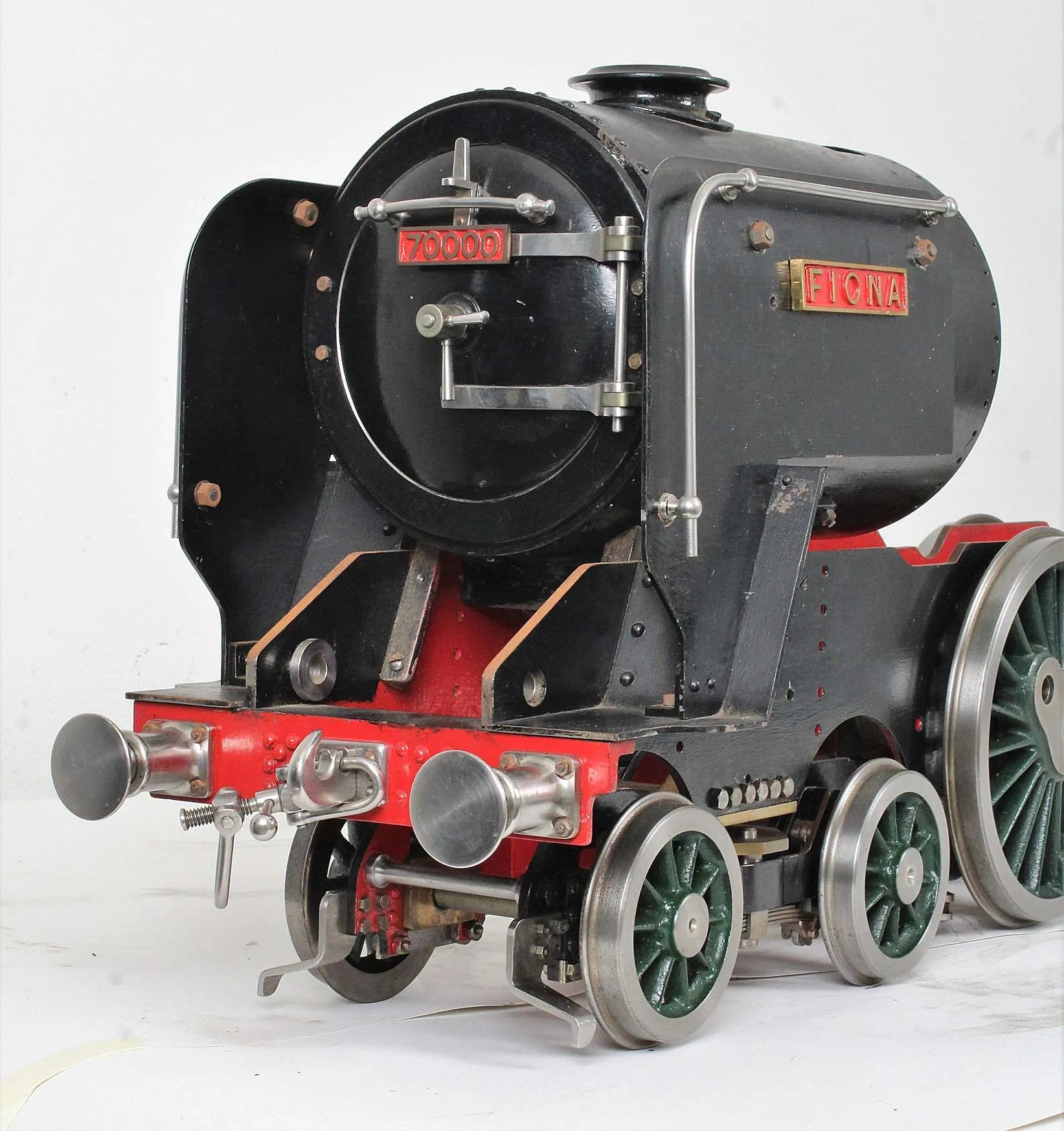

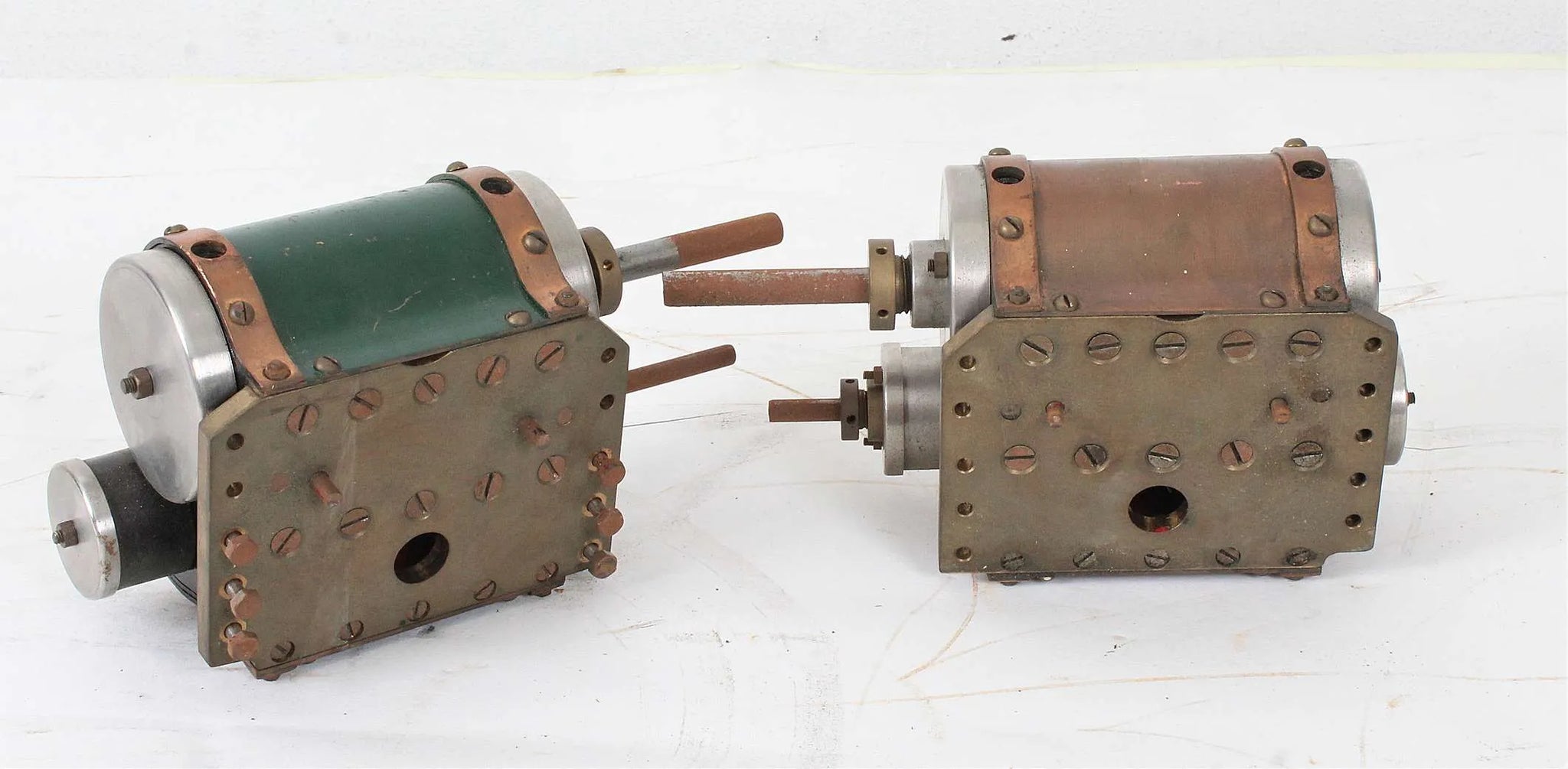

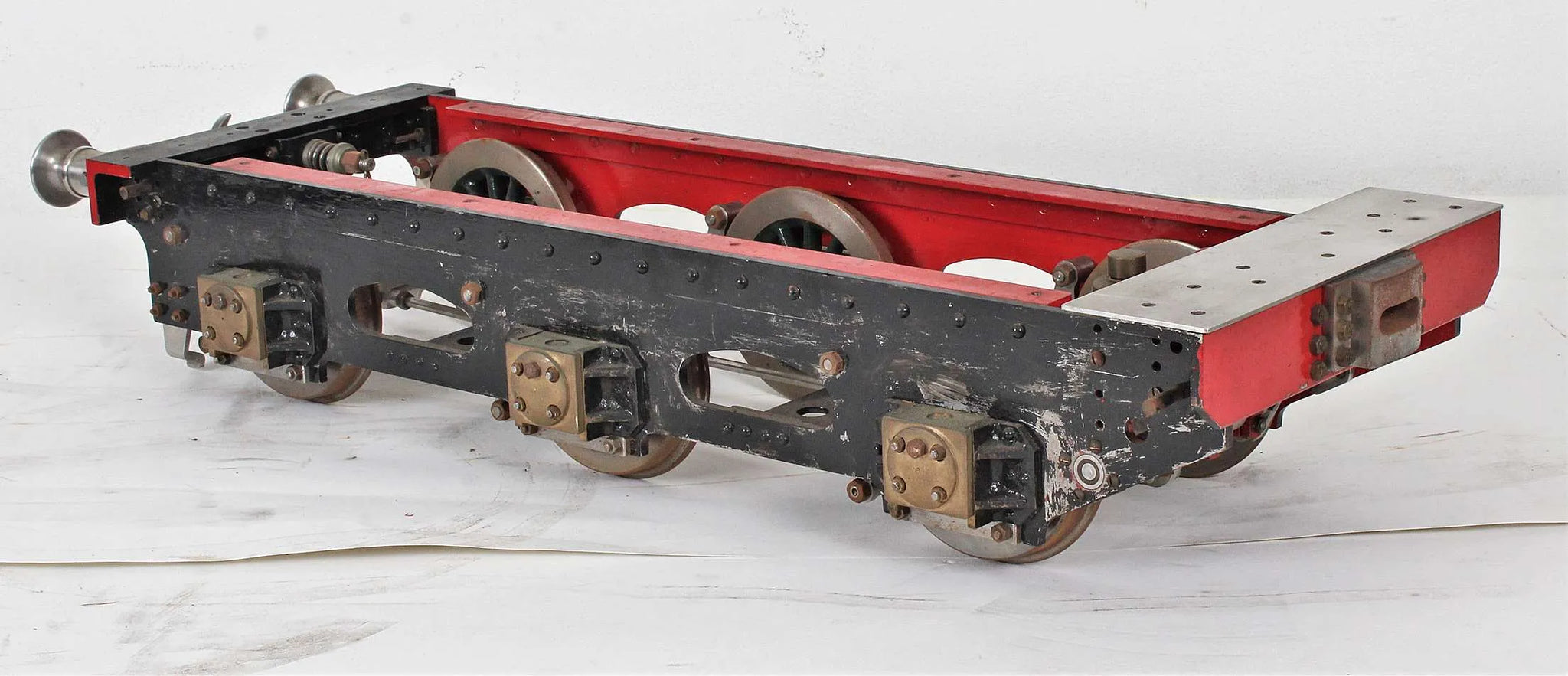

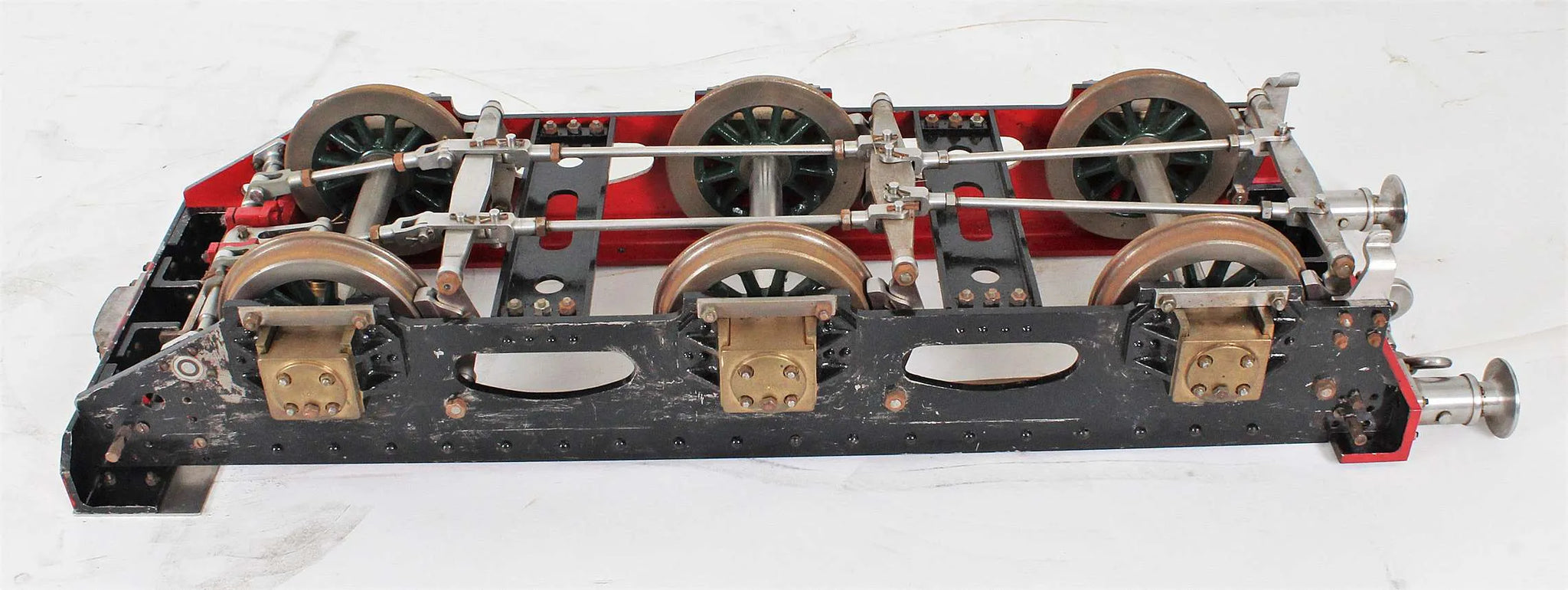

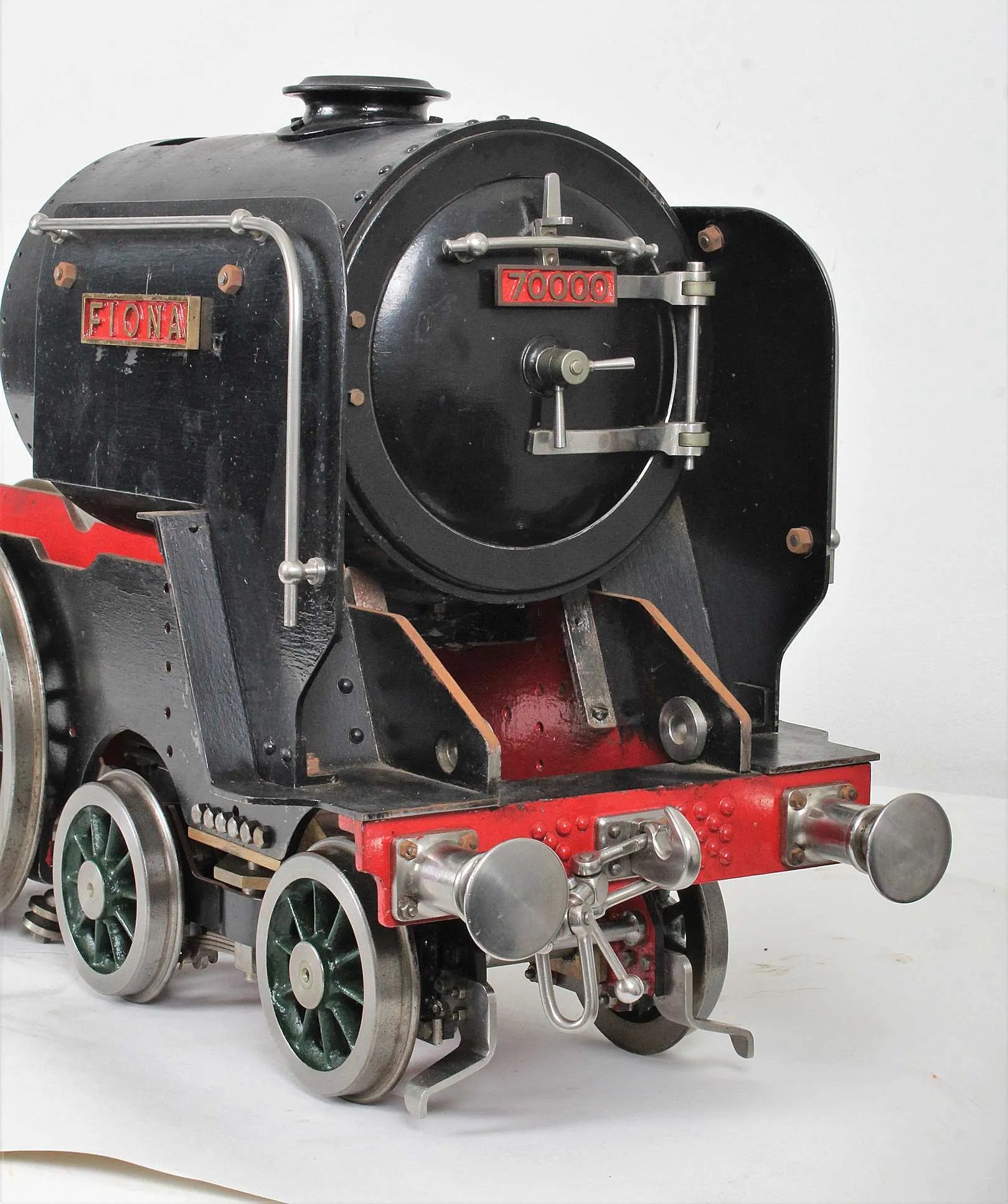

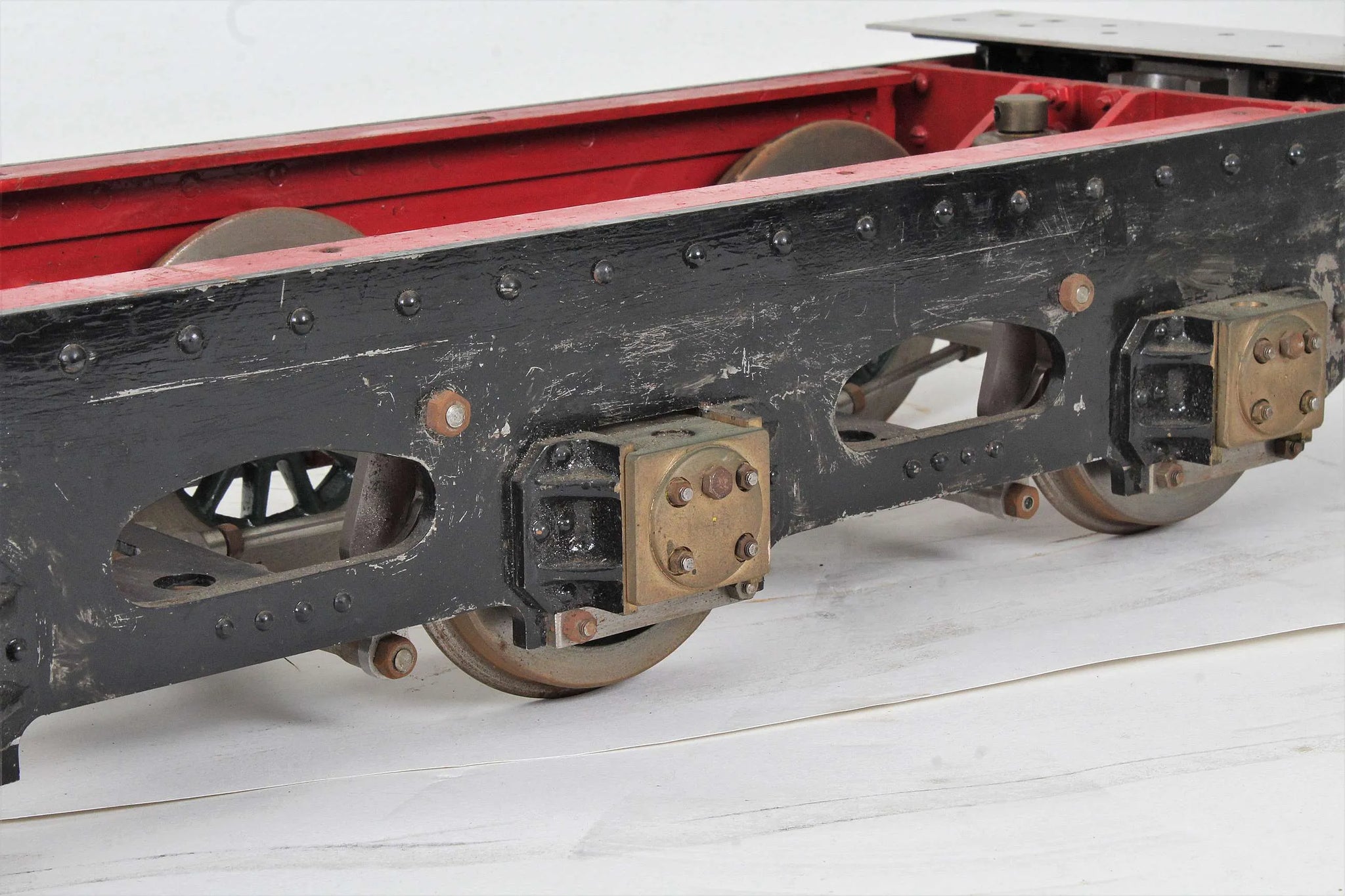

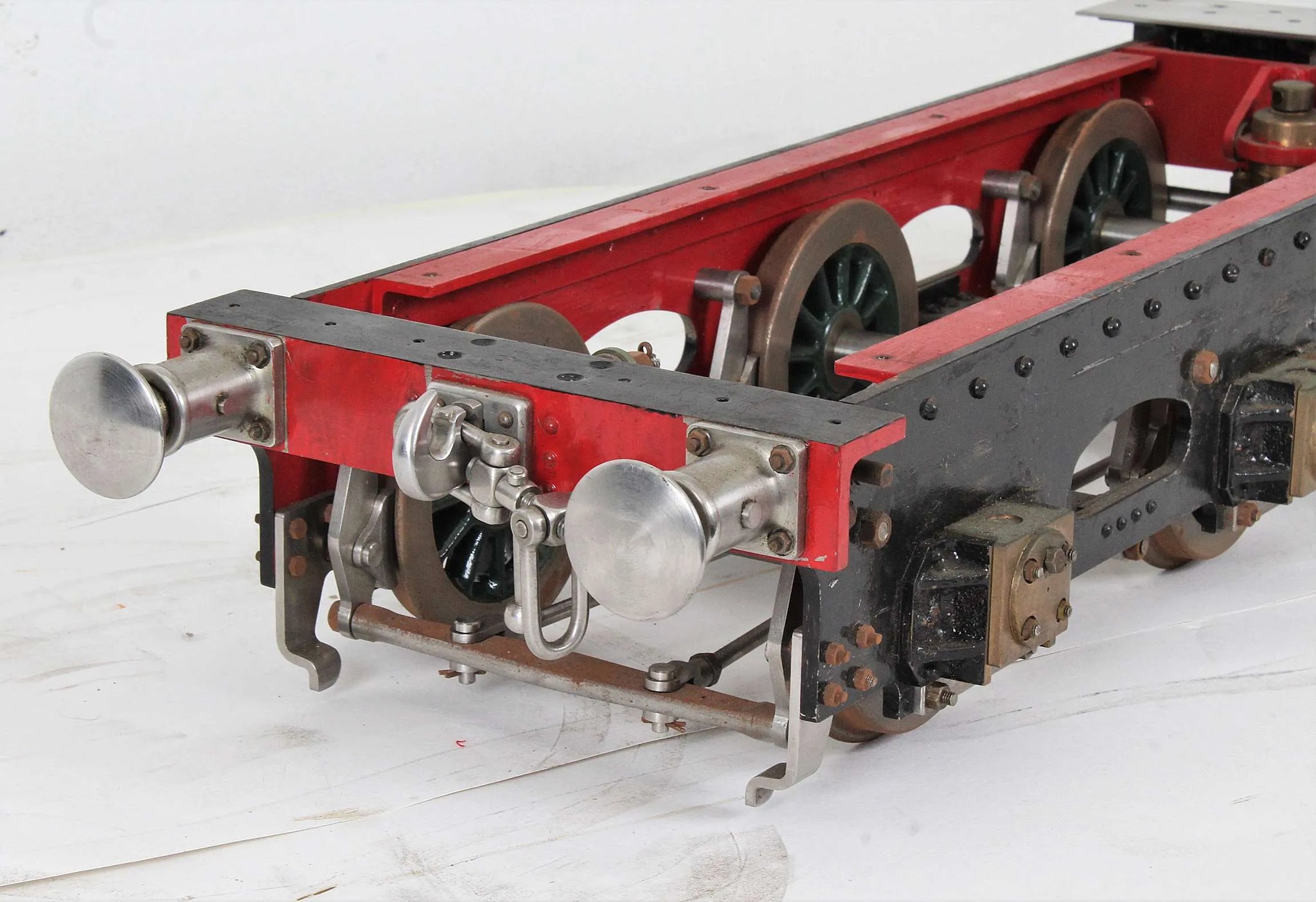

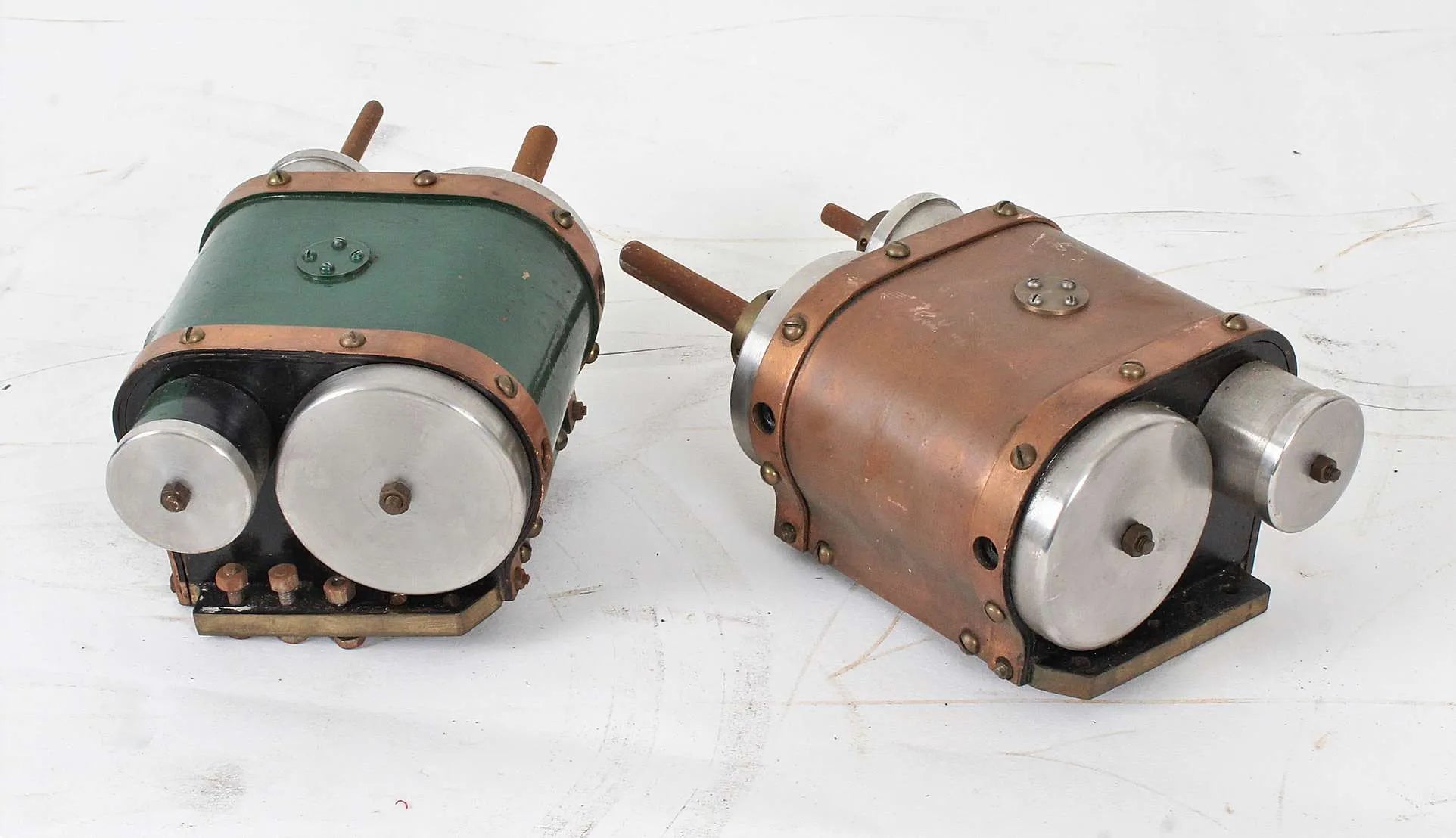

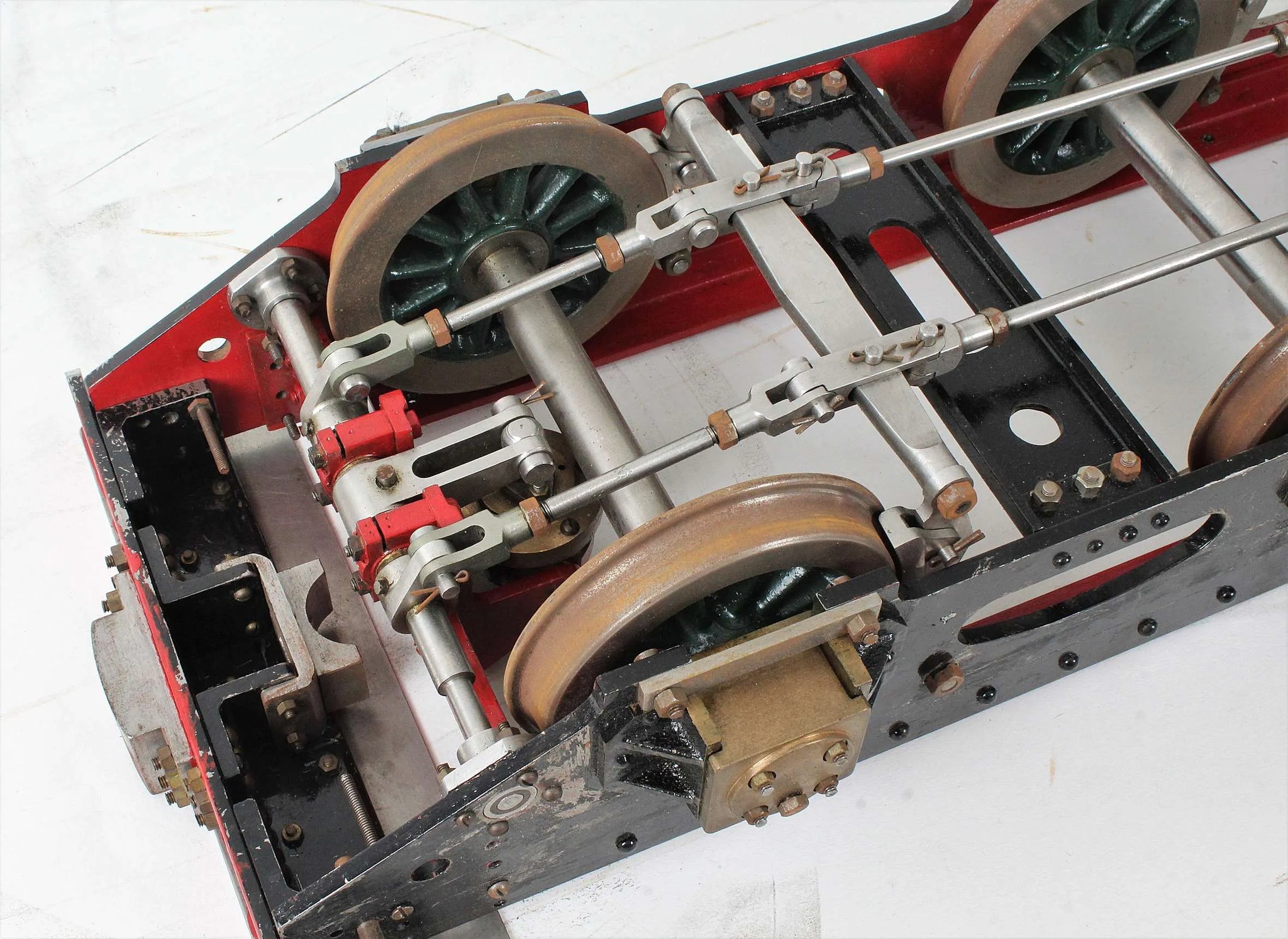

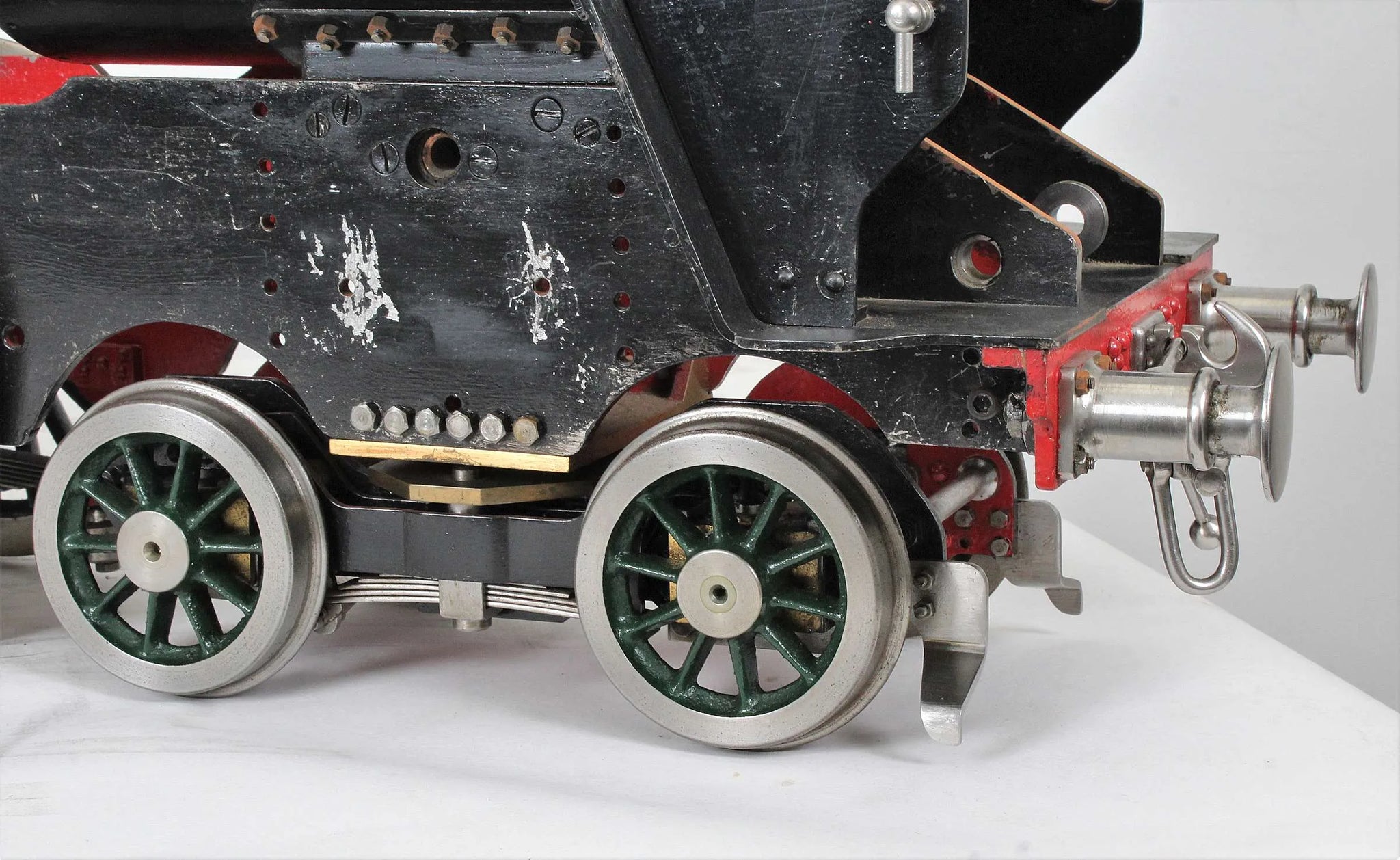

Built by a prolific model engineer whose interests included locomotives and stationary engines, work to date is to a good standard and comprises rolling chassis for both locomotive and tender; smokebox assembly fitted and cylinders machined and assembled.

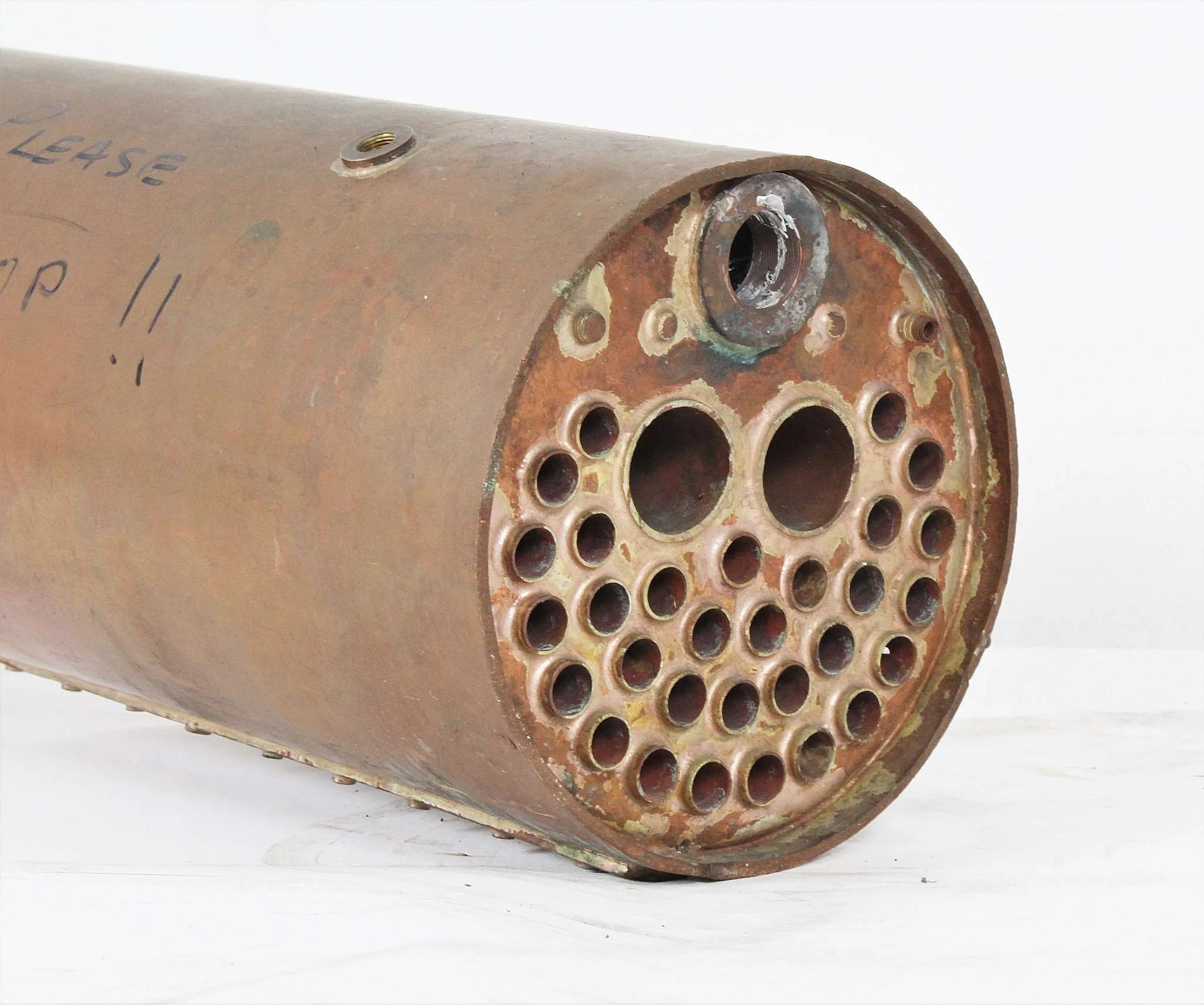

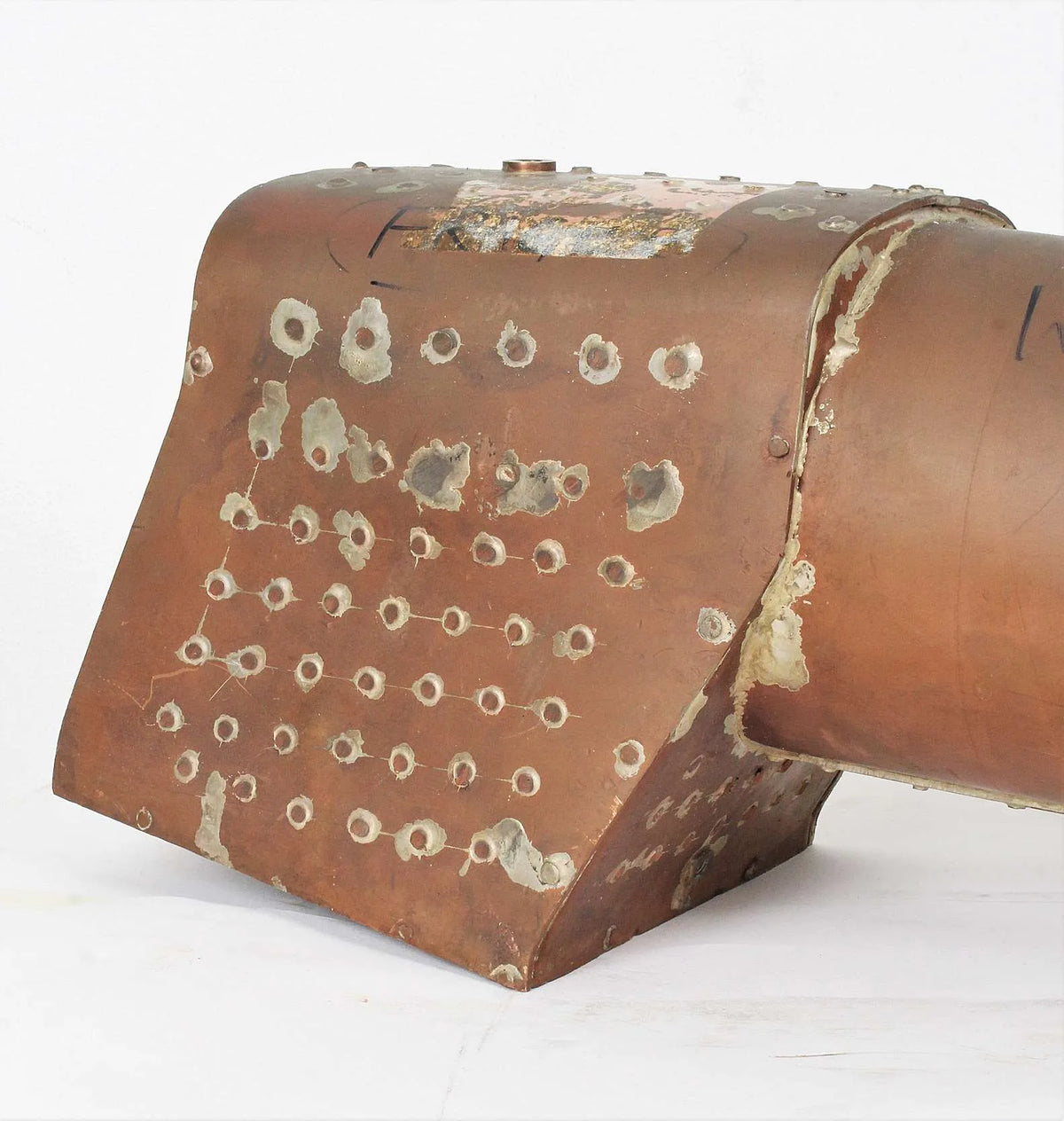

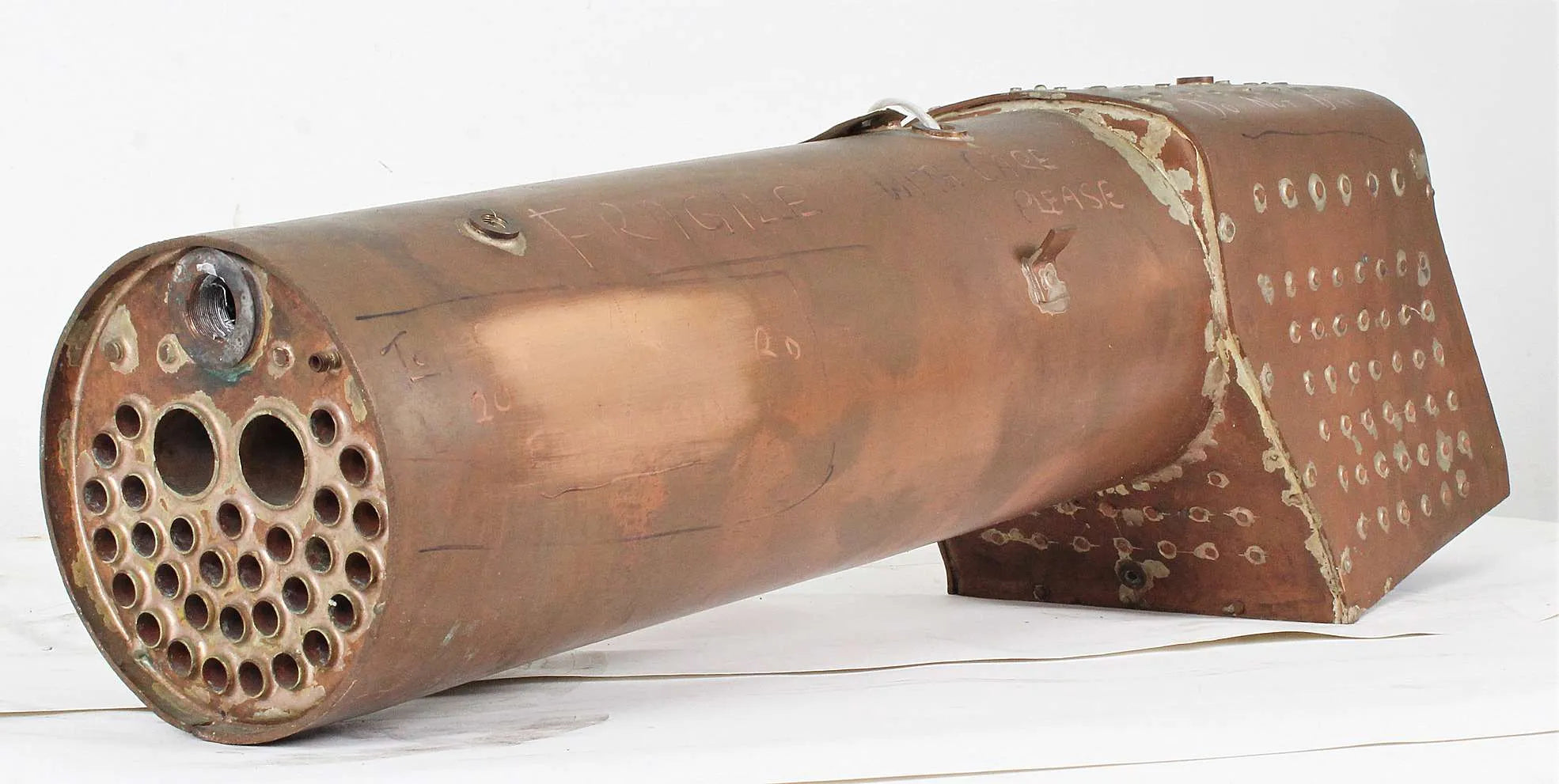

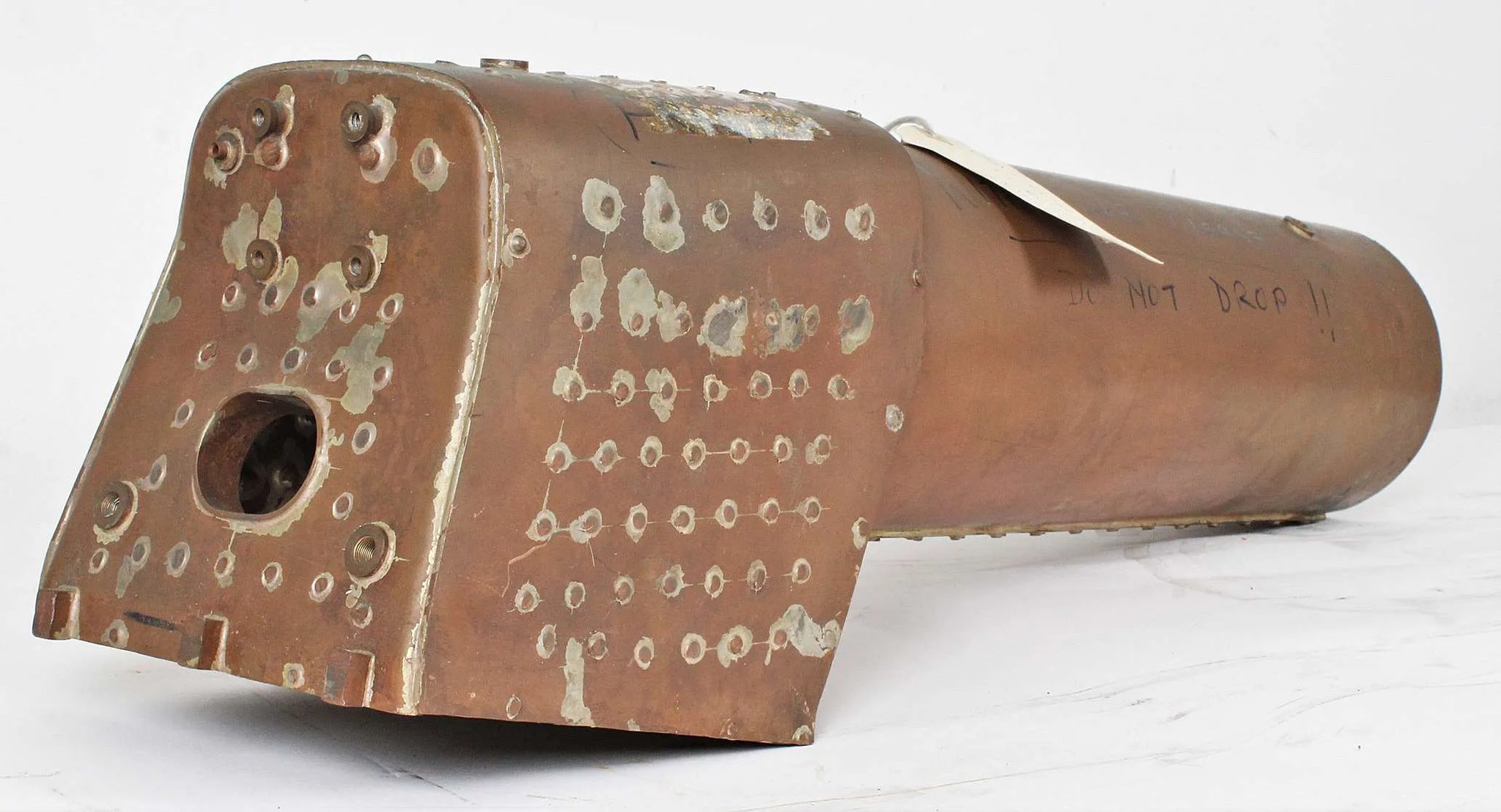

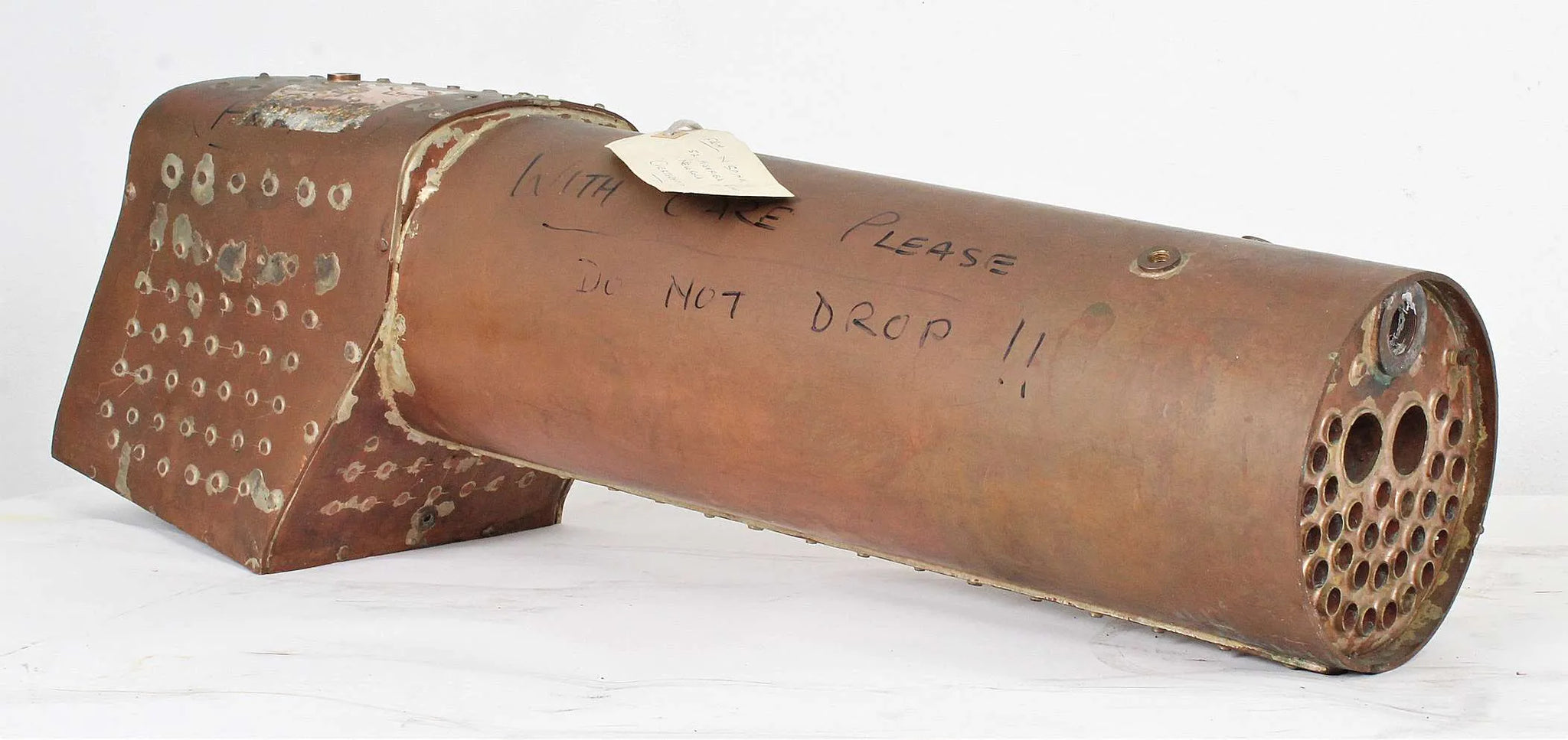

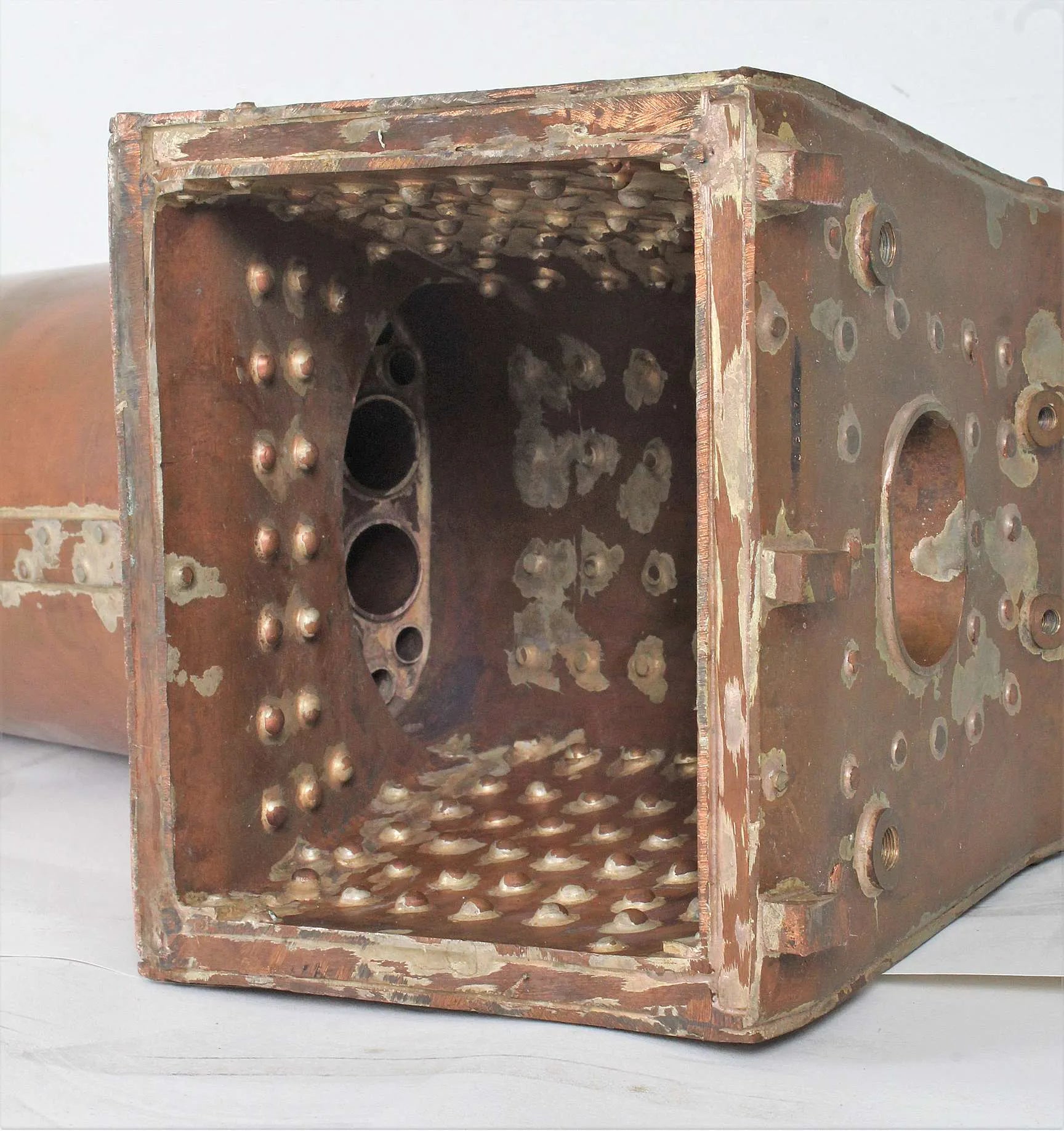

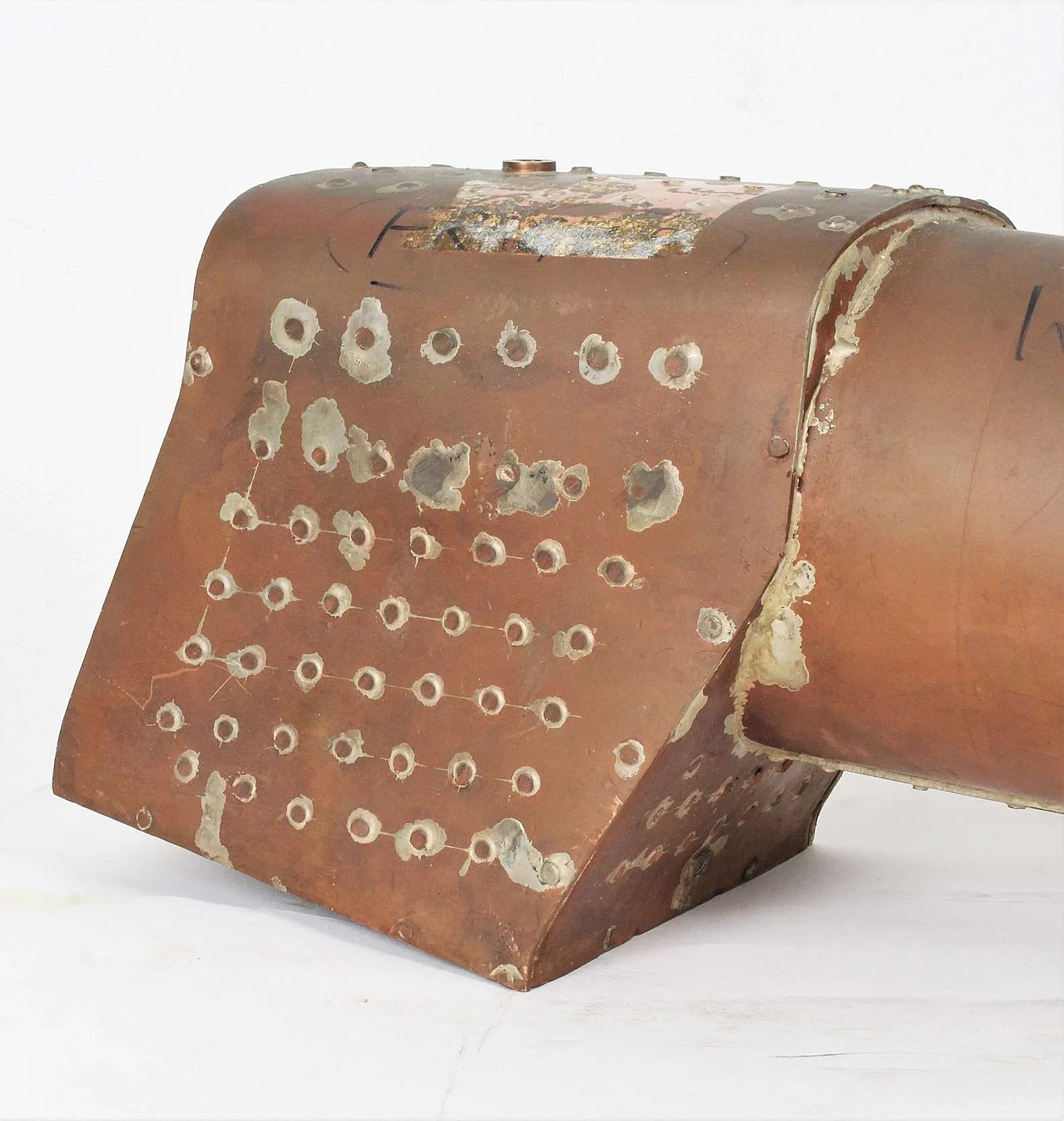

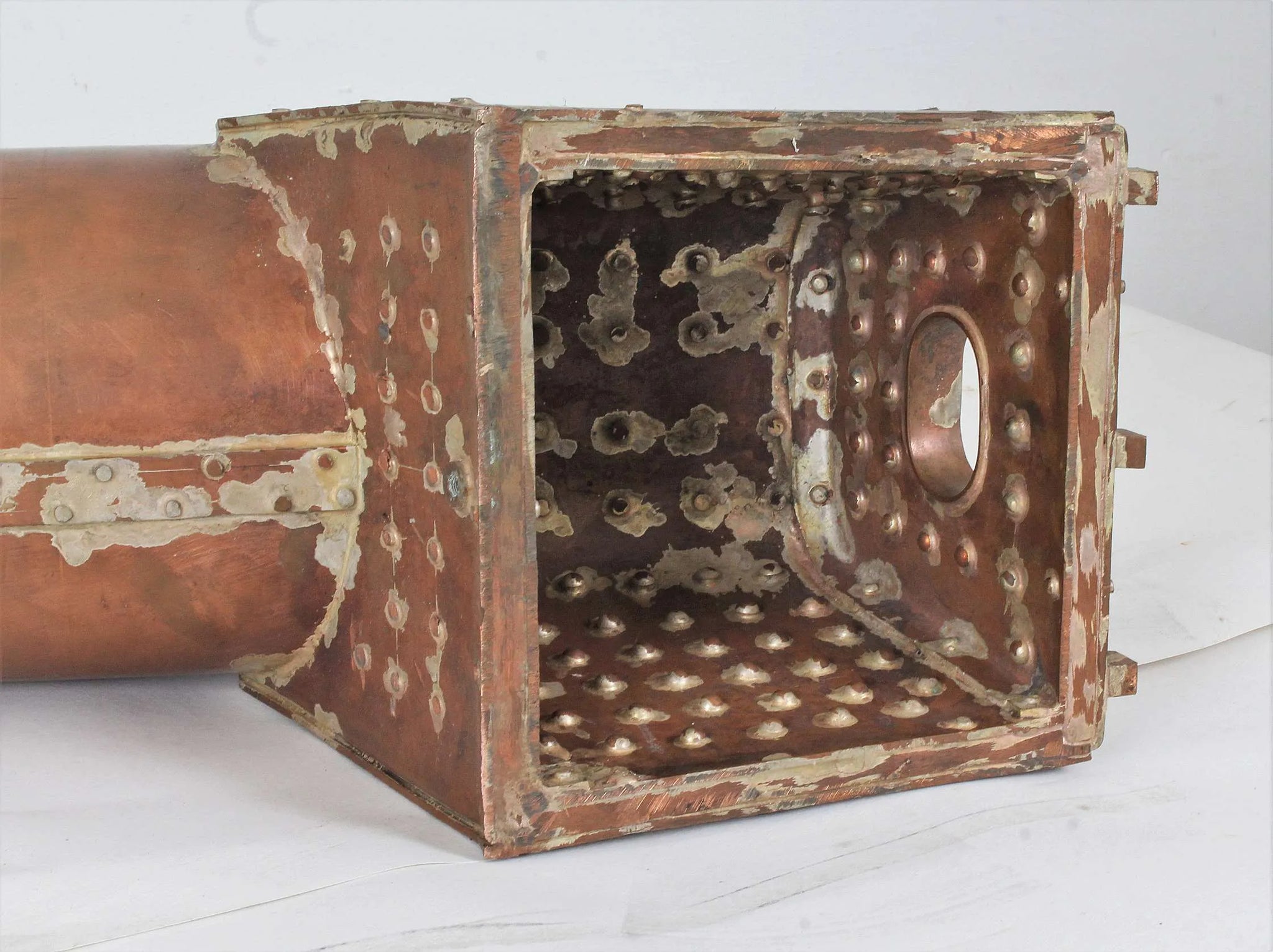

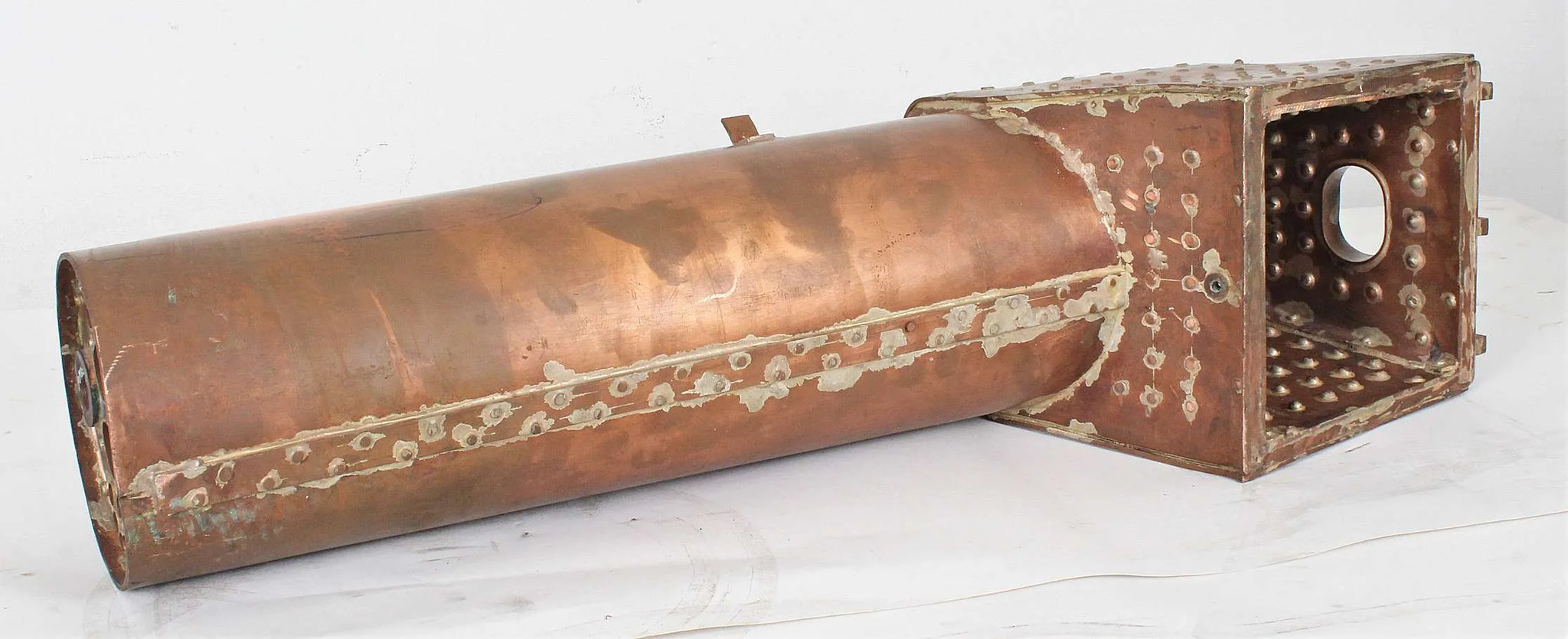

The silver soldered copper combustion chamber boiler was supplied new by Norman Spink some thirty years ago - somewhat grubby, however unused from new and dry stored since delivery.

Technical information

Stock code

9840

Gauge

5 inch

Length/inches

47 + 25

Width/inches

9.5

Height/inches

13

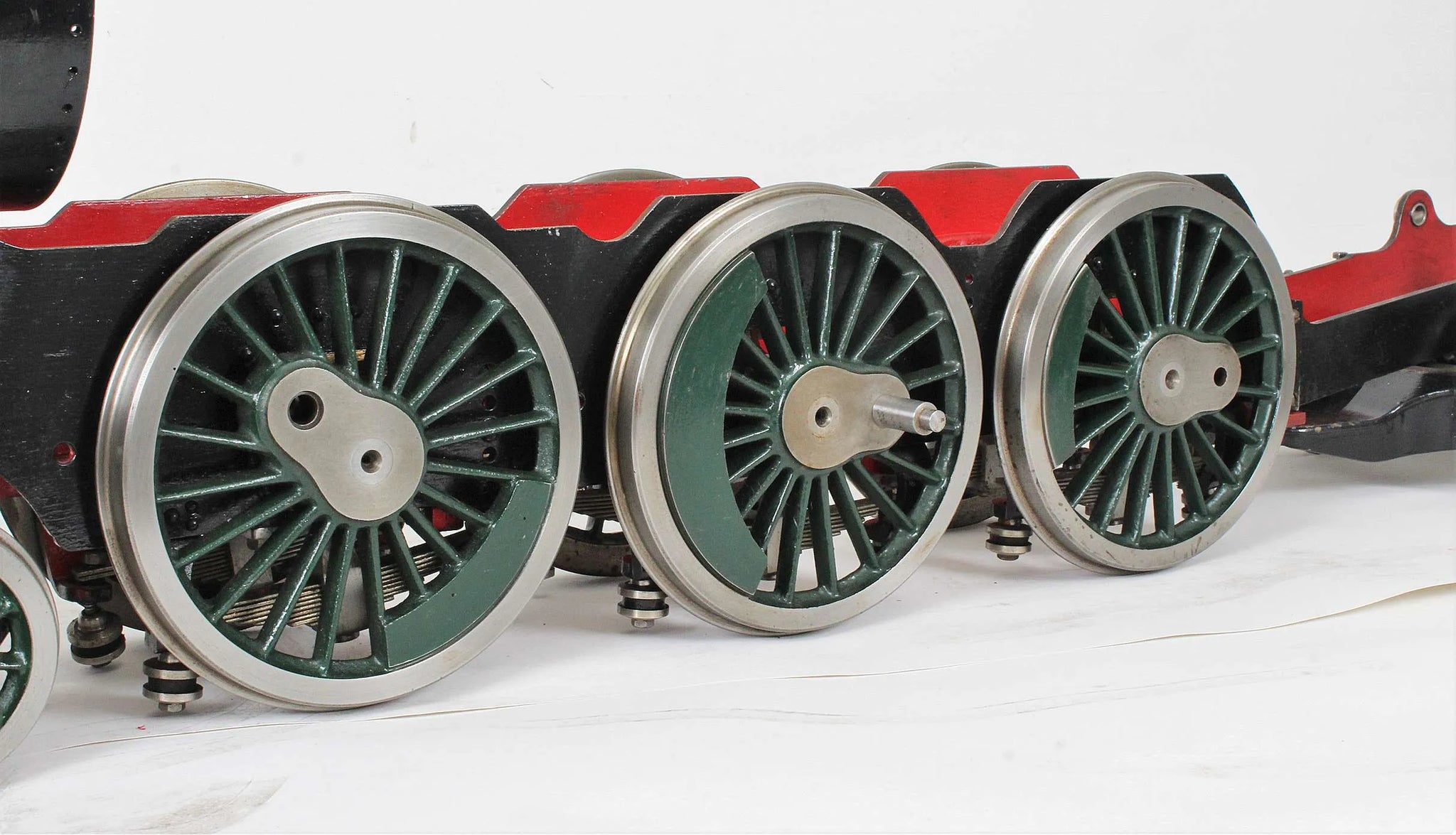

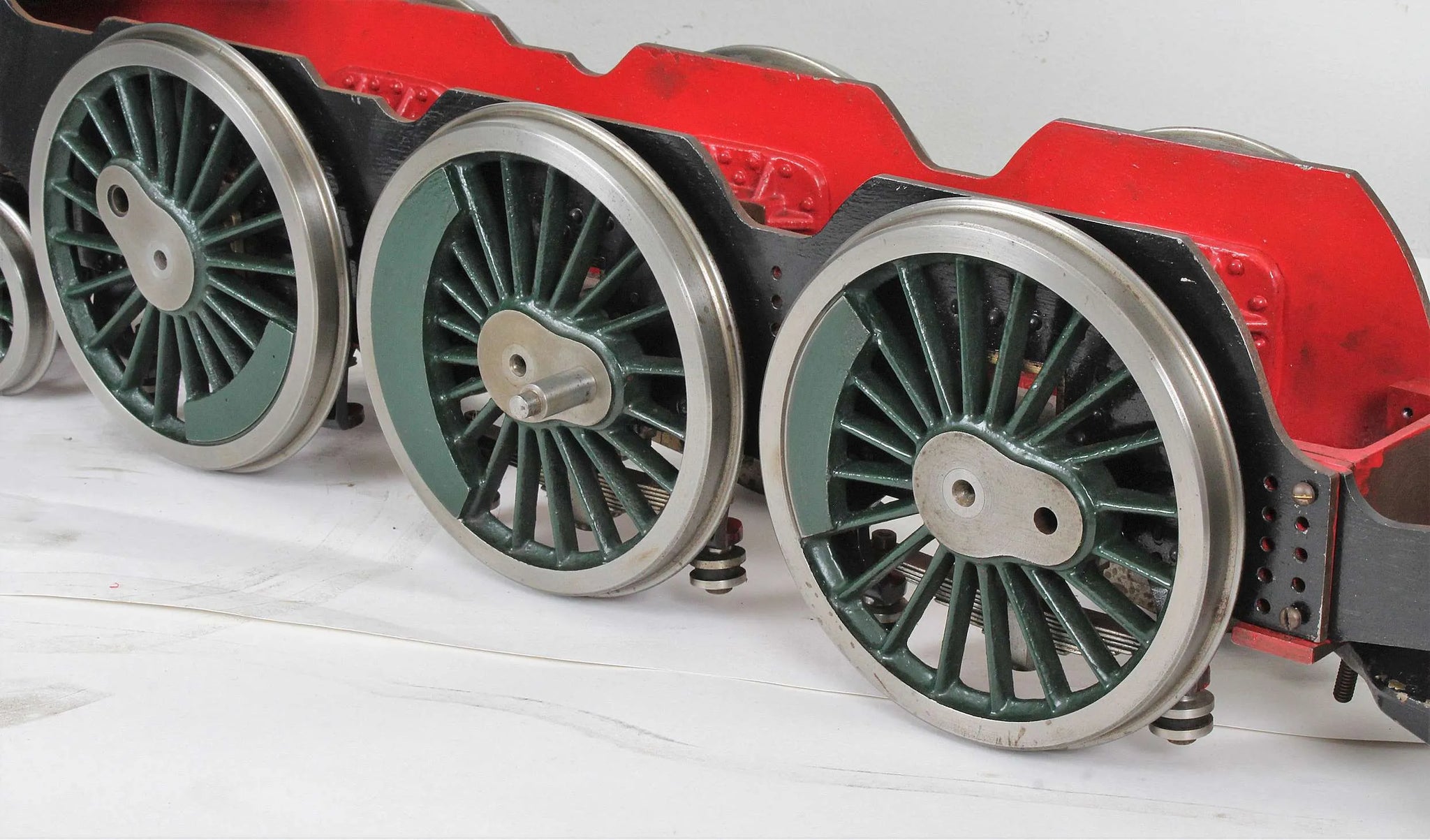

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

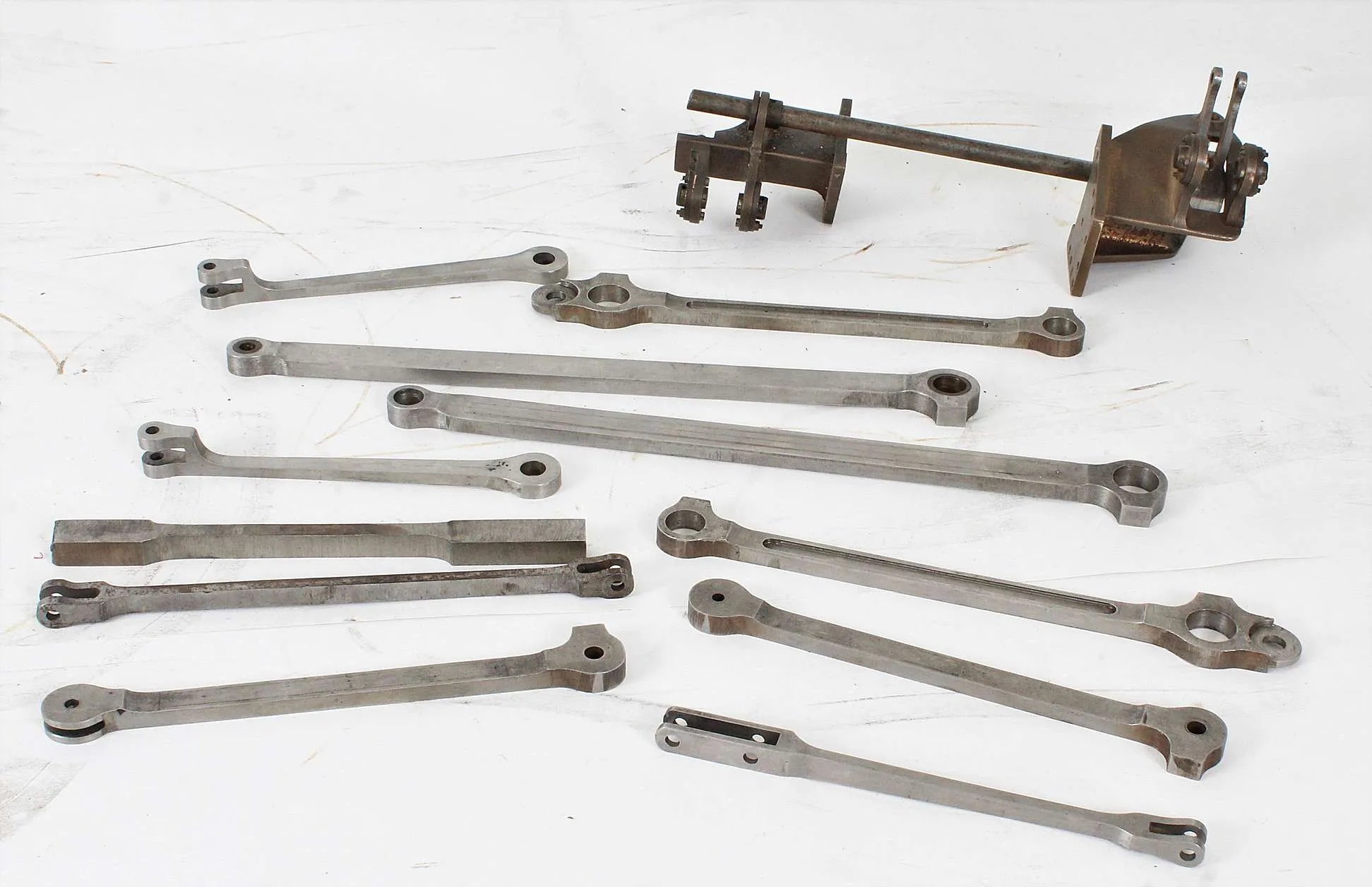

Valve gear

Walschaerts

Boiler maker

Norman Spink

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a pre-2002

Mechanical pump

1

Date out

Feb-23
