10211

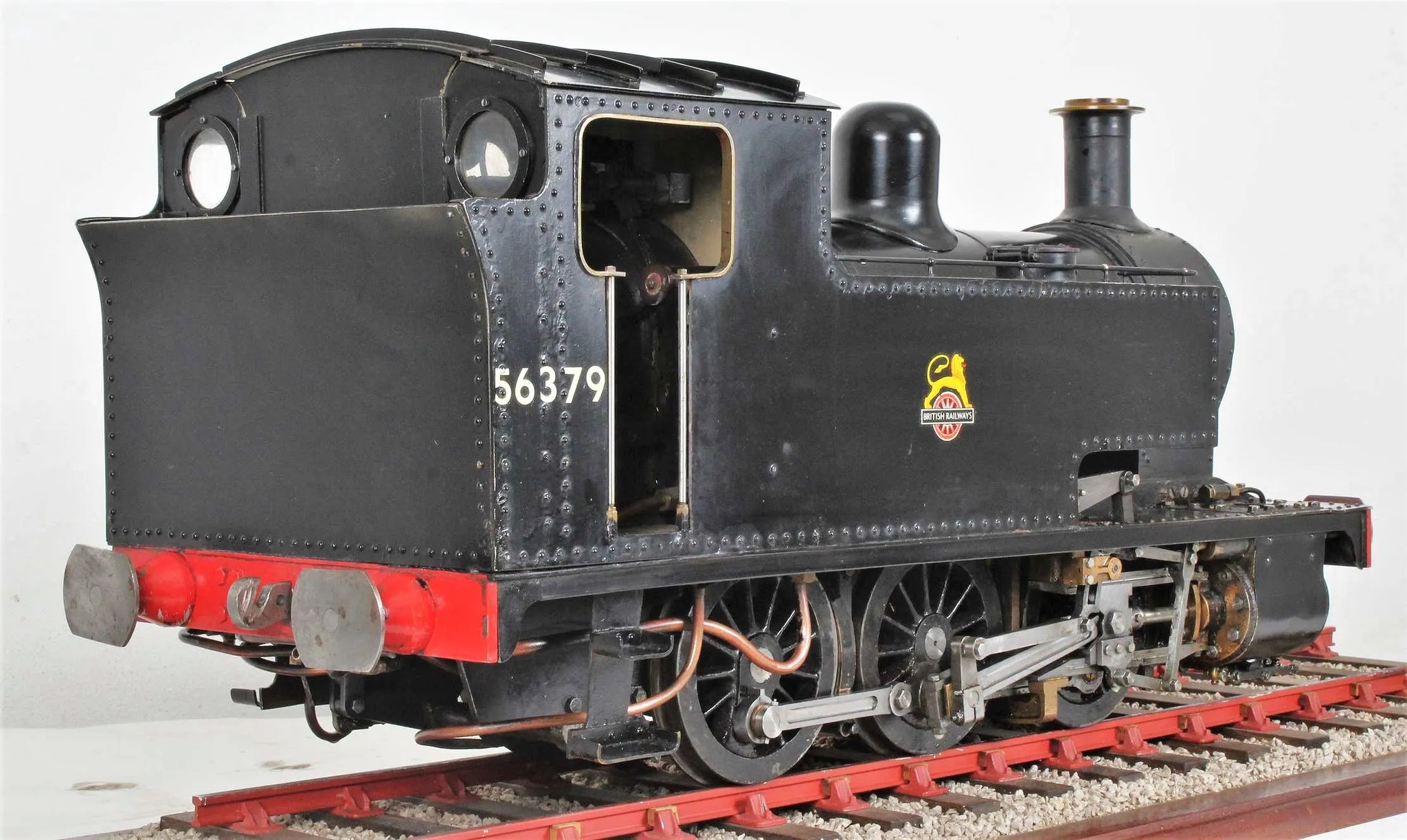

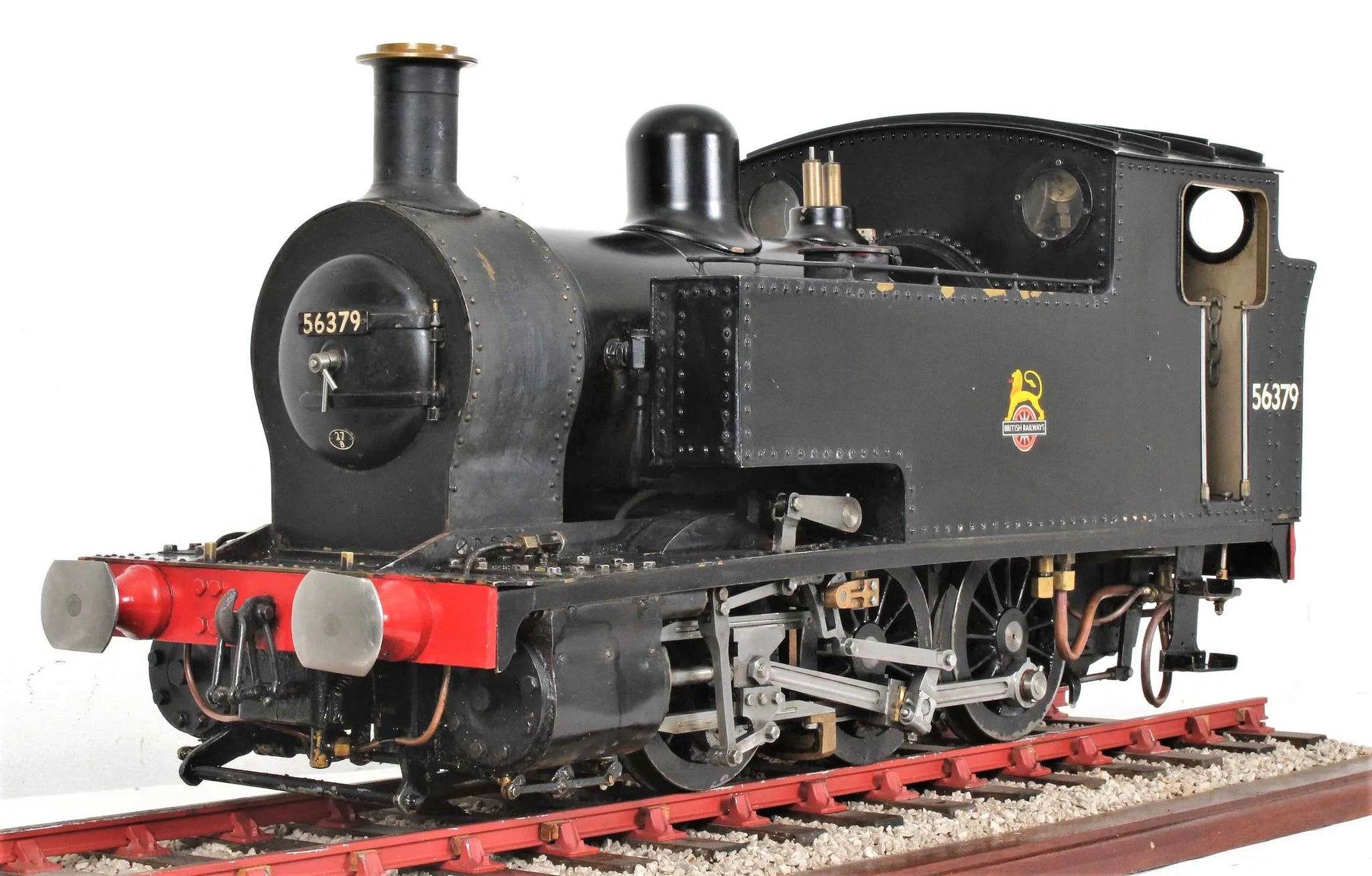

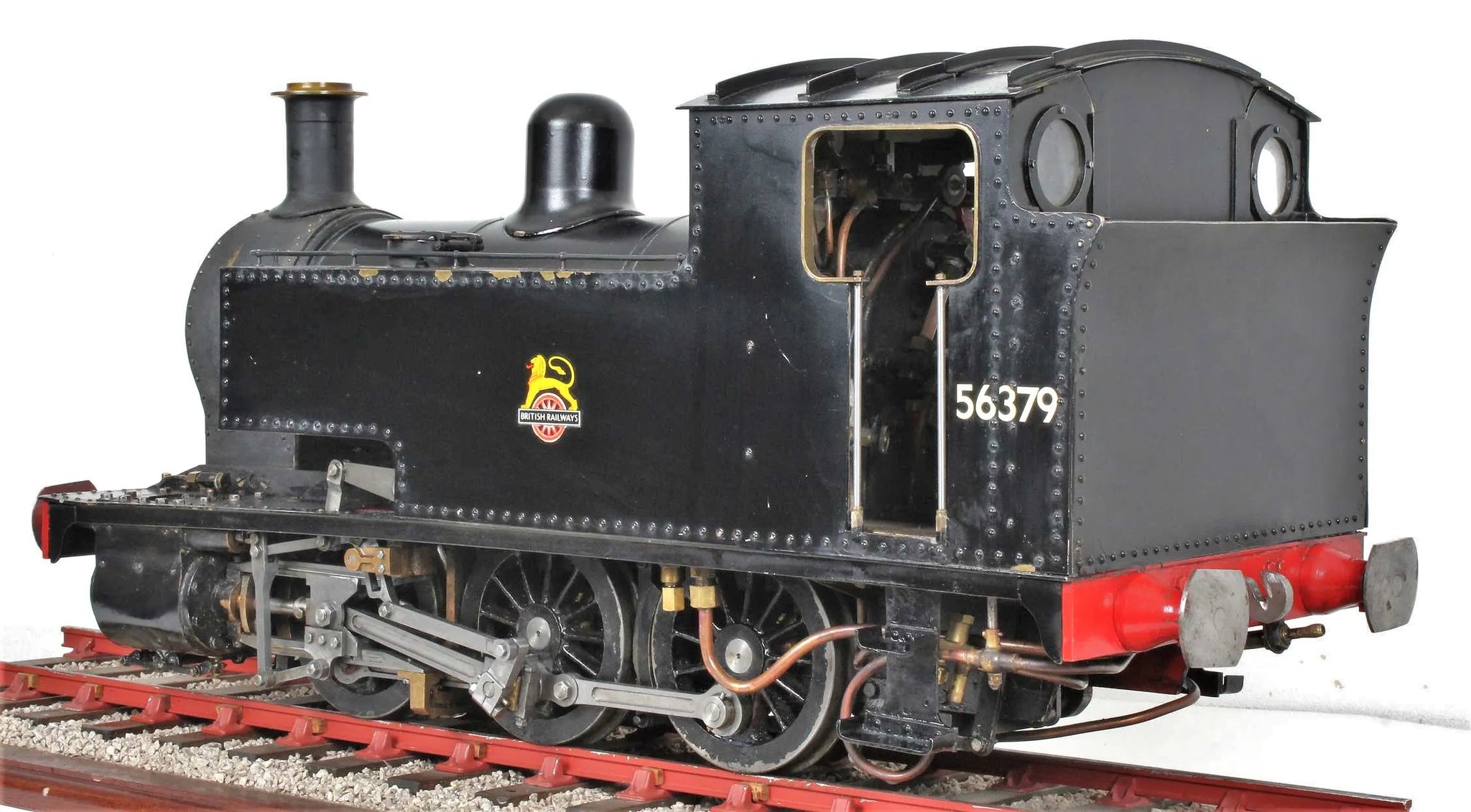

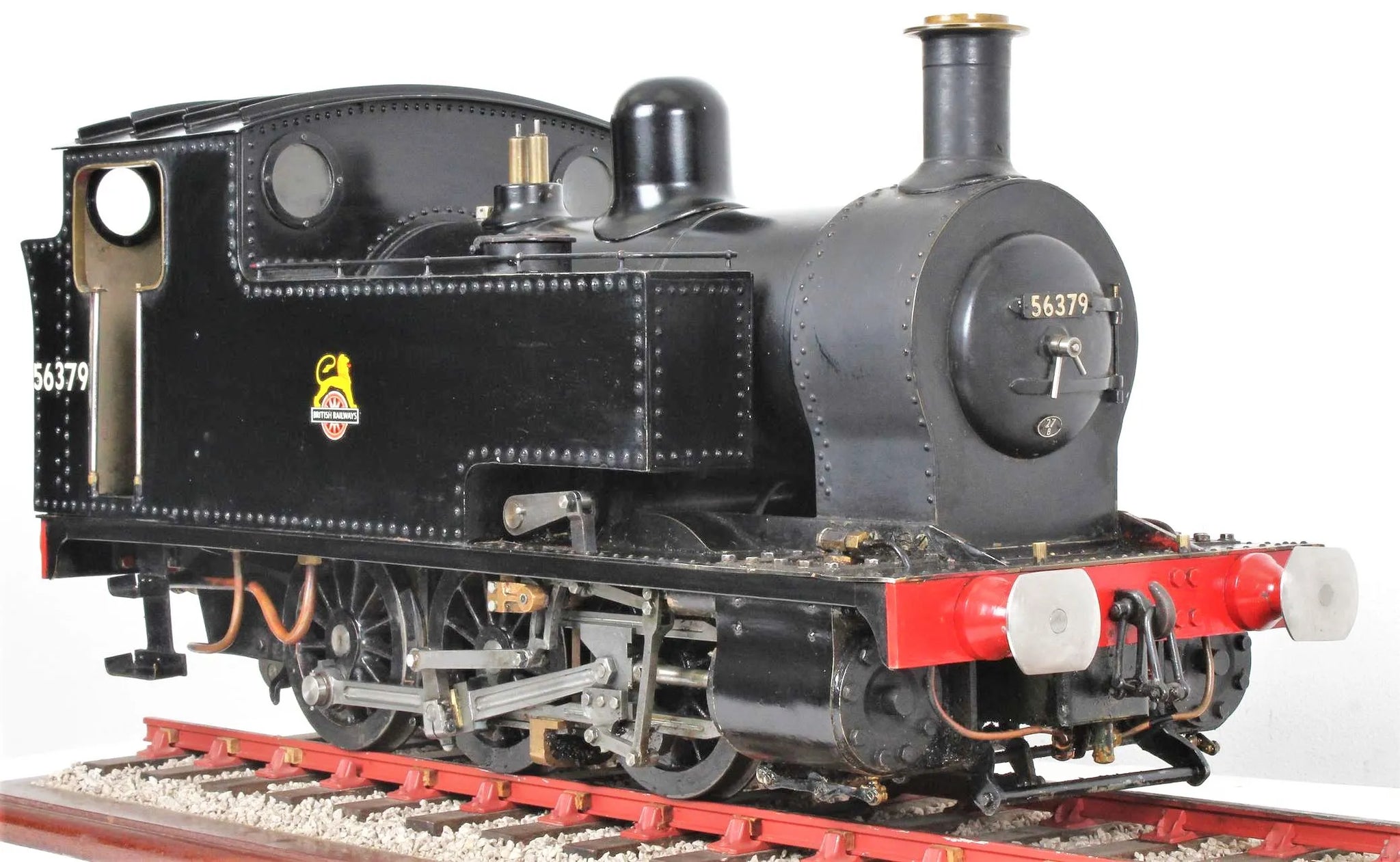

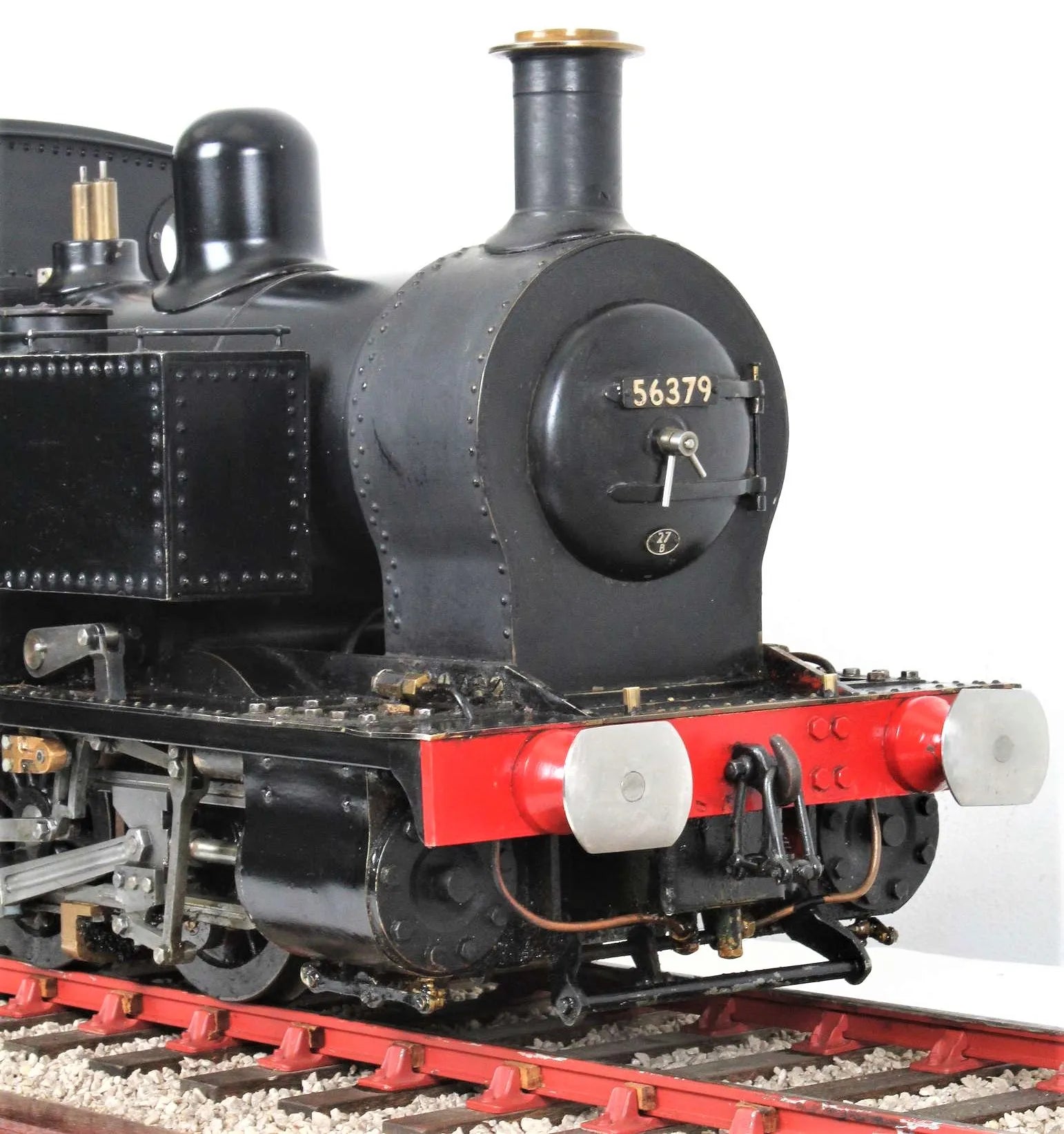

5 inch gauge "Butch" 0-4-0

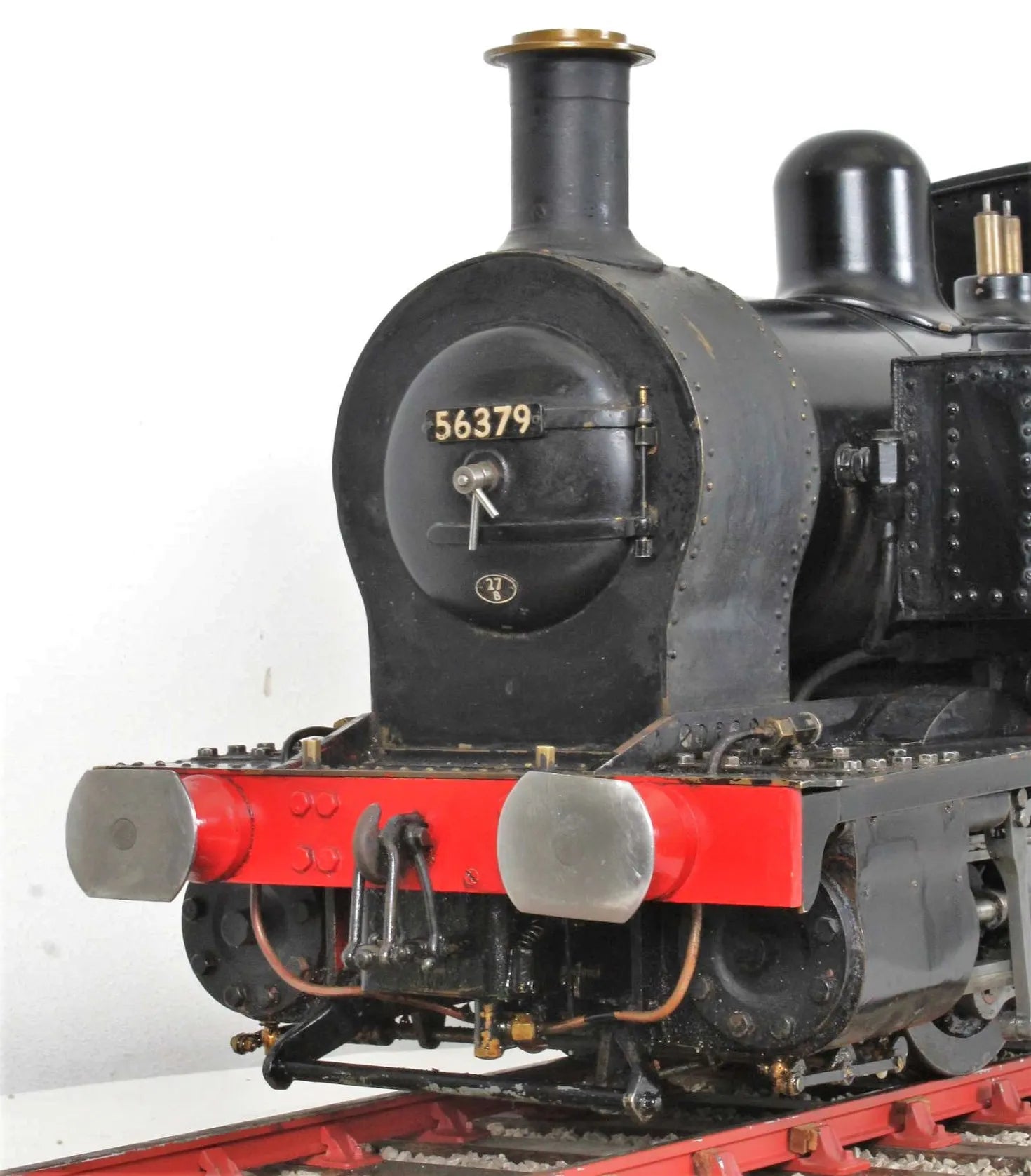

A 5 inch gauge 0-6-0T to the Kennions "Butch" design.

An older engine, it's had a good deal of use and is now due a light overhaul including some rebushing of the bottom end.

Boiler is sound and warrantied as such, with recent hydraulic test and certification for same; it steams freely and runs well, there's some video of it on the rolling road here.

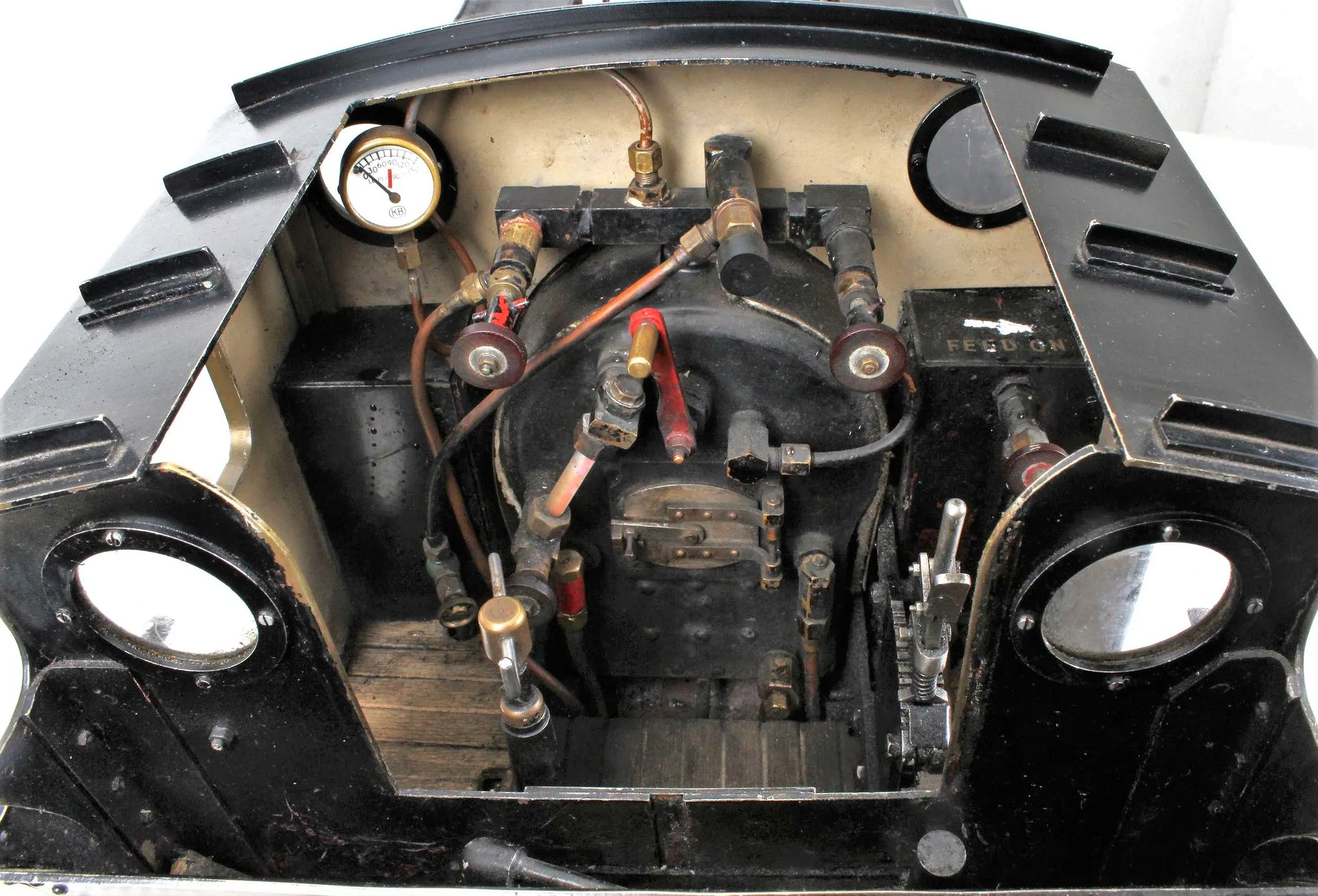

The injector is set up to feed from a separate water tank housed on a driving truck or similar.

All water feeds worked well on test, although the injector clack leaks back slightly.

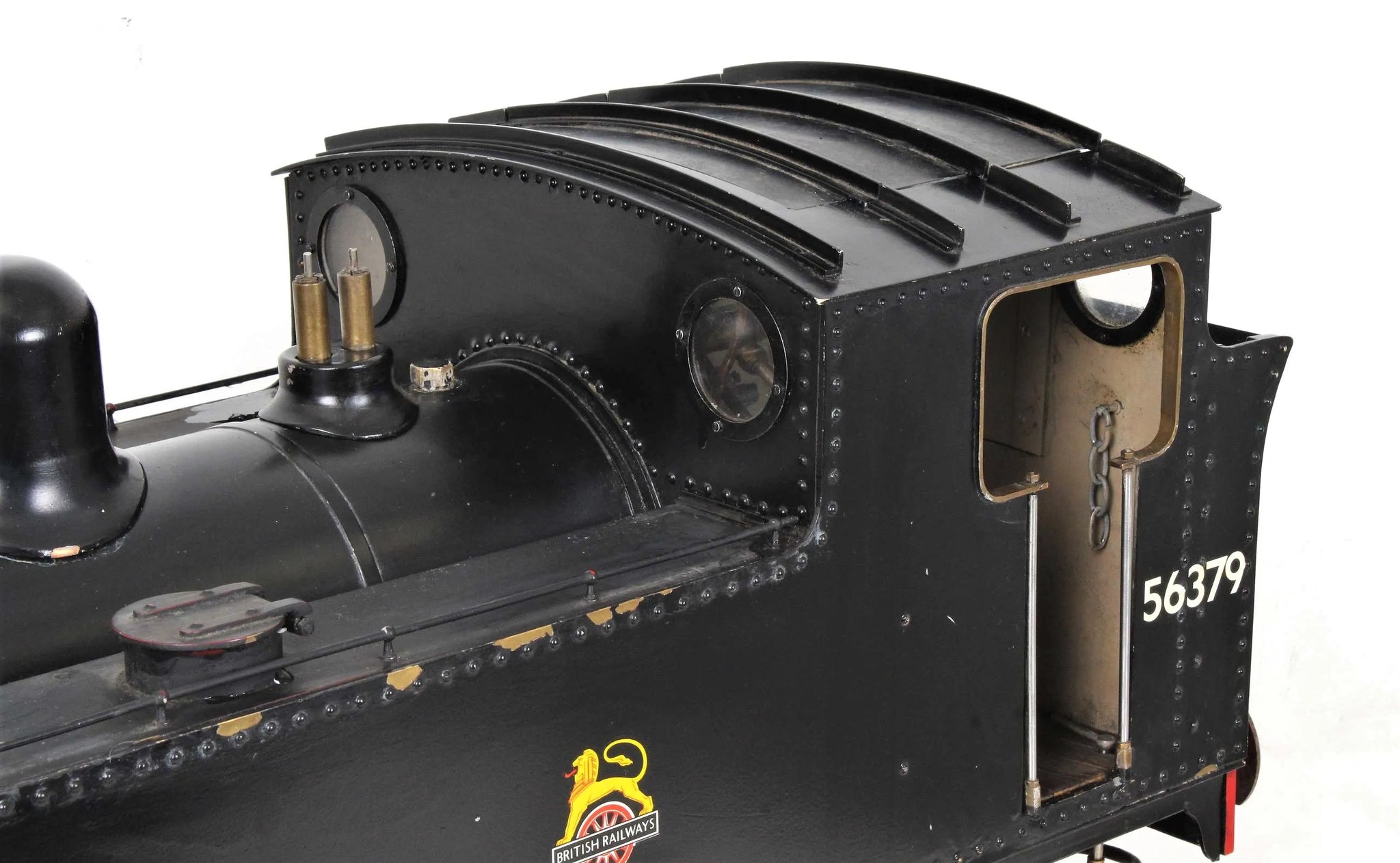

Safety valves are completely useless and want either servicing if you're patient and on a budget, or else simply replacing with a pair from Polly Engineering which will be beautifully made and work reliably.

Technical information

Stock code

10211

Gauge

5 inch

Length/inches

28

Width/inches

10

Height/inches

14

Weight/Kg

est 60

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

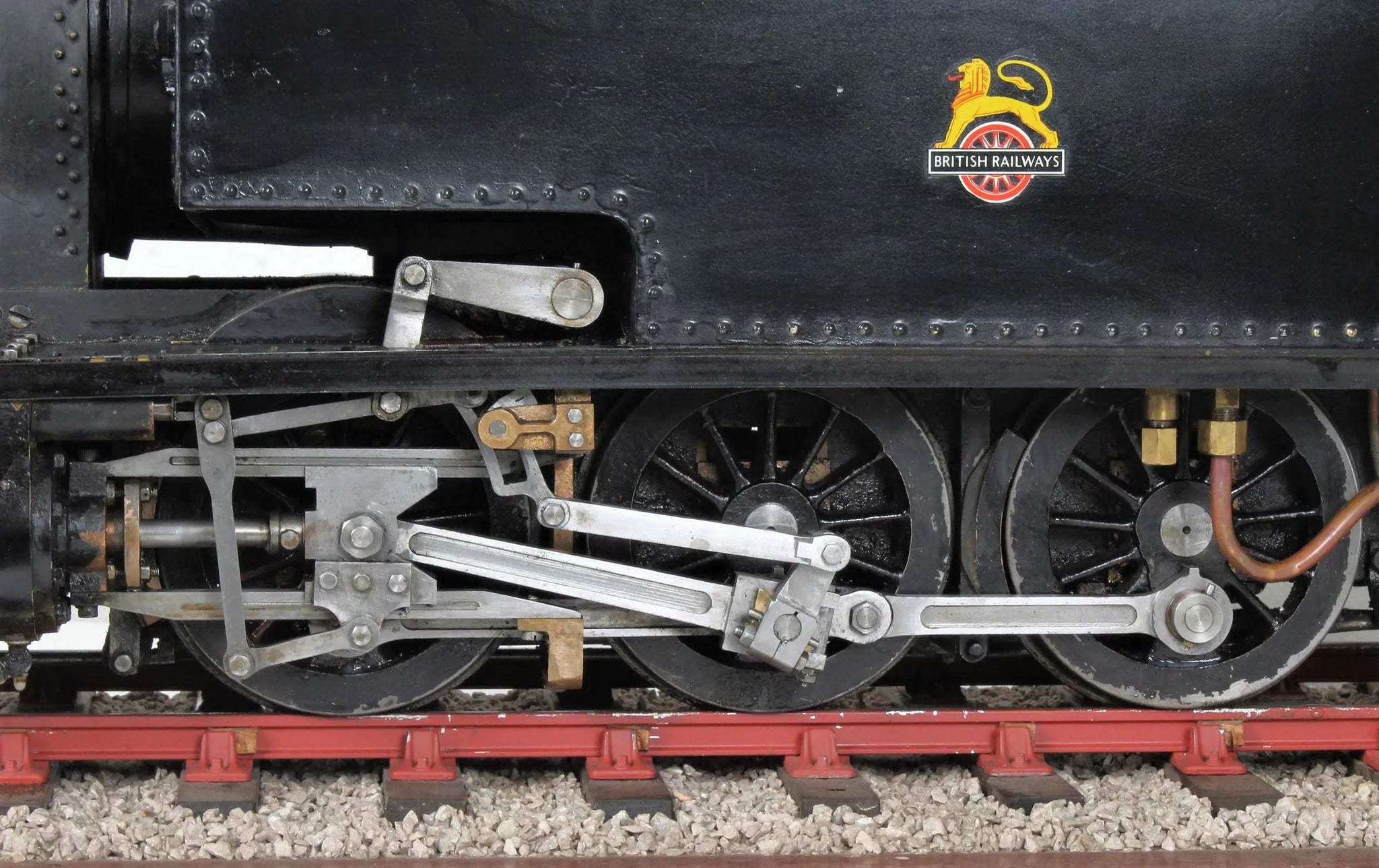

Valve gear

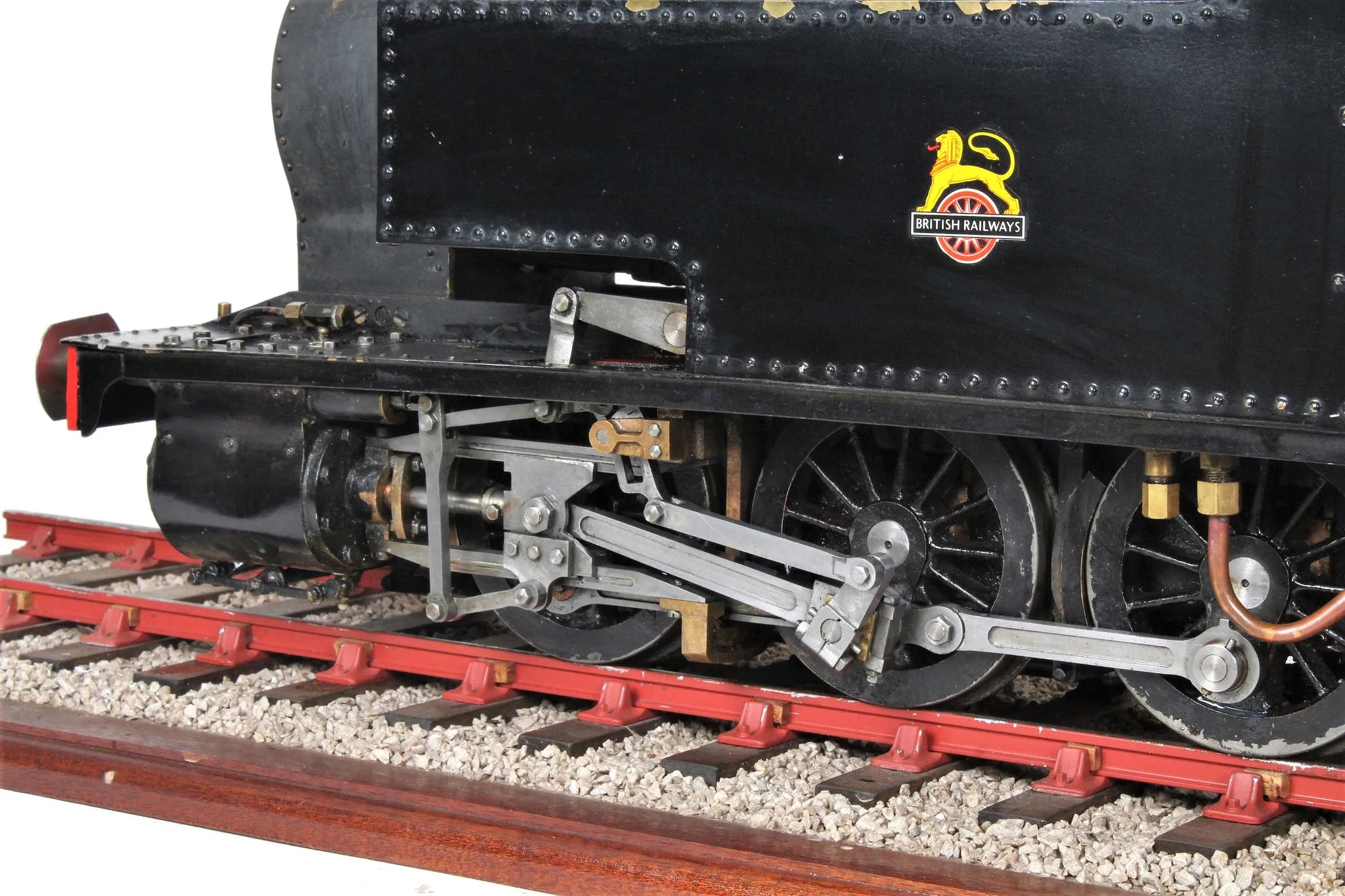

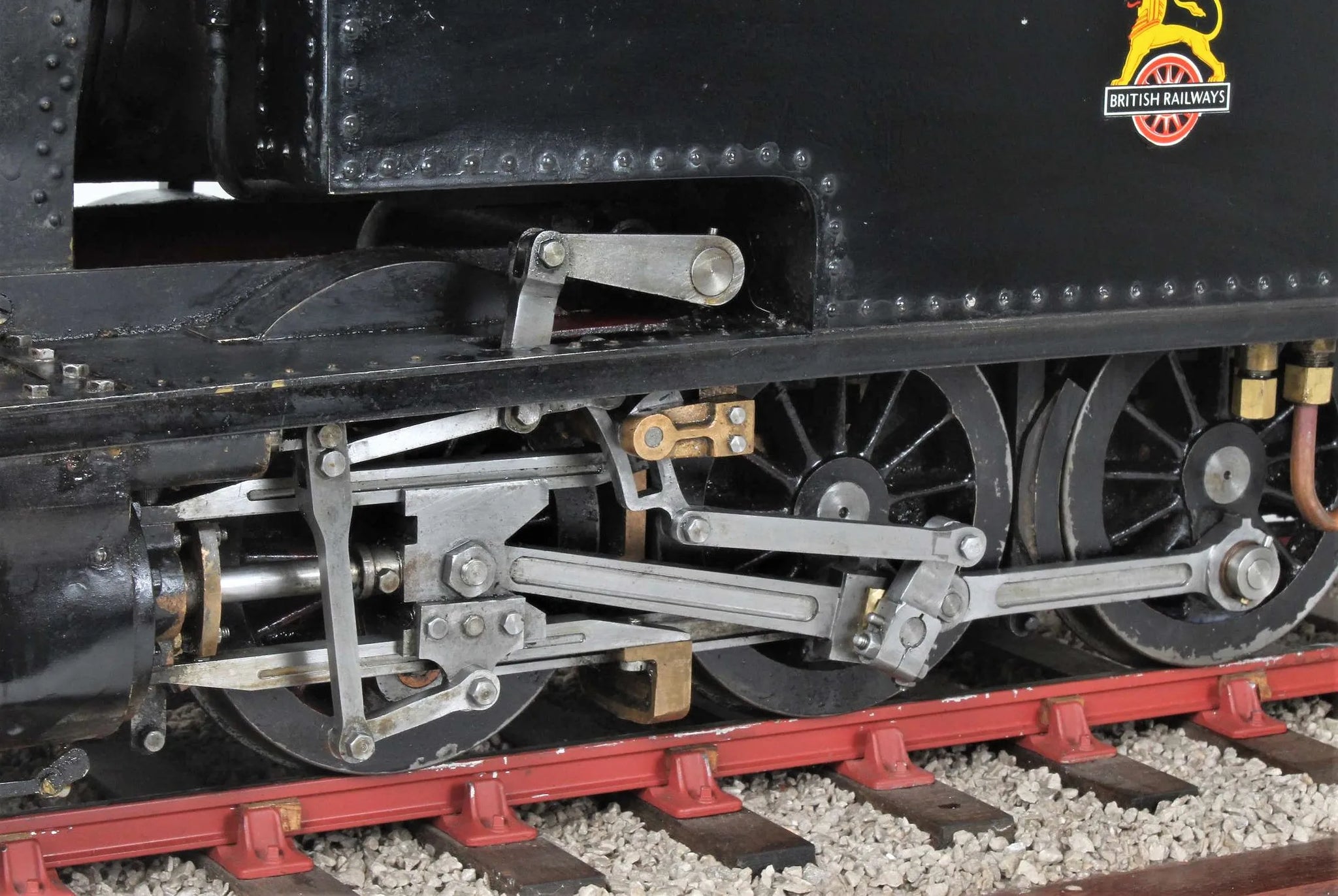

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Boiler number

715

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Oct-22

Hydraulic test valid to

17-Aug-25
