Stock code |
12092 |
Gauge |
5 inch |
Length/inches |
28 |
Width/inches |
10 |
Height/inches |
12 |
Weight/Kg |
60 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

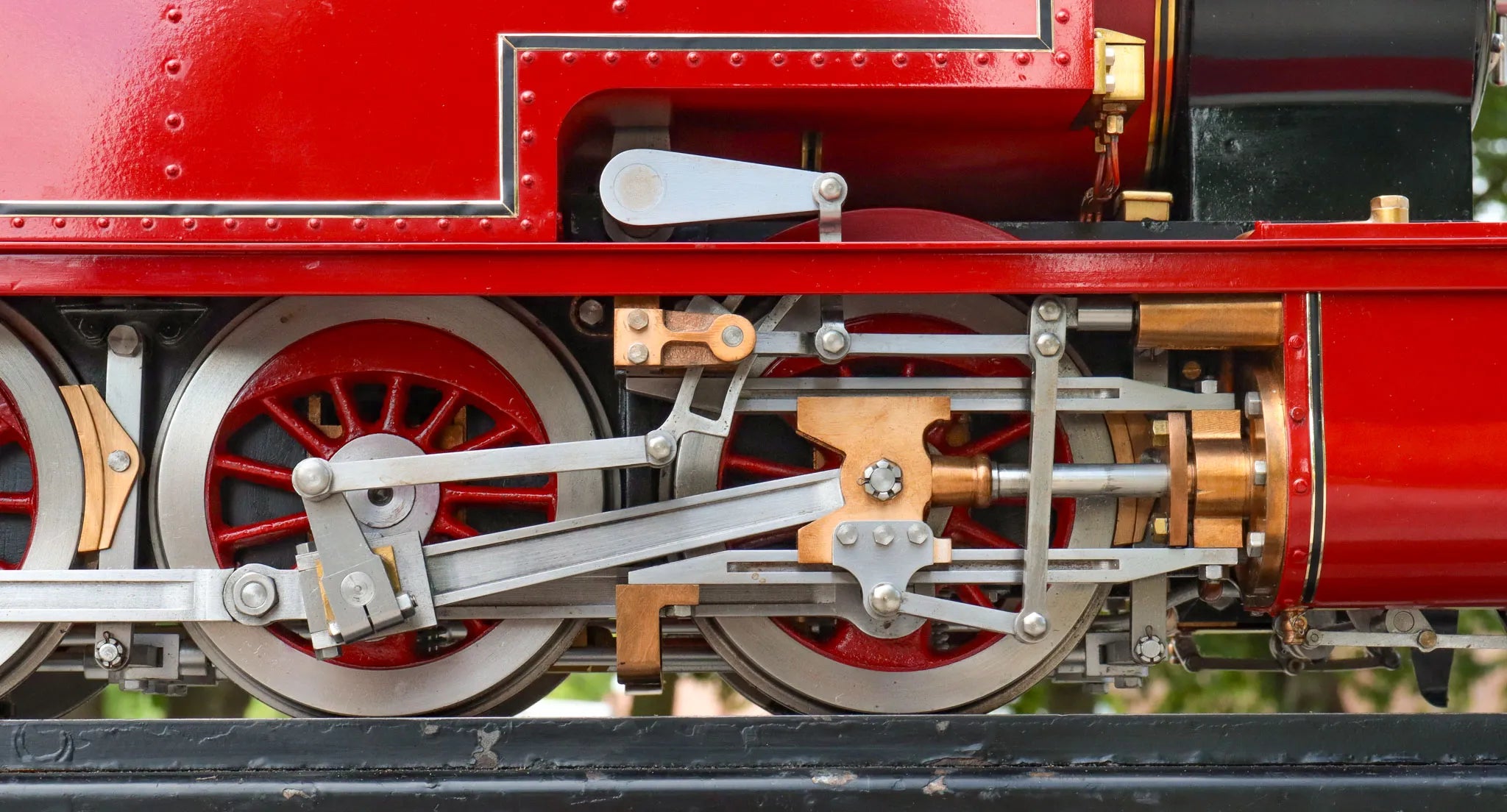

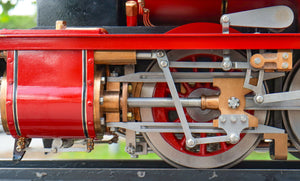

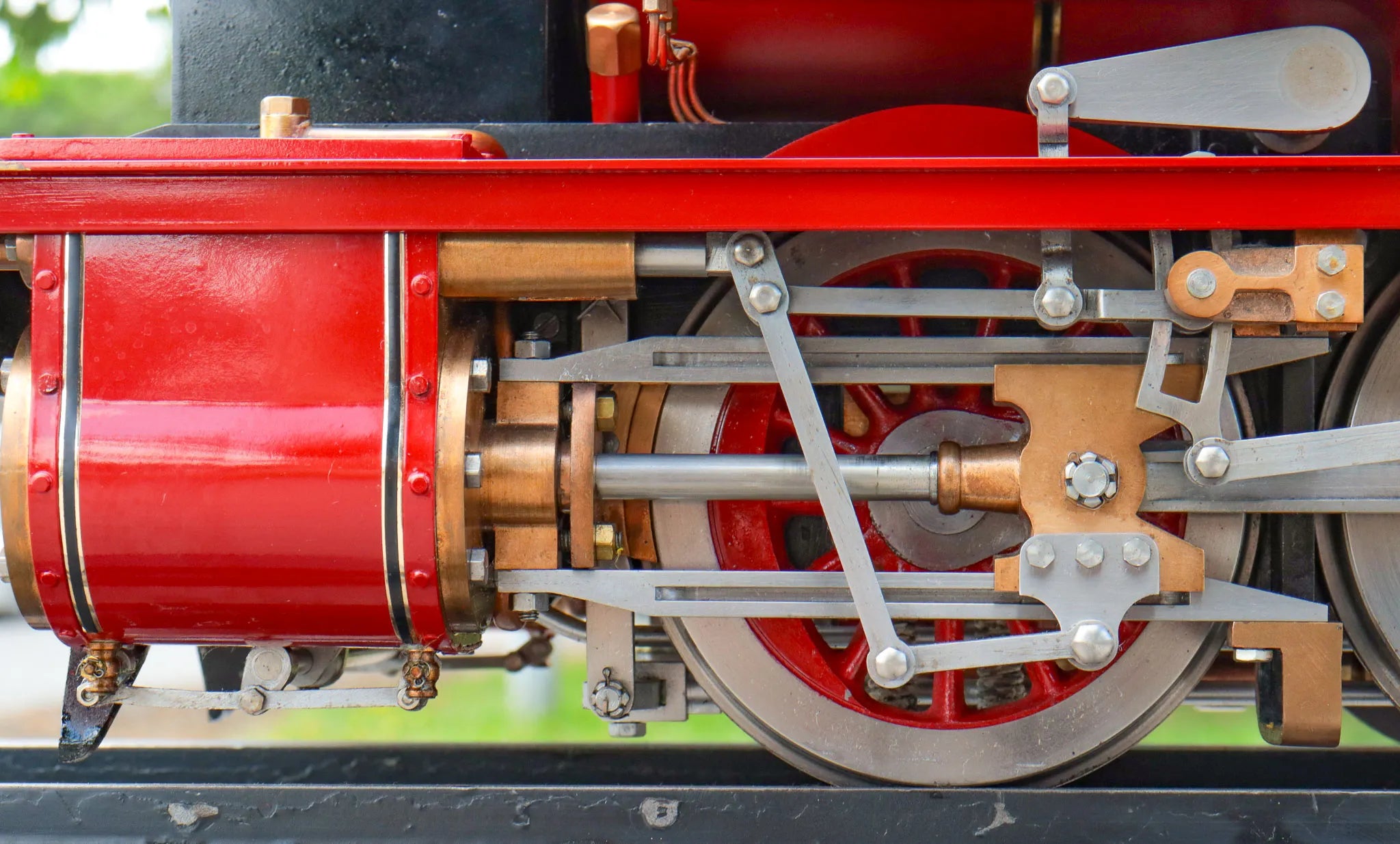

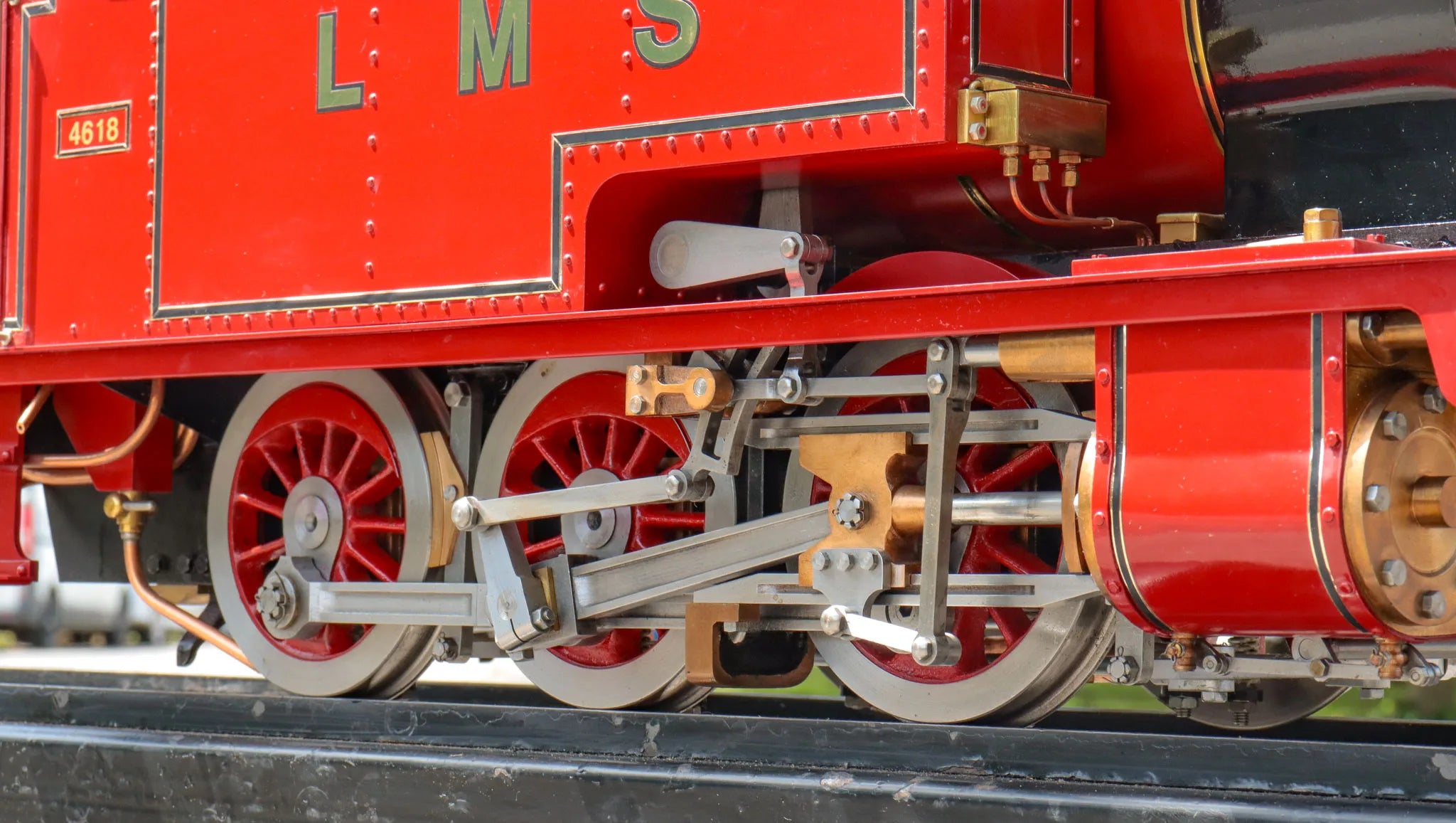

Valve gear |
Walschaerts |
Reverser type |
pole |
Boiler type |
locomotive |
Boiler construction |
silver soldered with threaded and calked firebox stays |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a non-commercial |
Boiler number |
12092 |

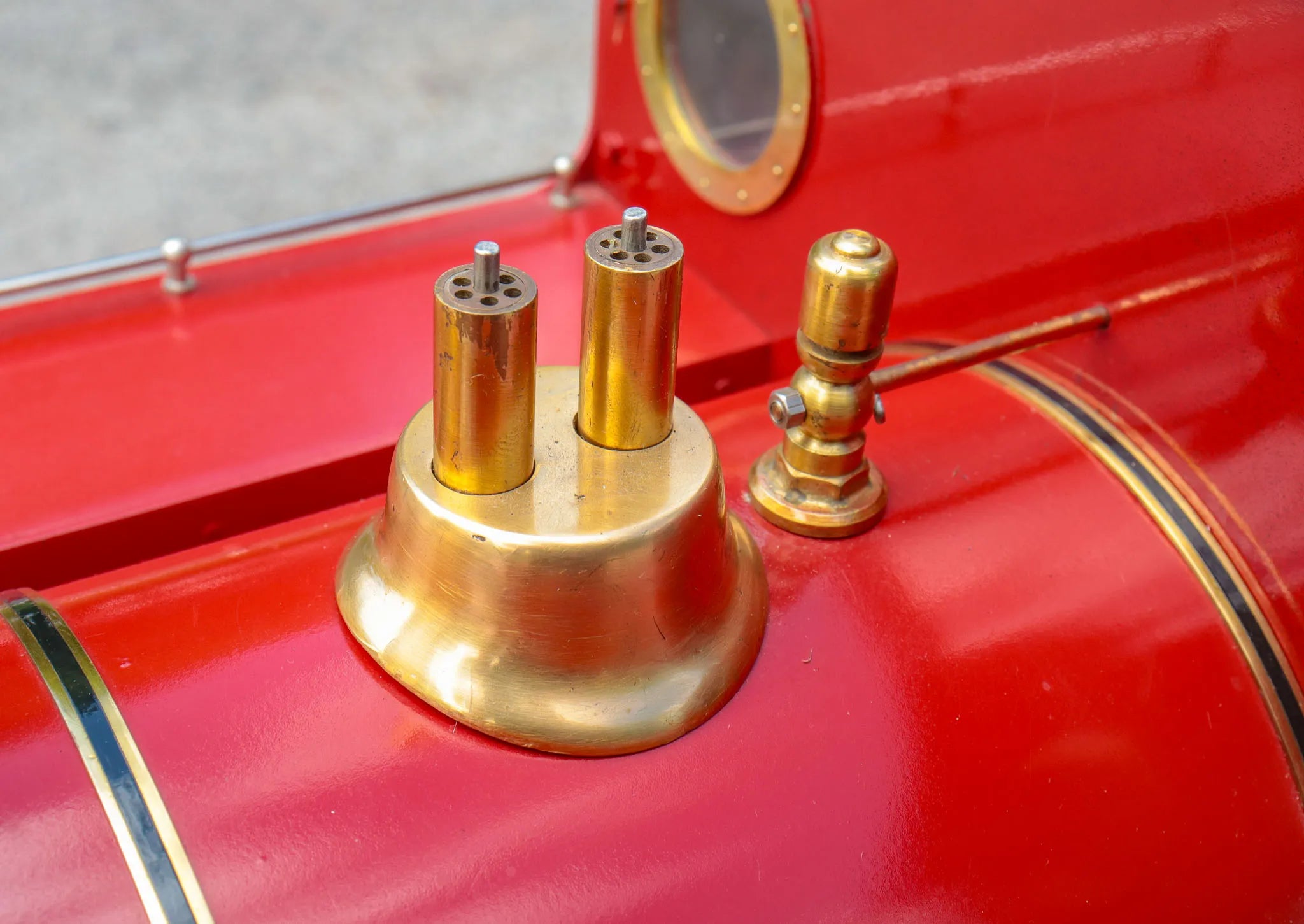

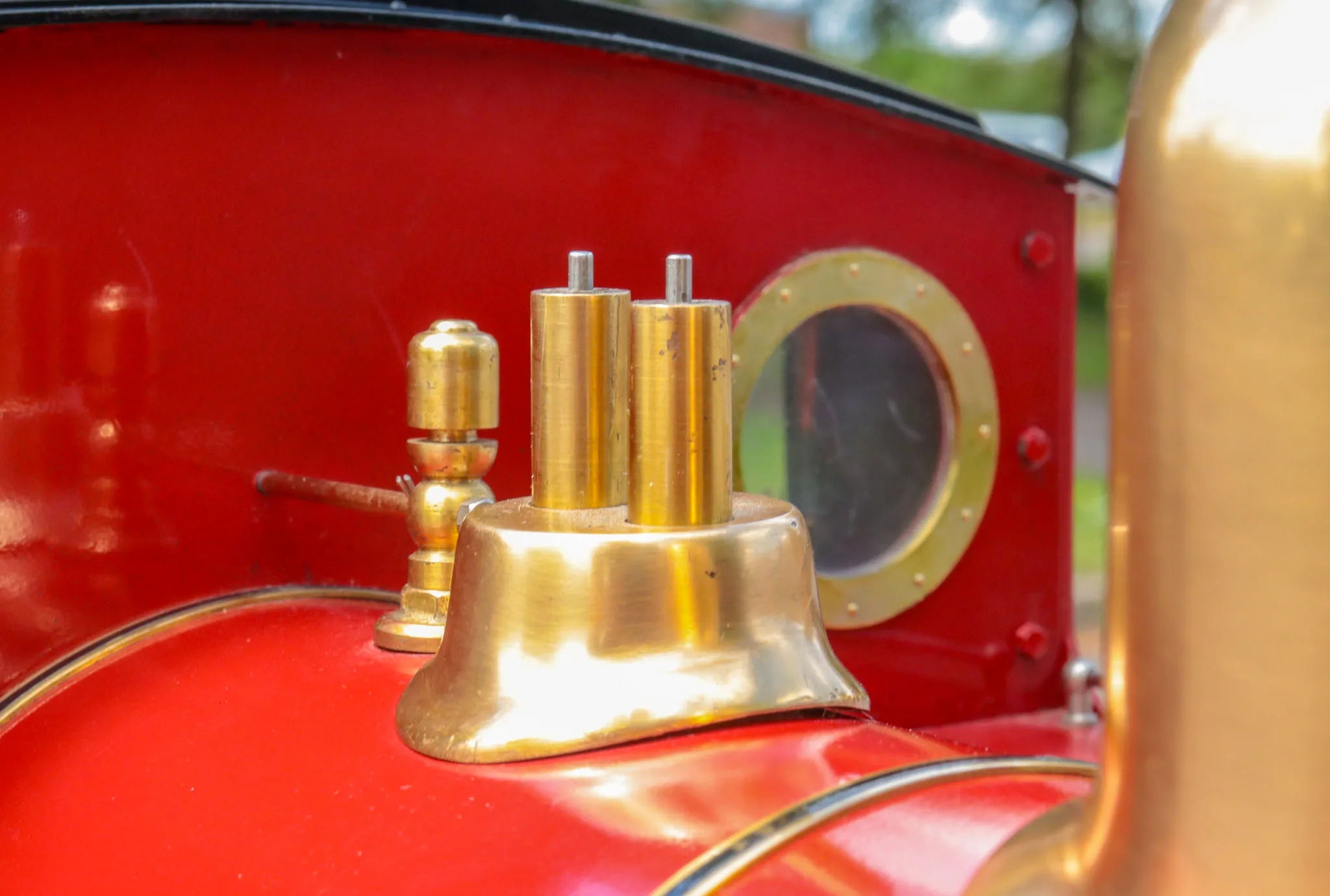

Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 x double acting |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
4 |
Date out |
Oct-24 |
Hydraulic test valid to |
07-Jul-28 |
