11430

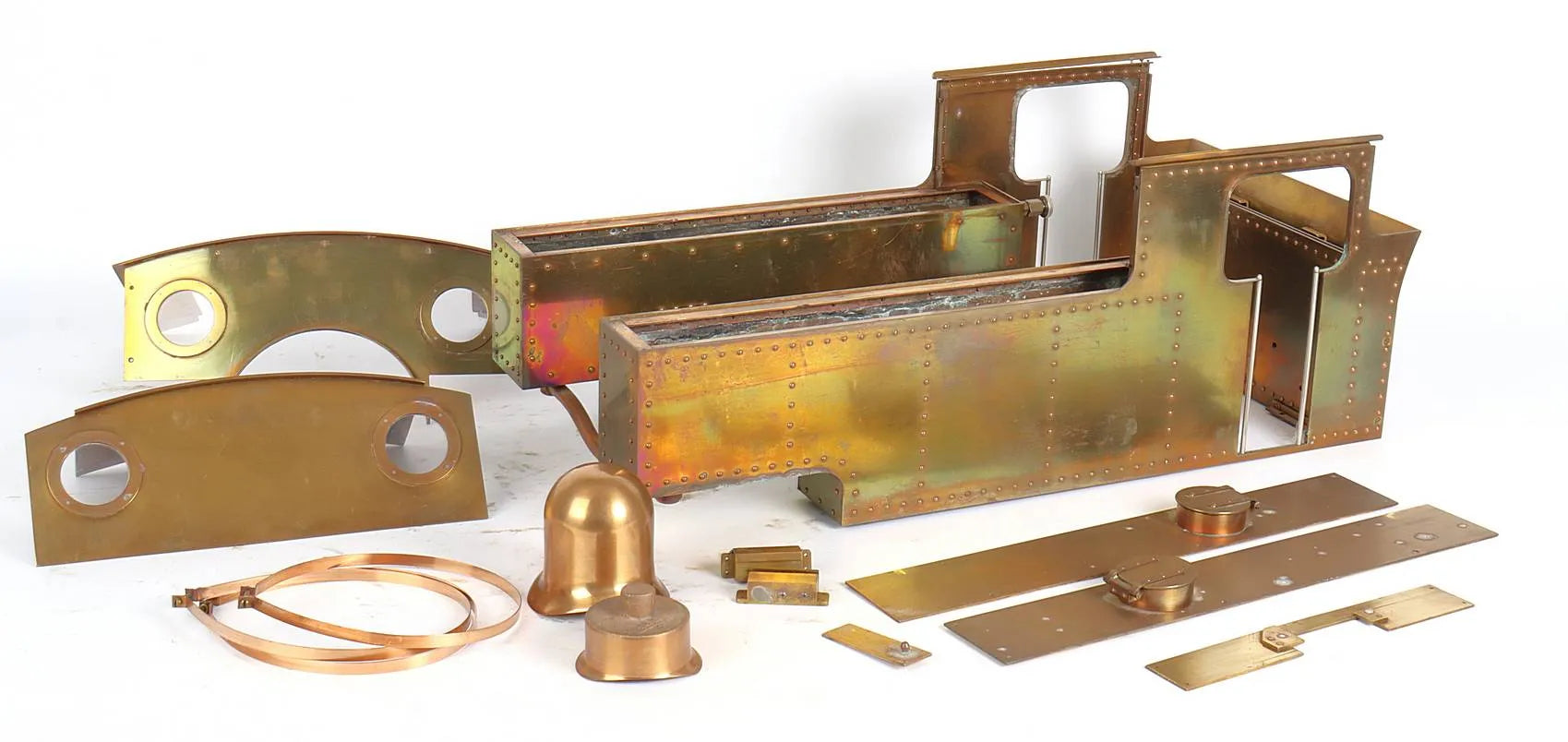

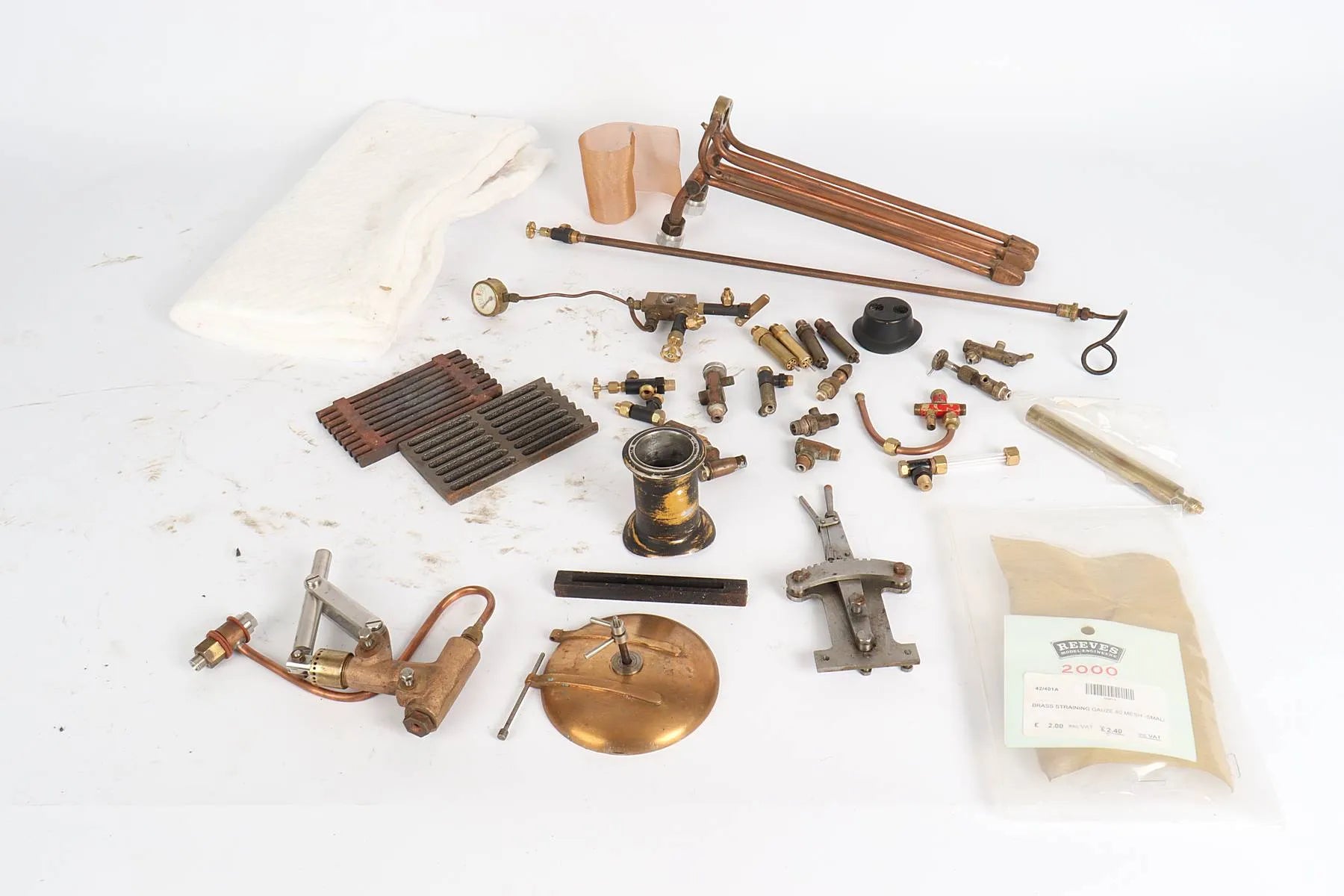

We've got boiler documentation showing that this was in regular use down in Kent between 1994 and 2005. We believe it was dismantled at that time for some now-unknown maintenance or restoration, which has stalled at this point.

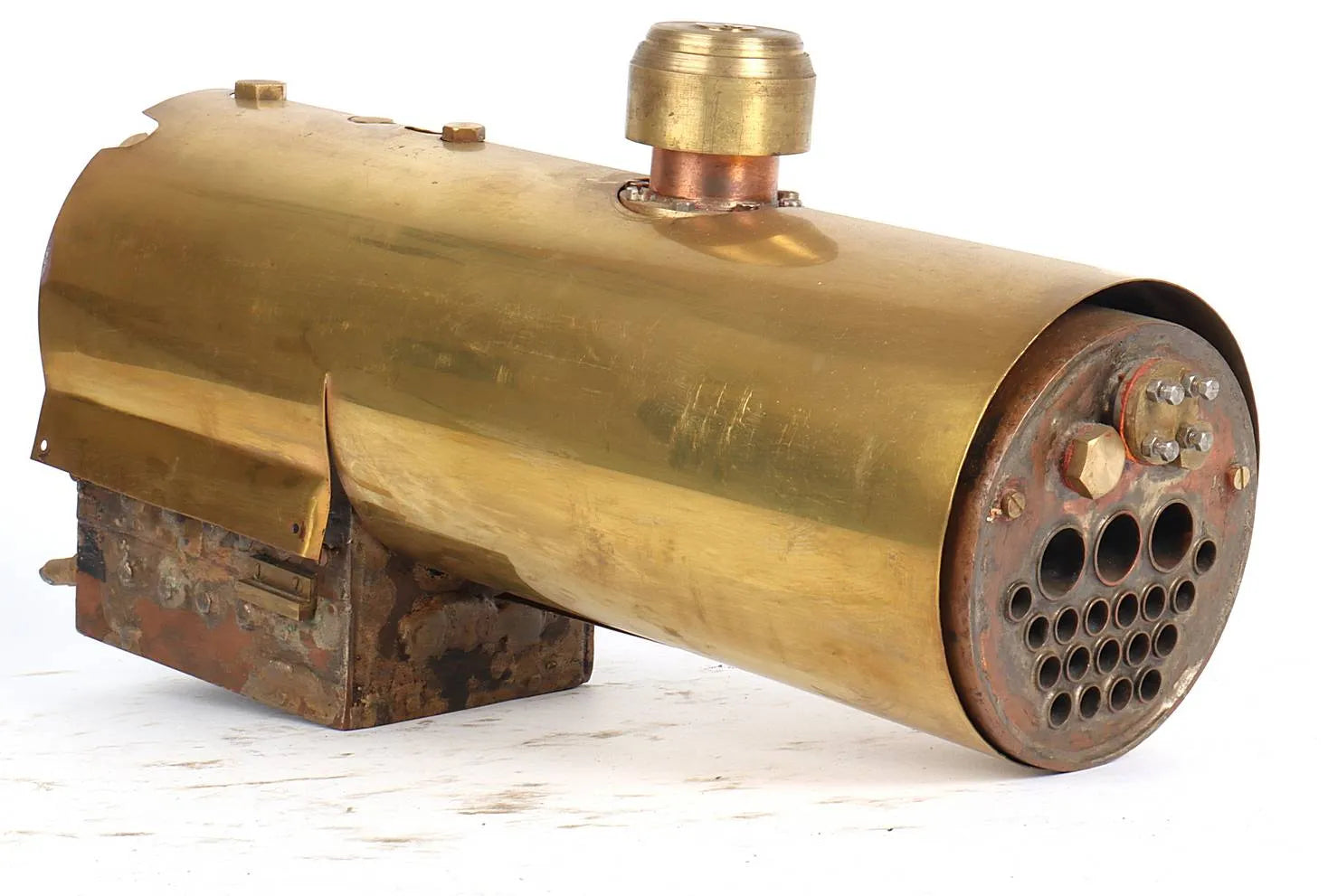

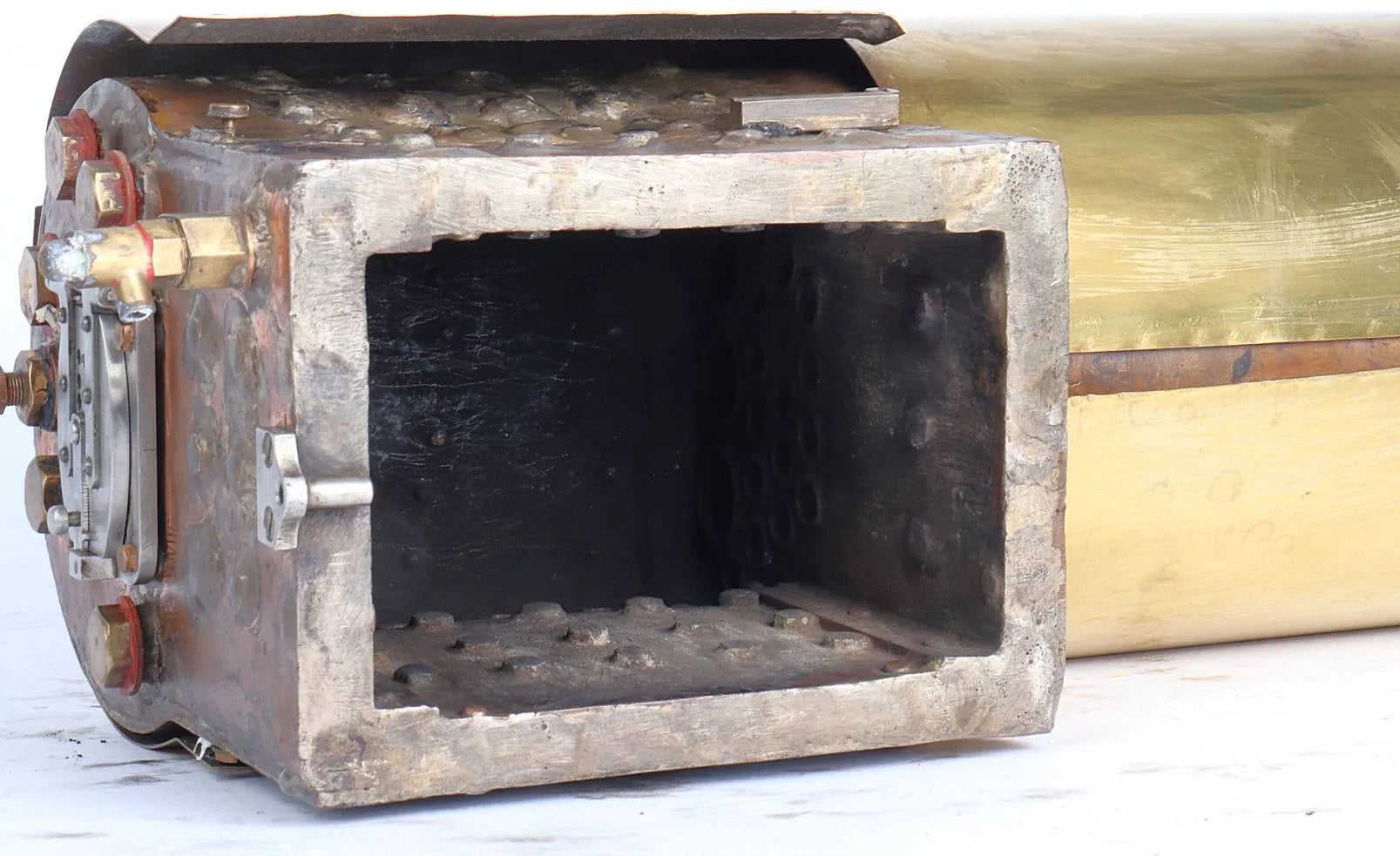

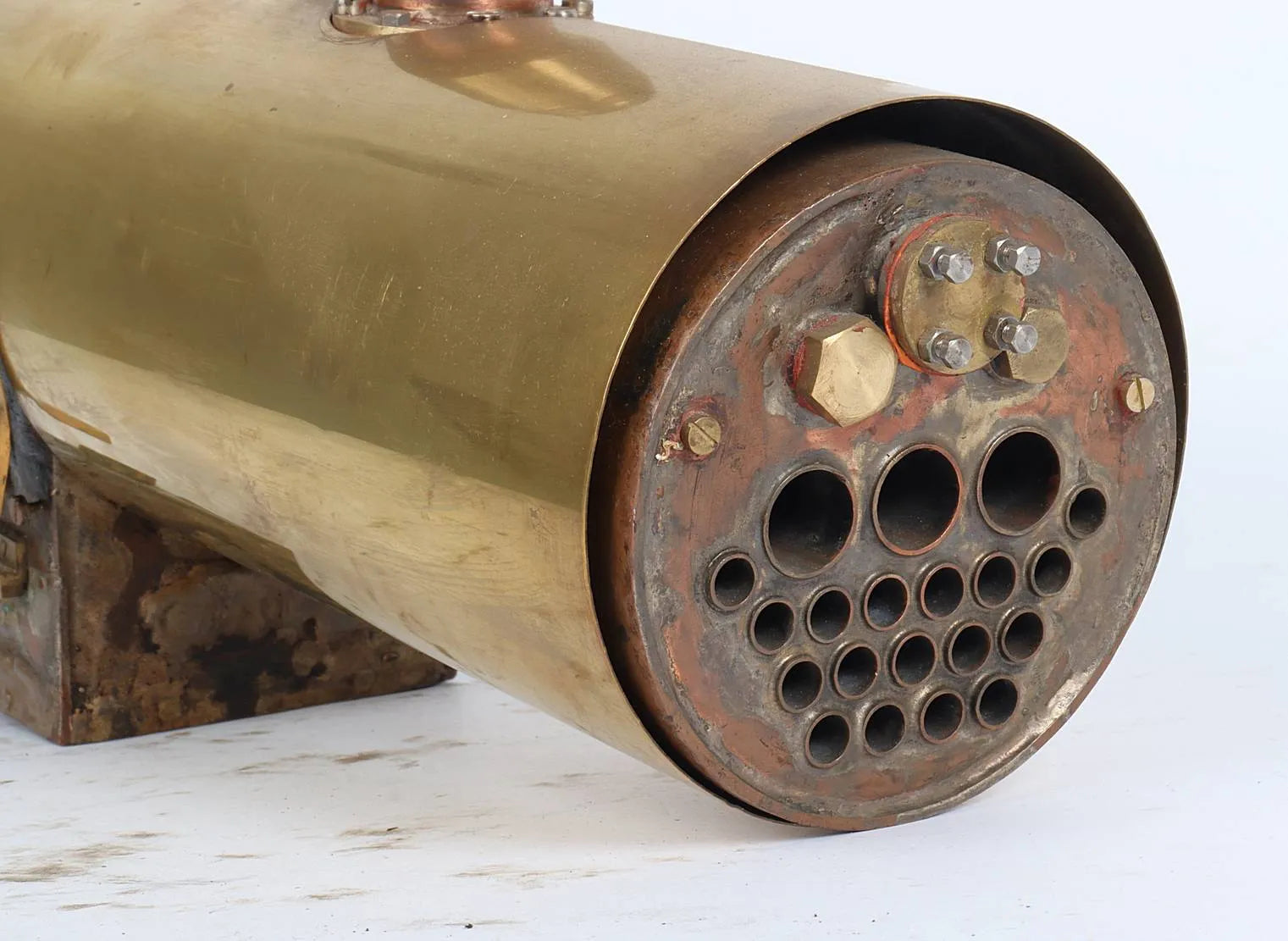

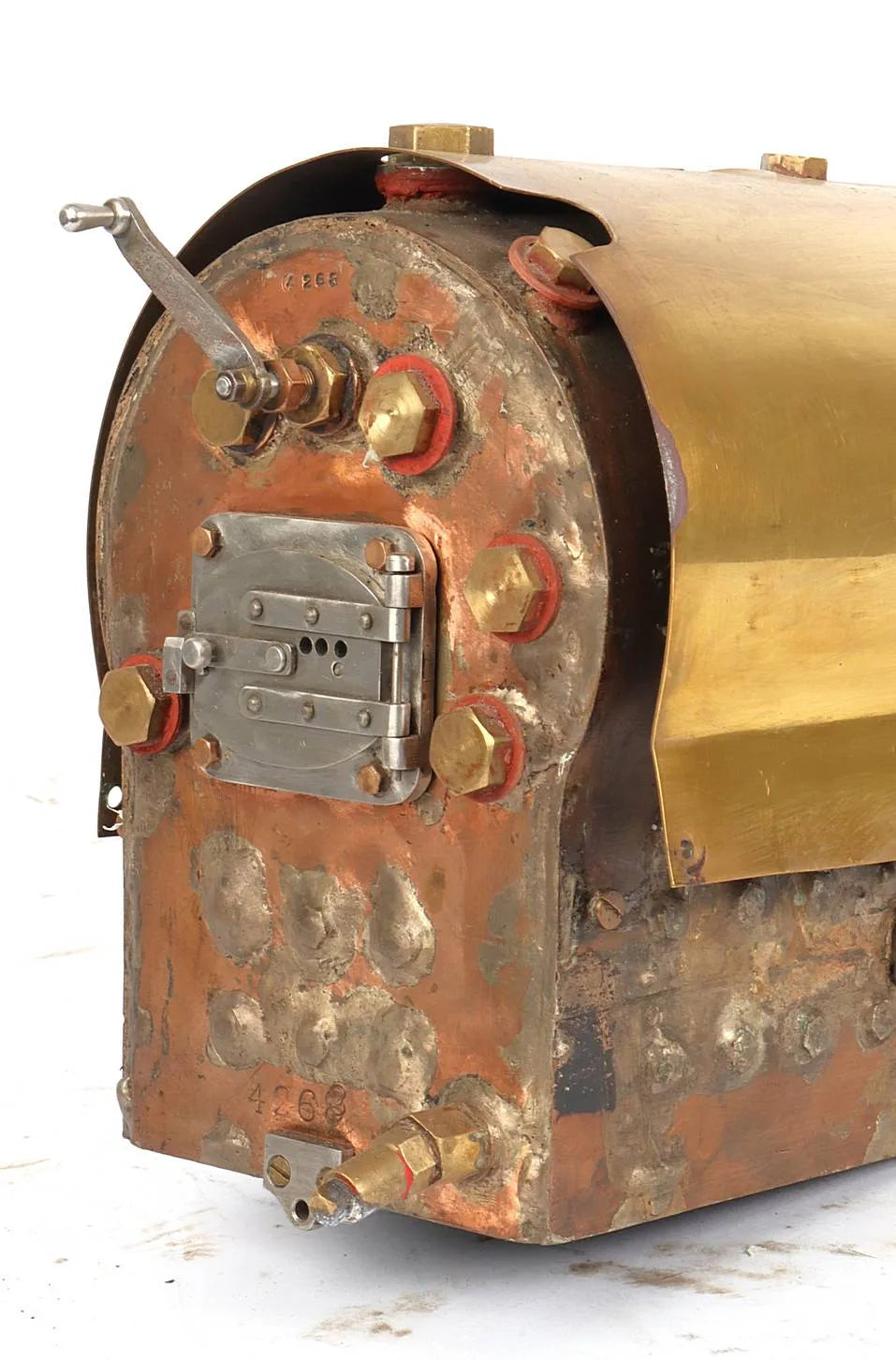

The amateur-built boiler looks like the result of hard work, but has passed a hydraulic test at 135psi with no signs of leaks or deflection.

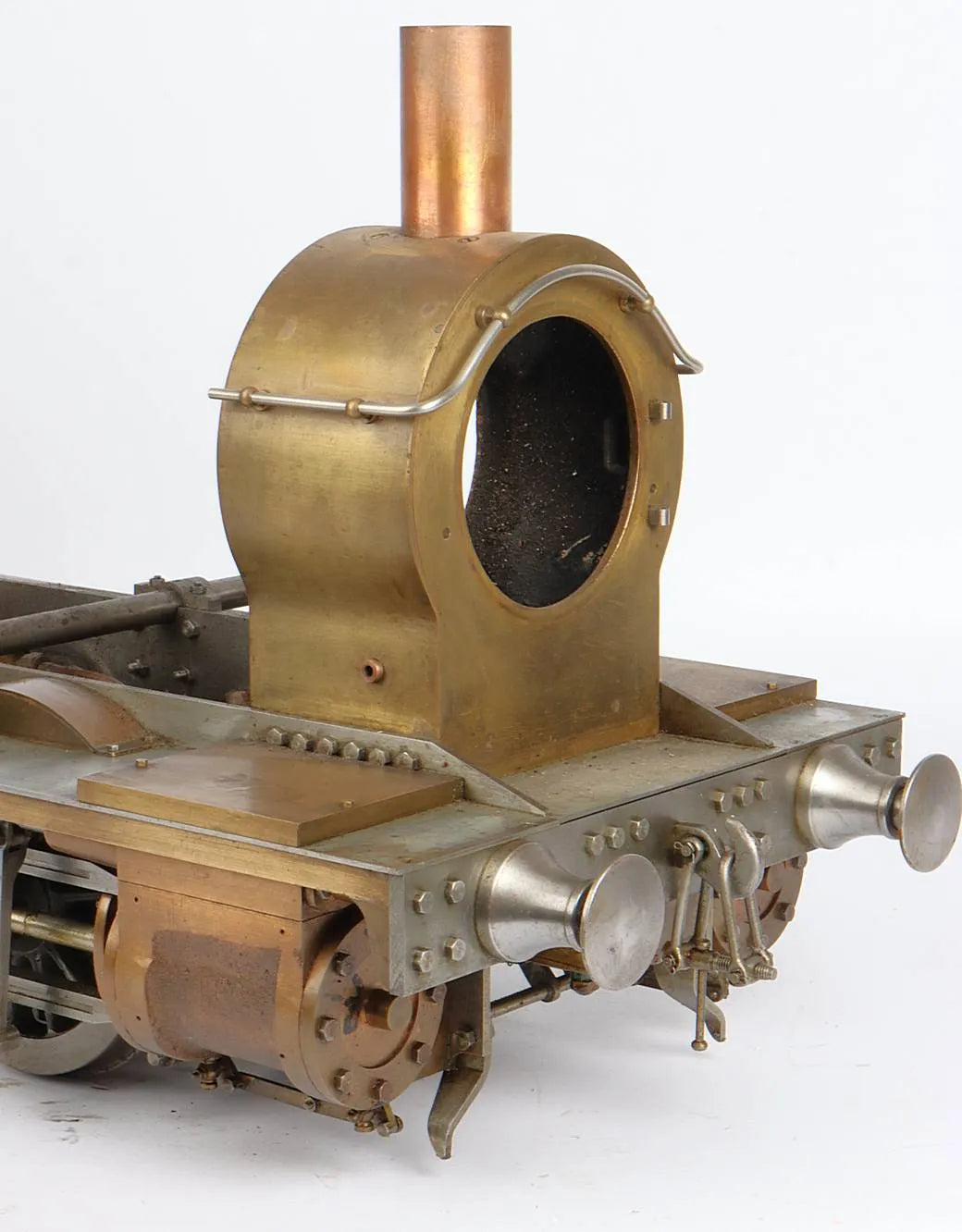

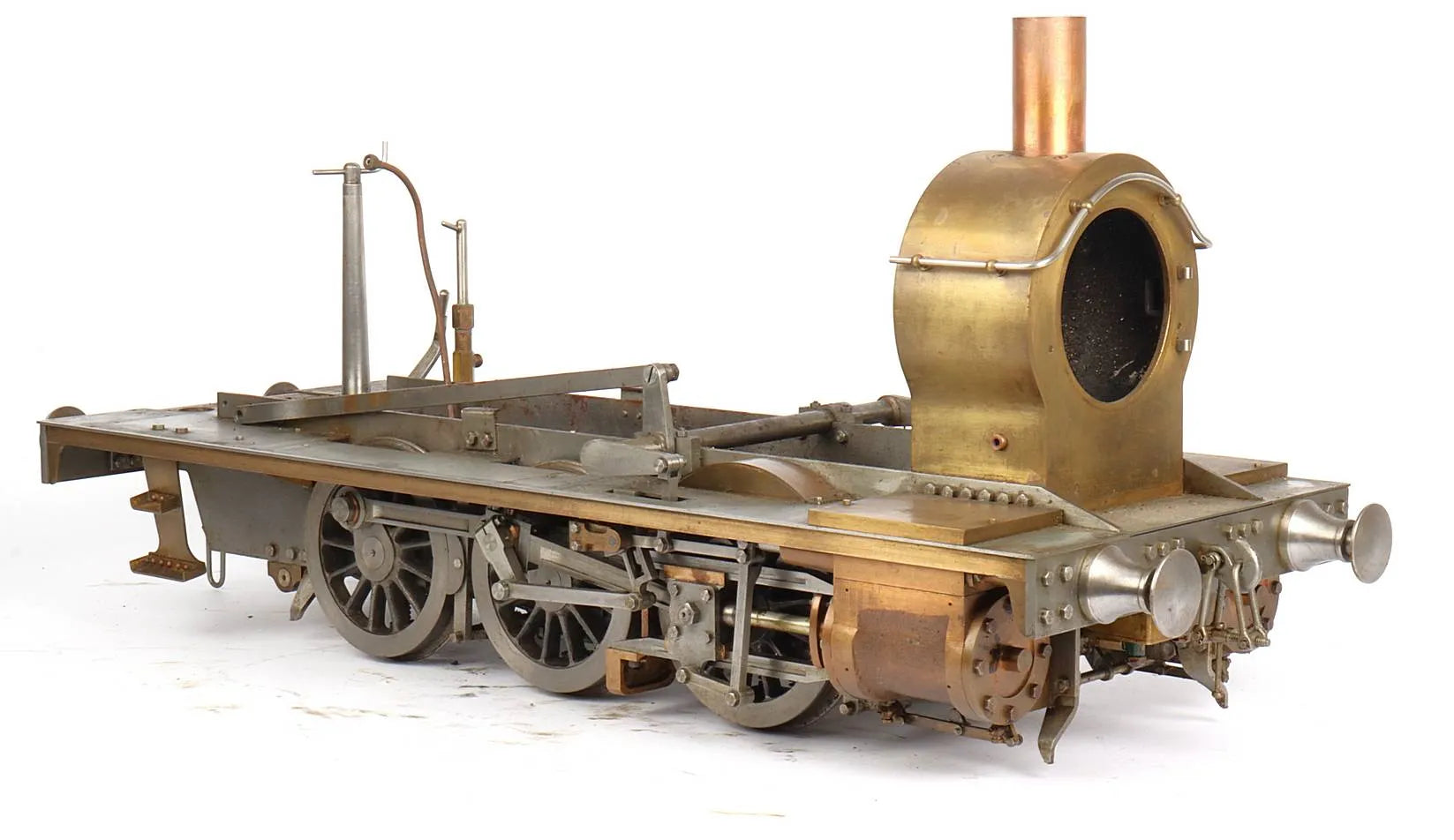

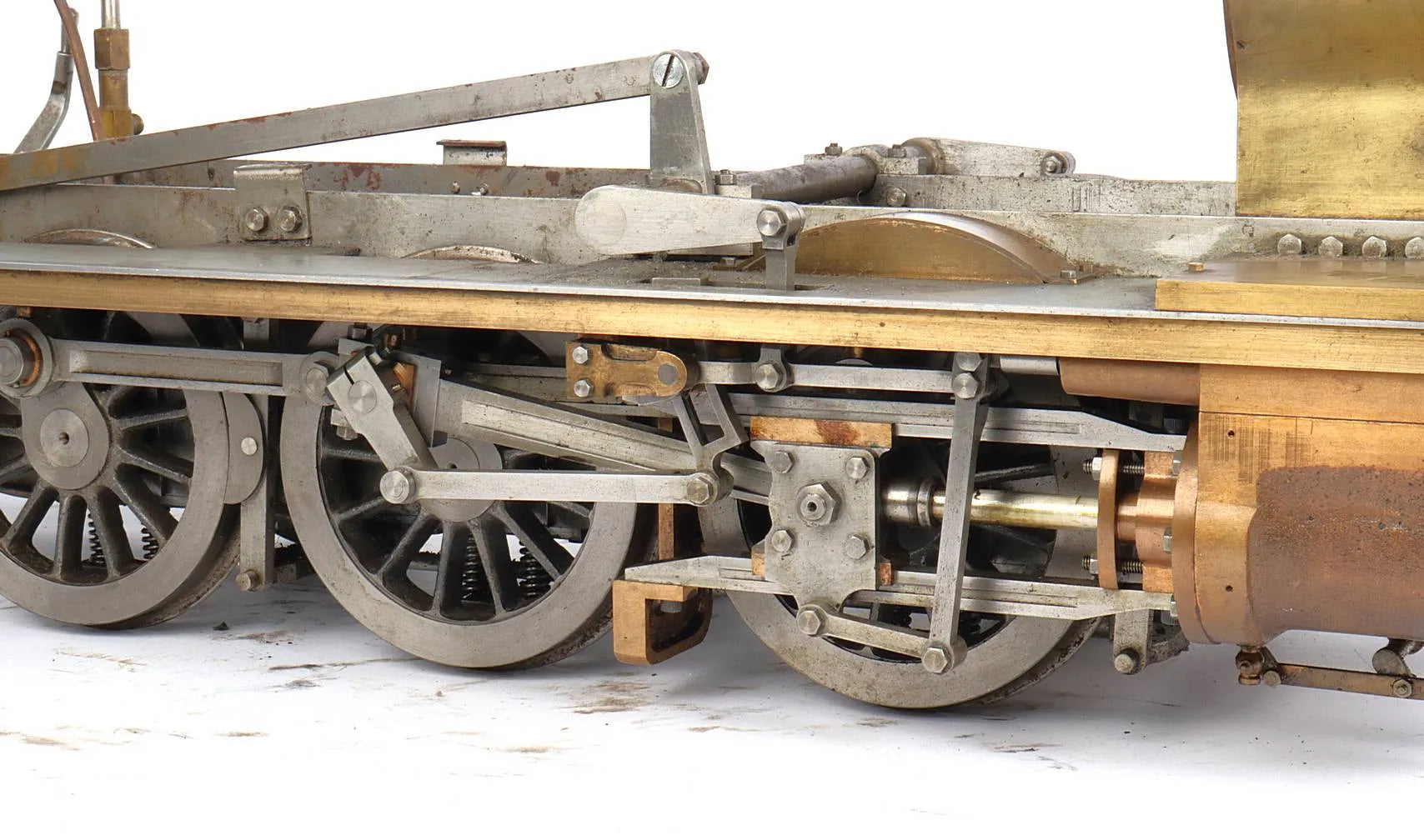

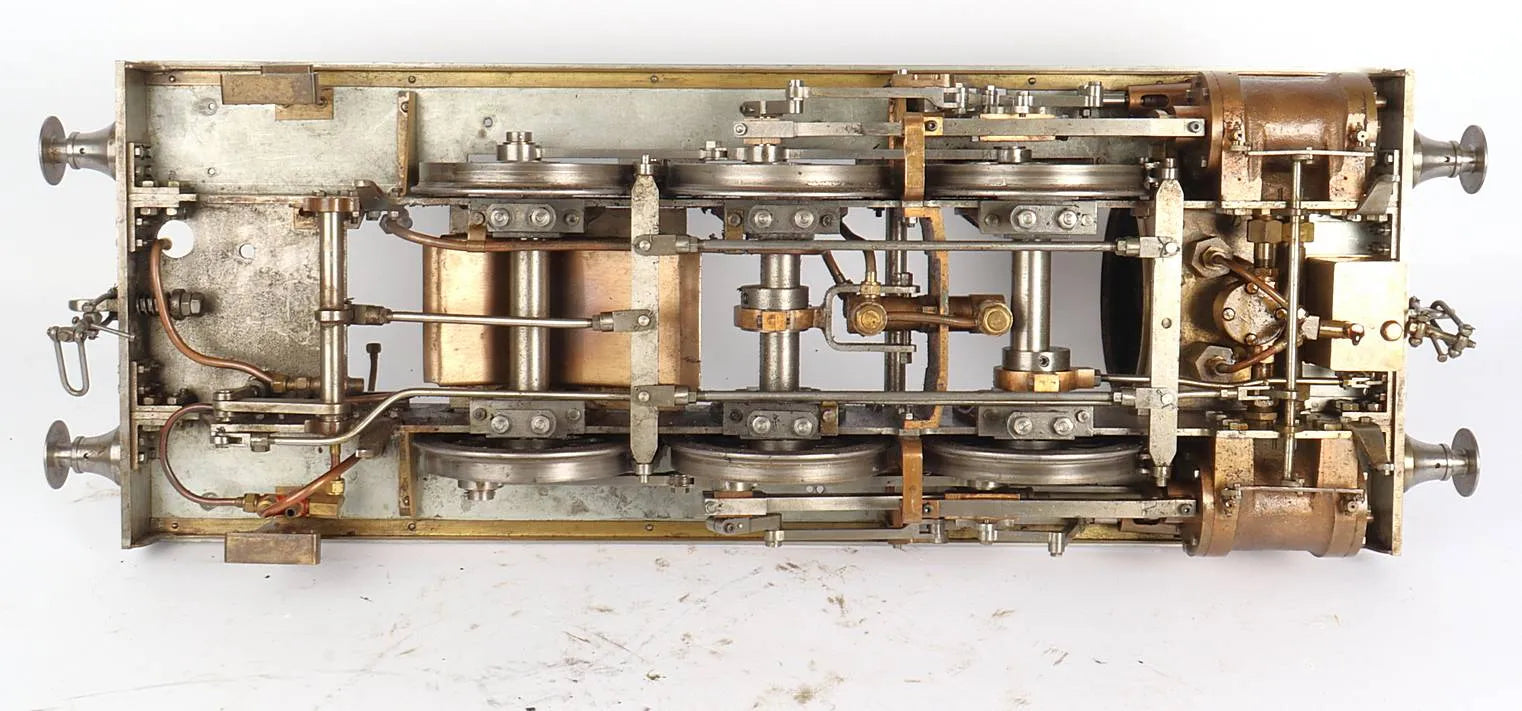

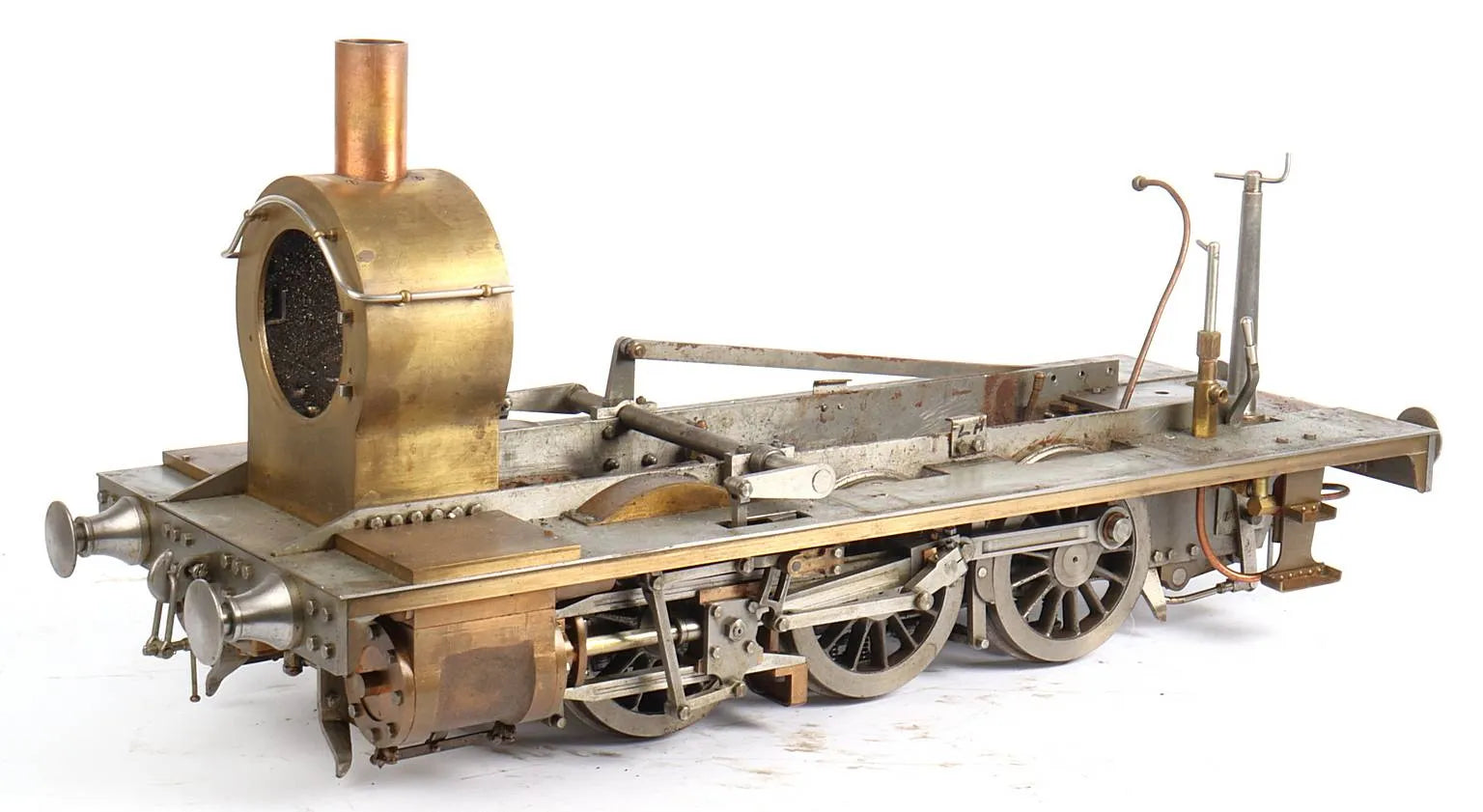

The running gear has been nicely machined, the chassis runs well in both directions on compressed air.
Stock code |
11430 |
Gauge |
5 inch |
Length/inches |
28 |
Width/inches |
10 |
Height/inches |
13 |
Weight/Kg |
46 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Walschaerts |
Reverser type |
pole |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
Year built |
1982 |
Boiler number |
4268 |
Date out |
Feb-26 |
Hydraulic test valid to |
24-Jul-27 |
