5 inch gauge "Chub" 0-4-0T

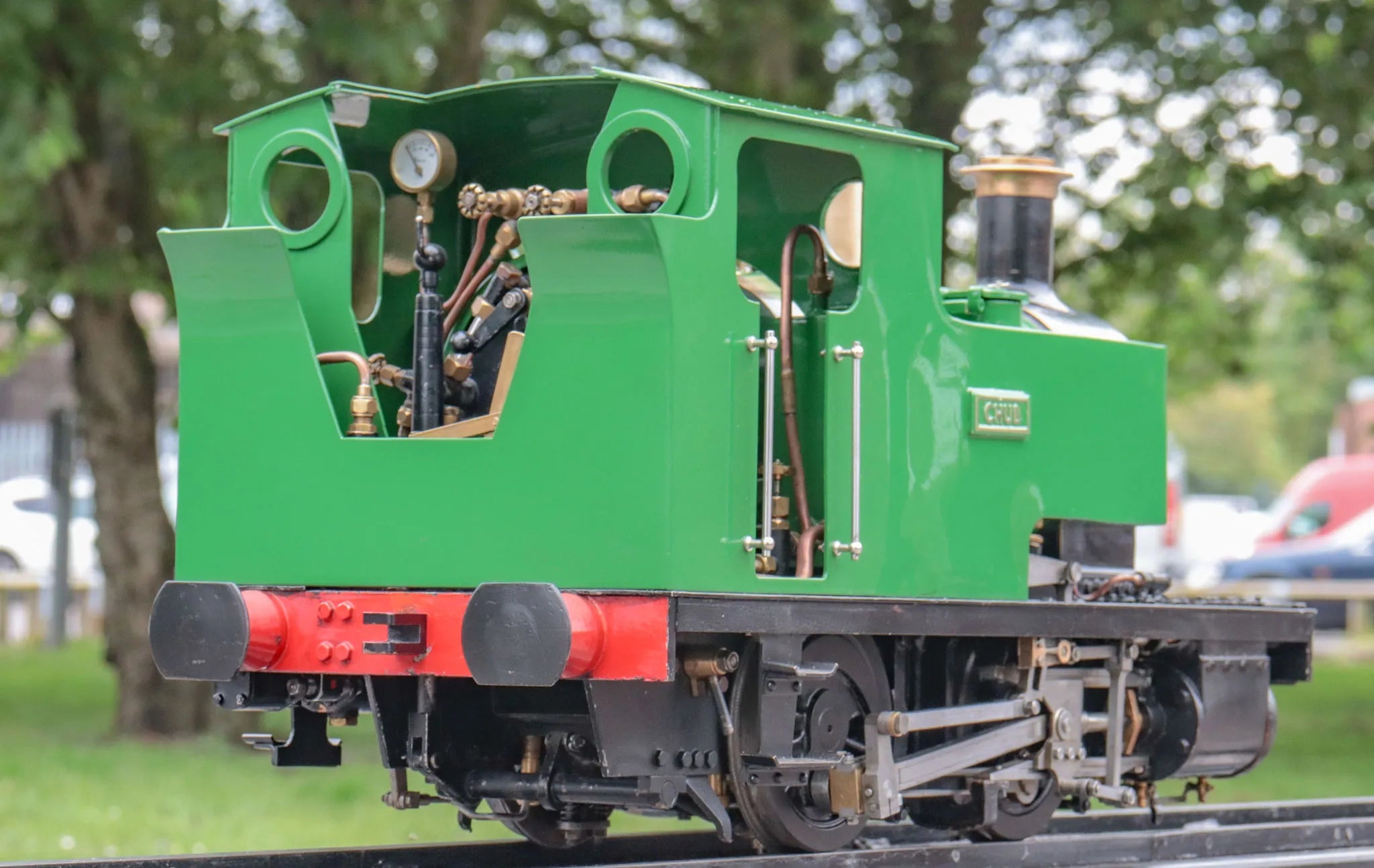

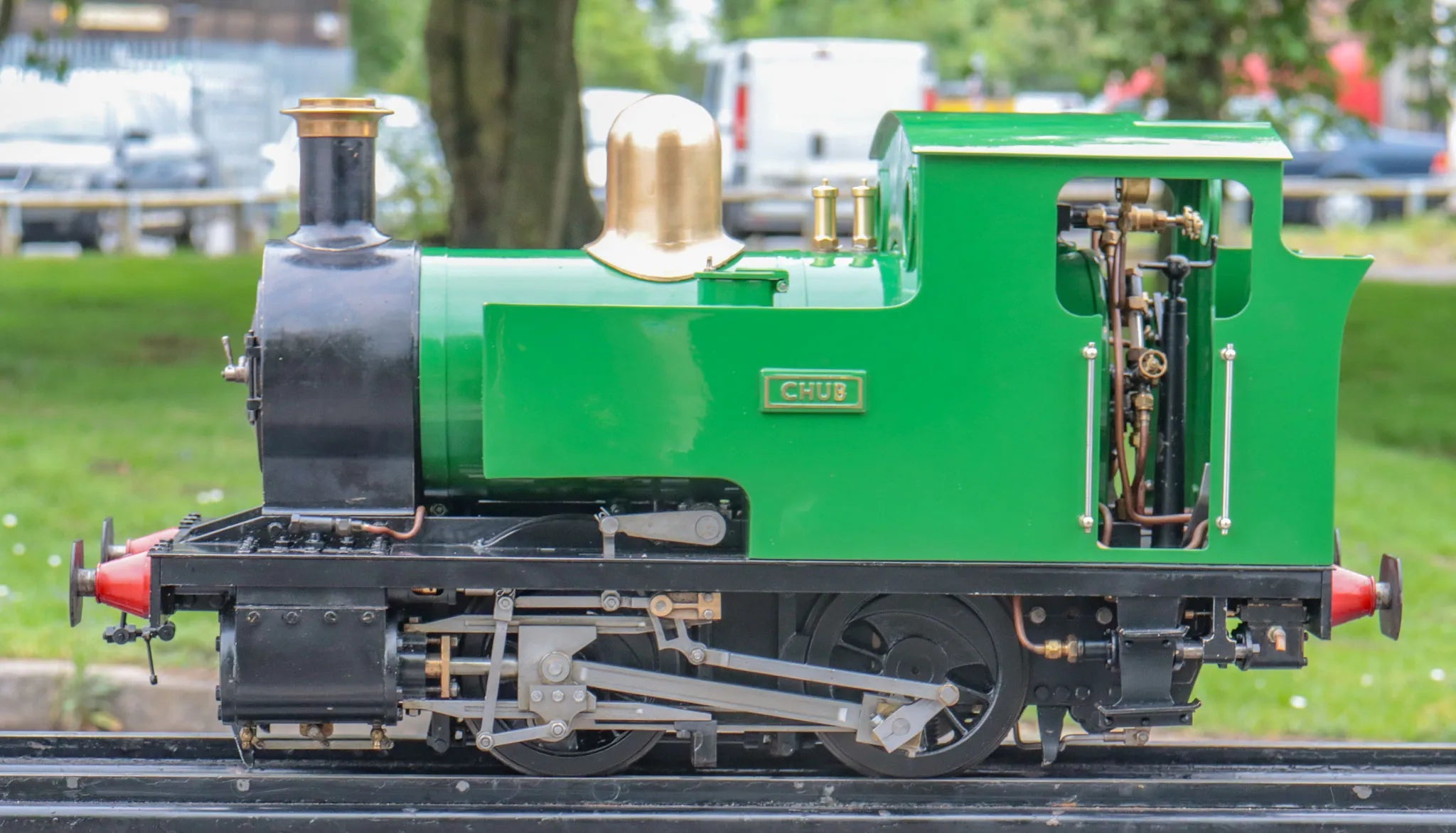

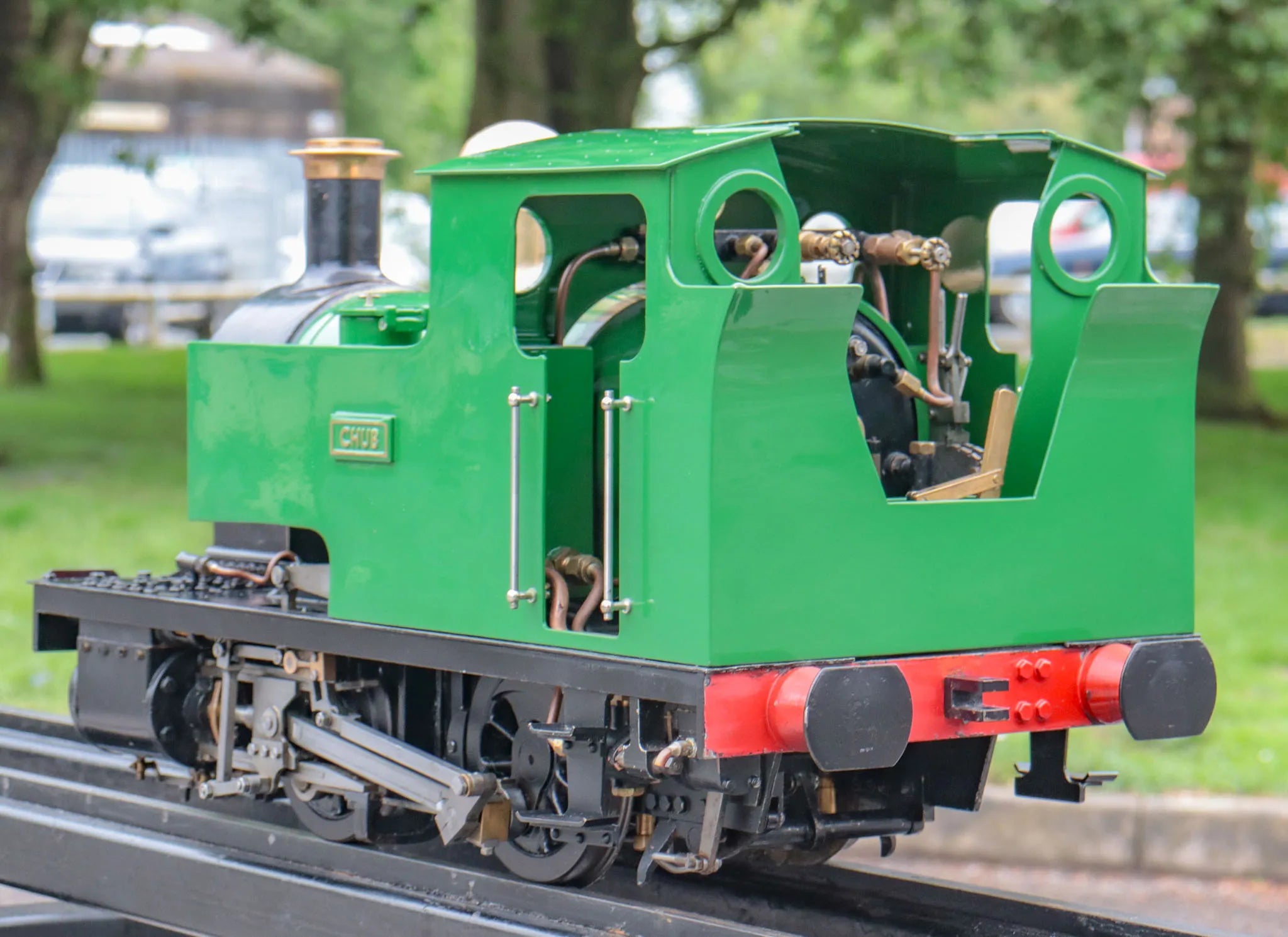

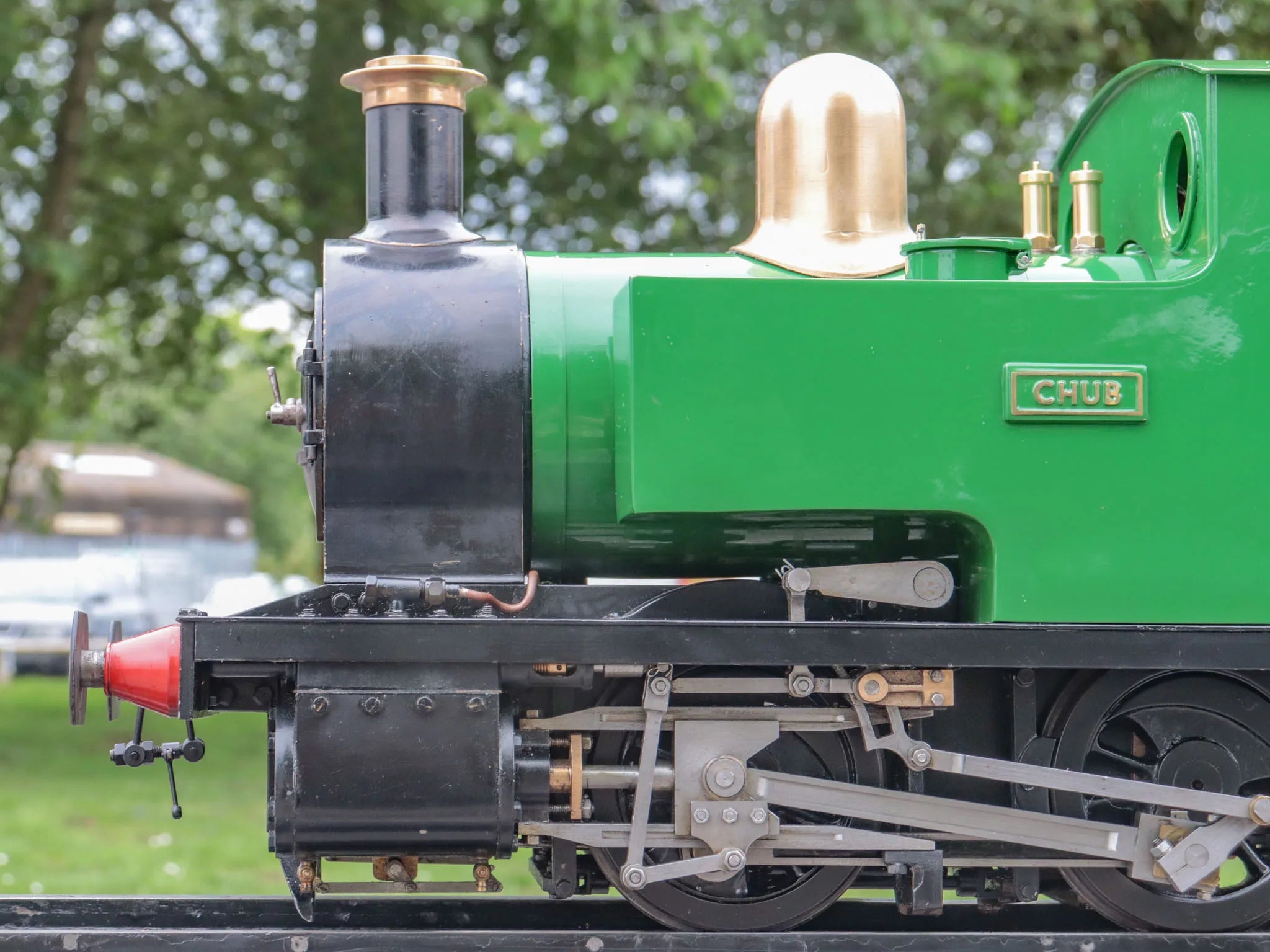

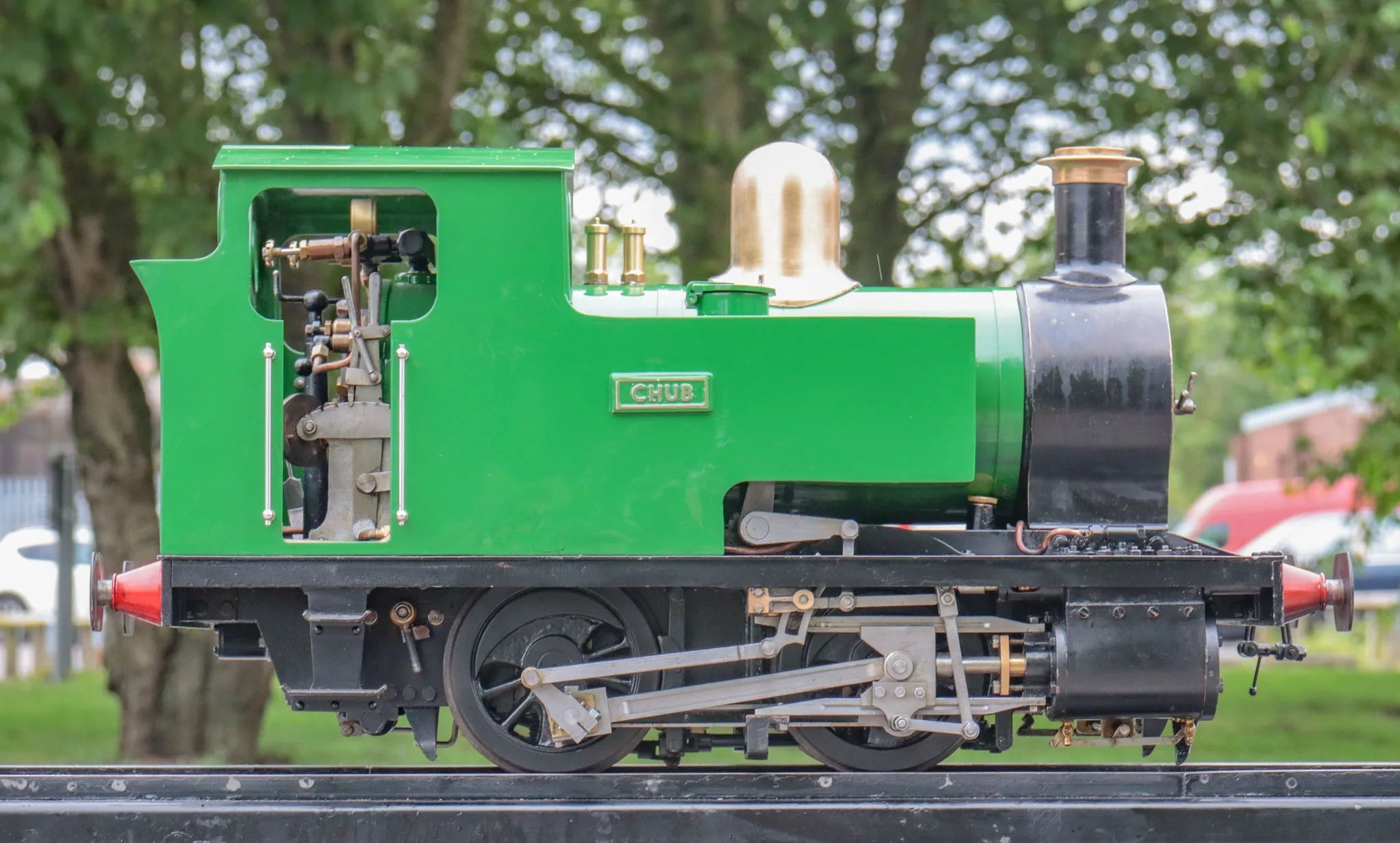

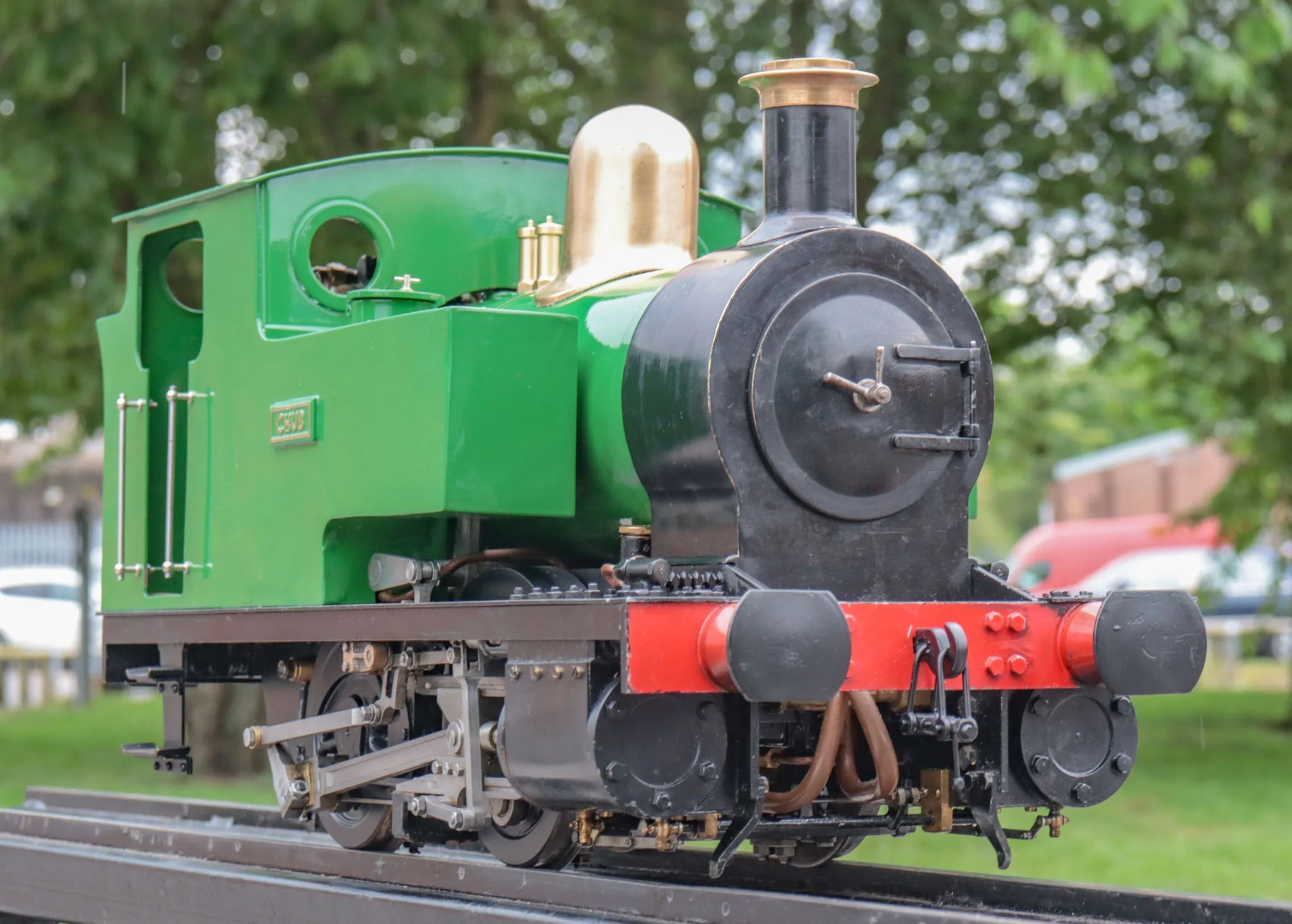

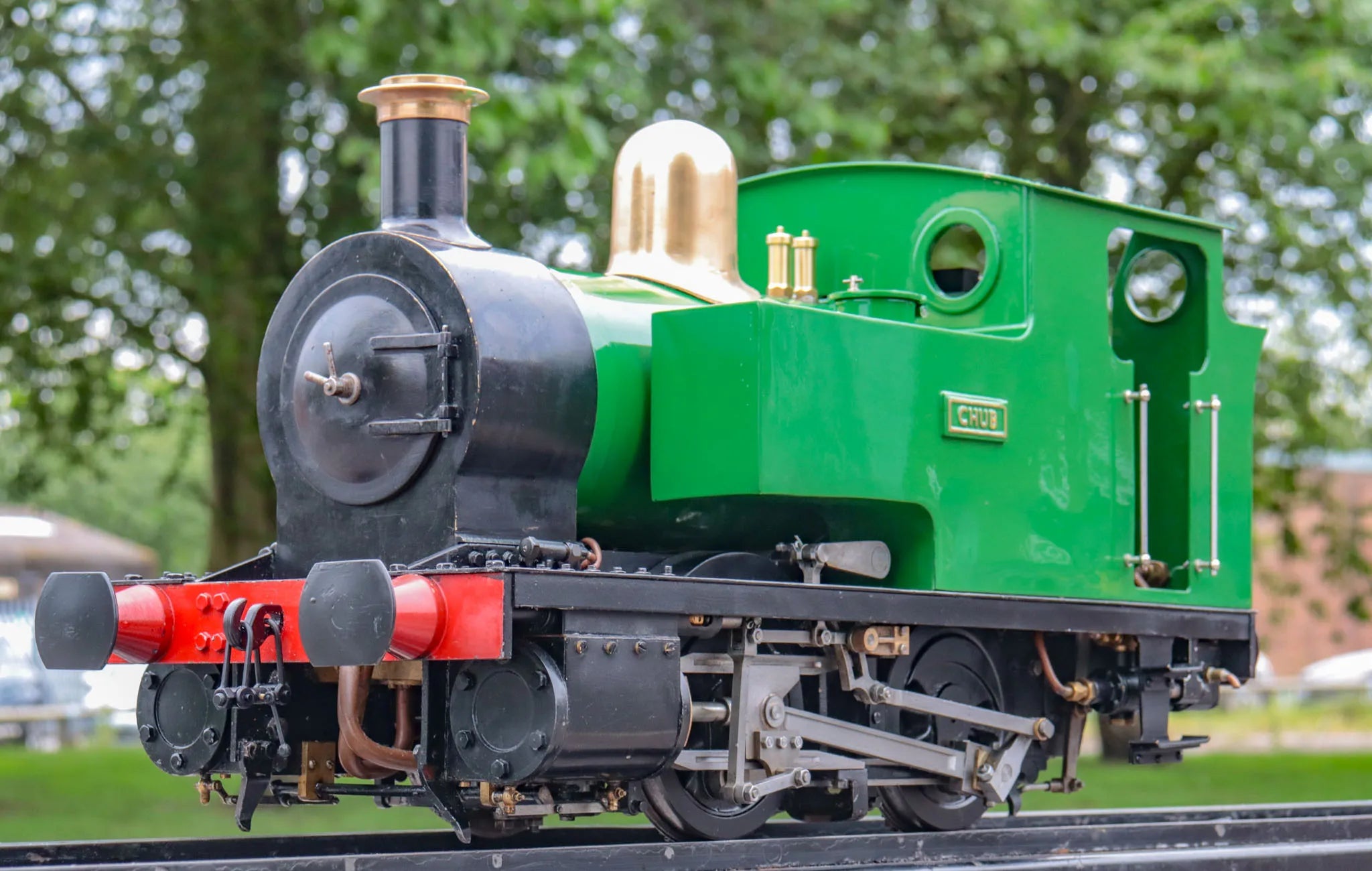

A particularly well-built 5 inch gauge 0-4-0T to Dick Simmonds' "Chub" design, in good running order and with particularly well - possibly professionally - done paintwork.

The commercially-builr, CE marked boiler has had hydraulic and steam tests with new certification issued. The engine steams freely and runs very well, notching up in both directions.

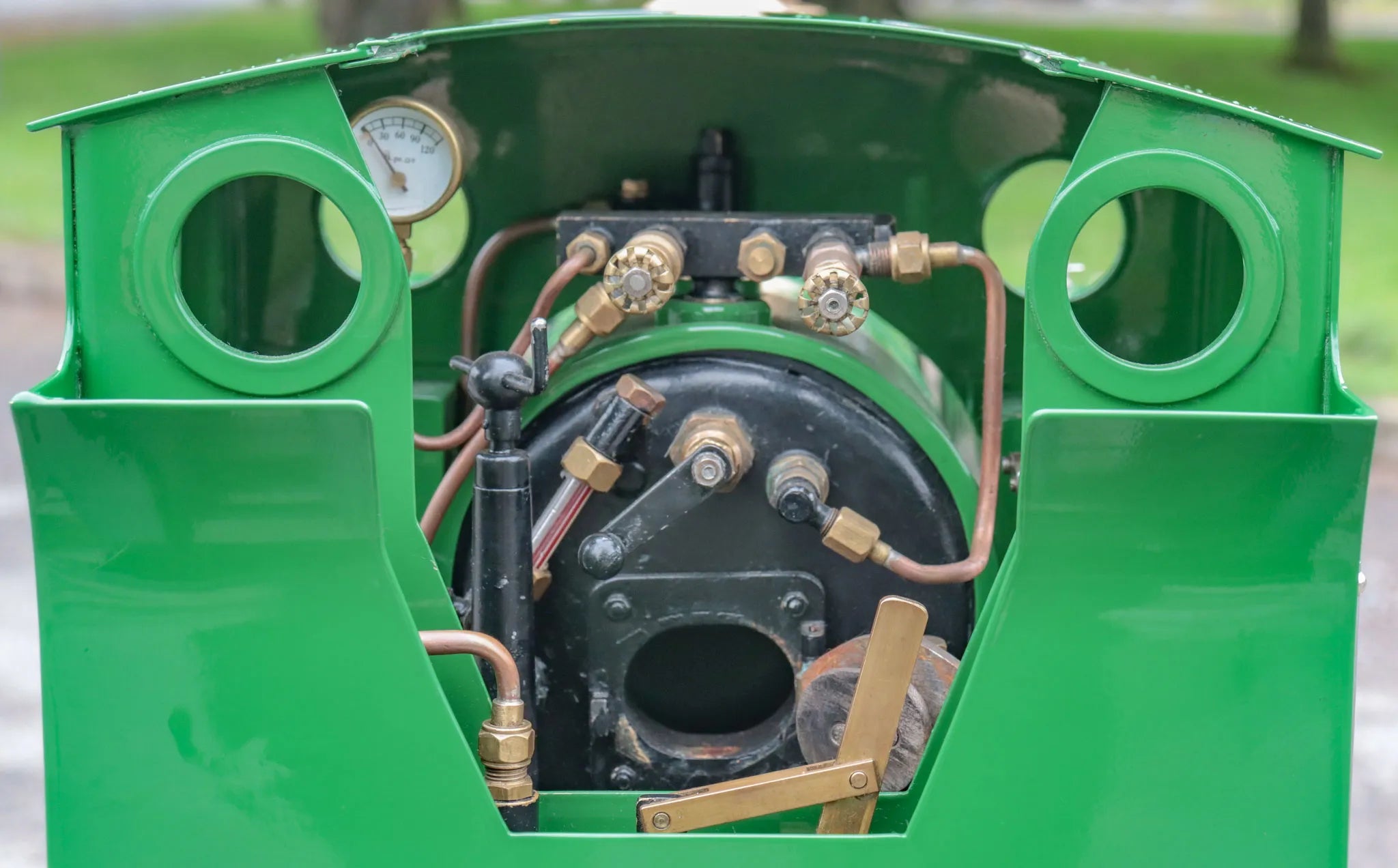

Boiler feeds are by axle, hand and steam pumps - the latter a little jewel of a thing, hidden away under the nearside cab floor.

From the bright copper still showing in the firebox and the engine's condition - both mechanically and cosmetically - we suspect it's only had a handful of steamings from new; the wheels show little sign of having done much mileage on rails.


Technical information

Stock code

11821

Gauge

5 inch

Length/inches

24

Width/inches

10

Height/inches

12

Weight/Kg

38

Wheel material

cast iron

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

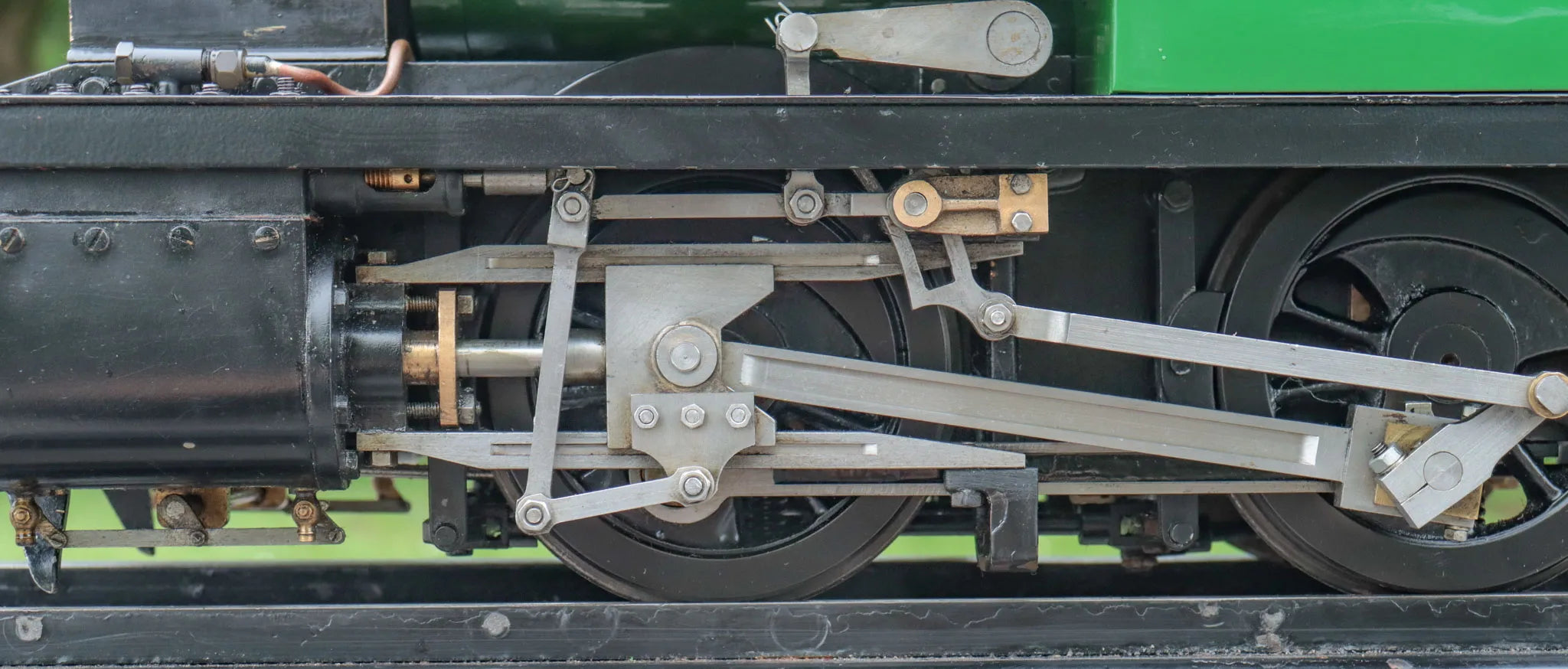

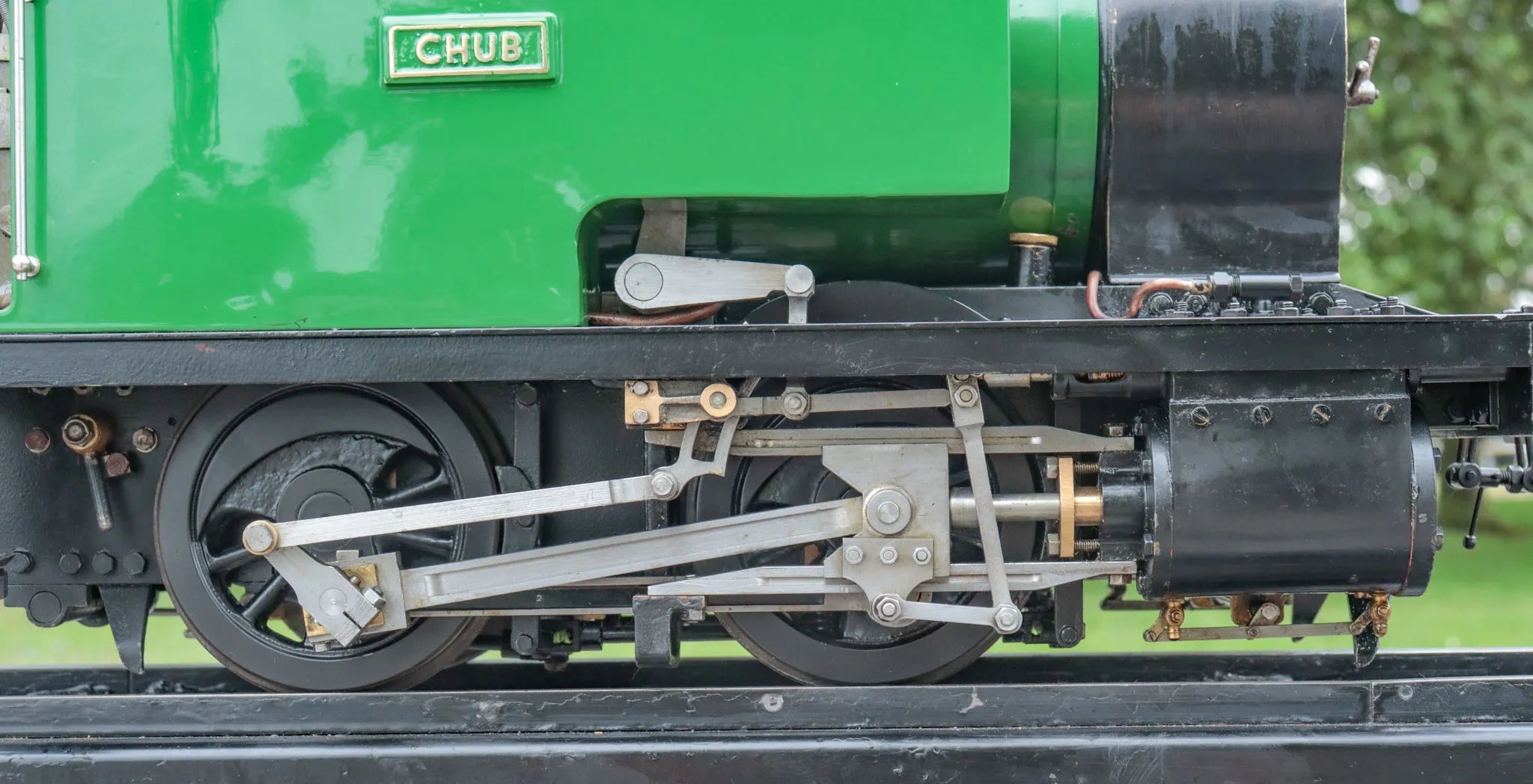

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

GB Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2010

Boiler number

GB445

Safety valve type

spring

Safety valve

2

Whistle

no

Steam pump

1

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

4

Date out

May-24

Hydraulic test valid to

21-Feb-28

Steam test valid to

14-Jul-25
