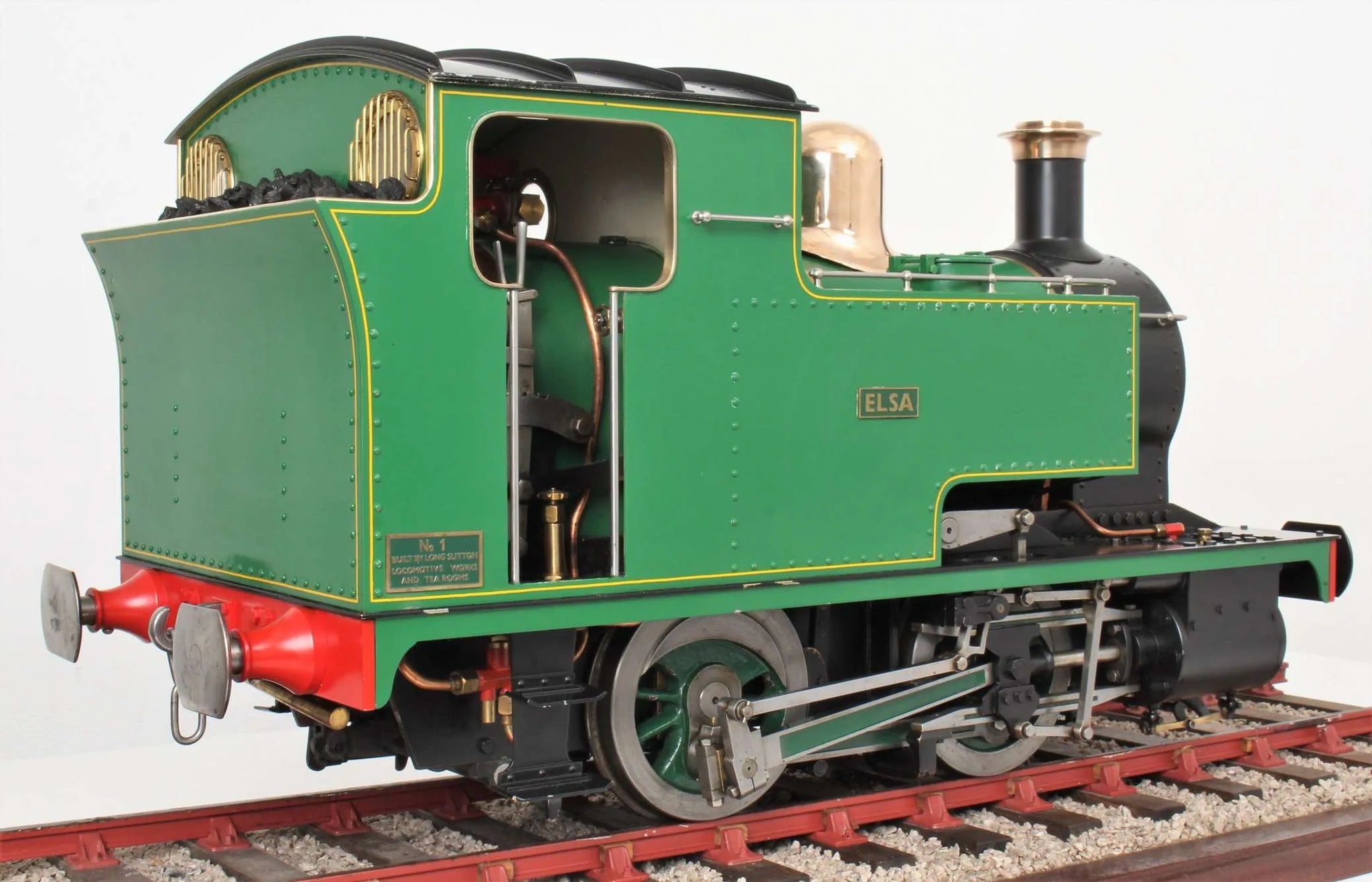

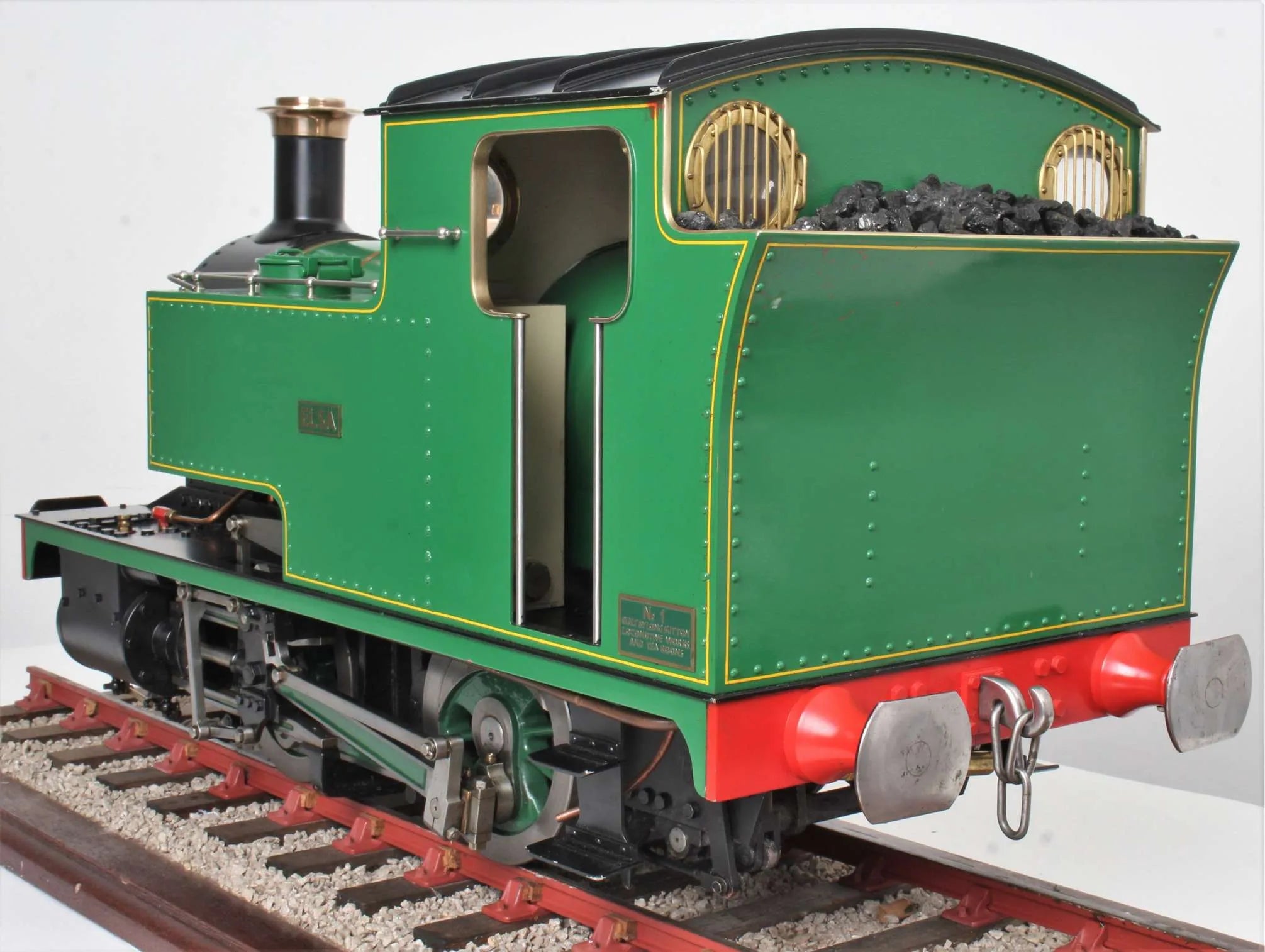

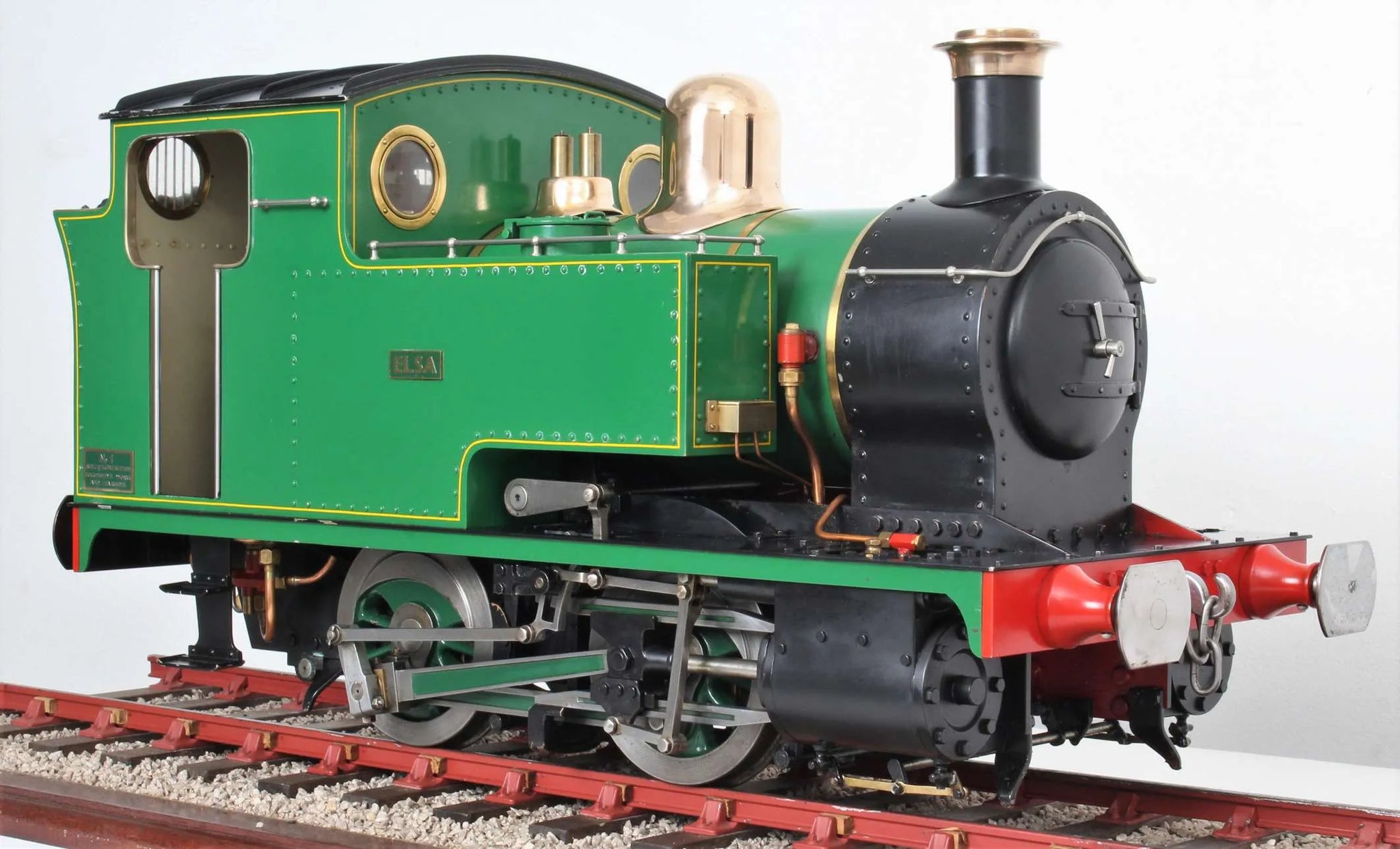

5 inch gauge "Chub" 0-4-0T

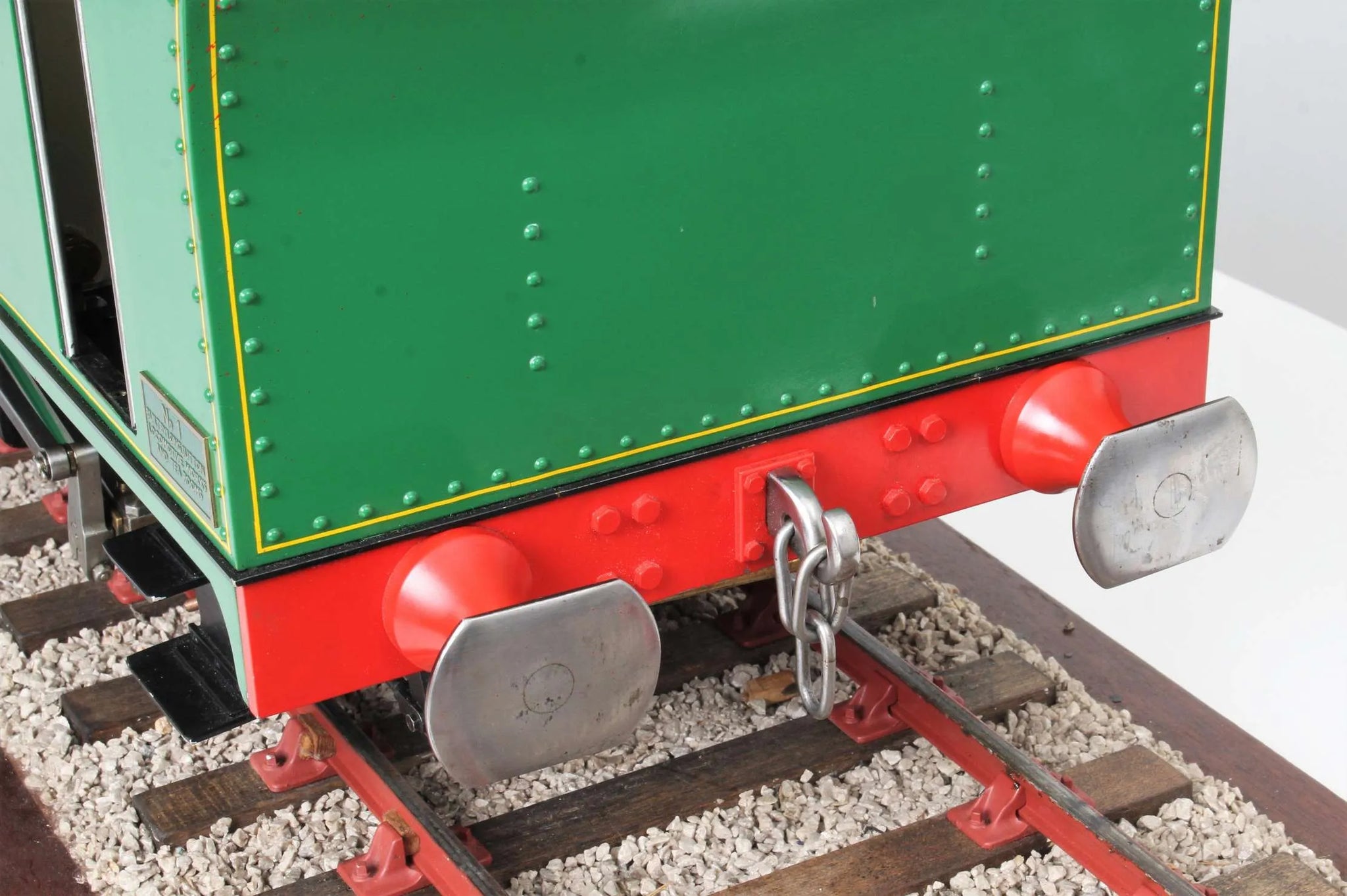

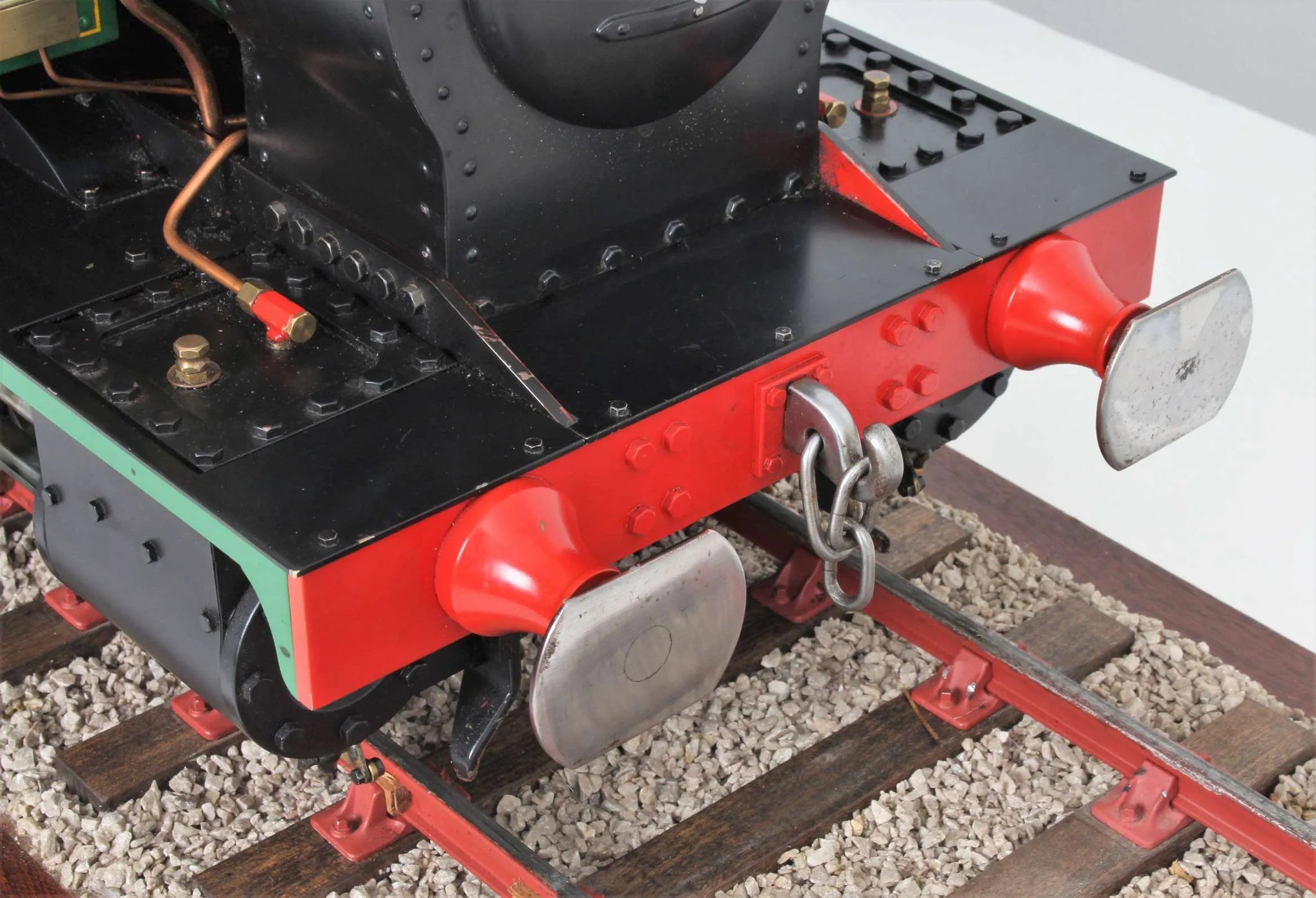

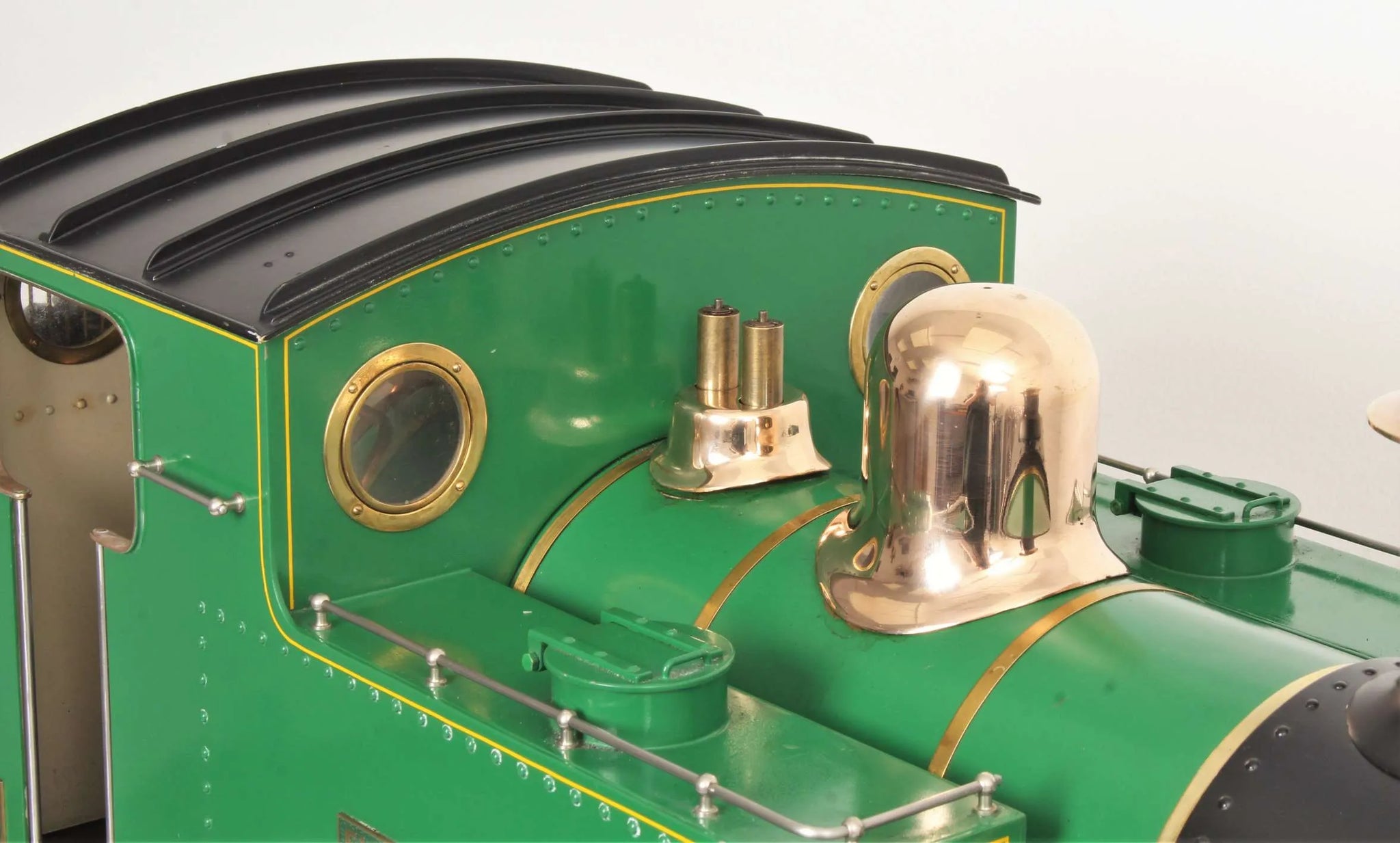

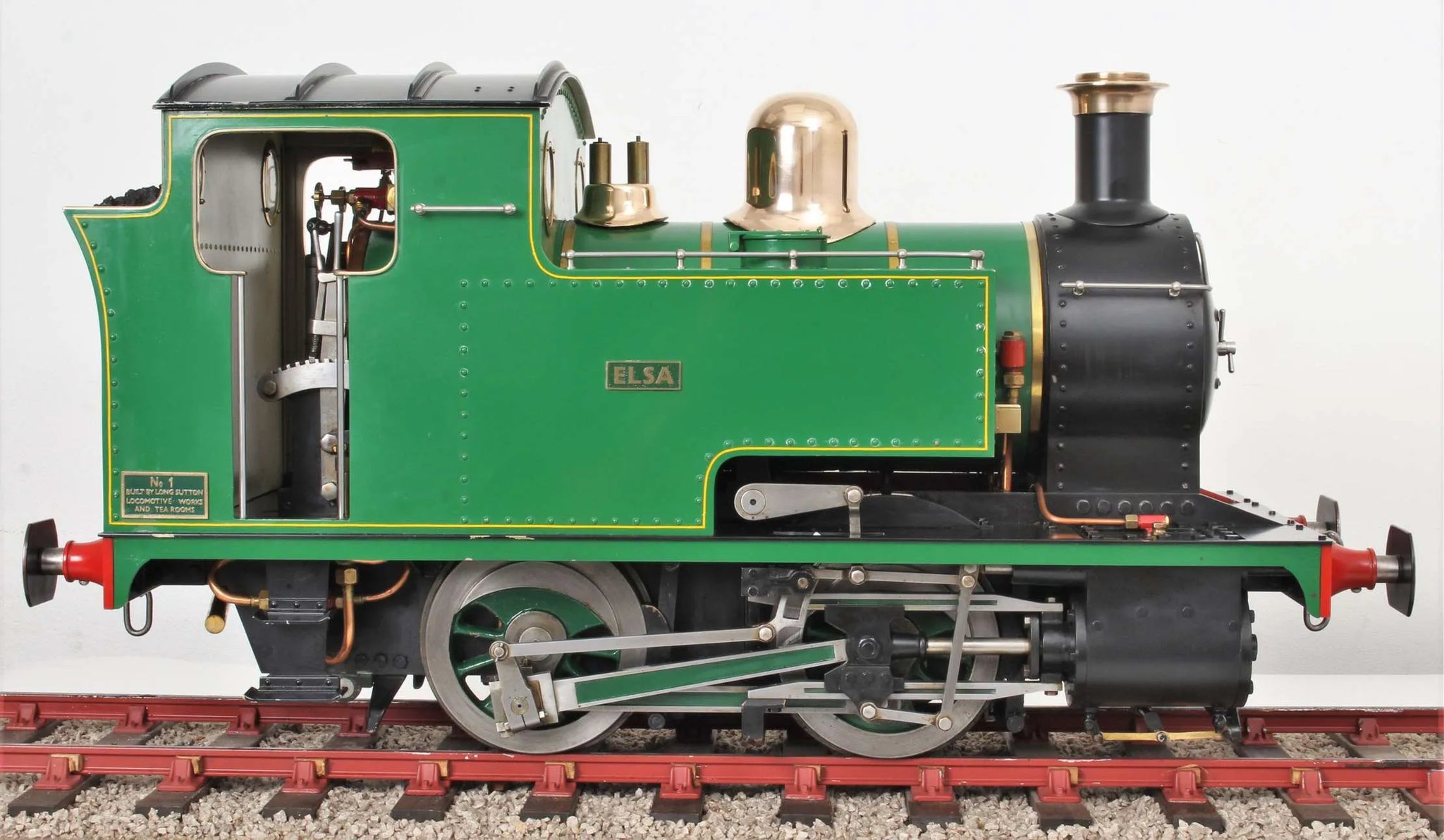

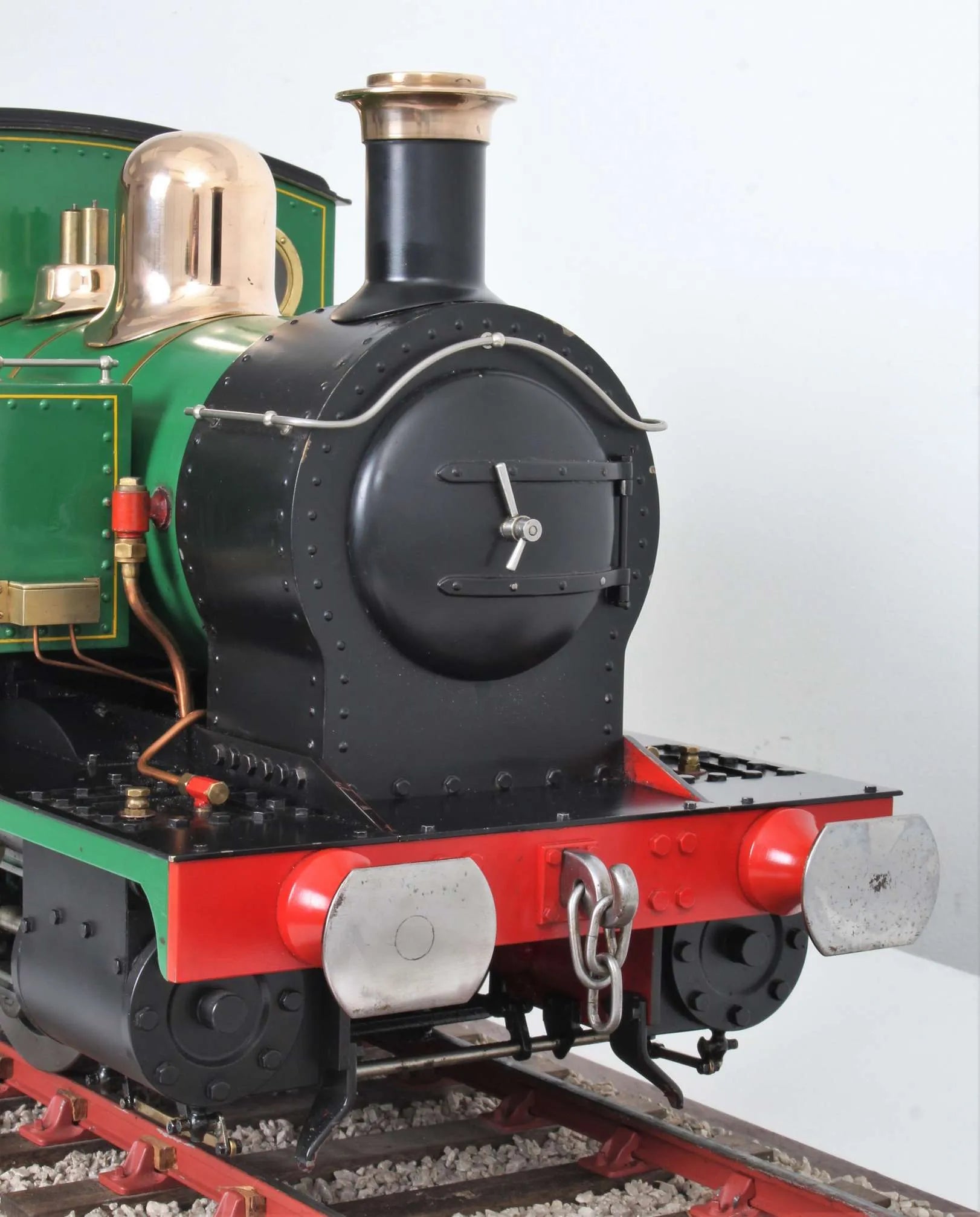

A particularly well made and nicely finished 5 inch gauge "Chub" 0-4-0T. It came to us as a part exchange against a 3 1/2 inch gauge "Columbia" from a long-term customer; unsteamed in recent years, it looks to have had very little use from new.

Overall condition - both mechanical and cosmetic - is good. The boiler has had a recent hydraulic test with new certification issued, the engine runs on air, notching up in both directions.

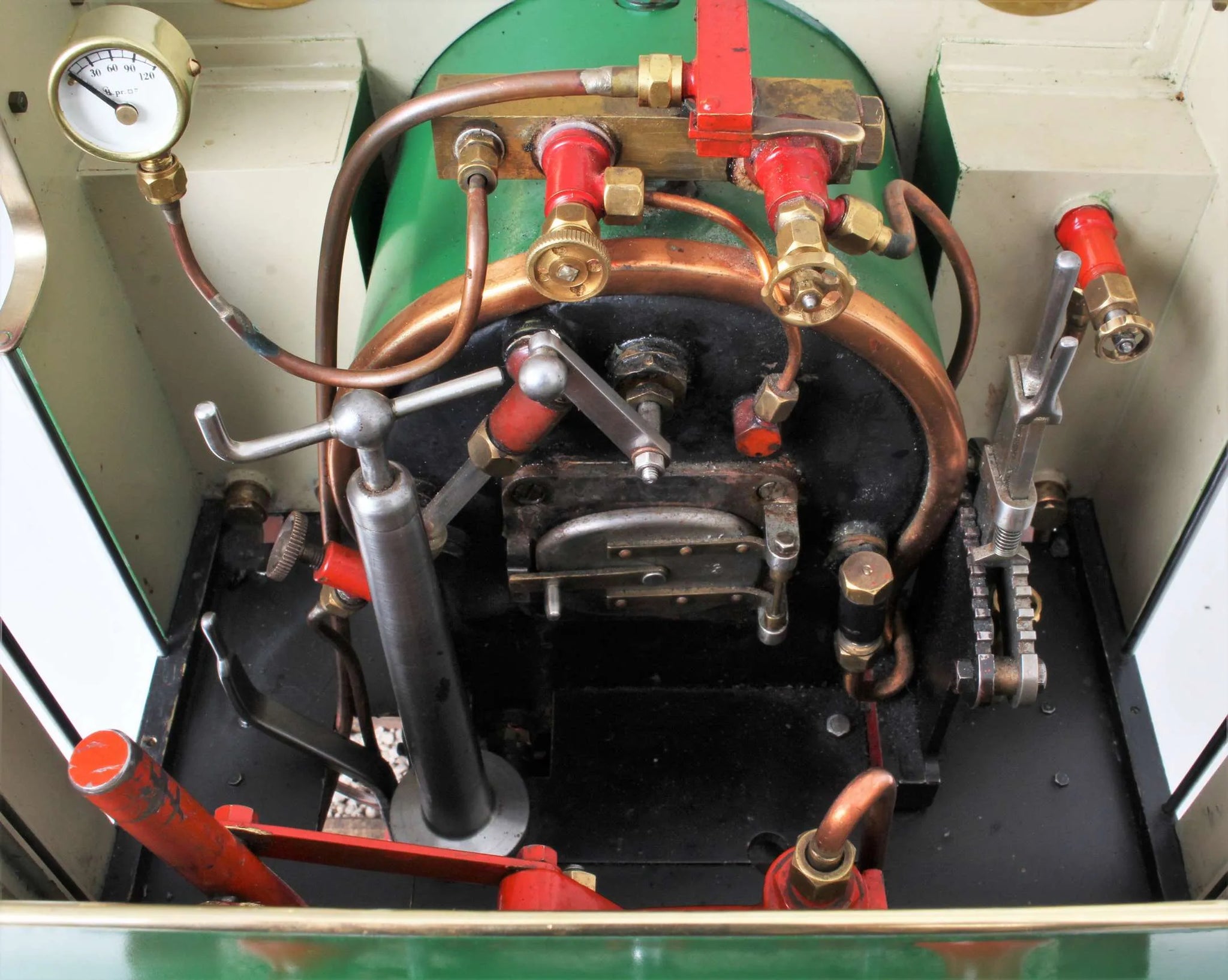

Work will be required to recommission for steam: one water tank has a slight drip, both clack valves leak and the hand pump - easily removeable for servicing - is currently seized.

Technical information

Stock code

9177

Gauge

5 inch

Length/inches

25

Width/inches

9.5

Height/inches

12

Wheel material

cast iron

Valve type

slide

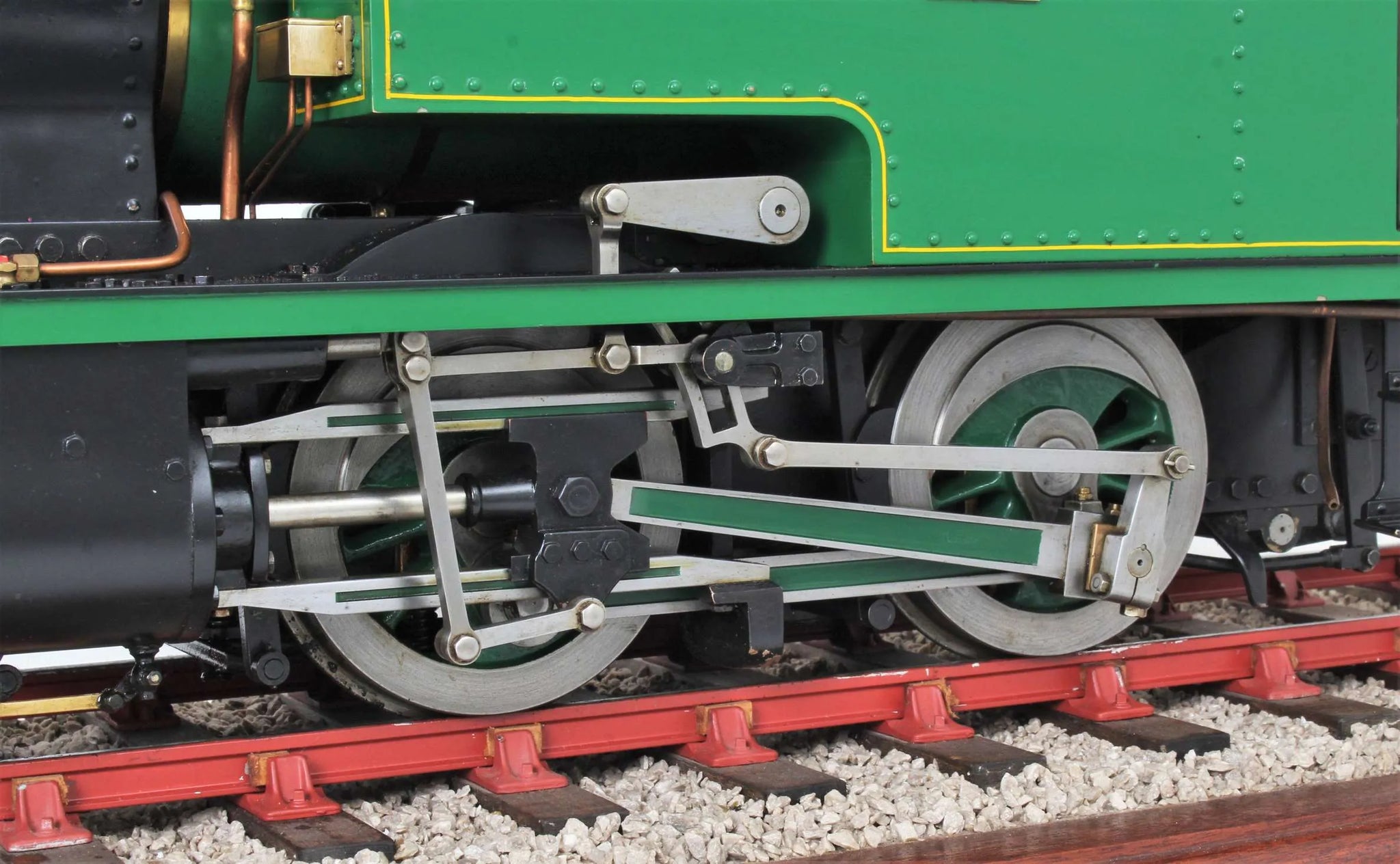

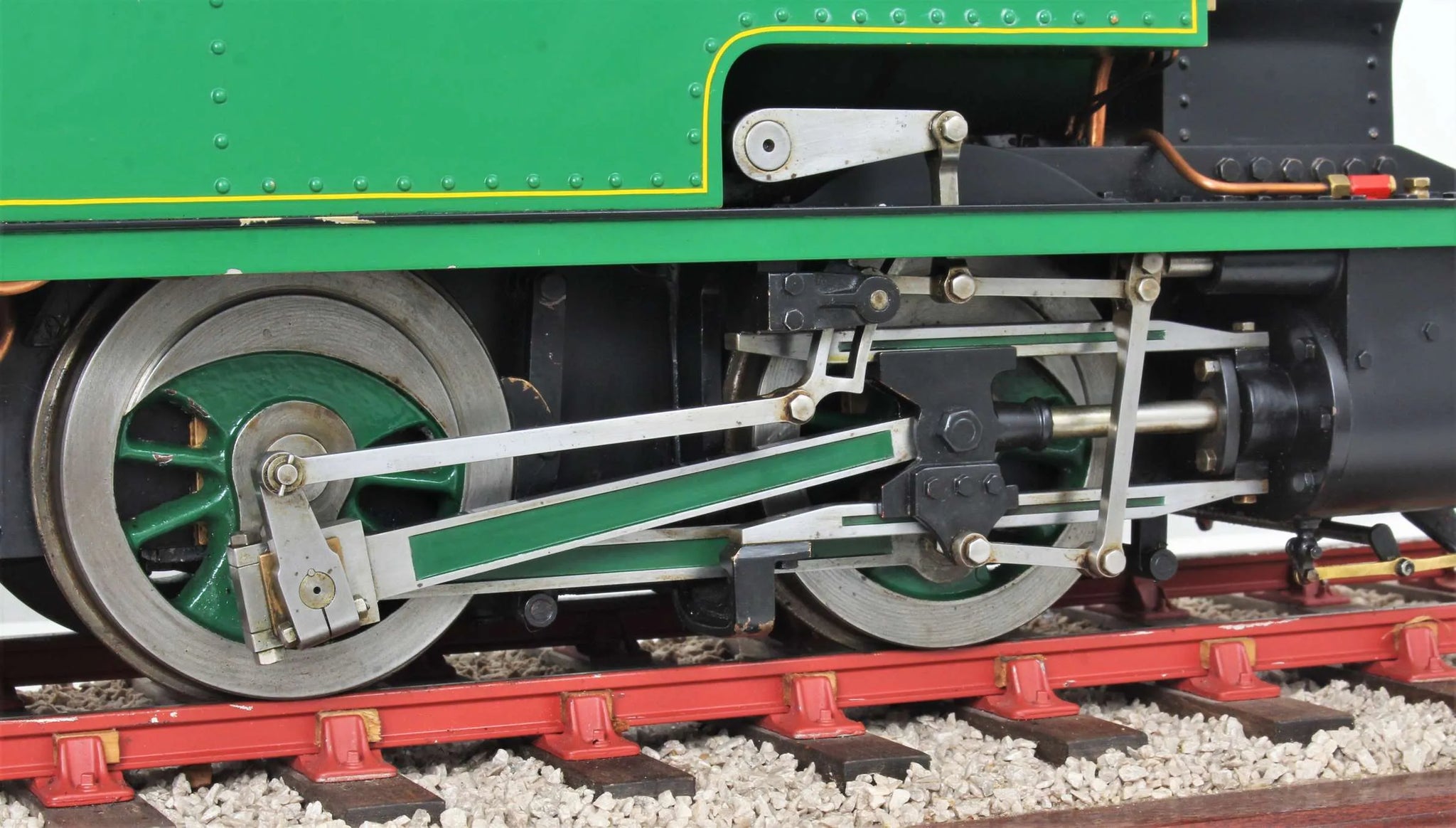

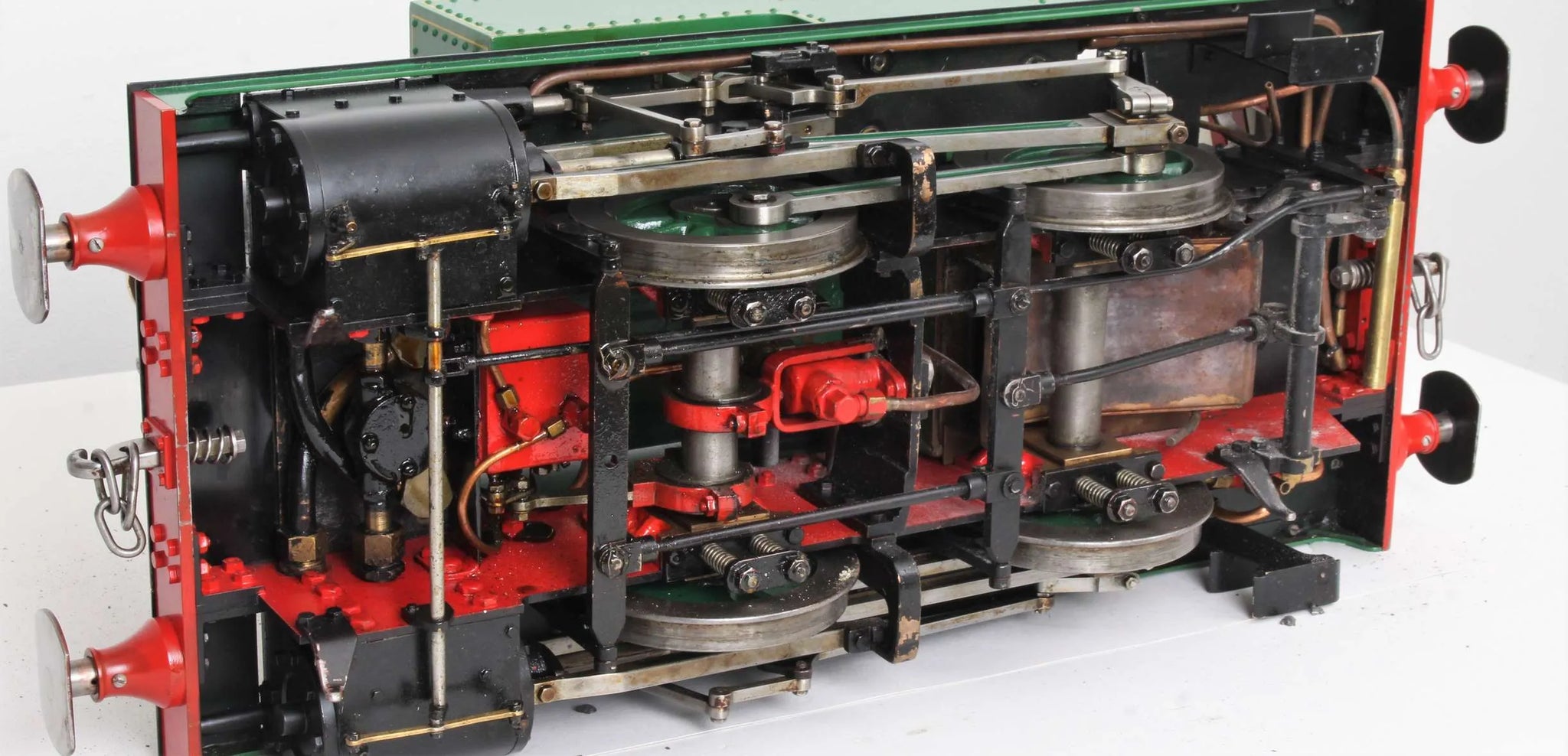

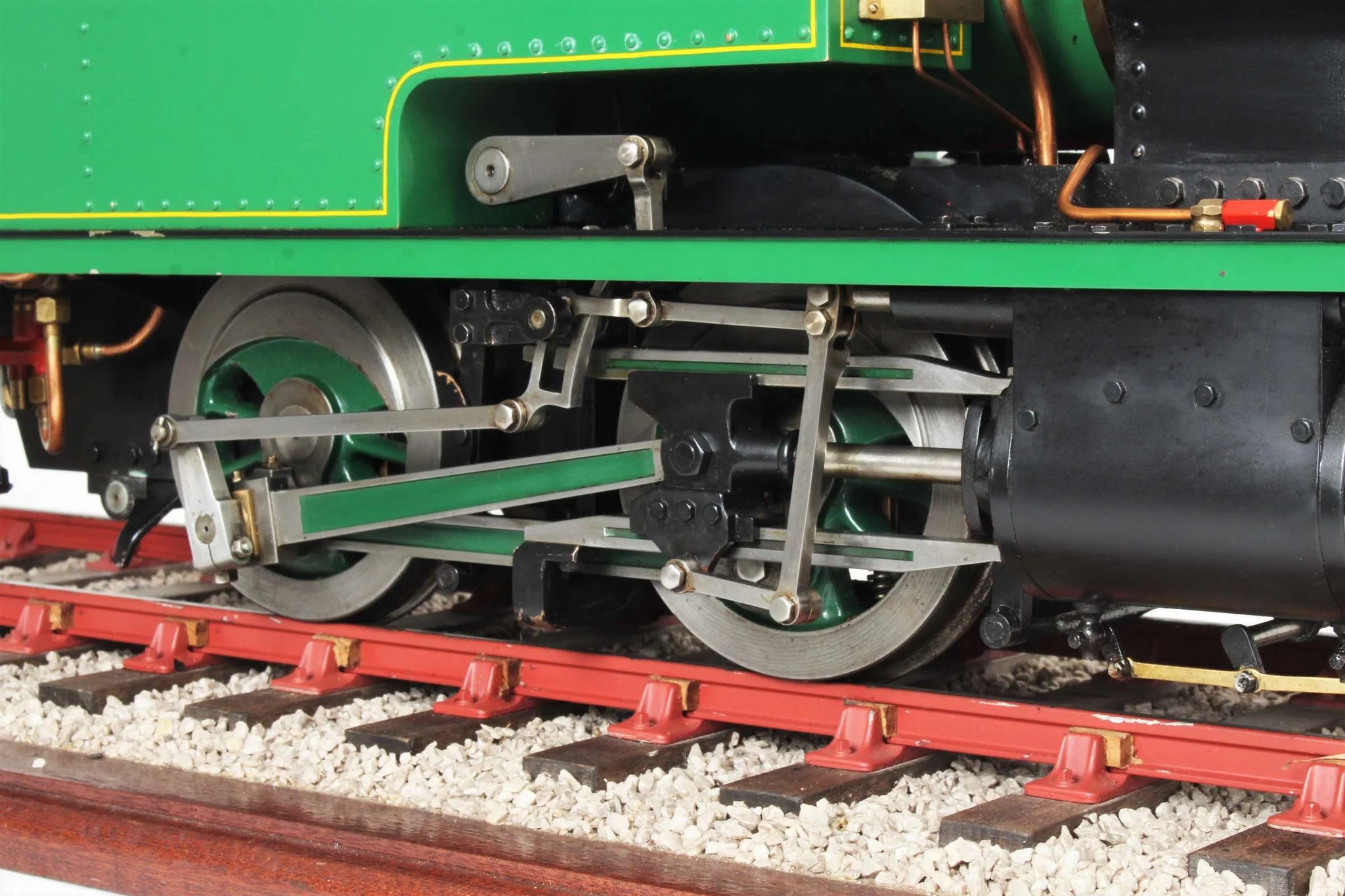

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Boiler number

9177

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Jun-21

Hydraulic test valid to

18-Aug-24
