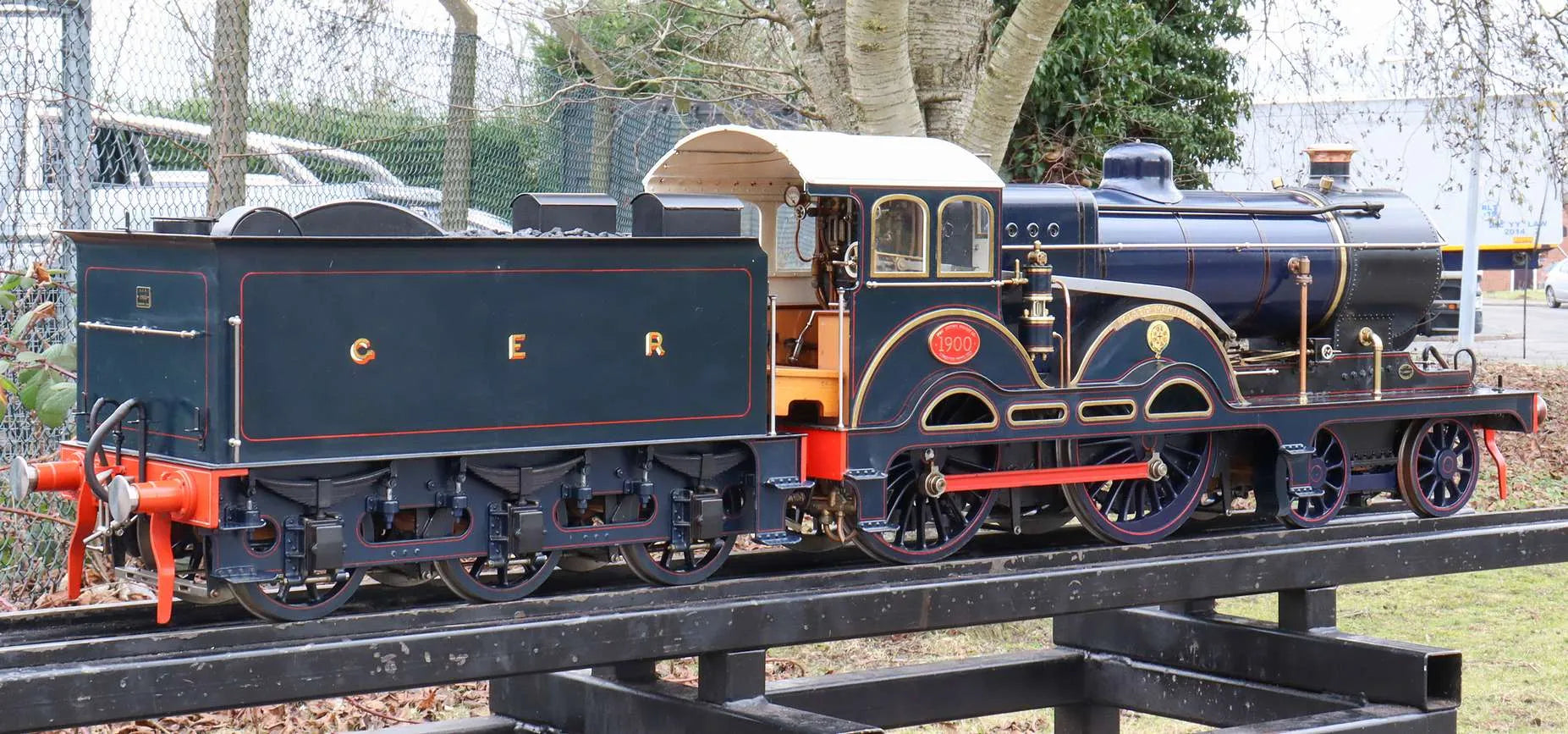

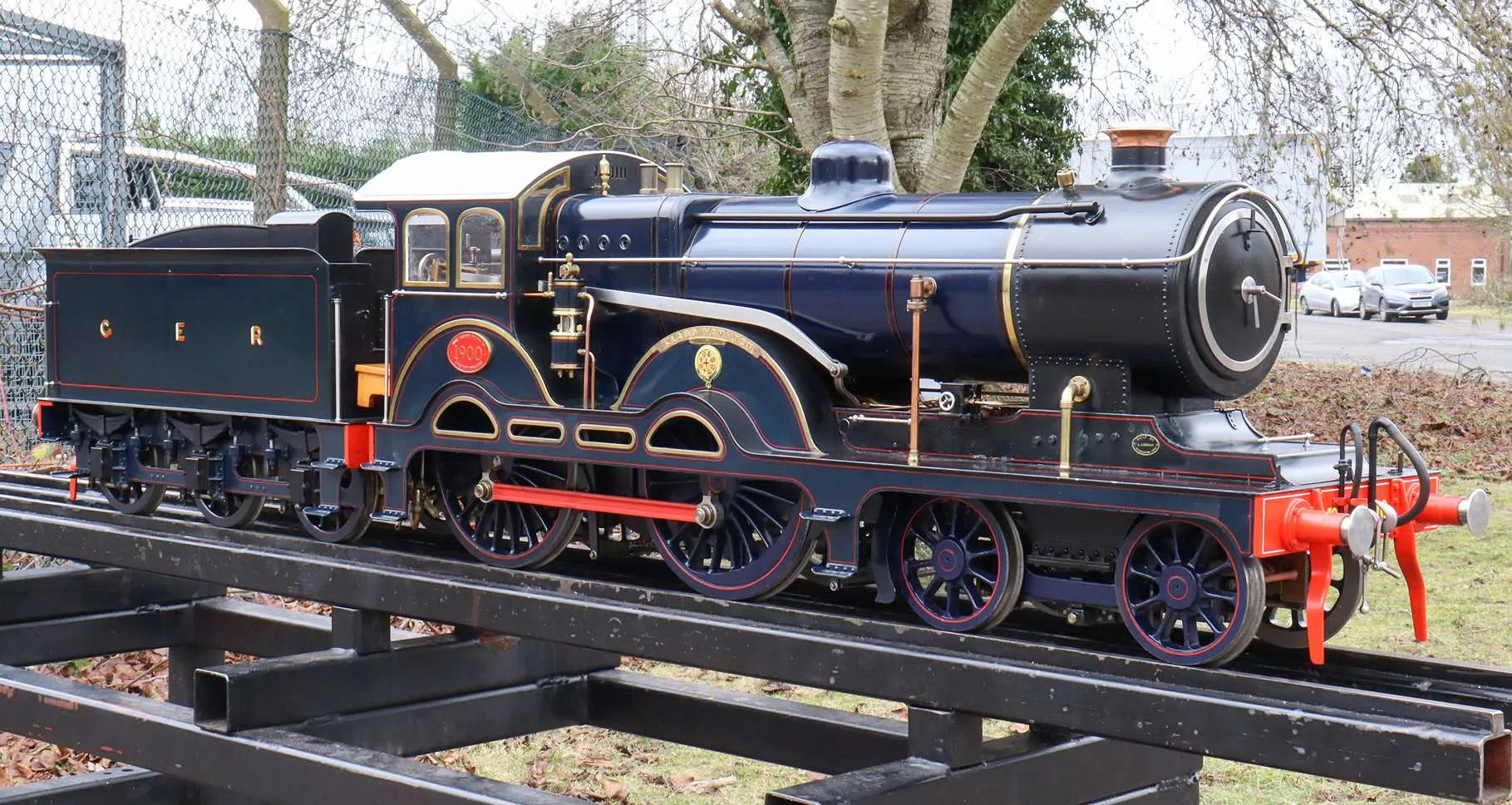

5 inch gauge Claud Hamilton 4-4-0

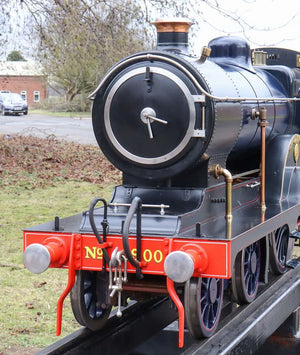

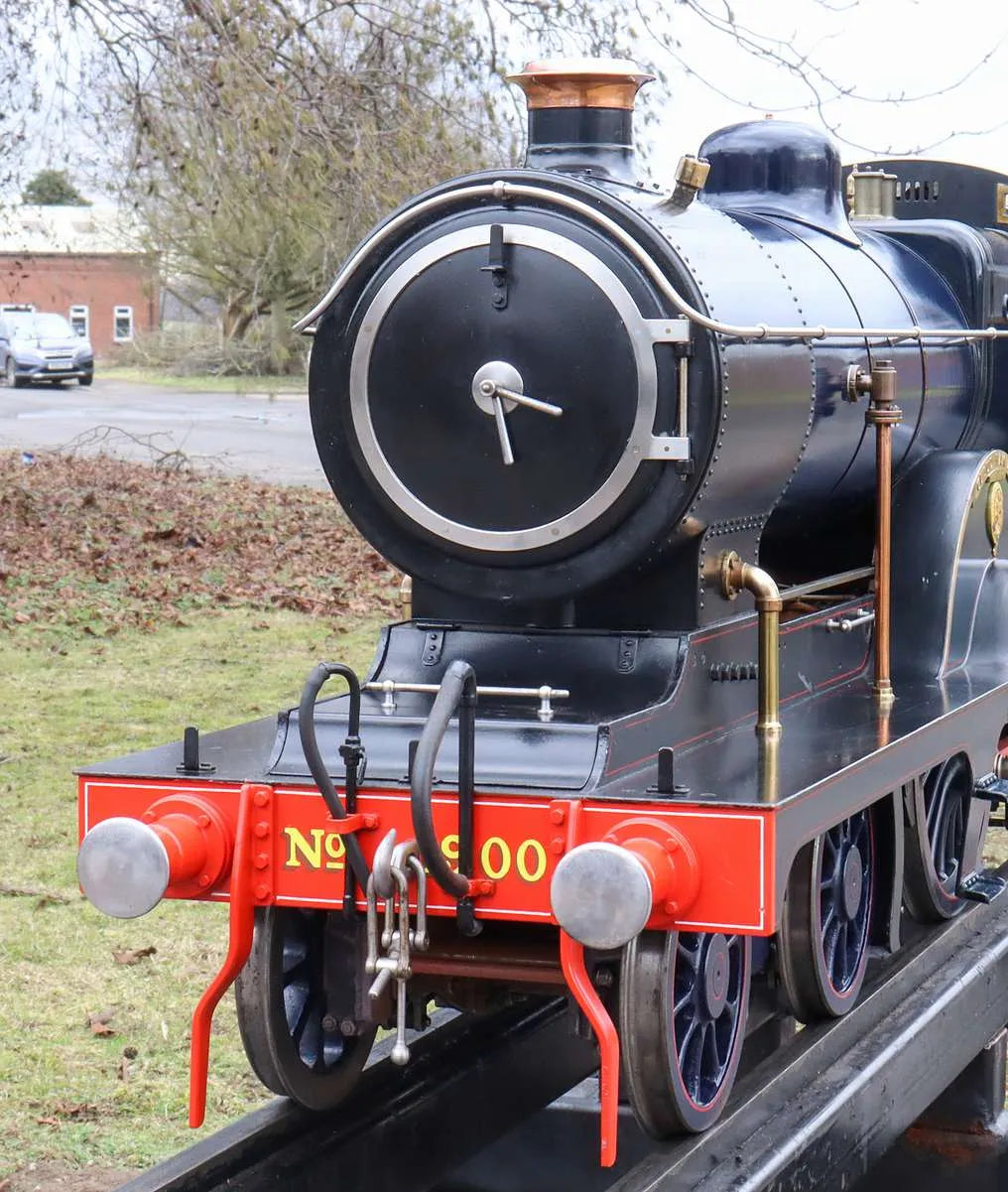

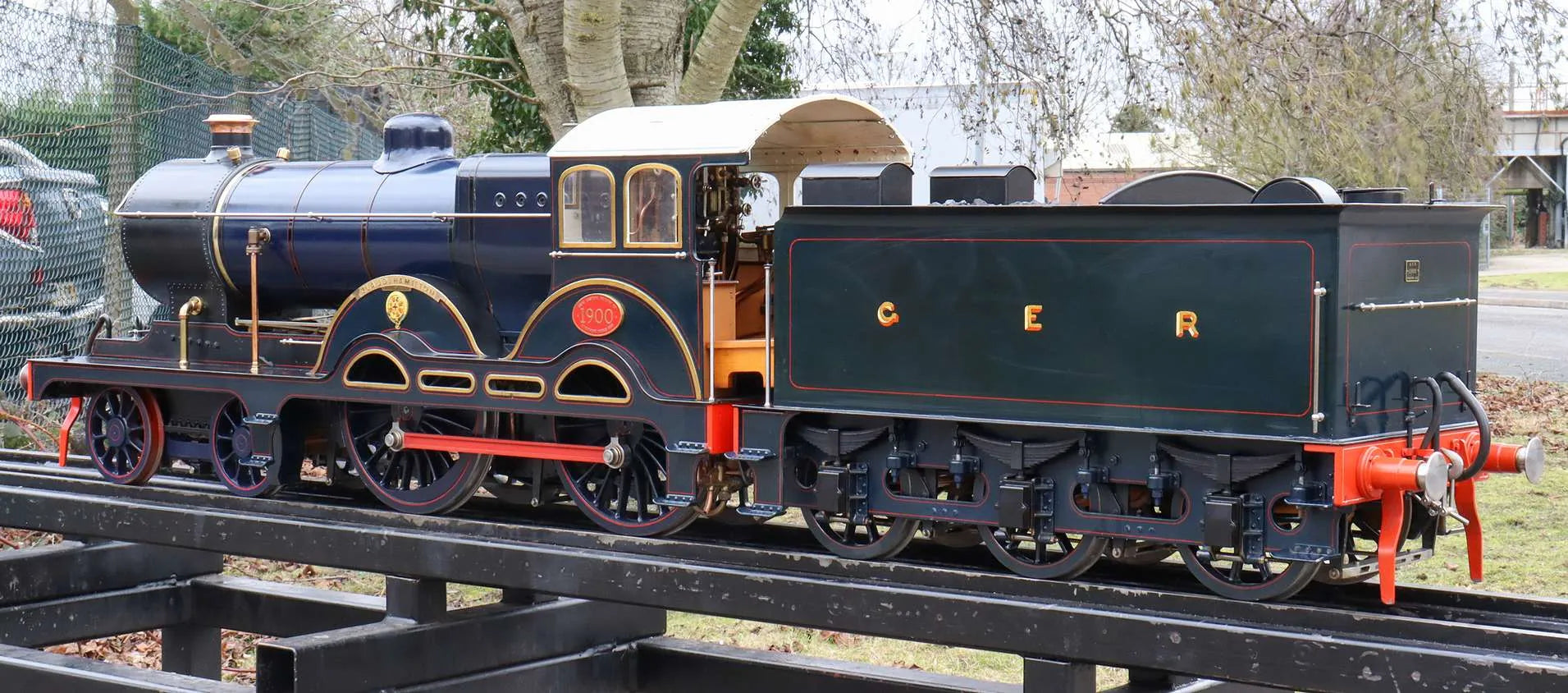

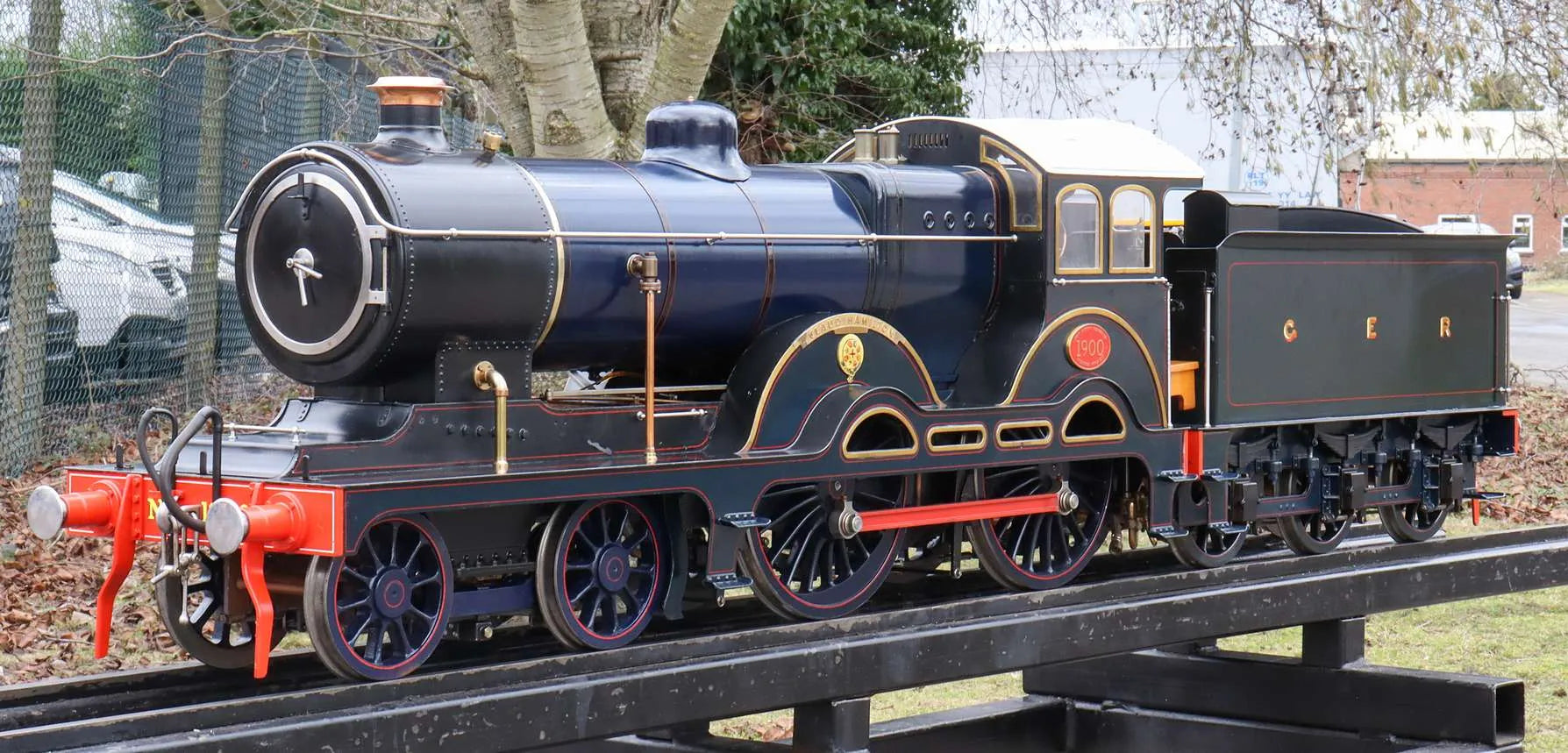

A particularly well made, finely detailed 5 inch gauge Great Eastern D56 4-4-0 "Claud Hamilton", in excellent running order.

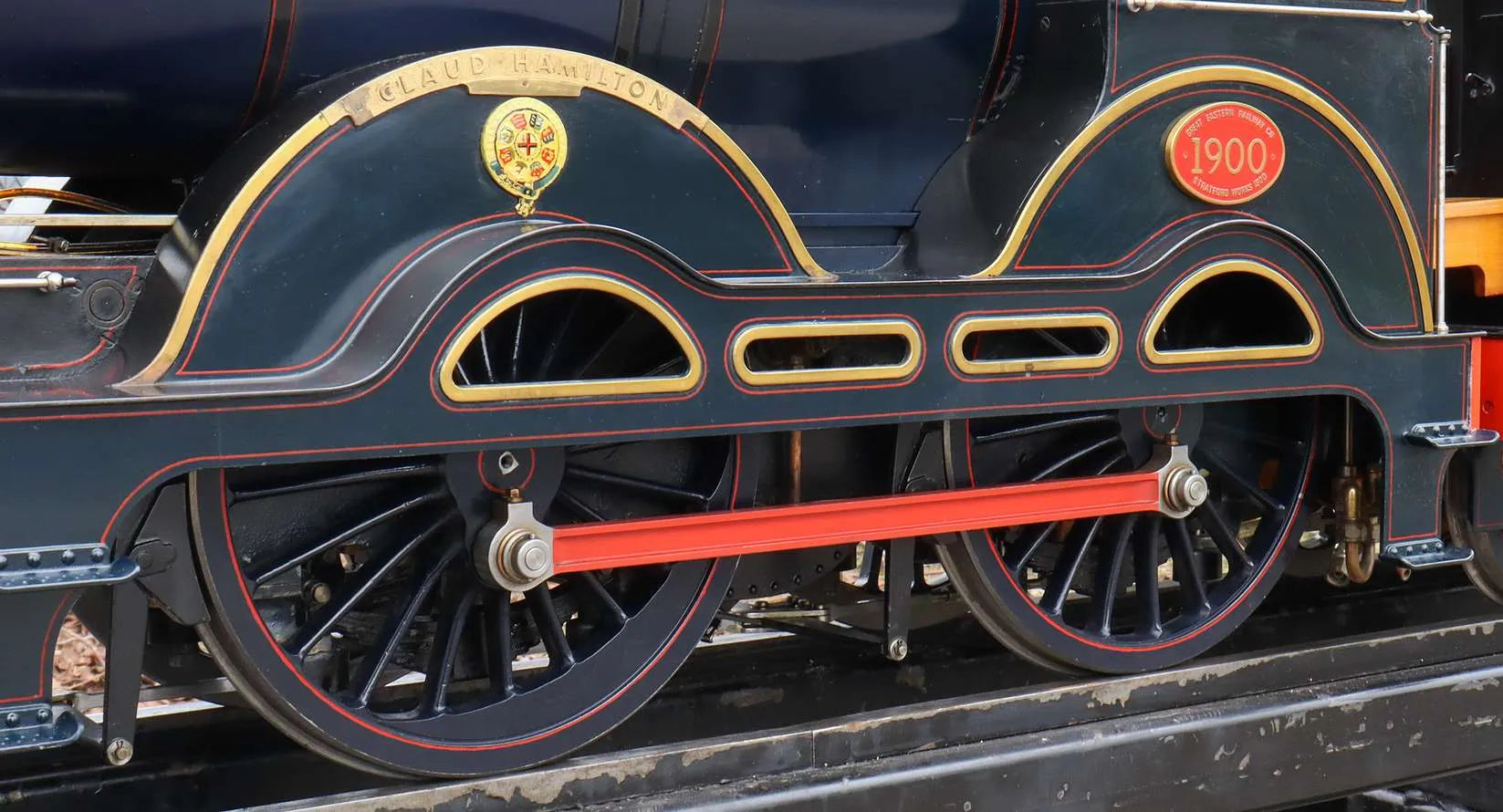

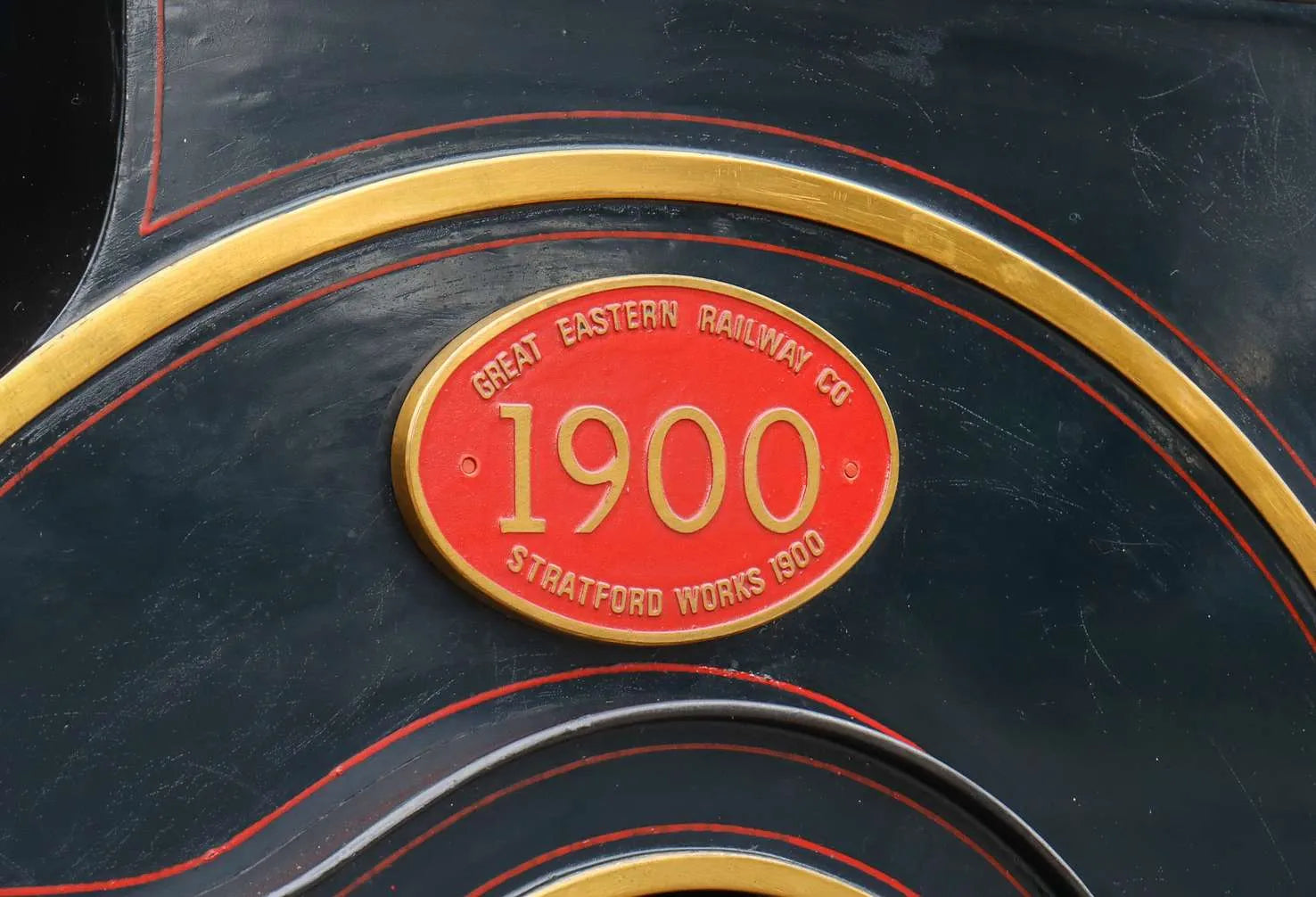

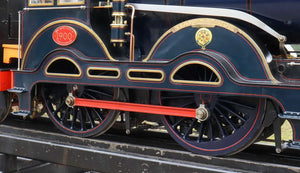

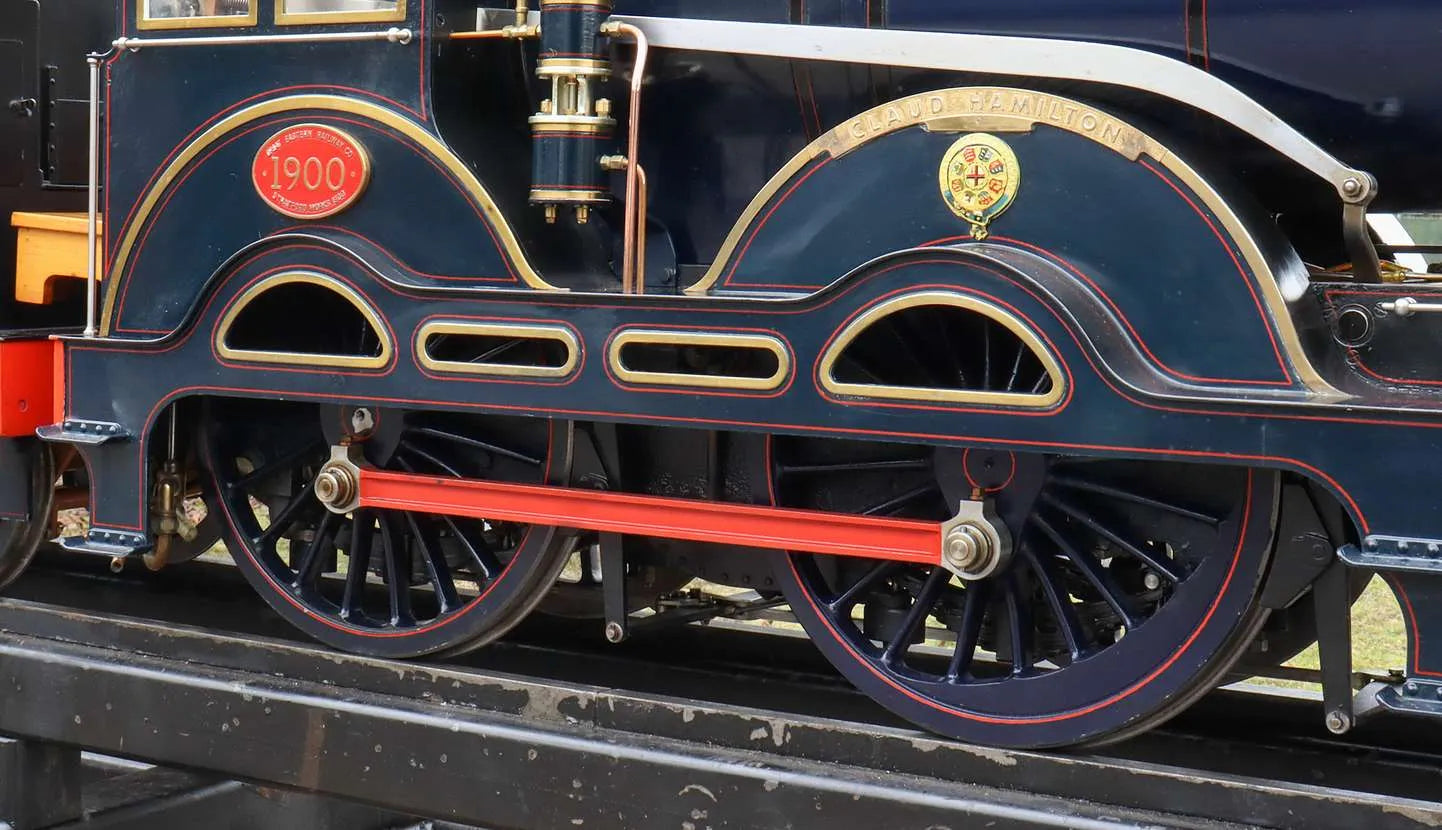

Designed by James Holden for the Great Eastern Railway, the first of the class No.1900 "Claud Hamilton" was out-shopped in 1900. A handsome design featuring 7 foot diameter driving wheels, it won a Gold Medal at the Paris Exhibition of that year - at that time it was the GER's largest express locomotive.

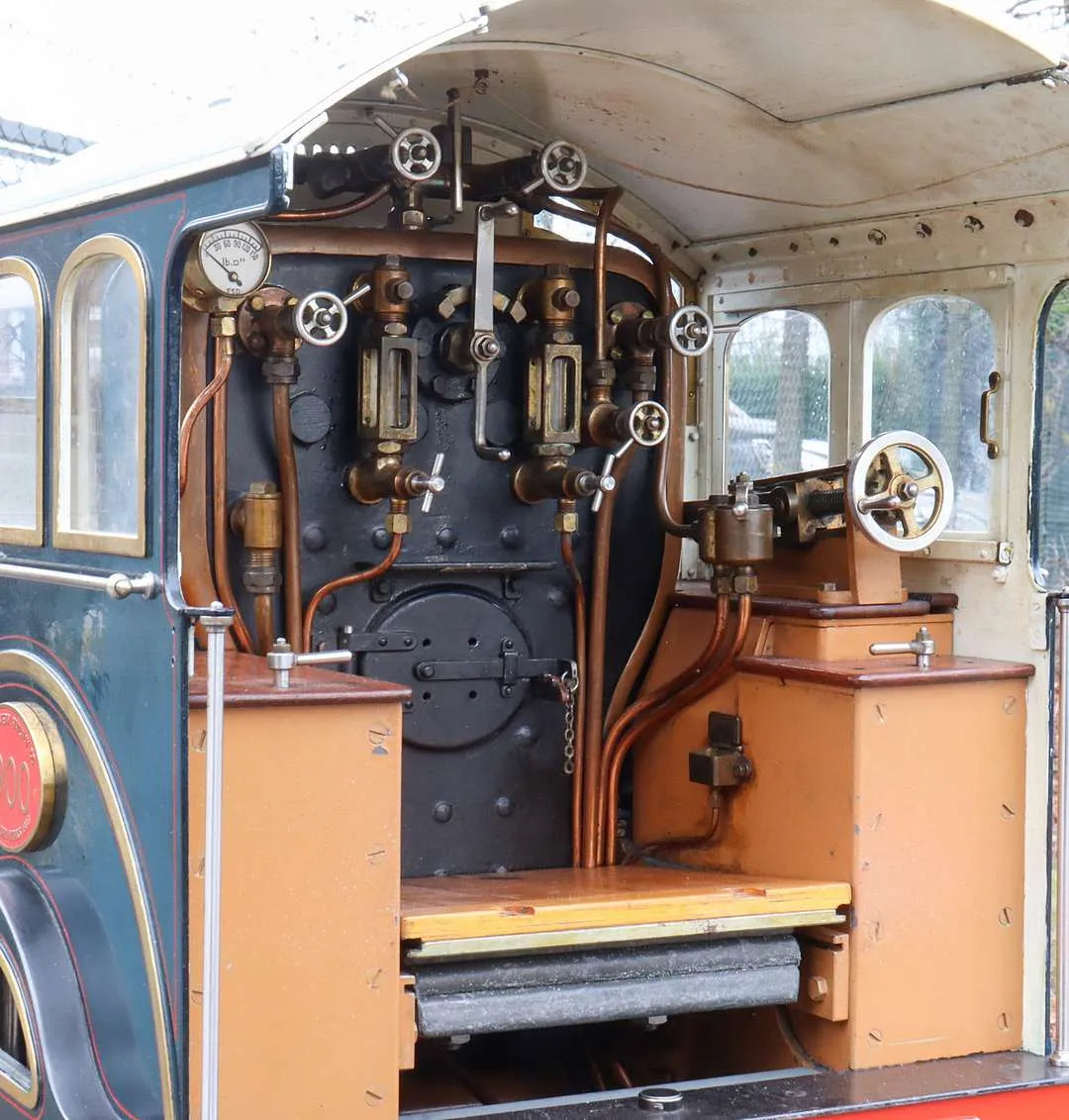

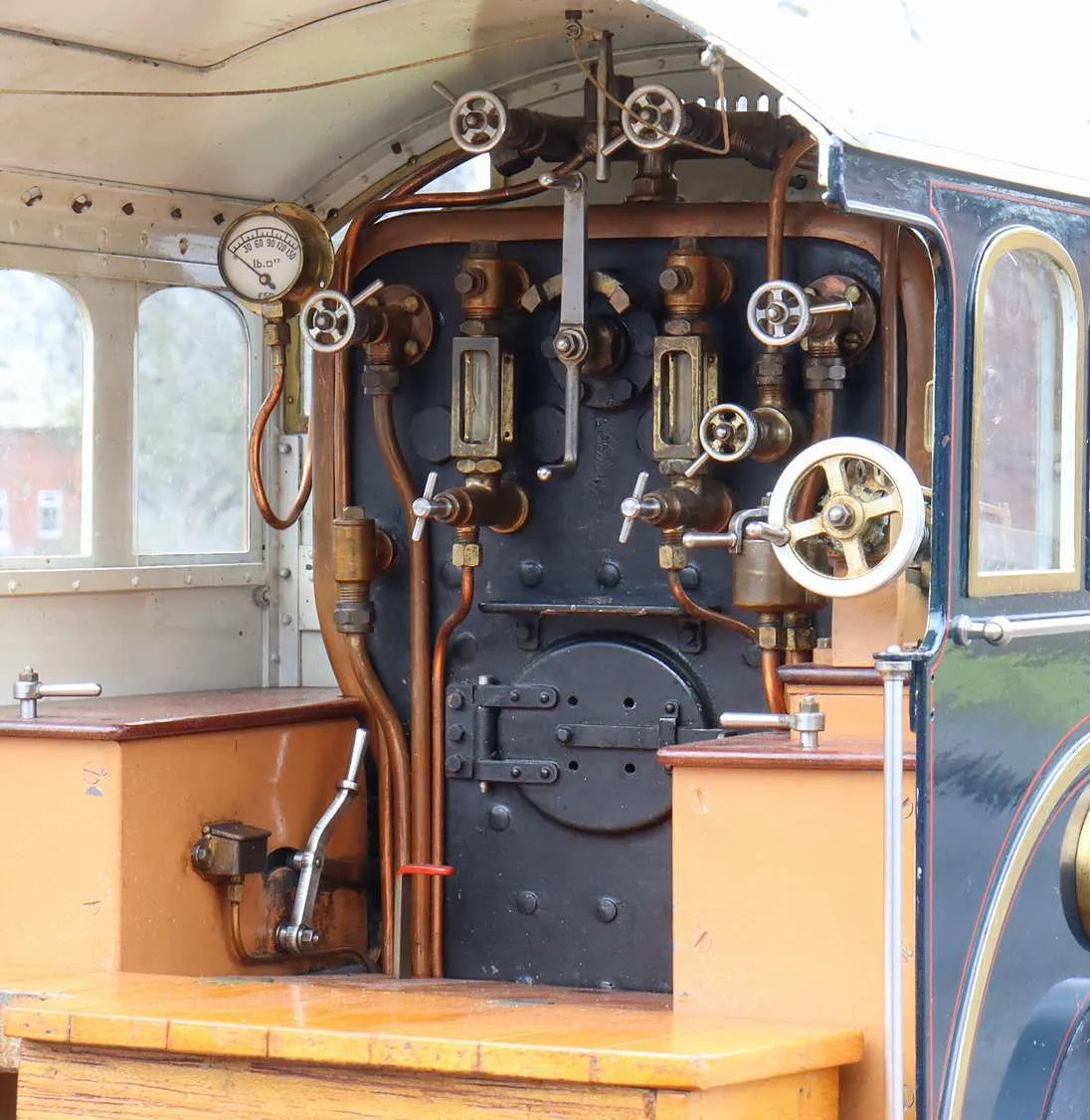

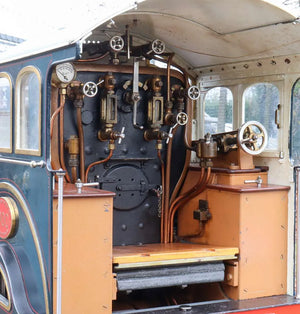

Standard of workmanship is to a high standard throughout, the backhead neatly laid out with straight pipework runs. The Great Eastern lined midnight blue paintwork remains in good condition - it presents very well.

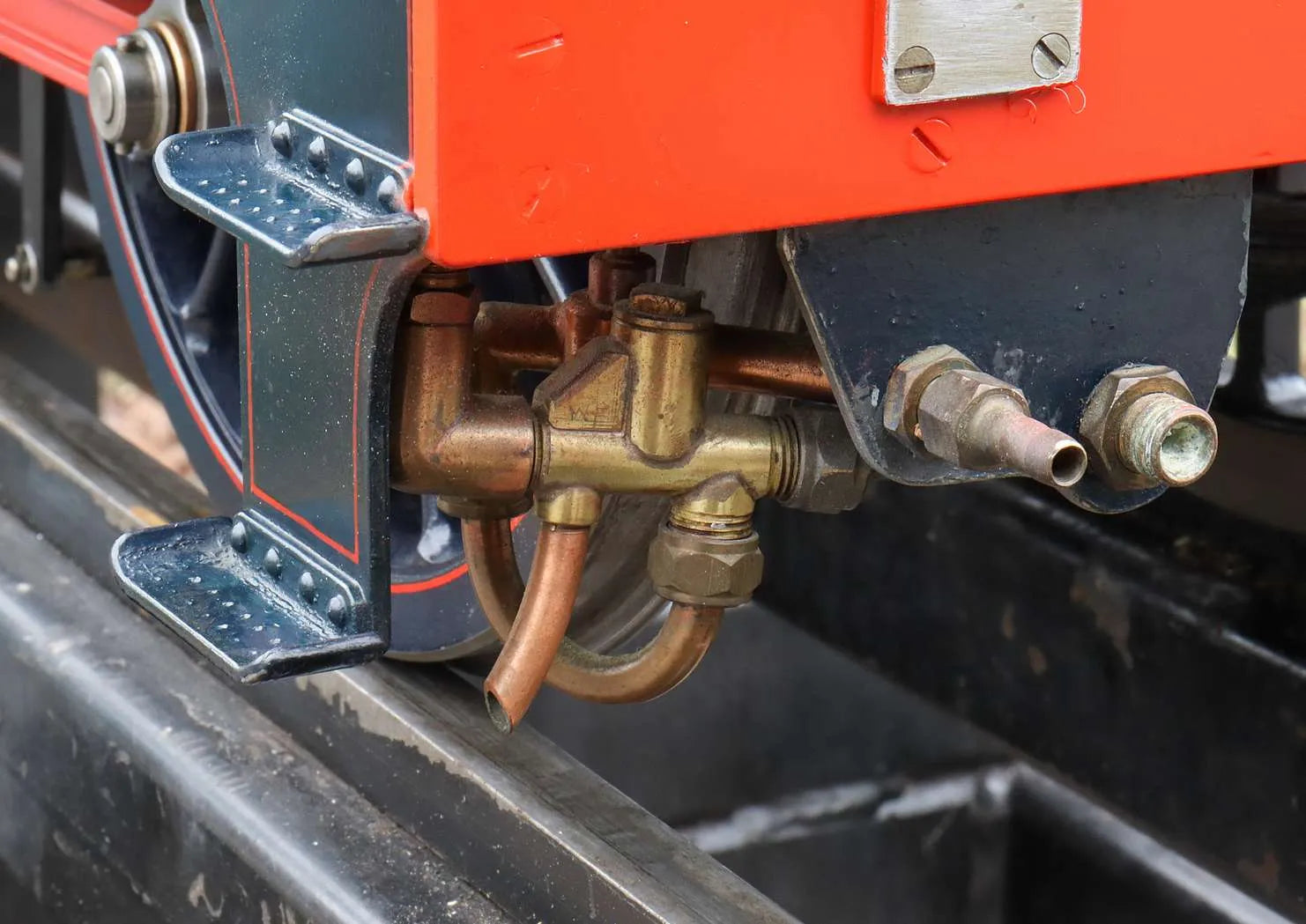

Boiler is fed by a pair of injectors which work well. It's had a recent twice working pressure hydraulic test and steam test, with new certification issued.

The locomotive is fitted with steam brakes, possible the most effective we've seen on any engine - they work beautifully.

The engine is free steaming and runs exceptionally well down to low speed, notching up nearly to mid-gear in either direction - there's some video of it on our YouTube channel here.

Technical information

Stock code

11061

Gauge

5 inch

Length/inches

38 + 21

Width/inches

10

Height/inches

14

Weight/Kg

74

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - non-commercial

Safety valve type

spring

Safety valve

2

Superheater type

flue tube

Superheater

2

Date out

Mar-23

Hydraulic test valid to

18-Dec-26

Steam test valid to

19-Apr-24
