Sold

11254

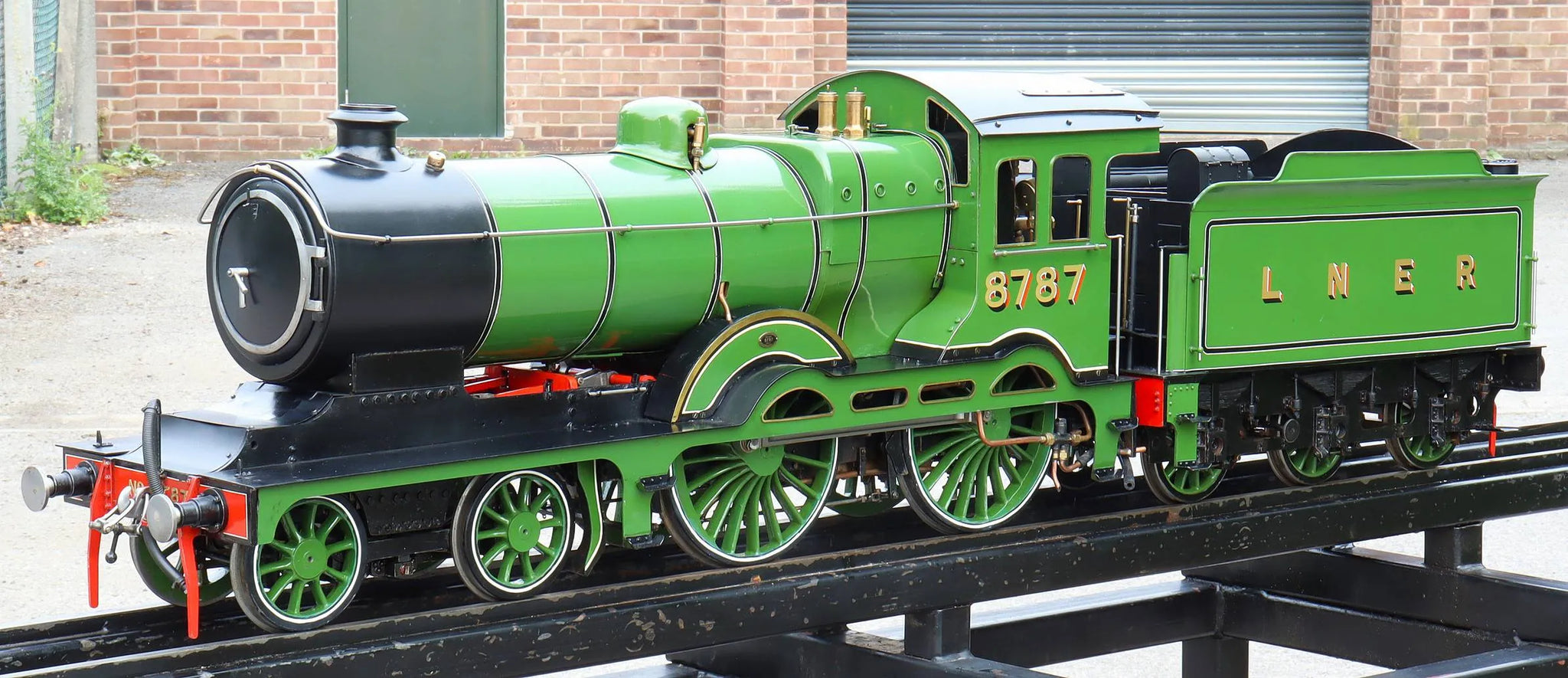

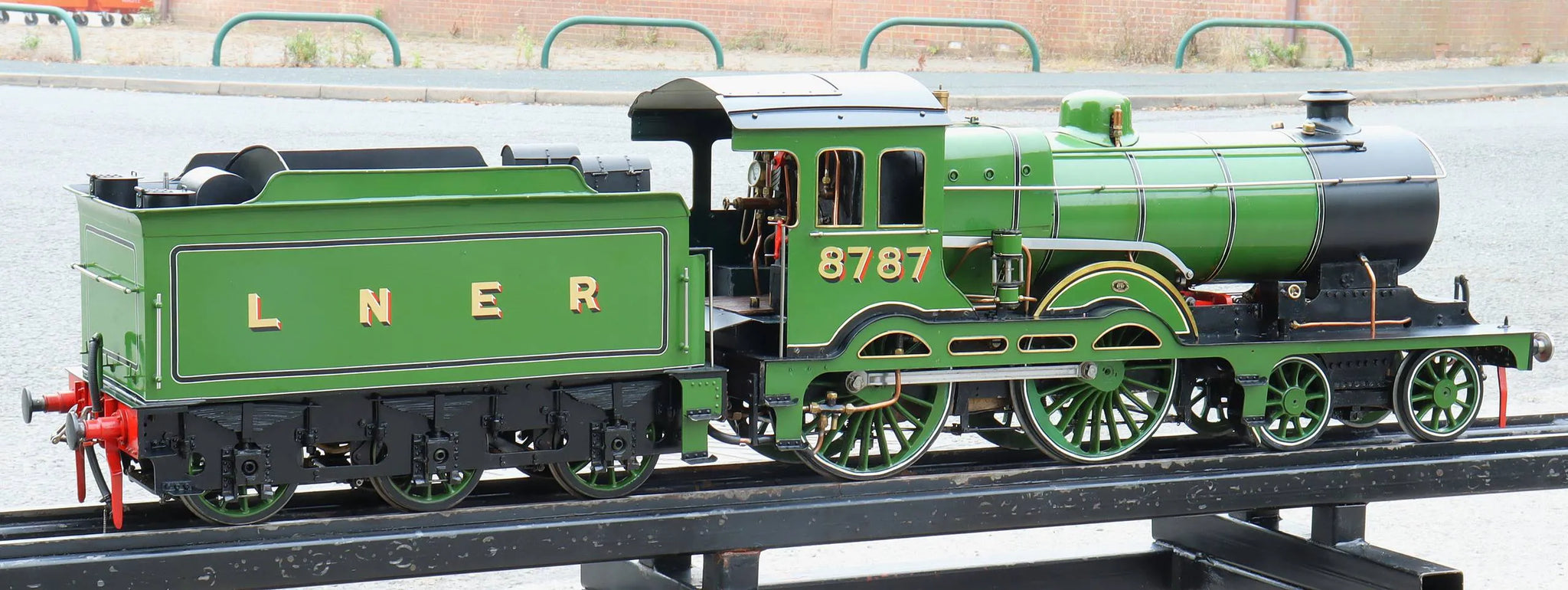

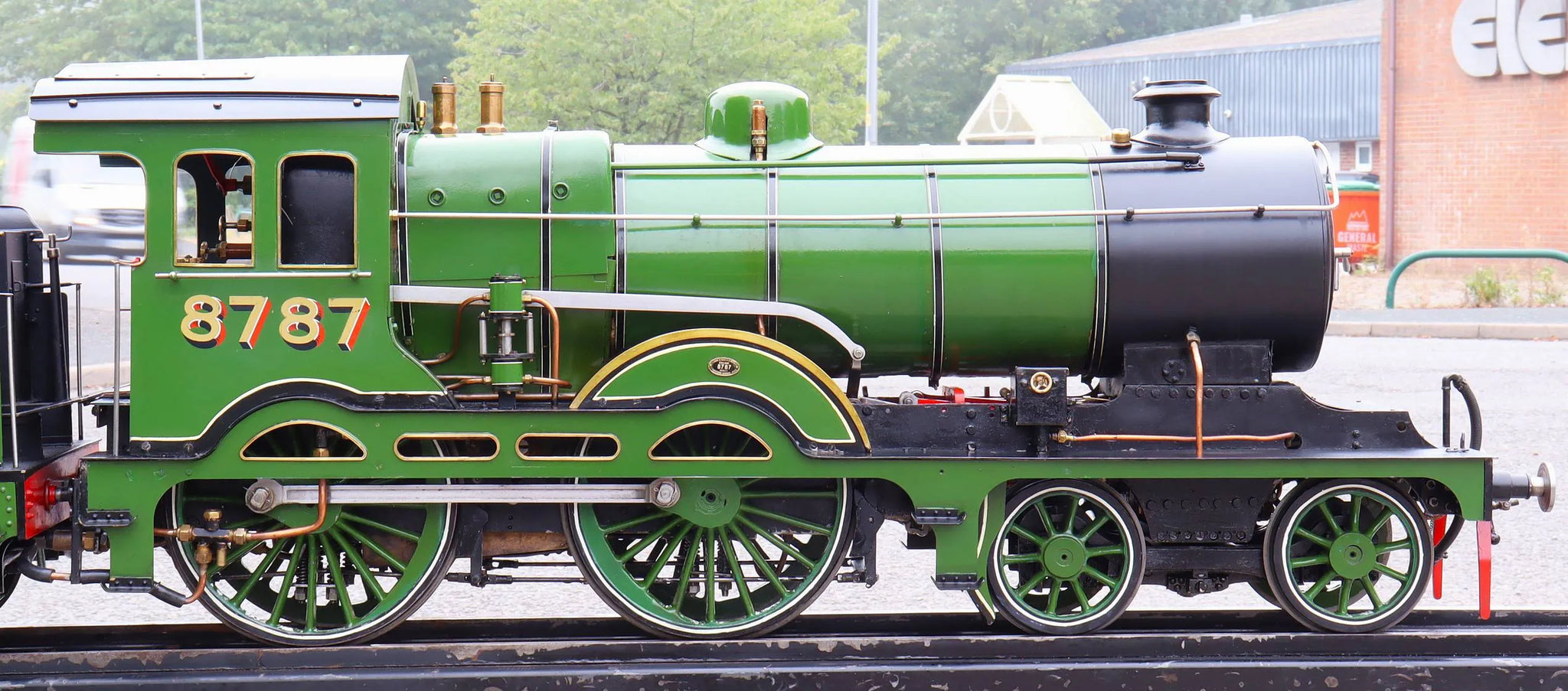

5 inch gauge "Claud Hamilton" 4-4-0

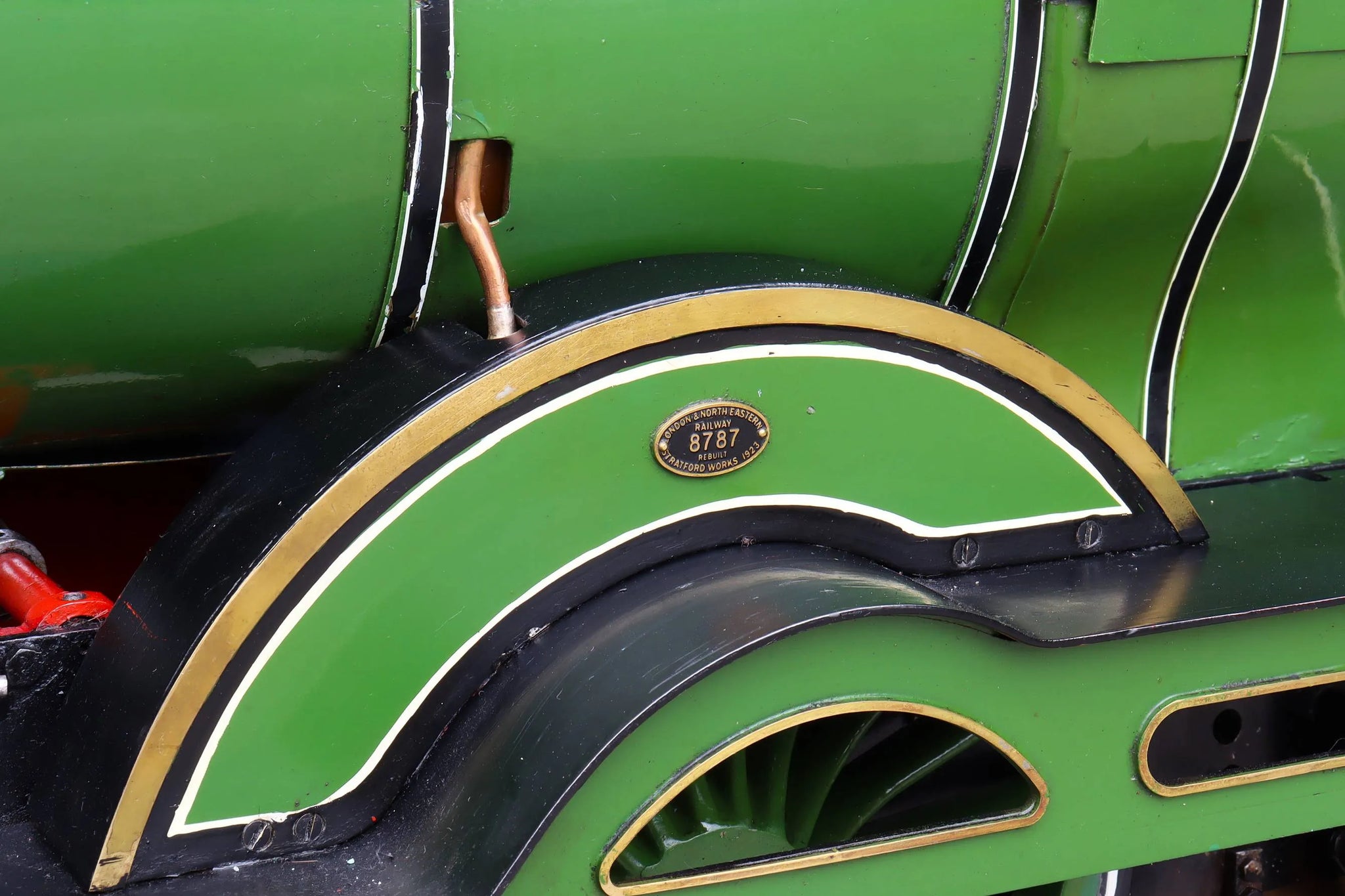

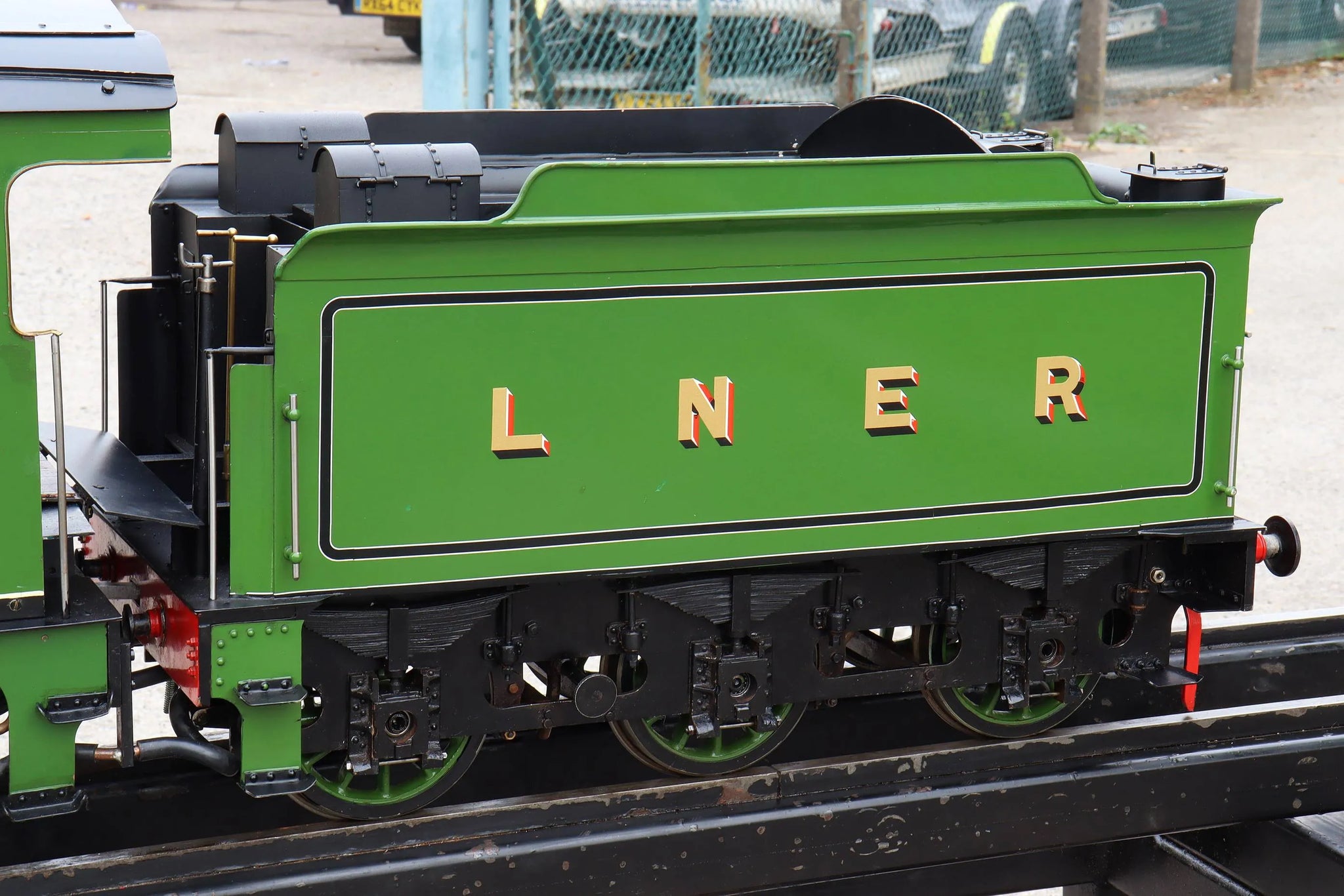

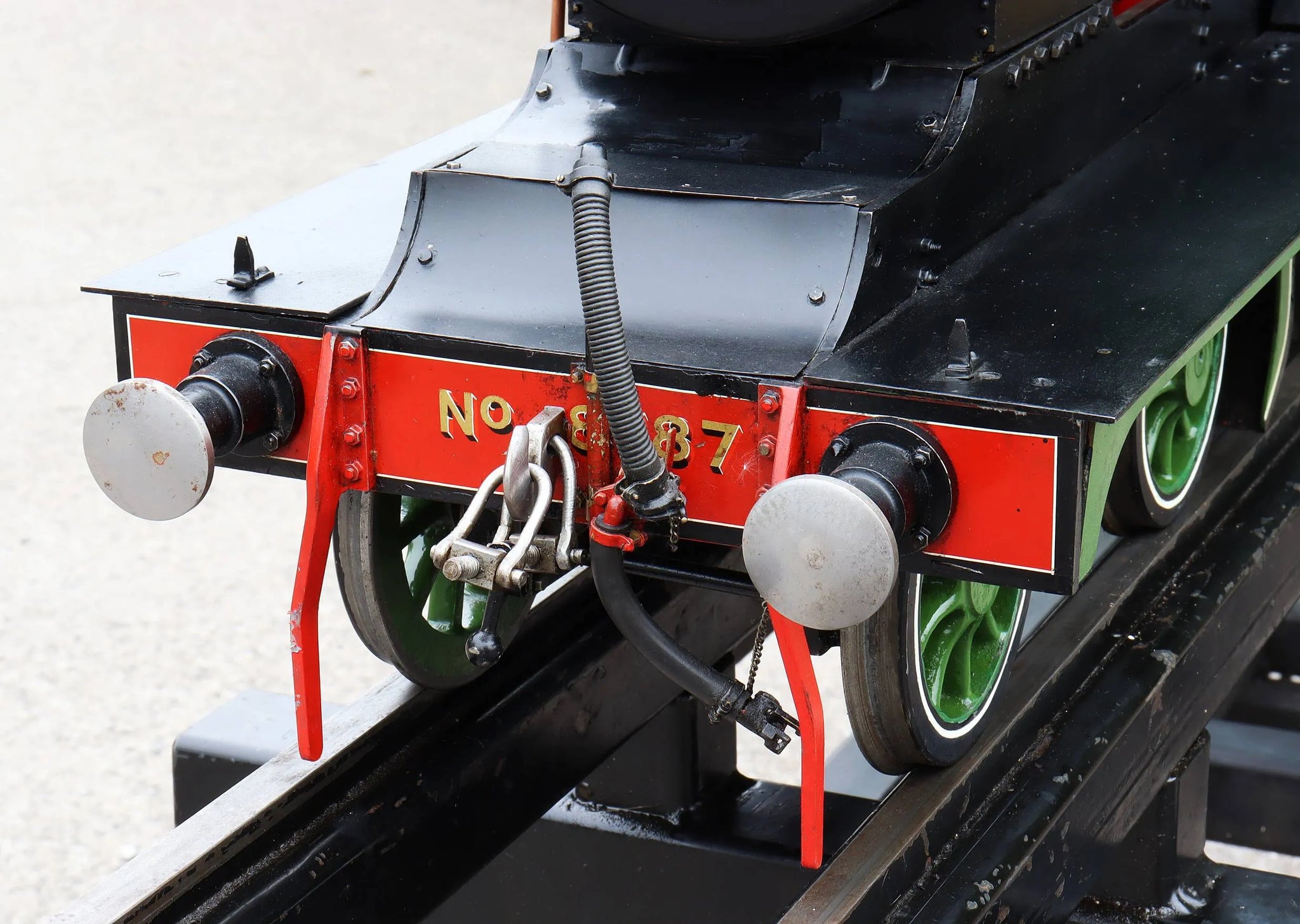

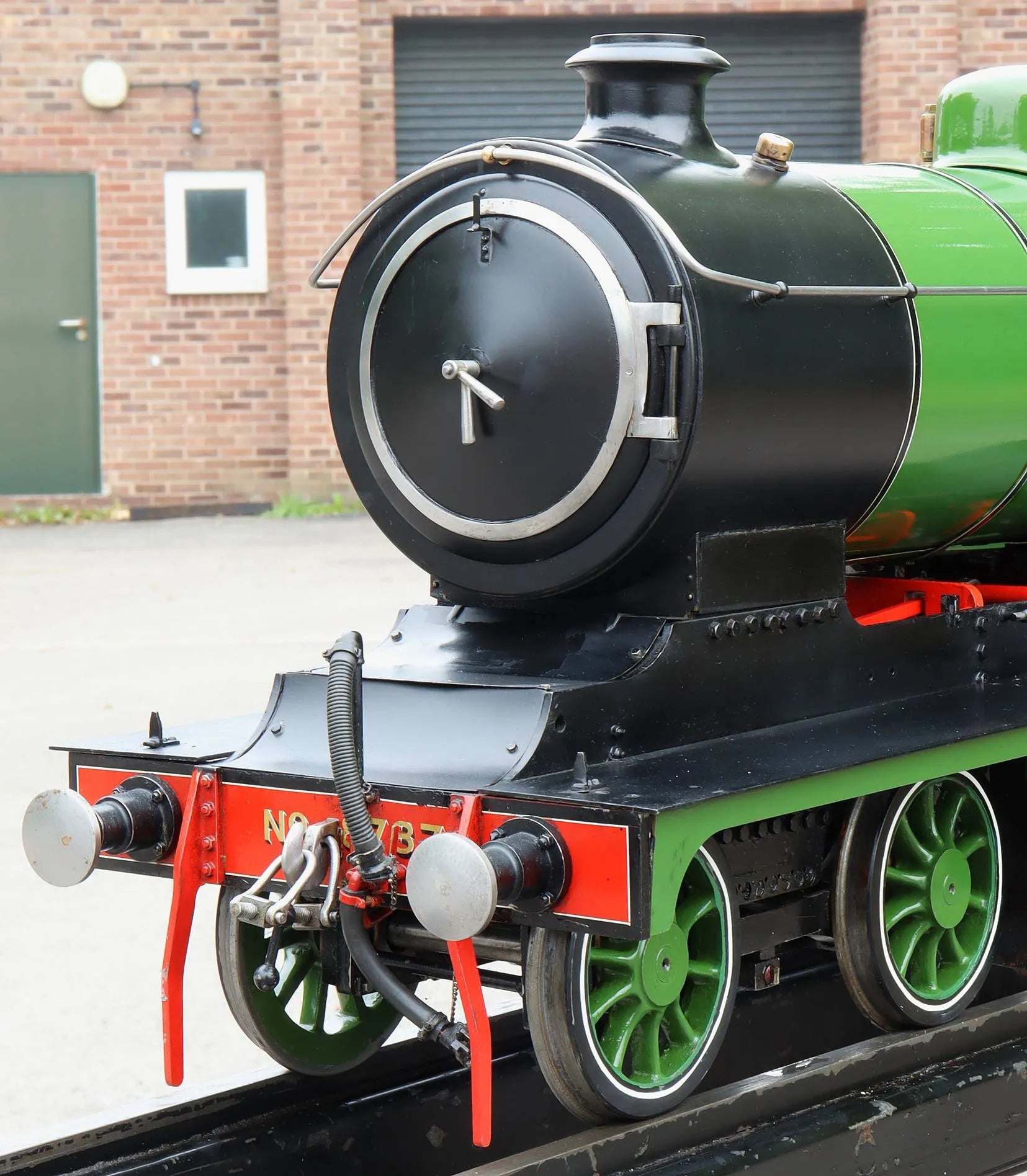

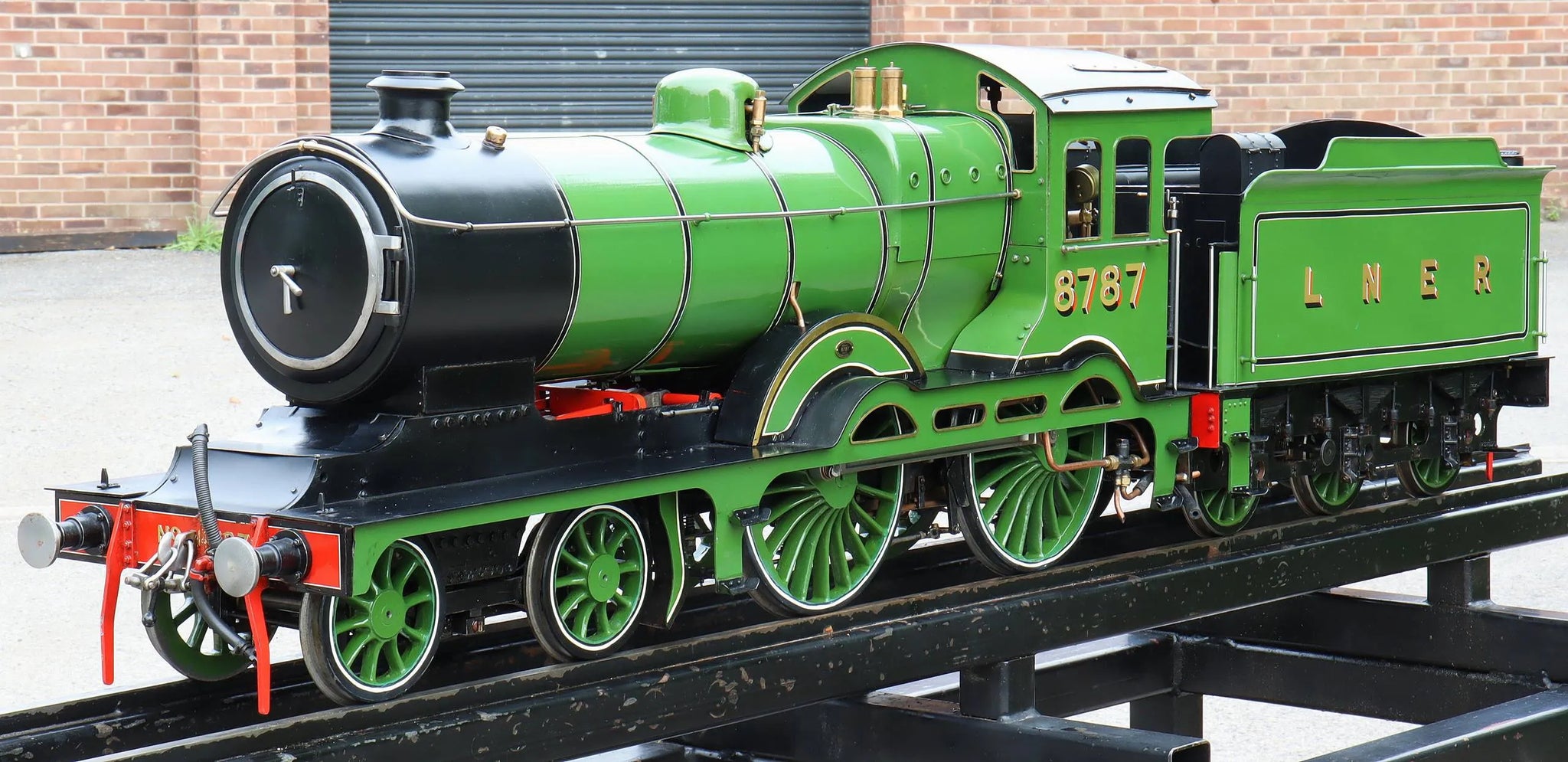

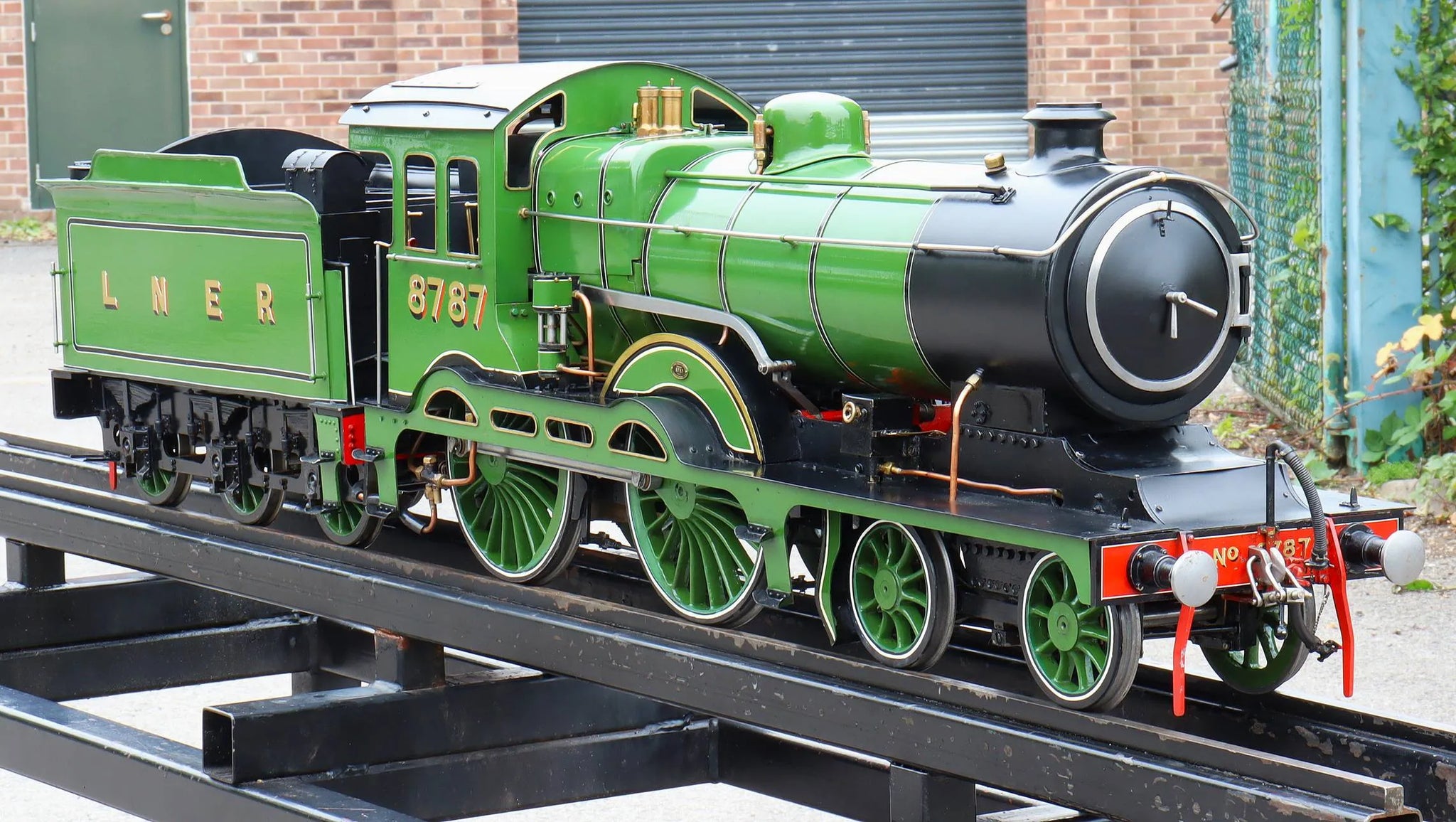

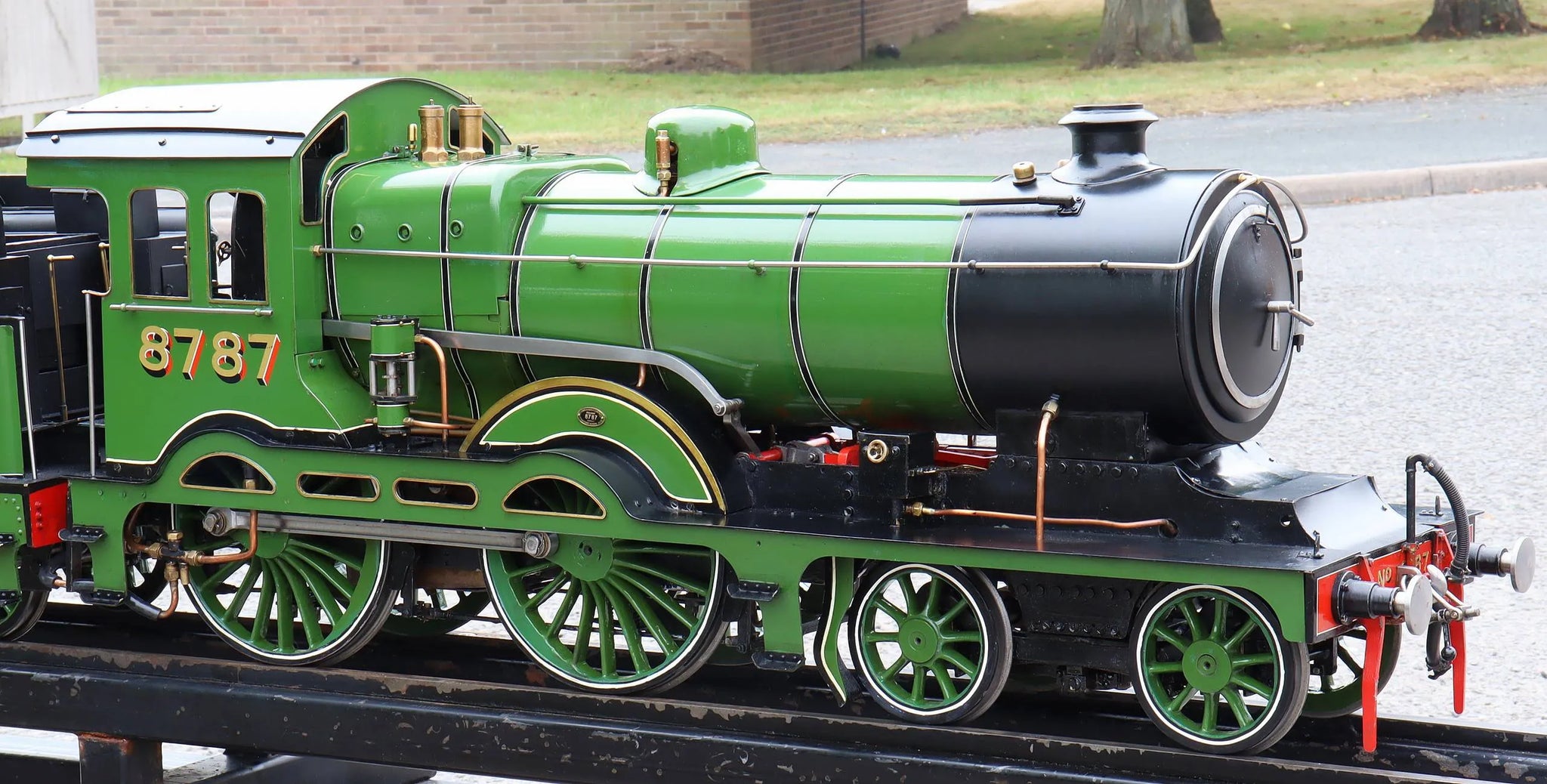

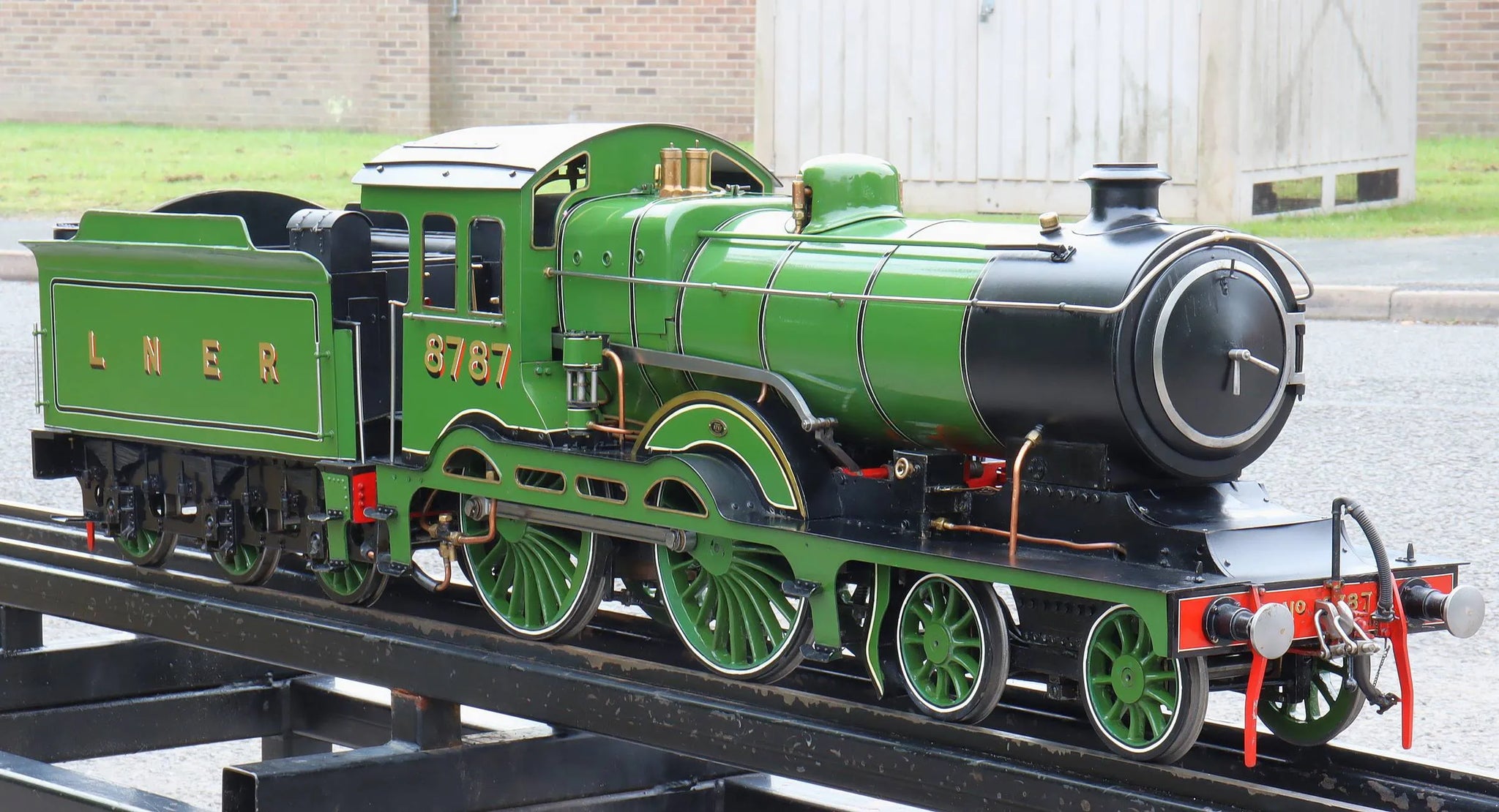

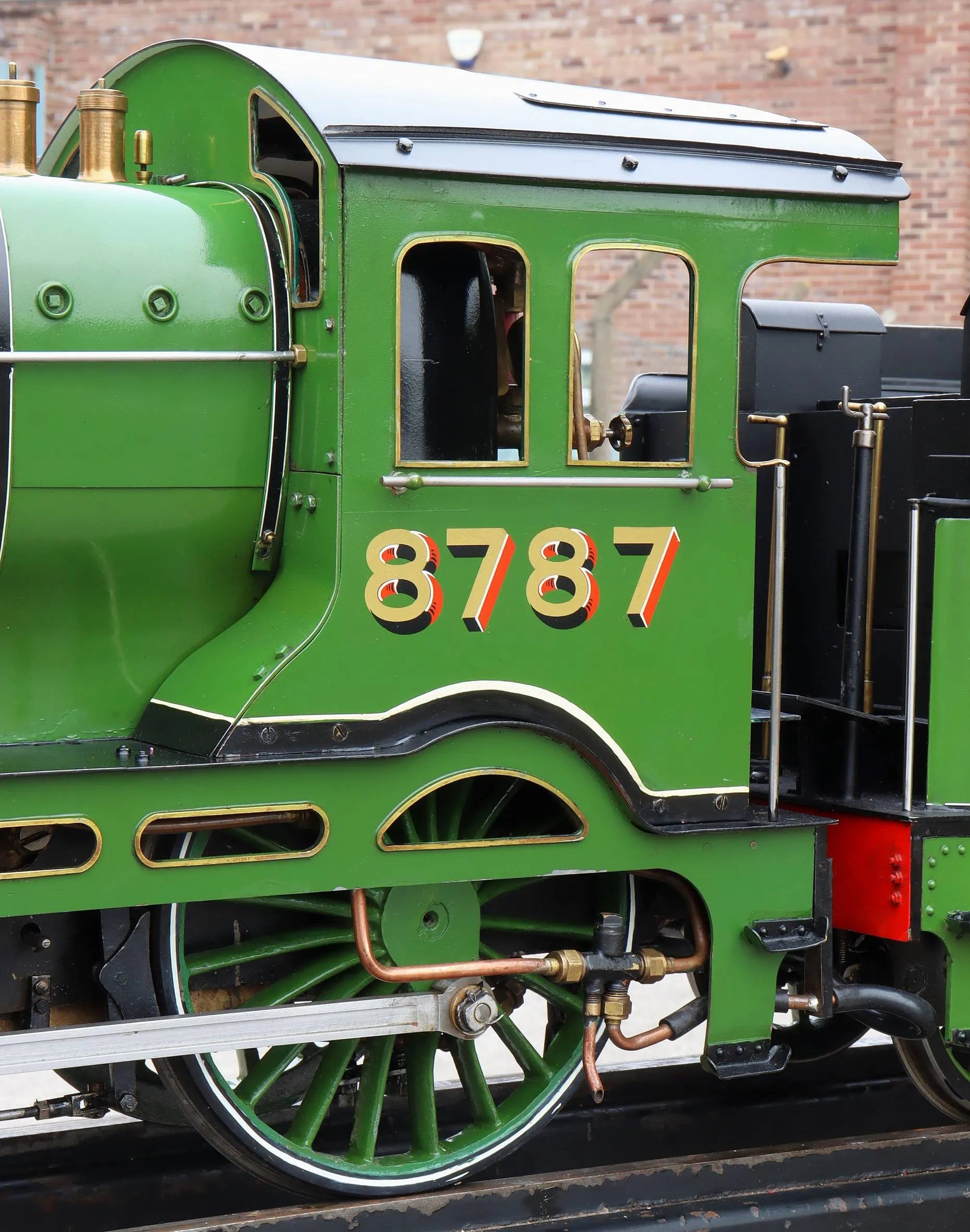

A finely made 5 inch gauge "Claud Hamilton" in LNER livery, a well-built engine that remains in good condition with bright paintwork and nicely fitted platework.

The boiler has had a hydraulic test with new certification issued, the engine rolls freely and runs well on air in either direction.

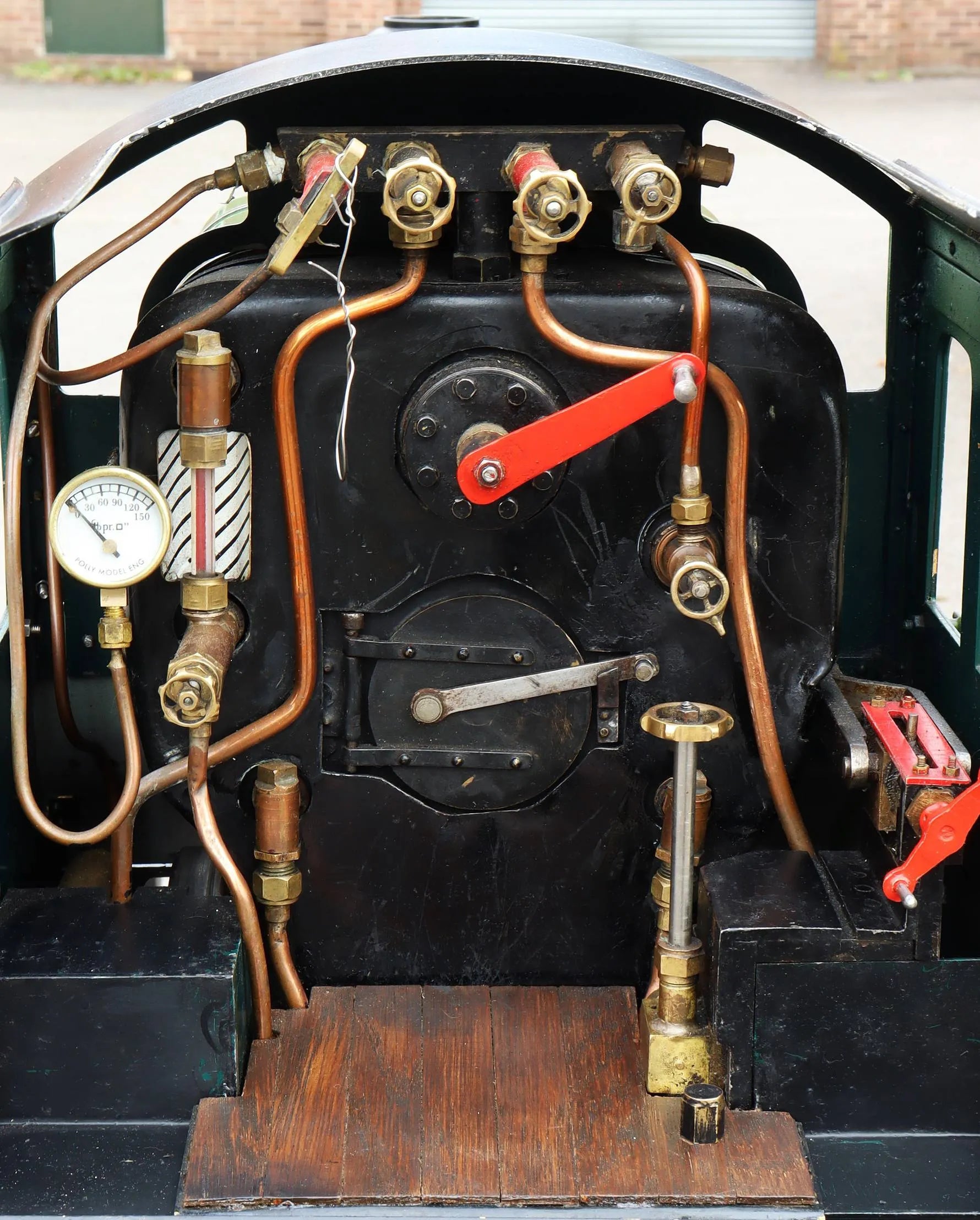

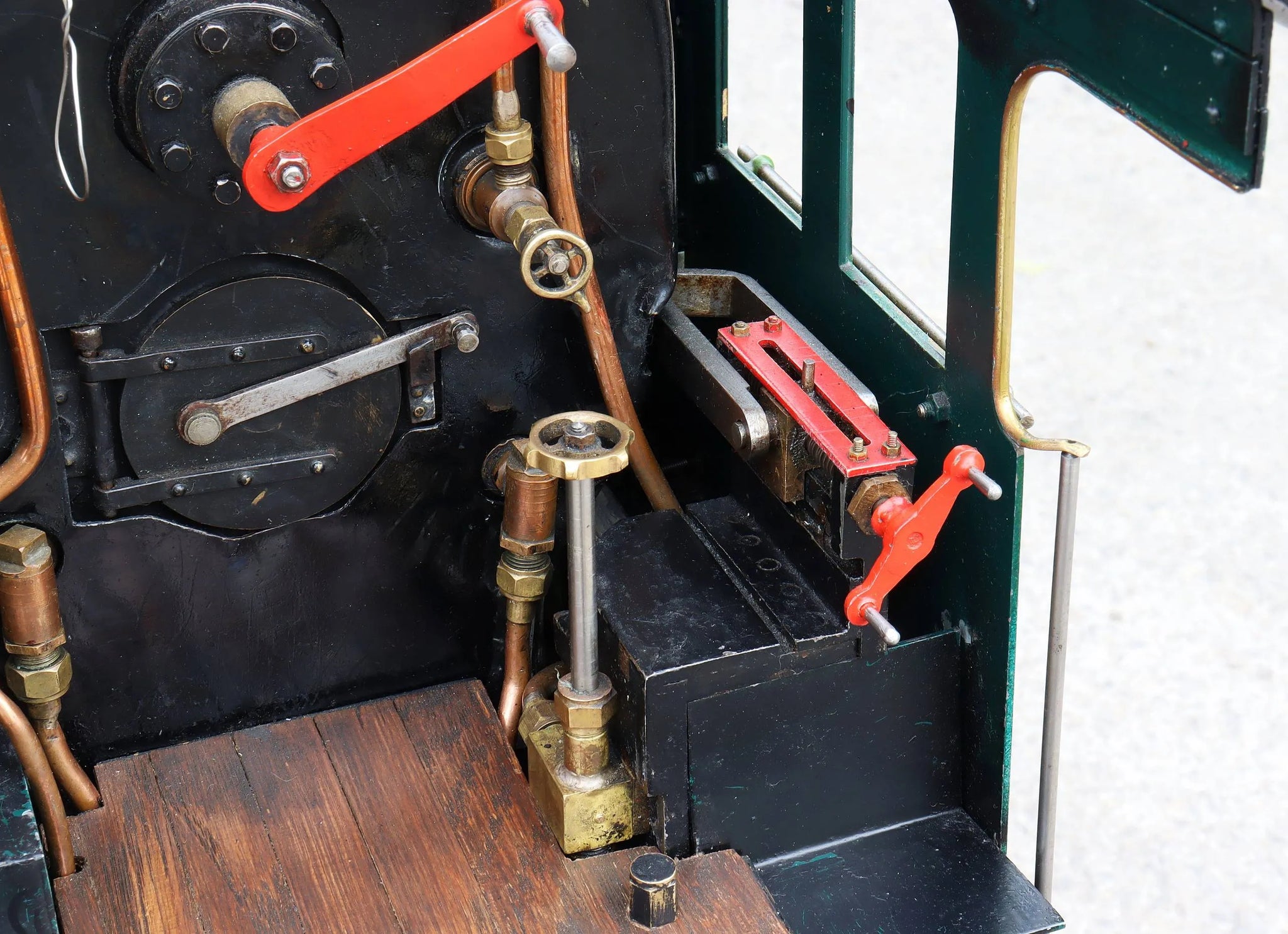

The Stroudley type regulator has, at some stage in the past seized resulting in both link arms being broken. It will need to be taken out and new arms fabricating and fitting.

A worthwhile project, the work required more time-consuming than expensive in parts.

Technical information

Stock code

11254

Gauge

5 inch

Length/inches

37 + 22

Width/inches

10

Height/inches

15

Weight/Kg

72

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Boiler maker

R.Chambers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Year built

1997

Boiler number

RC310

Safety valve type

spring

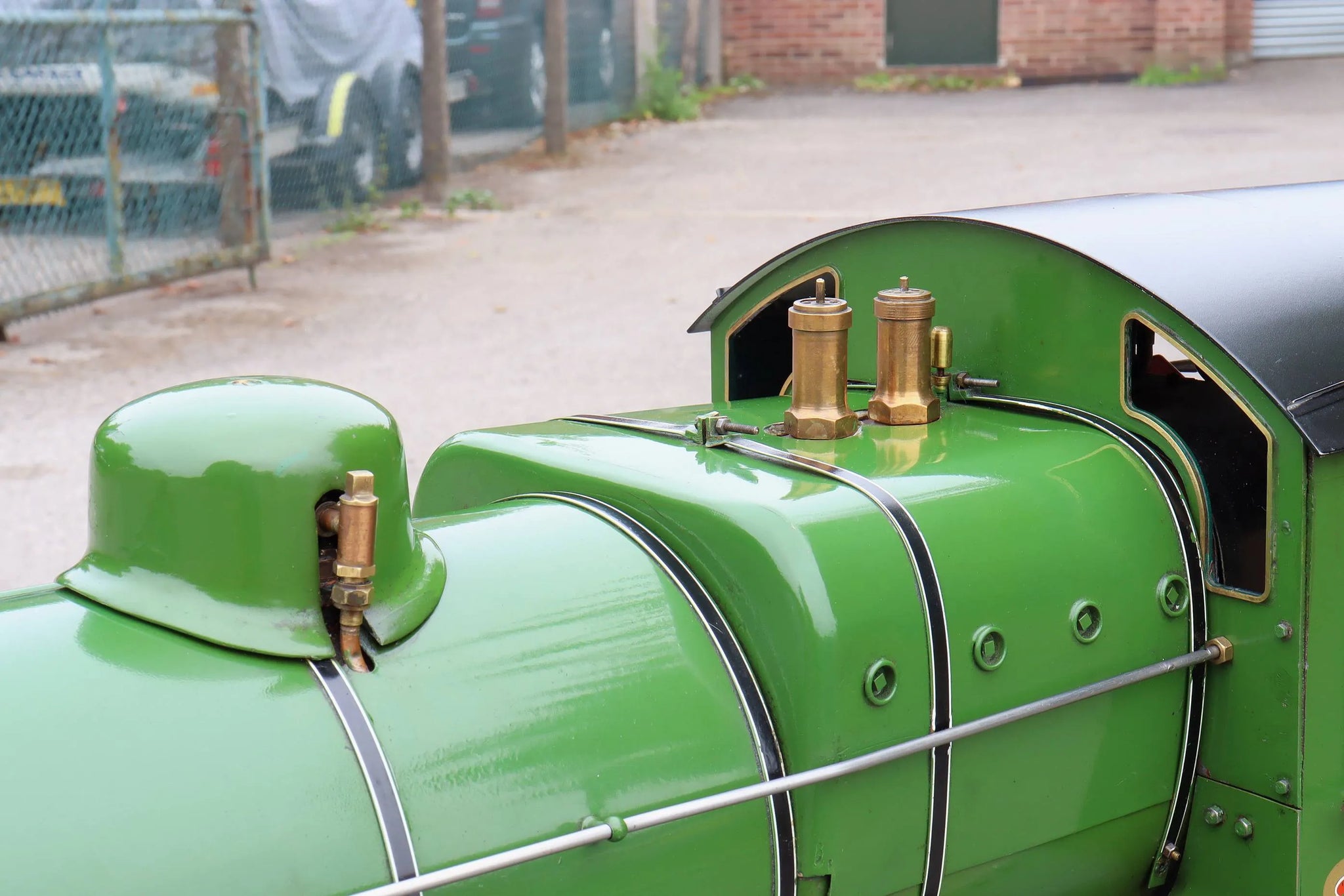

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

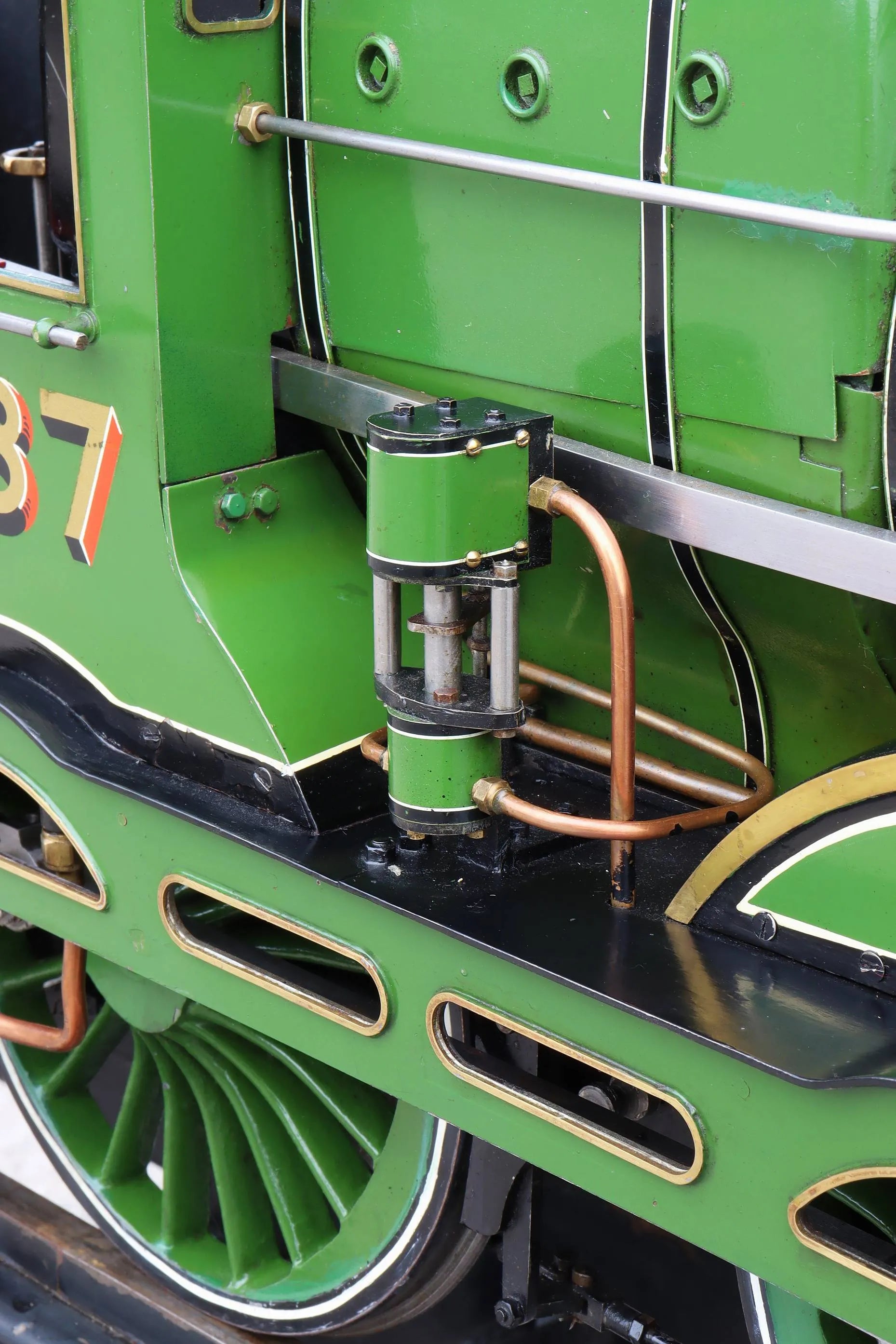

Mechanical pump

1

Injector

2

Superheater type

flue tube

Superheater

2

Date out

Jul-25

Hydraulic test valid to

29-Mar-27
