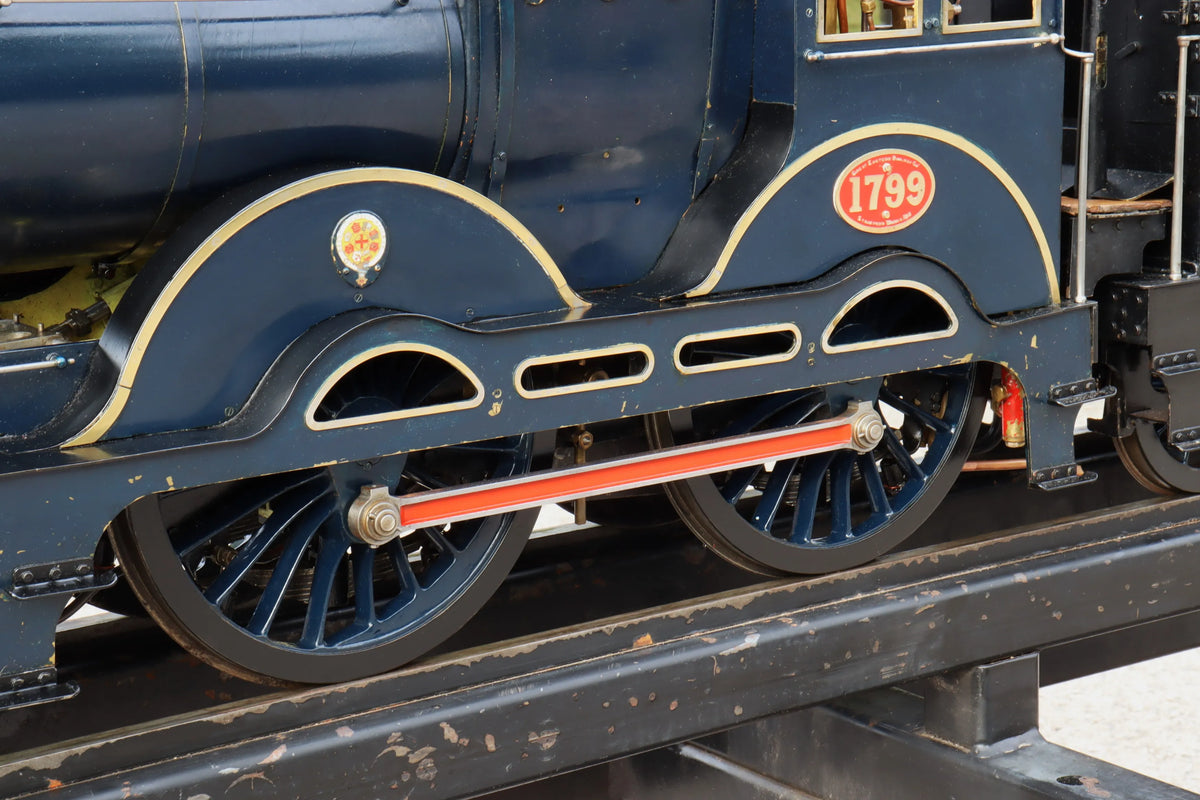

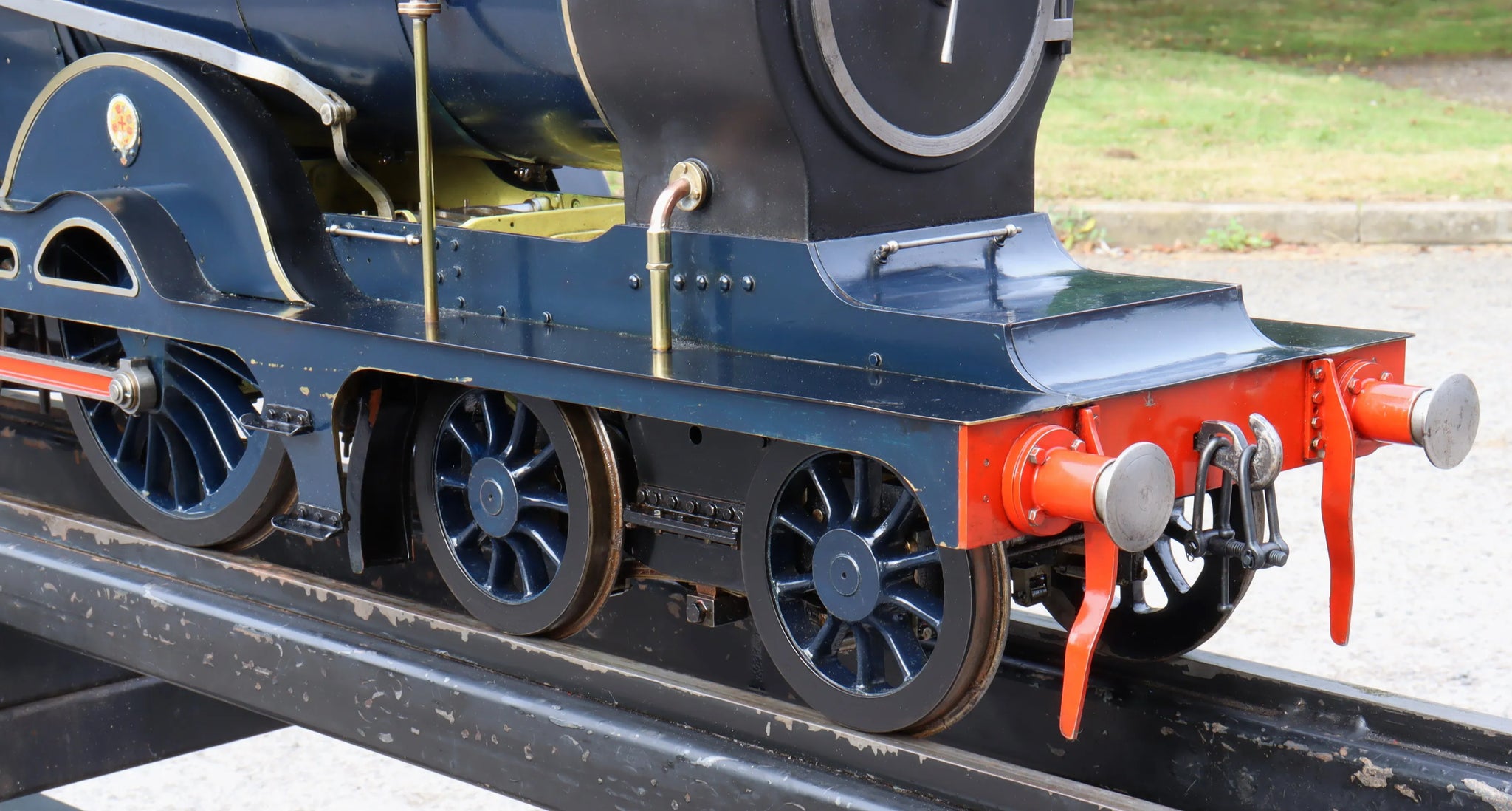

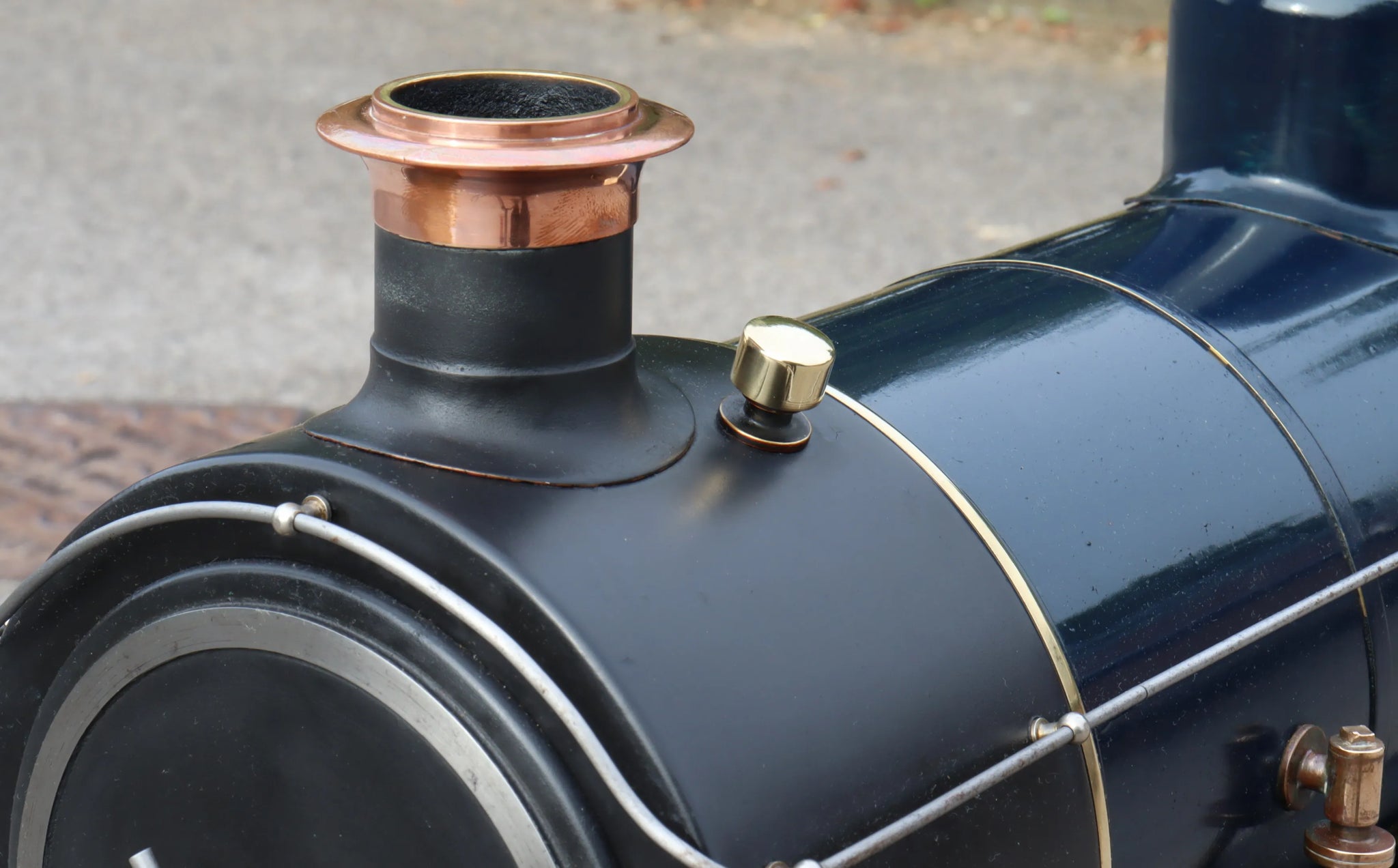

5 inch gauge ''Claud Hamilton'' 4-4-0

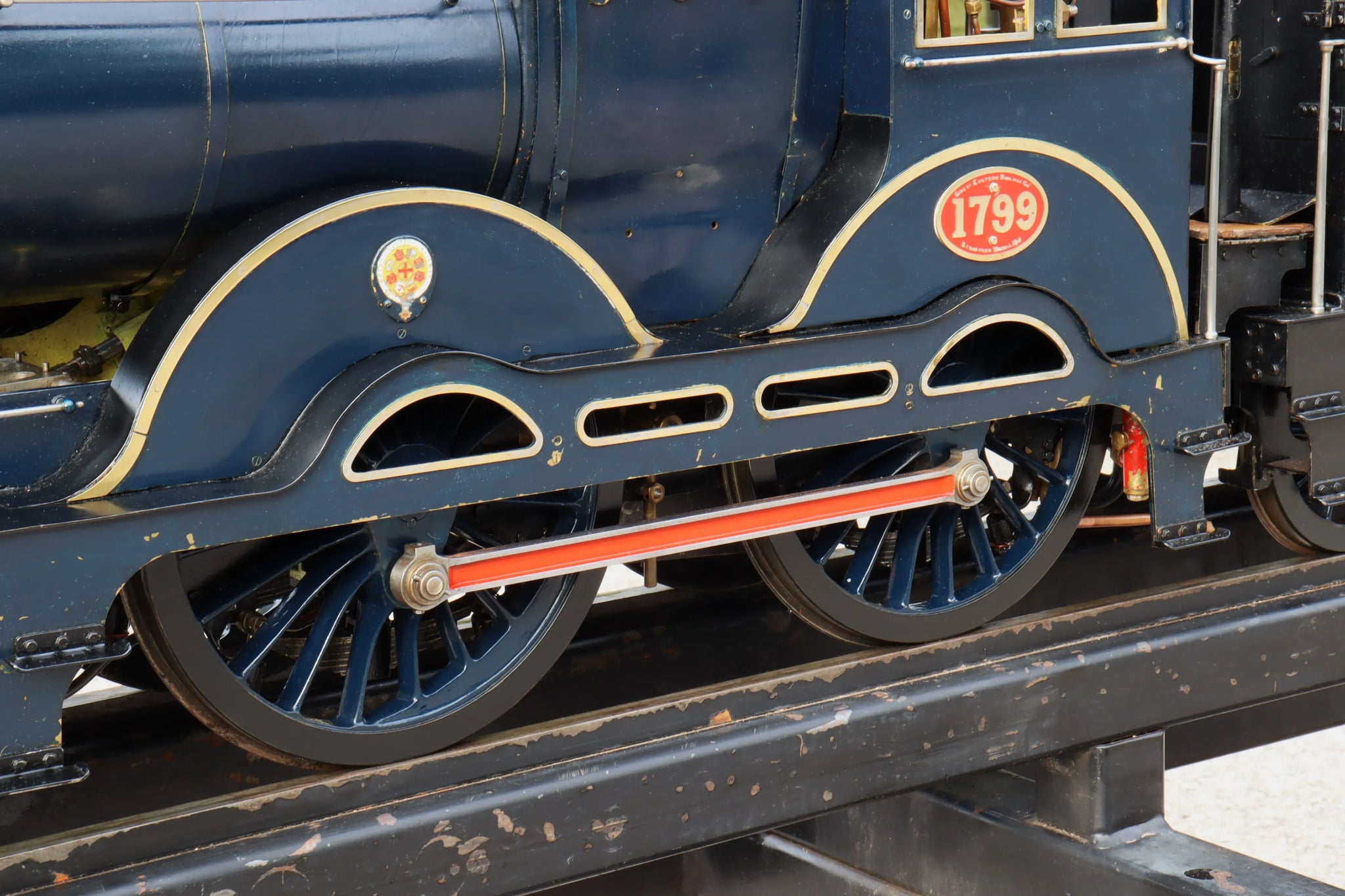

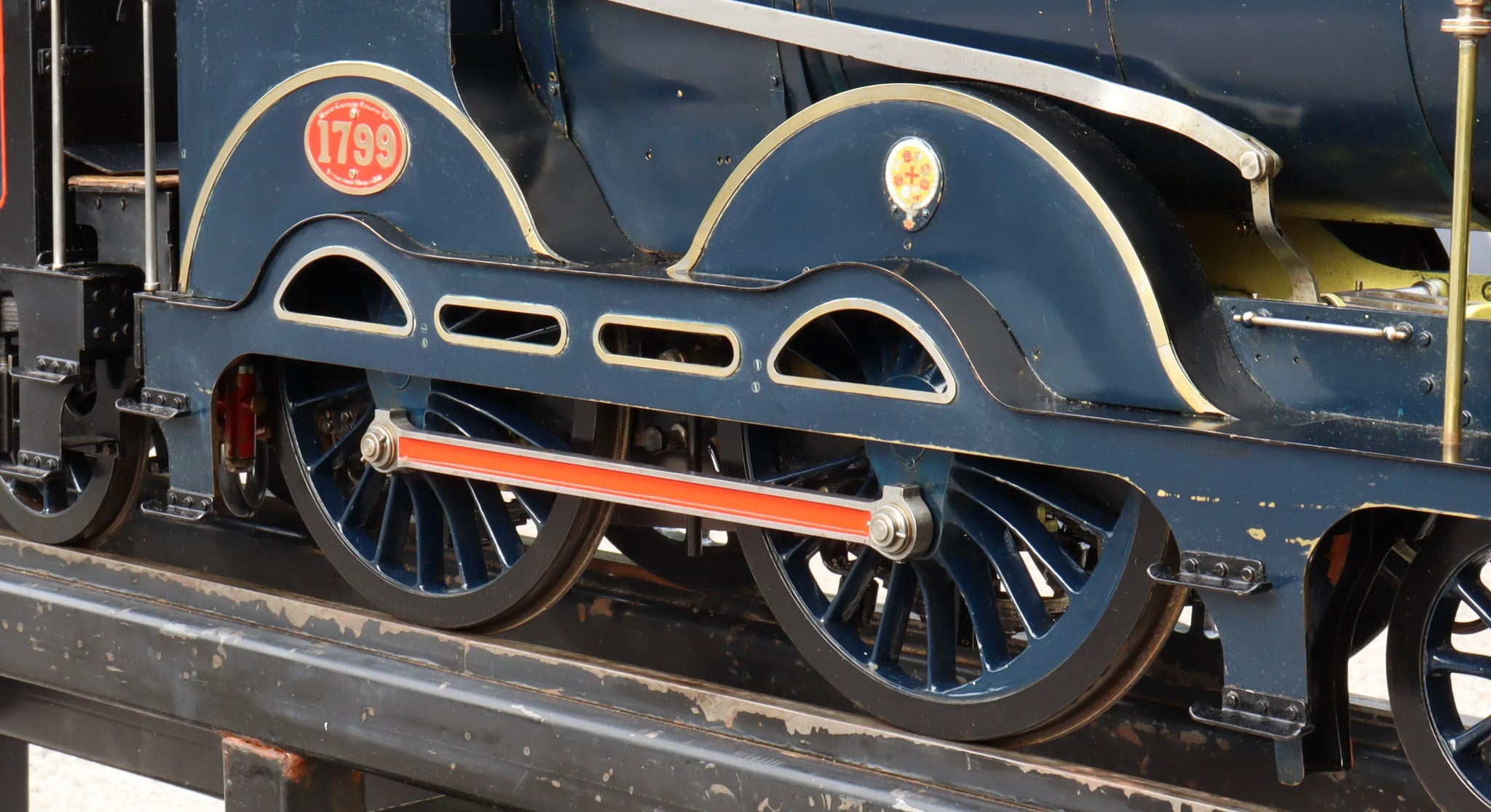

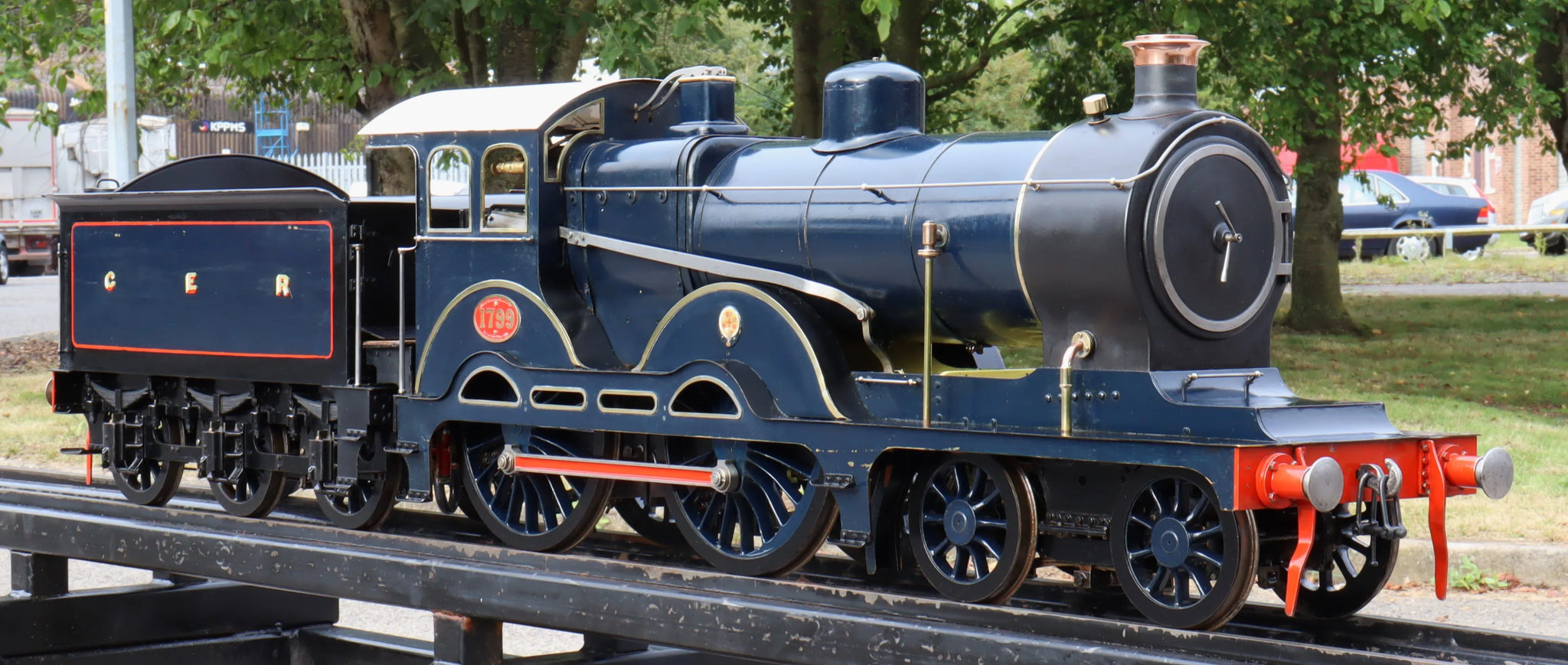

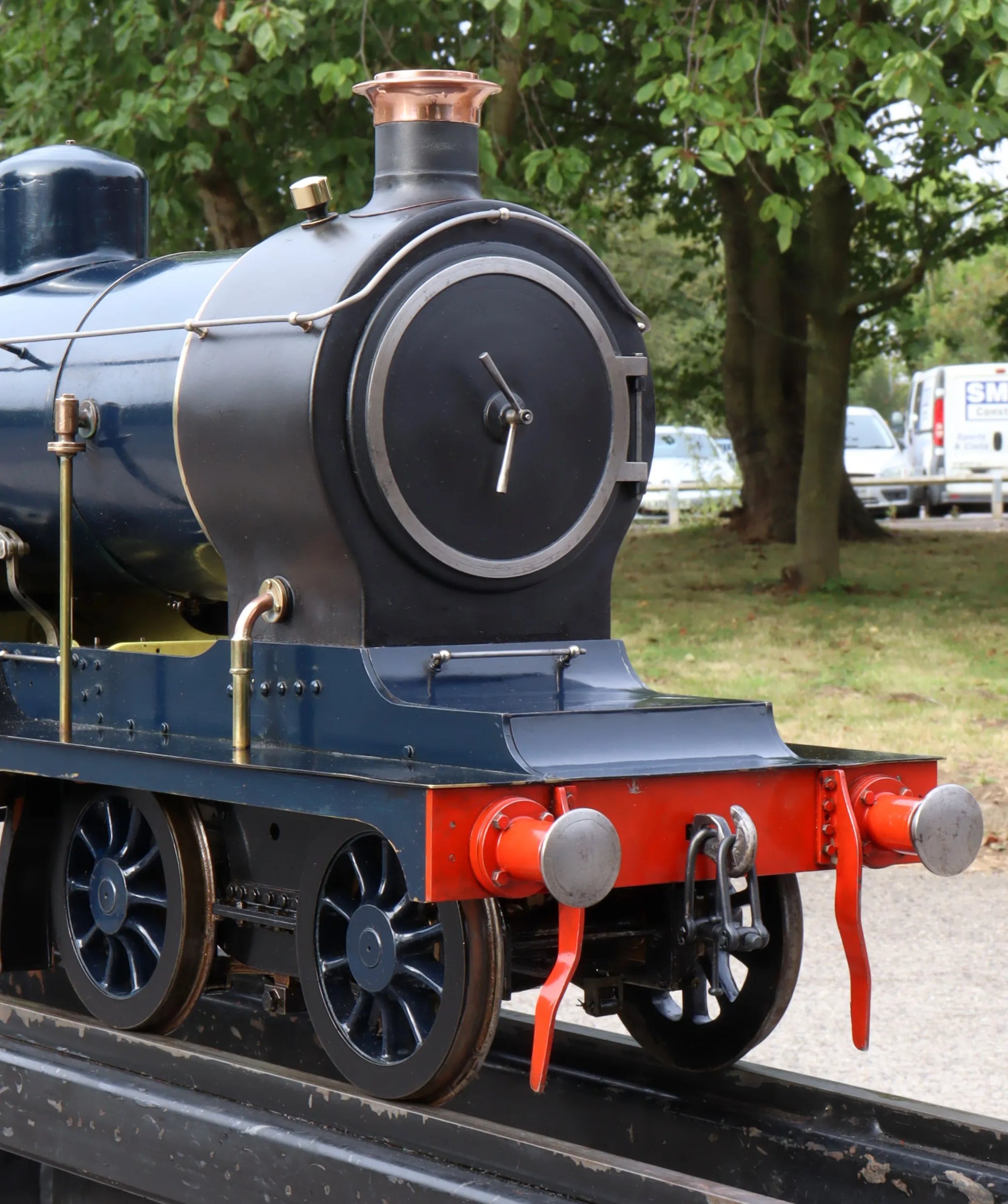

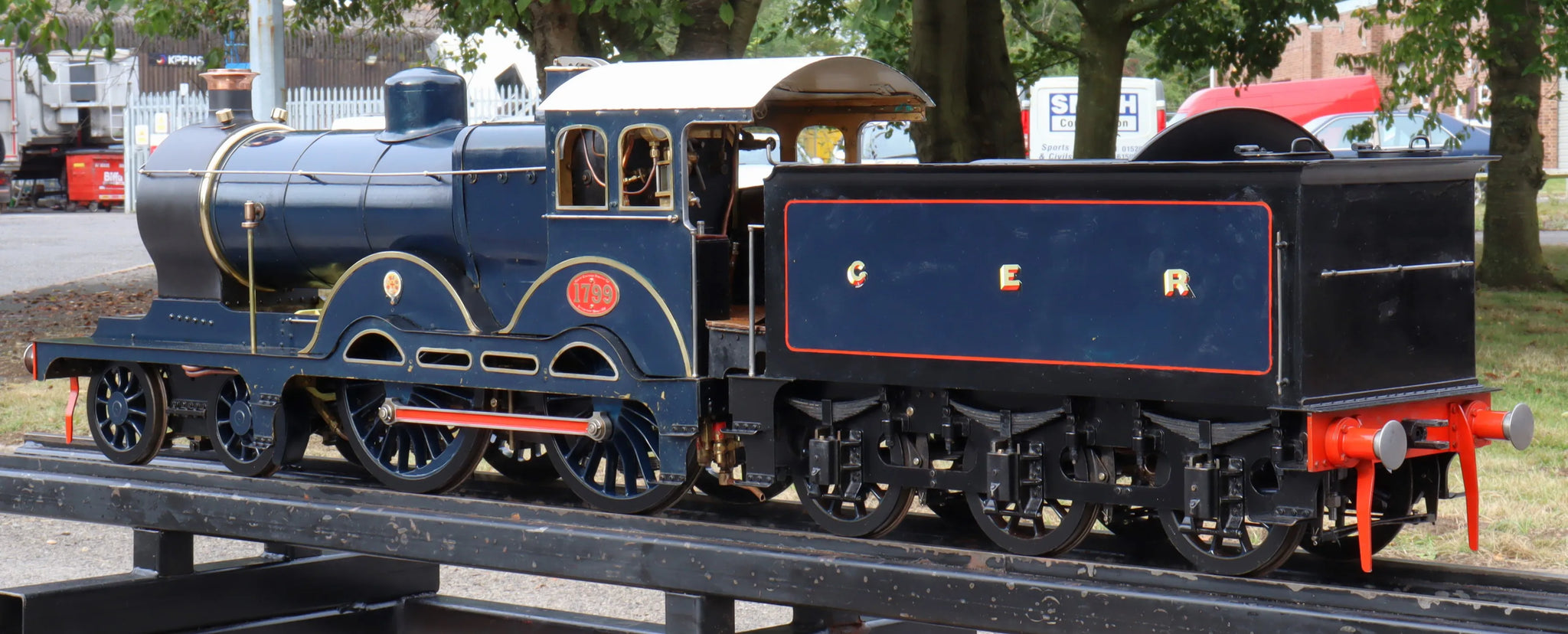

A 5 inch gauge Great Eastern D56 4-4-0 "Claud Hamilton". Designed by James Holden for the Great Eastern Railway, the first of the class No.1900 "Claud Hamilton" was out-shopped in 1900. A handsome design featuring 7 foot diameter driving wheels, it won a Gold Medal at the Paris Exhibition of that year - at that time it was the GER's largest express locomotive.

A well-built model, this one has impressed us with its performance - free-steaming, it ran beautifully on the rolling road, maintaining water and pressure without need of the blower throughout the test.

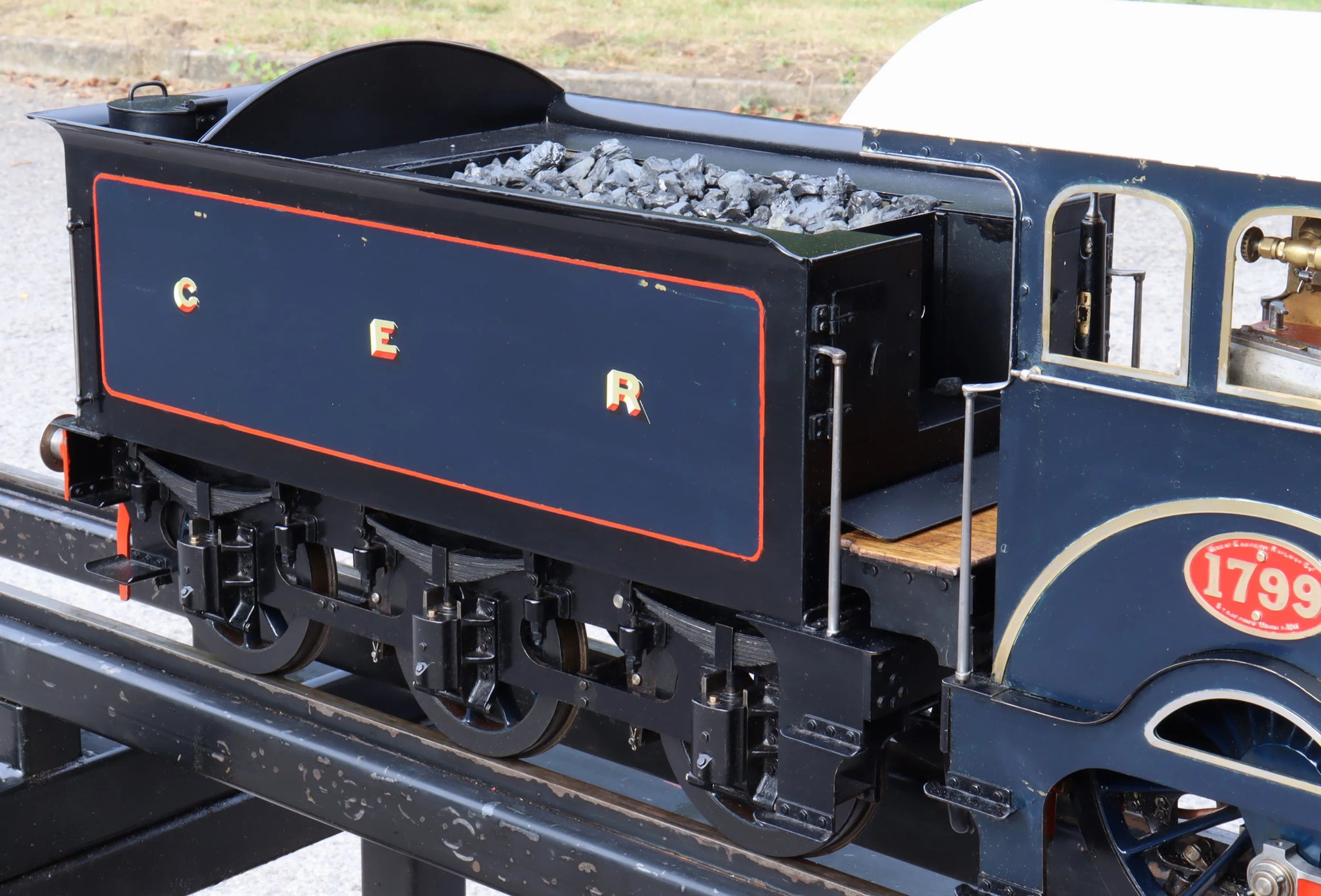

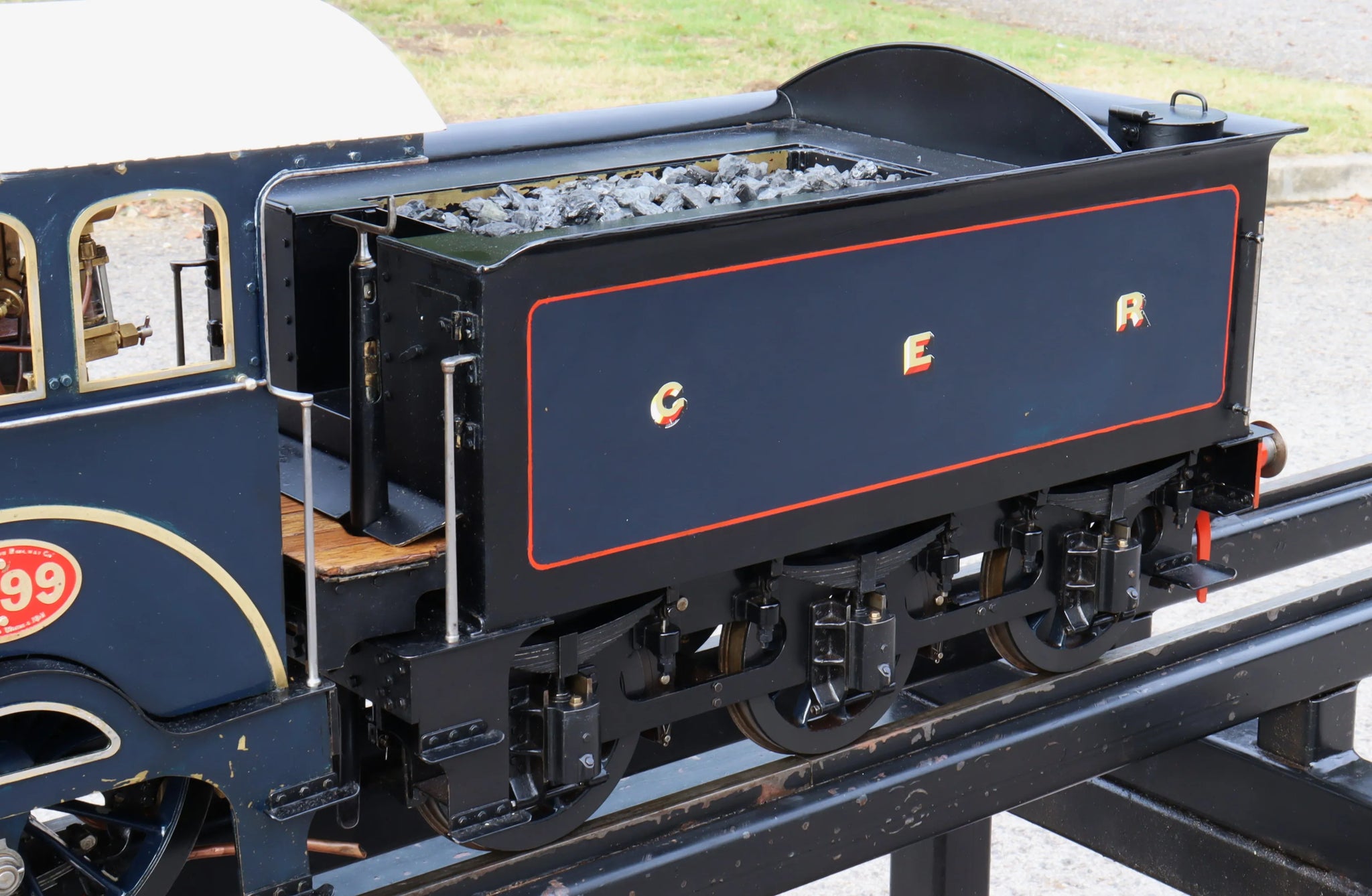

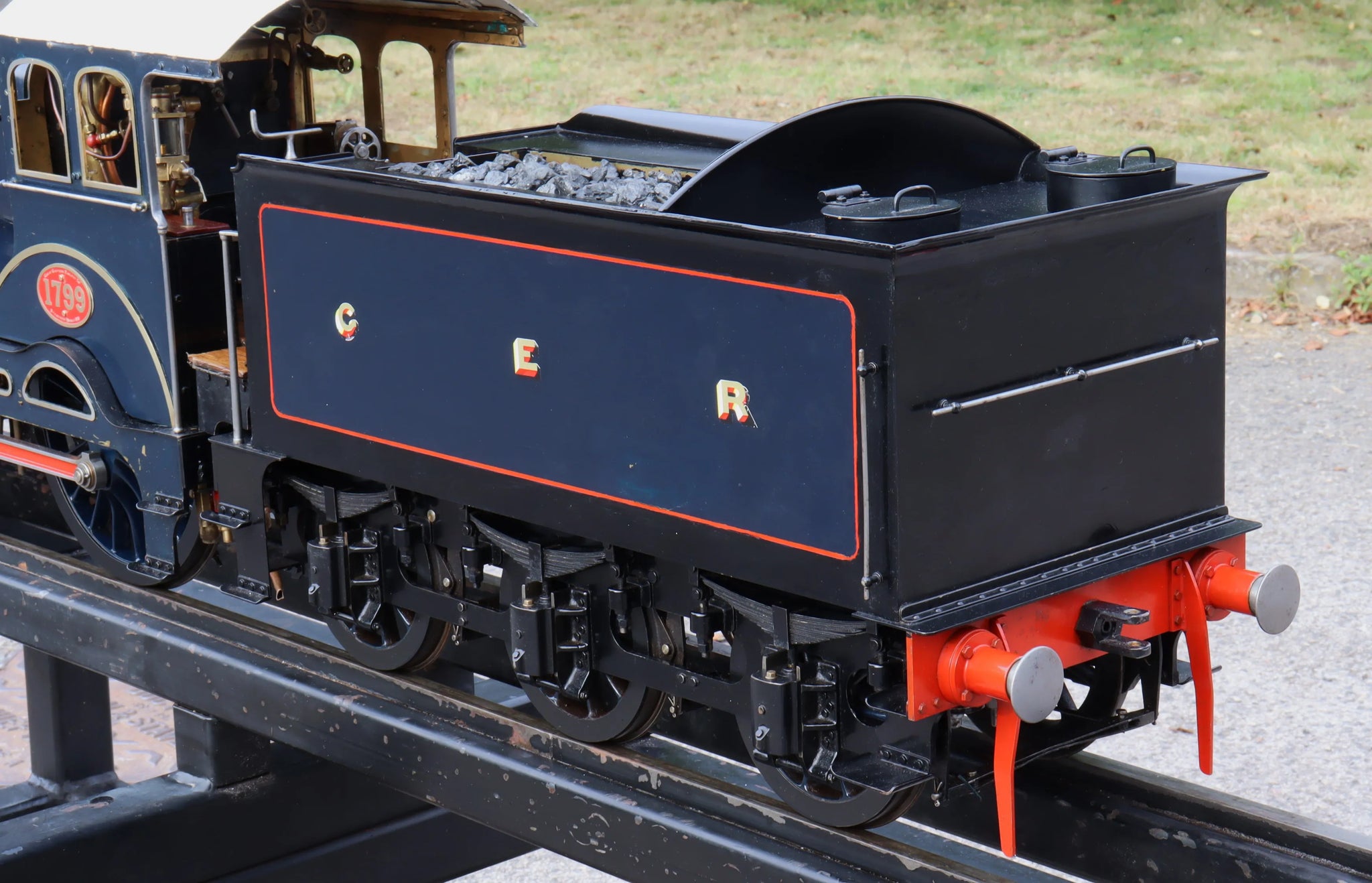

The boiler has had hydraulic and steam tests with new certification issued. Feed is by twin injectors, with an auxiliary double-acting hand pump in the tender.

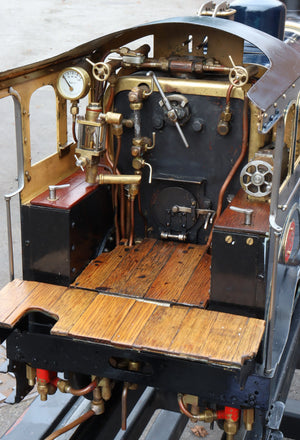

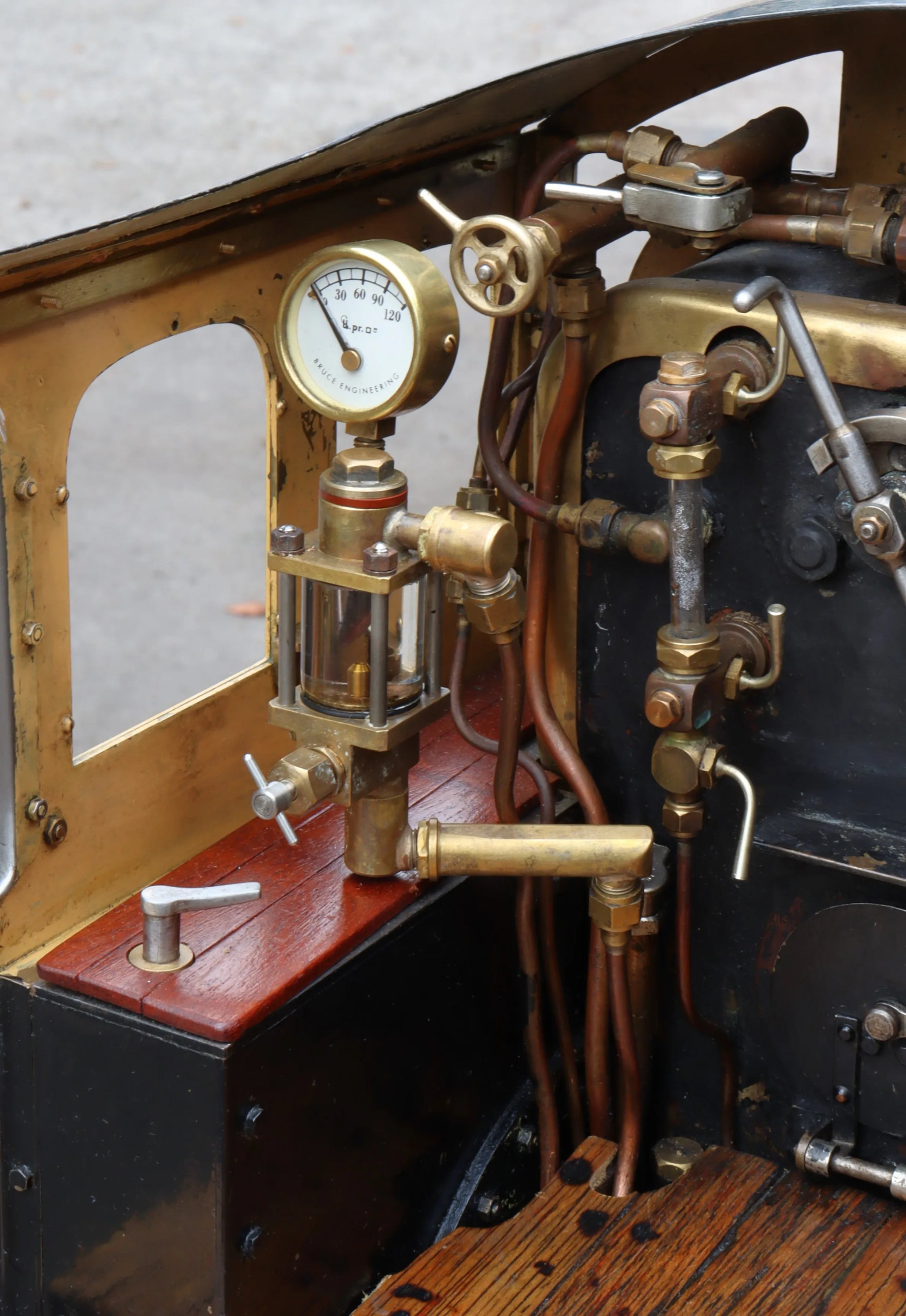

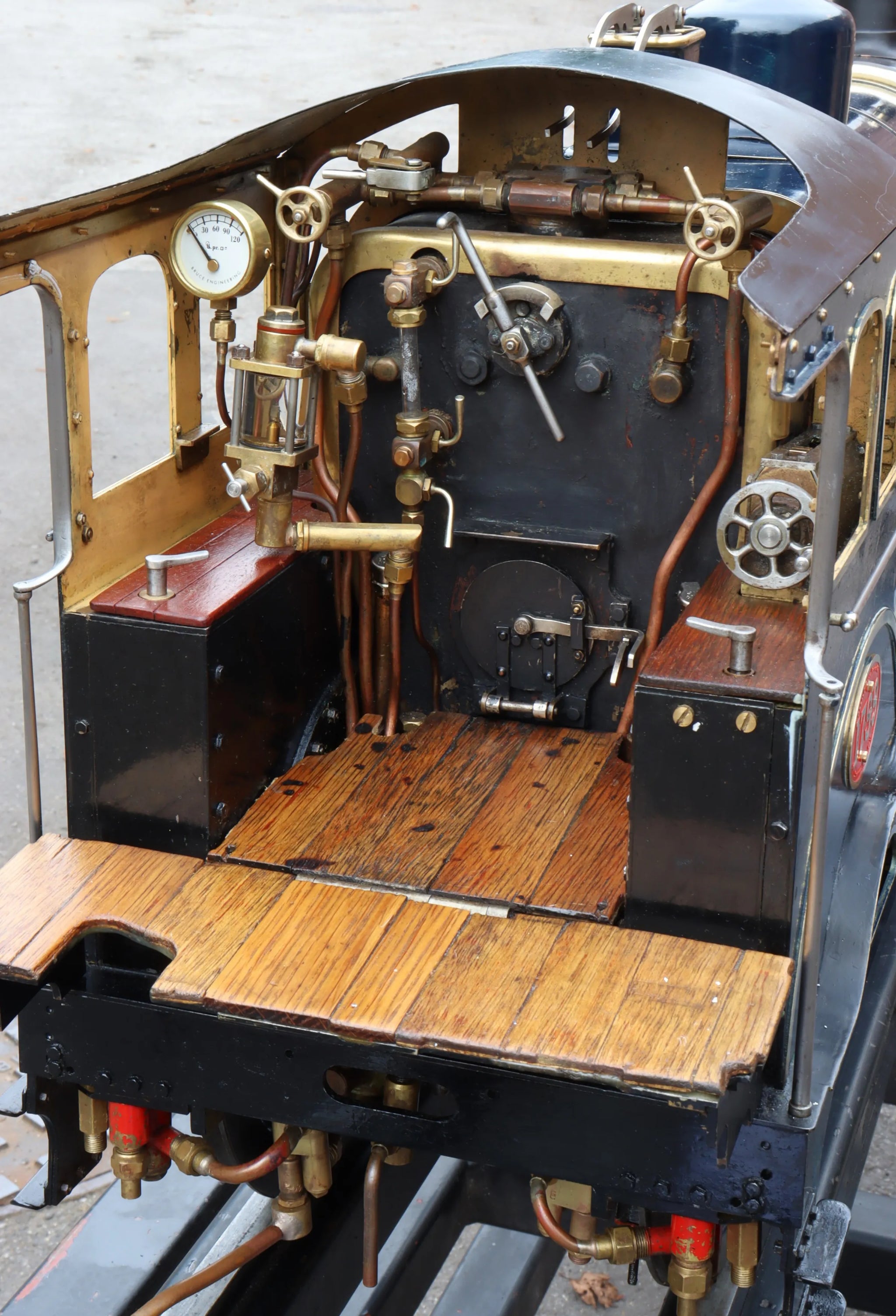

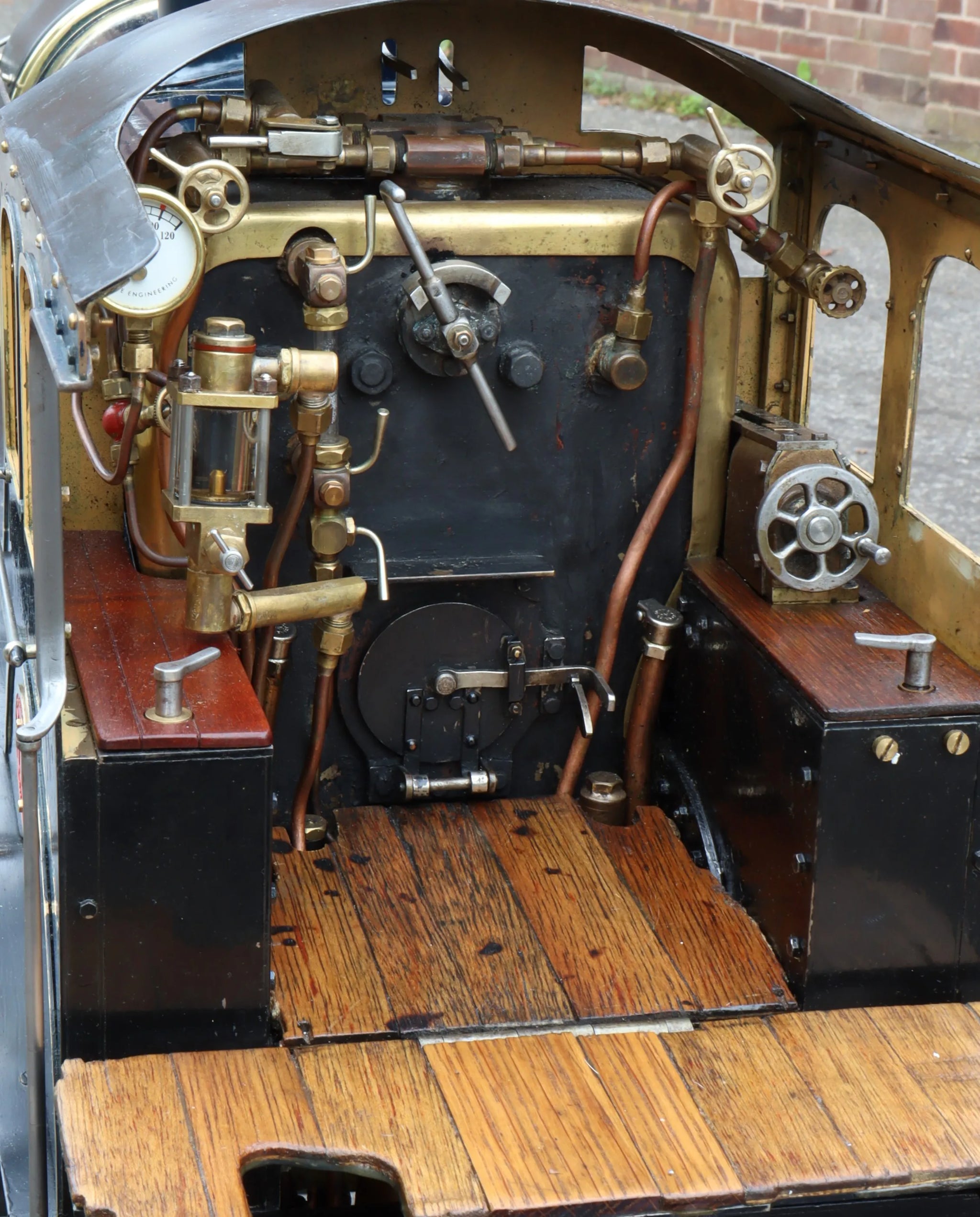

The backhead is well laid out, the controls falling easily to hand, the sight feed lubricator giving clear indication that oil's getting to the right place when running.

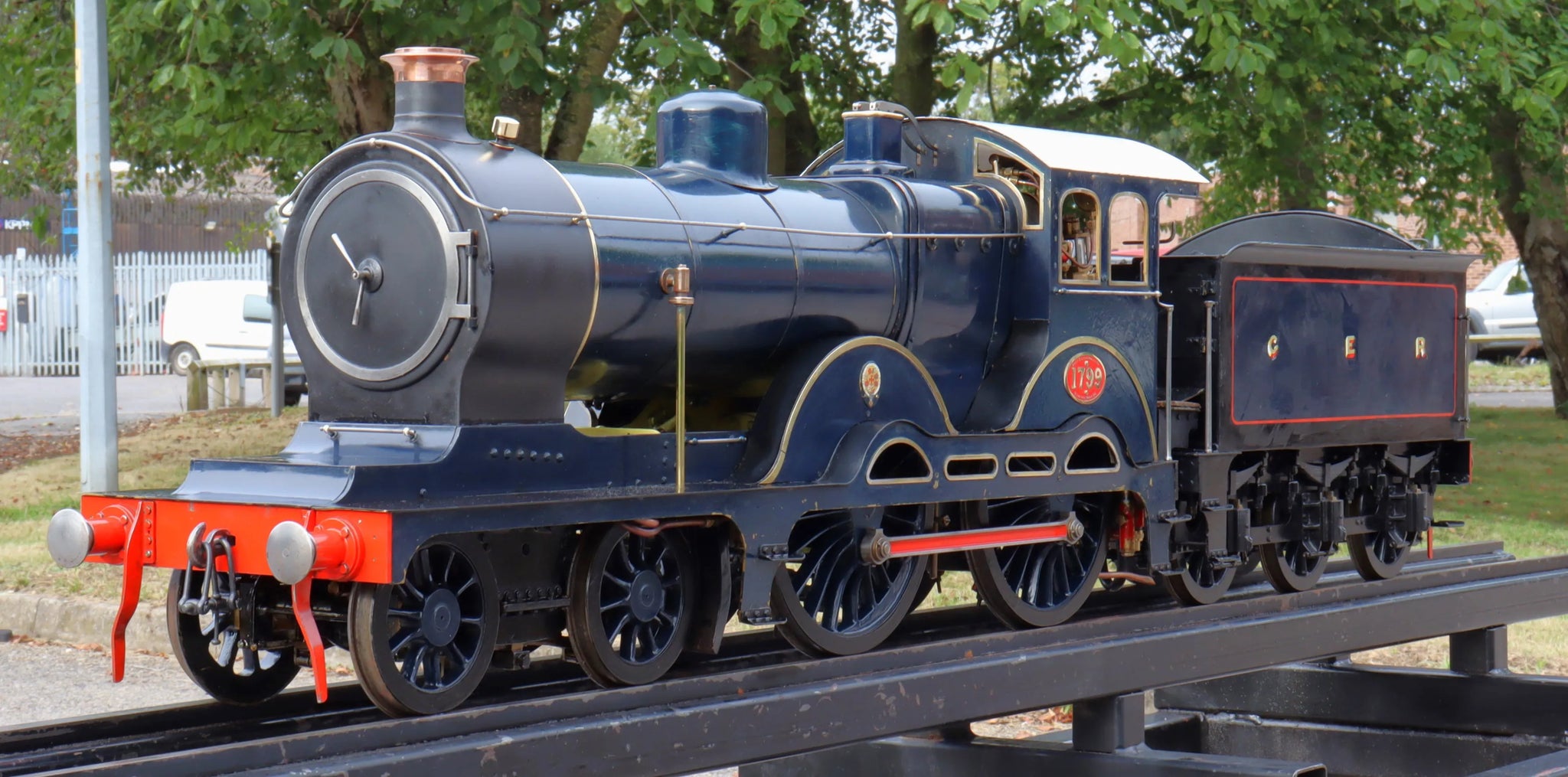

Presented in Great Eastern blue livery, the paintwork was well done in the first place and remains in good, bright condition.

Offered complete with firing irons, a starter kit of coal and water, and 12 months warranty. We would be more than happy to give half a day's instruction on the steaming, running and disposal of the locomotive to a new owner.


Technical information

Stock code

11441

Gauge

5 inch

Length/inches

34+22

Width/inches

9

Height/inches

14

Weight/Kg

67

Wheel material

cast iron

Axlebox type

split bronze

Cylinder material

cast iron

Valve type

slide

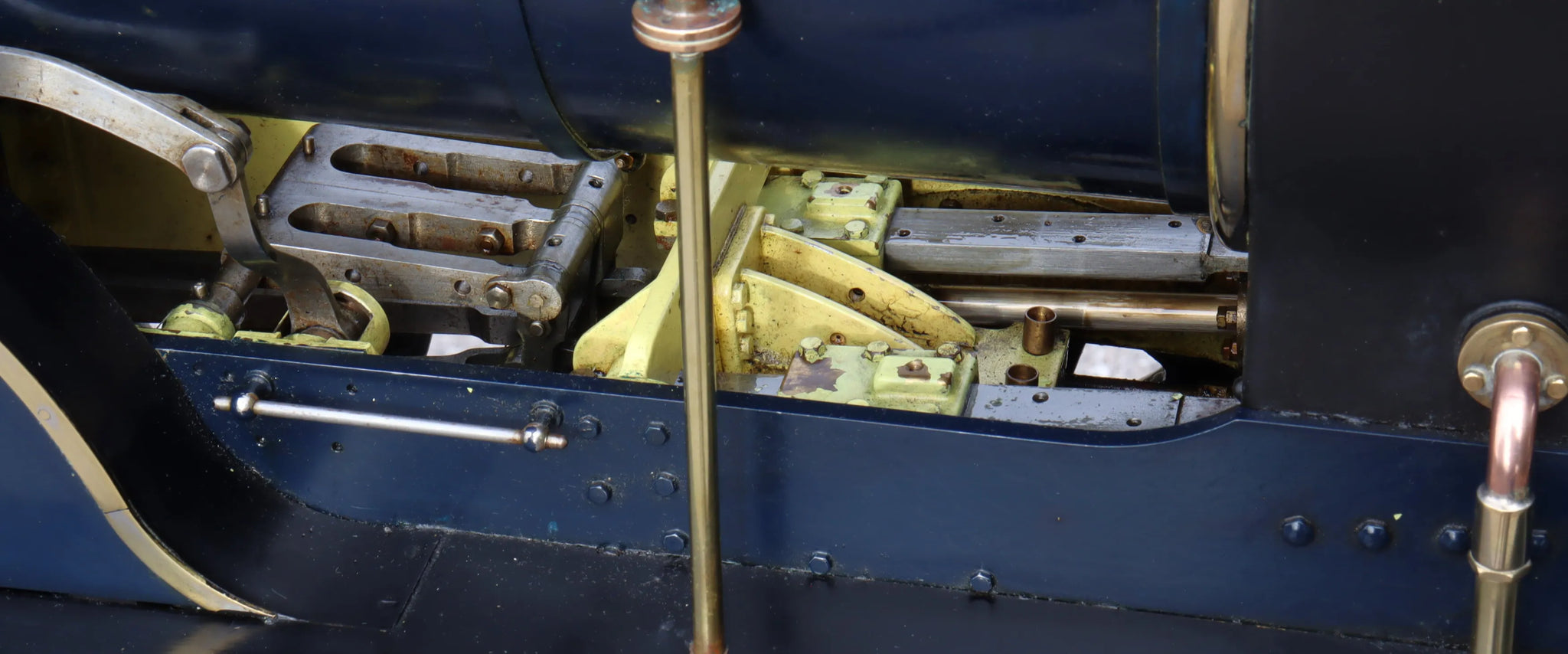

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Safety valve type

spring

Safety valve

4

Injector

2

Superheater type

flue tube

Superheater

2

Date out

May-24

Hydraulic test valid to

23-Jul-27

Steam test valid to

14-Nov-24
