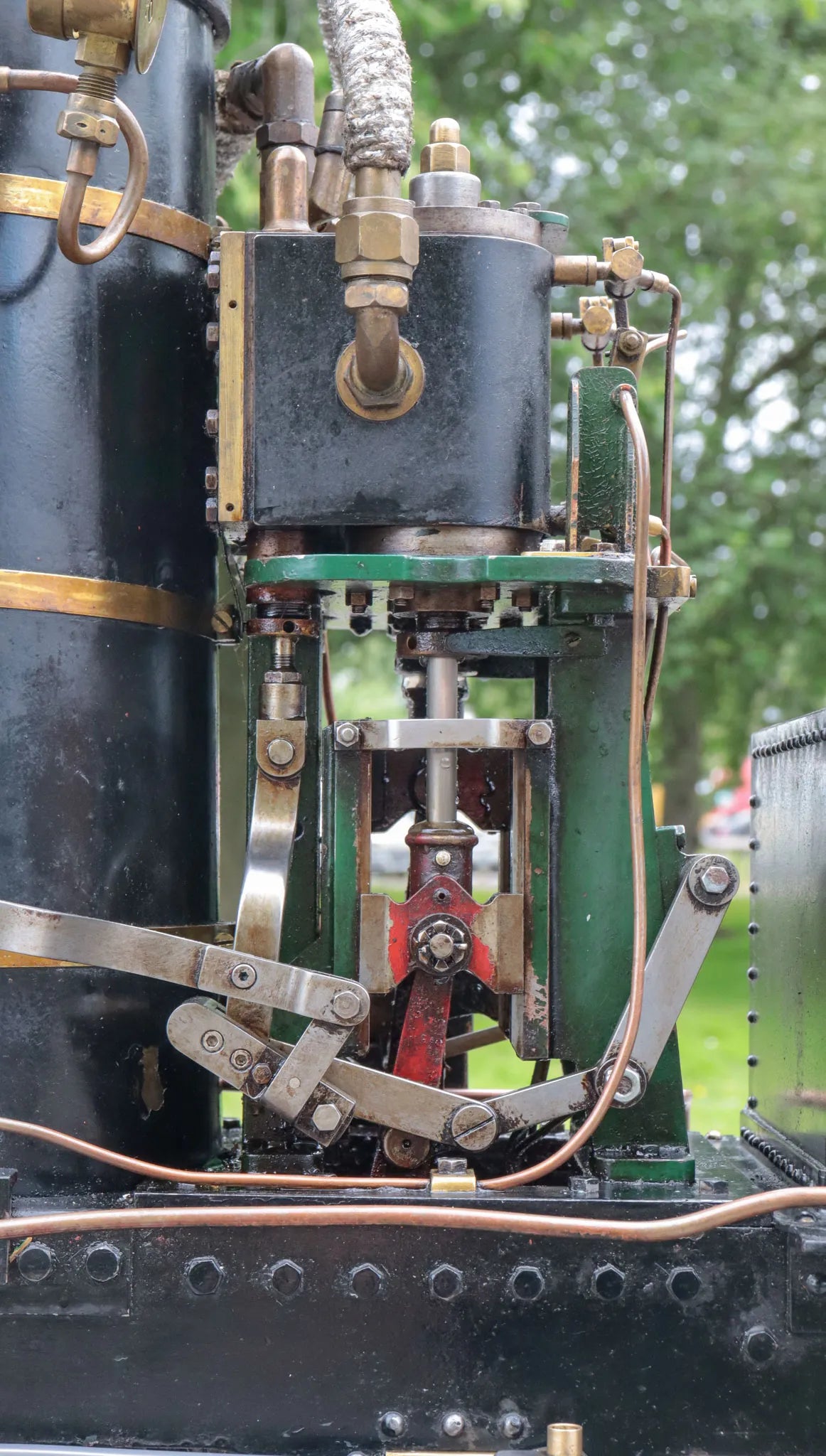

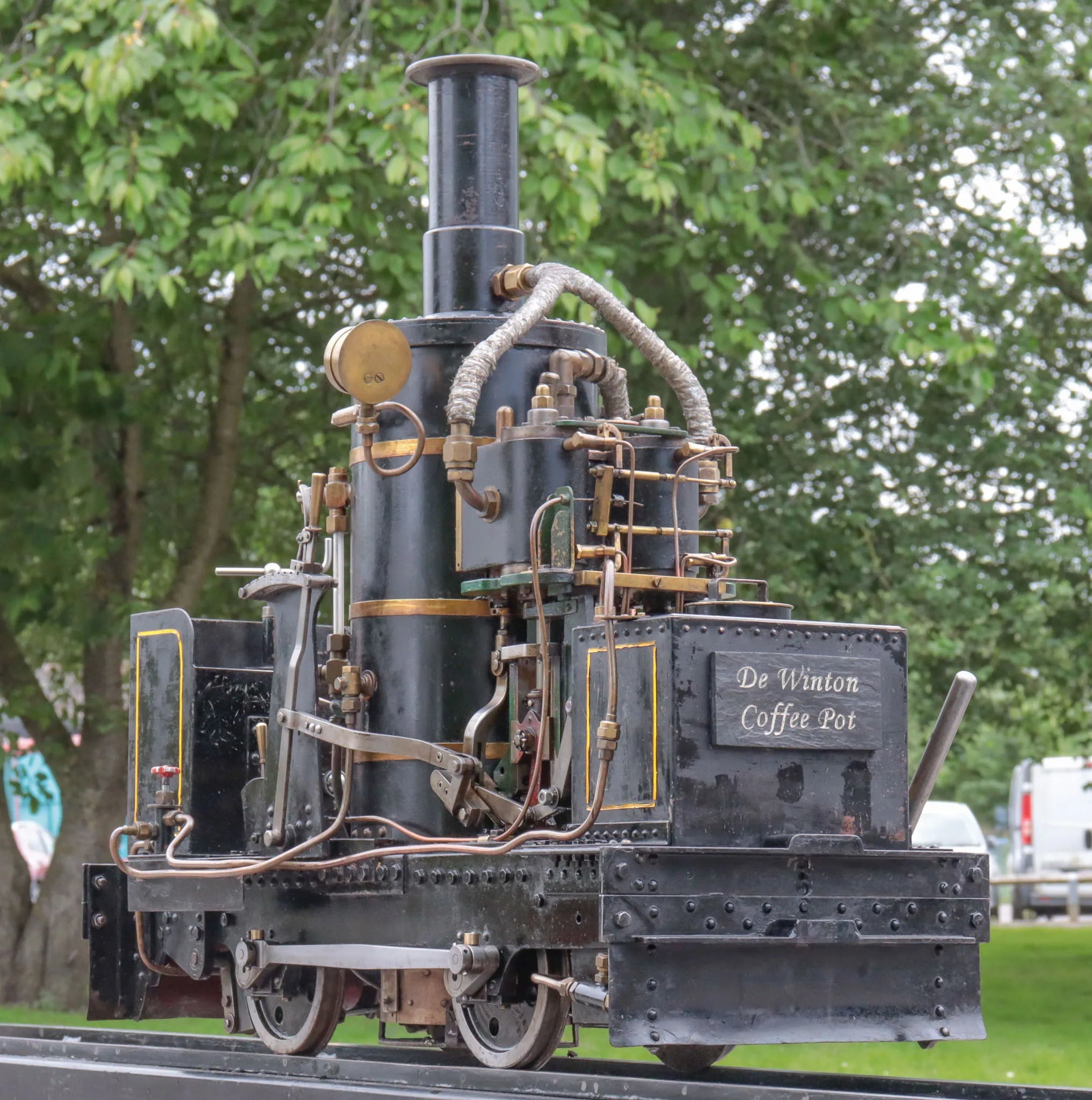

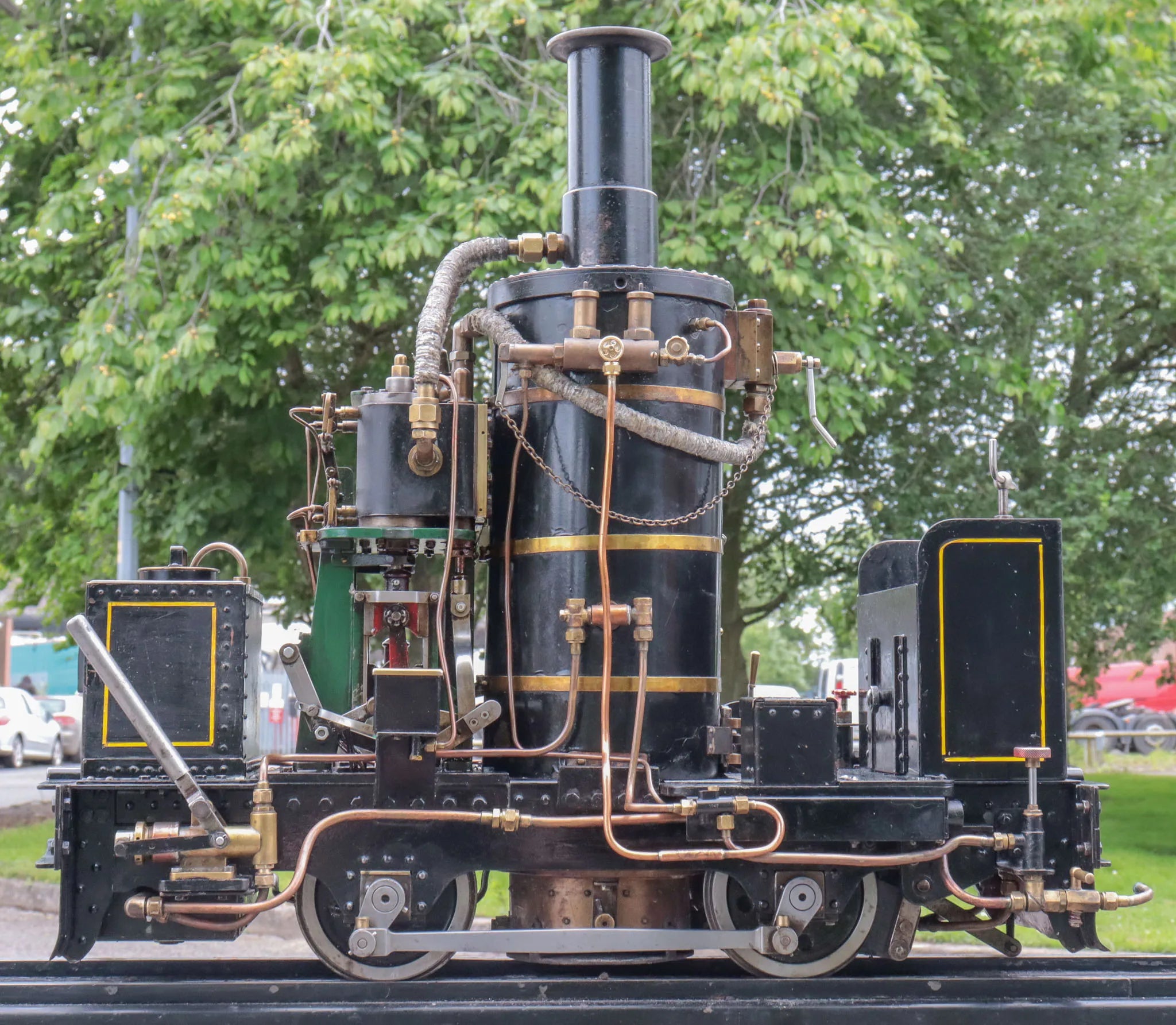

5 inch narrow gauge DeWinton 0-4-0VB

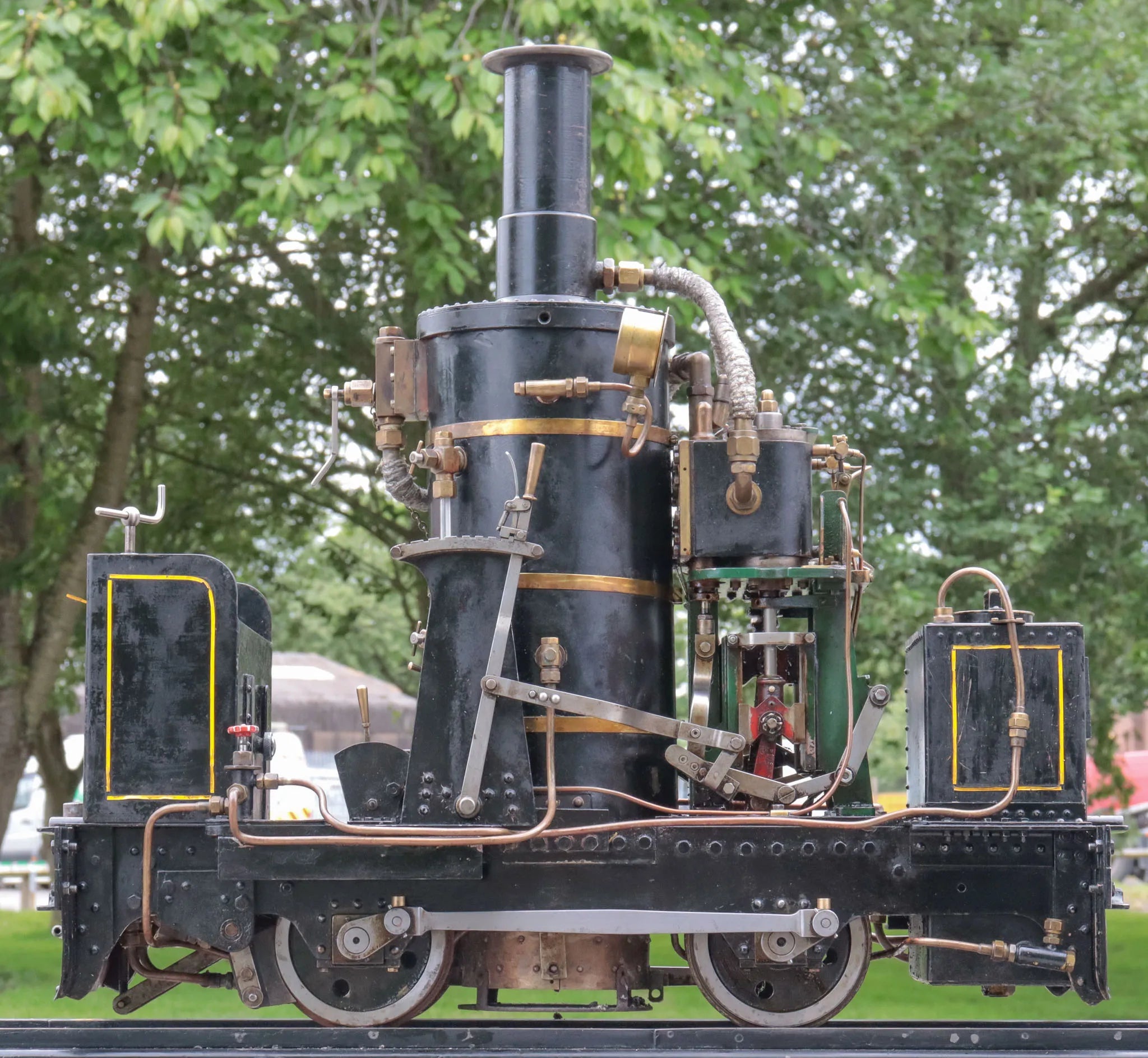

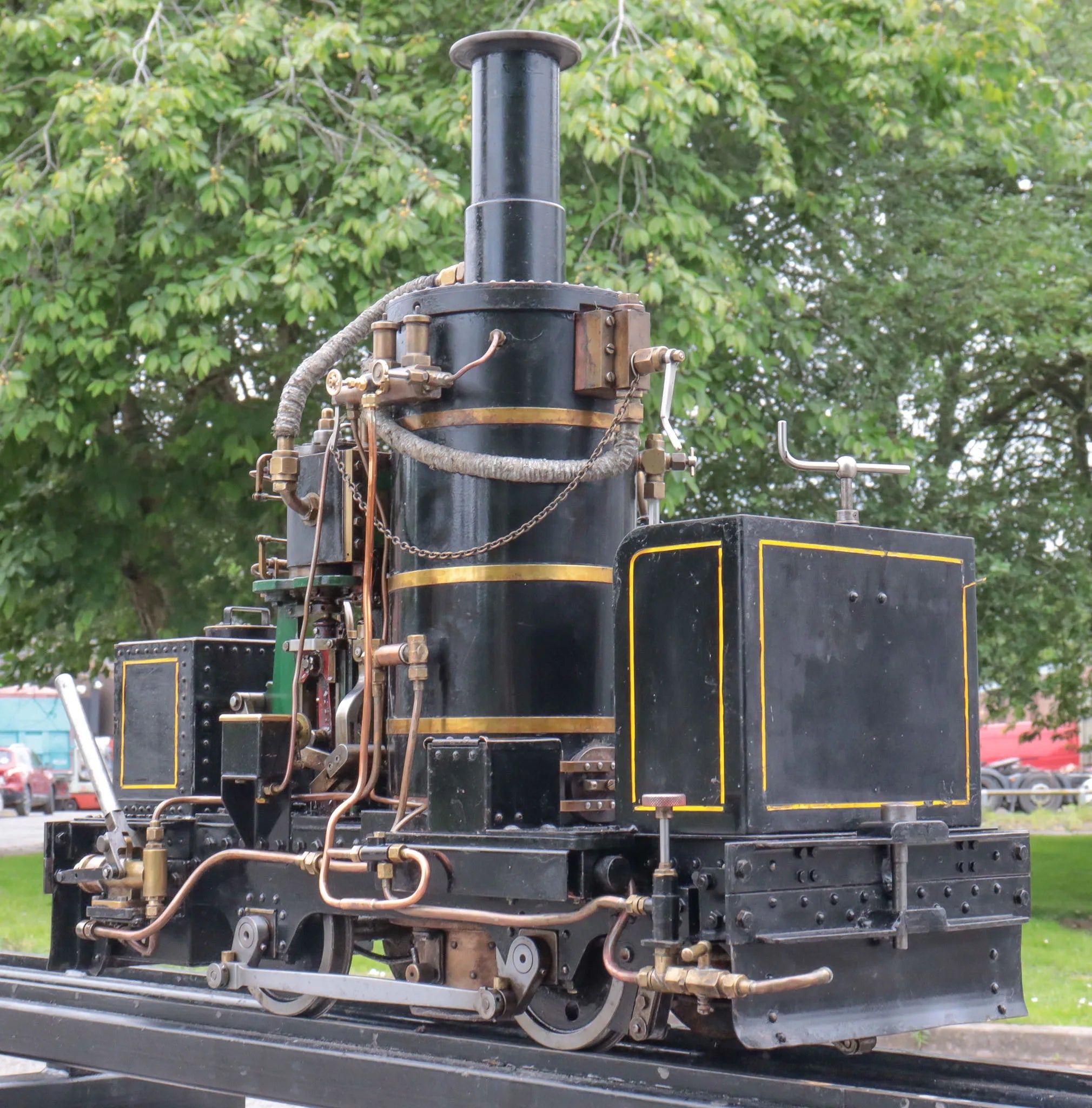

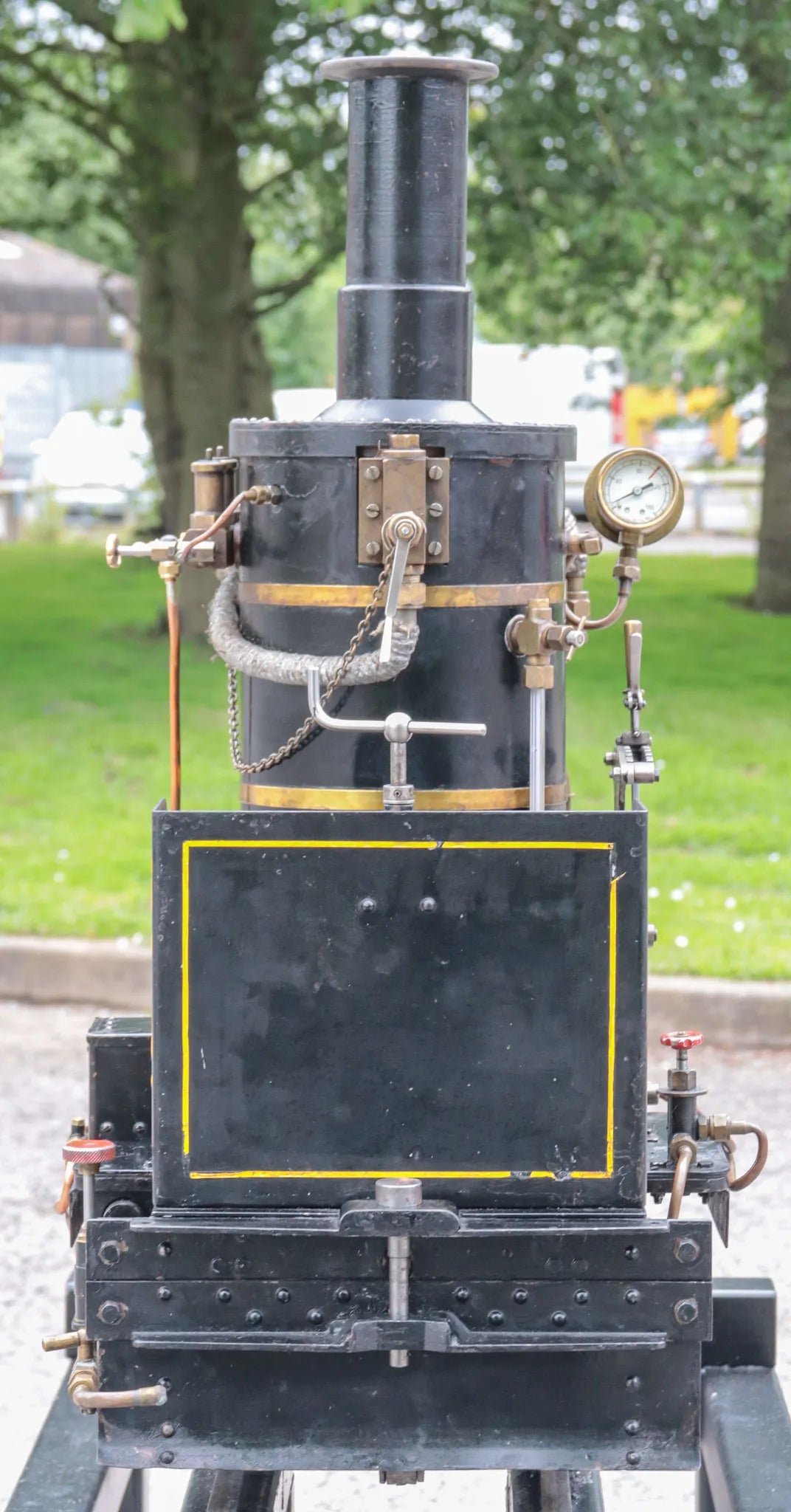

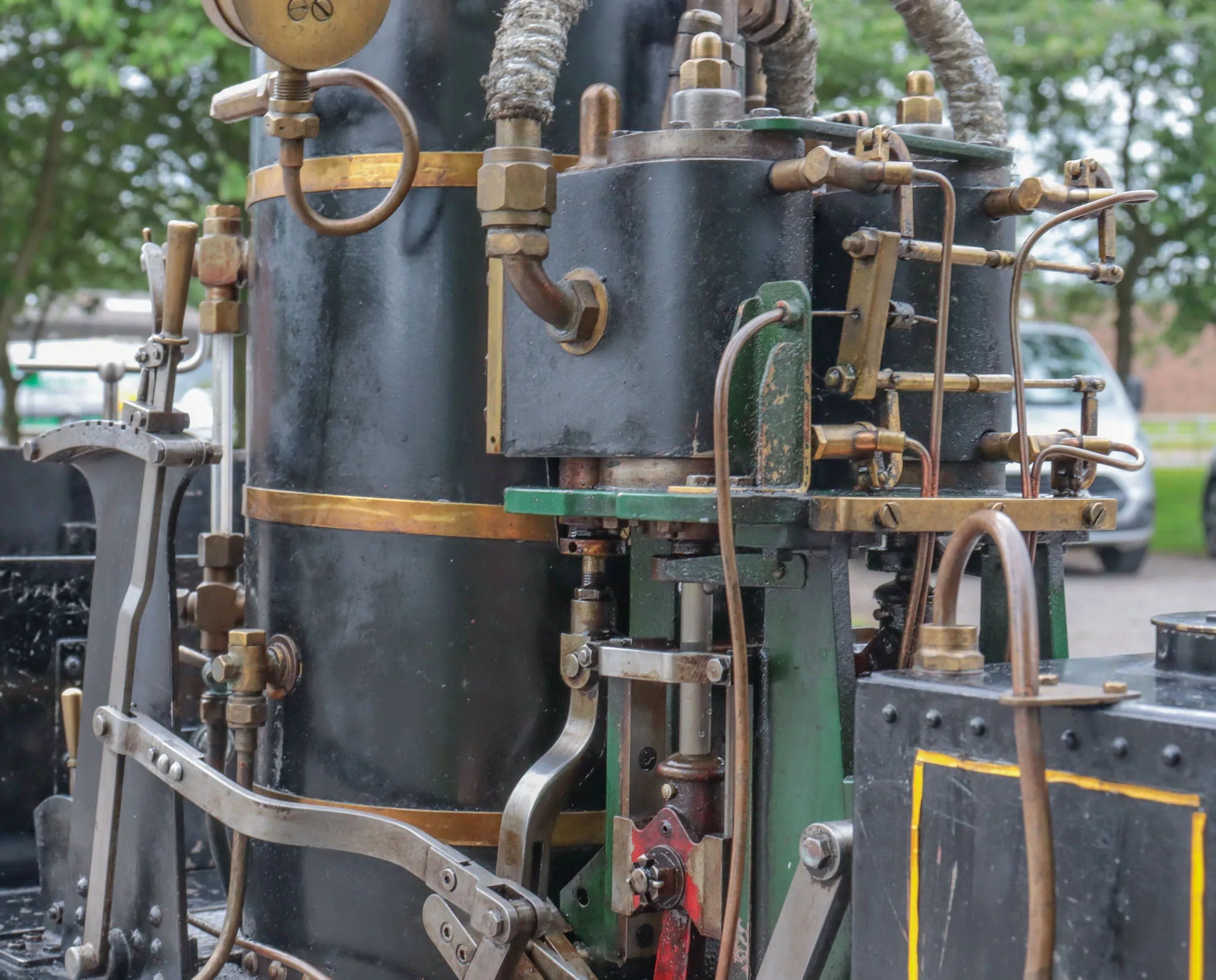

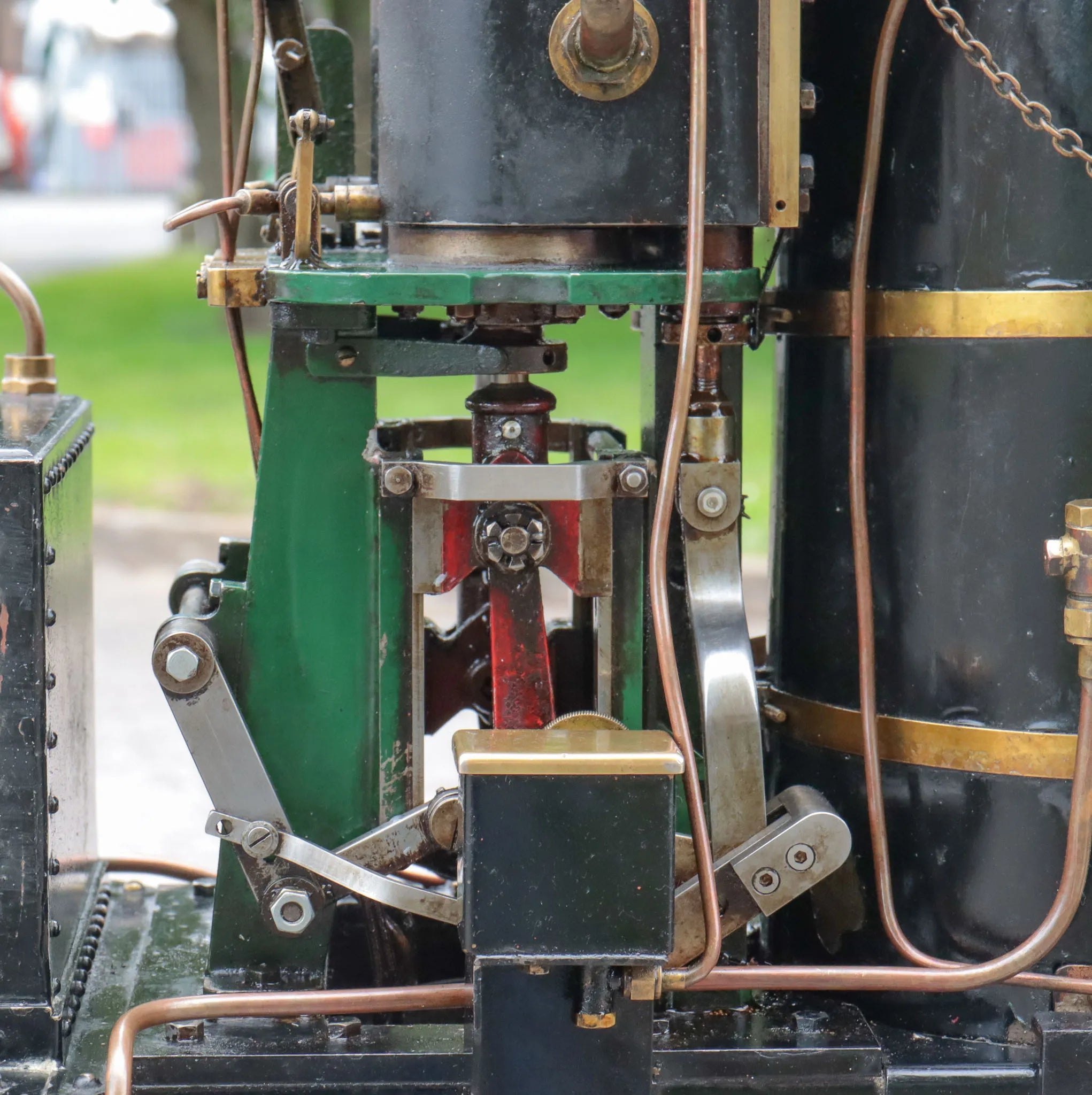

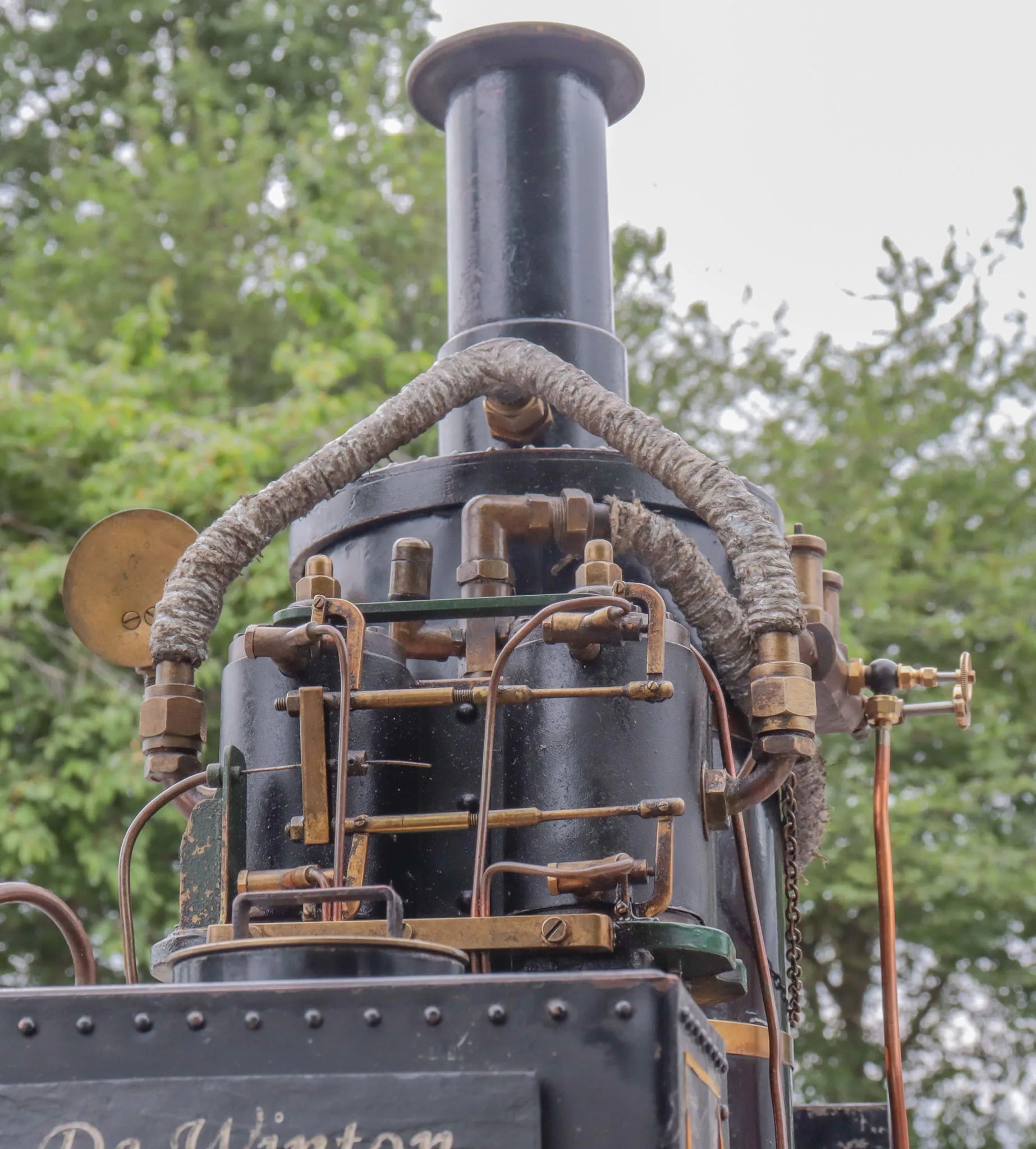

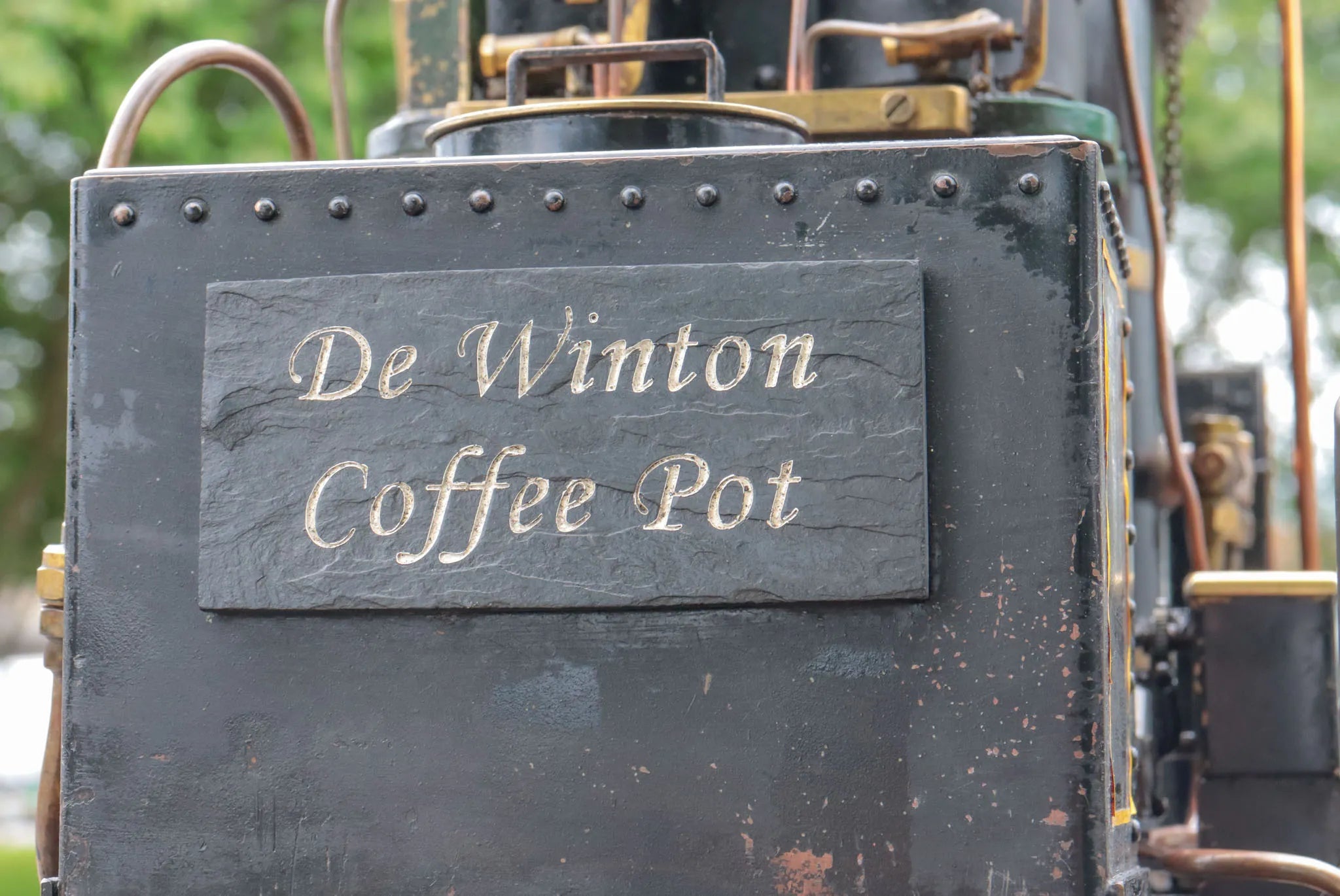

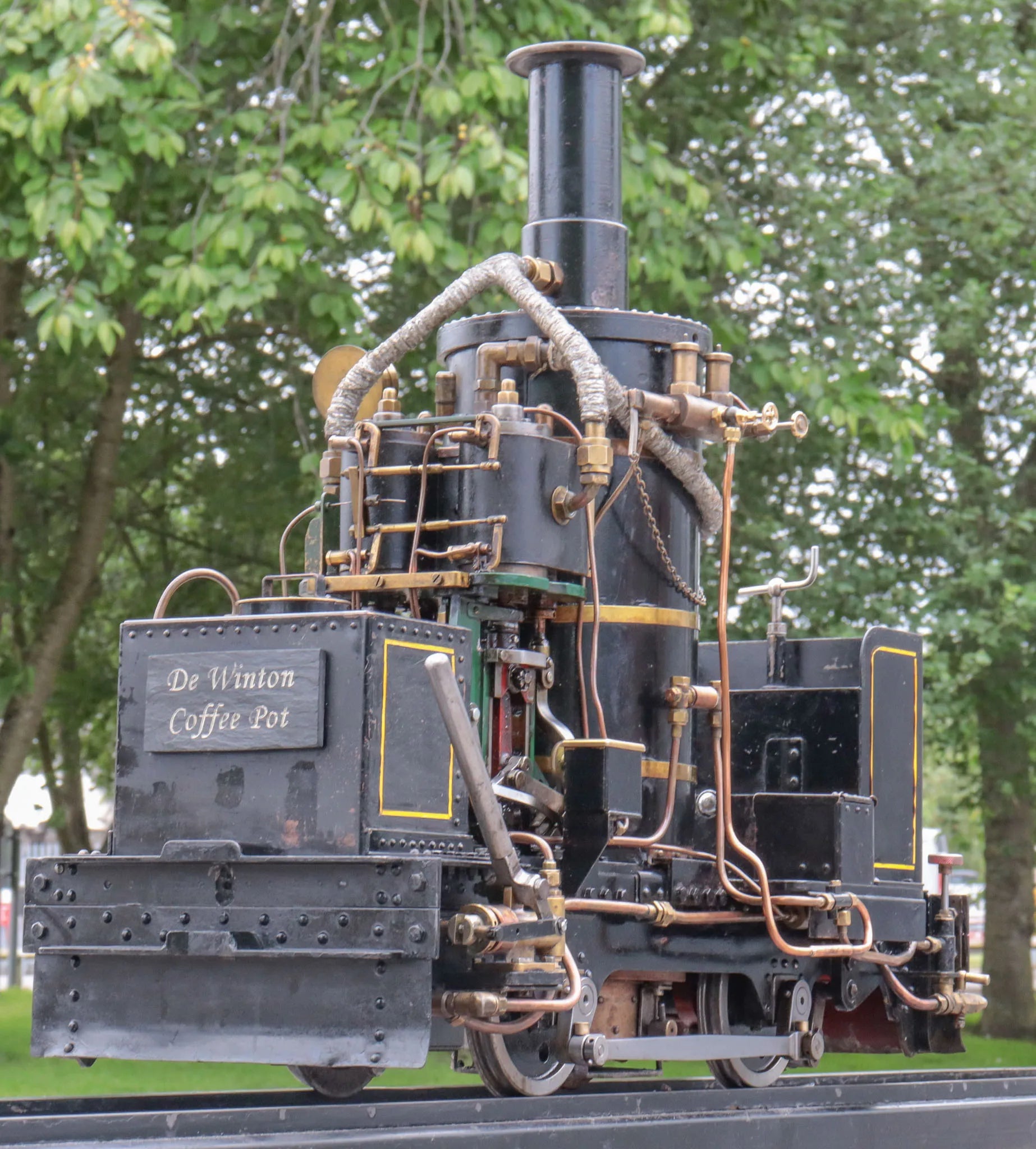

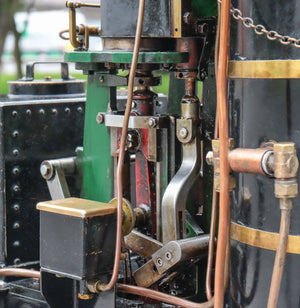

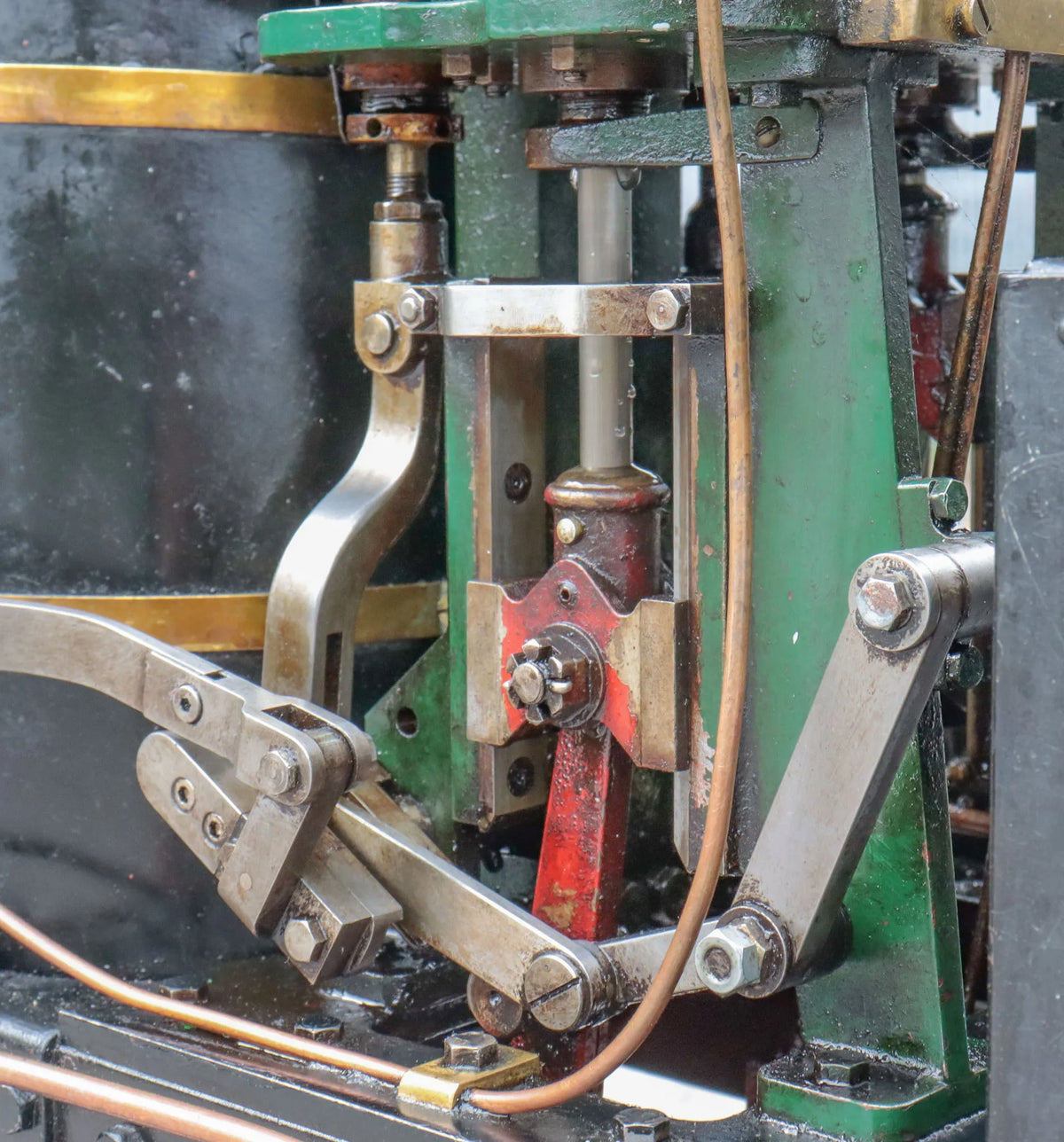

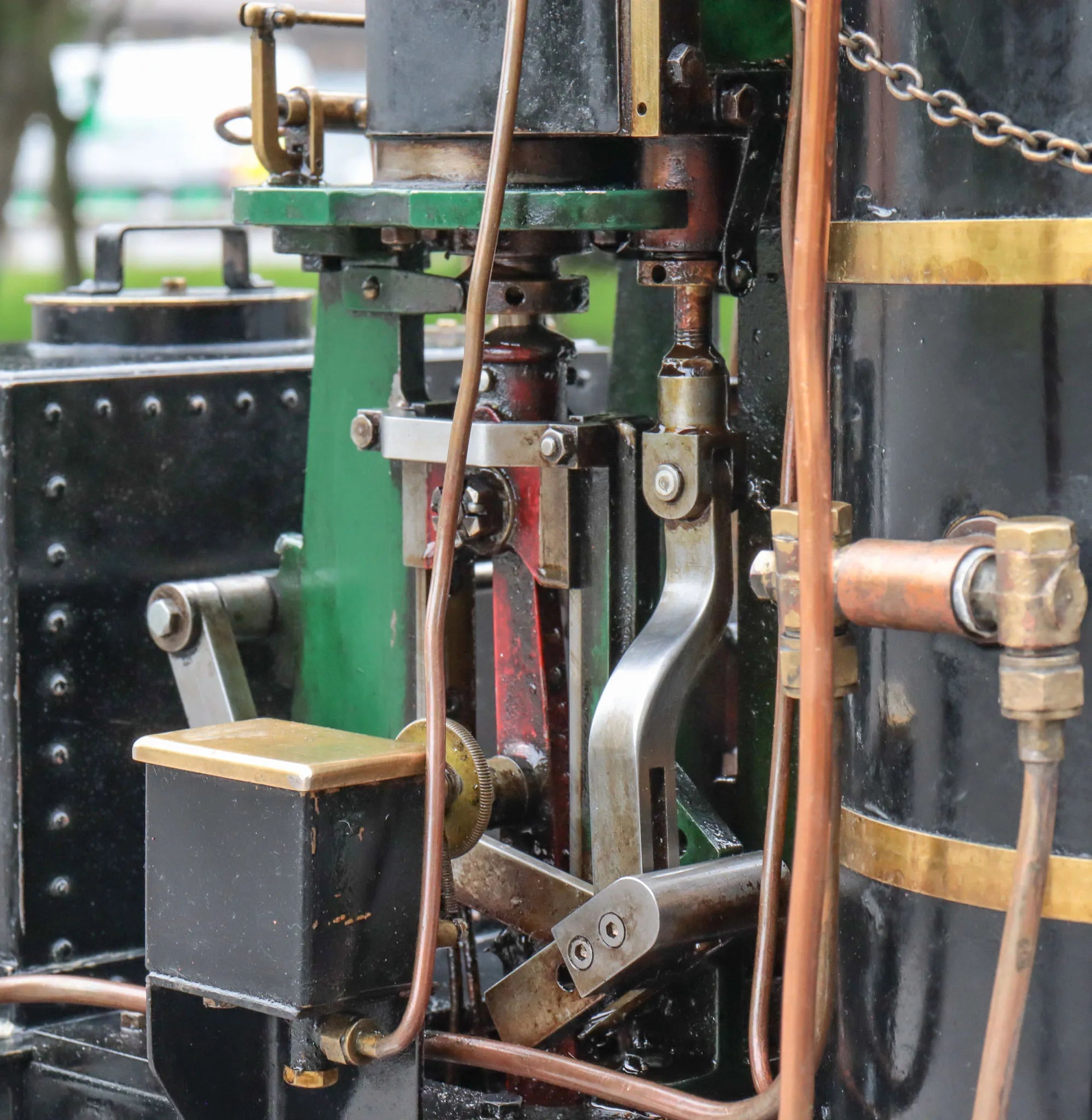

A 5 inch narrow gauge DeWinton "Coffee Pot" 0-4-0VB locomotive, an older engine in "working clothes", we last sold it in 2015 (in somewhat cleaner condition then, it must be said) remarking then on its free-steaming characteristics - it proved little changed when we ran it last week.

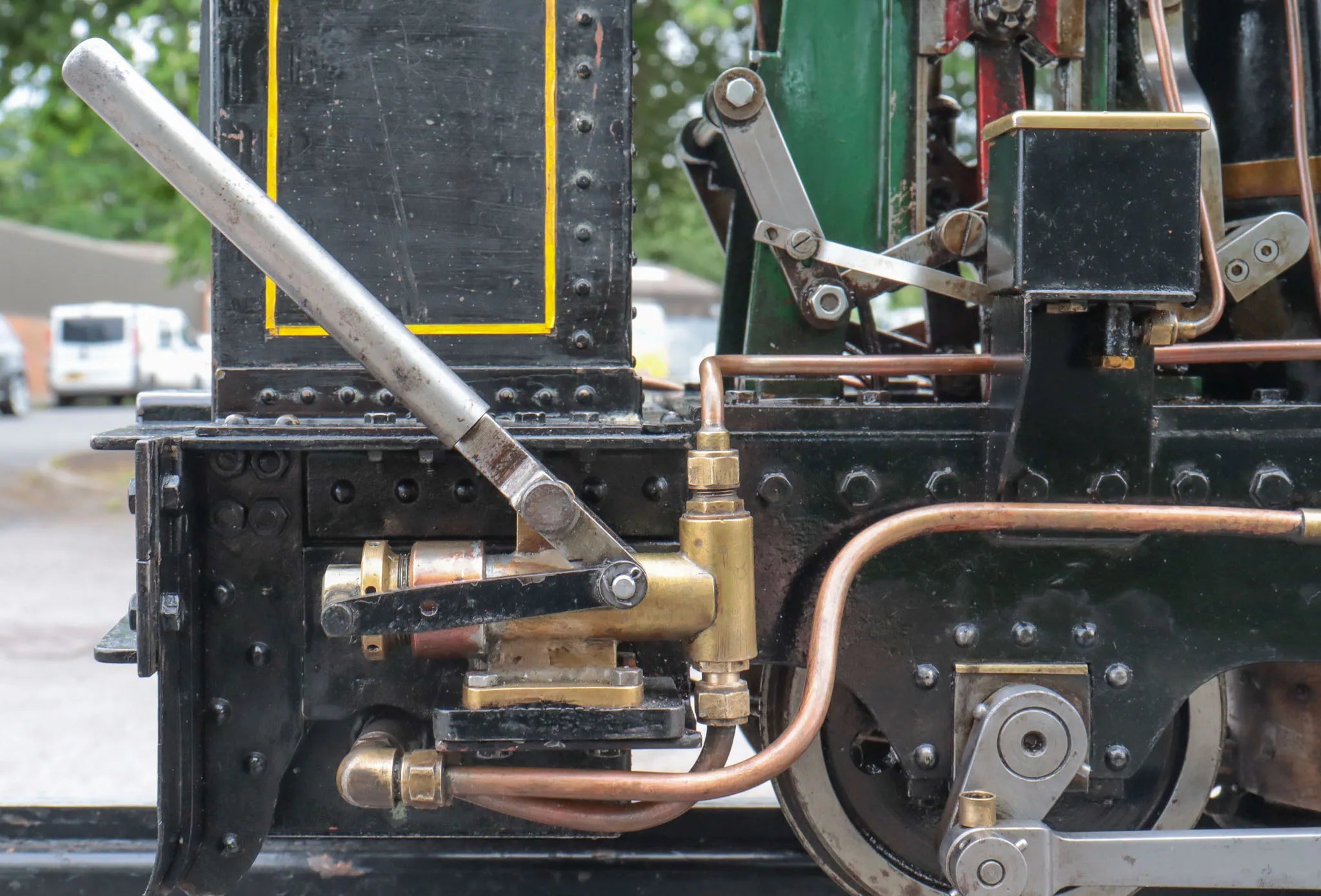

The boiler has had hydraulic and steam tests with new certification issued. The hand pump has been serviced and a new injector steam valve fitted. The engine runs very well in either direction; both pumps work reliably, the injector works, although better fed from a remote tank than the one mounted on the locomotive, which tends to warm up quickly.


Technical information

Stock code

11999

Gauge

5 inch

Length/inches

27

Width/inches

11

Height/inches

67

Weight/Kg

53

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

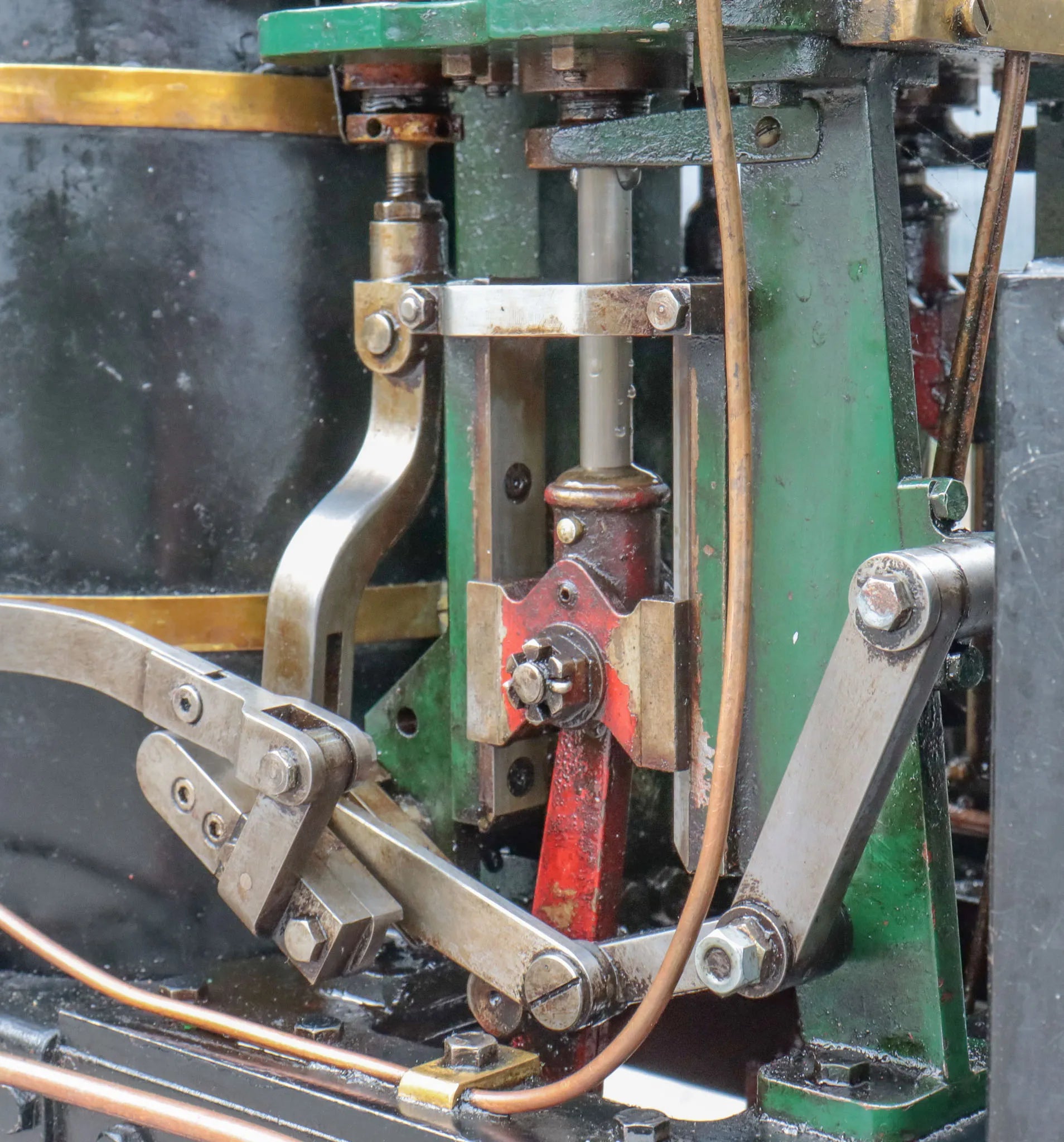

Valve gear

Stephensons

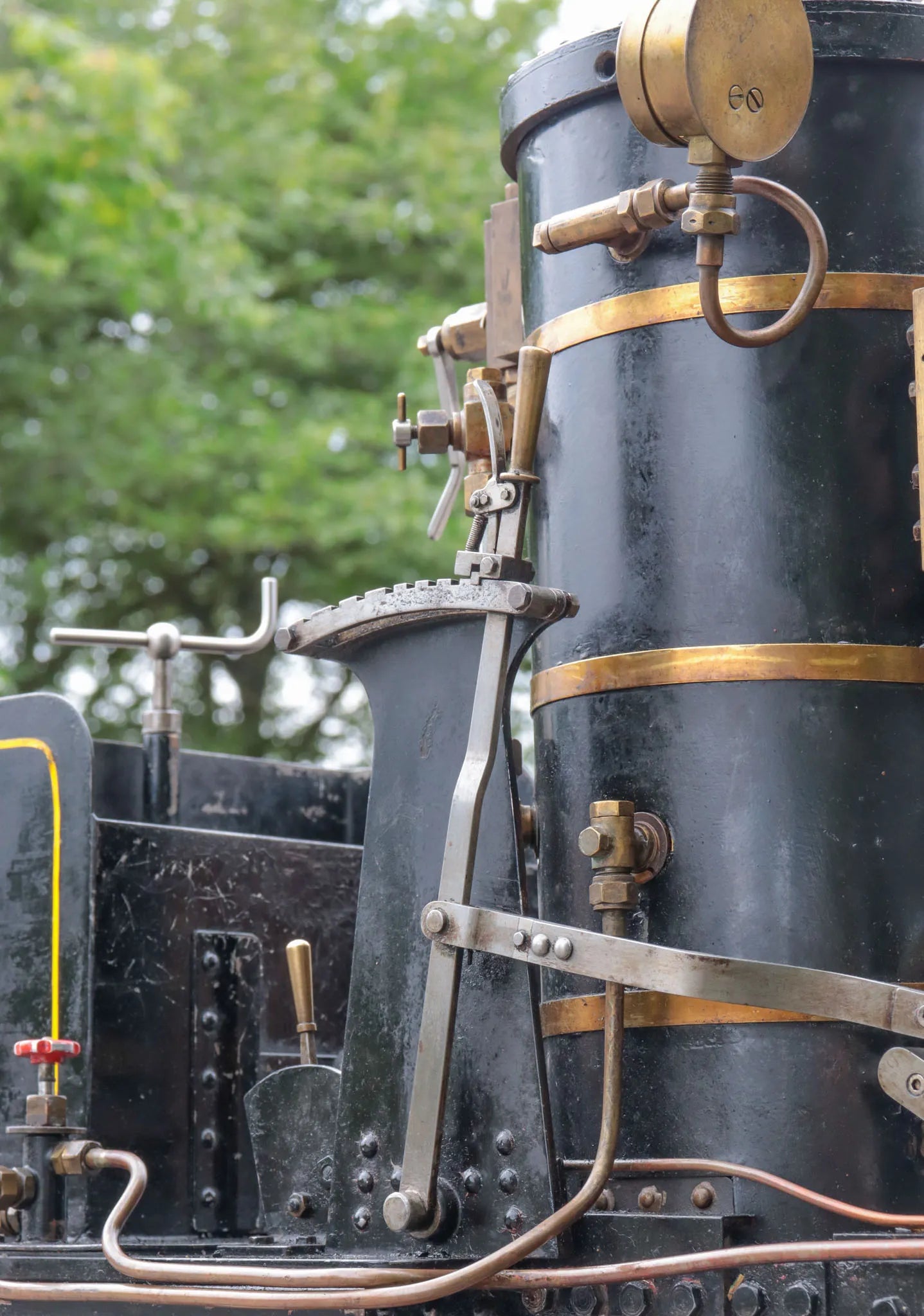

Reverser type

pole

Boiler maker

non-commercial

Boiler type

vertical

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - non-commercial

Safety valve type

spring

Safety valve

2

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Jul-24

Hydraulic test valid to

13-May-28

Steam test valid to

28-Jul-25
