8475

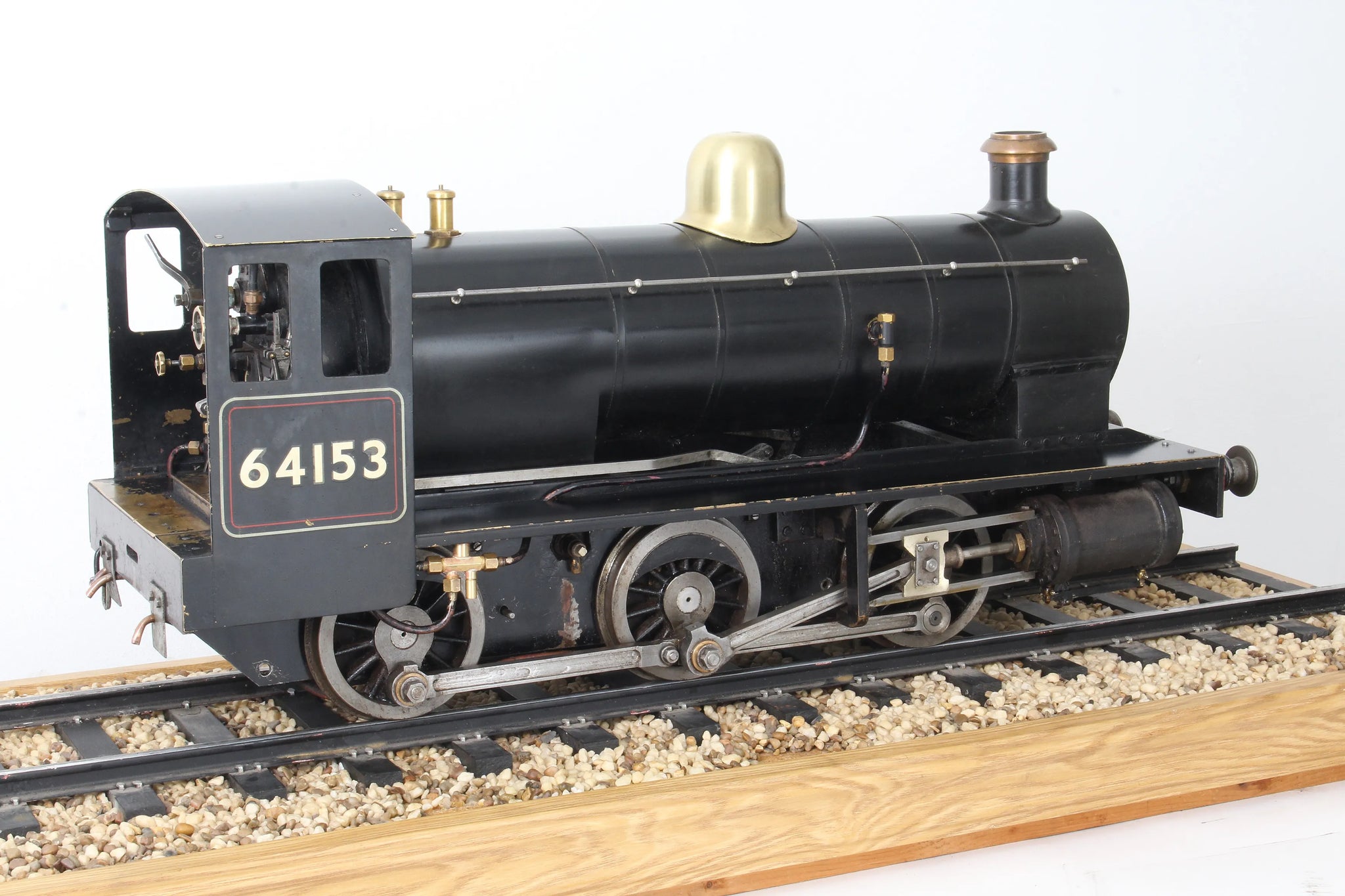

Built in 1998, the engine has recently come in from a man with a new "General Gordon" on order. In regular use until recently, the engine steams well, although starting to need some rebushing of the motion work.
This one would make a good "rolling restoration", it could be improved whilst in service this season, with a strip and repaint over next winter.
Stock code |
8475 |
Gauge |
5 inch |
Length/inches |
29 + 18 |
Width/inches |
10 |
Height/inches |
13 |
Wheel material |
cast iron |
Axlebox type |
plain |
Valve type |
slide |

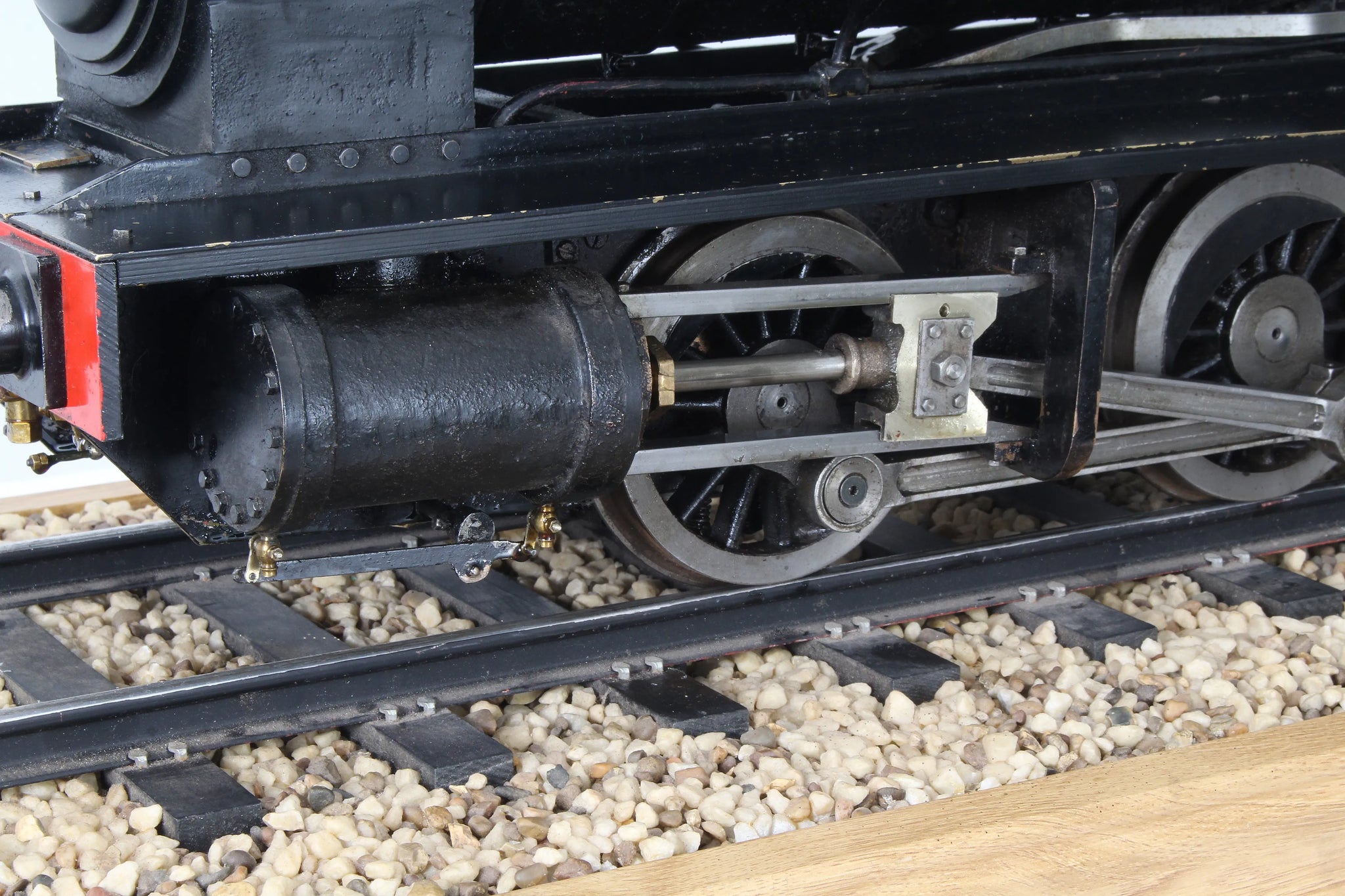

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
M Rhodes |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
100 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
1998 |
Boiler number |
459-139 |
Safety valve type |
spring |

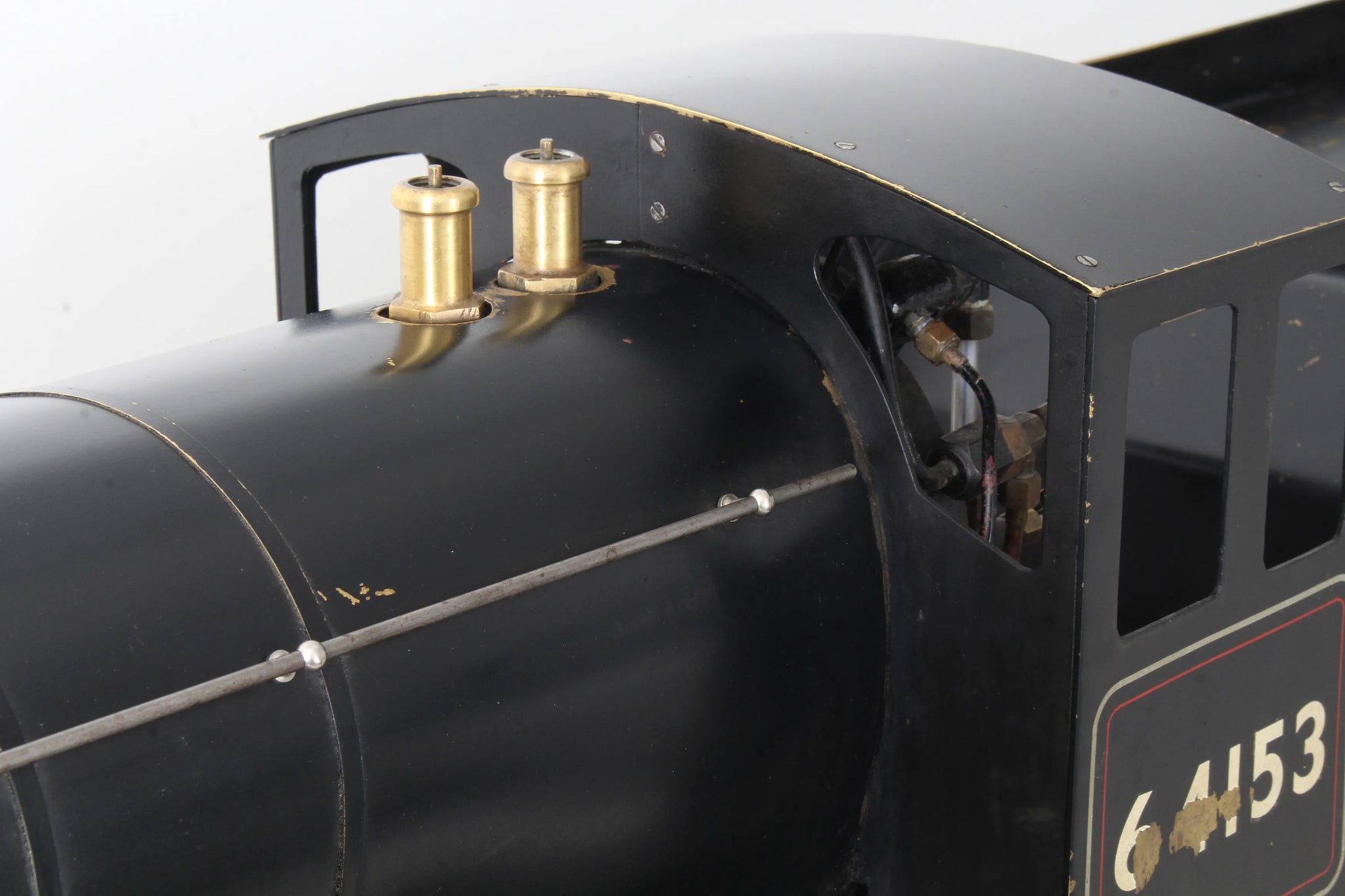

Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
radiant |
Superheater |
1 |
Pack |
Single half pallet |
Date out |
Apr-19 |
Hydraulic test valid to |
18-Mar-23 |
Steam test valid to |
18-May-20 |
