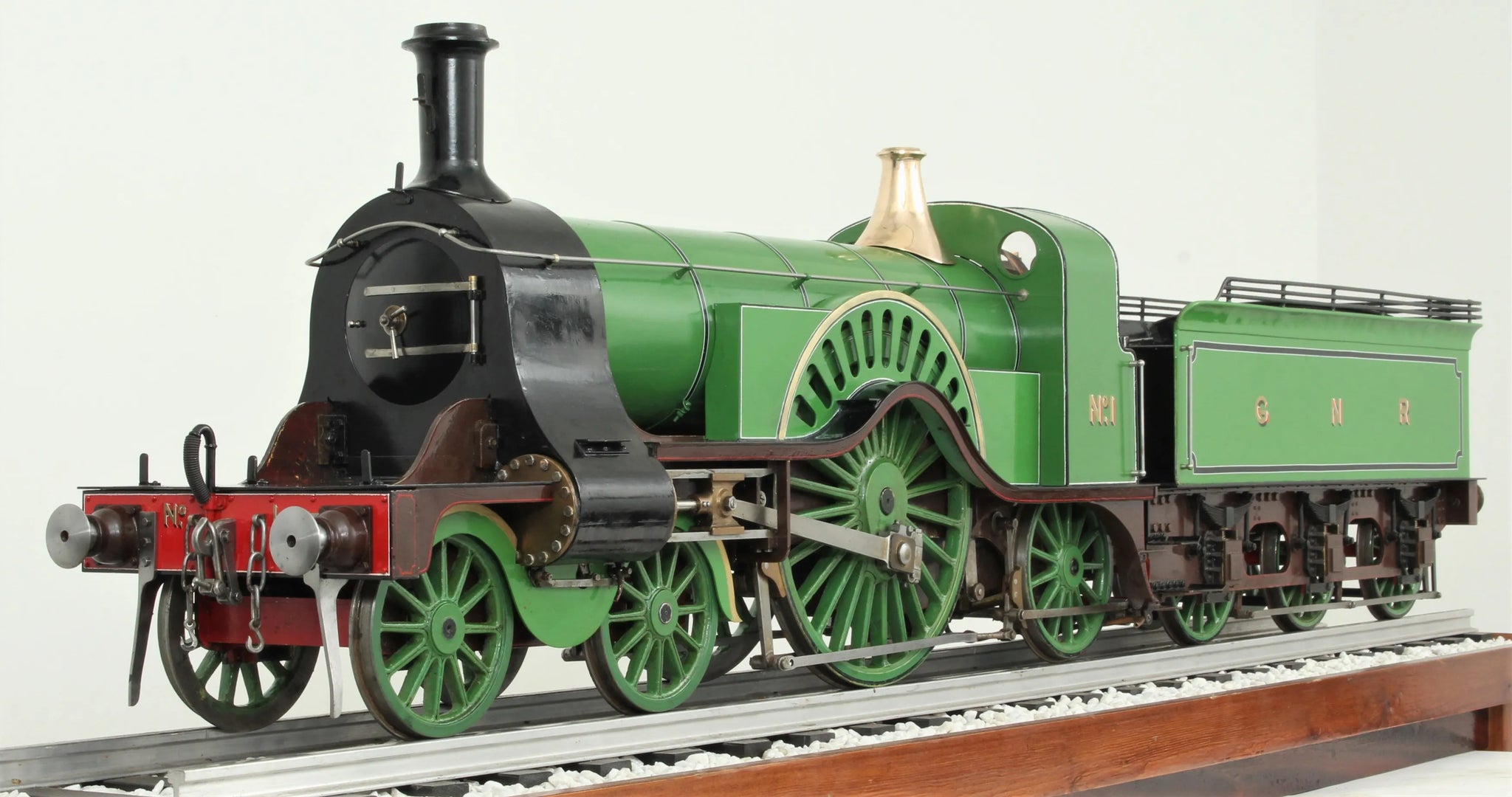

8876
Boiler has had recent test with new certification issued, the engine runs well, notching up in either direction.

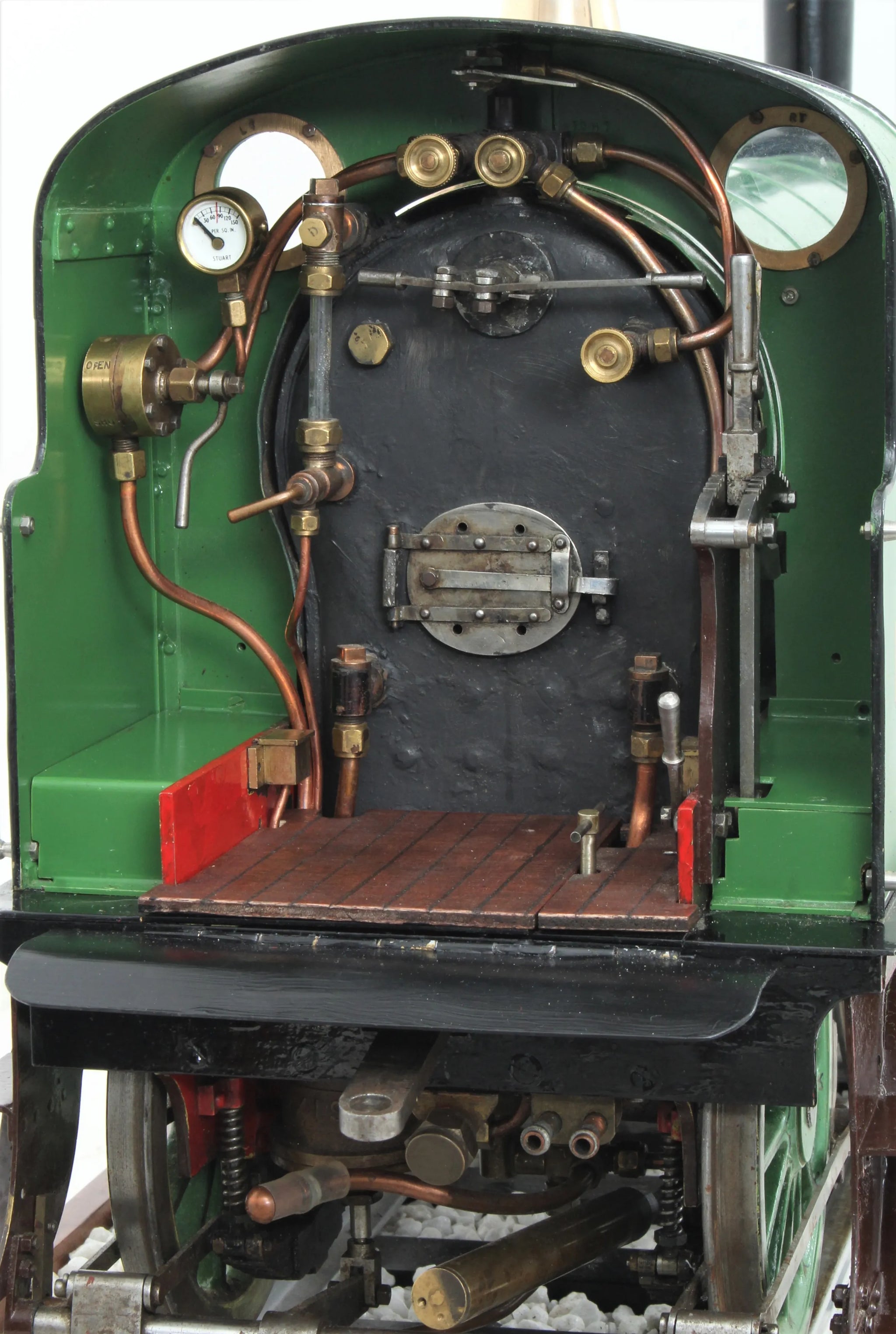

Boiler feed is by effective axle and hand pumps - whilst an injector is fitted, looking at the plumbing we'd regard this as purely decorative...
Stock code |
8876 |
Gauge |
5 inch |
Length/inches |
32+24 |
Width/inches |
9 |
Height/inches |
15 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler material |
copper |
Working pressure |
80 |
Boiler number |
401 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
twin ram axle |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Jun-20 |
Hydraulic test valid to |
17-Nov-23 |
Steam test valid to |
09-Feb-21 |
