5 inch gauge GNR Stirling Single

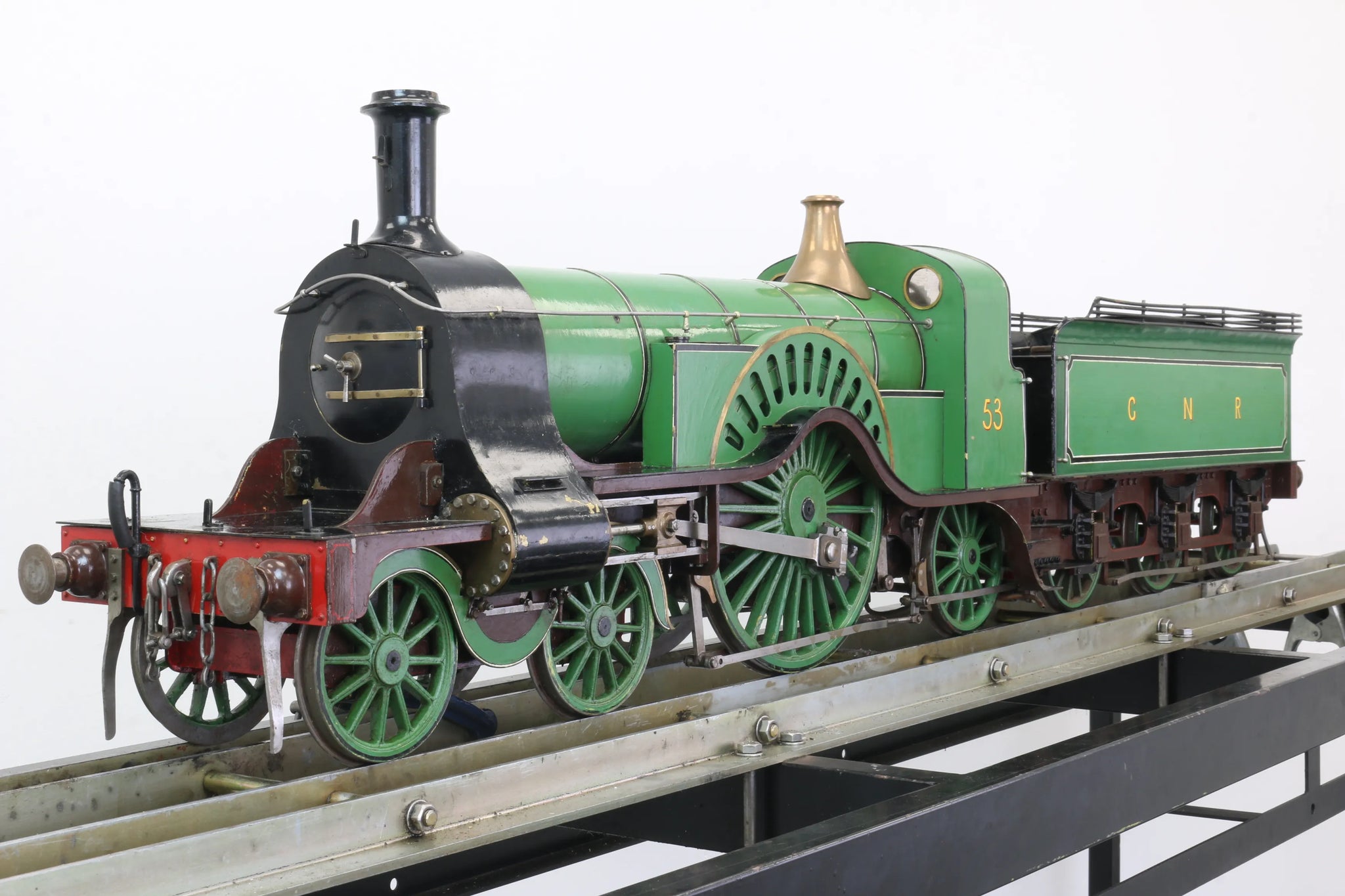

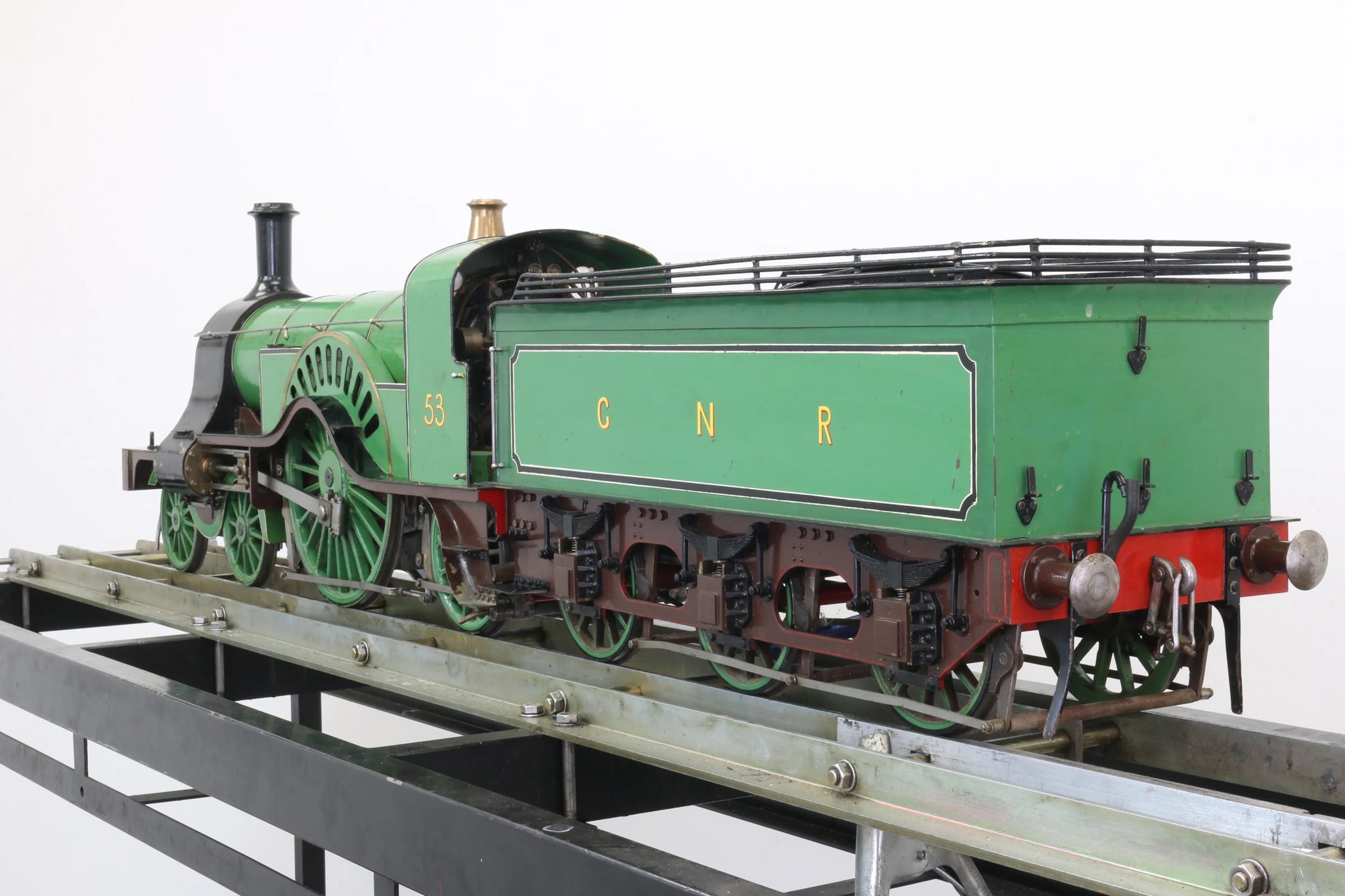

An older 5 inch gauge model of a Stirling 8 foot single, apparently not run in many years and cosmetically distressed - it really needs a strip and repaint.

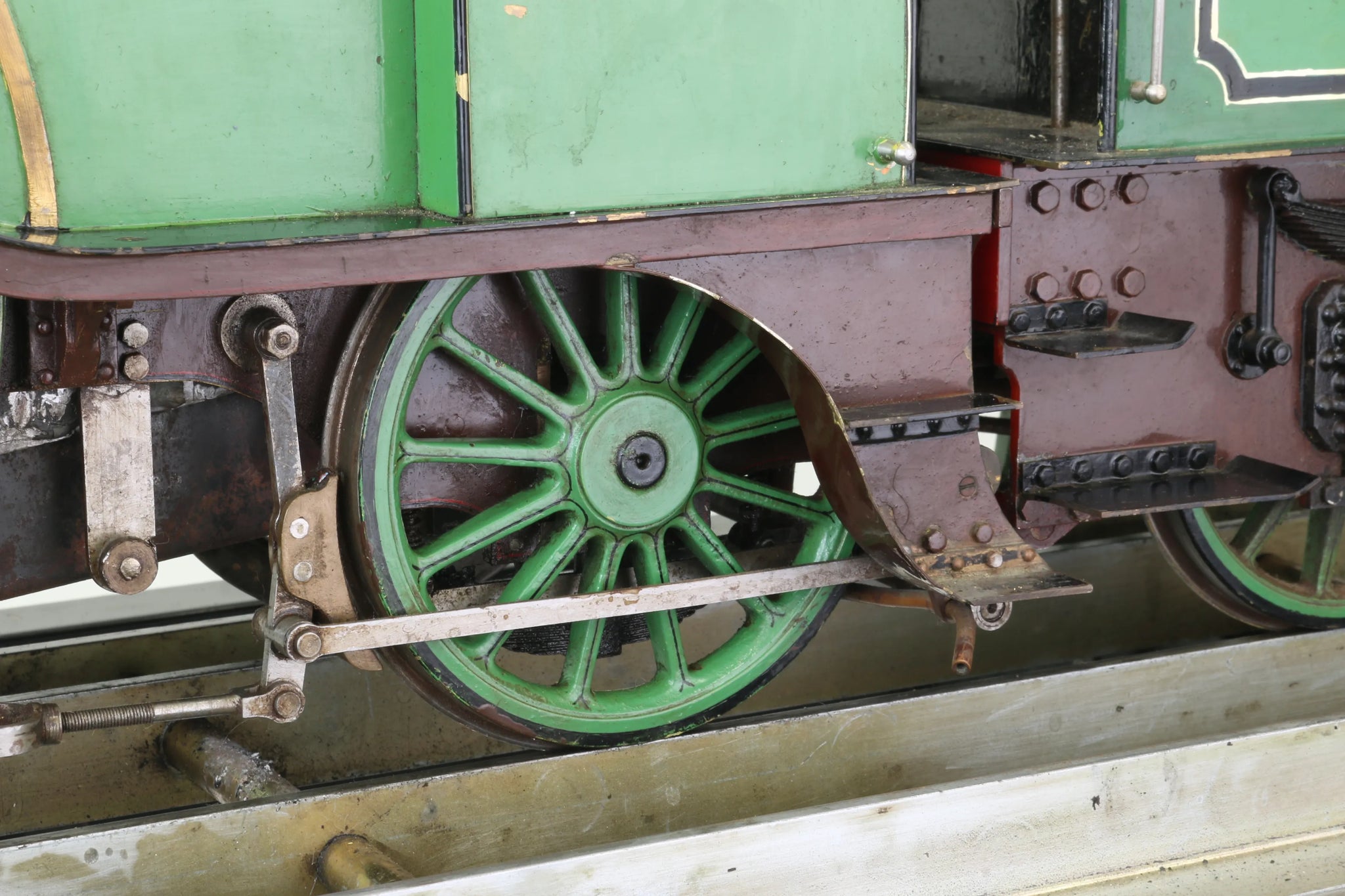

Nicely made in the first place, machining is crisp underneath; there are nice features like weighshaft balance weights, the eccentrics are number stamped.

The engine pushes along freely - doesn't run on air, the valves are passing when the regulator is opened. Boiler shows no signs of leaks or distortion when hydraulic tested at twice working pressure.

A worthwhile project to bring back to life - it's one of my favourite prototypes, probably the best-looking locomotive ever to pull a train out of Kings Cross!

Technical information

Stock code

7917

Gauge

5 inch

Length/inches

32+24

Width/inches

10

Height/inches

16

Wheel material

cast iron

Axlebox type

plain bearing

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler material

copper

Working pressure

80

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

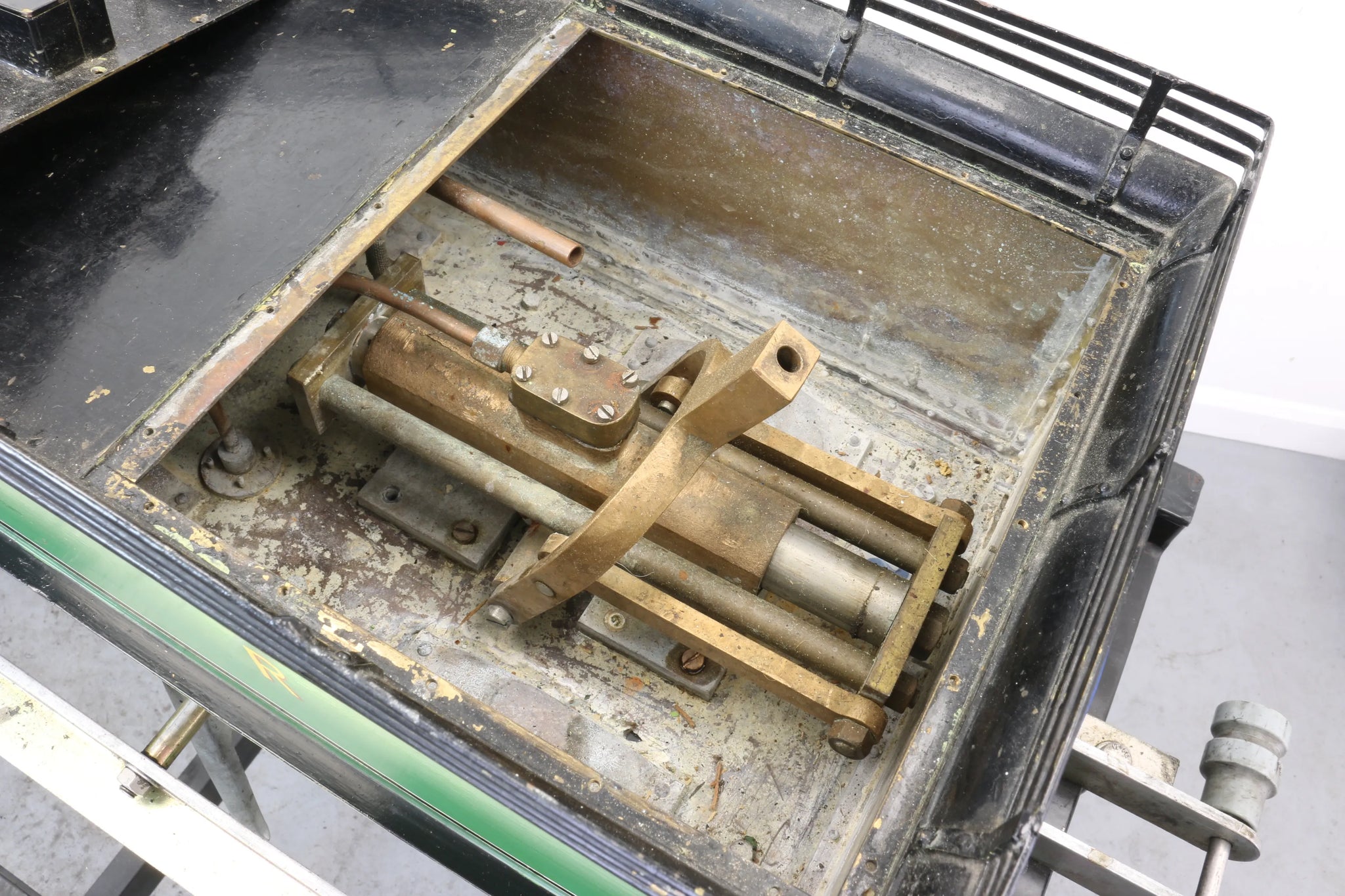

Mechanical pump

1

Injector

1

Pack

Single half pallet

Date out

Apr-18
