5 inch gauge GWR 0-6-0PT

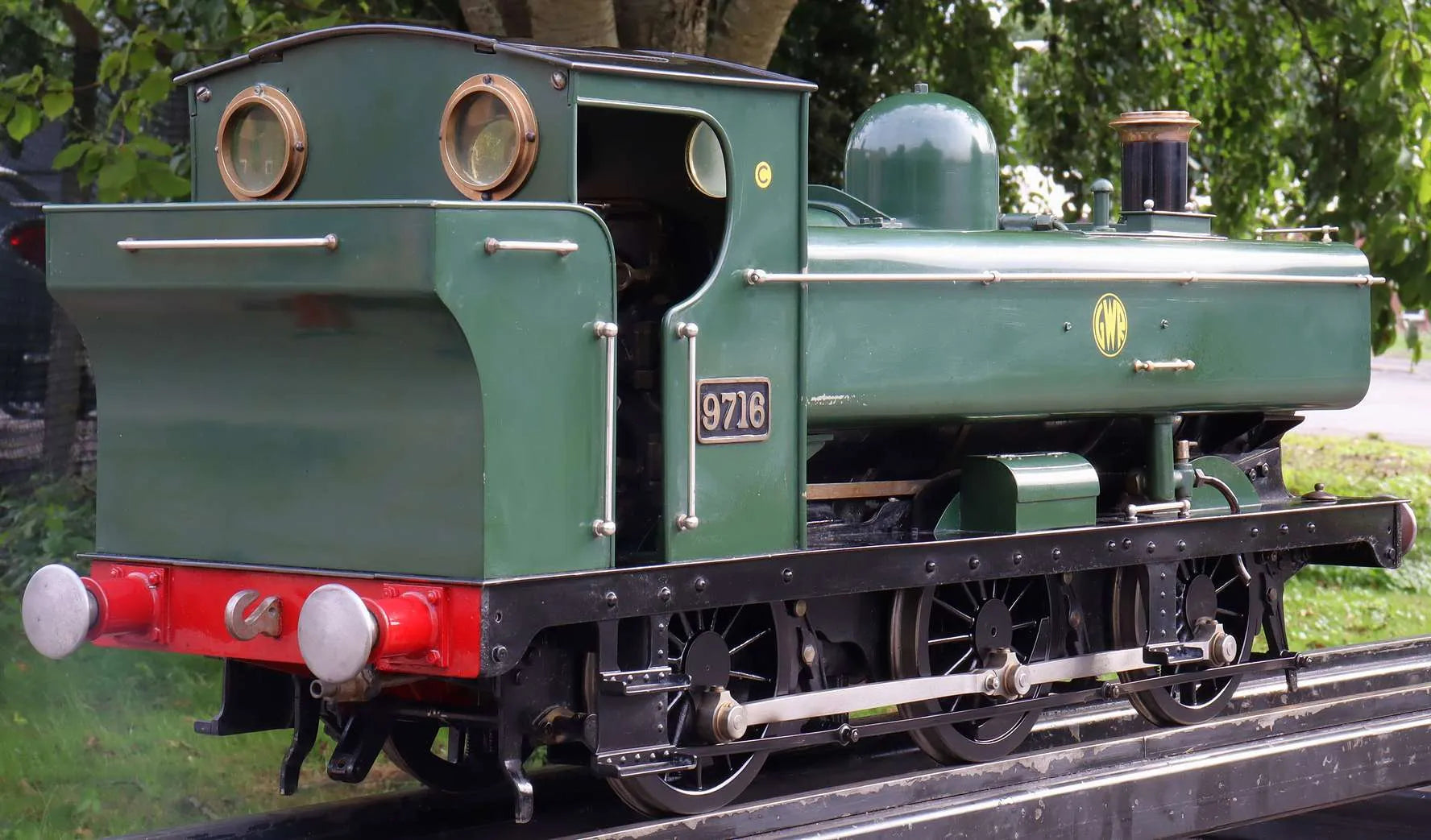

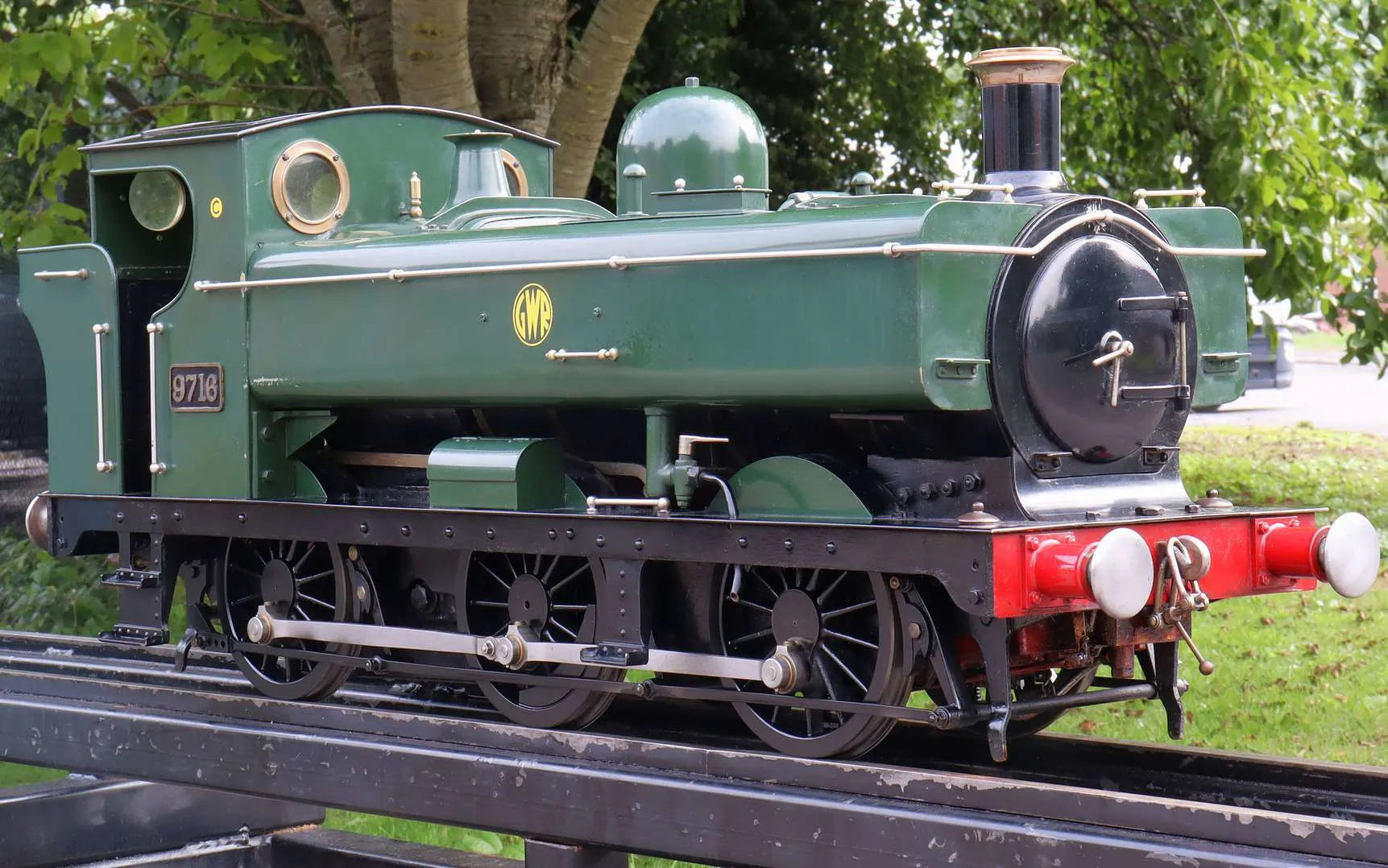

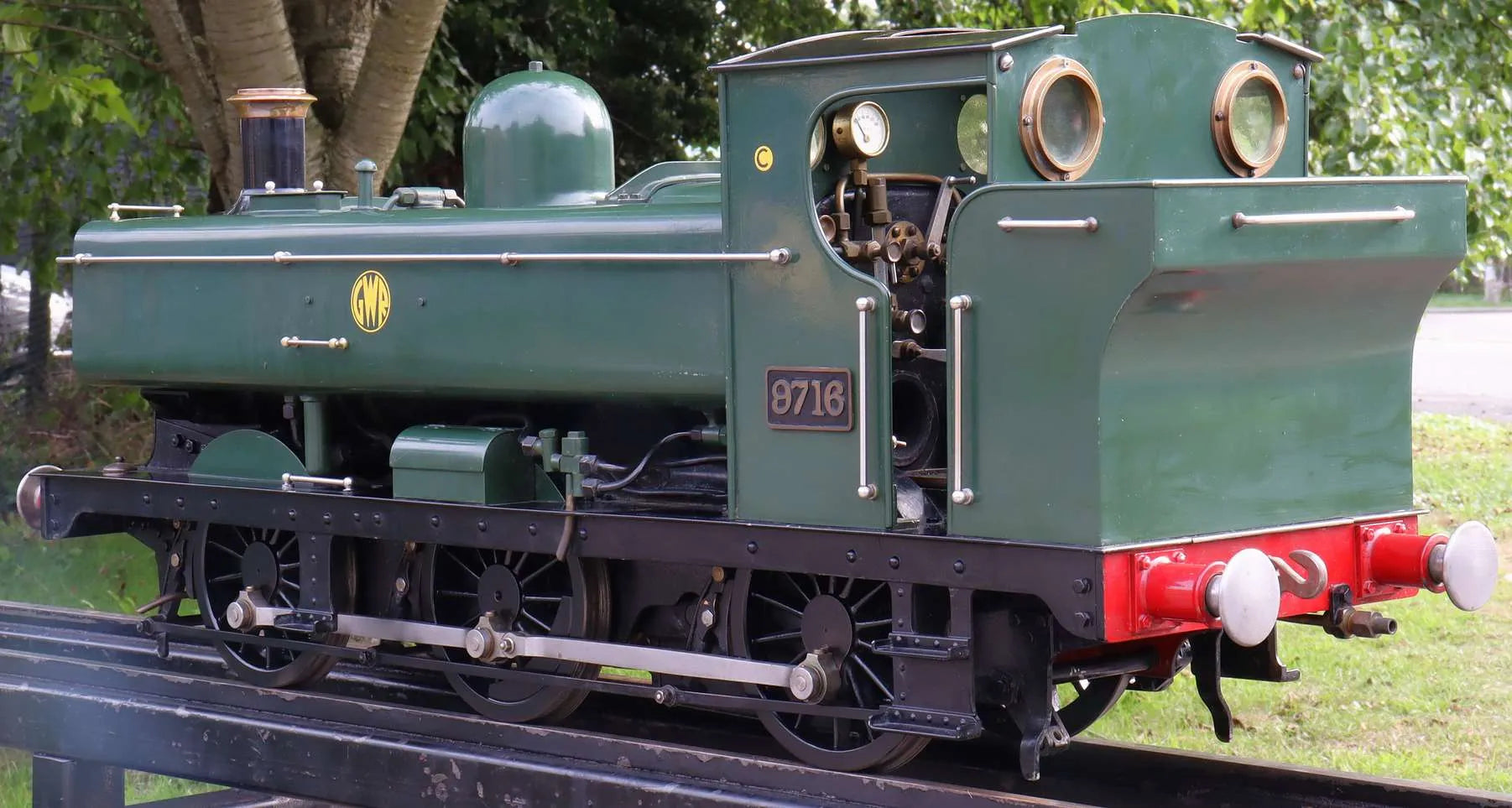

A 5 inch gauge GWR 0-6-0PT, a well made locomotive that has been on display in the owner's house for many years, unused in his ownership.

This one came to us as part of a much larger collection which we bought earlier in the year, including many fine engines including a magnificent 7 1/4 inch gauge Standard Class 2, Manning Wardle 2-6-2T "Yeo" and 4 inch scale Burrell DCC road locomotive that we've sold recently.

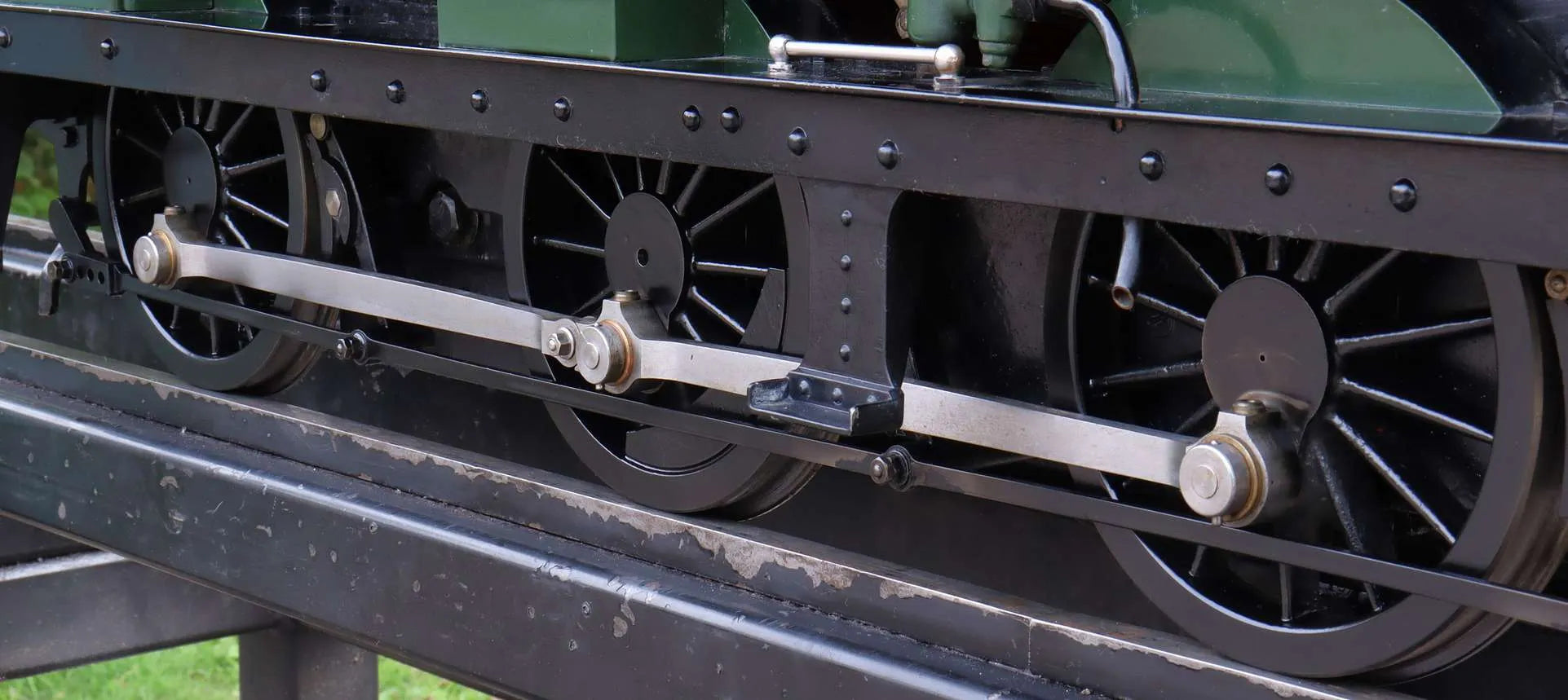

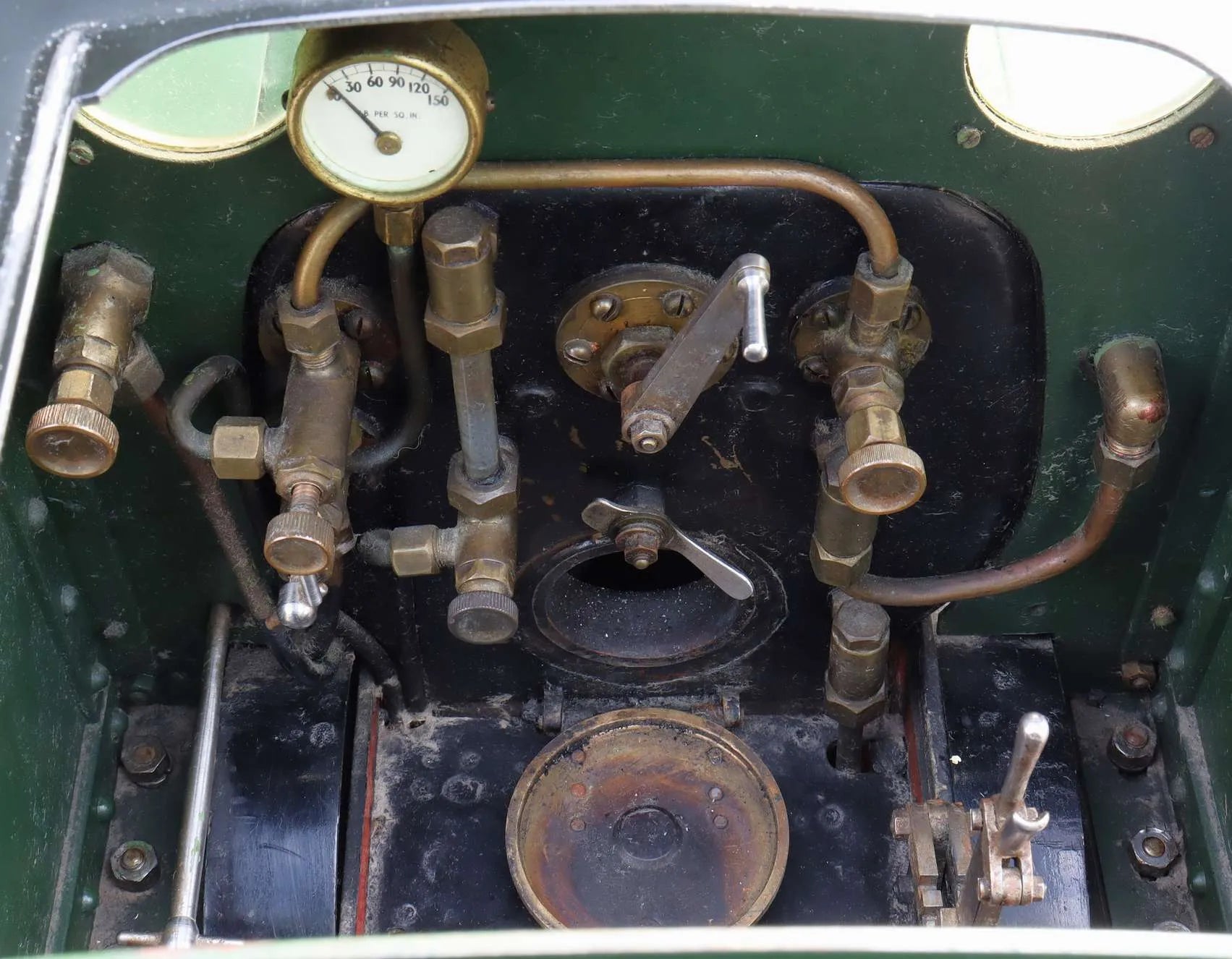

The engine runs well on air in either direction, with clear beats and little discernible wear in the valve gear and motionwork. Regulator is seized - although would likely free up under steam - and hand brake screw is missing.

On hydraulic test the boiler appeared structurally sound at twice working pressure, although with a persistent drip from the back right hand corner of the foundation ring. Easy of access to repair, but the boiler will need to be lifted to do that.

Technical information

Stock code

10522

Gauge

5 inch

Length/inches

34

Width/inches

10

Height/inches

14

Wheel material

cast iron

Axlebox type

split bronze

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Dec-22
