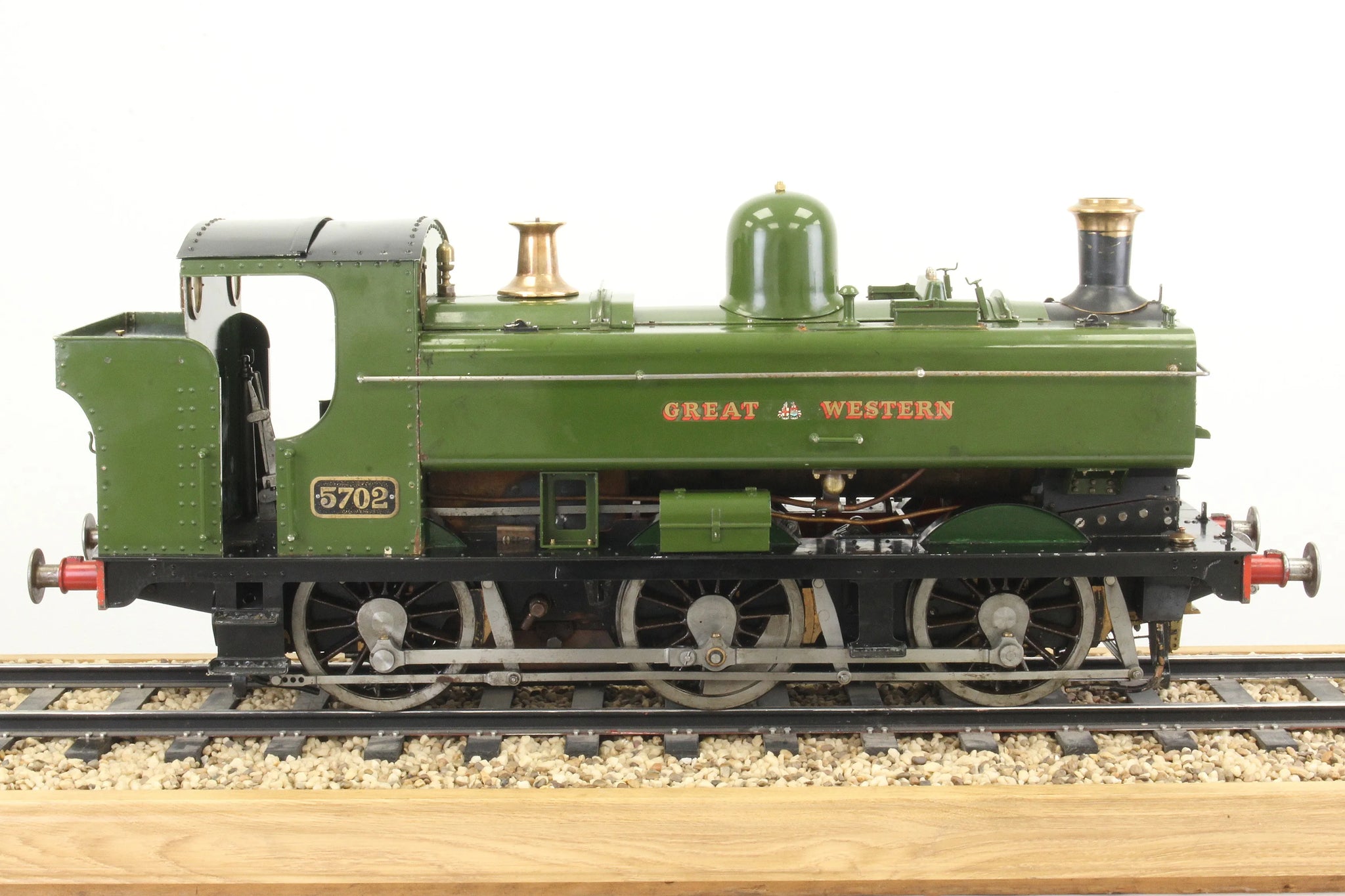

8272
Boiler has had a twice working pressure hydraulic test and is warrantied sound.

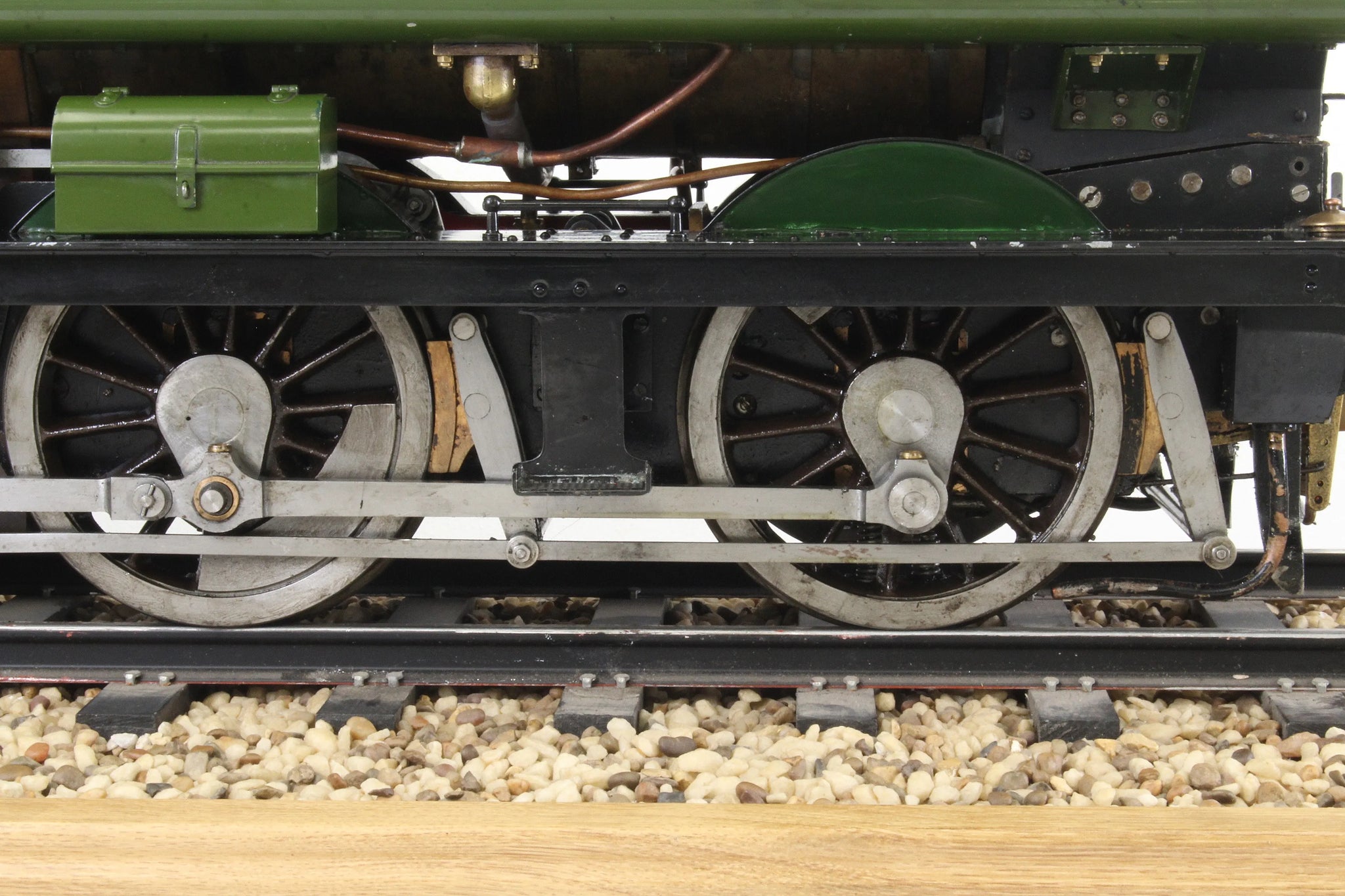

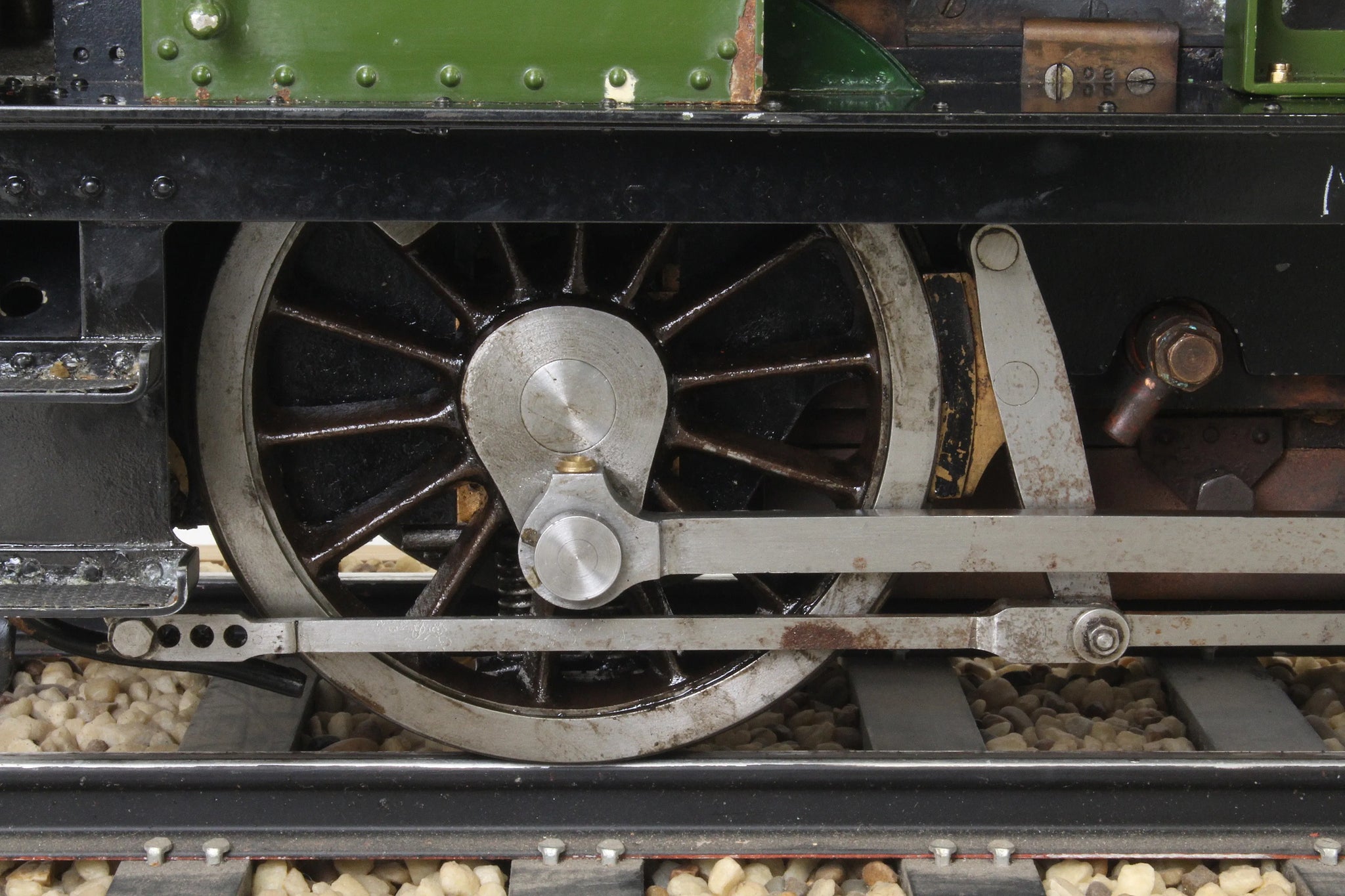

The chassis turns over freely although needs the eccentrics resetting.
Stock code |
8272 |
Gauge |
5 inch |
Length/inches |
34 |
Width/inches |
9.5 |
Height/inches |
14 |
Wheel material |
cast iron |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - pre-2002 |
Year built |
1989 |
Boiler number |
1577.4.89 TC |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 x crosshead |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
4 |
Date out |
Jun-19 |
Hydraulic test valid to |
05-Dec-22 |
