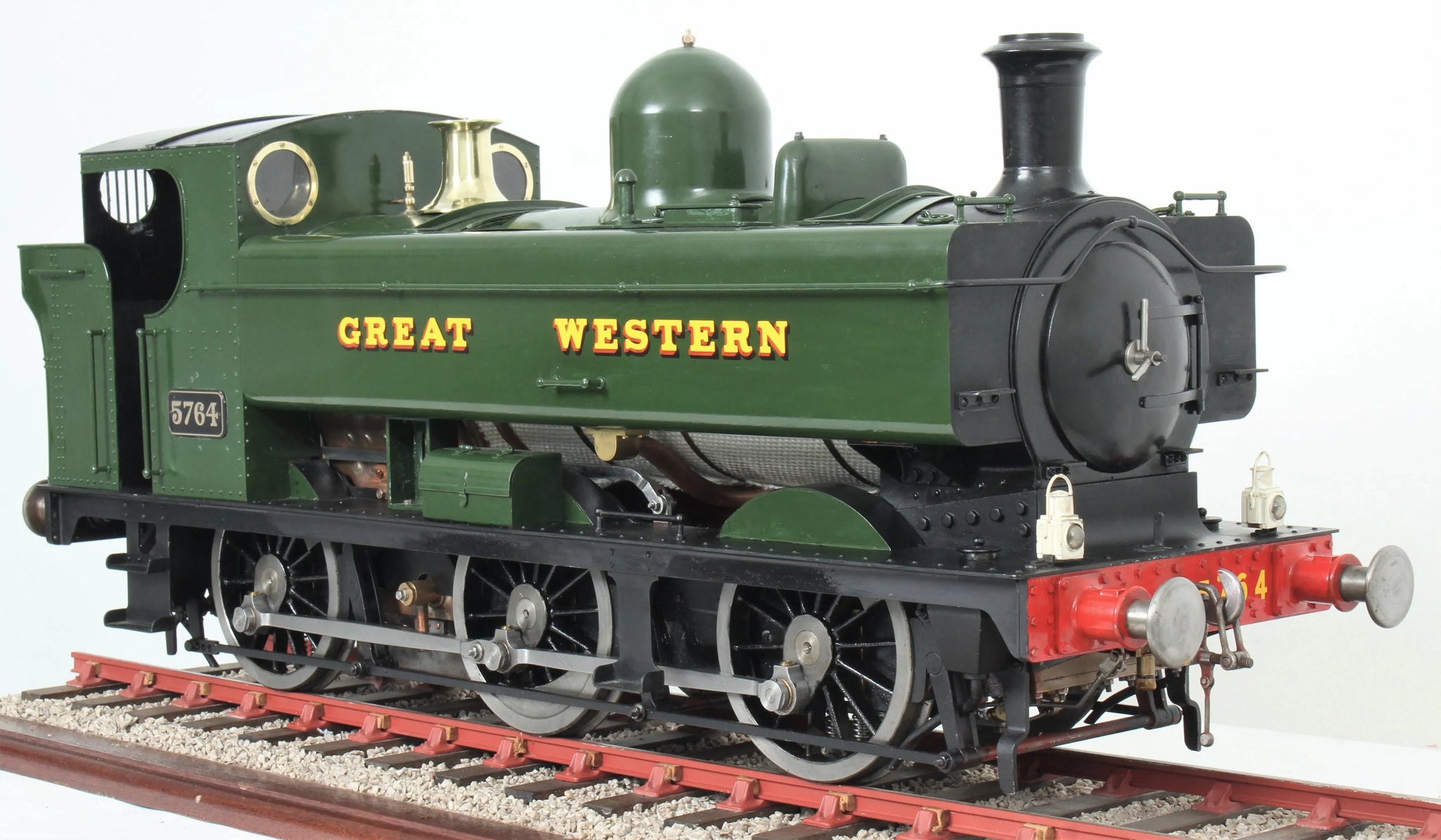

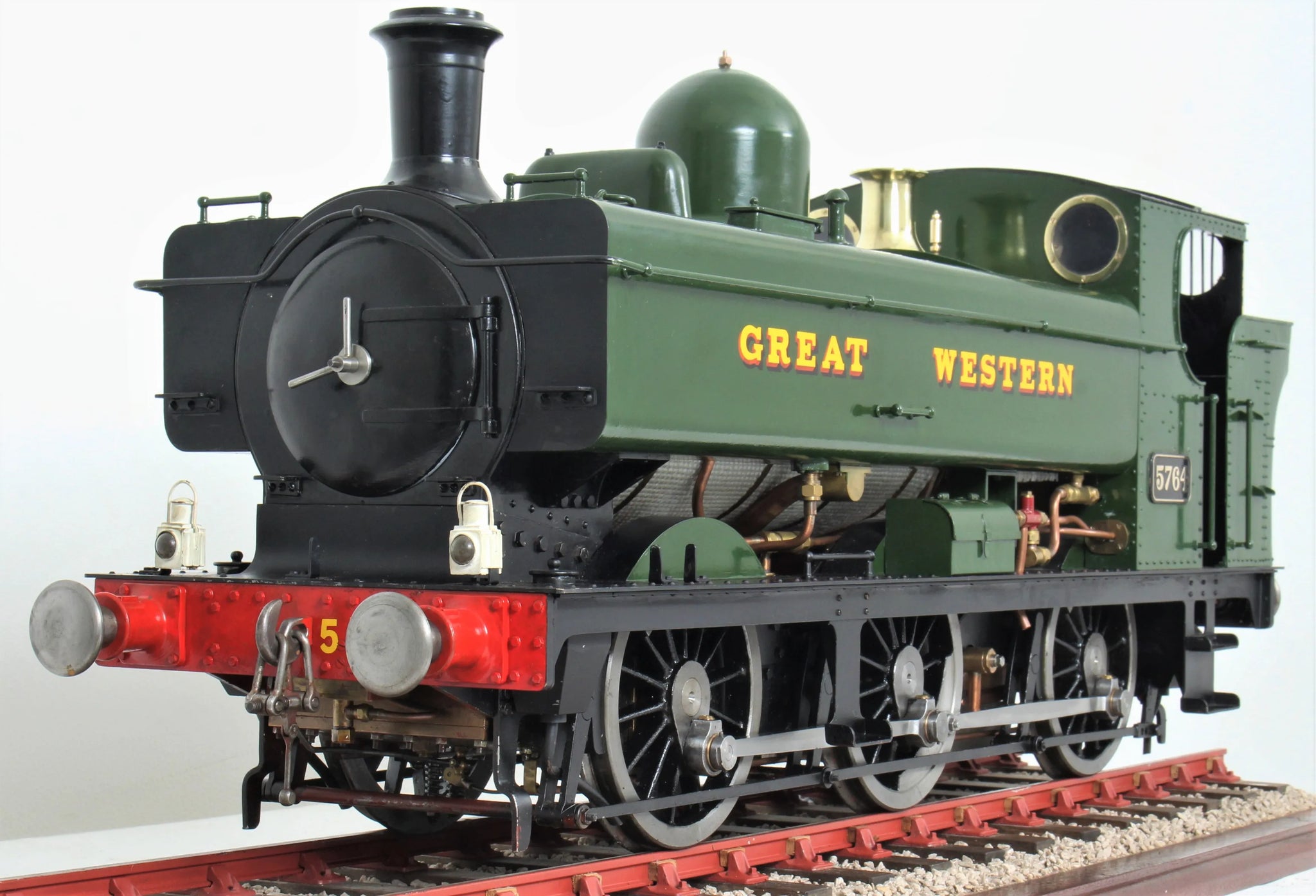

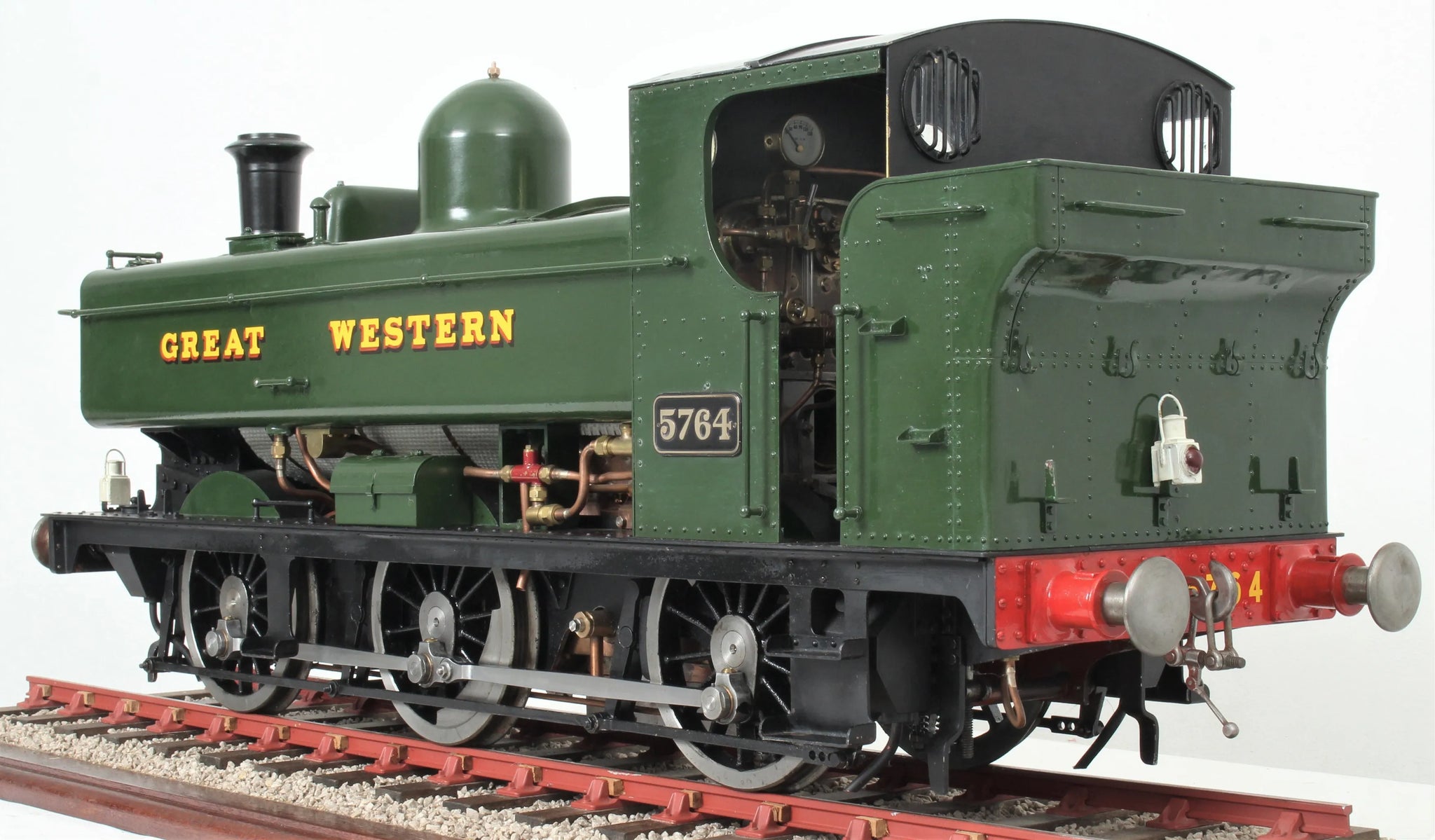

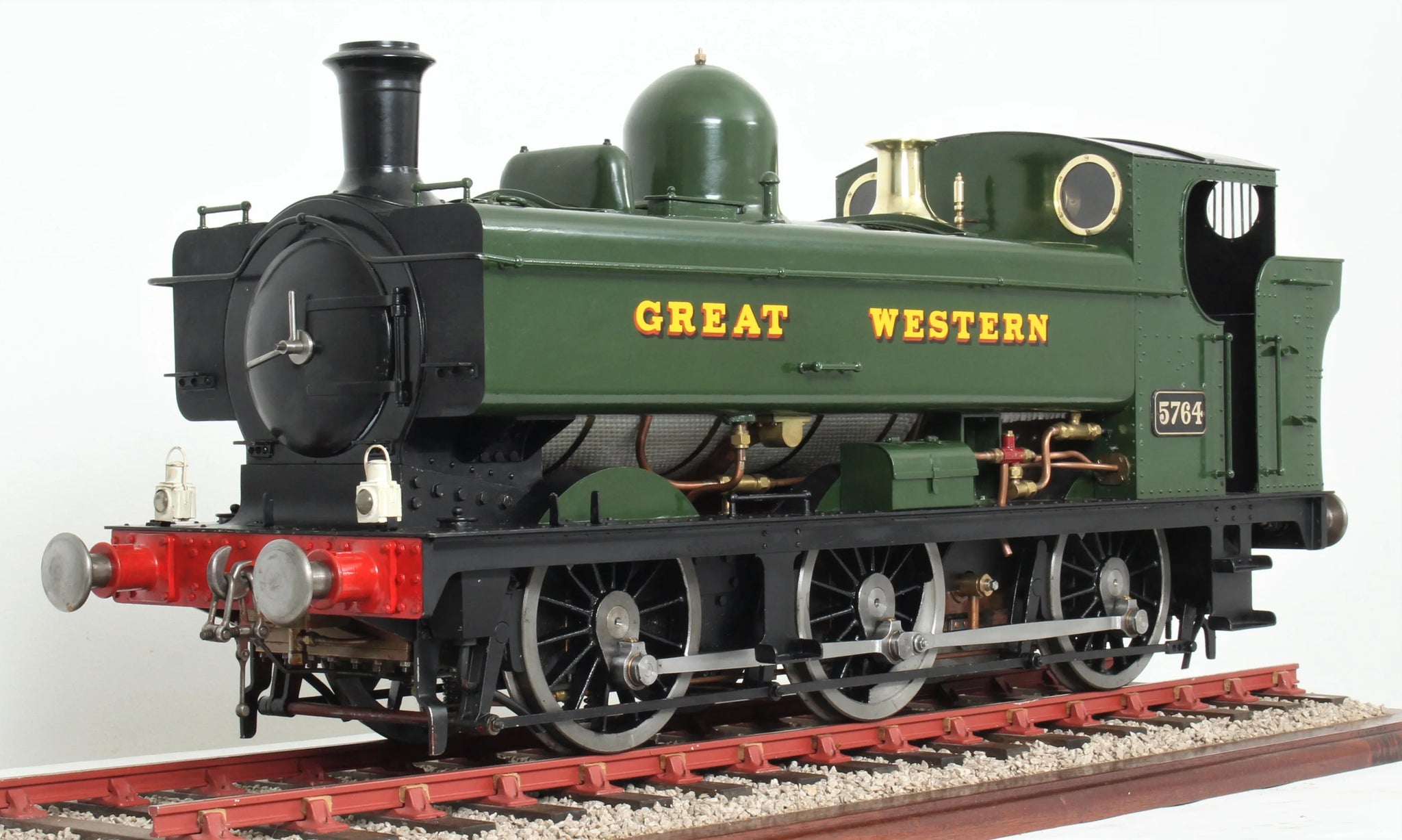

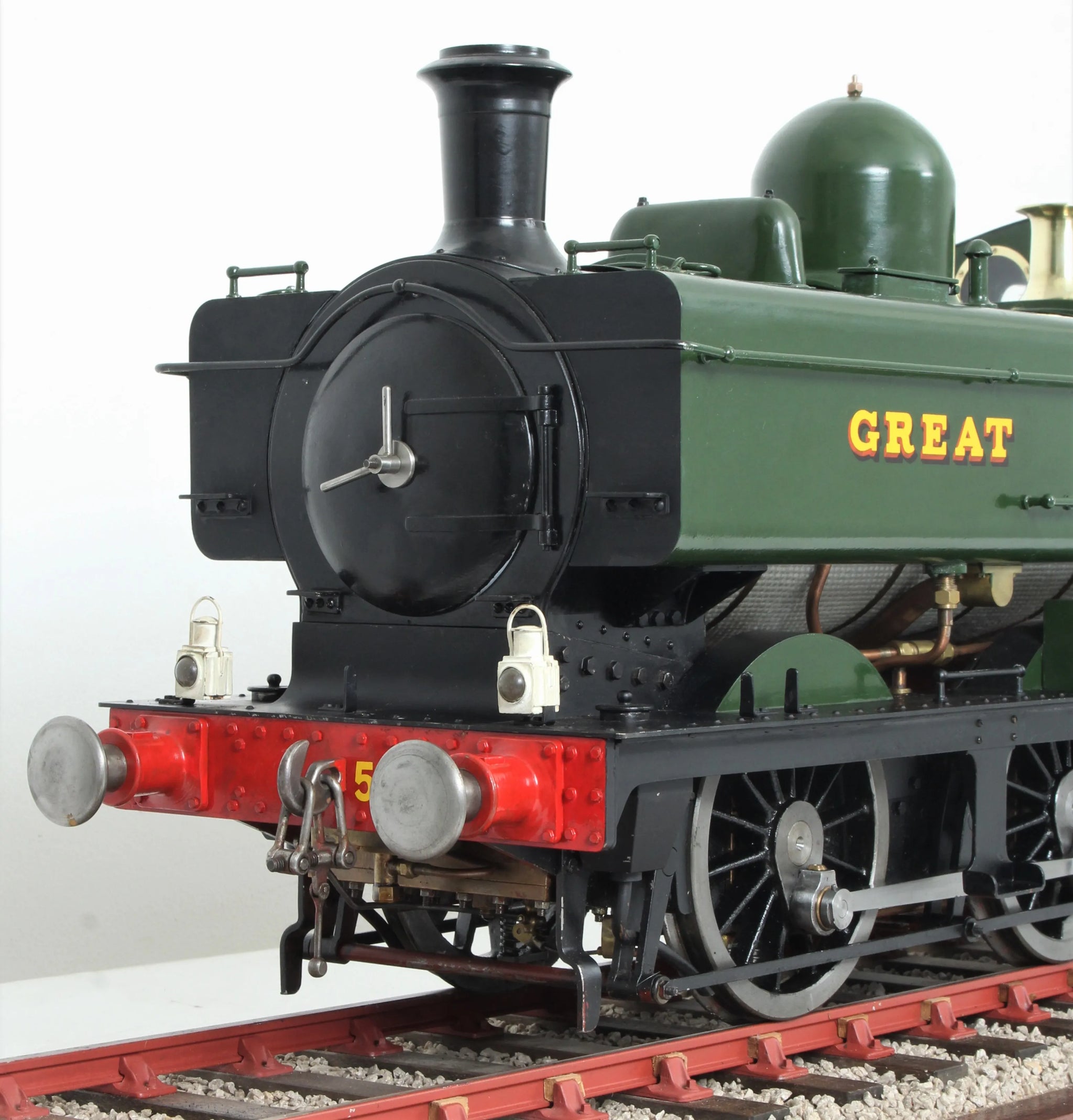

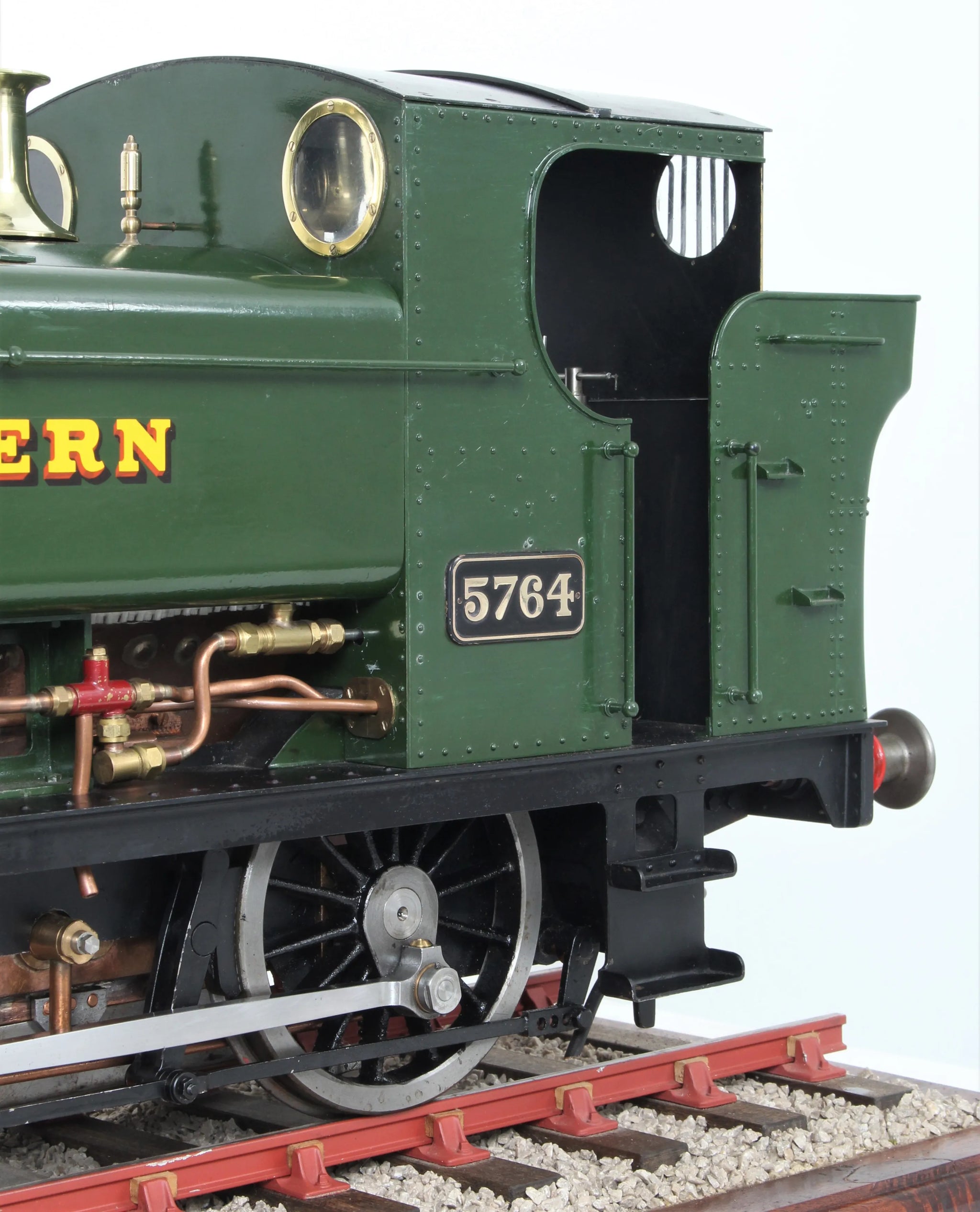

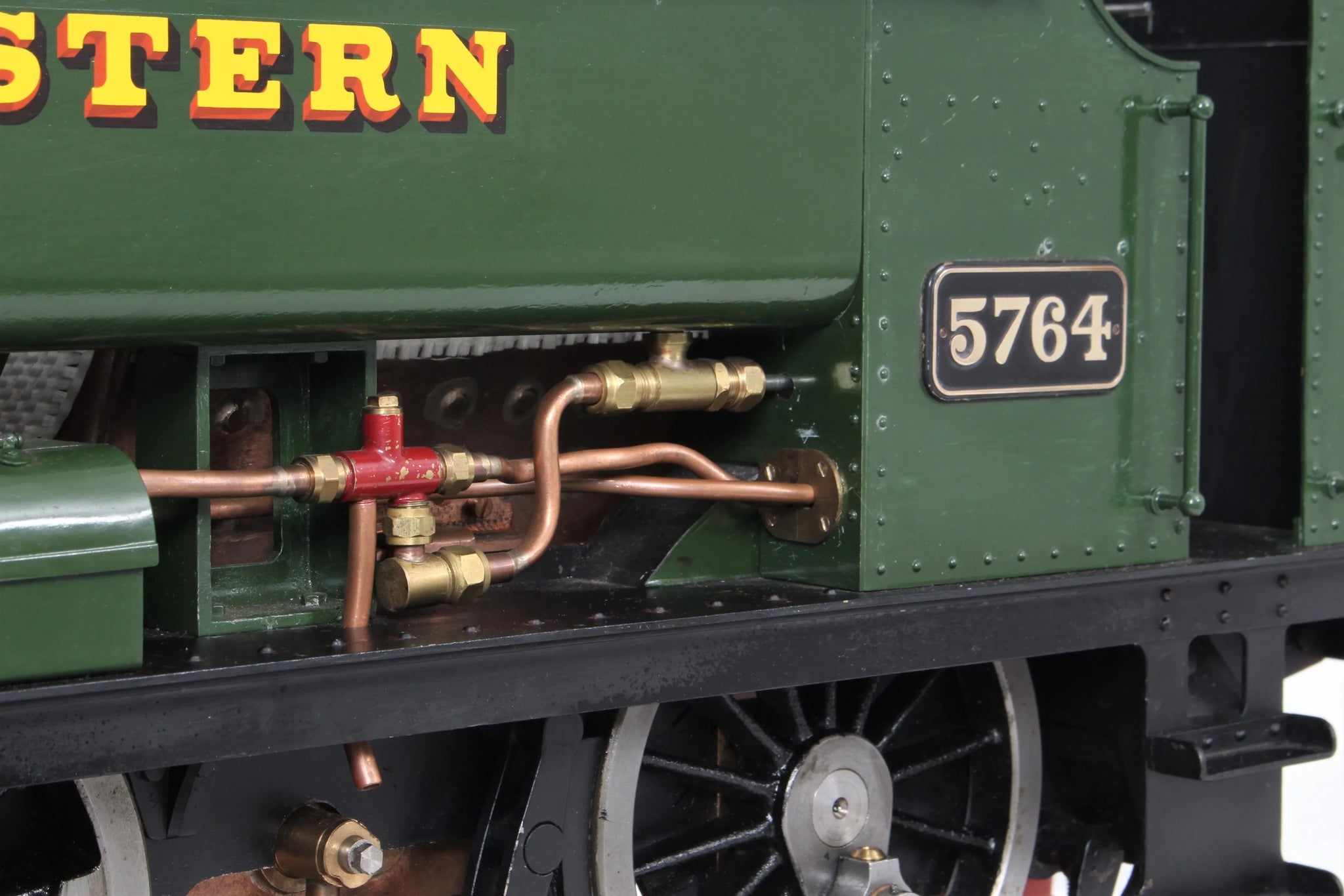

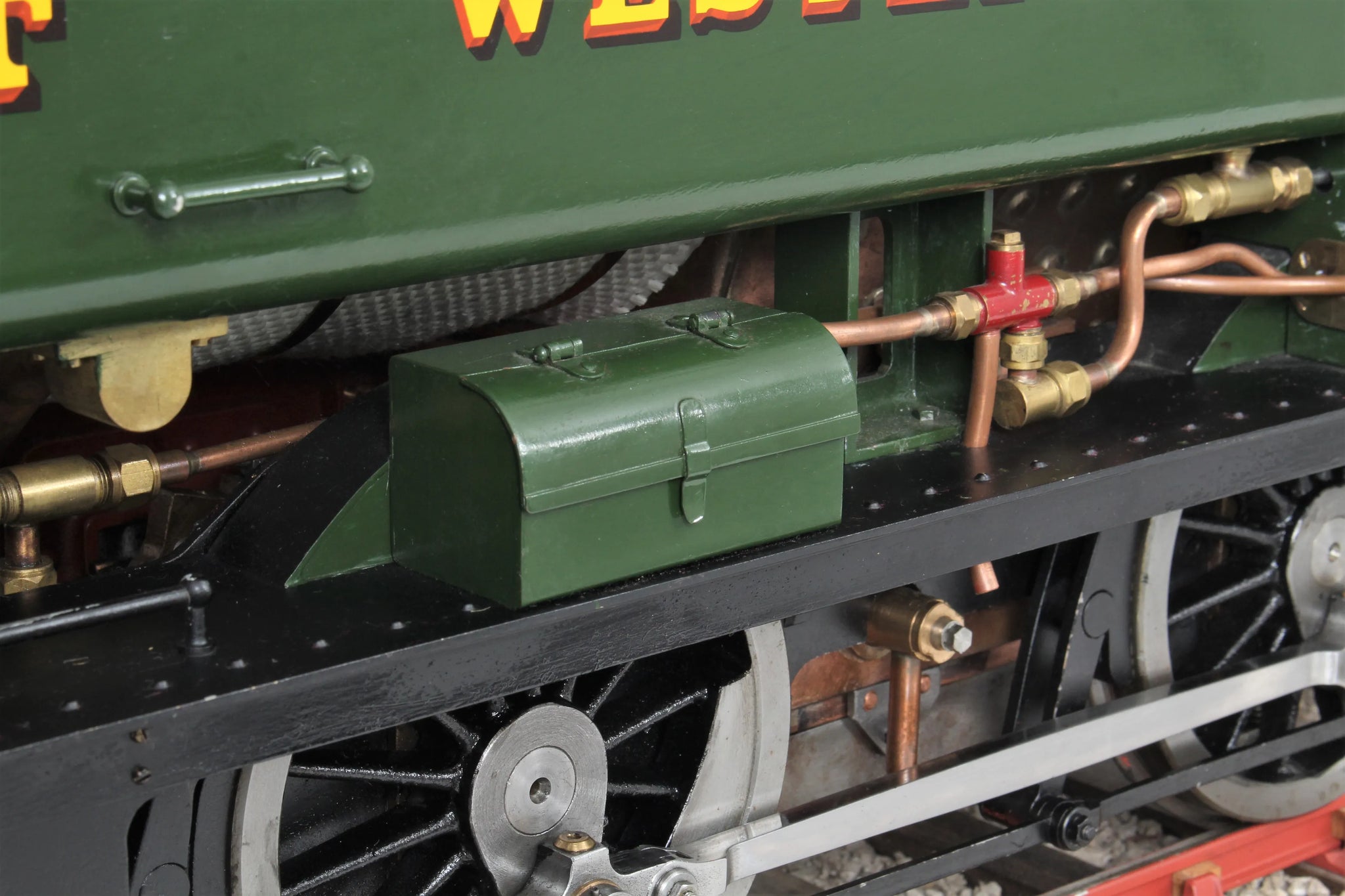

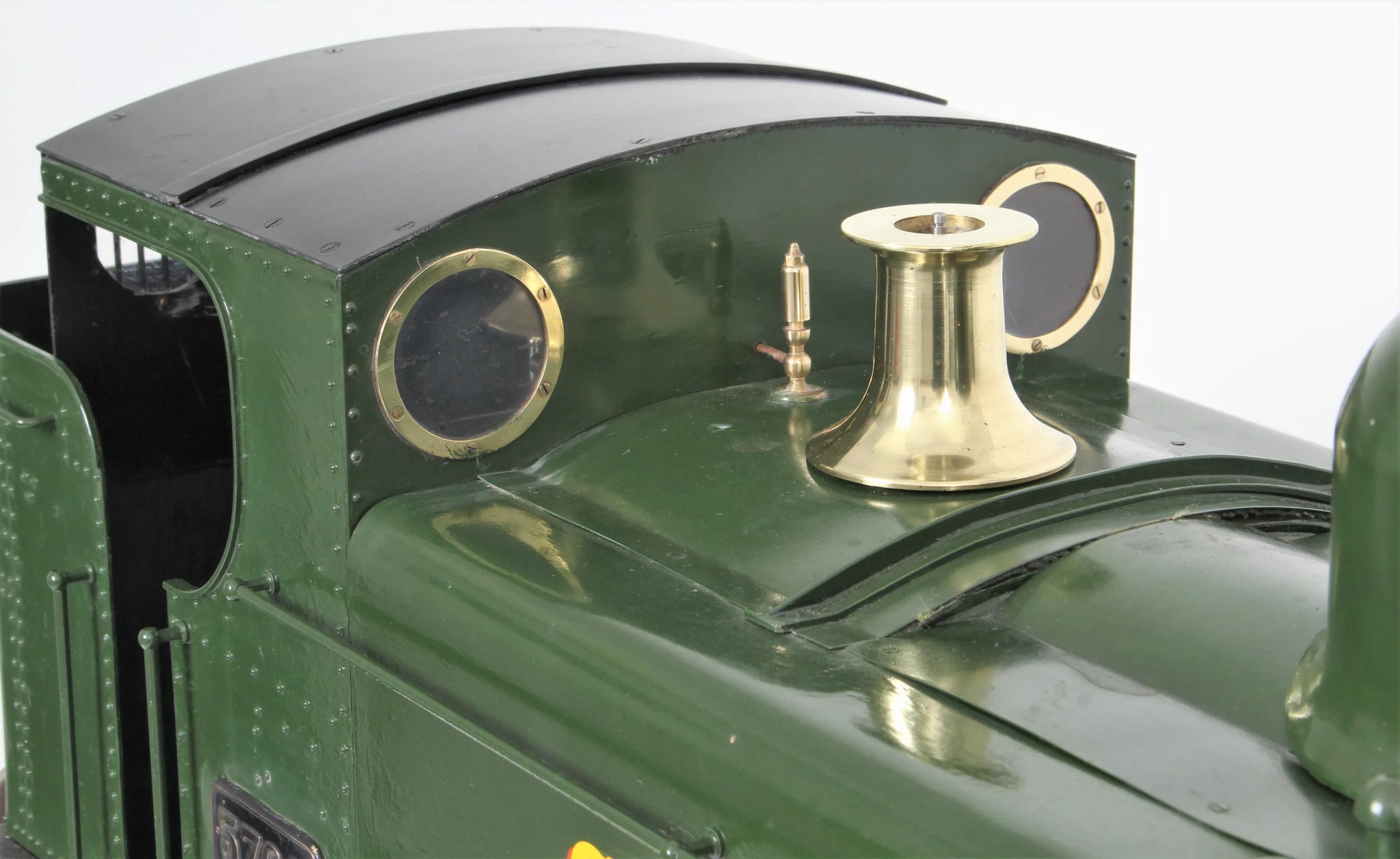

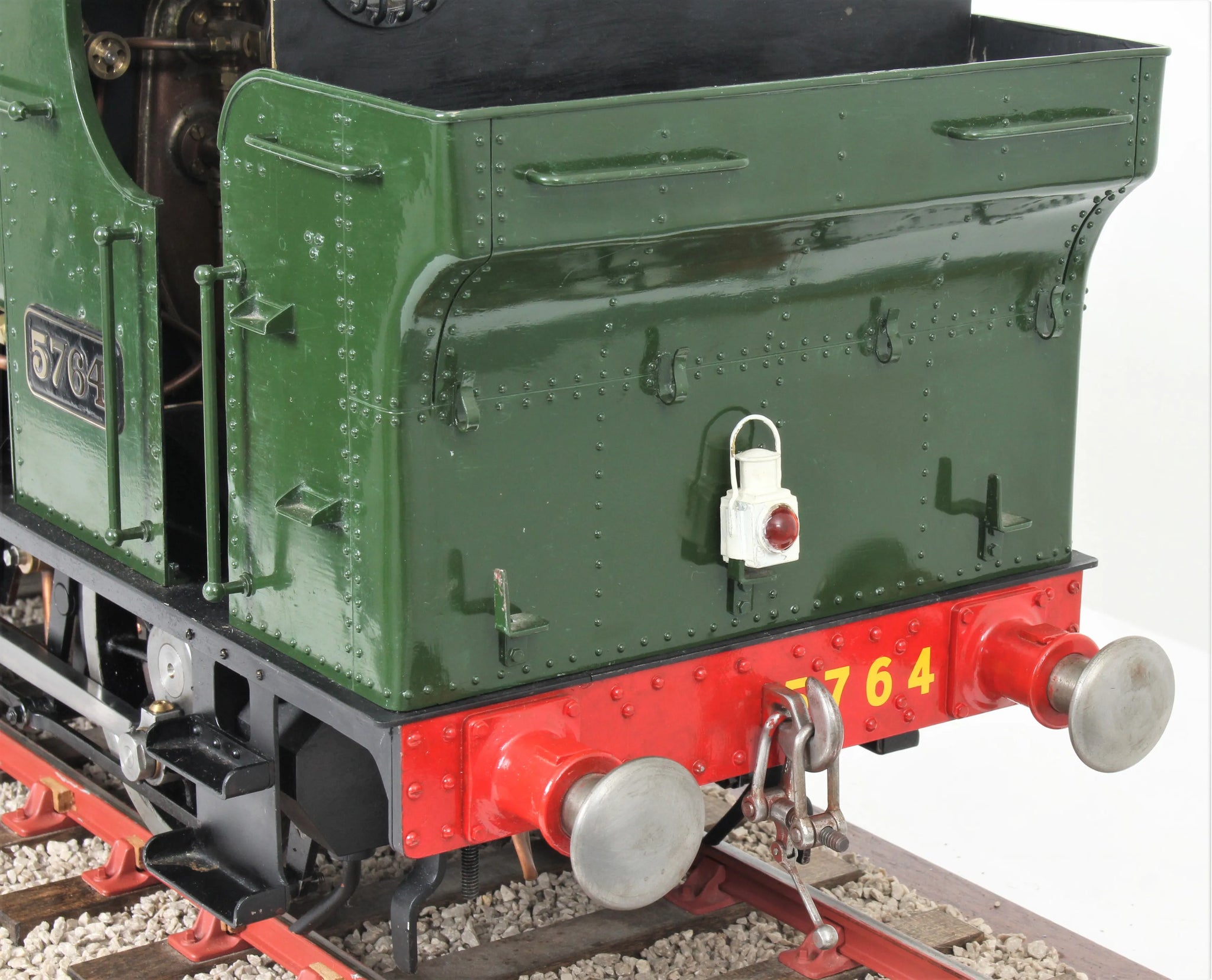

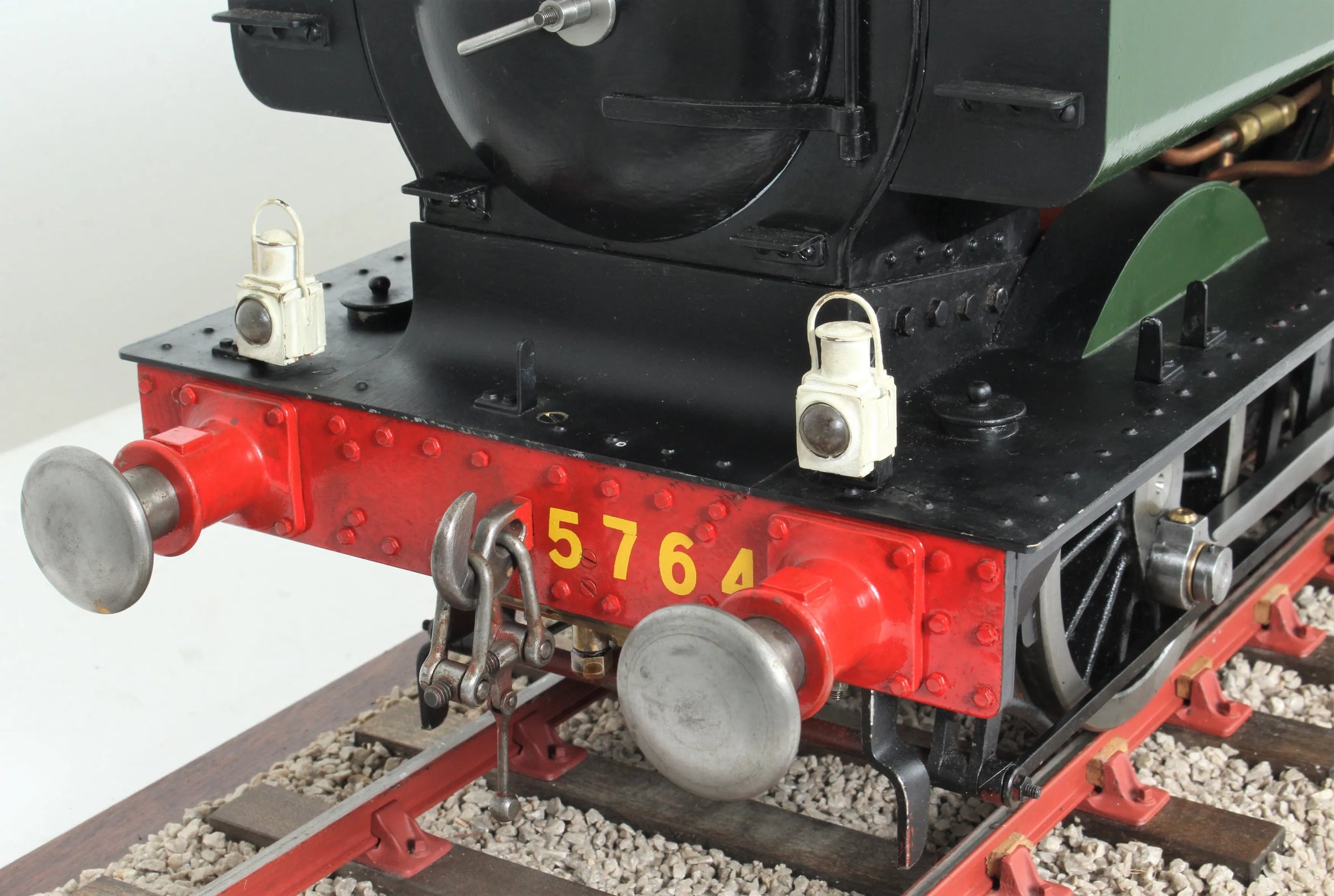

5 inch gauge GWR 0-6-0PT

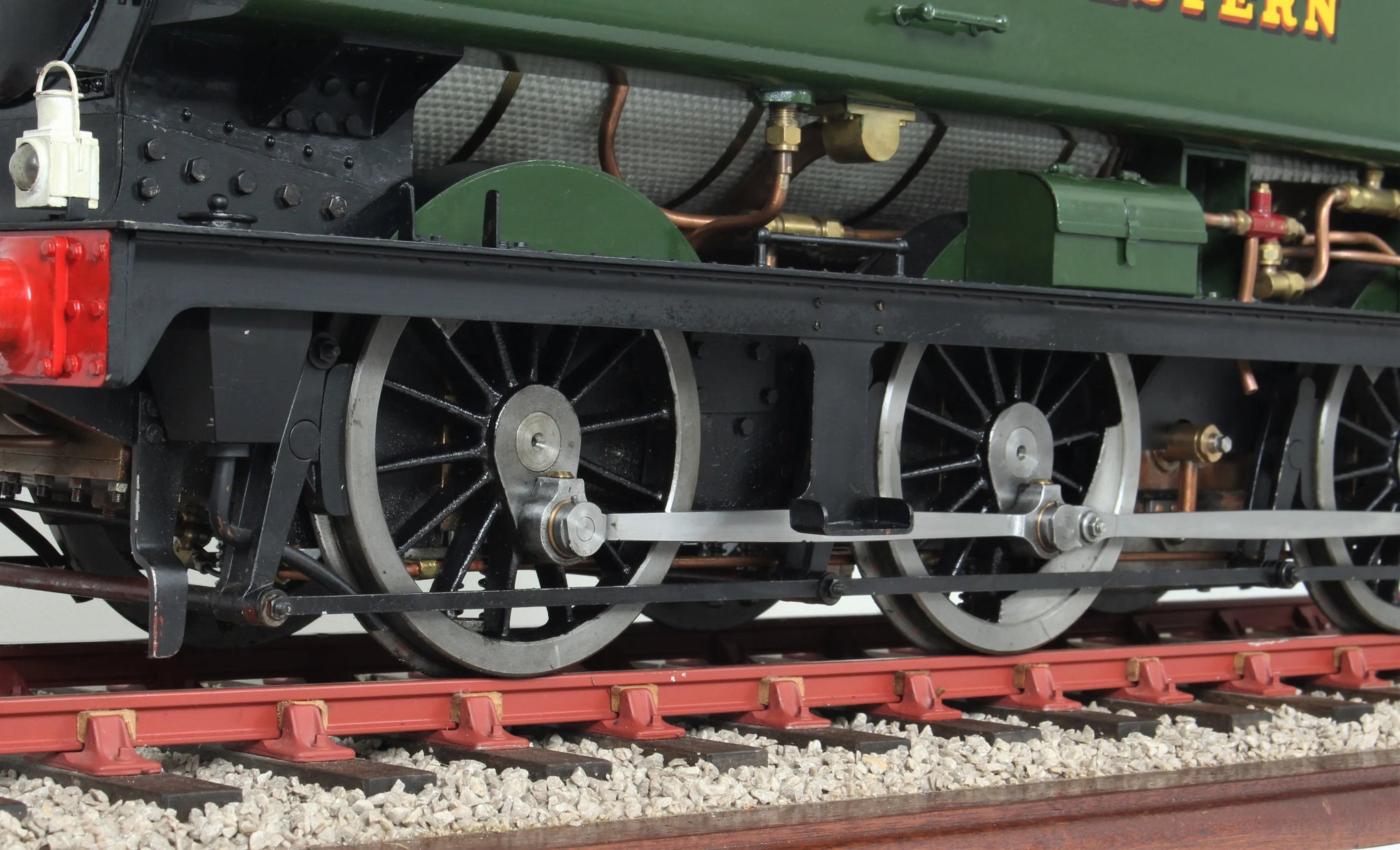

A 5 inch gauge GWR 0-6-0 pannier tank to LBSC's "Pansy" design, it came to us from an experienced model engineer along with several other locomotives, including the Britannia "Western Star", LNER A4 "Sir Nigel Gresley" and an LNER V1.

The engine was well-built originally and fitted with a new commercial boiler by John Ellis some years ago, since when it had remained unsteamed.

Paintwork is in good condition - whilst the pannier tank covers much of the boiler, there is no cladding sheet beneath.

The engine has recently had a couple of days in our workshop for recommissioning. Boiler has had new hydraulic and steam tests with certification issued for same - the first time it's ever had a fire in it - followed by running for a couple of hours on the rolling road.

It goes well, a particularly good example of one of LBSC's most popular designs.

Technical information

Stock code

8874

Gauge

5 inch

Length/inches

34

Width/inches

9.5

Height/inches

14

Wheel material

cast iron

Axlebox type

split bearing

Cylinder material

gunmetal

Valve type

slide

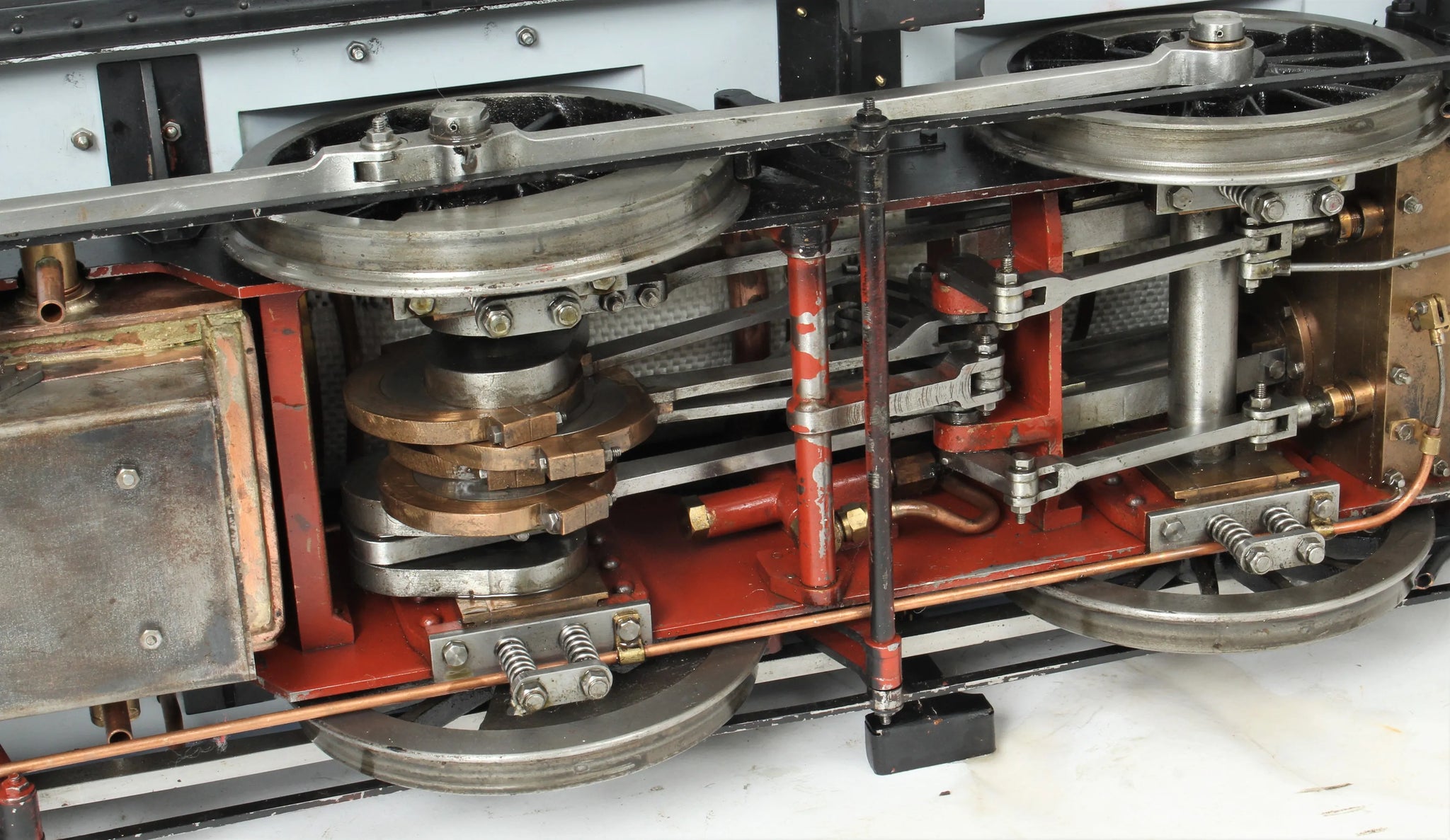

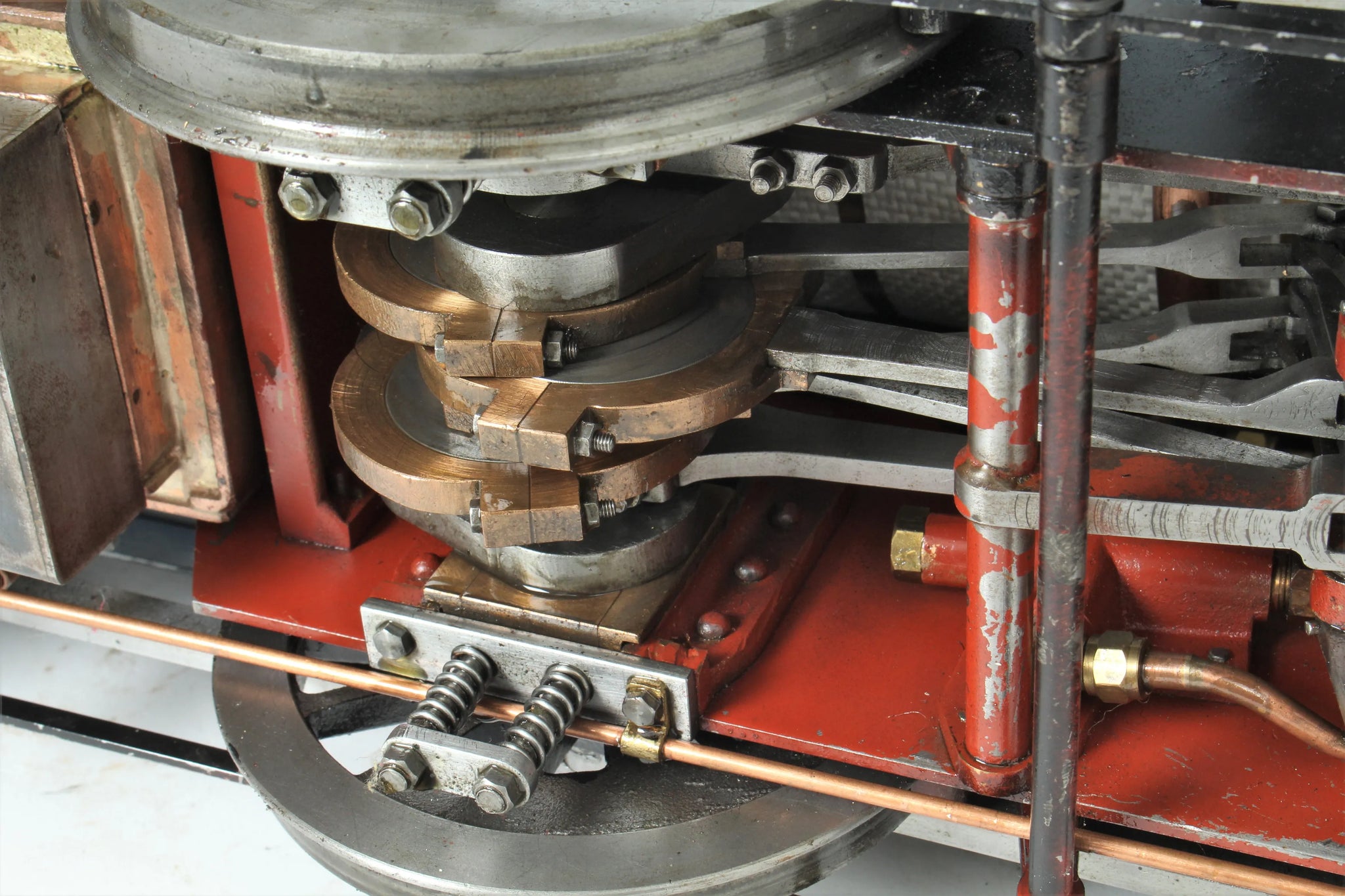

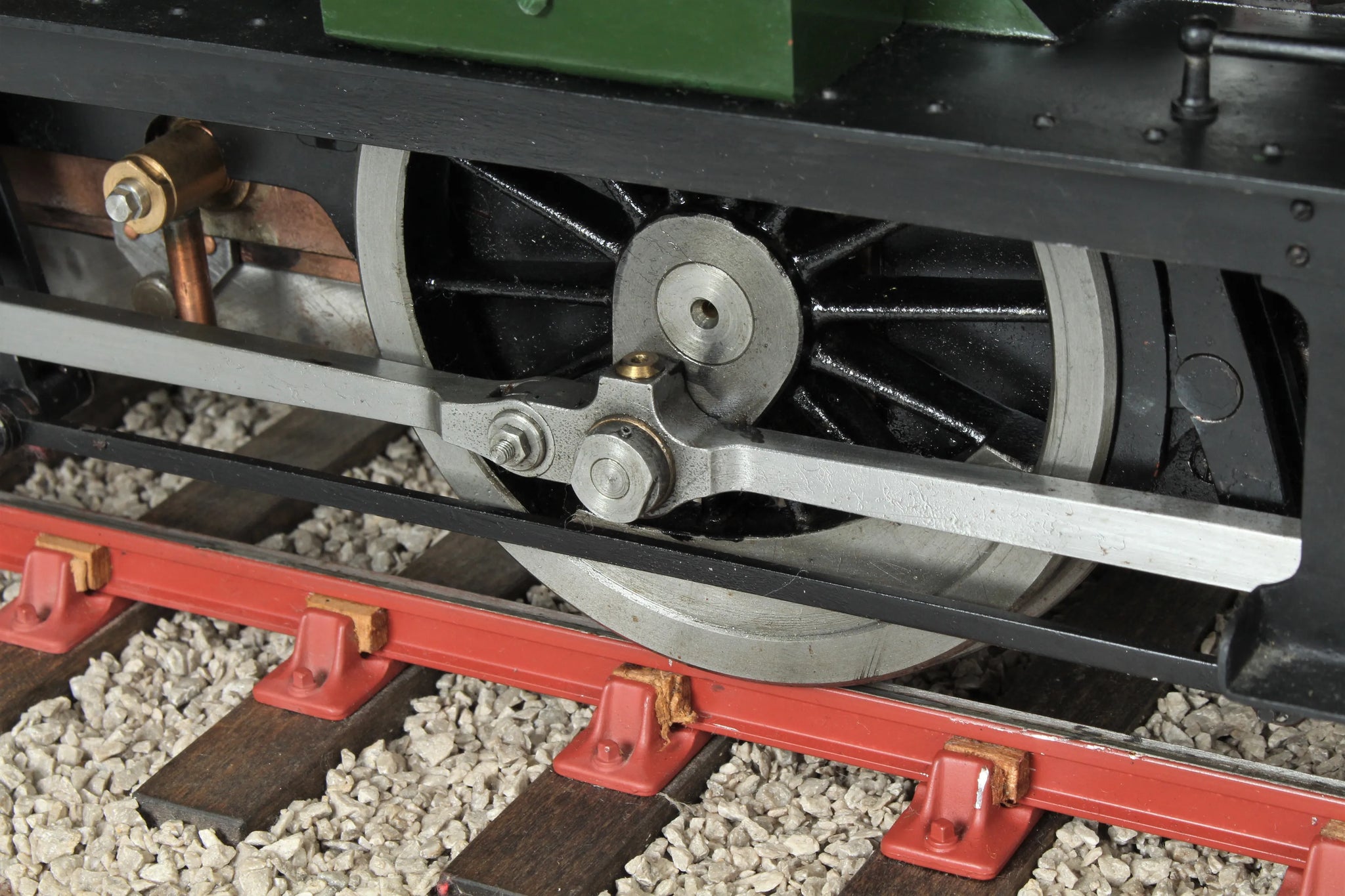

Valve gear

Stephensons

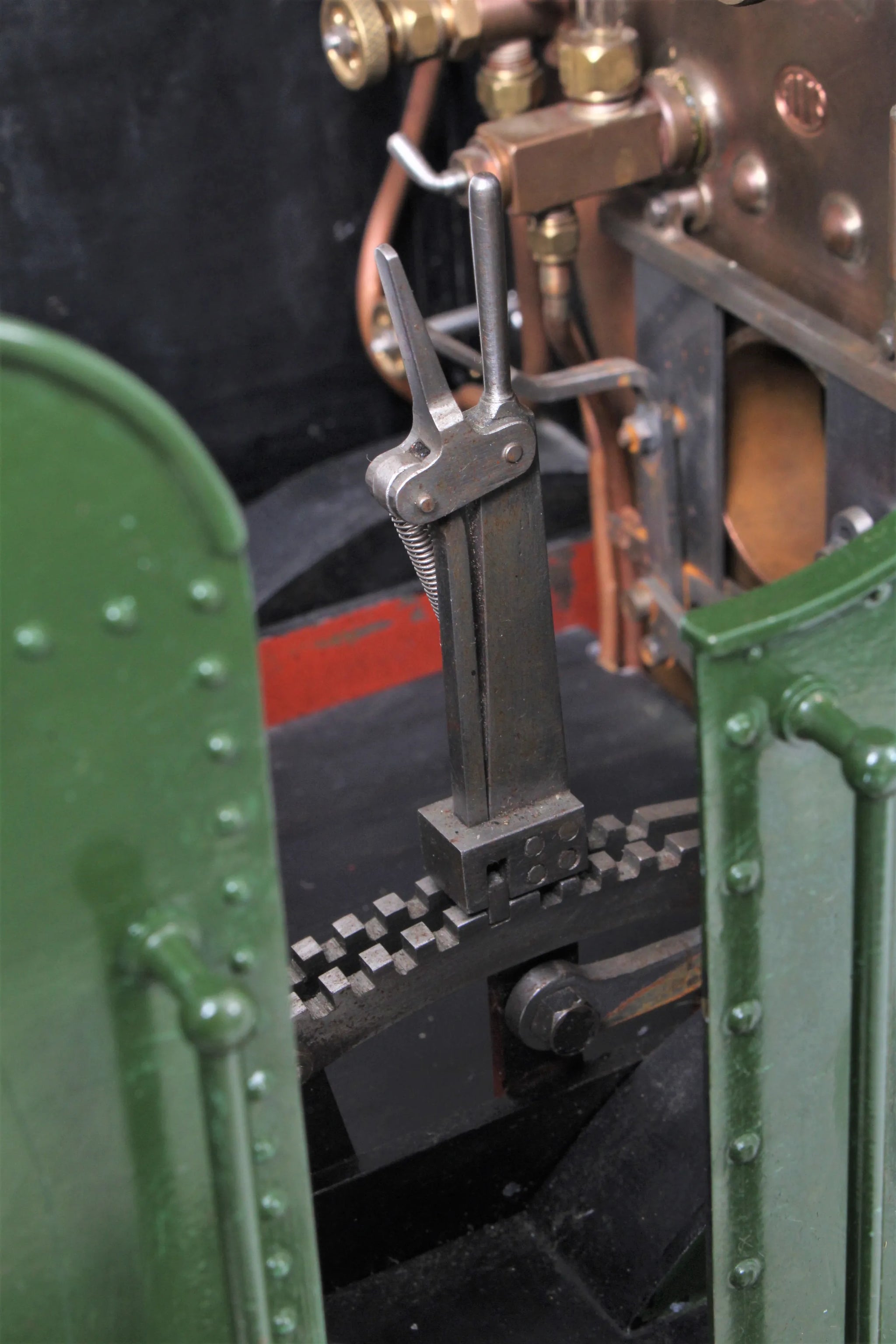

Reverser type

pole

Lubricator type

mechanical

Boiler maker

John Ellis

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Year built

1999

Boiler number

ST110

Safety valve type

spring

Safety valve

1

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Apr-20

Hydraulic test valid to

17-Nov-23

Steam test valid to

21-Mar-21
