Sold

10927

5 inch gauge GWR 14XX 0-4-2T

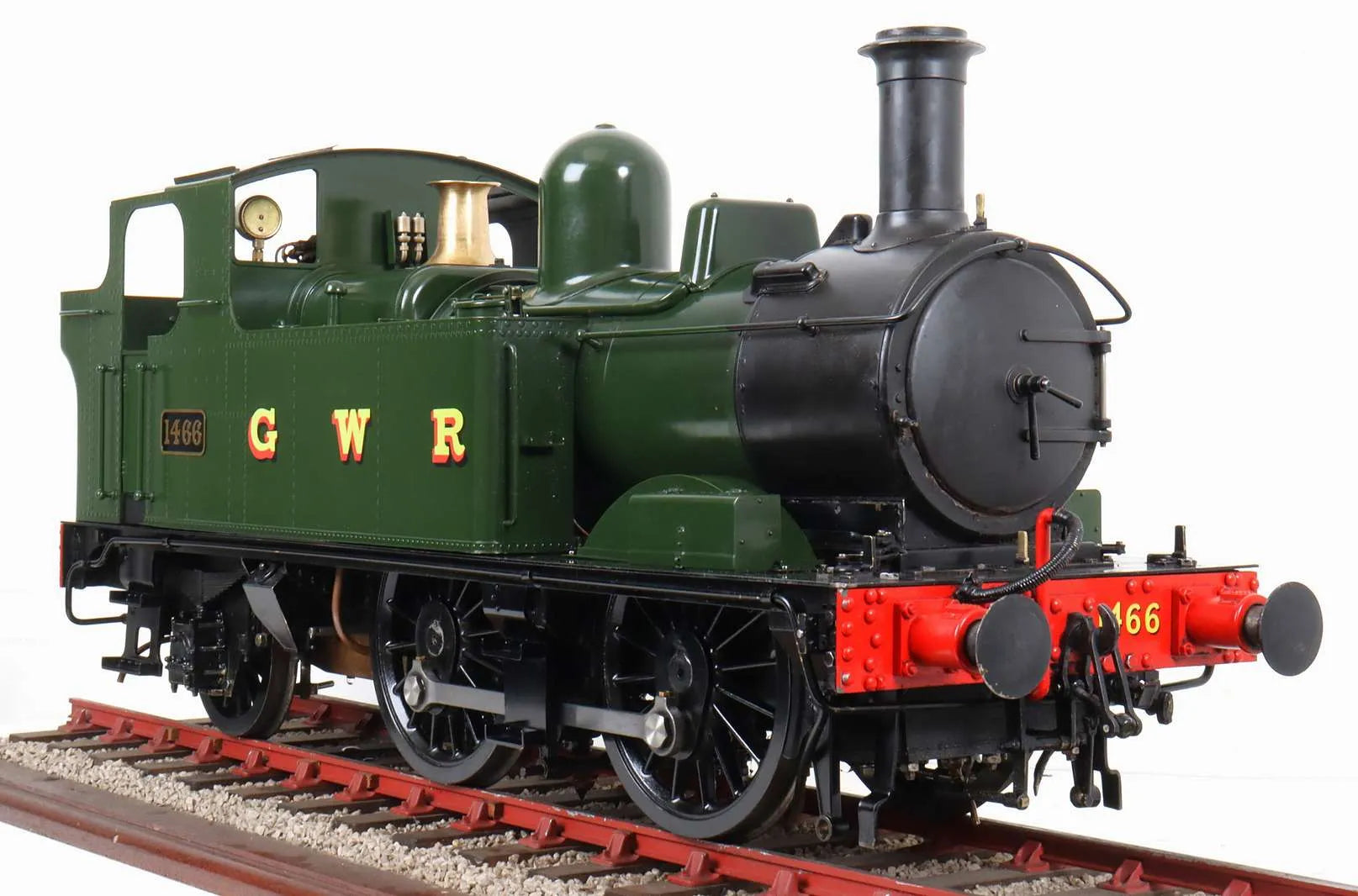

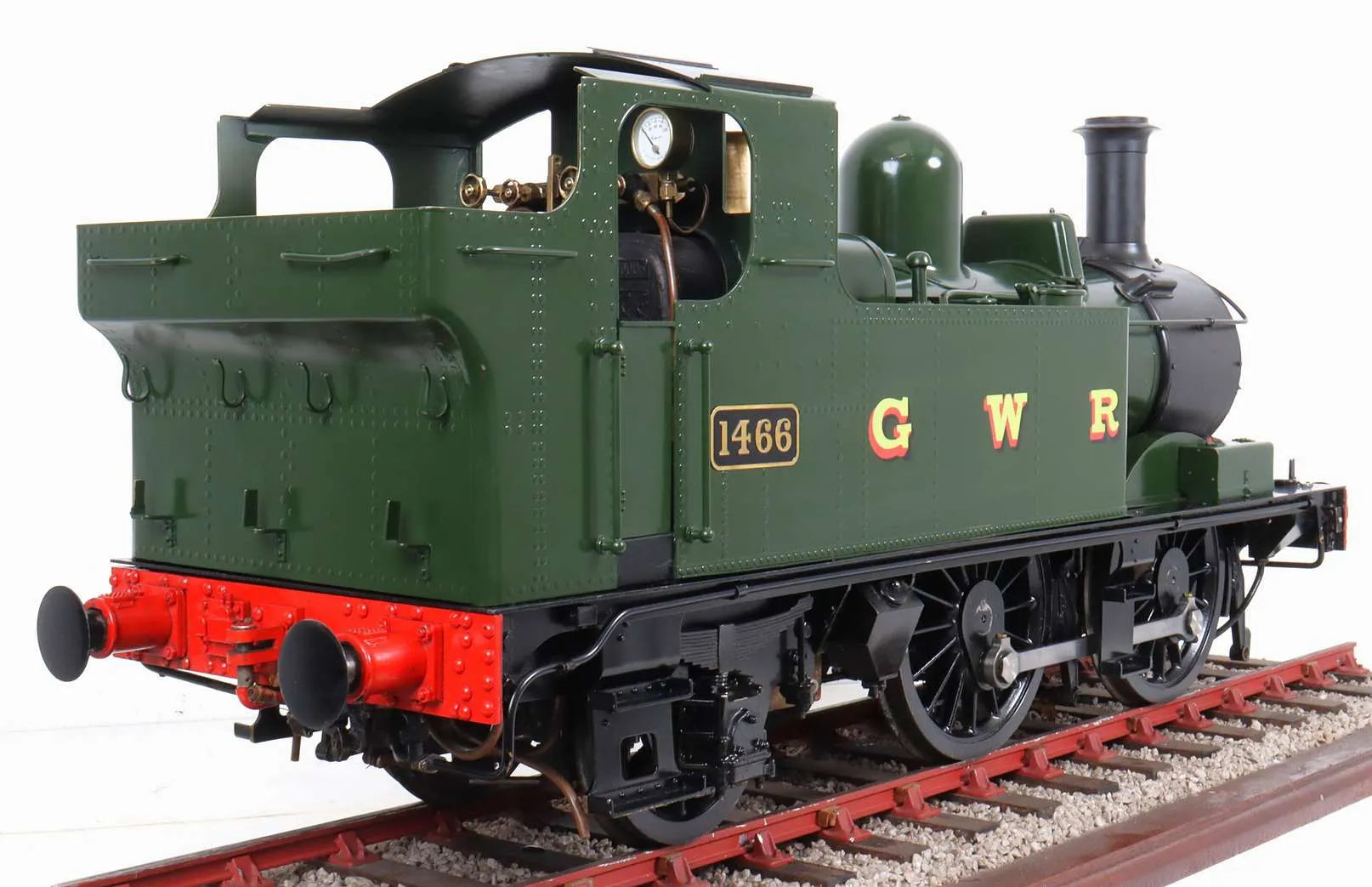

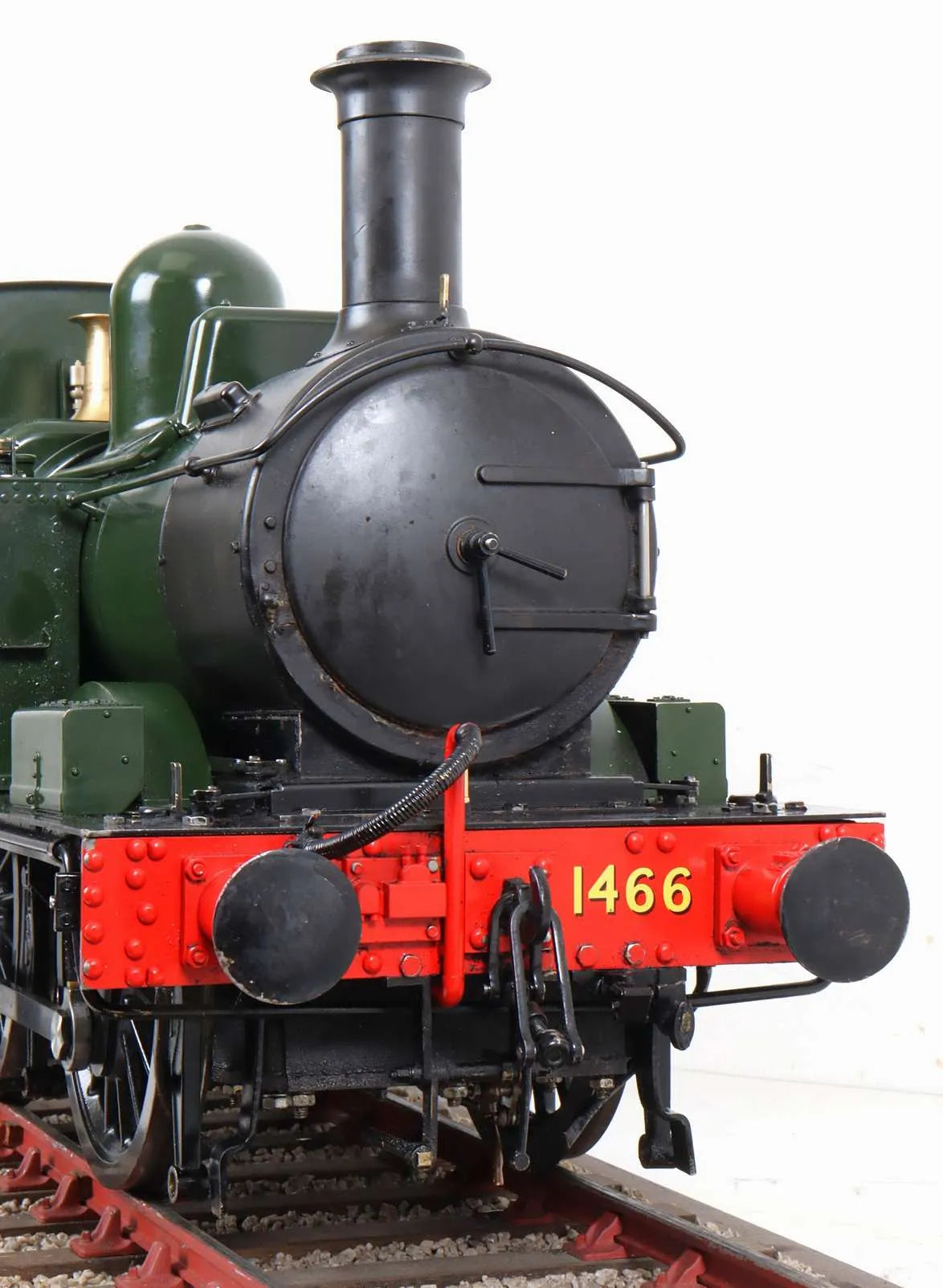

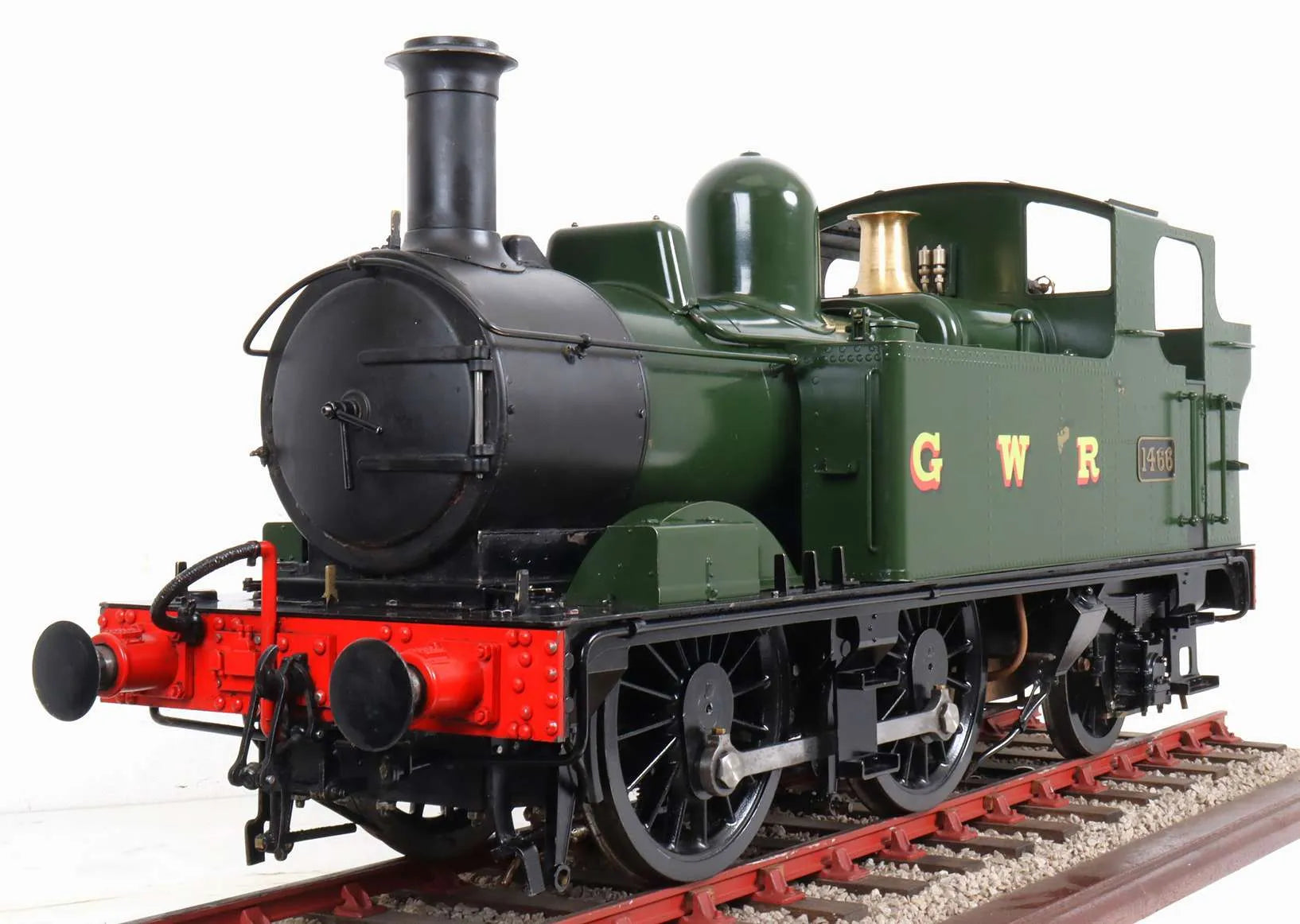

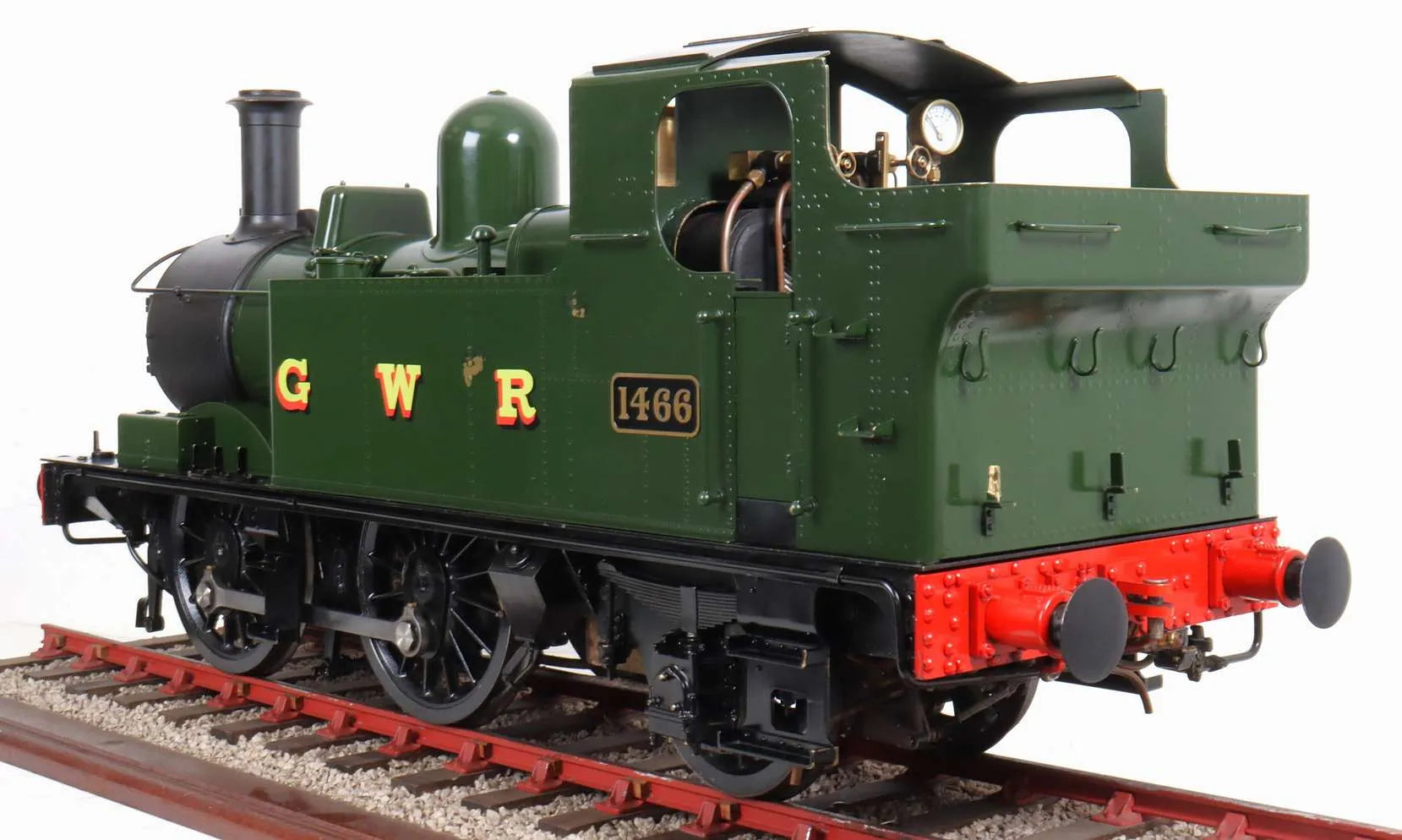

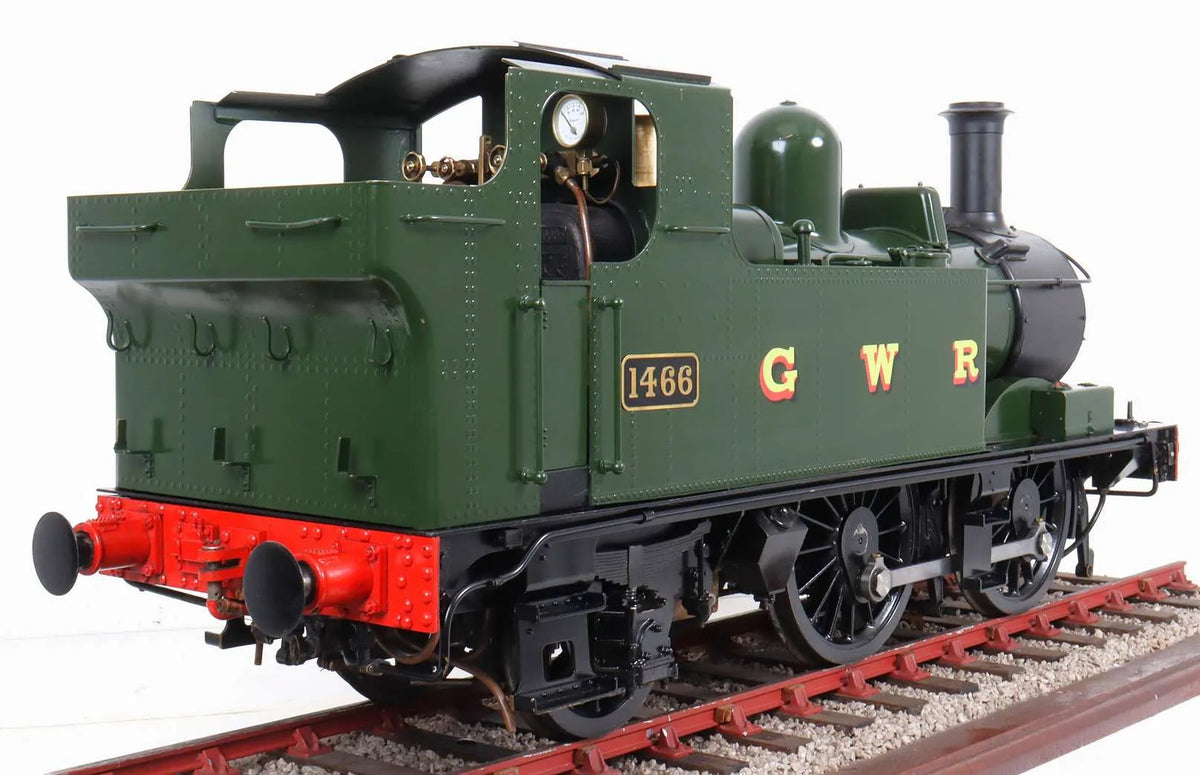

A 5 inch gauge GWR 14XX by Silver Crest Models, supplied new in 2016.

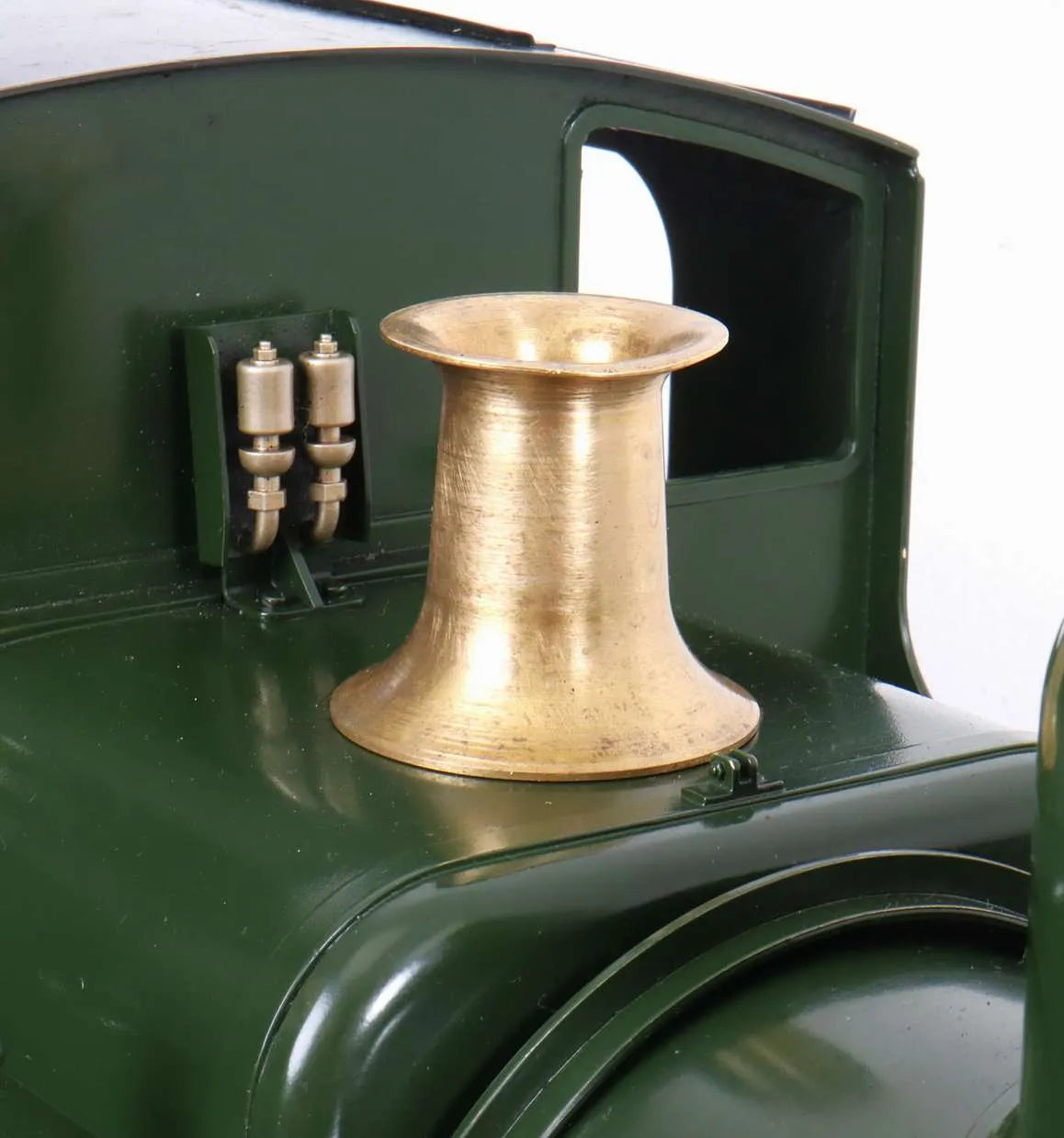

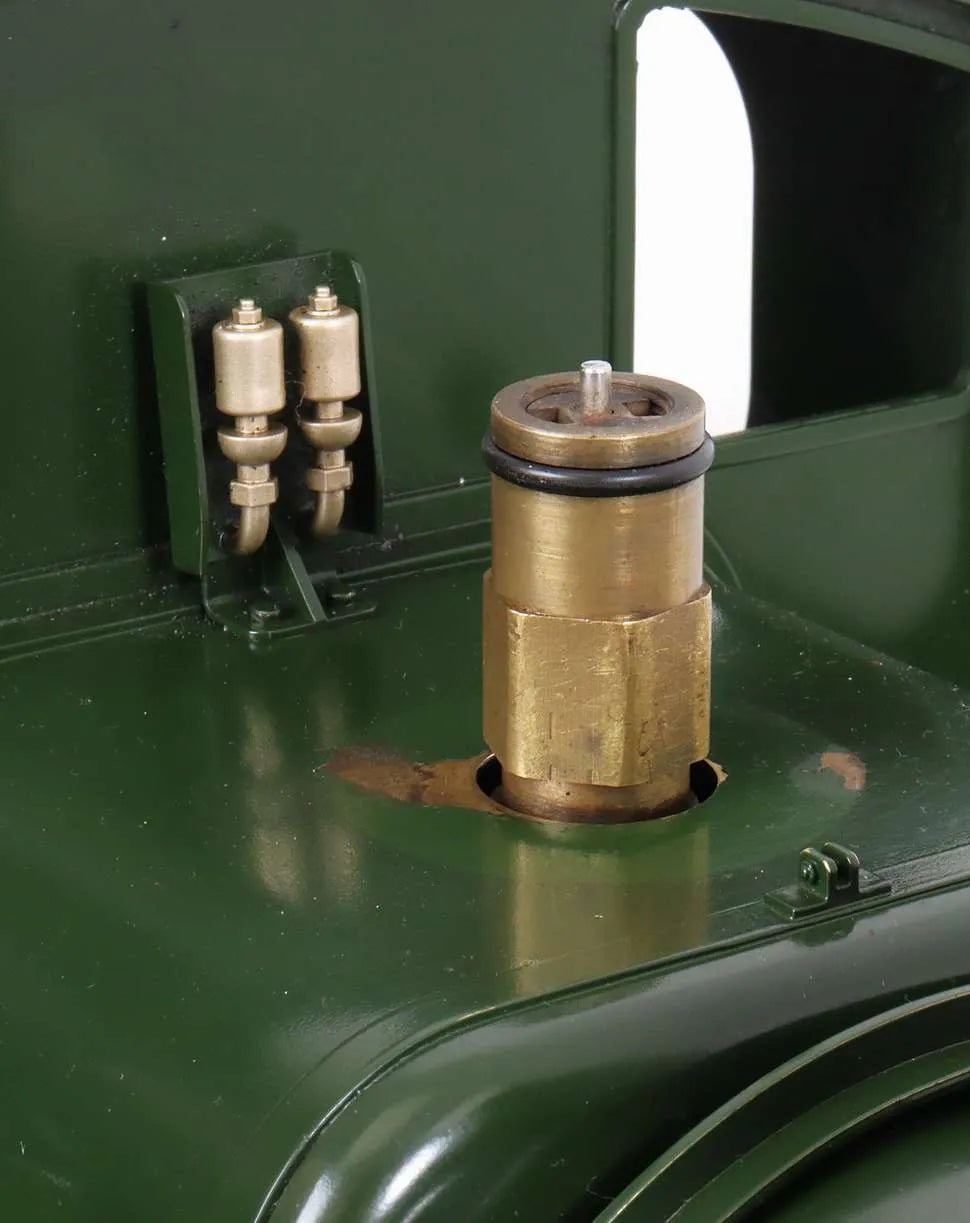

In steam it runs in both directions with fairly even beats, although with some blow by from either valves, pistons or both. Glands leak, safety valve accumulates horribly and needs replacement.

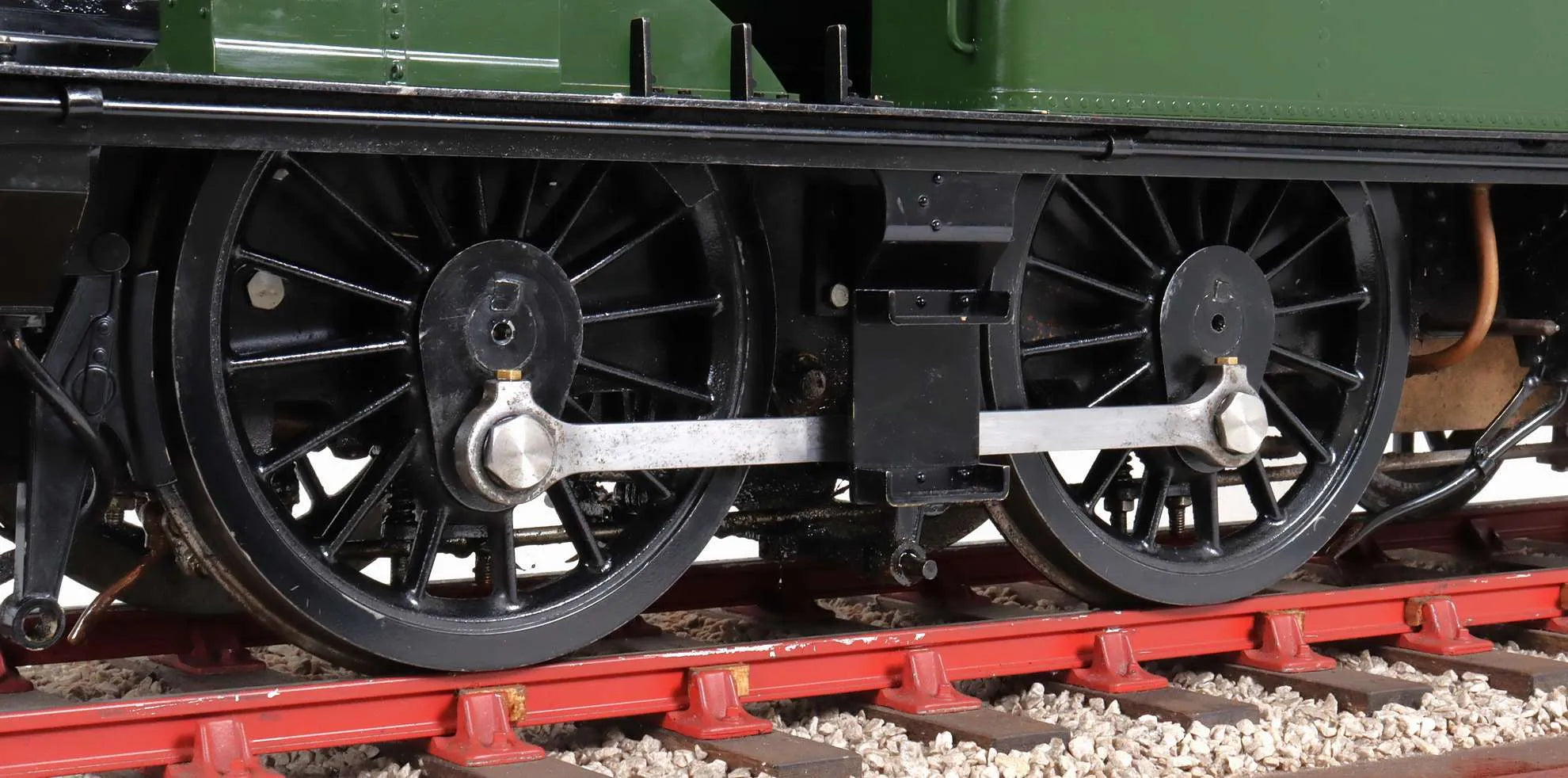

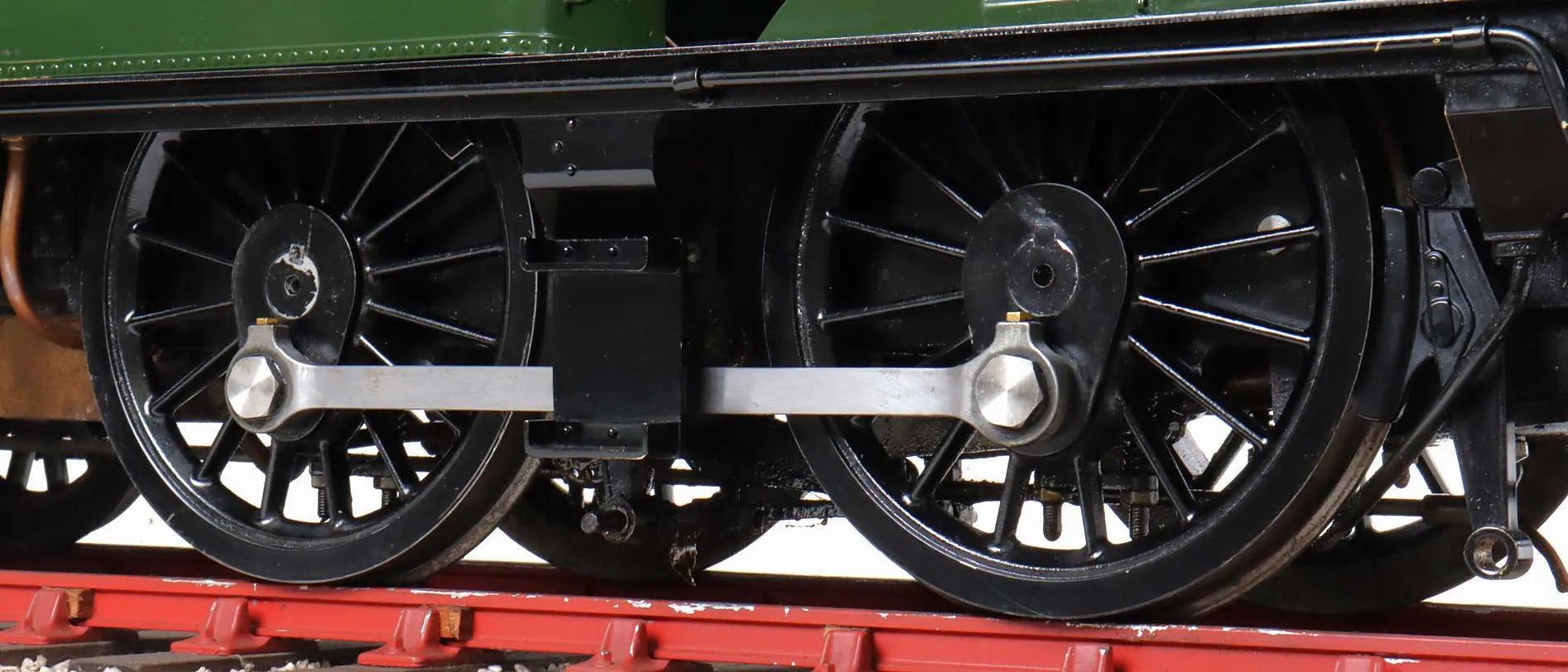

Motionwork and valve gear have the usual generous clearances we've come to expect from these models.

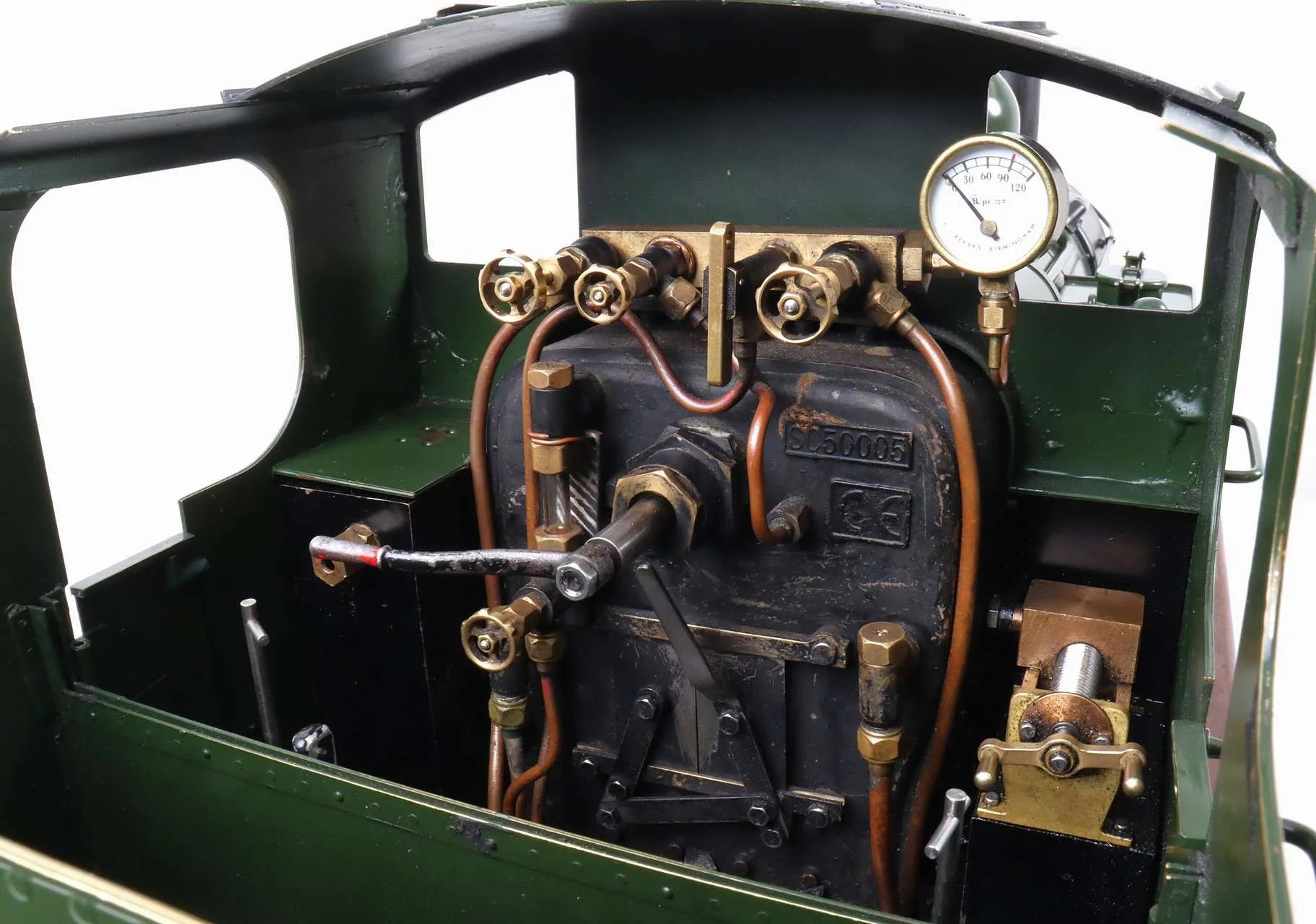

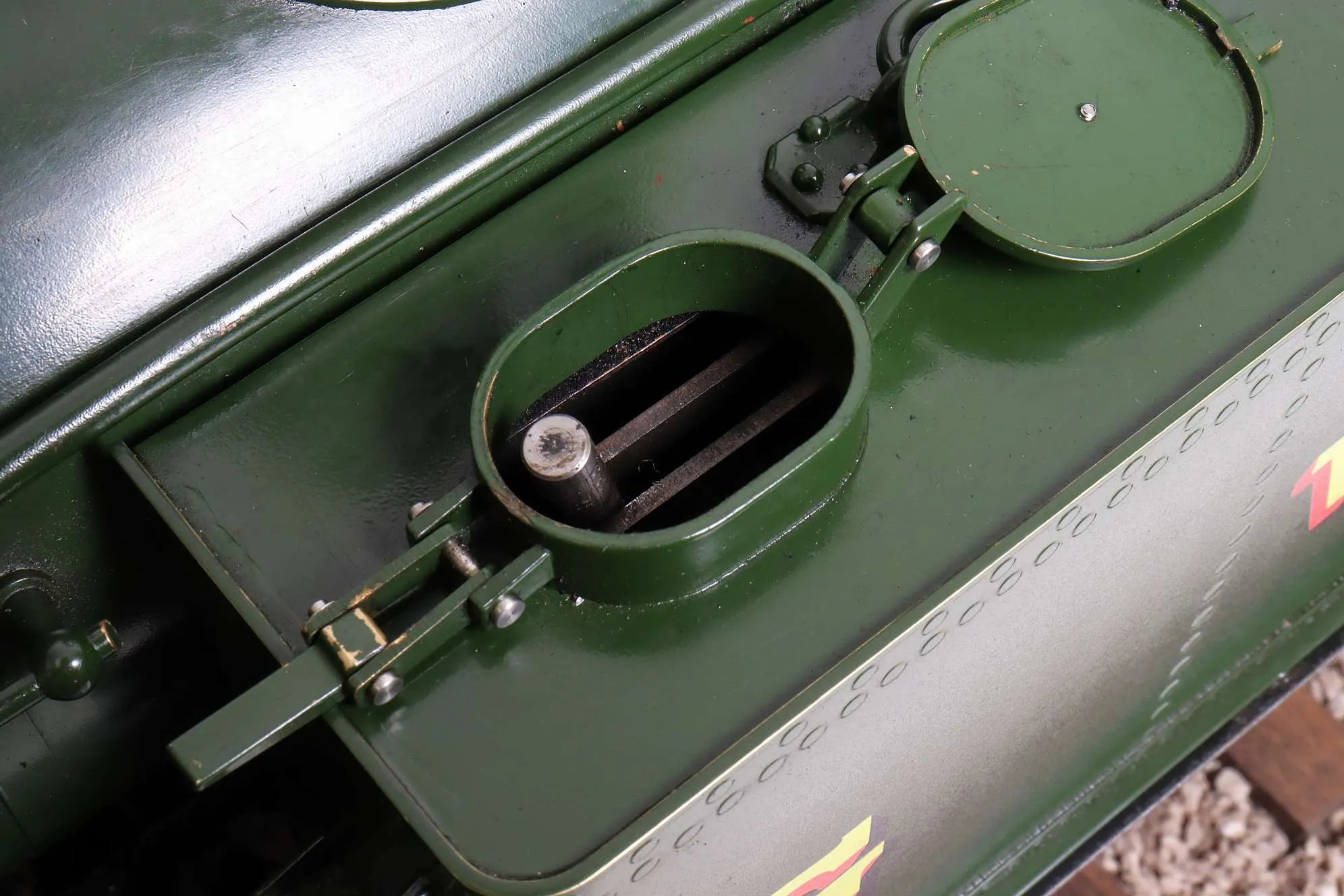

The pump bypass has been removed along with some pipework, causing the side tanks to empty quickly - the previous owner had used a water tank on his driving truck. Coupled up to a remote tank on test in the workshop, both injectors work flawlessly.

Complete with manufacturer's original boiler documentation and past club test history.

Technical information

Stock code

10927

Gauge

5 inch

Length/inches

33

Width/inches

10

Height/inches

14

Weight/Kg

42

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

displacement

Boiler maker

Silver Crest Models

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2016

Boiler number

SC50005

Safety valve type

spring

Safety valve

1

Whistle

yes

Injector

2

Superheater type

radiant

Superheater

1

Date out

Aug-23

Hydraulic test valid to

24-Oct-26
