5 inch gauge GWR 14XX 0-4-2T

Name: 5 inch gauge GWR 14XX 0-4-2T
Brand: Station Road Steam
SKU: 8052
Price: 2950.0 GBP
Availability: OutOfStock

Sold

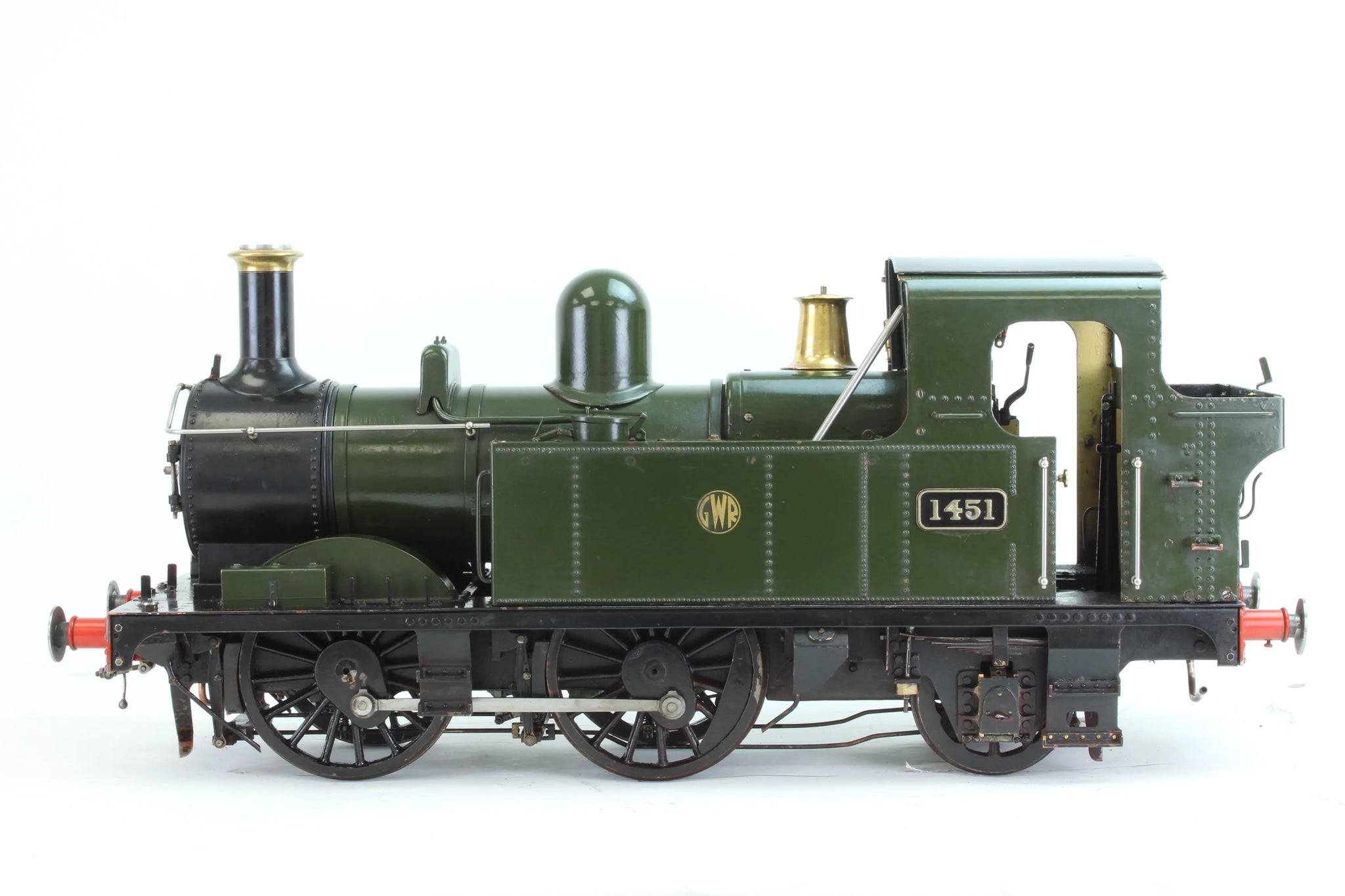

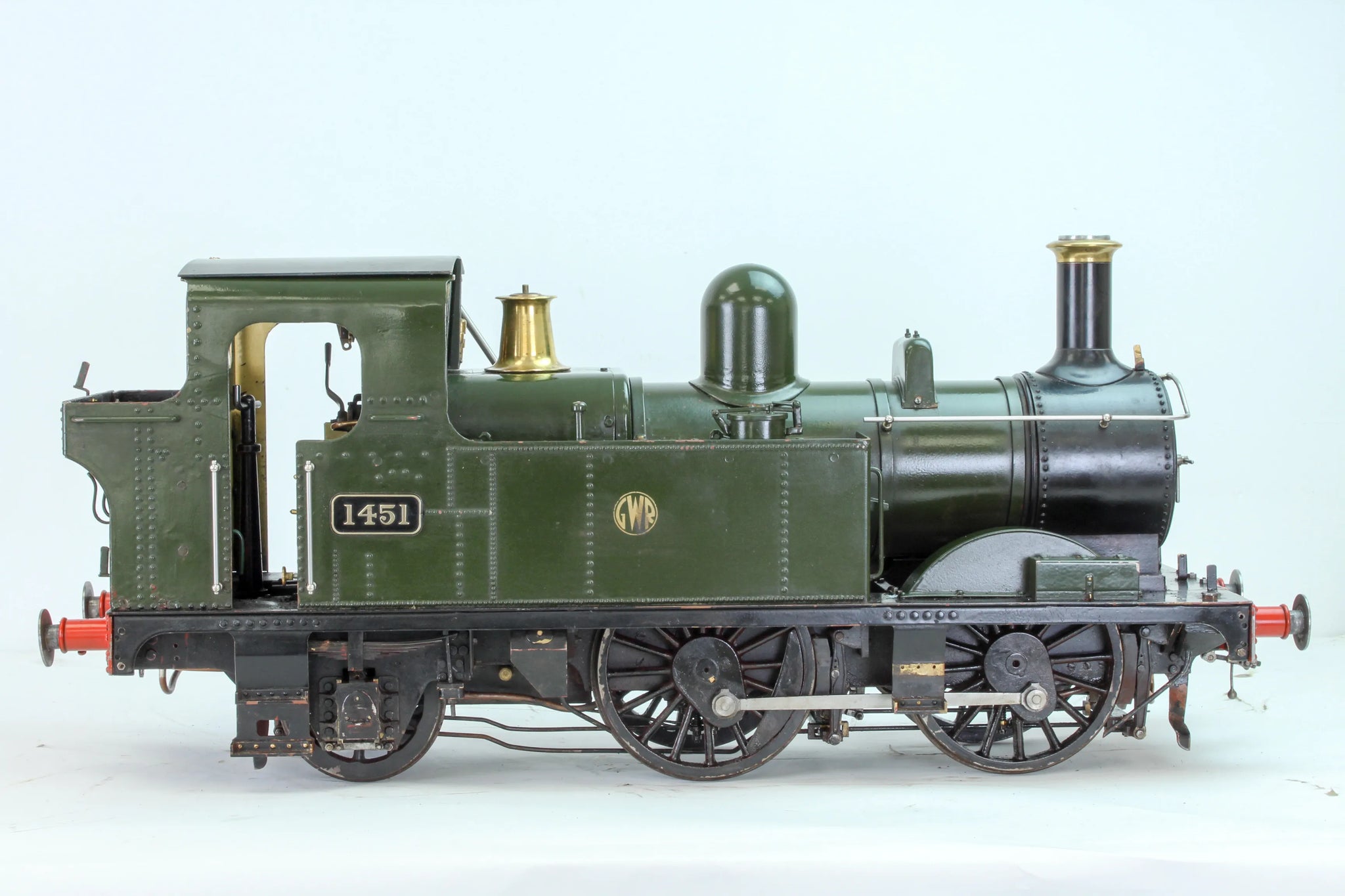

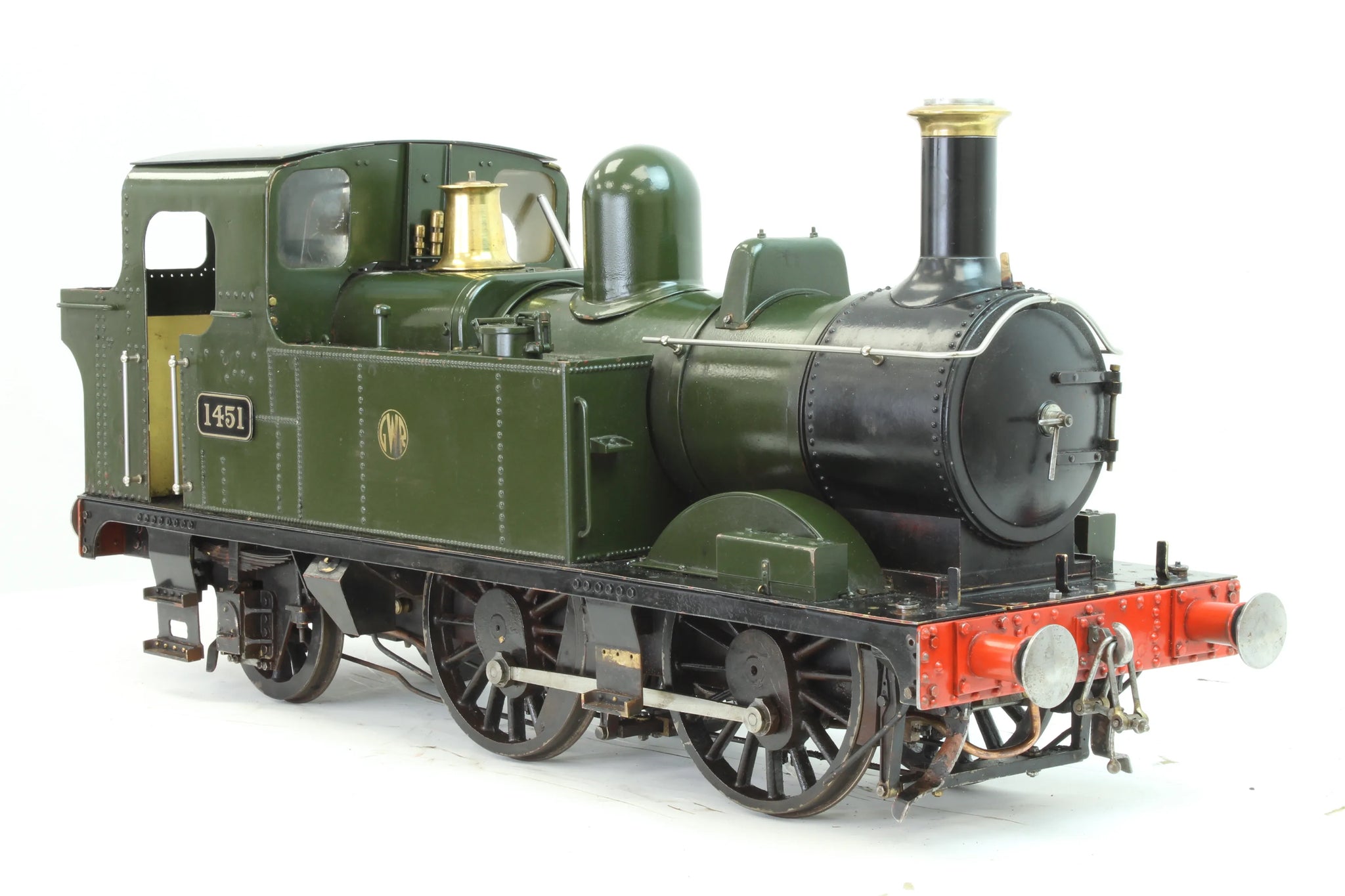

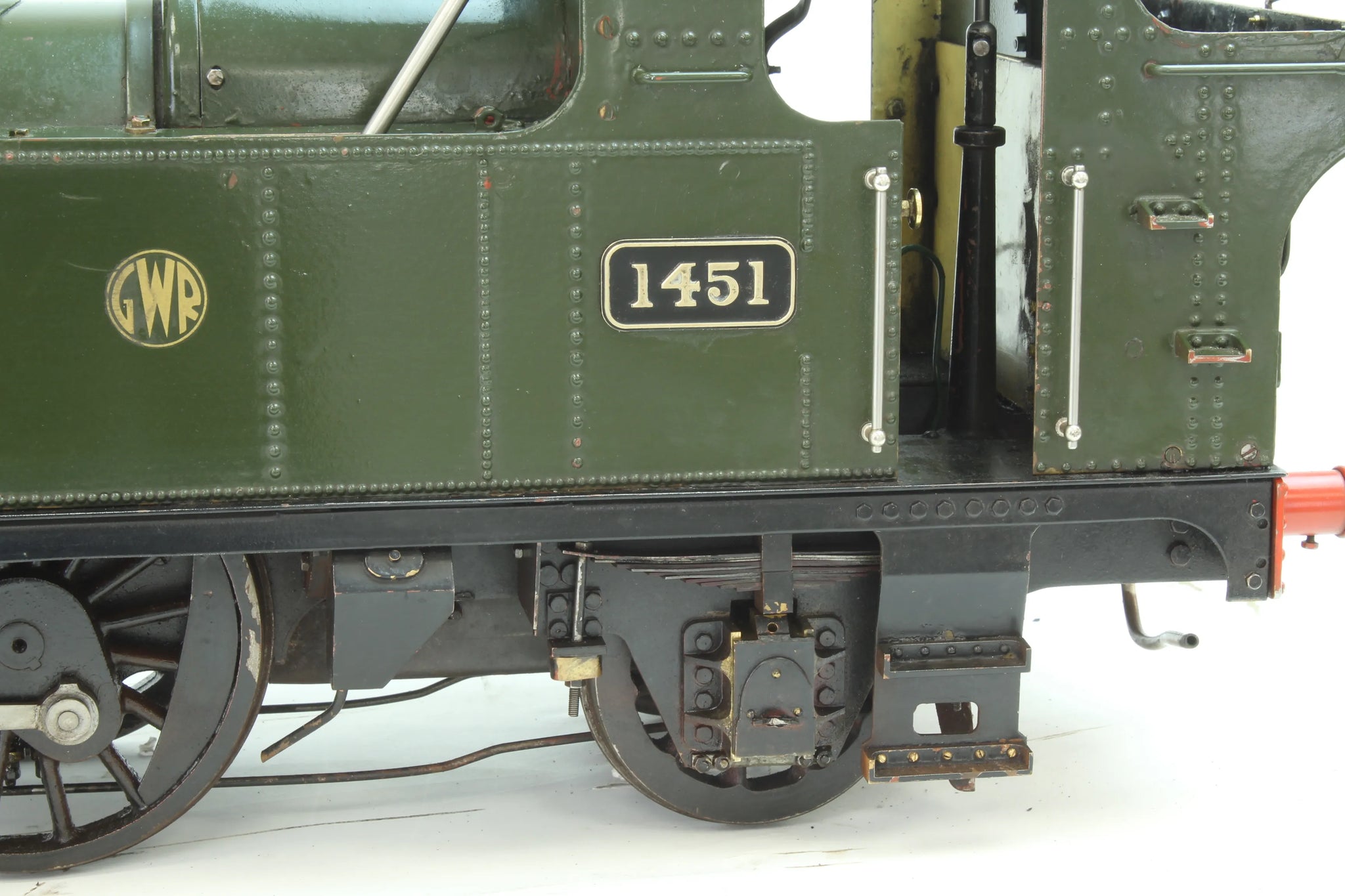

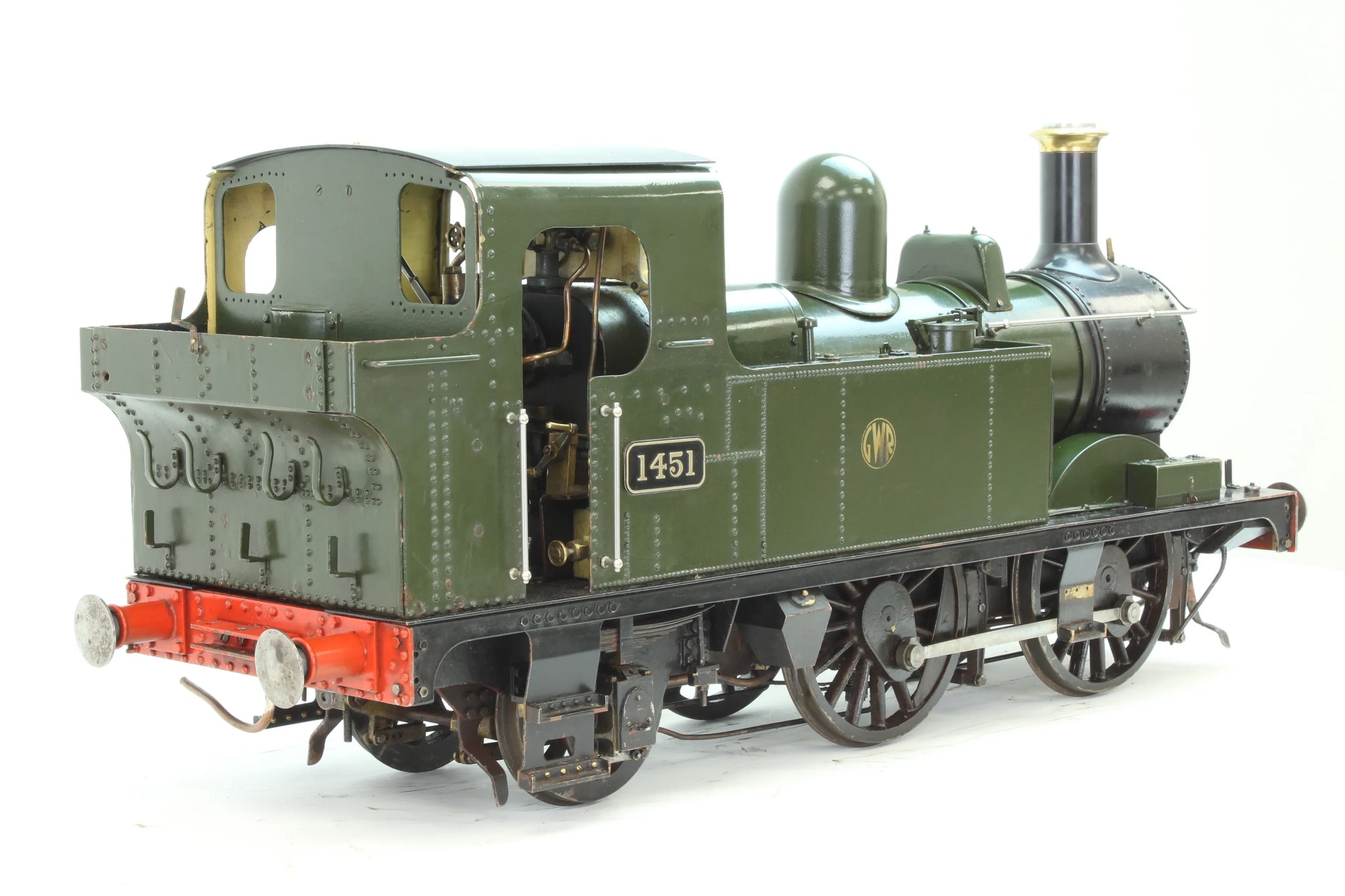

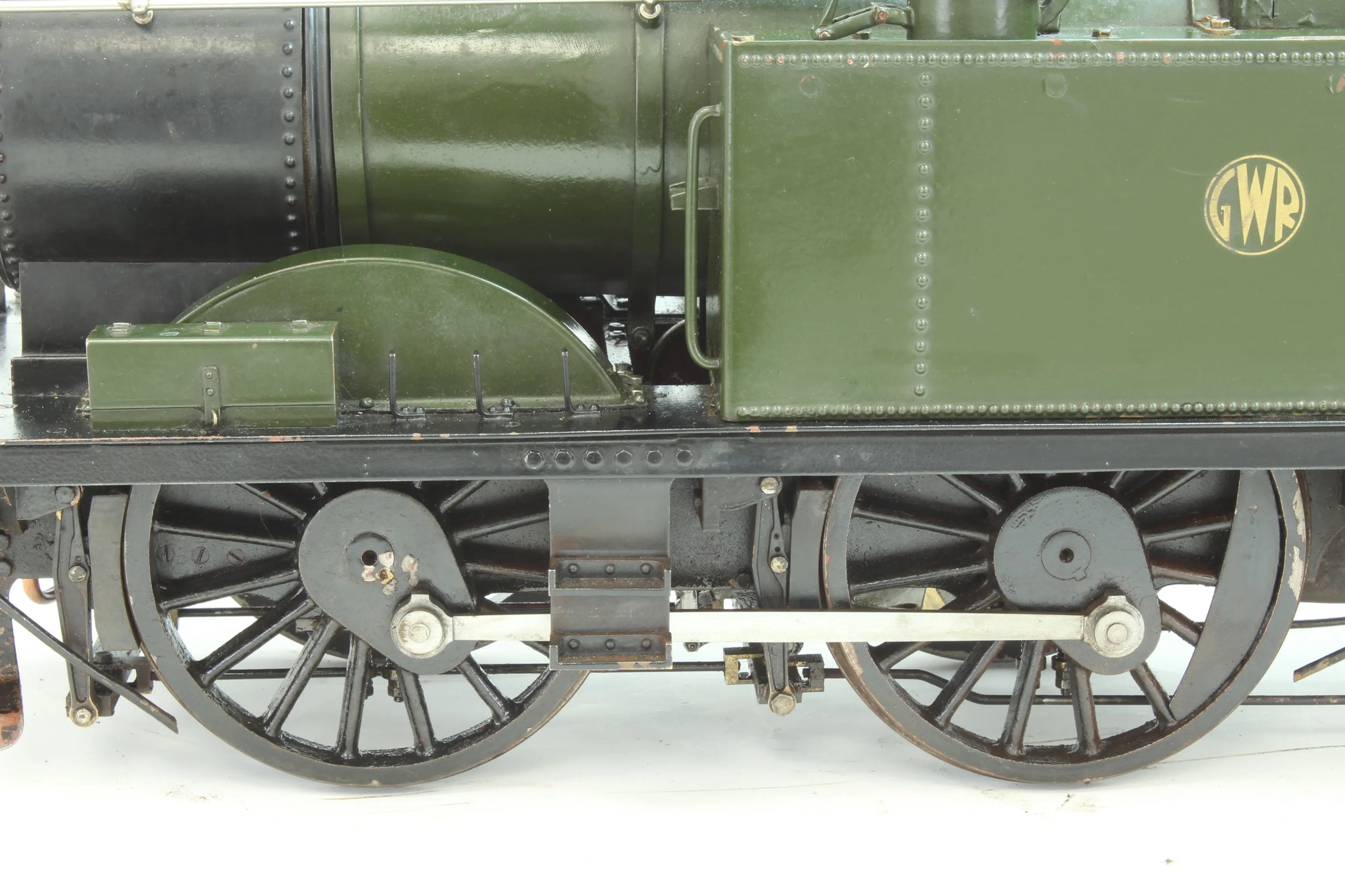

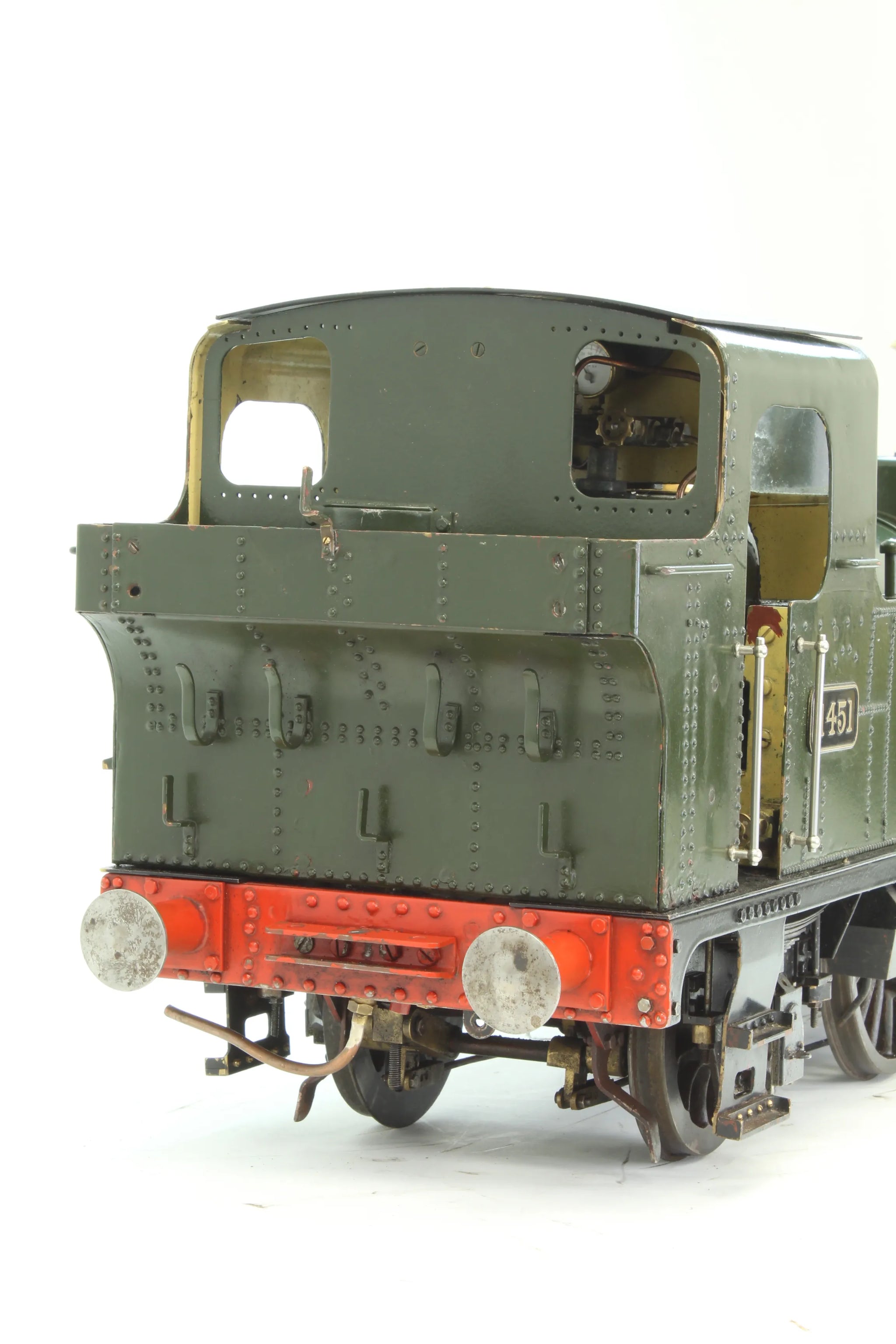

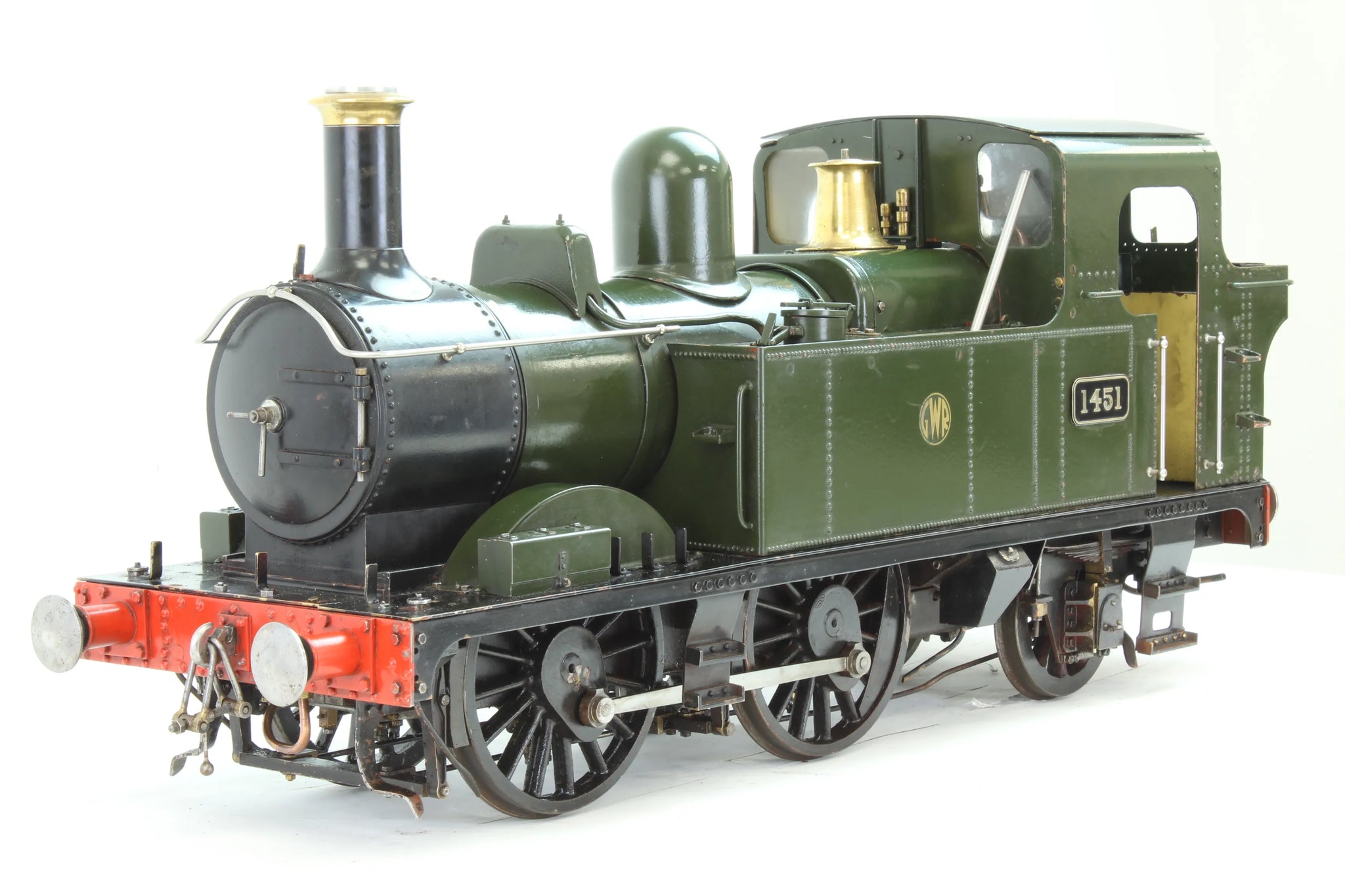

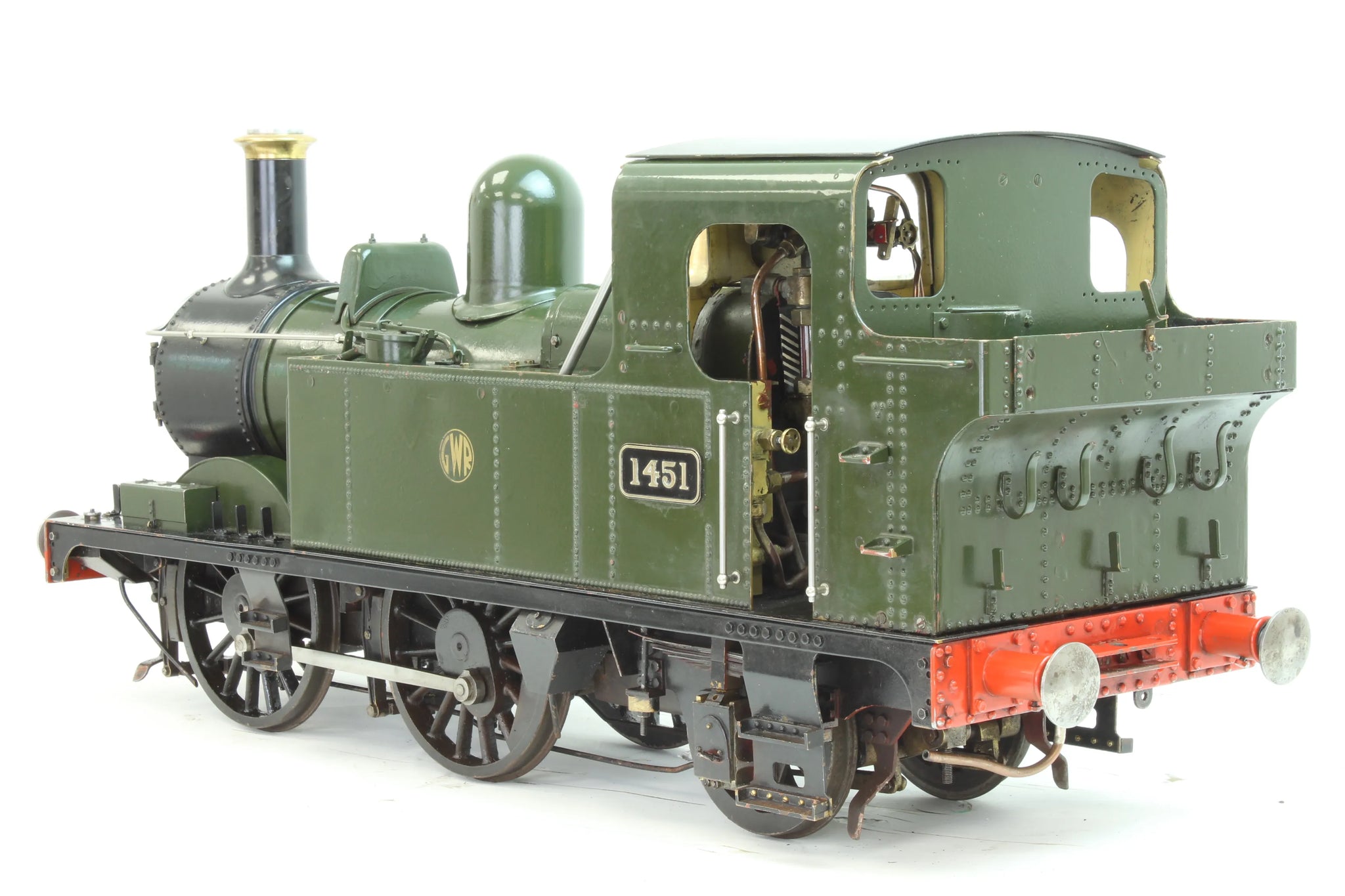

A kit-built 5 inch gauge Great Western 14XX 0-4-2T, last run at the previous owner's club in December of last year - there's some video of it here.

The engine is mechanically sound and boiler is good - it's just had hydraulic and steam tests, with new certification.

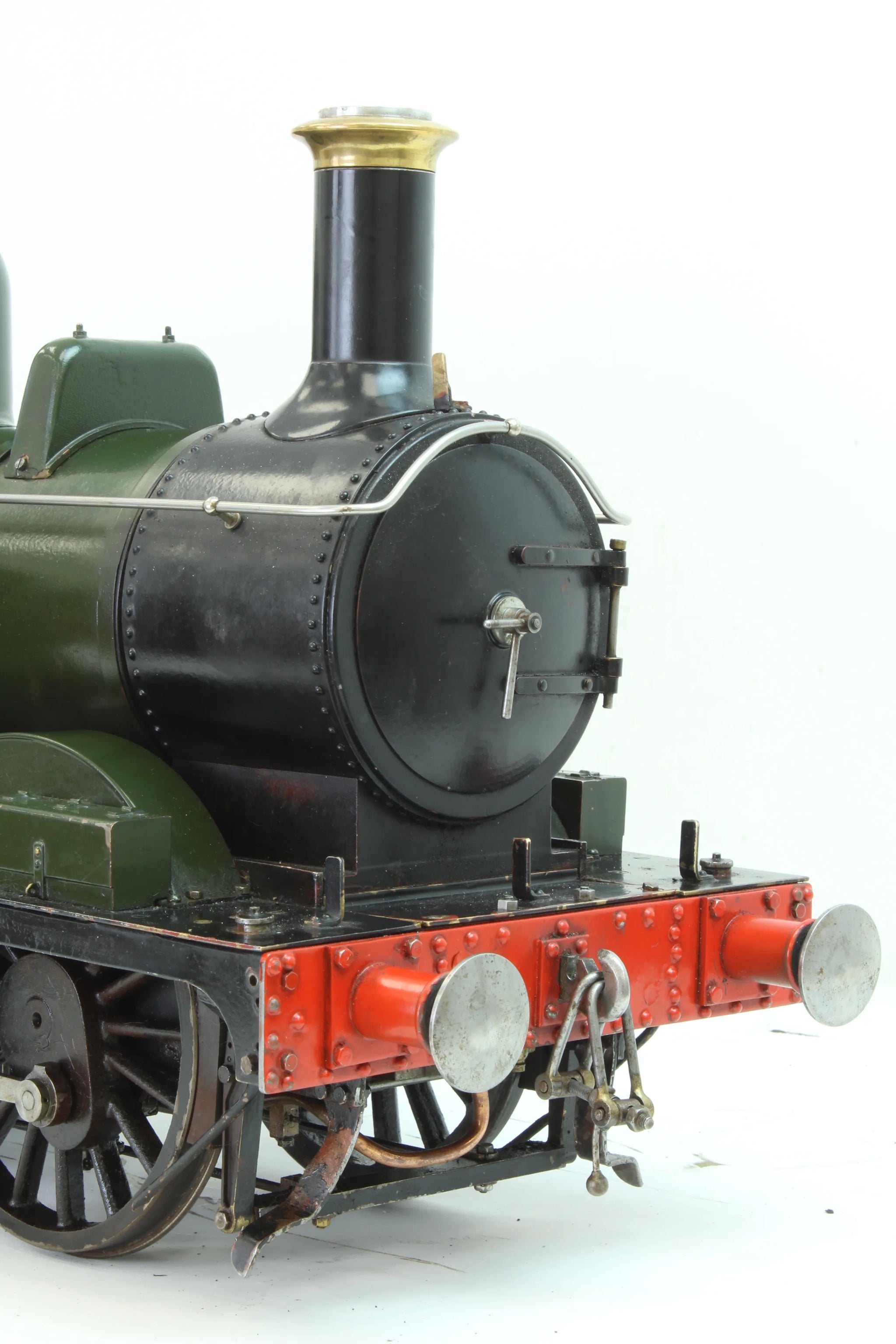

There is a steam leak from underneath, we think where the steam pipe enters the valve chest - last owner ran with it like that, however long term it wants fixing, smokebox will need to come off for access.

Complete with original manufacturer's assembly instruction, boiler documentation and a purpose-built wooden transport case.

Type: Second hand

Tags: Projects

Technical information

Stock code	8052
Length/inches	31
Width/inches	9.5
Height/inches	13.5
Wheel material	cast iron
Axlebox type	plain

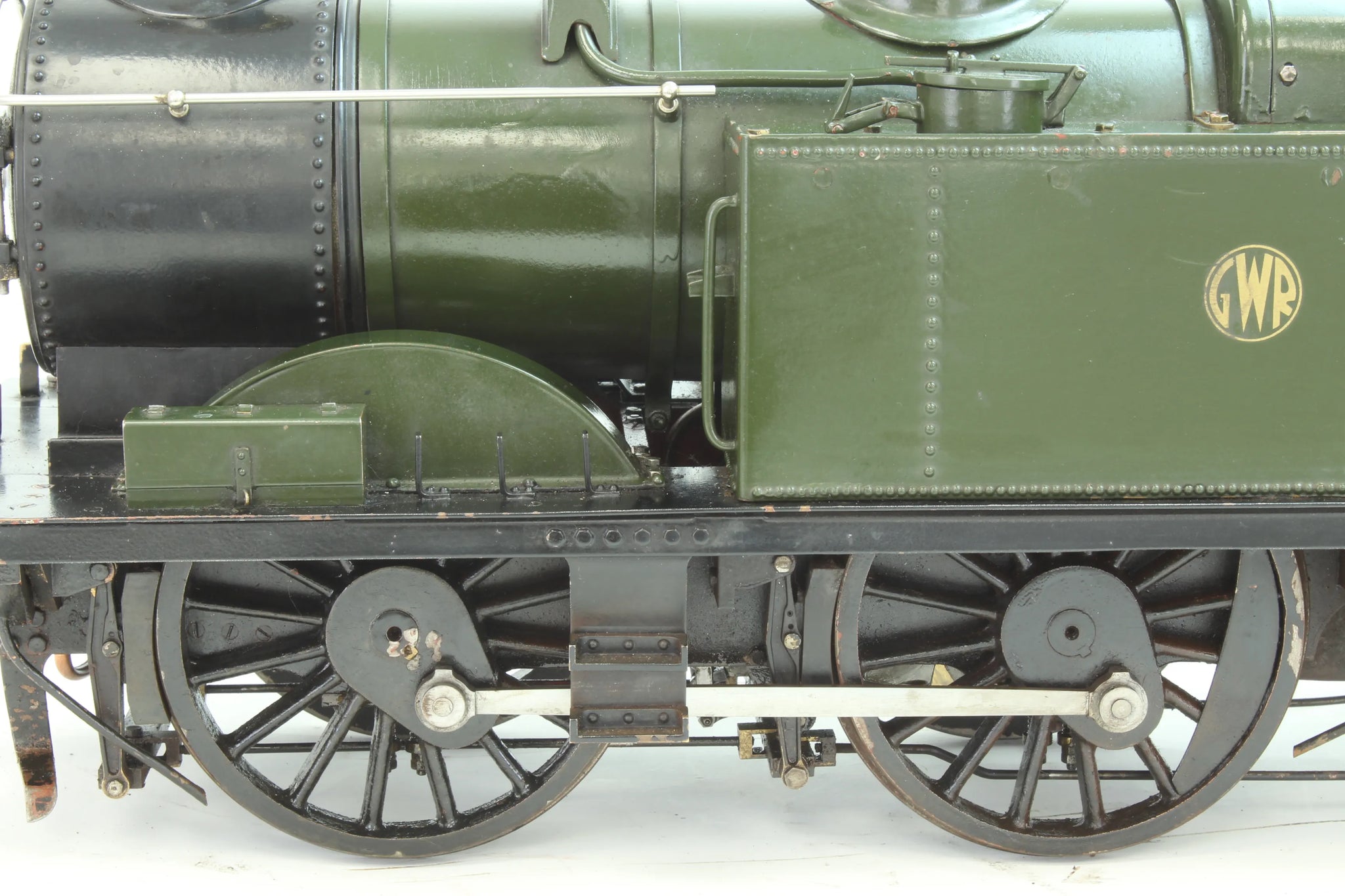

Valve gear	Stephensons

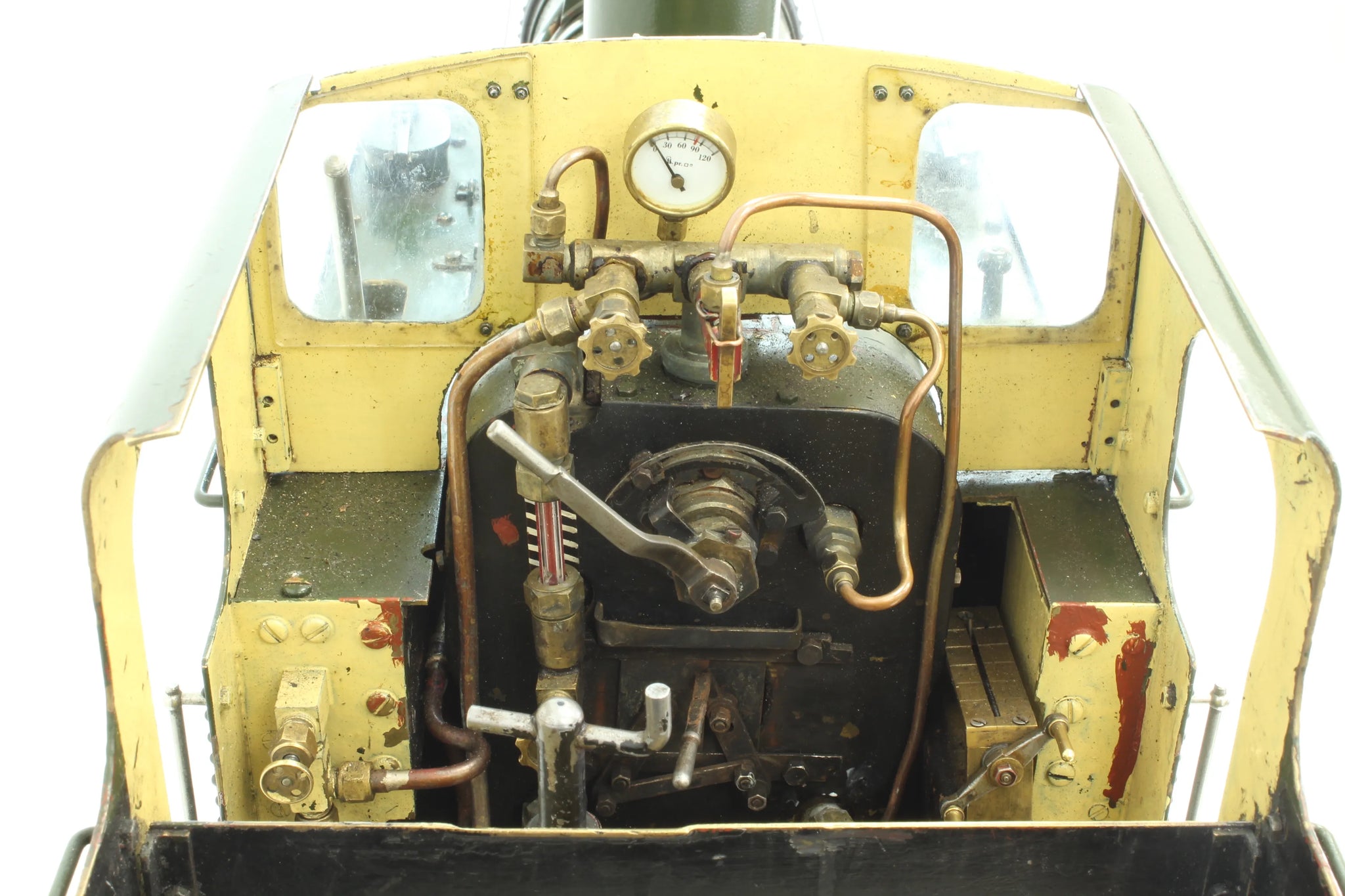

Reverser type	screw
Lubricator type	mechanical
Boiler maker	Winson Model Technology
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	80
CE/UKCA mark	n/a - pre-2002
Year built	1999
Boiler number	1-115
Safety valve type	spring
Safety valve	1
Fusible plug	yes
Hand pump	1
Mechanical pump	1
Injector	1
Superheater type	flue tube
Superheater	1
Pack	Single half pallet
Date out	Aug-18
Hydraulic test valid to	04-Jun-22
Steam test valid to	05-Aug-19
