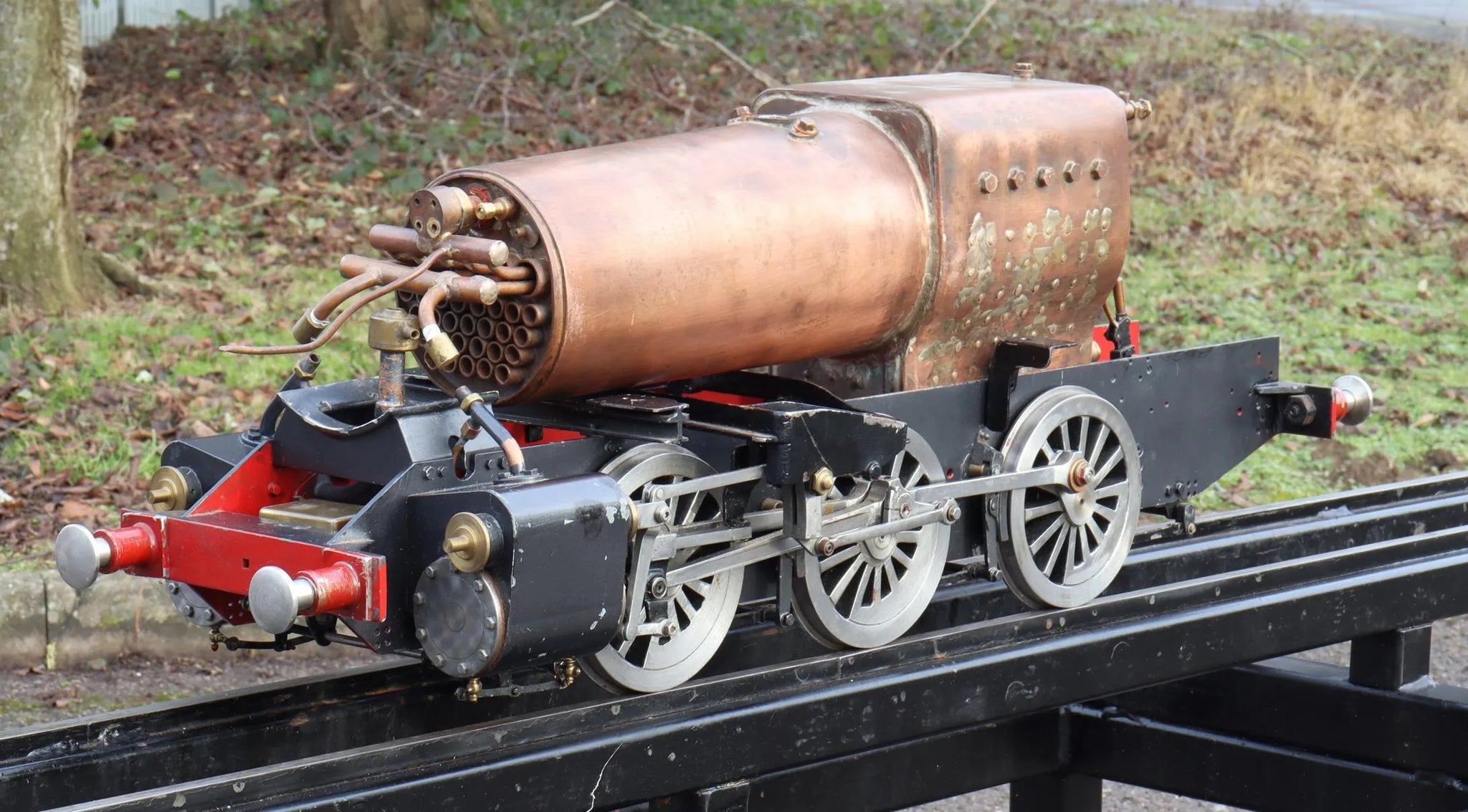

5 inch gauge GWR 15XX 0-6-0 PT

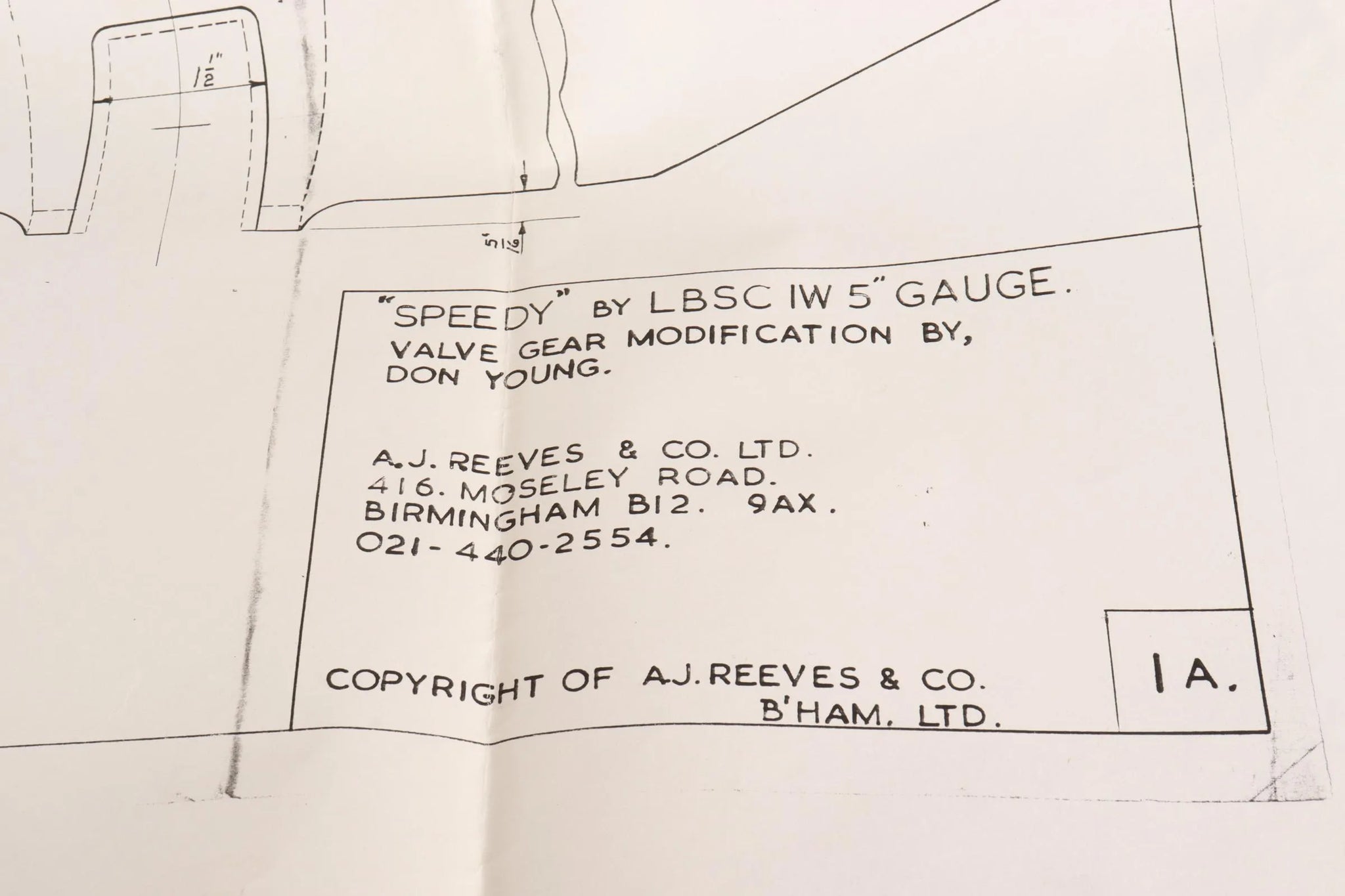

A 5 inch gauge GWR 15XX 0-6-0PT to LBSC's "Speedy" design, complete with drawings, including the later K.N.Harris valve gear revisions.

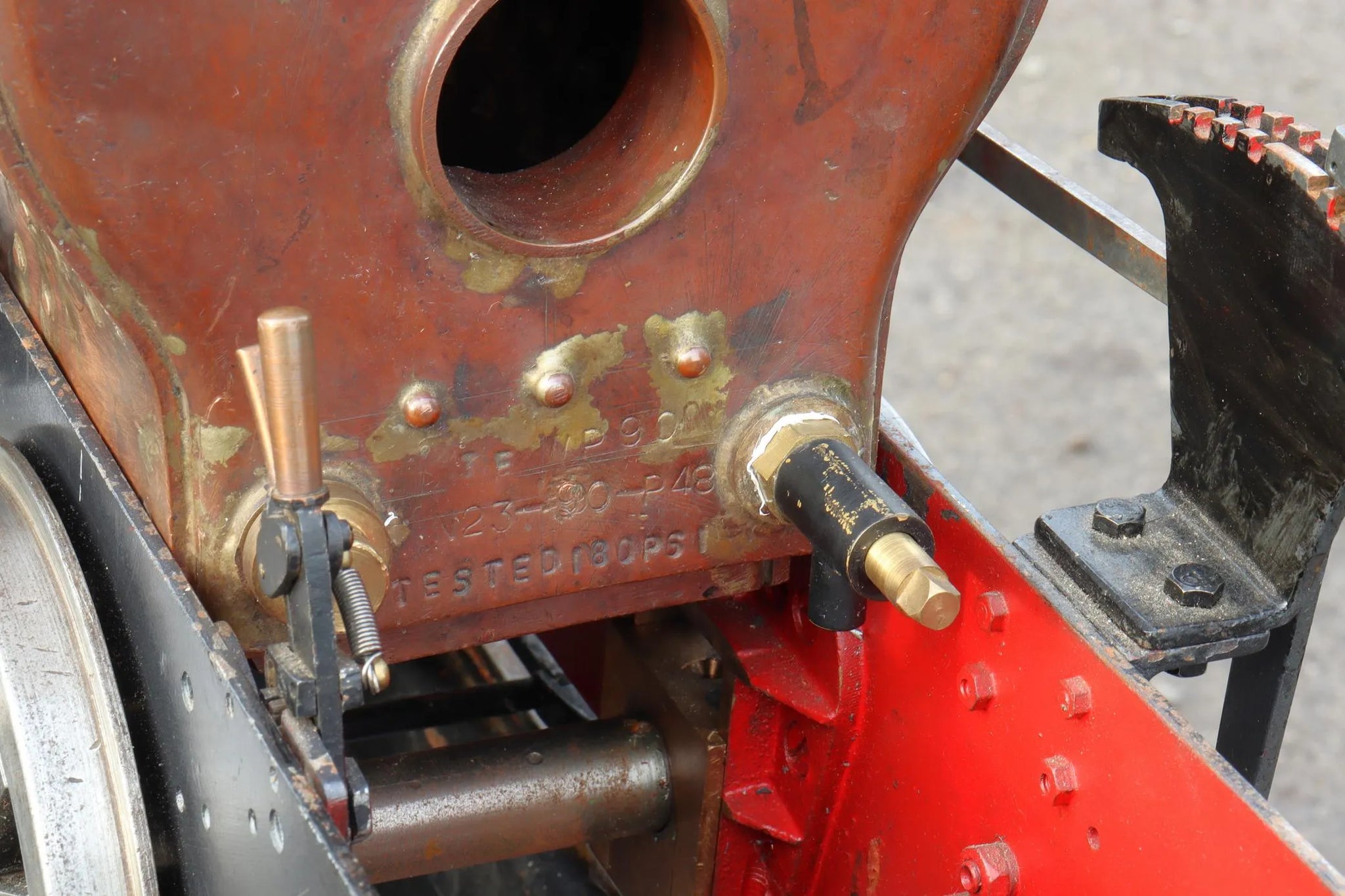

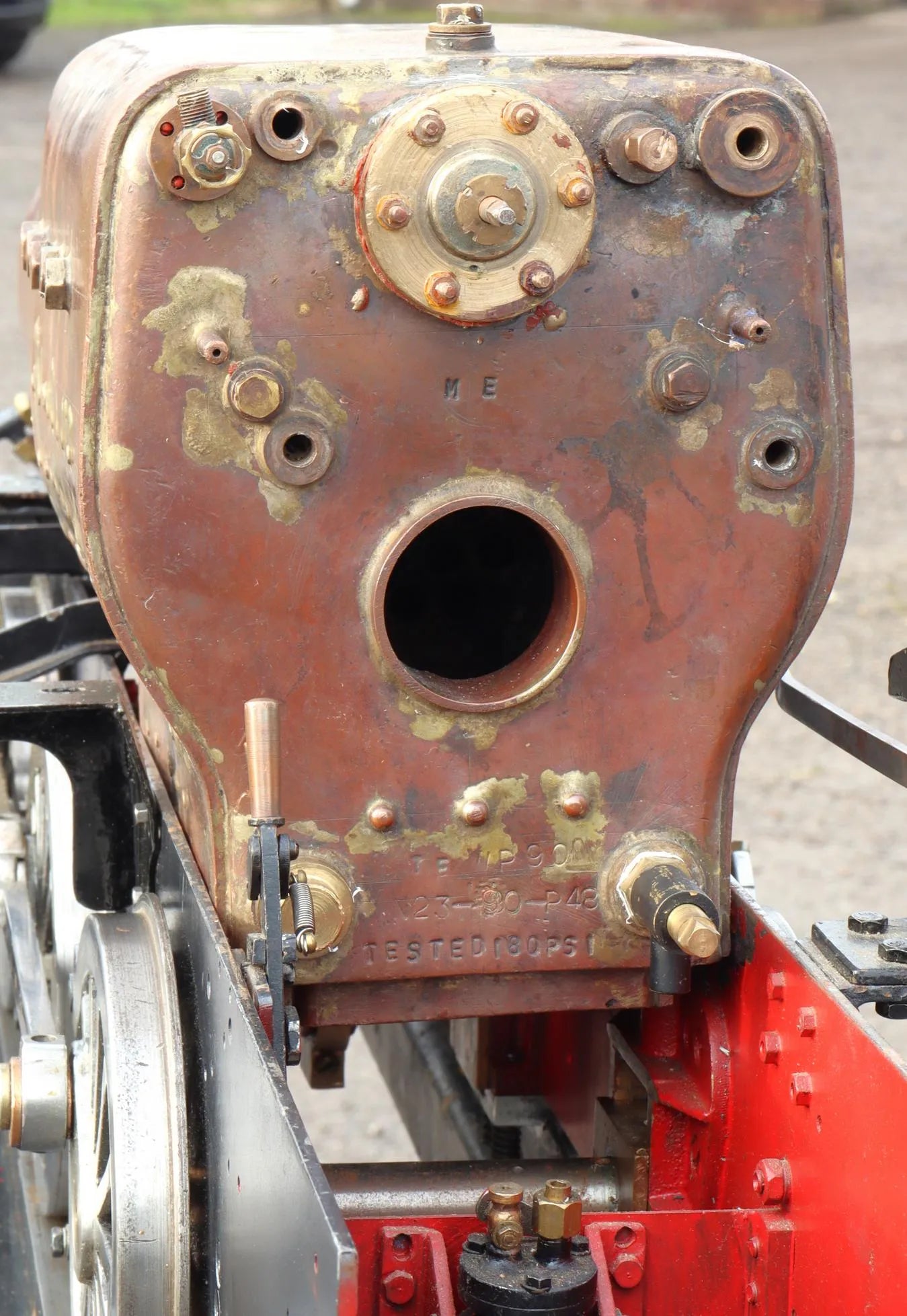

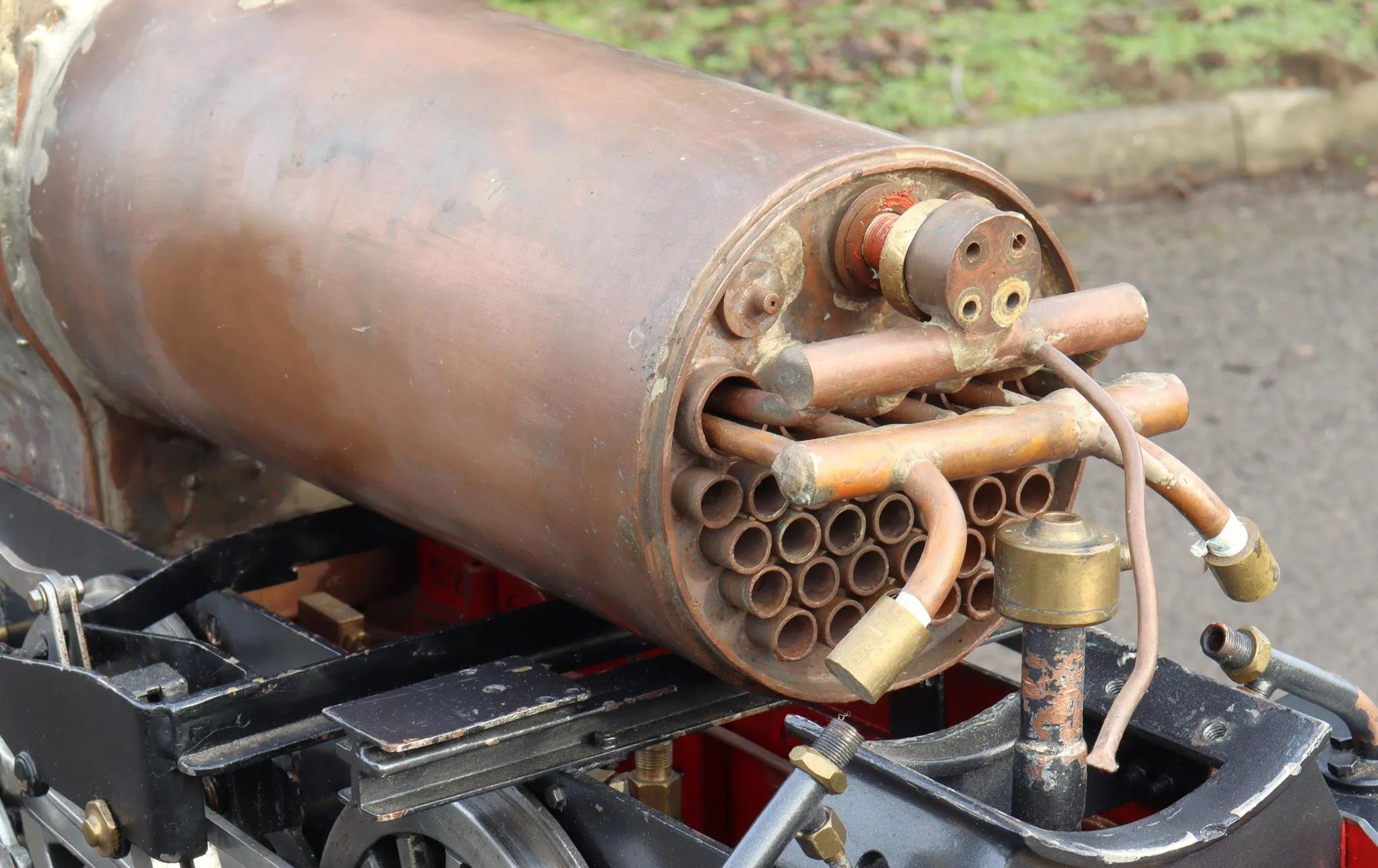

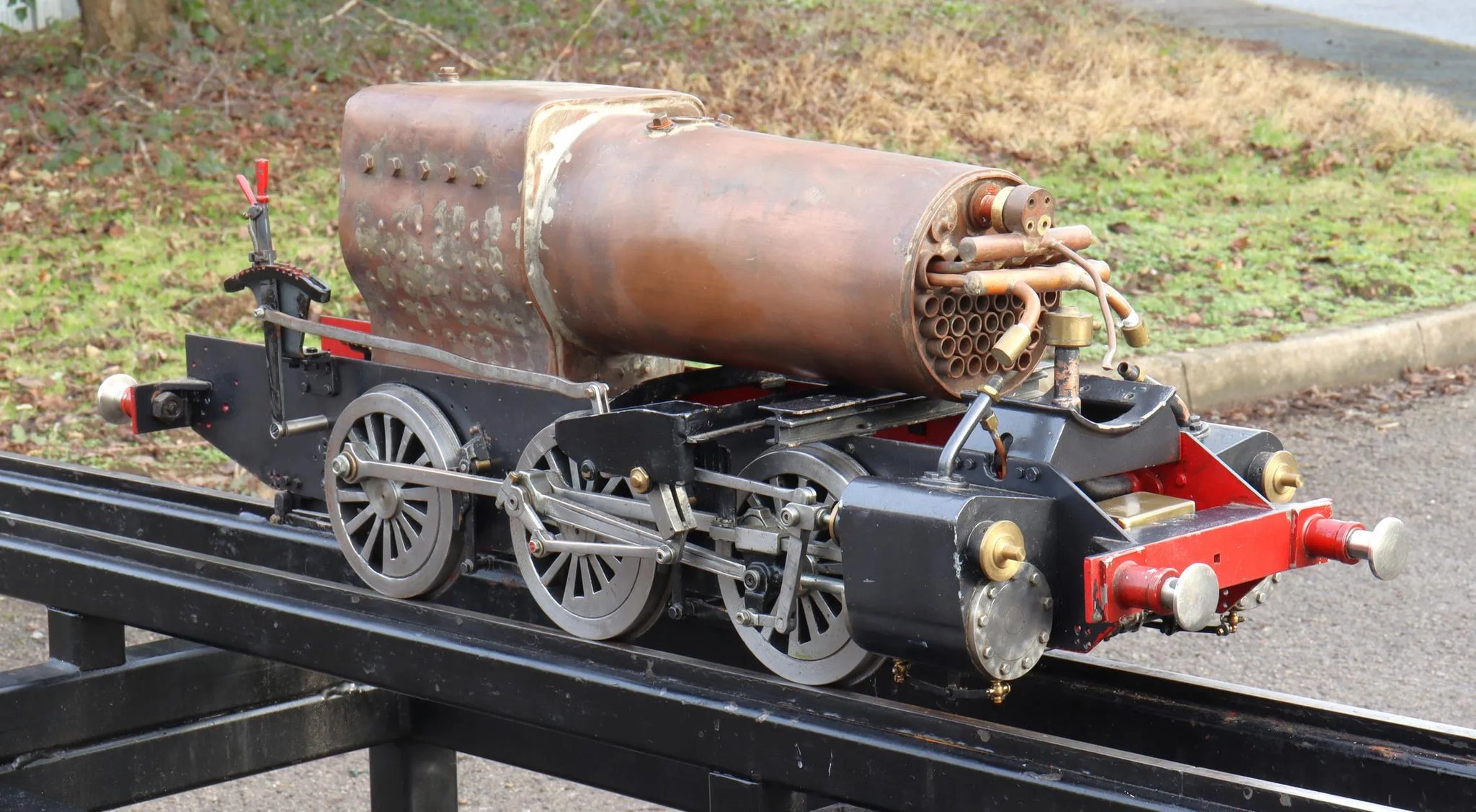

The silver soldered copper boiler has been stamped up with its original test markings,180psi hydraulic test for 90psi working. We have re-tested at twice working pressure and issued new certification for same.

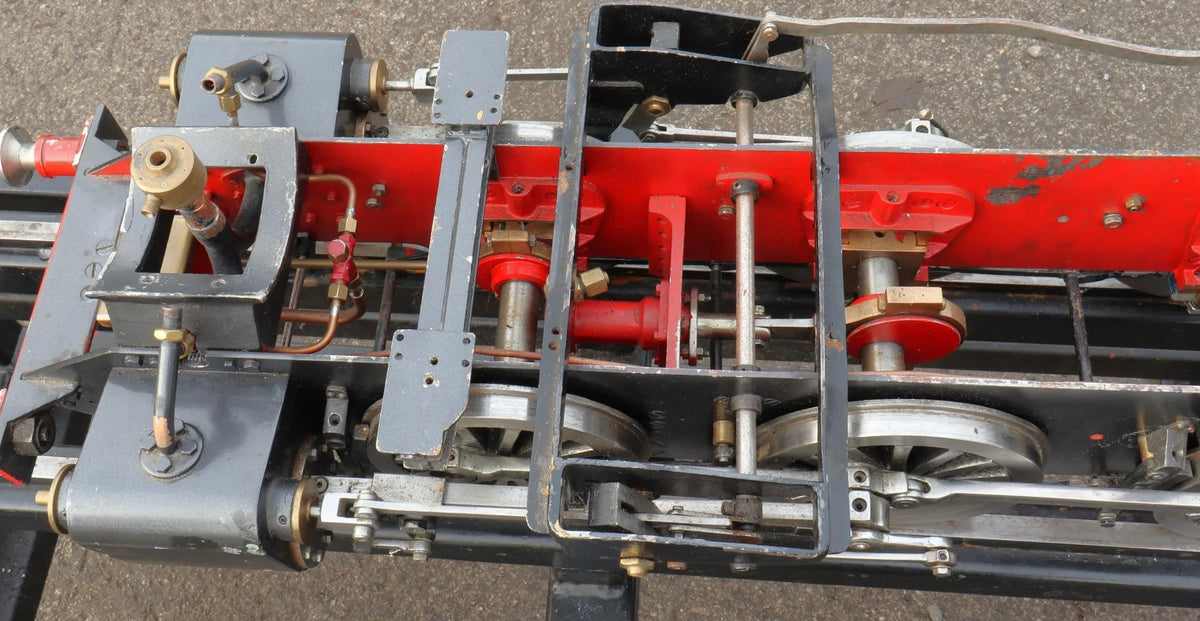

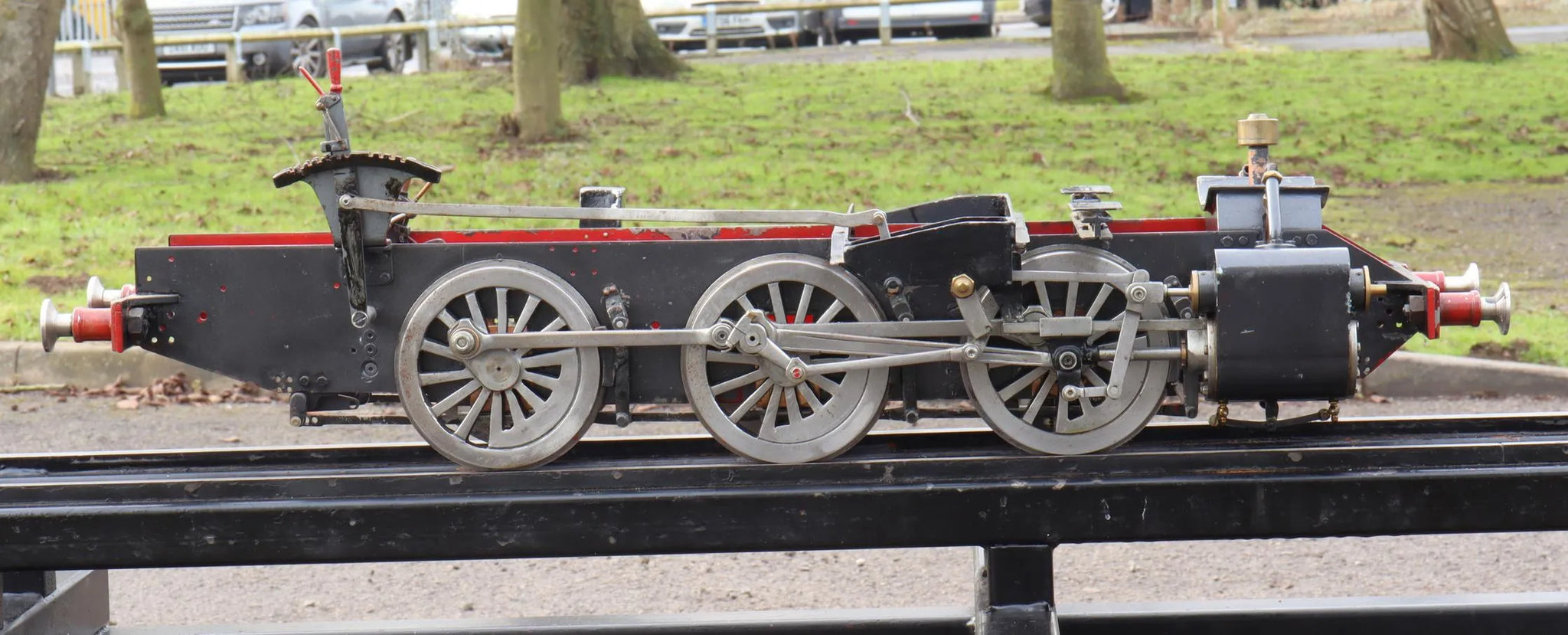

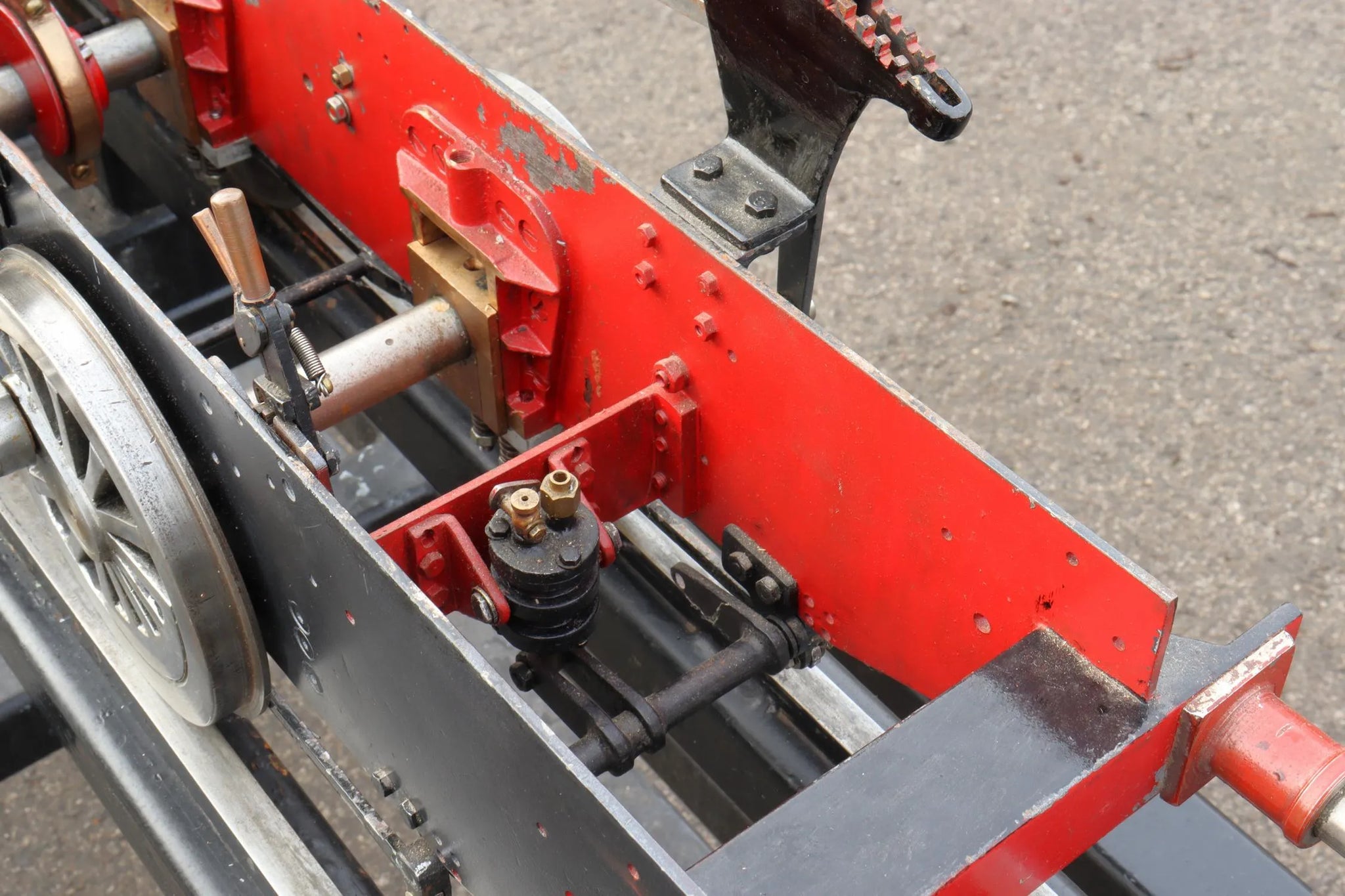

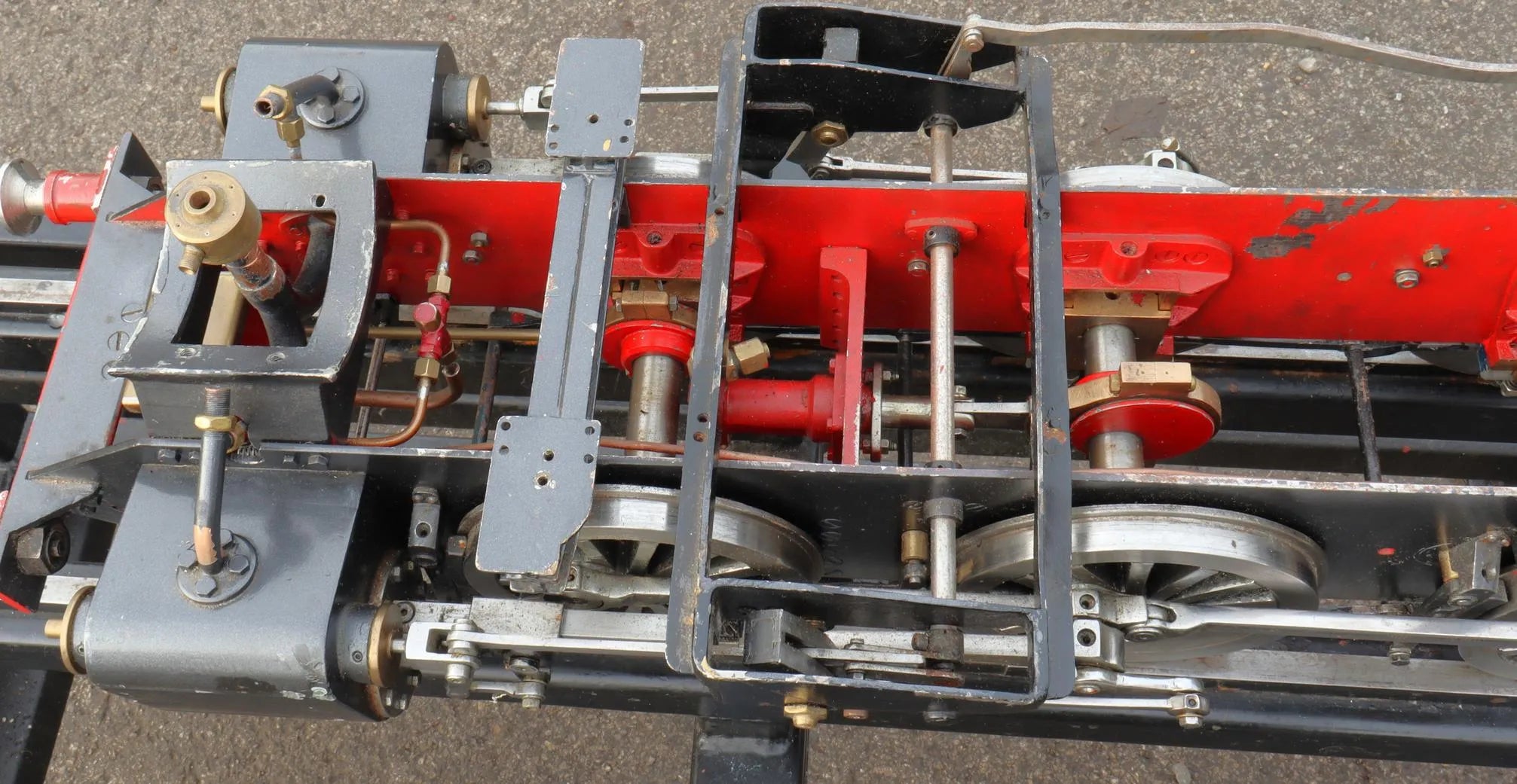

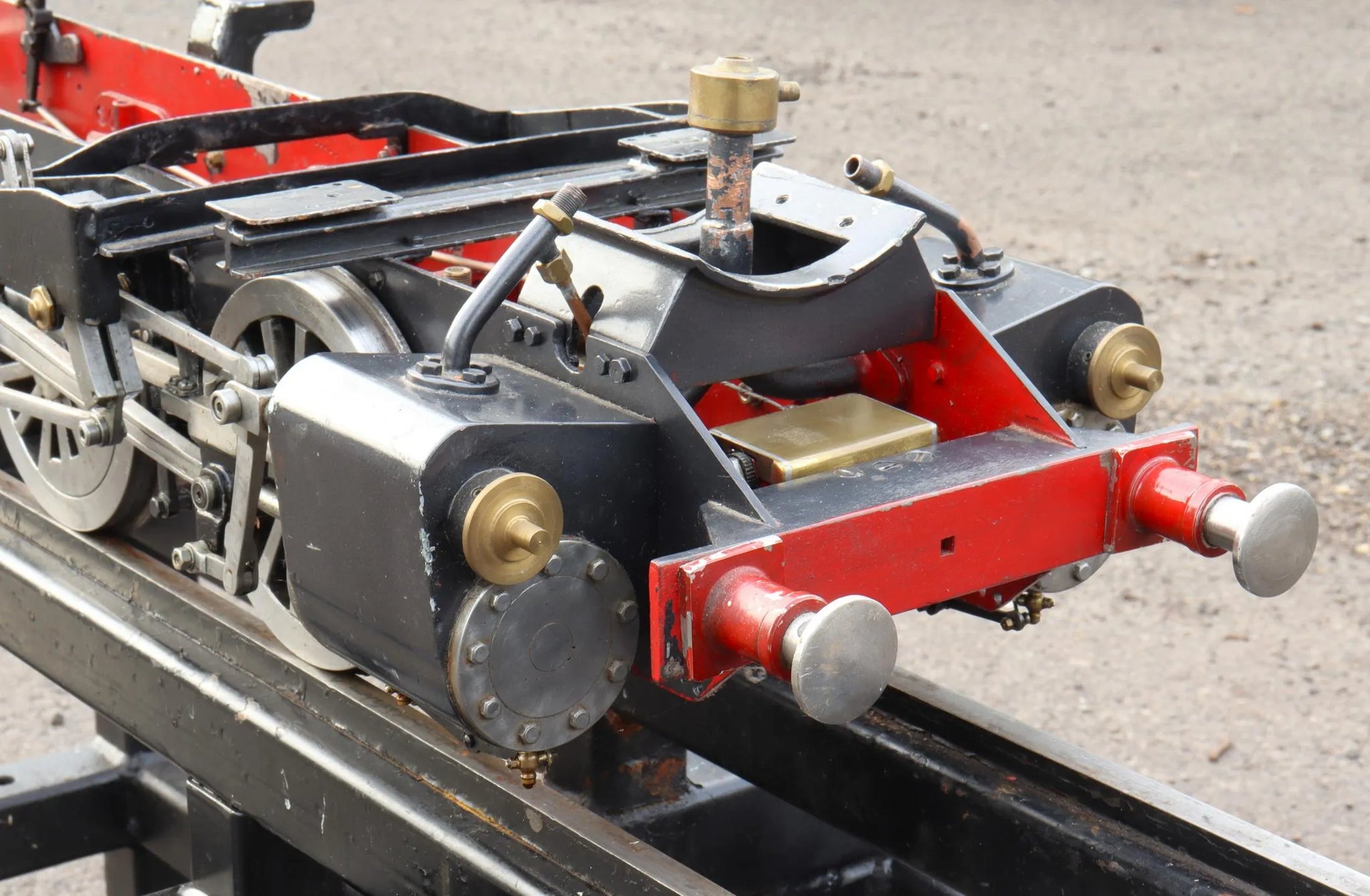

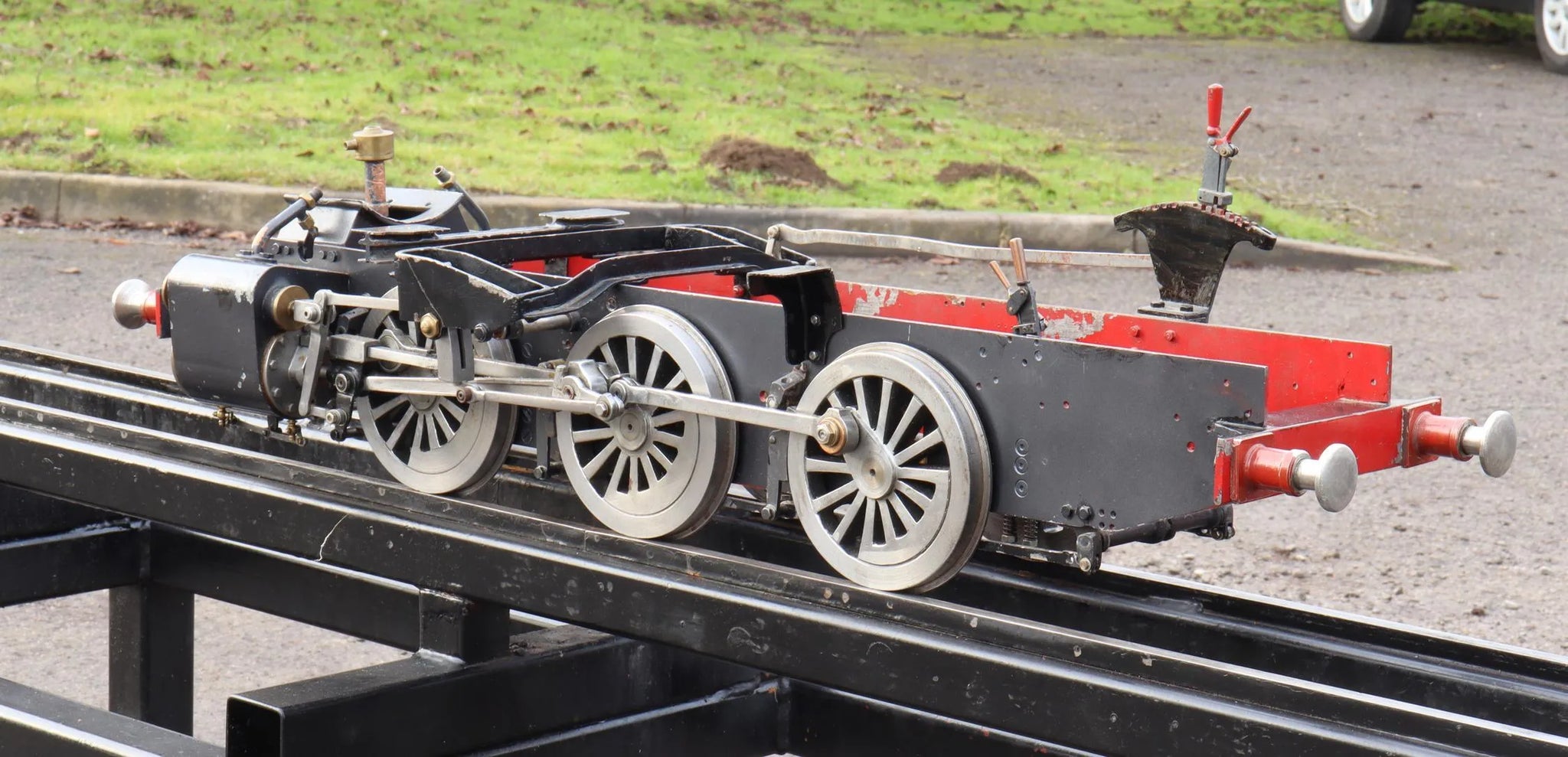

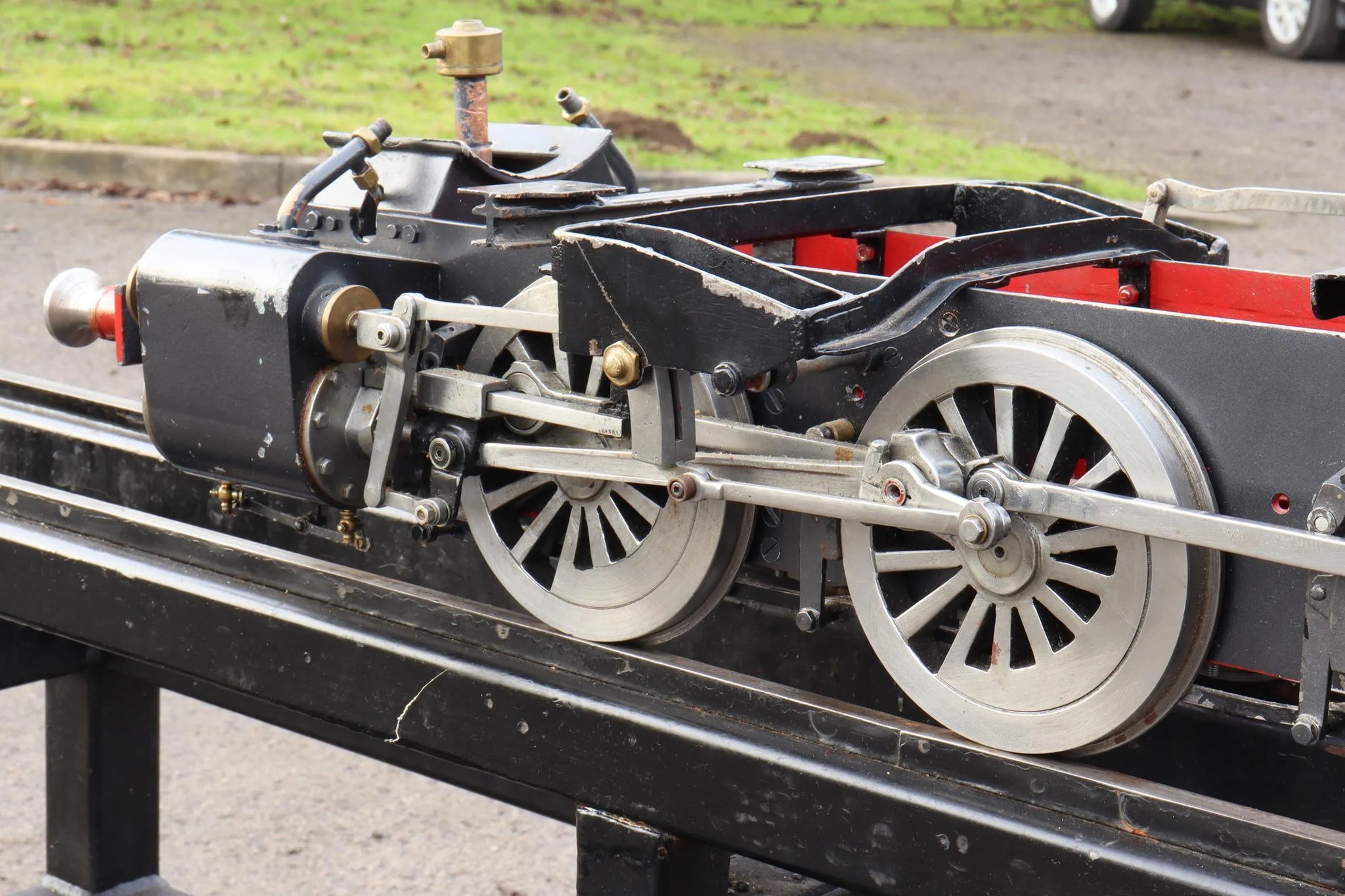

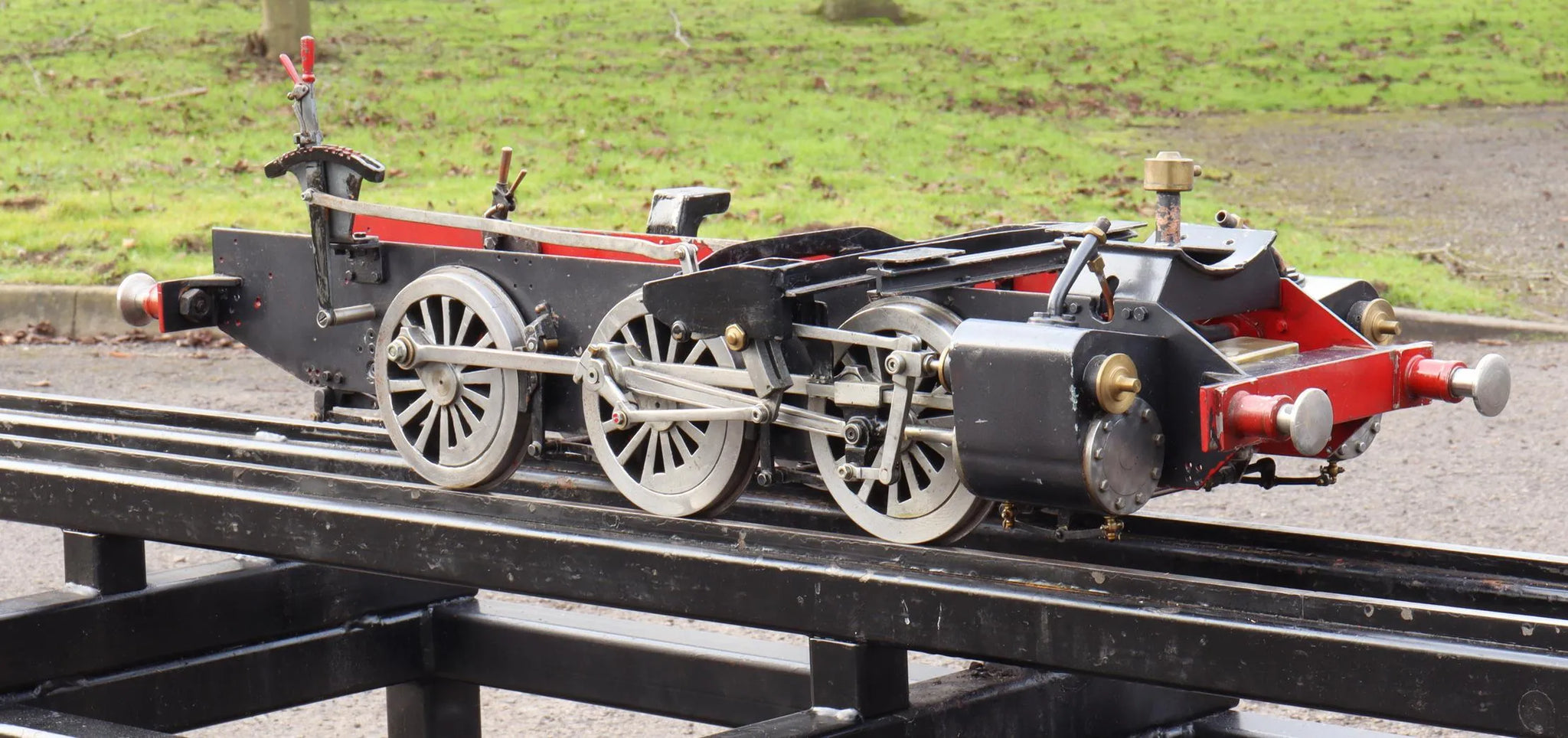

The chassis is of pedestrian construction, tight to turn over it would require stripping completely, fettling and reassembling before any attempt could be made to run it on air.

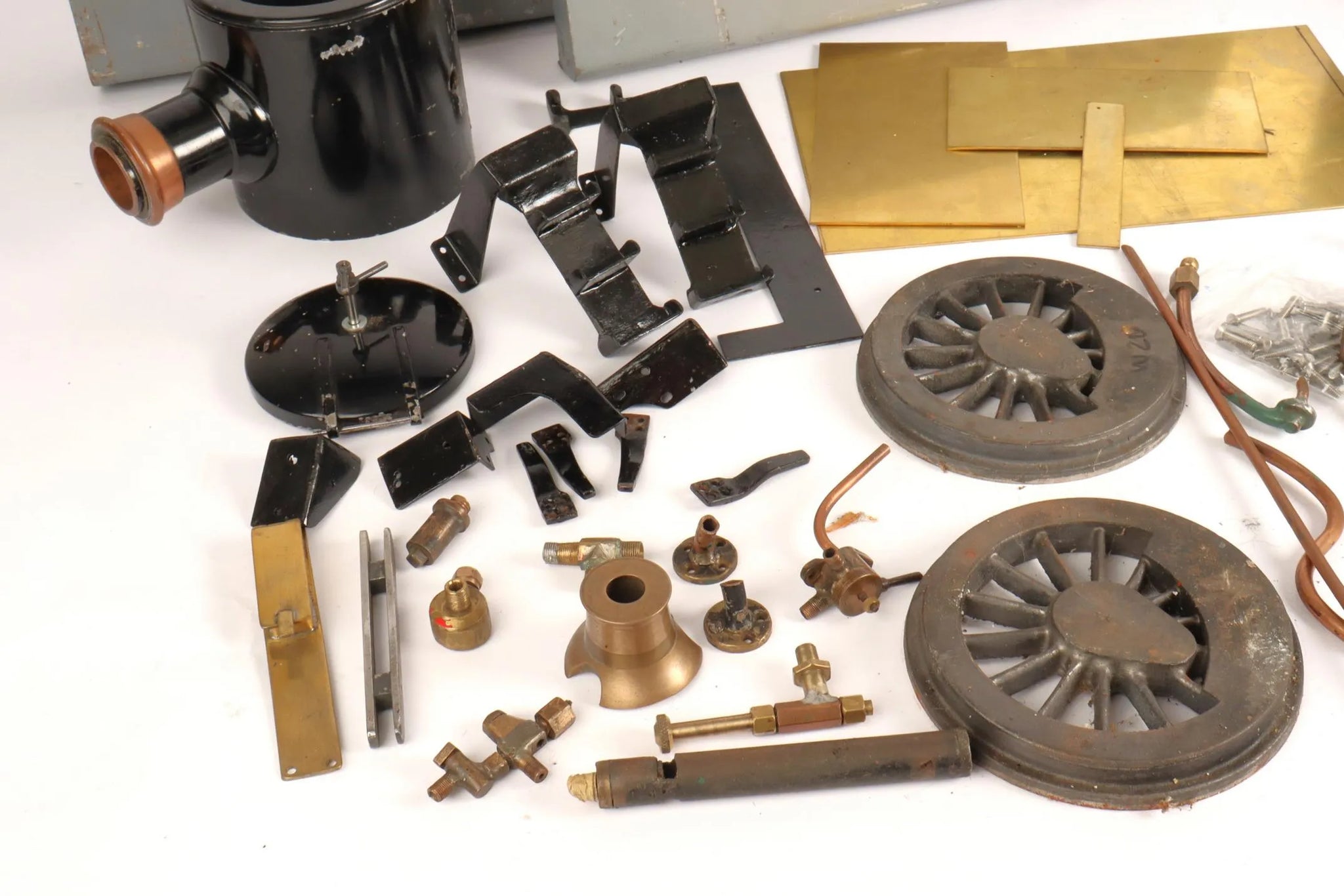

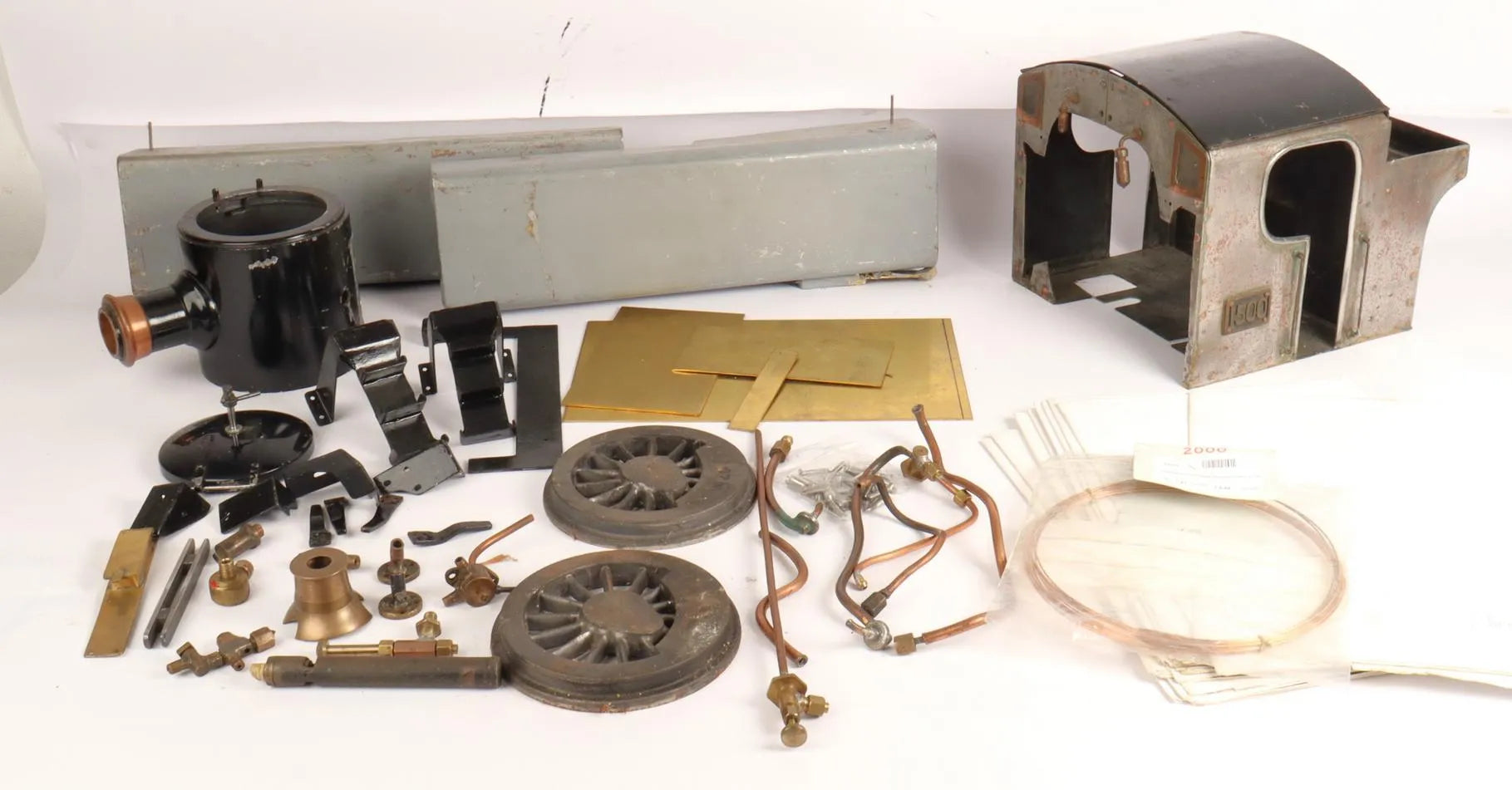

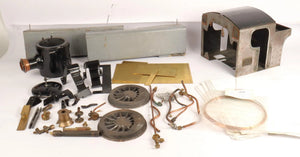

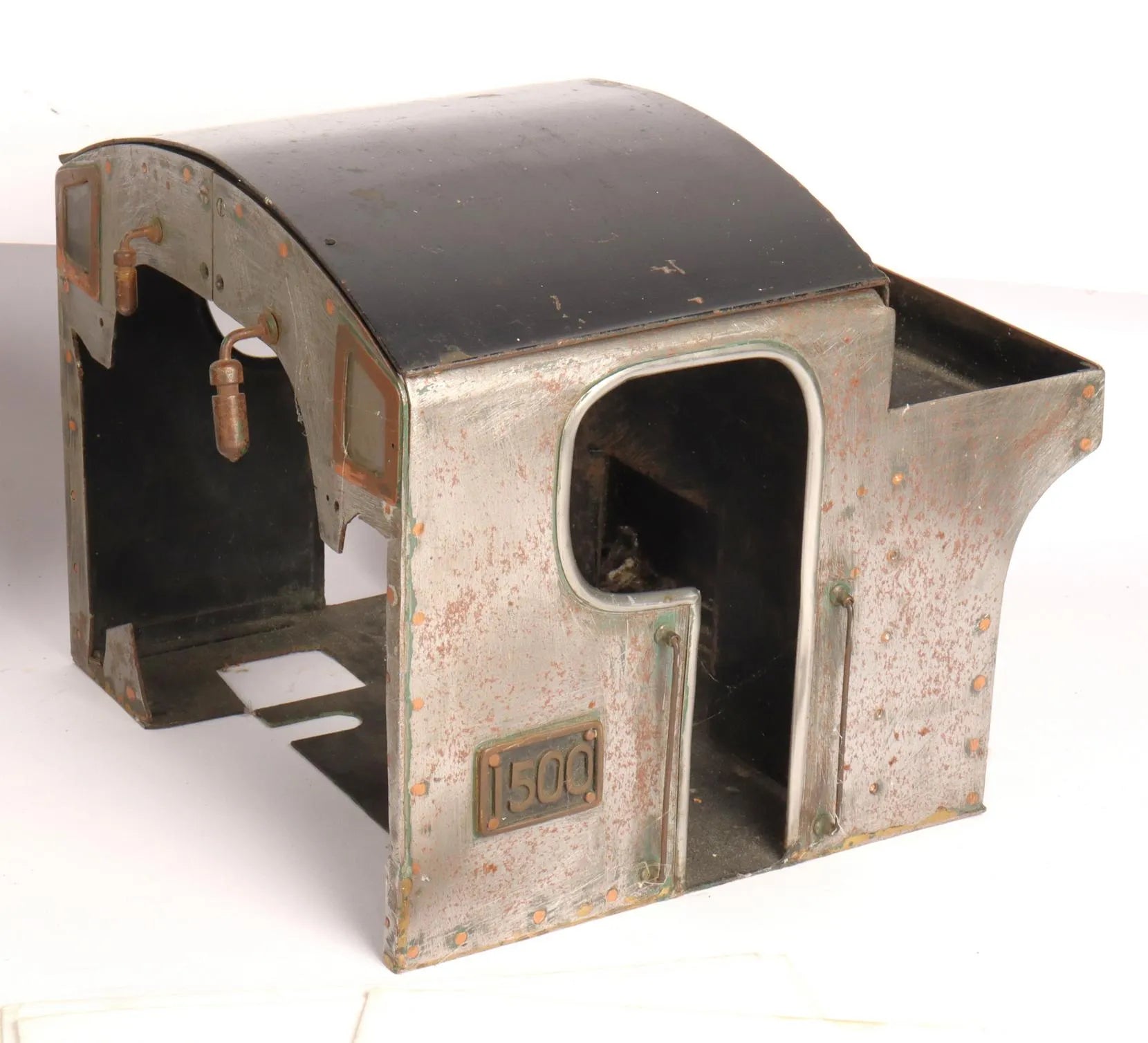

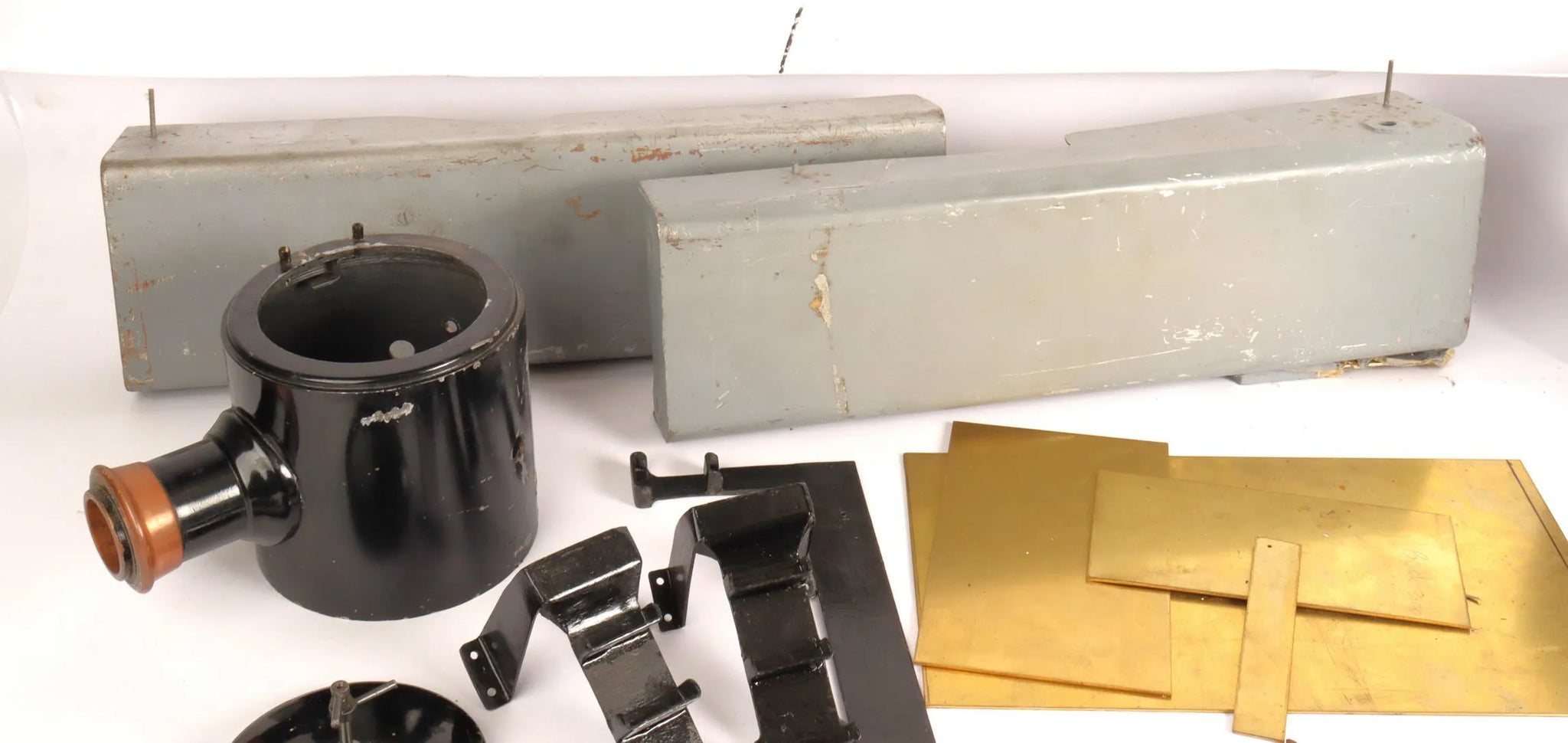

Complete with a quantity of loose parts including largely complete cab, smokebox assembly, tanks, assorted pipework, whistle and steam brake valve.

Technical information

Stock code

12553

Length/inches

34

Width/inches

10.5

Height/inches

13

Weight/Kg

53.5

Wheel material

fabricated

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

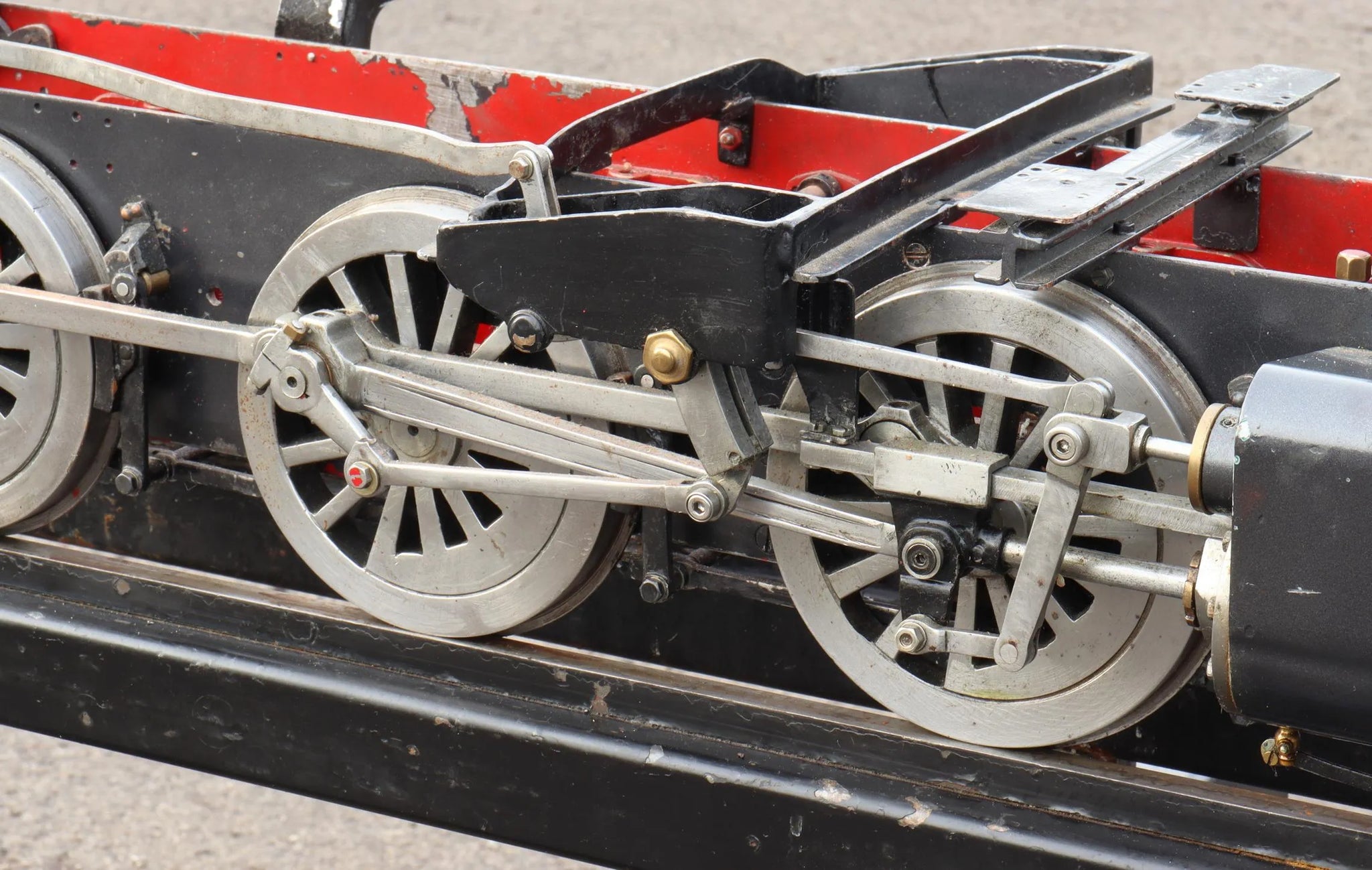

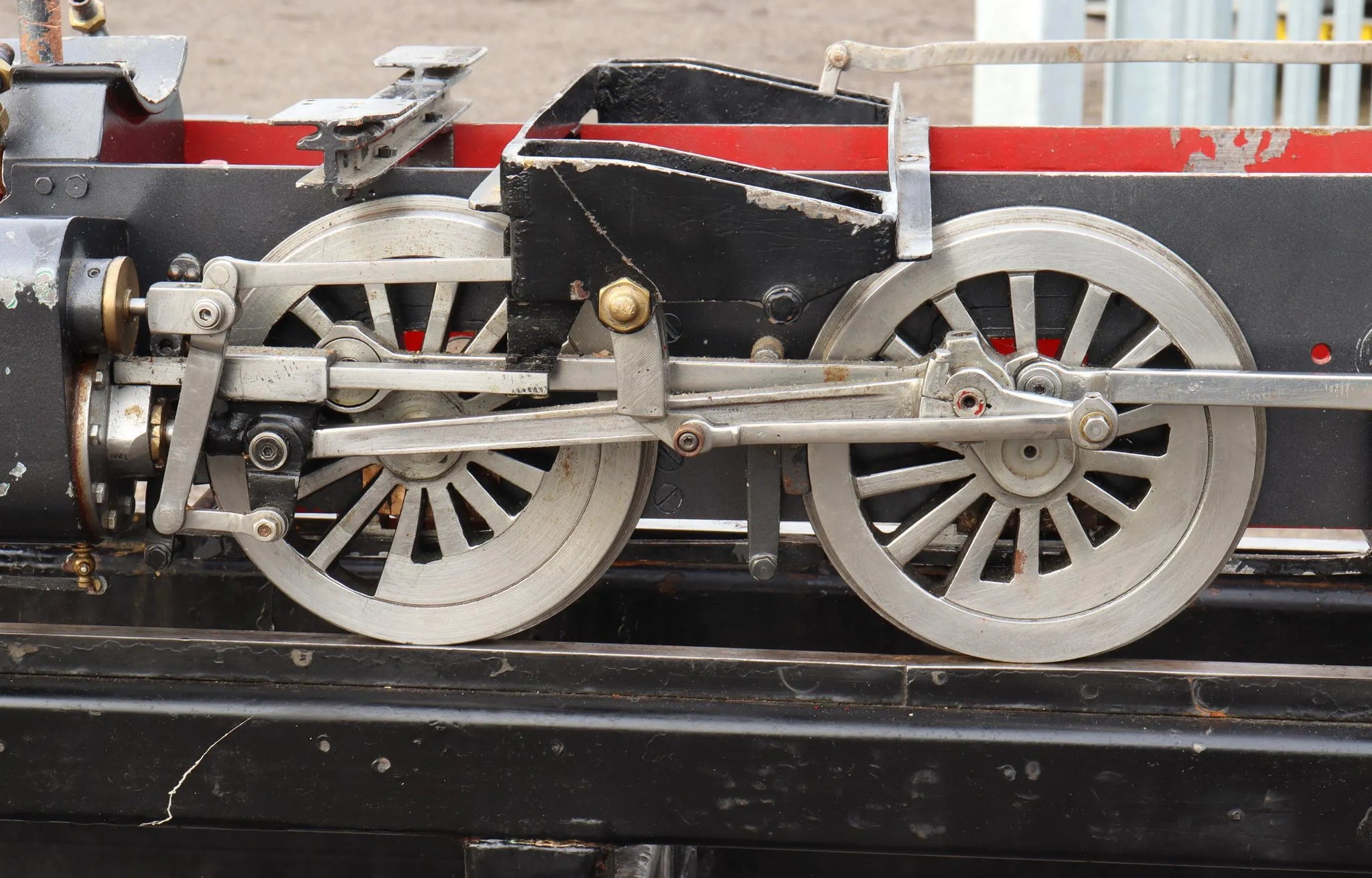

Valve gear

Walschaerts

Reverser type

pole

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

N23-90-P48

Date out

Jan-25

Hydraulic test valid to

12-Dec-28
