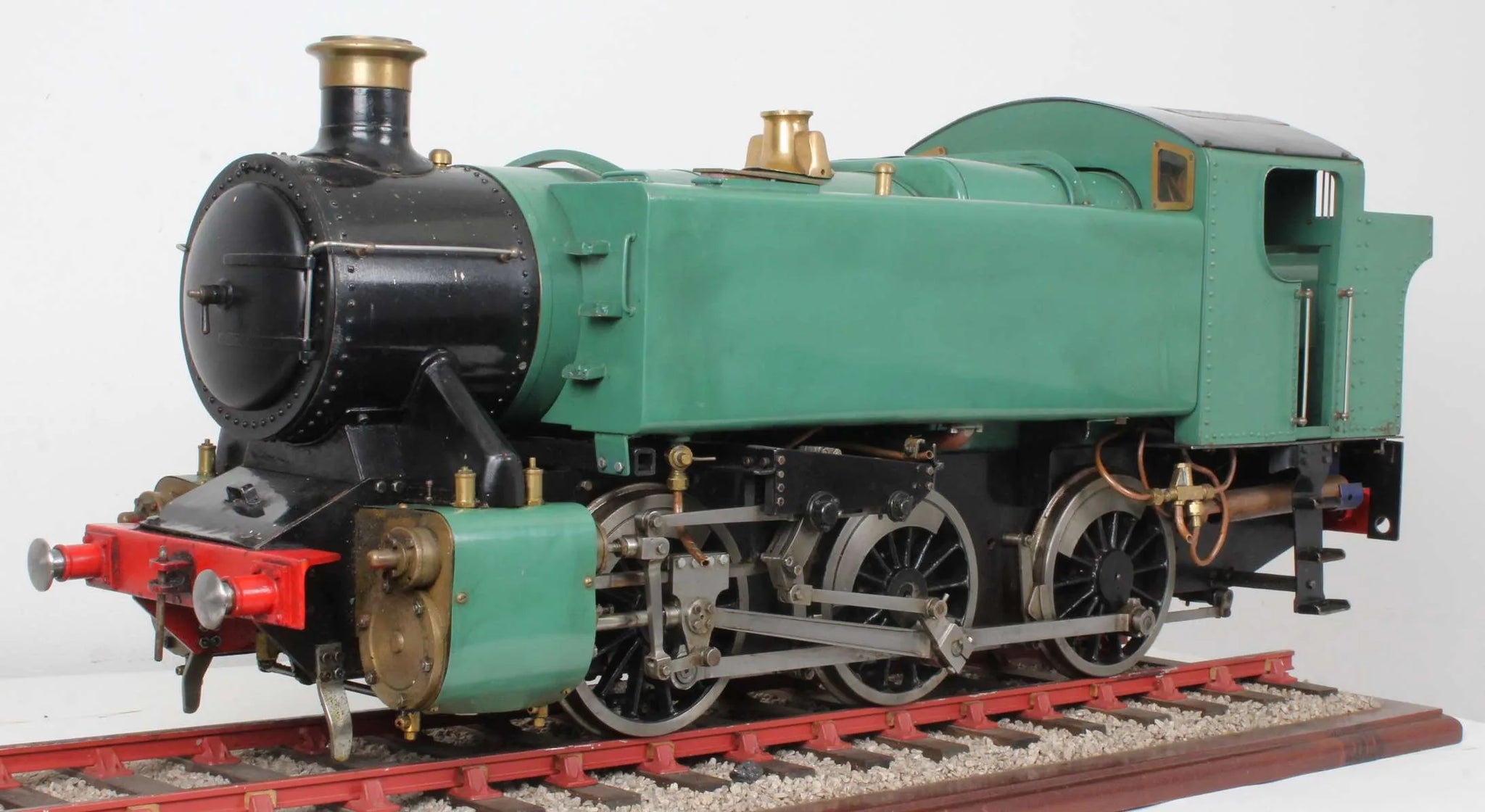

10141

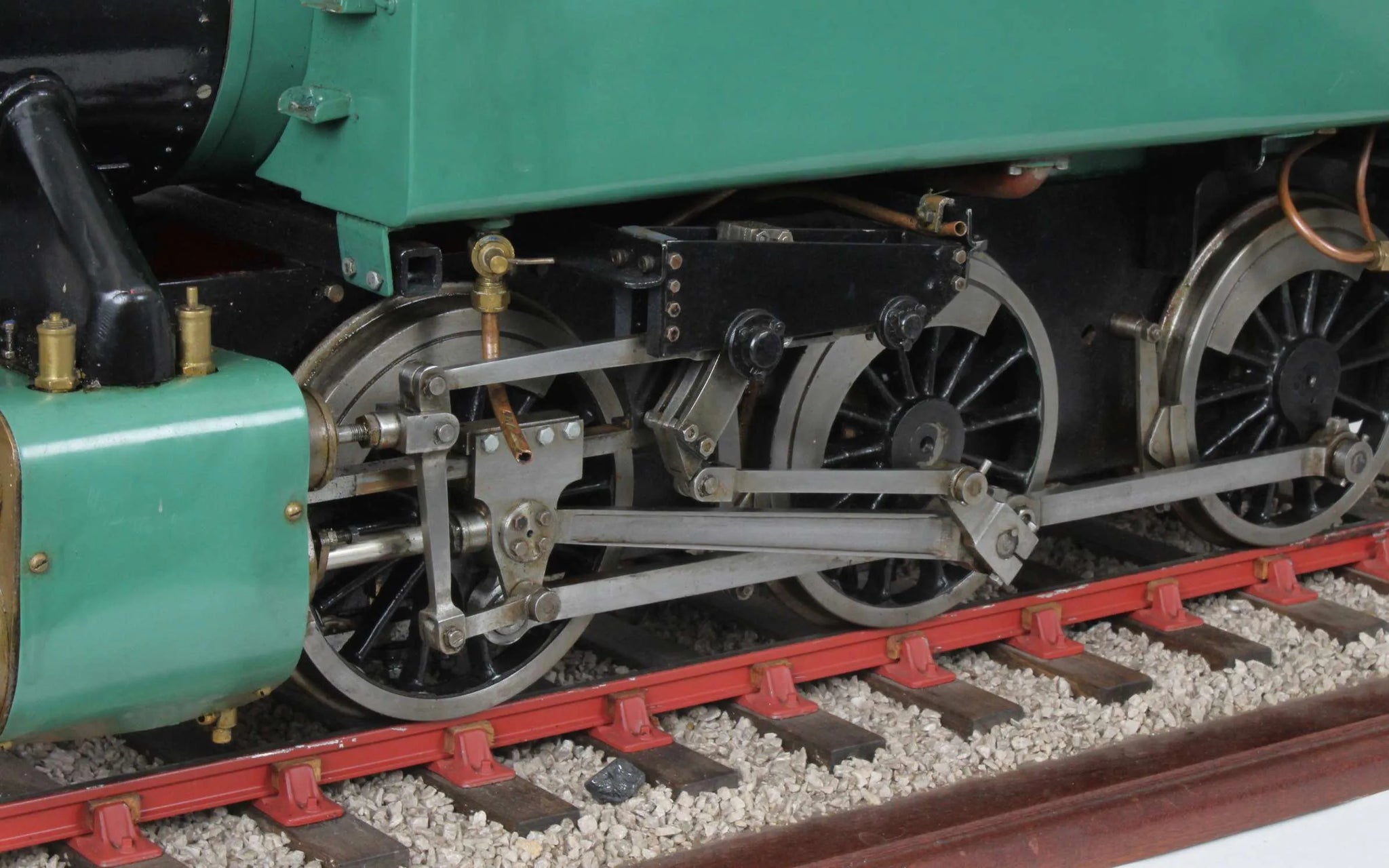

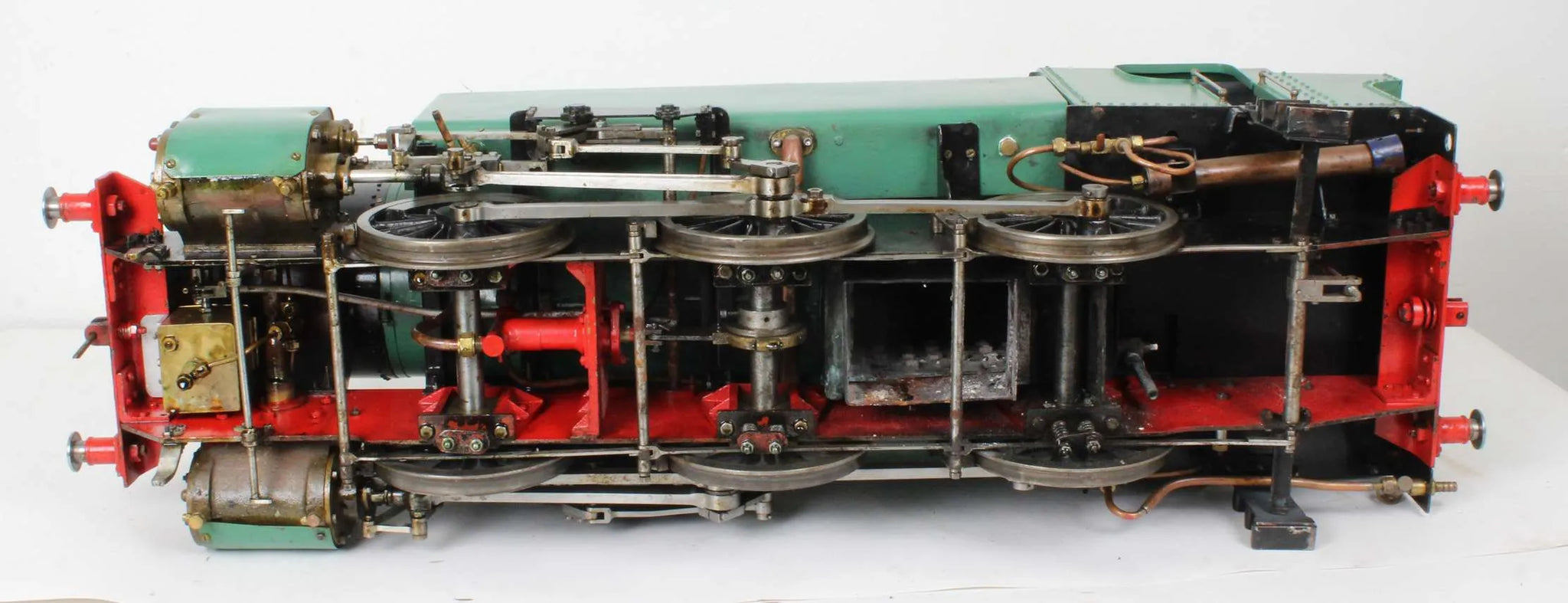

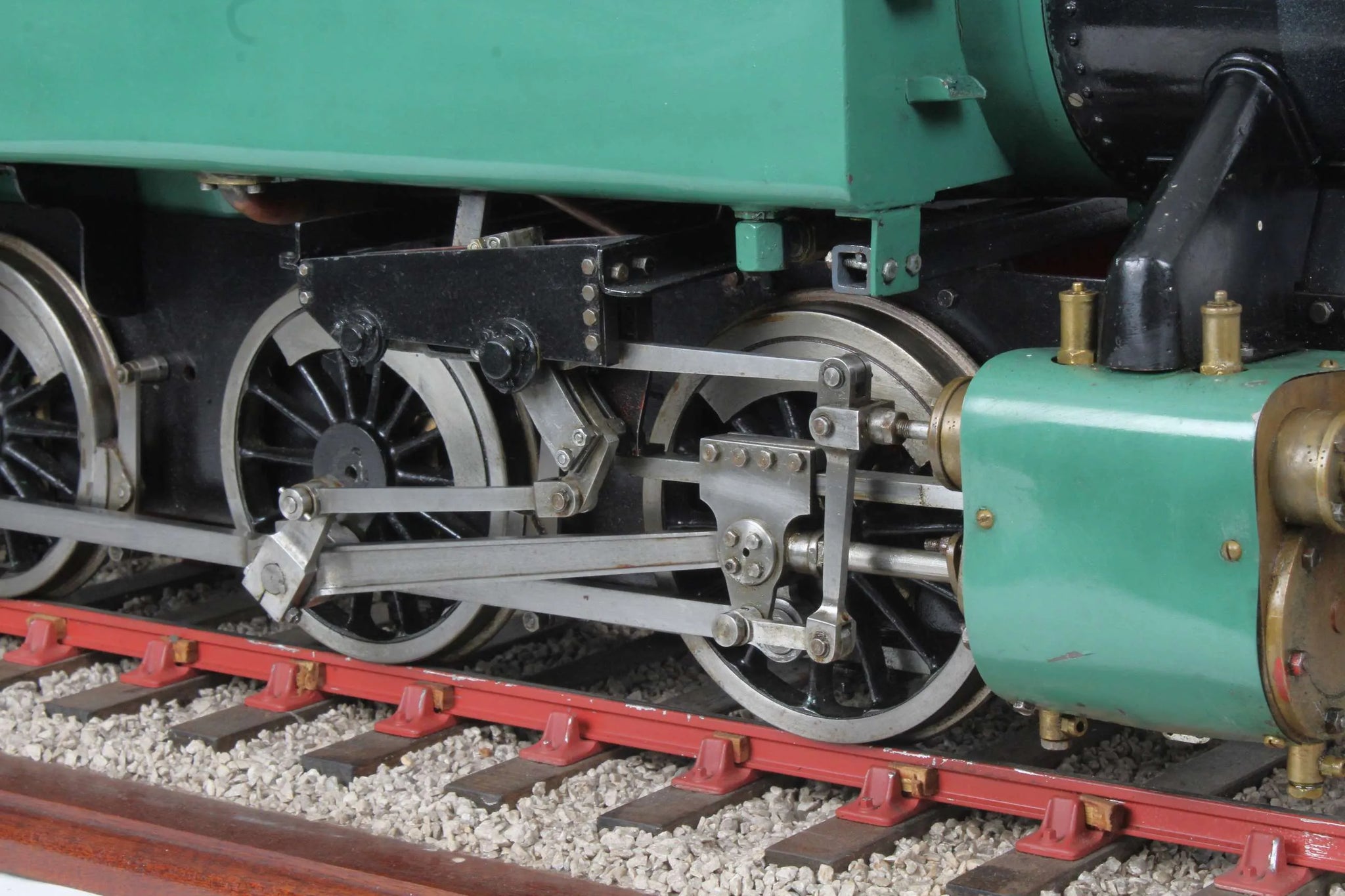

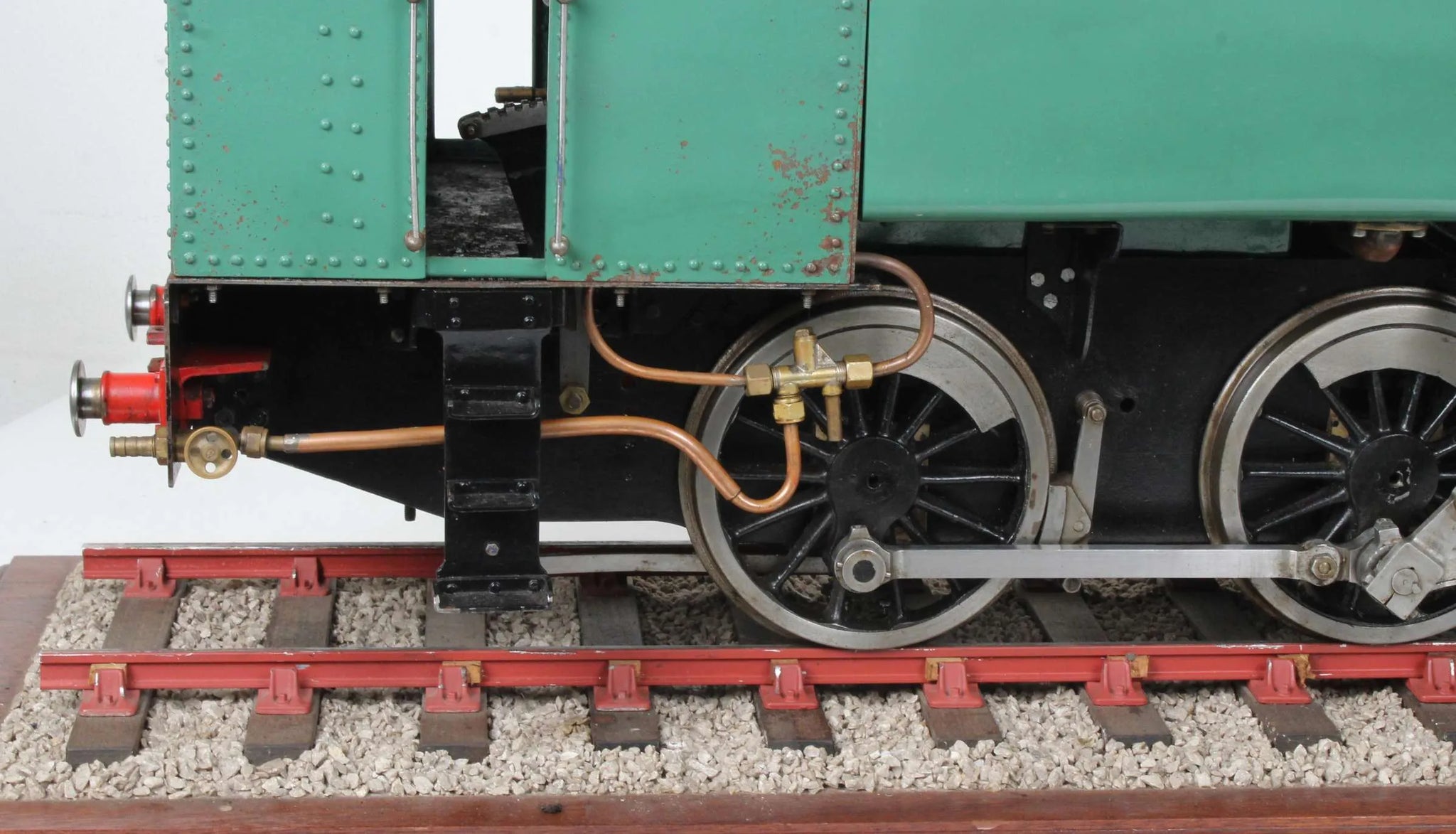

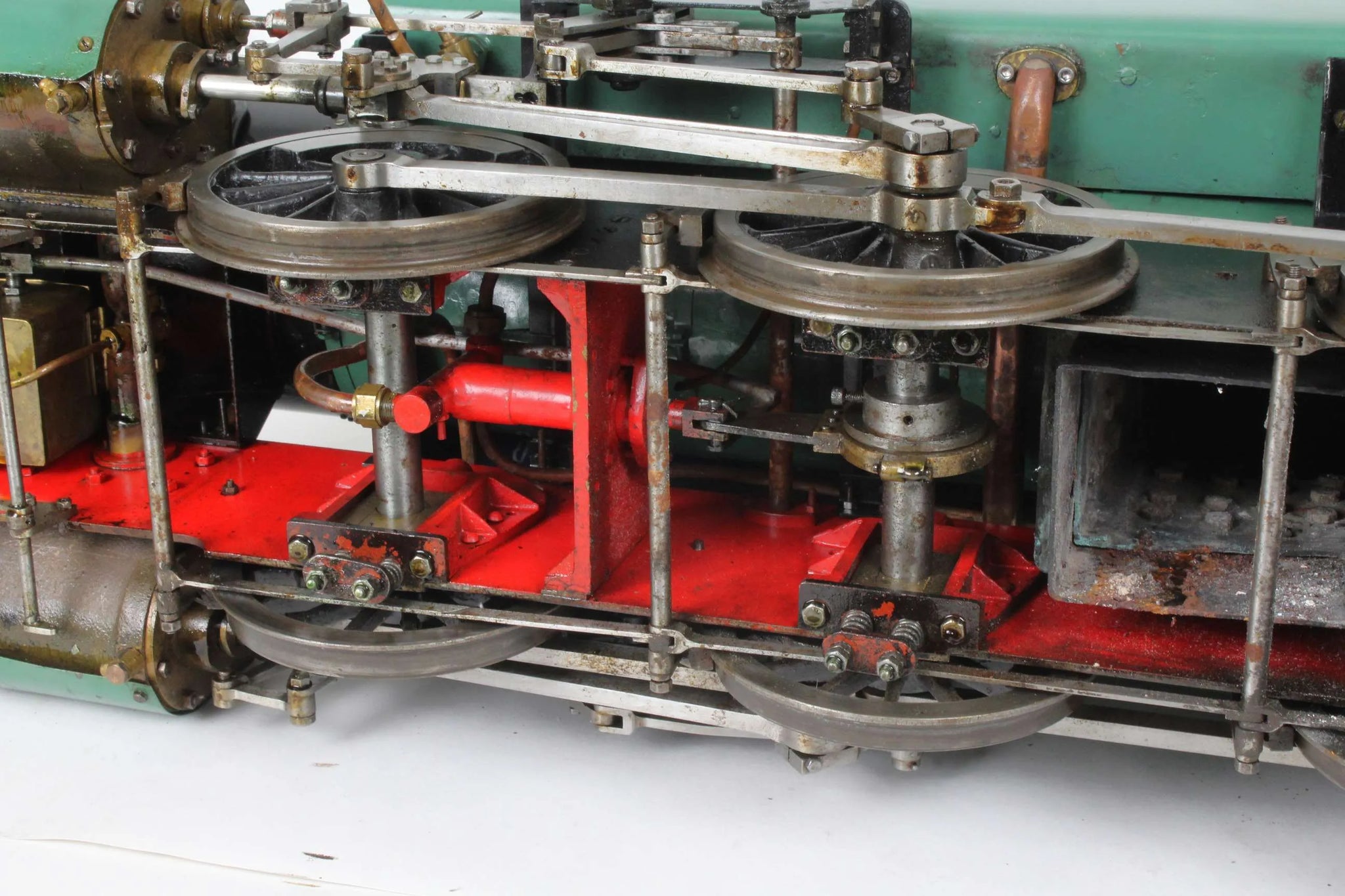

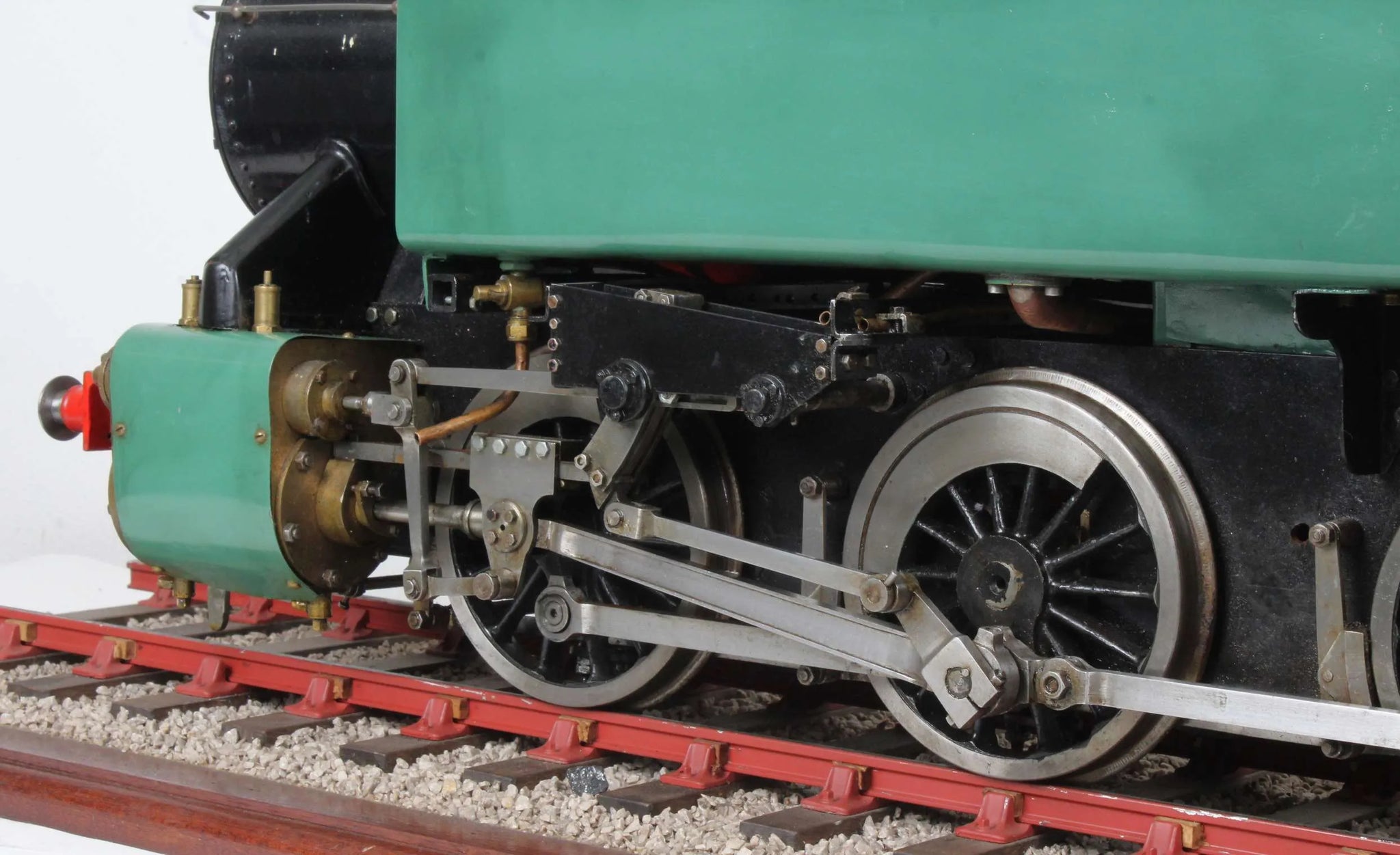

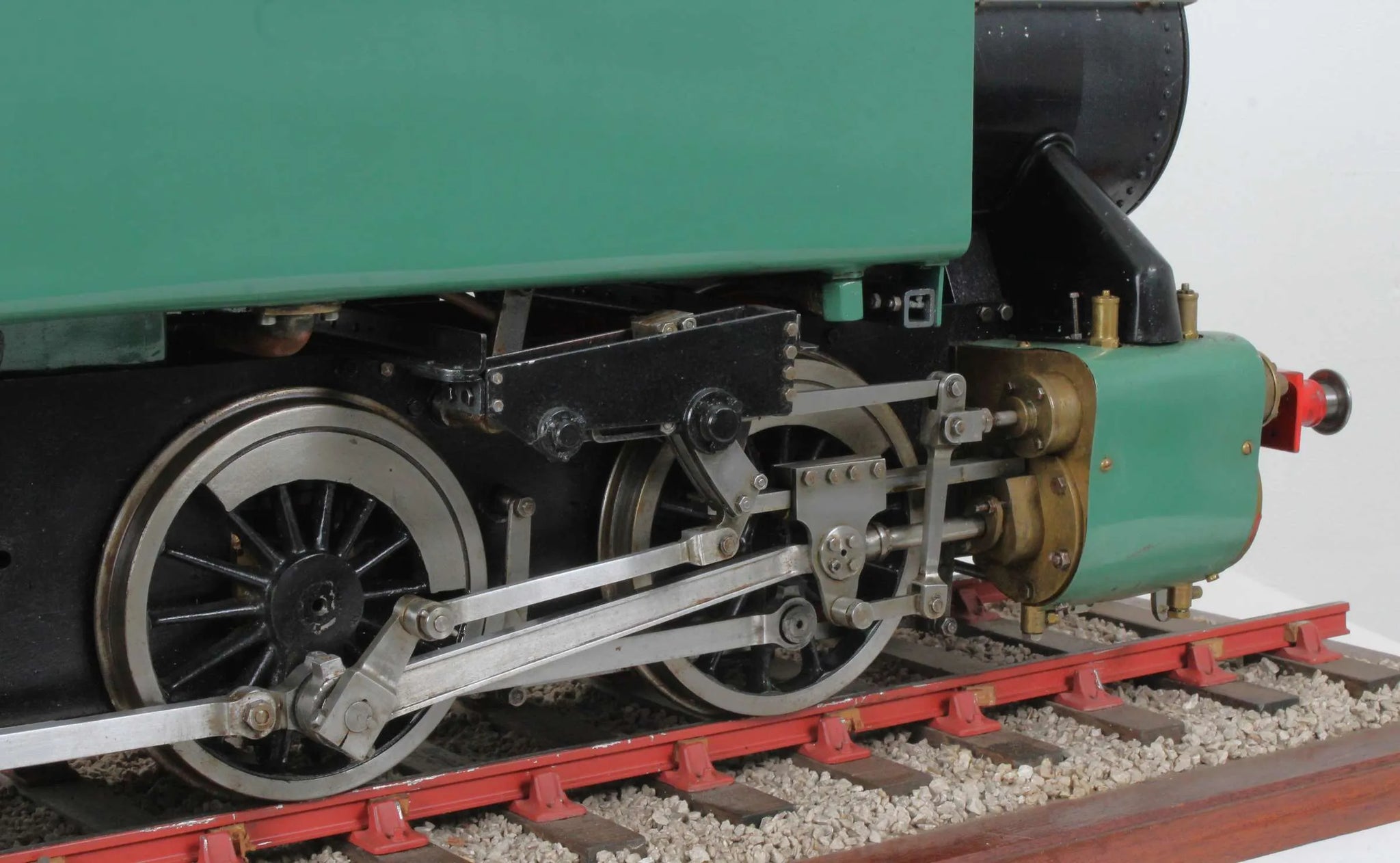

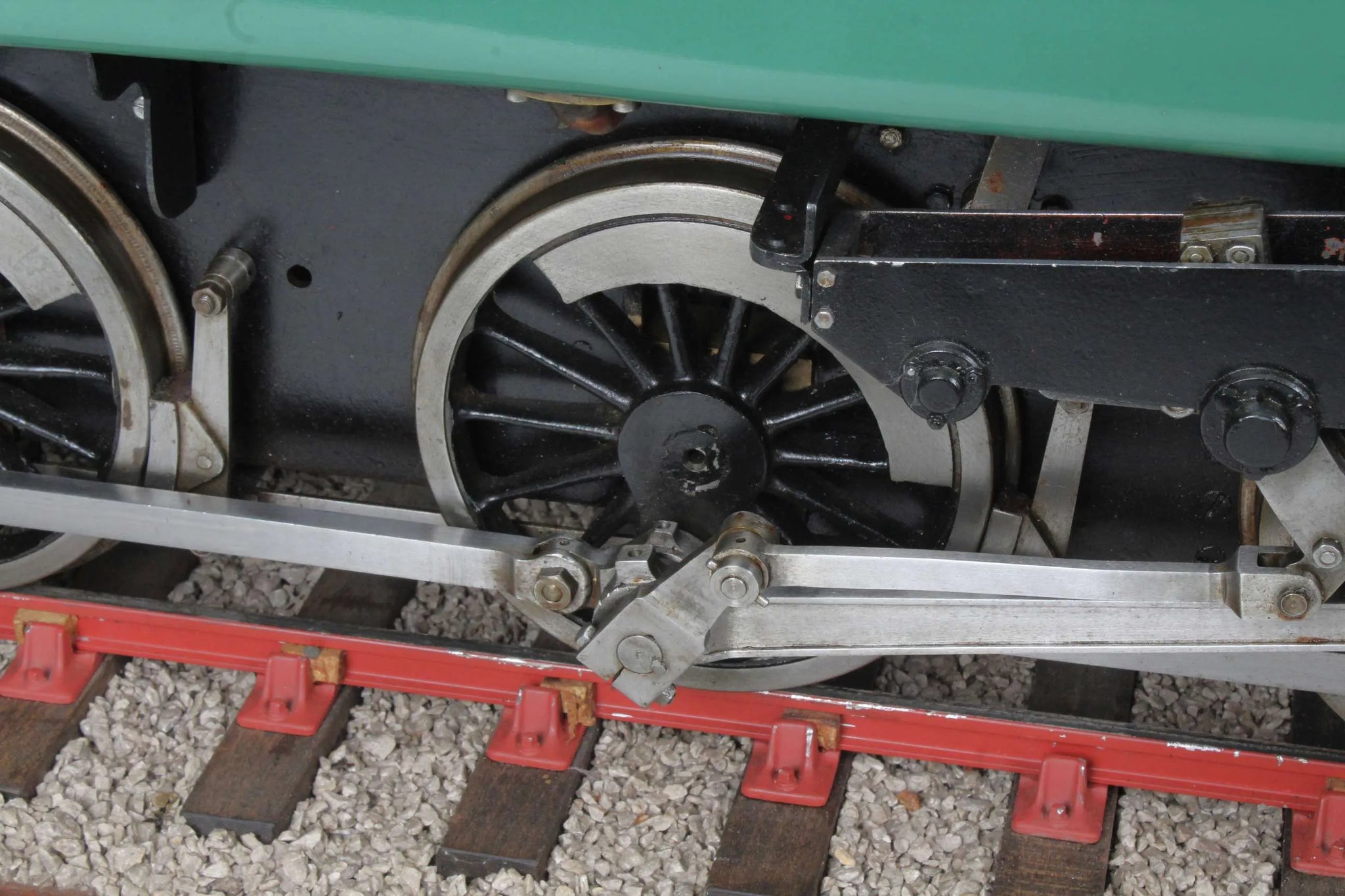

Chassis runs, with wear apparent in axleboxes and motionwork.
Boiler is silver soldered with nutted and calked firebox stays - on hydraulic test it appears structurally sound, there is one minor leak on the foundation ring which will require repair. One flue tube has been blanked off.
Stock code |
10141 |
Gauge |
5 inch |
Length/inches |
34 |
Width/inches |
11 |
Height/inches |
14 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
piston |
Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered with nutted and calked firebox stays |
Boiler material |
copper |
Working pressure |
75 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
N142 20121 |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Mechanical pump |
1 |
Injector |
2 |
Superheater type |
flue tube |
Superheater |
3 |
Date out |
Dec-23 |
