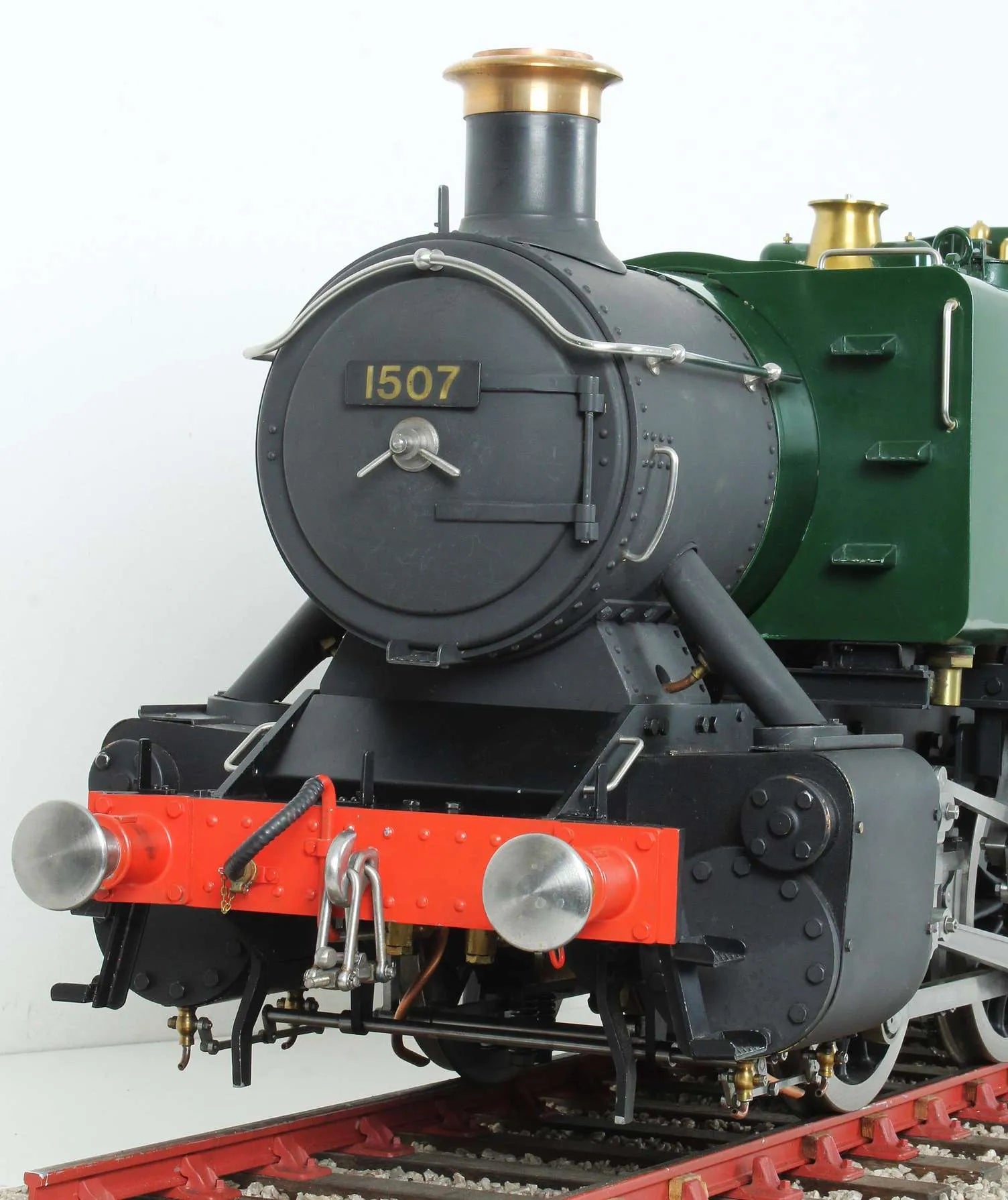

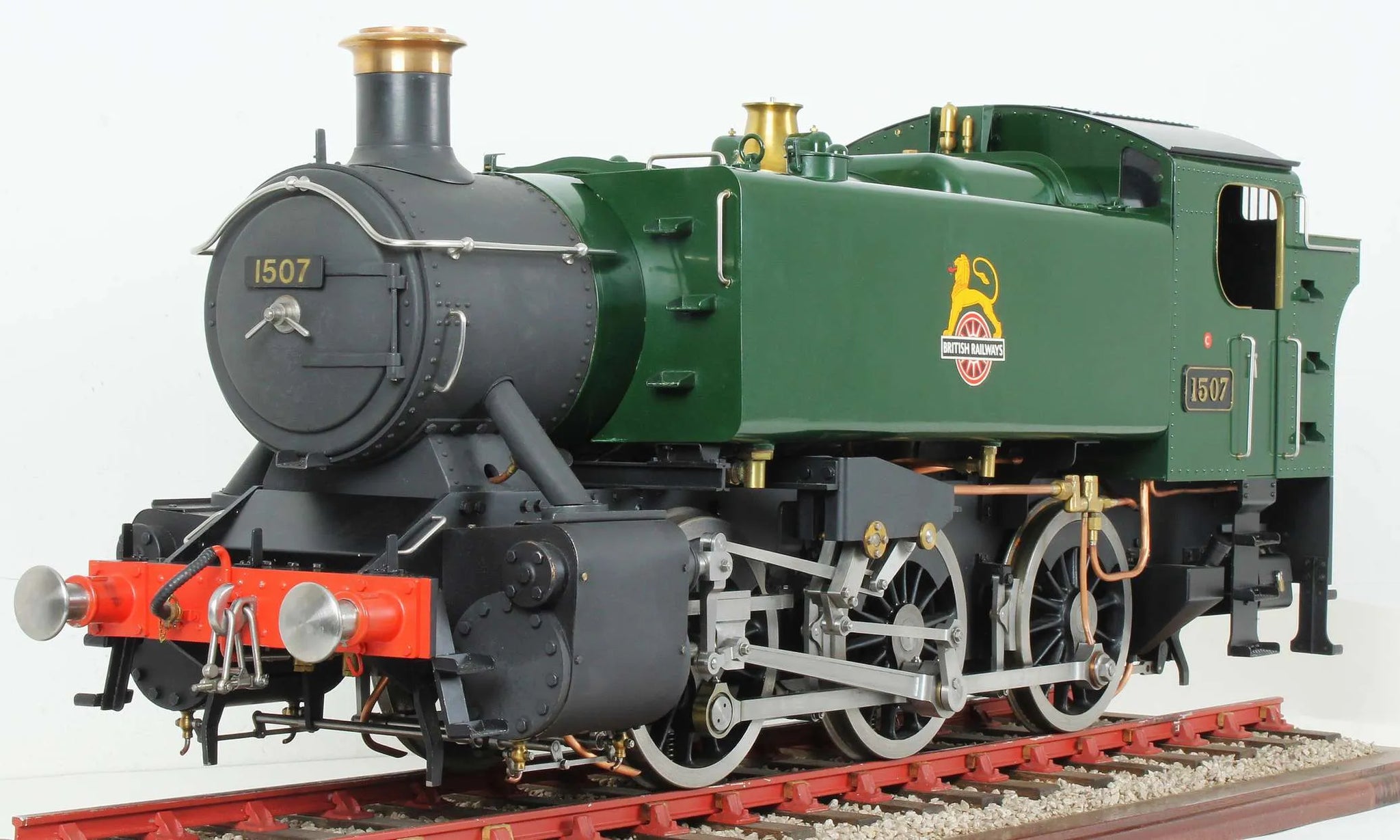

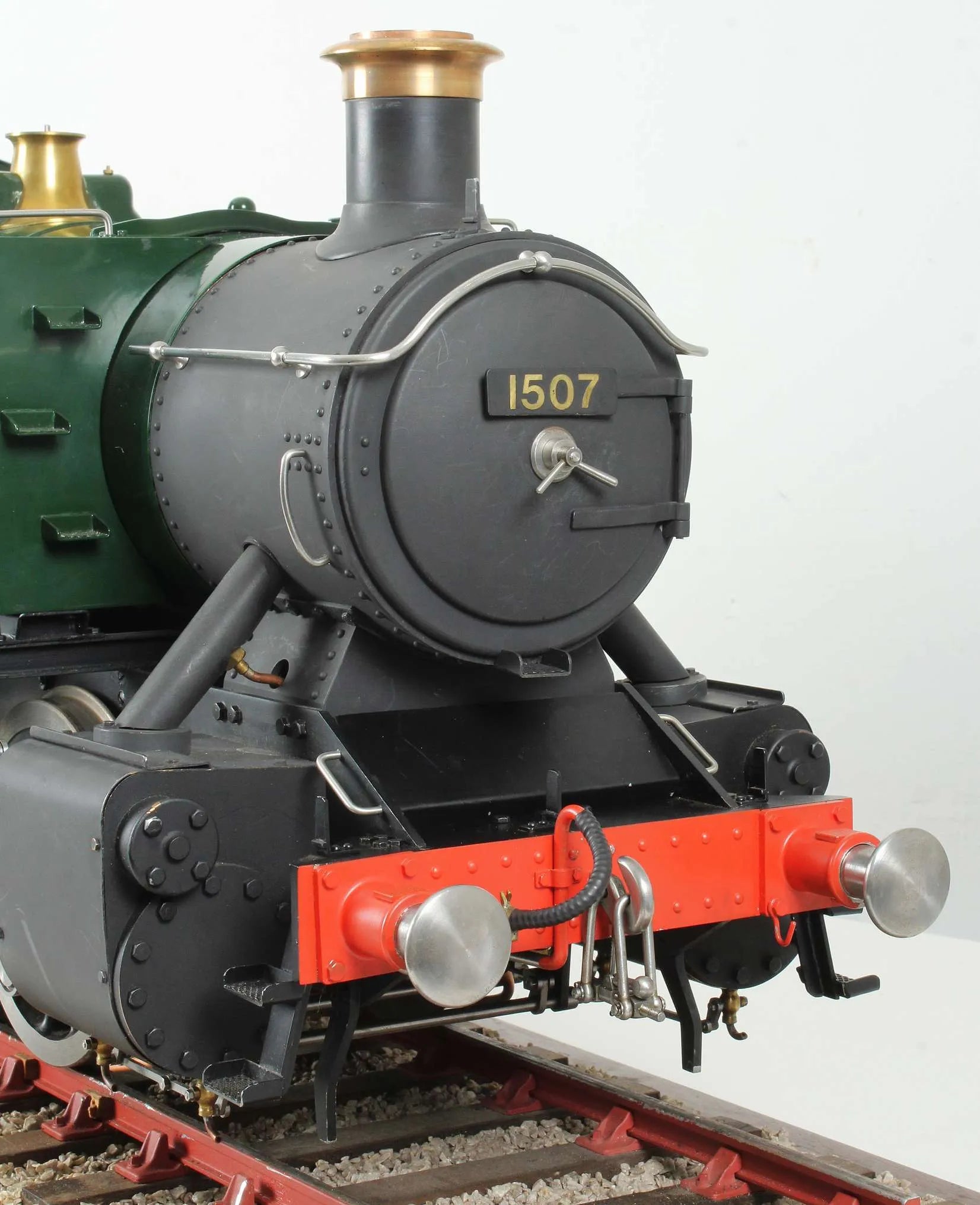

5 inch gauge GWR 15XX 0-6-0PT

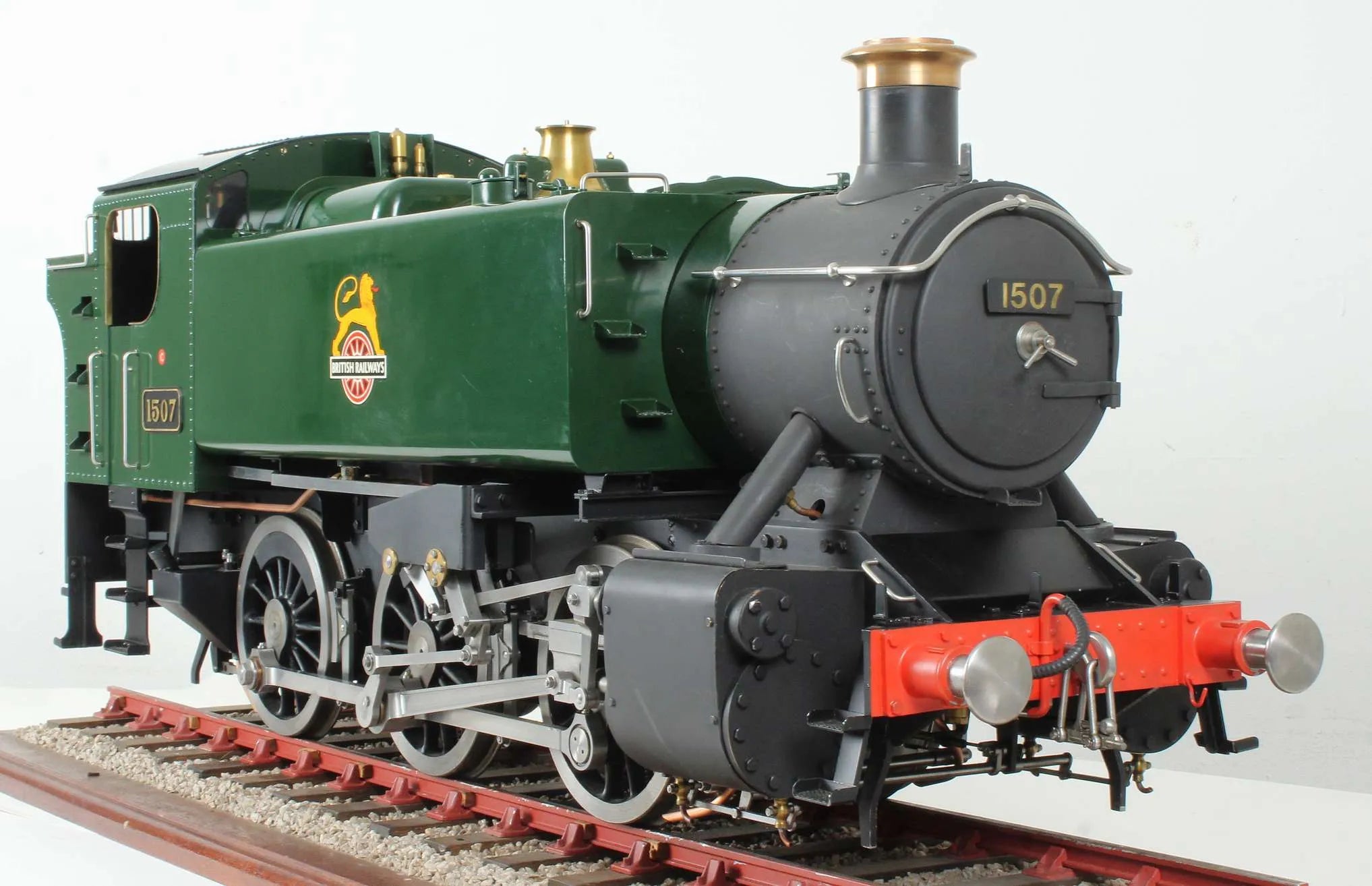

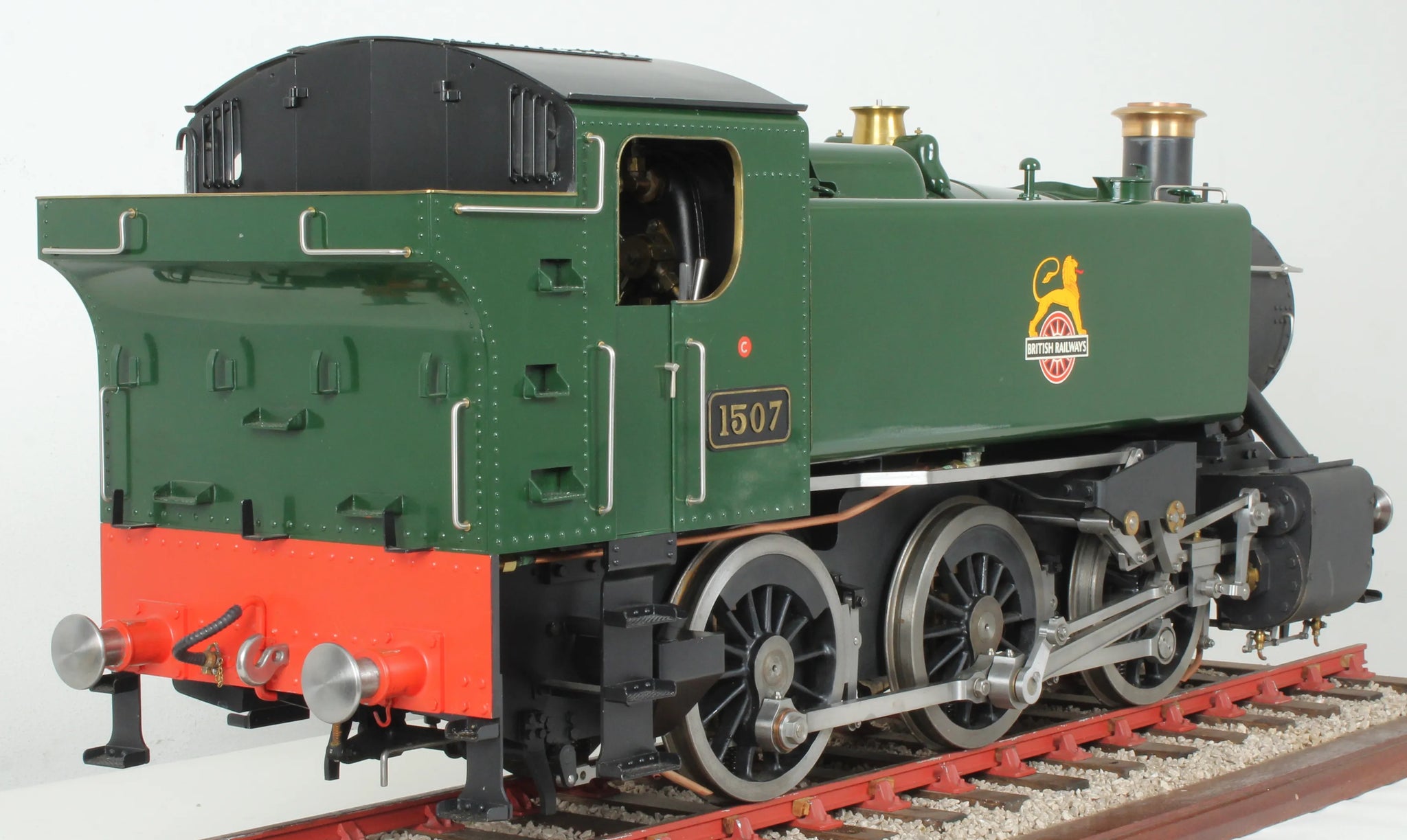

An exceptionally well built GWR 15XX to LBSC's "Speedy" design, an engine which appears to have been test-steamed perhaps once when built before being painted and put in a glass case in which it's lived ever since.

Recently arrived with us as part of a large collection of locomotives and traction engines, the engine took pride of place in the previous owner's dining room.

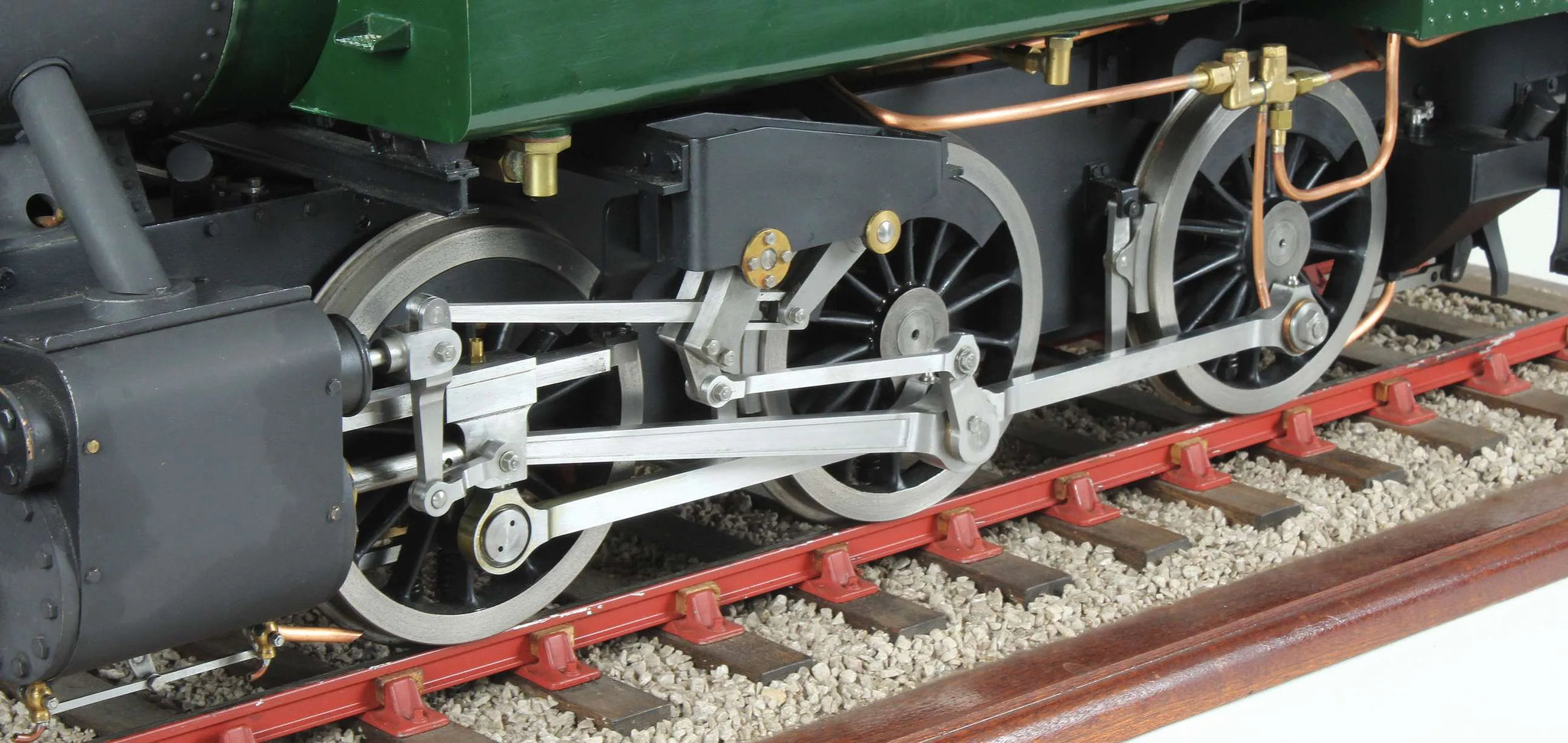

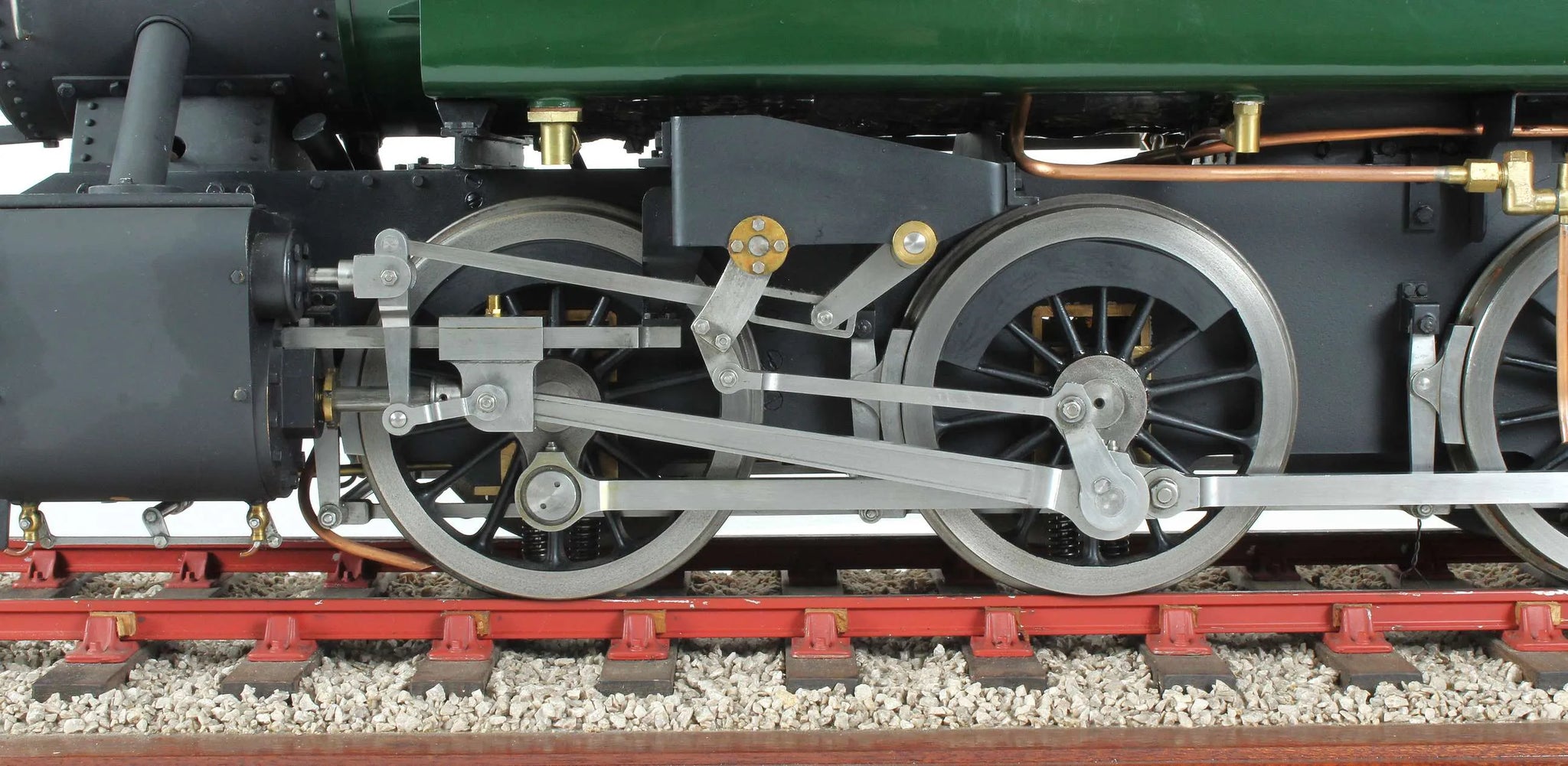

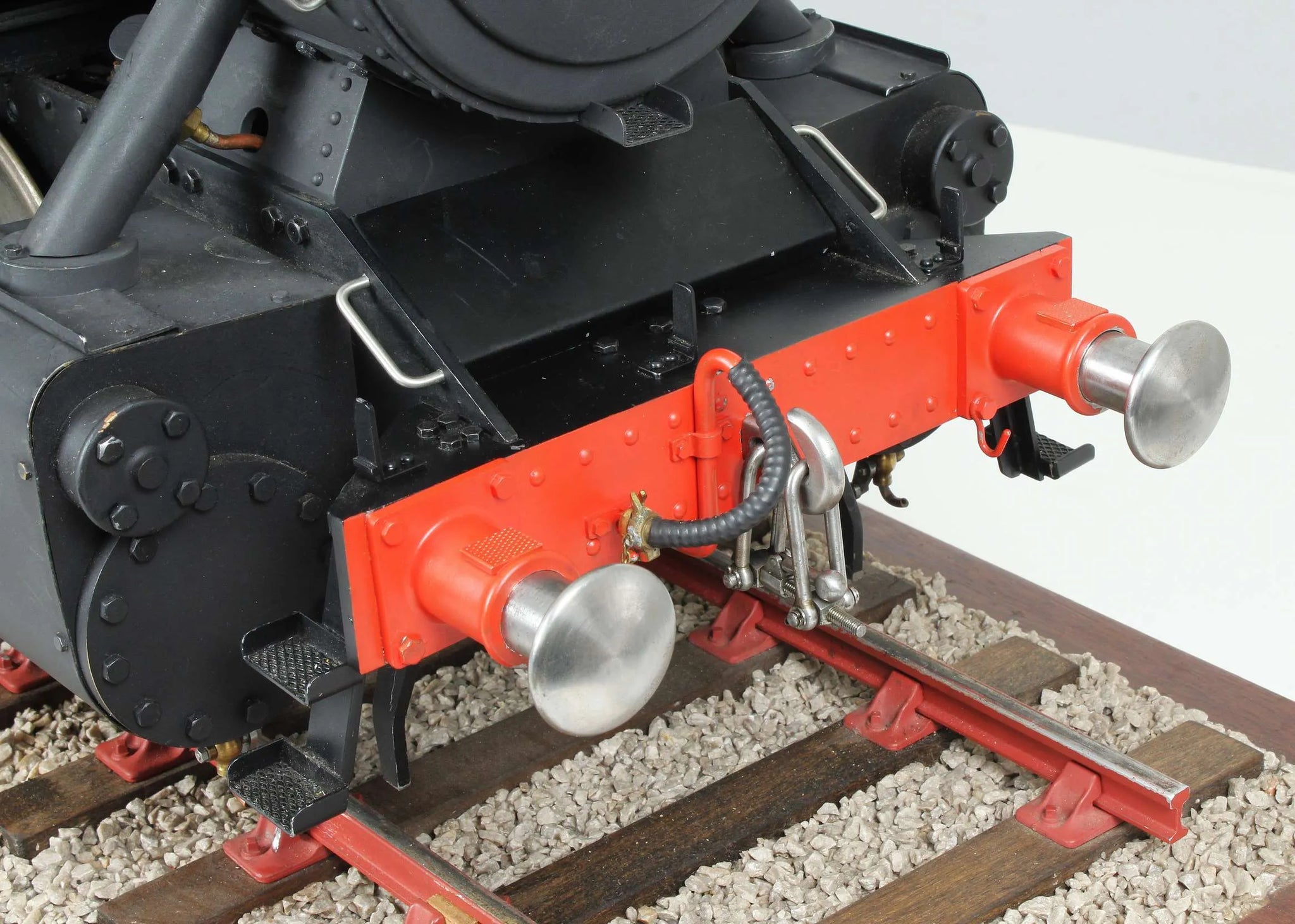

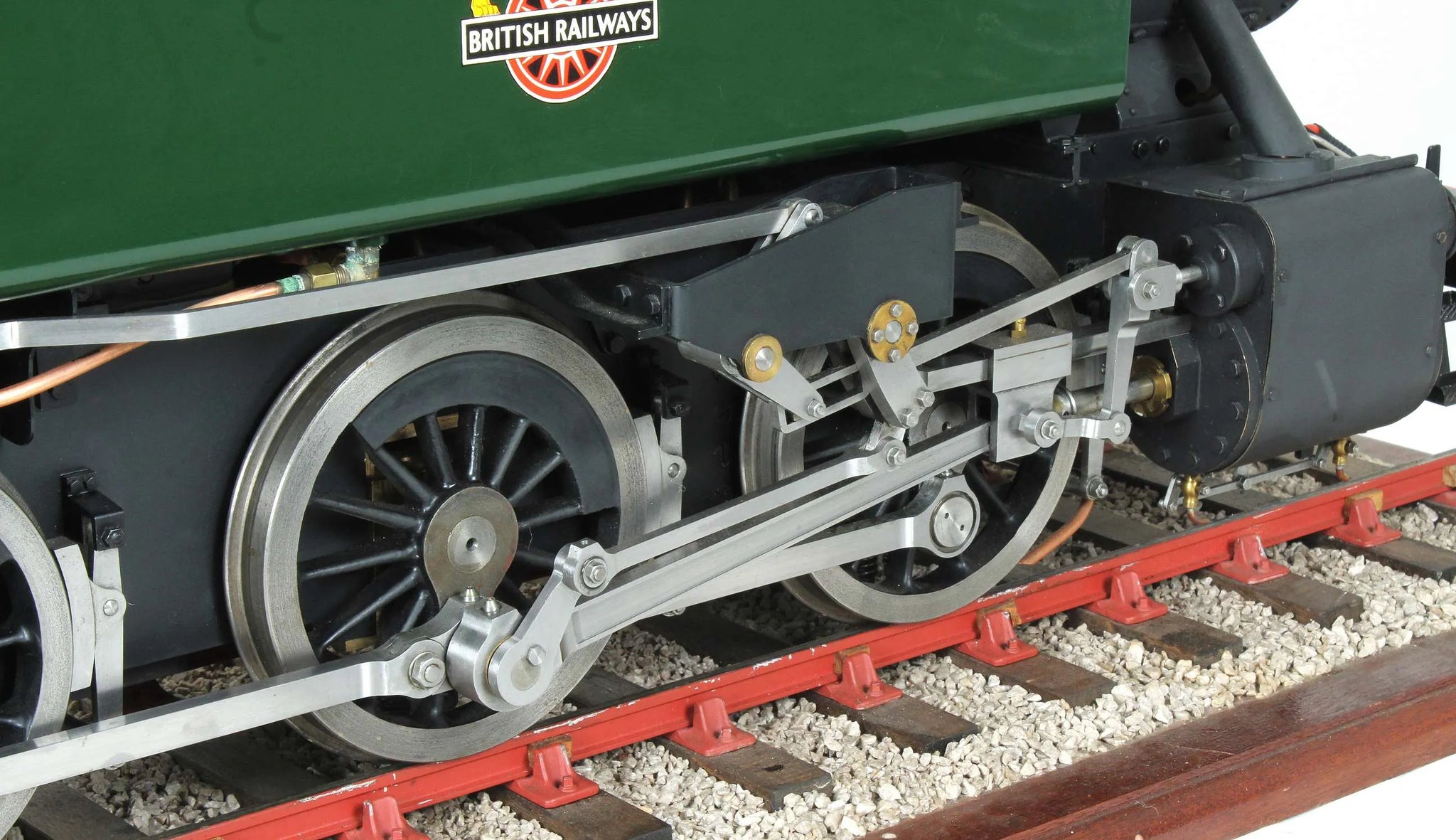

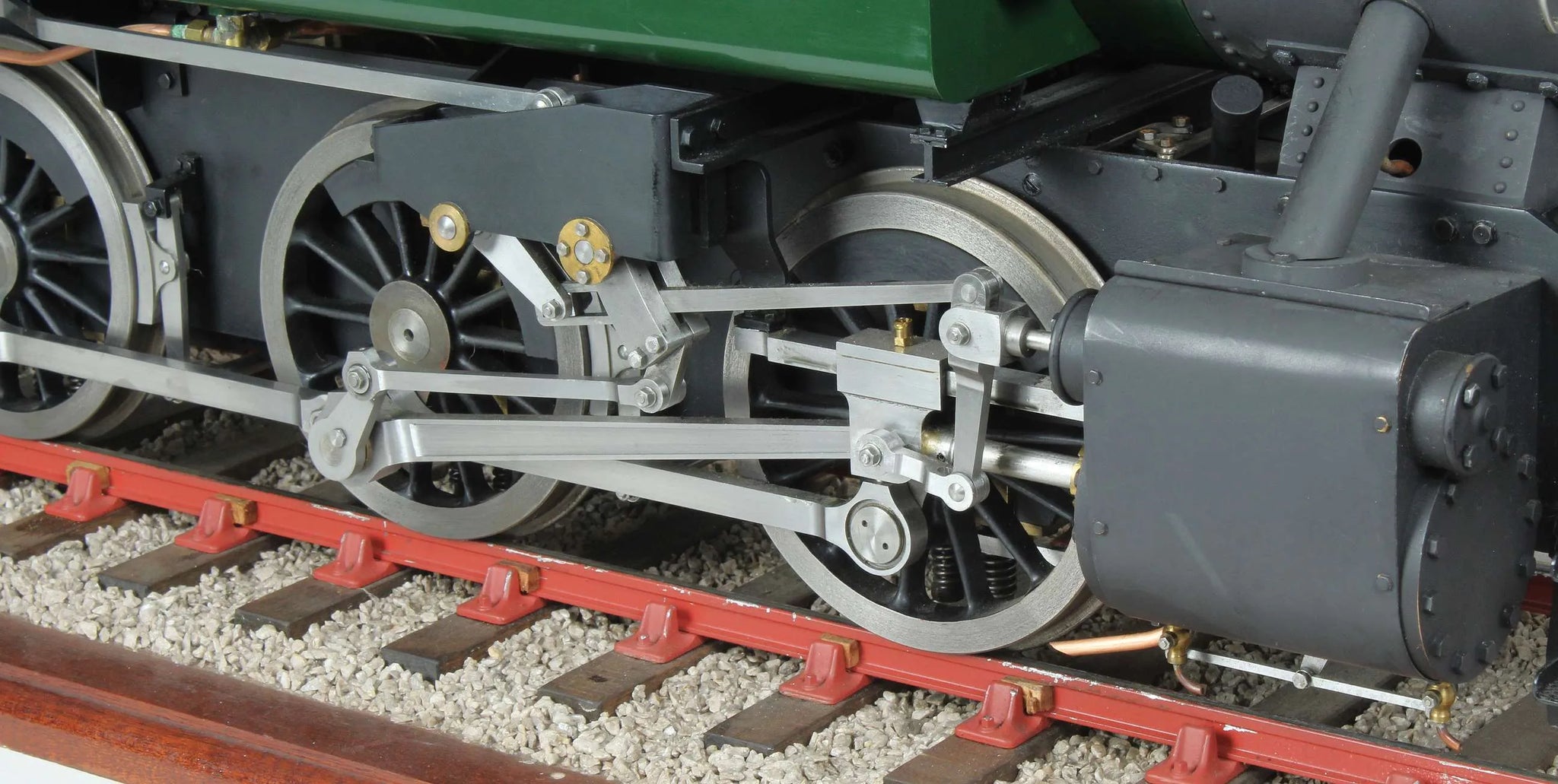

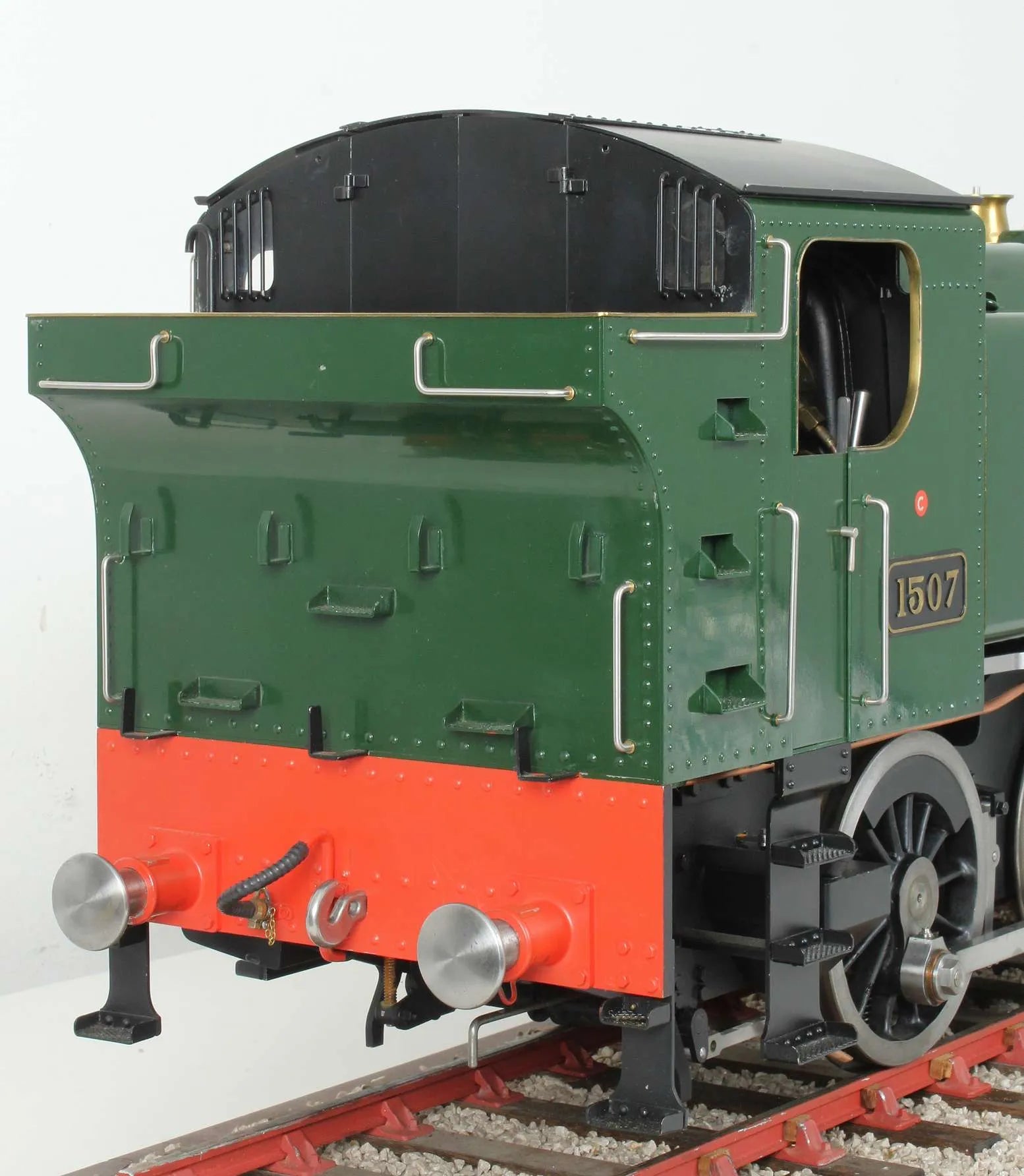

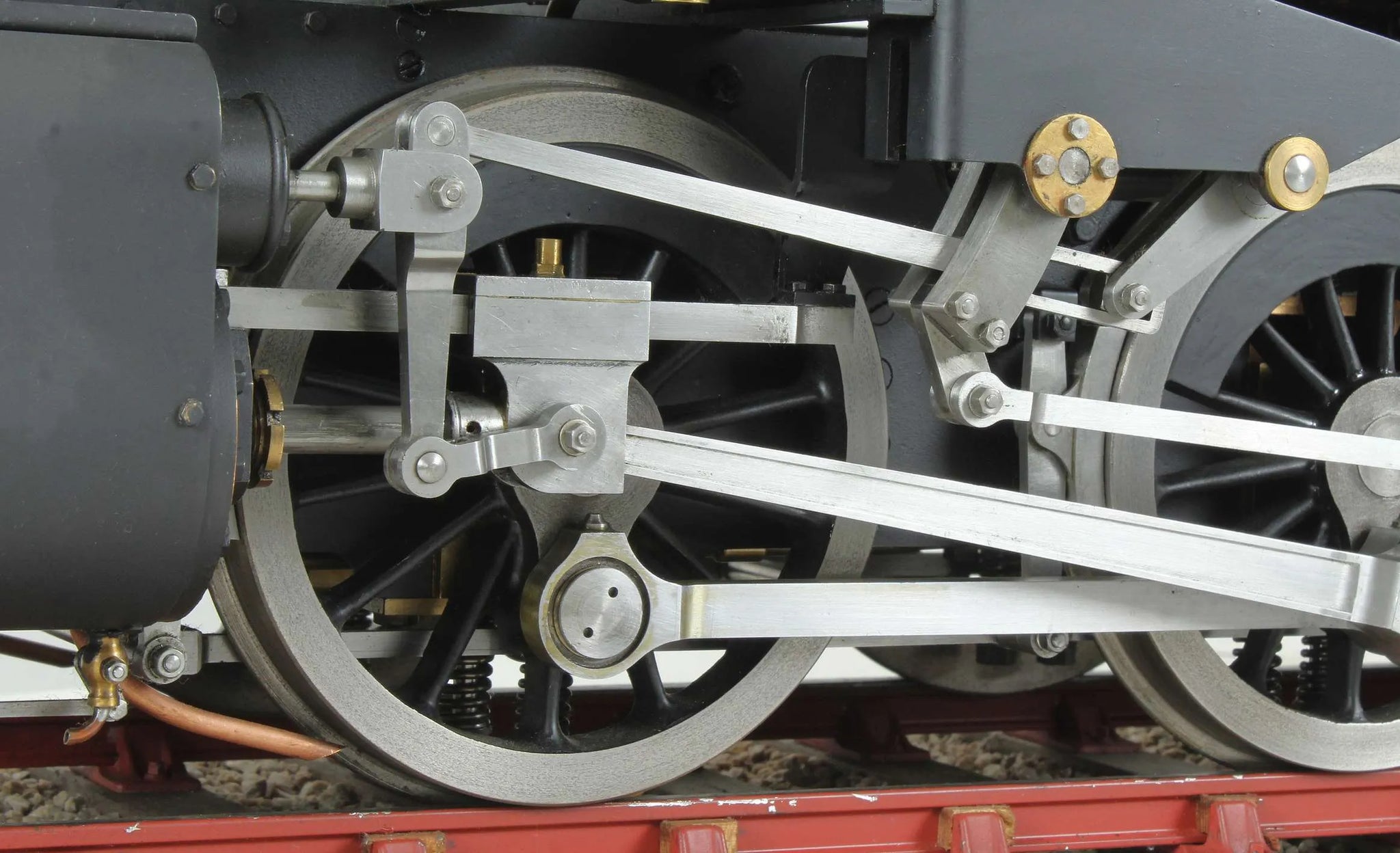

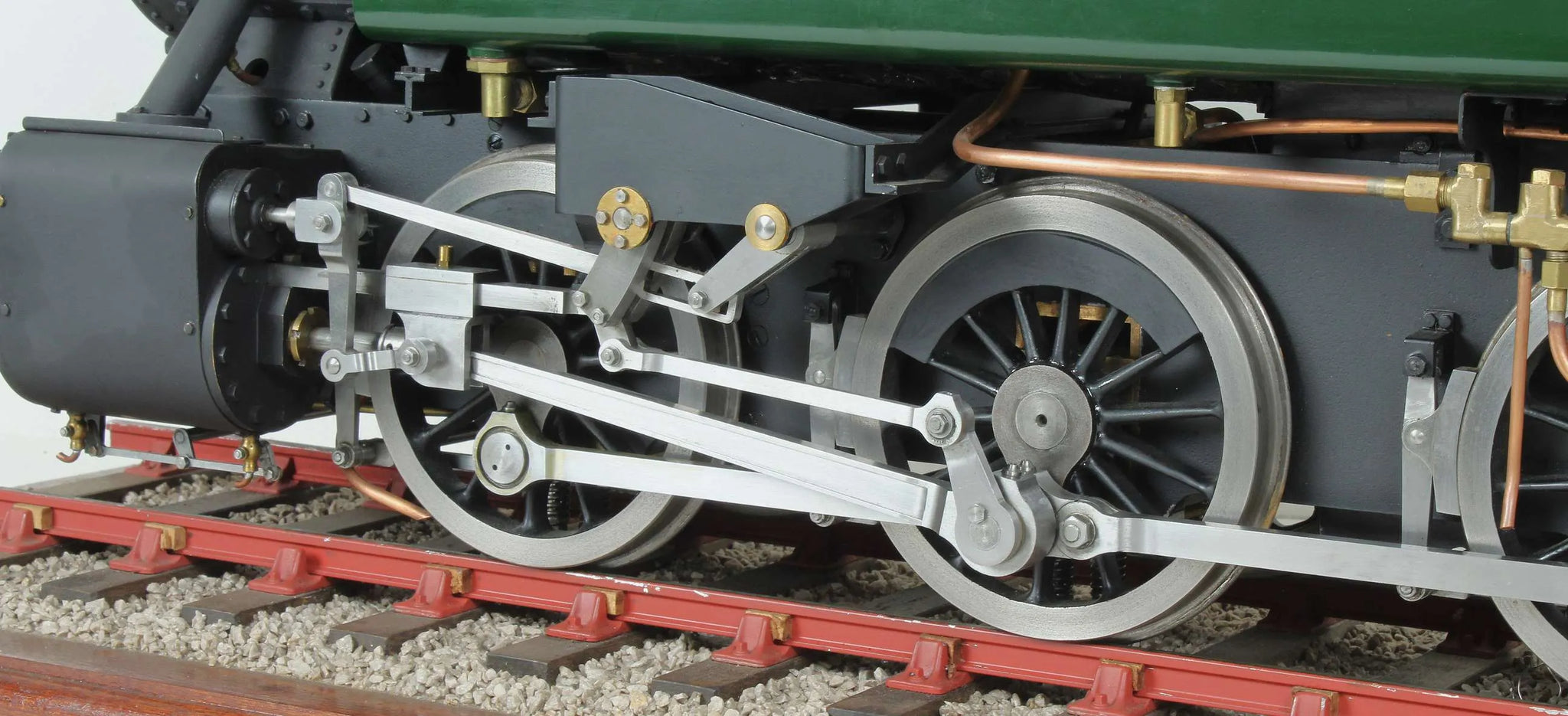

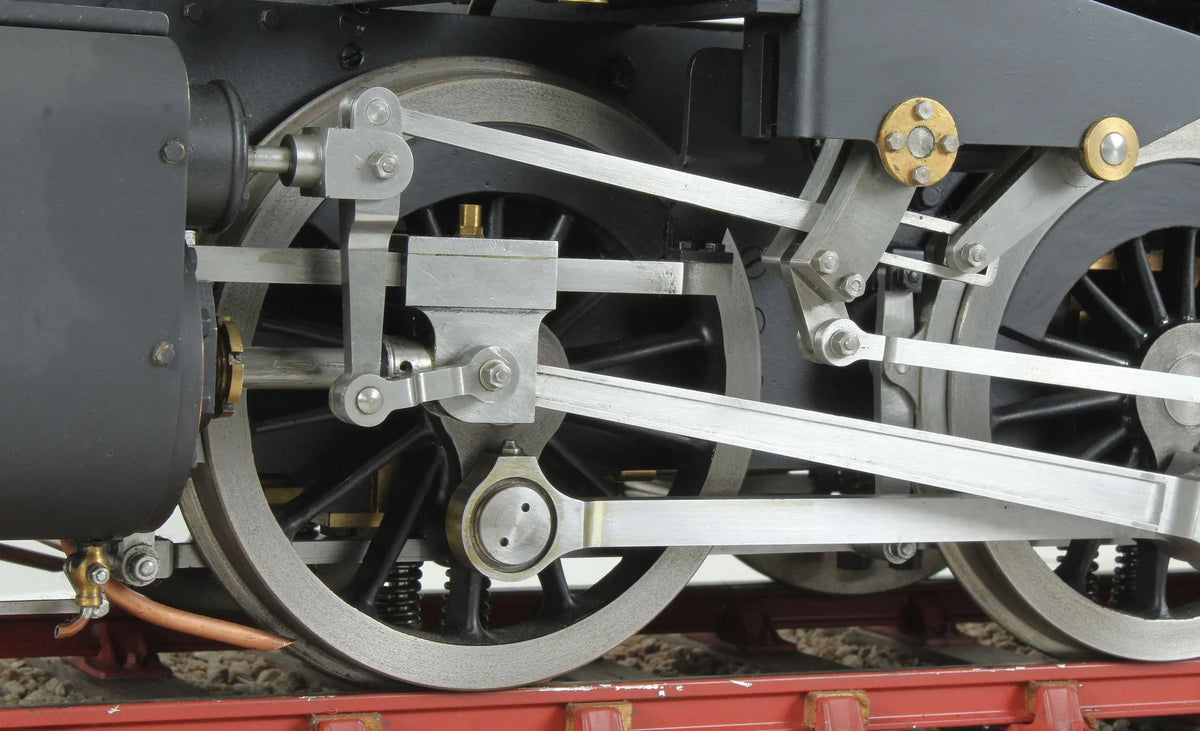

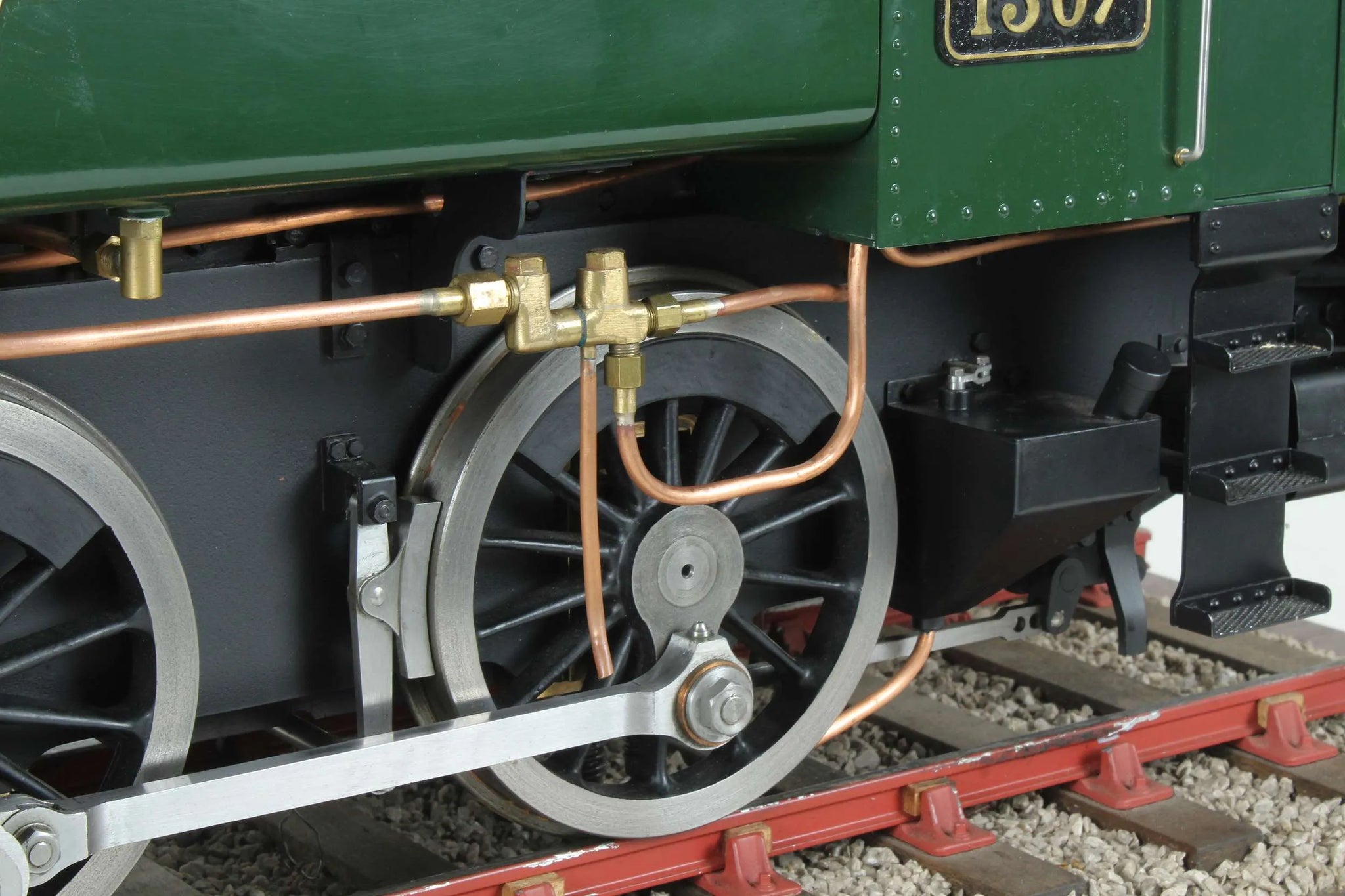

Workmanship is to a high standard throughout, fit and finish of motion work and valve gear is excellent, platework is well-formed and neatly riveted.

The silver soldered copper boiler was commercially built by Swindon Boilers - a beautifully made thing, it's had a twice working pressure hydraulic test in recent days with new certification issued.

The engine runs on air in both directions, there are various jobs which will require attention if recommissioning for steam including refacing whistle and steam brake valves, and replacing the mechanical lubricator ratchet spring.

Technical information

Stock code

10301

Gauge

5 inch

Length/inches

36

Width/inches

10.5

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

piston

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Swindon Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a pre-2002

Year built

4/26/1988

Boiler number

88296

Safety valve type

spring

Safety valve

1

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

5

Date out

Mar-22

Hydraulic test valid to

10-Mar-26
