5 inch gauge GWR 15XX 0-6-0PT

Name: 5 inch gauge GWR 15XX 0-6-0PT
Brand: Station Road Steam
SKU: 7732
Price: 4250.0 GBP
Availability: OutOfStock

Sold

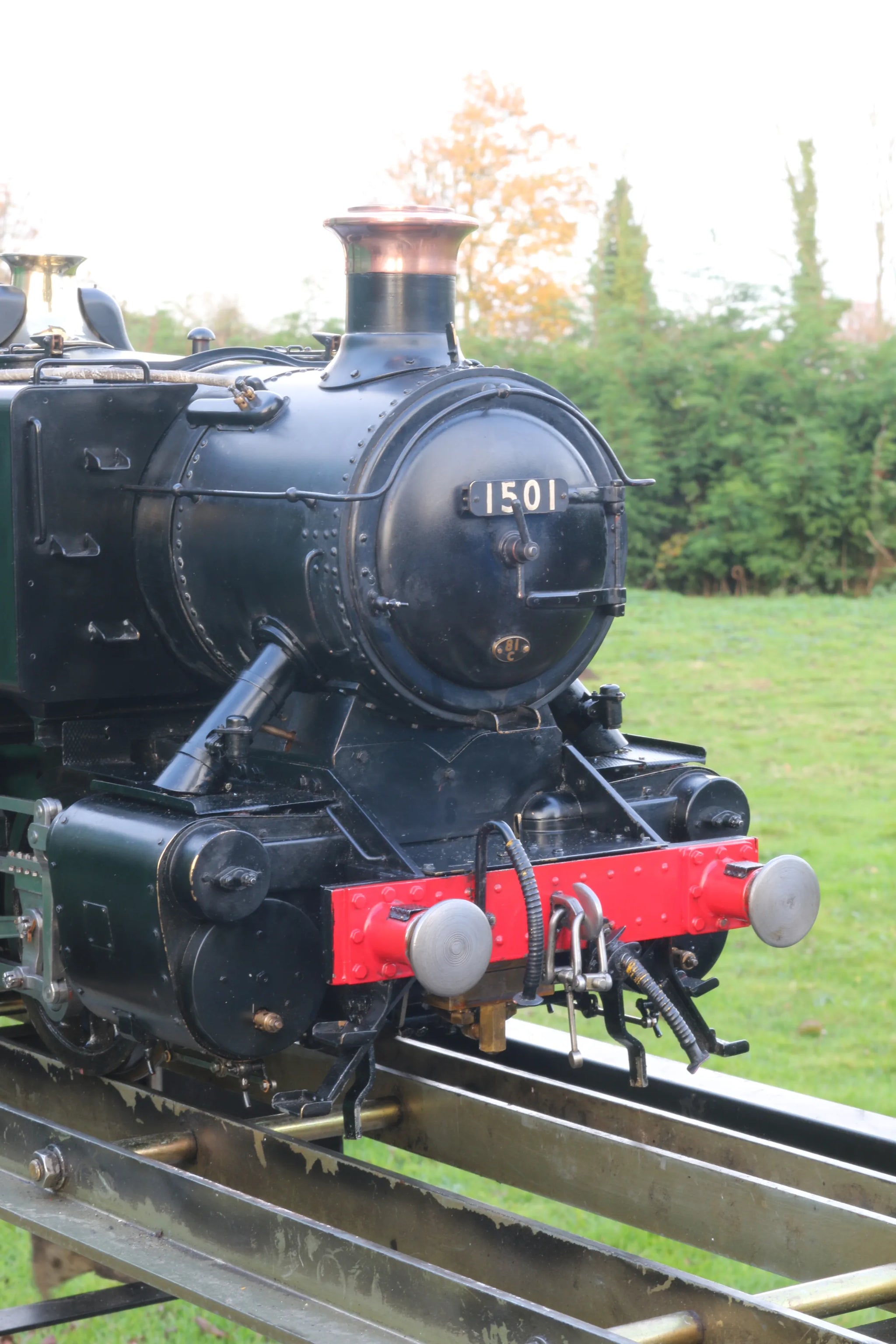

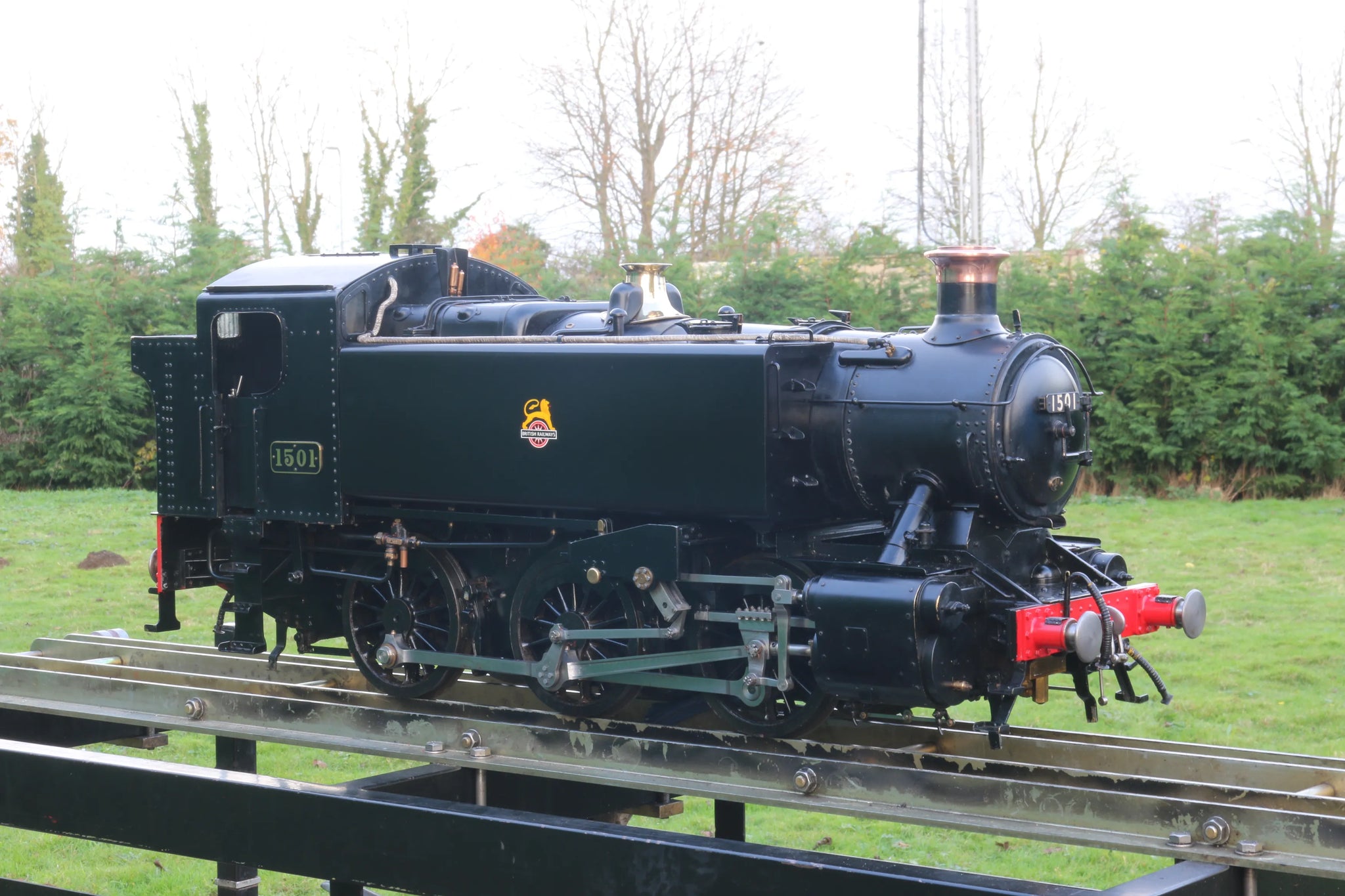

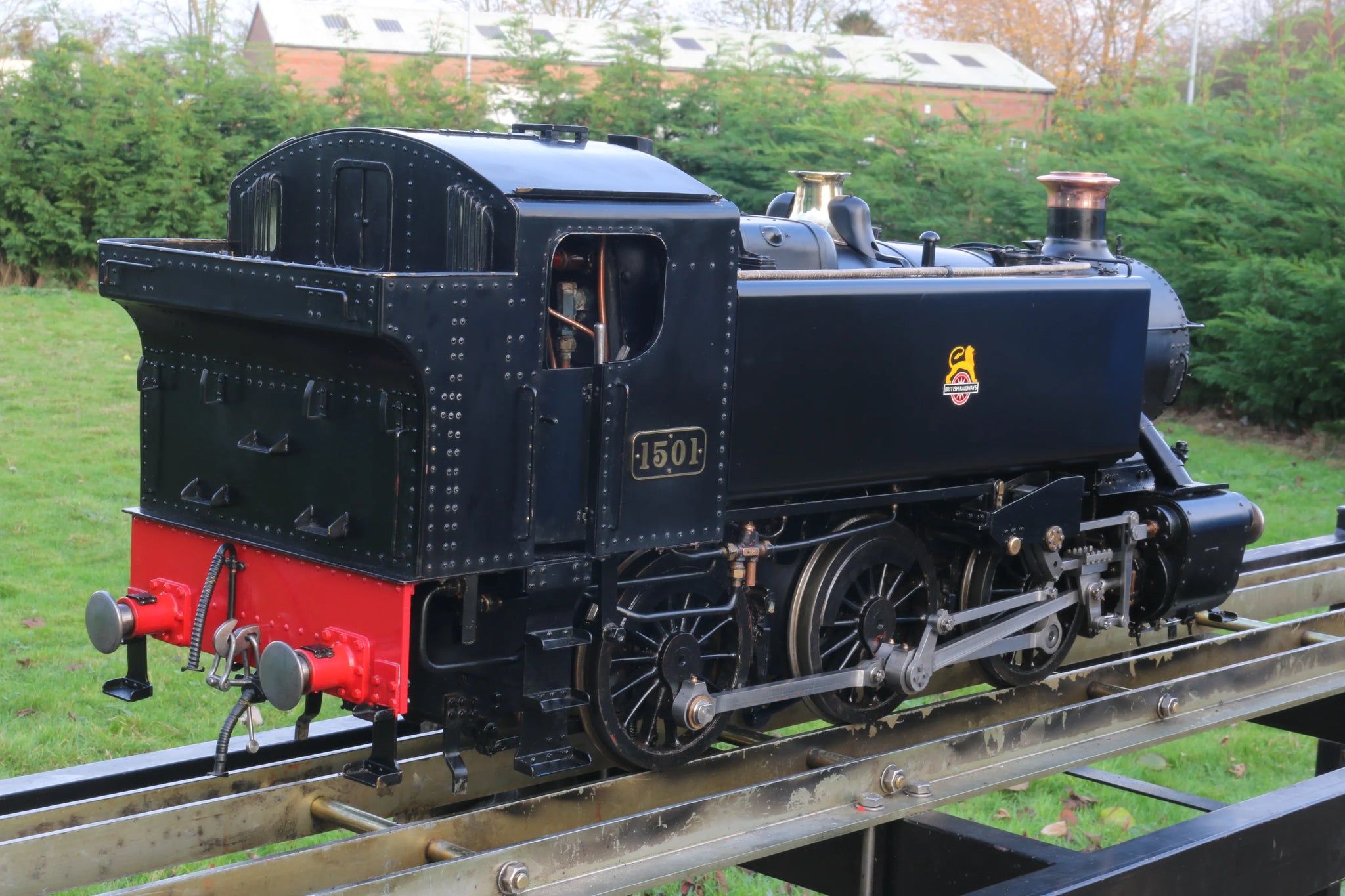

A well made GWR 15XX 0-6-0PT to LBSC's popular "Speedy" design. This came to us recently along with a 5 inch gauge Derby 4F, the pair of engines having been in regular club use in the hands of an experienced model engineering family.

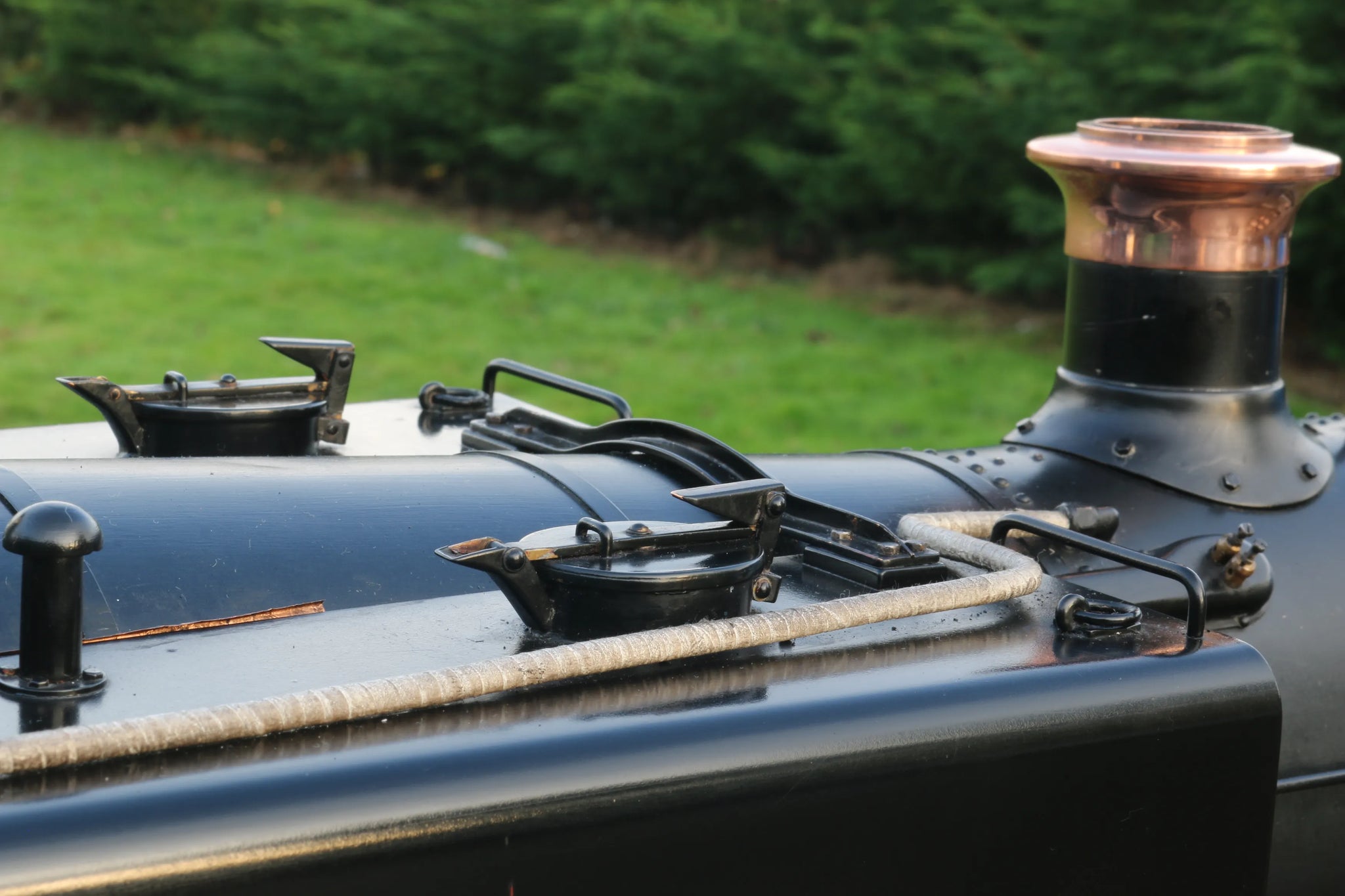

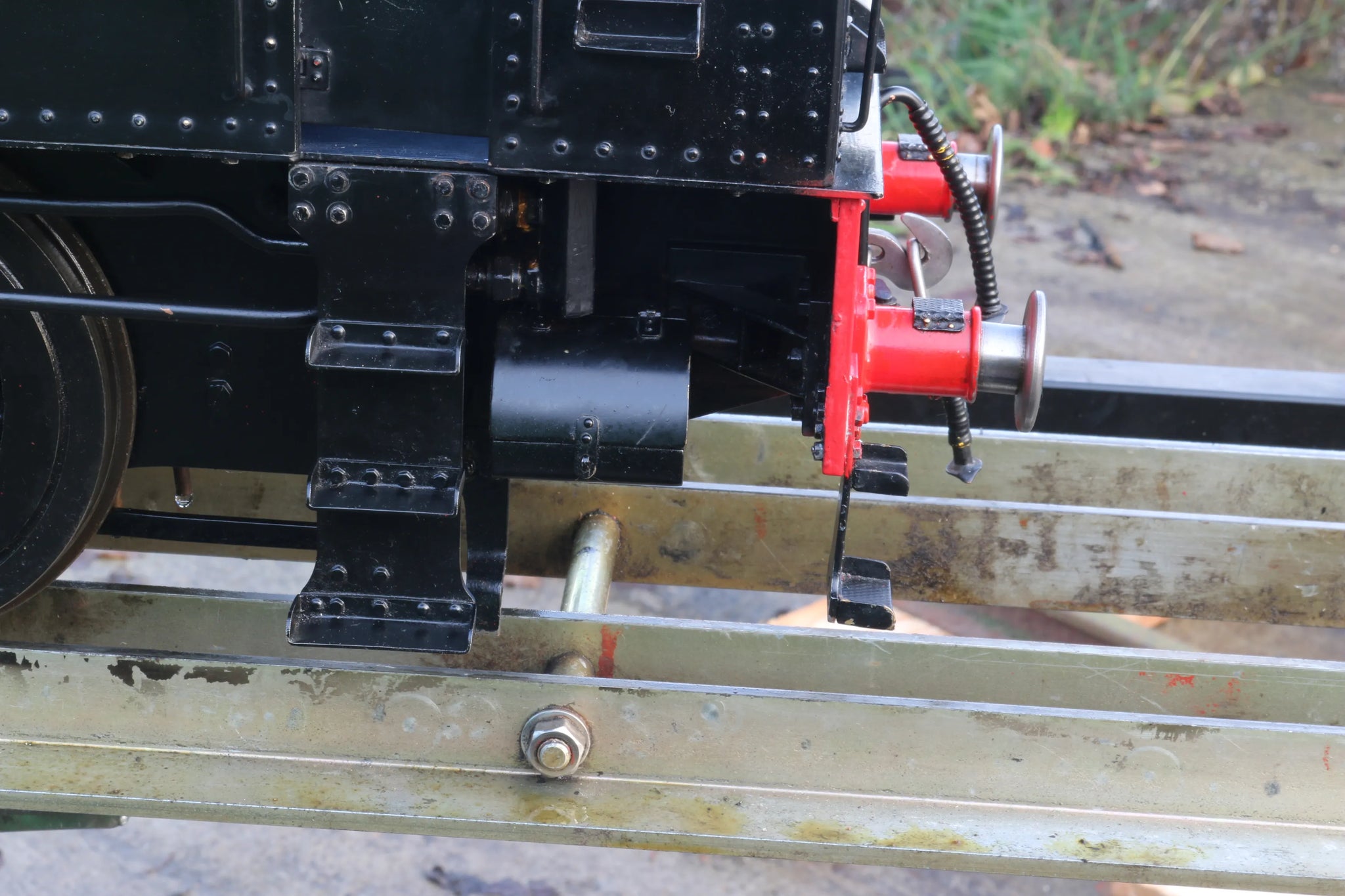

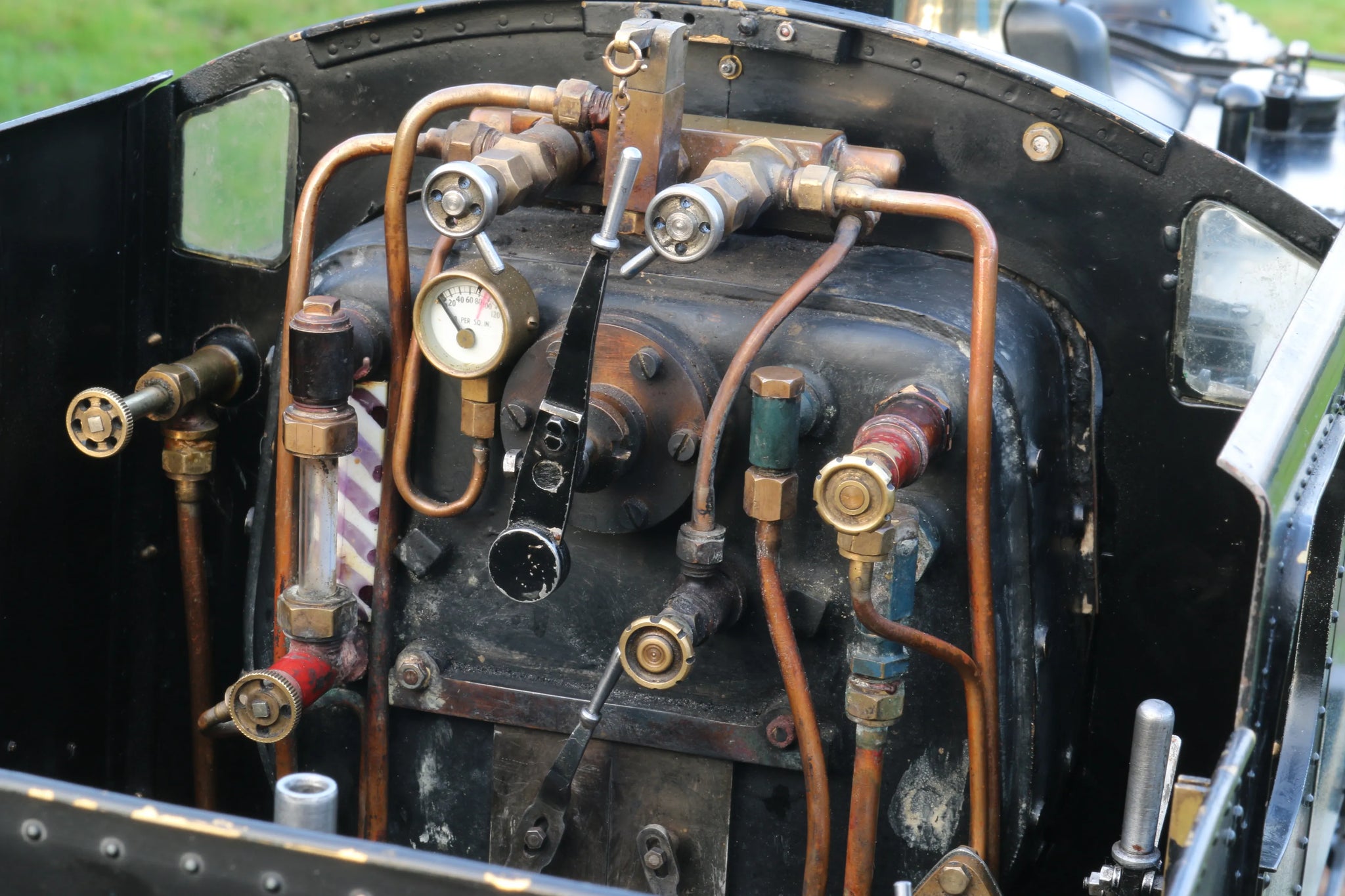

Quality of machining is well-executed, fit and finish of motionwork is good. Platework is neatly made, there is additional detailing throughout which adds a good deal to the look of the locomotive.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	7732
Gauge	5 inch
Length/inches	35
Width/inches	10
Height/inches	14
Wheel material	cast iron
Axlebox type	plain bearing
Cylinder material	gunmetal
Valve type	piston

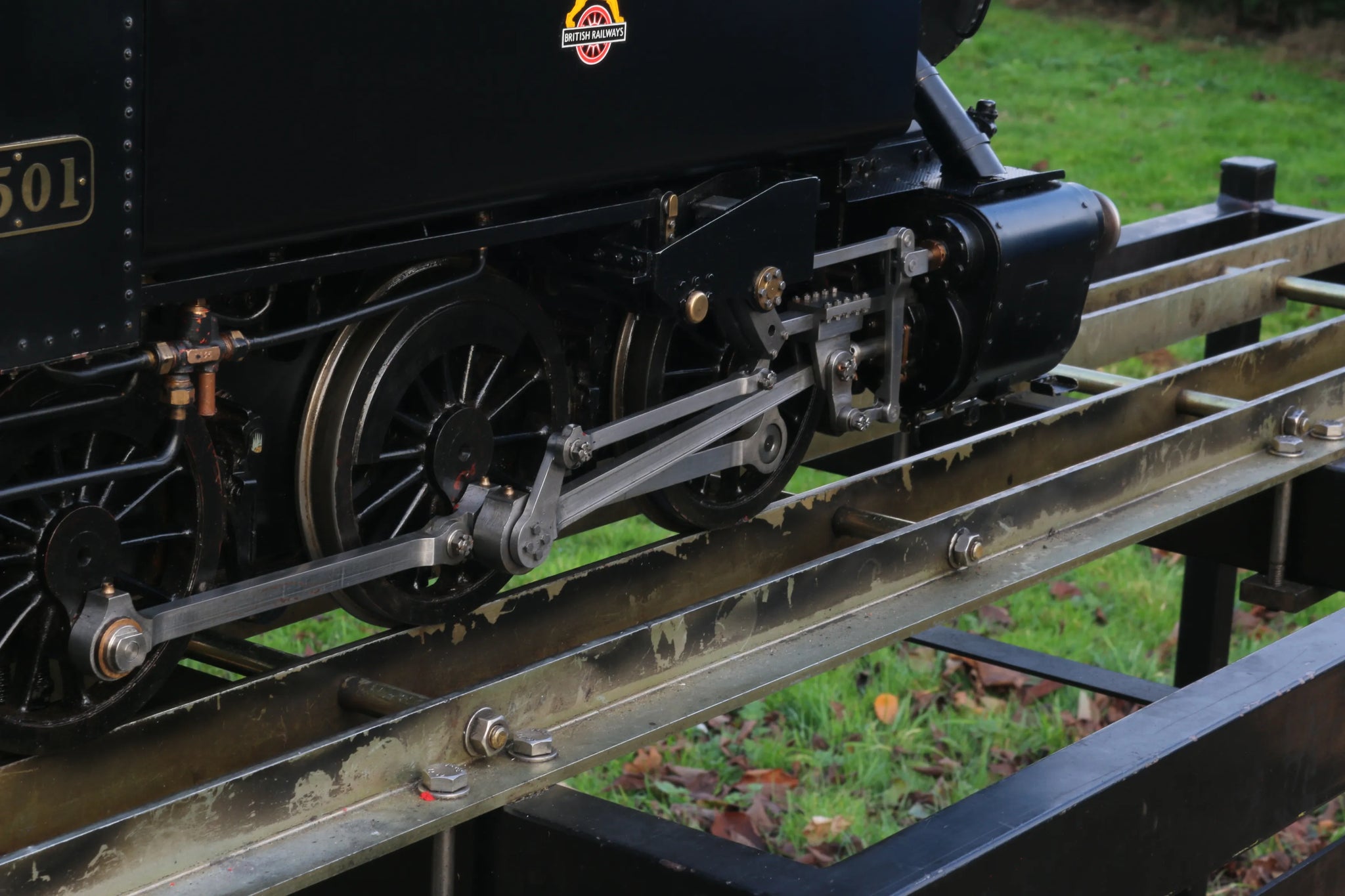

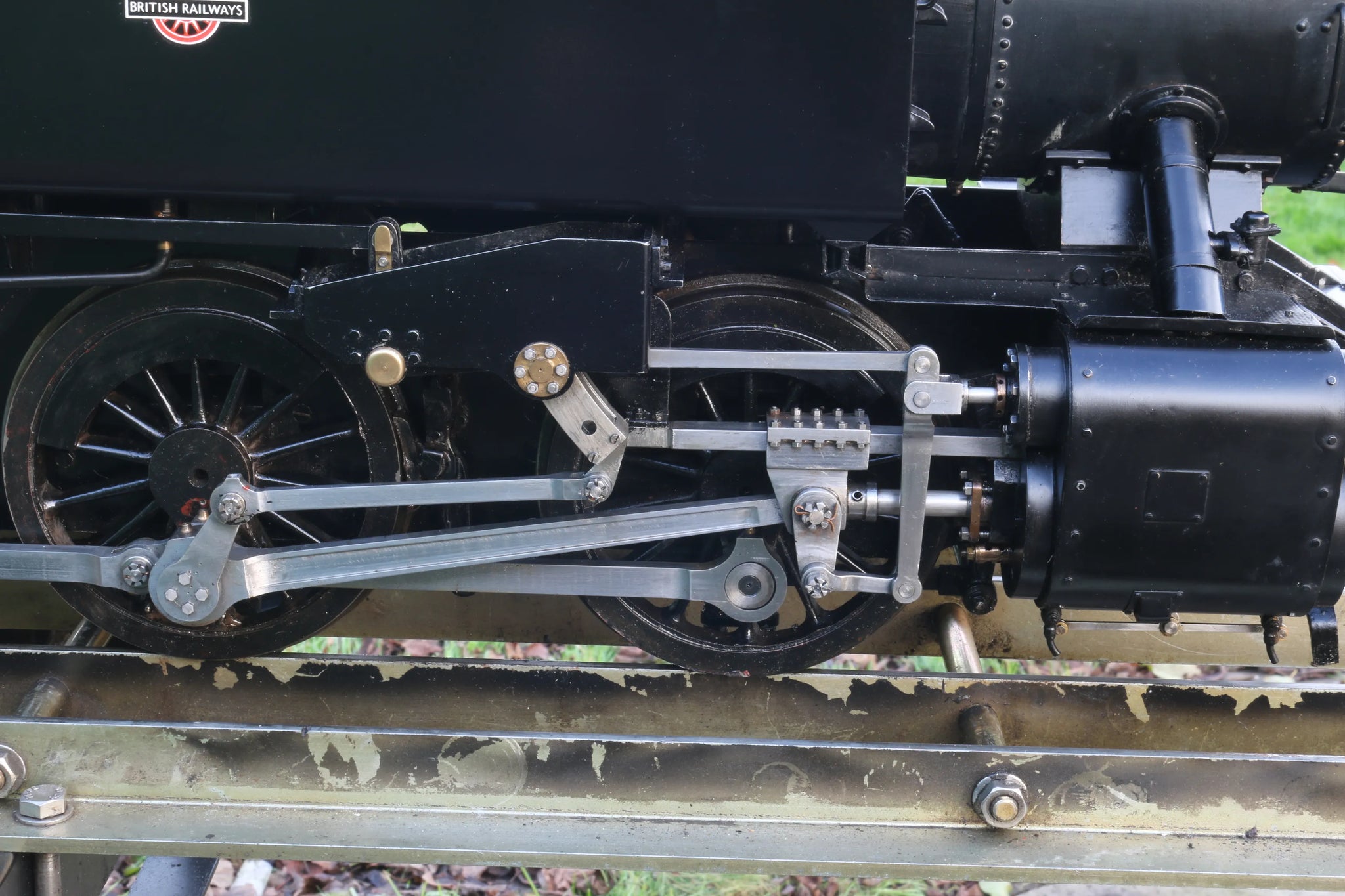

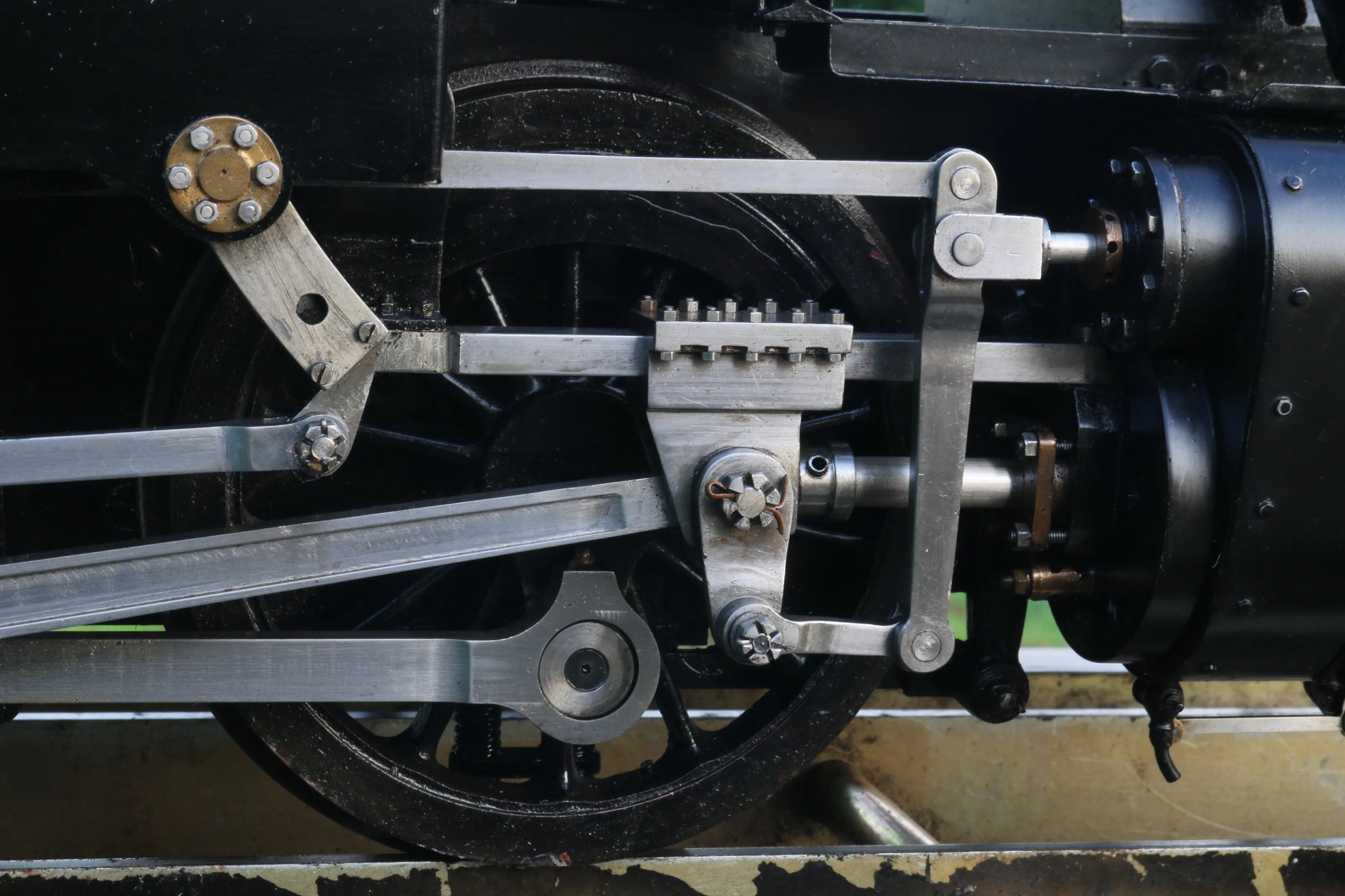

Valve gear	Walschaerts
Reverser type	pole
Lubricator type	mechanical
Boiler maker	non-commercial
Boiler type	locomotive
Boiler construction	silver-soldered
Boiler material	copper
Working pressure	95
CE/UKCA mark	no
Year built	1990
Boiler number	N176-95-06107

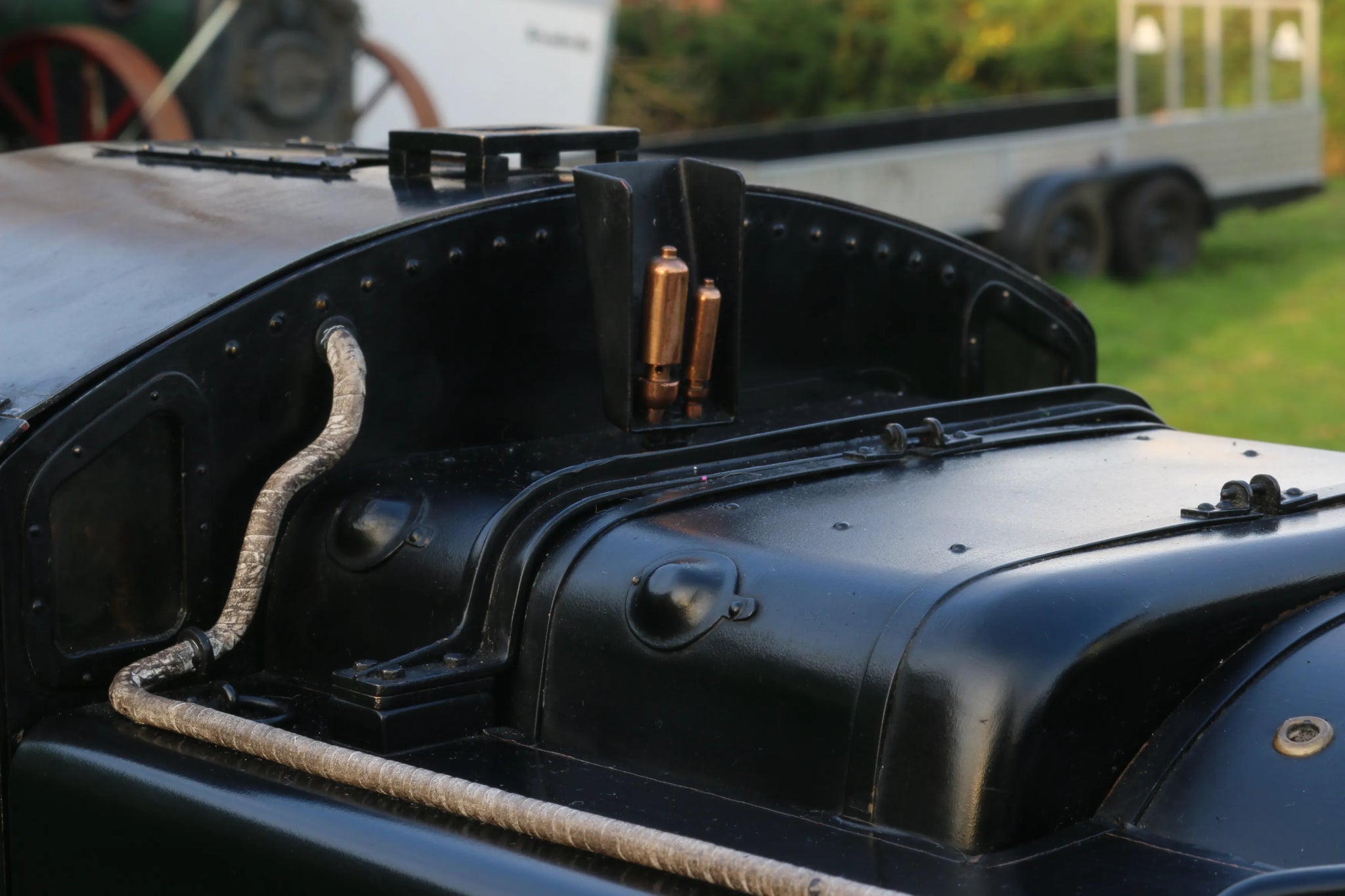

Safety valve type	spring
Safety valve	2
Fusible plug	no

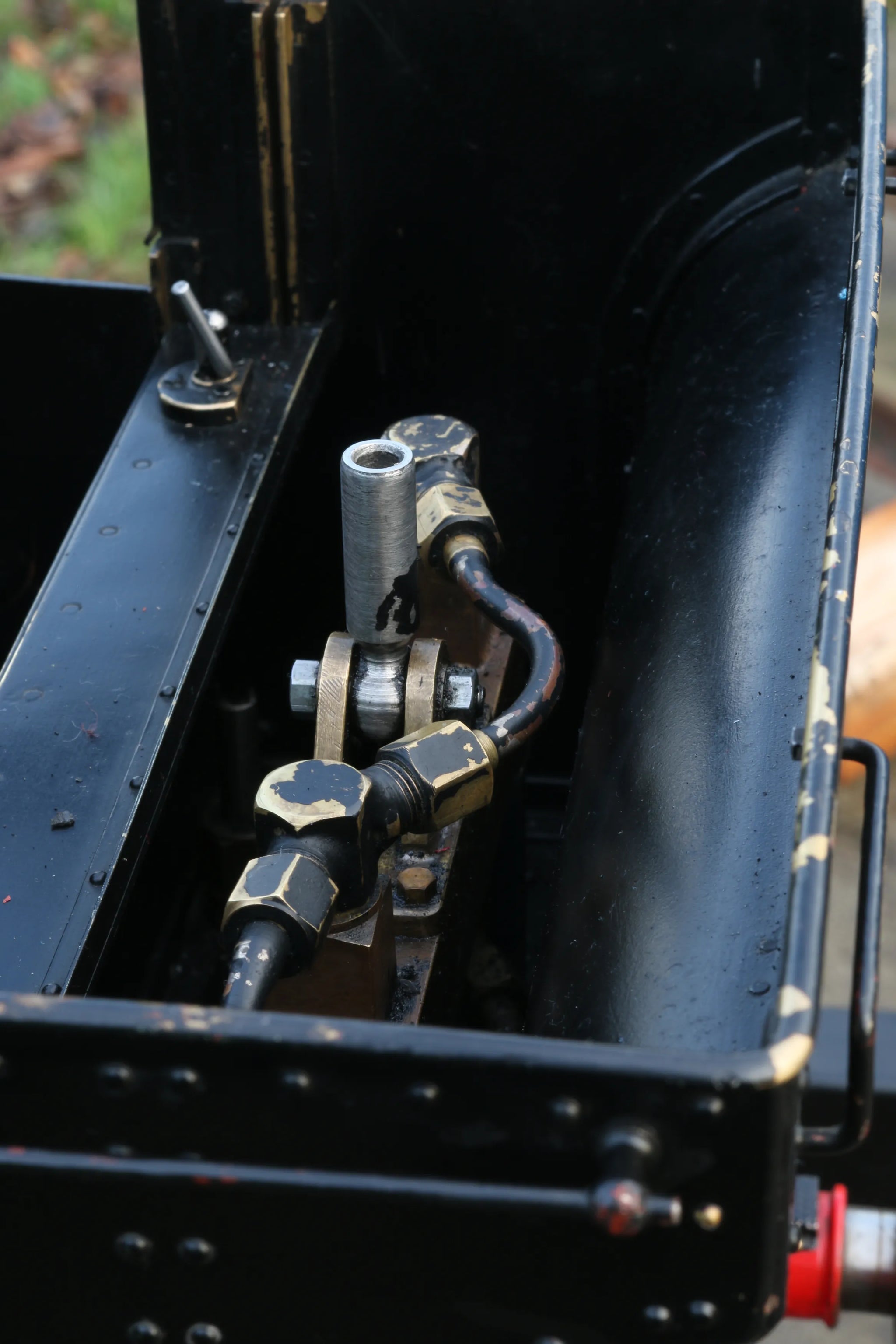

Hand pump	1
Mechanical pump	1
Injector	2
Superheater type	radiant
Superheater	5
Pack	Single half pallet
Date out	Jan-18
Hydraulic test valid to	05-Nov-21
Steam test valid to	14-Jan-19
