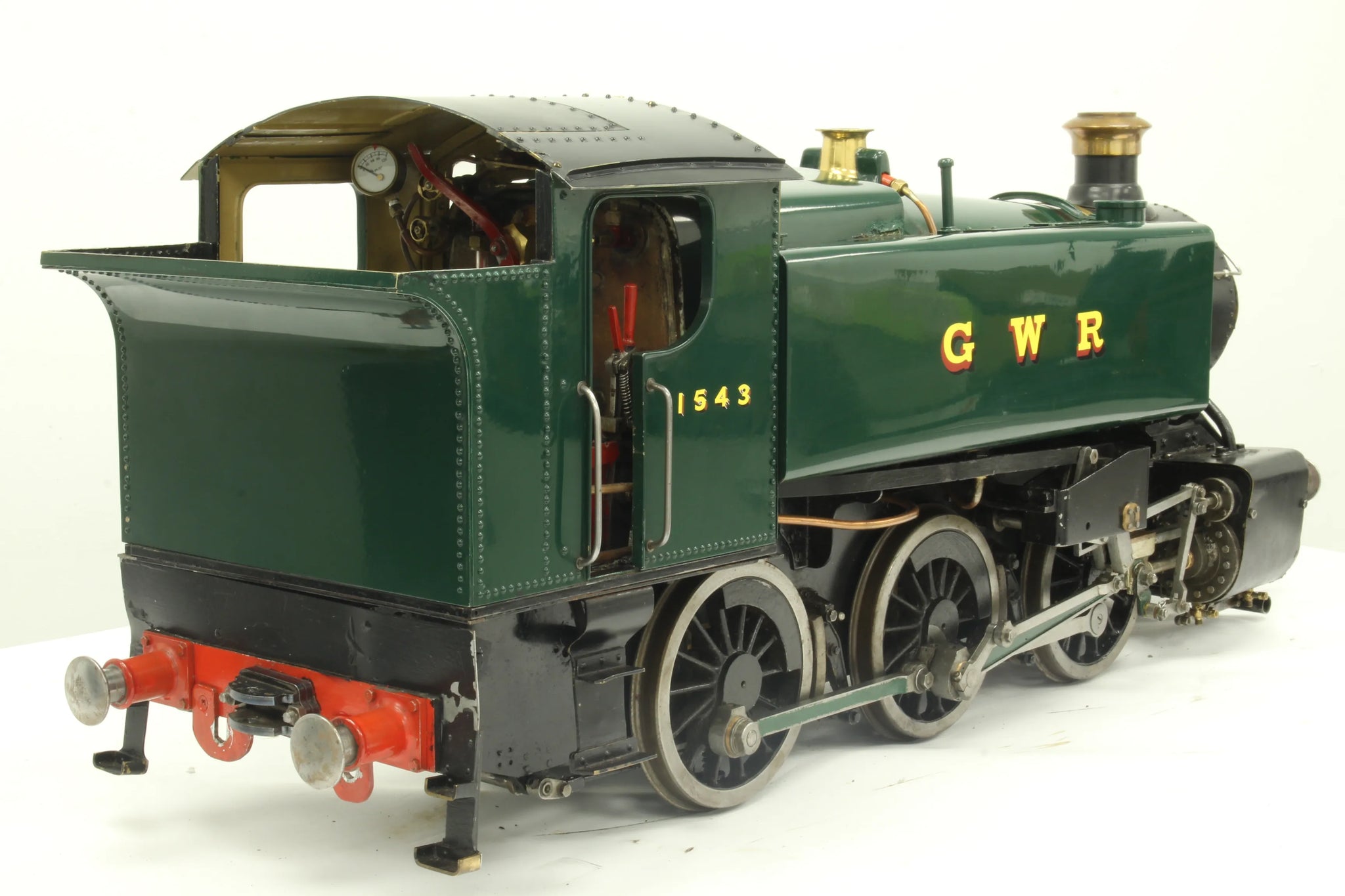

5 inch gauge GWR 15XX 0-6-0PT

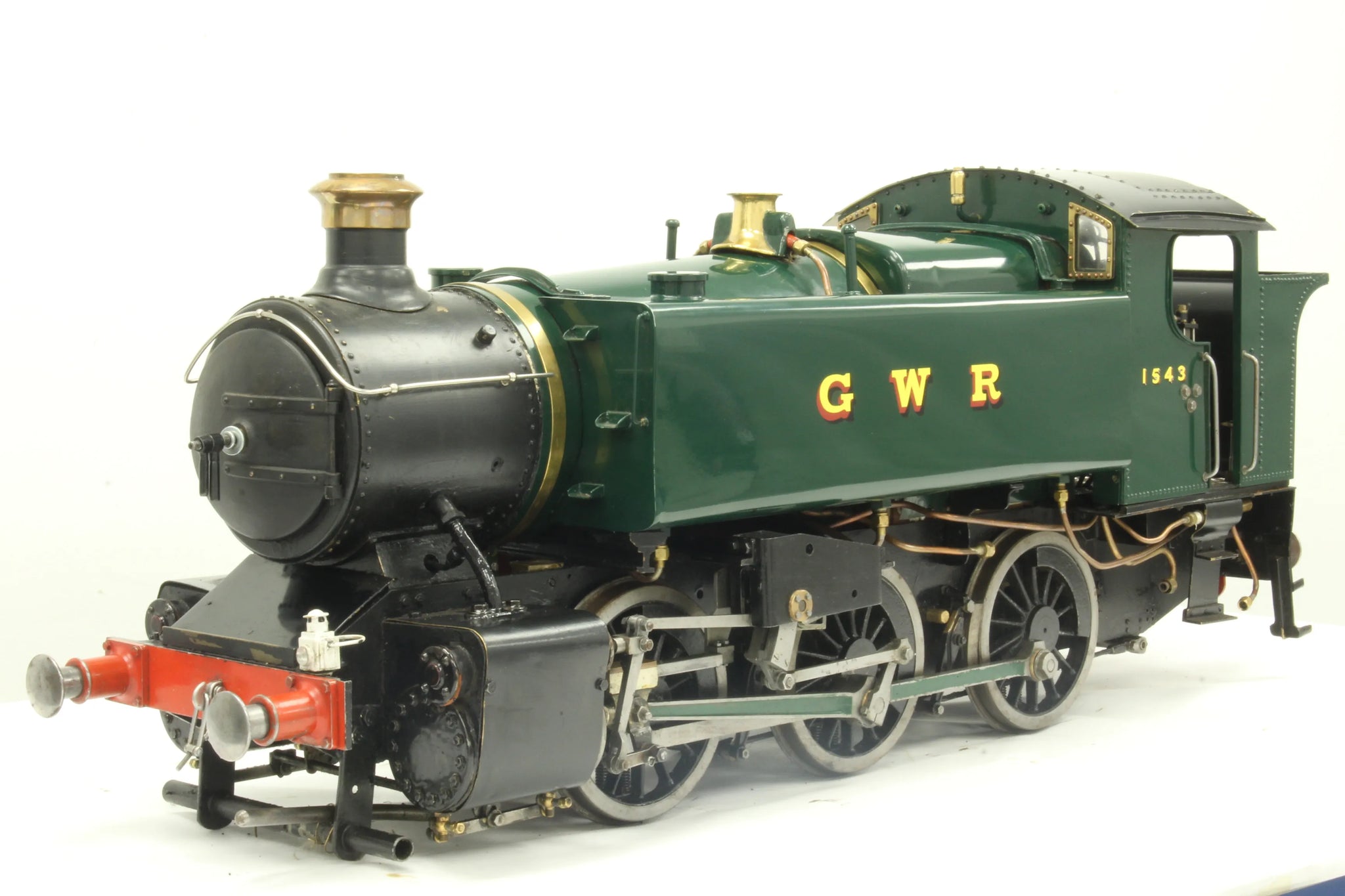

A 5 inch gauge GWR 15XX 0-6-0PT to LBSC's "Speedy" design.

This one came in as a part exchange, the previous owner had been running it until recently. Overall quite well made, with some quirky detailing including the forward facing drain cock operating rod, which looks like you could spear something with it whilst running.

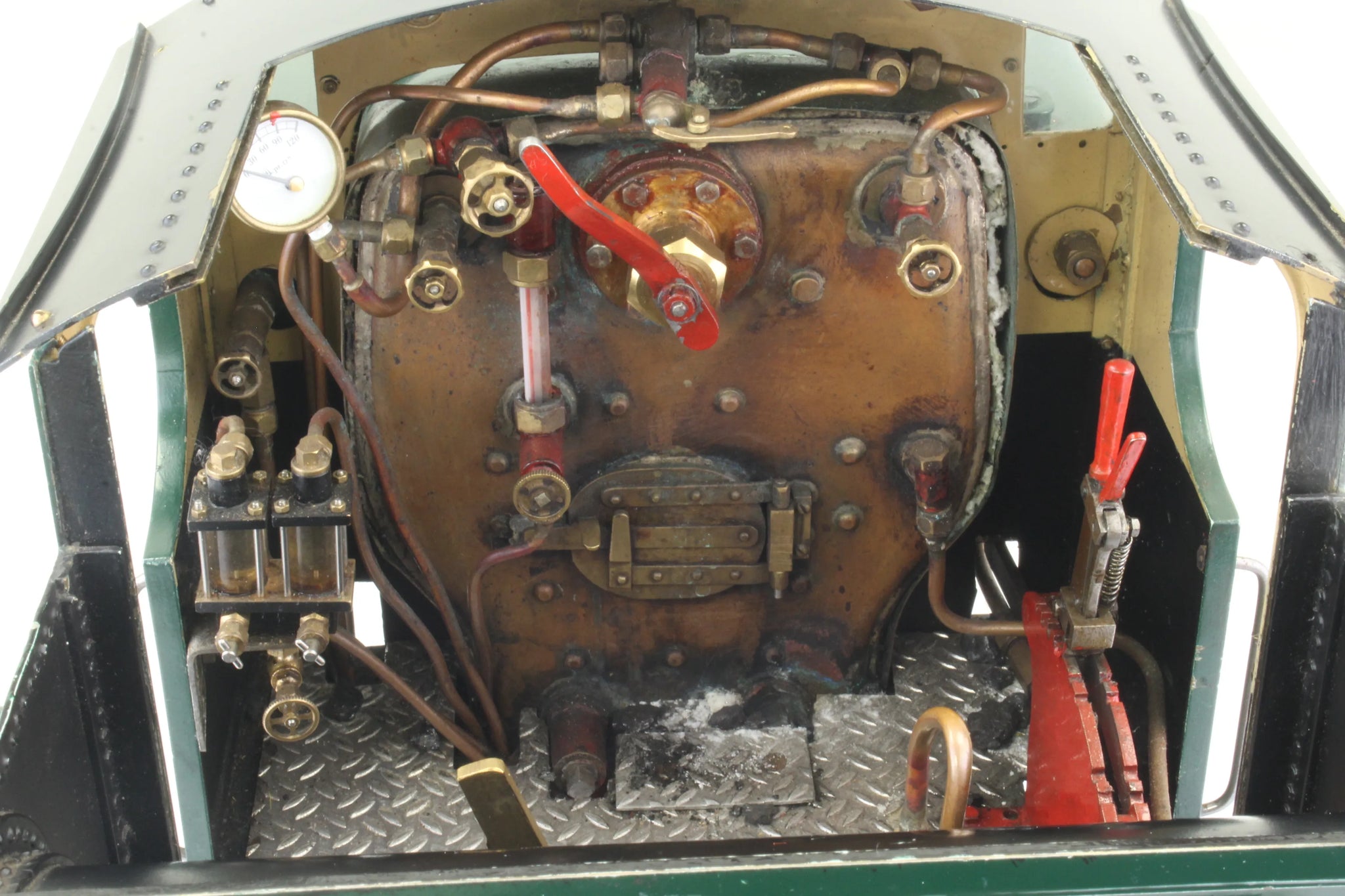

Injector is missing although pipework still present - there is a hand pump and axle pump for boiler feed. Runs on air in a fairly desultory way forwards, not at all backwards, so scope for some tuning here...

Boiler is a commercially made job by the inestimable Swindon Boilers - it's just had a hydraulic test with certificate issued for same, warrantied as sound. We also have some recent club history.

Technical information

Stock code

8130

Gauge

5 inch

Length/inches

36

Width/inches

10

Height/inches

14

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

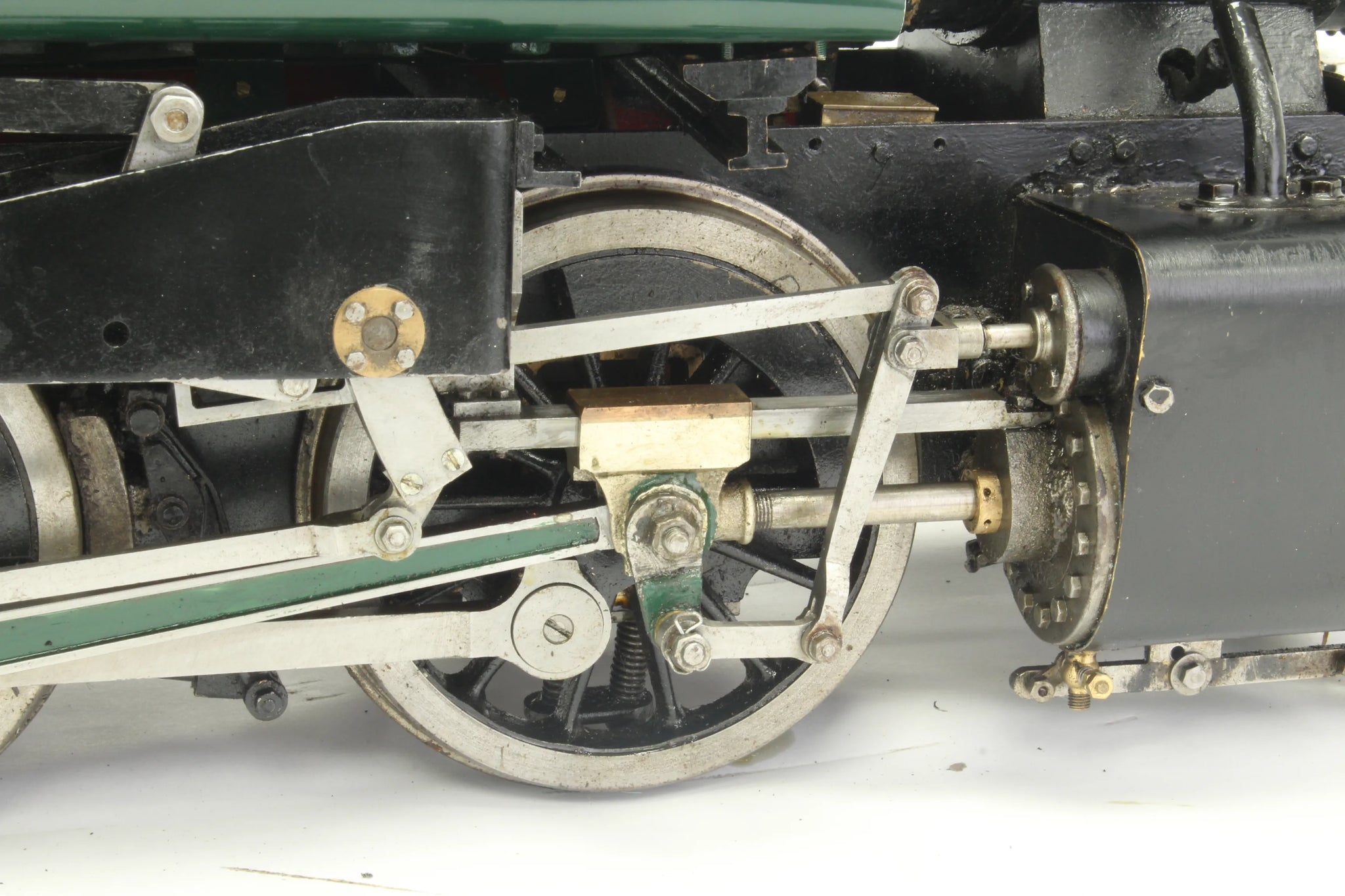

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

displacement with sight feed

Boiler maker

Swindon Boilers

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Year built

1986

Boiler number

86140

Safety valve type

spring

Safety valve

1

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

4

Pack

Single half pallet

Date out

Jun-20

Hydraulic test valid to

12-Dec-22
