5 inch gauge GWR 4-6-0 No.7825 "Lechlade Manor"

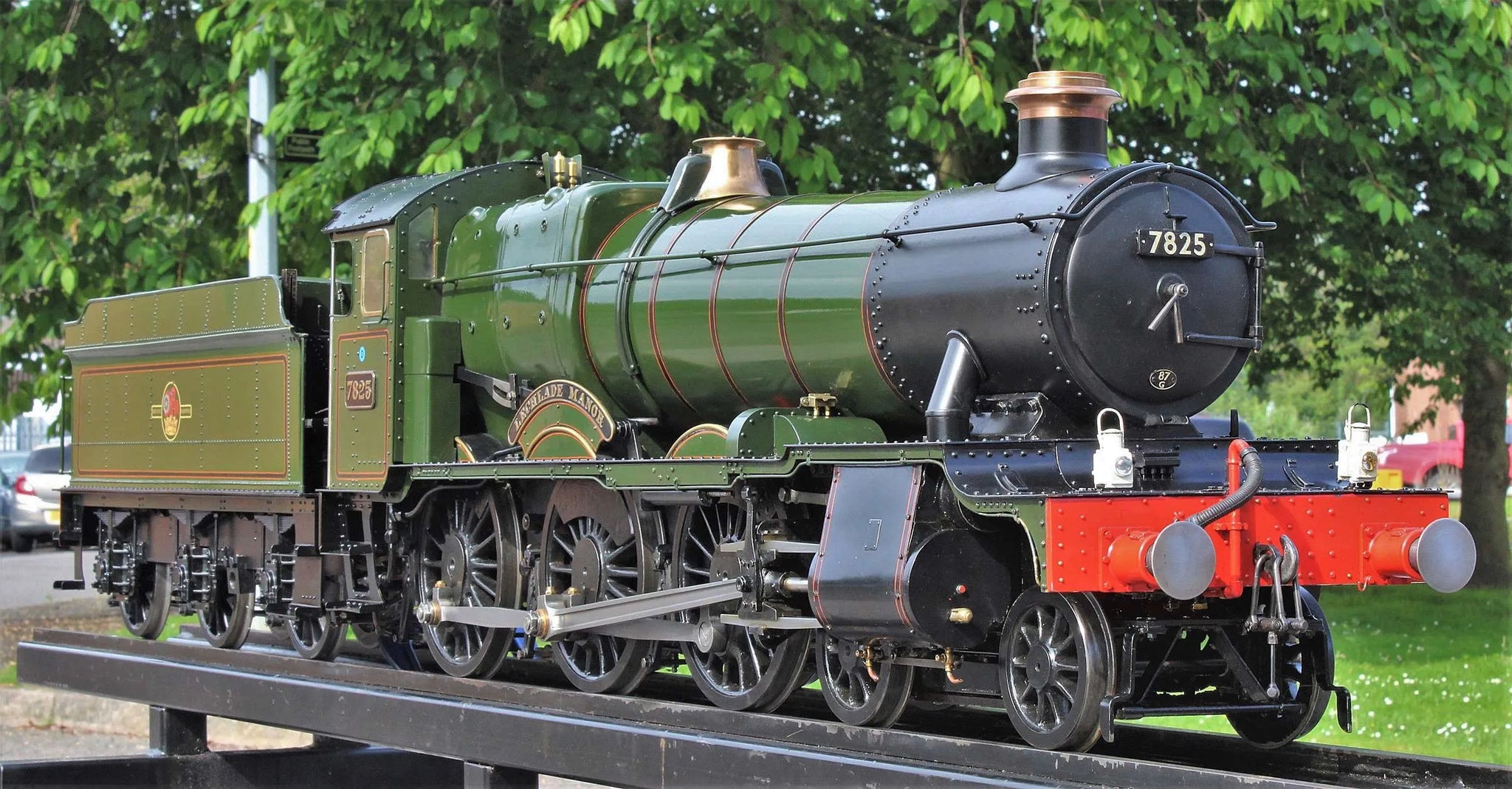

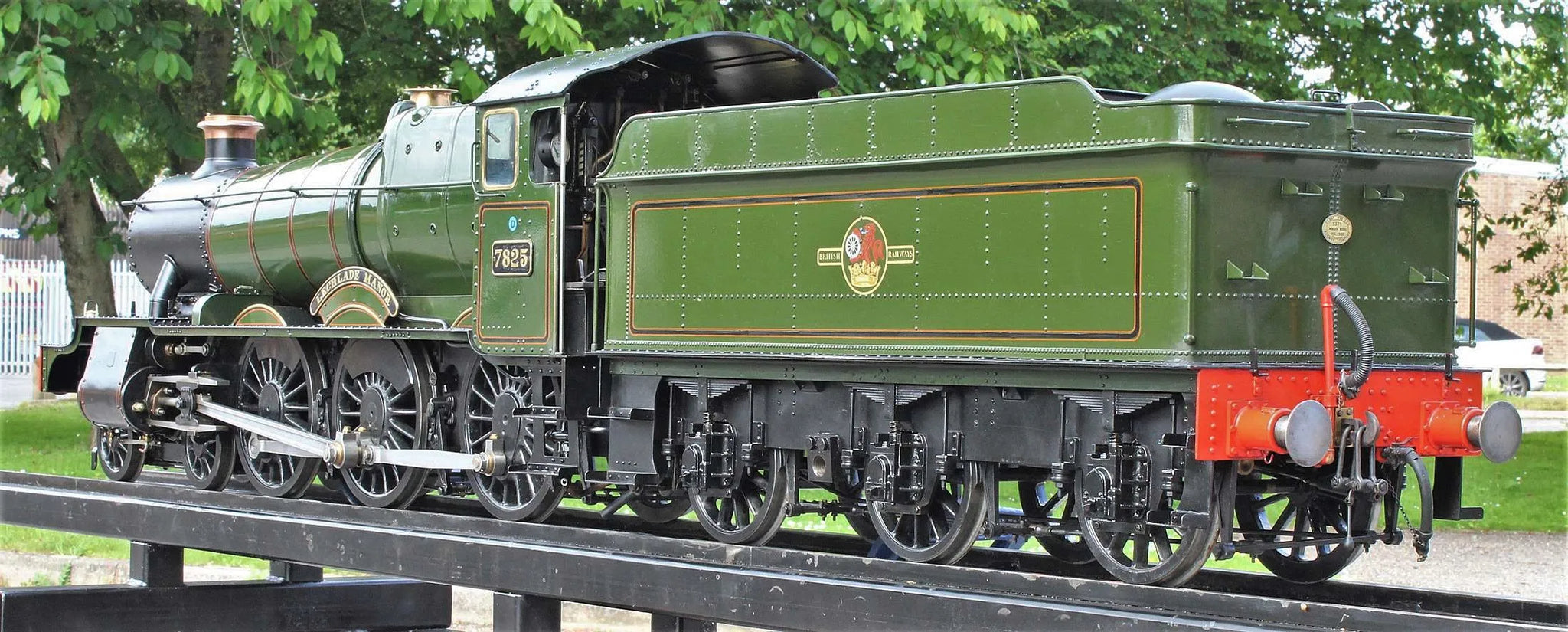

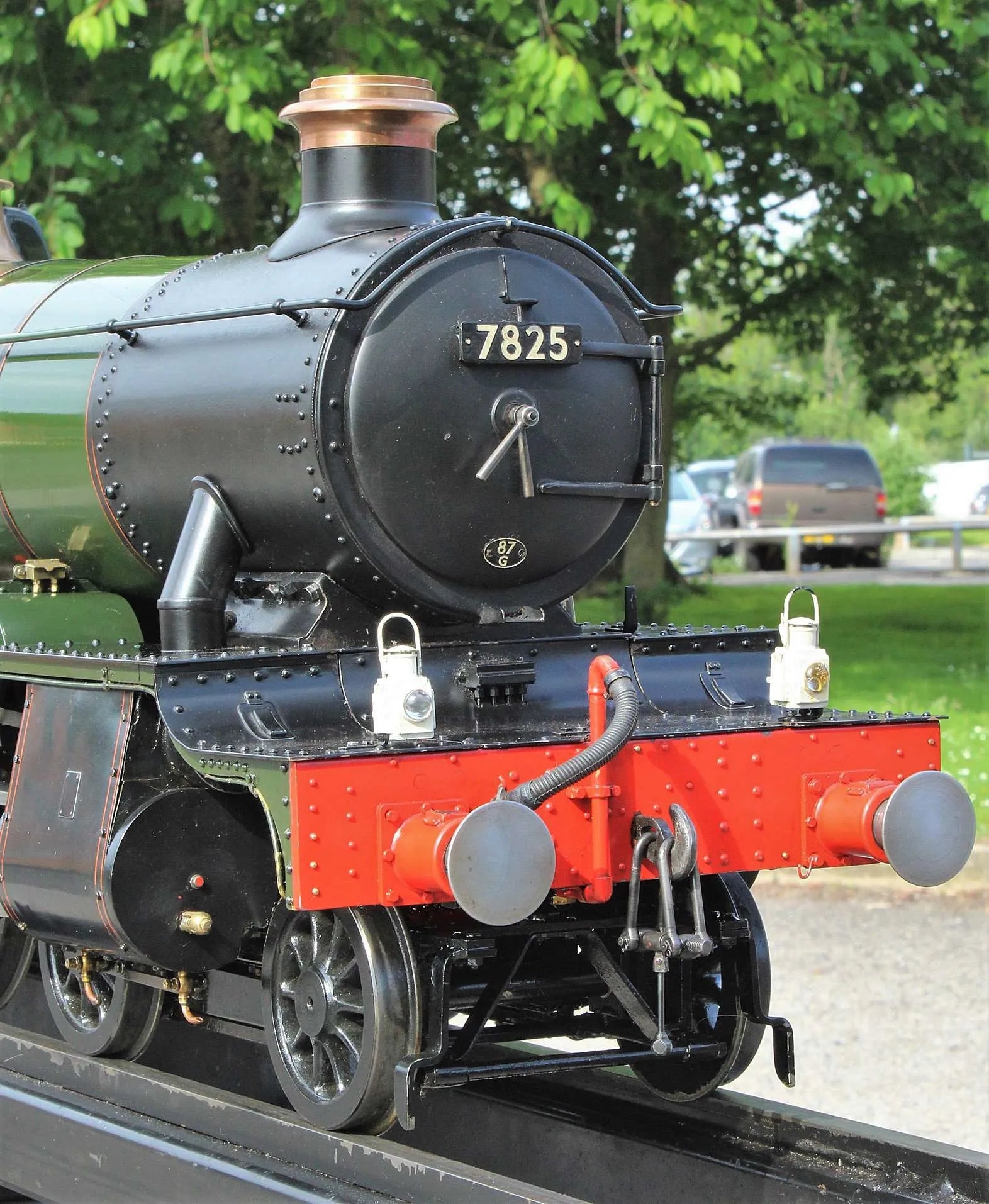

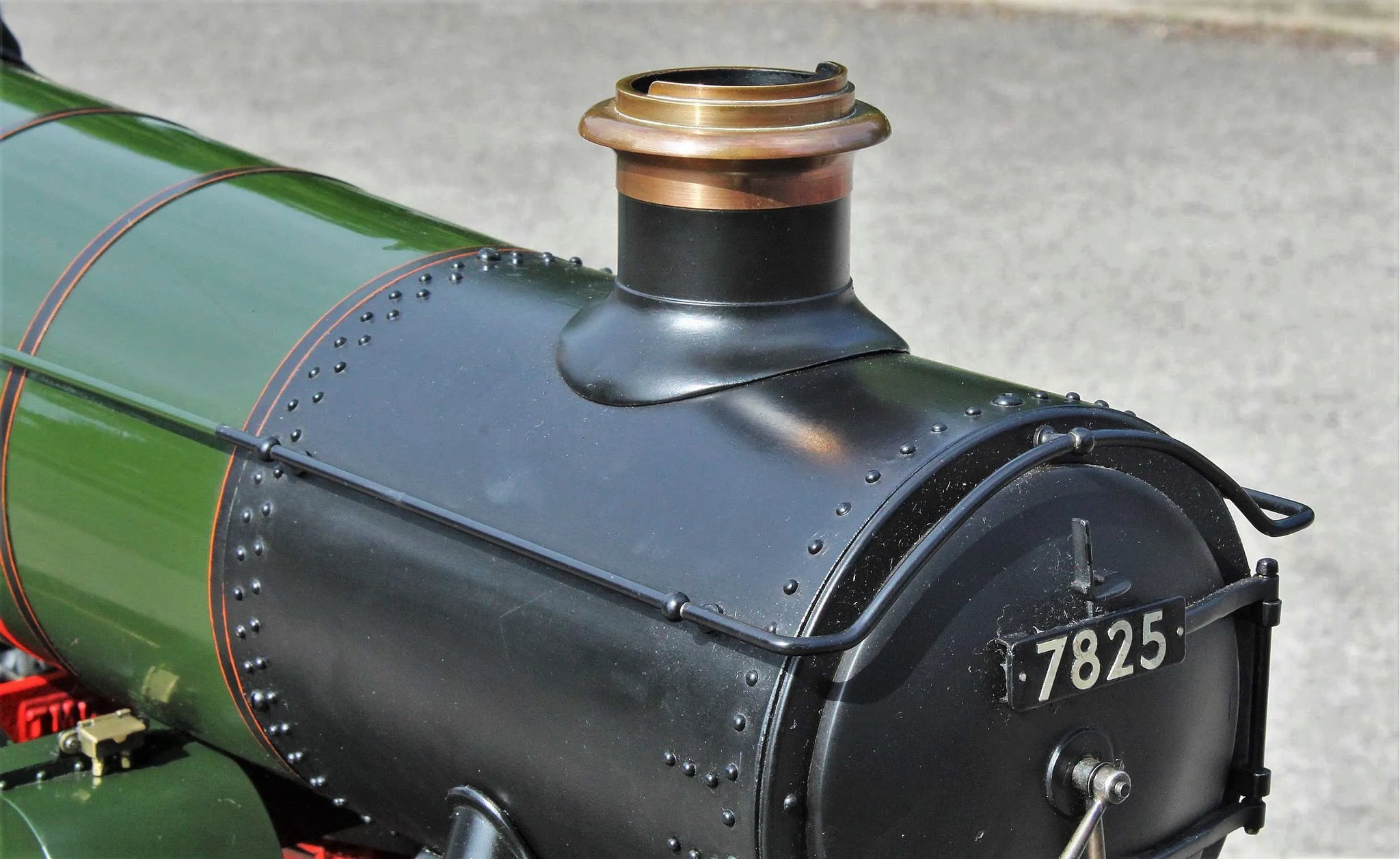

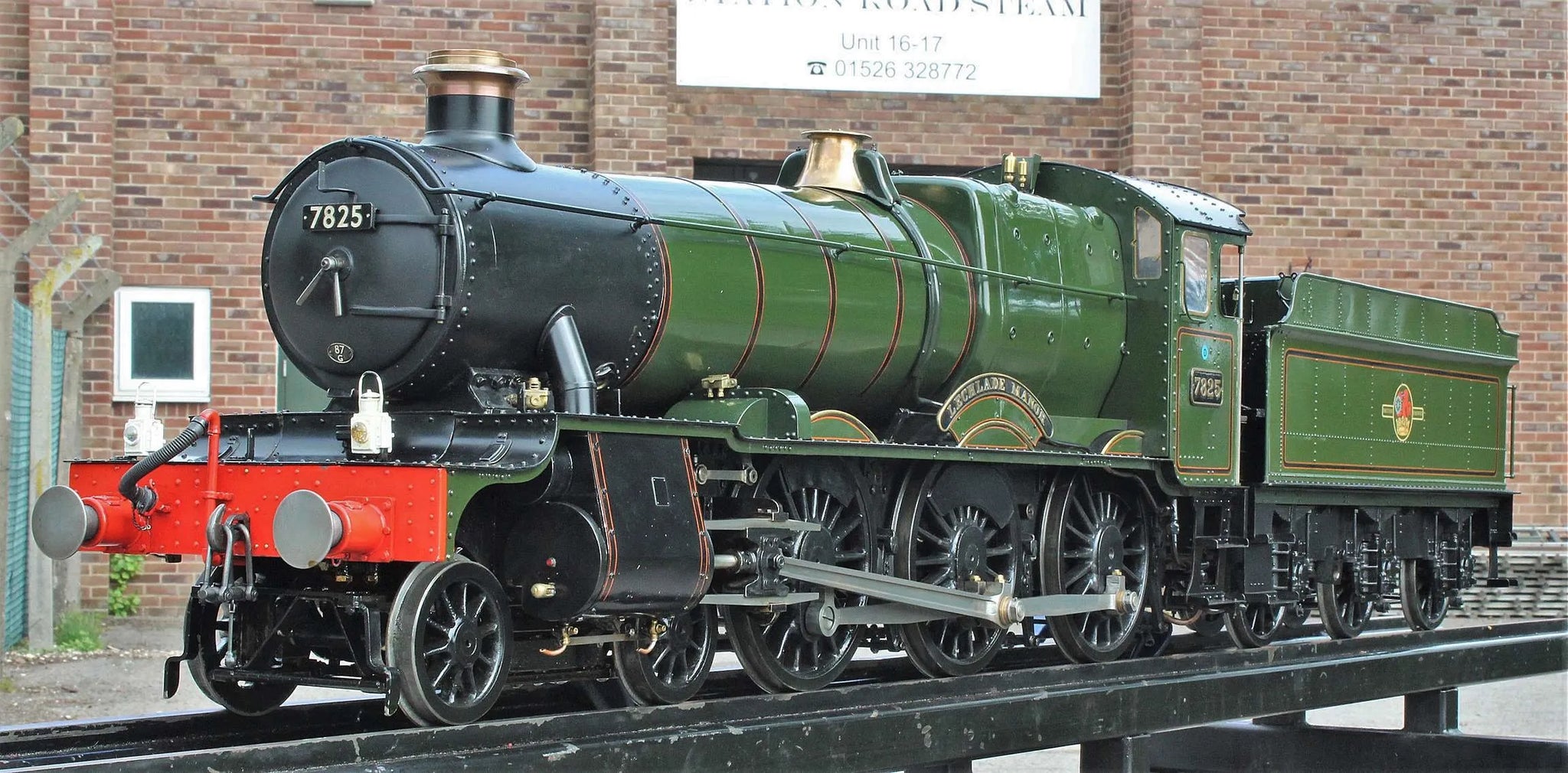

A 5 inch gauge GWR Manor 4-6-0, No.7825 "Lechlade Manor", a thoroughly well-sorted engine in excellent condition.

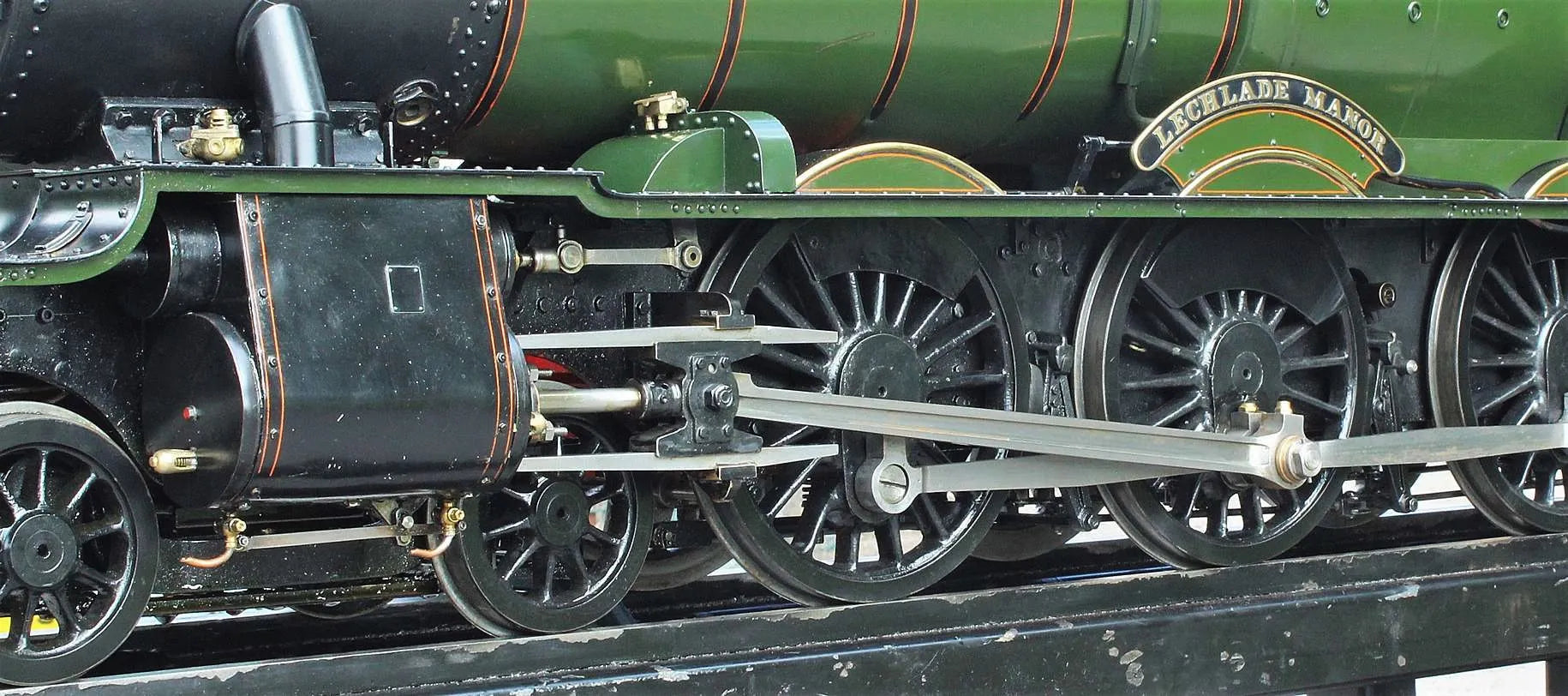

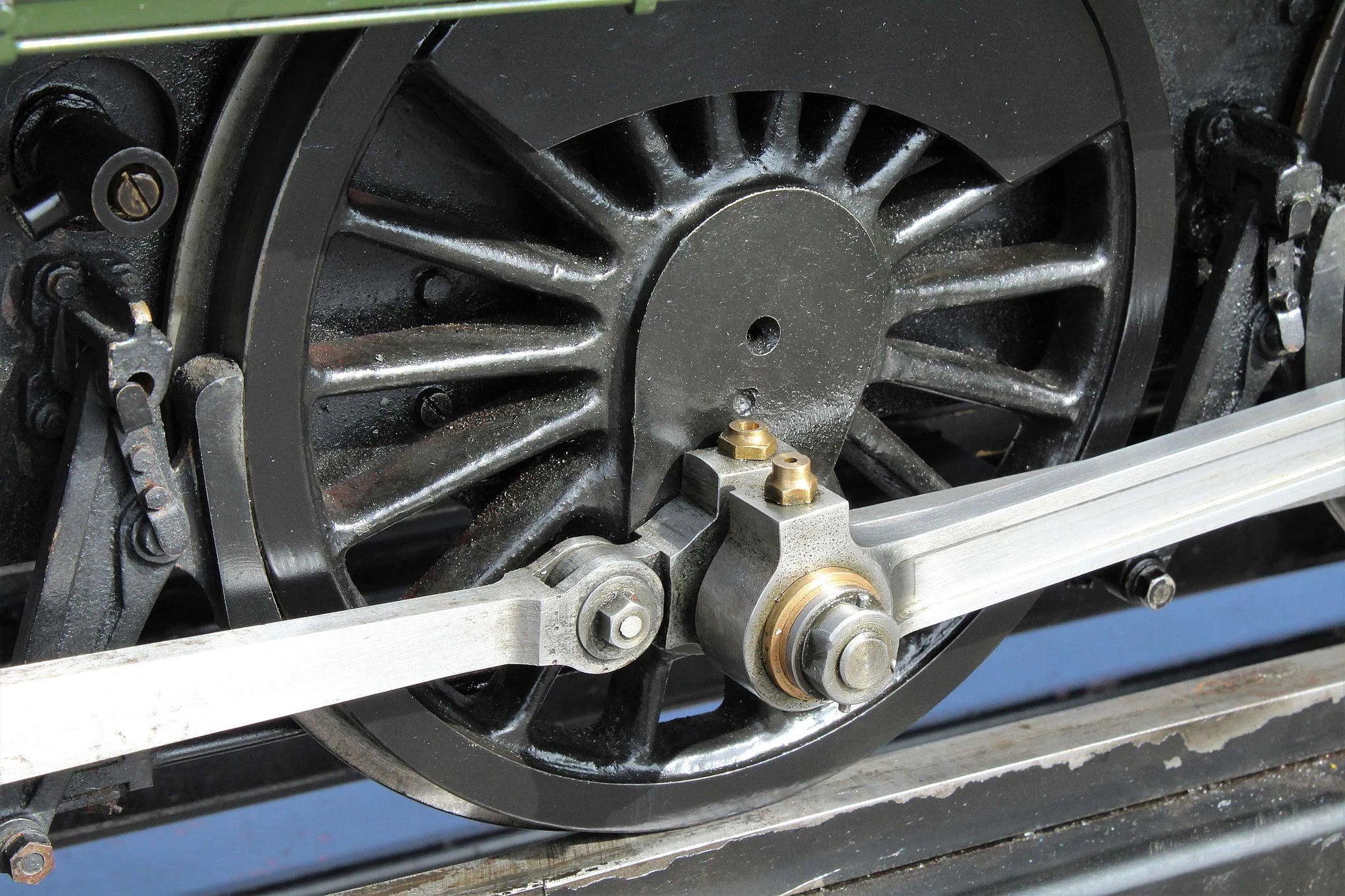

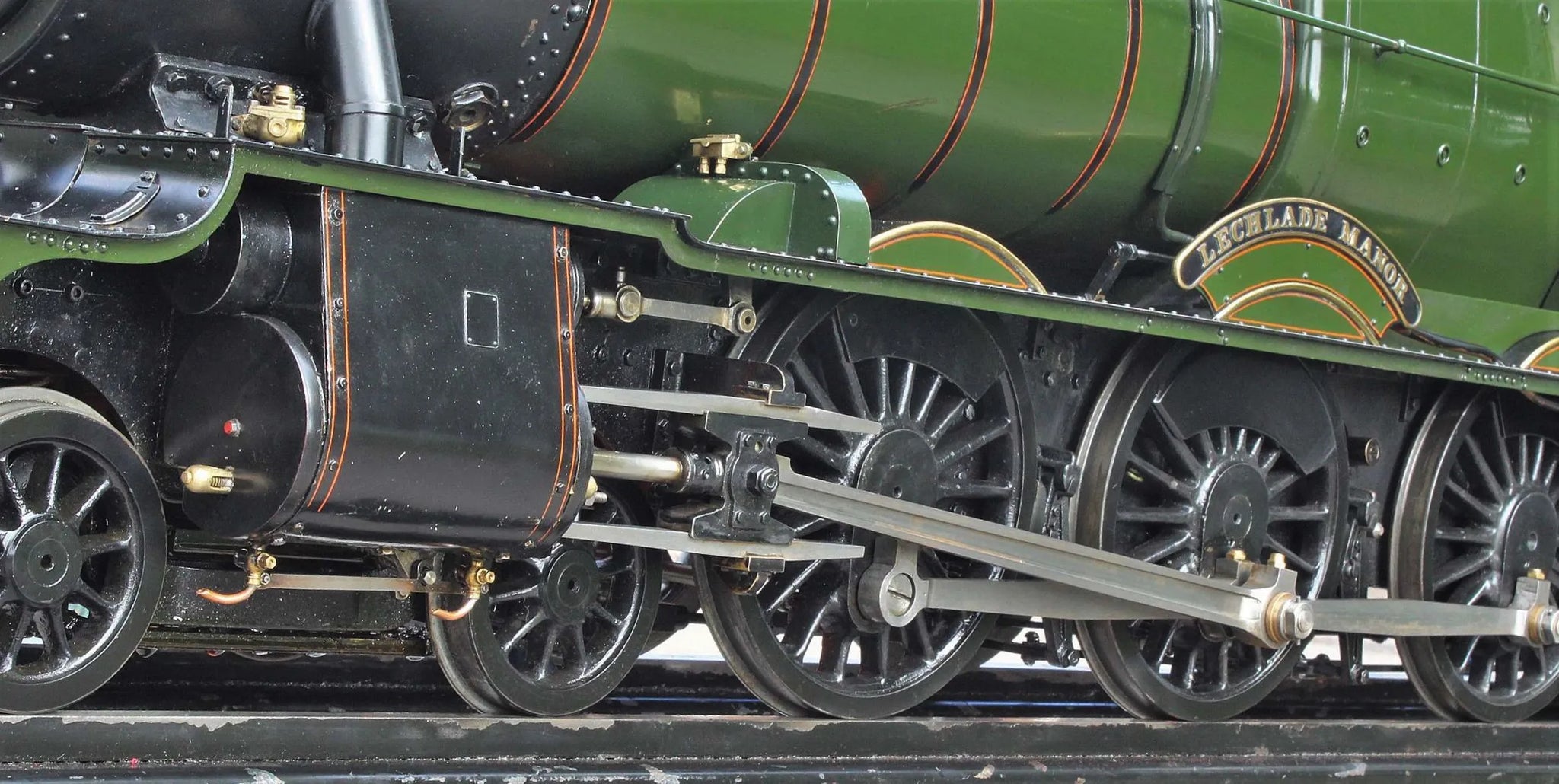

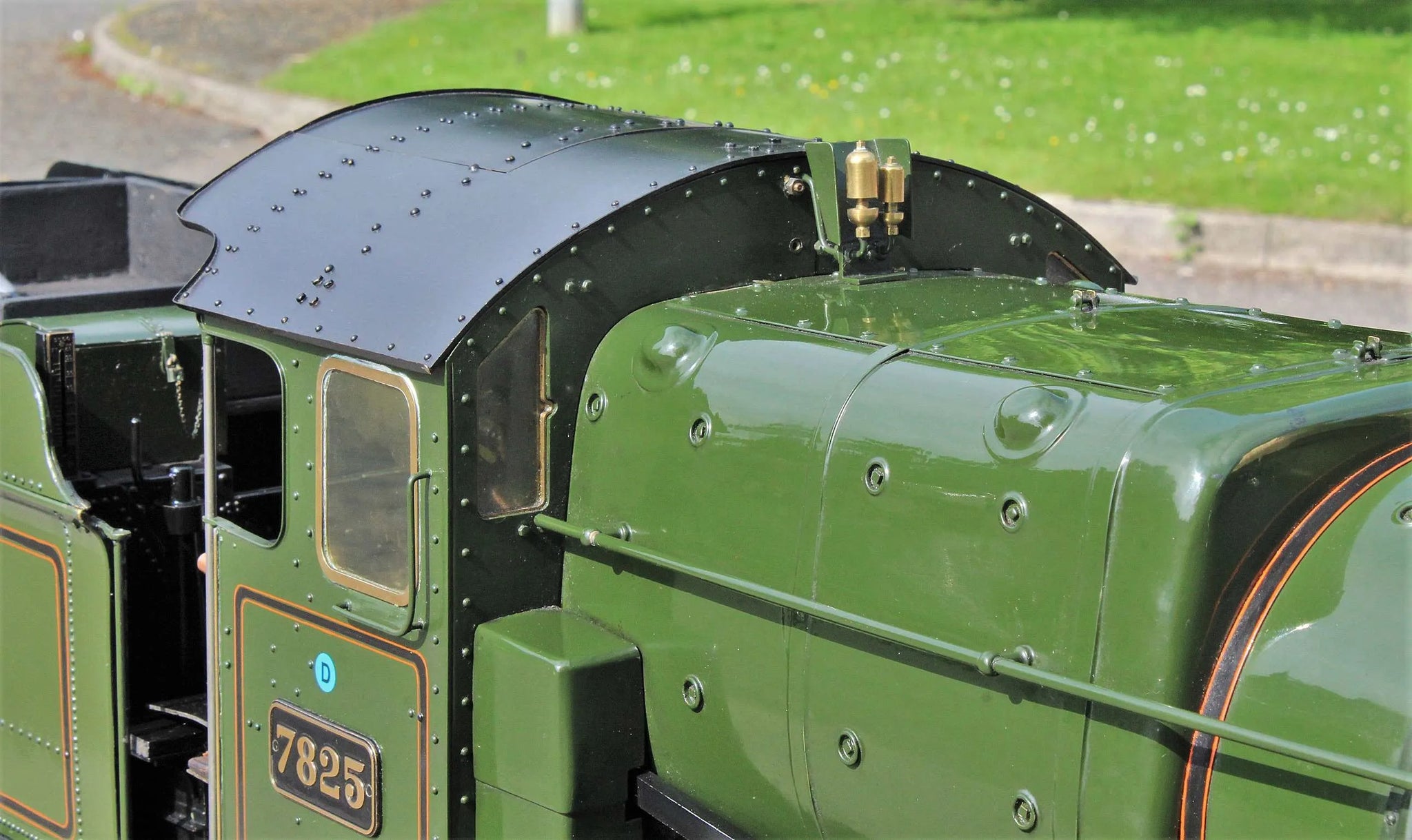

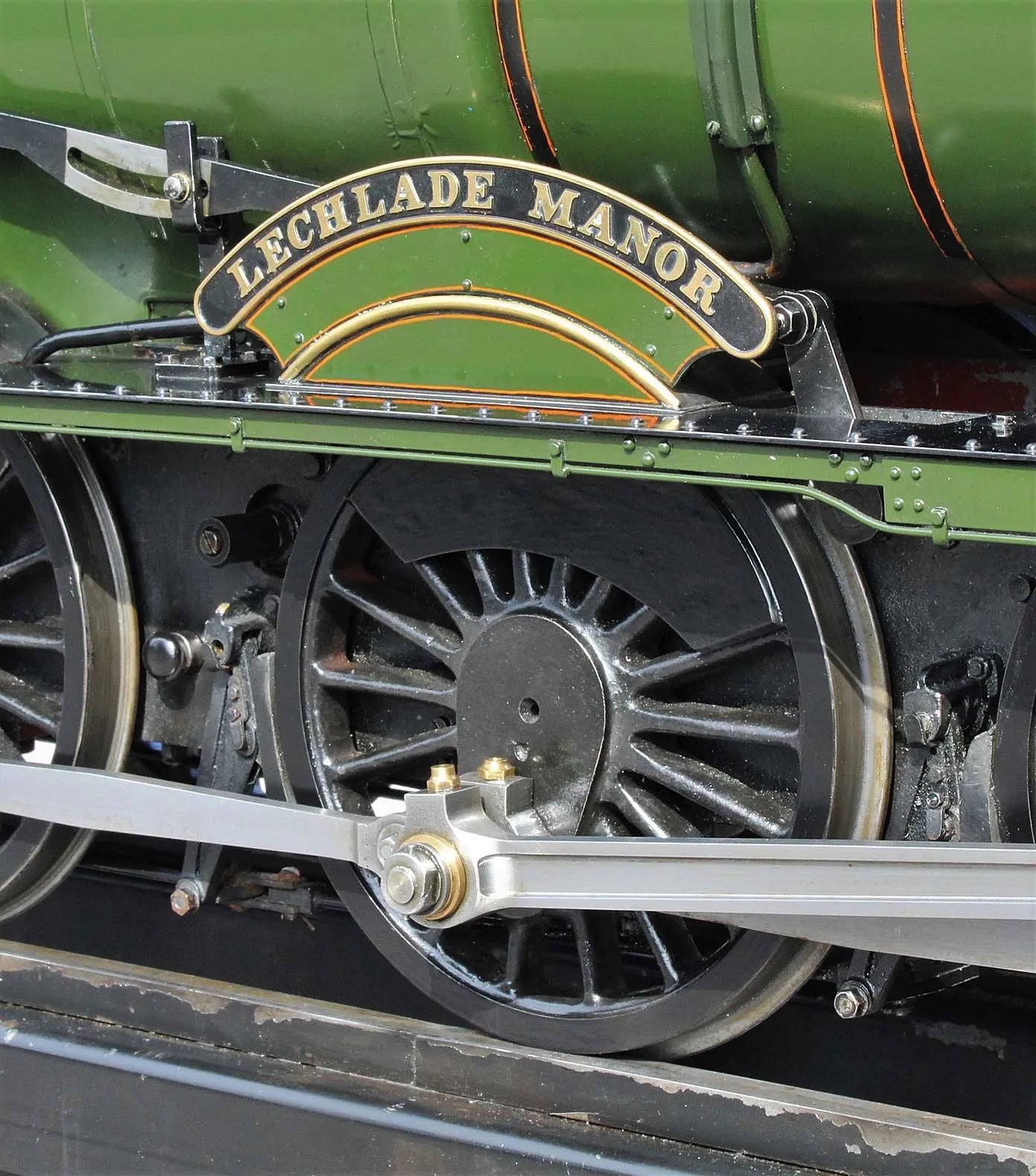

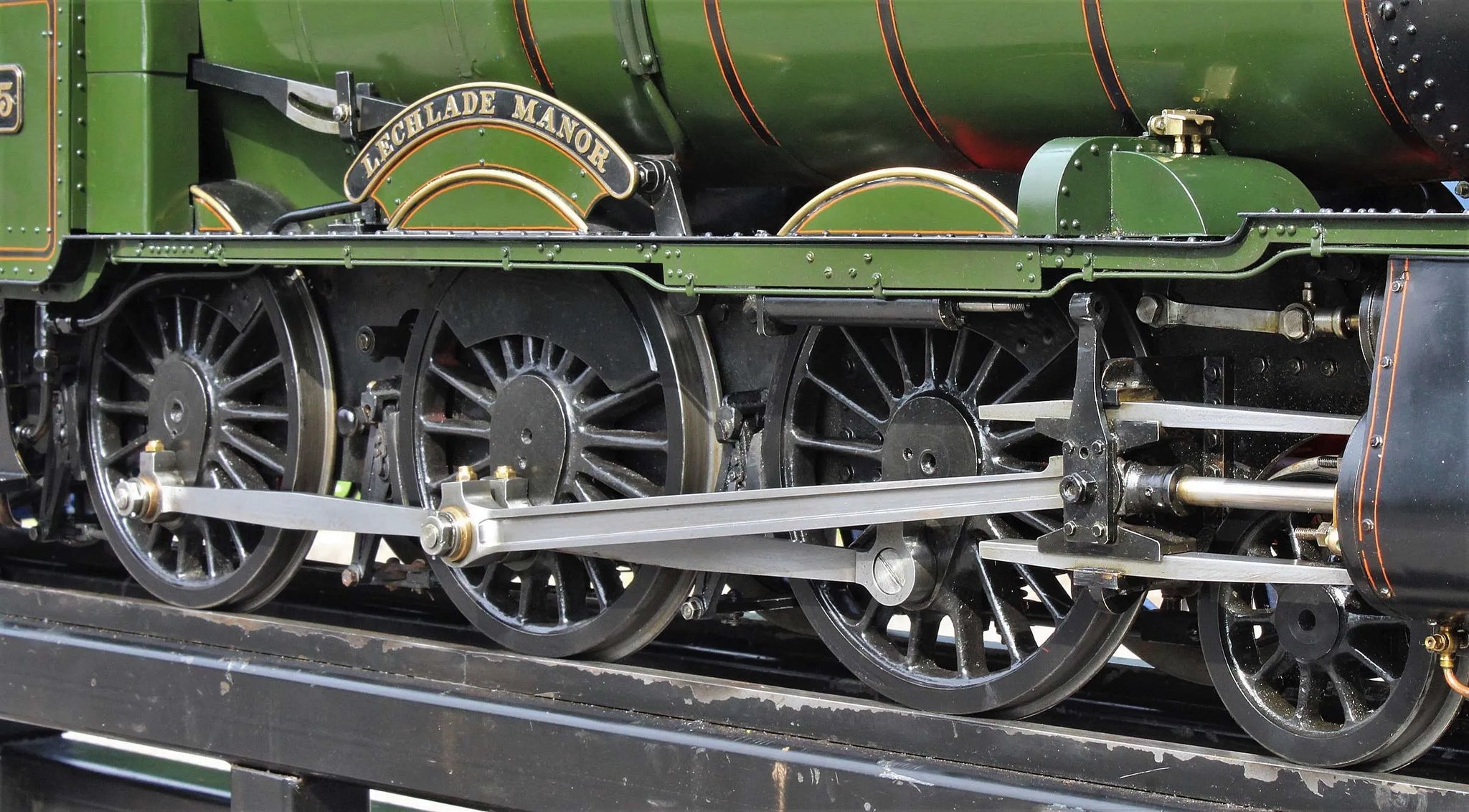

Fitted with a commercially made boiler by Kingswood, the engine has been built to a high standard throughout. Fit and finish of the motionwork and valve gear is good, showing little evidence of wear; platework is neatly flanged and fitted.

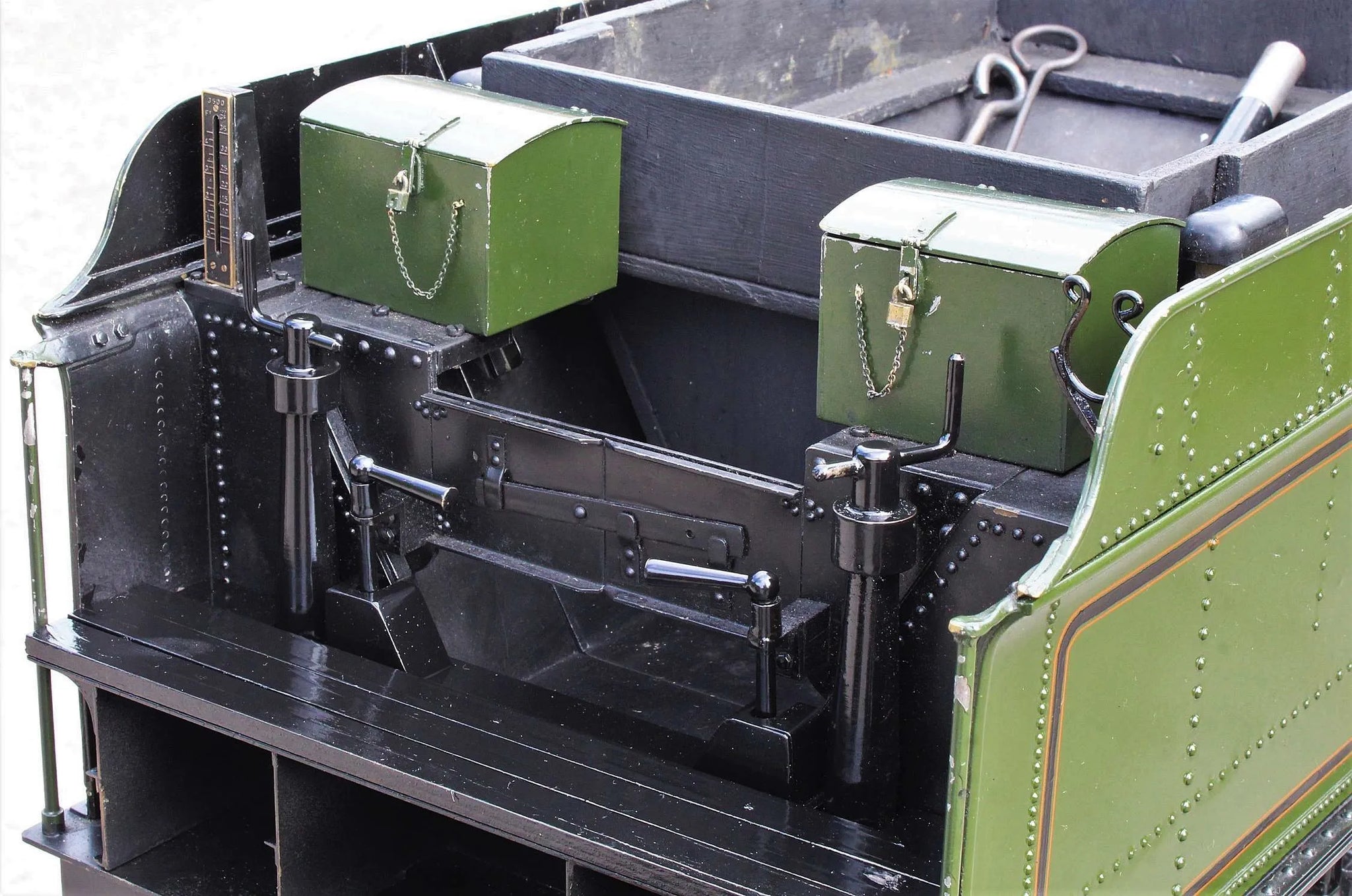

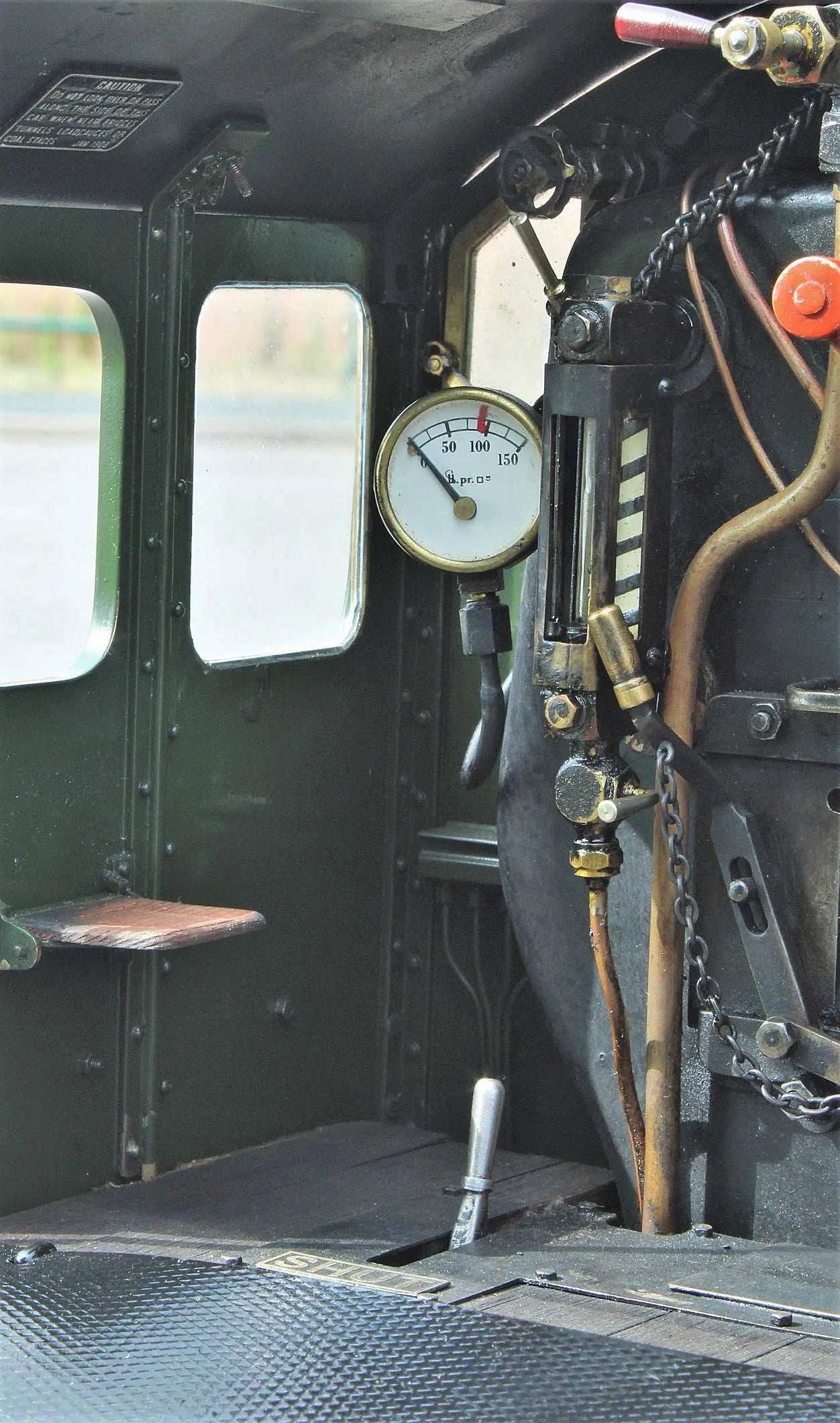

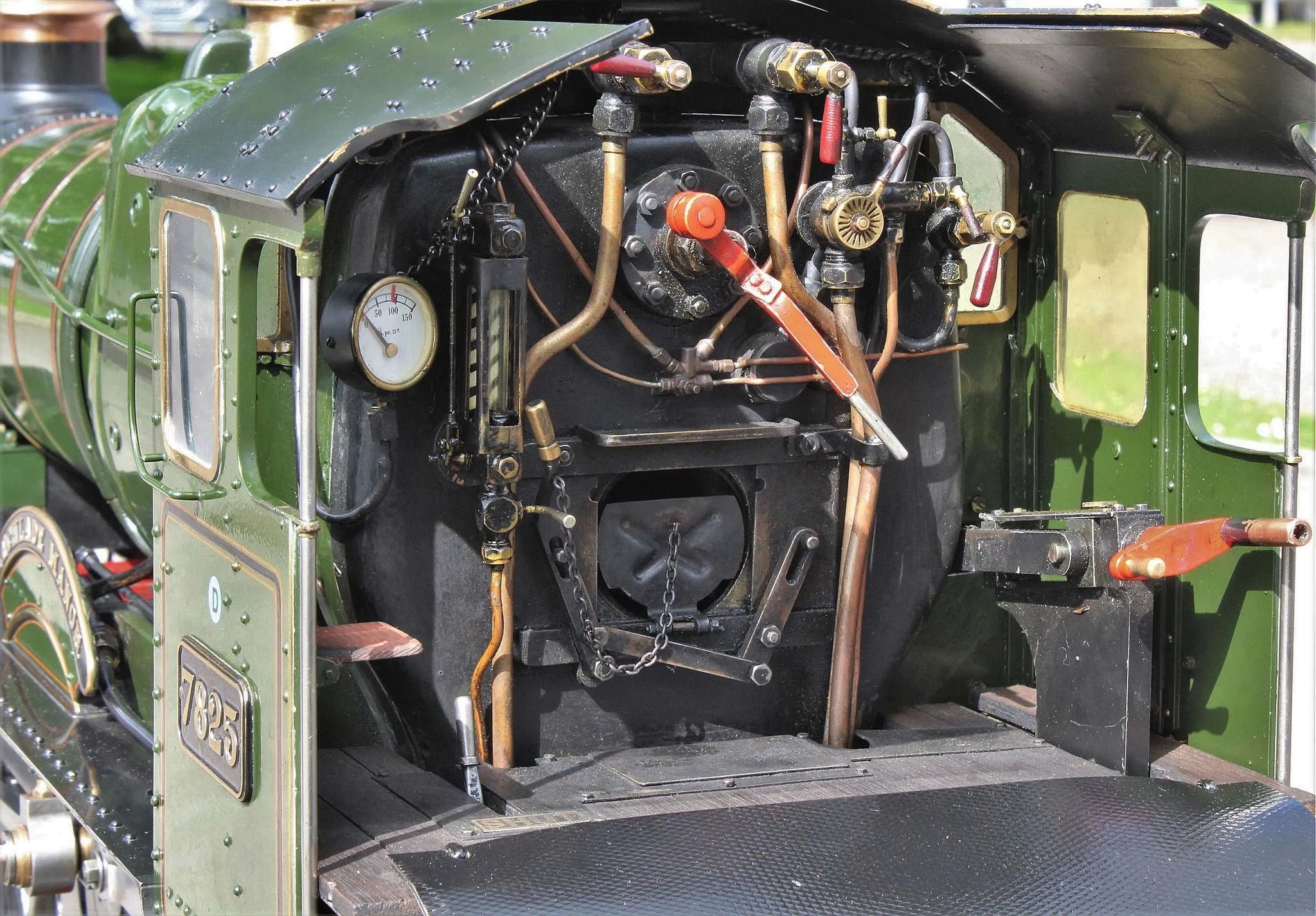

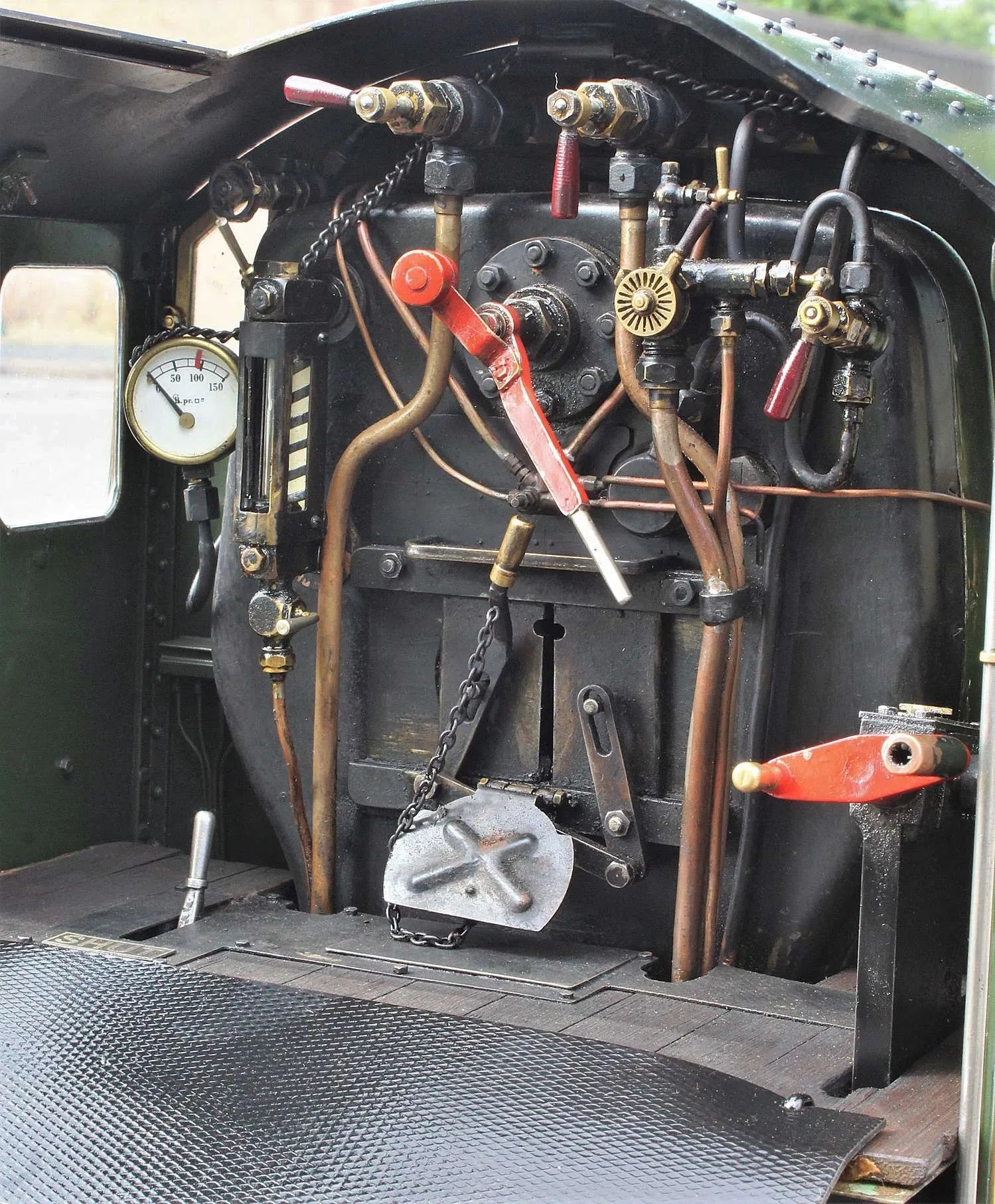

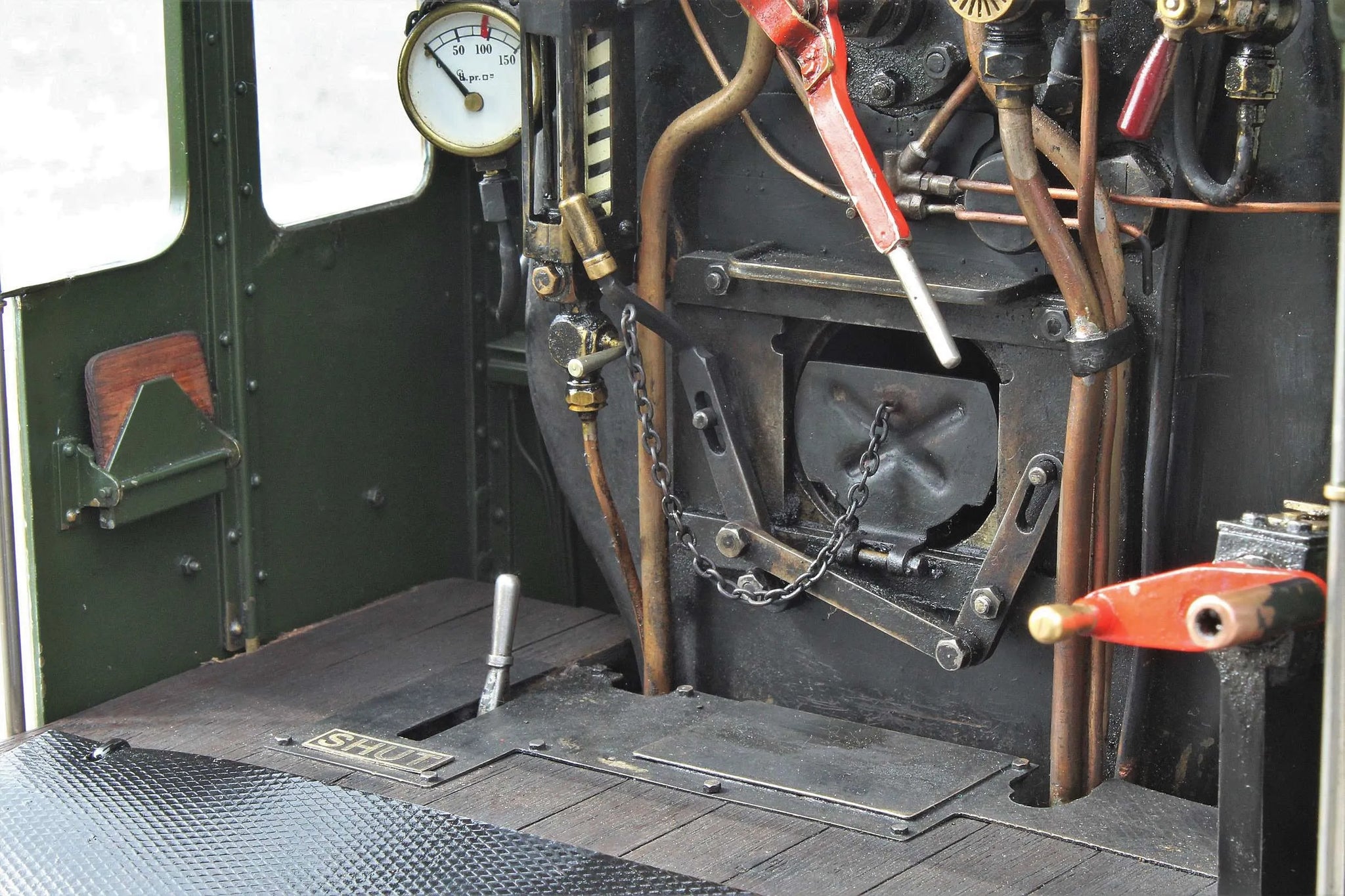

Backhead is well laid out - semi-scale for ease of driving whilst giving an impression of the full-size locomotive.

Boiler had recent hydraulic and steam tests with new certification issued - there's some video of it on the rolling road here, it steams freely and runs quietly.

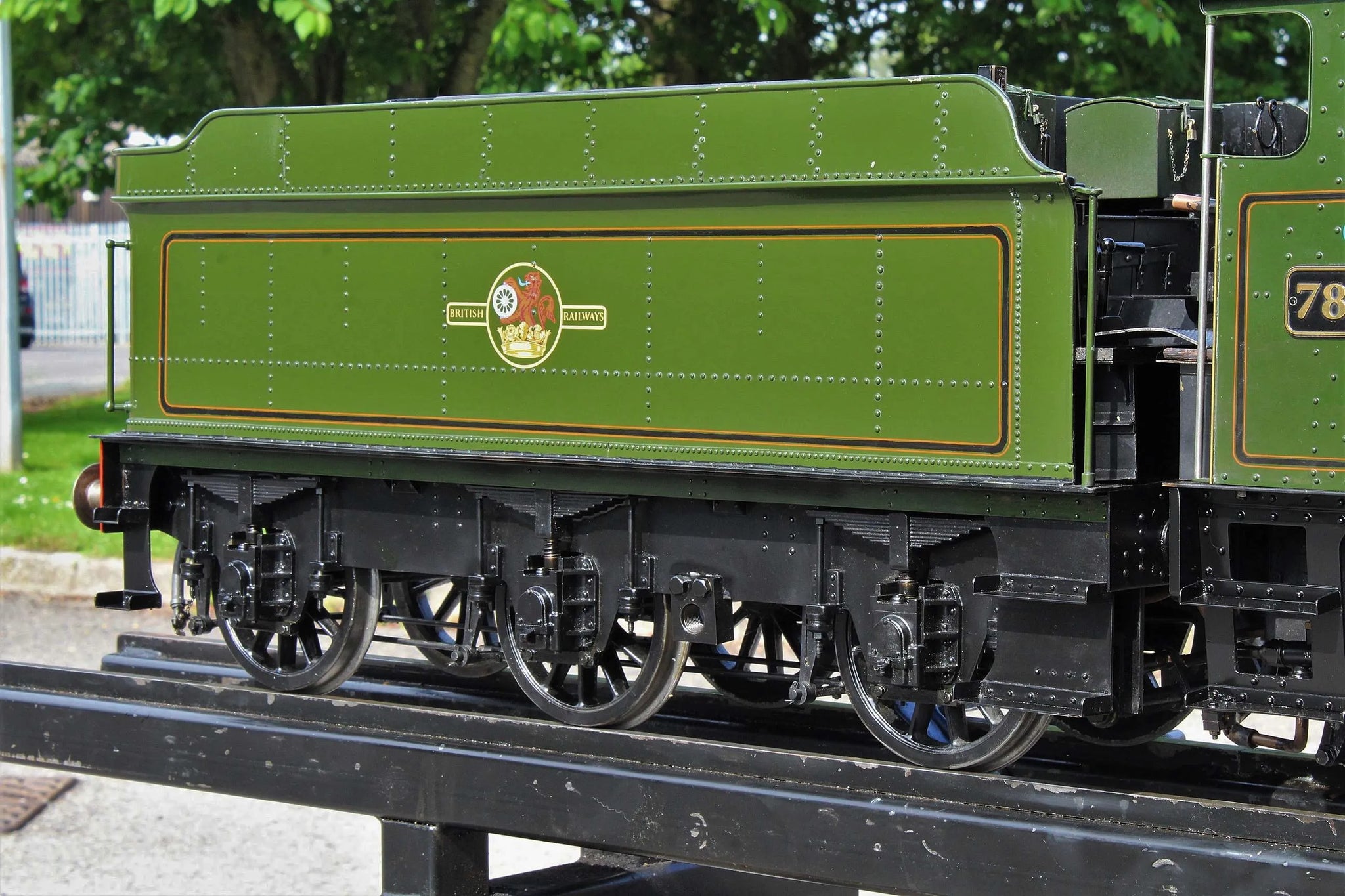

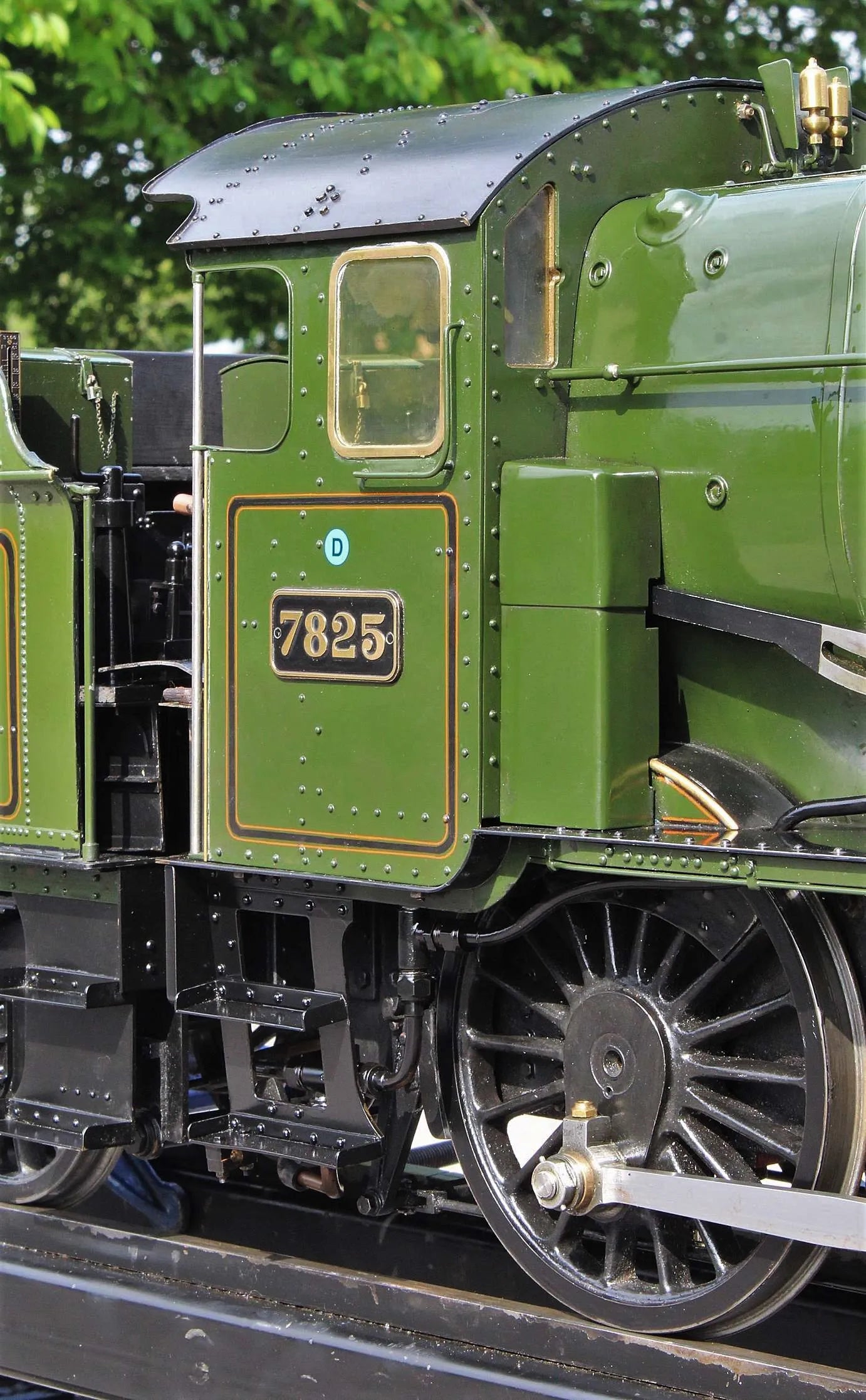

Paintwork and lining is to a good standard, showing minor signs of wear commensurate with use but overall in good, bright condition.

Complete with purpose-built, fitted transport crates for locomotive and tender.

Technical information

Stock code

9543

Gauge

5 inch

Length/inches

41 + 27 1/2

Width/inches

10

Height/inches

14.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler maker

Kingswood Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Year built

1996

Boiler number

KB96006

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Injector

2

Superheater type

flue tube

Superheater

2

Date out

Jul-21

Hydraulic test valid to

26-Apr-25

Steam test valid to

01-Sep-22
