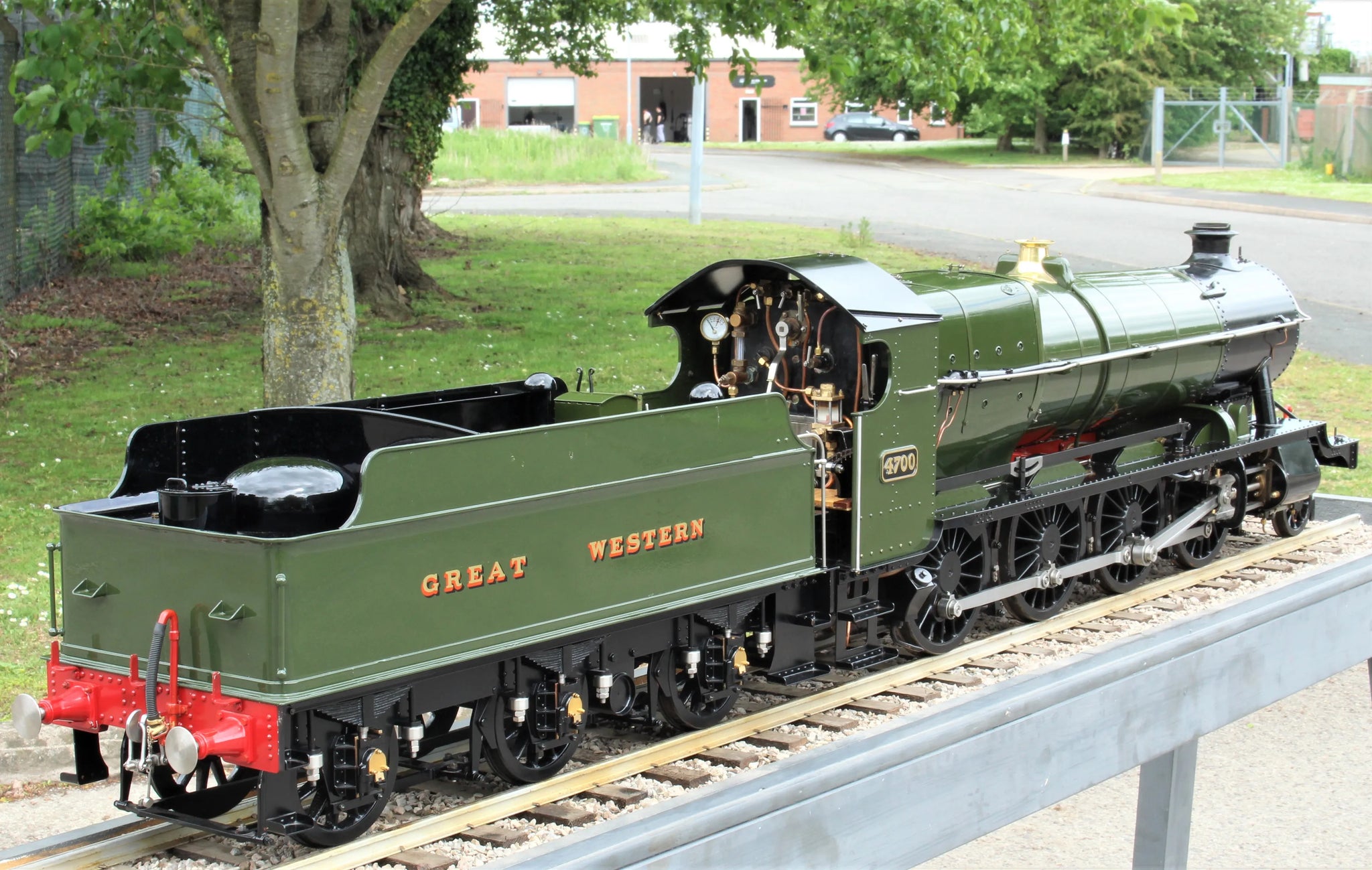

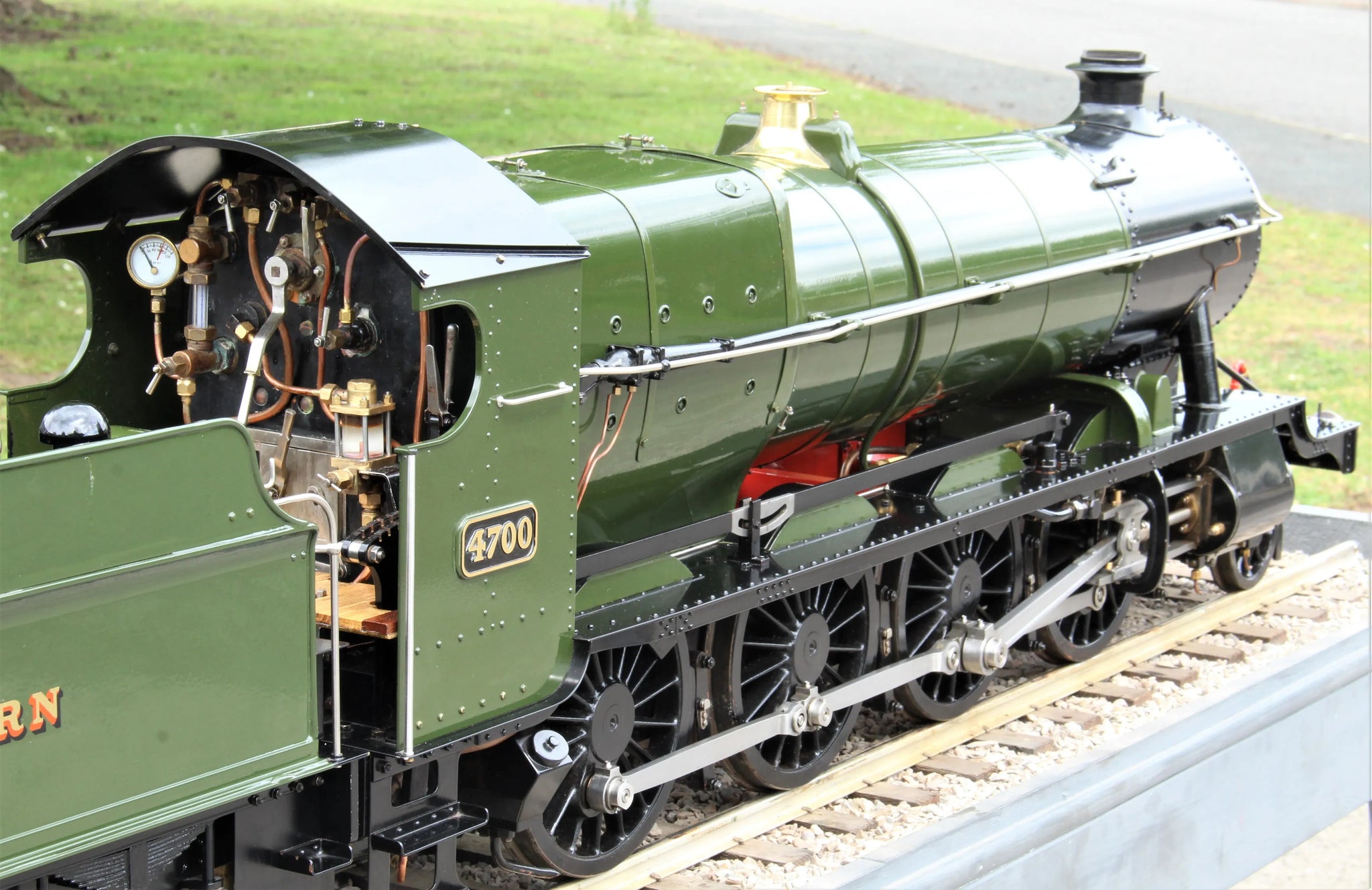

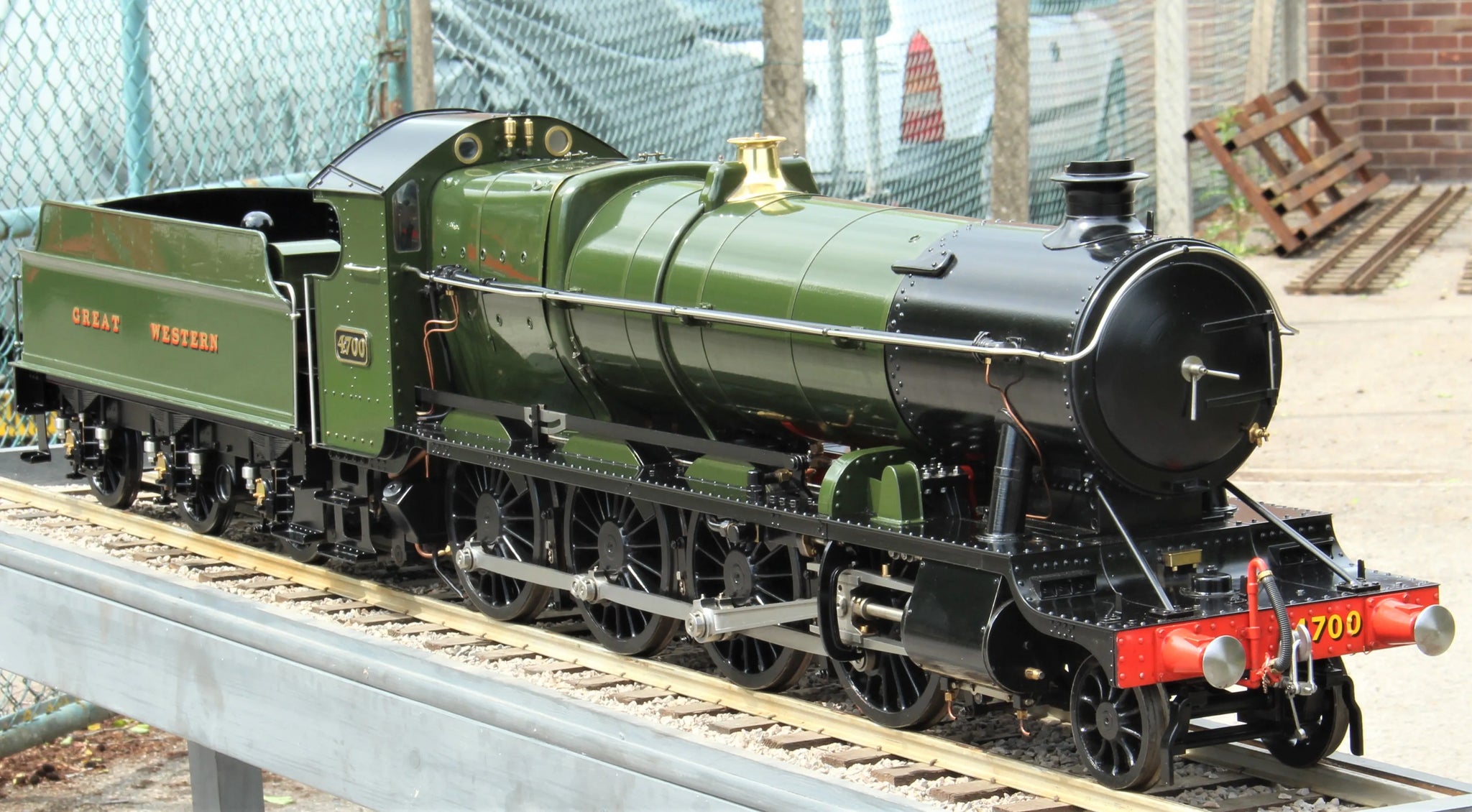

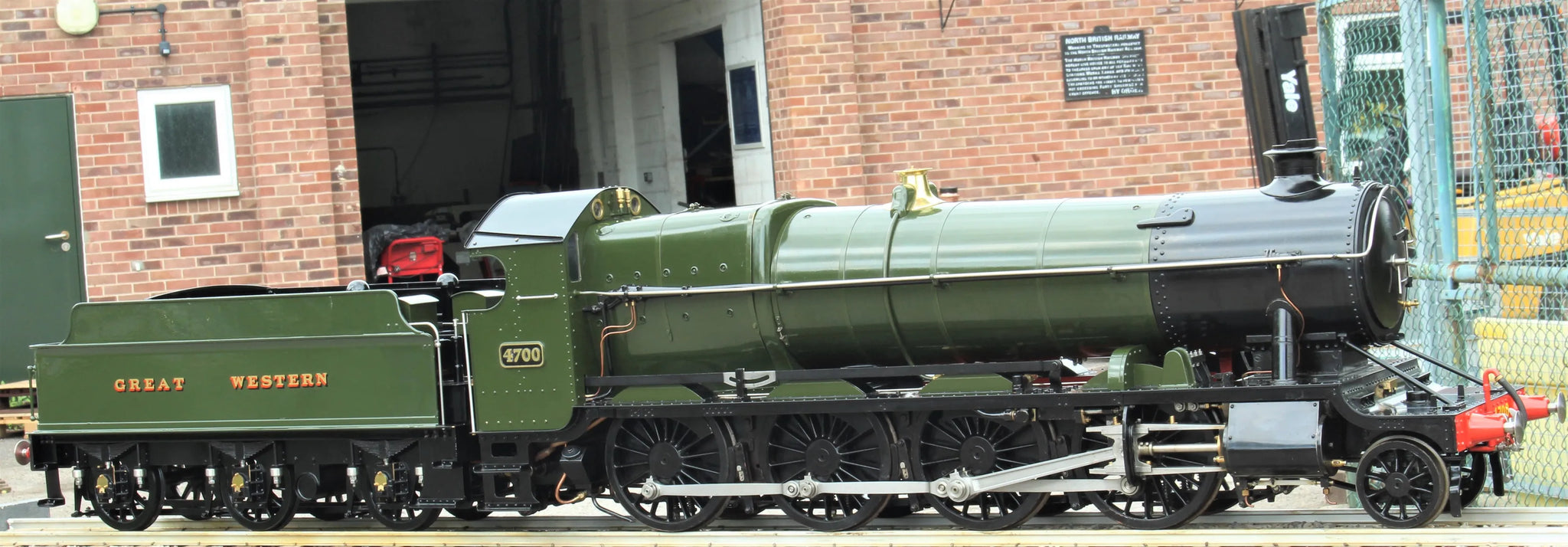

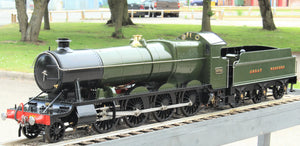

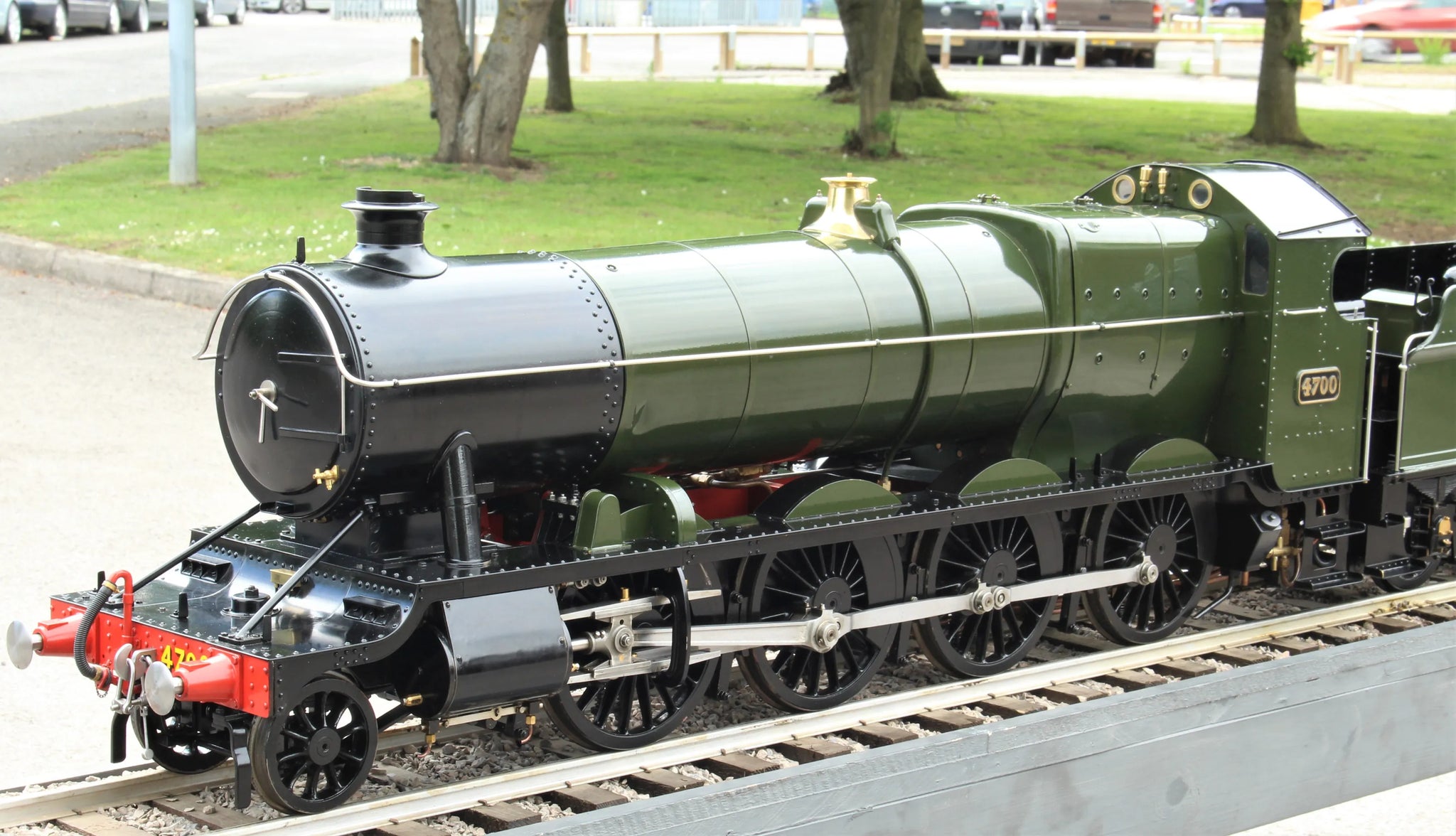

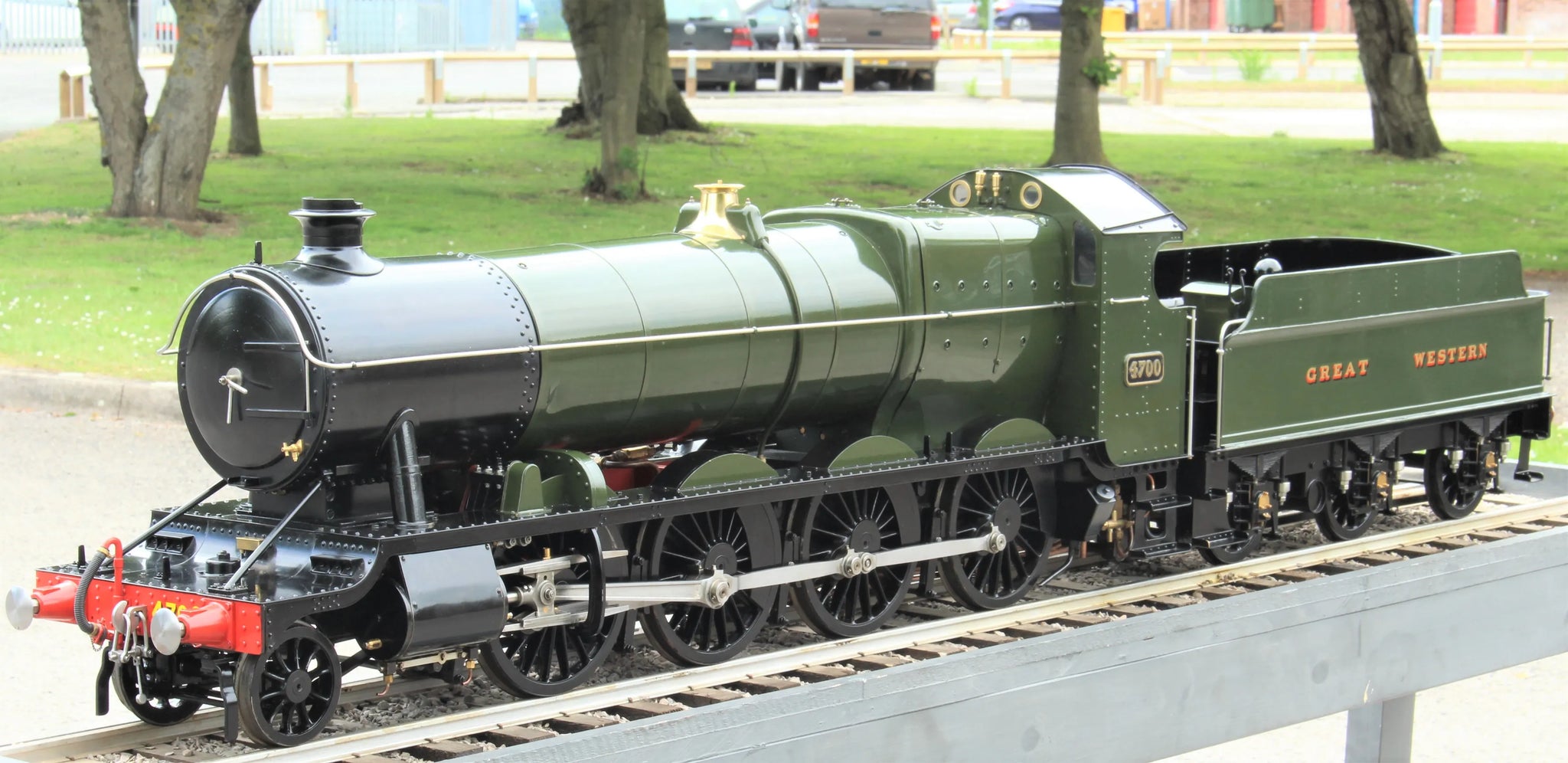

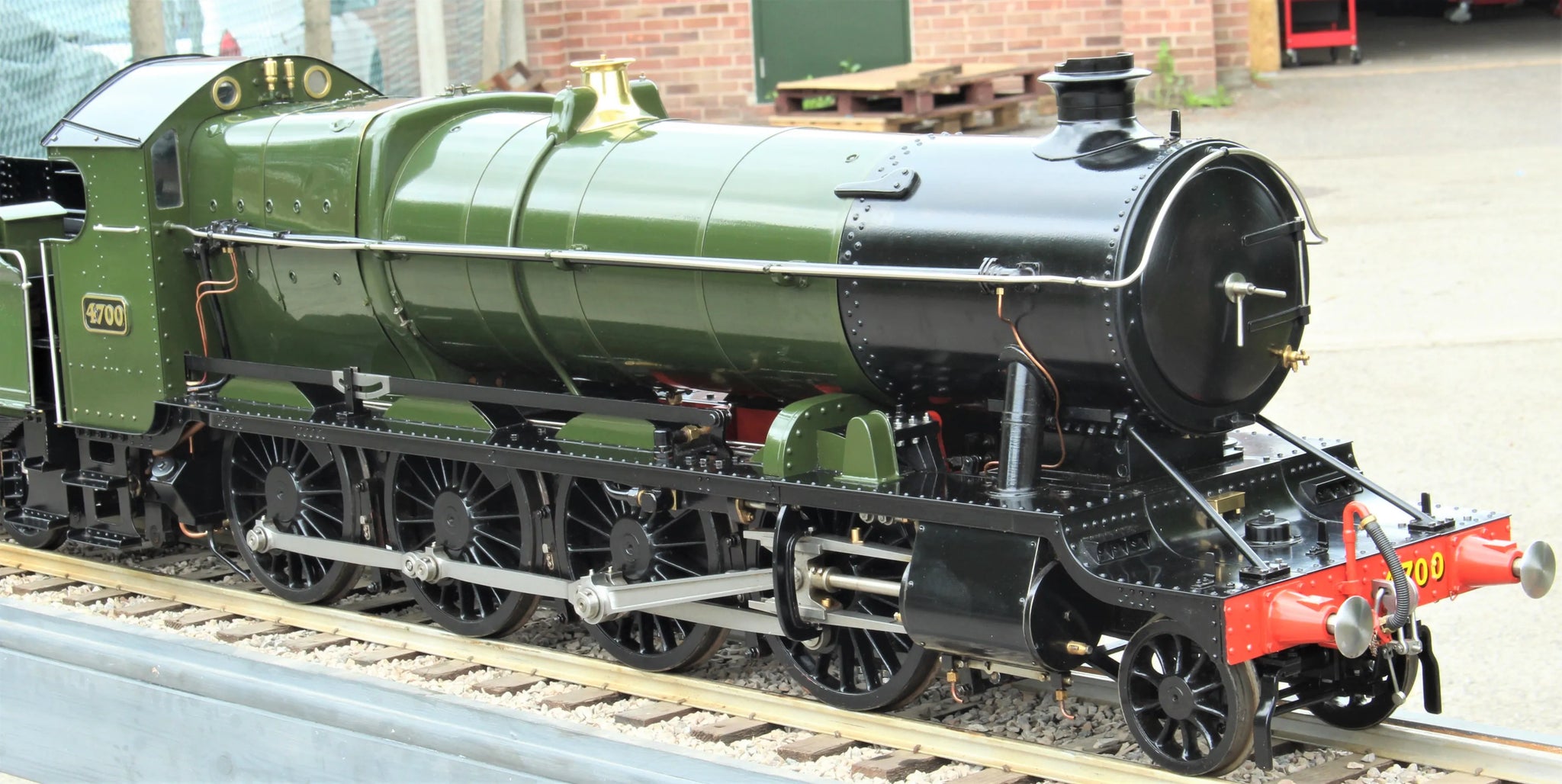

5 inch gauge GWR 47XX 2-8-0

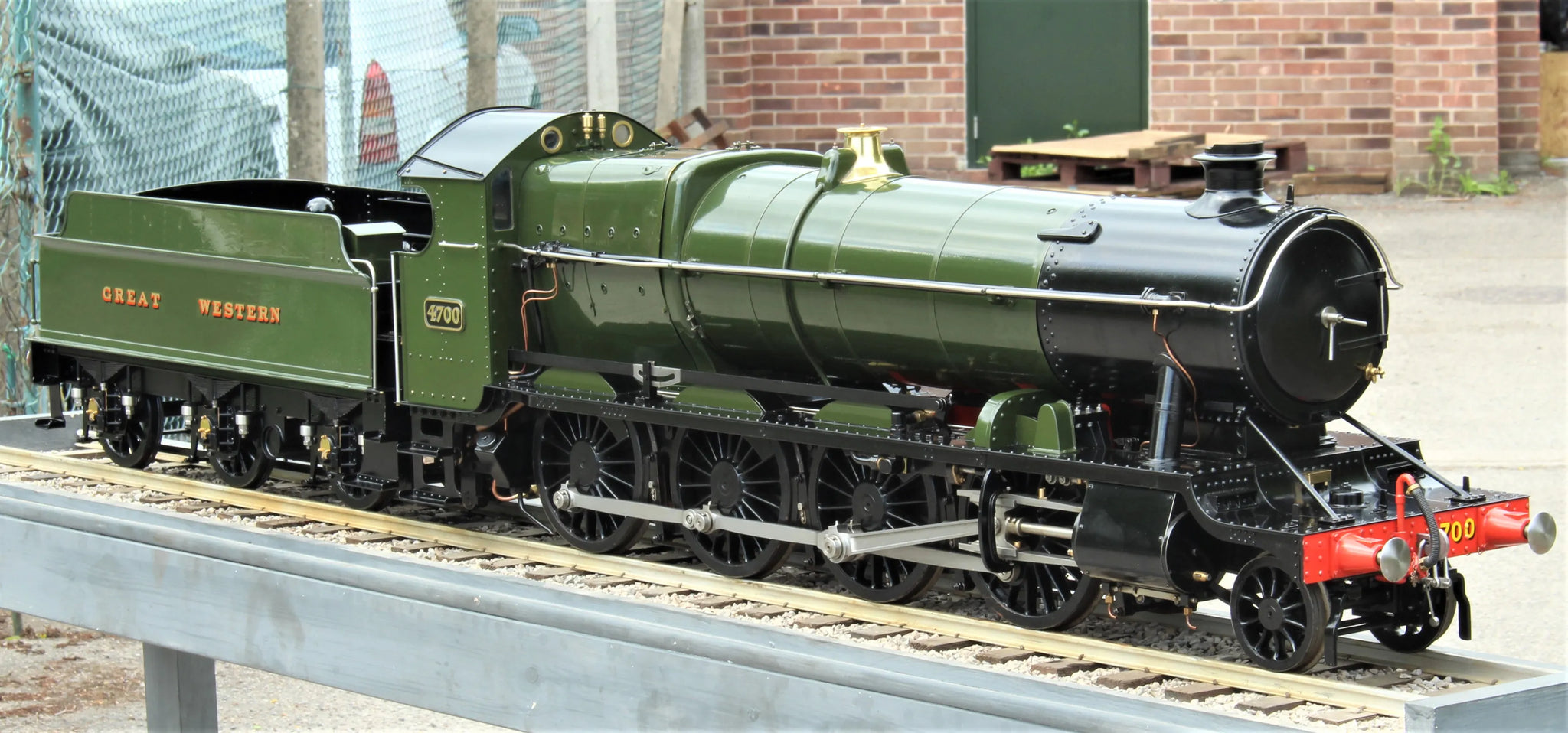

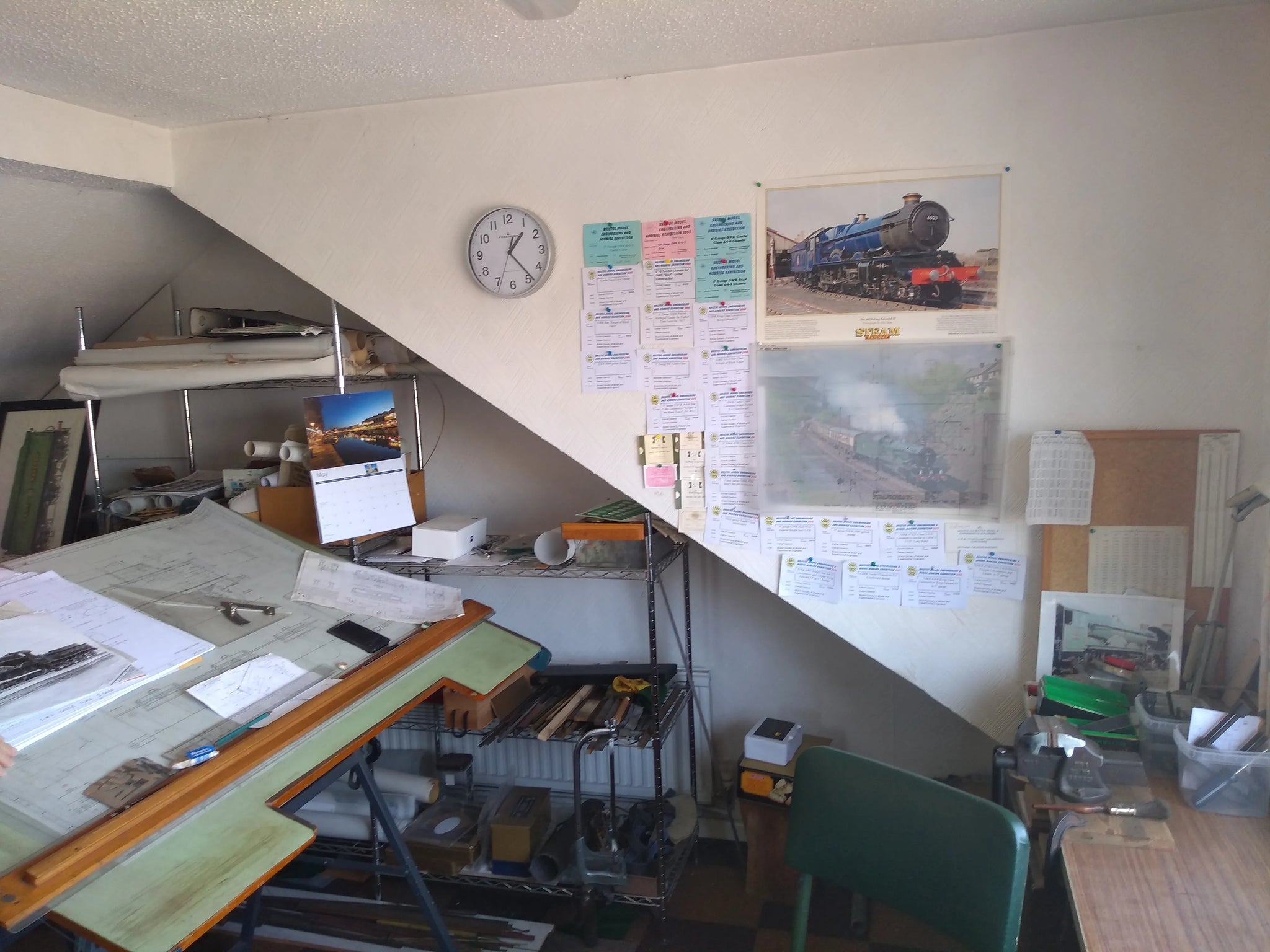

A finely made 5 inch gauge Great Western 47XX 2-8-0. It's come to us direct from the builder, a gifted engineer who started his working life in the aircraft industry, working both as machinist and draughtsman with a variety of companies over the years.

Over the last fifty years he has produced five locomotives - the 47XX, two Castles (one taking a Gold Medal at the Model Engineer Exhibition), a King (which featured on the front cover of "Engineering in Miniature") and a Star - taking a host of awards and trophies over the years.

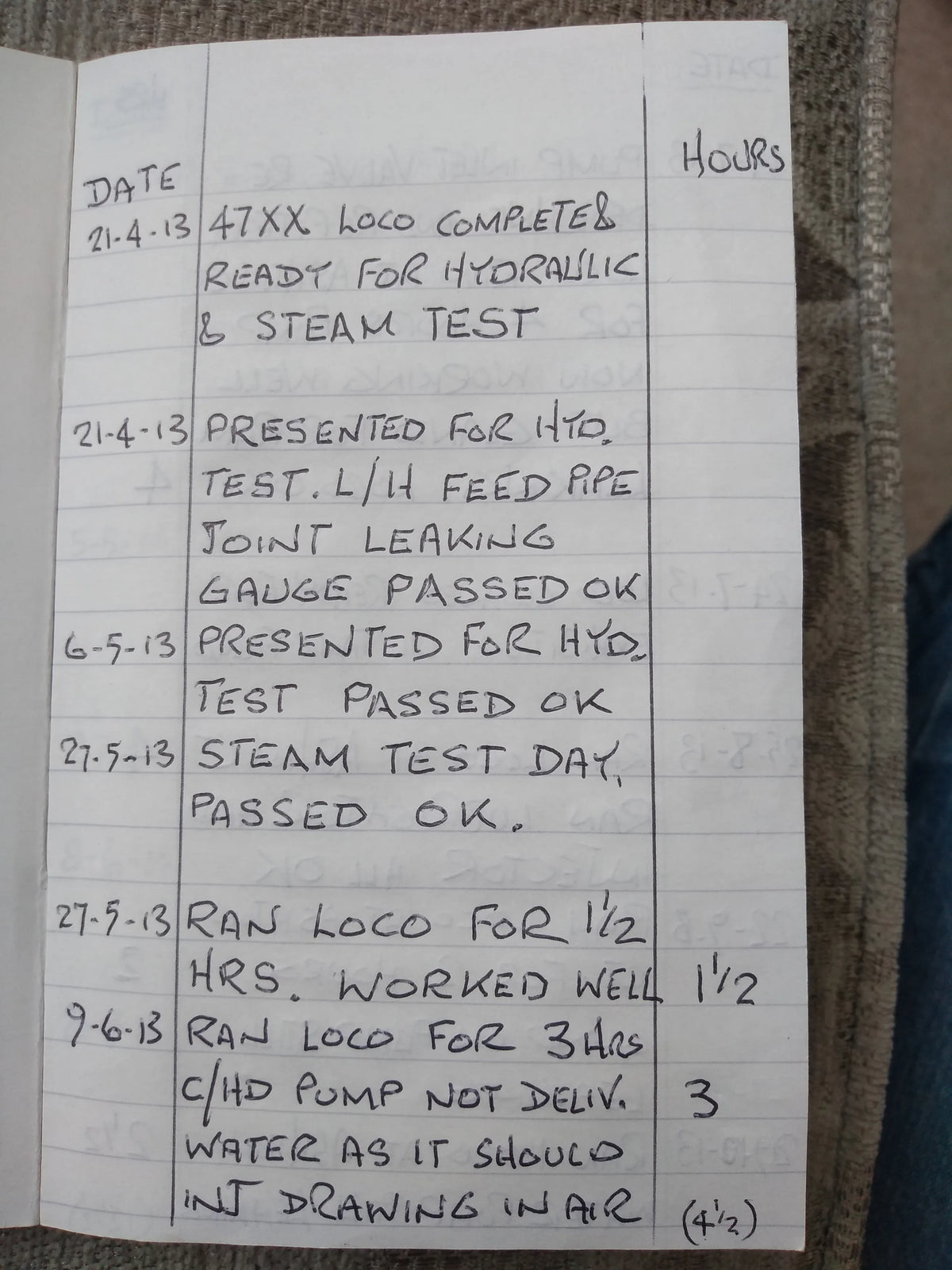

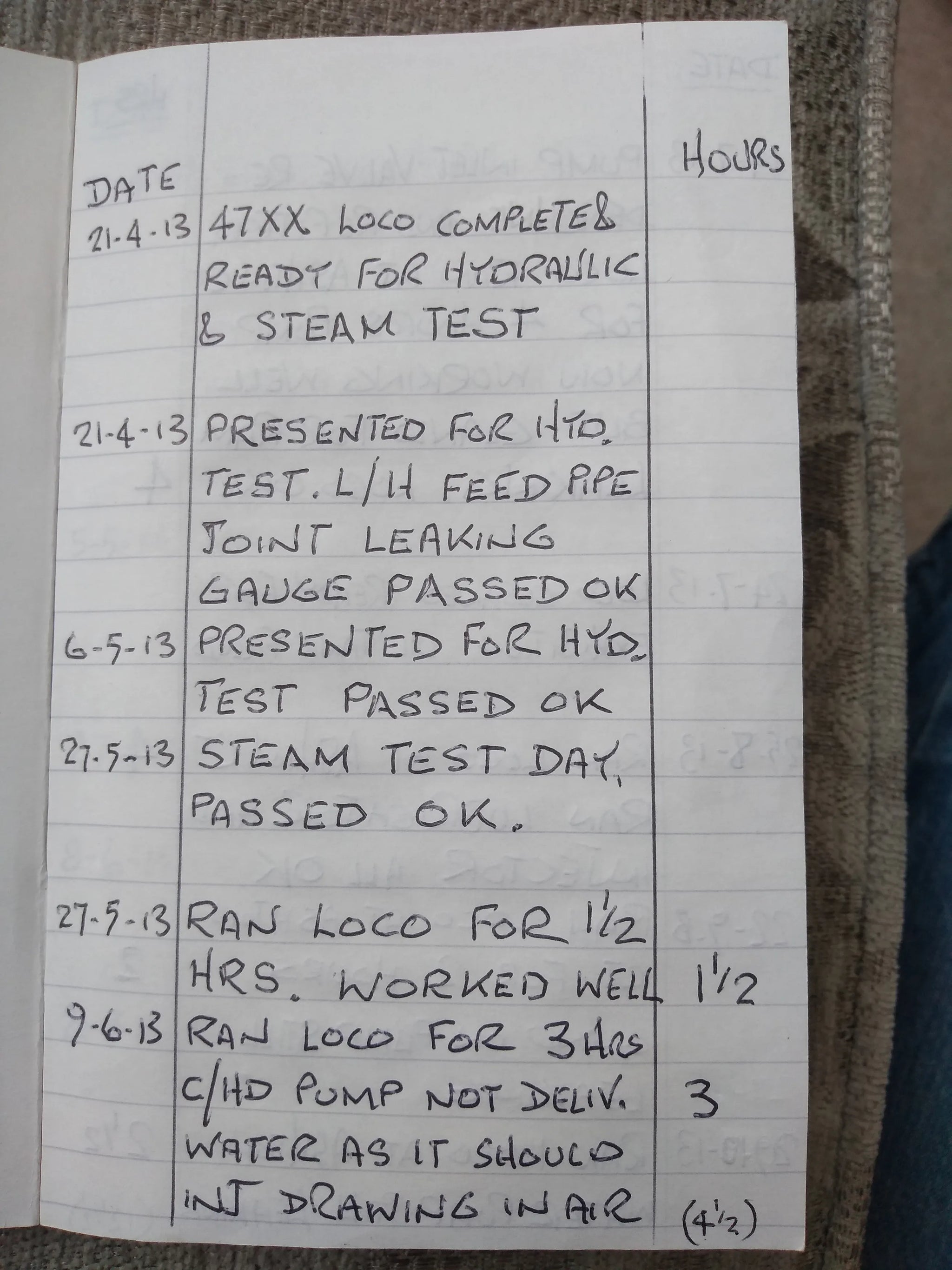

Completed in 2013 and steamed for the first time on Monday, May 27th of that year. The engine has run for a total of 72 hours, the details of every outing meticulously recorded in a running diary.

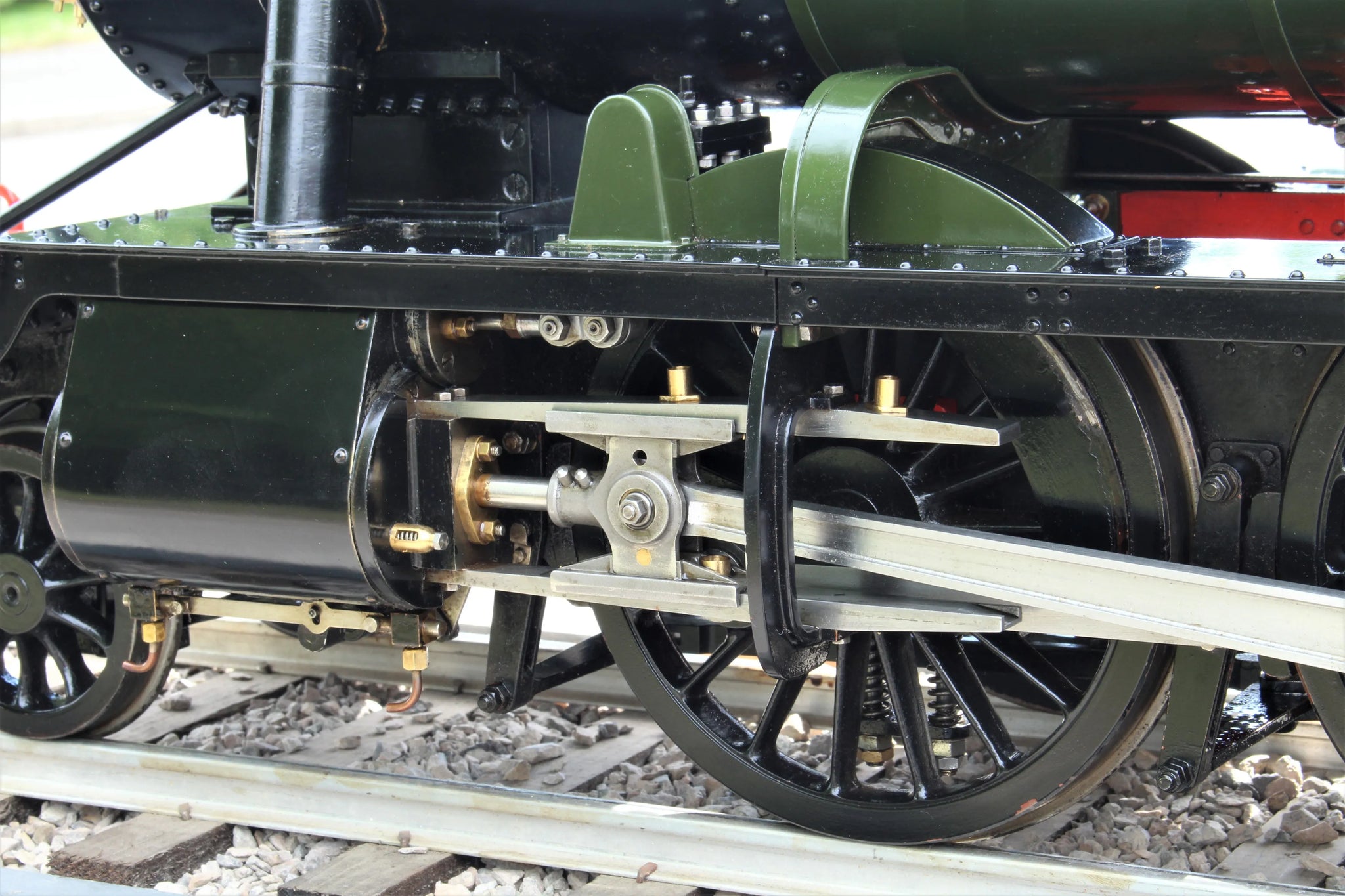

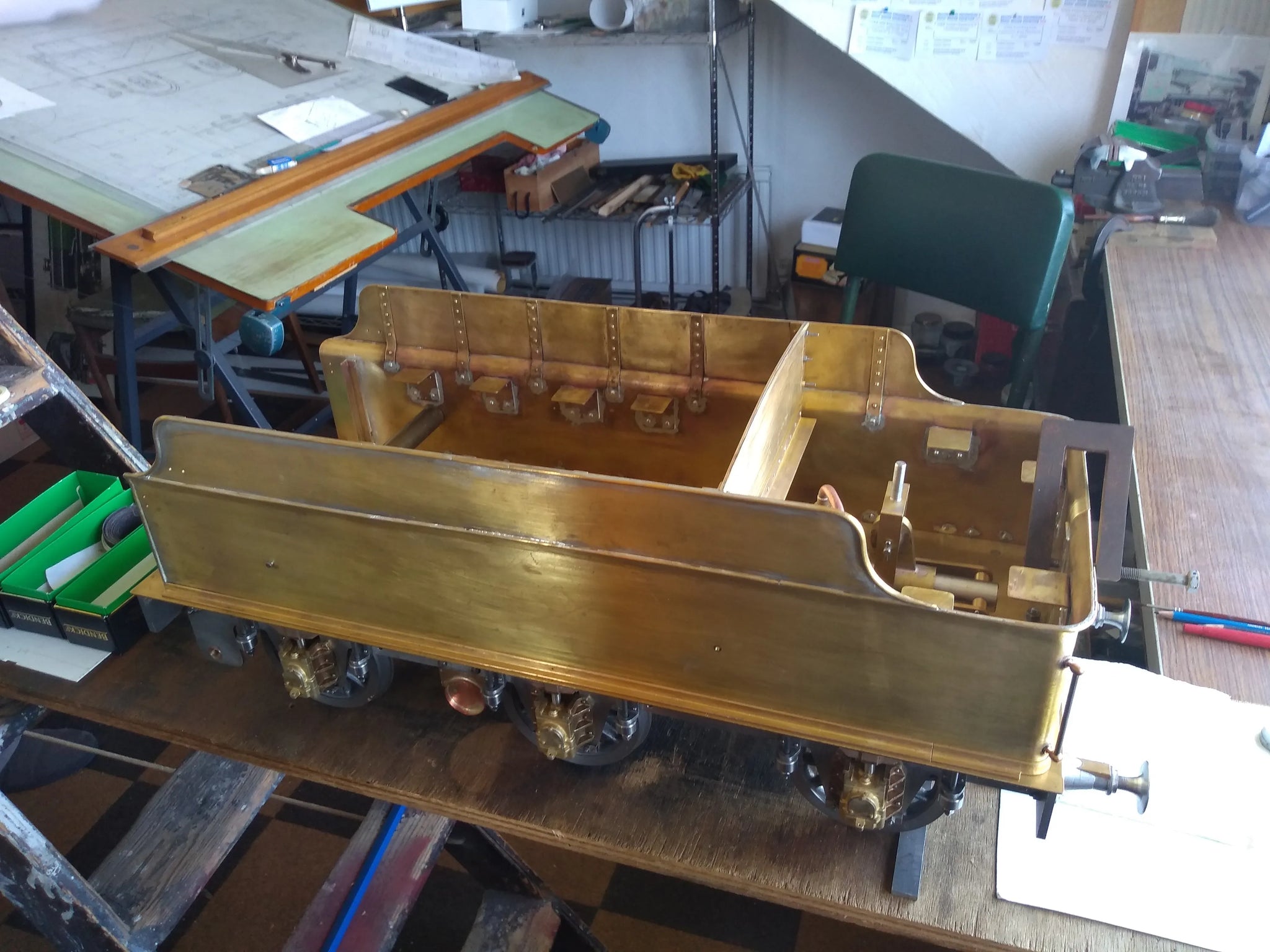

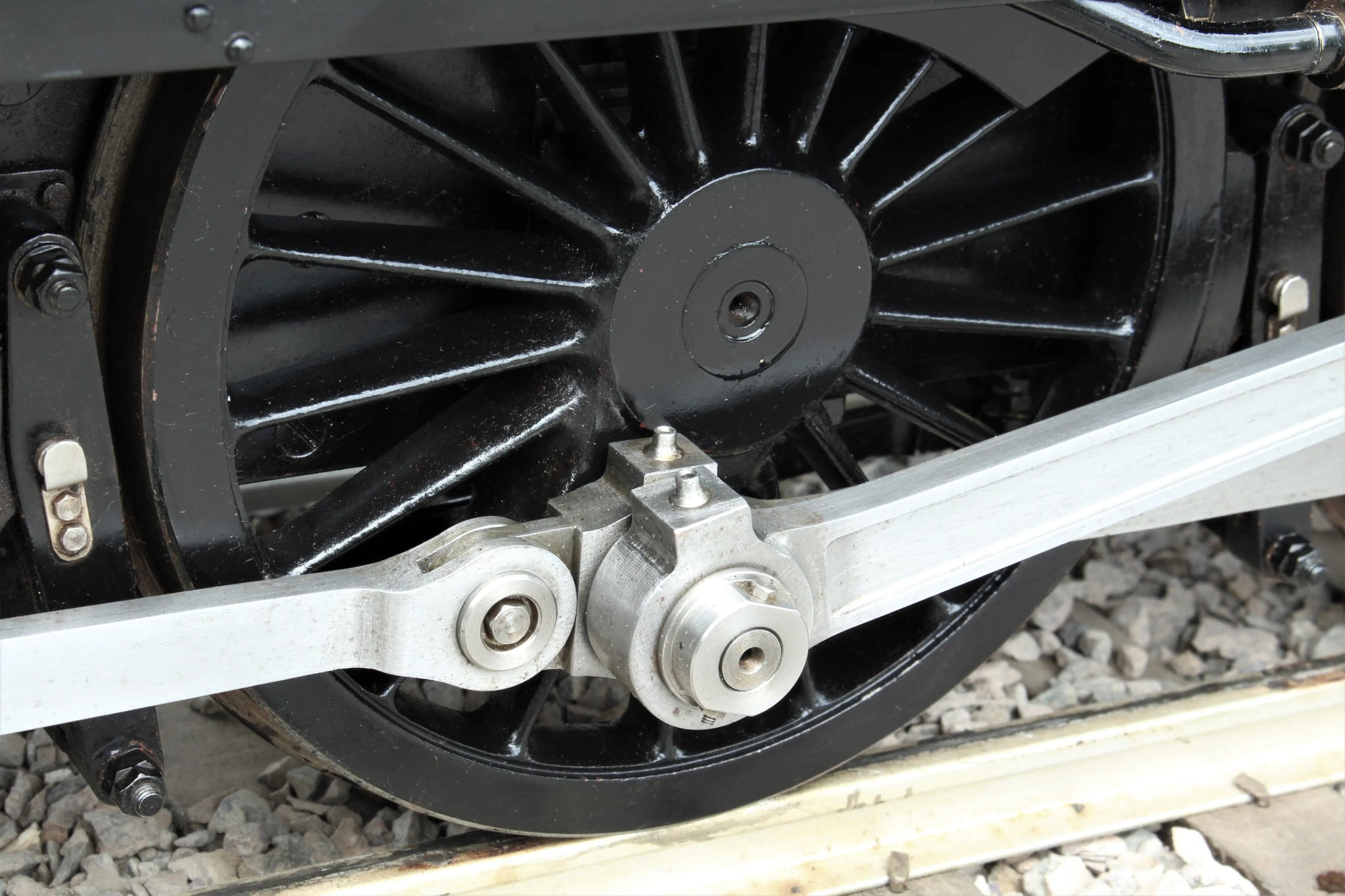

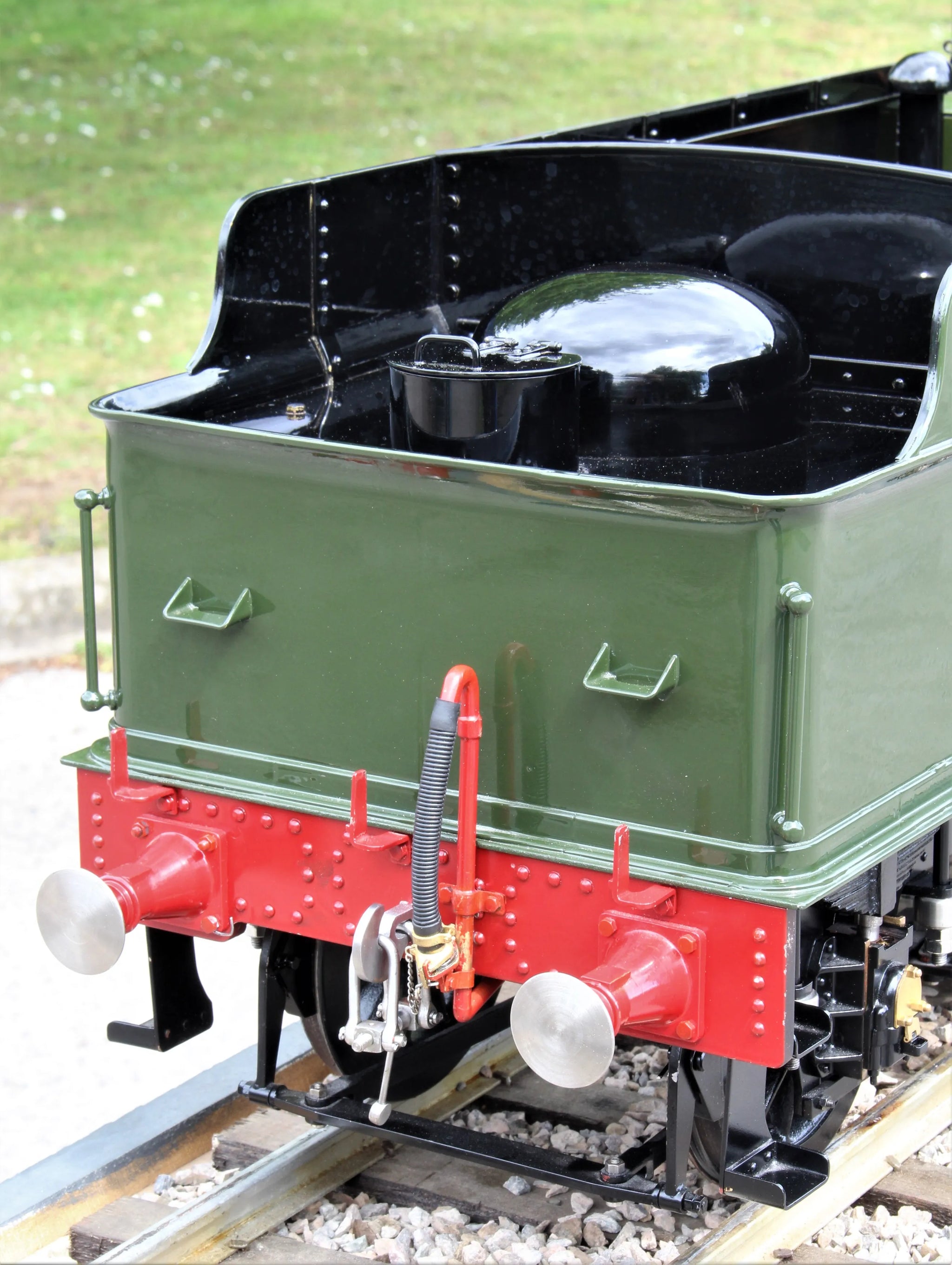

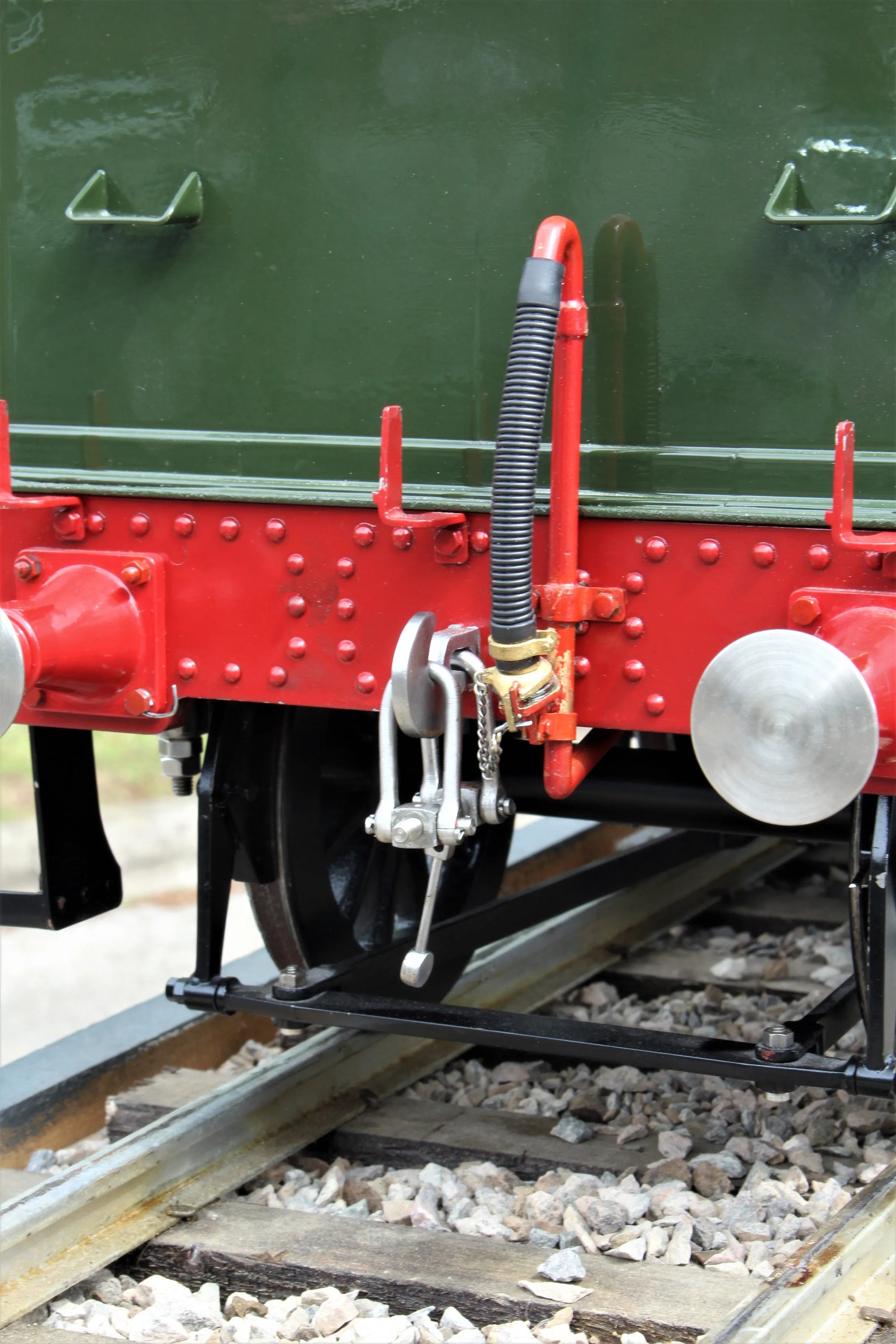

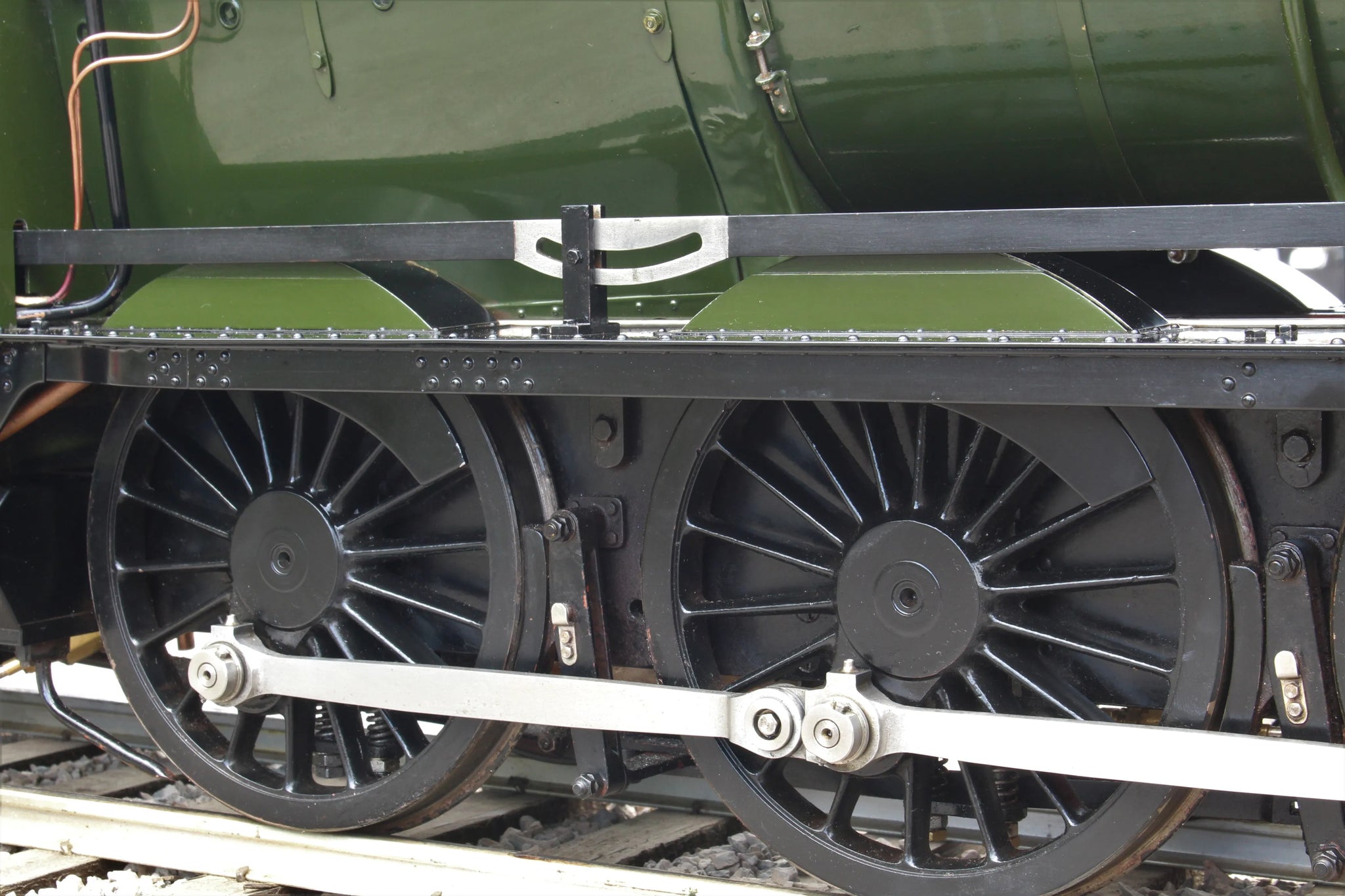

Work is to an excellent standard throughout. Axles run on needle roller bearings, the CE-marked silver soldered copper boiler is by Kingswood. The tender is in literally ex-works condition - the engine has only ever run with a tender from the builder's King, he didn't see any point in getting two dirty!

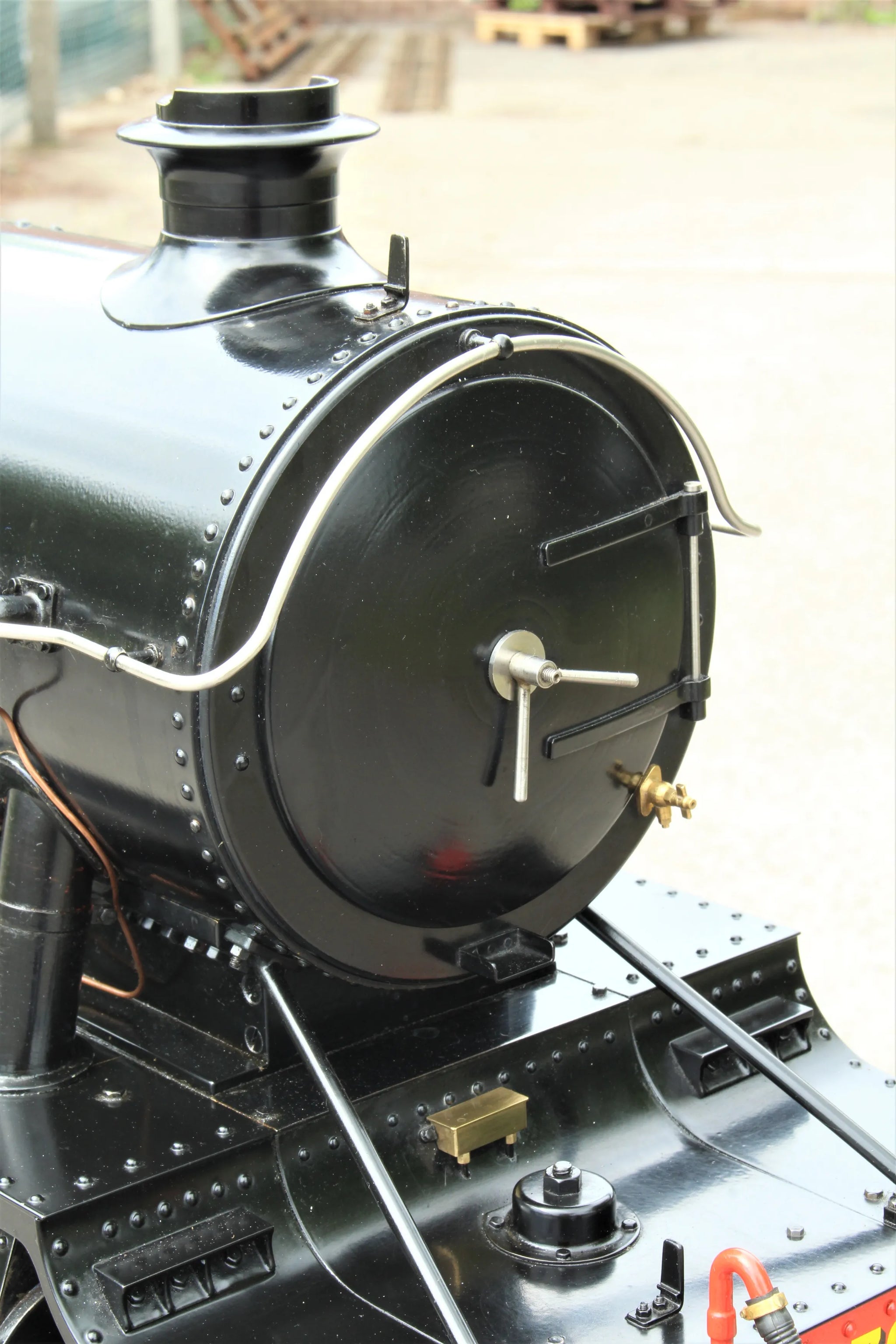

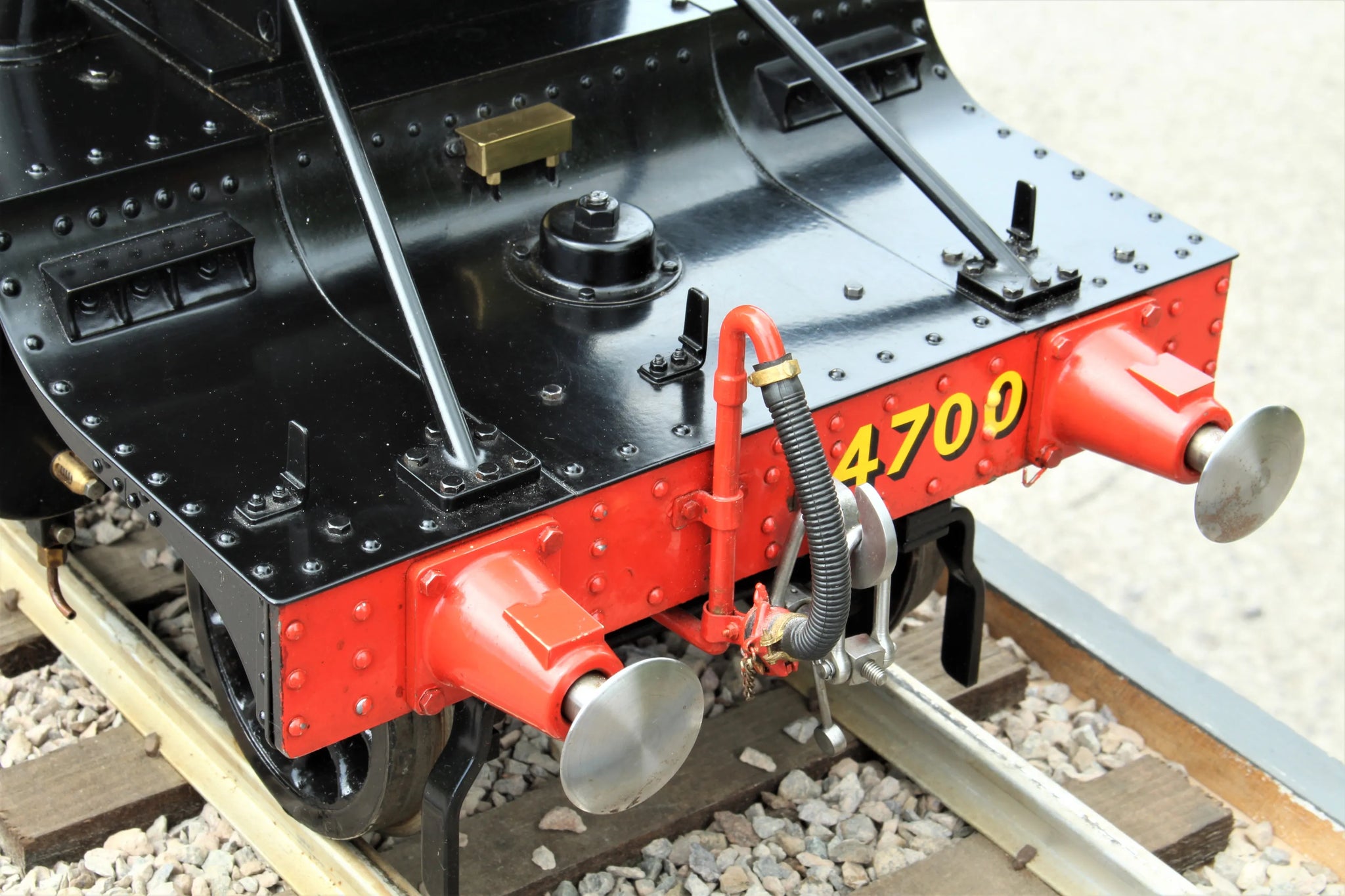

Paintwork is in good condition, the platework well formed and fitted - there is one minor dent in the boiler cladding, low down behind the smokebox, otherwise it is in excellent condition.

An exceptionally well-built example of a rarely modelled prototype - we've only ever had one other of these through our doors in the last twenty years (and John and I had to drive all the way to France for that one)

Technical information

Stock code

8547

Gauge

5 inch

Wheel material

cast iron

Axlebox type

needle roller

Cylinder material

cast iron

Valve type

piston

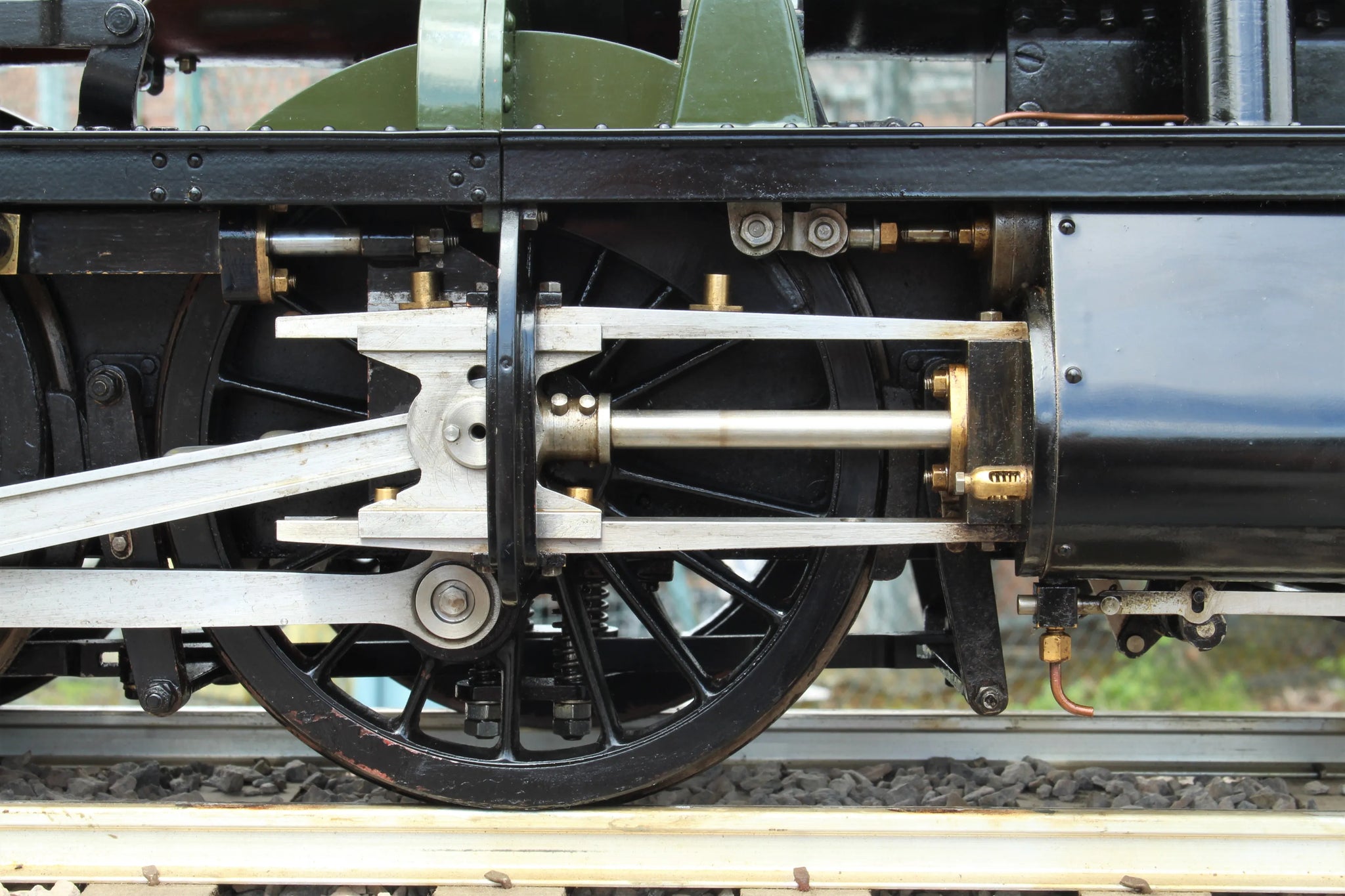

Valve gear

Stephensons

Reverser type

pole

Lubricator type

displacement with sight feed

Boiler maker

Kingswood Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

yes

Year built

2010

Boiler number

KB10004

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

3

Date out

Jun-19

Hydraulic test valid to

15-May-23

Steam test valid to

22-Jul-20
